The paper characterizes a composite with dispersion phases cast via the use of stir casting method on an aluminum matrix. A mixture of aluminum with Fex

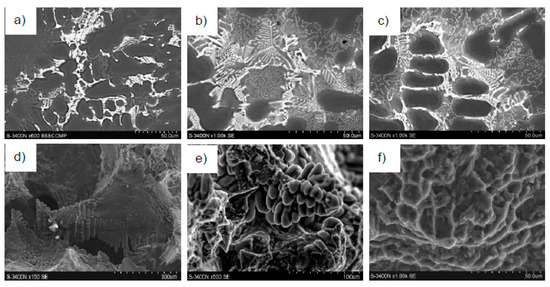

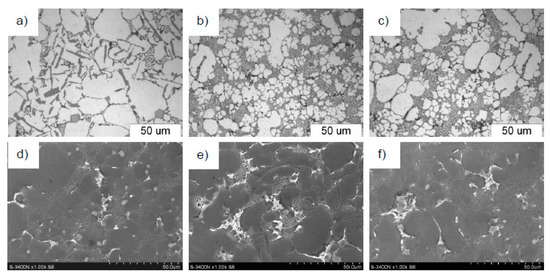

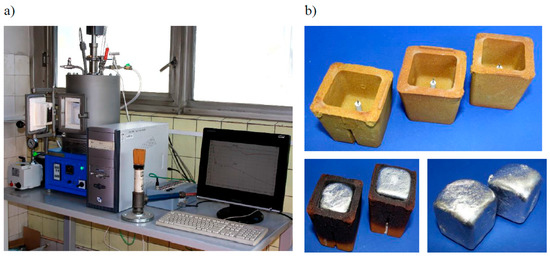

and SiC powders was achieved in the process of mechanical alloying and self-propagating high temperature synthesis (ASHS). Chemical composition of agglomerates was chosen in such a way that the strengthening components made up 25% of the mass of the AlSi10Mg0.5Mn0.6 (EN AC-43400) alloy matrix. The characteristic temperatures of crystallization of the tested alloy were measured by thermal analysis ATD (analysis thermal derivative). A change of chemical and phase composition was confirmed in the elements of the intermetallic phase FeAl in the aluminum matrix. A silumin casting structure was achieved, with the matrix including micro-areas of ceramic phases and intermetallic phases, which are characteristic for hybrid strengthening. A refinement of dendrites in solid solution α was found, together with a transition from a binary plate eutectic composition α(Al) + β(Si) into modified eutectic composition.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
