Enhanced Stress Corrosion Cracking Resistance of Ultrafine-Grained Cu-Cr-Zr Alloy Fabricated via Equal-Channel Angular Pressing

Abstract

The microstructure evolution and stress corrosion cracking (SCC) behaviors of ultrafine-grained (UFG) Cu-Cr-Zr alloys processed by equal-channel angular pressing (ECAP) and coarse-grain (CG) Cu-Cr-Zr alloys within NaNO₂ solution were systematically investigated in the current study. After deformation by eight ECAP passes, the grain size was refined to ~200 nm. The slow strain rate tensile (SSRT) tests showed that the ultimate tensile strength (UTS) of CG samples in solution was slightly lower than that in the air, and the elongation was decreased from 57.3% to 52.6%. In contrast, both the UTS and elongation of UFG samples in air and solution were almost identical. In NaNO₂ solution, the CG fracture surface showed an obvious dissolution, microvoids, and minor cracks, while the surface of the UFG fracture was relatively smooth. The resistance of UFG samples to SCC could be significantly enhanced compared with CG samples. The grain boundary volume fraction of UFG alloy was dramatically increased, which reduced the formation of pitting corrosion. In addition, the uniform distribution of Cr particles also improved the corrosion resistance of UFG alloys.

1. Introduction

Cu-Cr-Zr alloy is a typical precipitation-strengthened alloy with excellent mechanical properties, and is widely used in industrial fields involving high mechanical strength and high electrical conductivity, such as integrated circuit lead frames, continuous casting machine crystallizer lining, and the preparation of electric resistance welding electrodes [1,2,3]. Severe plastic deformation (SPD) is an effective method for improving the mechanical properties of materials and refining grains. Among them, ECAP (equal-channel angular pressing) is one of the most widely used technologies in SPD, and can produce an ultrafine-grained (UFG) structure in Cu-Cr-Zr alloy with superior mechanical properties [4,5]. Unfortunately, the serious corrosion failure problems of Cu alloys greatly limit their engineering applications [6,7]. Cu alloys are particularly susceptible to stress corrosion cracking (SCC) when subjected to the synergy of mechanical stress and corrosion medium. Recent studies have insufficiently focused on the SCC behaviors of UFG Cu alloys [8,9,10].

The corrosion behavior of UFG materials varies depending on the grain size, corrosive medium, and other factors [11,12]. Cu alloys are highly susceptible to SCC in NaNO₂ solutions. Rebak et al. [13] showed that in NaNO₂ solution with different pH values, the Cu alloy (brass) presented an obvious SCC behavior. Yamasaki et al. [14] reported that the resistance of the UFG Cu to SCC was higher than that of its coarse-grained (CG) counterpart in 1 M NaNO₂ solution.

Many previous reports on the improvement of the corrosion resistance for UFG Cu alloys are controversial. Wang et al. [15] studied the electrochemical properties of the nanocrystalline surfaces of a brass alloy produced by sandblasting and annealing, which proved that the nanocrystalline surface had higher resistance to corrosion. Sadawy et al. [16] reported that the bronze alloys subjected to ECAP exhibited higher corrosion resistance compared with the as-cast alloy. However, Vinogradov et al. [17] stated that the corrosion resistance of UFG Cu was significantly reduced in comparison with the CG sample. Therefore, it is extremely valuable to investigate the SCC behavior of UFG Cu alloy produced by ECAP. The aim of the current research was to clarify the influence the mechanism of grain refinement has on the SCC behavior of Cu-Cr-Zr alloy in NaNO₂ solutions and air. The as-cast Cu-Cr-Zr alloy with the CG microstructure was also studied as a reference, which opens a new window for the design of UFG Cu alloys with superior SCC resistance.

2. Materials and Methods

The actual chemical composition of the cast Cu-Cr-Zr alloy is shown in

Table 1. Actual chemical composition of the Cu-Cr-Zr alloy.

Alloy	Chemical Composition (wt.%)
	Cr	Zr	Fe	Ni	Pb	Zn	Cu
Cu-Cr-Zr	0.83–0.84	0.15–0.20	≤0.03	≤0.02	≤0.002	≤0.003	Bal.

. The alloys were fabricated via hot extrusion at a temperature of 880 °C, and then subjected to solution treatment at a temperature of 980 °C for 40 min followed by quenching in water. Part of the quenched rods were subjected to ECAP processing at room temperature for eight passes via route Bc (90 °C anticlockwise rotation of the samples after each ECAP pass). Then, all samples were aged at 450 °C for 3 h. The aging treatment was carried out in flowing Ar atmosphere in an electric resistance furnace with an accurate temperature control of ±5 °C. The microstructures of the samples were observed by optical microscopy (OM, OLYMPUS, Tokyo, Japan) and transmission electron microscopy (TEM, JEM-200CX, Tokyo, Japan) operating at 200 kV. The residual stress of specimens was measured by X-ray diffraction (XRD, Bruker, Karlsruhe, Germany). The tensional residual stress of the UFG specimen was larger than that of the CG specimen and their difference was 7 MPa, as shown in

Table 2. Residual stress of the Cu-Cr-Zr alloy after aging. CG: coarse-grained; UFG: ultrafine-grained.

Sample	CG	UFG
Average residual stress (MPa)	35	42

.

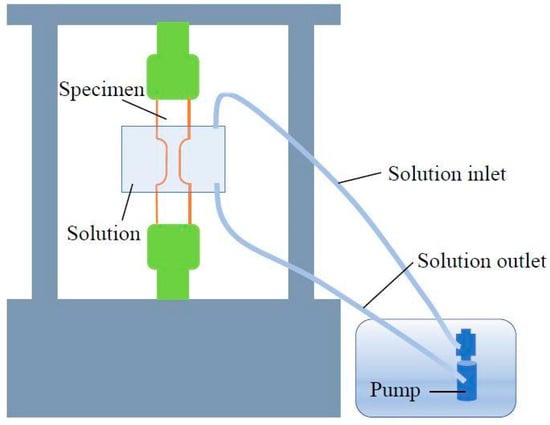

Slow strain rate technique (SSRT) tests were carried out to investigate the SCC behavior of Cu-Cr-Zr alloys under different conditions. SSRT tests were carried out on an Instron 1341 hydraulic servo fatigue machine (Instron 1341, London, UK) with a strain rate of 5 × 10⁻⁴ s⁻¹. A detailed schematic illustration is shown in Figure 1. Specimens of 6 × 2.5 mm² cross section and 6 mm gauge length were cut by spark erosion. The experimental medium was 1 M NaNO₂ solution. The solution was continuously pumped during the experiment in order to ensure that the gauge length of the entire stretching process was always immersed in the corrosive fluid. After failure, fracture morphologies were observed by scanning electron microscopy (SEM, Gemini SEM 300, Karlsruhe, Germany), and the fracture corrosion products were measured by XRD using Cu Kα radiation.

3. Results and Discussion

3.1. Microstructure

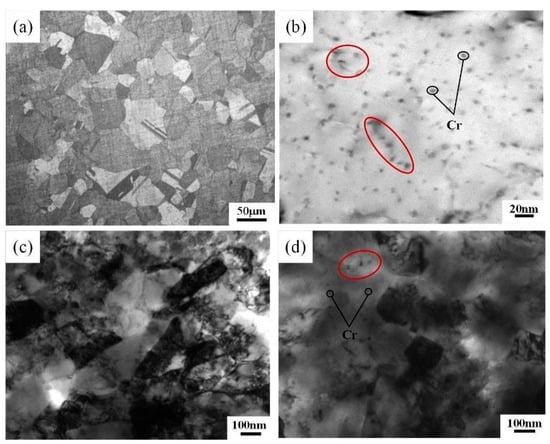

Figure 2 shows the OM and TEM micrographs of the CG and UFG Cu-Cr-Zr alloys, respectively. From Figure 2a, it can be seen that the grain boundaries of CG samples were very clear and took on near full equiaxial grain morphology with an average grain size of about 50 µm. There were very few dislocations within the grains, which was manifested by a completely recrystallized microstructure. The aging treatment led to the precipitation of high-density Cr particles with a diameter of 10 nm. Among them, a small part of Cr particles were concentrated within the grain (Figure 2b). ECAP processing caused significant grain refinement, and a large number of dislocations in the matrix can still be observed in Figure 2c. The average grain size of the UFG specimens were calculated as ~200 nm. After aging treatment, the dislocation density was remarkably reduced. In addition, the precipitation of Cr particles was less in comparison to CG alloys.

3.2. Stress Corrosion Behavior

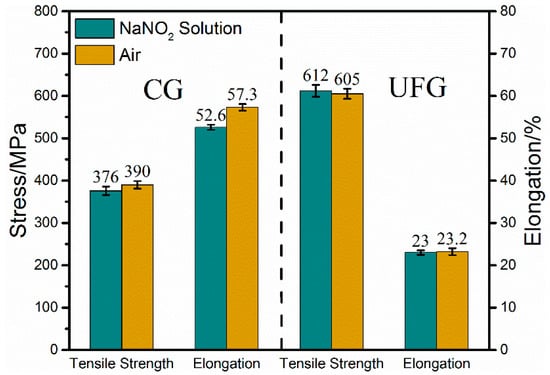

The ultimate tensile strength (UTS) and elongation values of the CG and UFG alloys (NaNO₂ solution and air) are displayed in Figure 3. The UFG alloys exhibited an ultra-high tensile yield strength as compared to the CG alloys, which was related to the intensive grain refinement effect derived from dynamic recrystallization behavior during the repeated ECAP process. The UTS of UFG Cu-Cr-Zr alloy in air and in the medium almost completely coincided. For the CG specimens, the UTS in the NaNO₂ solution was lower than that in air, and the degradation in elongation was more pronounced, from 57.3% to 52.6%. Thus, it becomes obvious that the resistance to SCC of the UFG Cu-Cr-Zr alloy was higher than that of the CG counterpart in 1 M NaNO₂ solution. To quantify the SCC susceptibility of the samples tested under different conditions, the SCC susceptibility index ($I_{\delta }$ and $I_{\sigma }$) was calculated by the decline in elongation and area reduction, which can be described by the following two equations:

$$I_{\delta }=\left(1-\frac{{\epsilon }_{UTS}^S}{{\epsilon }_{UTS}^A}\right)\times 100\%,$$

(1)

$$I_{\sigma }=\left(1-\frac{{\sigma }_{UTS}^S}{{\sigma }_{UTS}^A}\right)\times 100\%,$$

(2)

wherein ${\epsilon }_{UTS}^A$, ${\sigma }_{UTS}^A$, and $t_f^A$ represent the elongation, fracture strength, and fracture time in air, respectively. ${\epsilon }_{UTS}^S$, ${\sigma }_{UTS}^S$, and $t_f^S$ are the corresponding values in the NaNO₂ solution, respectively.

Table 3. Stress corrosion cracking (SCC) results of Cu-Cr-Zr alloys in 1 M NaNO₂ solution.

Parameter	Solution	${\mathit{\sigma }}_{\mathit{U}\mathit{T}\mathit{S}}\left(\mathbf{MPa}\right)$	$(\%)$	${\mathit{\epsilon }}_{\mathit{U}\mathit{T}\mathit{S}}(\%)$	${\mathit{I}}_{\mathit{\delta }}(\%)$	${\mathit{t}}_{\mathit{f}}\left(\mathbf{h}\right)$	$\frac{{\mathit{t}}_{\mathit{f}}^{\mathit{A}}}{{\mathit{t}}_{\mathit{f}}^{\mathit{S}}}$
CG Cu-Cr-Zr	NaNO2	376	3.6	52.6	8.4	14	1.14
	In air	390		57.3		16
UFG Cu-Cr-Zr	NaNO2	612	–1.2	23	0.9	6.38	1.01
	In air	605		23.2		6.43

summarizes the change and decrease in terms of strength and plasticity, respectively, for the comparison of their mechanical properties. $I_{\delta }$ and $I_{\sigma }$ were significantly decreased by ECAP. The analysis above indicates that to a certain extent, the SCC susceptibility of UFG Cu-Cr-Zr alloy was smaller than that for its CG counterpart.

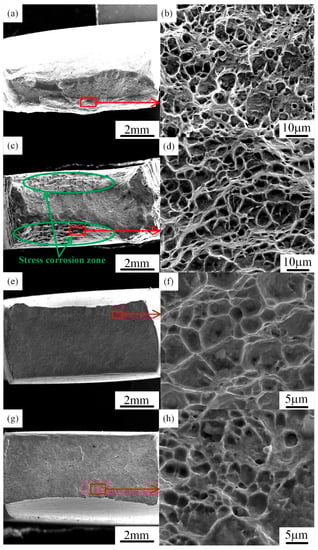

Figure 4 shows the fracture morphologies tested in air and NaNO₂ solution, respectively. The CG samples showed an obvious dissolution, microvoids, and minor cracks in NaNO₂ solution compared to in air, and a stress corrosion zone was clearly visible (Figure 4c). On the contrary, the fracture surface of the UFG specimen was essentially the same in air as in solution, and the surface was flat without large corrosion ditches (Figure 4e,g). Therefore, the stress of SCC in the CG sample was much lower than that of ${\sigma }_{UTS}$, while the UFG sample appeared to be immune to SCC until it was close to the relatively high stress of ${\sigma }_{UTS}$. The characteristics of CG and UFG specimens fracture surface failure in NaNO₂ solution were similar to those observed by Yamasaki [14]. The stress corrosion of CG samples in NaNO₂ solution was generally a transgranular fracture mode. For both types of specimens, fracture dimples were significantly different. The dimples of CG samples were large and the crack aggregation and diffusion ability was strong (Figure 4d), suggesting that when in solution it underwent enormous losses in ductility and strength, therefore indicating a very high SCC susceptibility compared to the UFG alloys. It also showed a transgranular dimple fracture. A typical dimpled structure can be observed in Figure 4f,h. When UFG samples were tested in air and in solution, fine and dense dimples were observed in the fracture. They were corroded uniformly when the aggressive ions attacked their surfaces. Intergranular SCC occurred in UFG Cu-Cr-Zr alloys, which was attributed to its high grain boundary volume fraction, and the grain boundary weakening due to chemical corrosion and stress corrosion along grain boundaries [16].

3.3. SCC Mechanism

The enhanced SCC resistance of the ECAP alloy was mainly related to the UFG structure and its high volume fraction of grain boundaries because the tensional residual stress of UFG alloys was greater than that of CG alloys. It is necessary to analyze the change in the microstructure from plastic deformation and the degree of localization of corrosion damage. Among them, grain size is an important factor that affects the corrosion resistance of metals. After plastic deformation, the increase of volume fraction of grain boundary reduces the local corrosion rate and the chance of pitting. Grain refinement has been demonstrated to improve the corrosion resistance [18,19]. The 409 stainless steel enables surface nanocrystallization by surface mechanical attrition treatment, which promotes passivation film formation and improves corrosion resistance [20]. ECAP-produced UFG Ti exhibited an improved corrosion resistance in artificial seawater, compared with CG Ti [21]. It was found in a previous study [22] that compared with CG materials, a large number of grain boundaries in UFG alloys enhance the passivation kinetics, and the mismatch between the passive film and metal matrix is reduced. In addition, grain refinement can improve the resistance to crack growth. ECAP processing can bring a homogenous structure, which is conducive to the occurrence of even corrosion. The consistency between the grain interiors and the grain boundary will be improved, which effectively restricts the local corrosion behavior. It has been reported [19,23] that the grain interiors after ECAP had higher energy storage and promoted the passivation–repassivation process, thereby improving the corrosion resistance of the grains. Therefore, a large stress corrosion zone area was observed in the CG fracture (Figure 4c). In a neutral or alkaline environment, the corrosion of Cu-Cr-Zr alloys are listed as follows [13,17,24]:

Anode reaction:

Cu → Cu⁺ +e⁻,

(3)

Cu → Cu²⁺ + 2e²⁻,

(4)

Cr→Cr³⁺+ 3e⁻,

(5)

Zr → Zr⁴⁺ + 4e⁻

(6)

Cathodic reaction:

O₂ + 2H₂O + 4e⁻ → 4OH⁻.

(7)

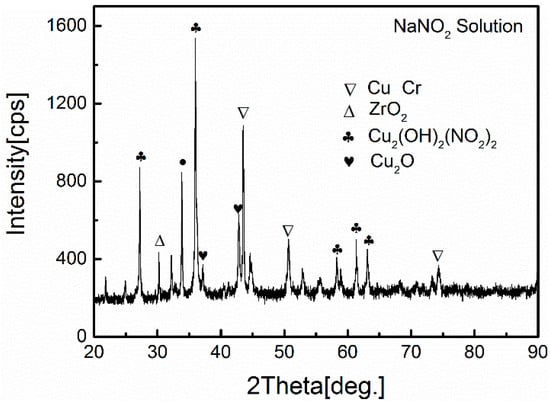

Figure 5 shows the X-ray diffraction patterns of the fracture surface. The XRD analysis indicated the presence of diffraction peaks of Cu₂O and ZrO₂ on the surface of the samples. At the same time, Cu₂(OH)₂(NO₂)₂ also appeared on the surface of the substrate. The formation of passivation film in NaNO₂ solution on the surface of the investigated alloys may involve the following electrochemical steps [13]:

Zr⁴⁺ + O₂ → ZrO₂,

(8)

4Cu + O₂ → 2Cu₂O,

(9)

Cu²⁺ + NO₂⁻ → CuNO₂⁺,

(10)

Cu²⁺ + 2NO₂⁻ → Cu(NO₂)₂,

(11)

Cu²⁺ + 2NO₂⁻ + 2OH⁻ → Cu₂(OH)₂(NO₂)₂.

(12)

The metal surface is contacted with a NaNO₂ solution in which copper dissolves the anode, and partially dissolved copper will exist as a moderately stable complex. The UFG samples could not form a new sufficiently stable protective film on the original Cu₂O and CuO protective film in the NaNO₂ solution. The bare metal surface could catalyze the formation of NH₄⁺ by NO₂⁻ ions at the crack tip, while the NH₄⁺ ion can form Cu(NH₃)₂⁺ ions complex with Cu⁺ ions, which promotes the dissolution of Cu and leads to the occurrence of stress corrosion cracking behavior [25].

According to the microstructure analysis, the precipitate phase of the UFG Cu-Cr-Zr alloy was a pure Cr phase in the form of bcc and Cu_xZr_y [26,27]. After aging treatment, Cr and Zr improved the strength of the material through solid solution strengthening, namely high-temperature solid solution and low-temperature precipitation. It is also important that the distribution of Cr in the matrix affected the corrosion of UFG alloys. After the aging, the Cr particles precipitated by CG alloys were partially accumulated on the grain interiors (Figure 2b), resulting in a heterogeneous microstructure, which affected the formation of the passivation film. On the contrary, the uniform distribution of Cr in UFG alloy greatly improved the corrosion. The uniform distribution of Cr brought about the decrease of the electrochemical potential difference between Cu matrix and Cr particles.

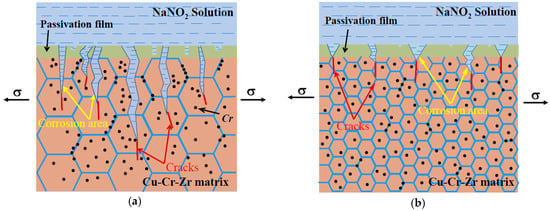

To clarify the effect of the two samples’ corrosion processes in the NaNO₂ solution, the overall schematic illustration is shown in Figure 6. Generally, as the experiment progressed, the area around the sample suffered from localized corrosion, and the localized corrosion areas could further expand [16]. Figure 6a shows transgranular corrosion and transgranular SCC, and Figure 6b shows intergranular corrosion and intergranular SCC. For the CG samples, the severity of localized corrosion and the number of microvoids were greater than in the UFG samples tested in NaNO₂ solution. The surface film of the CG samples was continuously destroyed, and severe stress corrosion occurred in the fracture (Figure 4c). An obviously preferential grain boundary degradation and selective corrosion of some grain interiors was observed in CG Cu-Cr-Zr alloys. At the same time, the uneven distribution of Cr particles and the increase of grain boundary defects made the chemical activity of the surface layer inconsistent, which prevented the growth of the passivation film at these active sites (Figure 6a). This caused the passivation film to grow irregularly, which contained more ion vacancies. The passivation film was also more susceptible to damage, and the passivation ability was weakened. On the contrary, the corrosion area of the UFG alloy was much smaller compared with that of the CG alloy, due to the increased volume fraction of grain boundaries. The SEM micrographs (Figure 4f,h) illustrate the intergranular SCC. Grain boundaries can act as a barrier to the development of corrosion [23]. The UFG alloys greatly hindered further corrosion of the solution due to the high grain boundary ratio. Finally, this caused the significant SCC difference between UFG and ordinary CG Cu-Cr-Zr alloys.

4. Conclusions

The sensitivity of CG and UFG Cu-Cr-Zr alloys to SCC in air and 1 M NaNO₂ solution was studied by SSRT. The results show that the UFG sample represented an ultra-low SCC sensitivity under the corrosion condition of 1 M NaNO₂ solution. The tensile curves in air and medium were almost identical, indicating that the corrosive medium and the small amount of stress corrosion cracking had no significant effect on the mechanical properties of the UFG samples. In the NaNO₂ solution, only the CG sample was subjected to stress corrosion. The CG sample fracture showed considerable dissolution, microvoids, and minor cracks, while the surface of the UFG sample was smooth. The ECAP processing caused an increase in the volume fraction of grain boundaries, which blocked the further occurrence of local corrosion behavior. On the other hand, the Cr particles were uniformly distributed in the UFG alloys, which reduced the electrochemical potential difference between Cu matrix and Cr particles, thereby improving the quality of the passivation film. Therefore, the ECAP process is an effective approach for the design of Cu-Cr-Zr alloys with superior SCC resistance in the future.
