Isochronal Phase Transformation in Bimodal Ti-55531
Abstract
:1. Introduction
2. Materials and Methods
3. Results
3.1. Dilatometric Behaviors
3.2. Microstructure Observation

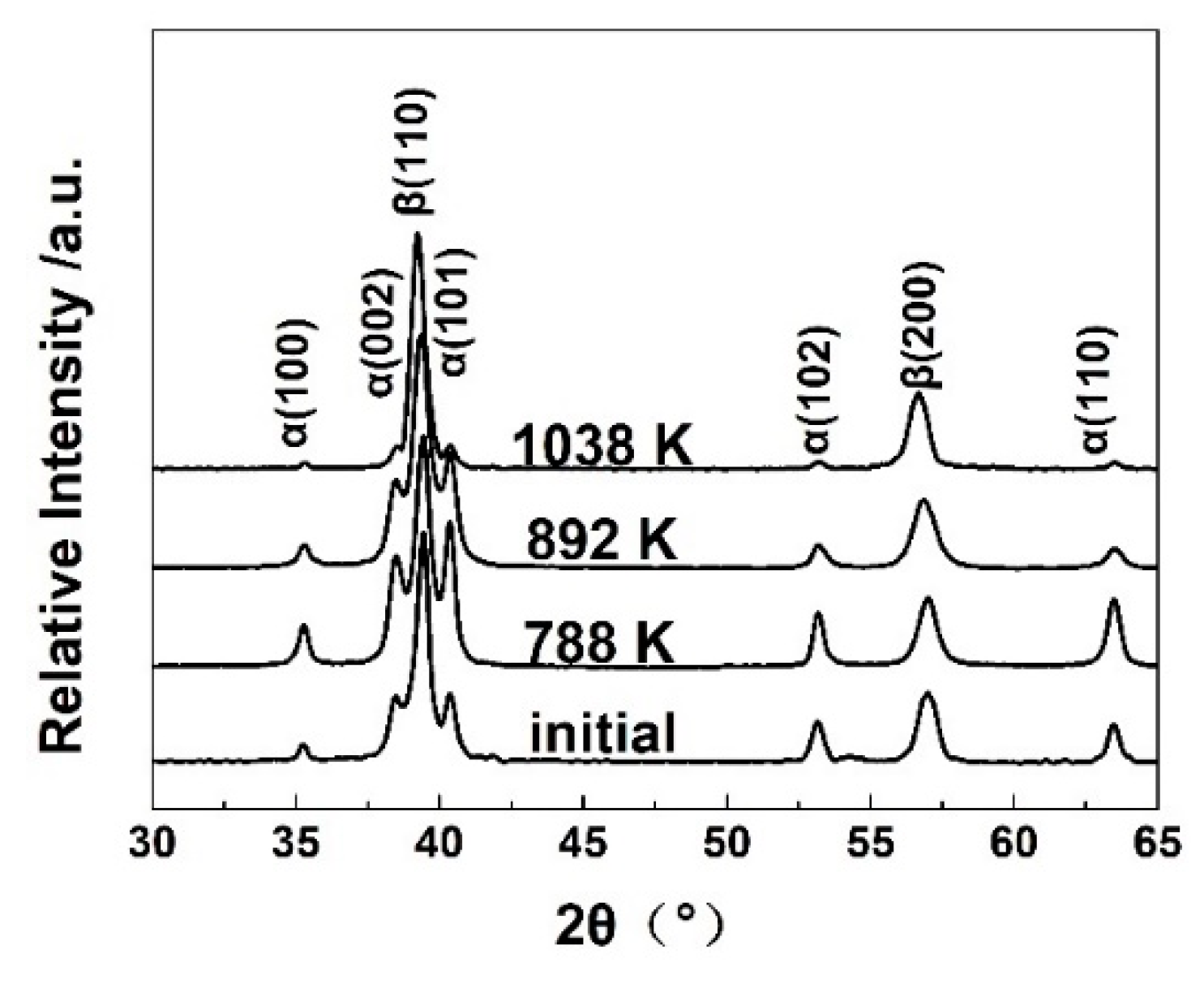

3.3. Phase Identification
4. Discussion
5. Conclusions
- Only β → αacicular transformation took place at 678 K, and the αglobular was not involved. When heated up to 788 K, α → β transformation occurred. The α → β phase transformation included two stages; αacicular → β and αglobular → β transformations dominated in different temperature ranges. The dissolution of αacicular terminated before the start of αglobular dissolution.
- The expansion/contraction behaviors in the dilatometry test were the thermal presentations of phase transformation. α precipitation was associated with expansion due to the increase of α volume. The expansion in the dissolution of α was associated with the synergetic effect of thermodynamics and kinetics on elements partitioning between α and β phases.
- The dissolution of α was affected by the morphology. The average activation energy for αacicular → β transformation was 176.58 kJ/mol, while that of the αglobular → β transformation was 269.65 kJ/mol in the Ti-55531 alloy. The differences in activation energy and rate originated from the difference in the chemical composition and interface curvature between two α phases.
Author Contributions
Funding
Conflicts of Interest
References
- Cotton, J.D.; Briggs, R.D.; Boyer, R.R.; Tamirisakandala, S.; Russo, P.; Shchetnikov, N.; Fanning, J.C. State of the art in beta titanium alloys for airframe applications. JOM 2015, 67, 1281–1303. [Google Scholar] [CrossRef]
- Boyer, R.R. An overview on the use of titanium in the aerospace industry. Mater. Sci. Eng. A 1996, 213, 103–114. [Google Scholar] [CrossRef]
- Raghunathan, S.L.; Stapleton, A.M.; Dashwood, R.J.; Jackson, M.; Dye, D. Micromechanics of Ti–10V–2Fe–3Al: In situ synchrotron characterisation and modelling. Acta Mater. 2007, 55, 6861–6872. [Google Scholar] [CrossRef]
- Ivasishin, O.M.; Markovsky, P.E.; Matviychuk, Y.V.; Semiatin, S.L.; Ward, C.H.; Fox, S. A comparative study of the mechanical properties of high-strength β-titanium alloys. J. Alloys Comp. 2008, 457, 296–309. [Google Scholar] [CrossRef]
- Barriobero-Vila, P.; Requena, G.; Schwarz, S.; Warchomicka, F.; Buslaps, T. Influence of phase transformation kinetics on the formation of α in a β-quenched Ti–5Al–5Mo–5V–3Cr–1Zr alloy. Acta Mater. 2015, 95, 90–101. [Google Scholar] [CrossRef]
- Chen, F.; Xu, G.; Zhang, X.; Zhou, K. Exploring the Phase Transformation in β-Quenched Ti-55531 alloy during continuous heating via dilatometric measurement, microstructure characterization, and diffusion analysis. Metall. Mater. Trans. A 2016, 47, 5383–5394. [Google Scholar] [CrossRef]
- Chen, F.W.; Xu, G.; Zhang, X.Y.; Zhou, K.C.; Cui, Y. Effect of α morphology on the diffusional β↔α transformation in Ti–55531 during continuous heating: Dissection by dilatometer test, microstructure observation and calculation. J. Alloys Comp. 2017, 702, 352–365. [Google Scholar] [CrossRef]
- Huang, C.; Zhao, Y.; Xin, S.; Zhou, W.; Li, Q.; Zeng, W. Effect of microstructure on tensile properties of Ti–5Al–5Mo–5V–3Cr–1Zr alloy. J. Alloys Comp. 2017, 693, 582–591. [Google Scholar] [CrossRef]
- Huang, C.; Zhao, Y.; Xin, S.; Zhou, W.; Li, Q.; Zeng, W.; Tan, C. High cycle fatigue behavior of Ti–5Al–5Mo–5V–3Cr–1Zr titanium alloy with bimodal microstructure. J. Alloys Comp. 2017, 695, 1966–1975. [Google Scholar] [CrossRef]
- Huang, C.; Zhao, Y.; Xin, S.; Tan, C.; Zhou, W.; Li, Q.; Zeng, W. High cycle fatigue behavior of Ti–5Al–5Mo–5V–3Cr–1Zr titanium alloy with lamellar microstructure. Mater. Sci. Eng. A 2017, 682, 107–116. [Google Scholar] [CrossRef]
- Clément, N. Phase Transformations and Mechanical Properties of the Ti-5553 Beta-Metastable Titanium Alloy. Ph.D Thesis, Polytech Louvain, Louvain, Belgium, 2010; p. 324. [Google Scholar]
- Welk, B.A. Microstructural and Property Relationships in Titanium Alloy Ti–5553. Ph.D. Thesis, The Ohio State University, Columbus, OH, USA, 2010. [Google Scholar]
- Xin, S.W.; Zhao, Y.Q. Discussion about the heat treatment and precipitated phases of titanium alloy. Heat Treat. Met. 2006, 31, 39–42. [Google Scholar]
- Warchomicka, F.; Poletti, C.; Stockinger, M. Study of the hot deformation behaviour in Ti–5Al–5Mo–5V–3Cr–1Zr. Mater. Sci. Eng. A 2011, 528, 8277–8285. [Google Scholar] [CrossRef]
- Qin, D.; Lu, Y.; Guo, D.; Zheng, L.; Liu, Q.; Zhou, L. Tensile deformation and fracture of Ti–5Al–5V–5Mo–3Cr–1.5 Zr–0.5 Fe alloy at room temperature. Mater. Sci. Eng. A 2013, 587, 100–109. [Google Scholar] [CrossRef]
- Straumal, B.B.; Kogtenkova, O.A.; Straumal, A.B.; Kuchyeyev, Y.O.; Baretzky, B. Contact angles by the solid-phase grain boundary wetting (coverage) in the Co–Cu system. J. Mater. Sci. 2010, 45, 4271–4275. [Google Scholar] [CrossRef]
- Mazilkin, A.A.; Abrosimova, G.E.; Protasova, S.G.; Straumal, B.B.; Schütz, G.; Dobatkin, S.V.; Bakai, A.S. Transmission electron microscopy investigation of boundaries between amorphous “grains” in Ni50Nb20Y30 alloy. J. Mater. Sci. 2011, 46, 4336–4342. [Google Scholar] [CrossRef]
- Kissinger, H.E. Variation of peak temperature with heating rate in differential thermal analysis. J. Res. Natl. Bur. Stand. 1956, 57, 217–221. [Google Scholar] [CrossRef]
- Wang, Y.; Kou, H.; Chang, H.; Zhu, Z.; Su, X.; Li, J.; Zhou, L. Phase transformation in TC21 alloy during continuous heating. J. Alloys Comp. 2009, 472, 252–256. [Google Scholar] [CrossRef]
- Gridnev, V.N.; Ivasishin, O.M.; Markovskii, P.E. Influence of heating rate on the temperature of the (α + β)→β-transformation of titanium alloys. Met. Sci. Heat Treat. 1985, 27, 43–48. [Google Scholar] [CrossRef]
Element | wt. % | at. % | Type | |
---|---|---|---|---|
Major | Ti | Balance | - | |
Component | Al | 5.20 | 9.16 | α-stabilizer |
Mo | 4.92 | 2.44 | β-stabilizer | |
V | 4.96 | 4.63 | β-stabilizer | |
Cr | 2.99 | 2.73 | β-stabilizer | |
Zr | 1.08 | 0.56 | neutral element | |
Trace element | Fe | 0.402 | 0.34 | - |
Si | 0.078 | 0.13 | - | |
O | 0.075 | 0.22 | - | |
N | 0.005 | 0.02 | - | |
H | 0.001 | 0.05 | - |
Temperature (K) | Globular α | Acicular α | Total α Fraction from SEM (vol. %) | Total α Fraction from XRD (vol. %) | |||
---|---|---|---|---|---|---|---|
Average Diameter (μm) | Volume Fraction (vol. %) | Average Length (μm) | Average Width (μm) | Volume Fraction (vol. %) | |||
298 | 1.49 ± 0.10 | 27.02 ± 1.84 | 0.097 ± 0.018 | 0.050 ± 0.008 | 24.48 ± 1.69 | 51.49 ± 2.53 | 52.65 |
678 | 1.47 ± 0.10 | 27.35 ± 1.68 | 0.098 ± 0.021 | 0.047 ± 0.007 | 24.23 ± 1.72 | 51.58 ± 2.25 | - |
756 | 1.43 ± 0.11 | 28.98 ± 1.76 | 0.146 ± 0.029 | 0.061 ± 0.008 | 24.98 ± 1.86 | 53.95 ± 2.01 | - |
788 | 1.46 ± 0.10 | 28.08 ± 1.92 | 0.202 ± 0.024 | 0.073 ± 0.006 | 26.41 ± 1.54 | 54.49 ± 1.93 | 56.98 |
892 | 1.46 ± 0.10 | 27.78 ± 1.65 | 0.175 ± 0.017 | 0.068 ± 0.009 | 24.84 ± 1.60 | 52.62 ± 2.25 | 54.37 |
938 | 1.50 ± 0.10 | 28.48 ± 1.47 | 0.147 ± 0.019 | 0.061 ± 0.008 | 12.73 ± 1.01 | 41.21 ± 1.87 | - |
975 | 1.45 ± 0.11 | 28.08 ± 1.03 | - | - | - | 28.08 ± 1.03 | - |
990 | 1.39 ± 0.90 | 23.80 ± 1.01 | - | - | - | 23.80 ± 1.01 | - |
1038 | 0.46 ± 0.03 | 4.63 ± 0.67 | - | - | - | 4.63 ± 0.67 | 6.83 |
1123 | - | - | - | - | - | - | - |
Temperature Range | Selected Characteristic Temperatures | Dilatometric Behavior | Observed Phase Transformation |
---|---|---|---|
678–788 K | 678, 756, 788 K | Expansion | β → αacicular |
788–975 K | 892,938, 975 K | Expansion | αacicular → β |
975–1104 K | 990, 1038 K | Expansion | αglobular → β |
>1104 K | 1120 K | Ending platform | Full β state |
H (K/min) | Acicular α dissolution Tp1 (K) | Globular α dissolution Tp2 (K) |
---|---|---|
1 | 892 | 1035 |
3 | 926 | 1069 |
5 | 946 | 1088 |
8 | 969 | 1100 |
