The Analytical Model of Stress Zone Formation of Ti4Al4V/AA1050/AA2519 Laminate Produced by Explosive Bonding

1
Faculty of Mechanical Engineering, Military University of Technology, 2 gen. S. Kaliskiego str., 00-908 Warsaw, Poland
2
Faculty of Mechanical Engineering, University of Technology, 45c Wiejska str., 15351 Bialystok, Poland
3
Faculty of Mathematics, Physics and Technology, Kazimierz Wielki University, 30 J. K. Khotkiewicha str., 85064 Bydgoszcz, Ukraine
4
Faculty of Civil Engineering and Design, Lutsk National Technical University, 75 Lvivska Str., 43018 Lutsk, Ukraine
*
Author to whom correspondence should be addressed.
Metals 2019, 9(7), 779; https://doi.org/10.3390/met9070779
Received: 27 June 2019 / Accepted: 10 July 2019 / Published: 12 July 2019
(This article belongs to the Special Issue Explosive Welding)
  |
PDF [4721 KB, uploaded 12 July 2019]
  |

Abstract

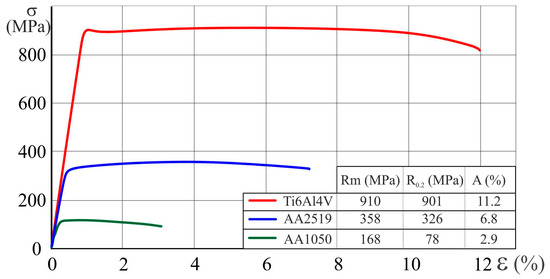

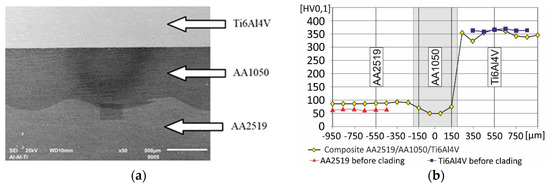

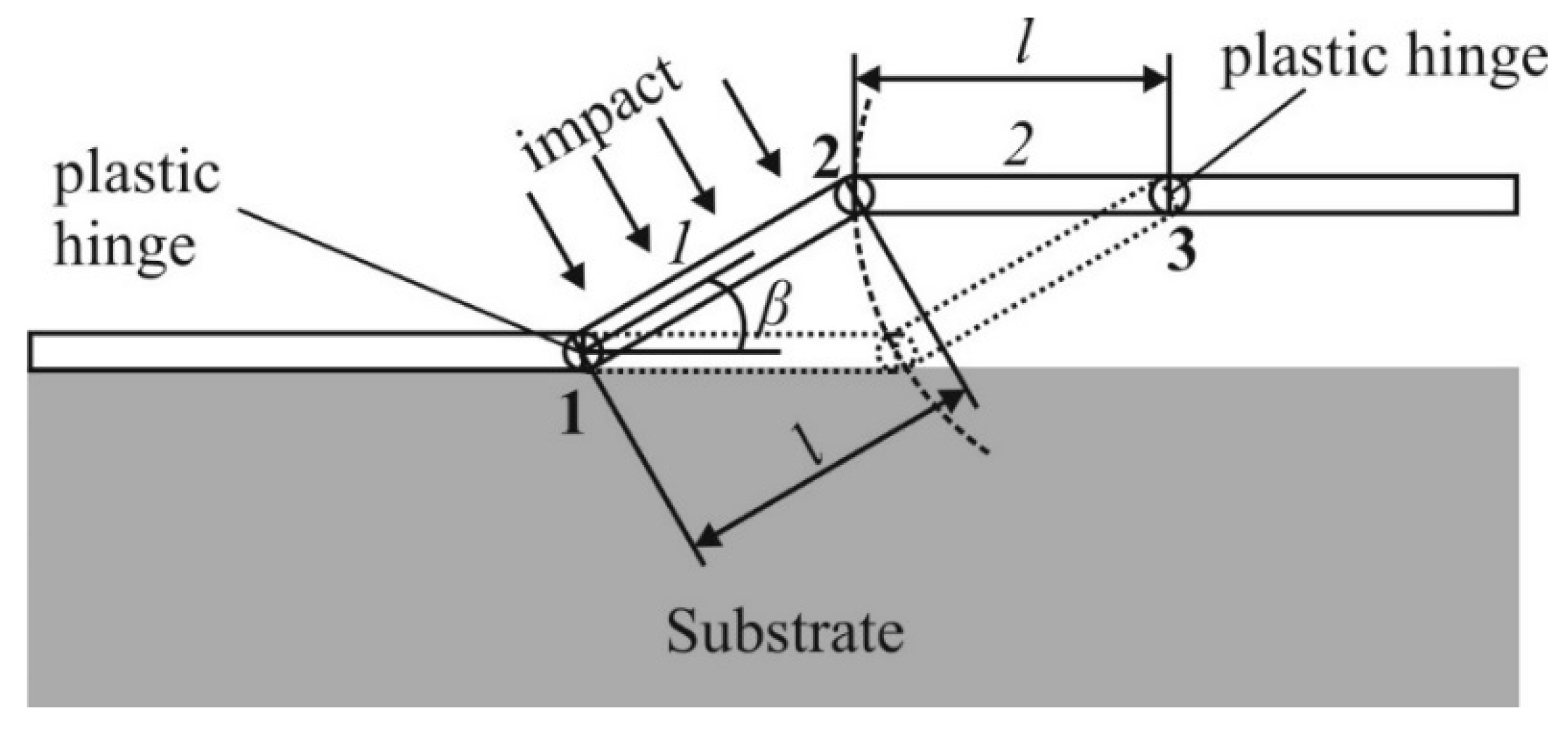

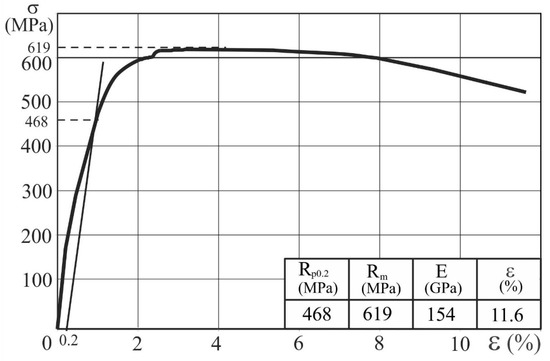

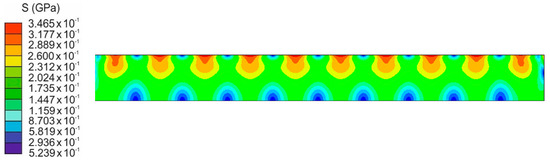

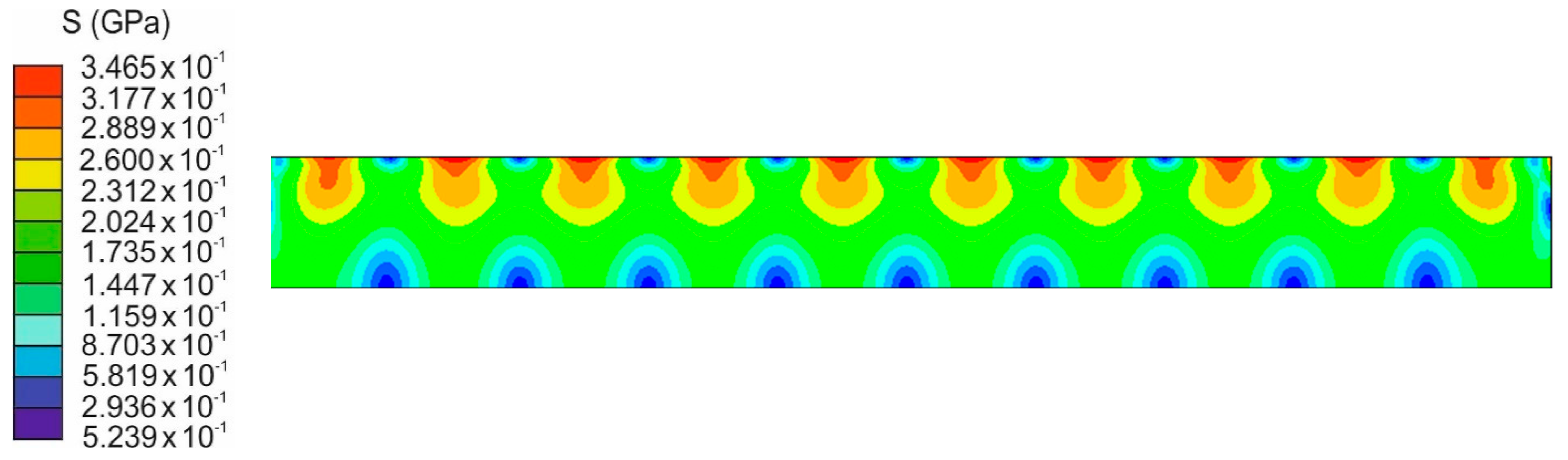

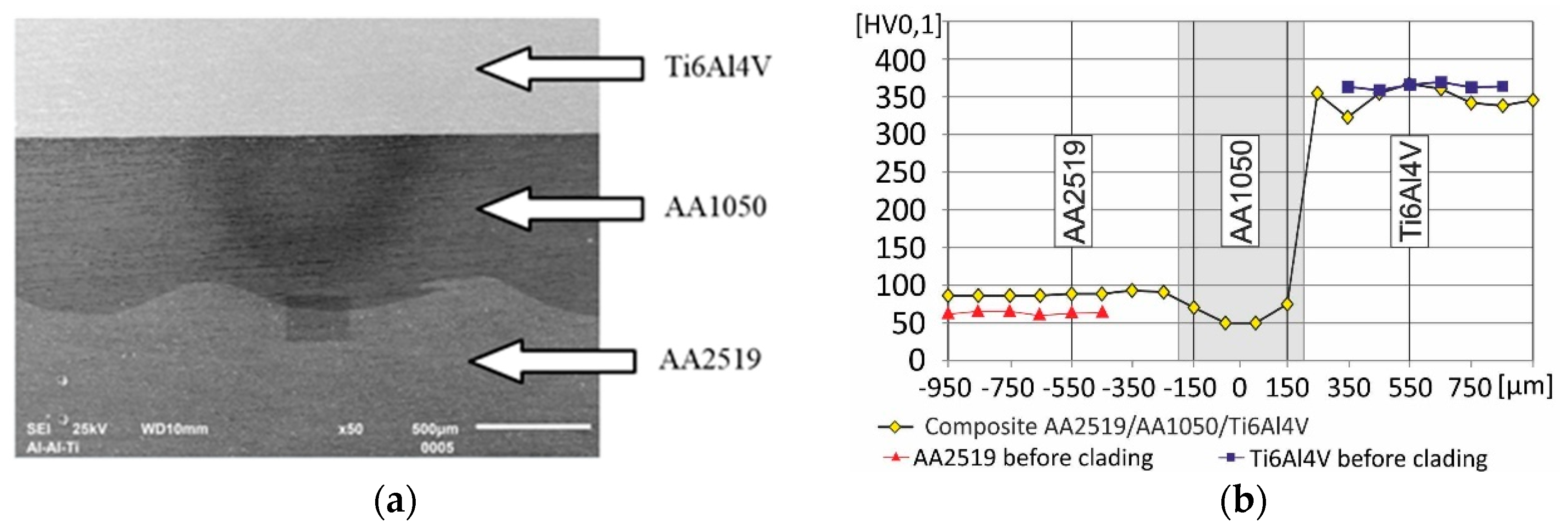

This paper contains an analytical description of the deformation of the upper layer AA2519/AA1050/Ti6Al4V laminate produced by an explosive bonding method. The basic parameters of the explosive welding process that influence the quality of the bonding are the detonation velocity of the explosive, the explosion energy, and the impact angle of the combined materials. The developed description uses the theory of elastodynamic character of materials deformation at the connection point due to local traction load. The presence of high pressure during joining was limited to the region where the plane surface moving with a constant subsonic velocity. An analytical description of the residual stresses distribution was also a performer. Results of analytical investigations were verified by structure examination of the bond zone. The work was supplemented by the chemical composition analysis of the base materials and a monotonic stretching test characterizing the basic mechanical properties of the produced laminate. View Full-Text
Keywords: explosive welding; elastodynamic; aluminum; titanium explosive welding; elastodynamic; aluminum; titanium
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
