Next Article in Journal
Construction of Cellular Substructure in Laser Powder Bed Fusion
Next Article in Special Issue
New Insights into the Microstructural Changes During the Processing of Dual-Phase Steels from Multiresolution Spherical Indentation Stress–Strain Protocols
Previous Article in Journal
Effect of Deposition Parameters on Microstructure of the Ti-Mg Immiscible Alloy Thin Film Deposited by Multi-Arc Ion Plating
Previous Article in Special Issue
Effect of Welding Heat Input on Simulated HAZ Areas in S960QL High Strength Steel
Open AccessArticle

Study of Nanometer-Sized Precipitation and Properties of Fire Resistant Hot-Rolled Steel

1
Collaborative Innovation Center of Steel Technology, University of Science and Technology Beijing, Beijing 100083, China
2
Technical Center of Inner Mongolia Baotou Steel Union Co., Ltd., Baotou 014010, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(11), 1230; https://doi.org/10.3390/met9111230
Received: 27 October 2019 / Revised: 13 November 2019 / Accepted: 13 November 2019 / Published: 18 November 2019
(This article belongs to the Special Issue High-Strength Low-Alloy Steels)

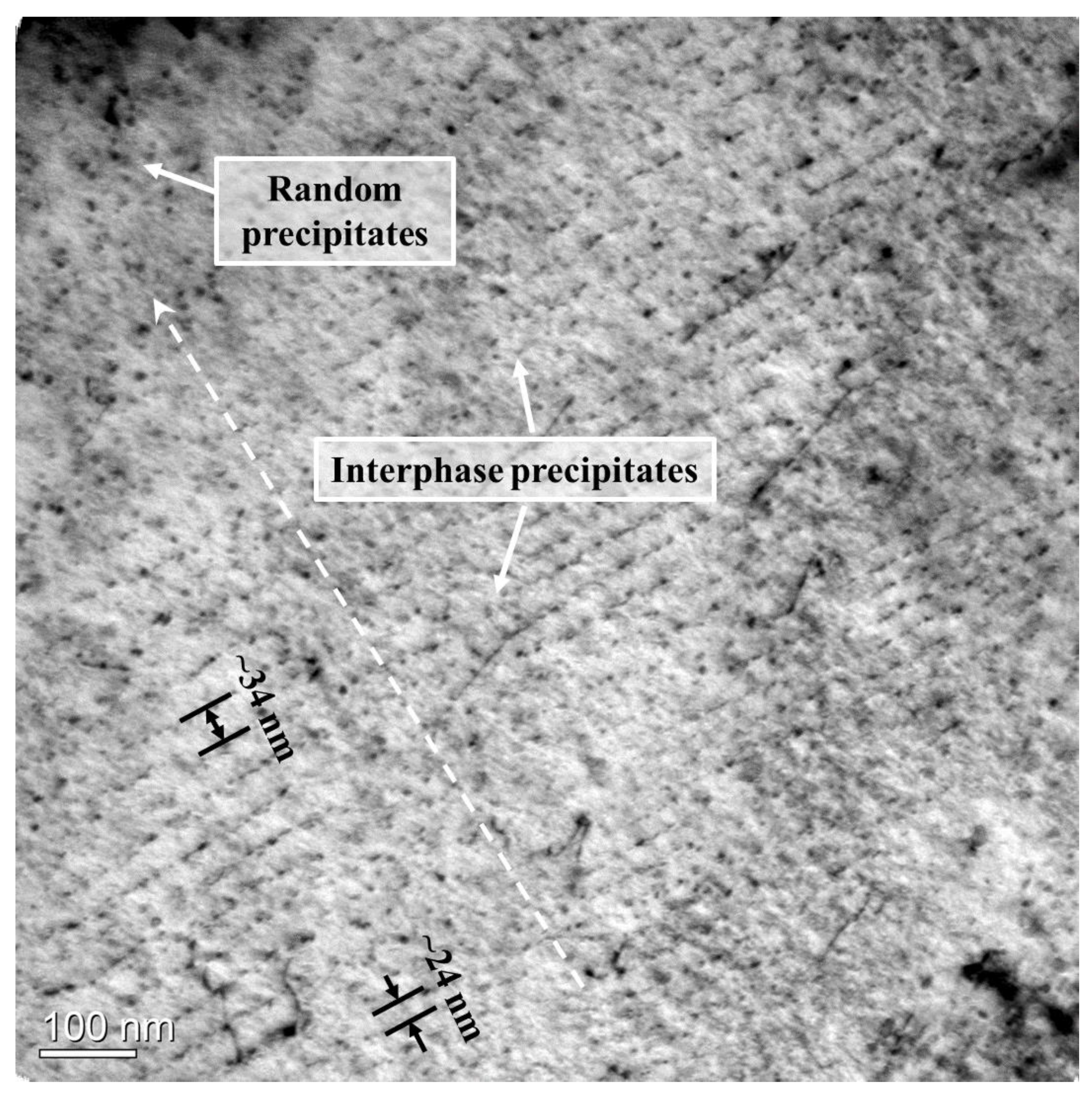

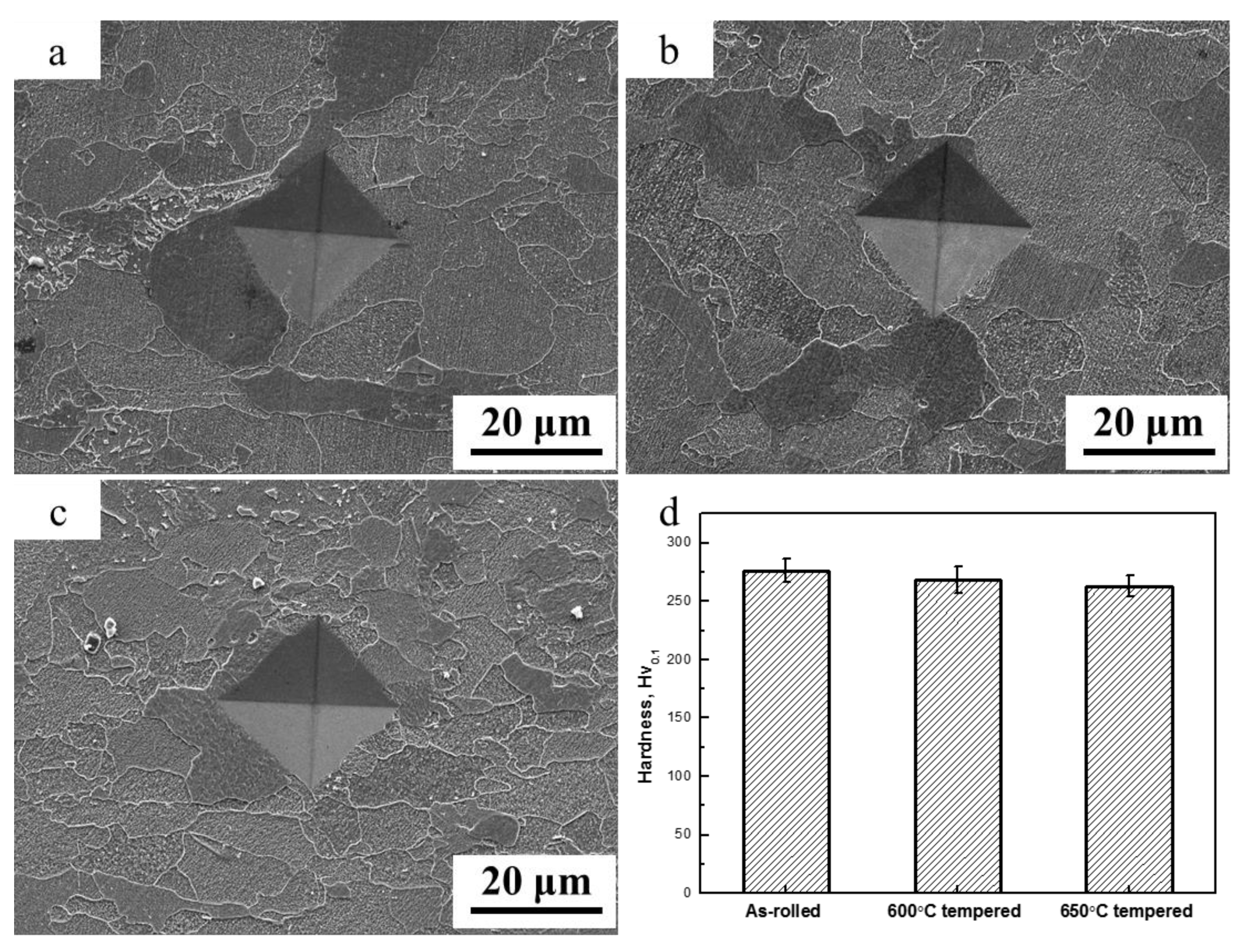

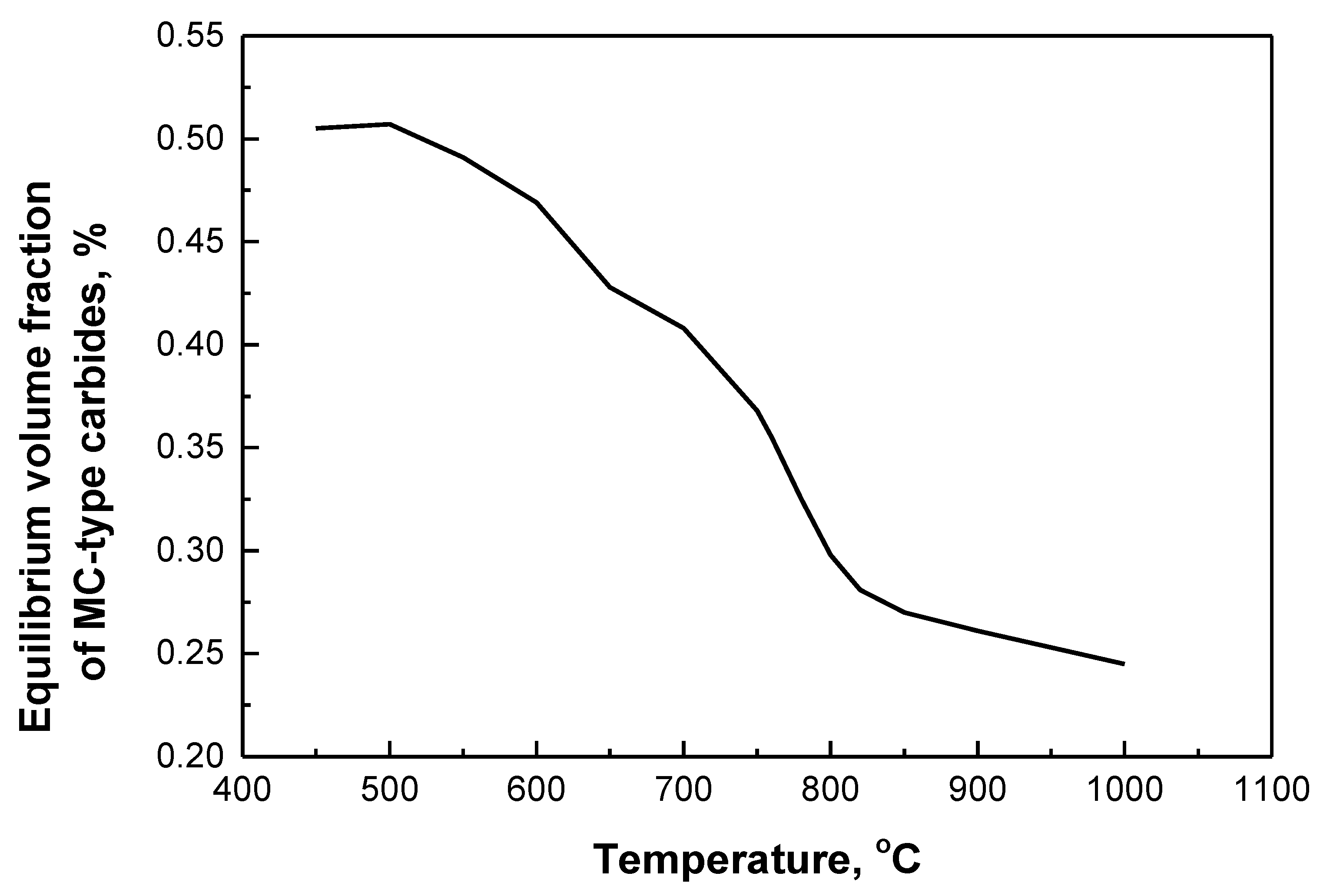

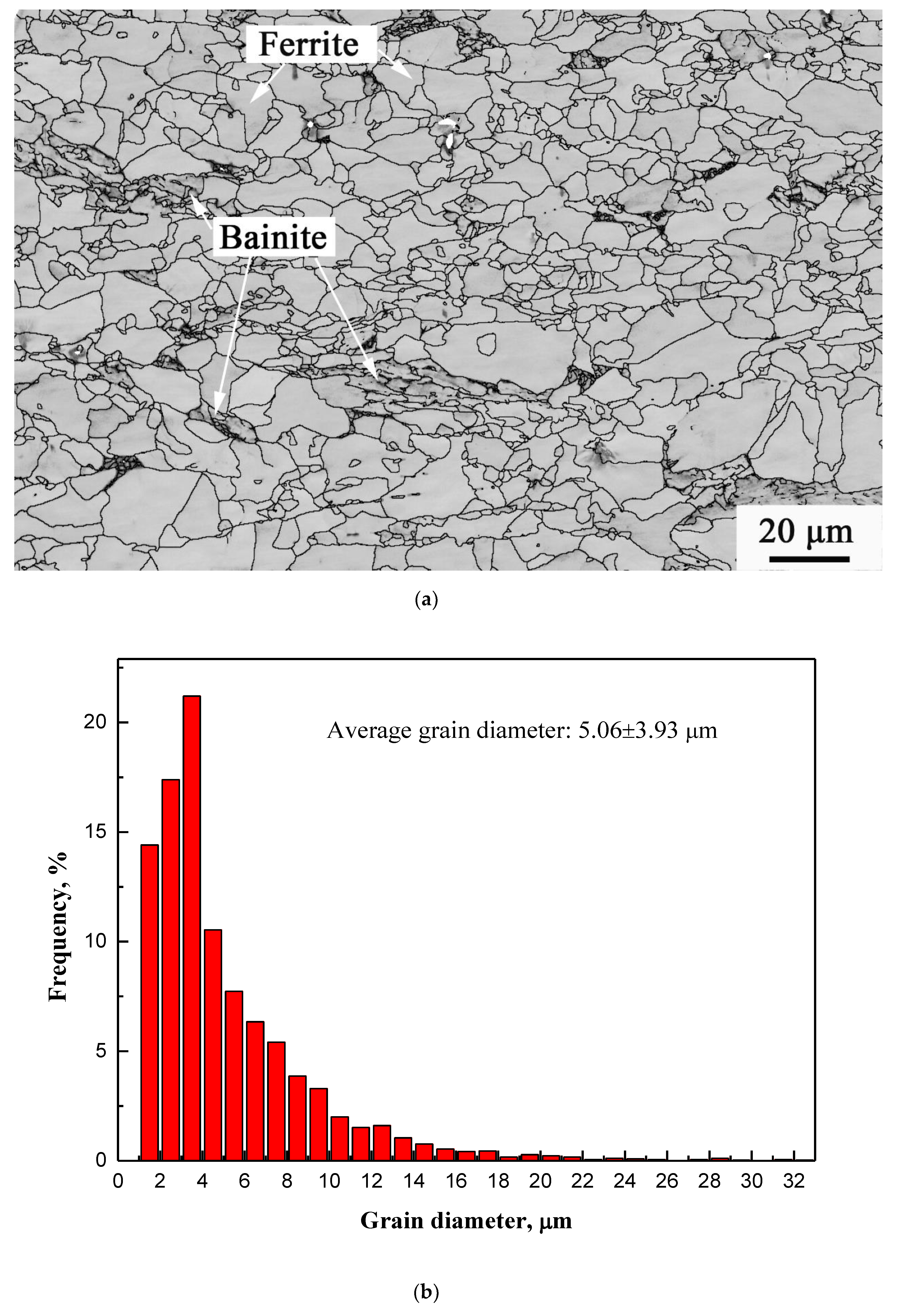

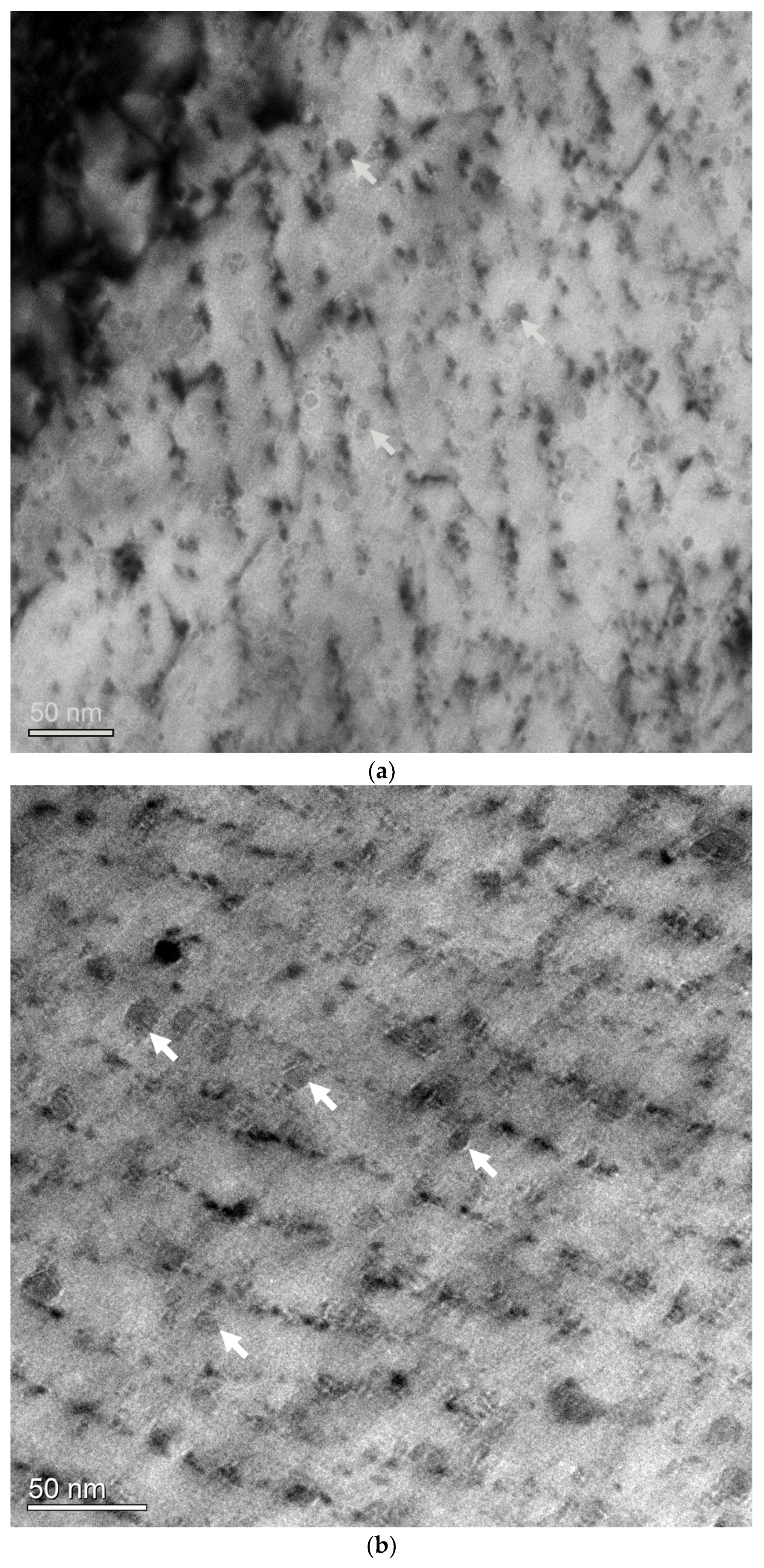

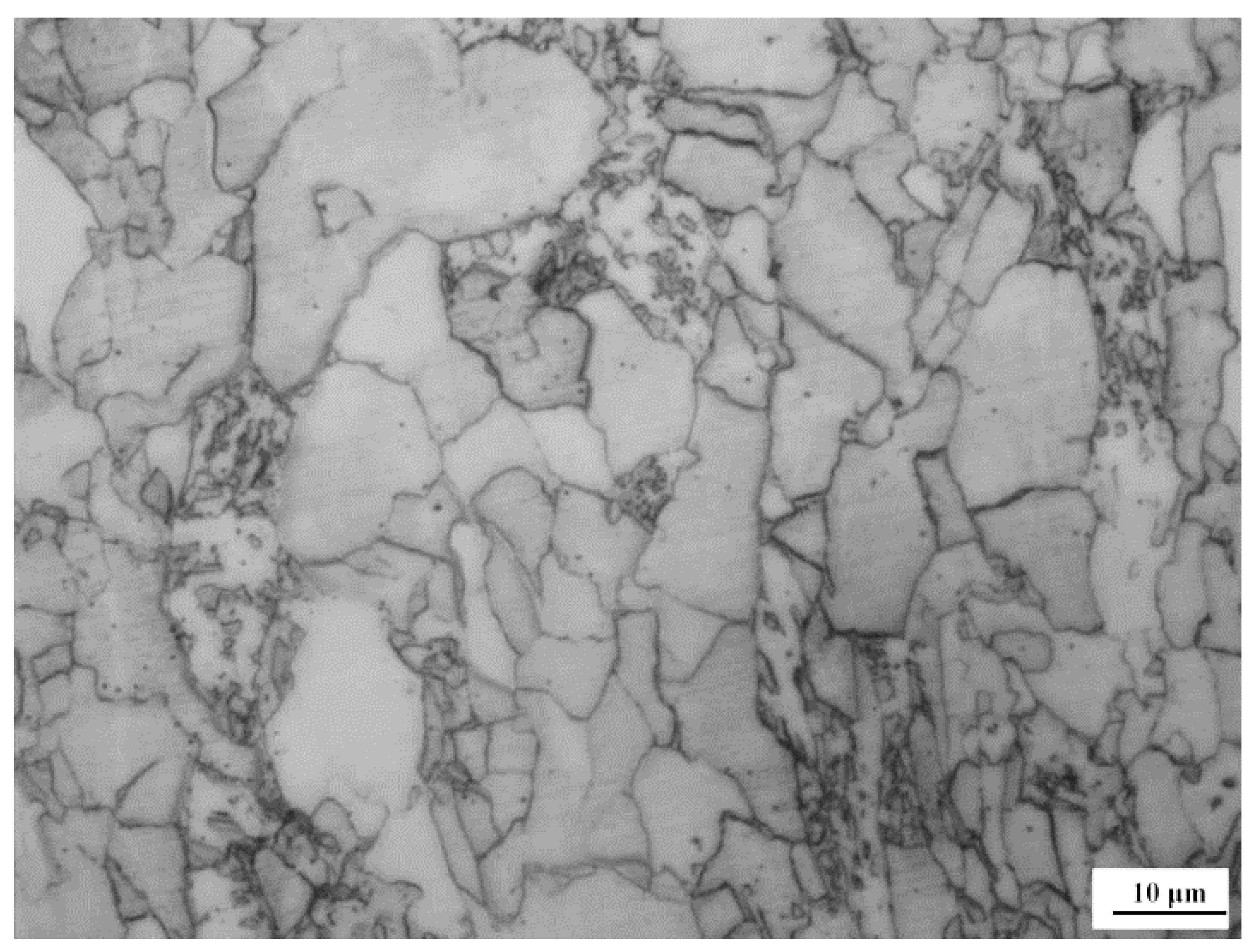

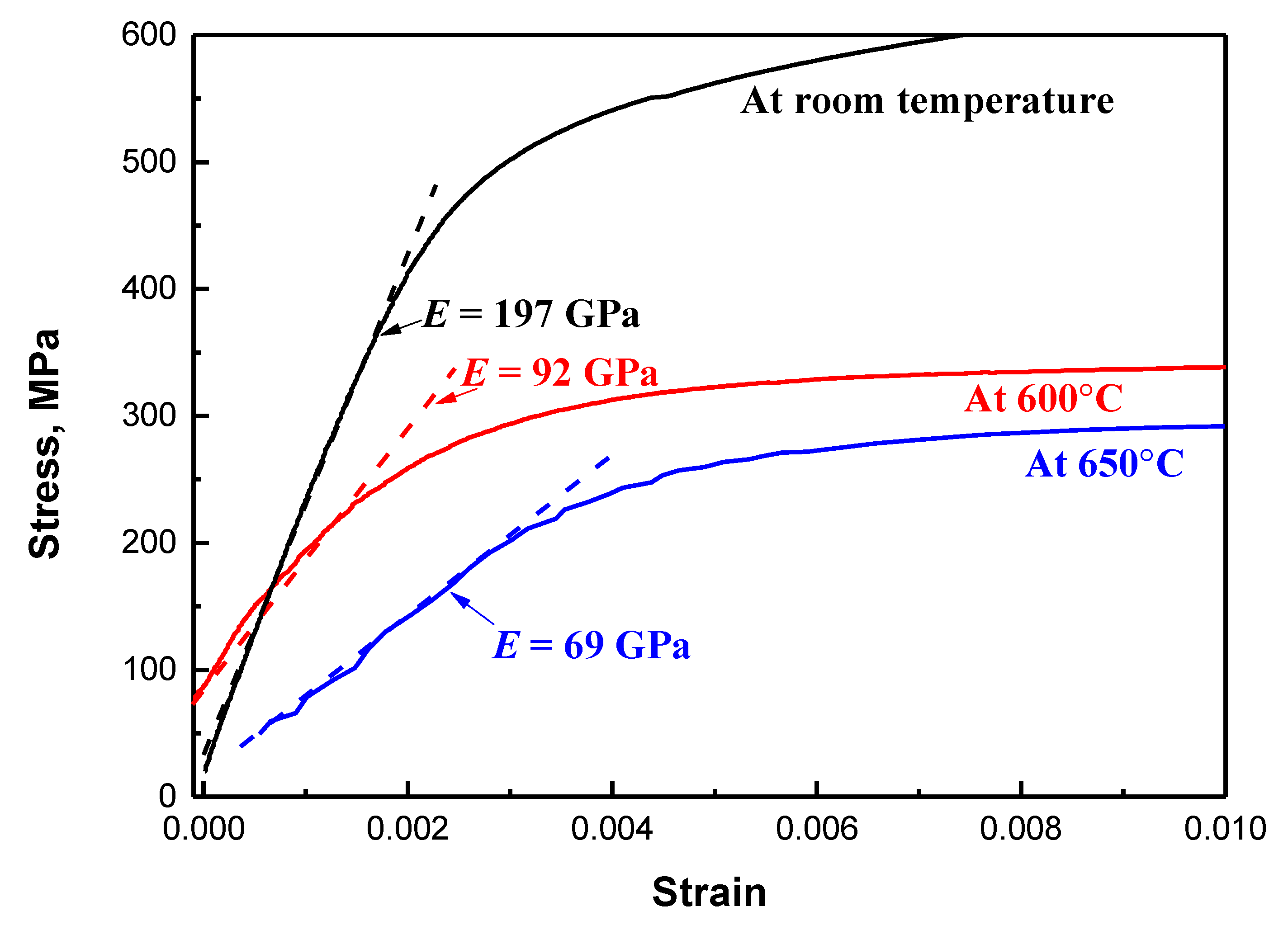

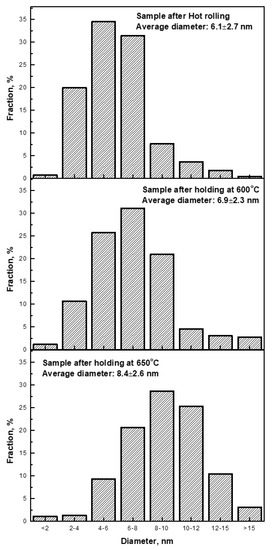

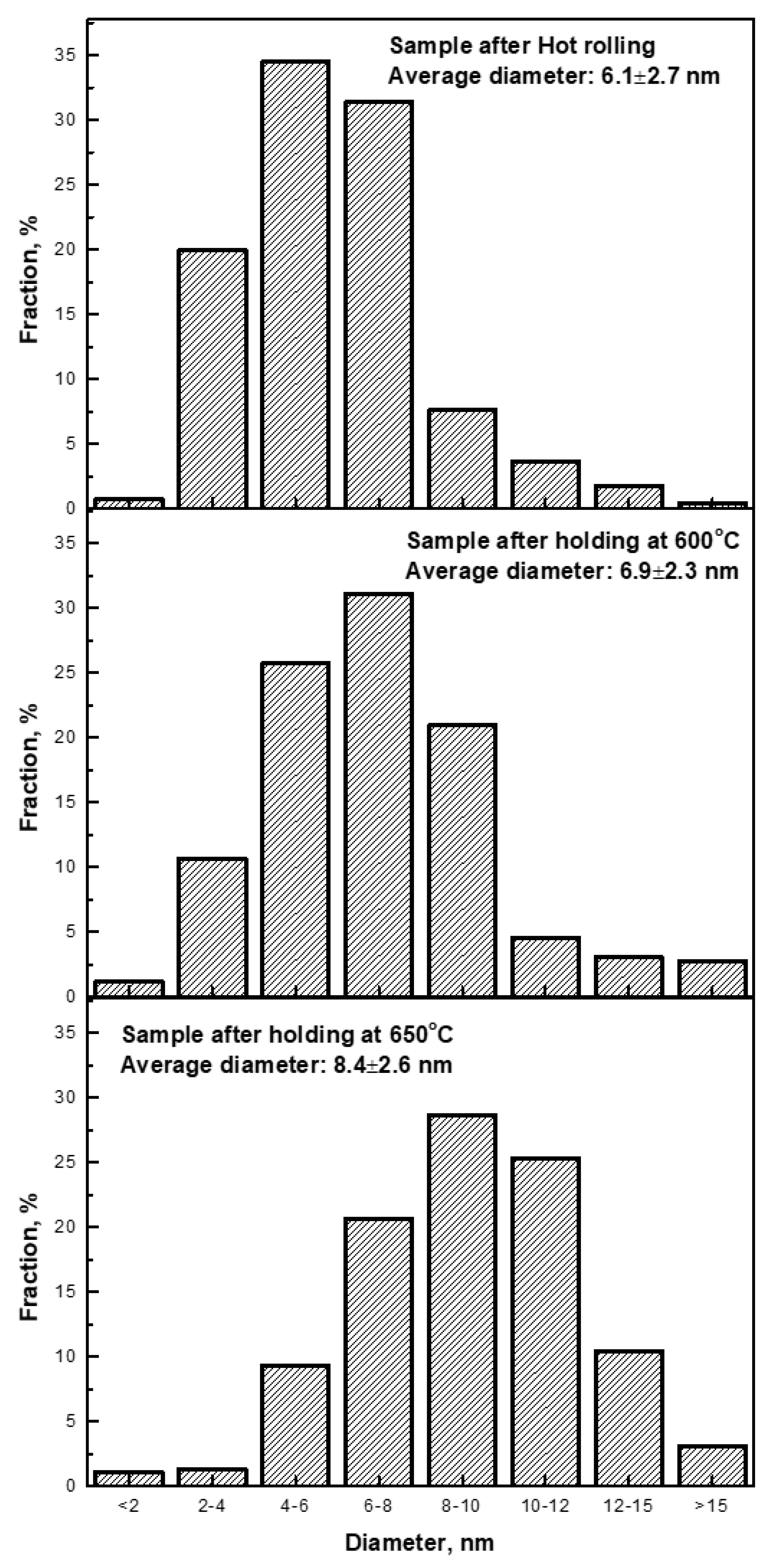

Nanometer-sized precipitated carbides in a low carbon Ti-V-Mo bearing steel were obtained through hot rolling and air cooling and were investigated by transmission electron microscopy (TEM). The nanometer-sized interphase-precipitated carbides have been found to exhibit an average diameter of ~6.1 ± 2.7 nm, with an average spacing of ~24–34 nm. Yield strength of 578 ± 20 MPa and tensile strength of 813 ± 25 MPa were achieved with high elongation of 25.0 ± 0.5% at room temperature. The nanometer-sized precipitation exhibited high stability after annealing at high temperatures of 600 °C and 650 °C for 3 h. Average diameters of carbides were statistically measured to be ~6.9 ± 2.3 nm and 8.4 ± 2.6 nm after tempering at high temperatures of 600 °C and 650 °C, respectively. The micro-hardness was ~263–268 HV0.1 after high temperature tempering, which was similar to the hot-rolled sample (273 HV0.1), and yield strength of 325 ± 13 MPa and 278 ± 4 MPa was achieved at elevated temperatures of 600 °C and 650 °C, respectively. The significant decrease of yield strength at 650 °C was attributed to the large decrease in shear modulus. View Full-Text
Keywords: interphase precipitation; high temperature strength; stability; low carbon; low alloy steel interphase precipitation; high temperature strength; stability; low carbon; low alloy steel
Show Figures

Figure 1

MDPI and ACS Style

Xie, Z.; Song, Z.; Chen, K.; Jiang, M.; Tao, Y.; Wang, X.; Shang, C. Study of Nanometer-Sized Precipitation and Properties of Fire Resistant Hot-Rolled Steel. Metals 2019, 9, 1230.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
