Next Article in Journal
A Comparative Study on the Dynamic Tensile Behavior of Nanostructured Bainitic and Quenched-Tempered Martensitic Steels
Previous Article in Journal
Physical Modelling of Aluminum Refining Process Conducted in Batch Reactor with Rotary Impeller
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessArticle
Metals 2018, 8(9), 727;

Synthesis of Bulk Amorphous Alloy from Fe-Base Powders by Explosive Consolidation

Field Engineering College, Army Engineering University of PLA, Nanjing 210007, China
Author to whom correspondence should be addressed.
Received: 29 August 2018 / Revised: 12 September 2018 / Accepted: 13 September 2018 / Published: 16 September 2018
Full-Text   |   PDF [3037 KB, uploaded 16 September 2018]   |

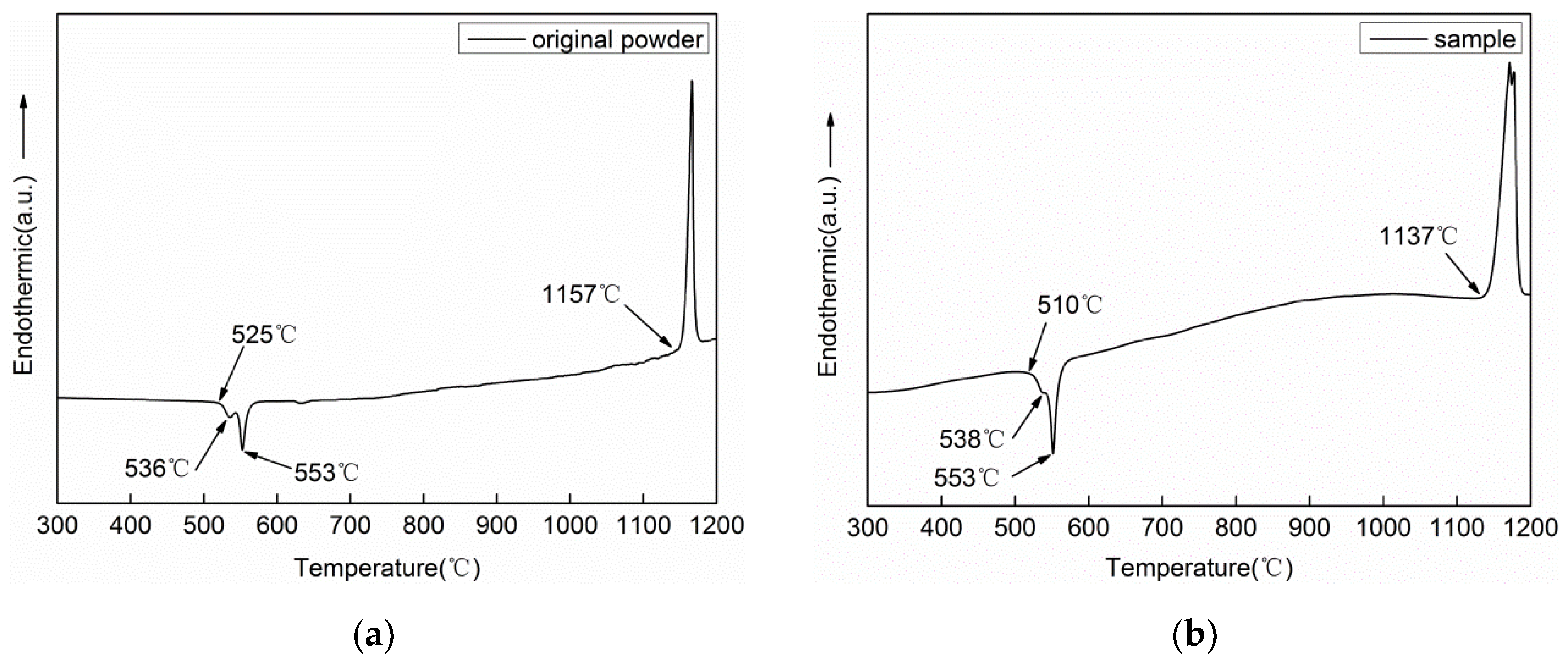

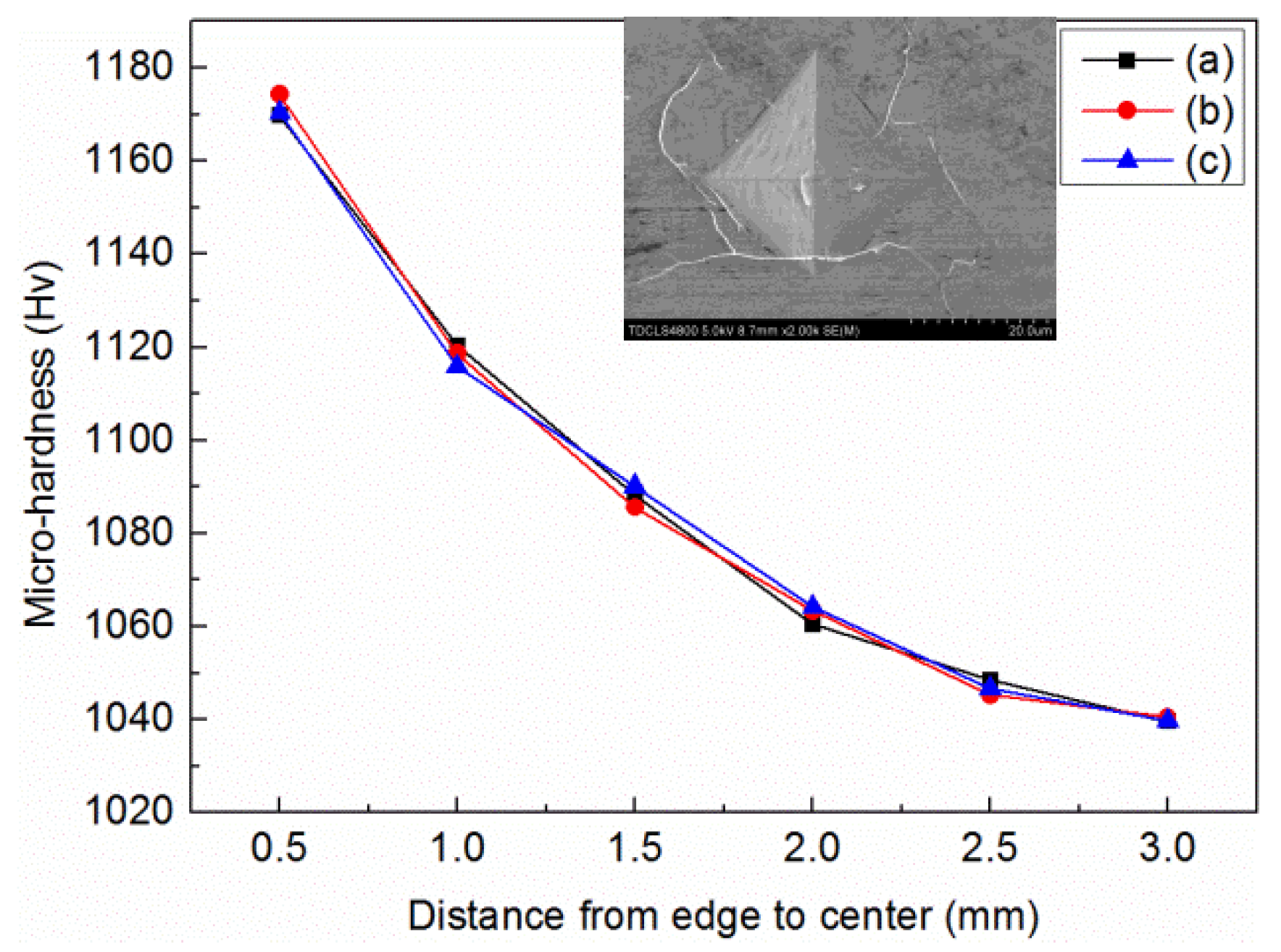

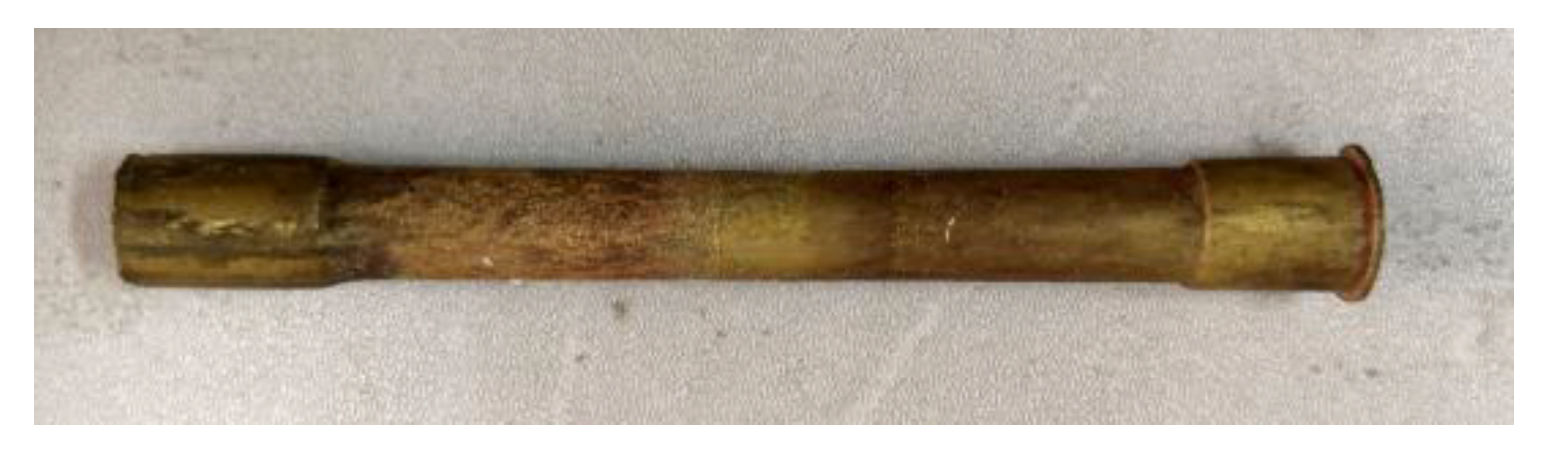

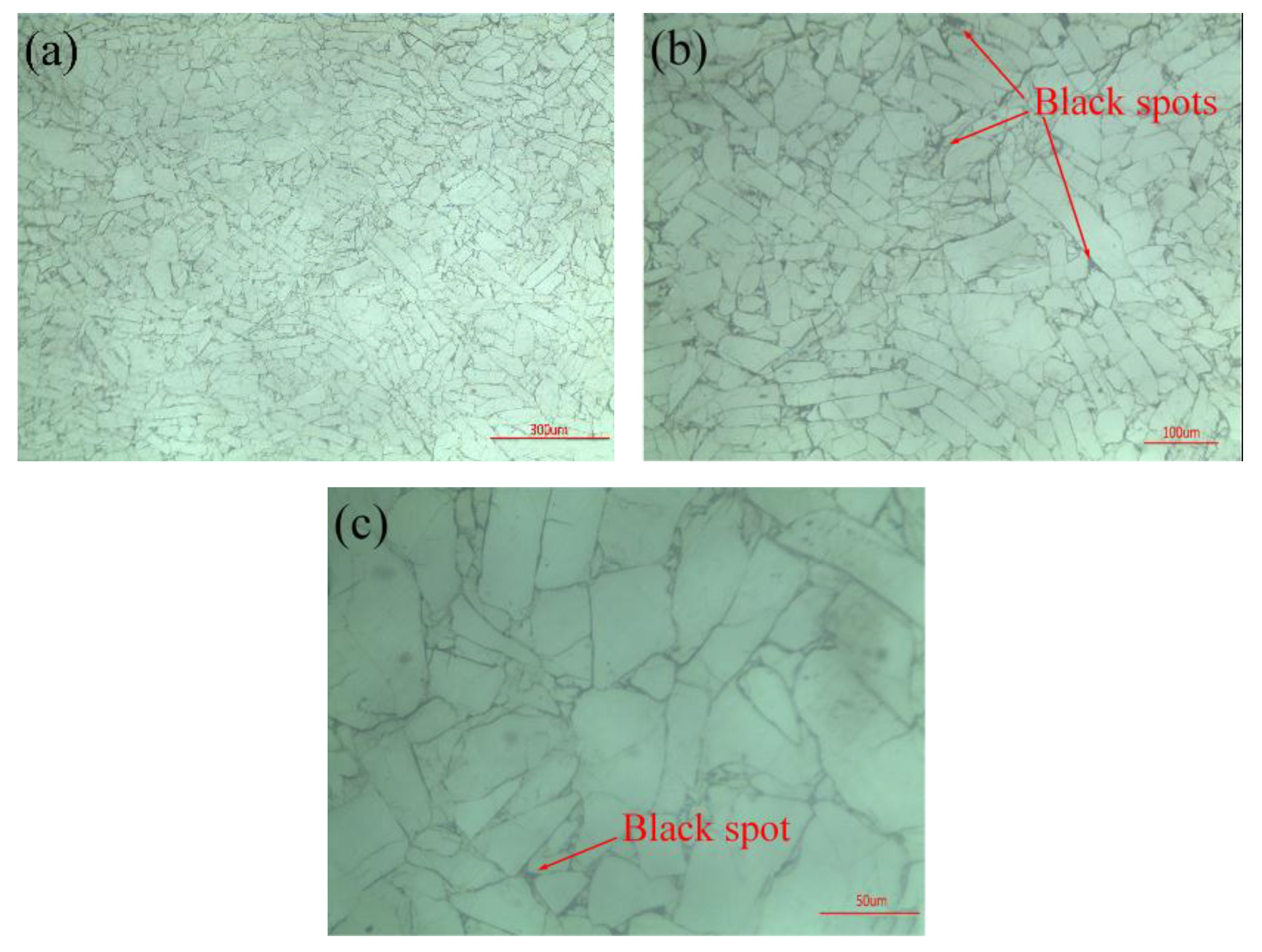

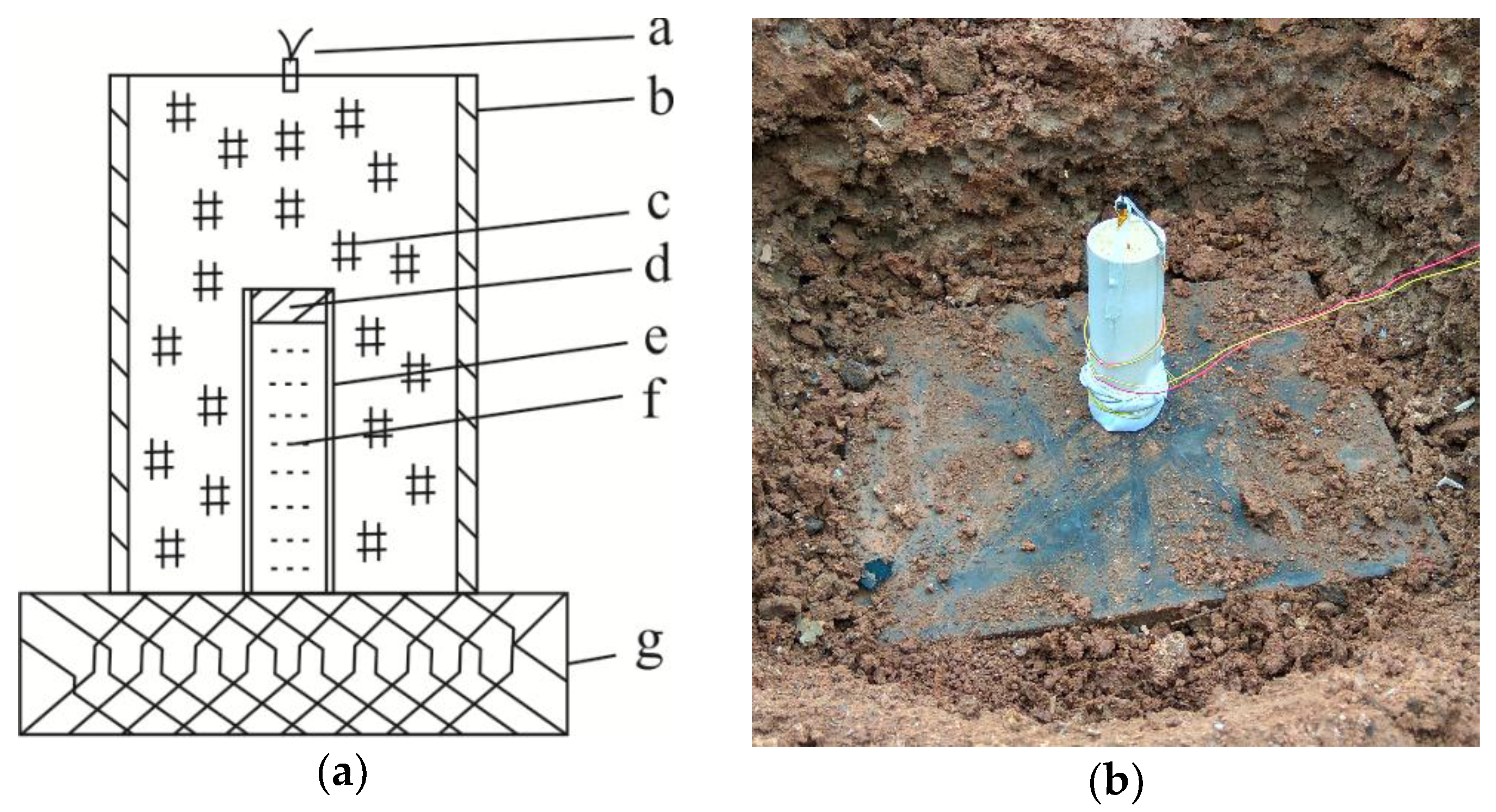

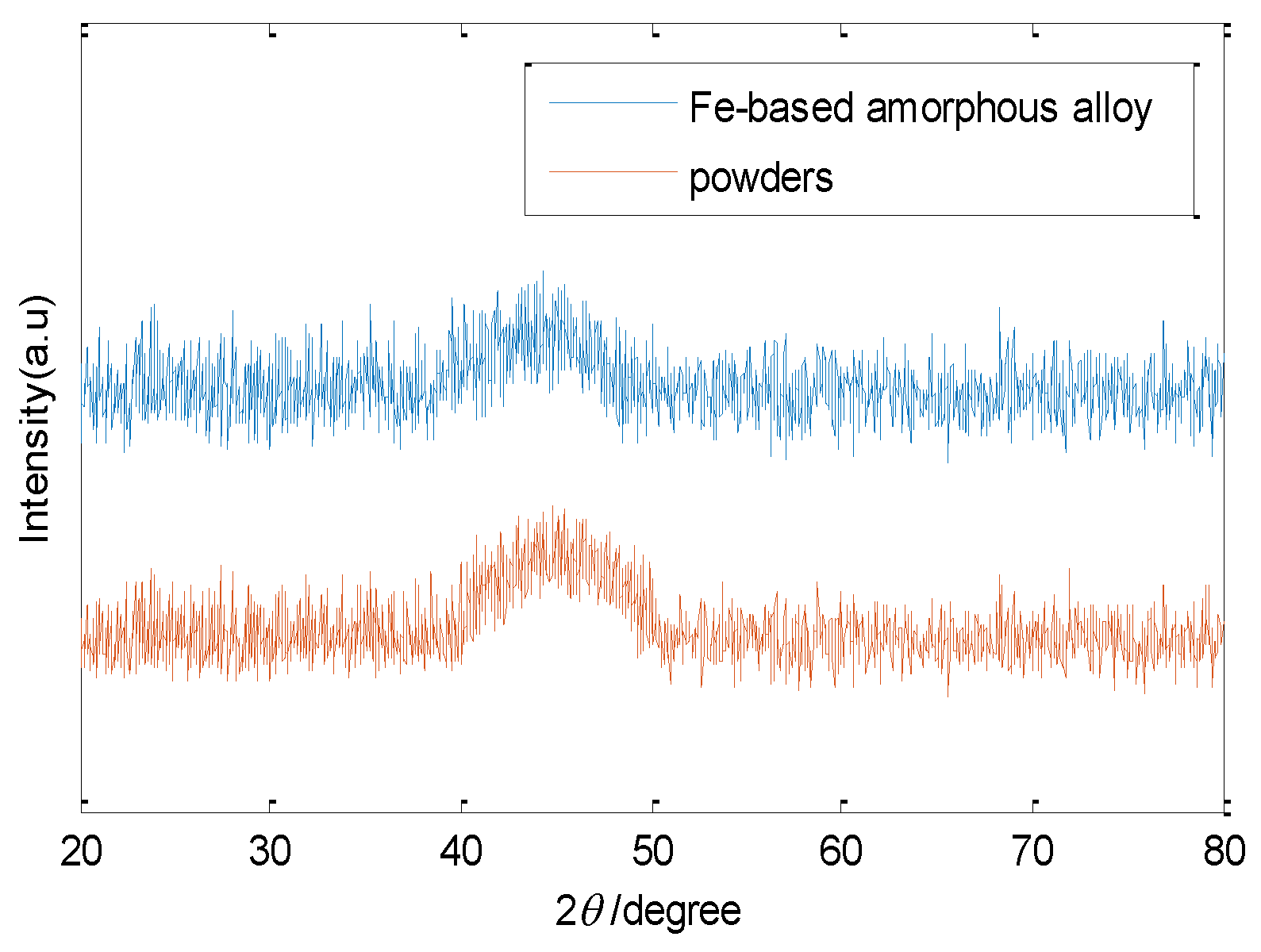

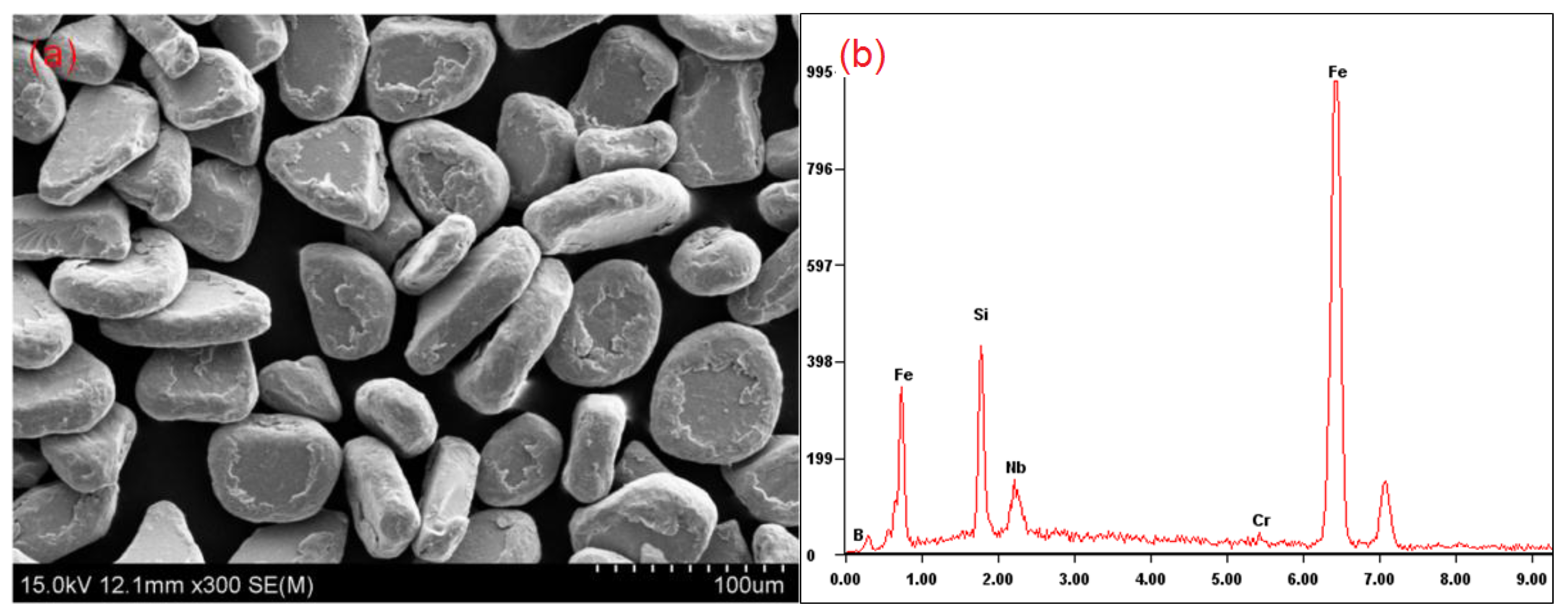

A Fe61Cr2Nb3Si12B22 amorphous alloy rod sample of 8.8 mm diameter has been successfully prepared through explosive consolidation. The structure and thermal stability of the as-synthesized sample have been analyzed through X-ray diffraction (XRD) and differential scanning calorimeter (DSC) analysis. The results demonstrate that the sample still retains an amorphous structure, and the glass transition temperature (Tg), the crystallization onset temperature (Tx), the supercooled liquid zone (ΔTx) (Tx − Tg) and the reduced glass transition temperatures (Trg) (Tg/Tm) are 784 K, 812 K, 28 K, and 0.556, respectively. Its microstructure has been investigated by optical microscopy (OM) and scanning electron microscopy (SEM). The average microhardness of the alumina compact is about 1069 HV. View Full-Text
Keywords: Fe-based amorphous; explosive consolidation; bulk amorphous alloy Fe-based amorphous; explosive consolidation; bulk amorphous alloy

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Li, J.; Lu, M.; Ai, Y.; Tao, C.; Xiong, Y. Synthesis of Bulk Amorphous Alloy from Fe-Base Powders by Explosive Consolidation. Metals 2018, 8, 727.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
