Management of Lime in Steel

Abstract

The EU28 total lime demand in 2017 was estimated at about 20 million tons, out of which about 40% are consumed in the iron and steel industry. Steel remains the major consumer after environment and construction. The lime industry is quite mature and consolidated in developed countries, with enough reserves and production to serve regional markets while being fragmented in developing nations where steel producers rely on local sourcing. There is relatively very little trade for lime worldwide. Lime has a critical role at different steps of the steelmaking process, and especially to make a good slag facilitating the removal of sulphur and phosphorus, and for providing a safer platform to withstand high intensity arc plasma in the electric arc furnace (EAF), and violent reactions in the basic oxygen furnace (BOF). Lime quality and quantity has a direct effect on slag quality, which affects metallurgical results, refractory life, liquid metal yield, and productivity, and therefore the total cost of the steel production. In this paper, we present the importance of careful selection in the limestone and calcination process, which influences critical lime quality characteristics. We shall further elaborate on the impact of lime characteristics in the optimization of the steelmaking process, metallurgical benefits, overall cost impact, potential savings, and environmental benefits.

1. Introduction

Despite the development of many new industries using lime, the steel industry today remains the major consumer, consuming almost half of the annual lime production. Most of the steel processes involve the use of lime as a flux. Industrial lime production today allows the quality adapted to the needs of different steel applications to be reached. Even if the cost of lime has relatively little impact on the cost of steel, lime quality can have a significant impact on the steel quality, its metallurgical properties, productivity, and the total cost of production. The steel industry is indeed facing different issues related to the ever-growing demand for cleaner steel, for example in the automotive industry, while it is being pushed to reduce its impact on the environment from managing by-products and taking measures to mitigate CO₂ emissions and energy use. Lime quality that is adapted to the use in steel industry is then a very important subject to allow the market demand to be met in the longer term.

2. Lime Supply in Steel Outlook

Lime is a product of calcination of limestone that is extracted from quarries. Quality and access to limestone sources is then the key to be able to produce quality lime that is suitable for industries such as steel.

It is rather easy to find figures about how much limestone or dolostone reserves exist in each part of the world, but it is hard to find global data about the specific limestone that is suitable to make lime, considering the hardness of the stones, calcium content, and low impurities. Furthermore, limestone resources are not all easily accessible, due to urbanistic pressure, permissions, environmental constraints, and infrastructure. For example, there are plenty of good limestone deposits in Western Europe, but acquiring permission is very long and restrictive. There are rare low-grade deposits in India with high urbanistic pressures and relatively bad logistics. There are localized high-grade limestone deposits in Brazil, Argentina, Thailand, Vietnam, or Malaysia with medium urbanistic pressures, and sometimes very restrictive and variable permission processes for the environment. There are a plenty of high-grade limestone deposits in China, but these are not accessible to foreigners.

The world production of lime is estimated at around 350 million tons. Steel uses between 140 and 160 million tons of lime globally. A big part of lime production is captive produced within steel mills, especially in the developing world. EU28 lime production is estimated at about 20 million tons, of which about 8 million tons are consumed in the iron and steel industry. China produces around 230 million tons of lime, and the estimated volume used in steel is 70 million tons. USA produces 18 million tons, out of which about 7 million tons is used in steel applications.

3. Quality Lime Production for Steel Applications

Derived from limestone, lime has several natural properties that are useful in various industrial domains. Being produced and used since the prehistoric ages, the use of lime in steel has been known for many centuries. The industrial production of lime started at the same time as modern steel production, in the late 19th century. To have a better understanding of the importance of lime properties, it is useful to describe more in detail the different steps of production of lime, from the raw material to engineered products that are adapted for use in the iron- and steelmaking processes.

3.1. Limestone Quality

Limestone is obviously the starting point for lime production. Literally, limestone is “the stone to be used to make lime”. Limestone deposit occurrences are wide, and reserves around the world are abundant. Nevertheless, there is a first limitation to access to this product in some countries because of difficulties with getting permission for exploiting a quarry or a mine, due to environmental rules and the social acceptability related to the modification of the landscape, induced impacts like dust generation, or potential underground water pollution. Moreover, the cost of transport can have a big impact on the full cost, due to the relative low price of the material. Dolomite stone is used to produce burnt dolomitic lime (dolime, as mentioned in rest of the document). The occurrence of dolomite deposits is much less important, which leads to only specific plants having access to, and using dolime.

Limestone is a sedimentary rock that usually originates from the progressive accumulation and cementation of inorganic and organic carbonate grains, such as ooids, peloids, crinoids (sea lilies), shells, algae, corals, and various micro-organisms on the sea floor, and during subsequent burial. Limestone actually describes a big family rocks of different crystallinities and textures. Dissolution and precipitation with carbonic acid leads to a dense crystallized stone with more or less density. Chalk as an example, is a fully bioclastic limestone that contains an accumulation of micrometric coccolites, and due to these particular microstructures, the petrophysical properties (density, porosity) are generally low, whereas marble is a metamorphic, highly crystalline rock with higher density. It is worth mentioning here that not all types of limestone are indeed suitable for use in the calcination step, due to their chemical contents and microstructural properties [1]. The physical and chemical properties of raw stone significantly affect the final properties of calcined lime and dolime.

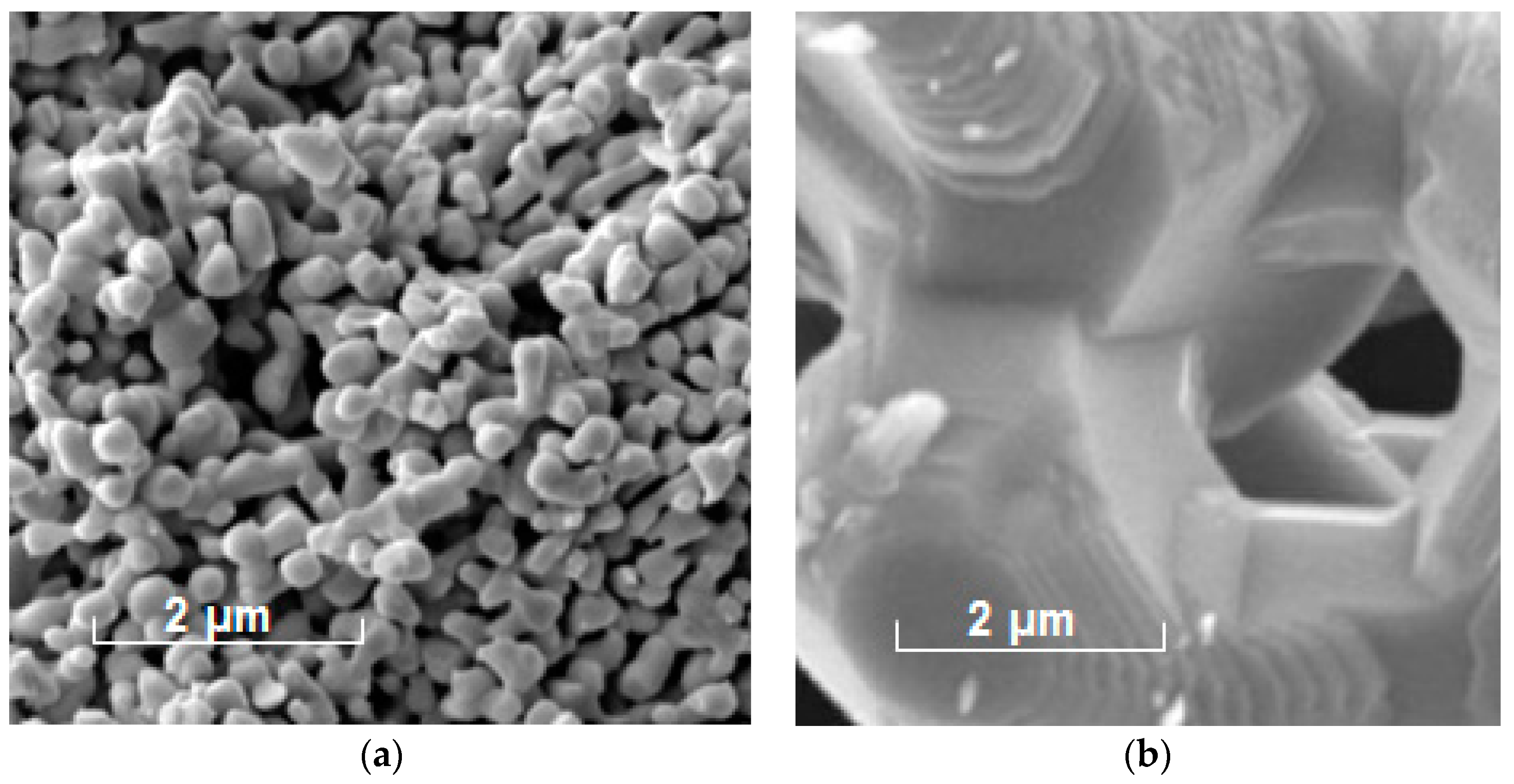

Limestone crystallinity and texture has a significant impact on both stone processing and affects the behavior of the calcination step. Soft stones usually generate more limestone fines, which is a major issue for production balance in lime kilns. Stone porosity may vary due to presence of interstices such as crevices. During the calcination process, the stone will first expand already during the preheating stage, which can cause breakages. At higher temperatures, de-carbonation will lead to lower density and shrinkage, and increased gas pressure inside the matter. Fissures such as expansion joins can then form, generating internal stress and breakages. There are types of limestone, which are practically are not possible to calcine into lump or pebble quicklime, but will only end up with fines. It is almost impossible to predict this behavior, which is called decrepitation, without experimenting on the effect of heat on the stone integrity [1,2].

To illustrate, we recently conducted various laboratory-based trials, followed by industrial trials, to qualify the limestone that was suitable for calcination, either in a parallel flow regenerative (PFR) shaft kiln or in a rotary kiln, with or without a preheater. The laboratory tests raised the concern about limestone fines and the sticking tendency in the kilns. The industrial trial results clearly reflected the lab results (higher fines) at the entry point of the kilns contributed to the limestone characteristics, while particle size distribution (PSD) as measured at the run of the rotary kiln, did not reveal any significant differences after calcination. The sticking tendency (Figure 1) became a major concern in the PFR kiln. Similar trials in the rotary kiln revealed no sticking in the rotary kiln. A rotary kiln with a preheater generated significantly lower amounts (50% reduction) of lime kiln dust (LKD), compared to one without preheaters.

Limestone chemical purity has a direct effect on the chemical purity of lime. There are some possibilities for removing the impurities when they are principally located around the stone, but otherwise further processing steps will keep the impurities embedded with the finished product. The main impurities in limestone are in the form of clay, silt, or sand, or sometime organic matter. The calcium (Ca) and carbon dioxide (CO₂) constitute the calcium carbonate (CaCO₃), with impurities including Mg, Si, Al, S, P, K, and Na. A metallurgical grade of stone would require already a minimum of 95% carbonates (Ca & Mg).

Limestone is usually extracted from open-air quarries rather than underground mines, thanks to an outcrop of quality products in most of the deposits. Nevertheless, it is common that good chemical quality occurs only in certain layers, raising the need to select and separate aggregate types from the chemical stone to be calcinated. We can cite, for example, a fascinating selective underground mine located in Brembilla (Italy), where limestone is mined in big chambers of 180 to 200 m depth, 100 m in height, and 30 m in width, interconnected by tunnels for the access and evacuation of stones through conveyers belts.

Limestone extraction is done by blasting, followed by crushing and screening. Depending on the chemical characteristics, limestone can be washed to remove the surrounding impurities such as clays. Calibrated stones size depends on the kiln type [3]. Finer-sized limestone can be used partially as raw material for self-fluxing sinters.

3.2. Calcination

Starting from the calibrated limestone (CaCO₃), lime is obtained by burning at high temperature to produces high-calcium lime (CaO) and carbon dioxide (CO₂), followed by the decarbonation reaction, which occurs at a temperature of between 800 and 1000 °C (700–900 °C for dolomitic lime):

$${\mathrm{CaCO}}_3+\mathrm{heat}={\mathrm{CO}}_2+\mathrm{CaO}\left(\mathrm{high}\mathrm{calcium}\mathrm{lime}\right)$$

$${\mathrm{CaCO}}_3.{\mathrm{MgCO}}_3+\mathrm{heat}={\mathrm{CO}}_2+\mathrm{CaO}.\mathrm{MgO}\left(\mathrm{dolime}\right)$$

The calcination process occurs in industrial kilns under controlled conditions with adapted technology. Since the early 20th century, almost countless variations of kilns have been invented and promoted [2]. Broadly, modern kilns that are used to produce lime for steel application can be classified into two main categories: vertical kilns and rotary horizontal kilns (Figure 2). Vertical kiln technology is the oldest technology, being used since the first industrial production of lime, and these kilns are still existent and the most widely used types, thanks to many technical improvements, especially those that are related to energy efficiency improvement, CO₂ output, and operational and maintenance costs. Rotary kilns are also still used and are equipped with preheaters, coolers, and heat exchangers.

The vertical kiln working principle is an annular vertical shaft that is fed by limestone from the top. Air is fed from the bottom and heated progressively in the counter-direction. Fuel can either be added along with limestone, or burned with lances inside the kiln. Different phases occur in the kiln: in the top part, limestone is preheated by hot air coming from the lower layers; in the median part, preheated limestone is calcinated (de-carbonated) at a temperature of around 900 °C; in the lower part, lime is cooled by fresh air entering the kiln. An improvement of this process is called the parallel flow regenerative (PFR) kiln, which consists in two or three independent shafts running alternatively and exhausting the heated gas to the stone charge of the other(s) shaft(s). Today, this is still the best available technology regarding both lime quality and production efficiency [4,5].

Rotary kilns are inspired from cement production-type kilns, but they run at lower temperatures, in the range of 900 to 1300 °C. The working principle is a horizontal rotating drum with a small incline. Limestone is fed on the one side, and a heater is placed at the opposite side for hot air to circulate upfront. Such kilns have some advantages, such as big potential production capacities, easy adjustment of the process by adjusting the speed, and the possibility for using finer stone sizes and a wider quality of fuels. However, the calorific yield of such kilns remains very high compared to enhanced vertical kiln technologies.

The fuels used are dependent on the kiln type. Solid fuels such as coal or coke can be used in vertical kilns, fed together with limestone. Liquid and gaseous fuels, including natural gas, are burned through lances positioned two-thirds of the way up the shaft length. Alternative fuels like wood or other secondary fuels can also be used, but they must be monitored carefully regarding the risk of pollutants and impurities being transferred to lime, like for example, sulphur.

3.3. Lime Quality for Steel Processes

Lime to be used in the steel melting process depends on the application; limestone and lime are indeed used in different forms at different steps of the steelmaking process. Lime is used during agglomeration before sintering, for balancing the acidity and as a component in desulphurization, but most of the volume is used as a fluxing agent, meaning that the slag properties and chemistry are modified in the basic oxygen furnace (BOF) converter or in the electric arc furnace (EAF), and during the secondary metallurgy/ladle refining (LF) process.

The following principal characteristics are important when qualifying lime for steel [6]:

• Chemical composition and degree of calcination
• Reactivity
• Grain size
• Uniformity

3.3.1. Chemical Composition and Degree of Calcination

The chemical content of lime (Figure 3) is a key parameter. As mentioned above, limestone chemistry has a significant effect on lime chemistry, especially for the main impurities [7]. Calcination also influences the resulting chemistry, and especially the CO₂ remaining content, due to incomplete calcination (CaCO₃ remaining) and the S content principally coming from the fuel. CO₂ is measured using loss of ignition (LOI) at 1000 °C, or by the infrared induction system, which also allows for S measurement. Other impurities like SiO₂, Al₂O₃, Fe₂O₃, and MgO are measured with calibrated X-Ray Fluorescence (XRF).

SiO₂ should be as low as possible, as it can combine with CaO to form insoluble crystals. Fe₂O₃ and Al₂O₃ have favorable effects on the lime dissolution in slag, but they are generally available only in small quantities in limestone. Ideally, the sulphur should be as low as possible to avoid pick-up in the steel, but it is compromised, depending on the steel grade, and economic or availability reasons.

Magnesium oxide (MgO) content of lime is of increasing importance in BOF and EAF. There is a favorable influence of lime containing MgO on the refractory lining life of the converter. Combined addition of high calcium quicklime and dolime is a usual practice in EAF.

Loss of ignition comprising CO₂ (from calcium carbonate) and H₂O (from hydrated lime) must be as low as possible. Hydrated portions in the lime reduce its reactivity, and may increase the risk of hydrogen inclusions in the steel. Special attention is required to keep control of calcination and its use, by appropriate storage and handling conditions.

3.3.2. Reactivity

Another important parameter of lime is so-called reactivity. Reactivity of lime for the steel industry is considered to be the efficacy of lime for dissolving in the slag. This is met by reactive lime, which has small size crystals and high porosity [8]. This parameter is usually approached by measuring its reactivity with water or with acids such as hydrochloric acid (HCl). Lime reactivity in water can be measured following the European standard EN 459-2. The result of this analysis remains only an indication about the capacity of the lime to react with the slag, since the slag is an ionic solution of molten salts, and thus behaves in a completely different way to water [9].

Depending on the amount of impurities in the limestone, and its texture combined with the type of fuel used, the reactivity of burnt lime will vary [10]. Overburning of the lime will influence the porosity of the lime and reduce its reactivity. There is always a compromise to obtaining a high reactivity, with unburnt carbonate being located in the center of the stone [11]. Homogenous spreading of the stones, stone advance in the kiln, and uniform heating, are also key parameters to reaching high reactivity and low CO₂. Anyhow, reactivity just after calcination also influences the stability of the lime, which can capture the humidity of the air with the creation of fines, are re-carbonated, and thus have a lower reactivity during usage [12].

3.3.3. Grain Size

Lime gradation is also an important parameter for to allowing its use under good conditions, and for obtaining the best possible yield.

For example, in conventional BOF use, lime is dropped into the furnace using a scrap bucket or conveyors. There is a risk of fines being sucked in by the de-dusting system. A high percentage of fines then causes lime losses in the waste gases, and further problems in dust treatment. Steel industry customers usually ask for products in a size range of 5 to 60 mm, with a requirement of less than 10% of fines below 5 mm. Some steel plants even requests less fines in the specifications, considering the generation of fines in their own processes from storage to application (

Table 1. Example of lime specifications for the basic oxygen furnace (BOF).

Specification	Steel Plant 1	Steel Plant 2
CaO (min. %)	92	95
SiO2 (max. %)	2.5	1.0
S (max. %)	0.04	0.05
Loss of ignition (LOI) (max. %)	3.0	3.0
Grading	10–30 mm	12–38 mm
Fine content	10% max. < 5 mm	5% max. < 2 mm
Reactivity	385 mL 4N HCl after 10 min.	120 s from 20 to 60 °C

). The decision on grading and the fines content of lime and dolime is primarily based on the furnace behavior, such as negative pressure and dissolution time, and also on the CaO content in the dust, and the commercial availability. The use of briquettes of lime is also a way to use the fines, and offers a very reactive product without the issue of dust.

Another example is the use of pulverized quicklime at the desulphurization step by co-injection with Mg metal or calcium carbide. This product must have a specific grain size, and it is modified by additives to enhance its flowability, for perfect injection properties.

3.3.4. Uniformity

Like in any industrial application, increased attention is paid to the uniformity of the lime qualities. Lime quality variation not only leads to excess dosing and deterioration of the chemical-physical conditions, but it also disturbs the control of the refining process. We will further develop the importance of lime quality in the steel process.

Powdered quicklime can be used in new systems using lances. It is mainly installed today in EAF systems, together with lances for C injection. It allows both a better yield during use, and better efficiency in the slag, due to its high reactivity and close reactions.

3.3.5. Summary of Lime Quality for Steel

In summary, the lime quality for steel applications must be monitored using limestone chemistry and petrography to control the calcination including adapted gradation and fuel use to allow for suitable chemistry, reactivity, and adapted granulometry.

An example of the effect of limestone chemistry on quicklime chemistry is given in

Table 2. Limestone and the resulting quicklime chemical analysis after calcination in a kiln.

Chemical Content	Limestone	Quicklime
CaO (%)	54.51	93.68
CO2 (%)	42.78	1.50
MgO (%)	0.95	1.66
SiO2 (%)	0.05	0.09
S (%)	0.047	0.106

. Calcination results in the concentration of impurities because of CO₂ release. It can be noted that part of the limestone remains in a carbonate form, and that sulphur increases more than it does by concentration, probably due to the fuel used in releasing sulphur.

To illustrate as example the effect of calcination on the specific surface of lime, influencing its reactivity, scanning electron microscopy (SEM) pictures have been taken at the same scale (see Figure 4), of quicklime samples at different rates of calcination, showing the significant changes in crystals and pores sizes.

3.4. Engineered Lime Products for Environmental Applications

The lime industry has developed a large range of products that are dedicated for their usage in different applications. The steel industry, beside its main processes, must also manage different utilities, leading to some specific needs, especially in environmental management.

The steel industry is an intensive energy user, using various fuels as required by processes, and based on techno-economic reasons. Fuel combustion generates flue gases with pollutants, including sulphur and/or chlorine. Lime helps to comply with increasingly stricter regulations on emission levels. Special lime-based product solutions are available for sinter plants, coke ovens, and boilers. These solutions are customized for iron- and steelmaking processes and emissions. Powdered limestone is used for boiler flue gas desulphurization, and high specific surface hydrate is now recognized as an efficient technology for the desulphurization of sinter gases, as it meets new, stricter emission norms.

Lime-based products also provide a good range of solutions for residual sludge and solid waste treatments. Lime reactivity and alkalinity, combined with possible pozzolanic reactions, can allow for both the solidification and the insolubilization of contaminants. It can also be used in the processing of by-products, assisting in dehydration and granulation. Lime is also efficient for sanitizing and stabilizing sewage sludges, which also allows to recycle in agriculture.

Lime acts as the first necessary step to remove dissolved metals from wastewater, and it neutralizes free acids in water. Water treatment meets the requirement that is necessary for its discharge from iron- and steelmaking plants. Hydrated lime in the form of lime slurry is used to balance hardness; for example, for use in heating systems or for use in final steel product washing to prevent carbonate deposition [13].

4. Importance of Lime or/and Dolime in the Production of Quality Steel

4.1. Introduction

Lime is an essential and critical raw material for steelmaking. The science of lime product interaction with the various fluxing components during sintering, melting, and ladle refining has become the basis for understanding the old phrase “Make the slag and the steel will make itself”.

Raw materials, including iron ore, coal, and scrap are typical sources of undesirable residuals such as sulphur, phosphorus, silicon, and various oxides. Lime, in very simple terms, helps to remove these impurities, to an extent. The time, efficiency, and effectiveness of the reactions depends on lime quality, among many other factors.

• Silica—${\mathrm{SiO}}_2+3\mathrm{CaO}\to \left({\mathrm{Ca}}_2{\mathrm{SiO}}_4\right)+\left({\mathrm{Ca}}_3{\mathrm{SiO}}_5\right)$
• Alumina—$9{\mathrm{Al}}_2{\mathrm{O}}_3+16\mathrm{CaO}\to \left({\mathrm{CaAl}}_2{\mathrm{O}}_4\right)+\left({\mathrm{Ca}}_3{\mathrm{Al}}_2{\mathrm{O}}_6\right)+\left({\mathrm{Ca}}_{12}{\mathrm{Al}}_{14}{\mathrm{O}}_{33}\right)$
• Sulphur—$2\mathrm{S}+2\mathrm{CaO}\to 2\mathrm{CaS}+{\mathrm{O}}_2$
• Phosphorus—$2\mathrm{P}+3\mathrm{CaO}+5\mathrm{FeO}\rightleftarrows 3{\mathrm{CaOP}}_2{\mathrm{O}}_5+5\mathrm{Fe}$

The clean steel process starts from the early stage of iron making, and the process becomes critical towards the last stages in the secondary metallurgical process [14]. The lime selection process plays a very important role in defining the productivity, quality, and cleanliness from sintering stage to steel melting, and finally the secondary metallurgy process (

Table 3. Lime characteristics for iron- and steelmaking.

Process Step	Lime and Dolime Requirements	Critical Parameters	Typical Consumption (kg/t of Steel)
Sinter Plant	- Limestone—Grain size suitable for dosing (0–3mm), High CaO (56%), and lower impurities - Burnt lime—High CaO and low impurities, controlled reactive	- Grain size - MgO content	- Limestone: 100–150 - Lime: 0–25
Hot Metal Desulphurization	- Fluidized lime (<90 microns) High CaO, low impurities	- Flowability - Reactivity	- Lime: 5–10
BOF Converter	- Lump lime, Dolime ( 5–50 mm) - Lime fines for injection (<12 mm)	- High CaO - Soft burnt lime - Lower fines	- Lime: 40–70 - Dolime: 0–40
Electric Arc Furnace	- Lump lime, Dolime (5–50 mm) - Lime Injection (0–12 mm)	- High CaO - Lower fines - Flowability	- Lime: 0–50 - Dolime: 0–50
Secondary Metallurgy	- Lump lime (5–20mm) - Lime Injection	- Metallurgical reactivity - Low H2O - Low carbon for stainless steel	- Lime: 5–10 - Dolime: 0–5

). Lime characteristics and process control are critical to cleanliness, such as:

• Removing sulphur at the hot metal desulphurization station;
• Phosphorous removal in the BOF;
• Foamy slag preventing nitrogen and hydrogen pickup during melting in the EAF;
• Avoiding over-oxidation of steel during steel melting in EAF and BOF;
• De-oxidation and desulphurization practices in the secondary metallurgy treatment.

4.2. Lime Product Characteristics for Iron- and Steelmaking Process Steps

The various process steps, which perform several critical functions in steelmaking, require different characteristics of lime to enhance their efficiency and effectiveness (Table 3).

4.2.1. Agglomeration and Sintering

The quality, granulometry, quantity, and method of lime addition to the agglomeration process are critical to sinter performance and productivity. The granulometry is important for the creation of uniform blending, which impacts the permeability of the charge, and hence the associated burning and heat transfer conditions during sintering. Burnt lime, as compared to limestone, improves the heat transfer in the sintered layer. At the same basicity and the same volume of fuel, a change in the CO₂/CO ratio can occur, due to the different amounts of carbonates after their replacement by lime. Lime dosing during agglomeration could potentially increase the sinter productivity by about 20%, reducing the cost per ton, and reducing the return sinter [15,16].

4.2.2. Hot Metal Desulphurization

The industry gradually moved from the use of calcium carbide (in Europe) and soda ash (Japan) to co-injection of pulverized lime and magnesium metal in the Kanbara refining station, due to its higher effectiveness with removing sulphur, the production cost, and the environmental benefits. The powder injection rate, the residence time of the powder in the plume, and the particle size, are the critical parameters influencing the desulphurization rate. Hence, the selection of an appropriate fluidizing agent (siloxanes based) and granulometry (powder particle size) is critical to achieving the flowability of lime and dense phase injection, affecting the effectiveness of the reagents and minimizing the iron droplets in the slag, hence improving the hot metal yield [17]. A Lower sulphur content in the lime particles is an added advantage.

$$\left[\mathrm{S}\right]+\mathrm{CaO}\to \mathrm{CaS}+\left[\mathrm{O}\right]\left(\Delta {\mathrm{G}}^0=115,358-38.66\mathrm{T}\left[\mathrm{J}/\mathrm{mol}\right]\right)$$

$$\mathrm{Mg}+\mathrm{CaO}+\mathrm{S}\to {\mathrm{CaS}}_{\left(\mathrm{s}\right)}+{\mathrm{MgO}}_{\left(\mathrm{s}\right)}$$

4.2.3. BOF Converter Process

Lime addition in the BOF is important to protecting refractories, and maintaining alkalinity for assisting in dephosphorization. While oxygen lancing facilitates the removal of carbon from the bath as CO, other elements, including Si, Mn, and P, also oxidize and are absorbed in the slag layer [18,19]. Top-blown converters typically use lump lime, using conveyors, while bottom-blown converters add pulverized lime through tuyeres. Lime addition through top-blown lances are used in Japan, while still remaining a challenge in the European and US industries. According to Behrens, Koenitzer and Kootz [20], soft burnt lime, having a large specific surface and good reactivity, favors dephosphorization and desulphurization. Higher quality lime facilitates a lower consumption of lime and an improvement in steel melt shop productivity.

4.2.4. Electric Arc Furnace Process

There has been a lot of research on foamy slag practice in EAFs. The foamed slag helps to stabilize the arc, protecting the refractories from the arc, shielding the metal from the atmosphere, and improving the energy efficiency by reducing the power-on time and the repair time. Foaminess also helps in improving the chromium recovery, in the case of stainless steel melting. CO gas caused by the reaction of carbon and oxygen (FeO) helps foam bubbles to form on the top of a dense layer of slag. The slag composition is of great importance, with an overall requirement of a limited amount of second-phase particles serving as gas nucleation sites [21]. Lime (CaO) injection foaminess to be maintained throughout the heating phase, and the second-phase particles serve to control the apparent viscosity of the slag, which is a parameter of paramount importance to profitably control the slag foaming. It is also important to saturate the slag by MgO, by the use, for instance, of dolime. MgO saturation is fundamental to ensure that enough solid particles to promote the foaming and chemical equilibrium toward the refractory lining.

$${\mathrm{FeO}}_{\left(\mathrm{s}\right)}+{\mathrm{C}}_{\left(\mathrm{s}\right)}\to {\mathrm{Fe}}_{\left(\mathrm{l}\right)}+{\mathrm{CO}}_{\left(\mathrm{g}\right)}$$

4.2.5. Secondary Metallurgy

Secondary metallurgy treatment is the last process step in handling, refining the liquid metal, and acting as a buffer between the melting furnace and casting. The quality of the raw materials added during the process is critical, as there is no extraction process thereafter. The white slag, high basicity, and low oxygen ppm during the process is able to absorb inclusions, give a slag coating on the refractories, and reduce sulphur content in the liquid steel [22]. Correct granulometry and the chemistry of the lime helps to develop the white slag in the early stages of the process, enabling the production of cleaner steel [23].

5. Lime Handling and Addition Practices

As briefed above, a variety of lime, dolime, and blended lime products are used during iron- and steelmaking process. In the BOF and EAF, it is common to see high-calcium lump lime and dolomitic lump lime being charged over the roof in a bucket, or through some type of feed system.

The controlled addition of lime and dolime in the iron- and steel-making processes is gaining importance. Controlled dosing of lime in the sinter raw feed enhances productivity and reduces cost. New technologies such as sidewall lime injection facilitate direct feed into the slag/metal interface, optimizing the foamy slag characteristics. Lime injection helps in maintaining a foamy slag in the EAF during the entire heat cycle, and it provides multiple benefits, including environmental compliance, reduction in consumption, lower slag volumes, better metallic yield, and higher productivity. Lime injection in the BOF has also been successfully tried and used at many steel plants. Controlled lime addition is also equally important in secondary metallurgy, to make slag that ensures good quality steel for smooth casting that is free of inclusions.

5.1. Sinter Plant Lime Dosing

It is a common practice to add fine lime (0–3 mm) into the sinter feed to improve the productivity, fuel consumption, permeability, and the sinter cold strength [16]. Lime fines help in improving granulation and micro-pellet resistance during sintering, and it increases the vertical sintering speed while reducing the specific consumption of the limestone in sinter making. Lime addition timings, especially considering the reactivity of lime and its maturation (20–60 min), is critical for increasing the sinter productivity.

We conducted a study on the impact of lime quality and granulometry selection on the sintering efficiency [24]. We have observed a significant effect on the productivity, fuel consumption, and sinter fractions. The research revealed an approximately 27% increase in productivity using engineered limes compared to the reference (Figure 5).

In a research conducted by the Research Fund for Coal and Steel on the “Impact of burnt lime on the sintering process”, it was demonstrate that lime quality affects sinter productivity [16]. The steel plants could work to optimize the method of using and injecting burnt lime in sinter plants, depending on the lime quality.

5.2. BOF Lime Injection

Early lime injection trials were conducted back in the 1980s, but these had difficulties due to the lime characteristics and the oxygen lance design limitations. Lime injection through bottom concentric tuyeres in OBM/Q-BOP (from the German “Oxygen Bodenblasen Maxhuette” or “Quick-Quiet Bottom Oxygen blowing Process” in North America) has been successful, but most of the shops still top charge the lump lime in the converter. Carmeuse tried an injection concept through a top lance in 2011 at a North American steel mill (Figure 6). Lime (in white in Figure 6) was injected through a centered additional hole, together with oxygen (in blue in Figure 6) using a specifically designed lance. The benefits perceived are 100% recovery of the lime injected, improved dissolution rate of the lime, consistently better slag, improved dephosphorization, reduced slopping, elimination of reblows due to phosphorus, and improvement in the refractory lining life [25].

5.3. EAF Lime Injection

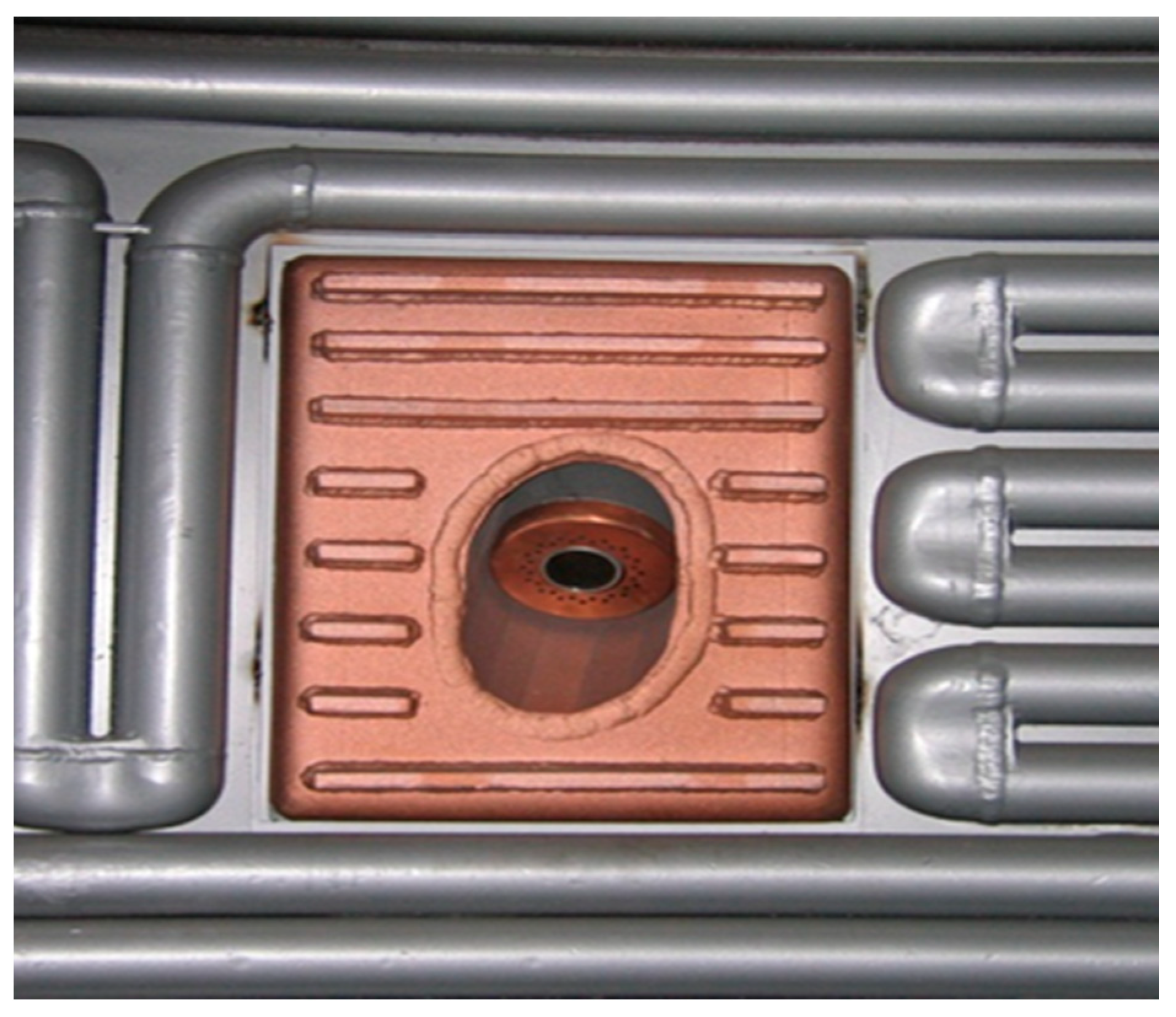

The EAF slag composition changes dynamically throughout the heating process. Lime addition through bucket route or a fifth hole poses various challenges to the steel melter in controlling the foaminess of the slag. Lime injection through the sidewall (Figure 7) facilitates immediate controls on slag viscosity and related parameters, sustaining foaminess during the entire process. Lime injection and control on foaminess saves on power-on time, energy consumption, refractories, and lime consumption, and allows for a safer and better environment [26].

6. Impact of Lime Chemistry on Use of Lime and Steel Process Parameters

The slag properties and chemistry are important for lowering sulphur levels and trapping inclusions that are transported to the slag. Various steel quality levels also require different conditions in the slag, which can be adjusted with proper lime addition. It is then very important to pay attention to the chemical and physical properties of lime [27].

6.1. CaO Content in Lime

Quite often, steel plants are unclear in their specifications about total CaO and available CaO content. The stone quality and calcination process affects the available CaO content in lime. The higher the inert amount, the lower the amount of CaO content, and similarly, high residual CO₂ content means a lower amount of total and available CaO content (

Table 4. Lime characteristics depending on stone quality and residual CO₂.

Stone Quality:	Inerts = 1%	MgCO3 = 1%	CaCO3 = 1%
Res. CO2	CaO av.	CaO tot.
1.5%	94.01%	95.82%
2.0%	92.88%	95.33%
5.0%	86.13%	92.41%
8.0%	79.39%	89.49%
10.0%	74.89%	87.54%
Stone Quality:	Inerts = 2%	MgCO3 = 1%	CaCO3 = 1%
Res. CO2	CaO av.	CaO tot.
1.5%	92.34%	94.15%
2.0%	91.22%	93.67%
5.0%	84.52%	90.80%
8.0%	77.83%	87.93%
10.0%	73.36%	86.02%

). Sulphur contamination during calcinations will react with the CaO to form CaSO₄, and affect the available CaO content in lime. Each percent of additional CaO that is available potentially saves about a kilo per ton of total lime requirements for heating, reducing costs and improving productivity.

6.2. Silica (SiO₂) Content in Lime

Acidic contents, mainly SiO₂ and Al₂O₃, originated from the raw materials, and previous processes steps determine the amount of CaO required. Any impurities from lime, including SiO₂, is a burden to the process, as an extra amount of lime will be required to remove the inherent silica. It also lowers the yield. Every extra percent of SiO₂ coming from lime would demand between two and four kilograms of extra lime per ton of steel. This will cause about 5–10 grams of iron to be lost to the slag as FeO. The total opportunity losses would include extra melting (energy and productivity), plus yield loss, simply calculated by multiplying the FeO% by 0.78.

6.3. Sulphur Content in Lime

Sulphur is the most undesirable impurity in steel, and its removal may not be economically feasible without the use of high calcium lime during either hot metal desulphurization or secondary metallurgical treatment [17,22]:

$${\left[\mathrm{S}\right]}_{\mathrm{metal}}+\left({\mathrm{O}}^{2-}\right)\rightleftarrows {\left[\mathrm{O}\right]}_{\mathrm{metal}}+{\left({\mathrm{S}}^{2-}\right)}_{\mathrm{slag}}$$

The desulphurization improves with an increase in the concentration of calcium oxide until it reaches the saturation limit (mass % of 55–60), and beyond that, the desulphurization rate is limited. The rate of sulphur removal (%S _initial − %S _final)/(%S _initial) is determined by the sulphide capacity, the stirring intensity, and the slag volume. The sulphide capacity of the slag depends on the oxides in the slag (basicity), the volume and viscosity of the slag, and the temperature and the available sulphur content in the slag. Slag enrichment with extraneous sulphur such as contaminated lime is highly undesirable as it may affect the slag absorption capacity [12].

To understand the impact of lime quality on desulphurization, we conducted a detailed study at a steel mill before making a decision to switch from low quality lime to high CaO lime. The results summarized in

Table 5. Impact of lime quality on sulphide capacity and final sulphur content in steel.

Lime Quality:
Lime characteristics	A (10 heats)	B (10 heats)
Average CaO	85.7%	94.3%
Average MgO	0.5%	0.5%
Average SiO2	1.6%	1.0%
Ladle Slag results
Calculated sulphide capacity	−2.42	−2.32
Initial sulphur in steel	0.039%	0.041%
Final sulphur in steel	0.016%	0.013%

clearly reflect that high CaO lime improves the sulphide capacity and the final sulphur level in steel.

6.4. Loss on Ignition

Loss on ignition depicts the total weight loss that is associated with water and carbon dioxide evolutions, quantified by recording the sample weights before and after controlled heating. The soft burnt lime with about 3% LOI, produced under controlled condition, is reactive and ideal for steelmaking process, while hard burnt lime with low LOI is difficult to dissolve in the steel bath [28,29]. Higher LOI (>2%) indicates that both or either moisture and carbon dioxide content are on the higher side and undesirable in the steelmaking process. Higher and inconsistent LOI may affect the quality (hydrogen), the cost of steel (energy to calcinate stone), the productivity (extra time needed to input energy), and most importantly the safety (boil, splashing) in a steel mill.

6.5. Granulometry (Grain Size)

Grain size control is very important for all raw materials that are fed into iron- and steelmaking processes. Steel producers decide the size range based on the infrastructure, dissolution rate, environmental controls, and yield. The finer size (0–3 mm) is ideal for sinter plants, mainly for the homogeneity of the sinter feed. Since a negative pressure is maintained in BOFs and EAFs, to avoid the fines being sucked through the fume exhaust system, and based on the conveyor designs, a coarser size (10–50 mm) is mainly good for the steel melting process. A rather quicker dissolution during tapping and at the secondary metallurgy station, demands a size of between 5 and 20 mm. Most of the steel mills are gradually moving towards lime injection in BOFs and EAFs, as this brings huge benefits on environmental compliance, savings on lime consumption, and significant controls on the slag making practices.

7. Summary

Slag making is critical to steelmaking. The control of raw materials is equally important at the initial stages of agglomeration as at the final stages in steelmaking. Lime and dolime are the most economical and environmentally friendly fluxes, acting as an antidote to impurities, and helping to clean the steel and protecting refractories. The lime characteristics and requirements vary for each processing step during iron- and steelmaking. Lime fines act as a cement in the agglomeration process, lump or injection lime helps to maintain the alkalinity and the removal of phosphorus during the BOF process, and lime injection supports a consistently good foamy slag throughout the process. High-calcium soft-burnt lime with the lowest possible level of impurities potentially improves the productivity (process time & refractory life), reduces cost (reduced lime consumption), improves metallic yield (reduced slag volumes), cleans the steel (less impurities), improves safety (reduced slopping), and provides better environment in the steel shop.
