Extraction of Metal Arsenic from Waste Sodium Arsenate by Roasting with Charcoal Powder

Abstract

The current paper explored the directly reductive decomposition of waste sodium arsenate by roasting it with charcoal powder to volatilize less toxic As⁰ and to simultaneously obtain sodium salts with potential commercial value, serving the purpose of developing a more sustainable route to deal with the environmental issues faced by the antimony production industry in China. The process was firstly evaluated by thermogravimetric (TG) analysis and thermochemical calculations. The effects of N₂ flow rate, roasting temperature, dosage of charcoal powder, and roasting time were then investigated. The results showed that the arsenic extraction could reach 99.84% under optimal conditions. The roasting residue, containing arsenic as low as 0.0598%, was a promising source for the production of Na₂CO₃ as expected. In addition, X-ray diffraction (XRD), scanning electron micrograph (SEM), and X-ray photoelectron spectroscopy (XPS) were conducted to reveal the roasting mechanism and formation of metal arsenic was thereby confirmed.

1. Introduction

Arsenic, a well-known poison, carcinogen, and perhaps teratogen, has once found widespread use in agriculture (pesticides, herbicides, etc.) and industry (the production of lead car batteries, of anti-friction agent in bearings, etc.) [1], but due to its potential threats to public health, its global consumption has declined as many countries have banned the use of arsenic-containing agricultural products [2]. The policy intends to control arsenic-related environmental risks by putting restrictions on its application, whereas new challenges emerge elsewhere as more and more arsenic wastes are generated from other anthropogenic activities, especially in the fields of mineral processing and metallurgy, as arsenic is one of the common elements distributed in the earth’s crust.

In China, about 5000 tons of waste mainly bearing arsenic and antimony, known as arsenic-alkali residue (AAR), is produced annually from antimony extractive metallurgy in addition to a total storage of 200,000 tons [3,4,5]. The rapidly increasing amount of the residue has posed a serious burden on its management and thus has resulted in a series of research regarding its treatment. In order to recover antimony, arsenic is usually separated from the AAR, resulting in the overproduction of sodium arsenate which had already been in huge stockpile because of a shrinking market. The maintenance of such hazardous waste is highly risky due to its solubility and toxicity, and it is now urgent to develop an adequate route for its further disposal.

The advancement on the treatment of arsenic wastes has been reviewed by several researchers [6,7,8,9], and one can notice that, because of lack in economical motivation, efforts are seldom put on its recovery. Instead, a lot of work has been carried out to stabilize arsenic in order to reduce its mobility. The objective is to prevent arsenic from diffusing into the adjacent surroundings as it will finally report to the landfills. Given the wide range of chemical characteristics of arsenic wastes, the stabilization/solidification (S/S) process, recognized by United States Environmental Protection Agency (USEPA) as “the best demonstrated available technology” for land disposal of most toxic elements, is suggested to be used on a case by case basis [9]. In the case of the waste sodium arsenate (WSA), only a few reports are available. In these studies, WSA is either reacted with ferric to form scorodite [10], a stable compound of arsenic with the lowest solubility and dissolution rate among common arsenic minerals [11], or is fixed with cement via S/S [1,12].

In general, these reports have actually suggested that the options are limited to solidify the arsenic waste before its final land disposal. In addition, it is recommended that, since arsenic (V) is less toxic than arsenic (III) [13], pre-oxidation of arsenic (III) waste appears to be the best solution prior to an S/S process [14]. Therefore, it is unsurprising to find that focus has barely been put on another direction which may prove worth exploring, that is, to reduce arsenic into its elemental phase.

As a matter of fact, there are at least two benefits for treating WSA by reduction. Firstly and most importantly, the amount of WSA could be minimized once it is converted into metal arsenic (ideally, 1 ton of sodium arsenate could produce only about 177 kg metal arsenic). This basically indicates the maximum of waste minimization on WSA as there are no other arsenic species more “minimal” than As⁰. Secondly, the formed metal arsenic could either be directly recovered or further solidified via the S/S process, depending on the actual need. From this point of view, it is more sustainable to generate metal arsenic from the solid waste, and thus can justify studying the reduction of arsenic in WSA into its elemental state as well as on other successive efforts (e.g., direct fixation of metal arsenic).

In recent decades, reports on arsenic preparation have all been about achieving its product grade [15,16,17,18,19,20]. While the market is not guaranteed, these routes may be too sophisticated to serve the purpose of waste minimization. Besides, over-emphasis on the recovery of arsenic has precluded the reclamation of other elements which should be able to partially cover the cost of the process.

The objective of this paper was to evaluate a process in which metal arsenic and sodium salts of potential commercial value were simultaneously obtained by thermal treatment of the WSA with charcoal powder. The charcoal powder was employed as the reducing agent because thermochemical calculation had suggested a simple process with only one step for this purpose. The generated sodium phases with a trace amount of arsenic consisted of mainly sodium carbonate and a little sodium oxide which obviously could be turned into the former by reacting with carbon dioxide. Factors affecting the process were investigated including flow rate of N₂, dosage of charcoal powder, roasting temperature, and roasting time.

2. Experiments

2.1. Materials

The sodium arsenate used in this study was collected from Hunan Province, China. It was produced while separating arsenic from antimony in the AAR by water leaching. During the process, soluble arsenic species were dissolved into the aqueous phase, which was then boiled to obtain sodium arsenate. The sample was subjected to X-ray Fluorescence (XRF) (Bruker, Karlsruhe, Germany) to analyze its general elements and accurate analyses were conducted for the contents of arsenic and sodium. The results are shown in

Table 1. The main compositions of the sample (%).

As	Na	Fe	Sb	S	P	Ca	Al
16.79	16.82	0.016	0.086	0.075	0.34	0.1	0.041

, indicating the crystals mainly consist of arsenic and sodium with minor impurities, such as Fe, Sb, S, and so on.

The content of fixed carbon in the reducing agent, the charcoal powder, was analyzed to be 80.3 wt %. Industrial grade N₂ (purity 99.5%) was used as protecting gas.

2.2. Roasting Procedure

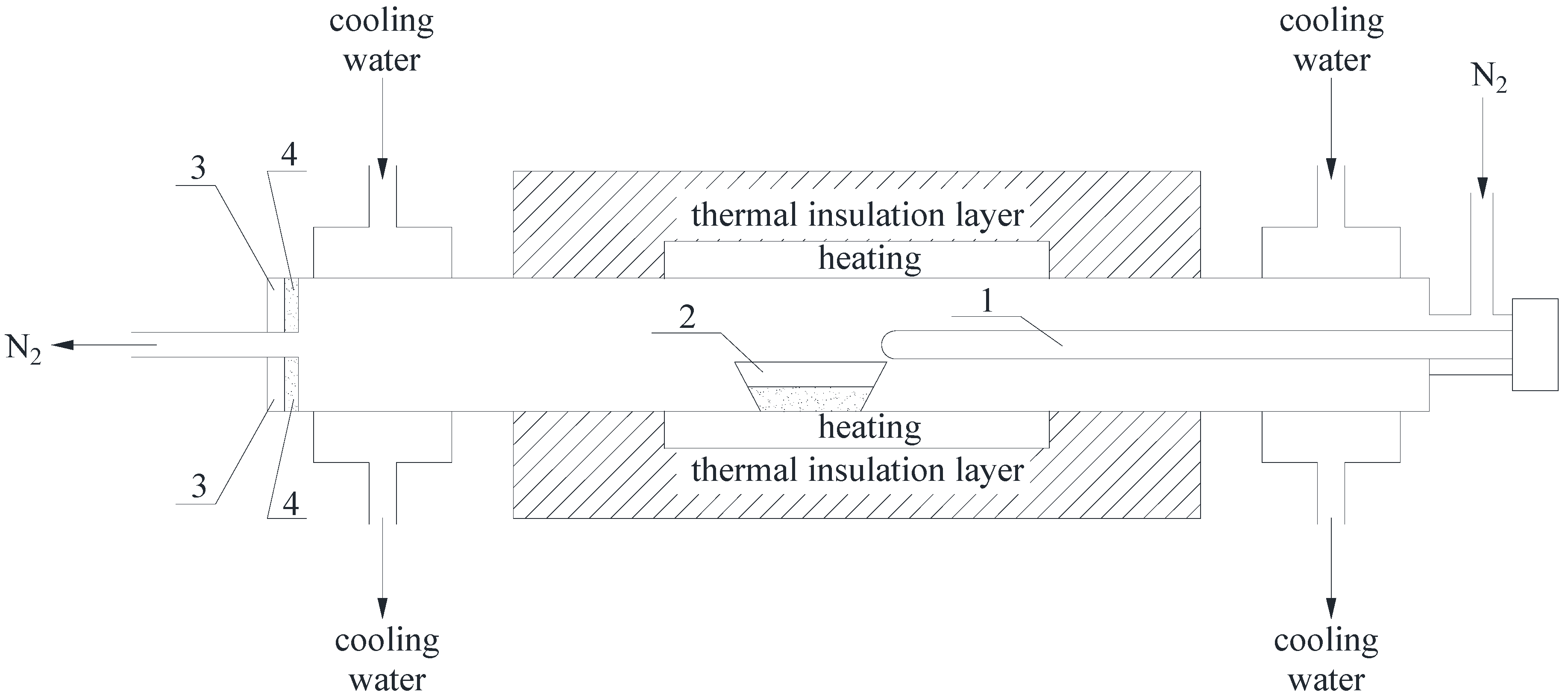

The roasting procedure was conducted in a self-designed electric resistance furnace. The schematic illustration of the apparatus is shown in Figure 1. For each test, 10 g of the raw material was manually ground in a mortar along with certain amount of charcoal powder using a pestle to ensure good mixing. The mixture was then transferred into a corundum boat which had been pretreated by roasting for 2 h at 800 °C.

The boat containing the sample was weighed and placed into the heating zone before the reactor (made of stainless steel 310s) was sealed with a removable lid. Protecting gas N₂ was introduced into the container, and it was not until at least 5 min later that the heating started. The target temperature was achieved within 15 min. After the sample was roasted for the required time, the removable lid was immediately discharged and the boat taken out to cool off under ambient conditions. It should be mentioned that, during the roasting process, the temperature fluctuated around the expected degree centigrade within ±20 °C.

2.3. Sample Preparation

After cooling, some of the roasting products (especially those roasted at 900 °C) had tightly cohered onto the surface of the boat, making it difficult to collect the entire sample. Therefore, in order to calculate the arsenic loss, the cooled boat along with the residue was directly immersed into nitric acid (30 wt %) for the dissolution of the sample. The generated solution was stored in a sealed centrifuge tube before it was sent to Inductively Coupled Plasma-Atomic Emission Spectroscopy (ICP) (PerklinElmer, Waltham, MA, USA) for the assay of arsenic content. On the other hand, if the residue sample was needed, the experiment would be replicated and a screwdriver was used to scale off the solid as much as possible. In addition, volatile product was collected with care only from the internal surface of the removable lid because it was very difficult to take samples from other areas in the container without the introduction of many impurities, and since just a little amount of condensed phase was gathered in each run, it was evenly compiled to a mixture.

2.4. Sample Analysis

The content of fixed carbon in the charcoal powder was assayed by a Carbon/Sulfur Determinator (LECO CS844) (LECO Corporation, Saint Joseph, MO, USA). The arsenic contents of the solution and of the pooled volatile product were analyzed by ICP-AES (IRIS Interpid II XSP) (Thermo fisher scientific, Waltham, MA, USA). The solid sample was characterized by X-ray diffraction (XRD, Bruker AXS D8 Advance, Karlsruhe, Germany), and its morphology was observed by scanning electron micrograph (SEM, JSM-6360LV) (JEOL, Akishima, Japan). X-ray photoelectron spectroscopy (XPS) measurements were carried out on a Thermo Fisher Scientific K-Alpha 1063 (Waltham, MA, USA) using Al-Kα X-ray as the excitation source, and the thermogravimetric analysis was conducted using a STA449F3A-0488M instrument (Netzsch, Bavaria, Germany).

3. Results and Discussion

3.1. Sample Characteristics

The phase compositions of the sample were analyzed by XRD and XPS and the results are presented in Figure 2 and Figure 3, respectively.

It can be found from Figure 1 that although different in intensities, the characteristic peaks of the sample has been distributed in similar locations in comparison to Na₃AsO₄·12H₂O (NH), Na₃AsO₄·0.25NaOH·12H₂O (NNH). This probably suggests the sample is the mixture of NH and NNH. The difference in peak intensities between the sample and the standards could probably be accounted for by preferred orientation of the crystals which occurred during the preparation of sodium arsenate at industrial level.

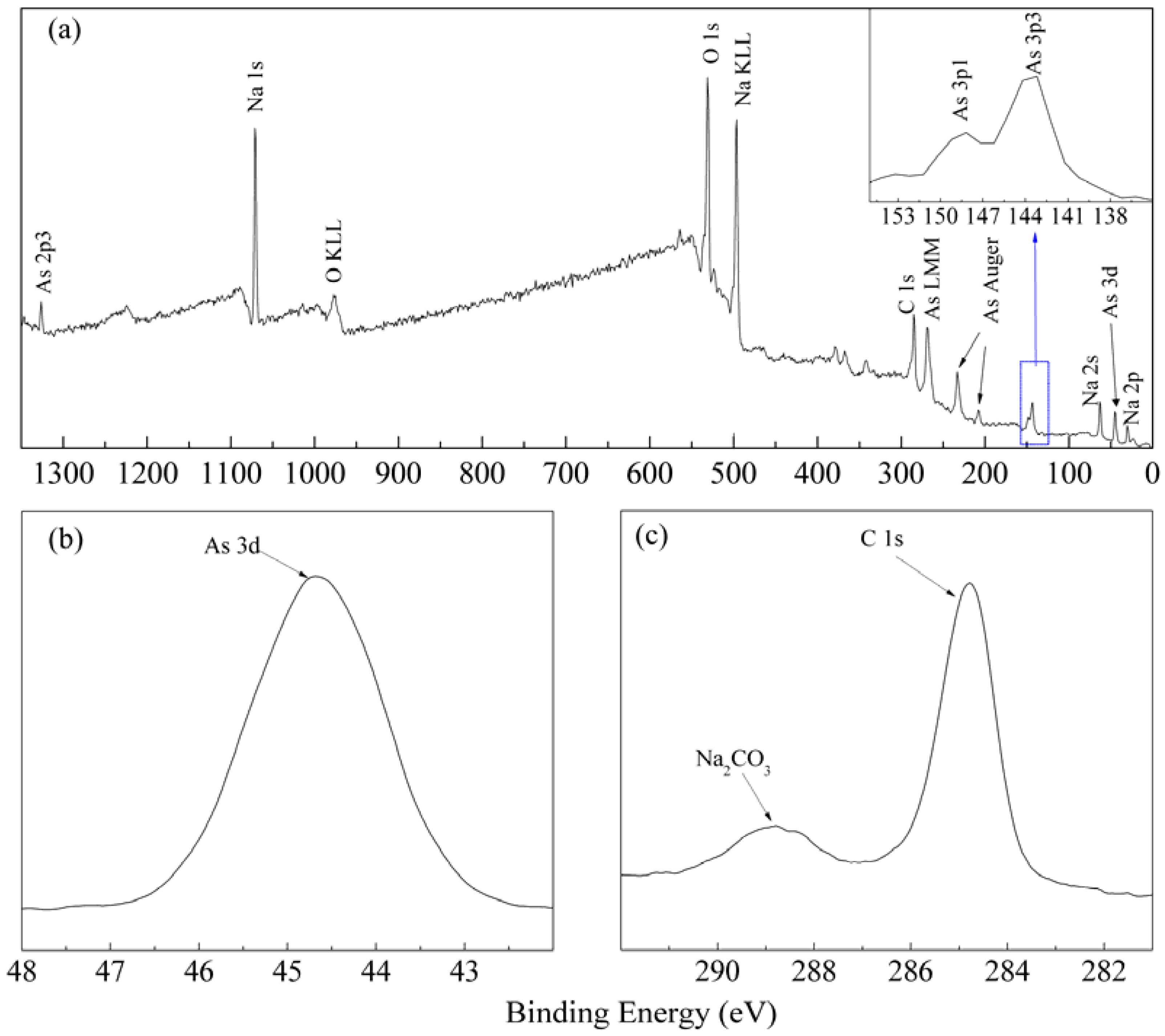

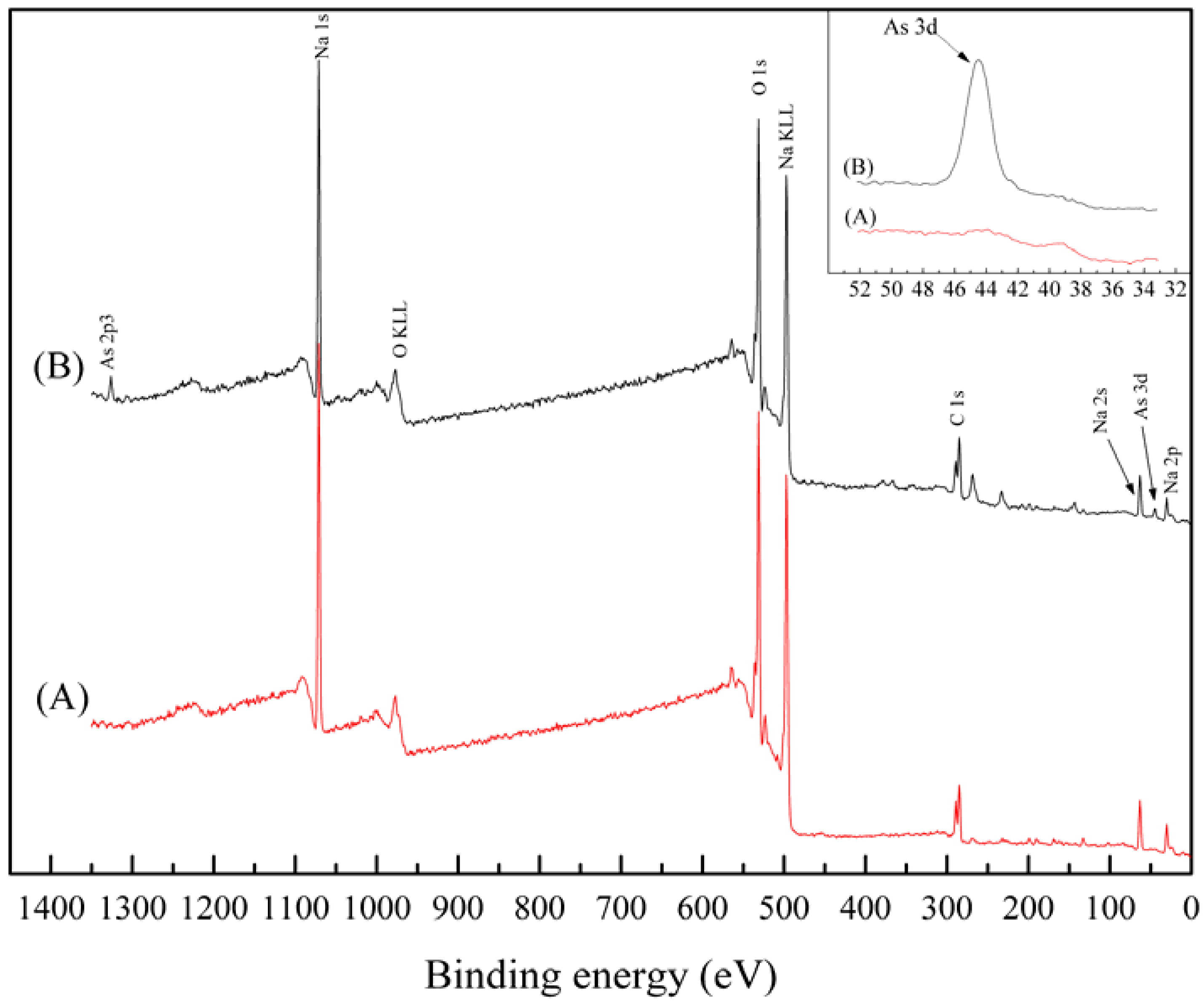

The XPS wide scan spectrum is presented in Figure 3a, and peaks attributed to arsenic can be clearly seen including As 2p3, As 3p3, As 3p1, and As 3d at 1326 eV, 143 eV, 148 eV, and 45 eV, respectively [21,22]. In addition, peaks at 268, 232, 208 eV could be assigned to As Auger lines [22]. Significant peaks corresponding to O 1s, C 1s, and Na 1s are also observed. Other elements which were found by XRF could not be detected by XPS due likely to their low contents. As reported [22,23,24], the binding energy of As 3d has actually been indicative of the oxidation states of arsenic, with a value of 44 eV and 45 eV for As(III) and As(V), respectively. Figure 3b has shown the high-resolution scan of As 3d, which gives a binding energy of 44.7 eV. The peak shape suggests the presence of a single valence, and not a contribution of multiple valences [25], which means As (V) is the only phase in the sample. On the other hand, detailed spectrum of C 1s is shown in Figure 3c. It can be noted that besides the main peak of C 1s located at 284.8 eV, a small peak is also observable at 289 eV. This could be assigned to sodium carbonate [26], although XRD has failed to reveal the presence of sodium carbonate.

3.2. Thermal Gravity Analysis

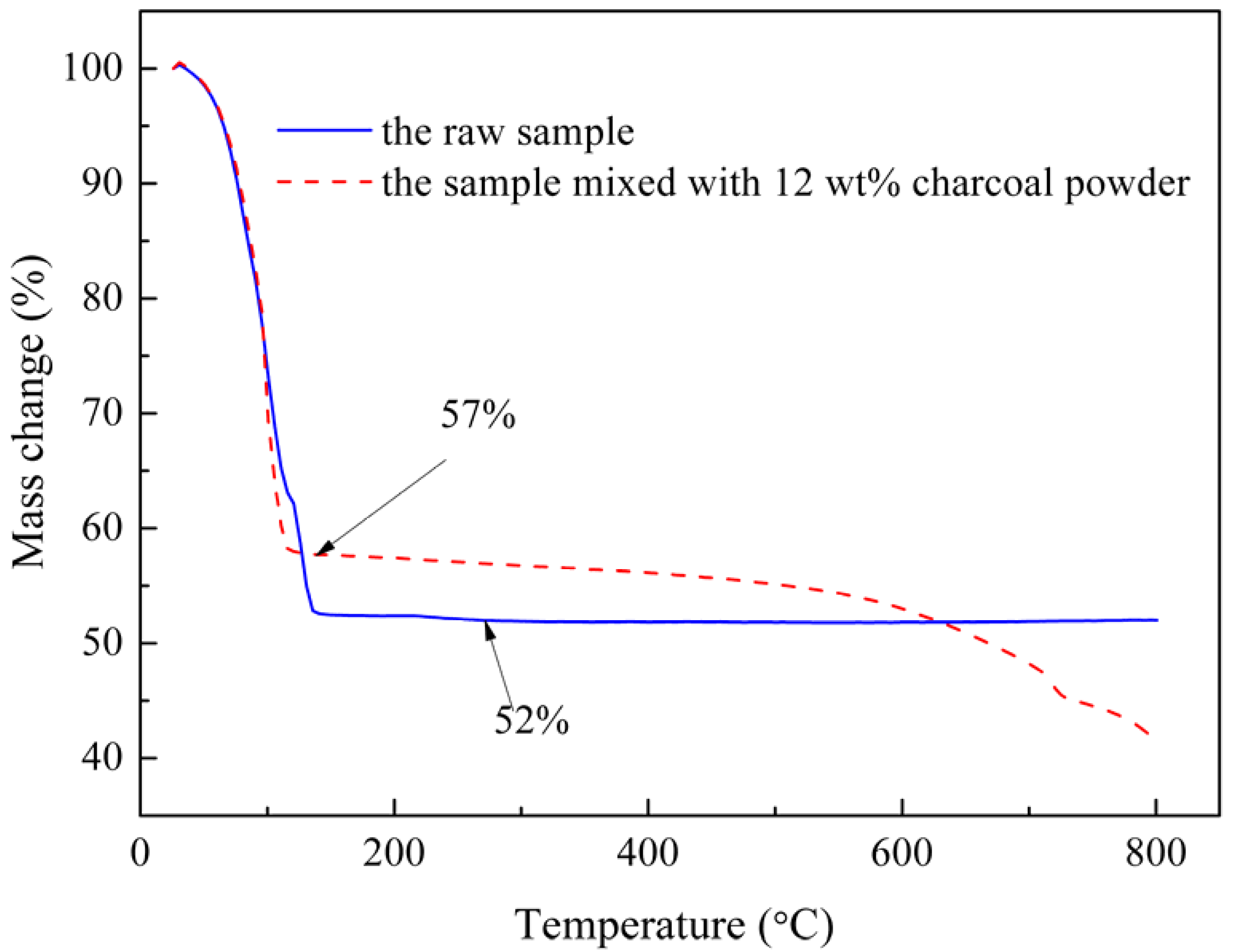

The sample with/without the addition of 12 wt % charcoal powder was subjected to thermal gravity analysis. This was conducted because it could reveal the temperature where the system endured mass changes, which is informative for the following experiments. The results are demonstrated in Figure 4.

As can be seen, the mass of both samples started to decrease almost immediately with the increase of temperature.

For the sample without charcoal powder, a sharp mass reduction was observed at temperatures ranging from 30 °C to 135 °C, which, in consistence with results indicated by Zhao et al. [27], could be explained by the evaporation of crystal water:

Na₃AsO₄·12H₂O = Na₃AsO₄ + 12H₂O(g)

Due to the impurities in the sample, the mass ratio remains about 52% instead of the reported 49.05% [27]. Meanwhile, taking into account the presence of NNH, the following reaction could also happen:

Na₃AsO₄·0.25NaOH·12H₂O = Na₃AsO₄ + 0.25NaOH + 12H₂O(g)

For the sample with charcoal powder, an approximate mass loss of 43% was found when the temperature was increased from 30 °C to 125 °C. Apparently, this could also be accounted for by the dehydration of sodium arsenate. Given that the addition of charcoal powder is 12 wt % with respect to the raw sample, a calculation could be done to confirm that all the crystal water had been evaporated. Therefore, the other significant mass reduction, which was not initiated until the system was heated to 600 °C, actually indicated the occurrence of related reactions without the involvement of vapor.

3.3. Thermodynamic Consideration

Based on TG results, thermochemical calculation was then carried out to reveal reactions causing the mass loss, and most importantly, to evaluate the possibility of direct conversion of sodium arsenate into free element arsenic. Using Outotec’s Chemical Reaction and Equilibrium Software HSC Chemistry (Version 6.0, Espoo, Finland), changes of standard Gibbs free energy ${\Delta }_{\mathrm{r}}{\mathrm{G}}_{\mathrm{m}}^{\mathsf{\theta }}$ (T, 1 bar) of concerned reactions during the roasting process were calculated.

Thermochemical data of sodium-arsenic phases at high temperature is barely found in the literature. The valid temperature range provided by this software is from 298 K (about 25 °C) to 1000 K (about 727 °C) for the calculation of dehydrated sodium arsenate (written as Na₆Aa₂O₈ or 3Na₂O·As₂O₅). Therefore, the computation was carried out at temperature ranging from 400 °C to 700 °C. Correspondingly, the objective reactions are listed as follows:

2Na₆As₂O₈ + 5C = 5Na₂CO₃ + Na₂O + As₄(g)

(1)

2Na₆As₂O₈ + 10C = 6Na₂O + 10CO(g) + As₄(g)

(2)

2Na₆As₂O₈ + 5C = 6Na₂O + 5CO₂(g) + As₄(g)

(3)

Meanwhile, since the generation of arsenic trioxide, another volatile phase for arsenic, would affect the purity of metal arsenic, the relevant reactions are also of interest:

2Na₆As₂O₈ + 2C = 2Na₂CO₃ + 4Na₂O + As₄O₆(g)

(4)

2Na₆As₂O₈ + 4C = 4CO(g) + 6Na₂O + As₄O₆(g)

(5)

2Na₆As₂O₈ + 2C = 2CO₂(g) + 6Na₂O + As₄O₆(g)

(6)

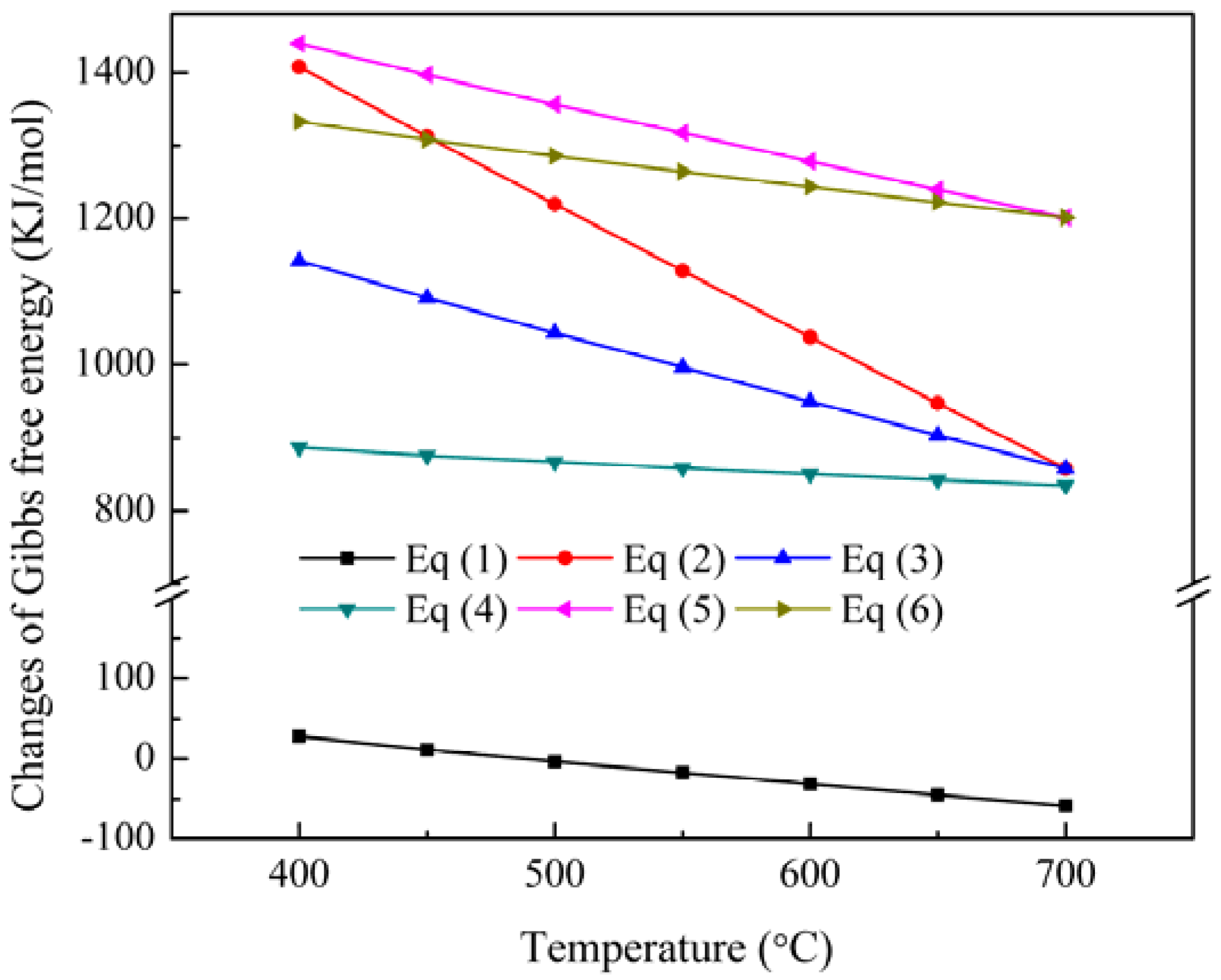

Accordingly, results of the calculations are demonstrated in Figure 5.

It can be seen that values of ${\Delta }_{\mathrm{r}}{\mathrm{G}}_{\mathrm{m}}^{\mathsf{\theta }}$ of Equation (2)–(6) is far larger than 0 KJ/mol within the temperature range investigated, while that of Equation (1) becomes negative at about 500 °C and keeps decreasing. Therefore, the spontaneous formation of volatile arsenic trioxide during the reductive roasting of sodium arsenate is thermodynamically denied, indicating that the only possibility of the gaseous arsenic product is free element arsenic in the form of As₄(g). Probably due to kinetic reasons, the reaction described by Equation (1) was not obvious enough to be observed until the temperature was increased to about 600 °C, as indicated in Figure 4, instead of the calculated 500 °C.

3.4. Roasting Experiments

One thing that should firstly be mentioned is that in order to confirm the reliability of the results, some experiments were randomly chosen and repeated three times, and the mean values of these results along with their standard deviations are presented in the related figures.

3.4.1. Effects of N₂ Flow Rate

The effects of N₂ flow rate on arsenic removal were studied in the preliminary experiment and the results are shown in Figure 6. Theoretically, larger N₂ flow rate is favorable for arsenic volatilization because it could accelerate the escape of the product from the reaction system, which is helpful for the forward reaction.

As seen in Figure 6, without N₂, the arsenic removal efficiency had already reached 93.07%. When the gas was introduced into the system and the flow rate was set at 0.5 L/min, about 96.26% of arsenic could be removed. However, further increasing the N₂ to 1.0 L/min promoted arsenic volatilization only to 97.38%. Taking into account the standard deviations, the improvement of arsenic extraction by increasing the N₂ flow rate from 0.5 L/min to 1.0 L/min is negligible and the results should be considered to be at the same level. Therefore, in the following experiments, the N₂ flow rate was fixed at 0.5 L/min.

3.4.2. Effects of Temperature

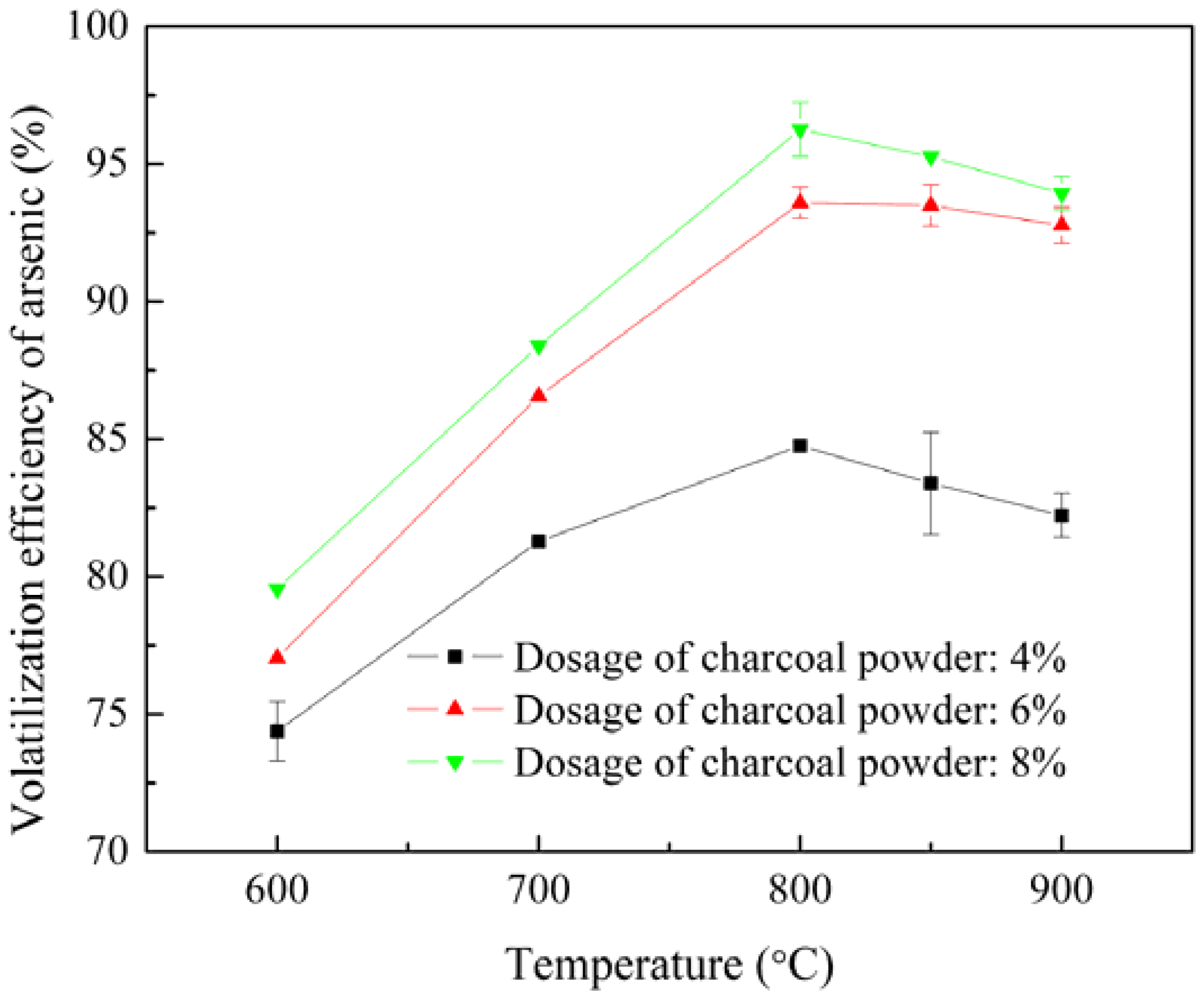

Figure 7 shows the effects of roasting temperature on arsenic extraction, and it can be seen that at all dosages of charcoal powder, arsenic extraction was pronouncedly promoted by elevating the temperature within the range of 600–800 °C. For example, when 8% was consumed, the arsenic extraction was 79.56% at 600 °C, and it was increased to 96.26% at 800 °C. However, temperature higher than 800 °C seemed to have adverse effects on the process. Arsenic removal was decreased for all samples when the temperature was further increased to 900 °C, namely, it had dropped to 93.94% for the abovementioned sample. The reason was unclear, but it was observed that the higher the temperature, the more compact the roasting product was and the tighter it had cohered onto the surface of the corundum boat. Meanwhile, the residue was more transparent at 900 °C, meaning the vitreous phase was formed during the cooling process. These observations indicate that higher temperature helps the sample to melt completely. Therefore, the decrease in arsenic extraction was probably caused by the viscosity of the melt, which had, to some extent, hindered the evaporation of arsenic.

3.4.3. Effects of Charcoal Powder Dosage

In order to further improve the arsenic extraction, effects of the dosage of charcoal powder under different temperatures were investigated. As shown in Figure 8, arsenic removal had apparently depended on the amounts of the reductant added into the system. More charcoal powder was beneficial for extracting arsenic from the sample. The arsenic removal had almost reached 100% (exactly, 99.84%) with 12% addition of the charcoal powder by roasting the sample at 800 °C for 60 min. At this point, it should be reported that arsenic content in the roasting product had correspondingly decreased to 0.0598%. In comparison, only 92.07% of arsenic was extracted at 700 °C and the arsenic grade in the residue was 3.24% after roasting for 60 min with 12% charcoal powder.

On the other hand, it was calculated before the experiments that, stoichiometrically according to Equation (1), about 4.2% of charcoal powder is needed for the complete reduction of As (V) into As (0) in the sample. However, Figure 8 shows that the results barely reached 90% with 4% of the reductant. Although results of thermal gravity indicated that the sample loses its crystal water at 35–135 °C (Figure 4), the temperature acceleration may be so quick as not to leave enough time for the vapor to totally escape from the system. Therefore, one possible explanation is that the carbon was partially consumed by the formed vapor through reaction: C + H₂O(g) = CO(g) + H₂(g).

3.3.4. Effects of Roasting Time

Figure 9 shows the effects of roasting time on arsenic removal at 800 °C. It can be seen that the process happened very fast. For the cases investigated, more than 90% of arsenic was extracted within 30 min. Further increasing the roasting time had comparably only improved the arsenic extraction a little. For the sample with 6% charcoal powder, arsenic extraction had not reached 99.0% after a 150 min thermal treatment. In comparison, with the addition of 8% charcoal powder, the arsenic removal achieved 99.43% when the sample was roasted for 120 min.

3.5. Analyses on the Roasting Residues and the Volatile Products

Some experiments were repeated to collect the residues which were then subjected to XRD and XPS in order to reveal more details of the roasting process. Related observations should be mentioned before the results are presented: (1) the residues were found to be hygroscopic, making it impossible to achieve the expected fineness because some particles could easily be either ground onto the surface of mortar or compacted together; (2) although the samples were dried at 105 °C prior to the XRD procedure, irregular changes on diffraction angle were still detected because of the deliquescence, so the XRD did not proceed until the diffraction stopped deviating.

3.5.1. Roasting Residues

Figure 10 shows the results of XRD for the roasting residues. First of all, the presence of Na₂CO₃ and/or Na₂CO₃·H₂O in all the samples was confirmed. However, there is no evidence for the generation of Na₂O or NaOH. Secondly, arsenic salts including Na₃AsO₄·12H₂O and Na₃AsO₄·0.25NaOH·12H₂O are found in samples B and C. Since previous results has suggested that arsenic extractions were 96.26% and 77.04% for samples B and C, respectively, it is unsurprising to make this observation. Meanwhile, the hydration of these phases is also accountable because, as mentioned before, the sample had been deliquesced. Finally, there were no arsenic phases detected in sample A. Given the fact that only 0.0598% of arsenic is left in the residue, it is reasonable that the trace phase is difficult to detect. This could again be proved by XPS results, as shown in Figure 11, where it was found that the characteristic peaks of arsenic disappeared in sample A while they were still detectable in sample B. The narrow scan of As 3d further confirmed this observation.

3.5.2. Volatile Product

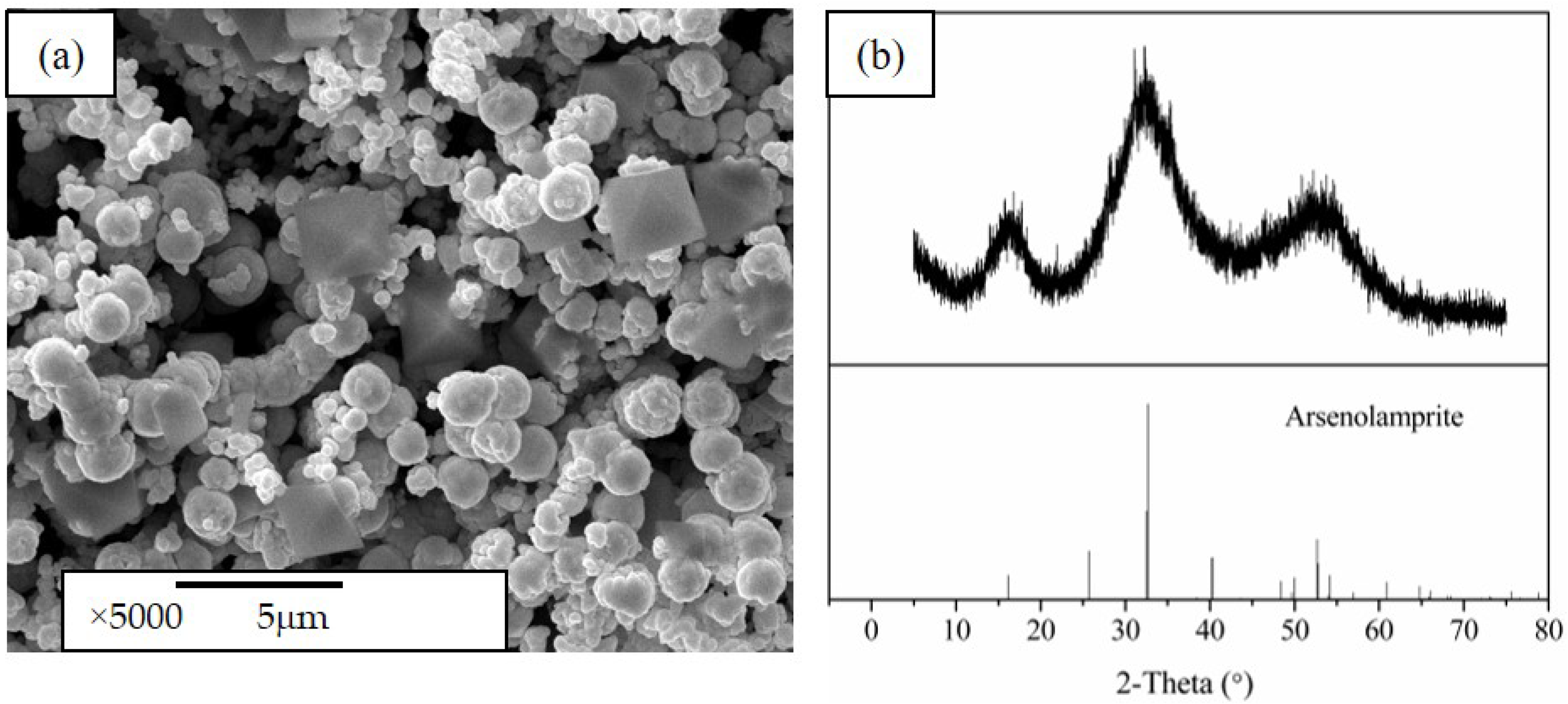

The collected volatile product, which turned out to be black powder, was assayed by ICP, indicating its arsenic content had reached 97.3%. The SEM image revealed the presence of countless spherical granules and of a few crystal-like particles in the product (Figure 12a). The sizes of these particles are small (less than 5 μm) and the irregular ones tended to be agglomerated with each other. Further in Figure 12b, the XRD pattern shows multiple broad peaks, suggesting these particles are amorphous. However, some of the characteristic peaks of arsenolamprite (PDF#85–1712, chemical formula: As) do fit into the ranges of the broad peaks although it is impossible to identify their d values. This may suggest that related crystal faces on these directions were poorly formed. It is explainable since when the temperature is rapidly decreased for the desublimation of the gaseous phase, it usually leaves no time for thorough crystallization.

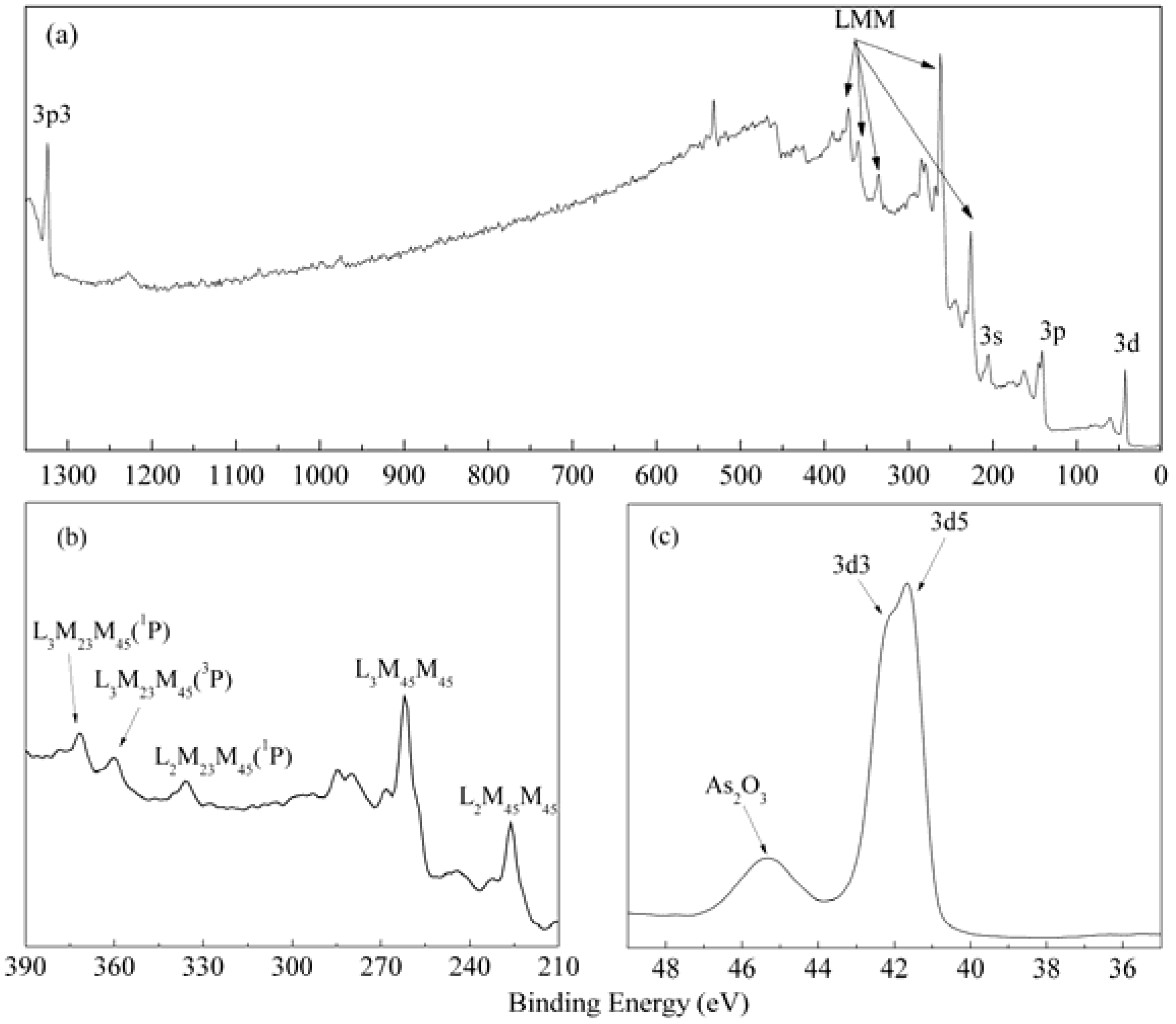

Figure 13 shows the XPS spectra of the volatile product. As shown in Figure 13a, besides peaks for arsenic, carbon, and oxygen, there are no other lines found. In addition, As Auger lines at 226, 262, 336, 360, and 371 eV are clearly demonstrated (Figure 13b). The most sound evidence for the formation of metal arsenic can be found in Figure 13c, where high-resolution of the peak As 3d is presented. It perfectly matched the reported binding energies of 41.6 and 42.3 eV for As 3d5 and As 3d3, respectively [28]. On the other hand, a small peak is found at 45.2 eV and is attributed to As₂O₃ [28], which must be formed due to surface oxidation of the particles.

Based on the discussion above, reaction Equation (1) must have occurred during the reductive roasting process of sodium arsenate with charcoal powder even though there is no direct evidence for the formation of sodium oxide (more accurately speaking, the phase to be detected should be sodium hydroxide as sodium oxide was exposed in the air and therefore ready to be attacked by moisture).

4. Conclusions

The present paper has for the first time proved it is feasible to reductively decompose waste sodium arsenate (WSA) by thermal treatment with charcoal powder, serving the purpose of waste minimization and simultaneous exploitation of its potential commercial value. Based on the results and discussion above, the following conclusions were drawn:

(1)

99.84% of arsenic could be separated after the waste was roasted at 800 °C for 60 min with charcoal powder dosage 12%;

(2)

The roasting residue containing only a little arsenic (exactly, 0.0598 wt %) was comprised of sodium salts, mainly Na₂CO₃. Therefore, it was a prospective source for the production of Na₂CO₃;

(3)

The reaction 2Na₆As₂O₈ + 5C = 5Na₂CO₃ + Na₂O + As₄(g) accounted for the reduction of As(V) and the volatilization of metal arsenic, and no other unwanted arsenic phase was volatilized;

(4)

The collected metal arsenic was ready for further purification and/or safe disposal, depending on the actual need.

Accordingly, the proposed route could minimize WSA and exploit the potential commercial value of the waste at the same time.
