Transformation Induced Plasticity Effects of a Non-Equal Molar Co-Cr-Fe-Ni High Entropy Alloy System
1
Research Institute for Energy Equipment Materials, School of Materials Science and Engineering, Hebei University of Technology, Tianjin 300132, China
2
Tianjin Key Laboratory of Materials Laminating Fabrication and Interface control Technology, Tianjin 300132, China
3
State Key Laboratory for Advance Metals and Materials, University of Science and Technology Beijing, Beijing 10083, China
*
Authors to whom correspondence should be addressed.
Received: 27 April 2018 / Accepted: 18 May 2018 / Published: 21 May 2018

Abstract

:
Metastability-engineering strategy is an important topic for high entropy alloys (HEAs), owing to the transformation-induced plasticity effect (TRIP). In this work, TRIP effects of Co-Cr-Fe-Ni HEAs are investigated. Results indicate the tensile deformation-induced martensitic transformation occurs in Co35Cr25Fe40−xNix (x = 0–15 at %) HEAs. The excellent combination of tensile strength (760 MPa–1000 MPa) and elongation (65–35%) owe to solid solution strengthening of Co and Cr, and the TRIP effect. In non-equal molar Co-Cr-Fe-Ni systems, with the decrease of Ni content, the values of stacking fault energy (SFE) decrease; thus, TRIP phenomena occurs. Based on the experimental investigation in three different regions of the Co-Cr-Fe-Ni multicomponent phase diagram, the face-centered cubic structured Co-Cr-Fe-Ni HEAs with VEC of ~8.0 is more metastable, and TRIP phenomena are more likely to occur.
Keywords:
high entropy alloys; metastability; transformation induced plasticity effect; valence electron concentration; stacking fault energy

1. Introduction

High entropy alloys (HEAs), or multi-principal-component alloys [1] show remarkable properties, mainly for their twinning induced plasticity (TWIP) effect [2], or transformation induced plasticity (TRIP) effect [3], due to overcoming the strength-ductility trade-off in the composition design of alloys. Generally, low stacking fault energy (SFE) HEAs with face-centered cubic (FCC) single phases are more likely to deform by twinning, with increased strain hardening rates [2,4,5,6]. With the decreasing temperature, the very low SFE values at cryogenic conditions suggest that the possible presence of the TRIP effect via ab initio calculations [7]. Nano-twins and hexagonal close packed (HCP) lamellae are observed to coexist in CoCrNi at 77 K, suggesting a possible evolution of the deformation mechanism from nano-twinning to phase transformation in equal molar CoCrNi [8]. Usually, the SFE of HEAs were experimentally measured by weak-beam dark-field transmission electron microscopy [5,9] or theoretically calculated by first principles calculations, such as the exact muffin-tin orbitals (EMTO) method [7,10].
CoCrNi alloy exhibits an excellent combination of strength and ductility—greater than that of CoCrFeMnNi alloy at both cryogenic and room temperatures [5]. This indicates that stronger alloys are not necessarily those with the most elements [11]. The Co diffusivity is higher in CoCrFeMnNi than in CoCrFeNi above 1020 K, which suggests that diffusion in HEAs need not be assumed to decrease with an increasing number of elements [12]. It is a challenge to design the proportions of the various elements necessary to obtain better mechanical properties in non-equal molar HEAs based on the nature of the constituent elements. Li et al. [3,13,14,15] reported a series of TRIP-dual phase-HEAs, such as Co10Cr10Fe80−xMnx, Co20Cr20Fe40−xMn20Nix. Ab initio calculations also play an important role in HCP-FCC phase stability analyses on Ni content. Simulation results indicate that enhanced HCP phase stability with reduced Ni concentration is beneficial for the appearance of TRIP phenomena in HEAs systems, which helps to obtain the excellent combination of strength and ductility [13]. However, few HEAs systems with the TRIP effects have been reported. Therefore, it is necessary to develop a new class of TRIP assisted HEAs.
It is worth noting that phase stability in HEAs with FCC single phase solid solutions is relative, or conditional. A polymorphic transition from FCC to HCP occurs in the CoCrFeMnNi under hydrostatic compression at room temperature, and the transition is irreversible, which reveals that the FCC phase is a stable polymorph at high temperatures, while the HCP structure is more thermodynamically favorable at lower temperatures [16]. The Cr-rich sigma phase forms at grain boundaries of CoCrFeMnNi HEAs following prolonged exposures at 700 °C [17,18]. A small amount of added Al accelerates the composition and decomposition, and induces the instability of Al0.1CoCrFeNi HEAs in long duration annealed conditions [19]. These phenomena indicate that HEAs are metastable, and that the addition of certain elements increases their metastability. The valence electron concentration (VEC) is a useful criterion for phase prediction. At VEC ≥ 8.0, a sole FCC solid-solution phase is formed. At VEC < 6.87, a sole BCC solid-solution phase exists. And when 6.87 ≤ VEC < 8, both the FCC and BCC phases will coexist [20], noting that the FCC single phase HEAs with VEC of ~8.0 is more metastable. In the present study, the TRIP effect in non-equal molar Co-Cr-Fe-Ni systems was investigated, and the relationships among the VEC, SFE and TRIP effects were discussed.

2. Experimental Methods

Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0 at %), named as Ni-15, Ni-10, Ni-5, Ni-0, and Co30Cr30Fe25Ni15, and Co20Cr25Fe45Ni10 are selected to investigate the correlation of the VEC, SFE and TRIP phenomenas, compared with the previous investigation of CoxCr25Fe50−xNi25 with the TWIP phenomena [21]. Alloy ingots were prepared by arc-melting using the constituent pure metals (>99.9% pure) under an Ar atmosphere, and were subsequently homogenized at 1200 °C for 4 h. Then, the samples were warm-rolled at 700 °C by 70% reduction, and annealed at 900 °C for 10 min, followed by water quenching. The dog bone-shaped tensile samples were prepared with a gauge length 10 mm, a width 5 mm, and a thickness 1.2 mm. A SHIMADZU AGS universal electronic tensile testing machine was employed for tensile tests at room temperature with a nominal strain rate of 10−3 s−1. X-ray diffraction (XRD) measurements were performed using a Bruker D8 DISCOVER equipped with Cu Kα radiation, operating at 40 kV and 40 mA, between 30° and 100° (2θ), with step size 3°/min, before and after the tensile test. Electron backscatter diffraction (EBSD) measurements were carried out using the JEOL 7100F SEM equipped with the TSL OIM data collection software. JEOL 8530F electron probe microanalysis (EPMA) measurements were used to obtain composition and for elements mapping of micro area. For the microstructural measurements, samples were electrically polished in a solution of 20% HClO4 and 80% C2H5OH at 25 V for 60 s at 273 K, after mechanical polishing.

3. Results and Discussions

3.1. Strain Induced Phase Transformation

Chemical compositions of Co35Cr25Fe40−xNix, measured by wavelength-dispersive spectroscopy, are shown in Table 1. The measured compositions of four alloys are close to the nominal compositions. VEC for a multi-component alloy is defined as VEC = i = 1 n c i ( VEC ) i , where ci and (VEC)i are the atomic percentage, and VEC for the individual element. The VEC of element Co, Cr, Fe and Ni are 9, 6, 8 and 10, respectively. The values of VEC of Ni-15, Ni-10, Ni-5, Ni-0 are 8.15, 8.05, 7.95 and 7.85, respectively. Figure 1 presents the XRD patterns of Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs before and after tensile test. A single FCC phase was obtained when the Ni content is at 15% (Ni-15, VEC = 8.15). With further decrease of Ni content in the Co35Cr25Fe40−xNix, the structure of the HEAs shifts from single FCC phase to FCC, and HCP dual phase. Note that the minor HCP phase was thermally induced during the water quenching, after the 900 °C annealing process, in Ni-5 and Ni-0, with VEC of 7.95 and 7.85. The XRD results of tensile tested samples show that FCC and HCP phase are both observed in all the four alloys, which indicates that the deformation-induced martensitic transformation (FCC → HCP) is a primary deformation mechanism. The intensities of FCC peaks decrease, while those of the HCP peaks increase significantly, indicating that the volume fraction of HCP phase increases after the tensile deformation with the decreasing Ni content. Figure 2 shows the EBSD phase maps of annealed samples and fractured samples of Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs. The results indicate that a ~3 vol % thermally induced HCP phase exists in the annealed Ni-10 sample, with VEC of 8.05, which is not captured in the XRD results. Meanwhile, ~10 vol % and ~30 vol % HCP phase exists in the annealed Ni-5 and Ni-0 samples, with VEC of 7.95 and 7.85, which is consistent with the XRD results in Figure 1a, noting that the volume fraction of thermally induced HCP phase increased with the disappearance of annealing twins. Based on EBSD phase maps of fractured samples of Co35Cr25Fe40−xNix HEAs in Figure 2, deformation induced HCP phases were observed in all four alloys. The volume fractions of HCP phase of Ni-15, Ni-10, Ni-5, Ni-0 are ~45%, ~66%, ~76% and 85%, respectively, which follow the same trend as the XRD results in Figure 1b. The HCP phase is formed in the FCC matrix, and mainly exhibits laminate morphology; some thin HCP laminates are also exhibited, as shown in Figure 3. The results show that all elements are uniformly distributed in Co35Cr25Fe40 with FCC and HCP dual-phase. Combining the XRD and EBSD analyses, we confirm that the stability of the FCC phase is lower, that the thermally induced HCP phase occurs with the decrease of Ni content when the VEC ≤ 8.05, and that the deformation-induced HCP phase occurs in all the four alloys.

3.2. Mechanical Properties

Figure 4 shows the representative tensile stress-strain curves of the Ni-15, Ni-10, Ni-5, and Ni-0. With the decrease of Ni content from 15% to 5%, the ultimate tensile strength increases from 760 MPa to 1000 MPa, and the total elongation decreases from 65% to 35%. As mentioned above, the initial HCP phase volume fraction of Ni-15 and Ni-0 are 0% and 30%, respectively. Meanwhile, the stability of the FCC phase of Ni-0 is lowest among the four alloys, which means that the rate of phase transformation of Ni-0 is relatively high, and that transformation capacity will be consumed already at a modest strain level [13,15], resulting in the lowest elongation of the four alloys. The phenomenon is similar to the reported results of Co20Cr20Fe40−xMn20Nix (x = 0–20 at %) HEAs [13], but the strength is higher in the Co35Cr25Fe40−xNix HEAs, owing to the solid solution strengthening through the higher content of elements Co and Cr. Interestingly, the strength of Co35Cr25Fe40−xNix HEAs is enhanced with a decrease of Ni content or VEC of alloys, while ductility is improved with an increase of Ni content or VEC of alloys, which is similar to the proposed strategy to balance the strength and ductility of FCC-BCC dual phase HEAs based upon the VEC [22]. In summary, the deformation induced martensitic transformation is a primary deformation mechanism, and the TRIP effect is the main reason for the good strength and ductility combination in the four alloys.

3.3. The Correlation among SFE, VEC and TRIP Effect in Co-Cr-Fe-Ni System

Previous studies indicate that TRIP effects are mainly determined by SFE [15], which can be expressed as Equation (1).
SFE = 2 ρ Δ G F C C H C P + 2 E F C C H C P ,
where ρ is the planar packing density of a close packed plane. Δ G F C C H C P is the molar free energy difference between the FCC and HCP phase, and E F C C H C P is the coherent FCC-HCP interfacial energy. For a certain alloy system of transition metal FCC HEAs, if the planar packing density and coherent FCC-HCP interfacial energy are similar, then the SFE is mainly determined by the free energy difference between the FCC and HCP phases.
For the HEAs which are mainly constituted of transition metals, the integration of the density of states actually results in VEC, which includes not only s- and p-electrons, but d-electrons, forming the valance band, based on the First principles band calculations [23]. Our results indicate that VEC is useful to study the electron concentration effect on the phase stability in Co-Cr-Fe-Ni HEAs. The FCC phase HEAs with a VEC of ~8.0 is more metastable, which means that the HCP phase energies are generally lower than those of FCC phase, and that TRIP phenomena are more likely to occur.
To verify the correlation among TRIP effects, SFE and VEC of HEAs, another two alloys in different regions of multicomponent phase diagram, are designed as Co30Cr30Fe25Ni15, Co20Cr25Fe45Ni10, with VEC of 8.0 and 7.9, respectively. As shown in Figure 5, deformation-induced martensitic transformation occurs in both two alloys. The higher Co and Cr content improves strength. But there is no thermally induced HCP phase in these two alloys, which is different from the Ni-10 with VEC of 8.05, indicating that the phase stability of non-equal Co-Cr-Fe-Ni HEA is different, even with the same VEC value of designed compositions. The VEC of equal molar CoCrFeNi HEA is 8.25. The calculated SFEs of Fe-Cr-Ni austenitic stainless steels, with respect to the Ni content [10,24], are shown in Figure 6. The stacking fault energies always decrease with a decreasing Ni content in Fe-Cr-Ni austenitic stainless steels [10,24], which is similar to FCC-structured Co-Cr-Fe-Ni alloy systems. Therefore, with the decrease of Ni content, the VEC of Co-Cr-Fe-Ni system decreases, and the SFEs are more likely to decrease sharply, based on the first principles study [10,24]. As a whole, phase transformation is more likely to occur with a VEC between 7.8 and 8.1 in non-equal Co-Cr-Fe-Ni HEAs, which means relatively low values of SFE.

3.4. Plastic Deformation Mechanism Transition

The TWIP and TRIP phenomena are mainly determined by the SFE [25]. The ability to predict the phase metastability from fundamental properties of constituent elements would benefit the alloy design greatly [20]. VEC was used to study the electron concentration effect on the phase stability in HEAs, which is found to be helpful for alloy design [20]. As mentioned above, TRIP phenomena are more likely to occur with a VEC of between 7.8 and 8.1, in non-equal Co-Cr-Fe-Ni HEAs. Further, in order to investigate the effect of VEC on TWIP and TRIP phenomena in universal HEAs, the composition and VEC of reported HEAs with TWIP and TRIP phenomena are summarized in Table 2.
TWIP phenomena occur in CoxCr25Fe50−xNi25 (x = 20–35 at %) with VEC between 8.35 and 8.2 [21]. Then, when the VEC < 8.2, TRIP phenomena occur in Co35Cr25Fe40−xNix (x = 0–15 at %), Co30Cr30Fe25Ni15 and Co20Cr25Fe45Ni10, owing to the increase of metastability. TWIP phenomena were observed in the equal molar Co33.3Cr33.3Ni33.3 alloy with SFE of ~22 mJ/m2 and VEC of 8.33 [5,8]. But at the cryogenic temperature, a new phase with HCP lamellae also appeared, suggesting a possible evolution from TWIP to TRIP, because the HCP phase is indeed energetically favorable relative to FCC phase at 0 K, based on the first principles calculations [8,31]. It is worth noting that the VEC criterion for phase boundary prediction seems to work unsatisfactorily for Mn-containing HEA systems [20], which means the different value of VEC criterion for the phase boundary prediction. Co20Cr20Fe20Mn20Ni20 HEAs with VEC of 8.0 have been adequately investigated in recent years [2,4,5,32,33], revealing the TWIP phenomena. With the decrease of Ni content, Co20Cr20Fe40−xMn20Nix (x = 6 at %, 0 at %) HEAs with VEC of 7.72 and 7.6 exhibit the TRIP phenomena [13], which is similar to the Co35Cr25Fe40−xNix (x = 0–15 at %) in this work. A single FCC phase was obtained with the Mn content of 45 at % and 40 at %, and these two alloys exhibit a transition of deformation mechanisms from dislocation slip dominated plasticity to TWIP [3,26]. With the decrease of Mn content, TRIP phenomena were observed in Co10Cr10Fe45Mn35 and Co10Cr10Fe50Mn30. The FCC phase metastability of Co10Cr10Fe80−xMnx is enhanced with the decrease of Mn content [3], noting that the VEC of Fe, Mn are 8 and 7, respectively, and VEC value of Co10Cr10Fe80−xMnx increased with the decrease of Mn content. Therefore, the transition from TWIP to TRIP based on the VEC criterion in Co10Cr10Fe80−xMnx is opposite to the Co35Cr25Fe40−xNix HEAs. Besides, a few additions of Mo and Al reduce the stability of alloys, as well as the VEC value. However, TRIP phenomena do not occur in CoCrFeNiMox and AlxCoCrFeNi systems, based on the published literature [27,28,29,30,34,35]. The results indicate that a few additions of Mo and Al do not reduce the value of SFE enough to induce the phase transition during tensile deformation in Co-Cr-Fe-Ni system. More additions of Mo and Al in CoCrFeNi will induce the precipitates from the matrix, which form a multi-phase alloys [36,37]. It is worth noting that the effects of temperature on the SFE is remarkable. The variation of the deformation mechanism from martensitic transformation to deformation twinning, and to dislocation slip, are observed with the increase of deformation temperature (298 K to 873 K) in the reported TRIP/TWIP steel [38]. It would be useful to investigate the plastic deformation transition temperature in Co-Cr-Fe-Ni systems for potential applications, and more work in this direction is underway.

4. Conclusions

In summary, tensile deformation-induced martensitic transformations occur in Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs. The excellent combination of tensile strength (760 MPa–1000 MPa) and elongation (65–35%) are attibuted to the Co and Cr solid solution strengthening, and the TRIP effect. In non-equal molar Co-Cr-Fe-Ni systems, with a decrease of Ni content, the values of stacking fault energy (SFE) decrease; thus, a TRIP phenomena occurs. Based on the experimental investigation in three different regions of the Co-Cr-Fe-Ni multicomponent phase diagram, the face-centered cubic structured Co-Cr-Fe-Ni HEAs with VEC of ~8.0 is more metastable, and TRIP phenomena are more likely to occur. Related results and discussions are useful to the design of a new class of TRIP assisted HEAs.

Author Contributions

F.Y. and X.Z. conceived and designed the experiments; R.C. and P.J. performed the experiments; W.F. wrote the paper. B.L. and X.Q. directed the research and contributed to the discussion and interpretation of the results.

Acknowledgments

This research was supported by the National Science Foundation of China (No. 51701061, 51705129), the Natural Science Foundation of Hebei, China (No. E2016202121), and the National Key Research and Development Program of China (No. 2017-Z02).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miracle, D.; Senkov, O. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar] [CrossRef]
  2. Gludovatz, B.; Hohenwarter, A.; Catoor, D.; Chang, E.H.; George, E.P.; Ritchie, R.O. A fracture-resistant high-entropy alloy for cryogenic applications. Science 2014, 345, 1153–1158. [Google Scholar] [CrossRef] [PubMed]
  3. Li, Z.; Pradeep, K.G.; Deng, Y.; Raabe, D.; Tasan, C.C. Metastable high-entropy dual-phase alloys overcome the strength-ductility trade-off. Nature 2016, 534, 227–230. [Google Scholar] [CrossRef] [PubMed]
  4. Laplanche, G.; Kostka, A.; Horst, O.M.; Eggeler, G.; George, E.P. Microstructure evolution and critical stress for twinning in the CrMnFeCoNi high-entropy alloy. Acta Mater. 2016, 118, 152–163. [Google Scholar] [CrossRef]
  5. Laplanche, G.; Kostka, A.; Reinhart, C.; Hunfeld, J.; Eggeler, G.; George, E.P. Reasons for the superior mechanical properties of medium-entropy CrCoNi compared to high-entropy CrMnFeCoNi. Acta Mater. 2017, 128, 292–303. [Google Scholar] [CrossRef]
  6. Zhang, Z.; Mao, M.M.; Wang, J.; Gludovatz, B.; Zhang, Z.; Mao, S.X.; George, E.P.; Yu, Q.; Ritchie, R.O. Nanoscale origins of the damage tolerance of the high-entropy alloy CrMnFeCoNi. Nat. Commun. 2015, 6, 10143. [Google Scholar] [CrossRef] [PubMed]
  7. Huang, S.; Li, W.; Lu, S.; Tian, F.; Shen, J.; Holmström, E.; Vitos, L. Temperature dependent stacking fault energy of FeCrCoNiMn high entropy alloy. Scr. Mater. 2015, 108, 44–47. [Google Scholar] [CrossRef]
  8. Miao, J.; Slone, C.E.; Smith, T.M.; Niu, C.; Bei, H.; Ghazisaeidi, M.; Pharr, G.M.; Mills, M.J. The evolution of the deformation substructure in a Ni-Co-Cr equiatomic solid solution alloy. Acta Mater. 2017, 132, 35–48. [Google Scholar] [CrossRef]
  9. Liu, S.F.; Wu, Y.; Wang, H.T.; He, J.Y.; Liu, J.B.; Chen, C.X.; Liu, X.J.; Wang, H.; Lu, Z.P. Stacking fault energy of face-centered-cubic high entropy alloys. Intermetallics 2018, 93, 269–273. [Google Scholar] [CrossRef]
  10. Lu, S.; Hu, Q.-M.; Johansson, B.; Vitos, L. Stacking fault energies of Mn, Co and Nb alloyed austenitic stainless steels. Acta Mater. 2011, 59, 5728–5734. [Google Scholar] [CrossRef]
  11. Wu, Z.; Bei, H.; Pharr, G.M.; George, E.P. Temperature dependence of the mechanical properties of equiatomic solid solution alloys with face-centered cubic crystal structures. Acta Mater. 2014, 81, 428–441. [Google Scholar] [CrossRef]
  12. Vaidya, M.; Pradeep, K.G.; Murty, B.S.; Wilde, G.; Divinski, S.V. Bulk tracer diffusion in CoCrFeNi and CoCrFeMnNi high entropy alloys. Acta Mater. 2018, 146, 211–224. [Google Scholar] [CrossRef]
  13. Li, Z.; Körmann, F.; Grabowski, B.; Neugebauer, J.; Raabe, D. Ab initio assisted design of quinary dual-phase high-entropy alloys with transformation-induced plasticity. Acta Mater. 2017, 136, 262–270. [Google Scholar] [CrossRef]
  14. Li, Z.; Raabe, D. Strong and ductile non-equiatomic high-entropy alloys: Design, processing, microstructure, and mechanical properties. JOM 2017, 69, 2099–2106. [Google Scholar] [CrossRef]
  15. Li, Z.; Tasan, C.C.; Pradeep, K.G.; Raabe, D. A trip-assisted dual-phase high-entropy alloy: Grain size and phase fraction effects on deformation behavior. Acta Mater. 2017, 131, 323–335. [Google Scholar] [CrossRef]
  16. Zhang, F.; Wu, Y.; Lou, H.; Zeng, Z.; Prakapenka, V.B.; Greenberg, E.; Ren, Y.; Yan, J.; Okasinski, J.S.; Liu, X.; et al. Polymorphism in a high-entropy alloy. Nat. Commun. 2017, 8, 15687. [Google Scholar] [CrossRef] [PubMed]
  17. Otto, F.; Dlouhý, A.; Pradeep, K.G.; Kuběnová, M.; Raabe, D.; Eggeler, G.; George, E.P. Decomposition of the single-phase high-entropy alloy CrMnFeCoNi after prolonged anneals at intermediate temperatures. Acta Mater. 2016, 112, 40–52. [Google Scholar] [CrossRef]
  18. Pickering, E.J.; Muñoz-Moreno, R.; Stone, H.J.; Jones, N.G. Precipitation in the equiatomic high-entropy alloy CrMnFeCoNi. Scr. Mater. 2016, 113, 106–109. [Google Scholar] [CrossRef]
  19. He, F.; Wang, Z.; Wu, Q.; Li, J.; Wang, J.; Liu, C.T. Phase separation of metastable CoCrFeNi high entropy alloy at intermediate temperatures. Scr. Mater. 2017, 126, 15–19. [Google Scholar] [CrossRef]
  20. Guo, S.; Ng, C.; Lu, J.; Liu, C.T. Effect of valence electron concentration on stability of fcc or bcc phase in high entropy alloys. J. Appl. Phys. 2011, 109, 103505. [Google Scholar] [CrossRef]
  21. Fang, W.; Chang, R.; Zhang, X.; Ji, P.; Wang, X.; Liu, B.; Li, J.; He, X.; Qu, X.; Yin, F. Effects of cobalt on the structure and mechanical behavior of non-equal molar CoxFe50−xCr25Ni25 high entropy alloys. Mater. Sci. Eng. A 2018, 723, 221–228. [Google Scholar] [CrossRef]
  22. Chen, R.; Qin, G.; Zheng, H.; Wang, L.; Su, Y.; Chiu, Y.; Ding, H.; Guo, J.; Fu, H. Composition design of high entropy alloys using the valence electron concentration to balance strength and ductility. Acta Mater. 2018, 144, 129–137. [Google Scholar] [CrossRef]
  23. Mizutani, U. Hume-rothery rules for structurally complex alloy phases. MRS Bull. 2012, 37, 169. [Google Scholar] [CrossRef]
  24. Lu, J.; Hultman, L.; Holmström, E.; Antonsson, K.H.; Grehk, M.; Li, W.; Vitos, L.; Golpayegani, A. Stacking fault energies in austenitic stainless steels. Acta Mater. 2016, 111, 39–46. [Google Scholar] [CrossRef]
  25. Hickel, T.; Sandlöbes, S.; Marceau, R.K.W.; Dick, A.; Bleskov, I.; Neugebauer, J.; Raabe, D. Impact of nanodiffusion on the stacking fault energy in high-strength steels. Acta Mater. 2014, 75, 147–155. [Google Scholar] [CrossRef]
  26. Deng, Y.; Tasan, C.C.; Pradeep, K.G.; Springer, H.; Kostka, A.; Raabe, D. Design of a twinning-induced plasticity high entropy alloy. Acta Mater. 2015, 94, 124–133. [Google Scholar] [CrossRef]
  27. Cai, B.; Liu, B.; Kabra, S.; Wang, Y.; Yan, K.; Lee, P.; Liu, Y. Deformation mechanisms of Mo alloyed FeCoCrNi high entropy alloy: In situ neutron diffraction. Acta Mater. 2017, 127, 471–480. [Google Scholar] [CrossRef]
  28. Liu, J.; Chen, C.; Xu, Y.; Wu, S.; Wang, G.; Wang, H.; Fang, Y.; Meng, L. Deformation twinning behaviors of the low stacking fault energy high-entropy alloy: An in-situ tem study. Scr. Mater. 2017, 137, 9–12. [Google Scholar] [CrossRef]
  29. Li, D.; Li, C.; Feng, T.; Zhang, Y.; Sha, G.; Lewandowski, J.J.; Liaw, P.K.; Zhang, Y. High-entropy Al0.3CoCrFeNi alloy fibers with high tensile strength and ductility at ambient and cryogenic temperatures. Acta Mater. 2017, 123, 285–294. [Google Scholar] [CrossRef]
  30. Joseph, J.; Stanford, N.; Hodgson, P.; Fabijanic, D.M. Tension/compression asymmetry in additive manufactured face centered cubic high entropy alloy. Scr. Mater. 2017, 129, 30–34. [Google Scholar] [CrossRef]
  31. Zhang, Y.H.; Zhuang, Y.; Hu, A.; Kai, J.J.; Liu, C.T. The origin of negative stacking fault energies and nano-twin formation in face-centered cubic high entropy alloys. Scr. Mater. 2017, 130, 96–99. [Google Scholar] [CrossRef]
  32. Bracq, G.; Laurent-Brocq, M.; Perrière, L.; Pirès, R.; Joubert, J.-M.; Guillot, I. The fcc solid solution stability in the Co-Cr-Fe-Mn-Ni multi-component system. Acta Mater. 2017, 128, 327–336. [Google Scholar] [CrossRef]
  33. Laplanche, G.; Bonneville, J.; Varvenne, C.; Curtin, W.A.; George, E.P. Thermal activation parameters of plastic flow reveal deformation mechanisms in the CrMnFeCoNi high-entropy alloy. Acta Mater. 2018, 143, 257–264. [Google Scholar] [CrossRef]
  34. Hou, J.; Zhang, M.; Yang, H.; Qiao, J. Deformation behavior of Al0.25CoCrFeNi high-entropy alloy after recrystallization. Metals 2017, 7, 111. [Google Scholar] [CrossRef]
  35. Lindner, T.; Loebel, M.; Mehner, T.; Dietrich, D.; Lampke, T. The phase composition and microstructure of AlxCoCrFeNiTi alloys for the development of high-entropy alloy systems. Metals 2017, 7, 162. [Google Scholar] [CrossRef]
  36. Shun, T.-T.; Chang, L.-Y.; Shiu, M.-H. Microstructure and mechanical properties of multiprincipal component CoCrFeNiMox alloys. Mater. Charact. 2012, 70, 63–67. [Google Scholar] [CrossRef]
  37. Saal, J.E.; Berglund, I.S.; Sebastian, J.T.; Liaw, P.K.; Olson, G.B. Equilibrium high entropy alloy phase stability from experiments and thermodynamic modeling. Scr. Mater. 2018, 146, 5–8. [Google Scholar] [CrossRef]
  38. Yin, F.X.; Xia, H.; Feng, J.H.; Cai, M.H.; Zhang, X.; Wang, G.K.; Sawaguchi, T. Mechanical properties of an Fe-30Mn-4Si-2Al alloy after rolling at different temperatures ranging from 298 to 1073 k. Mater. Sci. Eng. A 2018, 725, 127–137. [Google Scholar] [CrossRef]

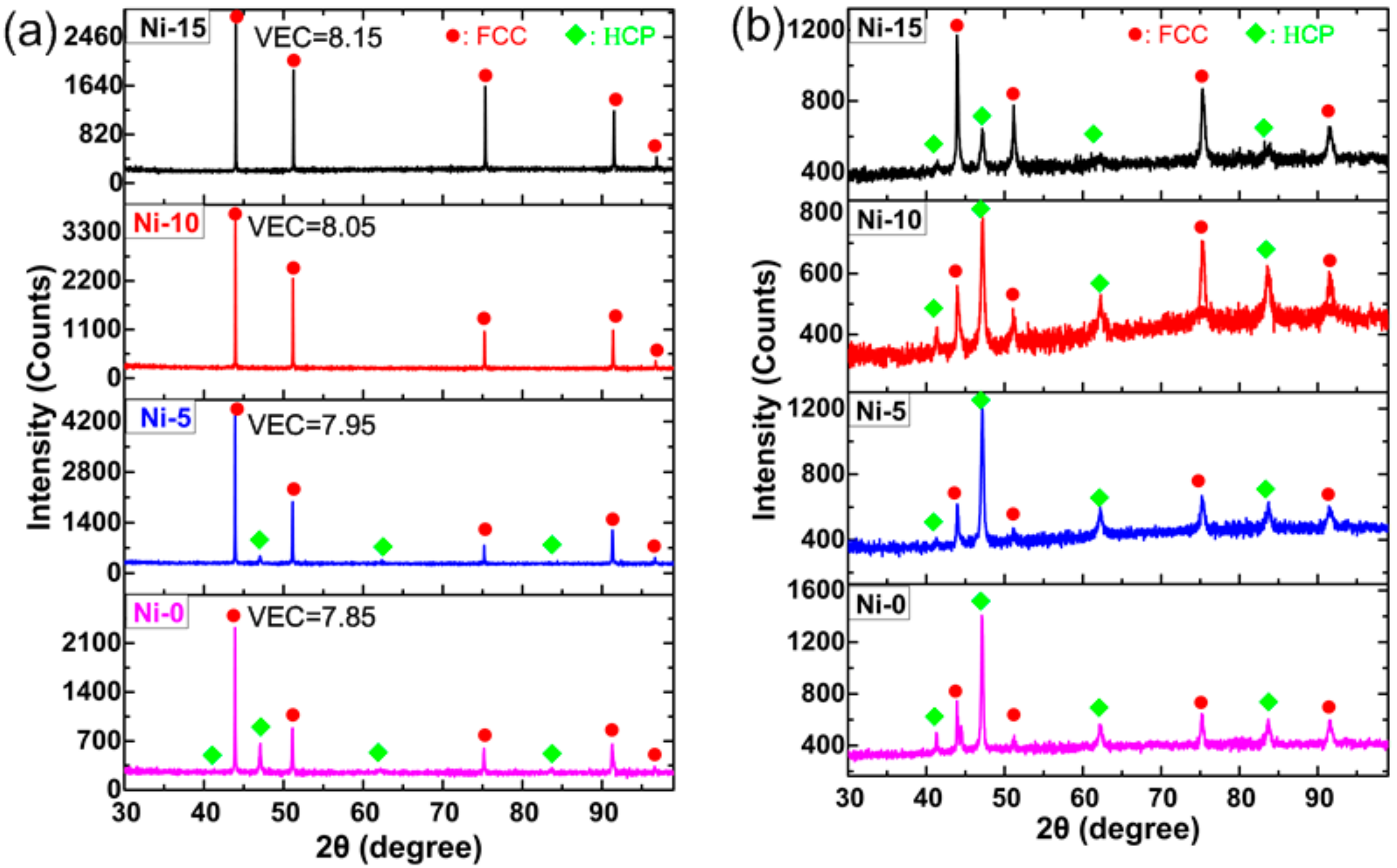

Figure 1. XRD patterns of Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs before (a) and after (b) tensile test.
Figure 1. XRD patterns of Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs before (a) and after (b) tensile test.
Metals 08 00369 g001

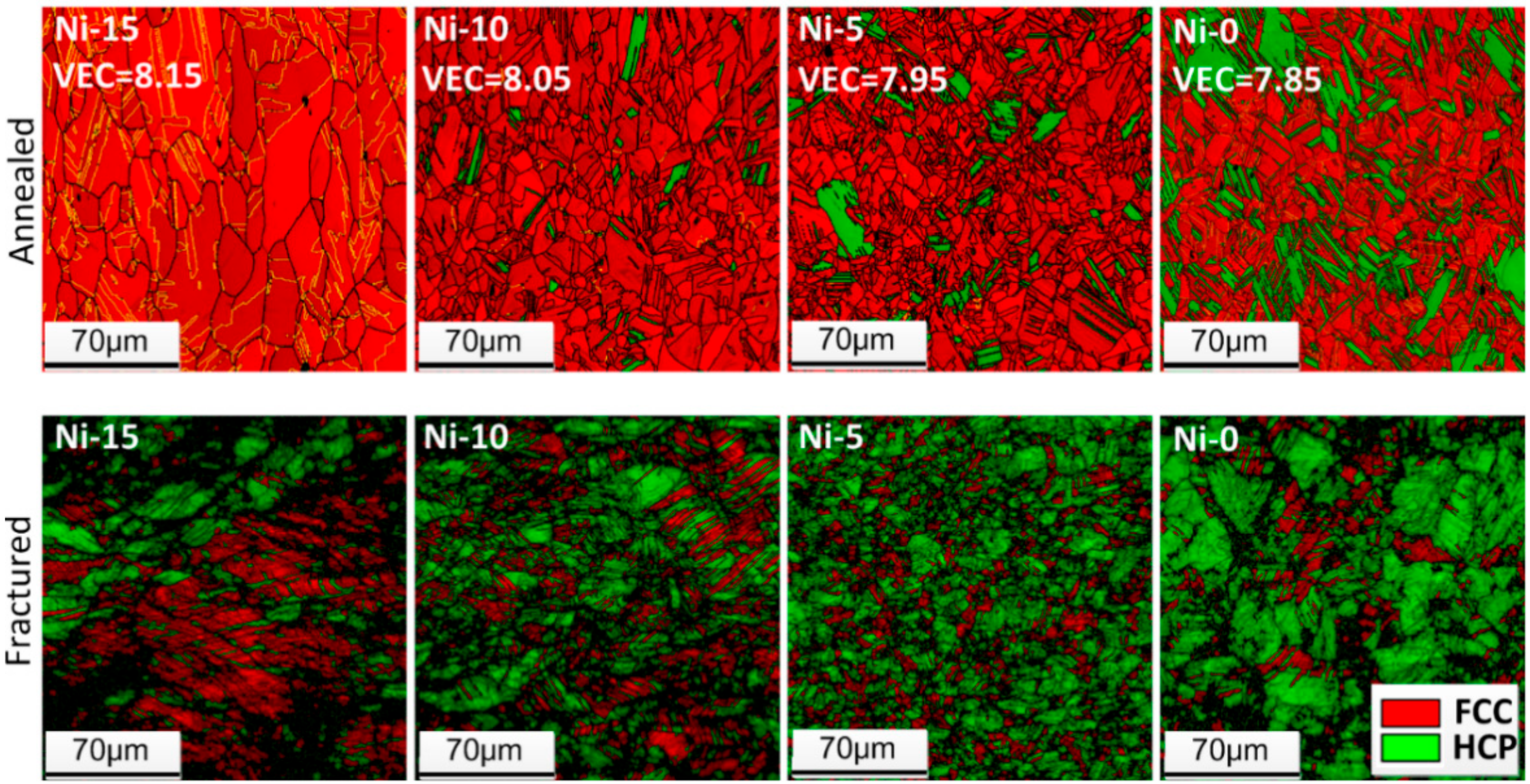

Figure 2. EBSD phase maps of annealed samples and fractured samples of Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0%) HEAs. The black lines and yellow lines indicate grain boundaries and twin boundaries (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article).
Figure 2. EBSD phase maps of annealed samples and fractured samples of Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0%) HEAs. The black lines and yellow lines indicate grain boundaries and twin boundaries (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article).
Metals 08 00369 g002

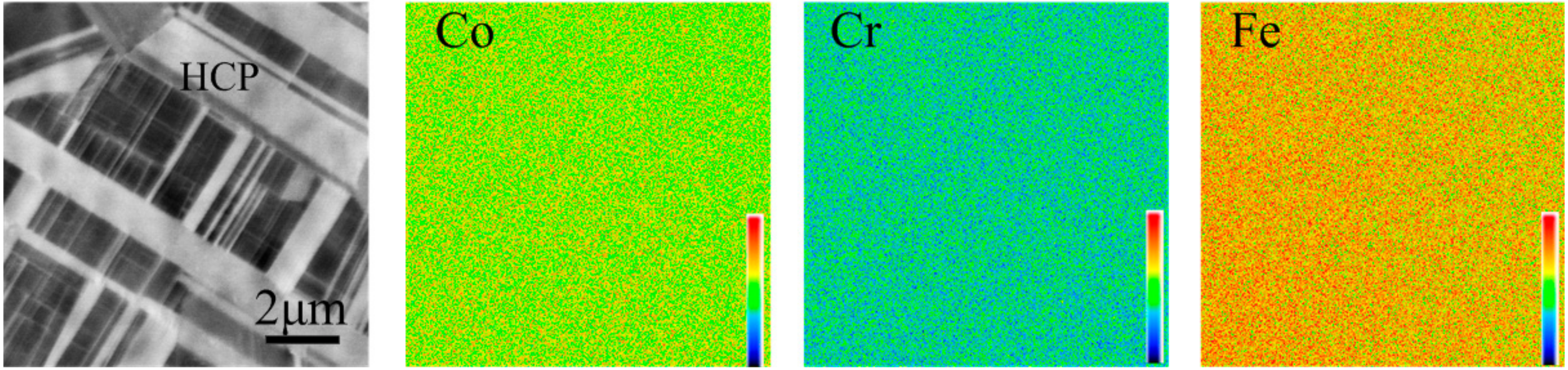

Figure 3. EPMA maps of the Co35Cr25Fe40 alloy annealed at 900 °C. Lath-like microstructure is HCP phase. Show that all elements (Co, Cr and Fe) are uniformly distributed in Co35Cr25Fe40.
Figure 3. EPMA maps of the Co35Cr25Fe40 alloy annealed at 900 °C. Lath-like microstructure is HCP phase. Show that all elements (Co, Cr and Fe) are uniformly distributed in Co35Cr25Fe40.
Metals 08 00369 g003

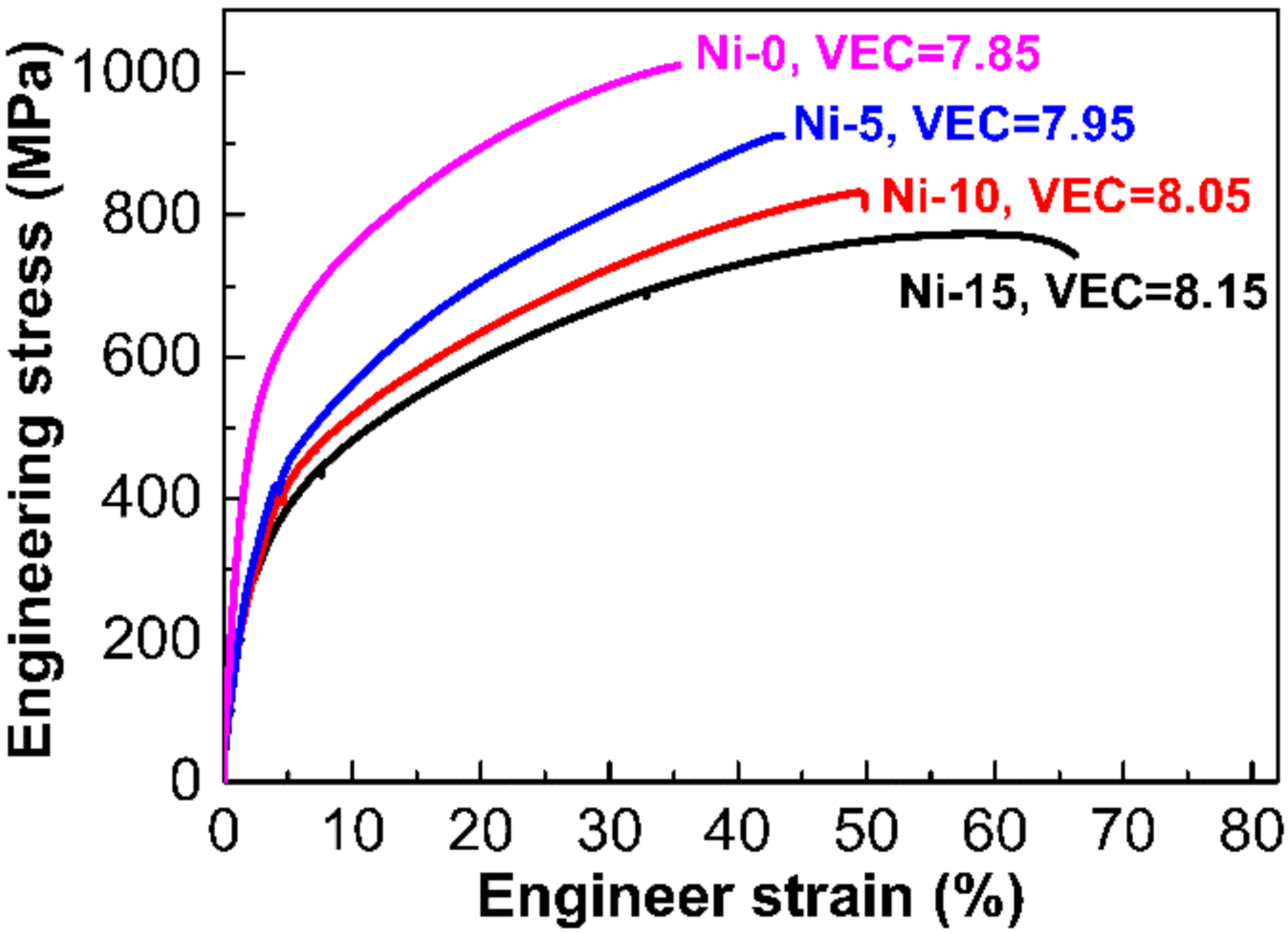

Figure 4. Mechanical behavior of the Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0%) HEAs.
Figure 4. Mechanical behavior of the Co35Cr25Fe40−xNix (x = 15 at %, 10 at %, 5 at %, 0%) HEAs.
Metals 08 00369 g004

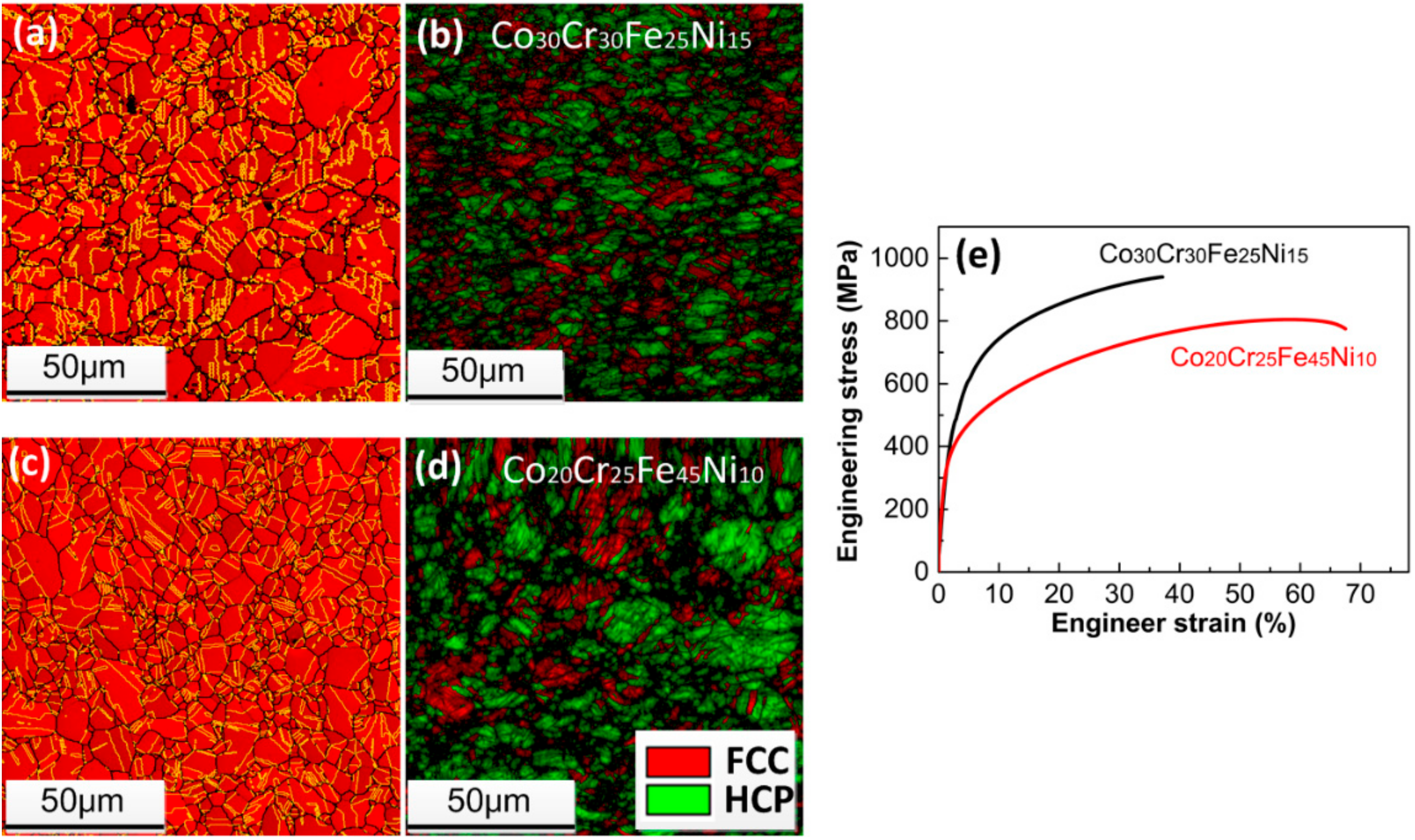

Figure 5. EBSD phase maps of HEAs, annealed sample (a) and fractured sample (b) of Co30Cr30Fe25Ni15 with the VEC of 8.0; annealed sample (c) and fractured sample (d) of Co20Cr25Fe45Ni10 with the VEC of 7.9. The black lines and yellow lines indicate grain boundaries and twin boundaries. (e) stress-strain curves of the two alloys (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article).
Figure 5. EBSD phase maps of HEAs, annealed sample (a) and fractured sample (b) of Co30Cr30Fe25Ni15 with the VEC of 8.0; annealed sample (c) and fractured sample (d) of Co20Cr25Fe45Ni10 with the VEC of 7.9. The black lines and yellow lines indicate grain boundaries and twin boundaries. (e) stress-strain curves of the two alloys (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article).
Metals 08 00369 g005

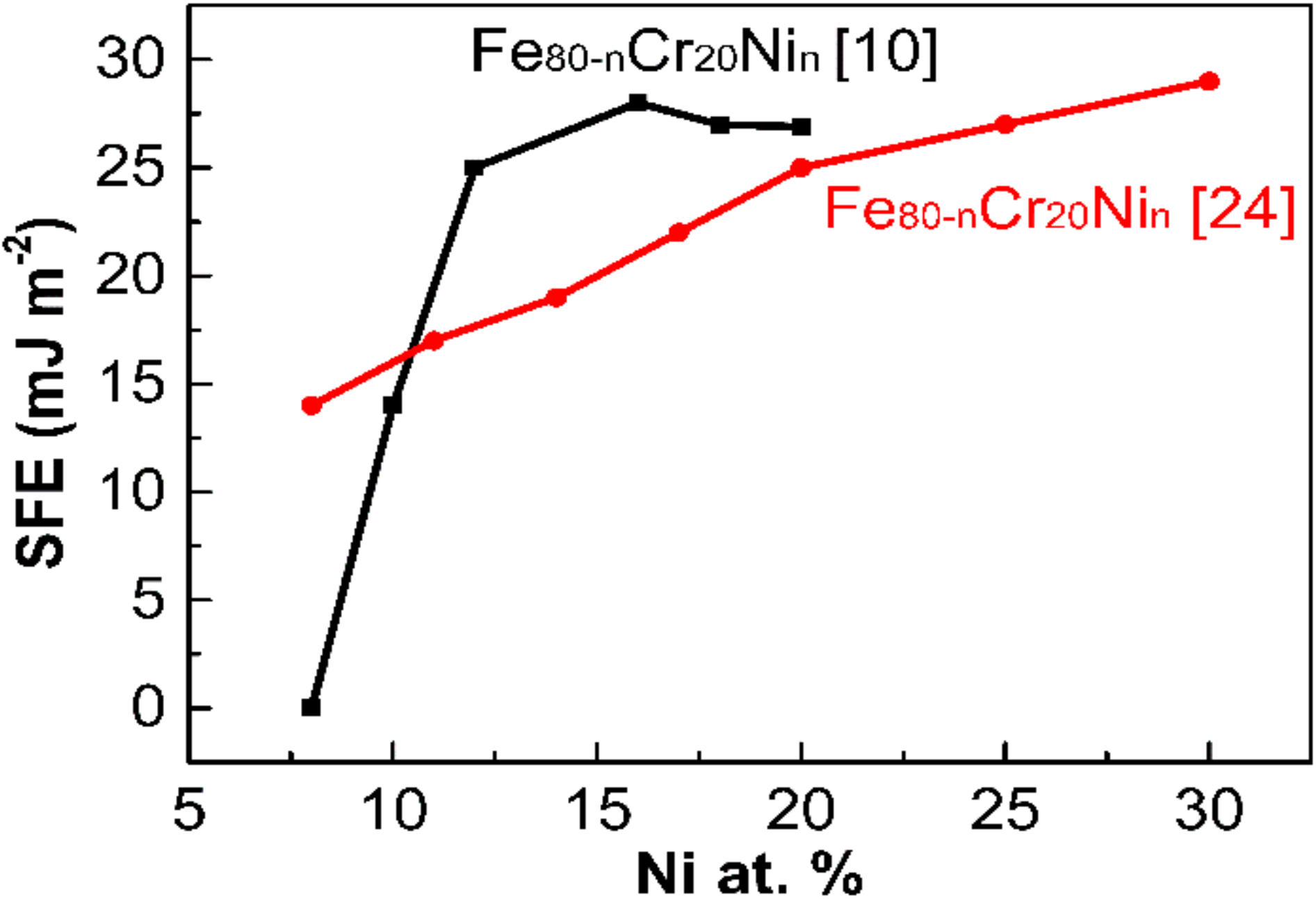

Figure 6. The calculated SFE of Fe-Cr-Ni austenitic stainless steels with respect to the Ni content in references [10,24].
Figure 6. The calculated SFE of Fe-Cr-Ni austenitic stainless steels with respect to the Ni content in references [10,24].
Metals 08 00369 g006
Table 1. Chemical compositions of HEAs (at %) measured by wavelength-dispersive spectroscopy.
Table 1. Chemical compositions of HEAs (at %) measured by wavelength-dispersive spectroscopy.
AlloysCoCrFeNiVEC
Co35Cr25Fe25Ni1534.7 ± 0.325.4 ± 0.225.1 ± 0.114.8 ± 0.28.15
Co35Cr25Fe30Ni1034.8 ± 0.225.3 ± 0.230.2 ± 0.19.7 ± 0.18.05
Co35Cr25Fe35Ni534.8 ± 0.225.4 ± 0.335.1 ± 0.24.7 ± 0.17.95
Co35Cr25Fe40Ni034.7 ± 0.225.2 ± 0.340.1 ± 0.107.85
Table 2. Composition and VEC of reported HEAs with TWIP and TRIP phenomena.
Table 2. Composition and VEC of reported HEAs with TWIP and TRIP phenomena.
AlloysVECDominated MechanismRef.
Co35Cr25Fe15Ni258.35TWIP[21]
Co30Cr25Fe20Ni258.3TWIP[21]
Co25Cr25Fe25Ni258.25TWIP[21]
Co20Cr25Fe30Ni258.2TWIP[21]
Co35Cr25Fe25Ni158.15TRIPthis work
Co35Cr25Fe30Ni108.05TRIPthis work
Co35Cr25Fe35Ni57.95TRIPthis work
Co35Cr25Fe40Ni07.85TRIPthis work
Co30Cr30Fe25Ni158TRIPthis work
Co20Cr25Fe45Ni107.9TRIPthis work
Co33.3Cr33.3Ni33.38.33TWIP+HCP lamellae *[8]
Co33.3Cr33.3Ni33.38.33TWIP[5]
Co20Cr20Fe20Mn20Ni208.0TWIP[5]
Co20Cr20Fe20Mn20Ni208TWIP[13]
Co20Cr20Fe34Mn20Ni67.72TRIP[13]
Co20Cr20Fe40Mn20Ni07.6TRIP[13]
Co10Cr10Fe35Mn457.45Dislocation slip[3]
Co10Cr10Fe40Mn407.5TWIP[3,26]
Co10Cr10Fe45Mn357.55TRIP[3]
Co10Cr10Fe50Mn307.6TRIP[3]
Co23.6Cr23.6Fe23.6Ni23.6Mo5.68.12TWIP[27]
Co24.3Cr24.3Fe24.3Ni24.3Al2.88.12TWIP[28]
Co23.3Cr23.3Fe23.3Ni23.3Al6.87.89TWIP[29,30]
* At the cryogenic temperature.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
