Next Article in Journal
Skeletonization, Geometrical Analysis, and Finite Element Modeling of Nanoporous Gold Based on 3D Tomography Data
Next Article in Special Issue
Parametric Effects of Mechanical Alloying on Carbon Nanofiber Catalyst Production in the Ni-Cu System
Previous Article in Journal
Modeling of Phase Equilibria in Ni-H: Bridging the Atomistic with the Continuum Scale
Previous Article in Special Issue
Mechanical Alloying and Hot Pressing of Ti-Zr-Si-B Powder Mixtures
Open AccessArticle

Effect of Ball Milling Parameters on the Refinement of Tungsten Powder

State Key Laboratory of Nuclear Physics and Technology, School of Physics, Peking University, Beijing 100871, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(4), 281; https://doi.org/10.3390/met8040281
Received: 1 March 2018 / Revised: 7 April 2018 / Accepted: 17 April 2018 / Published: 19 April 2018
(This article belongs to the Special Issue Mechanical Alloying 2018)

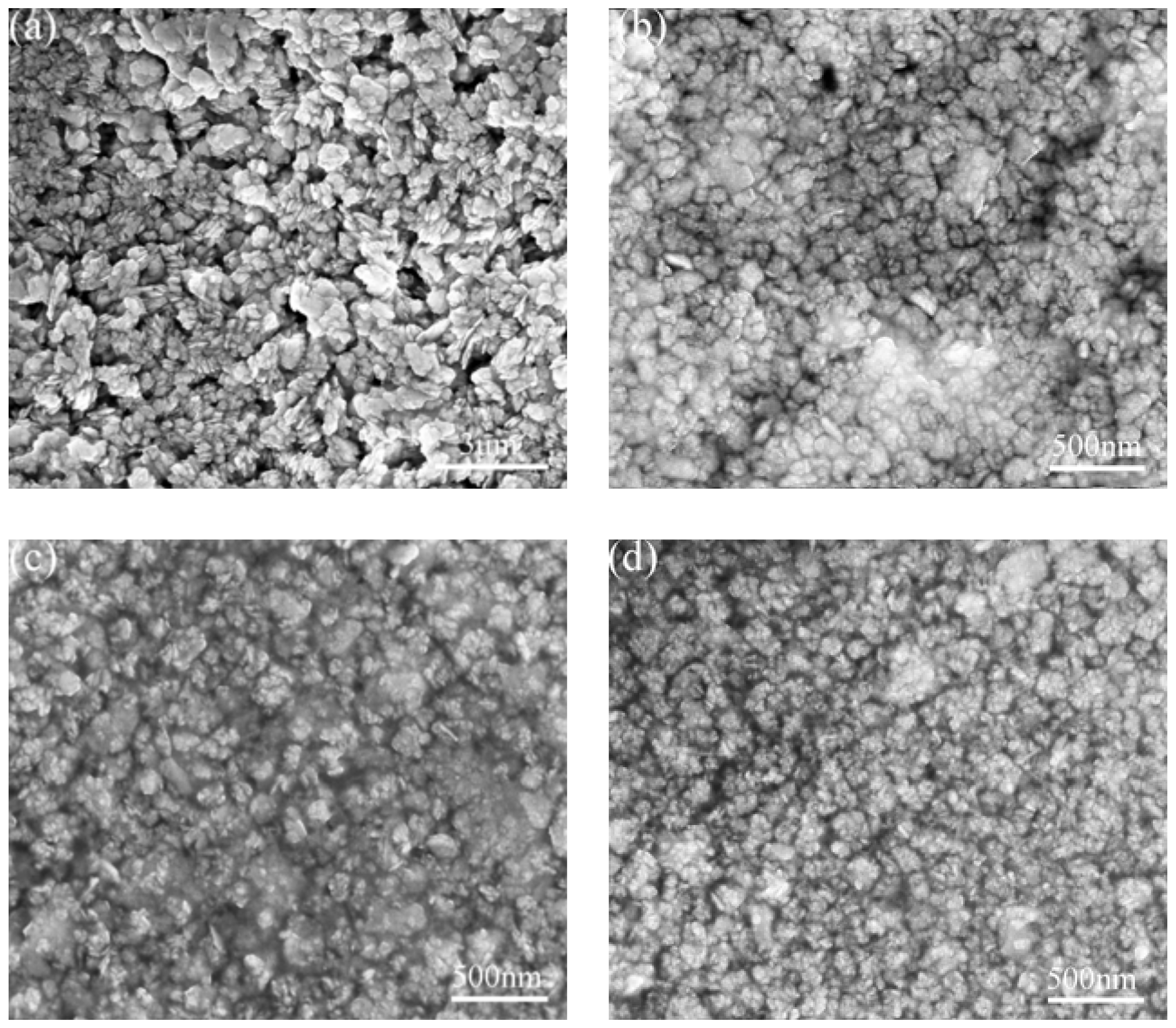

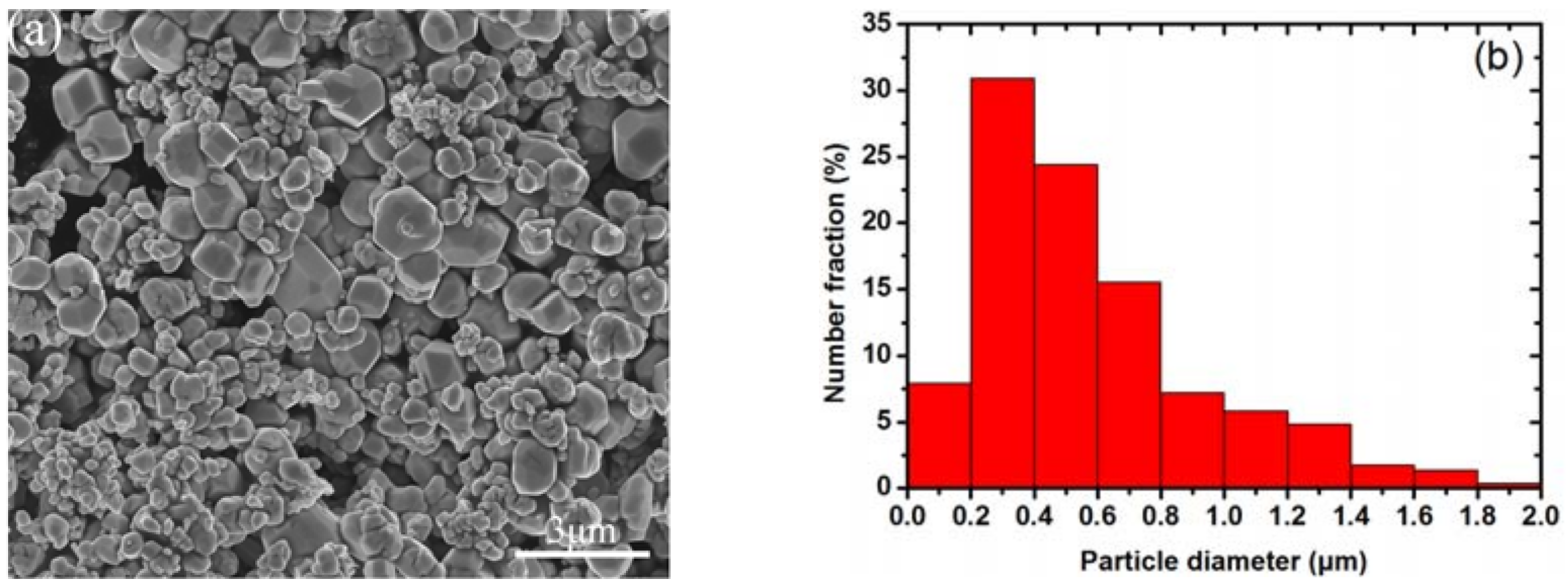

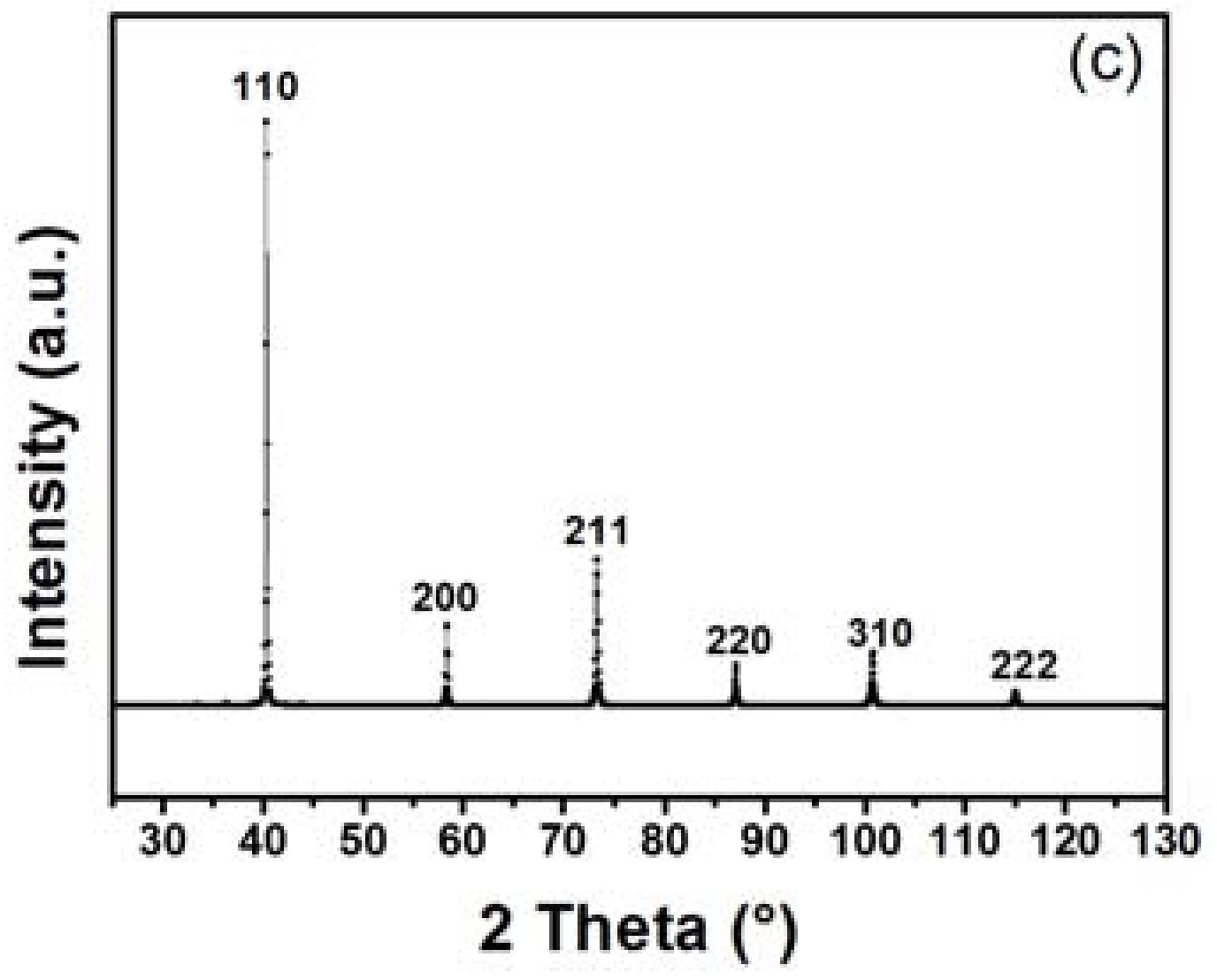

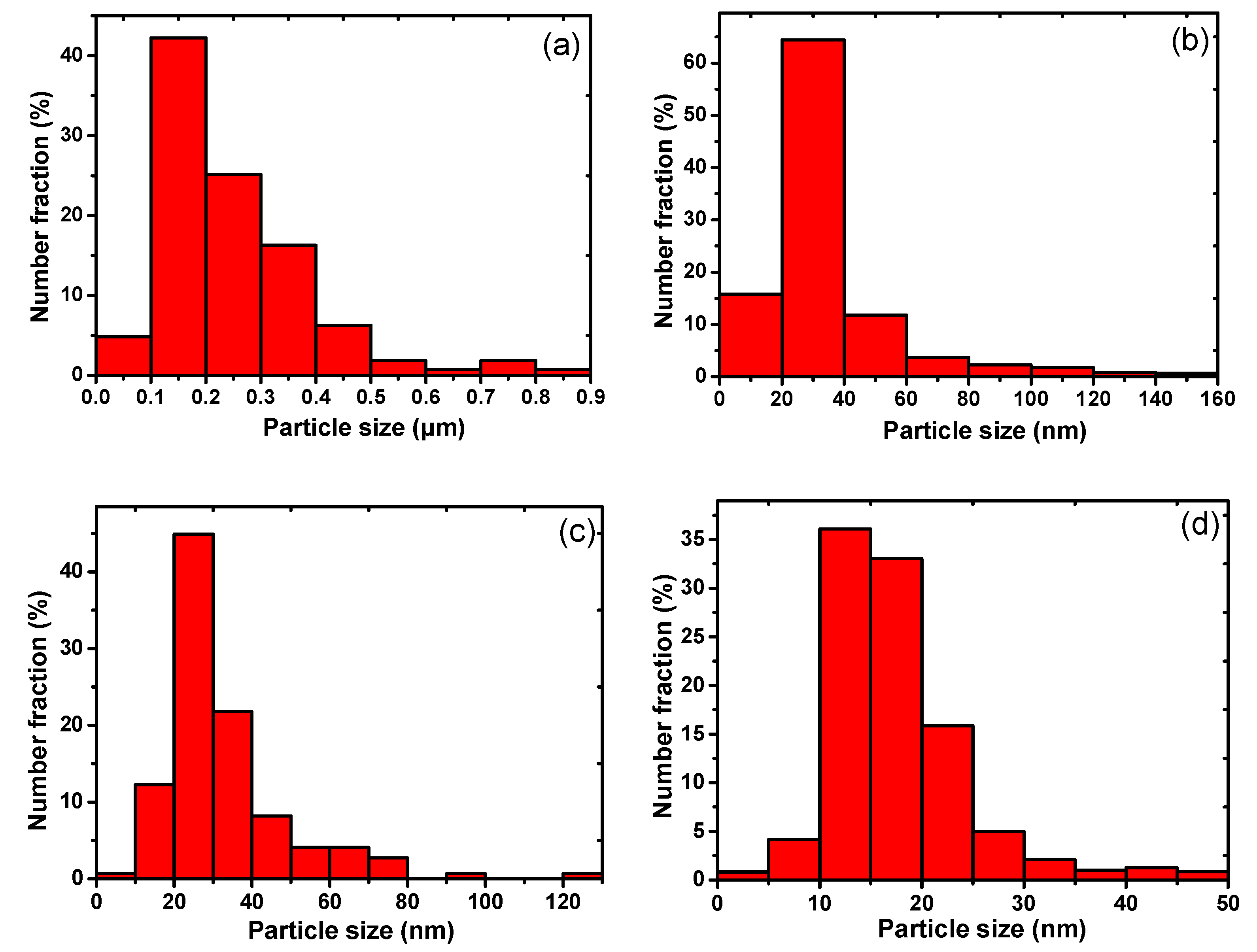

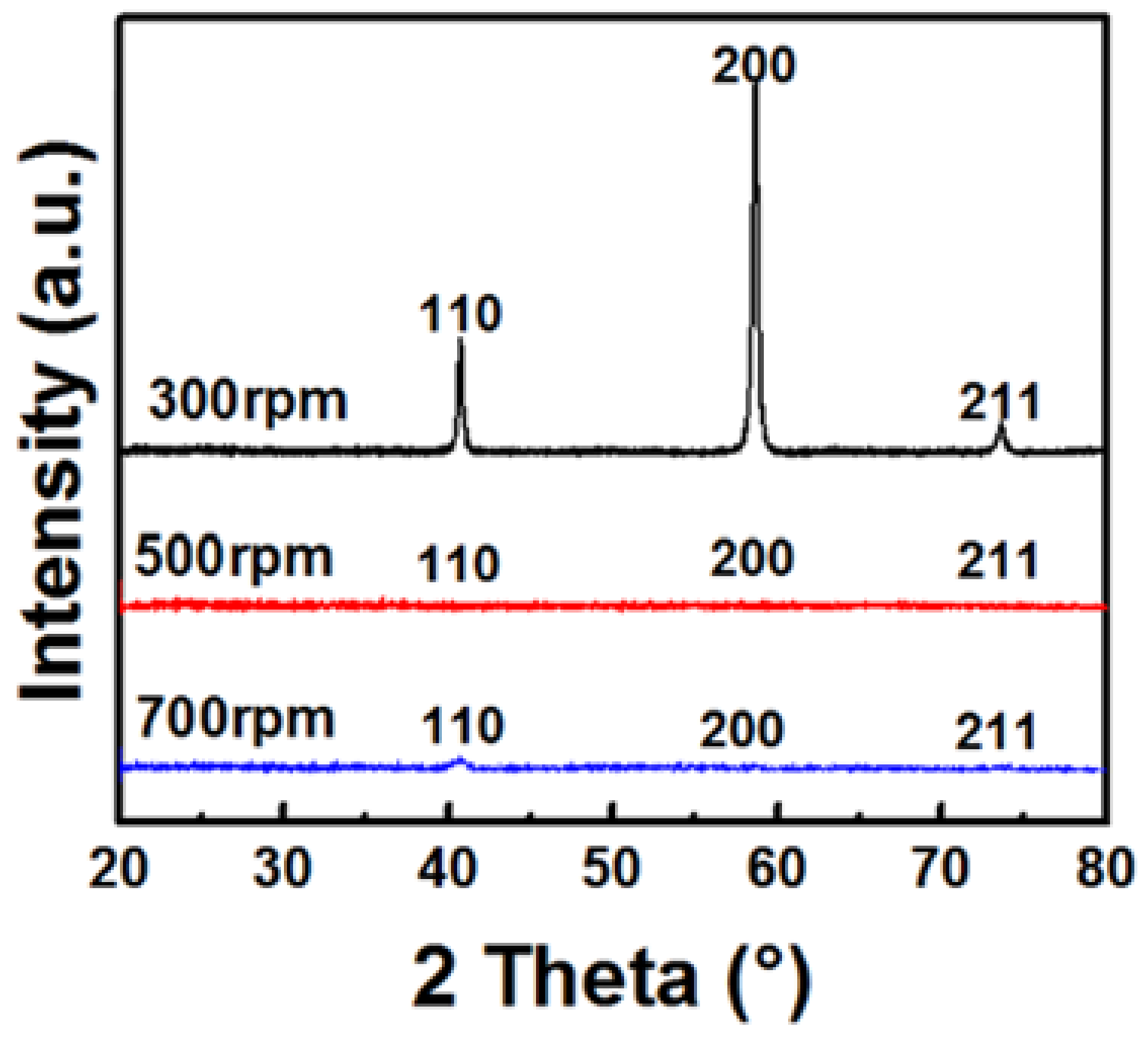

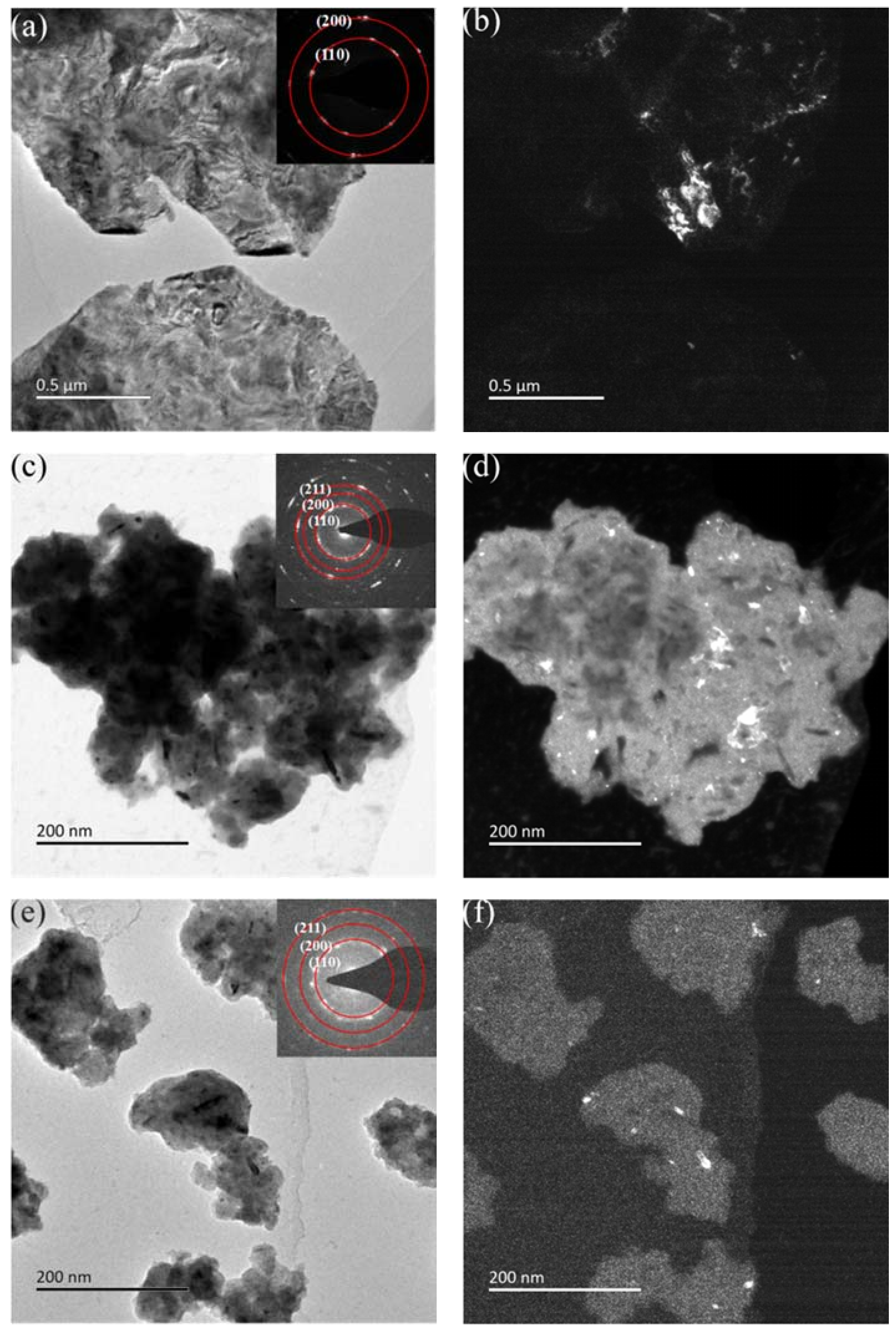

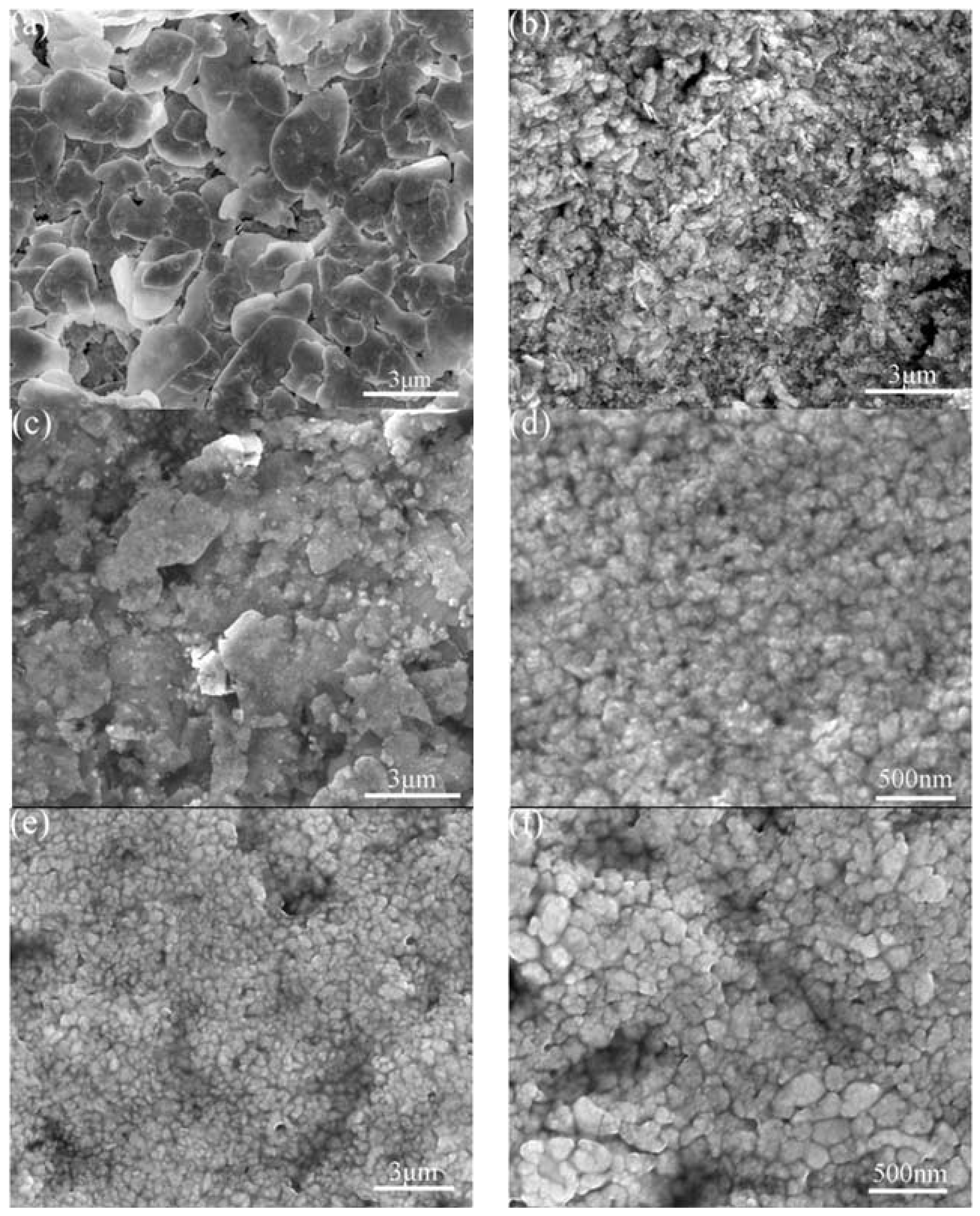

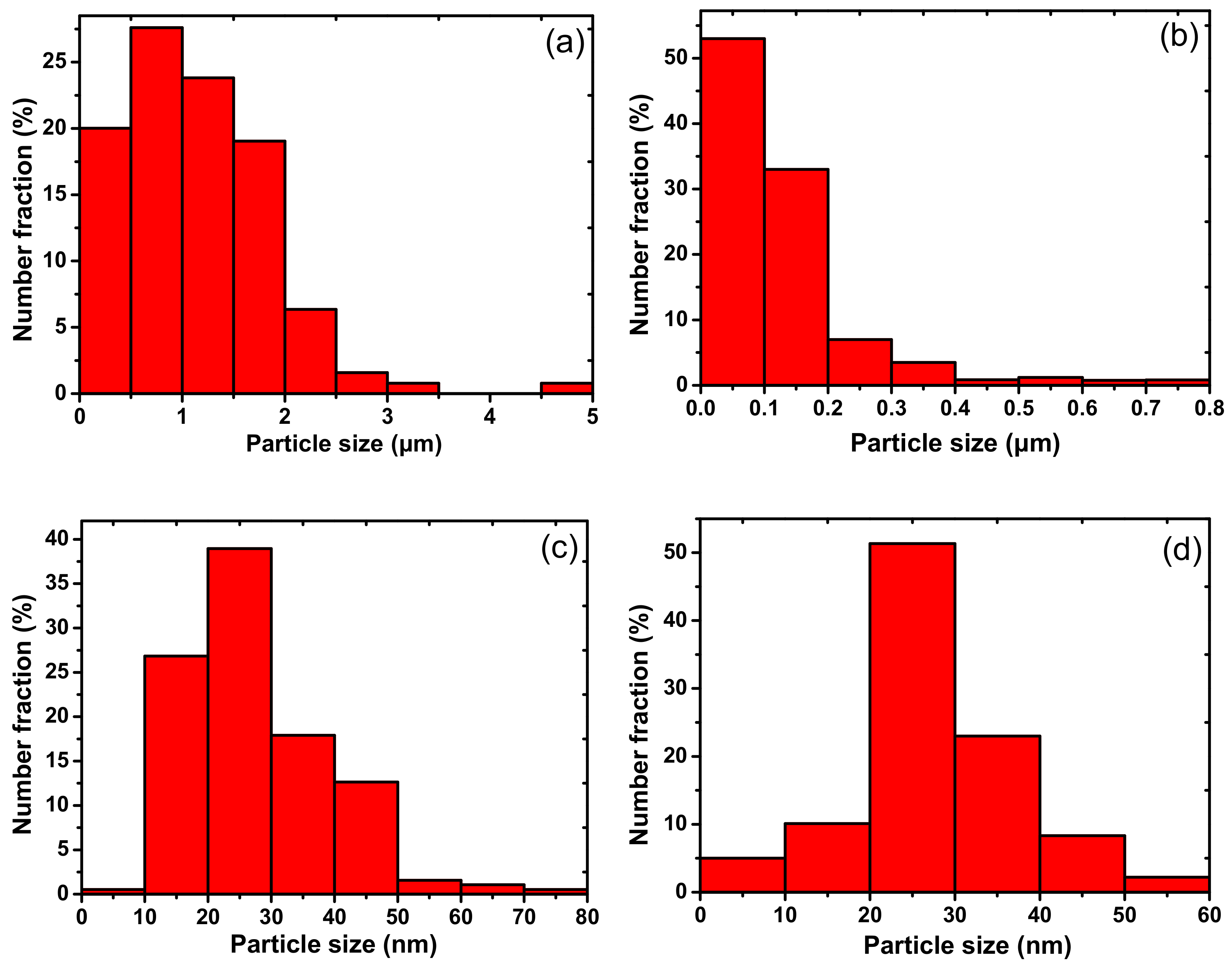

The high-energy ball milling method was adopted to explore the influence of ball milling parameters, such as milling speed and additive amounts of process control agent (PCA) on tungsten powder. The morphology and microstructure of tungsten powder in the process of refinement were characterized by field-emission scanning electron microscope (FE-SEM), field-emission transmission electron microscope (FE-TEM), and X-ray diffractometer (XRD). Results revealed that the ball milling process and the refinement of tungsten particle and grain can be largely influenced by these two parameters. The milling efficiency was found to be highest with the milling speed of 700 rpm and additive amounts of 8% PCA. The mechanisms for the effect of these two parameters and milling time on the refinement process were discussed. Nanocrystalline tungsten powder with a particle size and grain size smaller than 100 nm was obtained, and the grain size of 5–15 nm was fabricated successfully under the highest milling efficiency conditions. View Full-Text
Keywords: morphology and microstructure; nanocrystalline tungsten; refinement; milling speed; process control agent morphology and microstructure; nanocrystalline tungsten; refinement; milling speed; process control agent
Show Figures

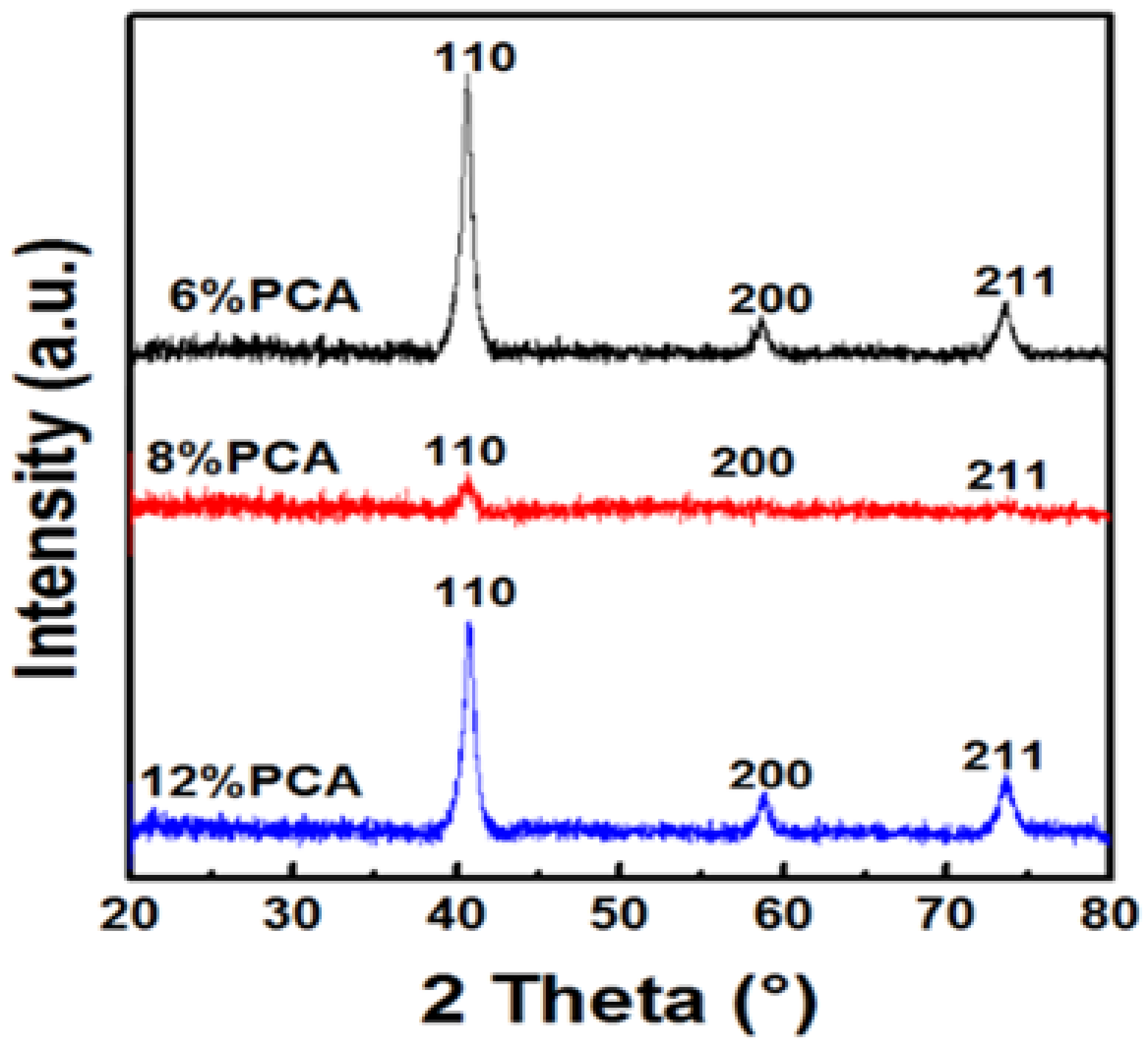

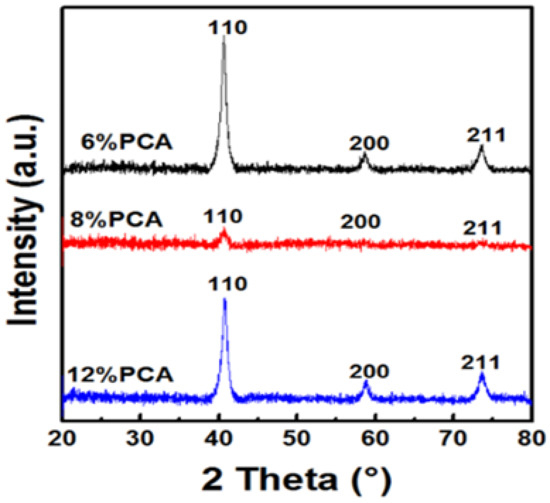

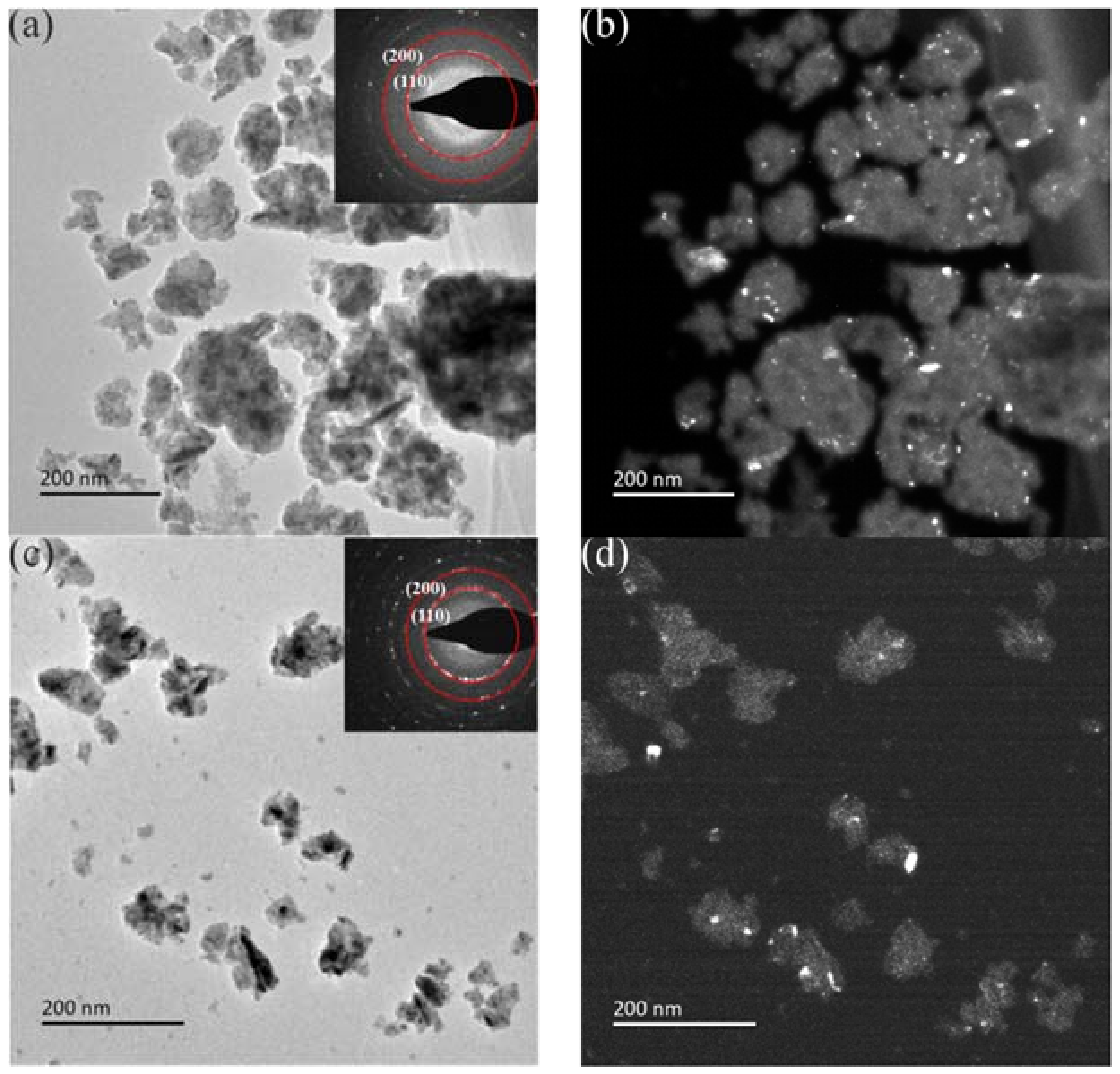

Graphical abstract

MDPI and ACS Style

Wu, Z.; Liang, Y.; Fu, E.; Du, J.; Wang, P.; Fan, Y.; Zhao, Y. Effect of Ball Milling Parameters on the Refinement of Tungsten Powder. Metals 2018, 8, 281.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
