Tribological Behavior of AA1050H24-Graphene Nanocomposite Obtained by Friction Stir Processing
Abstract
:1. Introduction

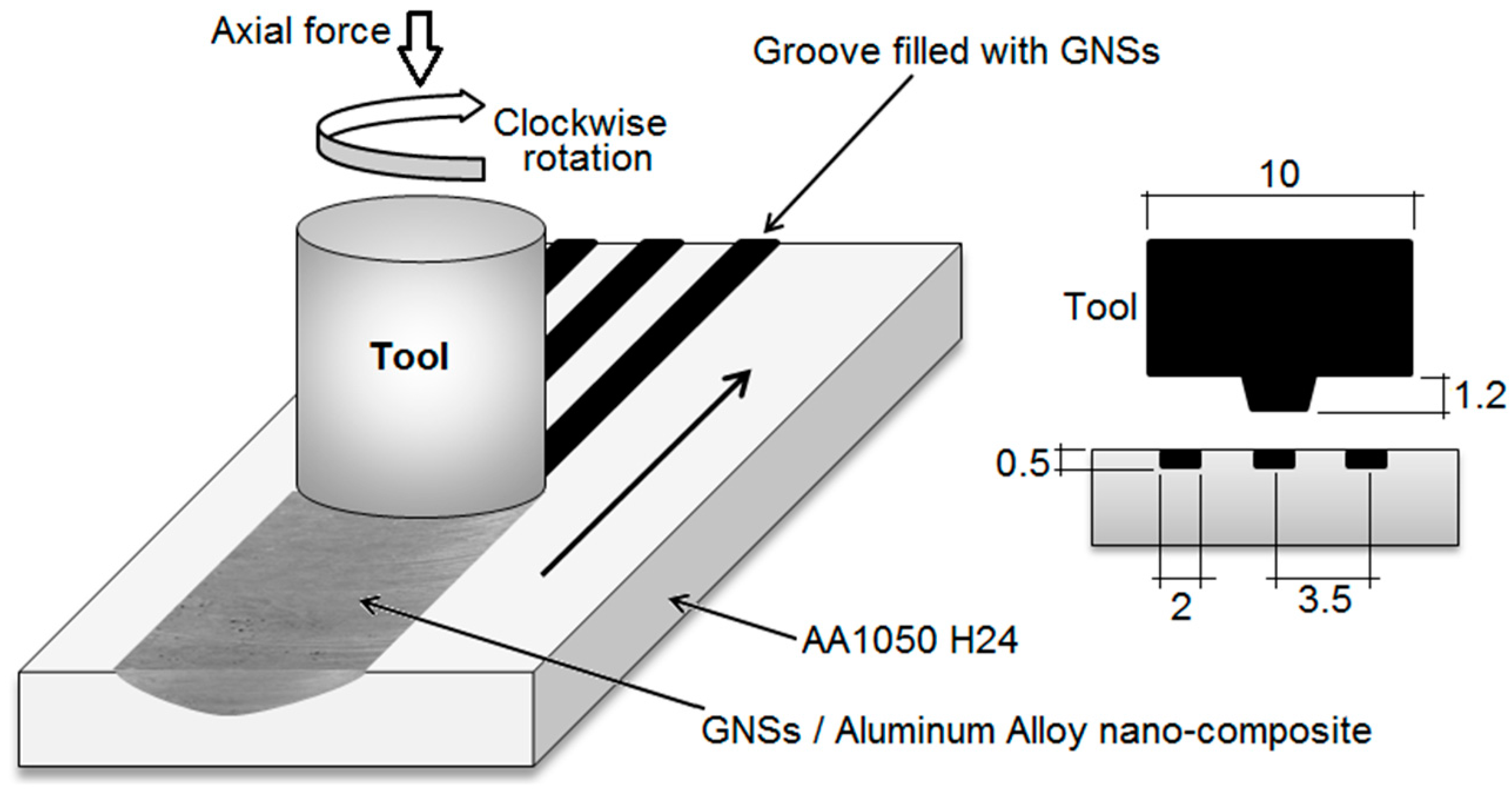

2. Materials and Methods
3. Results and Discussion

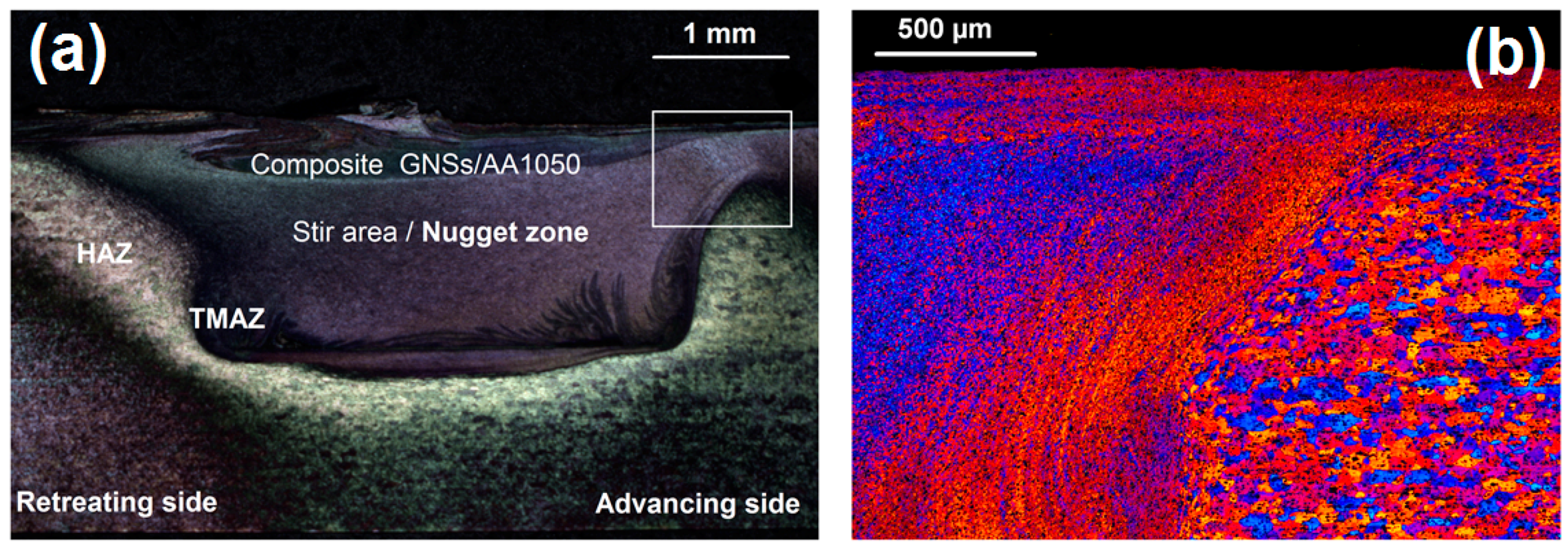

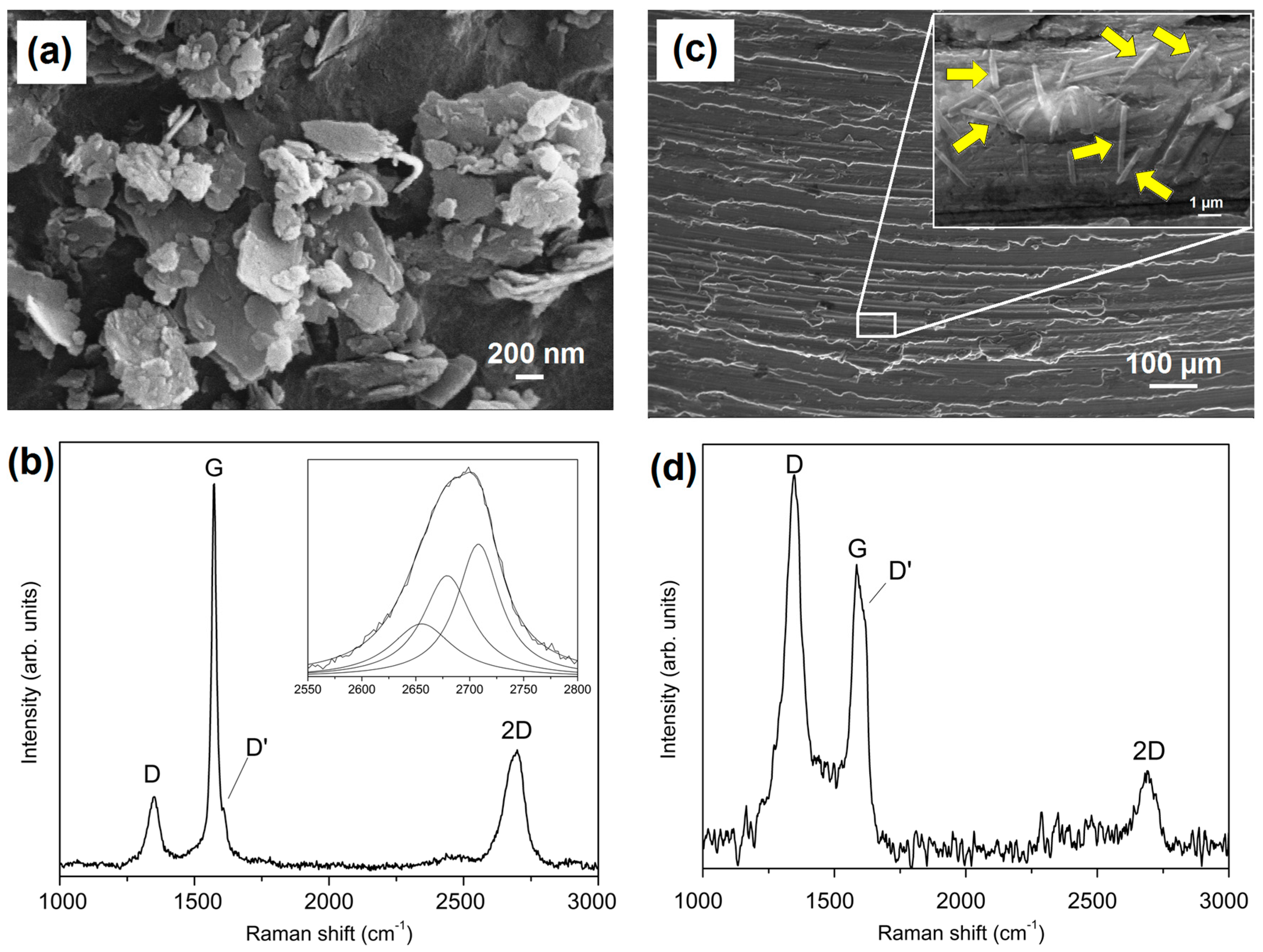

3.1. GNS/AA1050 Composite Characterization

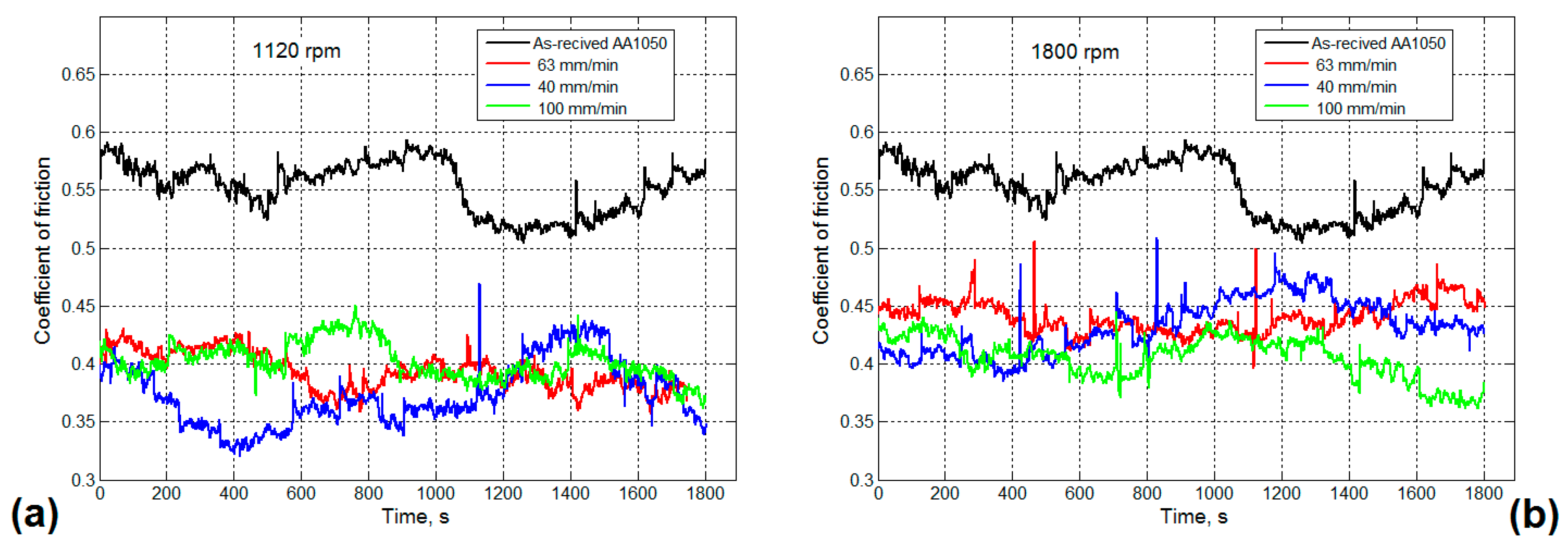

3.2. Coefficient of Friction Evaluation

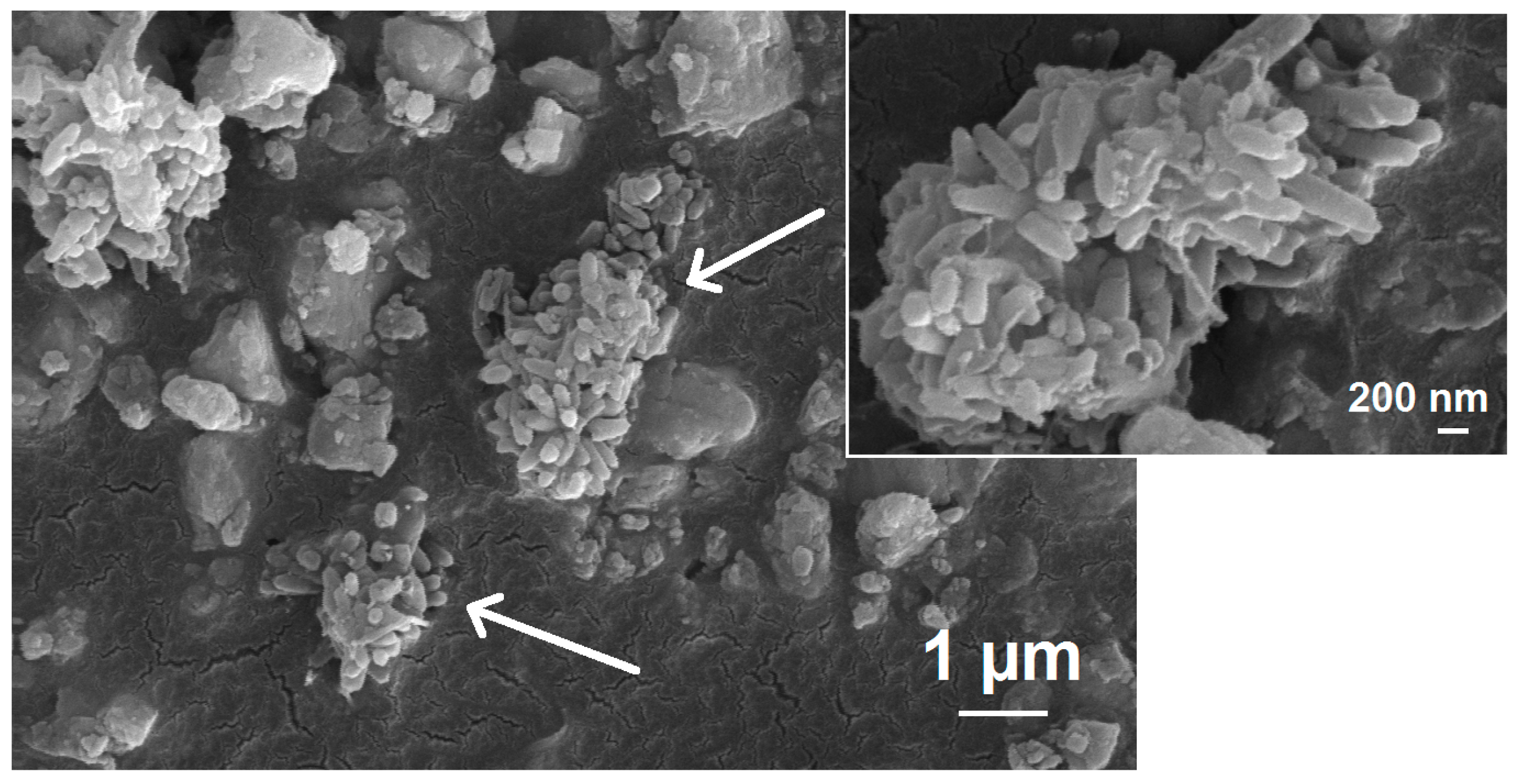

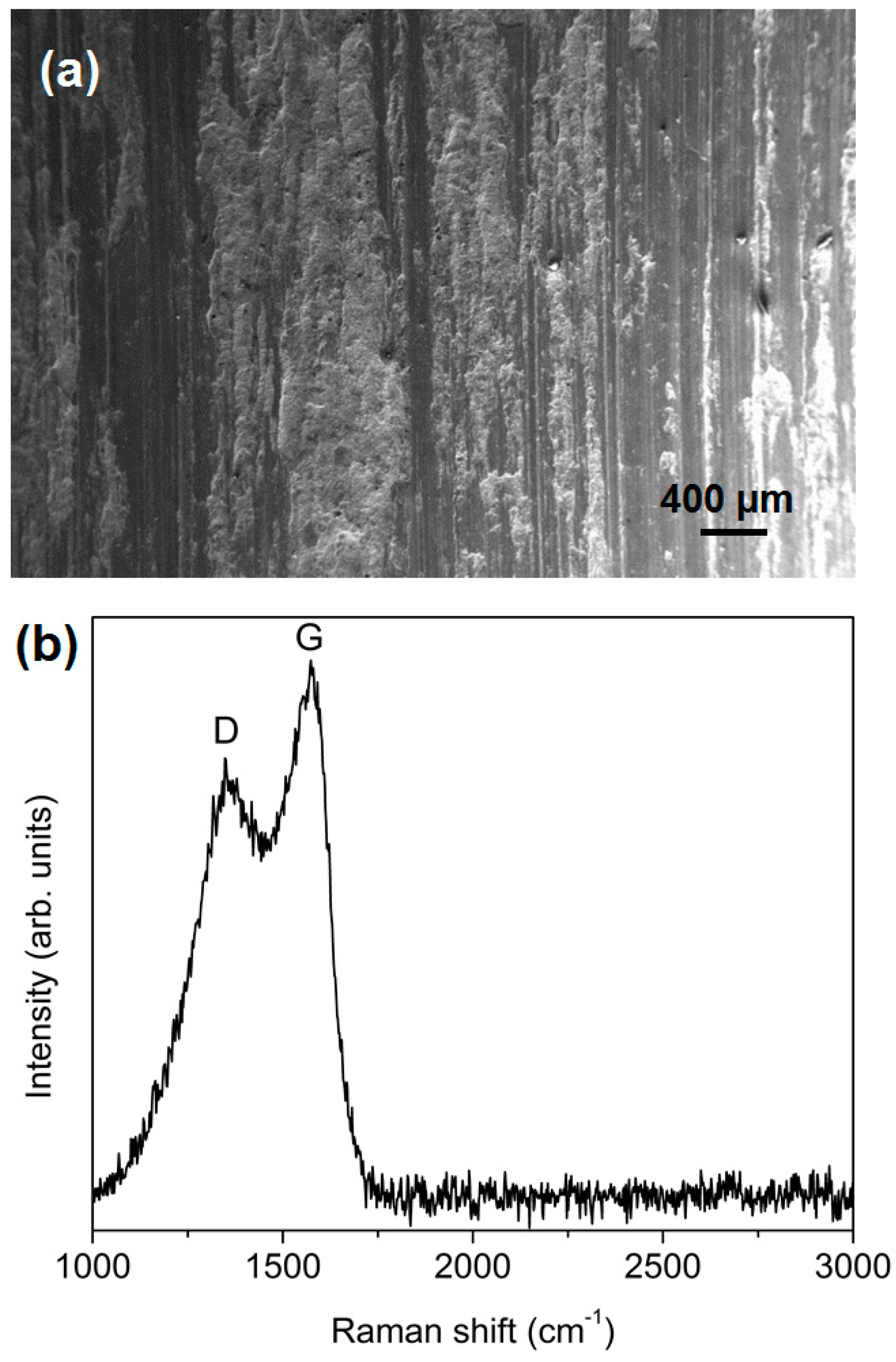

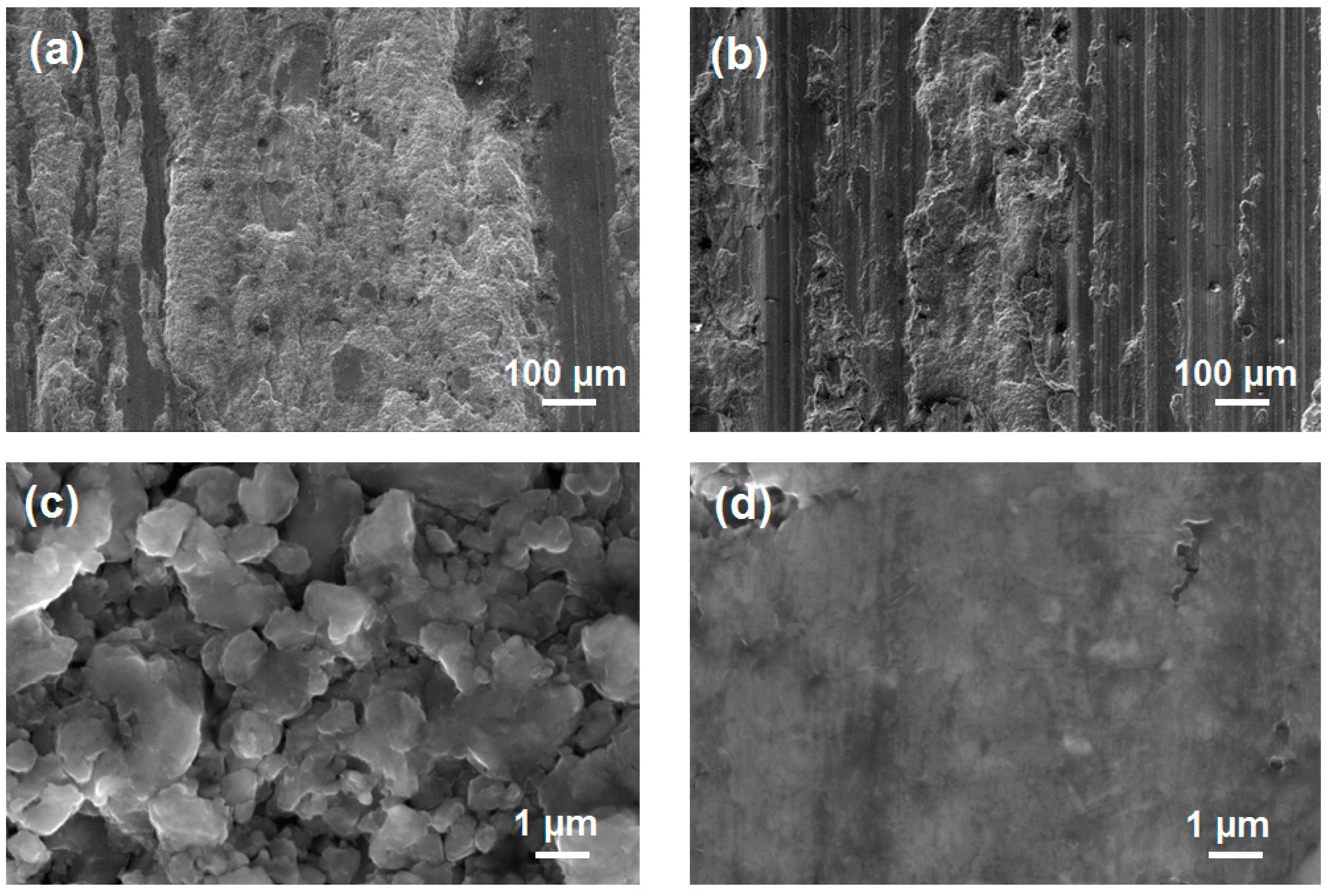

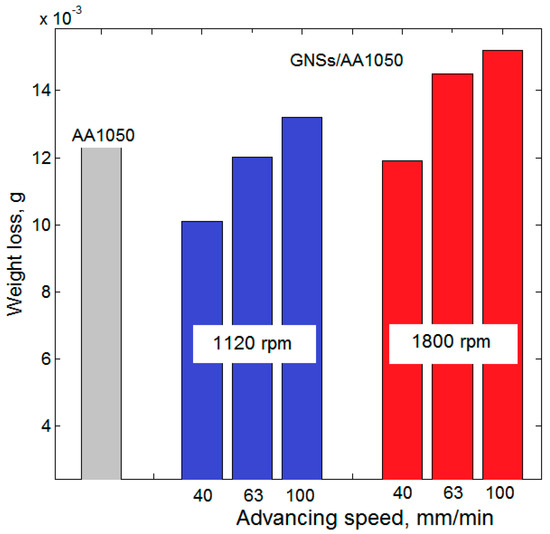

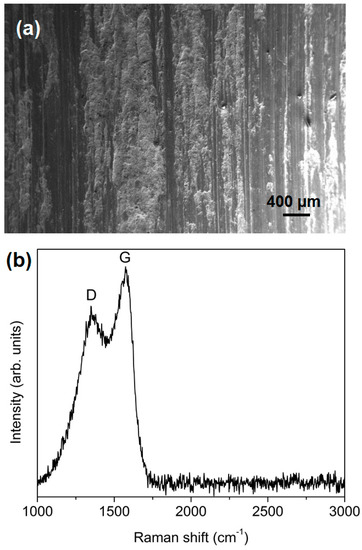

3.3. Wear Studies
4. Conclusions
Supplementary Materials
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef] [PubMed]
- Park, S.; Ruoff, R. Chemical methods for the production of graphene. Nat. Nanotechnol. 2009, 4, 217–224. [Google Scholar] [CrossRef] [PubMed]
- Wang, J.; Li, Z.; Fan, G.; Pan, H.; Chen, Z.; Zhang, D. Reinforcement with graphene nanosheets in aluminum matrix composites. Scr. Mater. 2012, 66, 594–597. [Google Scholar] [CrossRef]
- Lee, C.; Wei, X.D.; Kysar, J.W.; Hone, J. Measurement of the elastic properties and intrinsic strength of monolayer graphene. Science 2008, 321, 385–388. [Google Scholar] [CrossRef] [PubMed]
- Balandin, A.A.; Ghosh, S.; Bao, W.; Calizo, I.; Teweldebrhan, D.; Miao, F.; Lau, C.N. Superior thermal conductivity of single-layer graphene. Nano Lett. 2008, 8, 902–907. [Google Scholar] [CrossRef] [PubMed]
- Zhao, W.; Zeng, Z.; Peng, S.; Dongwu, X.; Xue, Q.; Chen, J. Fabrication and investigation the microtribological behaviors of ionic liquid-graphene composite films. Tribol. Trans. 2013, 56, 480–487. [Google Scholar] [CrossRef]
- Li-Yu, L.; Dae-Fun, K.; Whan-Kyun, K.; Seong-Chan, J. Friction and wear characteristics of multi-layer graphene films investigated by atomic force microscopy. Surf. Coat. Technol. 2011, 205, 4864–4869. [Google Scholar]
- Shao, Z.; Sun, Y.; Liu, W.; Zhang, X.; Jiang, X. Effects of Multi-Phase Reinforcements on Microstructures, Mechanical and Tribological Properties of Cu/Ti3SiC2/C/BN/GNPs Nanocomposites Sintered by Vacuum Hot-Pressing and Hot Isostatic Pressing. Metals 2016, 6, 324. [Google Scholar] [CrossRef]
- Lim, D.K.; Shibayanagi, T.; Gerlich, A.B. Synthesis of multi-walled CNT reinforced aluminum alloy composite via friction stir processing. Mater. Sci. Eng. A 2009, 507, 194–199. [Google Scholar] [CrossRef]
- Lee, C.H.; Wei, X.; Li, Q.; Carpick, R.; Kysar, J.W.; Hone, J. Elastic and frictional properties of grapheme. Phys. Status Solidi B 2009, 246, 2562–2567. [Google Scholar] [CrossRef]
- Bertolucci, S.F.; Paras, J.; Rafiee, M.A.; Lee, S.; Kapoor, D.; Koratkar, N. Graphene-aluminum nanocomposites. Mater. Sci. Eng. A 2011, 528, 7933–7937. [Google Scholar] [CrossRef]
- Tjong, S.C. Recent progress in the development and properties of novel metal matrix nanocomposites reinforced with carbon nanotubes and graphene nanosheets. Mater. Sci. Eng. R 2013, 74, 281–350. [Google Scholar] [CrossRef]
- Mishra, R.S.; Ma, Z.Y.; Charit, I. Friction stir processing: A novel technique for fabrication of surface composite. Mater. Sci. Eng. A 2003, 341, 307–310. [Google Scholar] [CrossRef]
- Liu, Q.; Ke, L.; Liu, F.; Xing, L. Microstructure and mechanical property of multi-walled carbon nanotubes reinforced aluminum matrix composites fabricated by friction stir processing. Mater. Des. 2013, 45, 343–348. [Google Scholar] [CrossRef]
- Izadi, H.; Gerlich, A.P. Distribution and stability of carbon nanotubes during multi-pass friction stir processing of carbon nanotube/aluminum composites. Carbon 2012, 50, 4744–4749. [Google Scholar] [CrossRef]
- Morisada, Y.; Fujii, H.; Nagaoka, T.; Fukusumi, M. MWCNTs/AZ31 surface composites fabricated by friction stir processing. Mater. Sci. Eng. A 2006, 419, 344–348. [Google Scholar] [CrossRef]
- Li, Q.; Lee, C.; Carpick, R.W.; Hone, J. Substrate effect on thickness-dependent friction on graphene. Phys. Status Solidi B 2010, 247, 2909–2914. [Google Scholar] [CrossRef]
- Deng, Z.; Klimov, N.N.; Solares, S.D.; Li, T.; Xu, H.; Cannara, R.J. Nanoscale interfacial friction and adhesion on supported versus suspended monolayer and multilayer graphene. Langmuir 2013, 29, 235–243. [Google Scholar] [CrossRef] [PubMed]
- Jeon, C.H.; Jeong, Y.H.; Seo, J.J.; Tien, H.N.; Hong, S.T.; Yum, Y.J.; Hur, S.H.; Lee, K.J. Material properties of graphene/aluminum metal matrix composites fabricated by friction stir processing. Int. J. Precis. Eng. Manuf. 2014, 15, 1235–1239. [Google Scholar] [CrossRef]
- Yong, X.G. Structural assessment of nanocomposites. Micron 2012, 43, 782–817. [Google Scholar]
- Yan, S.J.; Dai, S.L.; Zhang, X.Y.; Yang, C.; Hong, Q.H.; Chen, J.Z.; Lin, Z.M. Investigating aluminum alloy reinforced by graphene nanoflakes. Mater. Sci. Eng. A 2014, 612, 440–444. [Google Scholar] [CrossRef]
- ASTM G77-05. Standard Test Method for Ranking Resistance of Materials to Sliding Wear Using Block-on-Ring Wear Test; ASTM International: West Conshohocken, PA, USA, 2005. [Google Scholar]
- Tuinstra, F.; Koenig, J. Raman spectrum of graphite. J. Chem. Phys. 1970, 53, 1126–1130. [Google Scholar] [CrossRef]
- Malard, L.M.; Pimenta, M.A.; Dresselhaus, G.; Dresselhaus, M.S. Raman spectroscopy in graphene. Phys. Rep. 2009, 473, 51–87. [Google Scholar] [CrossRef]
- Ferrari, A. Raman spectroscopy of graphene and graphite: Disorder, electron-phonon coupling, doping and nonadiabatic effects. Solid State Commun. 2007, 143, 47–57. [Google Scholar] [CrossRef]
- Kaniyoor, A.; Ramaprabhu, S. A Raman spectroscopic investigation of graphite oxide derived graphene. AIP Adv. 2012, 2, 1–13. [Google Scholar] [CrossRef]
- Ferrari, A.C.; Robertson, J. Interpretation of Raman spectra of disordered and amorphous carbon. Phys. Rev. B 2000, 61, 14095–14107. [Google Scholar] [CrossRef]
- Eckmann, A.; Felten, A.; Mishchenko, A.; Britnell, L.; Krupke, R.; Novoselov, K.S.; Casiraghi, C. Probing the nature of defects in graphene by Raman spectroscopy. Nano Lett. 2012, 12, 3925–3930. [Google Scholar] [CrossRef] [PubMed]
- Kudin, K.N.; Ozbas, B.; Schniepp, H.C.; Prud’homme, R.K.; Aksay, I.A.; Car, R. Raman spectra of graphite oxides and functionalized graphene sheets. Nano Lett. 2008, 8, 36–41. [Google Scholar] [CrossRef] [PubMed]
- Orozco, M.S.; Jimenez Macias, E.; Sanchez Roca, A.; Carvajal Fals, H.D.; Blanco Fernandez, J. Optimization of friction-stir welding process using vibro-acoustic signal analysis. Sci. Technol. Weld. Join. 2013, 18, 532–540. [Google Scholar] [CrossRef]
- Surekha, K.; Murty, B.S.; Rao, K.P. Effect of processing parameters on the corrosion behavior of friction stir processed AA2219 aluminum alloy. Solid State Sci. 2009, 11, 907–917. [Google Scholar] [CrossRef]

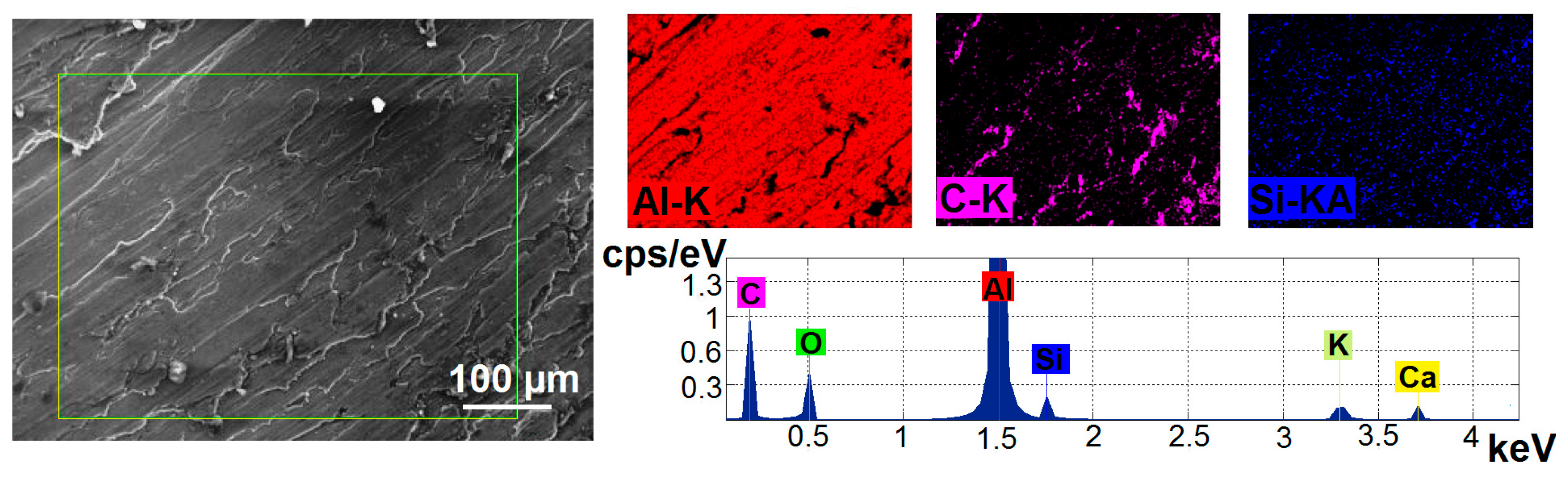

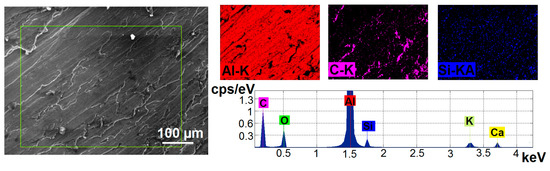

El | AN | Series | unn. C [wt %] | norm. C [wt %] | Atom. C [wt %] | (1 Sigma) [wt %] |
---|---|---|---|---|---|---|
C | 6 | K-series | 27.40 | 24.54 | 41.14 | 5.16 |
O | 8 | K-series | 5.56 | 4.98 | 6.26 | 1.20 |
Na | 11 | K-series | 0.22 | 0.20 | 0.17 | 0.05 |
Al | 13 | K-series | 78.06 | 69.91 | 52.19 | 3.76 |
Si | 14 | K-series | 0.21 | 0.19 | 0.14 | 0.04 |
K | 19 | K-series | 0.11 | 0.10 | 0.05 | 0.04 |
Ca | 20 | K-series | 0.10 | 0.09 | 0.05 | 0.04 |
Total: | 111.65 | 100.00 | 100.00 |
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Blanco Fernandez, J.; Jimenez Macias, E.; Saenz-Diez Muro, J.C.; Caputi, L.S.; Miriello, D.; De Luca, R.; Sanchez Roca, A.; Carvajal Fals, H.D. Tribological Behavior of AA1050H24-Graphene Nanocomposite Obtained by Friction Stir Processing. Metals 2018, 8, 113. https://doi.org/10.3390/met8020113
Blanco Fernandez J, Jimenez Macias E, Saenz-Diez Muro JC, Caputi LS, Miriello D, De Luca R, Sanchez Roca A, Carvajal Fals HD. Tribological Behavior of AA1050H24-Graphene Nanocomposite Obtained by Friction Stir Processing. Metals. 2018; 8(2):113. https://doi.org/10.3390/met8020113
Chicago/Turabian StyleBlanco Fernandez, Julio, Emilio Jimenez Macias, Juan Carlos Saenz-Diez Muro, Lorenzo S. Caputi, Domenico Miriello, Raffaella De Luca, Angel Sanchez Roca, and Hipólito Domingo Carvajal Fals. 2018. "Tribological Behavior of AA1050H24-Graphene Nanocomposite Obtained by Friction Stir Processing" Metals 8, no. 2: 113. https://doi.org/10.3390/met8020113
