Austenite Decomposition and Precipitation Behavior of Plastically Deformed Low-Si Microalloyed Steel

Abstract

The aim of the present study is to assess the effects of hot deformation and cooling paths on the phase transformation kinetics in a precipitation-strengthened automotive 0.2C–1.5Mn–0.5Si steel with Nb and Ti microadditions. The analysis of the precipitation processes was performed while taking into account equilibrium calculations and phase transitions resulting from calculated time–temperature–transformation (TTT) and continuous cooling transformation (CCT) diagrams. The austenite decomposition was monitored based on thermodynamic calculations of the volume fraction evolution of individual phases as a function of temperature. The calculations were compared to real CCT and DCCT (deformation continuous cooling transformation) diagrams produced using dilatometric tests. The research included the identification of the microstructure of the nondeformed and thermomechanically processed supercooled austenite products formed at various cooling rates. The complex interactions between the precipitation process, hot deformation, and cooling schedules are linked.

1. Introduction

The strengthening of advanced ferrous alloys can be achieved in many ways, including solid solution strengthening, grain refinement, cold deformation, precipitation phenomena, phase transformations, high-pressure methods, etc. [1,2,3]. One of the most interesting and evolving groups of advanced steels for the automotive industry is the multiphase transformation-induced plasticity (TRIP)-aided steels consisting of ferrite, bainite, and retained austenite [4,5,6]. These steels utilize different strengthening mechanisms to improve their strength level, but the most important is the strain-induced transformation of retained austenite into martensite [7,8,9]. This transformation takes place during the cold forming of steel sheets and results in improving both strength and plasticity. This phenomenon is called the transformation-induced plasticity (TRIP) effect [10,11,12,13].

A special feature of TRIP steels is the presence of carbide-free bainite, which can be formed during a multistep heat treatment using increased Si and/or Al additions [14]. These elements are necessary to prevent carbide precipitation under conditions of isothermal bainitic transformation. Hence, carbon enriches an austenitic phase instead of forming carbide precipitation and subsequently allows the stabilization of a retained austenite amount at room temperature in equilibrium with carbide-free bainite. A typical addition of silicon to the steel is approximately 1.5%. Unfortunately, such a high amount of this element deteriorates the sheet wettability by liquid zinc during hot-dip galvanizing [15]. Therefore, industrial requirements prefer low-Si grades in TRIP-aided steels [16,17]. The decrease of the solid solution potential of silicon and a resulting decrease of the strength level (Al has a smaller solid solution strengthening effect) can be compensated by Nb, Ti, and/or V microalloyed additions [18,19,20,21,22]. These elements form stable nitrides and carbonitrides during hot working in the austenite region. The increase of strength is due to grain refinement and precipitation strengthening by dispersive particles of MX-type phases [23,24,25,26,27]. These microalloyed multiphase steels are of special interest to the automotive industry because of the weight reduction potential [11,12,15]. Since the most investigated TRIP-aided steels are manufactured by cold deformation and subsequent intercritical annealing [15,23,25], this work is focused on hot-deformed TRIP-aided steels with low Si content.

The stabilization of retained austenite is affected by three major factors: an enrichment of the γ phase in C and Mn, its grain size, and its dislocation density [9,28]. In low-Si grades, the driving force for carbon enrichment of the austenite is smaller. Thus, the two other factors, i.e., the grain size reduction and increased dislocation density, become of great importance for the potential stabilization of retained austenite. It is assumed that both factors can be obtained for hot-rolled microalloying-aided sheet products. Therefore, the aim of this work is to monitor precipitation processes in the austenite and to assess undeformed and deformed austenite decomposition under conditions of continuous cooling of a low-Si microalloyed steel.

2. Materials and Methods

The chemical composition of the investigated steel is presented in

Table 1. Chemical composition of the investigated steel.

C	Mn	Si	Al	S	P	Nb	Ti	N
0.2 ± 0.01	1.41 ± 0.03	0.50 ± 0.03	0.020 ± 0.002	0.008 ± 0.001	0.014 ± 0.002	0.027 ± 0.001	0.010 ± 0.001	0.0047 ± 0.0002

. The silicon addition was minimized to 0.5%, and this low level was compensated for by microadditions of Nb and Ti. The liquid metal was vacuum-melted in an induction furnace VSG-50 (Balzers, Asslar, Germany) and subsequently cast as a 25 kg ingot, which was forged between 1200 °C and 900 °C to a thickness of 22 mm.

The precipitation behavior of MX-type phases with Nb and Ti microadditions formed under thermodynamic equilibrium conditions was analyzed as the first step. The temperature of TiN precipitation was determined using Equation (1). In the same way, the solubility product of niobium carbonitride was calculated based on Equation (2). This equation takes into account the real concentrations of Mn and Si in the steel. Thermodynamic calculations of the phase transformations of undercooled austenite were simulated using the JMatPro software (version 8.0, Sente Software Ltd, Guildford, UK) package. The CCT (continuous cooling transformation) diagram and TTT (time–temperature–transformation) diagram were designated for continuous cooling and for isothermal cooling, respectively.

The analysis of the real phase transformation kinetics was performed using dilatometric tests. For these tests, Φ4 mm × Φ3 mm × 7 mm tubular samples and Φ4 mm × 7 mm cylindrical specimens were prepared. The dilatometric experiments were conducted with the use of a DIL805 dilatometer produced by Bähr Thermoanalyse GmbH (Hüllhorst, Germany), equipped with an LVDT-type measuring head with a theoretical resolution of ±0.057 μm. The study involved classical heat treatment tests and thermomechanical tests, i.e., for plastically deformed samples after austenitization. For nondeformed tests, the tubular samples after the austenitization step at 1100 °C were cooled at a rate of 5 °C/s to the temperature of 875 °C, isothermally held for 20 s, and finally cooled to room temperature at cooling rates ranging from 260 to 0.17 °C/s. The plastically deformed samples were subjected to a similar heat treatment procedure, but after cooling the samples to 875 °C and before final cooling they were plastically compressed with a reduction of 50% at a strain rate of 1 s⁻¹. Microscopic tests after dilatometric analyses included classical metallographic procedures using a light microscopy (Leica MEF 4A, Wetzlar, Germany) technique with 3% nital etching.

3. Results and Discussion

3.1. Thermodynamic Calculations of Precipitation Processes

A first step of the study included a thermodynamic analysis of precipitation processes occurring in the austenite containing microalloyed additions. To determine the equilibrium precipitation temperatures of MX-type phases with Nb and Ti, Equations (1) and (2) were used. The calculations were based on the following constant values: A = 8000, B = 0.32 for TiN and A = 6440, B = 2.26 for Nb(CN) [24].

$$log\left[Ti\right]\left[N\right]=0.32-8000/T$$

(1)

$$log\left[Nb\right]\left[C+\frac{12}{14}N\right]=2.26+\frac{838{\left[Mn\right]}^{0.246}-1730{\left[Si\right]}^{0.594}-6440}{T}$$

(2)

Table 2. Solubility products for TiN at various temperatures in the austenite.

Temperature [K]	Log ks	ks
1423	−5.30193	0.00000499
1373	−5.50666	0.00000311
1323	−5.72686	0.00000188
1273	−5.96437	0.00000109
1223	−6.22129	0.00000060
1173	−6.50012	0.00000032
1123	−6.80378	0.00000016

and

Table 3. Solubility products for Nb(CN) at various temperatures in the austenite calculated by taking into account Mn and Si contents in the analyzed steel.

Temperature [K]	Log ks	ks
1423	−2.43025	0.003713
1373	−2.60105	0.002506
1323	−2.78476	0.001641
1273	−2.98291	0.00104
1223	−3.19725	0.000635
1173	−3.42987	0.000372
1123	−3.68321	0.000207

present the solubility products for the analyzed MX-type phases as a function of temperature. The parameter k_s determines the total concentrations of microalloying elements and metalloids possibly dissolved at temperature T under thermodynamic equilibrium conditions. It is clearly seen that the values of solubility products for compounds TiN and Nb(CN) increase with increasing temperature. Comparing the solubility products of the TiN and Nb(CN) phases, it can be seen that higher stability is retained by TiN because it has much lower values of parameter k_s.

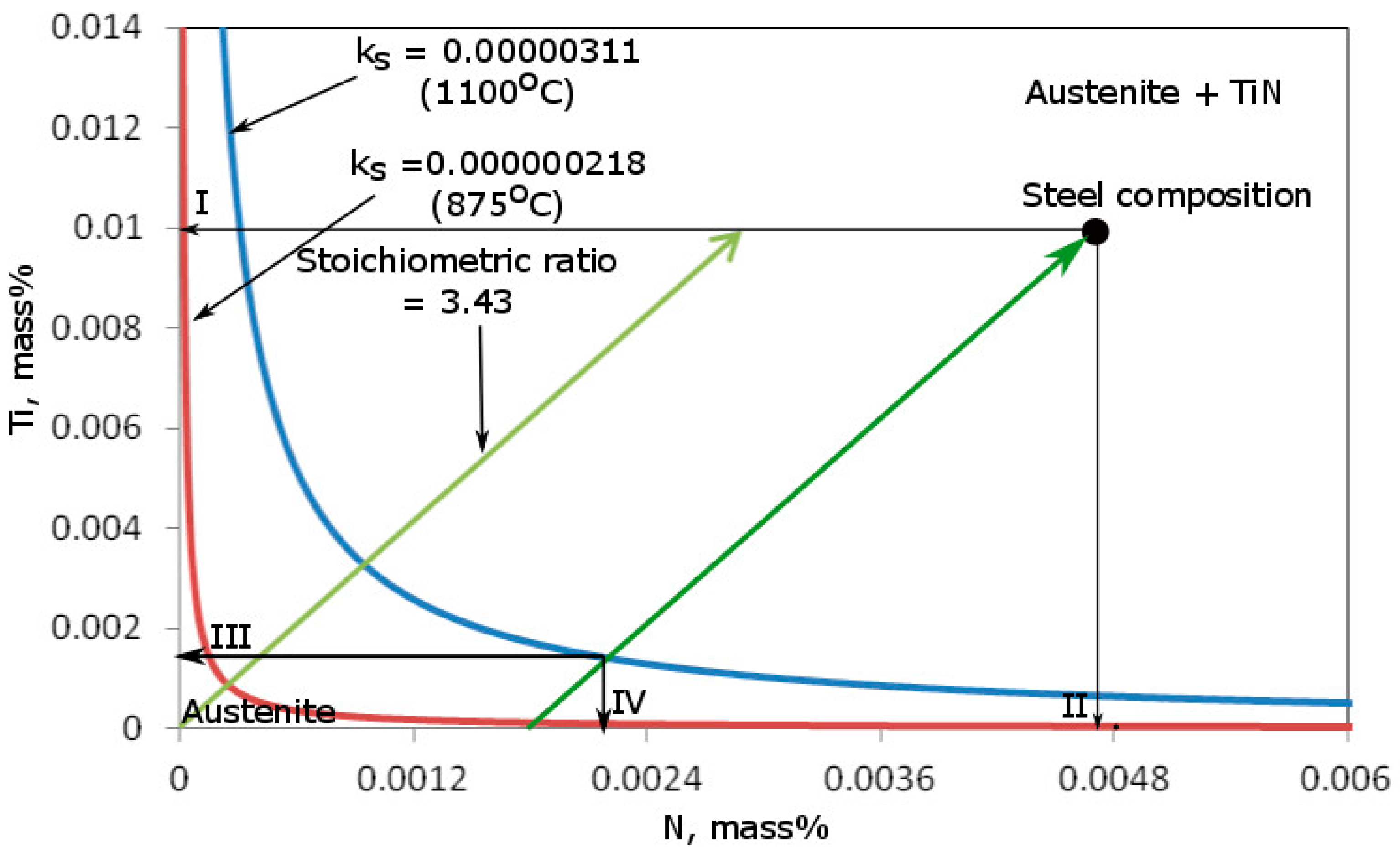

On the basis of the data in Table 2 and Table 3, the corresponding mutual solubility limit diagrams for individual MX-type interstitial phases were prepared (Figure 1 and Figure 2). On their basis, the chemical composition of the solid solution can be calculated, i.e., concentrations of microadditions and metalloids in solid solution and concentrations of microadditions and metalloids fixed in the stable MX phase, as well as a mass fraction of the particles precipitated from the matrix [24]. Figure 1 presents the solubility diagram for titanium and nitrogen in the austenite for two selected temperatures. The first temperature of 1100 °C corresponds to the austenitizing temperature, whereas the second one (875 °C) is the deformation temperature before cooling. Thus, the initial and final chemical compositions of the solid solution can be determined under equilibrium conditions. The chemical composition of the analyzed steel is also marked on the diagram. The line that represents a stoichiometric ratio of titanium to nitrogen of 48:14 is marked on the diagram. By moving the stoichiometric line parallel to the point indicating the chemical composition of the analyzed steel, an intersection point with the curve indicating the solubility product at a given temperature can be obtained.

It can be seen that at the temperature of 1100 °C the amount of dissolved Ti in the austenite is equal to 0.0014 mass% (point III on the diagram), and that circa 0.0021 mass% of nitrogen was dissolved in the austenite (point IV). This means that only a small fraction of titanium and nitrogen is dissolved in the solid solution whereas the rest is fixed into TiN, limiting grain growth during the austenitization step. When the temperature of the steel decreases to 875 °C, the amount of Ti dissolved in the solid solution is close to 0. All Ti is bound in TiN. At the same time, the difference in Ti and N contents between the analyzed steel composition and the corresponding intersection lines signify the mass fractions of titanium Ti_TiN and nitrogen N_TiN bound in TiN, respectively.

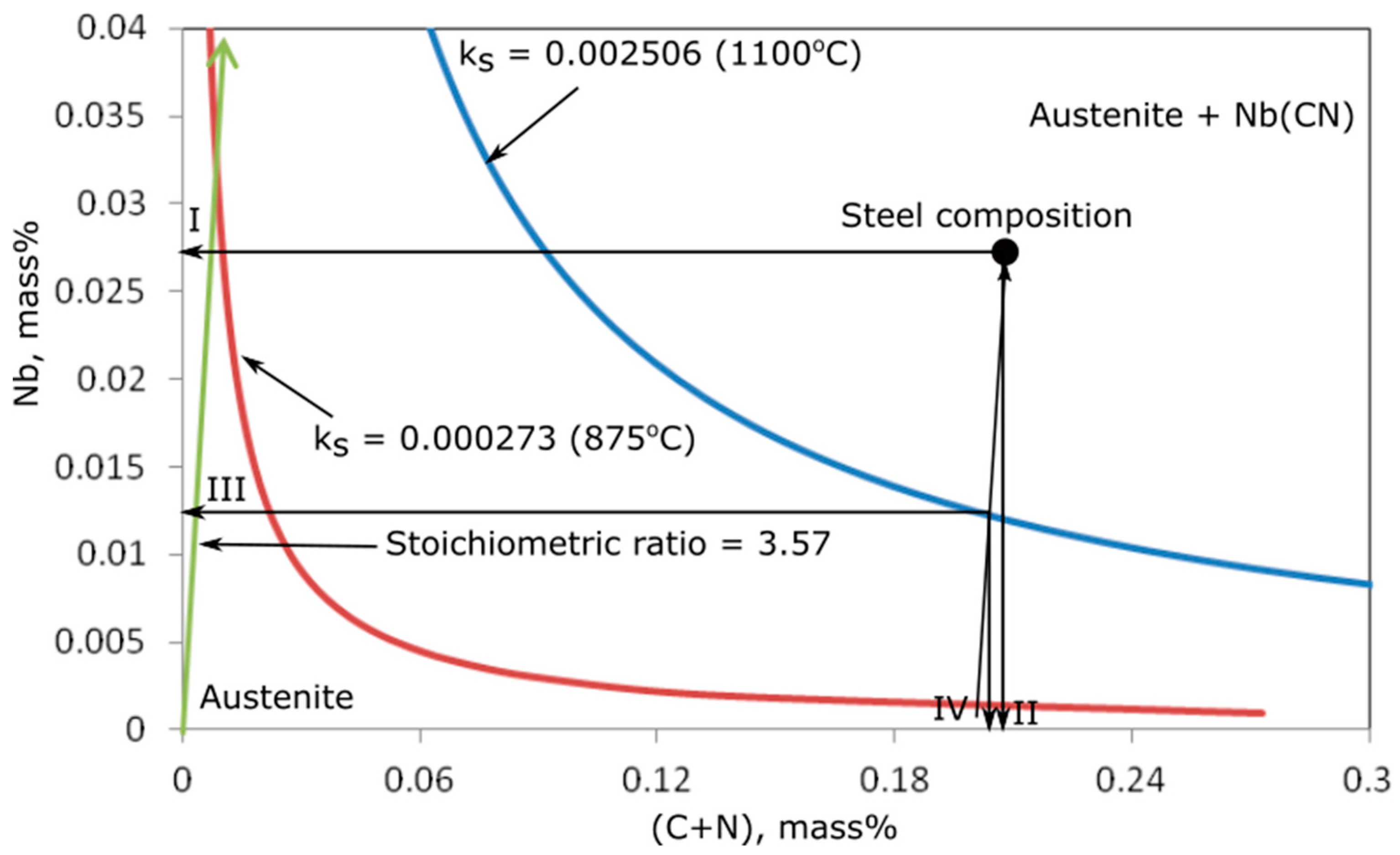

A similar analysis for niobium, carbon, and nitrogen was performed, and the results are presented in Figure 2. At 1100 °C, the amount of niobium dissolved in the solid solution is 0.012 mass% together with 0.21 mass% of combined (C+N). This means that ca. 50% of the total niobium is dissolved. When the temperature of the steel decreases to 875 °C, there is only a small concentration of Nb dissolved in the austenite. Practically all niobium is bound in Nb(CN). These results illustrate that between the austenitization step and the plastic deformation temperature, the Nb(C,N) precipitation process should occur. This may lead to grain refinement because the nitrides and carbonitrides slow down grain growth considerably [23,29].

Table 4. Contents of [Ti] and [N] dissolved in the austenite and mass% (TiN) separated from the matrix at various temperatures.

Temperature		Log ks	ks	[Ti], mass%	[N], mass%	(TiN), mass%
[°C]	[K]
1150	1423	−5.30193	0.00000499	0.00200	0.002386	0.010314
1100	1373	−5.50666	0.00000311	0.00140	0.002191	0.011109
1050	1323	−5.72686	0.00000188	0.00092	0.002043	0.011739
1000	1273	−5.96437	0.00000109	0.00056	0.001939	0.012201
950	1223	−6.22129	0.00000060	0.000321	0.001869	0.012510
900	1173	−6.50012	0.00000032	0.000173	0.001825	0.012702
850	1123	−6.80378	0.00000016	0.0000086	0.001800	0.012891

and

Table 5. Contents of [Nb] and [C,N] dissolved in the austenite and mass% (NbCN) separated from the matrix at various temperatures.

Temperature		Log ks	ks	[Nb], mass%	[C,N], mass%	(NbCN), mass%
[°C]	[K]
1150	1423	−2.43025	0.003713	0.0390	0.211679	0
1100	1373	−2.60105	0.002506	0.0250	0.208265	0.003735
1050	1323	−2.78476	0.001641	0.0164	0.205846	0.015390
1000	1273	−2.98291	0.001040	0.0100	0.204198	0.022802
950	1223	−3.19725	0.000635	0.0059	0.203120	0.027980
900	1173	−3.42987	0.000372	0.0033	0.202447	0.031253
850	1123	−3.68321	0.000207	0.00175	0.202046	0.033204

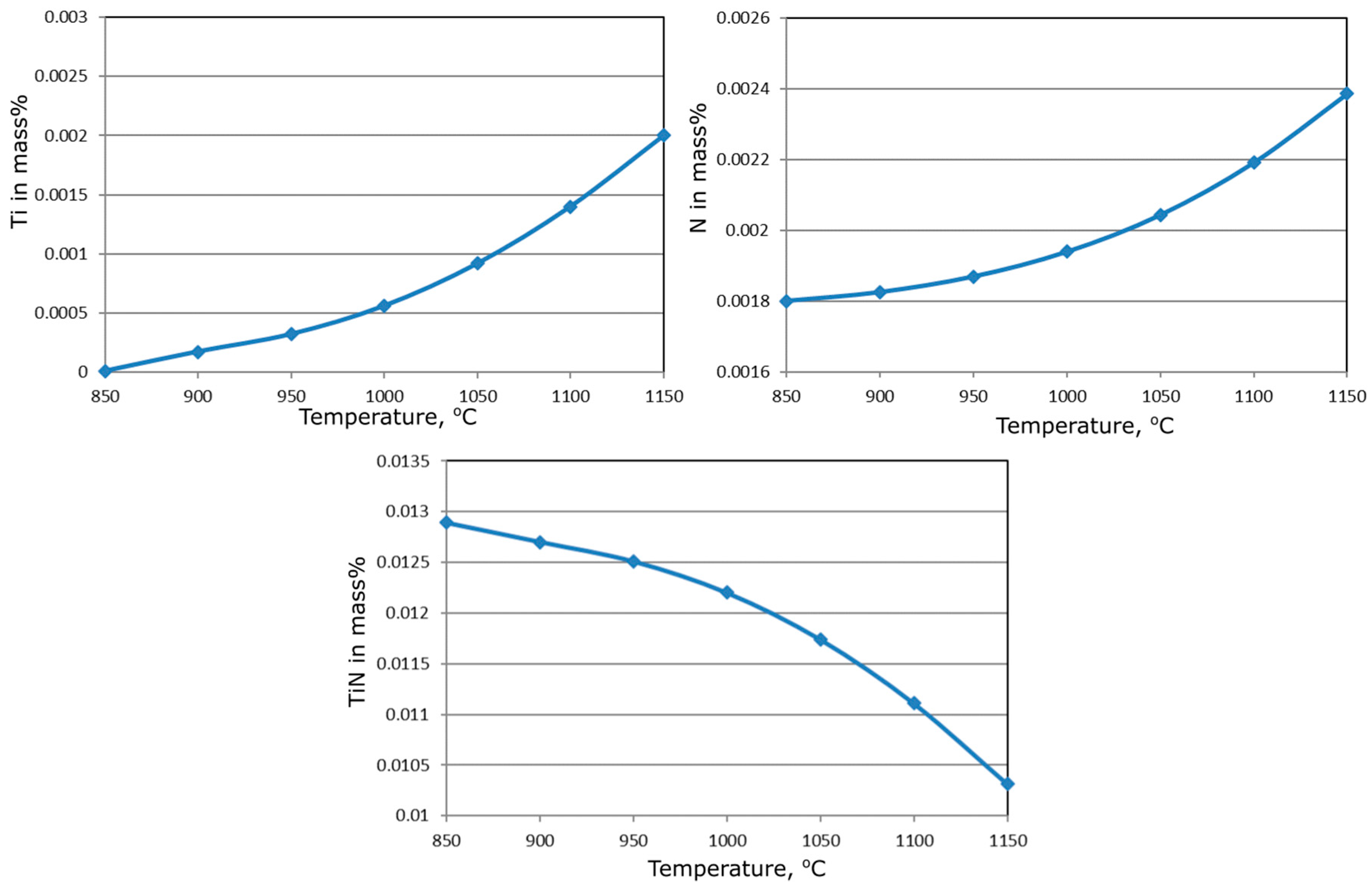

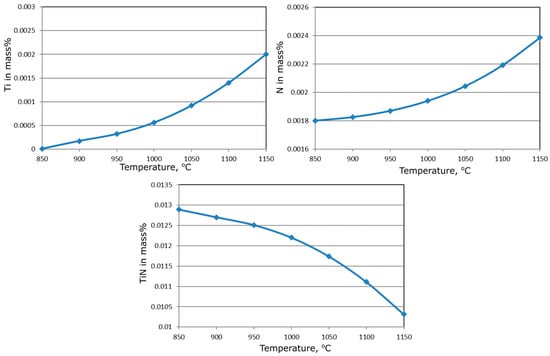

present the calculated chemical compositions of the austenite as well as TiN and Nb(C,N) mass% fractions, which stay in equilibrium at particular temperatures. Figure 3 and Figure 4 show the corresponding results of the performed calculations of the solubility of TiN and Nb(C,N). In the case of TiN we can see a gradual decrease in the contents of nitrogen and titanium dissolved in solid solution and a subsequent increase in the TiN fraction occuring with decreasing temperature (Figure 3). At the temperature of 1100 °C, there is ca. 14% of the titanium dissolved in solid solution together with 46% of the nitrogen. When the temperature decreases to 850 °C, the titanium is entirely bound in TiN. The amount of dissolved nitrogen at 850 °C is 0.0018 mass%, which corresponds to the results in Figure 1. The amount of Ti required to bind all nitrogen into TiN is 3.4 times the mass percent value of N in the steel. In the case of the analyzed steel, the amount of Ti needed for the complete binding of N is 0.016 mass%. Taking into account the limited titanium concentration in the steel (0.01%), this means that some of the nitrogen content remains dissolved. In practice, this part should be fixed in Nb(C,N). The available content of N at 850 °C is about 0.018 mass% (Figure 3b).

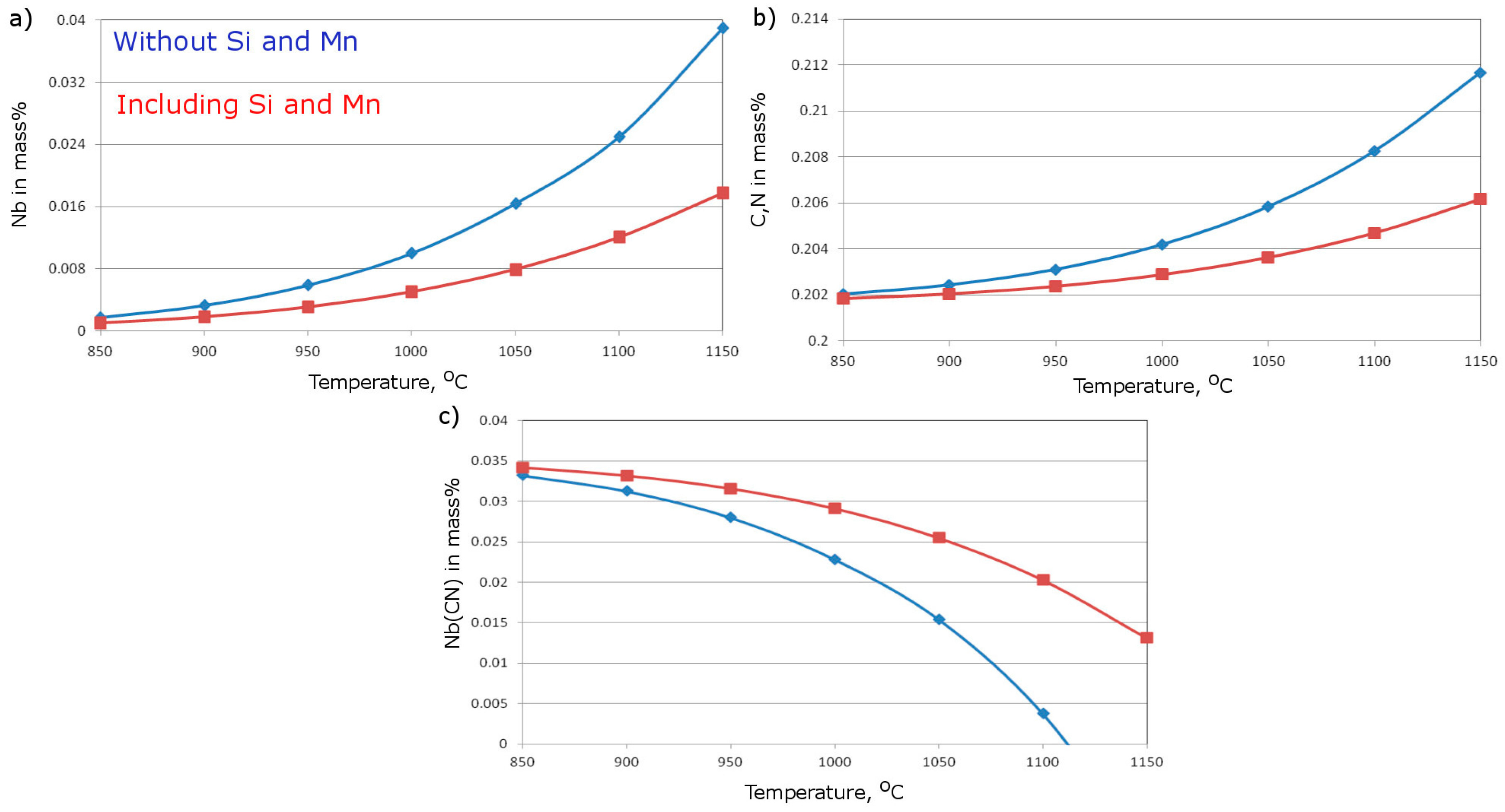

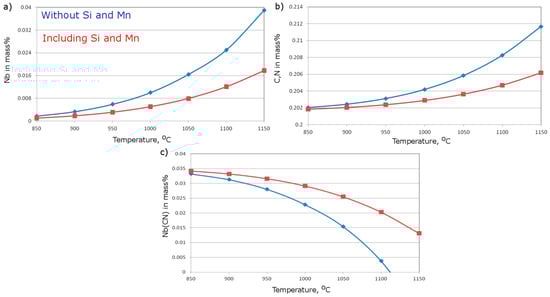

The second analysis concerned Nb(CN). The corresponding results are presented in Figure 4. First, the calculations for the precipitation of Nb(CN) without Mn and Si were carried out (blue lines in Figure 4). The precipitation of Nb(CN) starts at around 1110 °C, and its amount increases with decreasing temperature. It is accompanied by a decrease in the amount of Nb dissolved in the solid solution. At the temperature of 850 °C, almost all niobium is bound in Nb(CN). After that, the calculations included the Si and Mn concentrations in the steel. It can be seen that after taking into account the Si and Mn concentrations, the amount of precipitated Nb(CN) increases at a particular temperature. The difference in the amount of precipitated Nb(CN) is higher at high temperatures and decreases along with the temperature drop. Moreover, the precipitation process starts at a higher temperature. Siciliano and Jonas [29] observed that in the case of steel including microadditions of Nb, an increase in the Si content leads to an acceleration of the precipitation of Nb(CN). On the other hand, manganese decreases Nb diffusivity in the austenite and inhibits the precipitation of Nb(CN) [30]. These results were obtained for the equilibrium conditions. Under real cooling conditions, some higher part of the microadditions stays supersaturated in the solid solution due to undercooling [27,31]. Comparing the relative effects of Si and Mn in the analyzed steel, one can note that the accelerating effect of the addition of 0.5% Si is greater than the decelerating effect of 1.4% Mn addition.

3.2. Thermodynamic Calculations of Phase Transformations

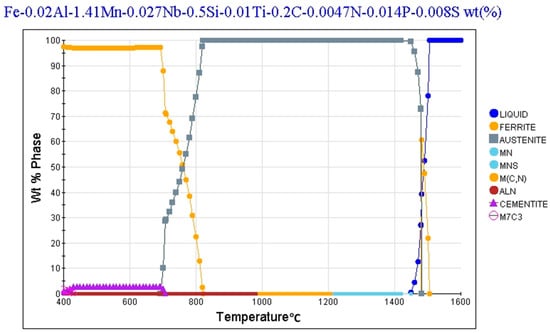

To analyze the phase transformations of the steel under equilibrium conditions, JMatPro software was used [32]. Figure 5 presents the evolution of the phases as a function of temperature. It represents a change in the microstructure state during a very slow cooling corresponding to thermodynamic equilibrium conditions. The graph enables us to identify temperatures of particular phase transitions and to assess a volume fraction of the particular phases at a given temperature. The liquidus temperature is equal to ca. 1510 °C, and the solidus temperature is equal to 1460 °C. The equilibrium temperature (A_e1) for the alpha phase is 688 °C, and the area of austenite phase is stable from 688 °C to 1460 °C. The calculated amount of austenite during the austenitzation at 1100 °C is almost 100%. It can be seen that the remaining part is M(C,N)-type carbides, which is in accordance with the previously described precipitation behaviour. The analysis shows that at room temperature under equilibrium conditions, some fraction of cementite can exist in the microstructure.

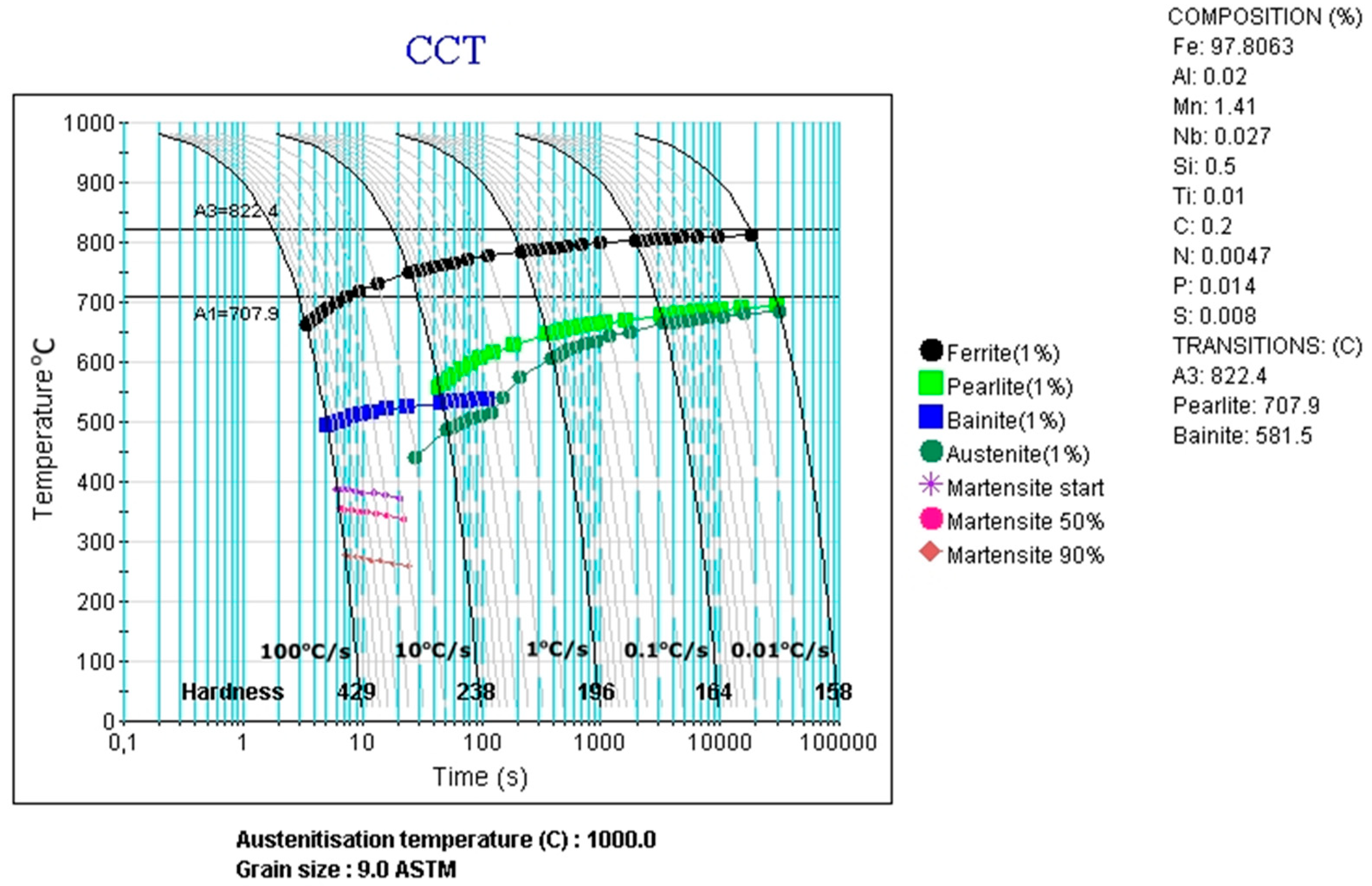

Figure 6 shows the calculated continuous cooling transformation (CCT) diagram of the analyzed steel using the JMatPro software. The ferritic transformation starting temperature (F_s) is equal to 822 °C for equilibrium conditions. It decreases with increasing cooling rate, which was kept constant for the whole temperature range. Based on the obtained graph, cooling rates faster than 10 °C/s are required to prevent a pearlitic transformation. The pearlite would consume carbon, which is needed for the stabilization of retained austenite in TRIP steels. The bainite is formed below 500 °C, whereas the martensite start temperature (M_s) is about 390 °C.

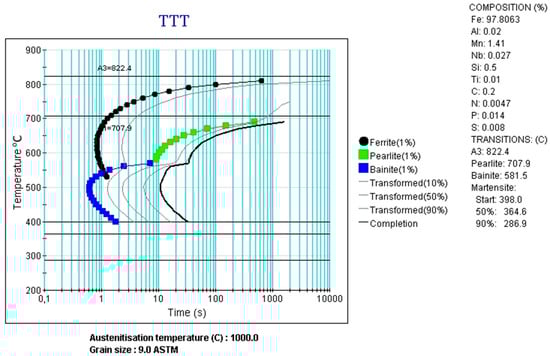

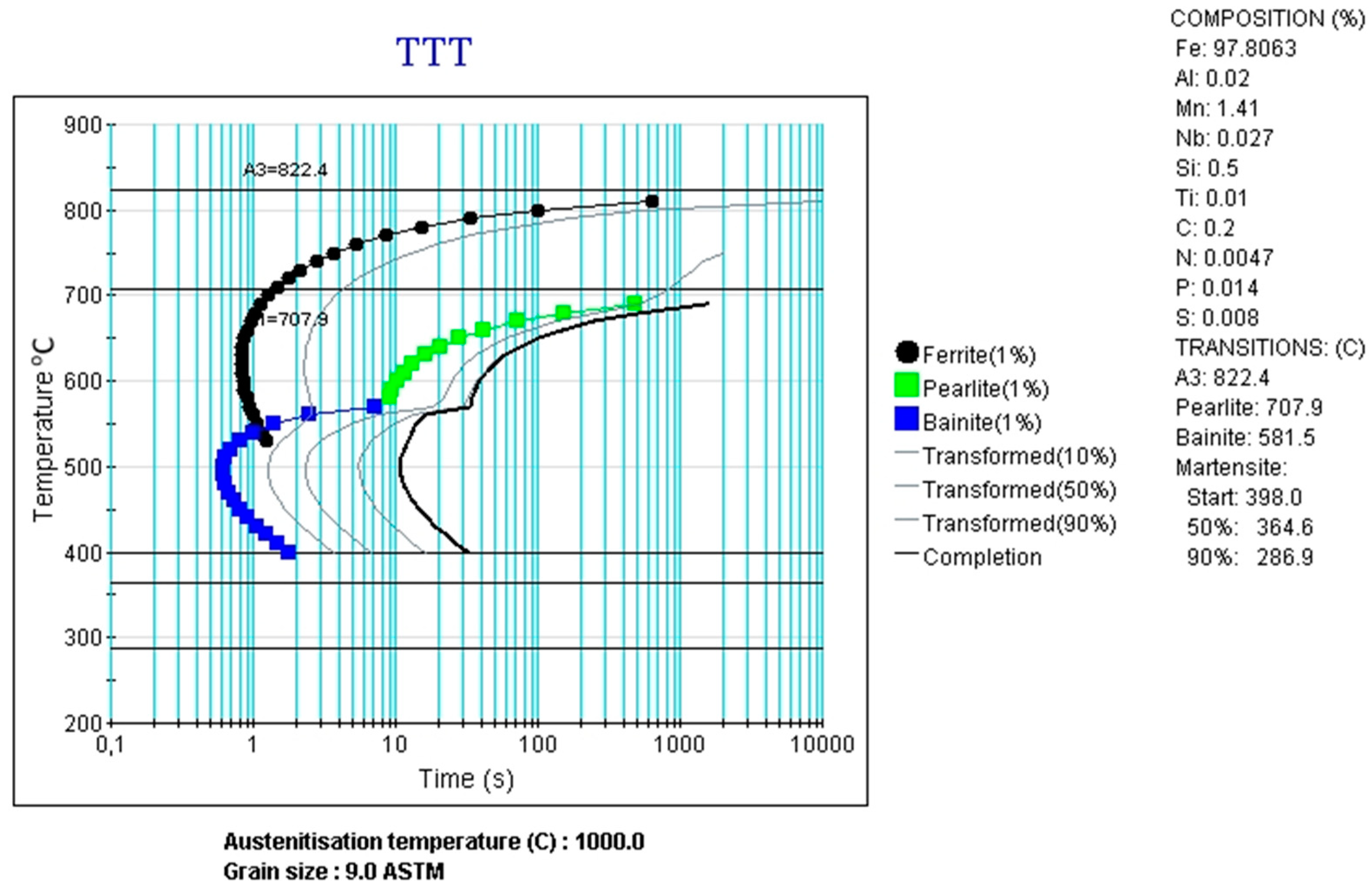

The results of the calculation of the time–temperature–transformation (TTT) diagram are presented in Figure 7. It can be seen that the pearlite trasformation is delayed to longer times at temperatures above 650 °C. There is a risk of pearlite precipitation after about 10 s at 600 °C. The ferritic and bainitic transformations are left-shifted compared with the CCT diagram. The time needed for a complete bainitic transformaton under isothermal conditions is relatively short, i.e., ca. 20 s. The generated diagrams indicate that there are conditions to design a cooling path consisting of ferrite and bainite, but it requires a multistep design instead of continuous cooling [11].

3.3. CCT and DCCT Diagrams

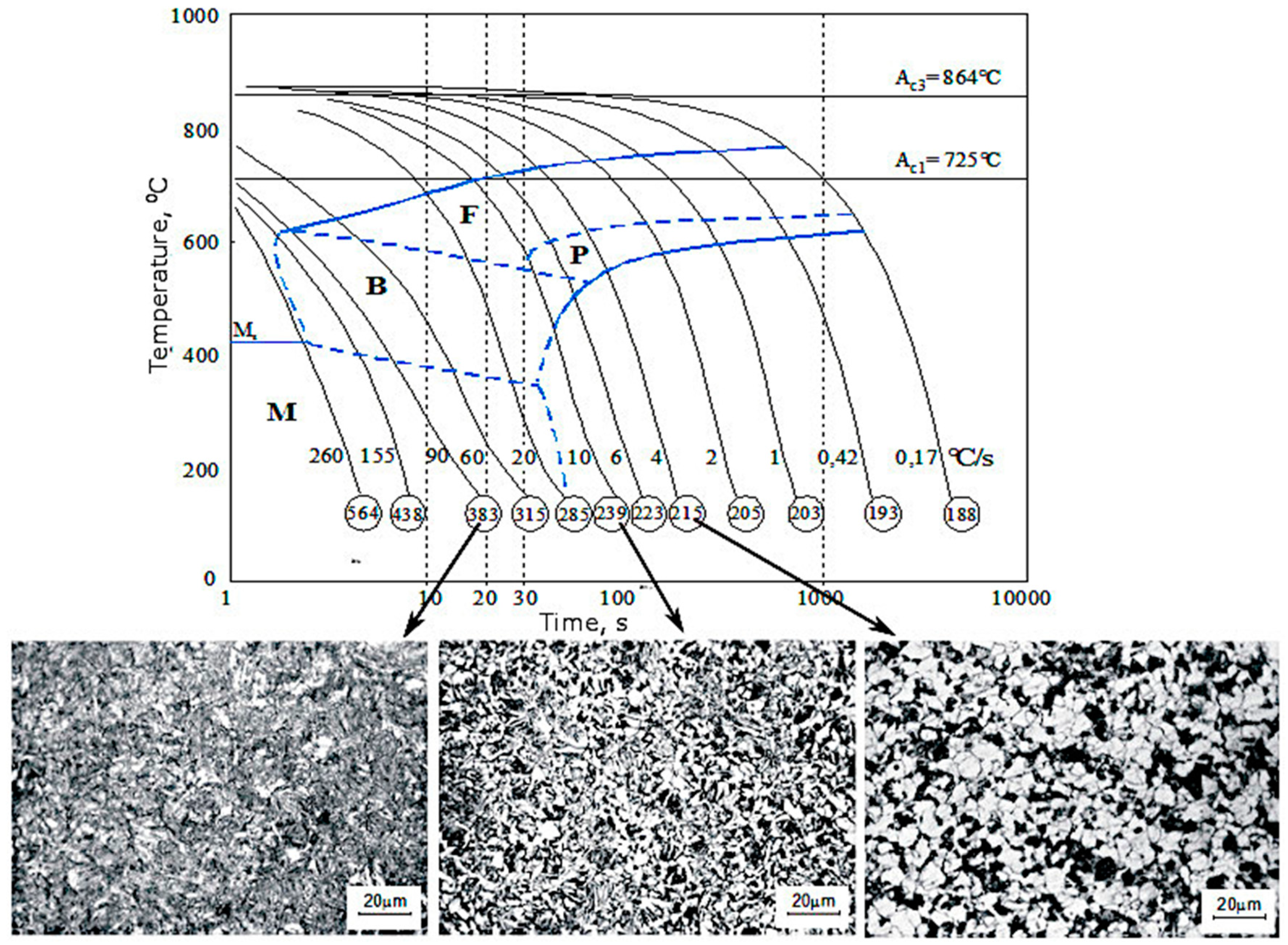

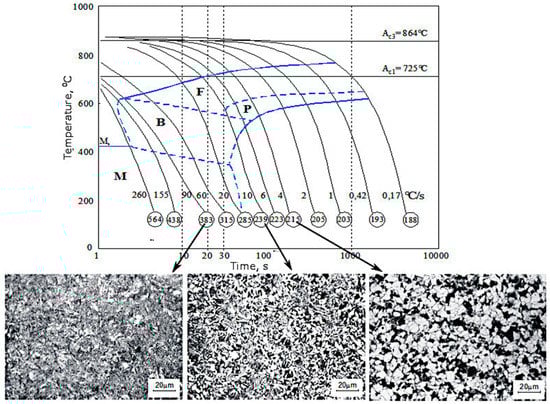

The calculated diagrams were experimentally verified in dilatometric tests. Two types of the diagrams were determined: the CCT diagram for undeformed specimens (Figure 8) and the DCCT (deformation continuous cooling transformation) diagram for deformed specimens (Figure 9). In general, argon cooling was applied. Helium was used for cooling rates faster than 60 °C/s. Hence, the cooling rates covered the entire austenite decomposition range. They were kept stable during the experiment. These diagrams are very important tools for designing a multistep cooling schedule [4,7].

The first important information obtained from these diagrams includes critical temperatures: A_c1 is equal to 725 °C, A_c3 = 864 °C, and M_s = 418 °C. These temperatures slighty differ fom the calculated ones. It can be seen that the calculated cooling rate (using JMatPro) preventing a pearlite transformation coresponds well to that obtained on the real CCT diagram (about 10 °C/s). The microstructure of undeformed steels changes from ferritic–pearlitic for cooling rates lower than 6 °C/s, through ferritic–bainitic in the range 10–60 °C/s and bainitic–martensitic (90–155 °C/s), to pure martensitic microstructures for cooling rates higher than 260 °C/s. (Figure 8). The obtained microstructures of the steel are relatively fine-grained, presumably due to the precipitation of TiN and Nb(CN).

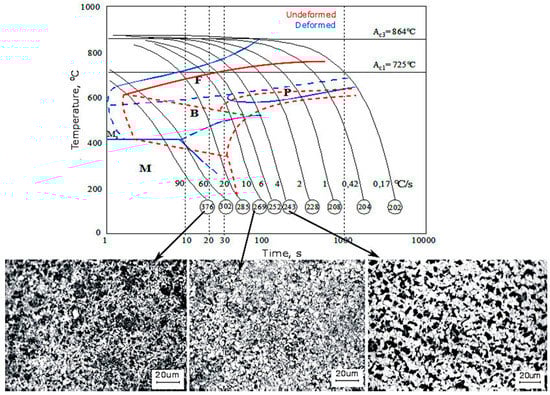

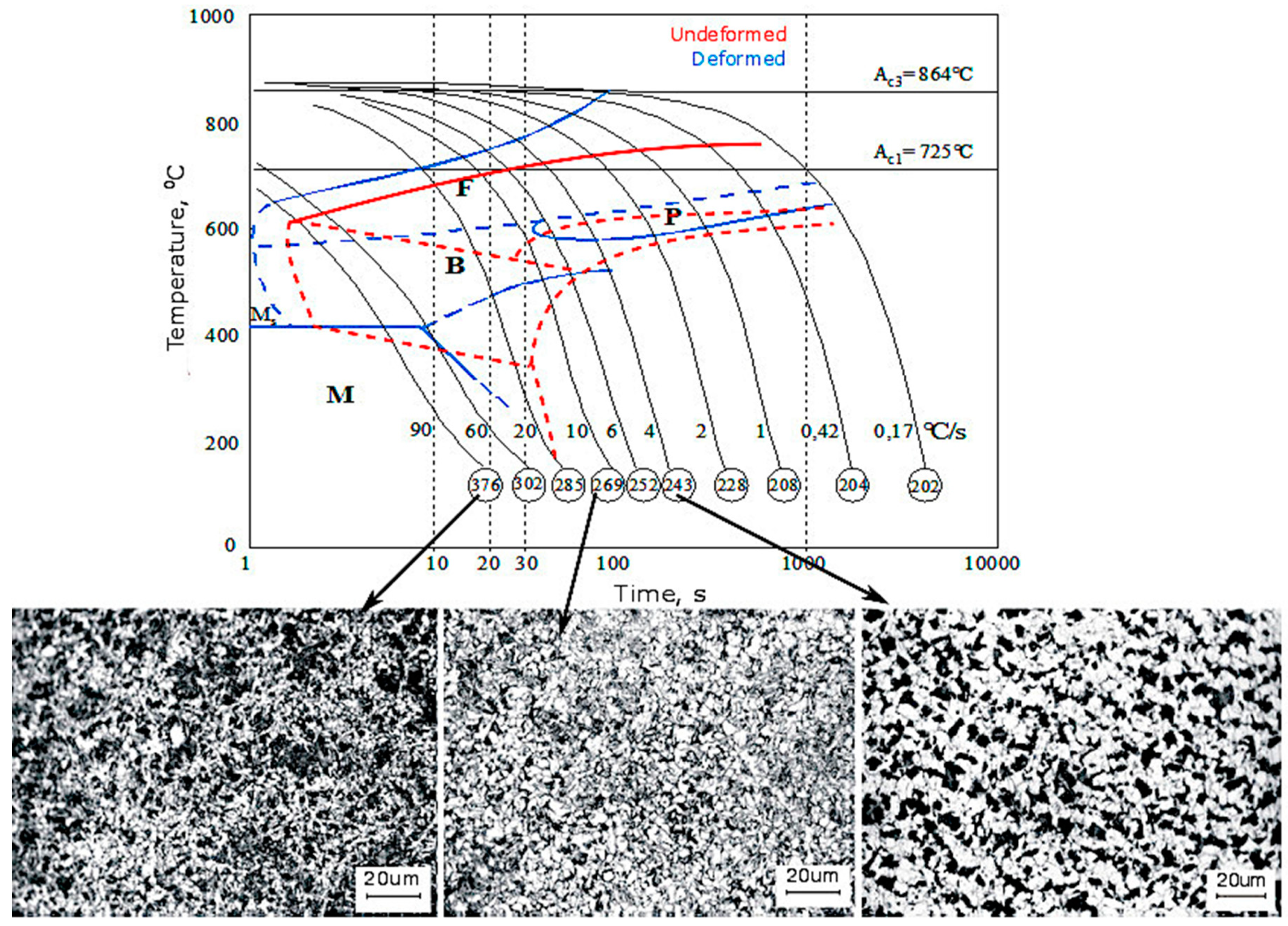

The DCCT diagram obtained for the specimens deformed at 875 °C put on the CCT diagram is shown in Figure 9. A distinct change of phase transformation kinetics is visible after plastic deformation. One can see that a major effect is the displacement of all phase transformations to higher temperatures and shorter times. The reason for these shifts is the increased diffusity of elements in the deformed austenite and a higher density of preferrable nucleation places for diffusional transformation products. Such places are especially shear bands and grain boundaries containing increased dislocation density [11,12,13]. The shift of ferritic and bainitic transformations creates better conditions for the realization of multistep cooling because these products can be produced for shorter times. It is especially important in industrial practice due to the short cooling sections available [15,18].

The plastically deformed microstructures are more fine-grained when compared to the undeformed specimens. This is due to the higher number of nucleation places for ferrite and bainite. The size of grains is an important factor for the stability of retained austenite [6,10]. Its decrease favors the stability of the γ phase. Jimenez-Melero et al. [28] reported that there is a minimum volume size of austenite grains, equal to 5 μm³, below which the martensitic transformation of austenite does not occur.

The results indicate that the plastic deformation significantly affects the technological windows required for producing multiphase microstructures consisting of ferrite, bainite, and retained austenite. The major positive effects are shifting the ferrite and bainite regions to shorter times and higher temperatures. In practice, this means the faster production of a sufficient amount of ferrite (ca. 60%–70%) in typical TRIP steels [4,10]. This is especially important for short run-out tables in technological hot rolling lines [22,25]. The detailed microstructures and mechanical properties for such a designed thermomechanical approach can be found elsewhere [11].

4. Conclusions

The work addressed the thermodynamic calculations of precipitation processes and austenite decomposition in a low-Si Nb–Ti-microalloyed automotive steel. The thermodynamic calculations of precipitation processes indicated that TiN particles should limit the grain growth during the austenitizing step at 1100 °C, whereas Nb(C,N) particles should be effectively precipitated during hot deformation in the austenite range. The effects of alloying (Mn and Si) and plastic deformation on the austenite decomposition were identified. The DCCT diagram possessed a large ferrite region beneficial for the production of ferrite within a reasonable time after finishing rolling. The technological windows for the realization of ferrite and bainite transformations from the deformed austenite were identified. The plastically deformed samples showed more fine-grained microstructures compared to nondeformed samples. This should favor the stabilization of some fraction of retained austenite through grain refinement stabilization during incomplete bainitic transformation.
