Next Article in Journal
Rhodium and Hafnium Influence on the Microstructure, Phase Composition, and Oxidation Resistance of Aluminide Coatings
Next Article in Special Issue
Interface Characteristic of Explosive-Welded and Hot-Rolled TA1/X65 Bimetallic Plate
Previous Article in Journal
Modeling and Simulation of the Gray-to-White Transition during Solidification of a Hypereutectic Gray Cast Iron: Application to a Stub-to-Carbon Connection Used in Smelting Processes
Article Menu
Issue 12 (December) cover image

Export Article

Open AccessArticle
Metals 2017, 7(12), 551; https://doi.org/10.3390/met7120551

Effect of Cobalt on Microstructure and Wear Resistance of Ni-Based Alloy Coating Fabricated by Laser Cladding

1
State Key Laboratory of Tribology, Department of Mechanical Engineering, Tsinghua University, Beijing 100084, China
2
School of Materials Science and Engineering, Beijing University of Technology, Beijing 100124, China
3
Institute of Laser Advanced Manufacturing, Zhejiang University of Technology, Hangzhou 310014, China
*
Authors to whom correspondence should be addressed.
Received: 5 November 2017 / Revised: 29 November 2017 / Accepted: 4 December 2017 / Published: 7 December 2017
(This article belongs to the Special Issue Laser Welding of Industrial Metal Alloys)
Full-Text   |   PDF [10760 KB, uploaded 7 December 2017]   |

Abstract

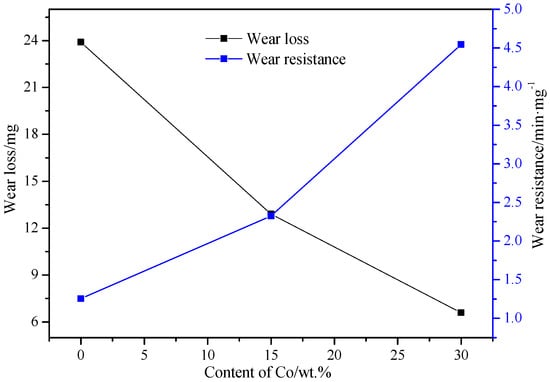

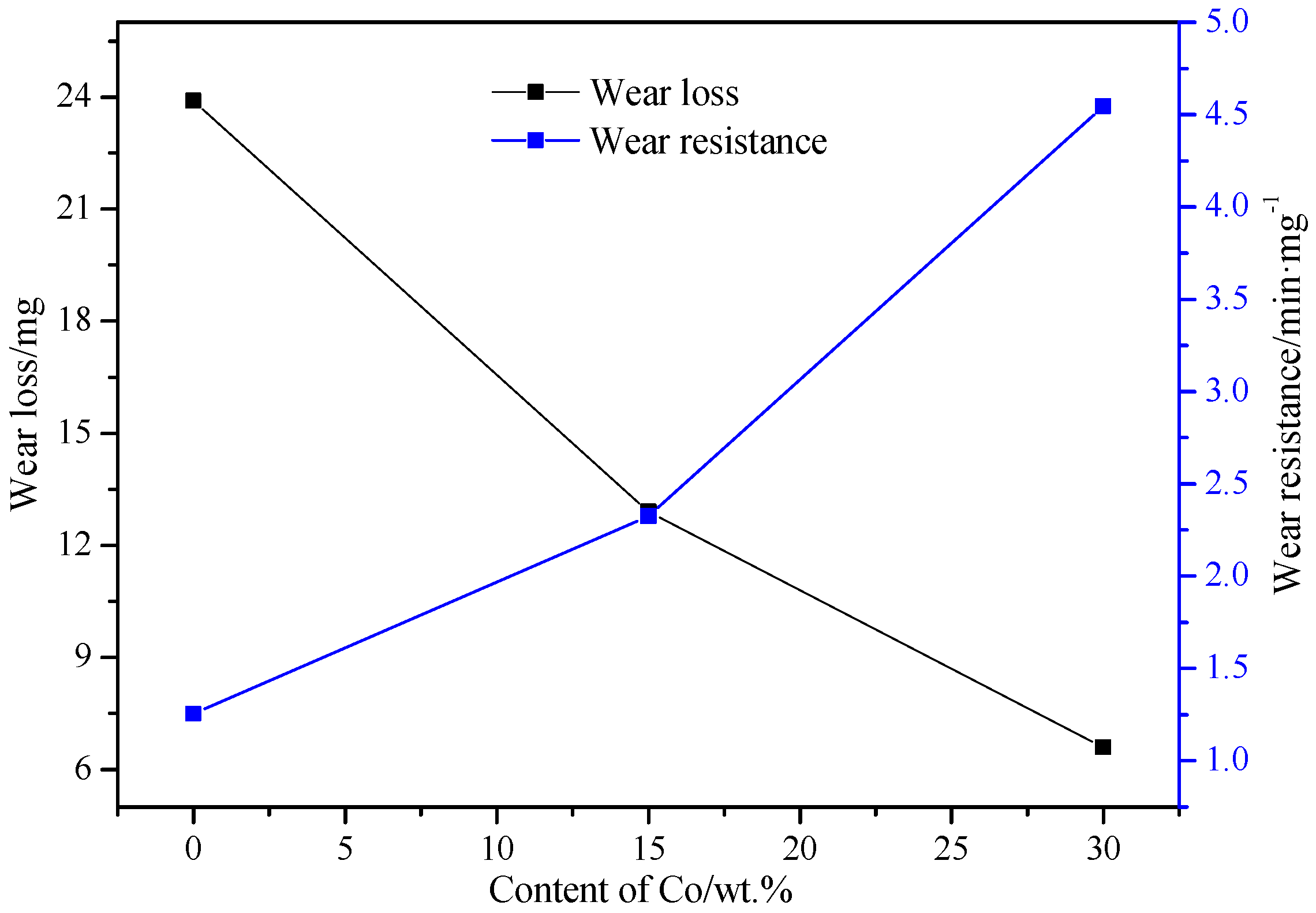

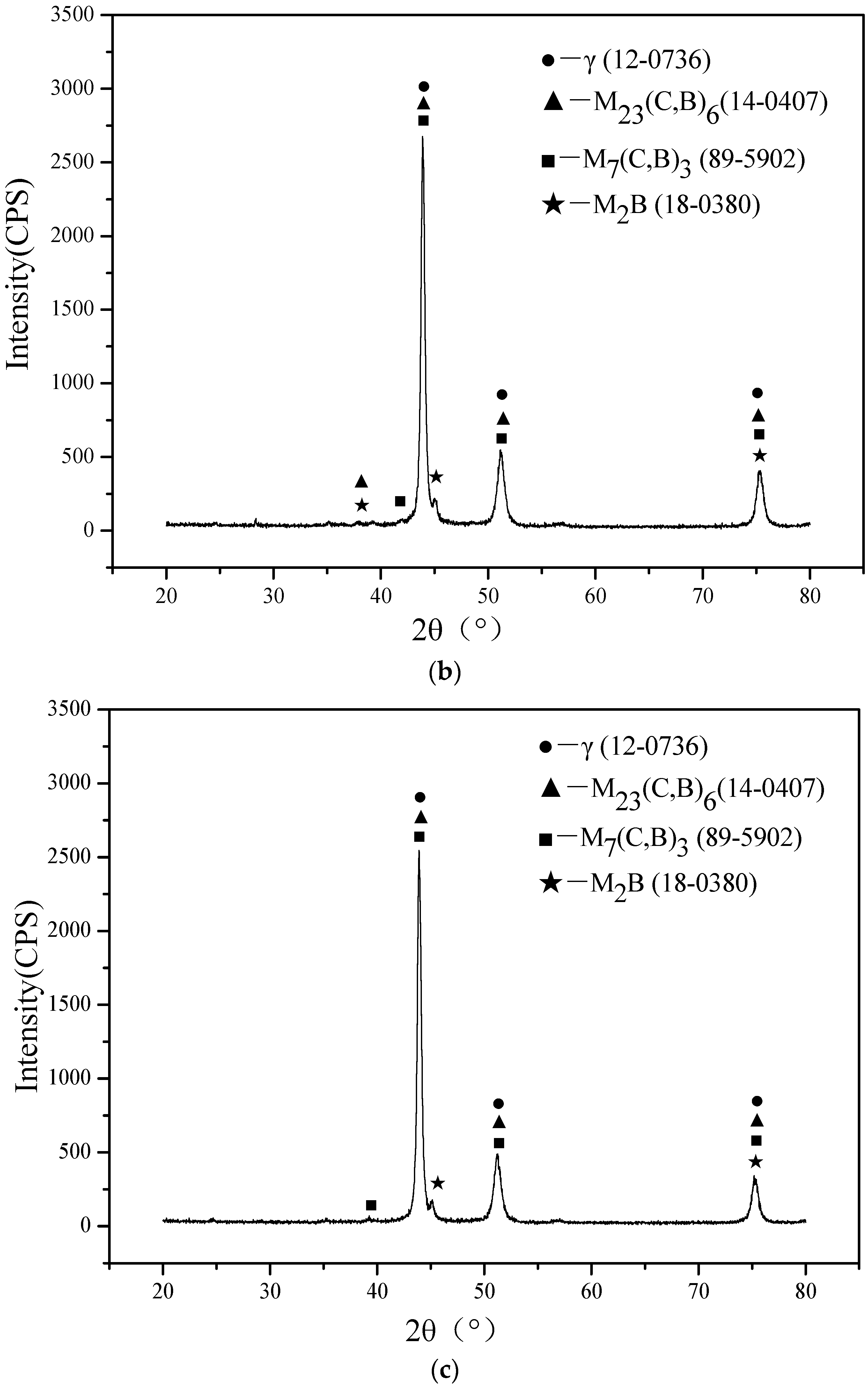

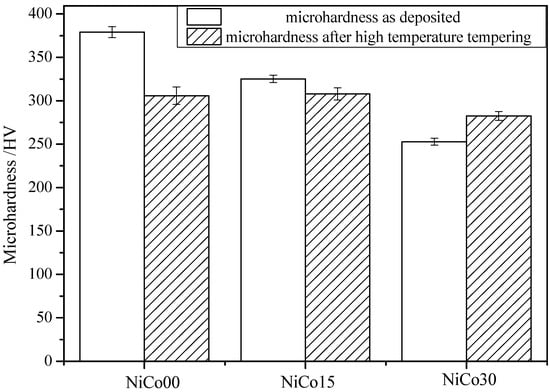

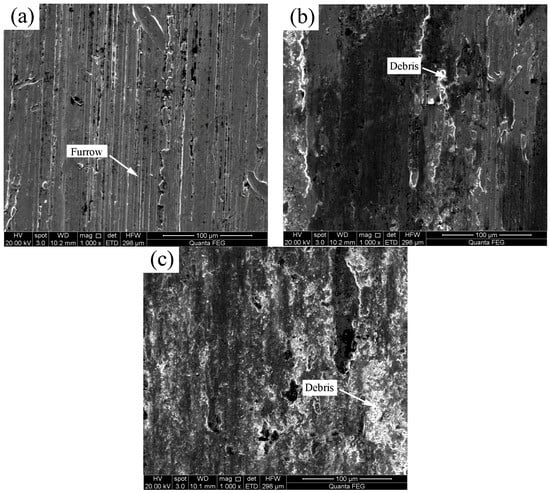

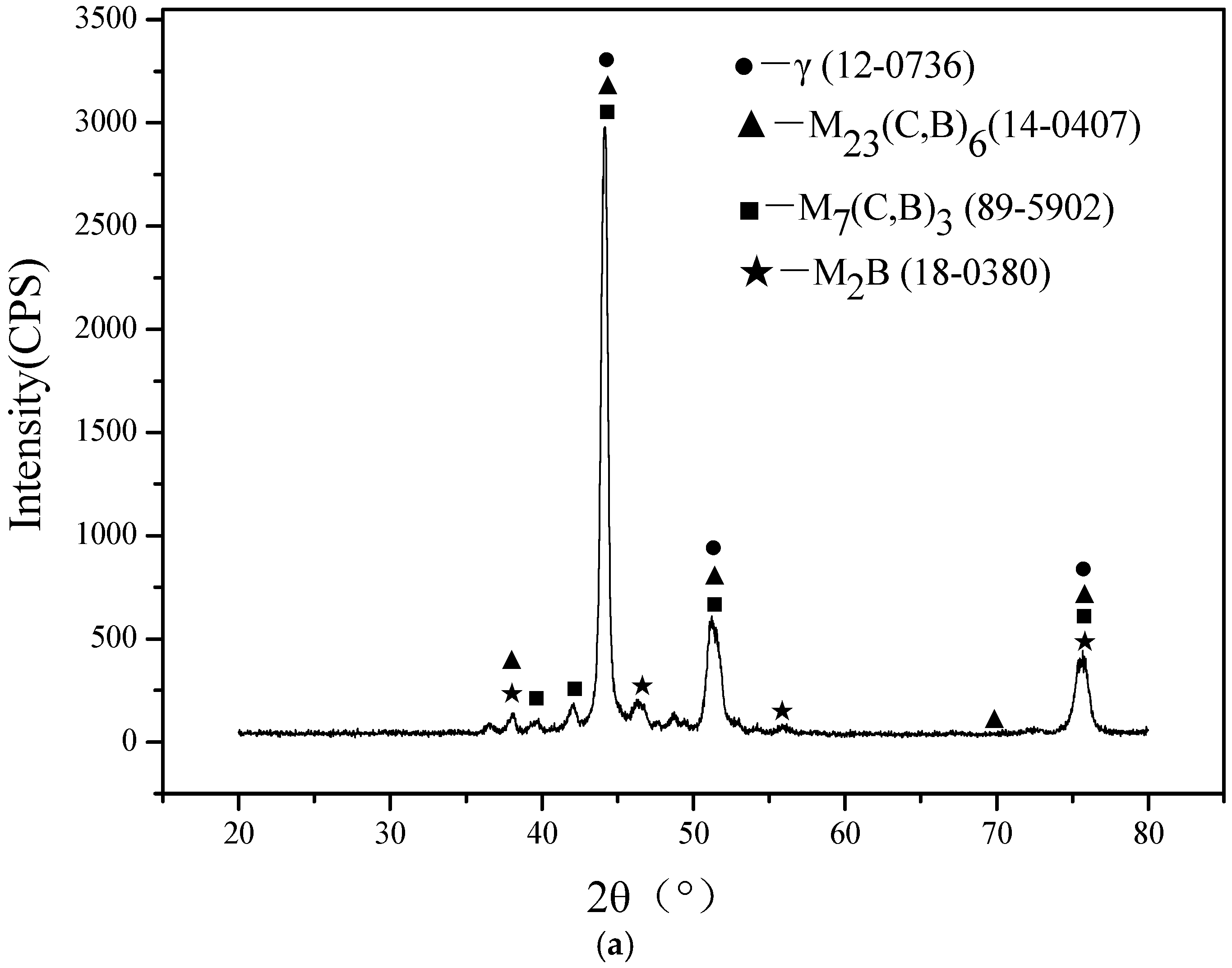

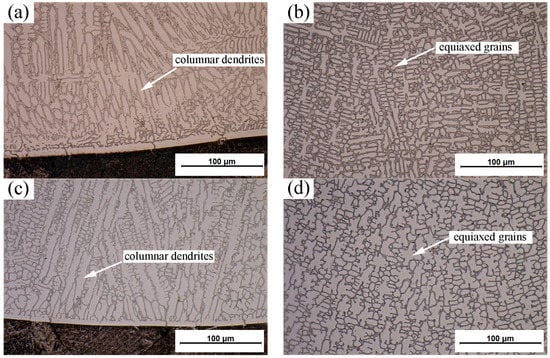

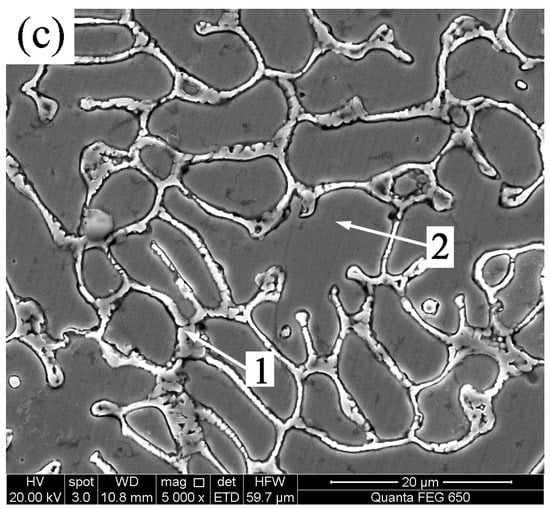

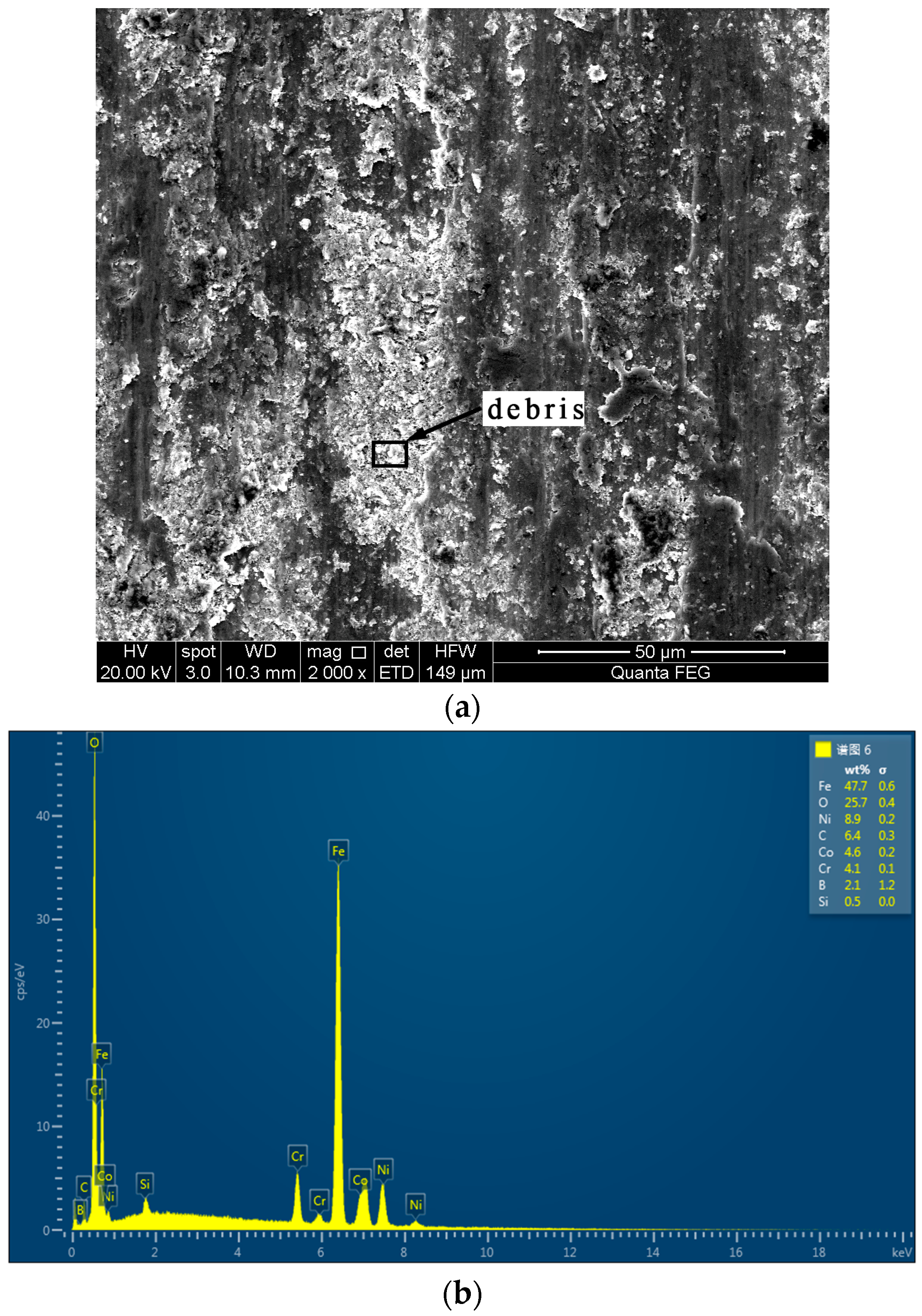

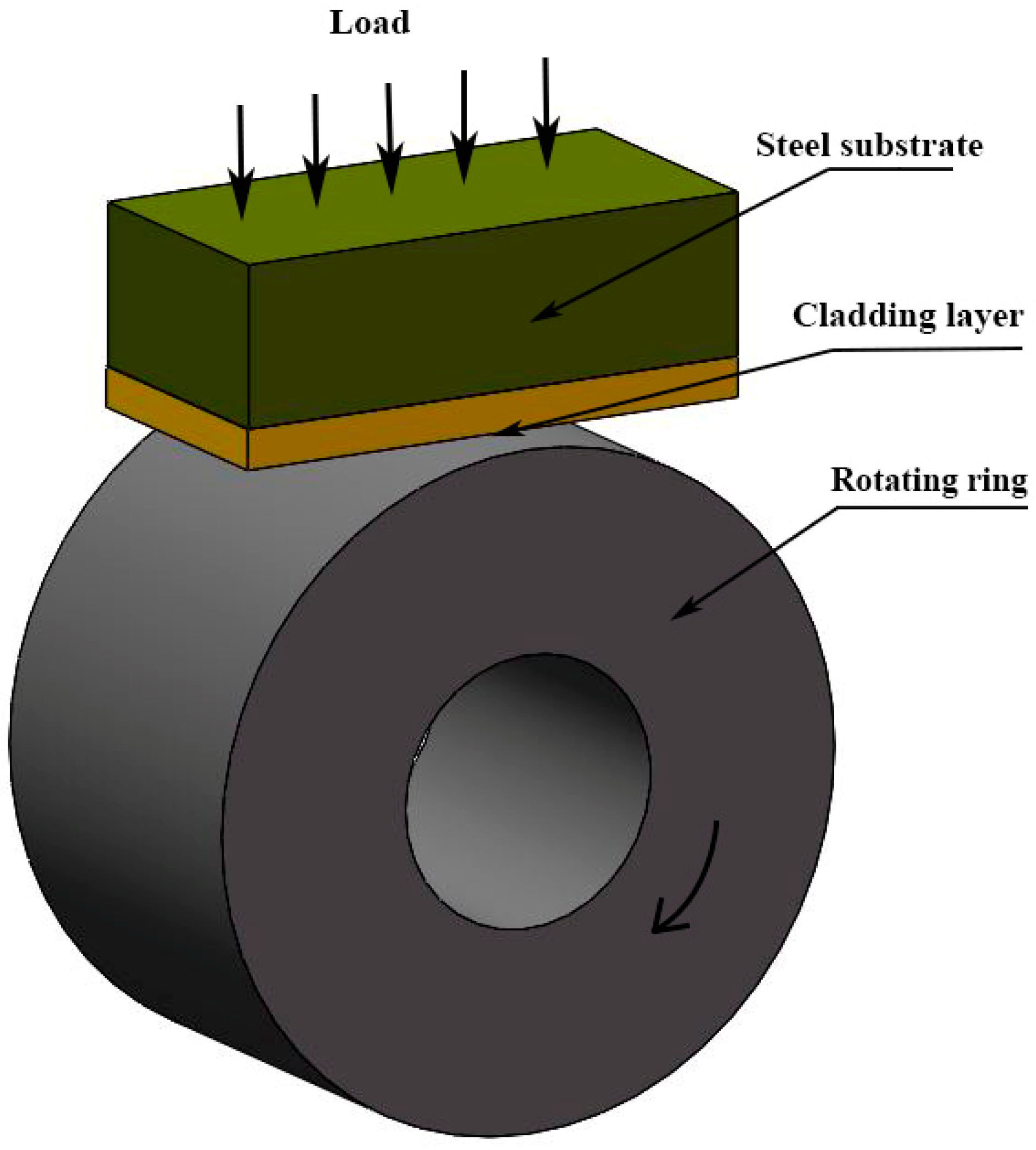

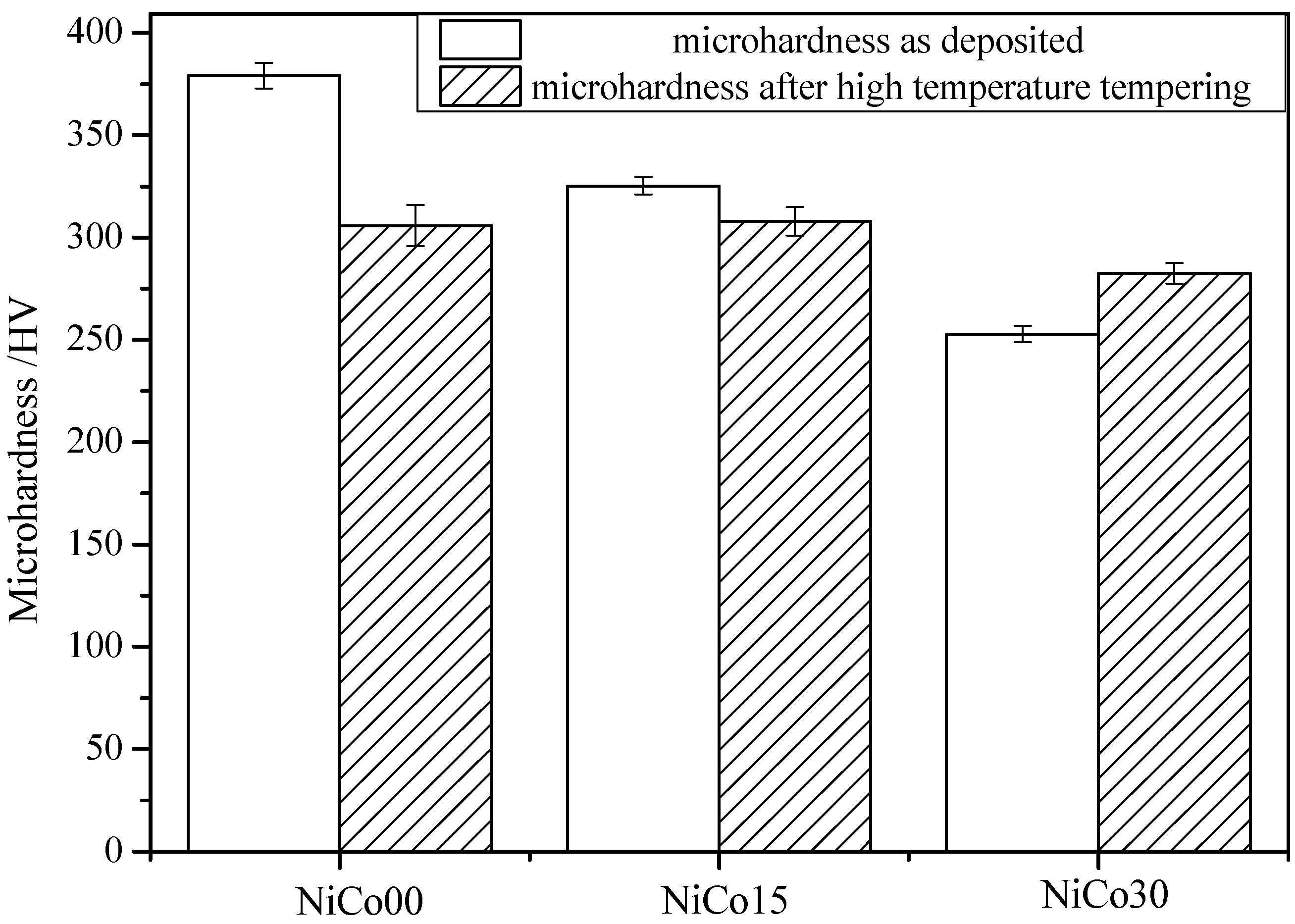

Ni-based alloy powders with different contents of cobalt (Co) have been deposited on a 42CrMo steel substrate surface using a fiber laser. The effects of Co content on the microstructure, composition, hardness, and wear properties of the claddings were studied by scanning electron microscopy (SEM), an electron probe microanalyzer (EPMA), X-ray diffraction (XRD), a hardness tester, and a wear tester. The results show that the phases in the cladding layers are mainly γ, M7(C, B)3, M23(C, B)6, and M2B. With the increase in Co content, the amounts of M7(C, B)3, M23(C, B)6, and M2B gradually decrease, and the width of the eutectic structure in the cladding layer also gradually decreases. The microhardness decreases but the wear resistance of the cladding layer gradually improves with the increase of Co content. The wear resistance of the NiCo30 cladding layer is 3.6 times that of the NiCo00 cladding layer. With the increase of Co content, the wear mechanism of the cladding layer is changed from abrasive wear to adhesive wear. View Full-Text
Keywords: laser cladding; Ni-based alloy; Co content; microstructure; wear resistance laser cladding; Ni-based alloy; Co content; microstructure; wear resistance
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, K.; Chang, B.; Lei, Y.; Fu, H.; Lin, Y. Effect of Cobalt on Microstructure and Wear Resistance of Ni-Based Alloy Coating Fabricated by Laser Cladding. Metals 2017, 7, 551.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
