Effect of Hydrogen and Strain-Induced Martensite on Mechanical Properties of AISI 304 Stainless Steel

Abstract

Plastic deformation and strain-induced martensite (SIM, α′) transformation in metastable austenitic AISI 304 stainless steel were investigated through room temperature tensile tests at strain rates ranging from 2 × 10⁻⁶ to 2 × 10⁻²/s. The amount of SIM was measured on the fractured tensile specimens using a feritscope and magnetic force microscope. Elongation to fracture, tensile strength, hardness, and the amount of SIM increased with decreasing the strain rate. The strain-rate dependence of RT tensile properties was observed to be related to the amount of SIM. Specifically, SIM formed during tensile tests was beneficial in increasing the elongation to fracture, hardness, and tensile strength. Hydrogen suppressed the SIM formation, leading to hydrogen softening and localized brittle fracture.

1. Introduction

Metastable austenitic stainless steel belongs to transformation-induced plasticity (TRIP) steel, which has high strength and good ductility owing to the formation of strain-induced martensite (SIM, α′) [1,2,3,4,5]. This, however, leads to hydrogen embrittlement (HE), limiting the application of austenitic stainless steel such as AISI 301, 304, and 316 in hydrogen-containing environments since SIM acts as a diffusion path of hydrogen [6,7]. HE depends on many factors such as the composition, temperature, residual stress, microstructure, and surface condition of steels. To explain the effect of hydrogen on the mechanical properties of steel, mechanisms such as internal pressure [8,9,10,11], surface energy [12], decohesion [13], hydrogen-enhanced plasticity [14], and hydrogen-enhanced strain-induced vacancies [15,16,17] have been proposed. However, HE has not yet been fully clarified due to the following uncertainties: firstly, why SIM increases the ductility of austenitic stainless steel, and secondly, why hydrogen suppresses the SIM formation in H-charged austenitic stainless steel. In this study, room-temperature (RT) tensile tests were conducted on bare and H-charged AISI 304 at the strain rate of 2 × 10⁻⁶/s–2 × 10⁻²/s in order to clarify the first uncertainty. To clarify the second uncertainty, SIM was measured in situ for bare and H-charged AISI 304 during RT tensile tests, and the volume fraction and distribution of SIM were measured for AISI 304 deformed to the same strain. The aim of this study is to correlate the amount of SIM with mechanical properties, and to correlate the distribution of the SIM formed and the HE with the role of hydrogen in suppressing the SIM formation in AISI 304.

2. Materials and Methods

2.1. Materials and Hydrogen Charging

AISI 304 was solution-annealed at 1100 °C for 1 h and water quenched. Its chemical composition is listed in

Table 1. Chemical composition of AISI 304 stainless steels (wt. %).

Fe	Cr	Ni	Mn	Si	Cu	Co	Mo	N	C	S	P
Bal.	18.17	8.03	1.04	0.46	0.18	0.12	0.11	0.047	0.043	0.04	0.001

. Its microstructure was examined by optical microscopy. After etching with 8:1:1 vol. ratio of H₂O:HF:HNO₃ solution for 5 min, its grain size was determined using intercept measurement. Hydrogen was charged through electrolytic charging at 80 °C with the current density of 500 A/m² for 20 h in 1 N H₂SO₄ solution containing 0.25 g/L NaAsO₂. The amount of hydrogen charged to the AISI 304 was analyzed with a hydrogen analyzer for two different samples.

2.2. Determination of the Amount of Strain-Induced Martensite (SIM) and Tensile Testing Procedure

RT tensile tests were conducted at strain rates varying from 2 × 10⁻⁶/s to 2 × 10⁻²/s on bare and H-charged AISI 304 immediately after hydrogen charging. The rod-shaped samples were 4 mm in diameter with a gauge length of 25.4 mm. Tensile tests were performed twice to get the average value. The amount of SIM was measured in situ for bare and H-charged samples during RT tensile testing using a feritscope (Fisher MP30, Aberdeenshire, Scotland). The values measured by the feritscope agreed well with those measured by the magnetic force microscope (MFM, Park systems, Suwon, Korea), when considering the dependence of strain rate on the martensite concentration. After calibrating the feritscope using the standard sample, the average amount of the formed SIM was measured either ex situ within 1 mm of the fracture surface five times, or in situ at the center of the gauge section during tensile testing. For the sample deformed to the same strain, the volume fraction and distribution of SIM on the surface were measured using the MFM by applying the distinct magnetic properties of nonmagnetic austenite (γ) and ferromagnetic α′ [17,18,19]. Images of MFM and atomic force microscope (AFM, Park systems, Suwon, Korea) were obtained in air using a scanning probe microscope (Nanoscope IIIa) in the tapping/lift mode with a lift height of 100 nm.

3. Results and Discussion

3.1. Hydrogen Diffusion in AISI 304

Figure 1 shows an optical microstructure of the H-charged sample. The mean grain size of 67 ± 5 μm was finer than other reported sizes (80–150 μm) [20,21]. Hydrogen charging did not change the microstructure. The average amount of hydrogen immediately after H-charging was 51 ± 5 ppm, which was smaller than the 80–110 ppm reported under similar charging conditions [22,23]. This was due to the finer mean grain size, i.e., hydrogen discharging out of the surface increased with the increasing density of the grain boundaries [24]. It is also worth noting that the mean grain size of a few tens of microns enhanced the hydrogen diffusion along the grain boundaries by several orders of magnitude [25].

Hydrogen was generally confined to the surface during charging. The hydrogen diffusion coefficient, D, was 4.0 × 10⁻¹⁵ m²/s at the hydrogen-charging temperature of 80 °C [26]. The penetration depth of hydrogen, d, can be roughly expressed by $d=\sqrt{2Dt}$, where t is the charging time (h). It was about 24 μm, implying that hydrogen was present only around the surface. However, brittle facture occurred not only around the surface but also inside the sample where hydrogen was free, as will be explained later.

3.2. Hydrogen Effect on Mechanical Property

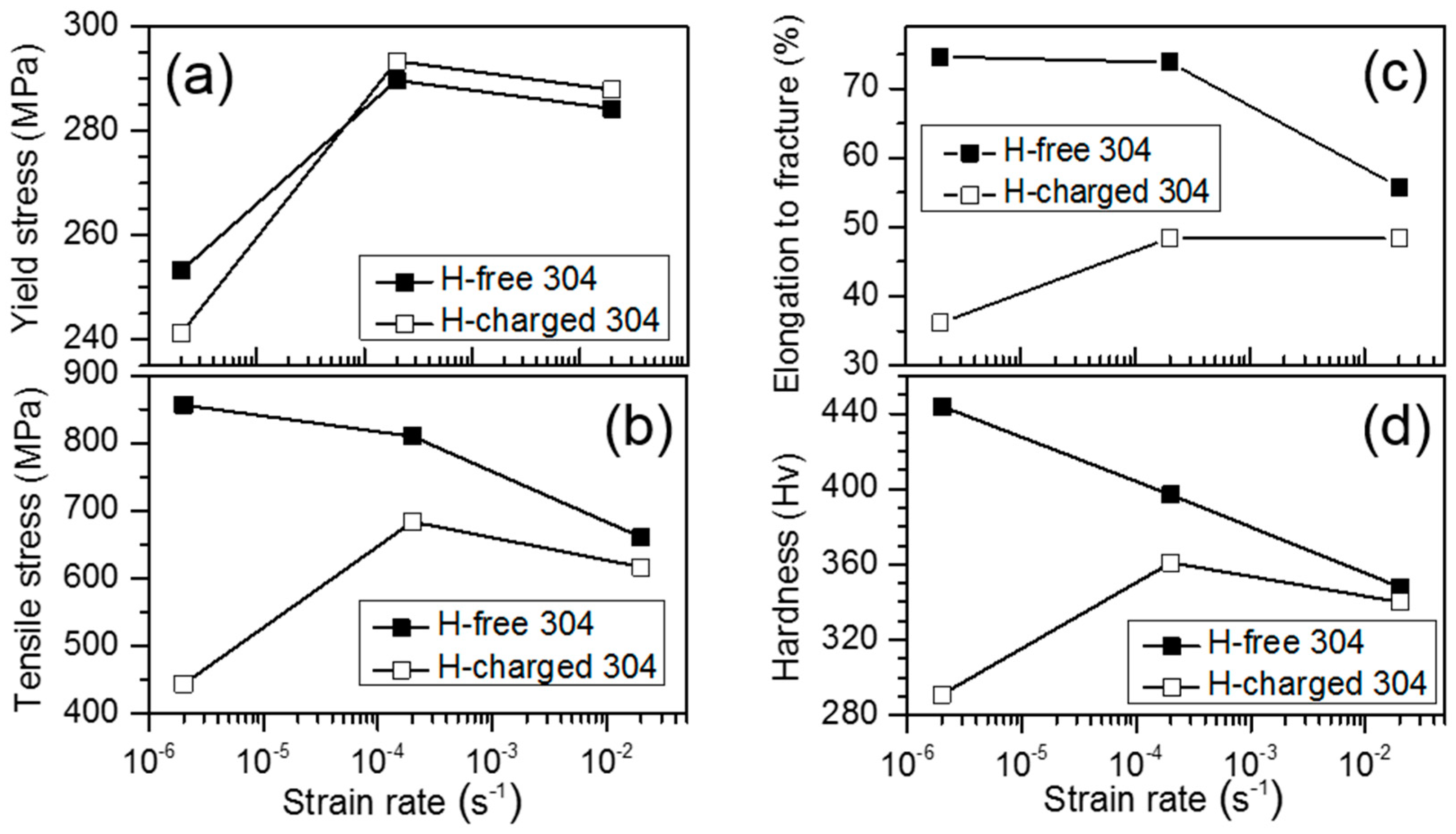

The mechanical property strongly depended on the strain rate and hydrogen, as shown in Figure 2. H-free AISI 304 displayed a negative strain rate sensitivity in that the increment of the strain rate led to the decrement of the tensile strength, elongation to fracture, and hardness. Its yield stress, however, decreased at the slowest strain rate of 2 × 10⁻⁶/s. The hydrogen effect varied, depending on the strain rate. The H-charging decreased the tensile strength, elongation to fracture, and hardness, but increased the yield stress to a small extent except at the slowest strain rate.

Figure 3 shows the fracture surfaces of H-free and H-charged AISI 304 after RT tensile tests. H-free samples displayed uniform ductile fracture with fine dimples at all strain rates (Figure 3a,b). In contrast, H-charged samples changed the fracture mode from ductile fracture with localized shear dimples at the strain rate of 2 × 10⁻²/s (Figure 3c) to enhanced localized brittle fracture in a rectilinear shape parallel to each other at the strain rates of 2 × 10⁻⁴/s and 2 × 10⁻⁶/s (Figure 3d). The localized brittle fracture became more pronounced with decreasing the strain rate. Especially in Figure 3d, cracks developed around the boundary between the localized brittle fracture region and the ductile fracture region with dimples. Clearly, hydrogen induced localized brittle fracture in the H-charged AISI 304. Since SIM increased the elongation to fracture (Figure 2) and H-free samples displayed a uniform ductile fracture with fine dimples irrespective of the strain rates (Figure 3a,b), the γ-α transformation was proposed to suppress the formation of the localized brittle deformation. A similar mechanism was proposed to explain the enhanced elongation to fracture of the TRIP steel [5]. Since SIM delayed the formation of necking through the γ-α transformation during plastic deformation [3,5,27,28], the localized brittle fracture might be controlled by the γ-α transformation, which increased ductility.

3.3. Hydrogen Effect on Formation of SIM

Figure 4 shows the amount of SIM that formed on the fracture surface at different strain rates for H-free and H-charged AISI 304. The amount of SIM that formed on the surface increased in the H-free sample, but decreased in the H-charged sample, with decreasing the strain rate. The H-free sample had a larger amount of SIM than the H-charged sample at the same strain rate. The amount of SIM was the smallest in the H-charged sample at the slowest strain rate of 2 × 10⁻⁶/s. This suggested that hydrogen suppressed the SIM formation during tensile testing, which became more pronounced with decreasing the strain rate.

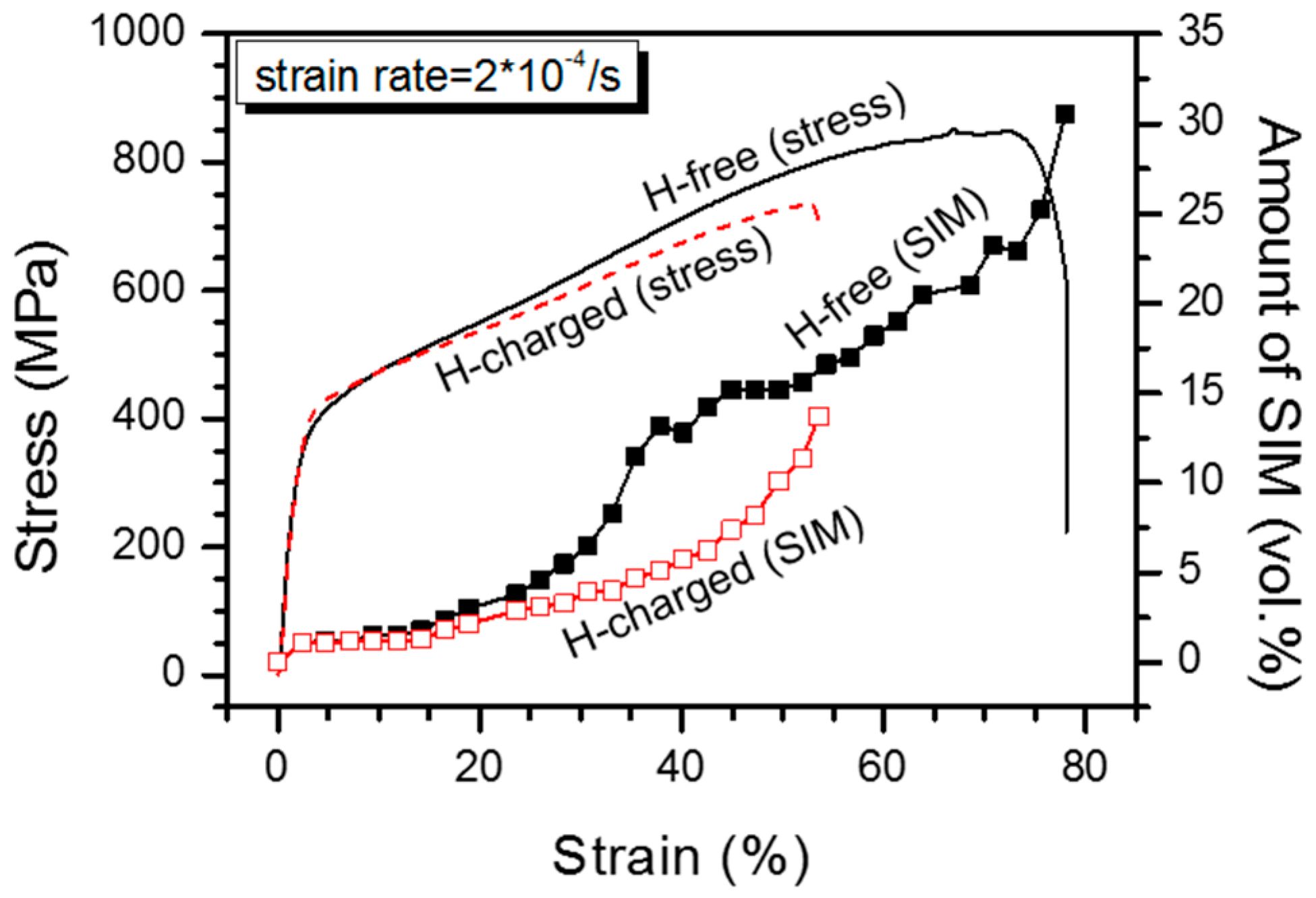

To confirm the above suggestion, SIM was measured in situ for H-free and H-charged samples at the strain rate of 2 × 10⁻⁴/s using the feritscope. Figure 5 indicates that the amount of SIM was decided by the plastic deformation and hydrogen. Hydrogen charging decreased the amount of SIM during the plastic deformation, displaying the largest decrement at the strain of 35%–45%.

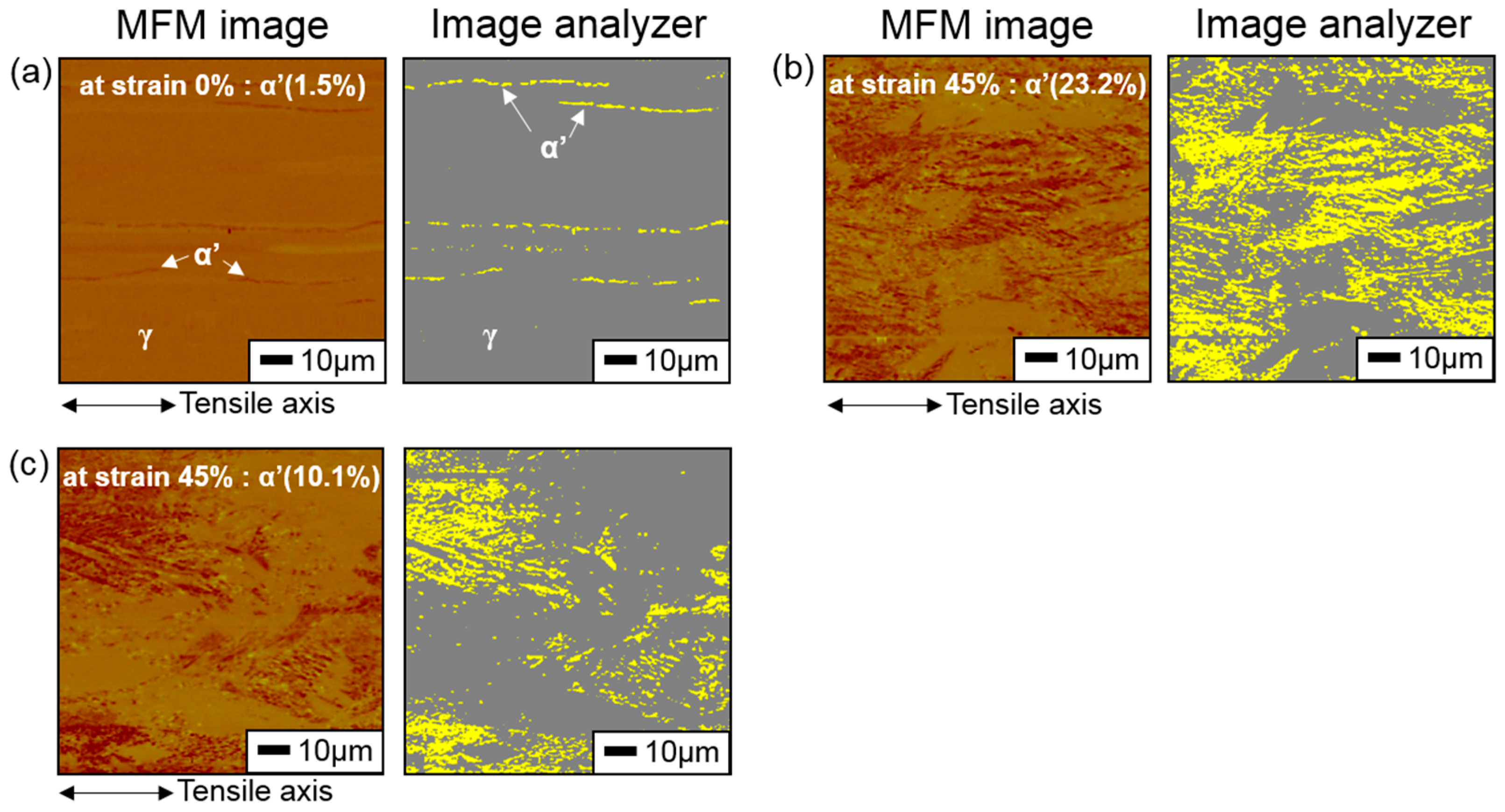

In order to validate that hydrogen suppressed SIM formation at the same plastic strain, the volume fraction and distribution of SIM in H-free and H-charged AISI 304 were examined before and after tensile tests using MFM and the image analyzer, as shown in Figure 6. Dark and light phases corresponded to martensite (α′) and austenite (γ), respectively, in the MFM images that were taken at 2.5 mm apart from the fracture surface. They were more distinct in the image analyzer images. The average amount of SIM was 1.5%, whereas SIM aligned along the tensile axis, tens to hundreds of micrometers apart, before tensile testing (Figure 6a). It increased with increasing the strain, regardless of the presence of hydrogen. In Figure 6b,c, SIM distributed non-uniformly in a ribbon shape several hundred micrometers in width. At 45% plastic strain, the H-free sample had more SIM than the H-charged one. Figure 5 and Figure 6 suggested that hydrogen suppressed SIM formation during tensile testing. This was plausible considering the ductility loss and the beneficial effects of SIM on the mechanical property of the H-free samples. In addition, the localized brittle fracture became more pronounced with decreasing the strain rate in the H-charged sample (Figure 3). This was related to the decreased amount of SIM that formed during tensile deformation. As will be explained below, the decrement of the microhardness owing to the hydrogen softening in the H-charged sample provided further evidence for the suppression of SIM formation by hydrogen.

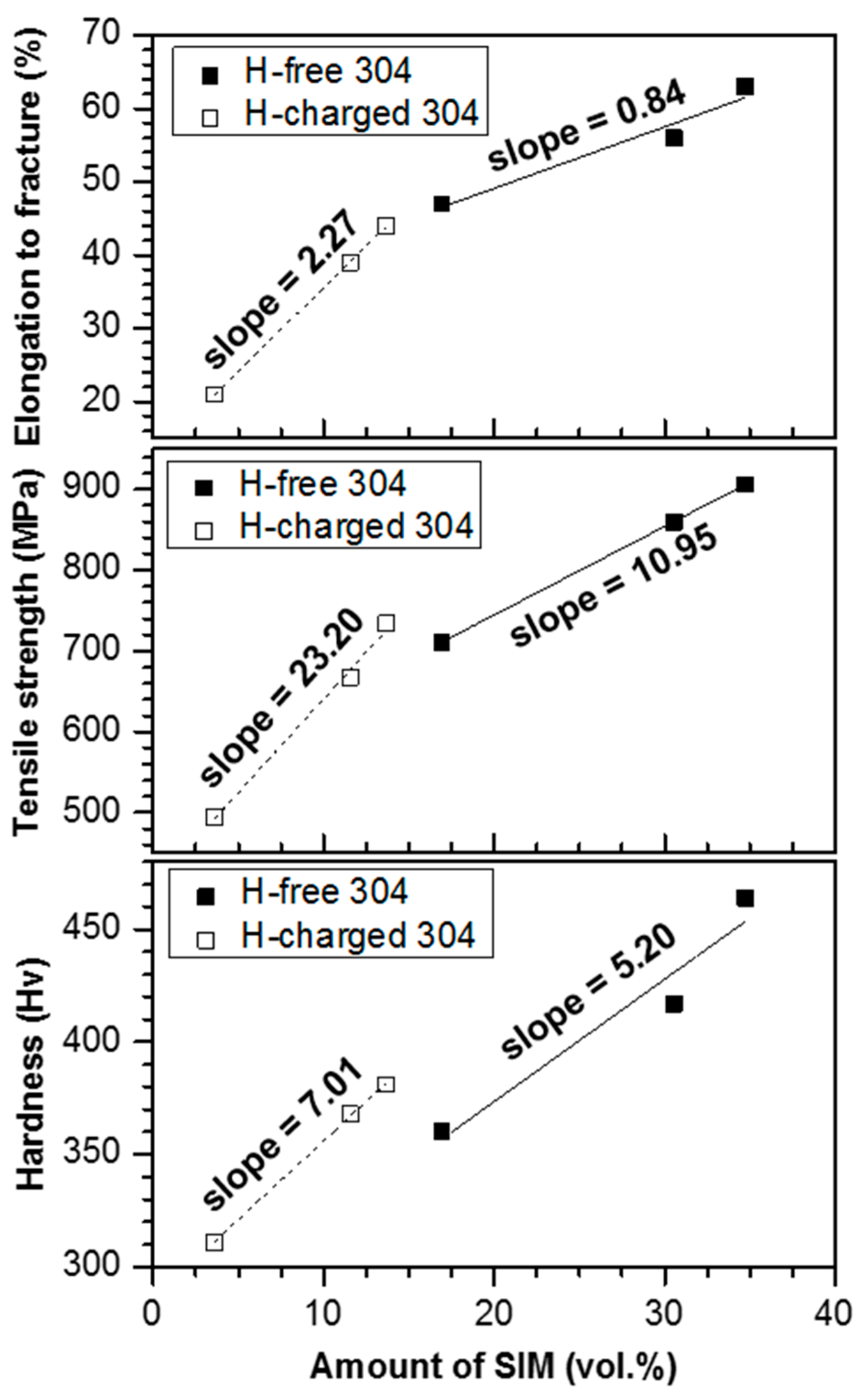

The relationship between the amount of SIM and the mechanical property is depicted in Figure 7. The elongation to fracture, tensile strength, and microhardness of H-free and H-charged AISI 304 positively depended on the amount of SIM that formed during RT tensile testing. SIM beneficially increased elongation to fracture, tensile strength, and hardness, with and without hydrogen. This was also consistent with the TRIP effect, which increased elongation to fracture and tensile strength through the deformation-induced martensite transformation [3,4,5]. Tensile properties of the H-free samples depended on the strain rate, as shown in Figure 2 and Figure 7. This was also related to the amount of SIM formed during plastic deformation. However, the hardness of the H-free sample increased with increasing the amount of SIM (Figure 2d). This implied that SIM was harder than austenite [27]. The cause of the dependence of the strain rate on the amount of SIM formed in austenitic stainless steel, as shown in Figure 4, was still unresolved. The reason for the enhancement of elongation to fracture by the hard SIM was also unclarified. In Figure 7, H-charged samples showed more sensitive linear dependence than H-free samples, implying that the suppression of SIM formation by hydrogen had a decisive effect on the mechanical property. The dependence of mechanical properties on the amount of SIM (Figure 7) and the suppression of SIM formation by hydrogen (Figure 5 and Figure 6) indicated that hydrogen decreased the amount of SIM formed during tensile testing, which led to the loss of elongation to fracture and tensile strength. Hence, the hydrogen embrittlement and softening were inevitable in the H-charged samples.

4. Conclusions

The plastic deformation behavior and strain-induced martensite transformation were investigated through tensile testing AISI 304 metastable austenitic stainless steel at a slow strain rate at room temperature. The H-free AISI 304 showed a decreased yield stress and increased elongation to fracture and tensile strength with decreasing the strain rate. The strain-rate dependence of the tensile properties of H-free AISI 304 was closely related to the amount of SIM. In contrast, in H-charged samples, hydrogen decreased the yield stress slightly, but tensile strength and elongation to fracture significantly at all strain rates. However, the loss in tensile strength and elongation to fracture by hydrogen in H-charged samples showed strong strain-rate dependence. Considering the beneficial role of SIM in the tensile properties of H-free AISI 304, the ductility loss and hydrogen softening in the hydrogen-charged samples were related to the suppressed SIM formation by hydrogen. This suppression by hydrogen was considered as the main cause of hydrogen embrittlement and hydrogen softening in austenitic stainless steels.
