Mössbauer Spectroscopy Studies on Magnetic Properties for ⁵⁷Fe-substituted Ni-Mn-Sn Metamagnetic Shape Memory Alloys

Abstract

In order to investigate the Fe substituted effects on the magnetic properties of the Ni-Mn-Sn metamagnetic shape memory alloys, magnetization and the Mössbauer spectroscopy measurements were carried out with using ⁵⁷Fe-doped specimens of Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 (x = 0.02, 0.04 and 0.08). Singlet-type Mössbauer spectra were clearly observed for x = 0.02 and 0.04 just below the martensitic transformation temperature, T_M, and above the Curie temperature, T_C, in the austenite phase. It was clear that the magnetic state in the martensite phase just below T_M was paramagnetic for x = 0.02 and 0.04. In further doped ⁵⁷Fe to Ni₂Mn_1.48Sn_0.52, T_C in the austenite phase slightly increased. However, the value of T_M significantly decreased. As a result, martensite phase with small spontaneous magnetization directly transformed to the ferromagnetic austenite phase during heating for x = 0.08. These results obtained from the Mössbauer spectra were consistent with the results of the magnetic measurements in this study and the phase diagram reported by Fukushima et al. for normal Fe-doped Ni₂Mn_1.48−xFe_xSn_0.52 alloys. The breakdown of the general rule, in which the ferromagnetic shape memory alloys with larger value of the valence electrons per atom, e/a, showed higher T_M, was also appeared in Ni₂Mn_1.48−xFe_xSn_0.52 alloys, being similar to Ni₂Mn_1−xFe_xGa alloys.

1. Introduction

Ferromagnetic shape memory alloys (FSMAs) have become very attractive candidates for high performance magnetic actuator materials because they show a large magnetic-field-induced strain by the rearrangement of twin variants in the martensite phase [1,2]. Ni₂MnGa has the cubic L2₁–type Heusler structure at room temperature, and orders ferromagnetically at the Curie temperature, T_C, of 365 K. On cooling below a martensitic transformation temperature, T_M, of about 200 K, a superstructure forms [3]. A number of investigations on Ni-Mn-Ga FSMAs have been described in the literature because T_C and T_M can be tuned by changing the constituent elements of Ni, Mn and Ga. Many topics relating to the Ni-Mn-Ga FSMAs have been reviewed by Entel et al. [4] and Brown et al. [5] in recent articles.

In 2004, Sutou et al. found new series of FSMAs, such as Ni-Mn-Z (Z = In, Sn, Sb) alloys, which show a drastic change of magnetization due to the martensitic transformation, MT, in where the magnetization of the martensite phase is considerably smaller than that of the austenite phase [6]. In contrast to the Ni-Mn-Ga FSMAs, where MT occurs from ferromagnetic austenite phase to ferrimagnetic martensite phase, the magnetization in the Ni-Mn-Z alloys drastically changes associated with the transformation because the magnetization is low in the martensite phase. The value of T_M of Ni-Mn-Z alloys and its Co-substituted series is significantly decreased by applied magnetic field; therefore, the magnetic-field-induced reverse MT has been confirmed below T_M [7,8,9]. Umetsu et al. have investigated Mössbauer spectroscopy in ⁵⁷Fe-doped Ni₂Mn_1.48Sn_0.52 and reported that the magnetic feature of the martensite phase just below the transformation temperature is paramagnetic [10]. Subsequently, it has also been confirmed that the martensite phase of ⁵⁷Fe substituted Ni₂Mn_1.392In_0.608 is paramagnetic by Khovaylo et al. [11]. These results became one of powerful key to clarify the mechanism of MT for these FSMAs.

Kikuchi et al. and Fukushima et al. have reported the phase diagrams of Ni₂(Fe,Mn)Ga and Ni₂(Fe,Mn)_1.48Sn_0.52 FSMAs, respectively [12,13]. Substitution of Fe for Mn has to be known to enhance the ductility of Ni-Mn-Ga and Ni-Mn-Sn alloys, and the way is significantly effective for the applications [14,15]. Furthermore, the phase diagrams of Ni₂(Mn,Fe)Ga and Ni₂(Mn,Fe)_1.48Sn_0.52 open question to behavior of the concentration dependence of T_M because it has been thought that the variation of T_M follows the general rule related to the number of the valence electrons. That is, T_M increases with increasing the number of the valence electrons per atoms, e/a, [16,17]. There have been many reports on the variation of T_M on e/a for many kinds of FSMAs, such as Ni-Mn-Ga, Ni-Mn-Z (Z = In, Sn, Sb), and their element doping systems [18,19,20,21]. In these systematic studies, it has been pointed out that the behavior of T_M on e/a is different only for the Fe-doping system. Fe substitution for Mn in Ni₂MnGa and Ni₂Mn_1.48Sn_0.52 FSMAs increases e/a, however, T_M decreases with increasing the Fe content in both Ni₂MnGa and Ni₂Mn_1.48Sn_0.52 FSMAs [11,12]. Clarifying the role of the Fe substitution in Ni-Mn-Ga and Ni-Mn-Sn FSMAs is very important from the both aspects of the applications and academics. In our previous study for the Mössbauer spectroscopy in ⁵⁷Fe-doped Ni₂Mn_1.48Sn_0.52, only 0.5 at.% of ⁵⁷Fe was doped. In this study, we first establish that the magnetic properties of ⁵⁷Fe doped Ni₂Mn_1.48Sn_0.52 system follows the reported phase diagram for the normal Fe-doped system. Furthermore, we report the experimental results of Mössbauer spectroscopy measurements for Ni₂Mn_1.48Sn_0.52 FSMA with various ⁵⁷Fe contents. It is clear that information of this type is essential to an understanding of the mechanism of the magnetic-field-induced reverse MT observed on Ni-Mn-Sn FSMAs.

2. Experimental Section

Polycrystalline samples of Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 (x = 0.02, 0.04 and 0.08) alloys were prepared by repeated arc-melting of the appropriate quantities of the constituent elements in an argon atmosphere. To obtain the homogenized samples, the alloys were heated at 1123 K for 3 days and then quenched in water. Powder specimens were obtained by grinding and annealed at 1123 K for 2 min to remove the induced strain. The phase characterization of the specimens was confirmed by X-ray powder diffraction measurements with using Cu-Kα radiation. The dc magnetization measurements were carried out with using a commercial superconducting quantum interference device magnetometer. ⁵⁷Fe Mössbauer spectroscopy measurements were carried out in the 80 to 312 K temperature range in transmission geometry using a conventional spectrometer with a ⁵⁷Co-Rh source. Fittings with the obtained spectra were performed with MossWinn 3.0 program (Klencsár, Z.: Budapest, Hungary).

3. Results and Discussion

Figure 1 indicates phase diagram of Fe substituted Ni₂Mn_1.48−xFe_xSn_0.52 alloys reported by Fukushima et al. [13]. In the figure, A and M indicate the austenite and martensite phases, respectively, and T_C and T_C' indicate the Curie temperature, T_C, of the austenite phase and the martensite phase, respectively. T_Ms means the martensitic transformation starting temperature during cooling process. T_C slightly increases with increasing the Fe concentration, whereas T_Ms drastically decreases. In the figure, PM and FM mean paramagnetic and ferromagnetic states, respectively. It has been commonly thought that the martensitic transformation temperature, T_M, is significantly sensitive to the concentration and the behavior is explained as a function of the number of the valence electrons per atoms, e/a, namely, T_Ms increases with increasing e/a [16,17]. The explanation has been known to be a general rule to indicate the behavior of T_Ms of the Ni-based FSMAs. However, it has been recently reported that this rule does not hold when Fe is substituted for Mn in Ni₂MnGa [12,22,23]. Here, valence electrons of Fe is larger than that of Mn, thus, the Fe substitution for Mn means an increase of e/a. Such a break has also been observed in Ni-Mn-Sn alloys as shown in the Figure 1 [13]. Again,the experimental facts throw a question of an origin of the martensitic transformation, MT. The dashed lines in the Figure mean the Fe composition of x = 0.02, 0.04 and 0.08, they are the ⁵⁷Fe compositions that the Mössbauer spectroscopy measurements were performed in the present study in order to investigate the microscopic magnetic properties, where ⁵⁷Fe is doped instead of the normal Fe element in the Ni₂Mn_1.48−xFe_xSn_0.52 alloys.

Figure 1. Phase diagram of Fe substituted Ni₂Mn_1.48Sn_0.52 alloys reported by Fukushima et al. [13]. A and M indicate the austenite and martensite phases, respectively. T_C and T_C' indicate the Curie temperature of the austenite phase and the martensite phase, respectively. T_Ms means the martensitic transformation starting temperature during cooling process. PM and FM mean paramagnetic and ferromagnetic states, respectively.

Figure 1. Phase diagram of Fe substituted Ni₂Mn_1.48Sn_0.52 alloys reported by Fukushima et al. [13]. A and M indicate the austenite and martensite phases, respectively. T_C and T_C' indicate the Curie temperature of the austenite phase and the martensite phase, respectively. T_Ms means the martensitic transformation starting temperature during cooling process. PM and FM mean paramagnetic and ferromagnetic states, respectively.

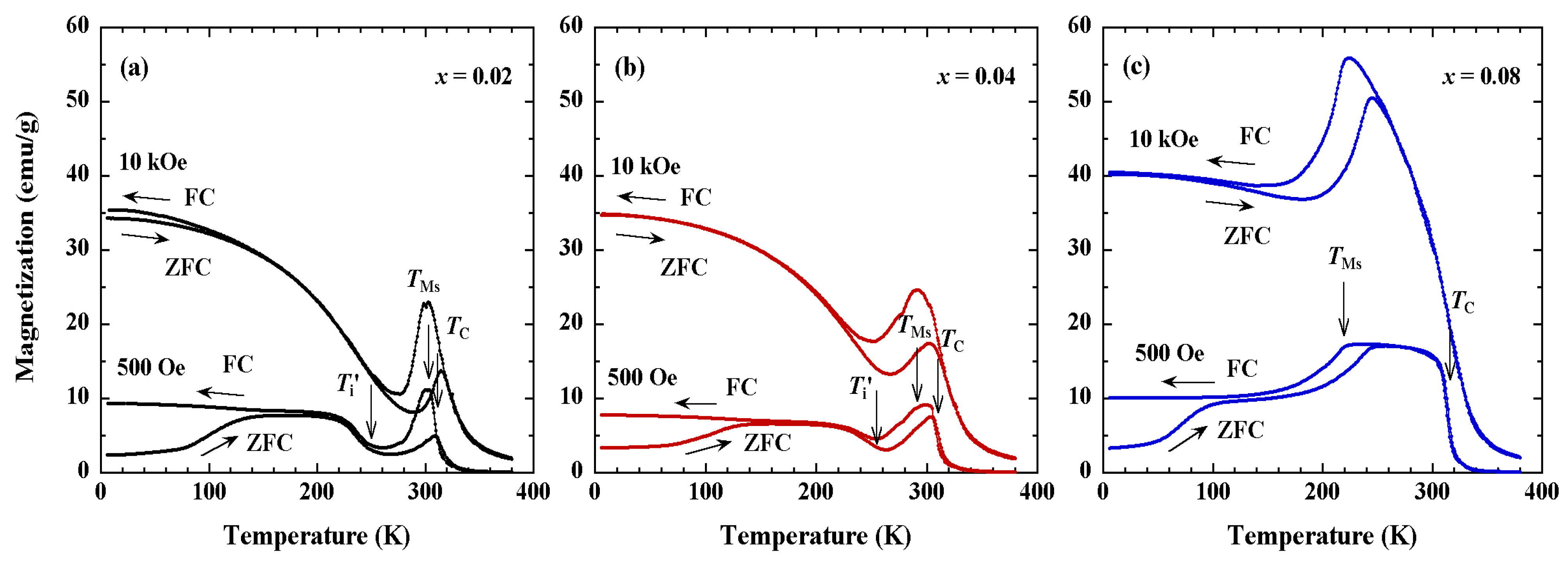

Figure 2. Thermomagnetization (M-T) curves measured under the magnetic fields of 500 Oe and 10 kOe for ⁵⁷Fe doped Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 (x = 0.02, 0.04 and 0.08) alloys. M-T curve for x = 0.02 at 500 Oe is same as the reported previously [10]. The arrows with ZFC and FC along the curves in (a), (b) and (c) show the zero-field-cooling and field-cooling processes, respectively.

Figure 2. Thermomagnetization (M-T) curves measured under the magnetic fields of 500 Oe and 10 kOe for ⁵⁷Fe doped Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 (x = 0.02, 0.04 and 0.08) alloys. M-T curve for x = 0.02 at 500 Oe is same as the reported previously [10]. The arrows with ZFC and FC along the curves in (a), (b) and (c) show the zero-field-cooling and field-cooling processes, respectively.

Thermomagnetization (M-T) curves measured under the magnetic fields of 500 Oe and 10 kOe for ⁵⁷Fe-doped Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 alloys with x = 0.02, 0.04 and 0.08 are indicated in Figure 2a–c, respectively. Here, M-T curve of x = 0.02 measured at 500 Oe is the same as the reported one [10]. From the M-T curves, it is shown that the magnetic transformation from the ferromagnetic to paramagnetic state in the austenite phase and MT occurs at almost the same time for x = 0.02. The temperature difference between T_C and T_Ms gradually expands with increasing ⁵⁷Fe content, being similar to the behavior indicated in the phase diagram in the Figure 1. That is, it is confirmed that the ⁵⁷Fe concentration dependence of T_C and T_Ms follows the phase diagram of the normal Fe-doped Ni₂Mn_1.48−xFeSn_0.5 system. The zero field-cooled (ZFC) and field-cooled (FC) M-T curves were measured during heating after the specimen was cooled down to low temperature in a zero applied magnetic field and during cooling in the applied magnetic field, respectively. In the all of the specimens for x = 0.02, 0.04 and 0.08, FC effects, that is, ZFC and FC curves do not coincide, are observed in low temperature range when the magnetic field is 500 Oe. T_i' is the temperature of the inflection point, and it is observed around 235 and 255 K for x = 0.02 and 0.04, respectively. In the phase diagram [13], although T_i’ is treated as a magnetic transition temperature from the ferromagnetic state to the paramagnetic state in the martensite phase, the existence of the long-rang ferromagnetic ordering in the martensite phase is controversial even now. It will be discussed later. The value of T_C in the austenite phase, here T_C is defined as the temperature with showing the largest negative slope in the cooling M-T curve, was determined to be 309, 311 and 315 K for x = 0.02, 0.04 and 0.08, respectively, indicating tiny increase with increasing ⁵⁷Fe concentration. The values of T_Ms for x = 0.02, 0.04 and 0.08 confirmed by the M-T curves under 500 Oe are about 303, 300 and 220 K, respectively, being in good agreement with the phase diagram reported by Fukushima et al. [13].

The ⁵⁷Fe Mössbauer spectra taken at 80, 199, 264, 293 and 312 K for x = 0.02 and x = 0.04 are shown in Figure 3a–e [10] and in Figure 4a–e, respectively. Here, the measurement was performed at fixed temperatures in the heating process from 80 to 312 K. Whole of the aspects of the spectra are similar in both compositions. The spectra at 80 K of x = 0.02 in Figure 3a and of x = 0.04 in Figure 4a show a broad sextet arising from the wide distribution of hyperfine fields and the spectra at 199 K of x = 0.02 in Figure 3b and of x = 0.04 in Figure 4b exhibit a considerably wide line intensity distribution around maximum absorption due to the presence of the internal magnetic fields, indicating the existence of magnetic components. It should be noted that the magnetization on ZFC process shows a clear increase with increasing temperature up to around 200 K, while the magnetization on FC process indicates relatively plateau-like behavior under 500 Oe. Recently, ac susceptibility studies were performed and it was concluded that the magnetic feature of the ground state of Ni₂Mn_1.54Sn_0.46 alloy is magnetic blocking state because frequency dependence of the ac susceptibility is clearly observed, whereas no divergence in the non-linear term of the as susceptibility is observed [24]. The magnetic properties of the ground state of the Ni₂Mn_1.54Sn_0.46 alloy are different from that of the Ni₂Mn_1.6Sb_0.4 alloy, which shows a negative peak in the non-linear ac susceptibility. On the basis of the experimental results, it was concluded that the magnetic ground state of the Ni₂Mn_1.6Sb_0.4 alloy is spin-glass. Although the concentration of the specimens with x = 0.02 and 0.04 in this study are different from the Ni₂Mn_1.54Sn_0.46 alloy, the magnetic ground state of the specimens with x = 0.02 and 0.04 may be the blocking state.

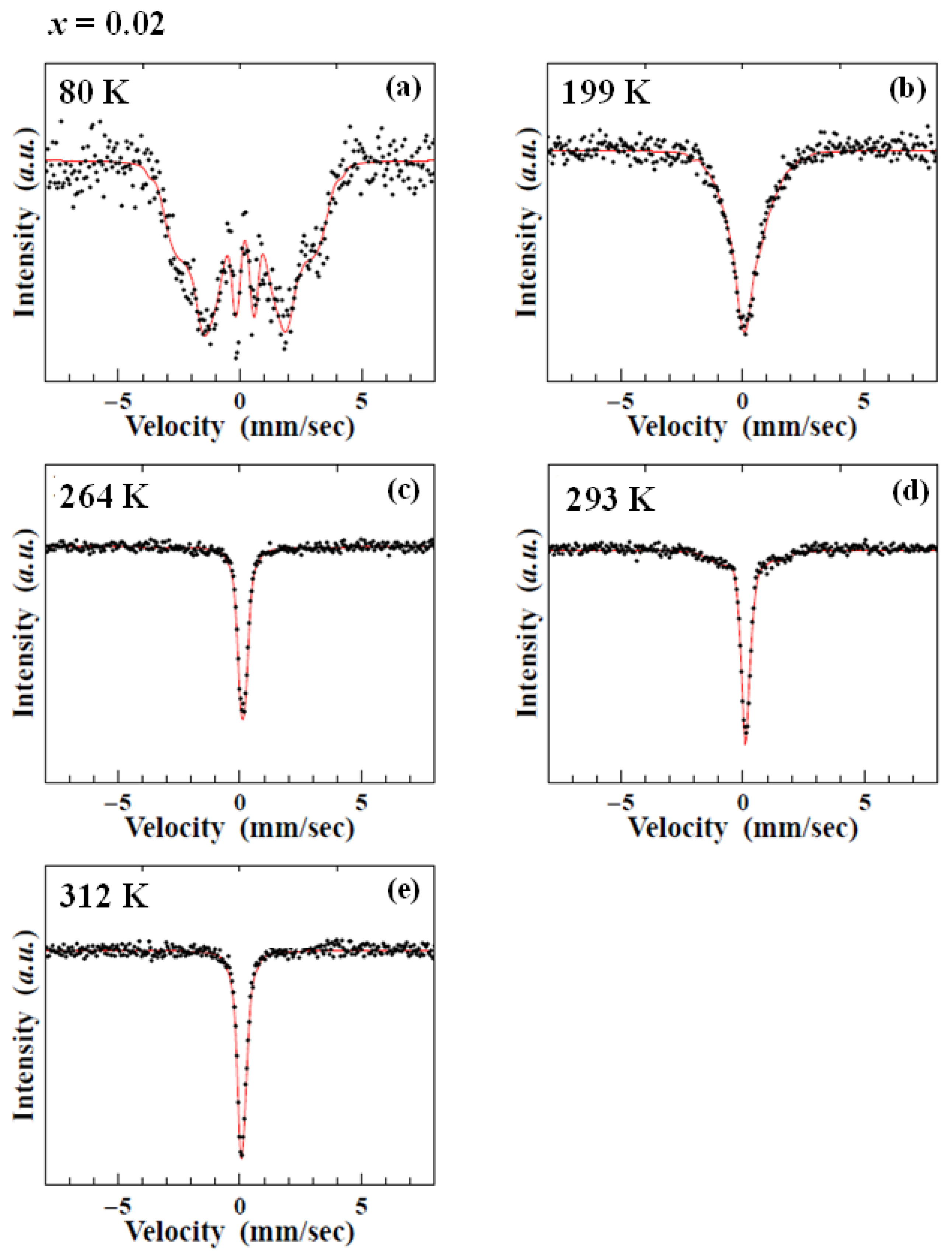

Figure 3. ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.02 (Ni₂Mn_1.46⁵⁷Fe_0.02Sn_0.52) measured at 80, 199, 264, 293 and 312 K [10].

Figure 3. ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.02 (Ni₂Mn_1.46⁵⁷Fe_0.02Sn_0.52) measured at 80, 199, 264, 293 and 312 K [10].

The spectra of 312 and 264 K in Figure 3c,d, in Figure 4c,d, are composed of a singlet with a narrow line width, while those at 293 K in Figure 3d and Figure 4d include a weak and broad sub-spectrum around the base of the sharp singlet, indicating the coexistence of magnetically ordered and disordered phases. From the M-T curves in Figure 2a,b, the specimens at 293 K for both x = 0.02 and x = 0.04 are seemed to be in a coexistent state with the martensite phase and the austenite phase. As shown in Figure 3c,e, and Figure 4c,e, both full widths at half maximum of the singlet spectra at 312 K and 264 K are almost equal in x = 0.02 and x = 0.04. The result means that the hyperfine field distribution of the spectrum taken from the nonmagnetic martensite phase at 264 K is almost the same as that from the paramagnetic austenite state at 312 K. It is strongly suggested that the martensite phase is paramagnetic in the temperature region just below T_M, and the paramagnetic region also exists for the specimen with x = 0.04. The paramagnetic and the ferromagnetic components in the spectra at 293 K will be brought from the paramagnetic martensite and ferromagnetic austenite phases. On the other hand, the spectra at 199 K become broader and the spectra at 80 K suggest the existence of the hyperfine field. As mentioned above, the FC effect is observed in the low temperature region for the specimens with x = 0.02 and 0.04. Concluding the results of the ac susceptibility measurements for the Ni₂Mn_1.54Sn_0.46 alloy [24], the magnetic state below T_i' would be blocking-state or spin glass-like state. Further study is needed to confirm whether the magnetically ordered state exists or not.

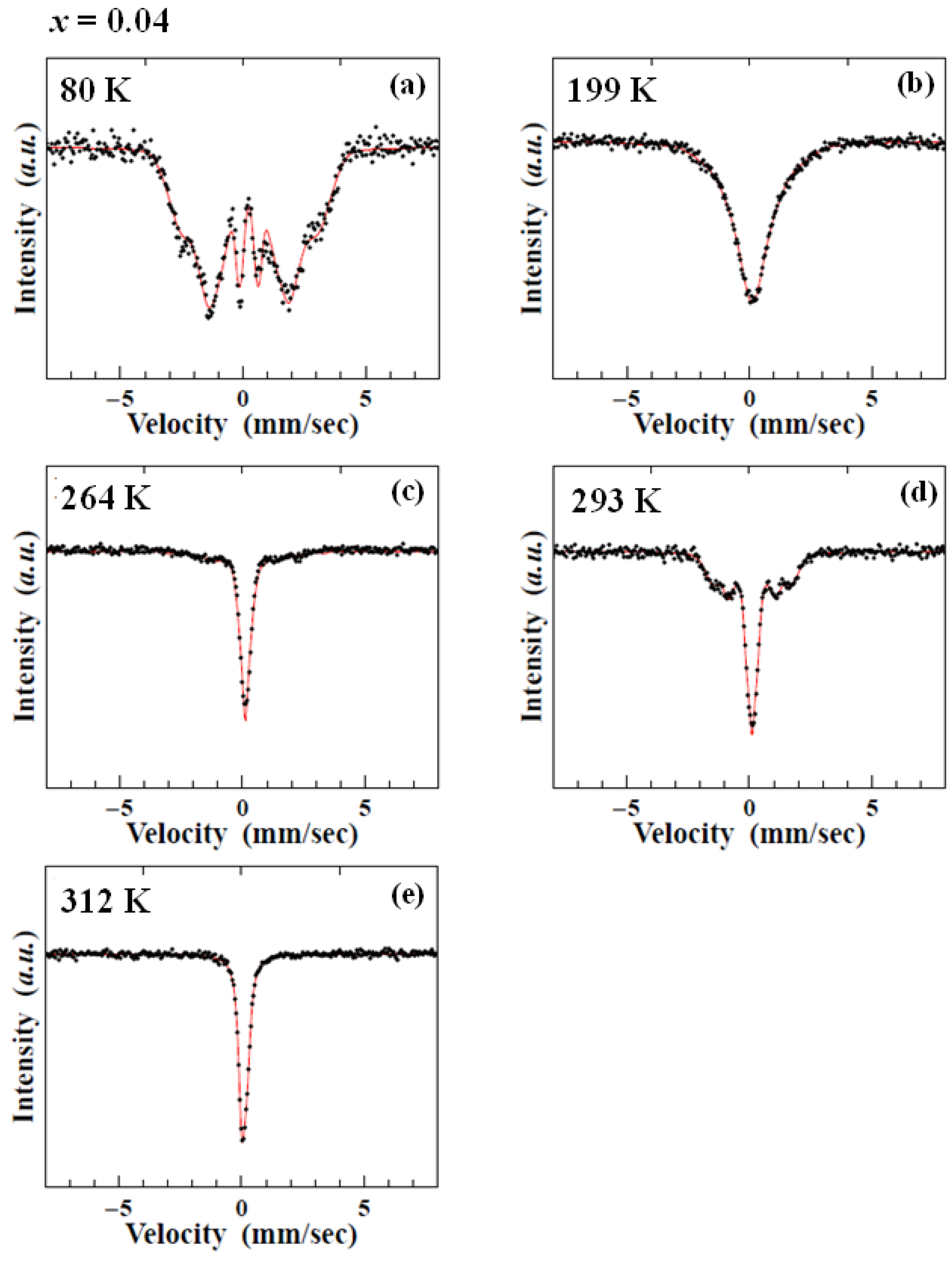

Figure 4. ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.04 (Ni₂Mn_1.44Fe_0.04Sn_0.52) measured at 80, 199, 264, 293 and 312 K.

Figure 4. ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.04 (Ni₂Mn_1.44Fe_0.04Sn_0.52) measured at 80, 199, 264, 293 and 312 K.

Figure 5a–e are ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.08 (Ni₂Mn_1.40Fe_0.08Sn_0.52) measured at 80, 212, 262, 293 and 326 K, respectively. Although the aspects of the spectra at the each temperature of the specimens with x = 0.02 and 0.04 are similar, the spectra for x = 0.08 seem to differ from them. Spectrum of the singlet type is observed at only 326 K and it is due to the paramagnetism of the austenite phase from the result of the M-T curves in the Figure 2c, in where T_C is found to be about 315 K. On the other hand, sextet-like behavior is observed in the spectra measured at 262 and 293 K, and these are associated with the ferromagnetism in the austenite phase because the reverse T_M is about 200 K for x = 0.08 (See the Figure 2c). The spectra at 80 K and 212 K are also very broad and exhibit a wide distribution of hyperfine field. A distinct feature of the spectra at 80 K is that this shows an almost symmetric pattern in spite of the existence of electric quadrupole interactions. The symmetric pattern of the spectra may be attributed to the blocking of iron moments in random directions to the axis of the electric field gradient.

Figure 5. ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.08 (Ni₂Mn_1.40Fe_0.08Sn_0.52) measured at 80, 212, 262, 293 and 326 K.

Figure 5. ⁵⁷Fe Mössbauer spectra and their fitting curves for x = 0.08 (Ni₂Mn_1.40Fe_0.08Sn_0.52) measured at 80, 212, 262, 293 and 326 K.

The temperature dependences of the isomer shift, I.S., the quadrupole splitting, Q.S., and the absolute average value of the ⁵⁷Fe hyperfine field, , obtained by fitting for ⁵⁷Fe-doped Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 with x = 0.02, 0.04 and 0.08 are shown in Figure 6a–c. The I.S. shows monotonic decreases with increasing temperature for all specimens, and no composition dependence is observed. Because the I.S. relates to the position of the nuclei and the charge density, the monotonic behavior as a function of the temperature in this case is natural. In addition, concentration dependence of Q.S. is also not sensitive. In general, Q.S. reflects the symmetry of the crystal, with including the meaning of the magnetic configuration. The absolute values of Q.S. are comparatively small in the whole temperature range. It has been reported that the structure of the martensite phase of Ni₂Mn_1.44Fe_0.04Sn_0.52 is four-layered orthorhombic (4O) structure [12] and the symmetry of the crystal in the martensite phase becomes lower than that of the L2₁-type cubic structure in the austenite phase. Although the value of the Q.S. for x = 0.02 at 199 K is somewhat distributed, there is a trend that the absolute value of the Q.S. in the austenite phase may be slightly larger than those in the martensite phase. These behaviors, such as the monotonic decrease of I.S. with the temperature and slight change of the Q.S. between the martensite phase and austenite phase, have been also reported in ⁵⁷Fe-doped Ni₂Mn_1−x⁵⁷Fe_xGa alloys [25]. Such a comparatively small absolute values of the Q.S. in the martensite phase, even though the structure of the martensite phase has lower symmetry, would also be correlated to the magnetic state of the martenstite phase. It has been reported from the studies of the ac magnetic susceptibility that the magnetic state of Ni₂Mn_1.54Sn_0.46 alloy in the martensite phase is blocking-state [24]. This may mean that the magnetic configuration of the blocking-state, where the magnetic spins are frozen to direct randomly, is rather symmetric than the magnetic state of the certain magnetic ordering with low symmetric structure. As shown in Figure 6c, the values of at 80 K for all specimens are found to be about 15 T.

Figure 6. Temperature dependences of the isomer shift, I.S., the quadrupole splitting, Q.S., and the absolute average ⁵⁷Fe hyperfine field, , obtained from the fitting in Figure 3, Figure 4, Figure 5.

Figure 6. Temperature dependences of the isomer shift, I.S., the quadrupole splitting, Q.S., and the absolute average ⁵⁷Fe hyperfine field, , obtained from the fitting in Figure 3, Figure 4, Figure 5.

It has long been known that the hyperfine fields, B_hf, at Fe nuclei in a lot of kinds of alloys containing Fe atoms is roughly proportional to the magnetic moments of Fe atoms with the coupling constant of 15 T/μ_B. The values of at Fe nuclei for Ni₂Mn_1.48−xFe_xSn_0.52 alloys in this study are much smaller than that expected from the coupling constant of 15 T/μ_B. Similar phenomena were observed in Ni₂Mn_1−xFe_xGa FSMAs [25]. More recently, Umetsu et al. found from the neutron powder diffraction measurements that the magnetic moment of Fe atoms for Ni₂Mn_0.3Fe_0.7Ga is about 3 μ_B [26]. On the other hand, the values of in the temperature range above 200 K for x = 0.02 and 0.04 are very small compared to those of x = 0.08. It is not clear why the large difference of the values of for the specimens with x = 0.02, 0.04 and 0.08 appears above 200 K.

In this study, we confirmed that the magnetic state just below T_M of the specimens with x = 0.02 and 0.04 is paramagnetic from the Mössbauer spectroscopy measurements. The magnetic-field-induced reverse MT observed in Ni-Mn-Sn FSMAs may be attributed to the large difference of magnetization between the paramagnetic martensite phase and the ferromagnetic austenite phase. In the Ni-Mn-Sn FSMAs, there is some information in the literature on the giant magnetocaloric effect [27,28]. The origin of the giant magnetocaloric effect would be caused by the large entropy change between the paramagnetic martensite phase and the ferromagnetic austenite phase. As mentioned above, the number of the valence electrons per atom, e/a, is closely related to T_M: a large e/a indicates a higher T_M. However, such a correlation breaks down for the Ni₂Mn_1.48−xFe_xSn_0.52 and Ni₂Mn_1-xFe_xGa FSMAs [12]. More detailed studies for the role of Fe atoms on the MT will be necessary to understand the mechanism of MT.

4. Summary

In order to investigate the Fe substitution effects on the magnetic properties of the Ni-Mn-Sn metamagnetic shape memory alloys, magnetic measurements and the Mössbauer spectroscopy experiments were carried out with using ⁵⁷Fe-doped specimens of Ni₂Mn_1.48−x⁵⁷Fe_xSn_0.52 (x = 0.02, 0.04 and 0.08). Singlet-type Mössbauer spectra were clearly observed for x = 0.02 and 0.04 just below the martensitic transformation temperature, T_M, and above the Curie temperature, T_C, in the austenite phase. It was clear that the paramagnetic region exists just below T_M in the martensite phase for the specimens with x = 0.02 and 0.04. In Ni₂Mn_1.48-x⁵⁷Fe_xSn_0.52, T_C in the austenite phase slightly increases with increasing ⁵⁷Fe content; however, T_M significantly decreases. As a result, paramagnetic region is not observed in the martensite phase for x = 0.08, that is, martensite phase with small spontaneous magnetization directly transforms to the ferromagnetic austenite phase during heating. These results obtained from the Mössbauer spectra are consistent with the results of the magnetic measurements in this study and the phase diagram reported by Fukushima et al. for the normal Fe-doped Ni₂Mn_1.48−xFe_xSn_0.52 alloys [13]. As shown in the present results, the phase diagram for Ni₂Mn_1.48−xFe_xSn_0.52 breaks down the general rule for T_M versus the number of the valence electrons per atoms, e/a, which is common to the Ni₂Mn_1-xFe_xGa alloys. Investigations of the role of Fe atoms in the magnetic properties for Ni₂MnGa and Ni-Mn-Sn FSMAs will be very important to clarify the mechanism of the martensitic transformation of these Ni-based ferromagnetic shape memory alloys.
