Synthetic Rebalancing of Imbalanced Macro Etch Testing Data for Deep Learning Image Classification

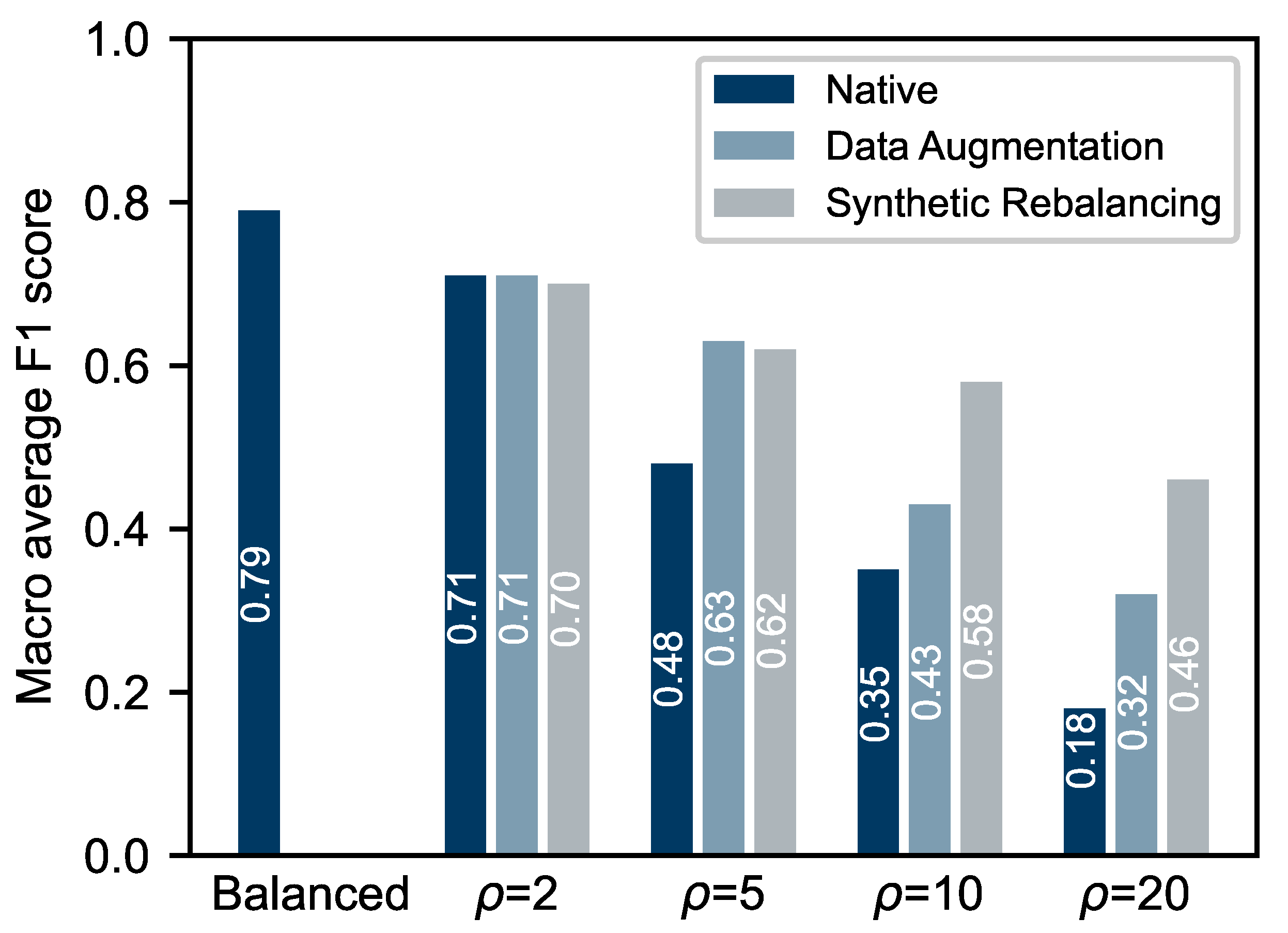

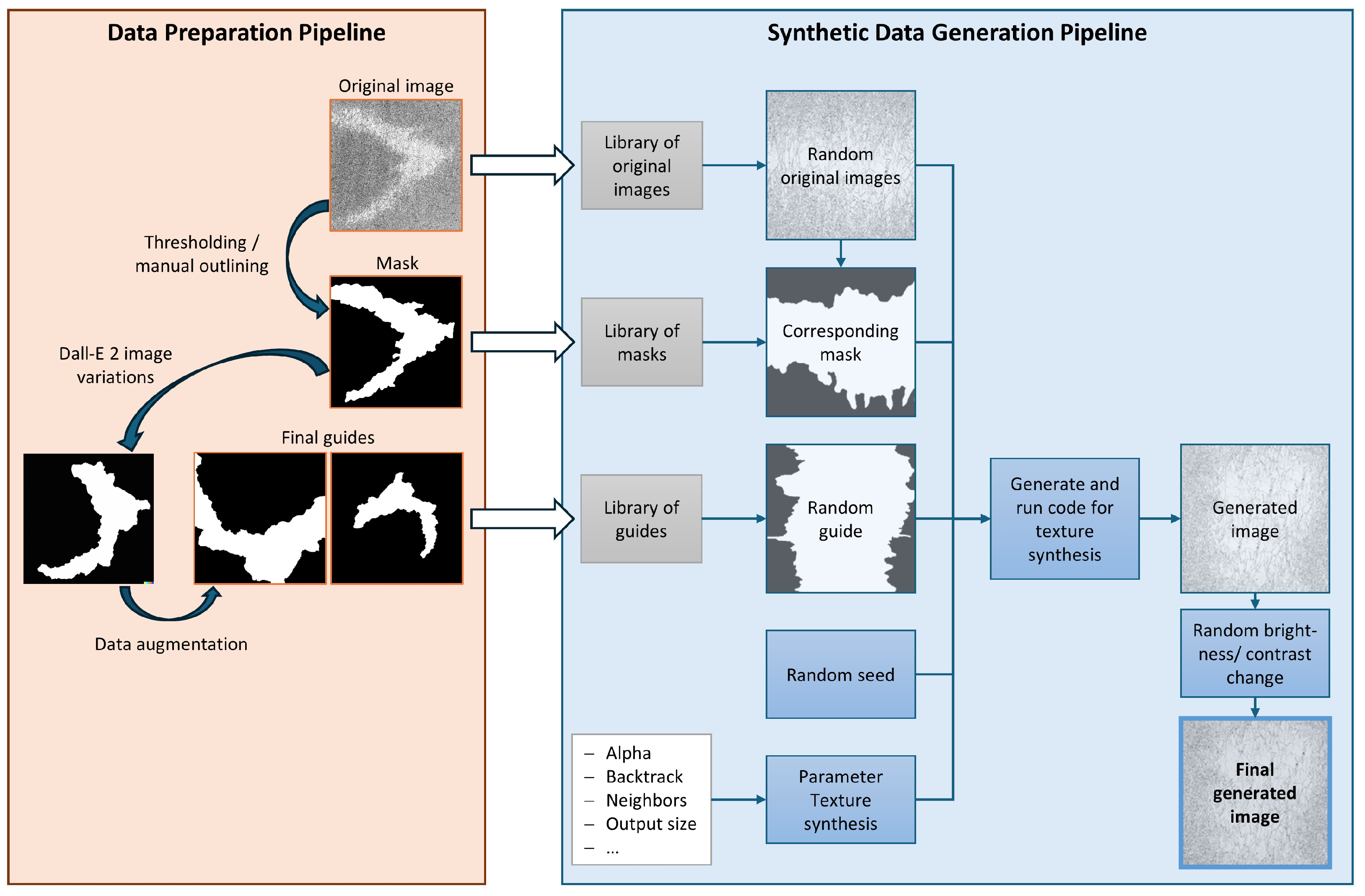

The adoption of artificial intelligence (AI) in industrial manufacturing lags behind research progress, partly due to smaller, imbalanced datasets derived from real processes. In non-destructive aerospace testing, this challenge is amplified by the low defect rates of high-quality manufacturing. This study evaluates the use of synthetic data, generated via multiresolution stochastic texture synthesis, to mitigate class imbalance in material defect classification for the superalloy Inconel 718. Multiple datasets with increasing imbalance were sampled, and an image classification model was tested under three conditions: native data, data augmentation, and synthetic data inclusion. Additionally, round robin tests with experts assessed the realism and quality of synthetic samples. Results show that synthetic data significantly improved model performance on highly imbalanced datasets. Expert evaluations provided insights into identifiable artificial properties and class-specific accuracy. Finally, a quality assessment model was implemented to filter low-quality synthetic samples, further boosting classification performance to near the balanced reference level. These findings demonstrate that synthetic data generation, combined with quality control, is an effective strategy for addressing class imbalance in industrial AI applications.
