Microstructure Evolution of Alloy 800H during Cold Rolling and Subsequent Annealing

Abstract

The microstructure evolution during the cold rolling and subsequent annealing of Alloy 800H was investigated. Two distinct rolling methods, unidirectional rolling and cross-rolling, were introduced. Cracks were observed in the cross-rolled plates, while such cracks did not appear in the unidirectionally rolled plates, which indicated better ductility during the unidirectional rolling process. The difference between the two different rolling methods was explained by the evolution of Schmit factors during the deformation. A higher volume fraction of large, deformed grains was observed in the cross-rolled plates than in the unidirectionally rolled plates. Abnormal grain growth was observed in the cross-rolled specimens after annealing while no abnormal grain growth was seen in the unidirectionally rolled ones. In addition, the recrystallization occurred faster in plates from unidirectional rolling than from cross-rolling.

1. Introduction

Alloy 800H, also known as INCOLOY 800H has been a candidate material for use in high-temperature nuclear reactor applications [1,2,3,4,5,6]. It is currently being considered for the design and construction of High-Temperature Gas-cooled Reactors (HTGRs) and Very High-Temperature Reactors (VHTRs) [1,5,7,8,9,10]. Alloy 800H is an austenitic stainless steel alloy that was developed in the 1950s with Ni, Fe, and Cr as its major contents. Mn, Si, Ti, and Al were added to be present in the matrix for solid solution hardening [1]. During the typical final annealing at around 1175 °C, the alloying elements would precipitate out to form M₂₃C₆ and Ti (C,N) particles at both grain interior and boundaries, thus providing extra strengthening from precipitate obstacles [11,12,13]. Due to these specially strengthening mechanisms, Alloy 800H showed low and high-temperature mechanical property stability, such as no significant reduction in the strength and ductility till 700 °C [14] and good creep properties [7,15].

Deformation of Alloy 800H was previously investigated via cold and hot rolling by several authors [4,16,17,18,19,20,21,22,23,24]. Five main texture components were claimed in the deformed specimens, i.e., Goss {110} <001>, Brass {110} <112>, Copper {112} <111>, S {123} <634> and Copper Twin {552} <115>. The texture and grains were also reported to be significantly impacted by the rolling paths and strains [25,26]. There was a texture transition from Copper to Brass and Goss after 25% of rolling reduction. Goss, Brass, and Copper were the dominant textures in the unidirectional rolled (UR) specimens, while in the cross-rolled (CR) samples the dominant textures were Brass and ND-rotated Brass [16,18]. The as-deformed texture and microstructure also showed influence on the subsequent annealing behaviors [19]. A combination of Goss, Copper, and rotated Brass textures was reported in the UR samples while the recrystallization texture in the CR specimens was Brass. The recrystallized grain size of the CR specimens was smaller than the UR ones at the same annealing conditions which was attributed to the randomization of nucleation sites upon cross-rolling [19].

Previous studies were focused on the microstructure evolution during a single rolling strategy such as rolling with only UR or CR. In this study, the UR and CR were intentionally combined to evaluate the microstructure evolution during the rolling processes and subsequent heat treatments. It was expected that the microstructure would be different from that of a single rolling scheme.

2. Materials and Methods

2.1. Material

The material used in the present study was Alloy 800H; the chemical composition is listed in

Table 1. The chemical composition of the as-received Alloy 800H in wt.%.

Element

Ni

Cr

Mo

Co

Mn

Al

Ti

Al + Ti

Cu

Si

S

C

Fe

Content

30.3

20.6

0.7

0.05

0.7

0.49

0.52

1.01

0.09

0.4

<0.002

0.08

Bal.

. The material was produced from hot rolling and then with a final solution annealing at 1167 °C for 32 min. The as-received plates have a thickness of 2 mm.

2.2. Cold Rolling and Heat Treatments

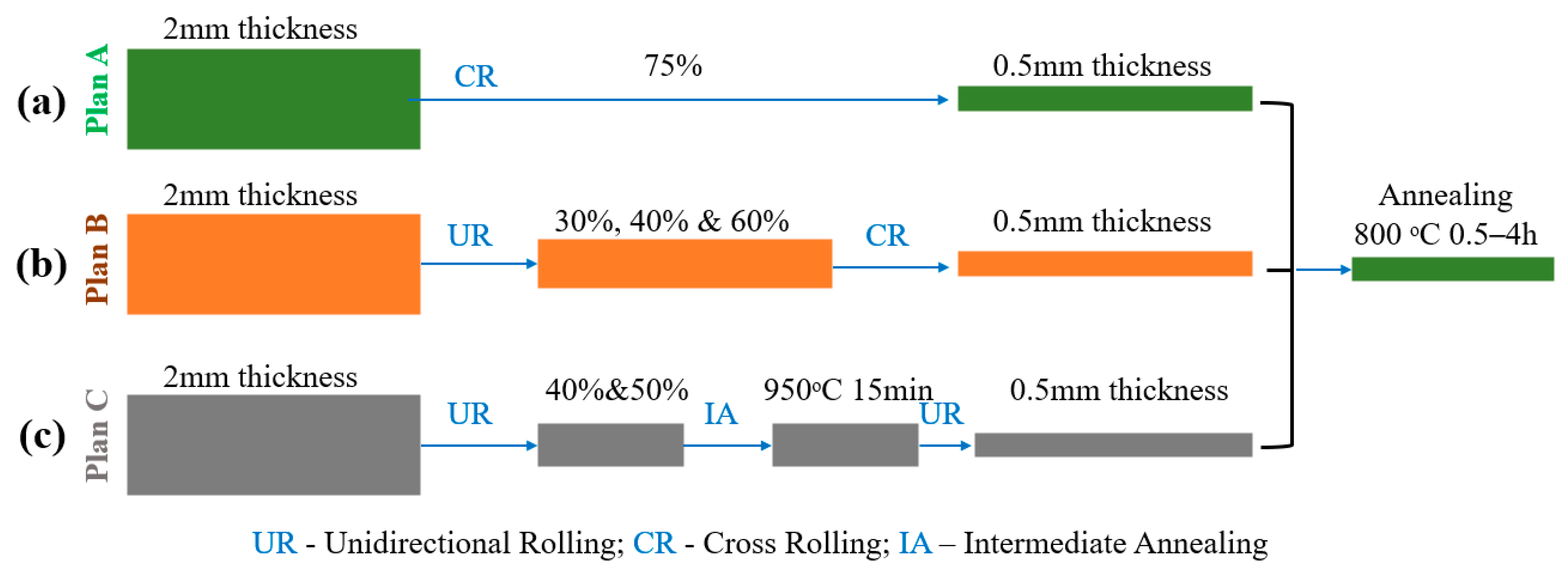

Each of the as-received Alloy 800H plates was cold rolled and heat treated subsequently using one of the three schemes that are displayed in Figure 1. The unidirectional rolling, cross rolling, and intermediate annealing (IA) were intentionally combined to evaluate the microstructure evolution behaviors during the cold rolling and heat treatments. The unidirectional rolling is on the rolling direction (RD)—transverse direction (TD) surface and the rolling direction is along the RD. The cross-rolling started with the first pass parallel to the RD of the as-received plate and the following pass perpendicular to the previous pass. The heat treatment was performed in a tube furnace. Specimens were placed into the furnace until the desired temperature was reached. In the first plan, Plan A in Figure 1a, only cross-rolling was performed, while in Plan B (Figure 1b) unidirectional rolling and cross-rolling were combined. In Plan C (Figure 1c), intermediate annealing was introduced between unidirectional rolling passes to reduce the stress caused by grain boundaries and dislocations from accumulated rolling. The purpose of having three rolling plans is to compare the differences in microstructure evolution during the rolling process and the subsequent heat treatment. All of the rolled specimens started with a thickness of 2 mm and ended with a final thickness of 0.5 mm, which is equal to a deformation of 75%. After cold rolling, all of the specimens were annealed at 800 °C for 0.5 h–4 h to study the recrystallization behaviors. The specimens from different rolling plans are named in

Table 2. Specimen name from various rolling plans.

Rolling Plan	Process History	Specimen Name
Plan A	75% cross rolling to 0.5 mm	CR75
Plan B	30% unidirectional rolling + cross rolling to 0.5 mm thickness	UR30 + CR
	40% unidirectional rolling + cross rolling to 0.5 mm thickness	UR40 + CR
	60% unidirectional rolling + cross rolling to 0.5 mm thickness	UR60 + CR
Plan C	40% unidirectional rolling + intermediate annealing + unidirectional rolling to 0.5 mm thickness	UR40 + IA + UR
	50% unidirectional rolling + intermediate annealing + unidirectional rolling to 0.5 mm thickness	UR50 + IA + UR

. In the cold-rolling process, it is important to optimize the reduction per pass to avoid cracking. The rolling reduction used in this investigation was 10% of the thickness before each rolling pass. Therefore, a total of 15 passes were applied.

2.3. Microstructure Characterization

The microstructure of the cold-rolled and annealed specimens was characterized by a Zeiss optical microscope (OM, Mosbach, Germany), and scanning electron microscopy (SEM, FEI Nova NanoSEM 450, Waltham, MA, USA). For OM characterizations, the specimens were ground using sandpapers of increasing grit number, followed by final polishing with 9 μm, 6 μm, and 3 μm diamond suspension and 0.5 µm colloidal silica, and then etched in a Marble reagent solution (20 mL H₂O + 20 mL HCl + 4 g CuSO₄). For SEM characterizations, the polished specimen was electro-polished in a Struers LectroPol electropolisher (Westlake, OH, USA) using 5% perchloric in methanol at −20 °C at an applied voltage of 20 V for 60 s.

3. Results

3.1. As-Received Microstructure

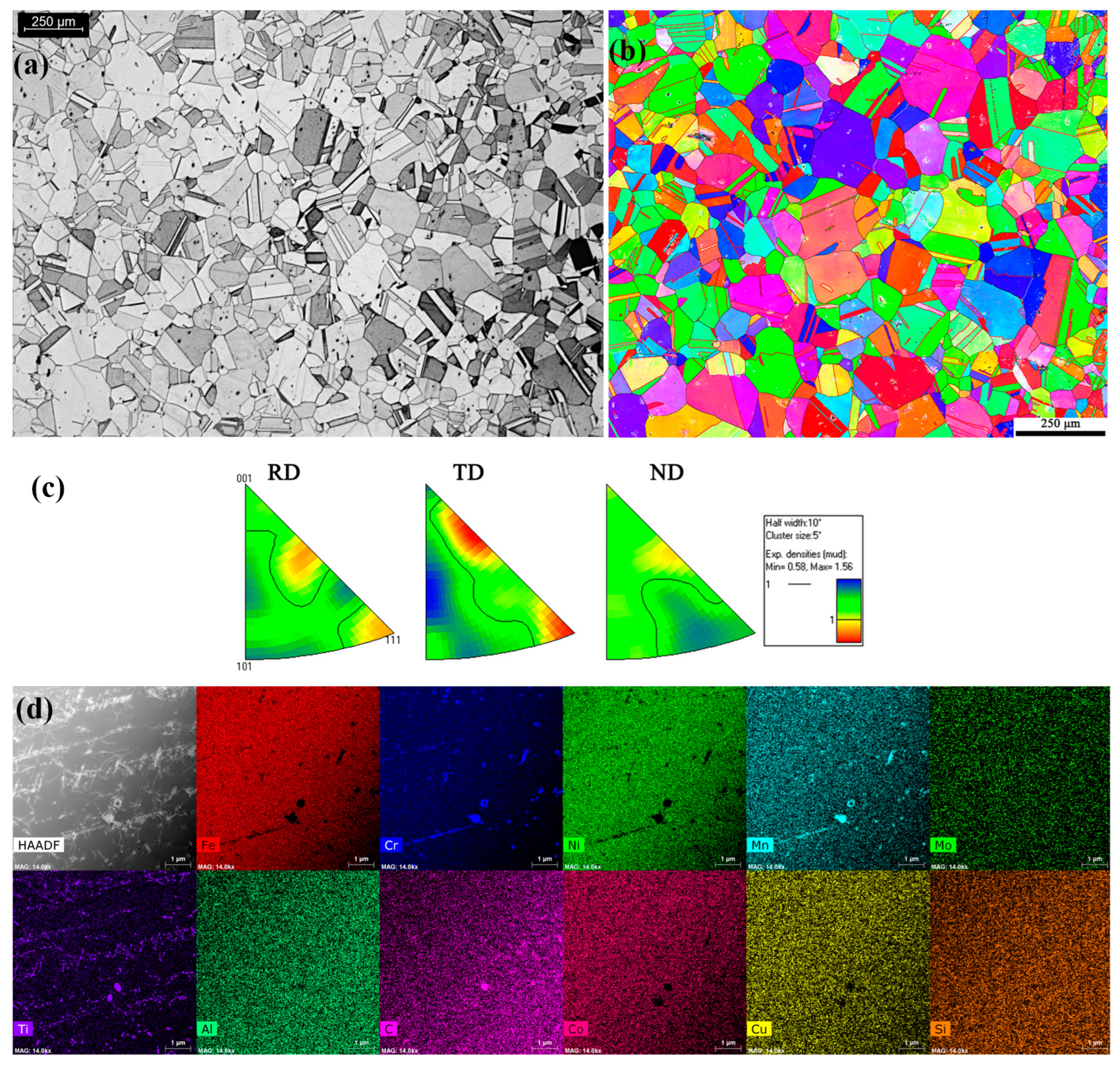

The microstructure of the as-received Alloy 800H was analyzed with an optical microscope and Electron Backscatter Diffraction (EBSD) and is displayed in Figure 2. The average grain size of the as-received material is 120 μm but with a variation of grain size, as shown in Figure 2a. EBSD maps in Figure 2b show that a texture is presented with a weak <113> and <111> texture along the transverse direction (TD) direction. Though the as-received material was heat-treated, the material is still textured since the significant rolling reduction occurred before the final annealing process. It is believed that the new recrystallization grains originate from dislocation cells or subgrains which are present after deformation [27]. The new grains are normally from the strain-induced grain boundary migration (SIBM) from the deformed grains [27]. Therefore, the annealing is expected to result in a recrystallization texture which is closely related to the deformation texture. The texture in the as-received plate is of the type of 60 <111>, which is a typical annealing texture in the FCC metals. The texture was highlighted by red color in Figure 2b. It can be seen that the texture appeared in most of the grains. TEM images showed that there are two types of precipitates, M₂₃C₆ and TiC. They are distributed both in the grain interior and grain boundaries. The M₂₃C₆ is more Cr, Fe, Ni and Mn enriched, while TiC is Ti-rich.

3.2. Cold-Rolled Microstructure

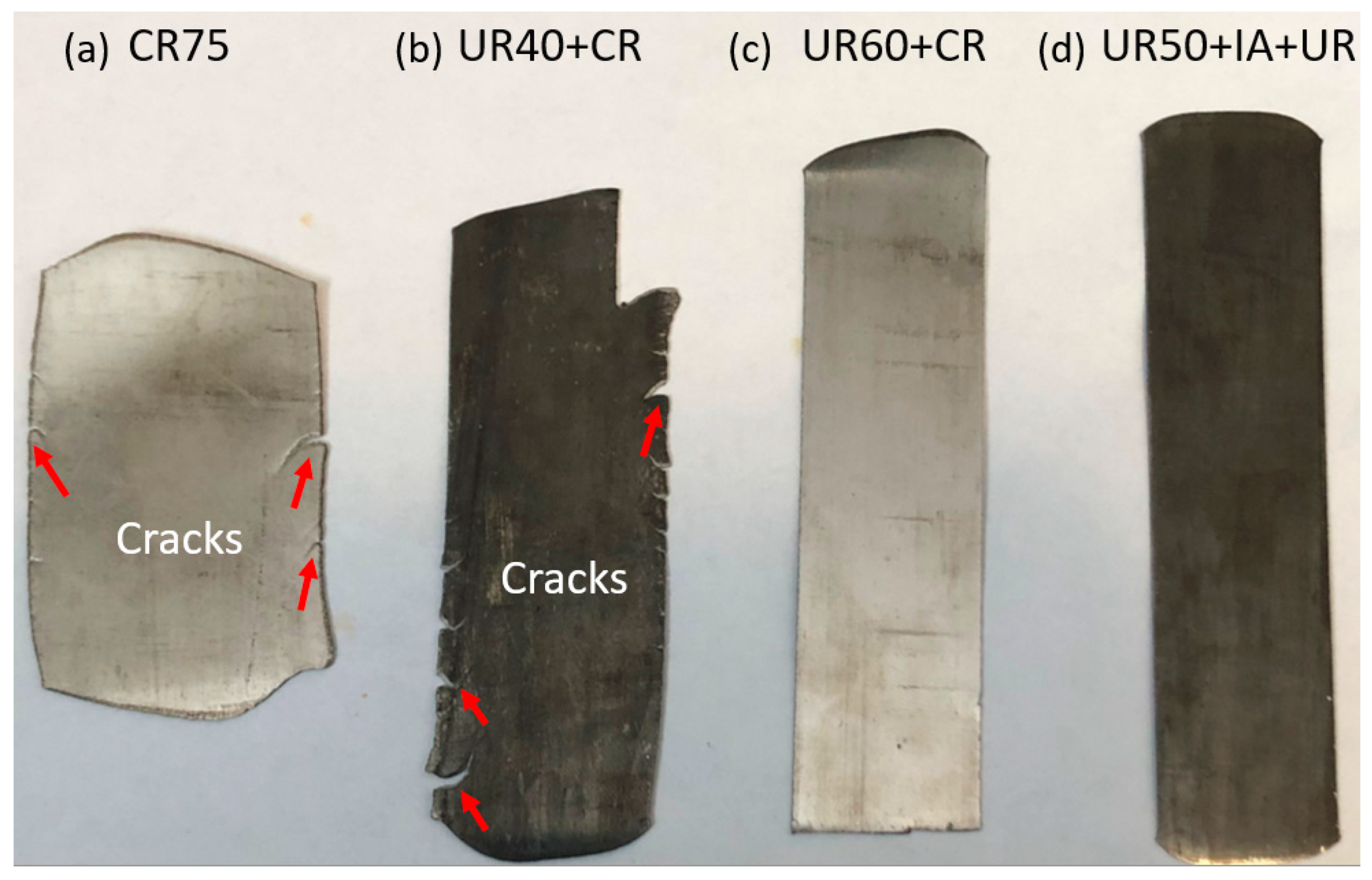

Figure 3 displays a general view of the cold-rolled plates. Some cracks at the edges of the rolled plates were observed in the CR75 (Figure 3a), UR30 + CR, and UR40 + CR (Figure 3c) plates. In the plates where large unidirectional deformation occurred such as UR60 + CR, UR40 + IA + UR, and UR50 + IA + UR (Figure 3d), cracking during the rolling process was absent. This indicates that the as-received Alloy 800H has less deformability during cross-rolling than unidirectional rolling.

3.2.1. Microstructure of Cold Rolling Plan A

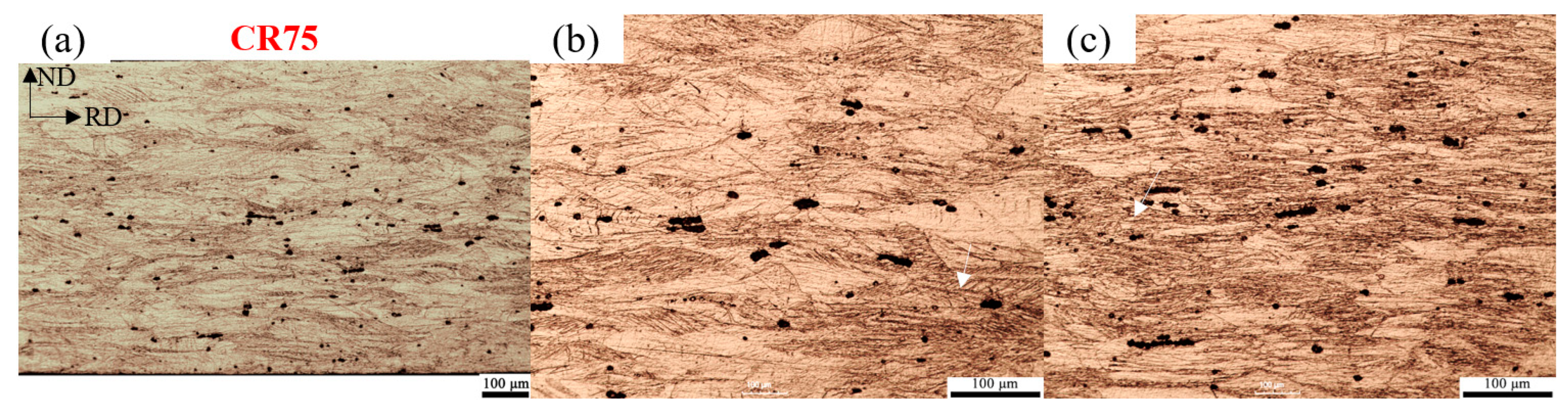

Figure 4 exhibits the microstructure of CR75 from the RD-ND surface by the optical microscope with different magnifications. The microstructure is inhomogeneous. Both large and small deformed grains can be observed. The large grains are elongated along the RD direction, while the small grains are embedded in the large grains.

3.2.2. Microstructure of Cold Rolling Plan B

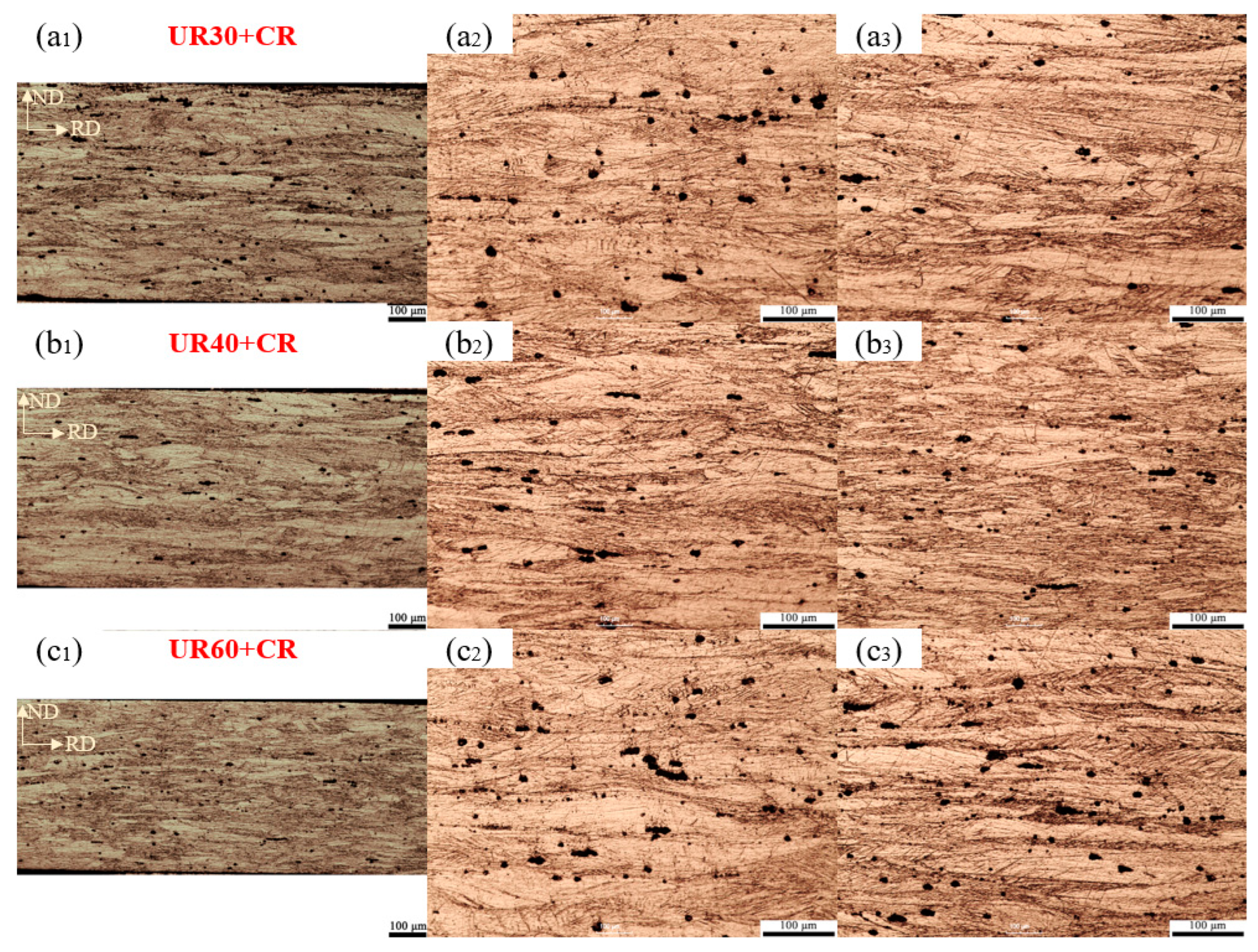

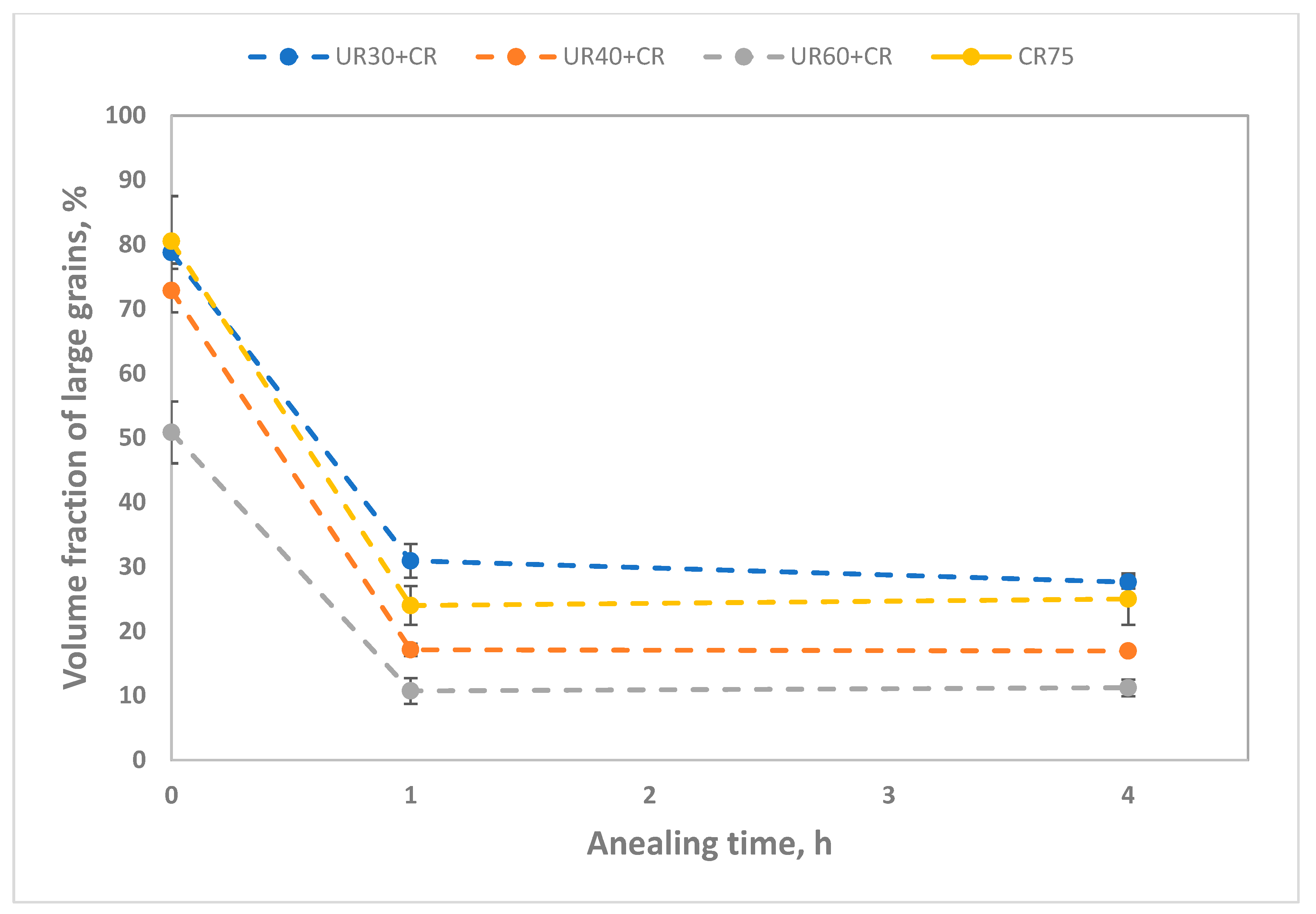

Figure 5 shows the microstructure of the plates with a mixture of UR and CR. The microstructure is similar to the one in CR75 with both large and small deformed grains. The fraction of the large grains in different cold-rolled plates is displayed in Figure 6. The large-grain (grain size > 50 μm) fraction is lower for the rolling with a mixture of UR and CR than that of the one with merely CR. In addition, a larger amount of UR before CR resulted in a lower fraction of large grains. This is inconsistent with the observation from Figure 3, i.e., better deformability was seen in the UR specimens.

3.2.3. Microstructure of Cold Rolling Plan C

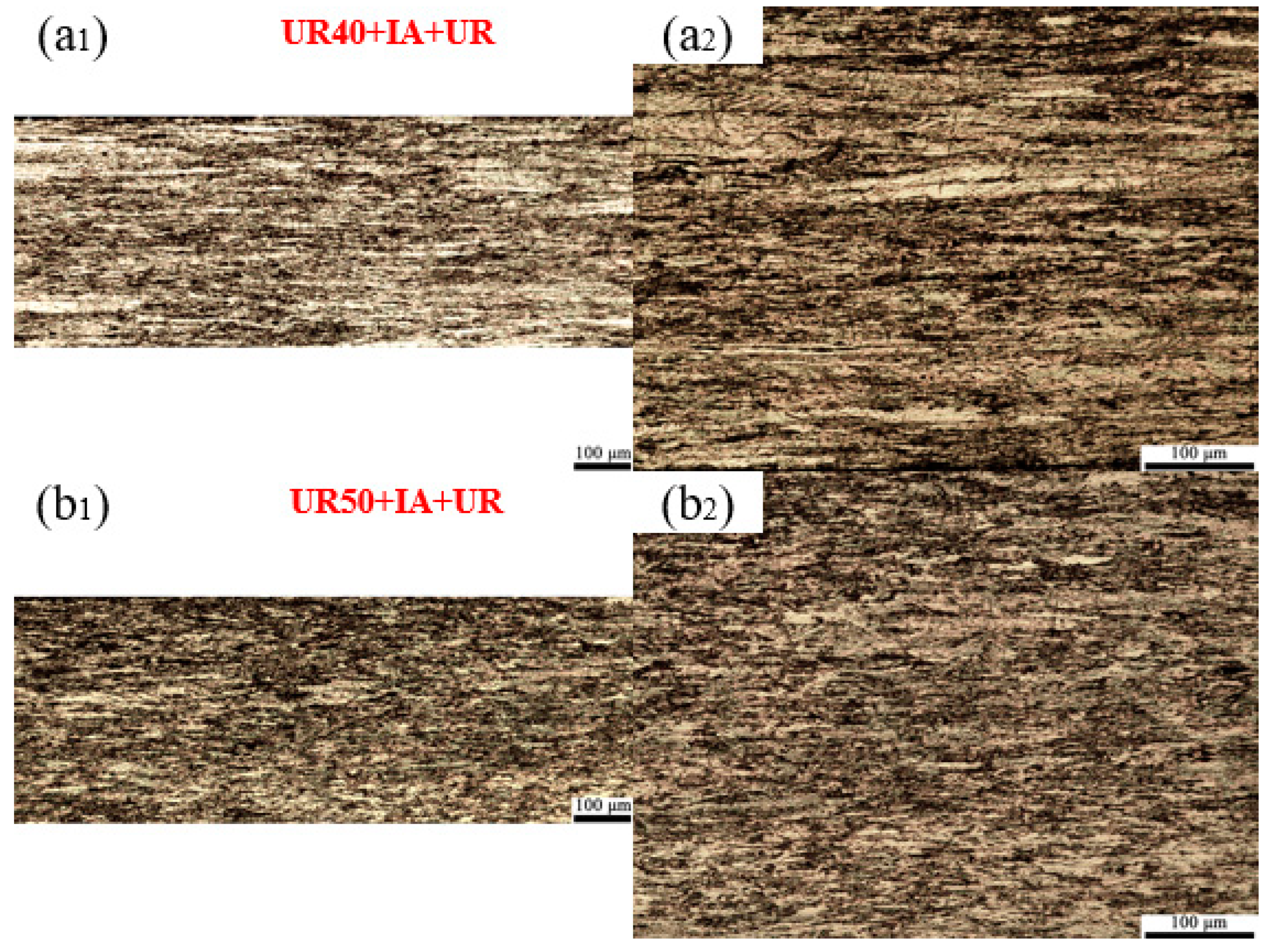

Figure 7 shows the microstructure of the unidirectionally rolled plates, UR40 and UR50. In these plates, the intermediate heat treatment at 950 °C for 15 min was performed to reduce the internal stress. The UR significantly reduced the grain size compared to the one from CR in Figure 4. Elongated grains can be observed with their major axes along the RD. A comparison between UR40 + IA + UR and UR50 + IA + UR indicates that a larger rolling reduction before intermediate annealing could reduce the grain size after the final rolling.

3.3. Annealed Microstructure

3.3.1. Microstructure of Annealing Plan A

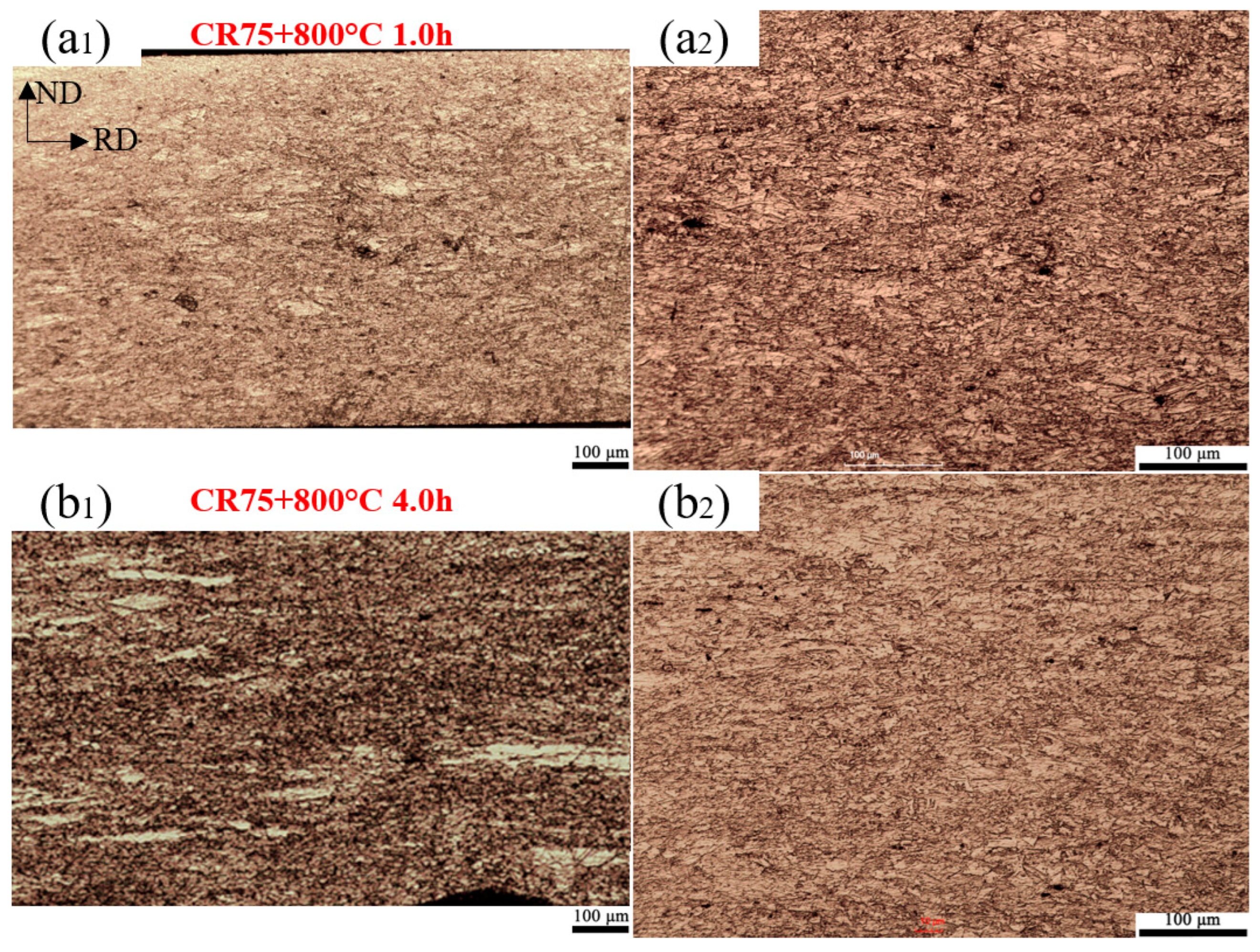

Figure 8 displays the heat-treated microstructure of CR75 at 800 °C for 1 h and 4 h. The microstructure is mixed with deformed and recrystallized grains for both heat treatment conditions. Compared to the as-deformed CR75 in Figure 4, the fraction of large grains dropped quickly after 1 h of annealing at 800 °C. However, there is no significant change in the fraction from 1 h to 4 h, as shown in Figure 6. Because the large grains in the annealed specimens were retained from the deformed plates, the fraction of the large grain indicates the percentage of recrystallization during heat treatments.

3.3.2. Microstructure of Annealing Plan B

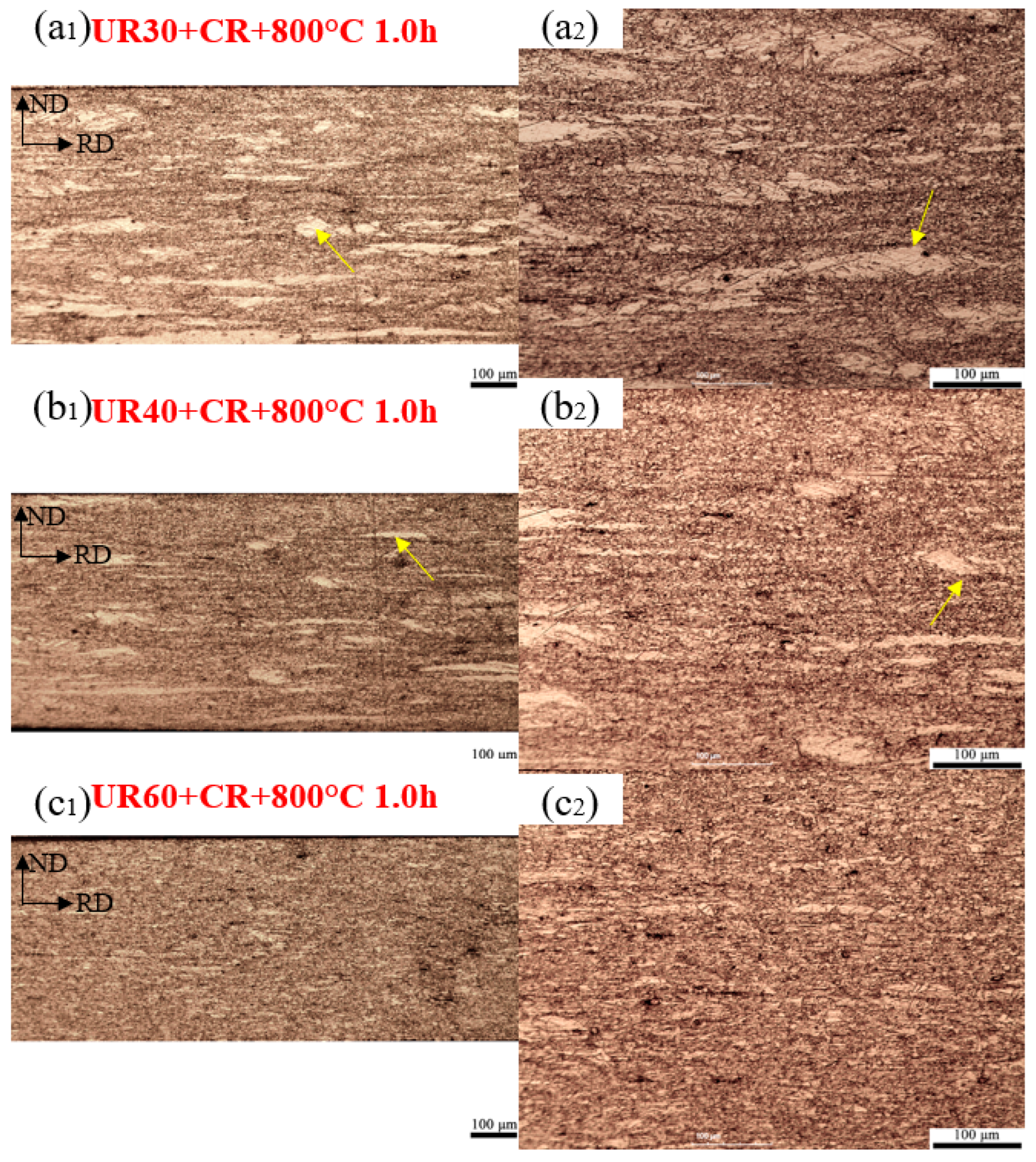

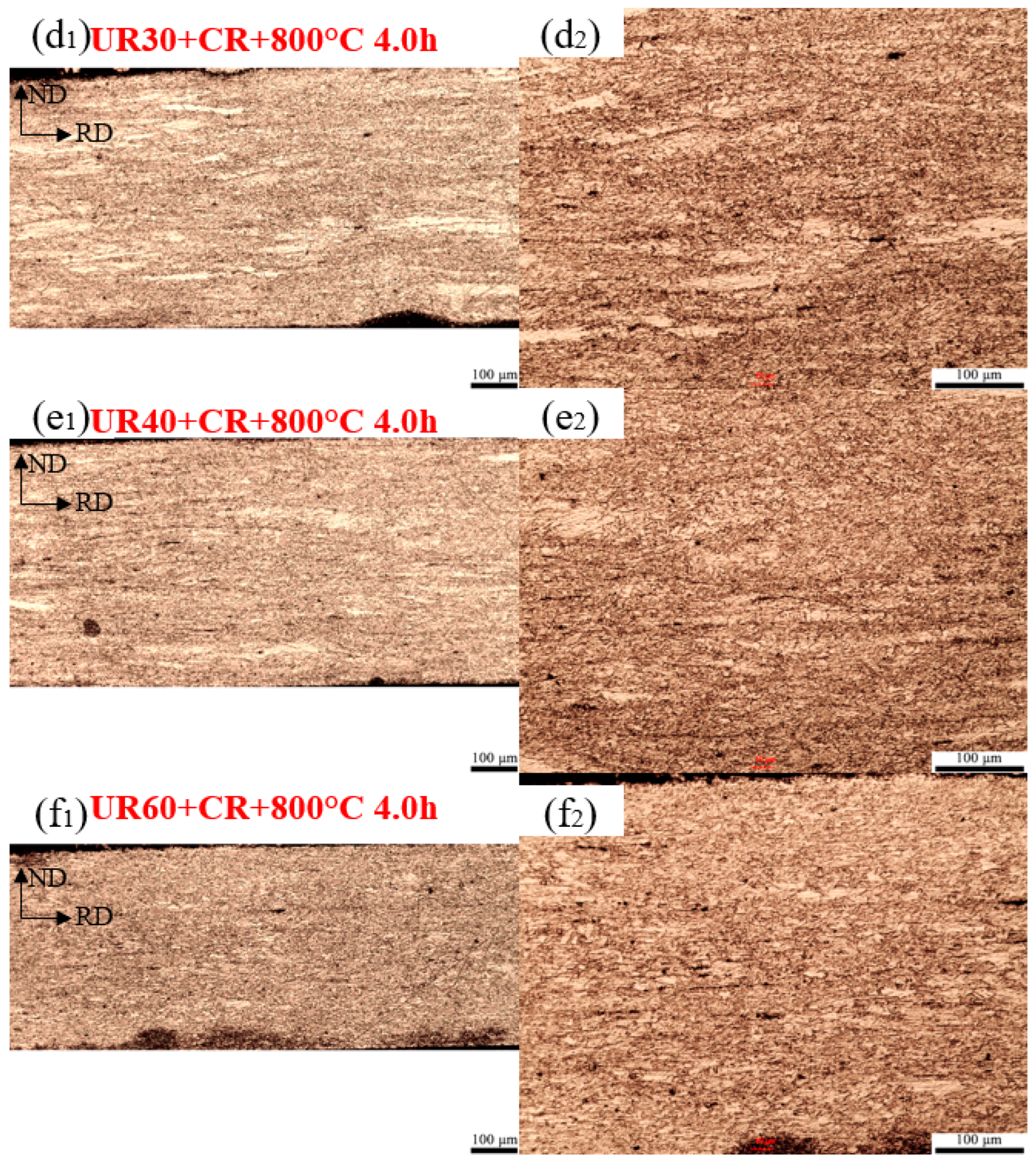

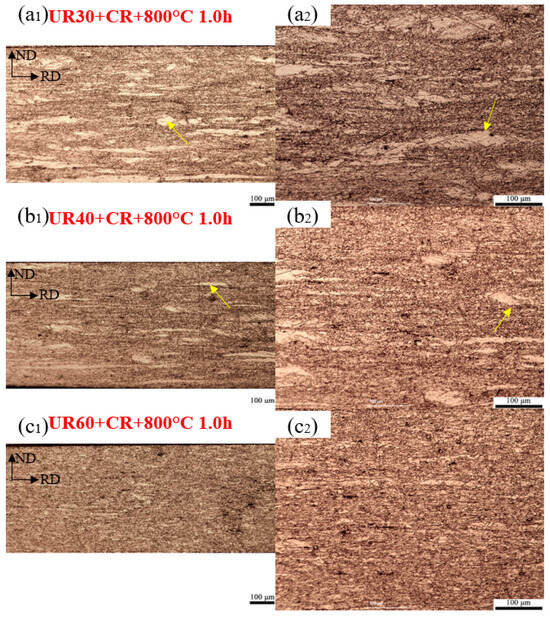

Figure 9 exhibits the microstructure evolution for the combination of UR and CR plates annealed at 800 °C for 1 h to 4 h. It can be seen that there are elongated and equiaxed grains after annealing for both conditions for all three rolling schemes, UR30 + CR, UR40 + CR, and UR60 + CR. The statistical analysis of the fraction of the recrystallized and non-recrystallized grains is displayed in Figure 6. There is a quick drop in the volume fraction of large, deformed grains for all three rolling conditions. However, no significant decrease in the fraction of recrystallized grains was observed from 1 h to 4 h of annealing. The plates with a higher reduction in UR displayed a higher fraction of recrystallized grains, which indicates recrystallization occurred faster in the plates with a higher percentage of UR reductions.

3.3.3. Microstructure of Annealing Plan C

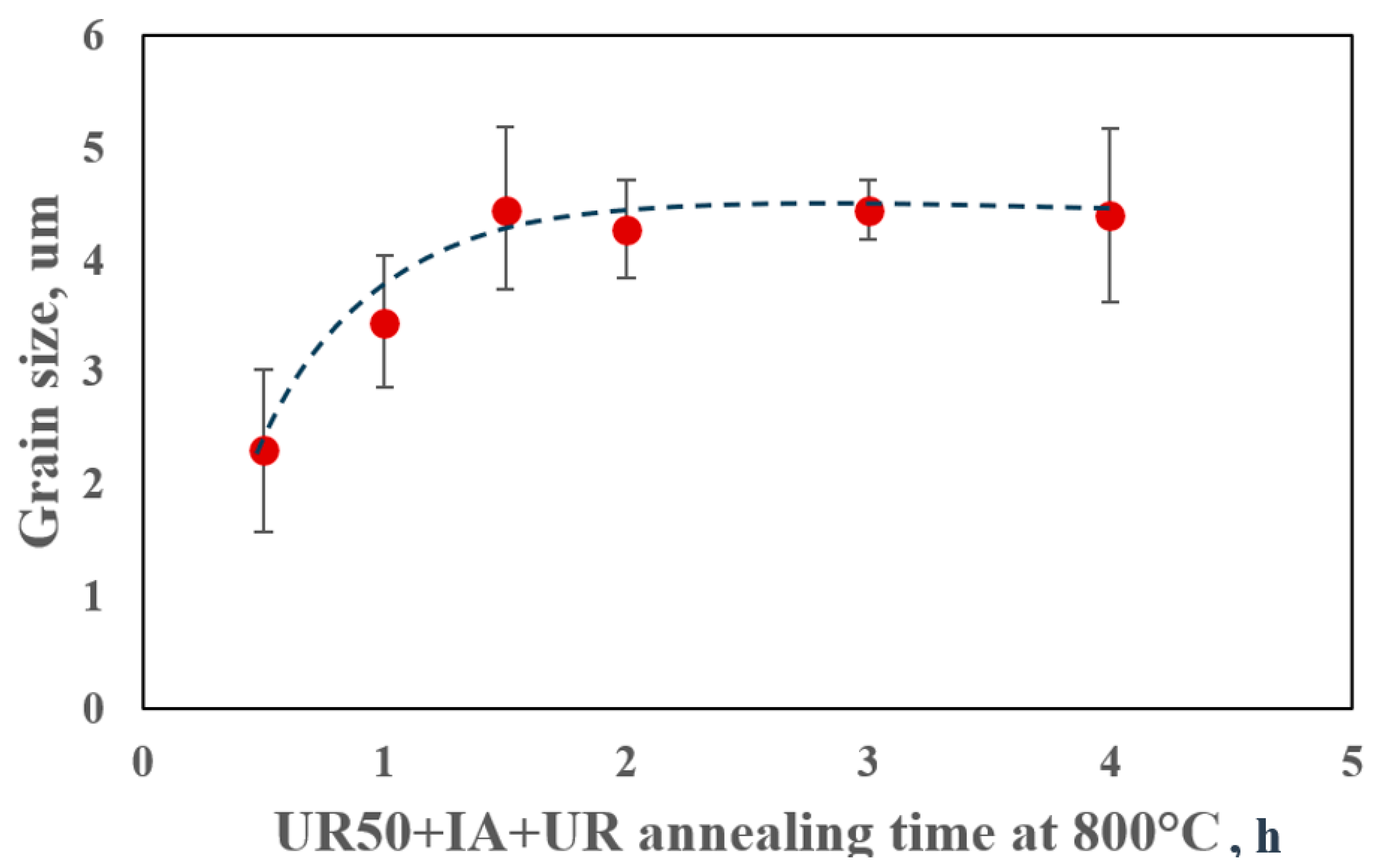

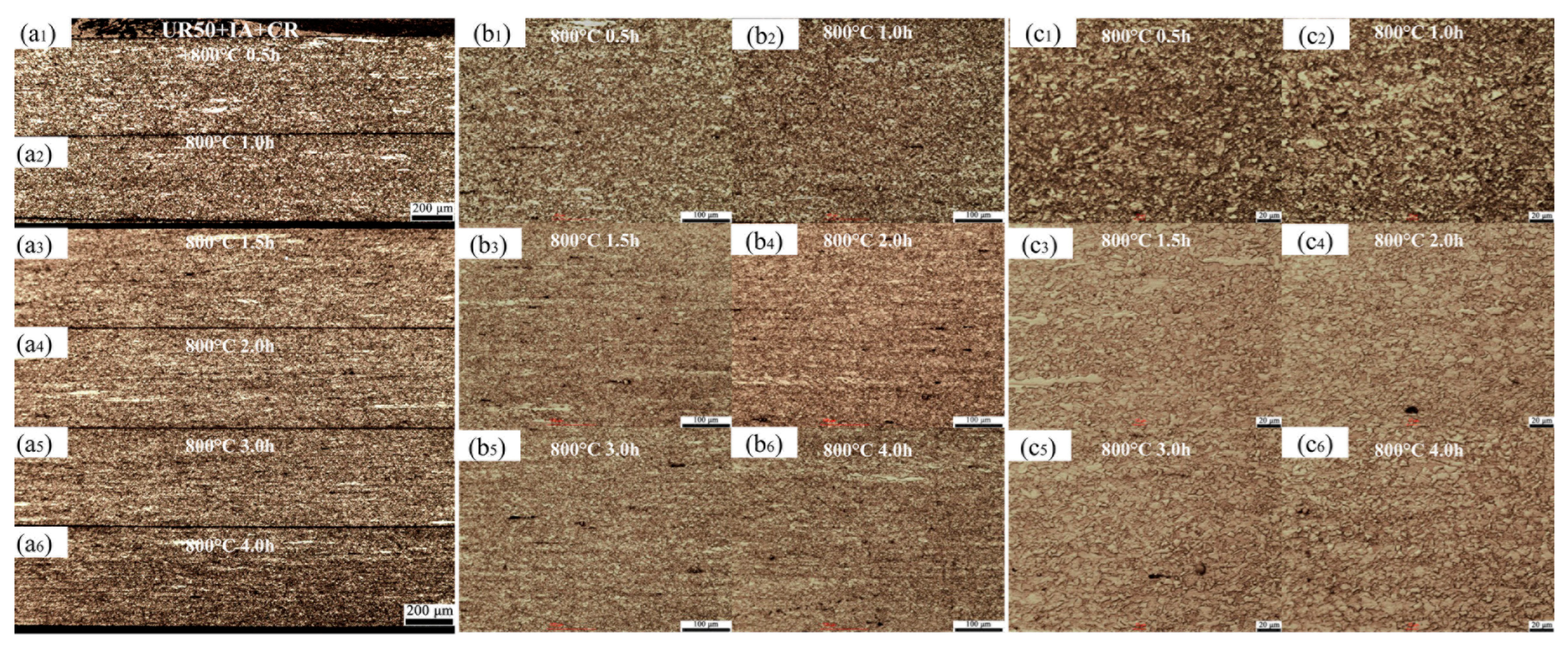

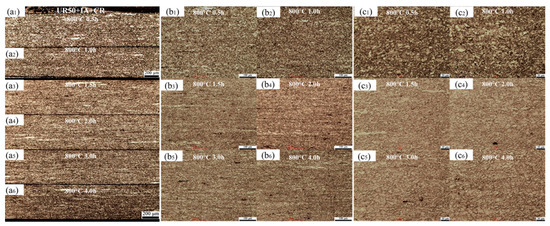

The microstructure evolution of UR plates after annealing is shown in Figure 10 and an analysis of the grain size is shown in Figure 11. The grains are much more homogeneous compared to those with CR from Plans A and B. In plates with a shorter annealing time (0.5–1 h), the deformed microstructure such as elongated deformation strips and small deformed grains can be observed. However, after 2 h of annealing, the grain size stays constant (4.28 ± 0.23 μm) and equiaxed grains are seen, which means a full recrystallization was reached (Figure 11).

4. Discussion

From the above experimental results, it is clear that the plates from cross-rolling showed less deformability than the ones from unidirectional rolling. Previous studies [16,17,18,19,25,26] on the deformation of Alloy 800H/HT showed that there are five major types of textures in the cold-rolled alloy, i.e., Goss {110} <001>, Brass {110} <11-2>, Copper {112} <11-1>, S {123} <63-4>, and Copper Twin {552} <11-5>. During the unidirectional deformation process, the volume fraction of the above-mentioned texture gradually increases from 12.5% in the as-received material to over 70% in the 55% cold-rolled plates [16]. The evolution of texture is greatly influenced by the dislocation slips [27].

The resolved shear stress on a slip plane can be expressed as:

$$\tau =m\sigma$$

where m is the Schmid factor and $\sigma$ is the stress applied to the material.

$$m=\cos \varnothing \sin \lambda$$

where $\varphi$ is the angle between the applied stress and the slip plane’s normal directions. $\lambda$ is the angle between the applied stress direction and the slip direction.

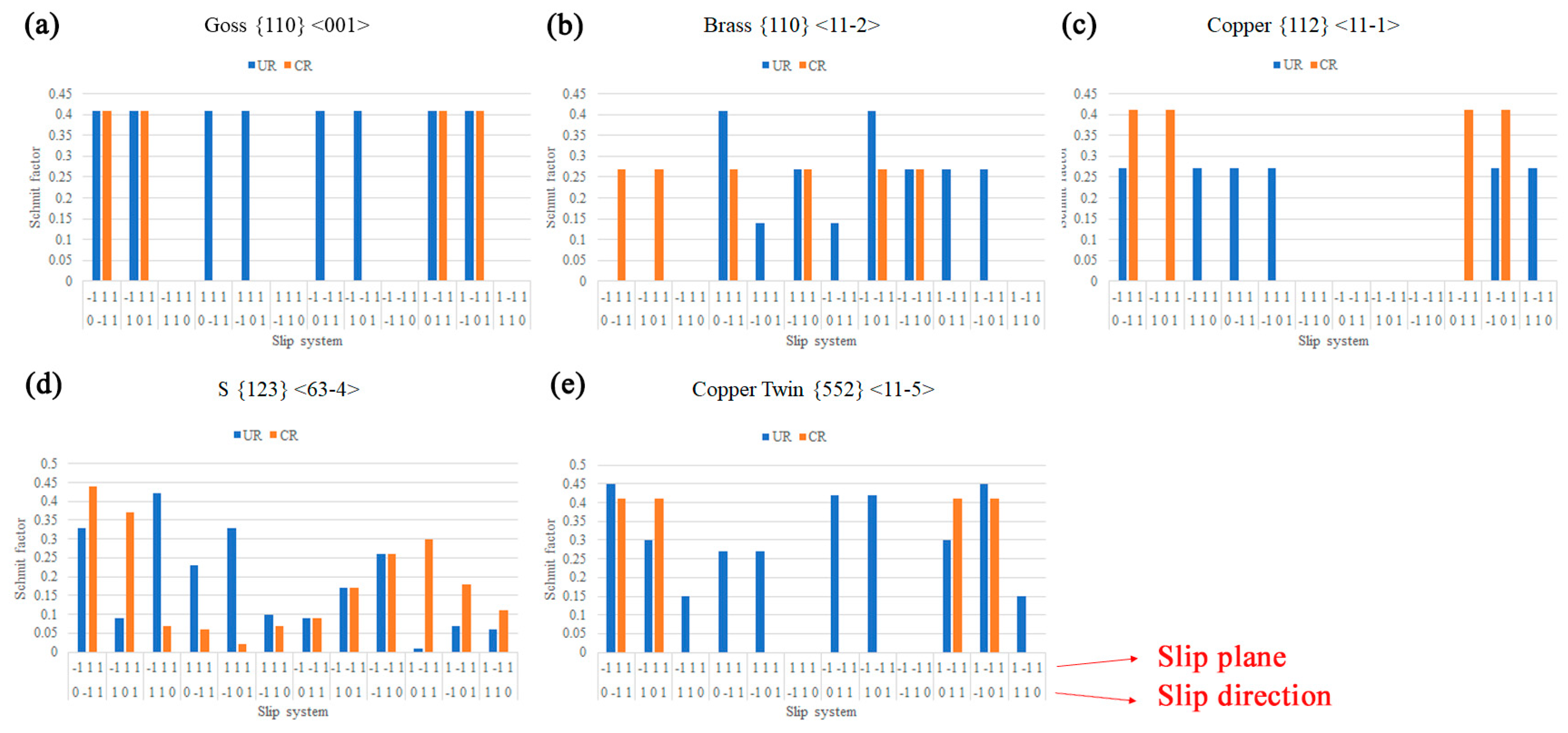

Figure 12 shows the Schmit factors, which represent the readiness of dislocations to move in different textures during two different deformation routes, i.e., unidirectional rolling and cross-rolling. The qualitative calculations are listed in

Table 3. Schmit factors from different rolling plans.

Slip System		Schmit Factor
Slip Plane	Slip Direction	Goss {110} <001>		Brass {110} <11-2>		Copper {112} <11-1>		S {123} <63-4>		Copper Twin {552} <11-5>
		UR	CR	UR	CR	UR	CR	UR	CR	UR	CR
0 −1 1	−1 1 1	0.41	0.41	0	0.27	0.27	0.41	0.33	0.44	0.45	0.41
1 0 1	−1 1 1	0.41	0.41	0	0.27	0	0.41	0.09	0.37	0.3	0.41
1 1 0	−1 1 1	0	0	0	0	0.27	0	0.42	0.07	0.15	0
0 −1 1	1 1 1	0.41	0	0.41	0.27	0.27	0	0.23	0.06	0.27	0
−1 0 1	1 1 1	0.41	0	0.14	0	0.27	0	0.33	0.02	0.27	0
−1 1 0	1 1 1	0	0	0.27	0.27	0	0	0.1	0.07	0	0
0 1 1	−1 −1 1	0.41	0	0.14	0	0	0	0.09	0.09	0.42	0
1 0 1	−1 −1 1	0.41	0	0.41	0.27	0	0	0.17	0.17	0.42	0
−1 1 0	−1 −1 1	0	0	0.27	0.27	0	0	0.26	0.26	0	0
0 1 1	1 −1 1	0.41	0.41	0.27	0	0	0.41	0.01	0.3	0.3	0.41
−1 0 1	1 −1 1	0.41	0.41	0.27	0	0.27	0.41	0.07	0.18	0.45	0.41
1 1 0	1 −1 1	0	0	0	0	0.27	0	0.06	0.11	0.15	0

. The unidirectional and cross-rolling are represented by blue and orange bars, respectively. For Goss orientation, eight dislocation slip systems are operational in the unidirectional deformation while only four are operational in the cross-rolling condition. Similar to the Brass and Copper Twin orientations, the dislocation slips are easier to trigger in unidirectional rolling. However, the slips are easier in the S and Copper orientations in the cross-rolled plates than in the unidirectional ones. Though the dislocation slips are easy in the S and Copper orientations for cross-rolling, they are not the dominant textures since their total volume fraction is less than 30% of the total texture component [16,18,19]. Therefore, the overall dislocation slips are easier in the unidirectional rolling than in the cross rolling, which leads to better deformability during the unidirectional rolling process.

5. Conclusions

The microstructure evolution during different cold rolling and subsequent annealing processes was studied by OM and SEM. The major findings are summarized below:

-

Cracks were observed in the cross-rolled plates, while such cracks did not appear in the unidirectionally rolled plates, which indicated better ductility during the unidirectional rolling process. The difference between the two different rolling methods was explained by the evolution of Schmit factors during the deformation.

-

A higher volume fraction of large, deformed grains was observed in the cross-rolled plates than in the unidirectionally rolled plates. The higher the amount of unidirectional rolling before cross-rolling is performed, the higher the fraction of small, deformed grains observed in the final deformed plates. Abnormal grain growth was observed in the cross-rolled specimens after annealing while no abnormal grain growth was seen in the unidirectionally rolled ones.

-

Recrystallization occurred faster in plates from unidirectional rolling than from cross-rolling.
