The Influence of 1 wt.% Cr on the Corrosion Resistance of Low-Alloy Steel in Marine Environments

Abstract

In this study, the effects of 1 wt.% Cr addition on the corrosion behavior and mechanisms of low-alloy structural steel in a marine environment were investigated through immersion experiments, corrosion product analysis, and electrochemical experimental systems. The results demonstrate that the addition of 1 wt.% Cr significantly enhances the corrosion resistance of low-alloy steel in marine environments. The influence of Cr addition on the corrosion product layer was analyzed through rust layer morphology, cross-sectional morphology, elemental distribution, and electrochemical systems. Cr addition effectively promotes the densification of the corrosion product layer on the surface of low-alloy steel in marine environments, hindering the penetration of corrosive ions and thus improving corrosion resistance. This study’s findings can promote the optimization of corrosion resistance in low-alloy steel in marine environments and enhance its application prospects in marine environments.

1. Introduction

Low-alloy structural steel is widely used in various fields such as marine platforms and island reef construction due to its excellent performance, but it is prone to corrosion and premature structural failure during service under the influence of the marine corrosion environment [1,2,3,4,5]. Corrosion resistance as an important property of low-alloy structural steel has attracted widespread attention from scholars. Micro-alloying [6,7,8], as a mainstream method for material performance optimization, has been widely applied to corrosion resistance optimization work in recent years.

Cr [9,10,11,12,13], as a universally recognized primary corrosion-resistant element, has been the subject of extensive research. Studies have shown that Cr can shift the self-corrosion potential of the steel matrix positively, and when the Cr content is higher, a passive film can form. In marine environments, Cr in low-alloy steel mainly enriches the inner rust layer, and its presence can promote the formation of α-FeOOH, facilitating rust layer densification. Simultaneously, the synergistic addition of Cu with Ni and Cu can achieve better corrosion resistance. Łukaszczyk et al. [14] studied the electrochemical behavior of low-alloy Fe-Cr steel containing 3% and 5% Cr in a neutral Na₂SO₄ electrolyte. The results show that the corrosion product film is a bilayer structure, with an outer layer of iron oxide/hydroxide and an inner Cr oxide-rich layer. A lower Cr content (3%) has a good improvement effect on the corrosion resistance of Fe-Cr steel, which is consistent with the research results of most people [15,16,17]. However, Kashima et al. [18] found that at high Cl⁻ concentrations, low-alloy steel containing 1 wt.% Cr exhibited a higher corrosion rate than carbon steel, reducing its corrosion resistance and increasing the acidity of the solution, further decreasing the corrosion resistance. When the Cr content increased to 4 wt.%, the higher Cr content in the rust layer inhibited the hydrolysis reaction of Cr³⁺ and Fe³⁺, alleviating the decline in pH at the rust layer/matrix interface and improving the steel’s corrosion resistance. Therefore, the role of Cr in the corrosion resistance of low-alloy steel in marine environments remains controversial, and the impact of Cr on rust layer structure is still unclear. As a result, it is necessary to conduct research on the effects of Cr addition on the corrosion behavior of low-alloy steel in marine environments.

In this paper, two types of low-alloy structural Fe-1 wt.% Ni-0.3 wt.% Cu-Cr steel with 0 wt.% Cr and 1 wt.% Cr were prepared using vacuum melting methods. By simulating the marine environment through indoor immersion experiments and employing techniques such as microstructure analysis, corrosion product analysis, corrosion kinetics, and electrochemical testing, the effects of 1 wt.% Cr on the microstructure and corrosion behavior and mechanisms of low-alloy steel in marine environments were investigated. The research findings are expected to provide a foundation for the design of novel corrosion-resistant steels.

2. Materials and Methods

Two types of low-alloy structural steel with different Cr contents were prepared using vacuum melting technology and labeled as #1 and #2, respectively. The chemical compositions of the two experimental steels are presented in

Table 1. Chemical composition of two low-alloy steels (wt.%).

Steel	C	Si	Mn	P	S	Ni	Cu	Cr
1#	0.044	0.52	1.22	0.0089	0.0021	0.98	0.31	-
2#	0.039	0.46	1.30	0.0085	0.0019	1.02	0.31	0.97

. Apart from the Cr element being investigated, there were no significant differences in the contents of other elements, meeting the research requirements.

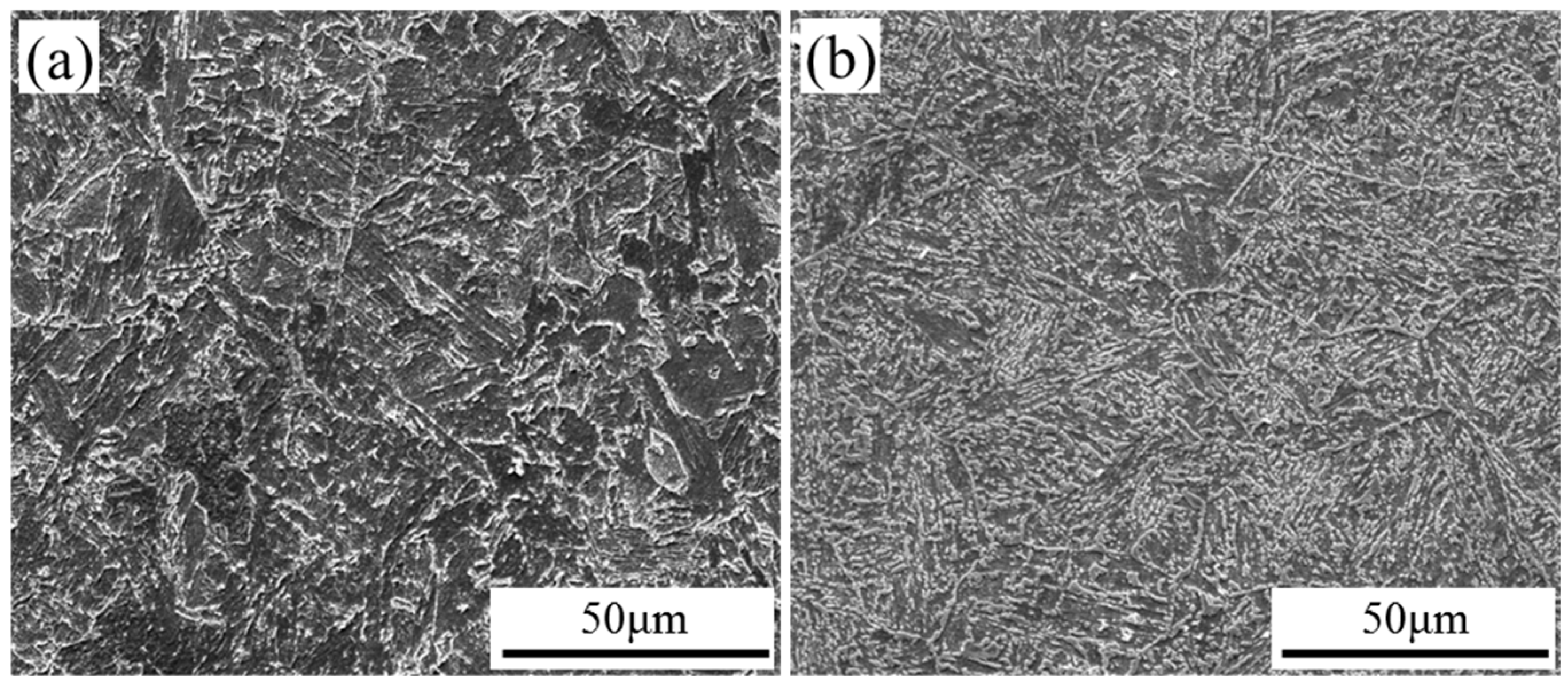

Samples measuring 10 mm × 10 mm × 3 mm were cut along the rolling direction of the steel plates using wire cutting for microstructure observation. The sample surfaces were sequentially ground with SiC abrasive paper up to 3000 grit, followed by polishing to a mirror finish. The samples were then rinsed with deionized water and ethanol and dried for further use. After etching the polished working surfaces for 5 s using a 4 vol.% nitric acid–ethanol solution, the samples were quickly rinsed with deionized water and ethanol and dried. The etched samples were observed under a Quanta 250 scanning electron microscope (SEM, FEI, Hillsboro, OR, USA) to investigate their microstructure, as shown in Figure 1. As can be seen from the figure, the microstructures of both experimental steels consist of a mixed structure of lath and granular bainite [19,20]. In Steel 1#, bainitic ferrite is predominant. With the addition of Cr, the amount of lath bainite in the steel increases, and the bainite grains are noticeably refined.

Immersions tests were carried out to simulate the marine environment, with plate-shaped samples measuring 50 mm × 25 mm × 3 mm cut along the rolling direction. The samples were polished to 1200 grit, cleaned sequentially with ultrapure water and ethanol, and dried before weighing and measuring their dimensions. The immersion solution was a simulated seawater with the composition ratios shown in

Table 2. Chemical composition of the simulated seawater, data from [21], g/L.

NaCl	MgCl2	Na2SO4	CaCl2	KCl	NaHCO3	KBr	H3BO3	SrCl2	NaF
24.53	5.20	4.09	1.16	0.695	0.201	0.101	0.027	0.025	0.003

. The immersion tests were conducted over periods of 7, 15, and 30 days. To improve the accuracy of the experiment, three parallel samples were prepared for each type of experimental steel for each test period.

After each test period, the samples were derusted using a rust removal solution consisting of 500 mL water, 500 mL hydrochloric acid, and 3.6 g hexamethylenetetramine. The samples were then rinsed with deionized water and ethanol, dried, weighed, and the corrosion rate was calculated. The calculation formulas for corrosion loss and corrosion rate were the same as those in references [22,23,24,25]:

$$w=\frac{m_0-m_t}{S}$$

(1)

$$v=\frac{{(m}_0-m_t)\times {10}^4}{S\rho t}$$

(2)

where w is the corrosion weight loss (g/cm²), v is the corrosion rate (mm/y), m₀ is the original weight of the sample (g), m_t is the weight of the sample after rust removal (g), S is the exposure area of the sample (cm²), ρ is the density of steel (7.8 g/cm³), and t is the exposure time (h).

The surface and cross-sectional morphologies of the rust layers of both experimental steels after different immersion periods were observed using an SEM, and the elemental distribution of the rust layer cross-sections was analyzed using EDS. The rust layers scraped from the surfaces of the samples at different periods were ground into powders using a quartz mortar for subsequent rust layer composition analysis. X-ray diffraction (XRD) was employed to analyze the phase composition of the rust layers of the two experimental steels after different immersion periods, with working voltage and current set at 40 kV and 150 mA [26], respectively. The scanning rate was 3°/min, and the diffraction angle scanning range was 10° to 90°. A 3D analysis of the surface corrosion morphology after derusting was performed using a laser confocal microscope.

Electrochemical tests were conducted on the rust layers after immersion using a traditional three-electrode system, with the rusted samples serving as the working electrode, a platinum plate as the auxiliary electrode, and a saturated calomel electrode as the reference electrode. The electrochemical test solution was simulated seawater. Electrochemical tests were carried out on a 3F electrochemical workstation (Princeton, San Diego, CA, USA). The frequency test range for the alternating current impedance was 100 kHz to 10 mHz [21,27], and the excitation potential amplitude of the alternating current impedance test was 10 mV. After testing, the data were analyzed using Zsimp Win software (3.5, Ann Arbor, MI, USA). All electrochemical tests were conducted at room temperature, and each test was performed three times to ensure the reliability of the results.

3. Result

3.1. Corrosion Rate Analysis

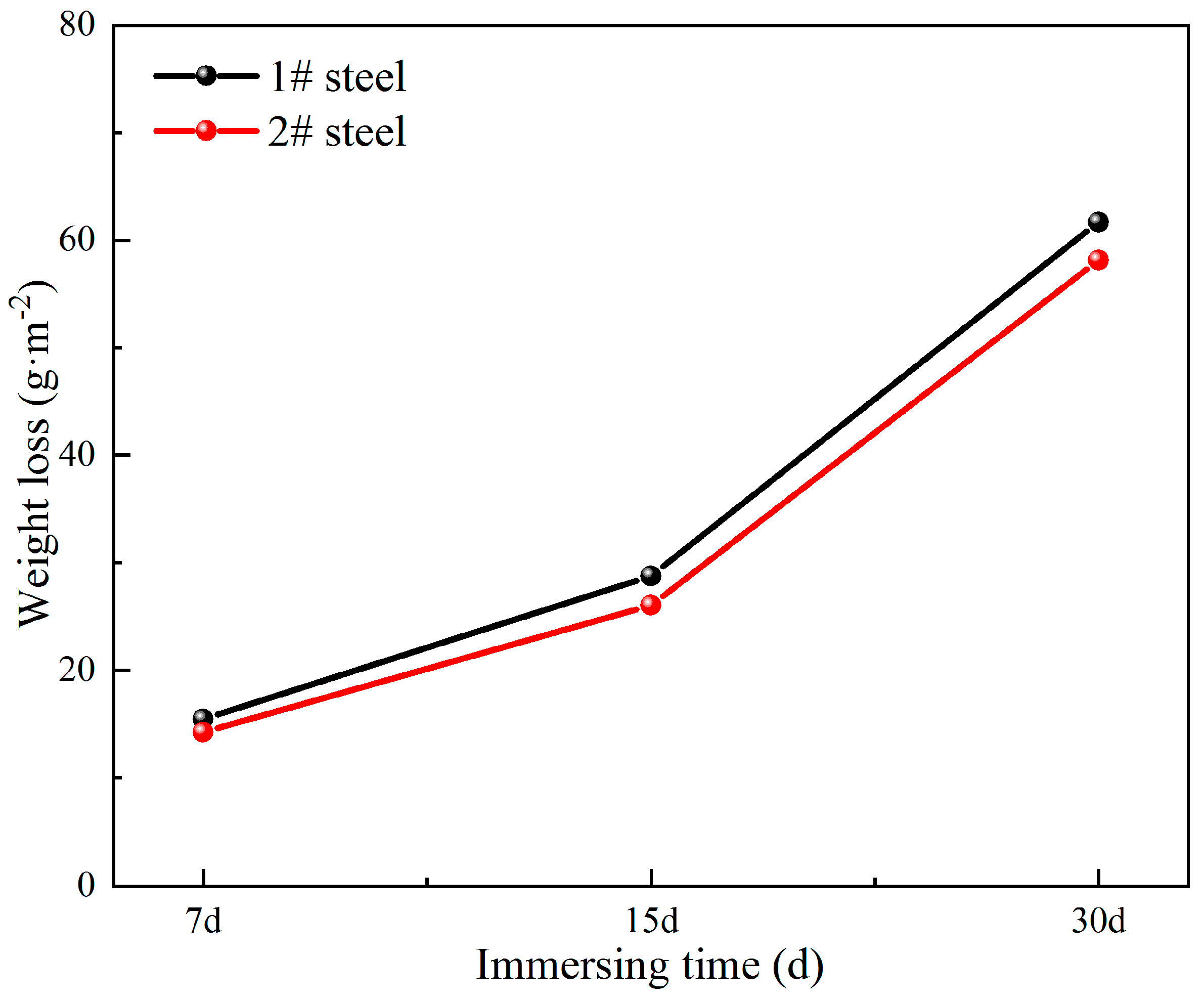

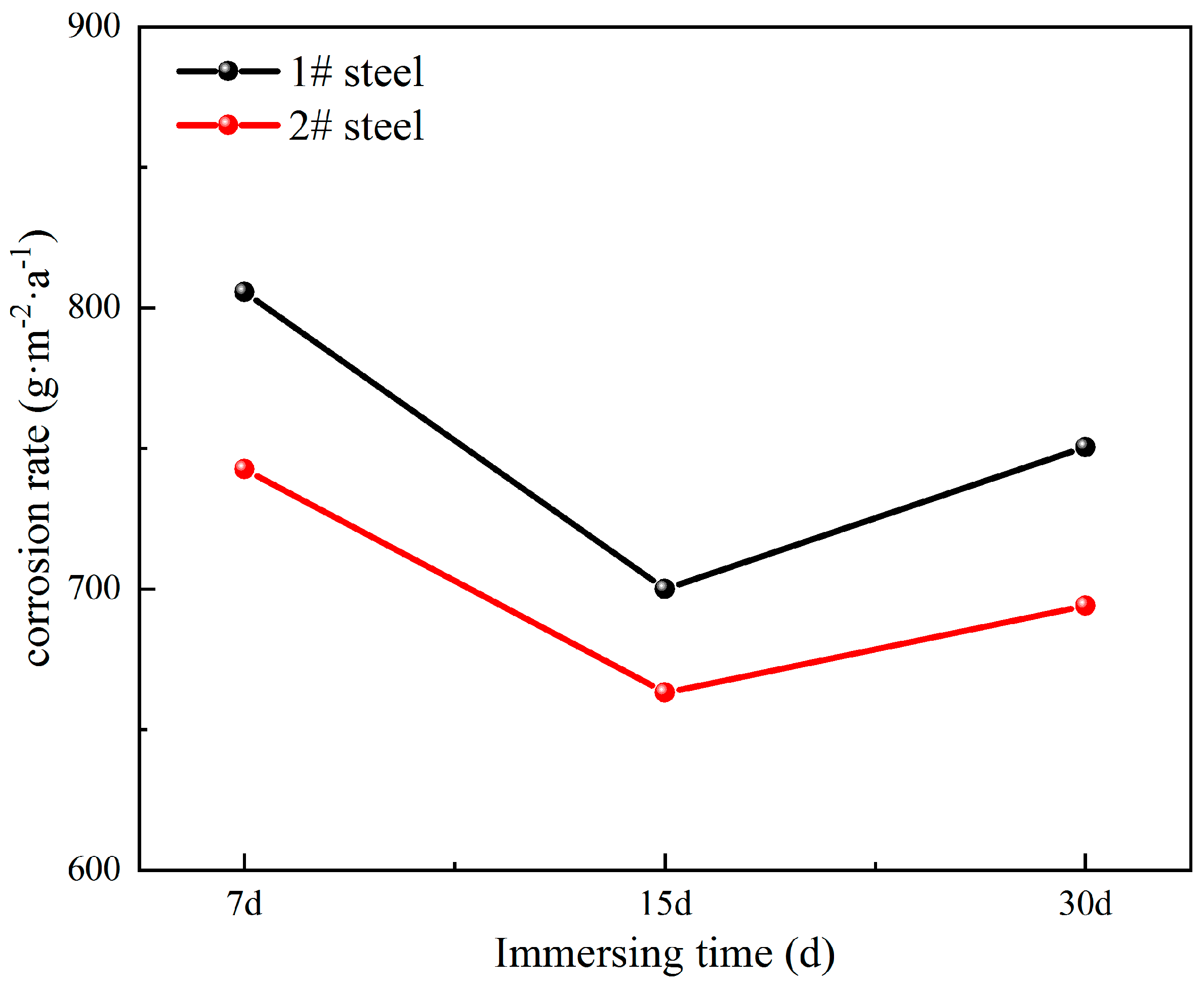

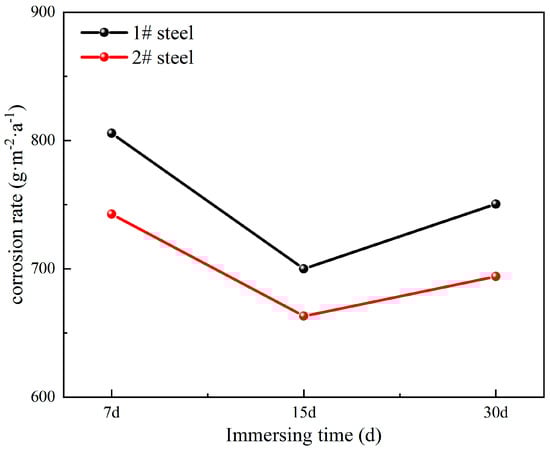

Figure 2 shows the corrosion loss of the two types of low-alloy steel samples after immersion corrosion tests. As seen in the figure, the corrosion loss of both materials increases gradually with the progression of the corrosion cycle. With the addition of Cr element in Steel #2, the corrosion weight loss of Steel #2 at 7 days is slightly lower than that of Steel #1, but the difference is small. As the soaking time increases to 15 and 30 days, the gap in corrosion weight loss between Steel #2 and Steel #1 becomes larger, indicating that the addition of Cr can effectively inhibit the corrosion of low-alloy steel in a marine environment, thus reducing the corrosion weight loss of Steel #2. From the perspective of corrosion weight loss, the difference in weight loss between the two types of steel is not significant. Therefore, the corrosion rate of the two types of experimental steel soaked for different times is calculated using Equation (2) to more intuitively characterize the effect of Cr addition on the corrosion behavior of low-alloy steel. The calculation results are shown in Figure 3. It can be observed that as the immersion time increases from 7 to 15 days, the corrosion rates of both experimental steels exhibit a significant decreasing trend, with the corrosion rate of Steel 2# being noticeably lower than that of Steel 1#. As the immersion time increases from 15 to 30 days, the corrosion rate rises again, but the increase in the corrosion rate of Steel 2# is lower compared to Steel 1#, suggesting that the corrosion product layer on the steel surface is not dense enough for long-term immersion, leading to intensified material corrosion. At the same time, the addition of Cr promotes the densification of the corrosion product layer, thereby reducing the corrosion rate.

3.2. Evolution of Corrosion Products

To further analyze the influence of Cr addition on the corrosion behavior of low-alloy steel, the microscopic morphology of the rust layer surfaces of the two materials after immersion for different periods was examined. Figure 4 shows the rust layer morphology of the sample surfaces after 7 days of immersion. It can be seen that after 7 days of immersion, both experimental steels exhibit evident corrosion product attachment on the surface. Steel 1# has a large amount of granular corrosion products, while Steel 2# has fewer granular corrosion products. Upon closer examination, it was found that the corrosion product layer of Steel 1# is relatively loose, whereas the corrosion product layer of Steel 2# is denser. The degree of compactness of the rust layer surface represents whether it can provide a pathway for the transport of the corrosive medium during the corrosion process and, to a certain extent, reflects the protective nature of the rust layer. Therefore, from the rust layer morphology observed after 7 days, the rust layer structure of Steel 2# provides better protection for the steel substrate.

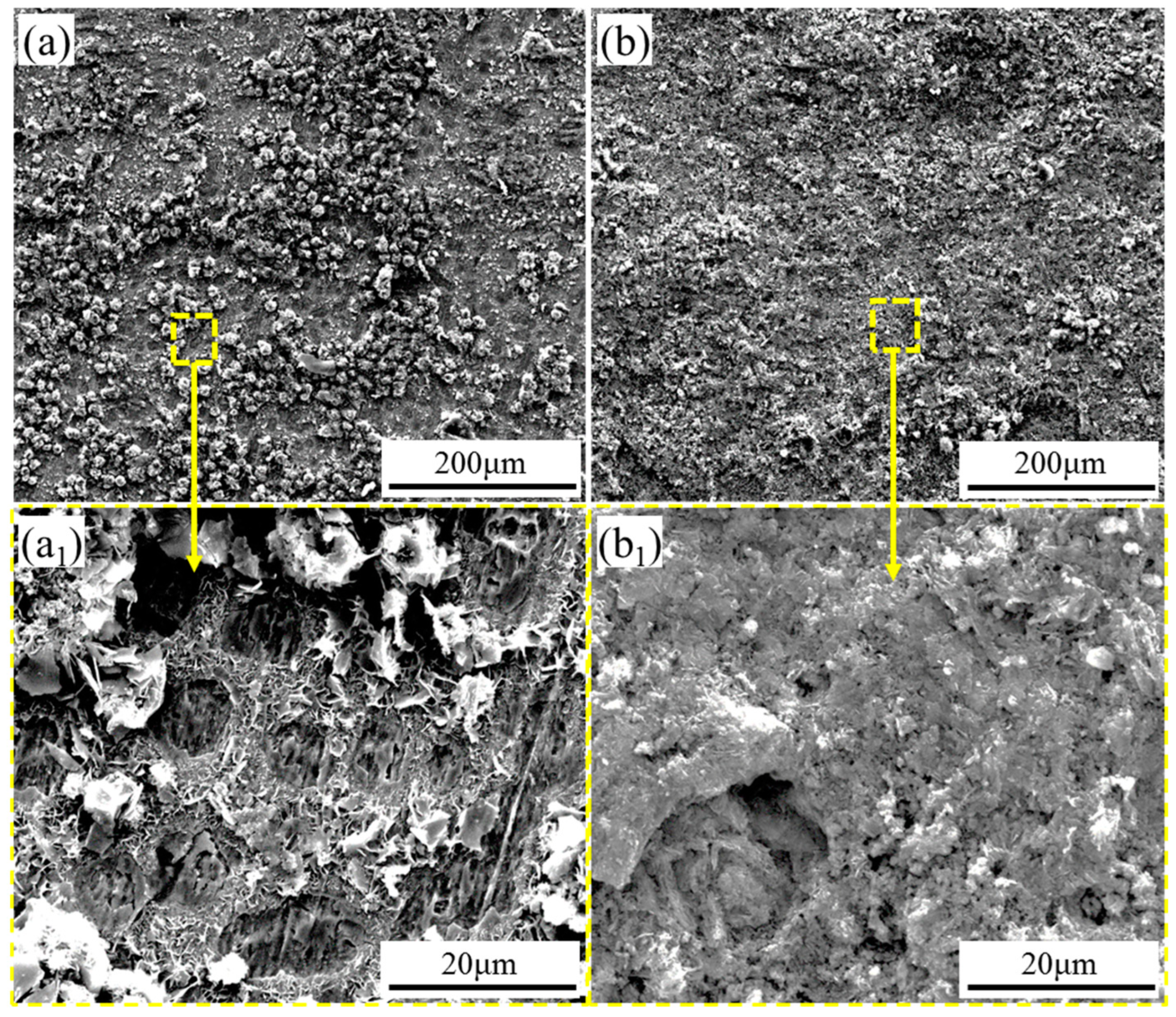

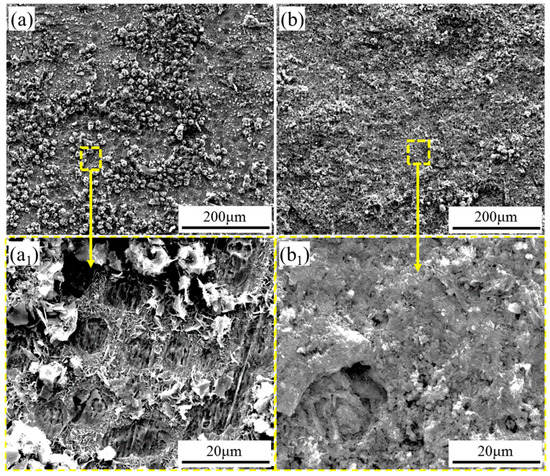

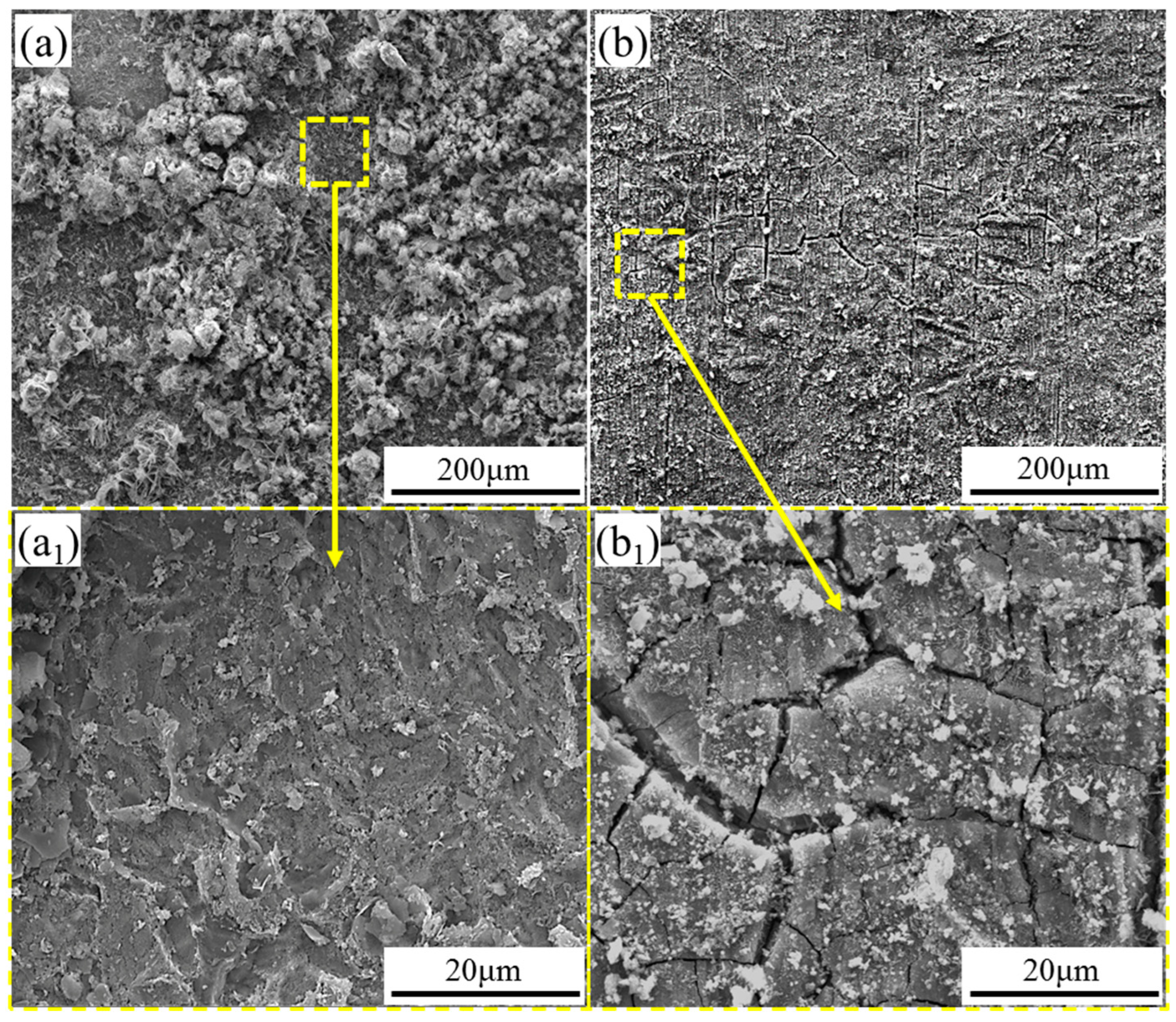

The surface rust layer morphology of the experimental steels after 30 days of immersion was observed, as shown in Figure 5. It can be seen that after 30 days of immersion, the size of the granular corrosion products on steel 1# increases, and the steel surface does not form a dense and continuous corrosion product layer. In contrast, no large-sized granular corrosion products are evident on the surface of Steel 2#. Closer examination reveals the presence of tiny granular corrosion products adhering to the surface, forming a relatively dense corrosion product layer. However, numerous cracks were observed in the corrosion product layer of Steel 2#, indicating that the addition of 1 wt.% Cr promotes the formation of a dense corrosion product layer, but the layer still exhibits cracks, providing a pathway for the penetration of corrosion ions. This result also explains the phenomenon of improved corrosion resistance with the addition of Cr but the continued increase in corrosion rate over an extended period.

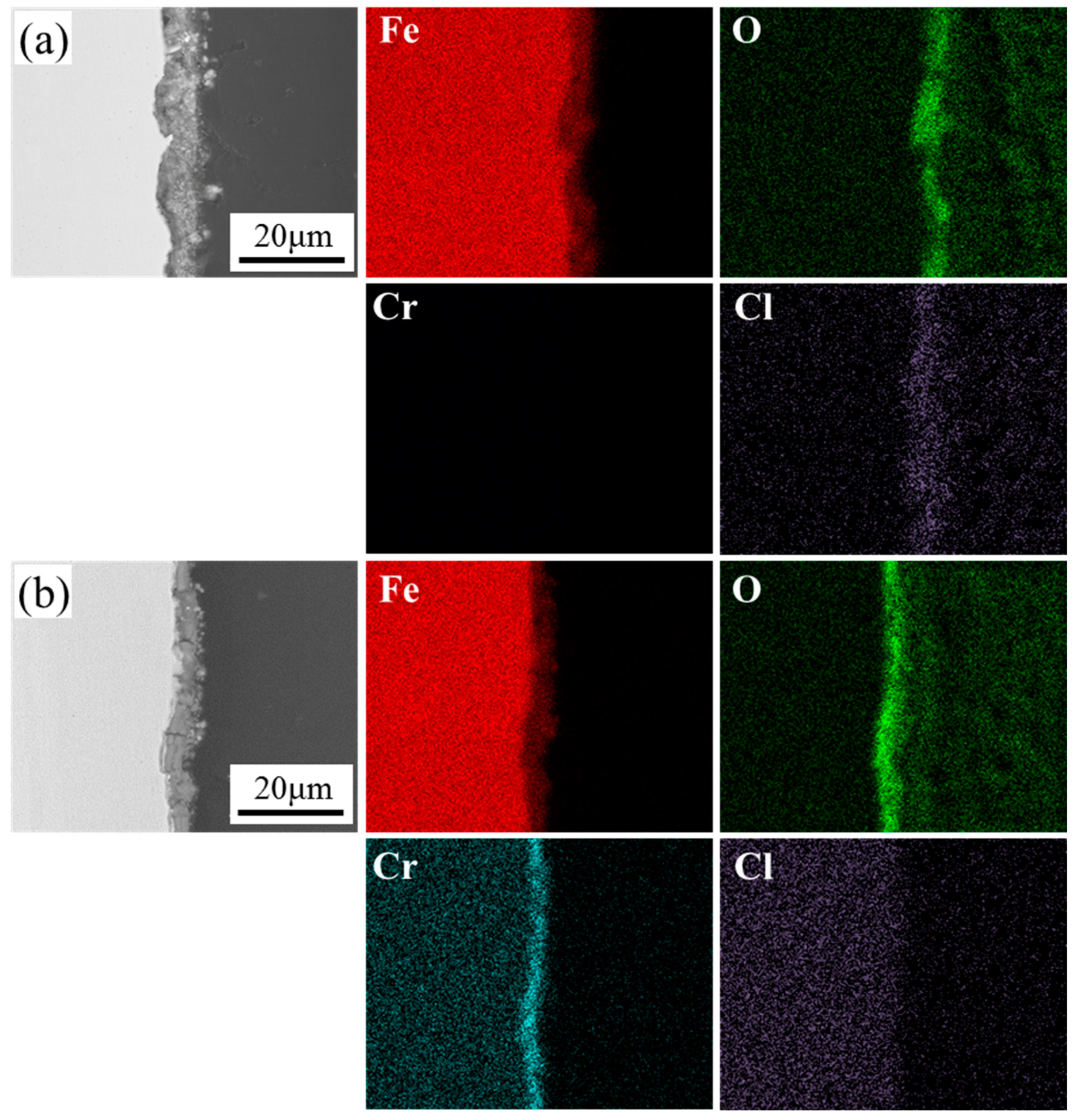

After the immersion experiment, the cross-sectional morphology and elemental distribution of the rust layers of the two experimental steels after 30 days of immersion were observed, as shown in Figure 6. It can be seen from the figure that the rust layer of Steel 1# is relatively loose and porous, while the rust layer of Steel 2# is denser. Notably, significant cracks were found in the rust layer of Steel 2#, which is consistent with the rust layer surface morphology results in Figure 5. From the elemental distribution results, it can be observed that the rust layer of Steel 1# exhibits enrichment of O and Cl, whereas with the addition of Cr, the rust layer of Steel 2# shows a significant enrichment of Cr elements without Cl enrichment, indicating that the addition of Cr can form a dense corrosion product layer, thereby hindering the penetration of corrosive Cl ions and reducing the corrosion rate of experimental steel in the marine environment.

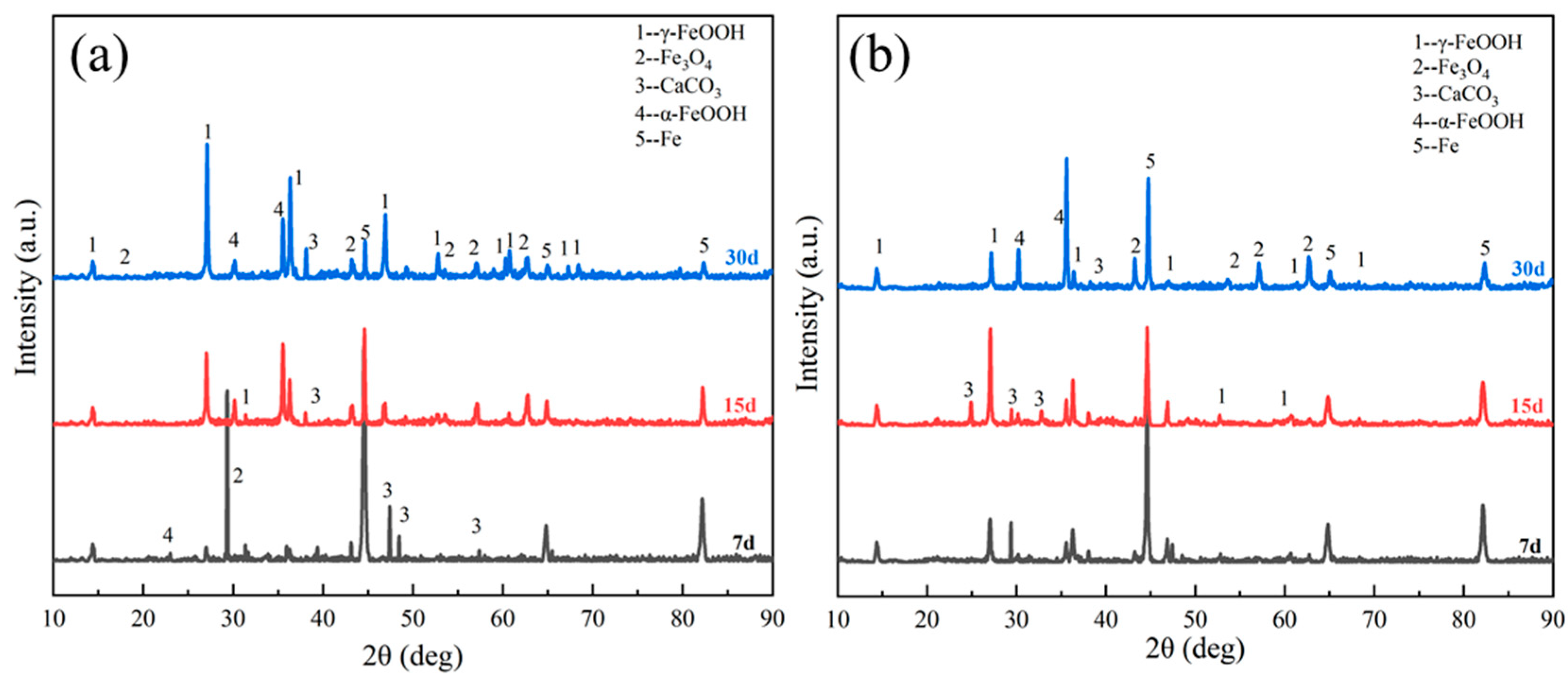

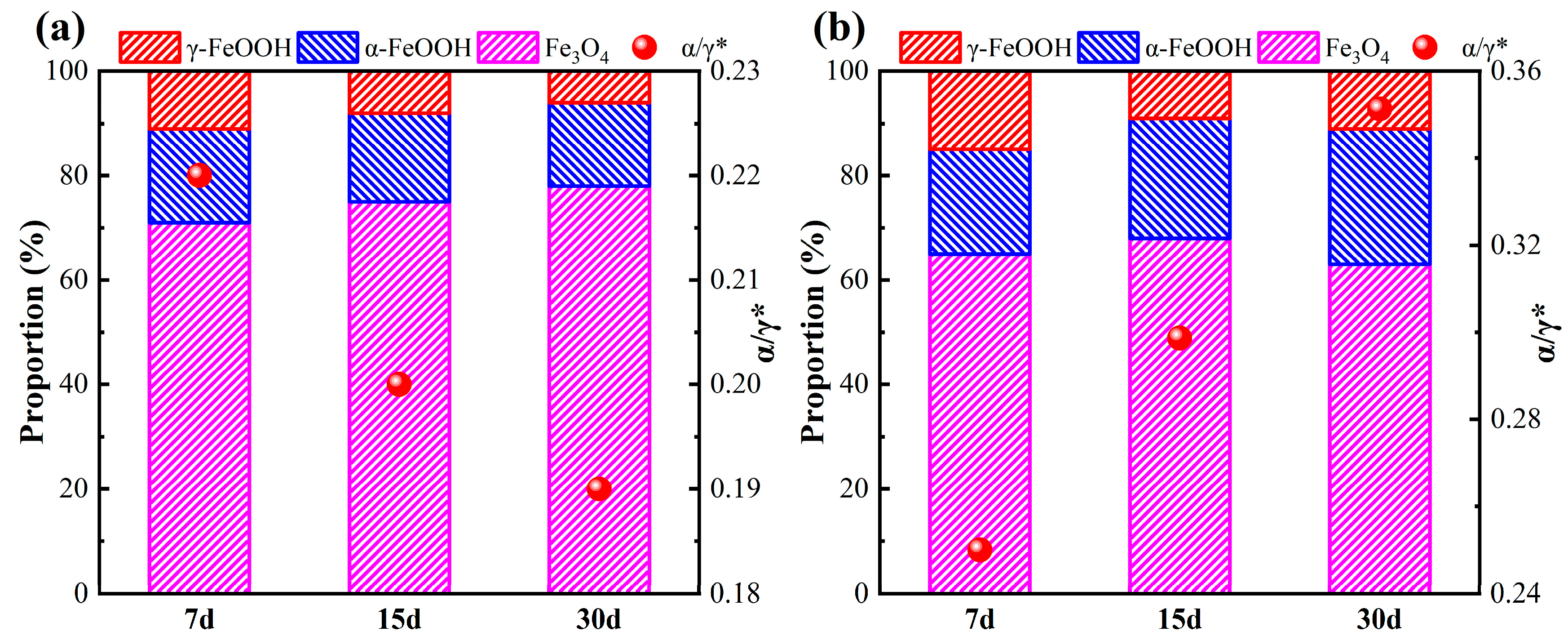

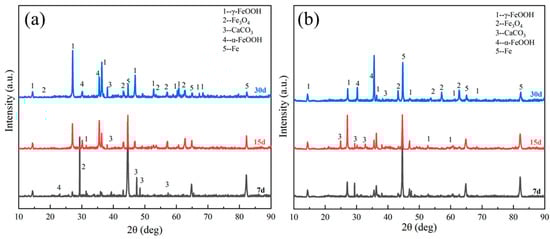

XRD was employed to analyze the phase composition of the rust layers of the two experimental steels after immersion for different periods, and the results are shown in Figure 7. It can be seen that the phase composition of the rust layers of the two experimental steels is essentially consistent, mainly consisting of Fe₃O₄, α-FeOOH, γ-FeOOH, CaCO₃, and Fe. The CaCO₃ peak is mainly due to the deposition of CaCO₃ from the experimental solution on the rust layer surface during the drying process, rather than being a component of the rust layer phase. As the immersion time increases, no significant changes occur in the phase types of the two experimental steels, but the peak intensity and width of each steel’s XRD differ, indicating that the addition of Cr can affect the proportion of each phase. The XRD results were semi-quantitatively analyzed using the relative intensity ratio method [28], and the results are shown in Figure 8. It can be seen that the main composition phase of the rust layers of the two experimental steels after corrosion in the marine environment for different periods is Fe₃O₄. The Fe₃O₄ content in Steel 1# increases with the corrosion time. With the addition of Cr, the α-FeOOH content of Steel 2# begins to increase, and the Fe₃O₄ content gradually decreases. γ-FeOOH is considered an initial rust layer product, exhibiting strong reactivity and relatively loose structure; its presence is unfavorable for rust layer structure stability. Compared to γ-FeOOH, Fe₃O₄ has higher stability and a relatively denser structure, but it possesses strong electrical conductivity and is easily reduced. α-FeOOH is a thermodynamically stable phase that can effectively enhance the rust layer’s stability. Therefore, the α/γ* is commonly used to evaluate the protective performance of the corrosion product layer in the marine environment, where α represents the content of α-FeOOH, and γ* represents the total content of Fe₃O₄ and γ-FeOOH. As seen in Figure 8, as the immersion time increases, the α/γ* of Steel 1# gradually decreases, while that of Steel 2# gradually increases, indicating that the addition of Cr significantly improves both the protective and stability properties of the rust layer.

3.3. Corrosion Morphology Analysis

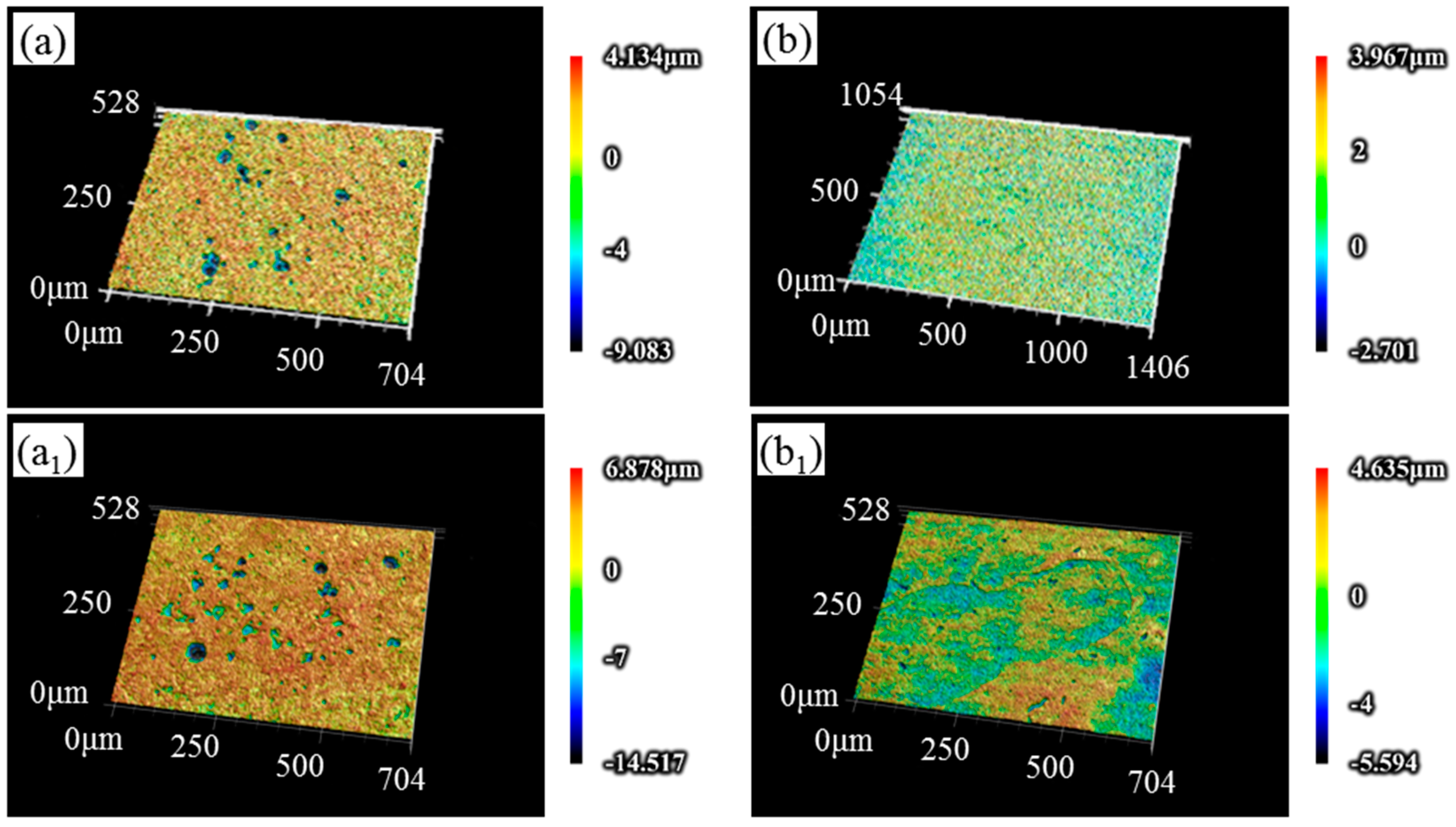

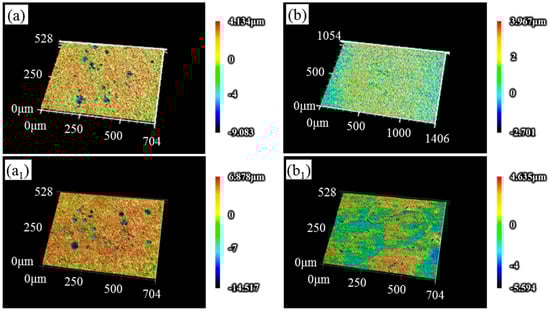

To further analyze the corrosion behavior of the two experimental steels in the marine environment, laser confocal technology was employed to characterize the 3D morphology of the two experimental steels after removing the corrosion product layer for different immersion periods, as shown in Figure 9. It can be seen from the figure that as the immersion time increases, the local corrosion of both experimental steels intensifies. After 7 days of immersion, Steel 1# exhibits significant pitting traces, while Steel 2# shows no obvious pitting. As the immersion time increases, the number and depth of the pits in Steel 1# increase, indicating that local corrosion beneath the rust layer of Steel 1# becomes more pronounced under long-term immersion. After 30 days of immersion, Steel 2# also shows a small number of pits and local corrosion traces, indicating that although the addition of Cr promotes densification of the rust layer, it still leads to localized corrosion traces due to acidification beneath the rust layer. This is consistent with the previously discussed rust layer cross-sectional morphology results.

3.4. Electrochemical Analysis

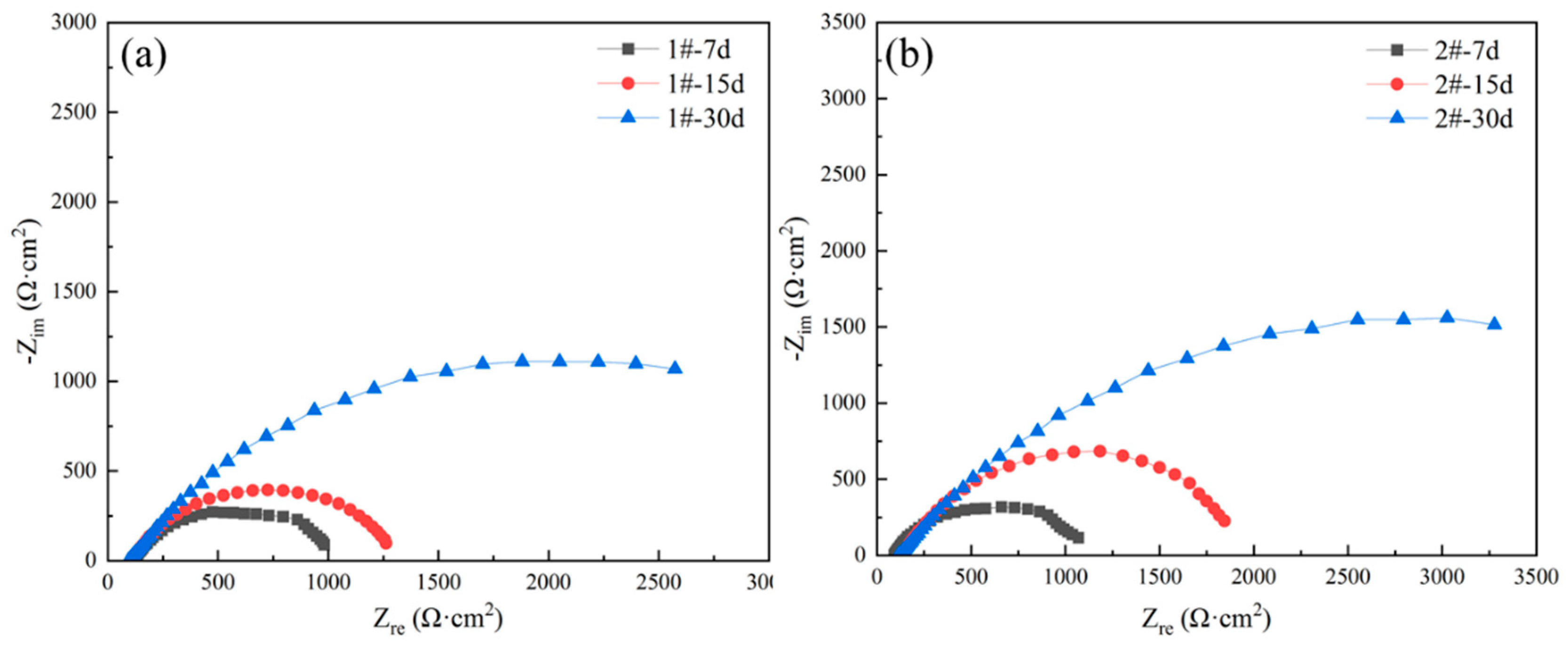

Research has shown that electrochemical impedance spectroscopy (EIS) is an effective approach to evaluate the protective properties of low-alloy steel rust layers. Therefore, the electrochemical impedance of the two experimental steels in the marine environment after different immersion periods was measured, and the results are shown in Figure 10. It can be seen that the curve shapes of both experimental steels after different immersion times are similar, indicating that the addition of Cr does not change the electrochemical mechanism of low-alloy steel. As the immersion time increases, the capacitance arc radius of both experimental steels after 7 days of immersion is relatively small. As the immersion time extends to 15 days, the capacitance arc radius increases, and when immersed for 30 days, the capacitance arc radius increases significantly, suggesting that a protective rust layer forms on the steel surface as corrosion progresses, and the capacitance arc radius can be used to compare the protective properties of rust layers. The EIS results were simulated using the equivalent circuit diagram shown in Figure 11 to quantitatively evaluate the protective properties of the rust layer, with fitting results presented in

Table 3. Impedance spectrum fitting results of two low-alloy steels.

	Rs (Ω·cm2)	Qf × 10−4 (Ω cm−2sn1)	n1	Rp (Ω·cm2)	Qdl × 10−4 (Ω cm−2sn2)	n2	Rct (Ω·cm2)	χ2 × 10−4
1#—7 d	113.7	8.64	0.74	205.8	3.61	0.69	715	3.48
1#—15 d	106.5	6.58	0.72	262	5.14	0.72	980	1.42
1#—30 d	95.22	9.12	0.64	615	6.23	1	1978	2.26
2#—7 d	92.88	1.25	0.74	221.2	4.71	0.75	825.1	4.20
2#—15 d	130.4	4.56	0.76	261.8	2.37	0.77	1341	3.08
2#—30 d	128.6	3.46	0.87	720.7	8.01	0.64	2881	1.28

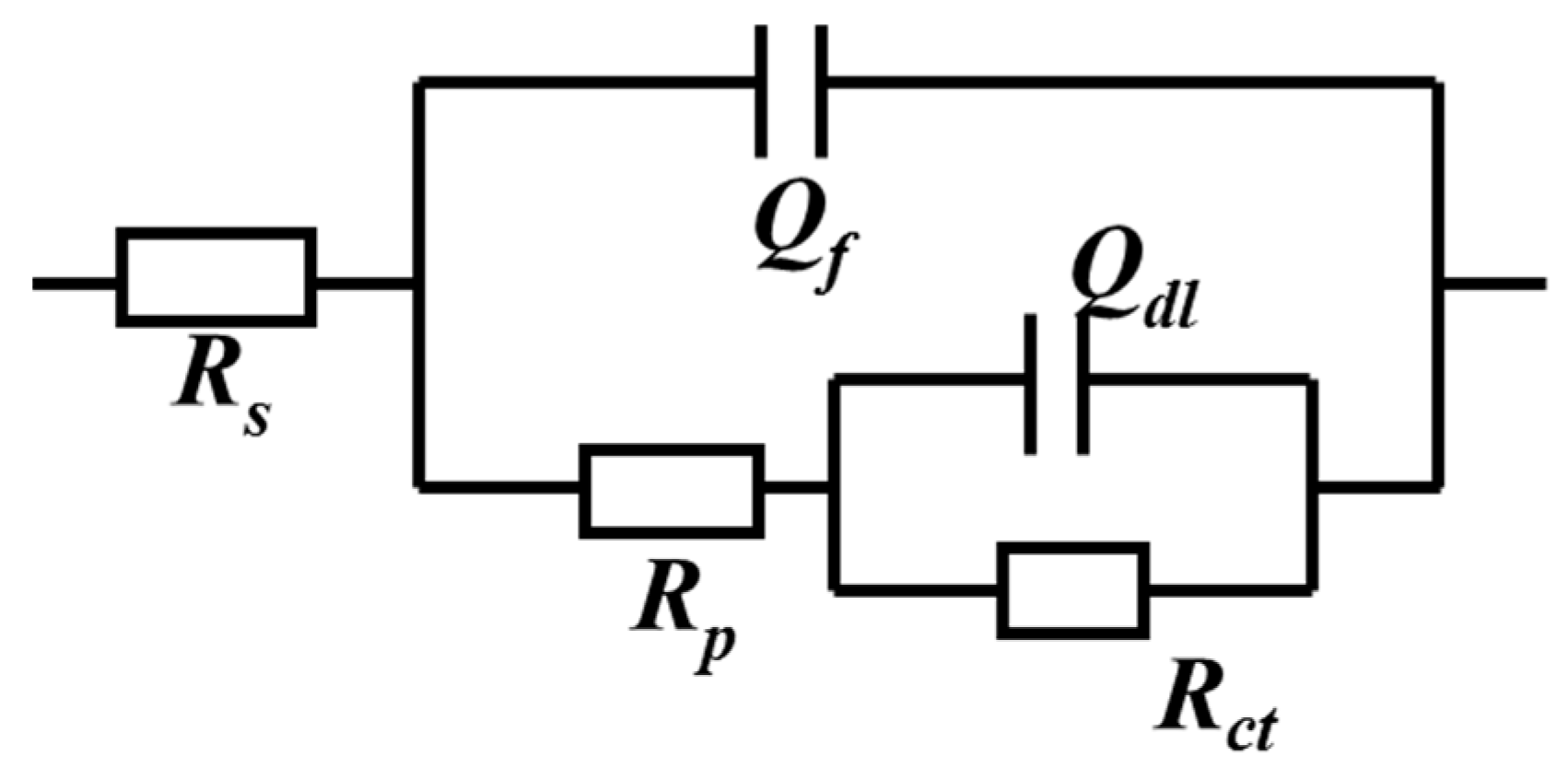

. R_s represents the solution resistance, Q_f and R_p are the constant phase angle elements and pore resistance of the rust layer, and Q_dl and R_ct represent the constant phase angle element and charge transfer resistance of the double layer at the matrix interface, respectively.

From the Table 3, it can be observed that the R_p of both steel samples increases with the immersion time, indicating that the rust layers of both steels gradually densify over time, providing some protection to the steel substrate. The addition of 1 wt.% Cr results in a higher increase in R_p, indicating that the improvement effect on the corrosion product layer is more pronounced after the addition of Cr. As Cr is added, R_ct gradually increases, suggesting that the rust layer formed by Steel 2# offers better protection, effectively hindering the migration of corrosive ions to the interface between the rust layer and steel substrate, resulting in a hindered interface charge transfer process. In addition, it can be seen from Table 3 that the χ² value of the two fittings are both in the order of 10⁻⁴, meaning that the circuit has a better fitting quality.

4. Discussion

Research [29,30] has shown that low-alloy steel undergoes dissolution as the anode in electrochemical reactions, during which Cr dissolves to form Cr(OH)₃, which then gradually dehydrates during the drying process to form Cr₂O₃. The related reactions are as follows:

$$4\mathrm{Cr}+3{\mathrm{O}}_2+6{\mathrm{H}}_2\mathrm{O}\to 4\mathrm{Cr}{\left(\mathrm{OH}\right)}_3$$

(3)

$$\mathrm{Cr}{\left(\mathrm{OH}\right)}_3\to \mathrm{CrOOH}+{\mathrm{H}}_2\mathrm{O}$$

(4)

$$2\mathrm{CrOOH}\to {\mathrm{Cr}}_2{\mathrm{O}}_3+{\mathrm{H}}_2\mathrm{O}$$

(5)

Studies by Sun et al. [31,32] indicate that the dissolved Cr³⁺ in the rust layer can replace some of the Fe³⁺ positions in α-FeOOH, thereby forming Cr-doped α-(Fe, Cr)OOH. Some Cr can also occupy the Fe³⁺ positions in Fe₃O₄ to form FeCr₂O₄. Due to the higher stability of Cr³⁺ compared to Fe³⁺, the structure and thermodynamic stability of Cr-doped FeCr₂O₄ and α-(Fe, Cr)OOH are enhanced, reducing the risk of being reduced to γ-FeOOH and improving the stability of the rust layer. Combining the XRD analysis results, it is known that the addition of 1 wt.% Cr promotes the conversion of γ-FeOOH to α-FeOOH and Fe₃O₄, enhancing the stability of the rust layer and inhibiting the infiltration of corrosive ions. At the same time, the addition of Cr also promotes the formation of oxidation products such as Cr₂O₃, CrO₃, and Cr(OH)₃, which, except for CrO₃, all exhibit excellent stability and corrosion resistance. From the cross-sectional morphology of the rust layer, it is evident that there is a significant enrichment of Cr in the corrosion product layer after Cr addition, indicating that the content of Cr-containing products in the rust layer significantly increases with Cr addition, which in turn implies an increase in the rust layer’s protective and stability properties.

Therefore, the main effect of Cr addition on the improvement of corrosion resistance of low-alloy steel in the marine environment is reflected in the optimization of the corrosion product layer. On one hand, with the addition of Cr, the corrosion product layer becomes denser, with fewer defects in the rust layer compared to Steel 1# and fewer channels for the corrosive medium. On the other hand, the enrichment of Cr in the corrosion product layer endows the rust layer with cation-selective permeability, making it difficult for corrosive ions to penetrate the steel substrate.

5. Conclusions

In this study, two low-alloy structural Fe-1 wt.% Ni-0.3 wt.% Cu-Cr steels with 0 wt.% Cr and 1 wt.% Cr content were prepared using vacuum melting technology. The effects of Cr on the microstructure and corrosion behavior and mechanisms of low-alloy steel in the marine environment were analyzed through microstructure observation, immersion corrosion experiments, corrosion product analysis, and electrochemical testing. The main conclusions are as follows:

(1)

The addition of Cr can change the microstructure, promoting the transformation from granular bainite to lath bainite;

(2)

The addition of Cr can effectively reduce the corrosion rate of low-alloy structural steel in the marine environment;

(3)

The addition of Cr can promote the formation of stable α-FeOOH in the rust layer, improve the loose and porous structure of the corrosion product layer, promote the densification of the rust layer, and effectively hinder the infiltration of corrosive ions;

(4)

The improvement effect of 1 wt.% Cr on the rust layer is limited, as the corrosion product layer still has obvious cracks. Further research is needed to better optimize the corrosion product layer structure and inhibit the corrosion of low-alloy steel in the marine environment.
