1. Introduction
Toroidal shells have several advantages over traditional spherical and cylindrical shells [
1], including favorable steerability, passability, and stability [
2,
3]. The reason for good passability is that two paths can be chosen to reach a location in toroidal shells. Toroidal shells are widely applied in ocean, nuclear, and civil industries. In ocean engineering, toroidal shells are considered to be a promising pressure structure for deep sea space stations [
2,
3]. However, toroidal shells have a low buckling load and are difficult to fabricate.
Buckling, which has been extensively studied, is the main type of failure affecting toroidal shells subjected to external pressure. Błachut [
4] performed experiments to determine the collapse load and collapsed shape of toroidal shells. The experimental results compared well with their numerical results. Furthermore, studies have investigated the effect of the elliptical section of toroidal shells on their buckling by using the finite element method [
5,
6]. Zingoni proposed an approximate bending solution to solve the axisymmetric bending of elliptic toroidal shells [
7]. He obtained the eigenvalues of part of the toroidal vessel by using the Galerkin’s scheme to calculate stability equations [
8]. Studies proposed analytical algorithms for examining the strength of ribbed toroid shells and performed a nonlinear analysis to analyze the buckling of such shells [
1,
9,
10]. Civalek used the discrete singular convolution method to analyze the buckling of CNT-reinforced laminated non-rectangular plates [
11]. Moradi-Dastjerdi analyzed the thermal and mechanical buckling of an active multidisciplinary sandwich plate by developing a mesh-free solution based on third order shear deformation theory [
12].
Zhang et al. [
13] designed and manufactured segmented toroidal shells composed of cylindrical shells. Furthermore, they investigated the effect of the number of segments on buckling load and imperfection sensitivity. However, it was recognized that, unlike cylindrical shells, spherical shells were more suitable for using as junction elements because the highly symmetrical structure of a spherical shell facilitated hole opening. In addition, surface stress was evenly distributed on spherical shells [
14,
15,
16]. The surface of a spherical shell experienced less stress compared with other structures under the same external pressure in [
17].
The combination design idea mentioned above by Zhang et al. [
13] has also been used in replacing cylindrical shells with multiple intersecting spherical shells. Liang et al. [
18] combined the interior penalty function and the Davidon–Fletcher–Powell method to optimize the design of multiple intersecting spheres. Subsequently, Zhang and Gou examined the effect of material and geometric parameters on the buckling of multiple intersecting spherical shells [
19,
20]. Liu et al. proposed an approximate analytical model for buckling analysis of common spherical–cylindrical–spherical composite structures by using the generalized Galerkin method [
21]. Sobhani et al. investigated the vibration of porous nano-enriched polymer composite coupled spheroidal–cylindrical shells, the wave frequency responses of the nanocomposite linked hemispherical–conical shell, the Circumferential vibration analysis of nano-porous sandwich assembled spherical–cylindrical-conical shells, and the Free vibration of porous graphene oxide powder nano-composite assembled paraboloid–cylindrical shells [
22,
23,
24,
25]. Rezaiee and Masoodi analyzed the buckling of plates and shell structures by an efficient triangular shell element which had six nodes with thirty degrees of freedom [
26]. Zingoni presented a linear–elastic theoretical formulation for determination of the state of stress in large liquid-filled multi-segmented spherical shells [
27]. However, toroidal shells composed of spherical shells, termed sphere-segmented toroidal shells, have rarely been described in literature. The effects of imperfection, ellipticity, and completeness on the buckling characteristics of such structures remain unknown.
This study investigated the buckling characteristics of sphere-segmented toroidal shells under external pressure. The sphere-segmented toroidal shell could overcome the low buckling load and difficult manufacturing of the traditional toroidal shell. The advantages of the proposed experimental methodology were as follows: a pressure pump was used to increase the pressure of the chamber in hydrostatic testing, simulating the pressure under different depths and the reliability of the result could be guaranteed. On the other hand, optical scanning obtained the numerical model with initial geometrical imperfection. The accuracy of the buckling loads of the experimental model could be improved in numerical analysis. The remainder of this paper is organized as follows.
Section 2 introduces the geometric properties of toroidal shells, their fabrication, and related experiments.
Section 3 presents a comparison and analysis of the experimental results and the results of a finite-element analysis. In addition, the effects of ellipticity and completeness on buckling are discussed. Conclusions are presented in
Section 4. This study provides valuable references for the design, manufacture, and analysis of atypical toroidal shells.
Author Contributions
Conceptualization, J.Z.; methodology, C.D. and J.Z.; software, J.Z. and Y.Z.; validation, F.W.; formal analysis, C.D. and J.Z.; investigation, C.D. and J.Z.; data curation, C.D. and F.W.; writing—original draft preparation, C.D.; writing—review and editing, J.Z. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by the National Natural Science Foundation of China (Grant Nos. 52071160 and 52222111).
Data Availability Statement
The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Du, Q.; Cui, W.; Zhang, B. Buckling characteristics of a circular toroidal shell with stiffened ribs. Ocean Eng. 2015, 108, 325–335. [Google Scholar] [CrossRef]
- Ross, C. A conceptual design of an underwater missile launcher. Ocean Eng. 2005, 32, 85–99. [Google Scholar] [CrossRef]
- Ross, C. A conceptual design of an underwater vehicle. Ocean Eng. 2006, 33, 2087–2104. [Google Scholar] [CrossRef]
- Błachut, J. Collapse tests on externally pressurized toroids. J. Press. Vessel. Technol. Trans. ASME 2003, 125, 91–96. [Google Scholar] [CrossRef]
- Błachut, J. Buckling and first ply failure of composite toroidal pressure hull. Comput. Struct. 2004, 82, 1981–1992. [Google Scholar] [CrossRef]
- Błachut, J.; Jaiswal, O. Instabilities in torispheres and toroids under suddenly applied external pressure. Int. J. Impact Eng. 1999, 22, 511–530. [Google Scholar] [CrossRef]
- Zingoni, A.; Enoma, N.; Govender, N. Equatorial bending of an elliptic toroidal shell. Thin-Walled Struct. 2015, 96, 286–294. [Google Scholar] [CrossRef]
- Enoma, N.; Zingoni, A. Analytical formulation and numerical modelling for multi-shell toroidal pressure vessels. Comput. Struct. 2020, 232, 105811. [Google Scholar] [CrossRef]
- Du, Q.; Cui, W.; Wan, Z. Nonlinear Finite Element Analysis of a Toroidal Shell with Ring-Stiffened Ribs. OMAE 2010, 21088, 759–765. [Google Scholar] [CrossRef]
- Du, Q.; Zou, G.; Zhang, B.; Wan, Z. Simplified theoretical solution of circular toroidal shell with ribs under uniform external pressure. Thin-Walled Struct. 2015, 96, 49–55. [Google Scholar] [CrossRef]
- Moradi-Dastjerdi, R.; Behdinan, K.; Safaei, B.; Qin, Z. Buckling behavior of porous CNT-reinforced plates integrated between active piezoelectric layers. Eng. Struct. 2020, 222, 111141. [Google Scholar] [CrossRef]
- Civalek, Ö.; Avcar, M. Free vibration and buckling analyses of CNT reinforced laminated non-rectangular plates by discrete singular convolution method. Eng. Comput. 2020, 38, 489–521. [Google Scholar] [CrossRef]
- Zhang, J.; Di, C.; Wang, F.; Tang, W. Buckling of segmented toroids under external pressure. Ocean Eng. 2021, 239, 109921. [Google Scholar] [CrossRef]
- Zhang, R.; Zhang, W.; Yuan, S. Research on hydro-forming of spherical shells with different preform types. Int. J. Adv. Manuf. Technol. 2017, 92, 2631–2638. [Google Scholar] [CrossRef]
- Evkin, A.; Lykhachova, O. Design buckling pressure for thin spherical shells: Development and validation. Int. J. Solids Struct. 2019, 156–157, 61–72. [Google Scholar] [CrossRef]
- Cui, W. An Overview of Submersible Research and Development in China. J. Mar. Sci. Appl. 2018, 17, 459–470. [Google Scholar] [CrossRef]
- Yu, C.; Chen, Z.; Chen, C.; Chen, Y. Influence of initial imperfections on ultimate strength of spherical shells. Int. J. Nav. Arch. Ocean Eng. 2017, 9, 473–483. [Google Scholar] [CrossRef]
- Liang, C.; Shiah, S.W.; Jen, C.; Chen, H. Optimum design of multiple intersecting spheres deep-submerged pressure hull. Ocean Eng. 2004, 31, 177–199. [Google Scholar] [CrossRef]
- Gou, P.; Cui, W. Study of structural optimization problem for multiple intersecting spherical pressure hulls. Chuan Bo Li Xue/J. Sh. Mech. 2009, 13, 269–277. [Google Scholar]
- Zhang, M.; Tang, W.; Wang, F.; Zhang, J.; Cui, W.; Chen, Y. Buckling of bi-segment spherical shells under hydrostatic external pressure. Thin-Walled Struct. 2017, 120, 1–8. [Google Scholar] [CrossRef]
- Liu, J.; Yu, B.; Zhou, Y.; Zhang, Y.; Duan, M. The buckling of spherical-cylindrical composite shells by external pressure. Compos. Struct. 2021, 265, 113773. [Google Scholar] [CrossRef]
- Sobhani, E.; Masoodi, A. A comprehensive shell approach for vibration of porous nano-enriched polymer composite coupled spheroidal-cylindrical shells. Compos. Struct. 2022, 289, 115464. [Google Scholar] [CrossRef]
- Sobhani, E.; Masoodi, A.; Ahmadi-Pari, A. Wave frequency responses estimate of the nanocomposite linked hemispherical-conical shell underwater-like bodies with the impacts of two types of graphene-based nanofillers. Ocean Eng. 2022, 262, 112329. [Google Scholar] [CrossRef]
- Sobhani, E.; Masoodi, A.; Ahmadi-Pari, A. Circumferential vibration analysis of nano-porous-sandwich assembled spherical-cylindrical-conical shells under elastic boundary conditions. Eng. Struct. 2022, 273, 115094. [Google Scholar] [CrossRef]
- Sobhani, E.; Masoodi, A.; Dimitri, R.; Tornabene, F. Free vibration of porous graphene oxide powder nano-composites assembled paraboloidal-cylindrical shells. Compos. Struct. 2023, 304, 116431. [Google Scholar] [CrossRef]
- Rezaiee-Pajand, M.; Masoodi, A. Shell instability analysis by using mixed interpolation. J. Braz. Soc. Mech. Sci. Eng. 2019, 41, 419. [Google Scholar] [CrossRef]
- Zingoni, A.; Mokhothu, B.; Enoma, N. A theoretical formulation for the stress analysis of multi-segmented spherical shells for high-volume liquid containment. Eng. Struct. 2015, 87, 21–31. [Google Scholar] [CrossRef]
- Zhang, J.; Hu, H.; Wang, F.; Li, Y.; Tang, W. Buckling of externally pressurized torispheres with uniform and stepwise thickness. Thin-Walled Struct. 2022, 173, 109045. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, Y.; Wang, F.; Tang, W. Buckling of stainless steel spherical caps subjected to uniform external pressure. Ships Offshore Struct. 2018, 13, 779–785. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, Y.; Tang, W.; Zhu, Y.; Zhao, X. Buckling of externally pressurised spherical caps with wall-thickness reduction. Thin-Walled Struct. 2019, 136, 129–137. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, Y.; Wang, F.; Zhu, Y.; Cui, W.; Chen, Y. Experimental and numerical studies on the buckling of the hemispherical shells made of maraging steel subjected to extremely high external pressure. Int. J. Press. Vessel. Pip. 2019, 172, 56–64. [Google Scholar] [CrossRef]
- Zhang, J.; Lin, Z.; Wang, F.; Zhao, T.; Zhu, Y. Ultimate strength of externally pressurised steel spheres containing through-thickness defects. Int. J. Press. Vessel. Pip. 2022, 199, 104750. [Google Scholar] [CrossRef]
- Schalen, A. EN 1993-1.6: 2007.E; Eurocode 3—Design of Steel Structures—Part 1–6: Strength and Stability of Shell Structures. European Committee for Standardisation: Brussels, Belgium, 2004.
- CCS. Rules for Construction and Classification of Diving Systems and Submersibles; China Classification Society: Beijing, China, 2018. [Google Scholar]
- Ricks, E. An Incremental approach to the Solution of snapping and buckling problems. Int. J. Solids Struct. 1979, 15, 529–551. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, M.; Wang, W.; Tang, W. Buckling of egg-shaped shells subjected to external pressure. Thin-Walled Struct. 2017, 113, 122–128. [Google Scholar] [CrossRef]
- Zhang, J.; Tan, J.; Tang, W.; Zhao, X.; Zhu, Y. Experimental and numerical collapse properties of externally pressurized egg-shaped shells under local geometrical imperfections. Int. J. Press. Vessel. Pip. 2019, 175, 103893. [Google Scholar] [CrossRef]
- Zhang, J.; Hua, Z.; Wang, F.; Tang, W.; Zhu, Y. Buckling of an egg-shaped shell with varying wall thickness under uniform external pressure. Ships Offshore Struct. 2019, 14, 559–569. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, M.; Tang, W.; Wang, W.; Wang, M. Buckling of spherical shells subjected to external pressure: A comparison of experimental and theoretical data. Thin-Walled Struct. 2017, 111, 58–64. [Google Scholar] [CrossRef]
- Zhang, J.; Huang, C.; Wagner, H.; Cui, W.; Tang, W. Study on dented hemispheres under external hydrostatic pressure. Mar. Struct. 2020, 74, 102819. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, X.; Tang, W.; Wang, F.; Zhu, Y. Non-linear collapse behavior of externally pressurized resin toroidal and cylindrical shells: Numerical and experimental studies. Ships Offshore Struct. 2021, 16, 529–545. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, X.; Tang, W.; Wang, F.; Yin, B. Experimental and numerical buckling analysis of toroidal shell segments under uniform external pressure. Thin-Walled Struct. 2020, 150, 106689. [Google Scholar] [CrossRef]
- Reitinger, R.; Ramm, E. Buckling and imperfection sensitivity in the optimization of shell structures. Thin-Walled Struct. 1995, 23, 159–177. [Google Scholar] [CrossRef]
- Deml, M.; Wunderlich, W. Direct evaluation of the “worst” imperfection shape in shell buckling. Comput. Methods Appl. Mech. Eng. 1997, 149, 201–222. [Google Scholar] [CrossRef]
- Lindgaard, E.; Lund, E.; Rasmussen, K. Nonlinear buckling optimization of composite structures considering “worst” shape imperfections. Int. J. Solids Struct. 2010, 47, 3186–3202. [Google Scholar] [CrossRef] [Green Version]
- Dey, T.; Ramachandra, L. Computation of worst geometric imperfection profiles of composite cylindrical shell panels by minimizing the non-linear buckling load. Appl. Math Model. 2019, 74, 483–495. [Google Scholar] [CrossRef]
- Magisano, D.; Garcea, G. Increasing the buckling capacity with modal geometric “imperfections” designed by a reduced order model. Thin-Walled Struct. 2022, 178, 109529. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, S.; Cui, W.; Zhao, X.; Tang, W.; Wang, F. Buckling of circumferentially corrugated cylindrical shells under uniform external pressure. Ships Offshore Struct. 2019, 14, 879–889. [Google Scholar] [CrossRef]
- Lee, A.; Jiménez, F.; Marthelot, J.; Hutchinson, J.; Reis, P. The Geometric Role of Precisely Engineered Imperfections on the Critical Buckling Load of Spherical Elastic Shells. J. Appl. Mech. Trans. ASME 2016, 83, 111005. [Google Scholar] [CrossRef] [Green Version]
- Castro, S.; Zimmermann, R.; Arbelo, M.; Khakimova, R.; Hilburger, M.; Degenhardt, R. Geometric imperfections and lower-bound methods used to calculate knock-down factors for axially compressed composite cylindrical shells. Thin-Walled Struct. 2014, 74, 118–132. [Google Scholar] [CrossRef]
- Hutchinson, J. Buckling of spherical shells revisited. Proc. R. Soc. A Math. Phys. Eng. Sci. 2016, 472, 20160577. [Google Scholar] [CrossRef]

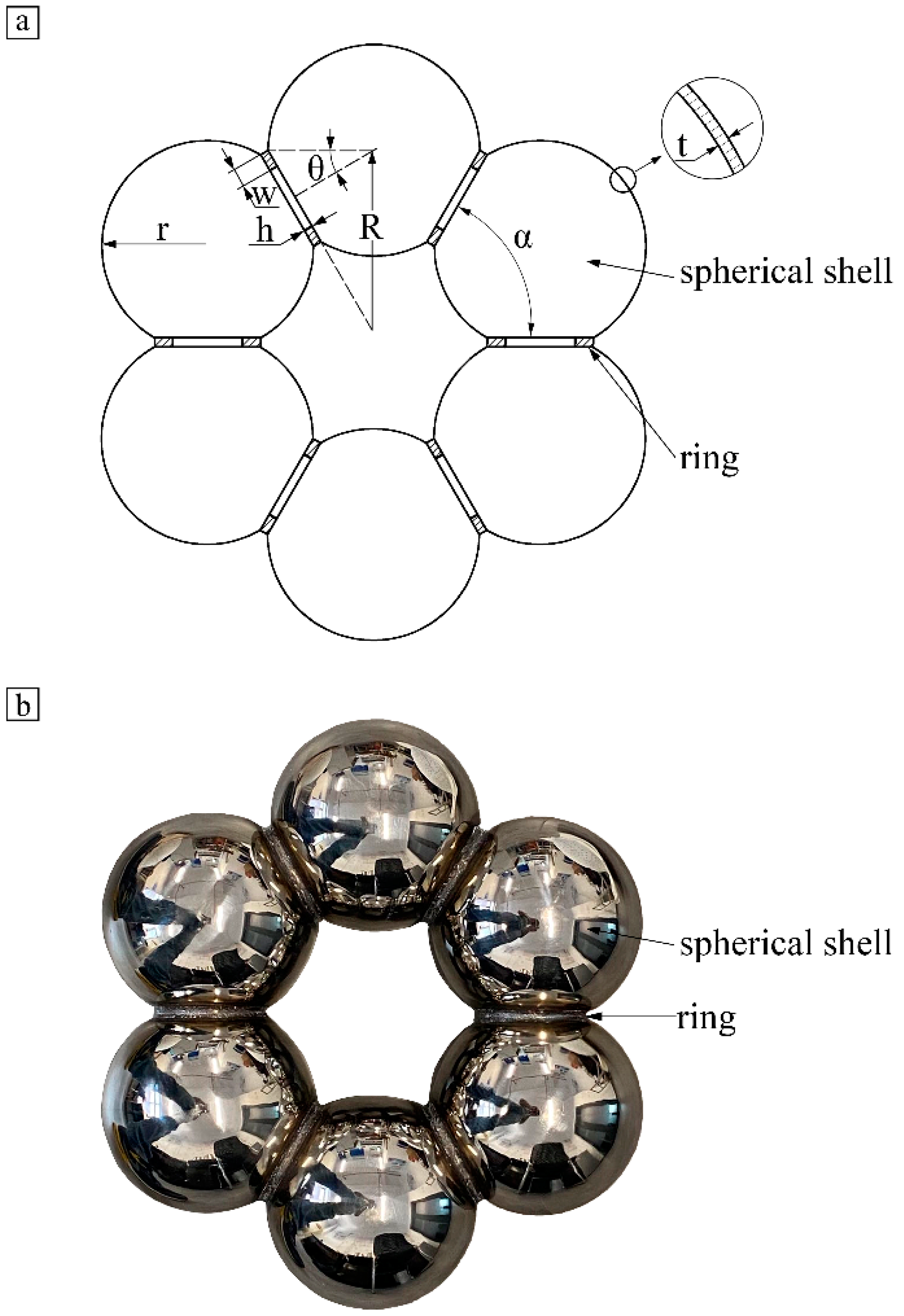

Figure 1.
Geometric notations (a) and photograph (b) of a sphere-segmented toroidal shell.
Figure 2.

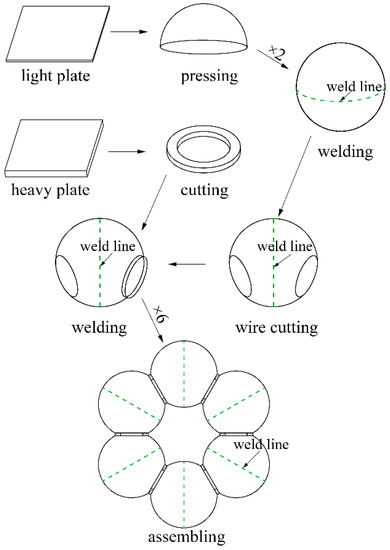

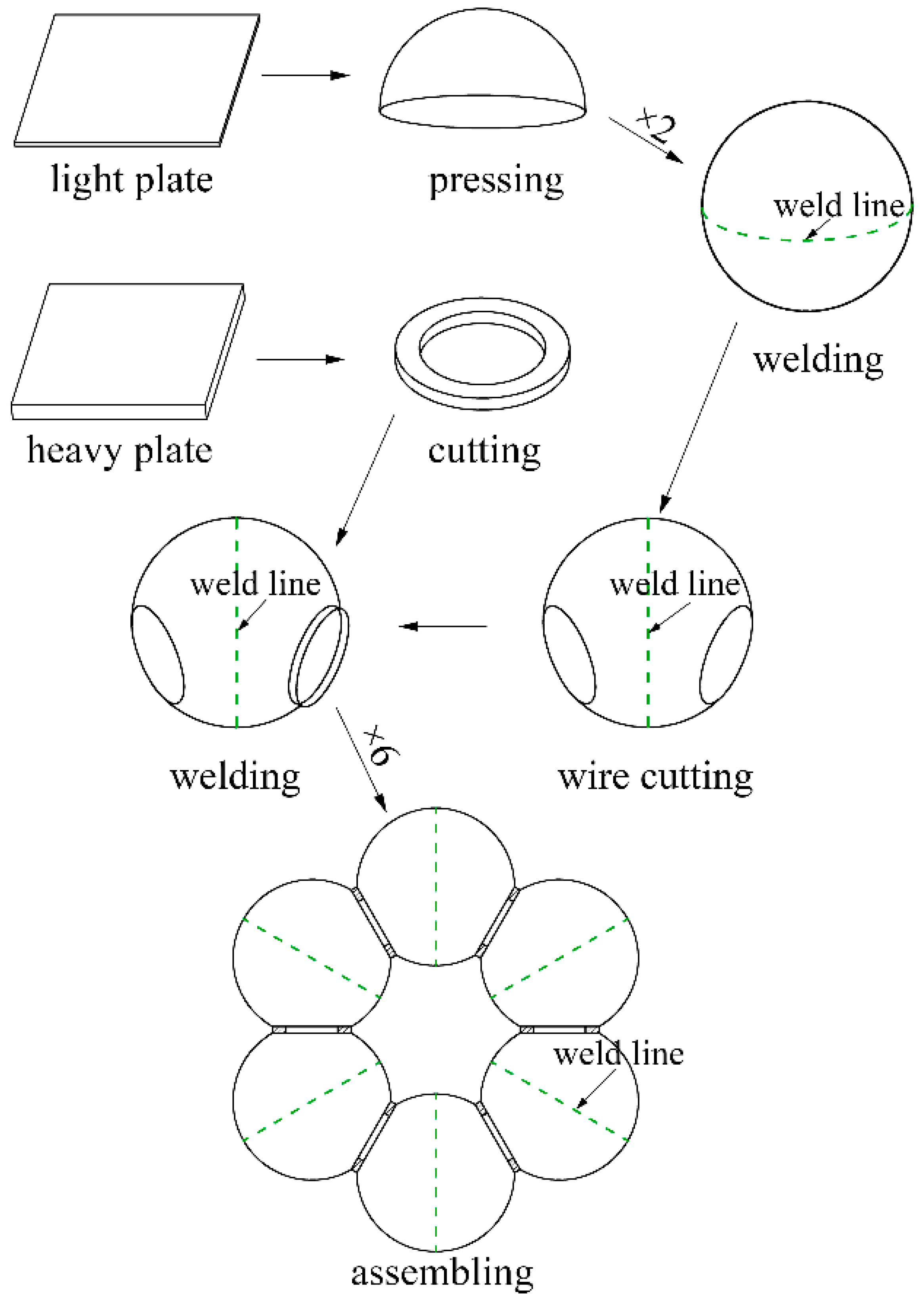

Schematic of the process for manufacturing sphere-segmented toroidal shells.
Figure 3.

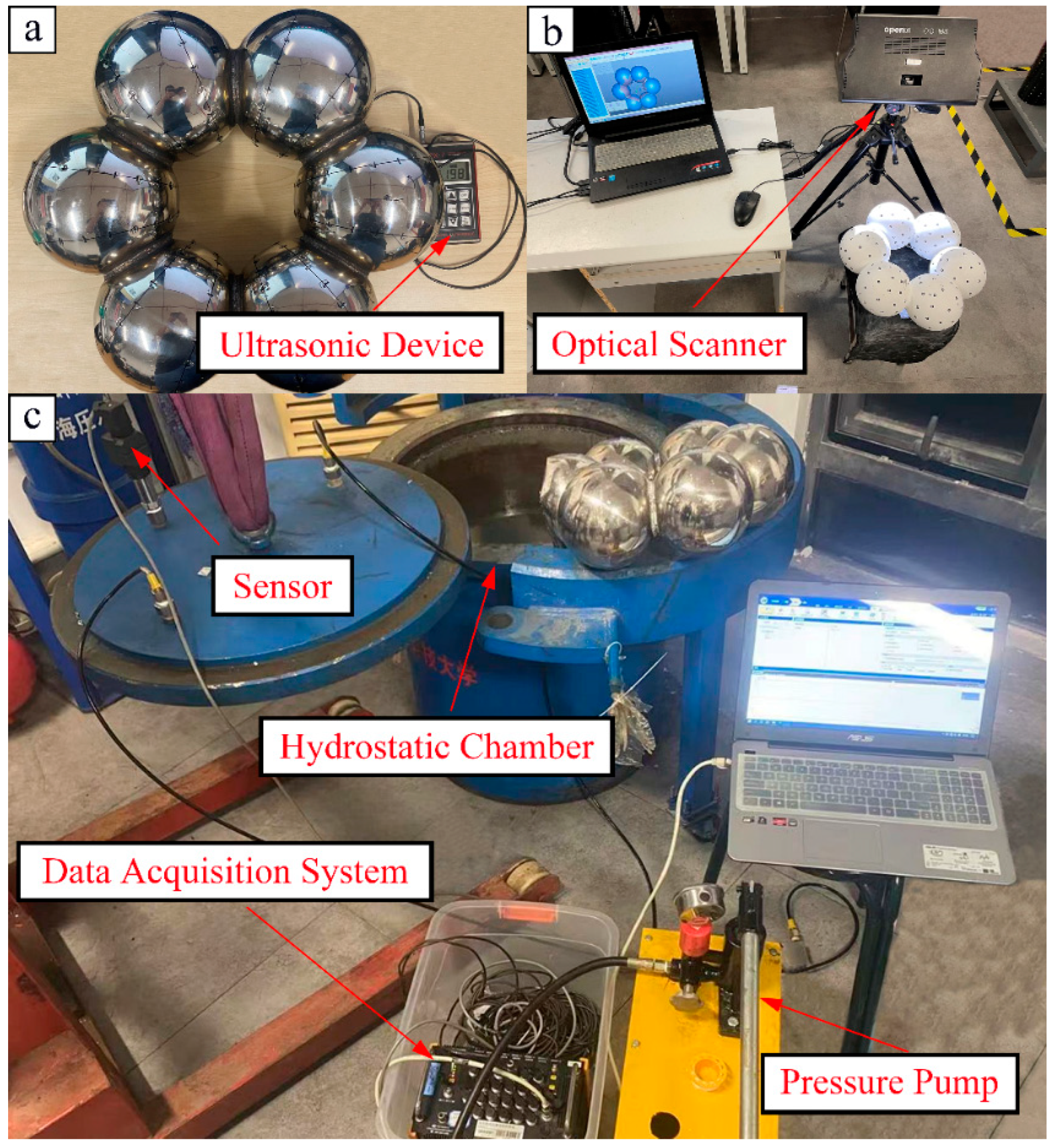

Photographs of ultrasonic measurement scene (a), optical scanning scene (b), and hydrostatic tests scene (c).

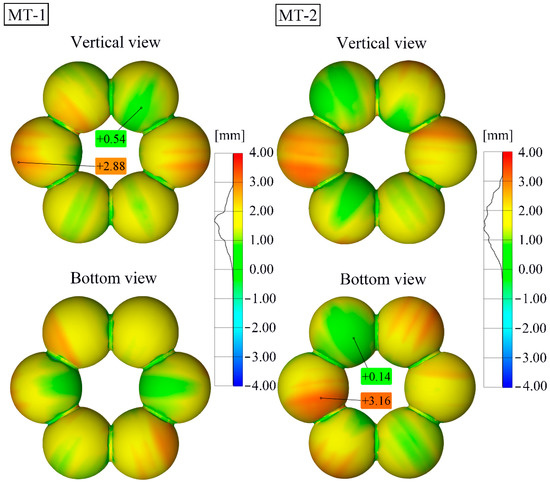

Figure 4.
Geometric deviation between the scanned models and perfect geometries of two laboratory models sphere-segmented toroidal shells (named ST-1 and ST-2, respectively).

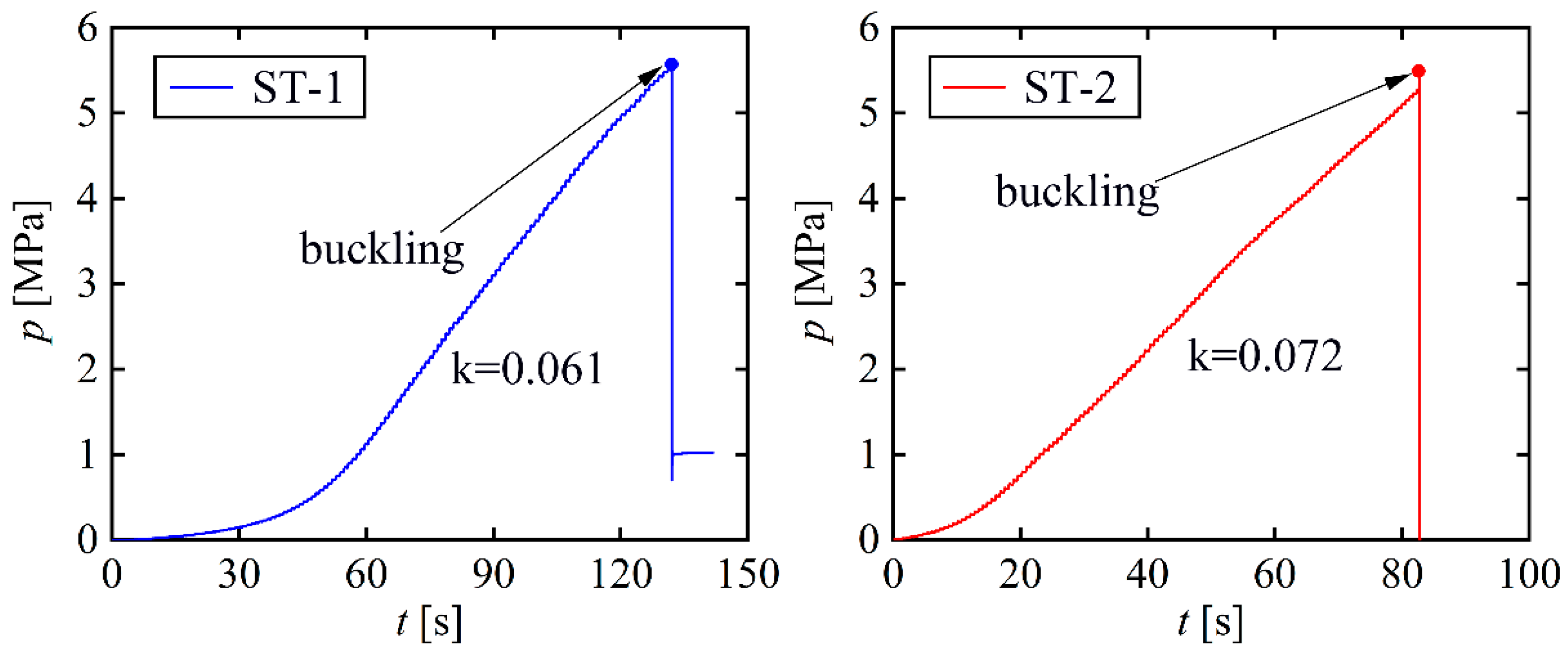

Figure 5.
Pressure versus time curves for ST-1 and ST-2 sphere-segmented toroidal shells under uniform external pressure.

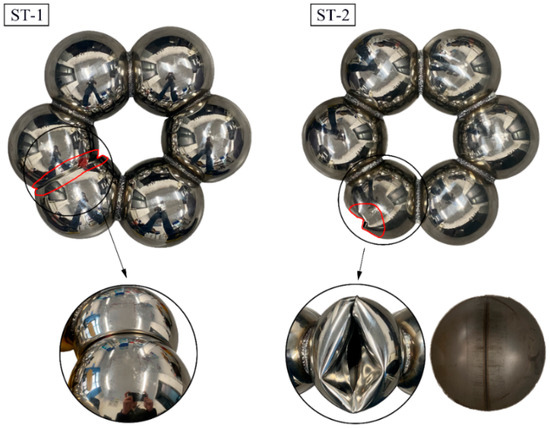

Figure 6.
Failed sphere-segmented toroidal shell and collapse locations.
Figure 7.

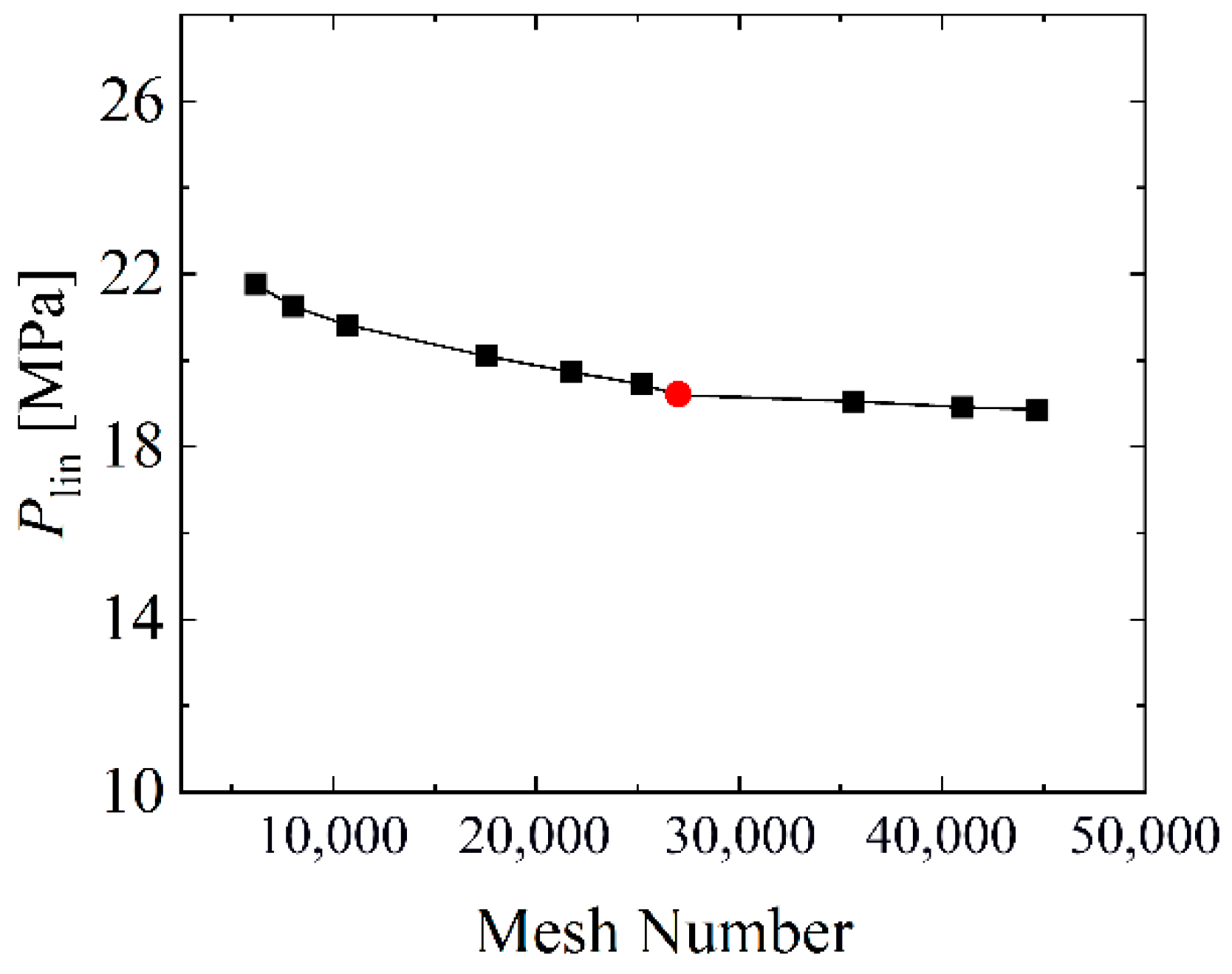

Convergence study of ST-1 sphere-segmented toroidal shell.

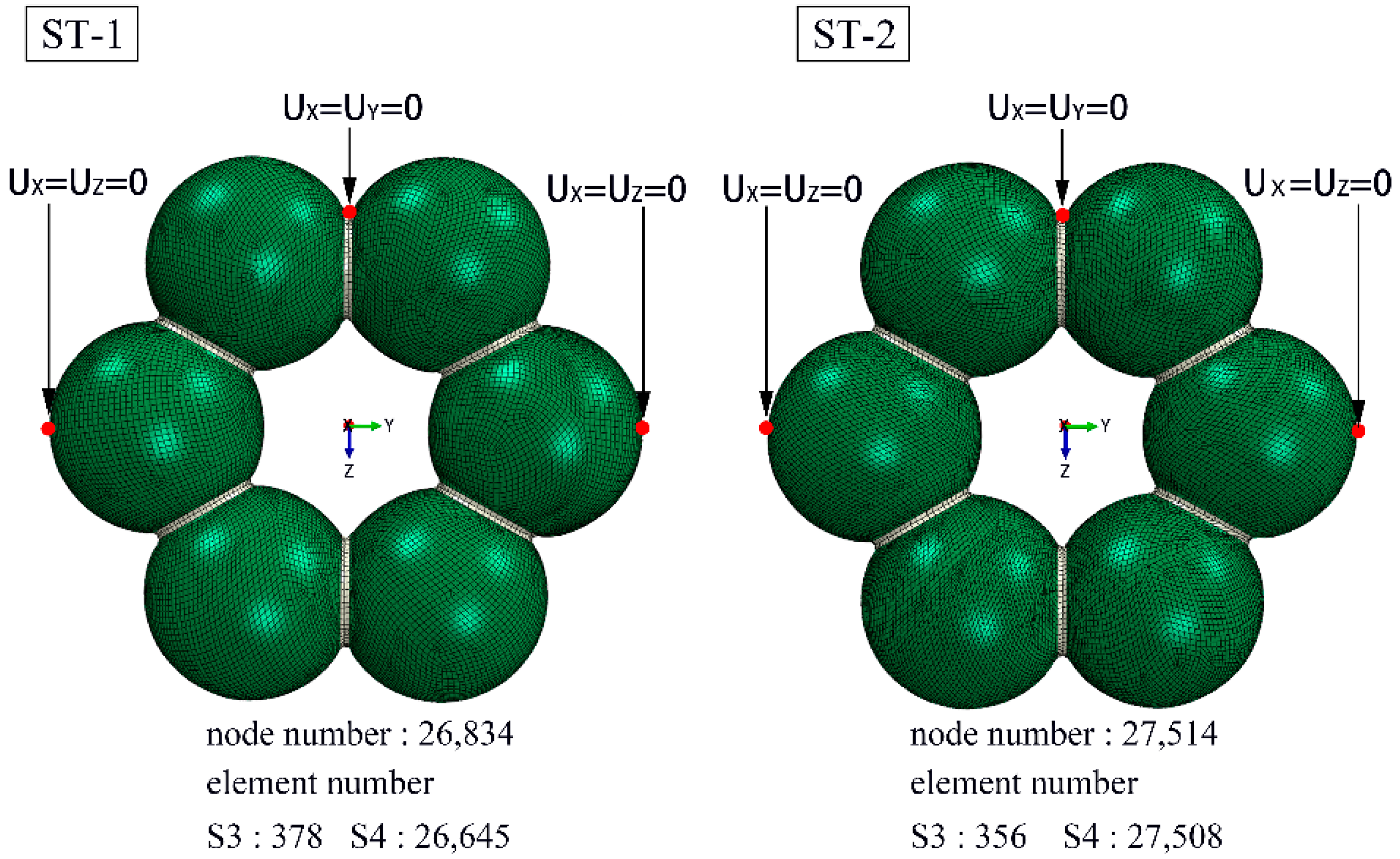

Figure 8.

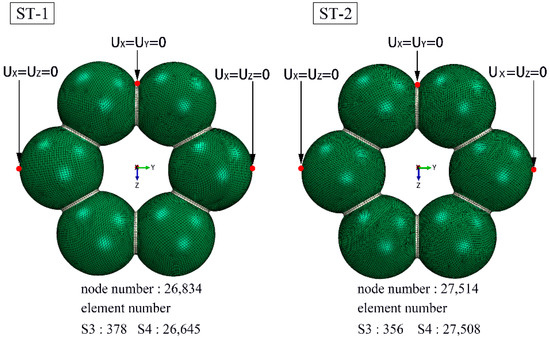

Finite-element models of sphere-segmented toroidal shells and relevant information.
Figure 9.

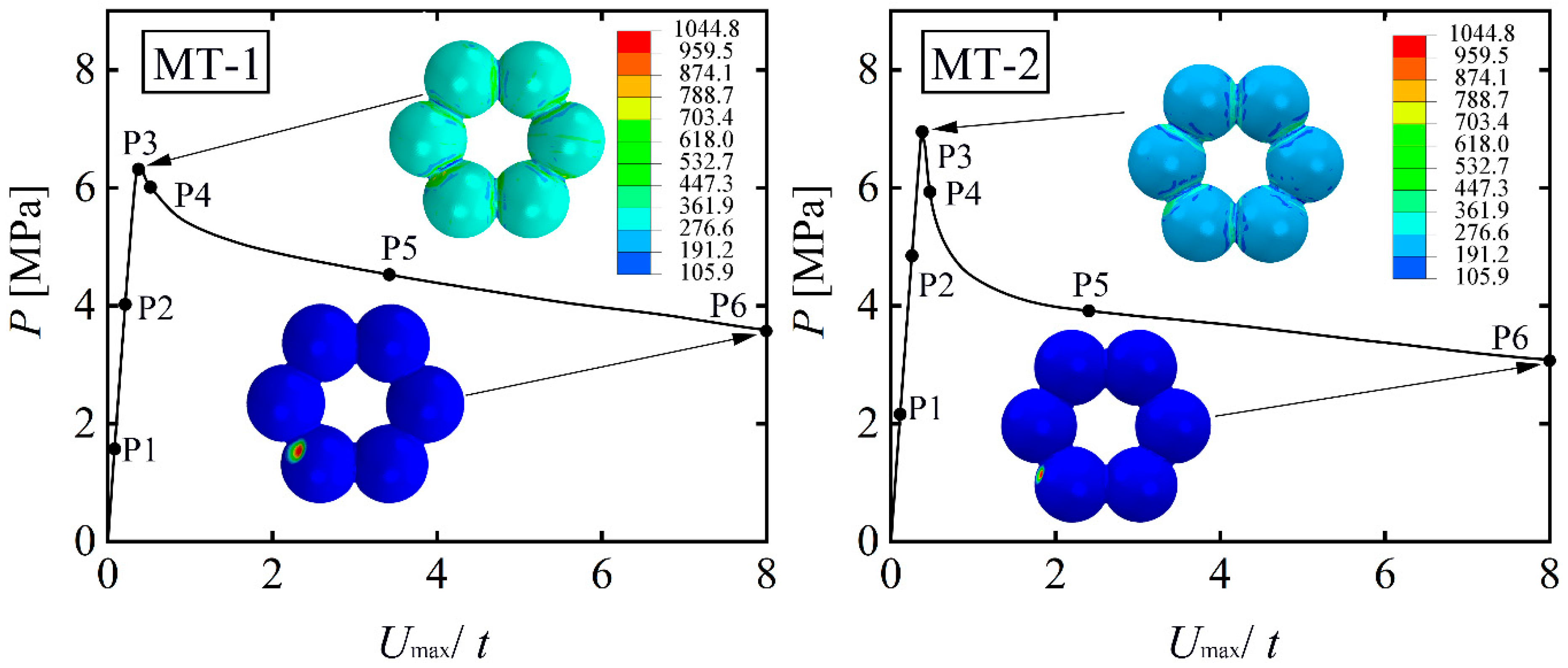

Equilibrium paths, stress distribution, and post-buckling modes of ST-1 and ST-2 sphere-segmented toroidal shells.

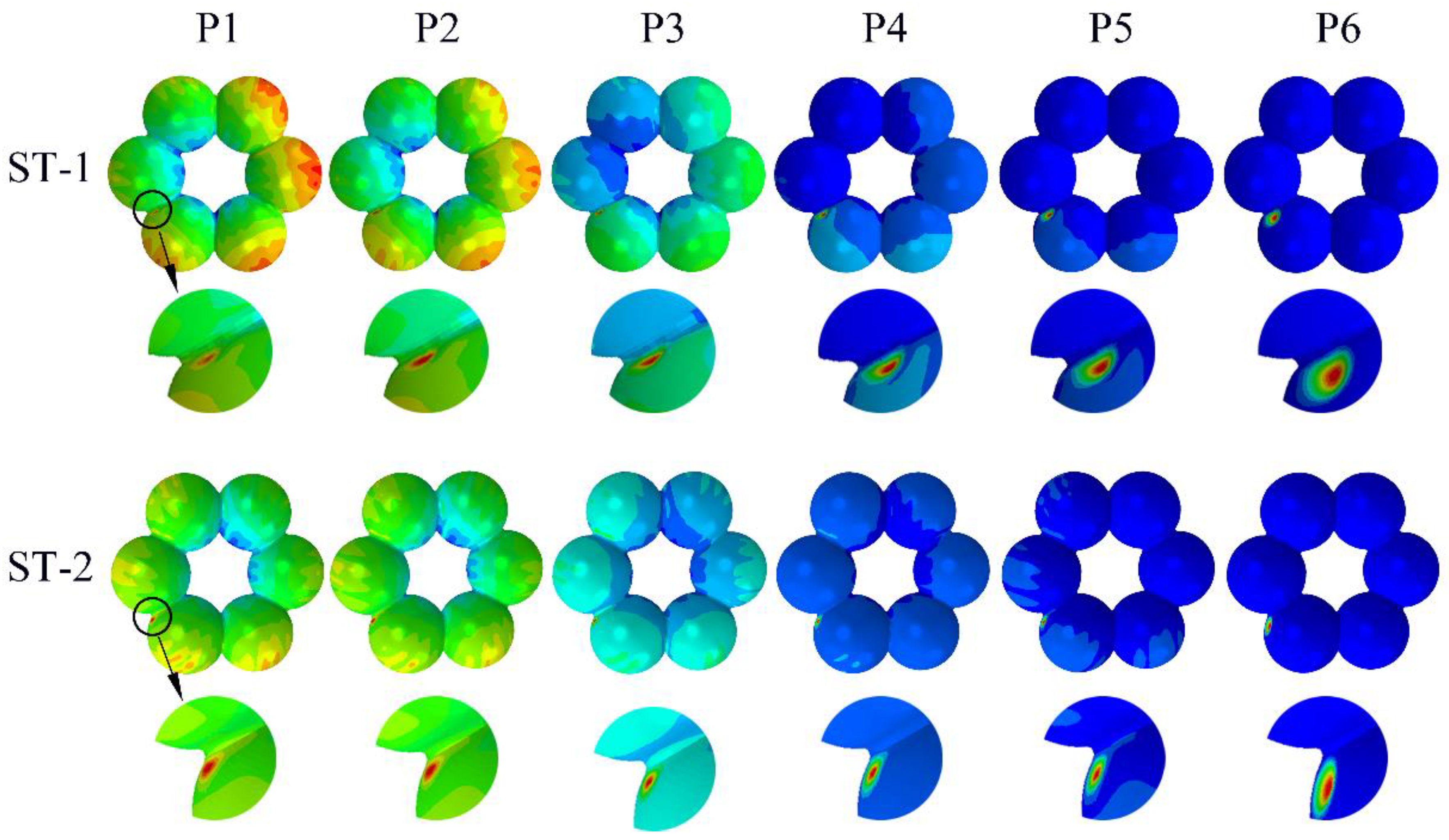

Figure 10.
Deformation evolution of ST-1 and ST-2 sphere-segmented toroidal shells; six points correspond to those in
Figure 9.
Figure 11.

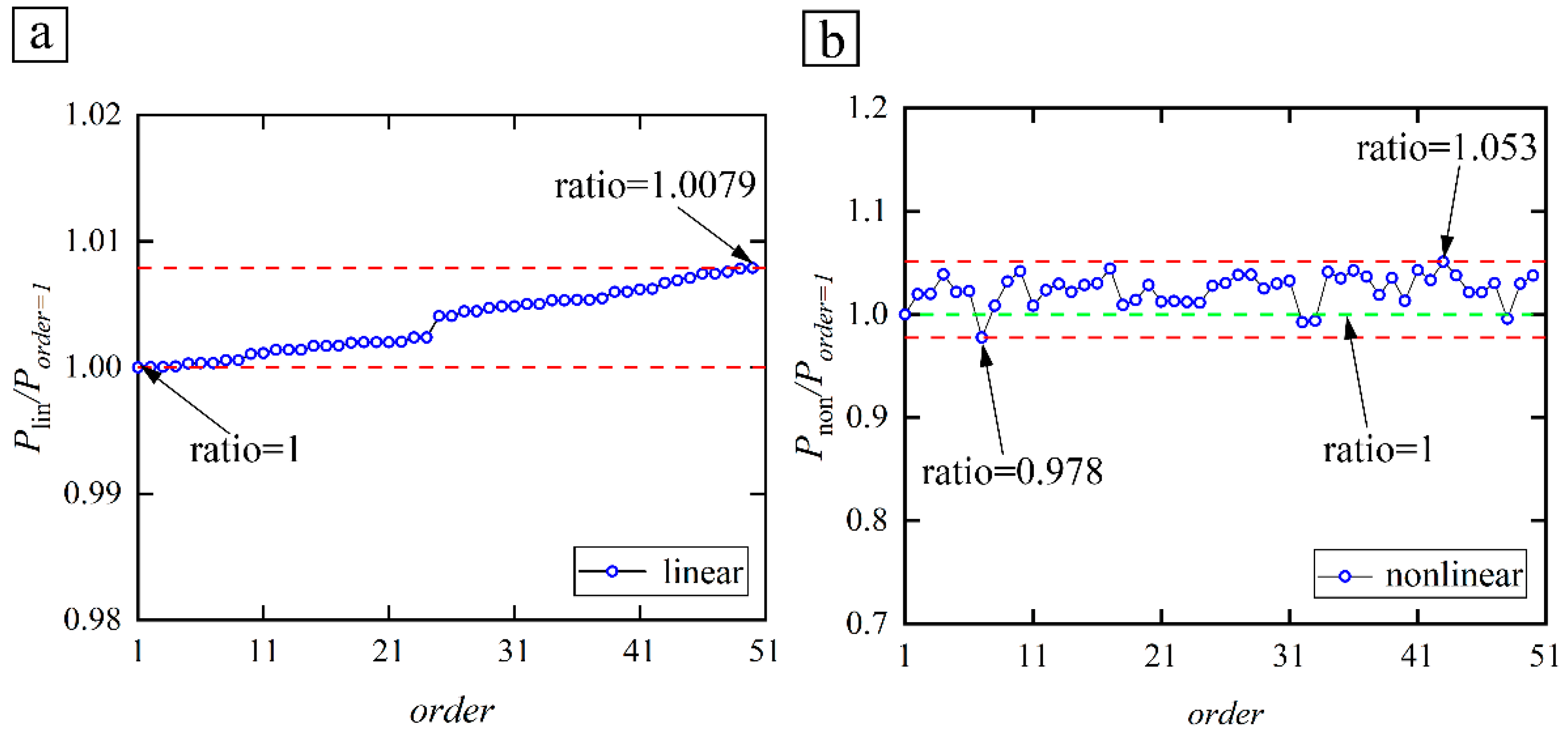

Normalized linear and nonlinear buckling loads for sphere-segmented toroidal shells.
Figure 12.

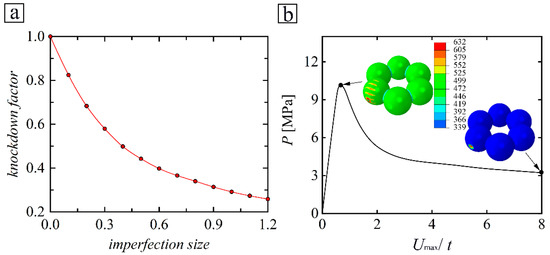

Imperfection sensitivities (a) and equilibrium path (b) of sphere-segmented toroidal shell.

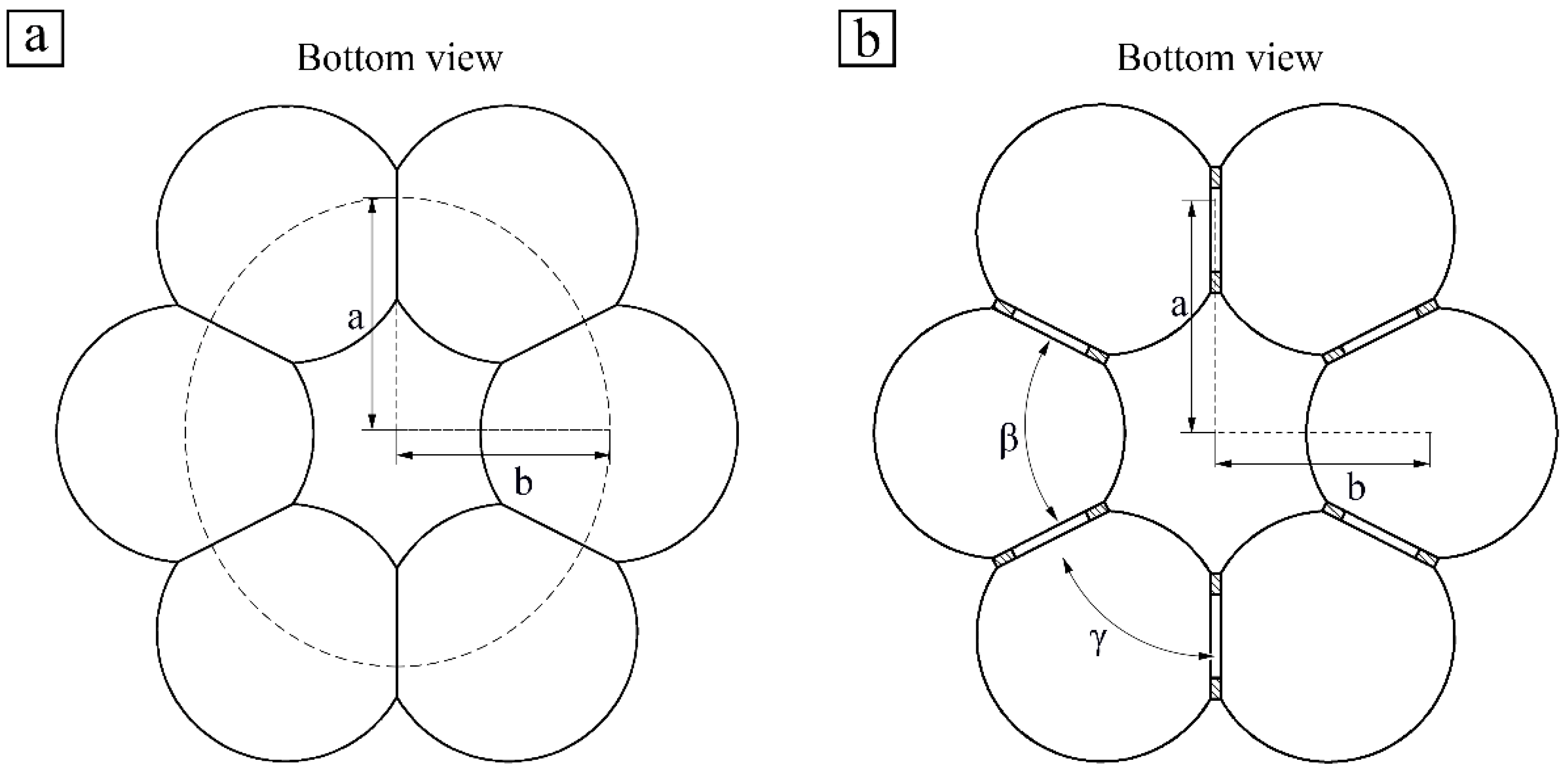

Figure 13.

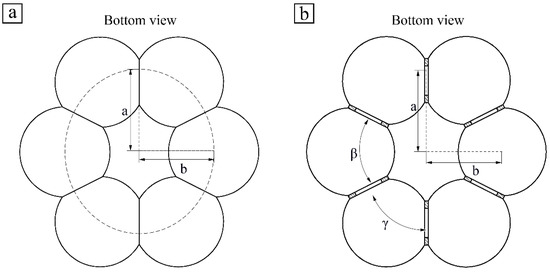

(a) Geometric notations for sphere-segmented toroidal shells under the influence of ellipticity. (b) Ellipticity parameter definition diagram.

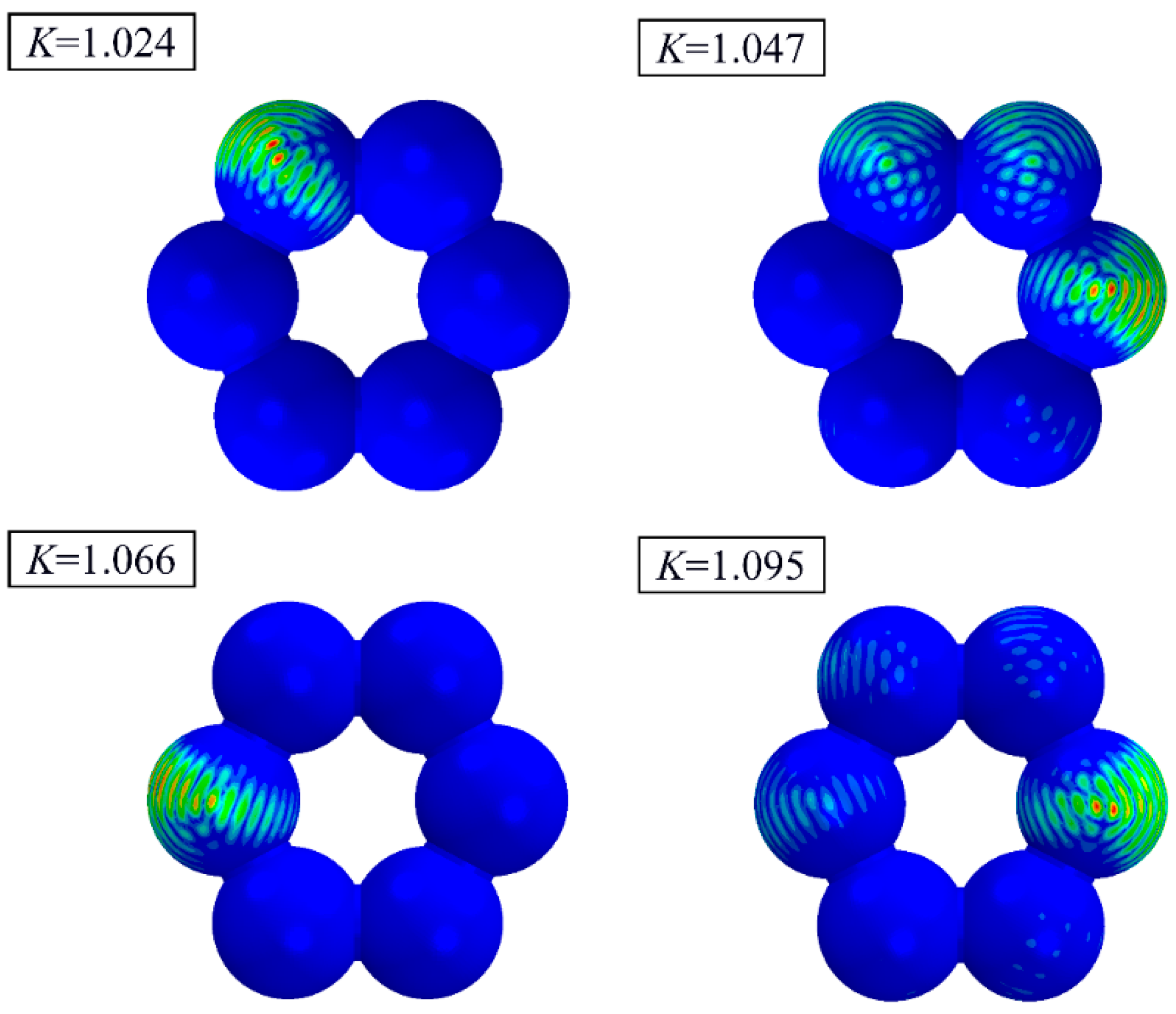

Figure 14.
First-order eigenmode of sphere-segmented toroidal shells with ellipticity (K) of 1.024, 1.066, 1.083, and 1.095.
Figure 15.

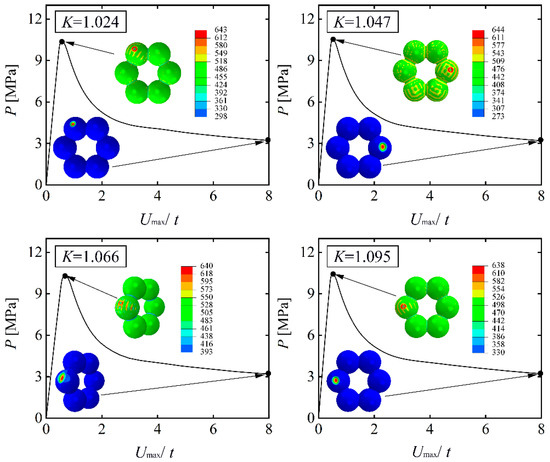

Equilibrium paths of sphere-segmented toroidal shells with ellipticity of (K) = 1.024, 1.066, 1.083, and 1.095.
Figure 16.

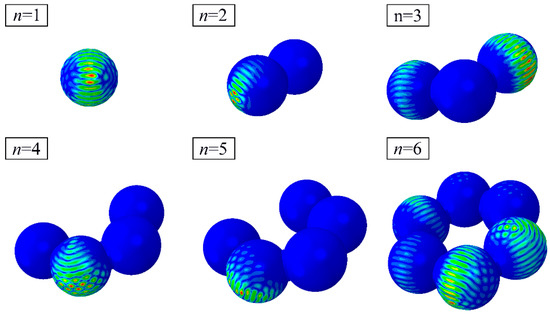

First-order eigenmode of sphere-segmented toroidal shells with a segment number of 1–6.
Figure 17.

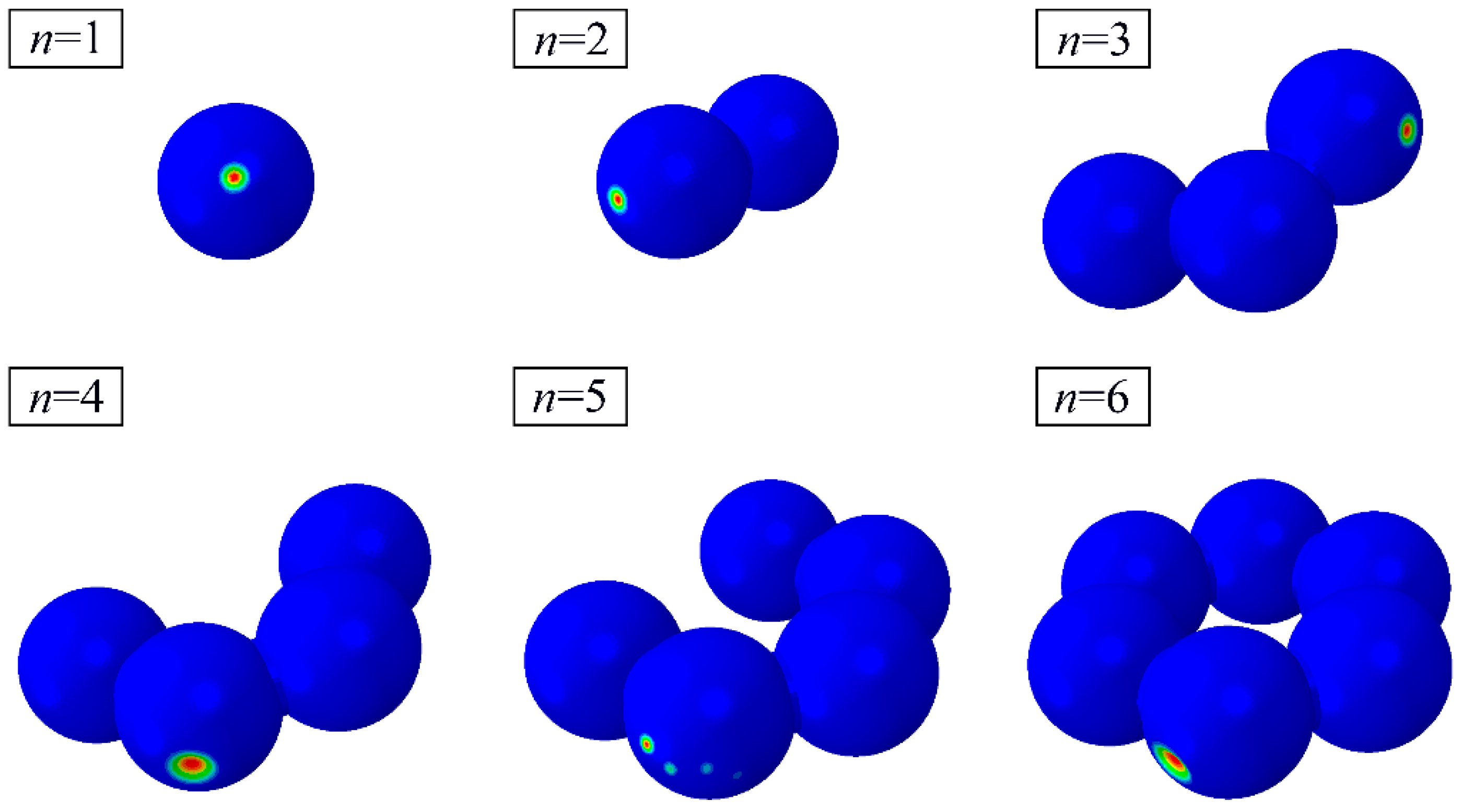

Post-buckling modes of sphere-segmented toroidal shells (
