Stress Intensity Factors for Radial Crack on Inner Surface of Interface in Multi-Layer Rotating Thick-Walled Cylinder
Abstract
:1. Introduction
2. Solution of Stress Intensity Factor Based on 2D Weighting Function
2.1. Theoretical Background
2.2. Establishment of Stress Intensity Factors
2.3. Stress Distribution of MRWC
2.4. Solution of SIF by Weight Function

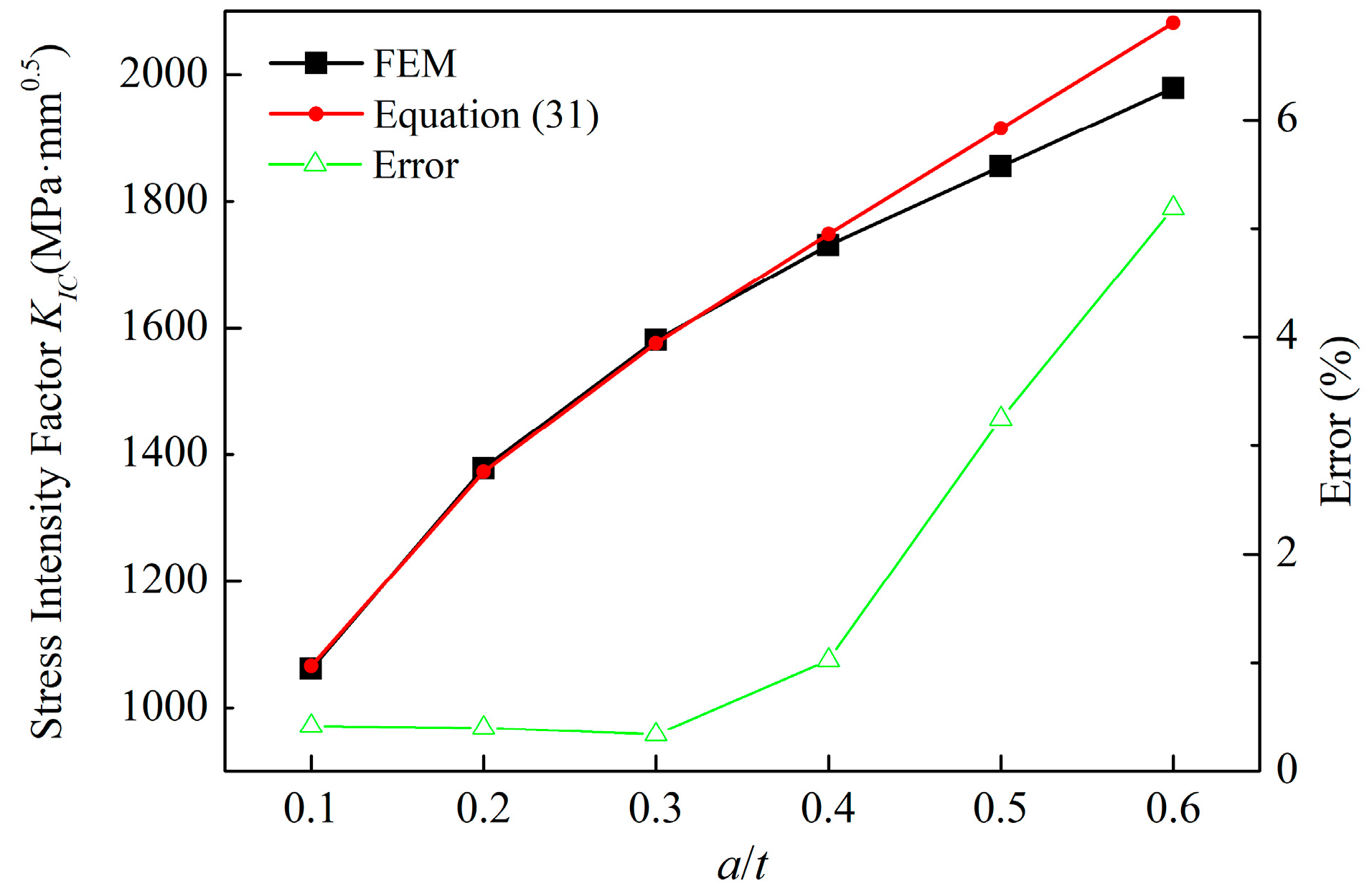

3. Results and Discussion
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A

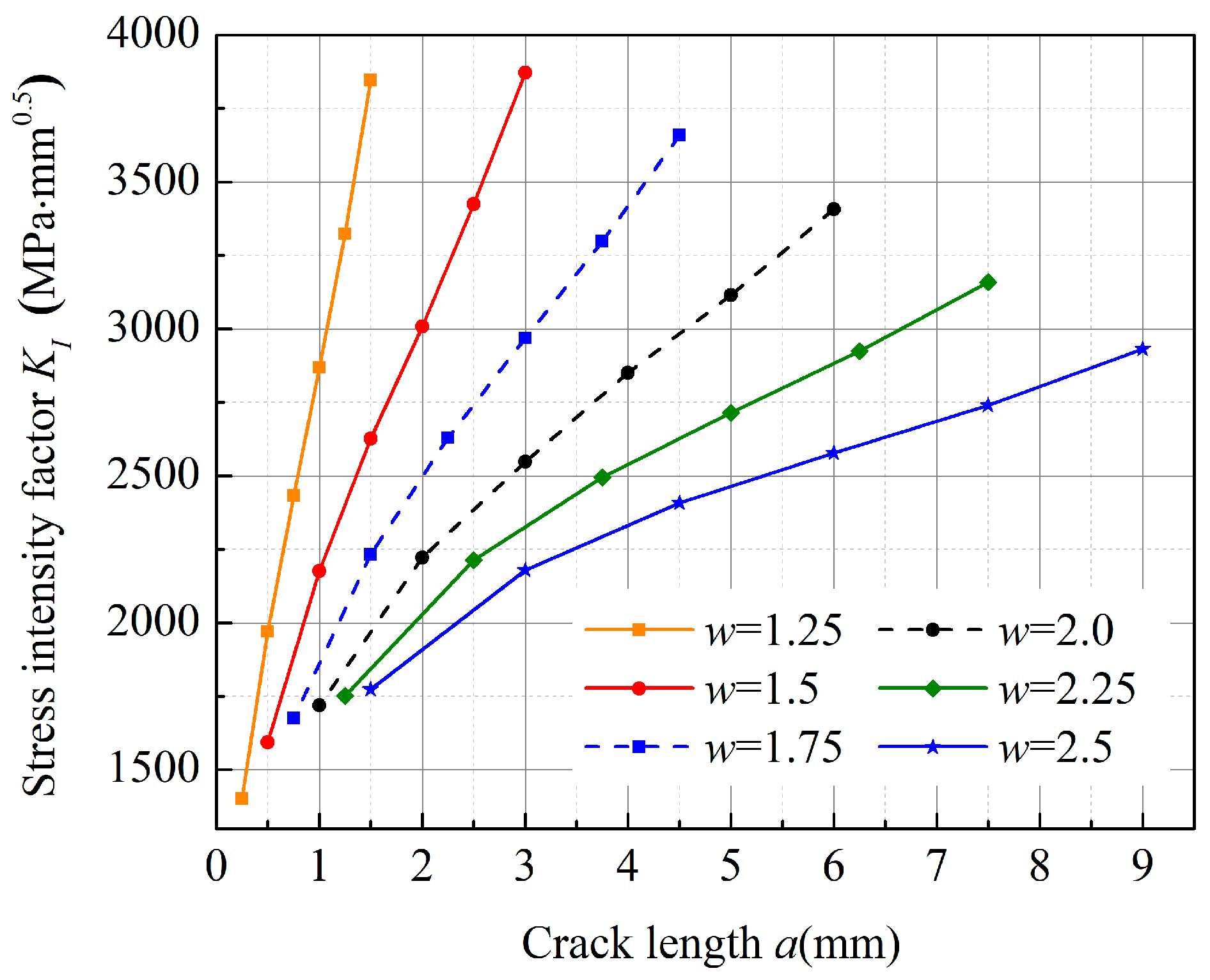

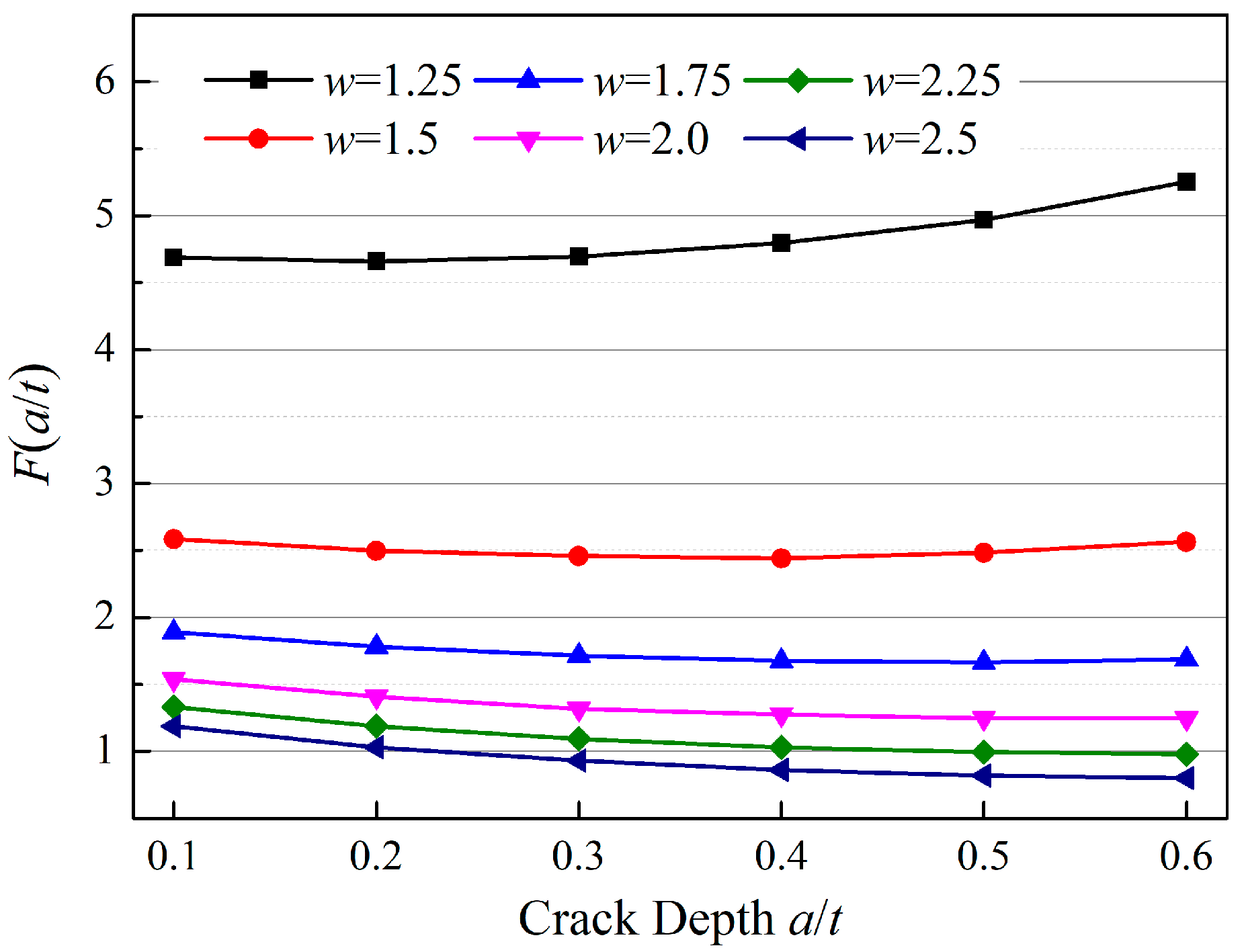

w | 1.25 | 1.5 | 1.75 | 2 | 2.25 | 2.5 |
---|---|---|---|---|---|---|
a/t | ||||||
0.1 | 1402 | 1594 | 1675 | 1719 | 1752 | 1774 |
0.2 | 1970 | 2177 | 2232 | 2222 | 2213 | 2180 |
0.3 | 2432 | 2626 | 2630 | 2548 | 2495 | 2408 |
0.4 | 2868 | 3009 | 2969 | 2851 | 2715 | 2577 |
0.5 | 3323 | 3424 | 3298 | 3115 | 2924 | 2740 |
0.6 | 3847 | 3871 | 3659 | 3407 | 3159 | 2932 |
References
- Yazdanmehr, A.; Soltani, N. Evaluation of stress intensity factors of rounded V and U notches under mixed mode loading, using the experimental method of caustics. Theor. Appl. Fract. Mech. 2014, 74, 79–85. [Google Scholar] [CrossRef]
- Li, D.F.; Mao, Z.H. Experimental and numerical simulations on compound stress intensity factor of semi-elliptical cracks on the exchanger outer walls with inclined angles. Alex. Eng. J. 2022, 61, 5065–5072. [Google Scholar] [CrossRef]
- Jukic, K.; Peric, M.; Tonkovic, Z.; Skozrit, I.; Jarak, T. Numerical Calculation of Stress Intensity Factors for Semi-Elliptical Surface Cracks in Buried-Arc Welded Thick Plates. Metals 2021, 11, 1809. [Google Scholar] [CrossRef]
- Jin, X.; Zeng, Y.; Ding, S.; Zhang, B.; McLennan, J.; Roegiers, J.-C.; Shah, S.; Bian, X. Weight function of stress intensity factor for single radial crack emanating from hollow cylinder. Eng. Fract. Mech. 2017, 170, 77–86. [Google Scholar] [CrossRef]
- Boljanovic, S.; Maksimovic, S. Fatigue crack growth modeling of attachment lugs. Int. J. Fatigue 2014, 58, 66–74. [Google Scholar] [CrossRef]
- Gairola, S.; Jayaganthan, R. XFEM Simulation of Tensile and Fracture Behavior of Ultrafine-Grained Al 6061 Alloy. Metals 2021, 11, 1761. [Google Scholar] [CrossRef]
- Bowie, O.L. Analysis of an Infinite Plate Containing Radial Cracks Originating at the Boundary of an Internal Circular Hole. Stud. Appl. Math. 1956, 35, 60–71. [Google Scholar] [CrossRef]
- Bowie, O.L.; Freese, C.E. Elastic analysis for a radial crack in a circular ring. Eng. Fract. Mech. 1972, 4, 312–321. [Google Scholar] [CrossRef]
- Newman, J.C. Predicting Failure of Specimens with Either Surface Cracks or Corner Cracks at Holes. NASA TN D-8244; 1976. Available online: https://ntrs.nasa.gov/api/citations/19760019499/downloads/19760019499.pdf (accessed on 8 April 2022).
- Kirkhope, K.J.; Bell, R.; Kirkhope, J. Stress intensity factor equations for single and multiple cracked pressurized thick-walled cylinders. Int. J. Press. Vessel. Pip. 1990, 41, 103–111. [Google Scholar] [CrossRef]
- Chen, A.; Liao, L.; Zhang, D. Analysis of dynamic stress intensity factors of thick-walled cylinder under internal impulsive pressure. Acta Mech. Sin. 2009, 25, 803–809. [Google Scholar] [CrossRef]
- Chen, X.; You, Y. Weight functions for multiple axial cracks in a coated hollow cylinder. Arch. Appl. Mech. 2015, 85, 617–628. [Google Scholar] [CrossRef]
- Yue, F.; Wu, Z. Fracture Mechanical Analysis of Thin-Walled Cylindrical Shells with Cracks. Metals 2021, 11, 592. [Google Scholar] [CrossRef]
- Niasani, M.A.; Ghajar, R.; Googarchin, H.S.; Hossein Sharifi, S.M. Crack growth pattern prediction in a thin walled cylinder based on closed form thermo-elastic stress intensity factors. J. Mech. Ence Technol. 2017, 31, 1603–1610. [Google Scholar] [CrossRef]
- Eshraghi, I.; Soltani, N.; Rajabi, M. Transient Stress Intensity Factors of Functionally Graded Hollow Cylinders with Internal Circumferential Cracks. Lat. Am. J. Solids Struct. 2016, 13, 1738–1762. [Google Scholar] [CrossRef] [Green Version]
- Wang, Z.Y.; Shi, Y.Z.; Zhou, X.F.; Shao, Y.B. Assessment of surface crack growth of composite girders with concrete-filled tubular flanges and corrugated webs through substructure-based numerical modelling. Eng. Struct. 2022, 252, 113613. [Google Scholar] [CrossRef]
- Shahani, A.R.; Habibi, S.E. Stress intensity factors in a hollow cylinder containing a circumferential semi-elliptical crack subjected to combined loading. Int. J. Fatigue 2007, 29, 128–140. [Google Scholar] [CrossRef]
- Takase, Y.; Noda, N.-A. Convenient and accurate formulas for stress intensity factor distribution of semi-elliptical surface crack. Int. J. Mod. Phys. B 2021, 35, 2140002. [Google Scholar] [CrossRef]
- Tan, P. Numerical simulation of the ballistic protection performance of a laminated armor system with pre-existing debonding/delamination. Compos. Part B Eng. 2014, 59, 50–59. [Google Scholar] [CrossRef]
- Kolanu, N.R.; Raju, G.; Ramji, M. A unified numerical approach for the simulation of intra and inter laminar damage evolution in stiffened CFRP panels under compression. Compos. Part B Eng. 2020, 190, 107931. [Google Scholar] [CrossRef]
- Rozylo, P. Failure analysis of thin-walled composite structures using independent advanced damage models. Compos. Struct. 2021, 262, 113598. [Google Scholar] [CrossRef]
- Afsar, A.M.; Anisuzzaman, M. Stress intensity factors of two diametrically opposed edge cracks in a thick-walled functionally graded material cylinder. Eng. Fract. Mech. 2007, 74, 1617–1636. [Google Scholar] [CrossRef]
- Nami, M.R.; Eskandari, H. Three-Dimensional Investigations of Stress-Intensity Factors in a Cracked Cylinder Made of Functionally Graded Materials. Mech. Based Des. Struct. Mach. 2012, 40, 206–217. [Google Scholar] [CrossRef]
- Mirahmadi, H.; Azimi, M.; Mirjavadi, S.S. Calculation of stress intensity factor for functionally graded cylinders with two radial cracks using the weight function method. Theor. Appl. Fract. Mech. 2016, 85, 447–456. [Google Scholar] [CrossRef]
- Nojumi, M.M.; Wang, X. Analysis of crack problems in functionally graded materials under thermomechanical loading using graded finite elements. Mech. Res. Commun. 2020, 106, 103534. [Google Scholar] [CrossRef]
- Miura, K.; Sakamoto, M.; Tanabe, Y. Analytical solution for the axisymmetric problem of a penny-shaped crack under internal pressure in a multi-layer composite. Mech. Eng. J. 2021, 8, 21–25. [Google Scholar] [CrossRef]
- Chen, X.; Mai, Y.W. Fundamentals of Fracture Mechanics; Butterworth: London, UK, 1973. [Google Scholar]
- Ramezani, M.K.; Purbolaksono, J.; Andriyana, A.; Ramesh, S.; Mardi, N.A. Analysis of surface cracks in round bars using dual boundary element method. Eng. Anal. Bound. Elem. 2018, 93, 112–123. [Google Scholar] [CrossRef]
- Rice, J.R. Some remarks on elastic crack-tip stress fields. Int. J. Solids Struct. 1972, 8, 751–758. [Google Scholar] [CrossRef] [Green Version]
- Petroski, H.J.; Achenbach, J.D. Computation of the weight function from a stress intensity factor. Eng. Fract. Mech. 1978, 10, 257–266. [Google Scholar] [CrossRef] [Green Version]
- Glinka, G.; Shen, G. Universal features of weight functions for cracks in mode I. Eng. Fract. Mech. 1991, 40, 1135–1146. [Google Scholar] [CrossRef]
- Alshoaibi, A.M.; Fageehi, Y.A. Simulation of Quasi-Static Crack Propagation by Adaptive Finite Element Method. Metals 2021, 11, 98. [Google Scholar] [CrossRef]
- Chen, A.J.; Zeng, W.J. Weight function for stress intensity factors in rotating thick-walled cylinder. Appl. Math. Mech.-Engl. Ed. 2006, 27, 29–35. [Google Scholar] [CrossRef]
- Kassir, M. Applied Elasticity and Plasticity; CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]

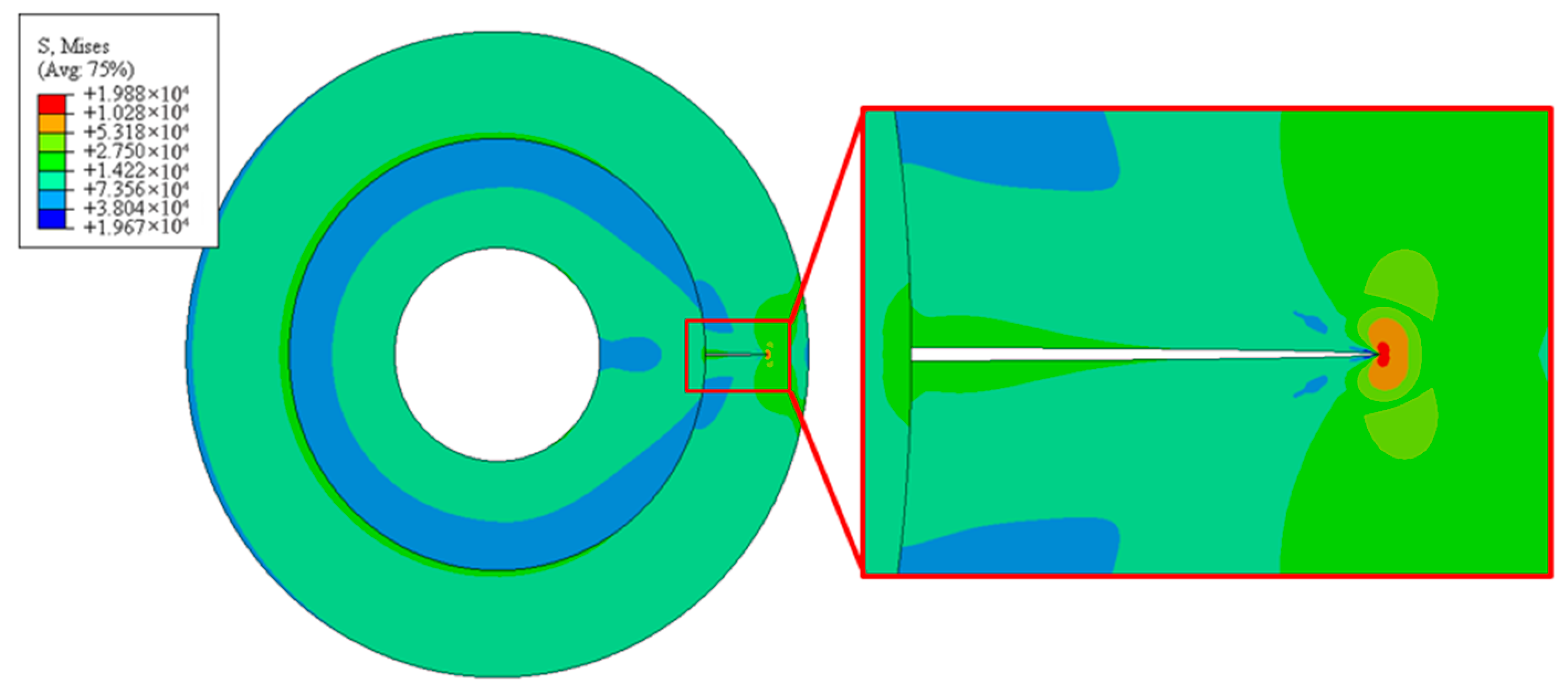

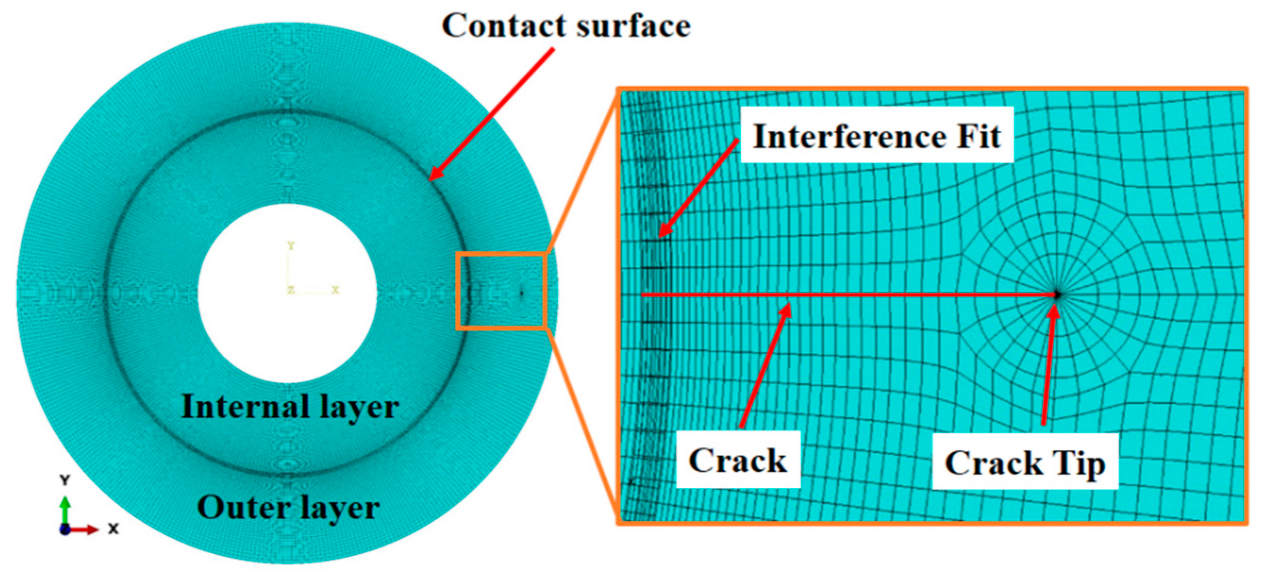

Parameter | Value |
---|---|
Elastic modulus E | 210,000 MPa |
Poisson’s ratio μ | 0.3 |
Type of element | CPE8R |
Type of crack tip element | CPS6 |
Method for calculating SIF | Contour integral |
Mid-side node parameter | 0.25 |
Number of contours | 4 |
Crack initiation criterion | Maximum tangential stress |

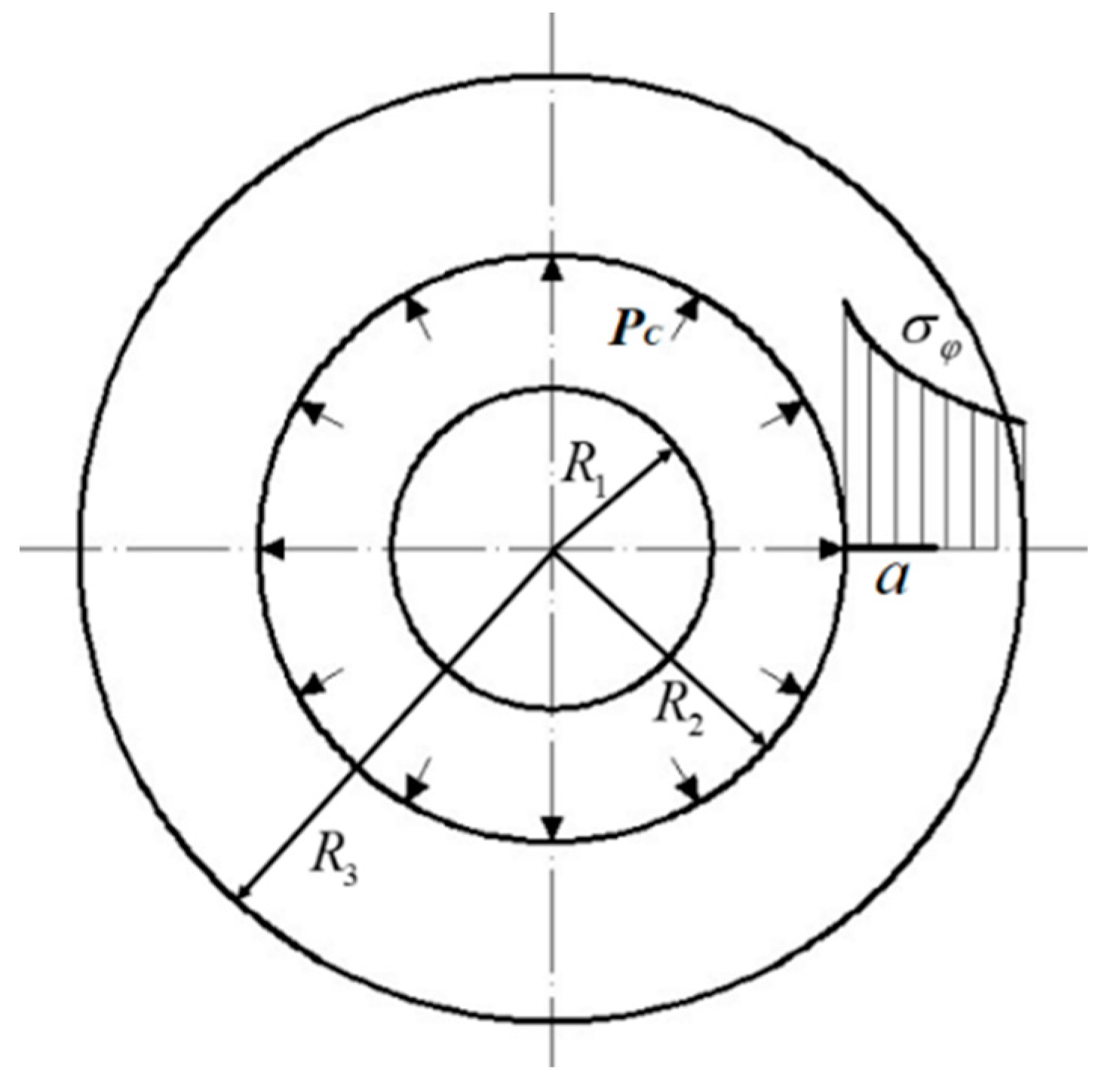

Internal diameter of the internal layer R1 | 5 mm |
Outside diameter of the internal layer R2 | 10 mm |
Outside diameter of the outer layer R3 | 12.5 mm~25 mm |
Thickness ratio w (R3/R2) | 1.25~3 |
Crack depth a/t | 0.1~0.6 |
Magnitude of interference δC | 0.1 mm |

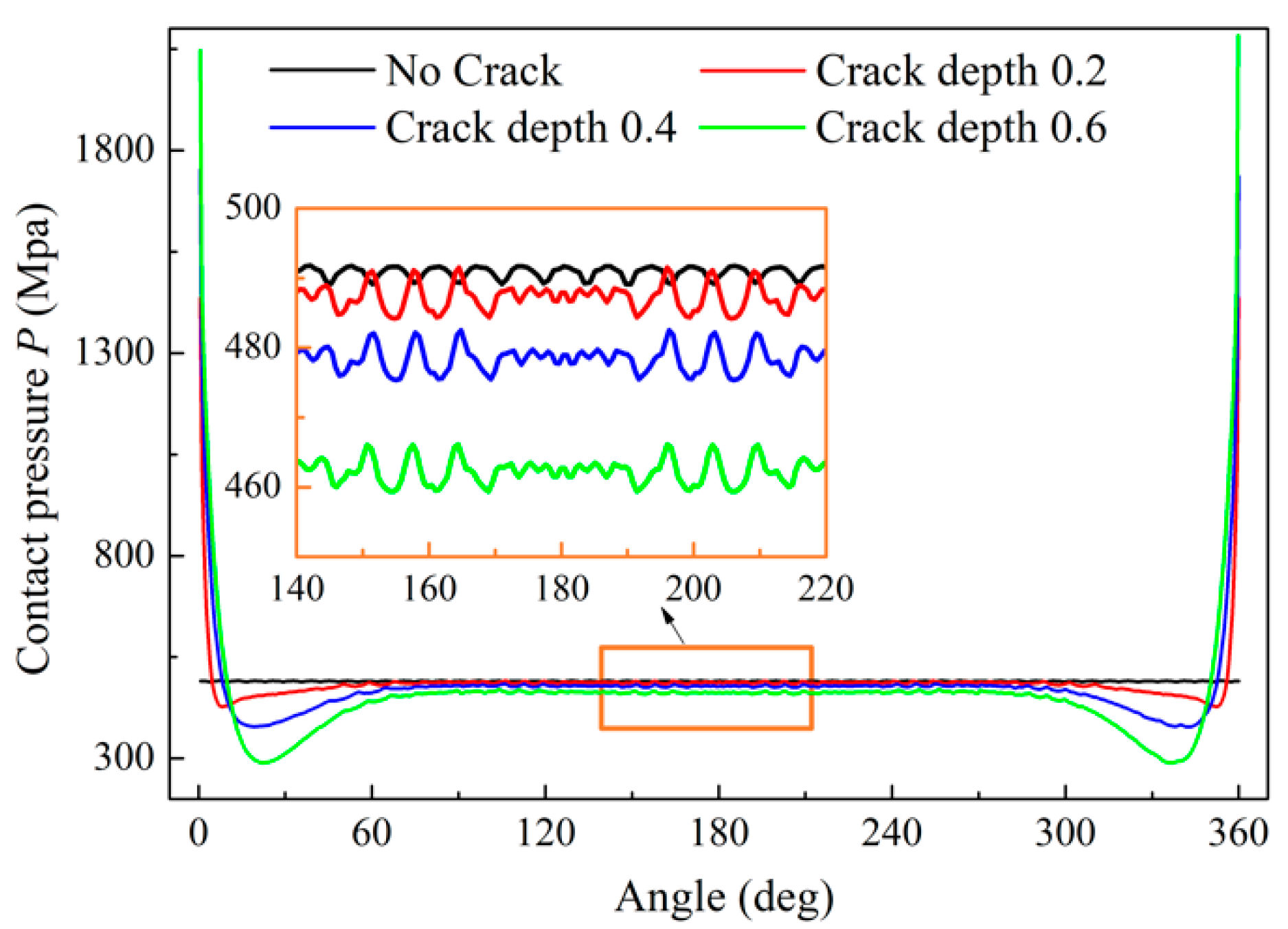

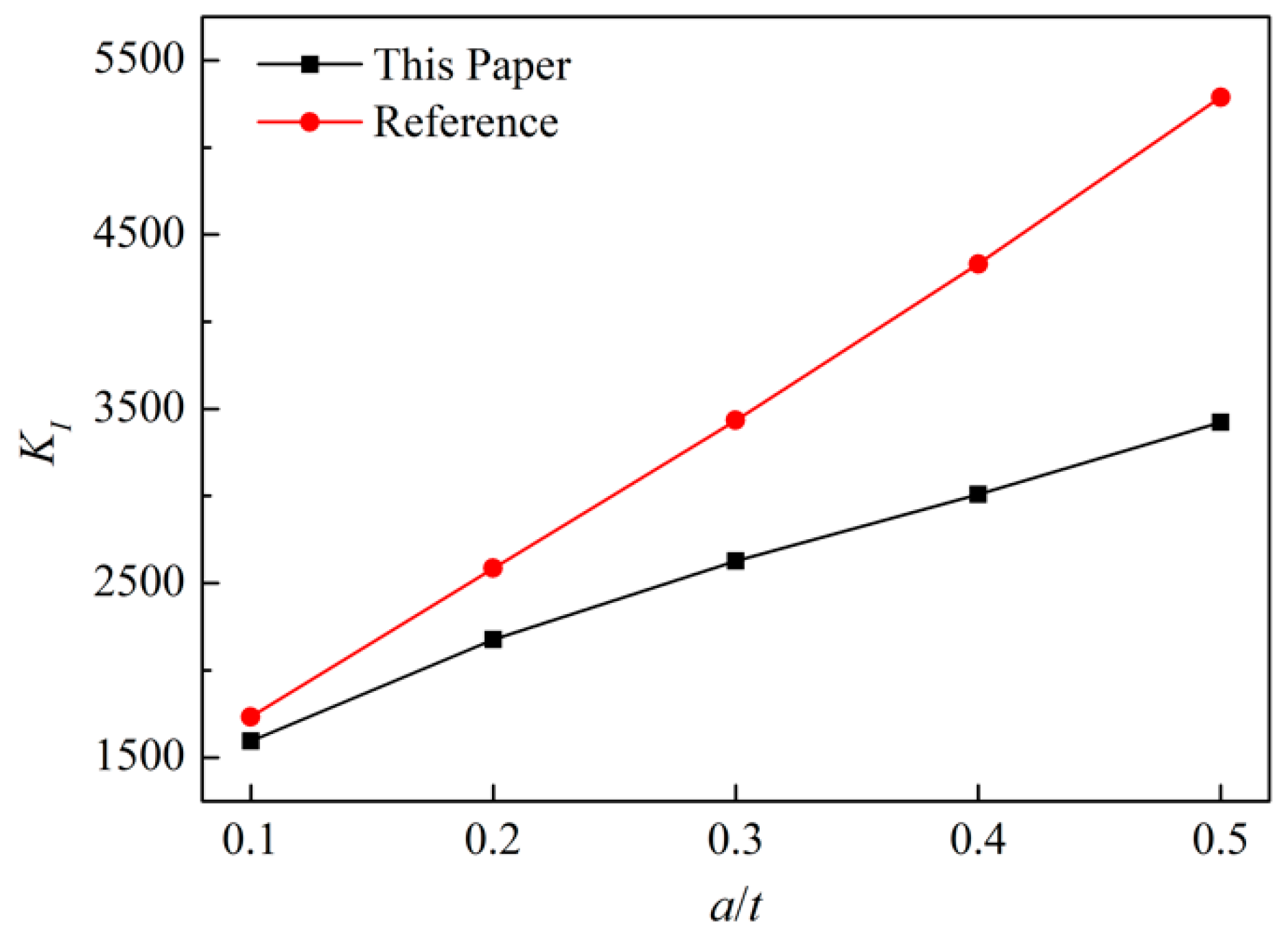

Parameter | Cracks of Interface | Reference [33] |
---|---|---|
Inner diameter of internal layer | 5 mm | None |
Outer diameter of internal layer | 10.1 mm | None |
Inner diameter of outer layer | 10 mm | 10 mm |
Outer diameter of outer layer | 15 mm | 15 mm |
Pressure | Contact pressure 492 MPa | Constant pressure 492 MPa |
Crack depth (a/t) | 0.1~0.5 | 0.1~0.5 |
Parameters | First Layer | Second Layer | Third Layer | Fourth Layer |
---|---|---|---|---|
Inner diameter (mm) | 10 | 20 | 30 | 60 |
Outer diameter (mm) | 20.05 | 30.08 | 60.1 | 80 |
Elasticity modulus (MPa) | 1 × 105 | 1.5 × 105 | 1.8 × 105 | 2.1 × 105 |
Poisson’s ratio | 0.3 | 0.27 | 0.34 | 0.3 |
Density (T/mm) | 7.8 × 10−8 | 8.8 × 10−8 | 6.8 × 10−8 | 5.8 × 10−8 |
Rotation speed (rad/s) | 1000 | 1000 | 1000 | 1000 |
x mm | 0 | 0.94 | 1.97 | 2.98 | 3.98 | 4.98 | 5.98 | 6.99 | 7.99 | 8.98 | |
---|---|---|---|---|---|---|---|---|---|---|---|
FEM (μm) | Diaplace | 37.6 | 37.3 | 36.2 | 34.6 | 32.7 | 30.4 | 27.6 | 24.2 | 20.0 | 14.3 |
Equation (13) (μm) | Diaplace | 38.9 | 37.6 | 36 | 34.2 | 32 | 29.9 | 27.1 | 23.8 | 19.8 | 14.3 |
Error % | 3.4 | 0.6 | 0.6 | 1.4 | 2.3 | 1.8 | 2 | 1.9 | 1.1 | 0 |
