Effects of Point Defects on the Stable Occupation, Diffusion and Nucleation of Xe and Kr in UO_{2}
Abstract
:1. Introduction
2. Simulation Method
2.1. Interatomic Potential
2.2. MD Simulation Setup
2.2.1. Stable Occupation of Xe/Kr Cluster in UO_{2}-Containing Point Defects
2.2.2. Diffusion of Xe/Kr Cluster in UO_{2}
2.2.3. Nucleation of Xe/Kr Cluster in UO_{2}-Containing Point Defects
3. Results and Discussion

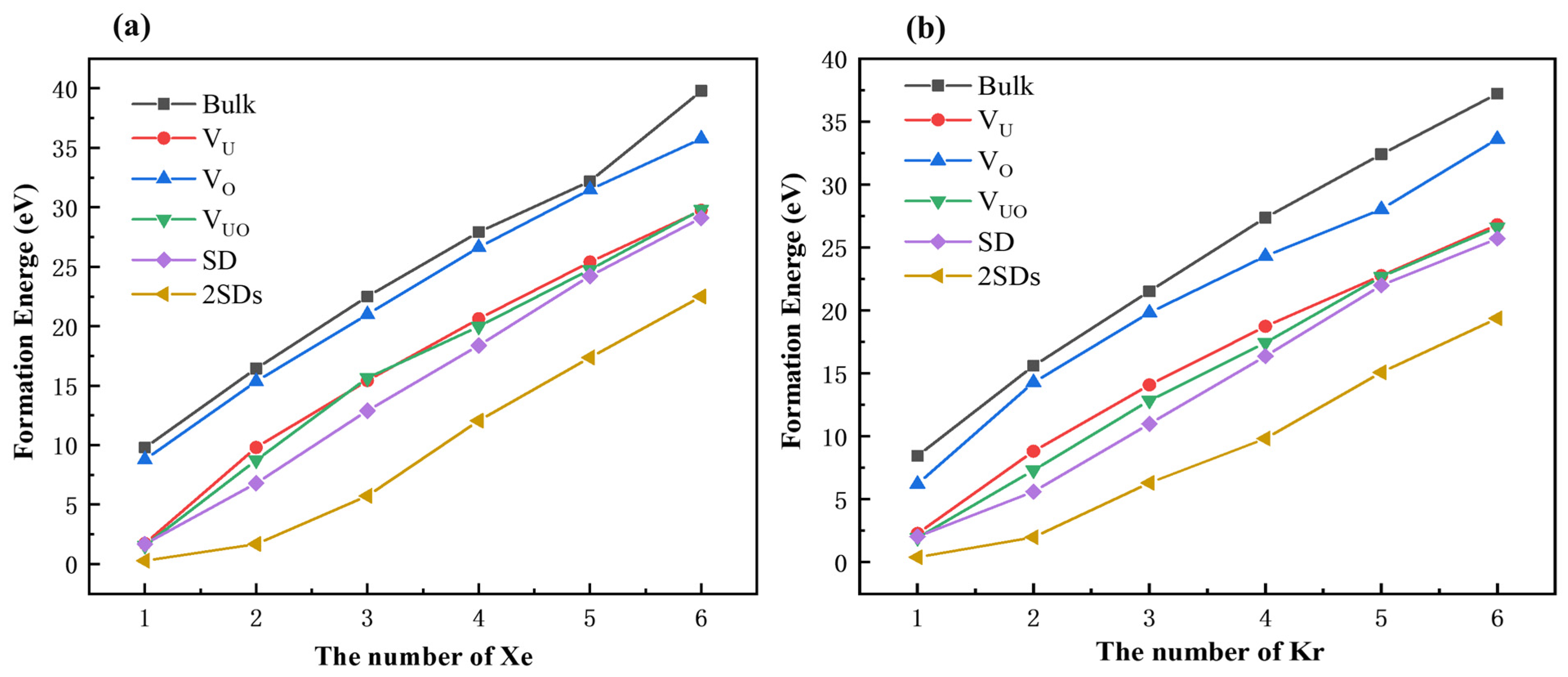

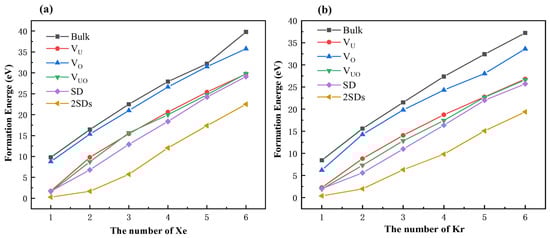

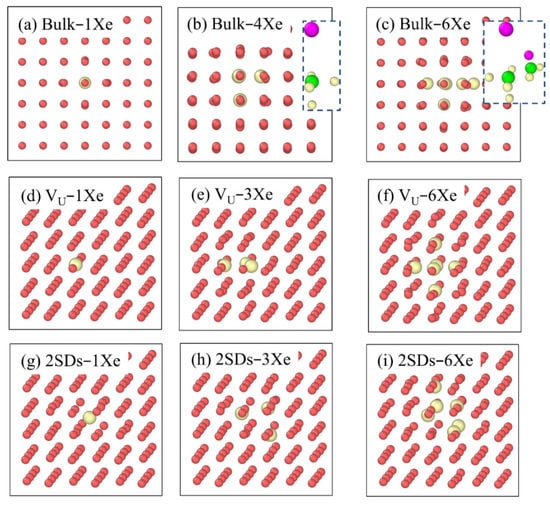

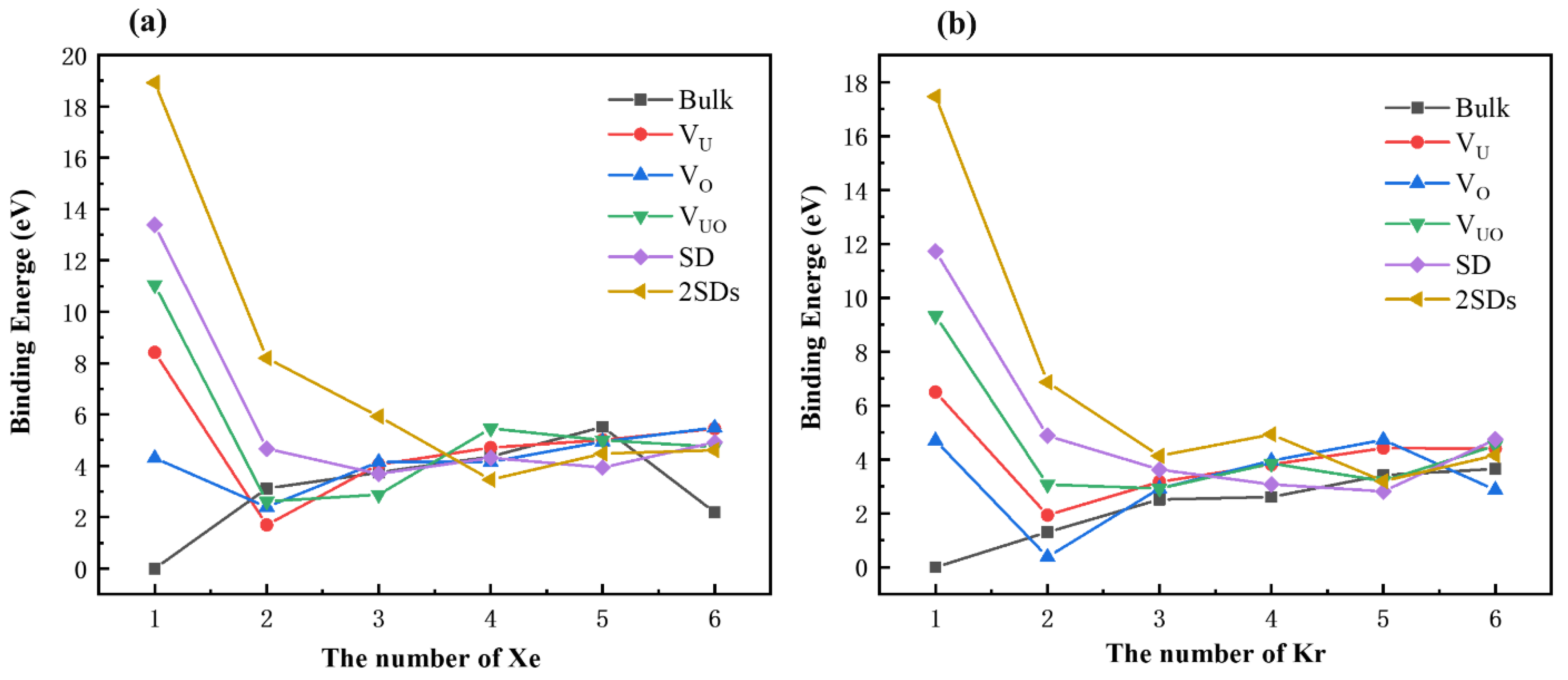

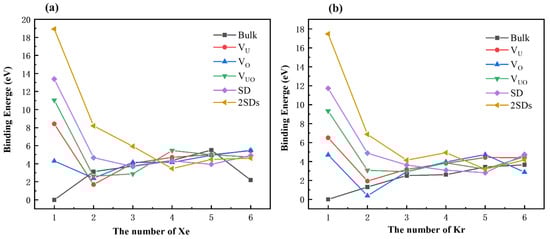

3.1. Stable Occupation of Xe/Kr Cluster in UO_{2}-Containing Point Defects
3.2. Diffusion of Xe/Kr Cluster in UO_{2}

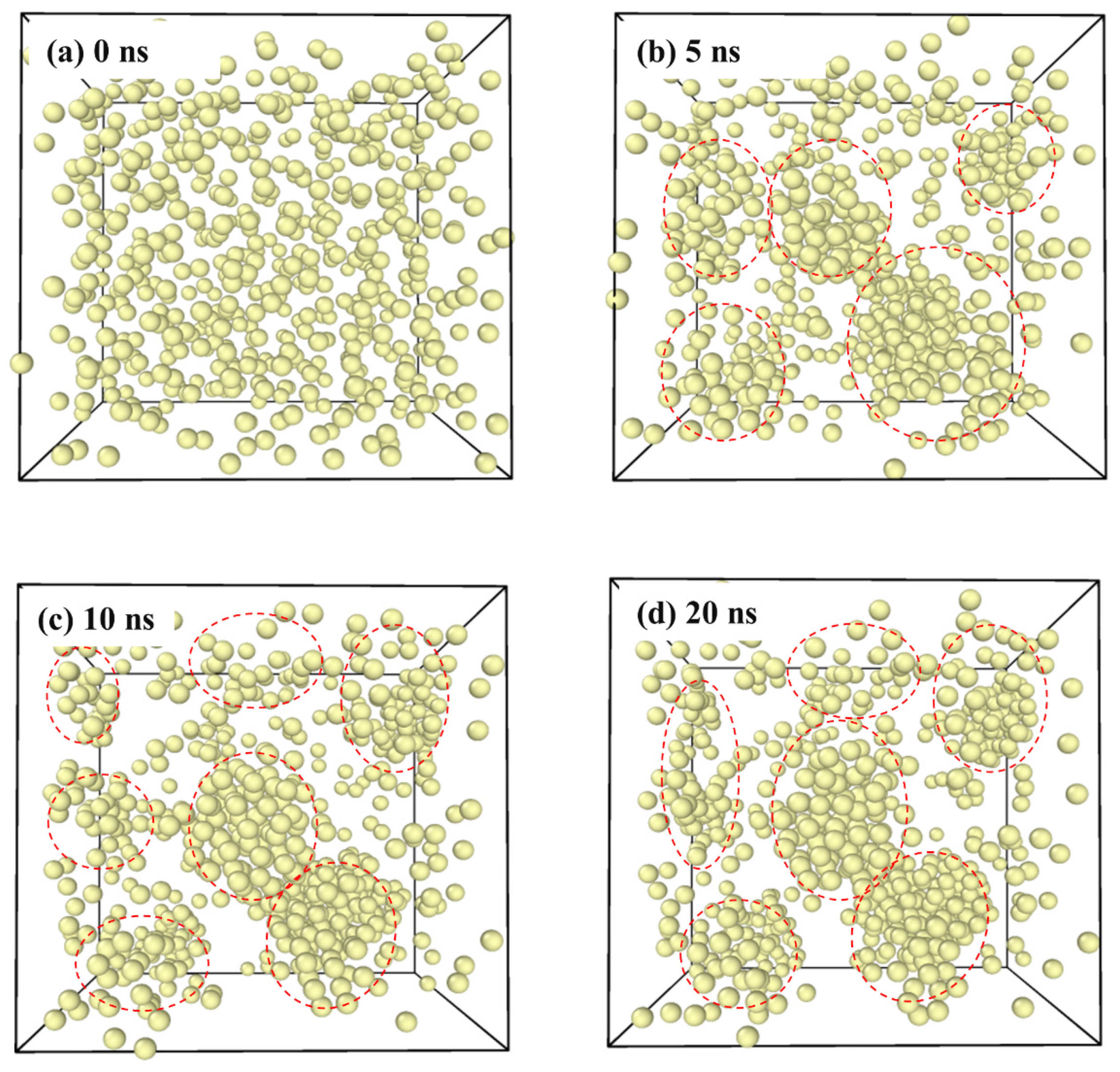

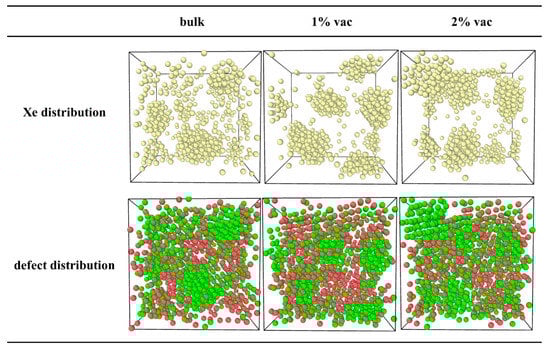

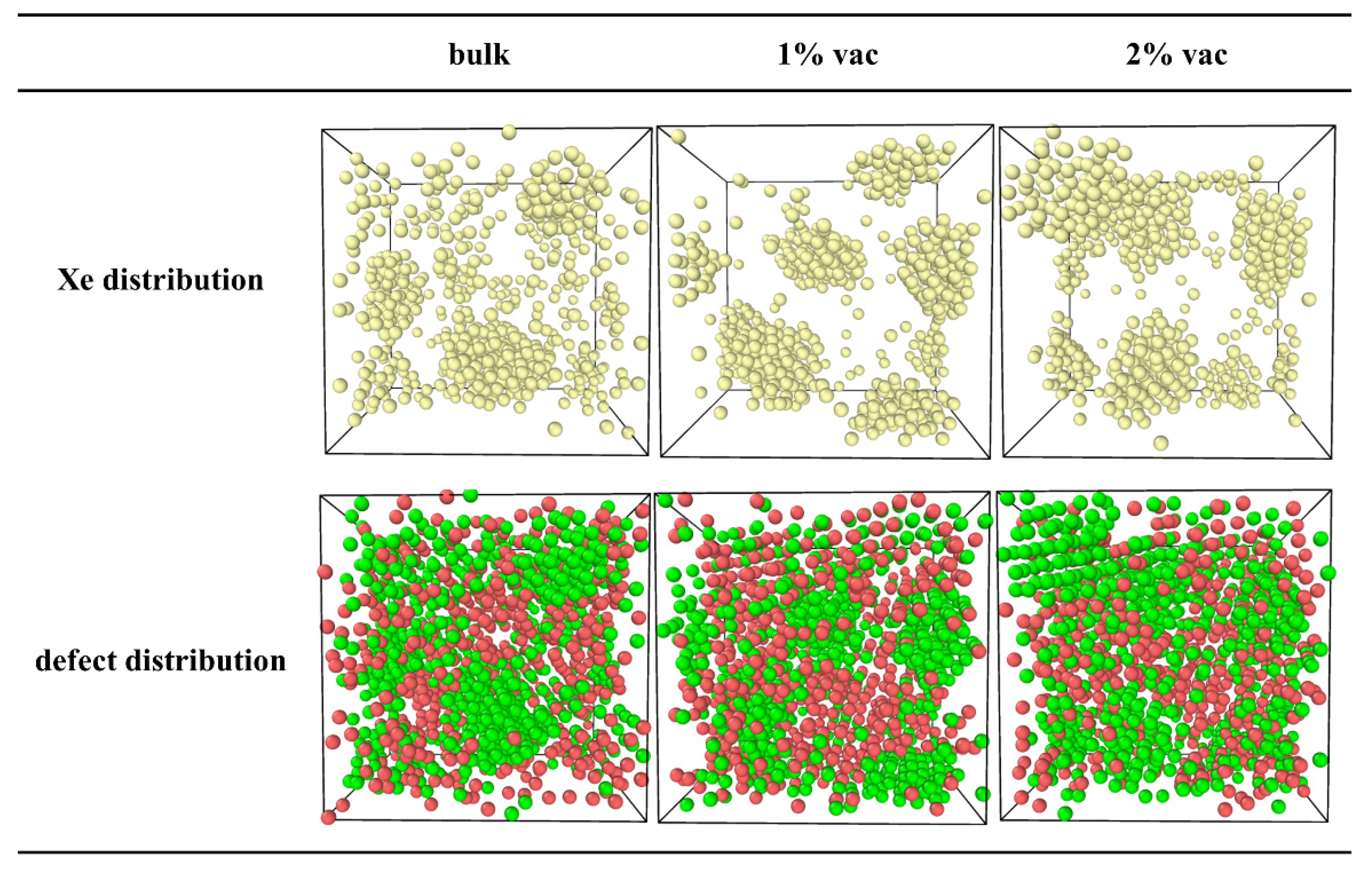

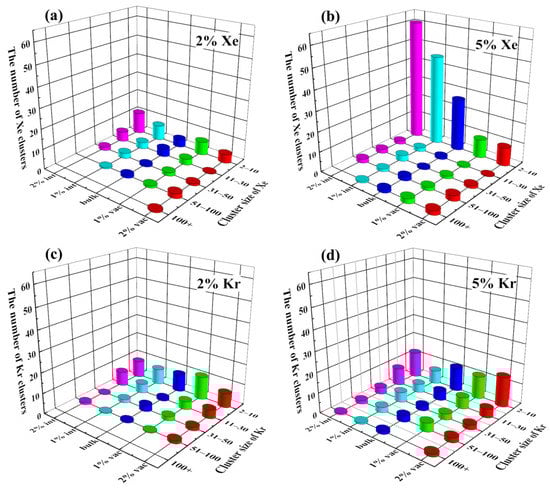

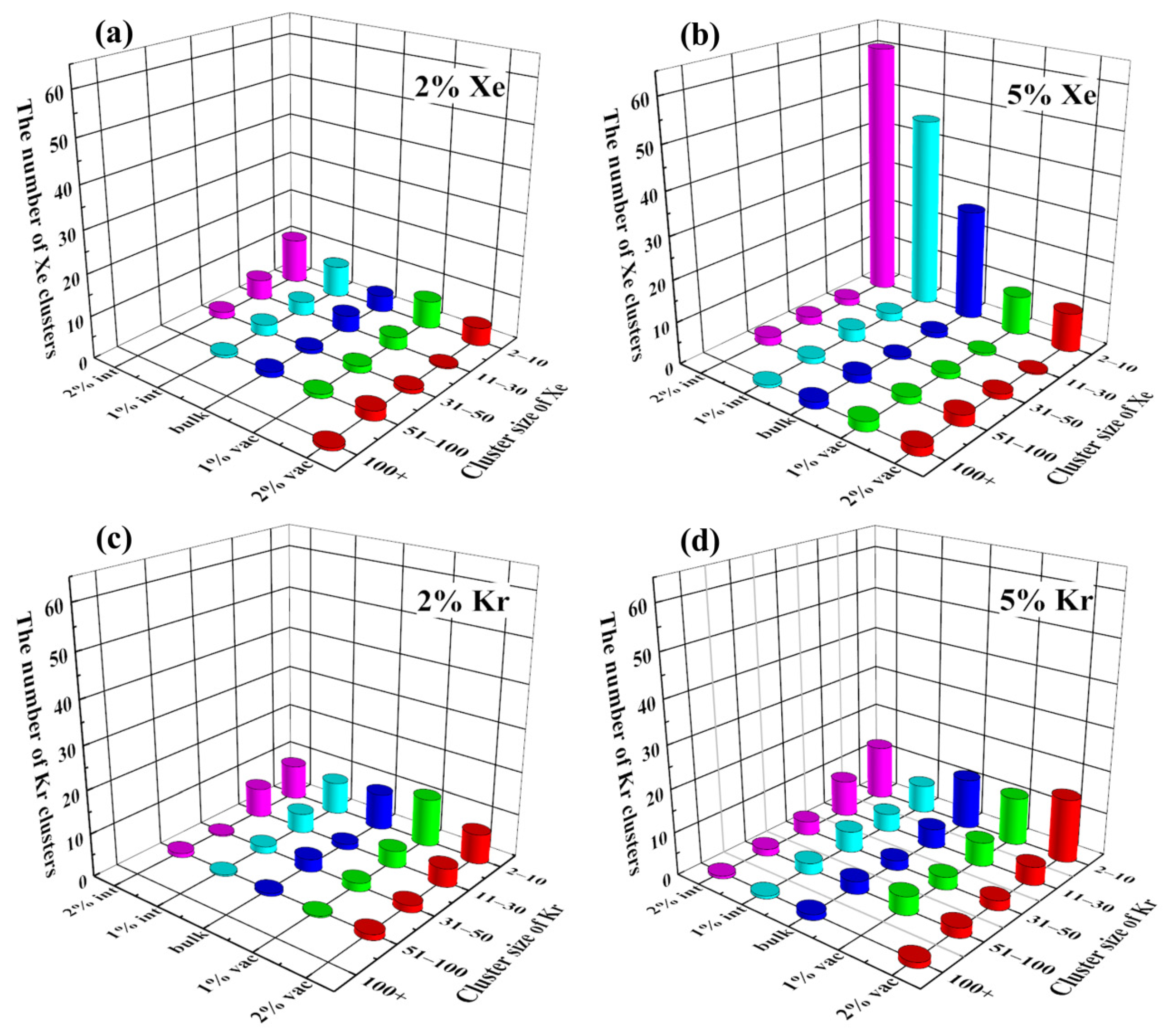

3.3. Nucleation of Xe/Kr Cluster in UO_{2}-Containing Point Defects
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Matthews, J.R. Technological problems and the future of research on the basic properties of actinide oxides. J. Chem. Soc. Faraday Trans. 2 1987, 83, 1273–1285. [Google Scholar] [CrossRef]
- Matzke, H. Diffusion processes in nuclear fuels. In Diffusion Processes in Nuclear Materials; Agarwala, P., Ed.; Elsevier (North Holland Publishing): Amsterdam, The Netherlands, 1992. [Google Scholar]
- Rest, J.; Hofman, G. An alternative explanation for evidence that xenon depletion, pore formation, and grain subdivision begin at different local burnups. J. Nucl. Mater. 2000, 277, 231–238. [Google Scholar] [CrossRef]
- Matzke, H.J. Gas release mechanisms in UO_{2}—a critical review. Radiat. Eff. 1980, 53, 219–242. [Google Scholar] [CrossRef]
- White, R.; Tucker, M. A new fission-gas release model. J. Nucl. Mater. 1983, 118, 1–38. [Google Scholar] [CrossRef]
- White, R. The development of grain-face porosity in irradiated oxide fuel. J. Nucl. Mater. 2004, 325, 61–77. [Google Scholar] [CrossRef]
- Turnbull, J.; Friskney, C.; Findlay, J.; Johnson, F.; Walter, A. The diffusion coefficients of gaseous and volatile species during the irradiation of uranium dioxide. J. Nucl. Mater. 1982, 107, 168–184. [Google Scholar] [CrossRef]
- He, L.; Pakarinen, J.; Kirk, M.; Gan, J.; Nelson, A.; Bai, X.; El-Azab, A.; Allen, T. Microstructure evolution in Xe-irradiated UO_{2} at room temperature. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 2014, 330, 55–60. [Google Scholar] [CrossRef]
- Millett, P.C.; Tonks, M. Meso-scale modeling of the influence of intergranular gas bubbles on effective thermal conductivity. J. Nucl. Mater. 2011, 412, 281–286. [Google Scholar] [CrossRef]
- Chockalingam, K.; Millett, P.C.; Tonks, M. Effects of intergranular gas bubbles on thermal conductivity. J. Nucl. Mater. 2012, 430, 166–170. [Google Scholar] [CrossRef]
- Lucuta, P.; Matzke, H.; Hastings, I. A pragmatic approach to modelling thermal conductivity of irradiated UO_{2} fuel: Review and recommendations. J. Nucl. Mater. 1996, 232, 166–180. [Google Scholar] [CrossRef]
- Hoh, A.; Matzke, H. Fission-enhanced self-diffusion of uranium in UO_{2} and UC. J. Nucl. Mater. 1973, 48, 157–164. [Google Scholar] [CrossRef]
- Jackson, R.; Catlow, C. Trapping and solution of fission Xe in UO_{2}.: Part 1. Single gas atoms and solution from underpressurized bubbles. J. Nucl. Mater. 1985, 127, 161–166. [Google Scholar] [CrossRef]
- Djourelov, N.; Marchand, B.; Marinov, H.; Moncoffre, N.; Pipon, Y.; Nédélec, P.; Toulhoat, N.; Sillou, D. Variable energy positron beam study of Xe-implanted uranium oxide. J. Nucl. Mater. 2013, 432, 287–293. [Google Scholar] [CrossRef]
- Moore, E.; Corrales, L.R.; Desai, T.; Devanathan, R. Molecular dynamics simulation of Xe bubble nucleation in nanocrystalline UO_{2} nuclear fuel. J. Nucl. Mater. 2011, 419, 140–144. [Google Scholar] [CrossRef]
- Zhang, W.; Yun, D.; Liu, W. Xenon Diffusion Mechanism and Xenon Bubble Nucleation and Growth Behaviors in Molybdenum via Molecular Dynamics Simulations. Materials 2019, 12, 2354. [Google Scholar] [CrossRef] [Green Version]
- Govers, K.; Verwerft, M. Classical molecular dynamics investigation of microstructure evolution and grain boundary diffusion in nano-polycrystalline UO_{2}. J. Nucl. Mater. 2013, 438, 134–143. [Google Scholar] [CrossRef]
- Vincent-Aublant, E.; Delaye, J.-M.; Van Brutzel, L. Self-diffusion near symmetrical tilt grain boundaries in UO_{2} matrix: A molecular dynamics simulation study. J. Nucl. Mater. 2009, 392, 114–120. [Google Scholar] [CrossRef]
- Murphy, S.T.; Jay, E.E.; Grimes, R.W. Pipe diffusion at dislocations in UO_{2}. J. Nucl. Mater. 2014, 447, 143–149. [Google Scholar] [CrossRef]
- Yun, Y.; Kim, H.; Kim, H.; Park, K. Atomic diffusion mechanism of Xe in UO_{2}. J. Nucl. Mater. 2008, 378, 40–44. [Google Scholar] [CrossRef]
- Lawrence, G. A review of the diffusion coefficient of fission-product rare gases in uranium dioxide. J. Nucl. Mater. 1978, 71, 195–218. [Google Scholar] [CrossRef]
- Andersson, D.; Garcia, P.; Liu, X.-Y.; Pastore, G.; Tonks, M.; Millett, P.; Dorado, B.; Gaston, D.; Andrs, D.; Williamson, R.; et al. Atomistic modeling of intrinsic and radiation-enhanced fission gas (Xe) diffusion in UO_{2}±x: Implications for nuclear fuel performance modeling. J. Nucl. Mater. 2014, 451, 225–242. [Google Scholar] [CrossRef]
- Matzke, H. Atomic transport properties in UO_{2} and mixed oxides (U, Pu)O2. J. Chem. Soc. Faraday Trans. 2 1987, 83, 1121–1142. [Google Scholar] [CrossRef]
- Sabioni, A.; Ferraz, W.; Millot, F. First study of uranium self-diffusion in UO_{2} by SIMS. J. Nucl. Mater. 1998, 257, 180–184. [Google Scholar] [CrossRef]
- Forsberg, K.; Massih, A. Diffusion theory of fission gas migration in irradiated nuclear fuel UO_{2}. J. Nucl. Mater. 1985, 135, 140–148. [Google Scholar] [CrossRef]
- Forsberg, K.; Massih, A. Fission gas release under time-varying conditions. J. Nucl. Mater. 1985, 127, 141–145. [Google Scholar] [CrossRef]
- Lanning, D.D.; Beyer, C.E.; Painter, C.L. FRAPCON-3: Modifications to Fuel Rod Material Properties and Performance Models for High-Burnup Application; Technical Report No. NUREG/CR-6534-Vol. 1; Division of Systems Technology, Office of Nuclear Regulatory Commission, U.S. Nuclear Regulatory Commission: Washington, DC, USA, 1997. [Google Scholar] [CrossRef] [Green Version]
- Davies, D.; Long, G. The Emission of Xenon-133 from Lightly Irradiated Uranium Dioxide Spheroids and Powders; Technical Report No. AERE-R-4347; Atomic Energy Research Establishment, United Kingdom Atomic Energy Authority: Harwell, England, 1963. [Google Scholar]
- Williams, N.R.; Molinari, M.; Parker, S.C.; Storr, M. Atomistic investigation of the structure and transport properties of tilt grain boundaries of UO_{2}. J. Nucl. Mater. 2014, 458, 45–55. [Google Scholar] [CrossRef]
- Bertolus, M.; Freyss, M.; Dorado, B.; Martin, G.; Hoang, K.; Maillard, S.; Skorek, R.; Garcia, P.; Valot, C.; Chartier, A.; et al. Linking atomic and mesoscopic scales for the modelling of the transport properties of uranium dioxide under irradiation. J. Nucl. Mater. 2015, 462, 475–495. [Google Scholar] [CrossRef] [Green Version]
- Boyarchenkov, A.; Potashnikov, S.; Nekrasov, K.; Kupryazhkin, A. Investigation of cation self-diffusion mechanisms in UO_{2}±x using molecular dynamics. J. Nucl. Mater. 2013, 442, 148–161. [Google Scholar] [CrossRef] [Green Version]
- Childs, B. Fission product effects in uranium dioxide. J. Nucl. Mater. 1963, 9, 217–244. [Google Scholar] [CrossRef]
- Olander, D.; Wongsawaeng, D. Re-solution of fission gas—A review: Part I. Intragranular bubbles. J. Nucl. Mater. 2006, 354, 94–109. [Google Scholar] [CrossRef]
- Nelson, R. The stability of gas bubbles in an irradiation environment. J. Nucl. Mater. 1969, 31, 153–161. [Google Scholar] [CrossRef]
- Evans, J.H. Effect of temperature on bubble precipitation in uranium dioxide implanted with krypton and xenon ions. J. Nucl. Mater. 1992, 188, 222–225. [Google Scholar] [CrossRef]
- Michel, A.; Sabathier, C.; Carlot, G.; Kaïtasov, O.; Bouffard, S.; Garcia, P.; Valot, C. An in situ TEM study of the evolution of Xe bubble populations in UO_{2}. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 2012, 272, 218–221. [Google Scholar] [CrossRef]
- Basak, C.; Sengupta, A.; Kamath, H. Classical molecular dynamics simulation of UO_{2} to predict thermophysical properties. J. Alloy. Compd. 2003, 360, 210–216. [Google Scholar] [CrossRef]
- Morelon, N.-D.; Ghaleb, D.; Delaye, J.-M.; Van Brutzel, L. A new empirical potential for simulating the formation of defects and their mobility in uranium dioxide. Philos. Mag. 2003, 83, 1533–1555. [Google Scholar] [CrossRef]
- Cooper, M.W.D.; Rushton, M.; Grimes, R.W. A many-body potential approach to modelling the thermomechanical properties of actinide oxides. J. Phys. Condens. Matter 2014, 26, 105401. [Google Scholar] [CrossRef]
- Geng, H.; Chen, Y.; Kaneta, Y.; Kinoshita, M. Molecular dynamics study on planar clustering of xenon in UO_{2}. J. Alloy. Compd. 2008, 457, 465–471. [Google Scholar] [CrossRef] [Green Version]
- Chartier, A.; Van Brutzel, L.; Freyss, M. Atomistic study of stability of xenon nanoclusters in uranium oxide. Phys. Rev. B 2010, 81, 174111. [Google Scholar] [CrossRef]
- Thompson, A.E.; Meredig, B.; Stan, M.; Wolverton, C. Interatomic potential for accurate phonons and defects in UO_{2}. J. Nucl. Mater. 2014, 446, 155–162. [Google Scholar] [CrossRef]
- Cooper, M.W.D.; Kuganathan, N.; Burr, P.A.; Rushton, M.J.D.; Grimes, R.W.; Stanek, C.R.; Andersson, D.A. Development of Xe and Kr empirical potentials for CeO_{2}, ThO_{2}, UO_{2} and PuO_{2}, combining DFT with high temperature MD. J. Phys. Condens. Matter 2016, 28, 405401. [Google Scholar] [CrossRef] [Green Version]
- Tang, K.T.; Toennies, J.P. The van der Waals potentials between all the rare gas atoms from He to Rn. J. Chem. Phys. 2003, 118, 4976–4983. [Google Scholar] [CrossRef]
- Padel, A.; De Novion, C. Constantes elastiques des carbures, nitrures et oxydes d’uranium et de plutonium. J. Nucl. Mater. 1969, 33, 40–51. [Google Scholar] [CrossRef]
- Stukowski, A. Visualization and analysis of atomistic simulation data with OVITO—The Open Visualization Tool. Model. Simul. Mater. Sci. Eng. 2009, 18, 015012. [Google Scholar] [CrossRef]
- Kittel, C. Introduction to Solid State Physics, 8th ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2005. [Google Scholar]
- Nordlund, K.; Averback, R.S. Point defect movement and annealing in collision cascades. Phys. Rev. B 1997, 56, 2421–2431. [Google Scholar] [CrossRef] [Green Version]
- Ball, R.G.J.; Grimes, R.W. Diffusion of Xe in UO_{2}. J. Chem. Soc. Faraday Trans. 1990, 86, 1257–1261. [Google Scholar] [CrossRef]
- Catlow, C.R.A. Fission gas diffusion in uranium dioxide. Proc. R. Soc. Lond. A. Math. Phys. Eng. Sci. 1978, 364, 473–497. [Google Scholar] [CrossRef]
- Miekeley, W.; Felix, F. Effect of stoichiometry on diffusion of xenon in UO_{2}. J. Nucl. Mater. 1972, 42, 297–306. [Google Scholar] [CrossRef]
- Cornell, R.M. The growth of fission gas bubbles in irradiated uranium dioxide. Philos. Mag. 1969, 19, 539–554. [Google Scholar] [CrossRef]
- Kaimal, K.; Naik, M.; Paul, A. Temperature dependence of diffusivity of xenon in high dose irradiated UO_{2}. J. Nucl. Mater. 1989, 168, 188–190. [Google Scholar] [CrossRef]
- Torres, E.; Kaloni, T. Thermal conductivity and diffusion mechanisms of noble gases in uranium dioxide: A DFT+U study. J. Nucl. Mater. 2019, 521, 137–145. [Google Scholar] [CrossRef]
- Turnbull, J. The distribution of intragranular fission gas bubbles in UO_{2} during irradiation. J. Nucl. Mater. 1971, 38, 203–212. [Google Scholar] [CrossRef]

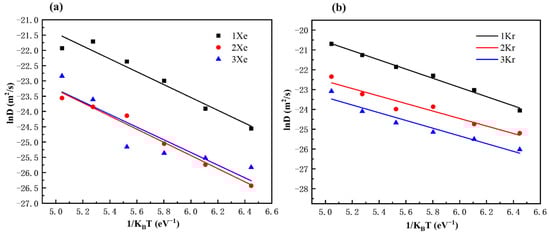

Number of Xe | Diffusion Energy Barrier (eV) | Diffusion Prefactor (m^{2}/s) |
---|---|---|
