# On the Prediction of Material Fracture for Thin-Walled Cast Alloys Using GISSMO

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Studied Material

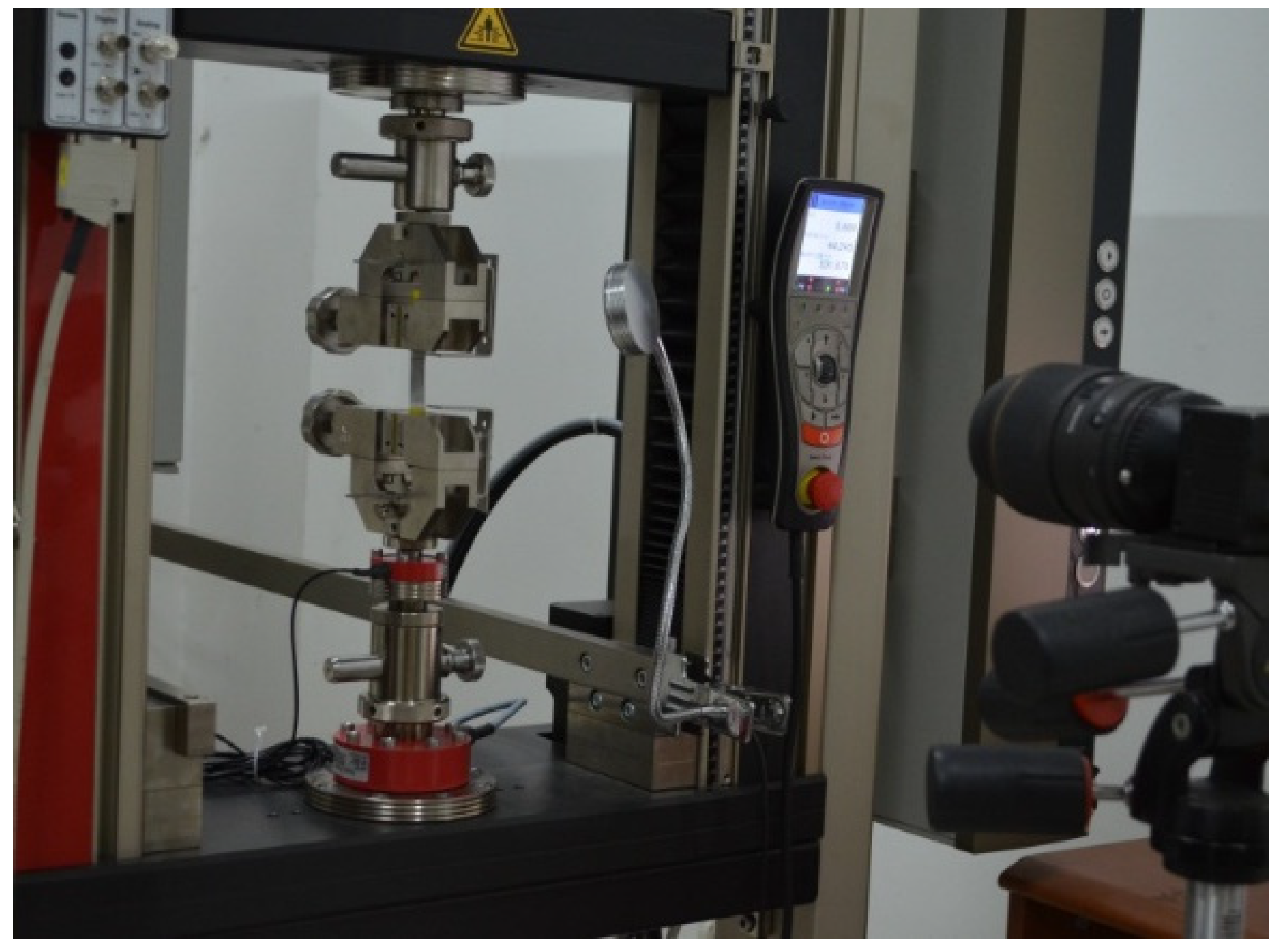

#### 2.2. Experimental Methodology

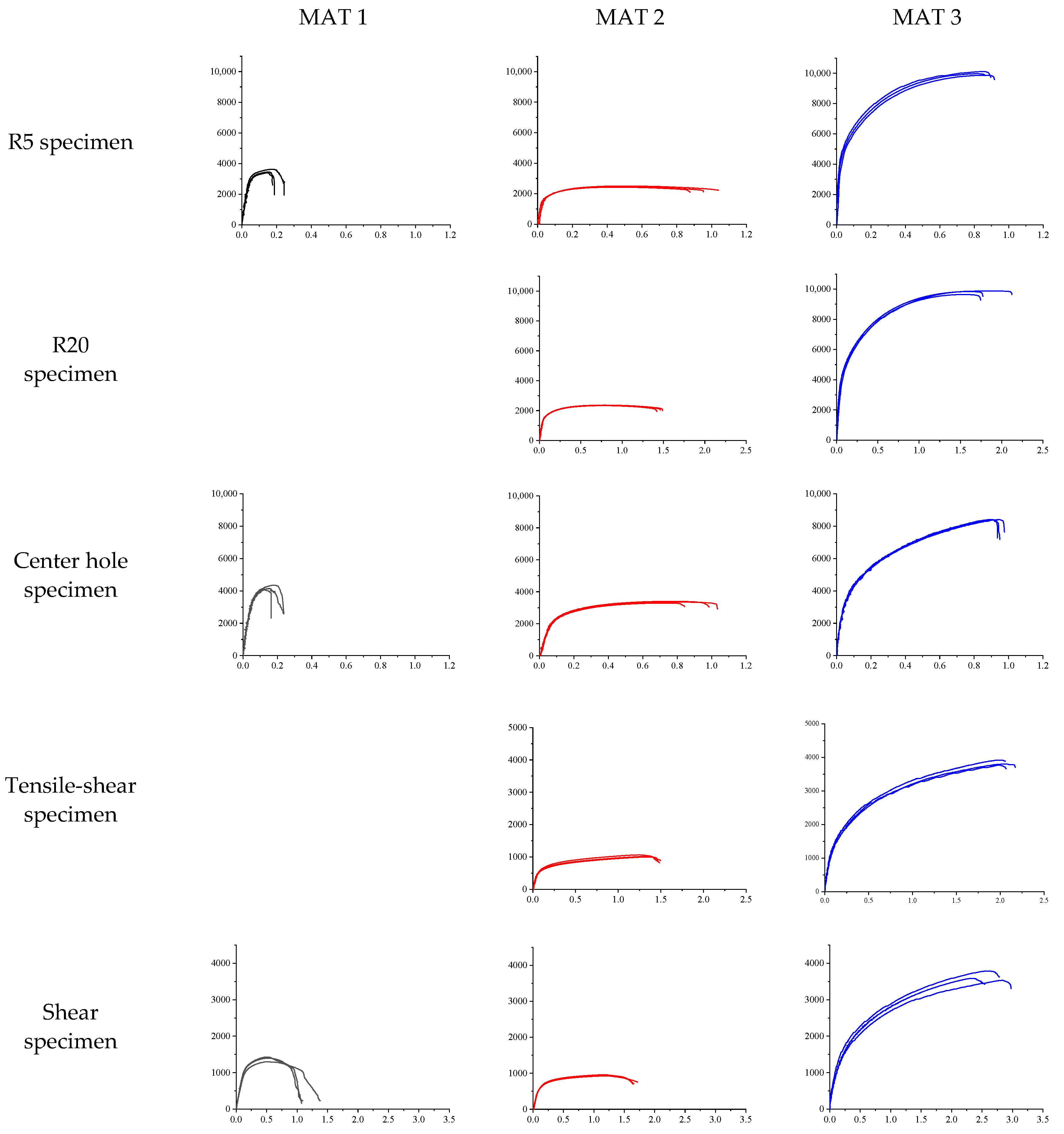

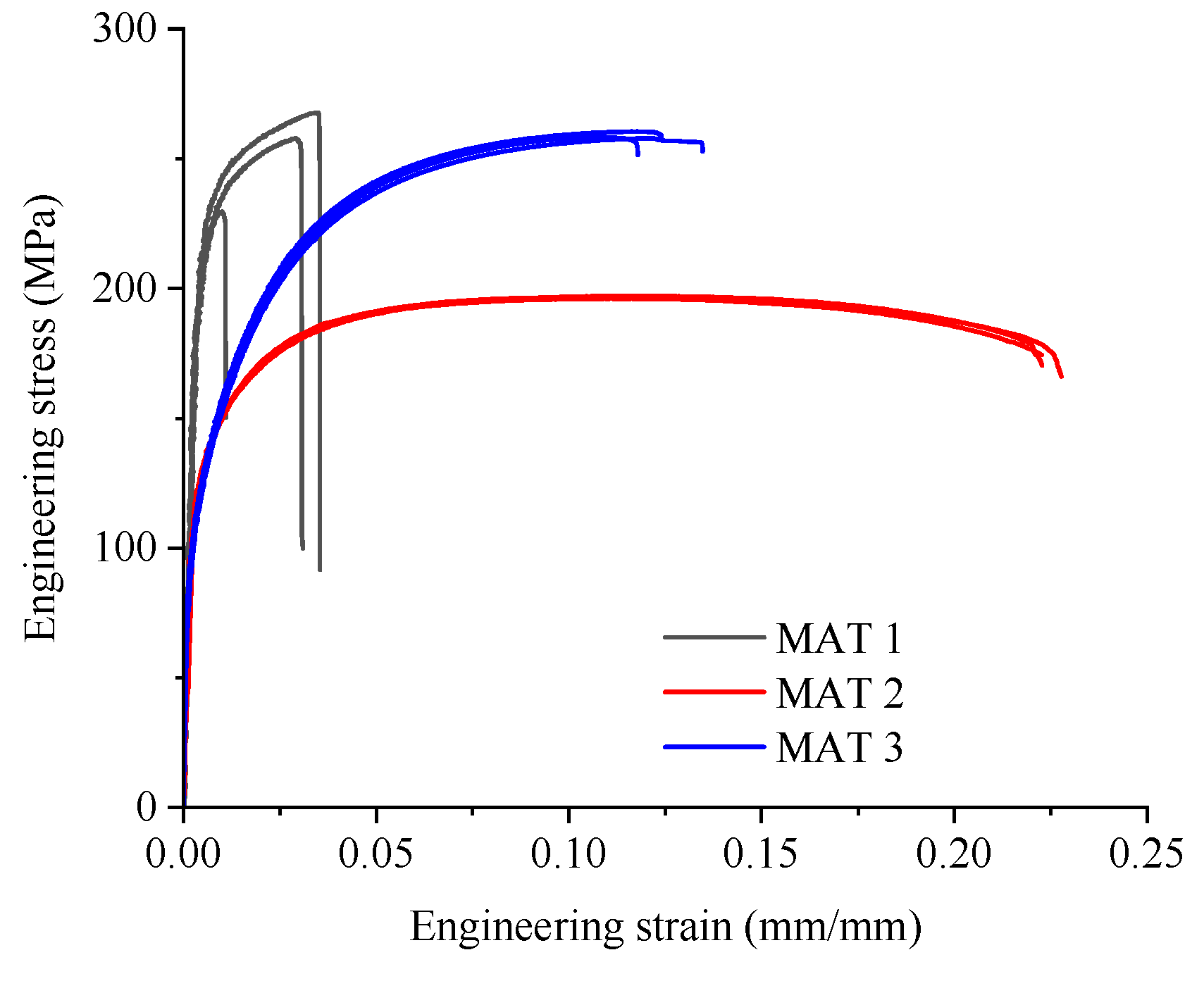

#### 2.3. Experimental Results

## 3. Characterization of Plasticity and Fracture Behaviors with GISSMO

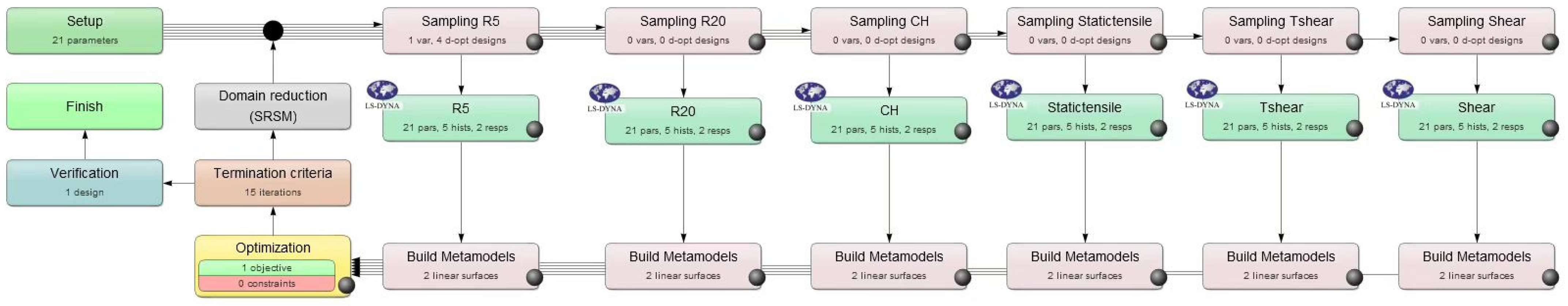

#### 3.1. Shell-Based Model

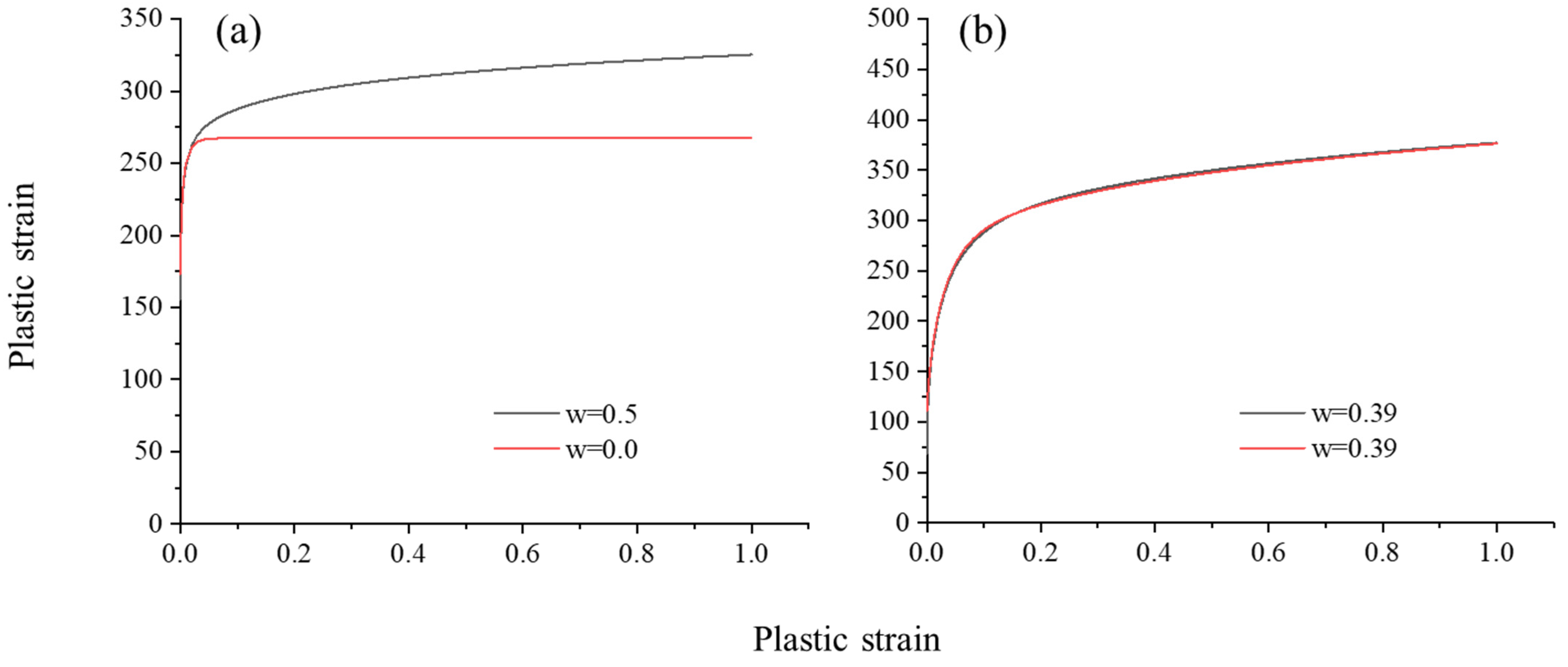

#### 3.2. Tetrahedral-Based Models

## 4. Discussion

## 5. Conclusions

- With the well-calibrated parameters, GISSMO could reproduce the test results with good agreement for the multiple stress states.
- Optimization with LS-OPT was a feasible way to calibrate the parameters for GISSMO and avoid the requirement of practical skills.
- The part structures tests and simulations should be conducted in future work to evaluate whether the tetrahedral-based model with GISSMO is suitable.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Corona, E.; Reedlunn, B. A Review of Macroscopic Ductile Failure Criteria; Sandia National Laboratories: Livermore, CA, USA, 2013. [Google Scholar]
- McClintock, F.A. A Criterion for Ductile Fracture by the Growth of Holes. J. Appl. Mech.
**1968**, 35, 363–371. [Google Scholar] [CrossRef] - Rice, J.R.; Tracey, D.M. On the ductile enlargement of voids in triaxial stress fields. J. Mech. Phys. Solids
**1969**, 17, 201–217. [Google Scholar] [CrossRef] [Green Version] - Gurson, A.L. Continuum Theory of Ductile Rupture by Void Nucleation and Growth: Part I—Yield Criteria and Flow Rules for Porous Ductile Media. J. Eng. Mater. Technol.
**1977**, 99, 2–15. [Google Scholar] [CrossRef] - Bao, Y.; Wierzbicki, T. On fracture locus in the equivalent strain and stress triaxiality space. Int. J. Mech. Sci.
**2004**, 46, 81–98. [Google Scholar] [CrossRef] - Mae, H.; Teng, X.; Bai, Y.; Wierzbicki, T. Calibration of ductile fracture properties of a cast aluminum alloy. Mater. Sci. Eng. A
**2007**, 459, 156–166. [Google Scholar] [CrossRef] - Bai, Y.; Wierzbicki, T. A new model of metal plasticity and fracture with pressure and Lode dependence. Int. J. Plast.
**2008**, 24, 1071–1096. [Google Scholar] [CrossRef] - Luo, M.; Dunand, M.; Mohr, D. Experiments and modeling of anisotropic aluminum extrusions under multi-axial loading—Part II: Ductile fracture. Int. J. Plast.
**2012**, 32–33, 36–58. [Google Scholar] [CrossRef] - Lee, J.; Kim, S.-J.; Park, H.; Bong, H.J.; Kim, D. Metal plasticity and ductile fracture modeling for cast aluminum alloy parts. J. Mater. Process. Technol.
**2018**, 255, 584–595. [Google Scholar] [CrossRef] - Pack, K.; Mohr, D. Combined necking & fracture model to predict ductile failure with shell finite elements. Eng. Fract. Mech.
**2017**, 182, 32–51. [Google Scholar] - Pack, K.; Roth, C.C. The second Sandia Fracture Challenge: Blind prediction of dynamic shear localization and full fracture characterization. Int. J. Fract.
**2016**, 198, 197–220. [Google Scholar] [CrossRef] [Green Version] - Mohr, D.; Marcadet, S.J. Micromechanically-motivated phenomenological Hosford–Coulomb model for predicting ductile fracture initiation at low stress triaxialities. Int. J. Solids Struct.
**2015**, 67–68, 40–55. [Google Scholar] [CrossRef] - Lee, J.-Y.; Steglich, D.; Lee, M.-G. Fracture prediction based on a two-surface plasticity law for the anisotropic magnesium alloys AZ31 and ZE10. Int. J. Plast.
**2018**, 105, 1–23. [Google Scholar] [CrossRef] - Walters, C.L. Framework for adjusting for both stress triaxiality and mesh size effect for failure of metals in shell structures. Int. J. Crashworthiness
**2014**, 19, 1–12. [Google Scholar] [CrossRef] - Hoque, S.E.; Scheiblhofer, S.; Ucsnik, S. A comparative study of the hexahedral elements in LS-DYNA for crashworthiness simulation. In Proceedings of the 12th European LS-DYNA Conference, Koblenz, Germany, 14–16 May 2019. [Google Scholar]
- Kim, D.-Y.; Han, Y.; Shin, S.; Yook, H. Numerical Fracture Analysis Considering Forming Effect and Element Size Regularization for Automotive Seat Structures. SAE Int. J. Engines
**2017**, 10, 287–295. [Google Scholar] [CrossRef] - Eriksson, V. Numerical Simulation of Ductile Cast Iron Fracture: A parameterization of the material model *MAT_224 in the FE-code LS-DYNA. Master’s Thesis, Karlstad University, Karlstad, Sweden, 2013. [Google Scholar]
- Leost, Y.; Sonntag, A.; Haase, T. Modeling of a Cast Aluminum Wheel for Crash Application. In Proceedings of the 11th European LS-DYNA Conference, Salzburg, Austria, 9–11 May 2017. [Google Scholar]
- Sung, J.H.; Kim, J.H.; Wagoner, R.H. A plastic constitutive equation incorporating strain, strain-rate, and temperature. Int. J. Plast.
**2010**, 26, 1746–1771. [Google Scholar] [CrossRef] - Johnsen, J.; Holmen, J.K.; Gruben, G.; Morin, D.; Langseth, M. Calibration and Application of GISSMO and* MAT_258 for Simulations Using Large Shell Elements. In Proceedings of the 16th International LS-DYNA User Conference, Online, 10–11 June 2020. [Google Scholar]
- Chen, X.; Chen, G.; Huang, L. Validation of GISSMO model for fracture prediction of a third-generation advanced high-strength steel. SAE Int. J. Mater. Manuf.
**2018**, 11, 293–302. [Google Scholar] [CrossRef] - Gu, B.; Lim, J.; Hong, S. Determination and Verification of GISSMO Fracture Properties of Bolts Used in Radioactive Waste Transport Containers. Materials
**2022**, 15, 1893. [Google Scholar] [CrossRef] [PubMed] - Ge, Y.-l.; Li, X.-X.; Lang, L.-H.; Ruan, S.-W. Optimized design of tube hydroforming loading path using multi-objective differential evolution. Int. J. Adv. Manuf. Technol.
**2017**, 88, 837–846. [Google Scholar] [CrossRef] - Andrade, F.; Feucht, M.; Haufe, A. On the Prediction of Material Failure in LS-DYNA
^{®}: A Comparison between GISSMO and DIEM. In Proceedings of the 13th International LS-DYNA Users Conference, Detroit, MI, USA, 8 June 2014. [Google Scholar]

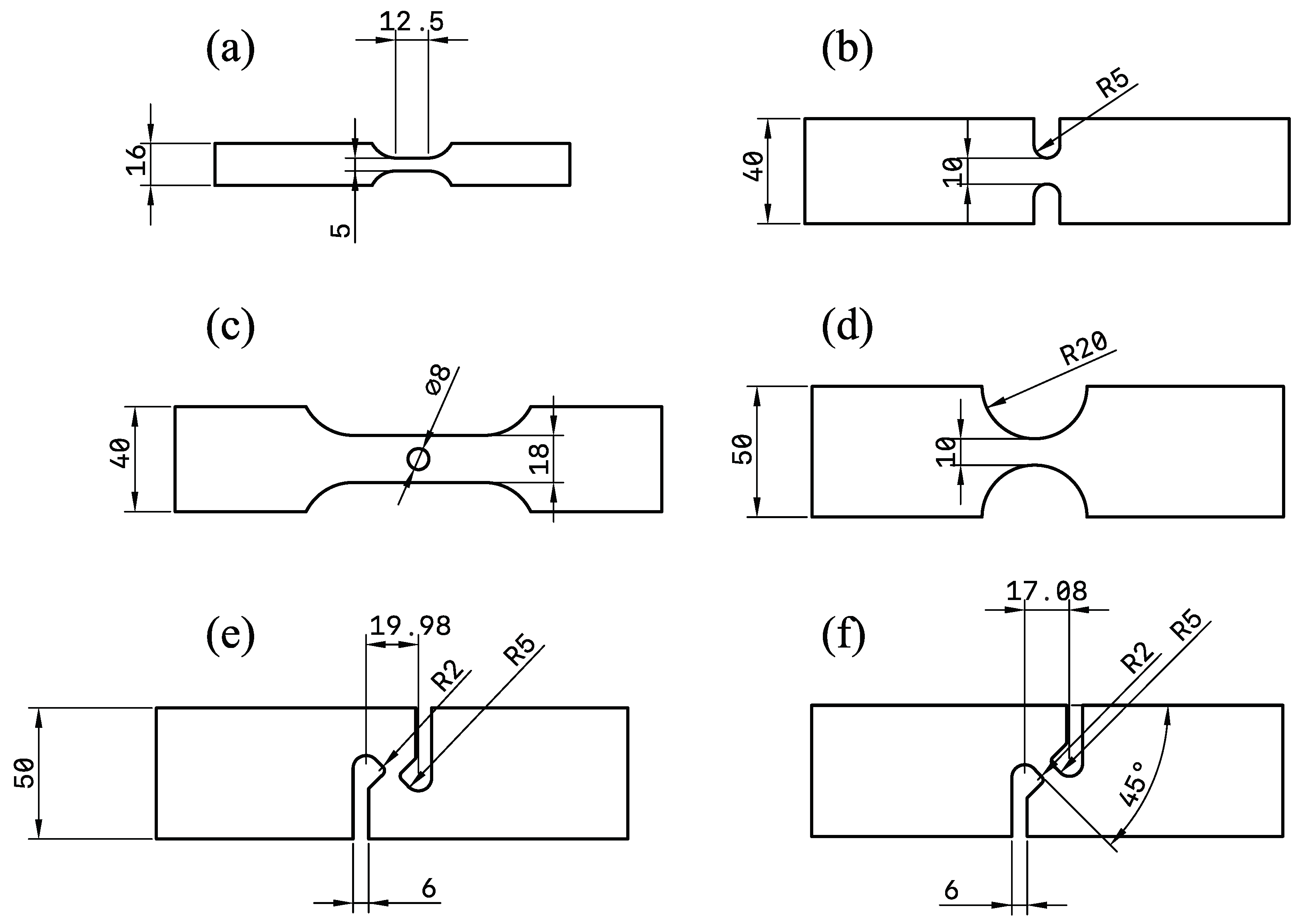

**Figure 1.**Specimen configuration for the tests (unit: mm): (

**a**) Tensile, (

**b**) R5 notched, (

**c**) Center hole, (

**d**) R20 notched, (

**e**) Shear, and (

**f**) Tensile-shear.

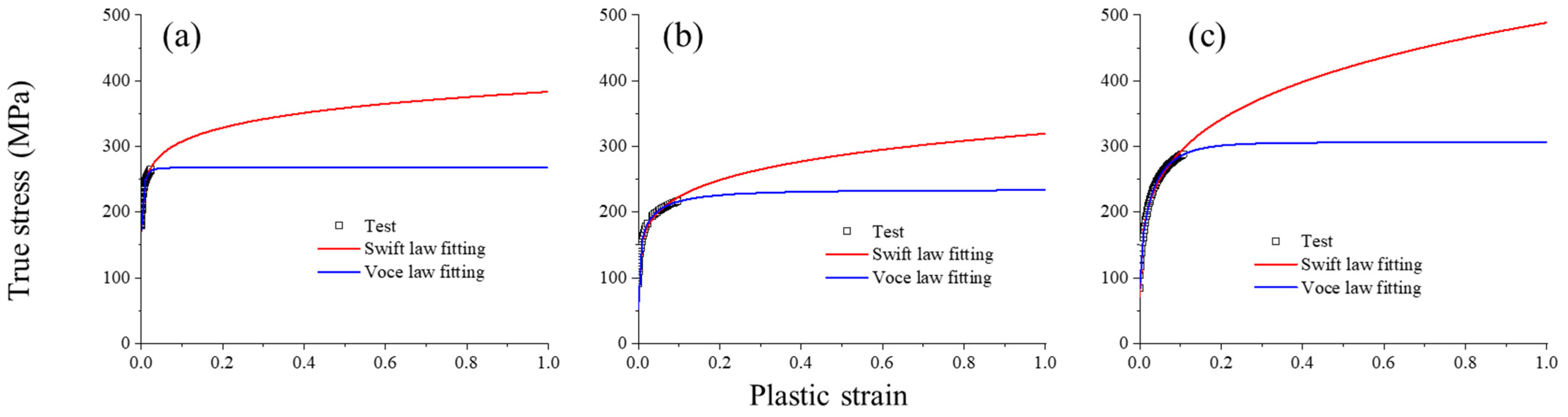

**Figure 5.**True stress–plastic strain curves and hardening-law fittings before necking: (

**a**) MAT 1, (

**b**) MAT 2, and (

**c**) MAT 3.

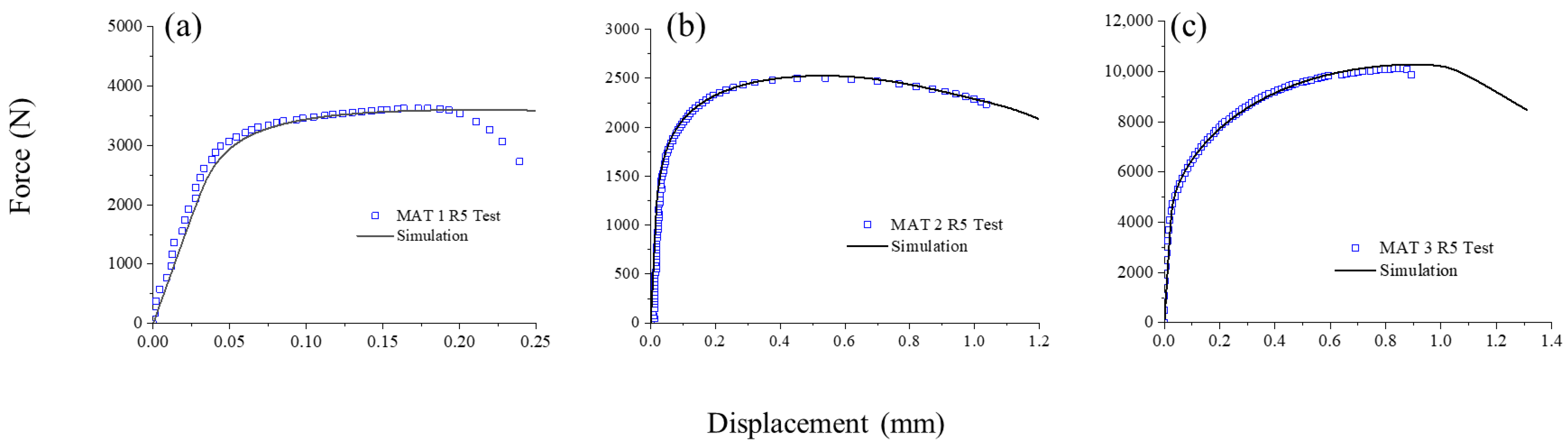

**Figure 6.**Isotropic hardening-law fittings before necking using R5 test results: (

**a**) MAT 1, (

**b**) MAT 2, and (

**c**) MAT 3.

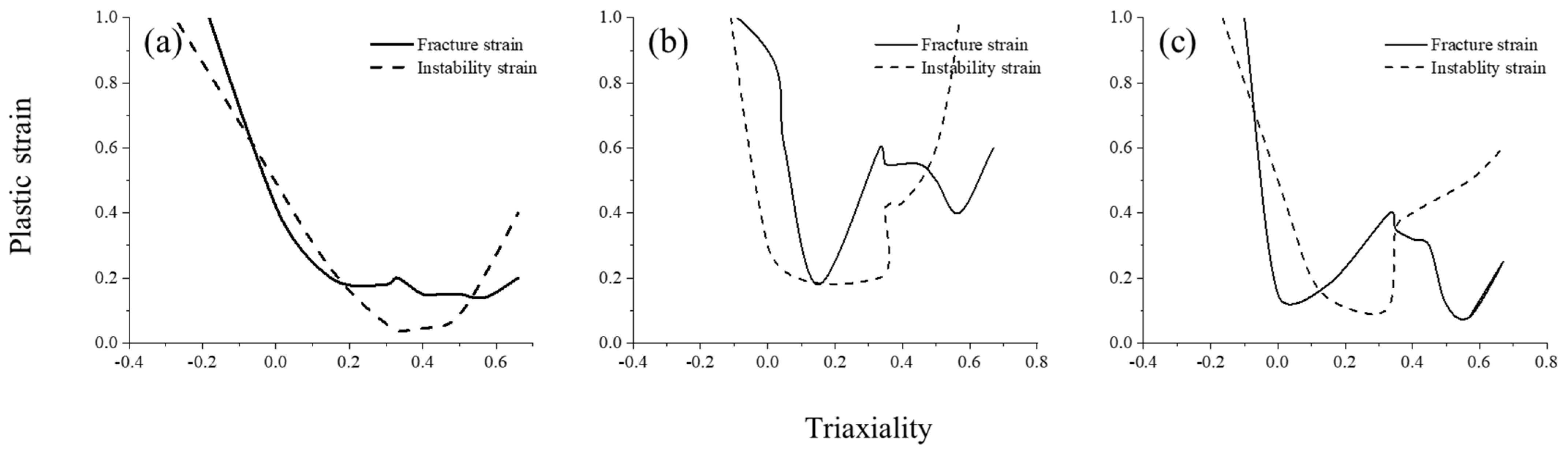

**Figure 8.**Optimized failure and instability loci using GISSMO for shell-based models: (

**a**) MAT 1, (

**b**) MAT 2, and (

**c**) MAT 3.

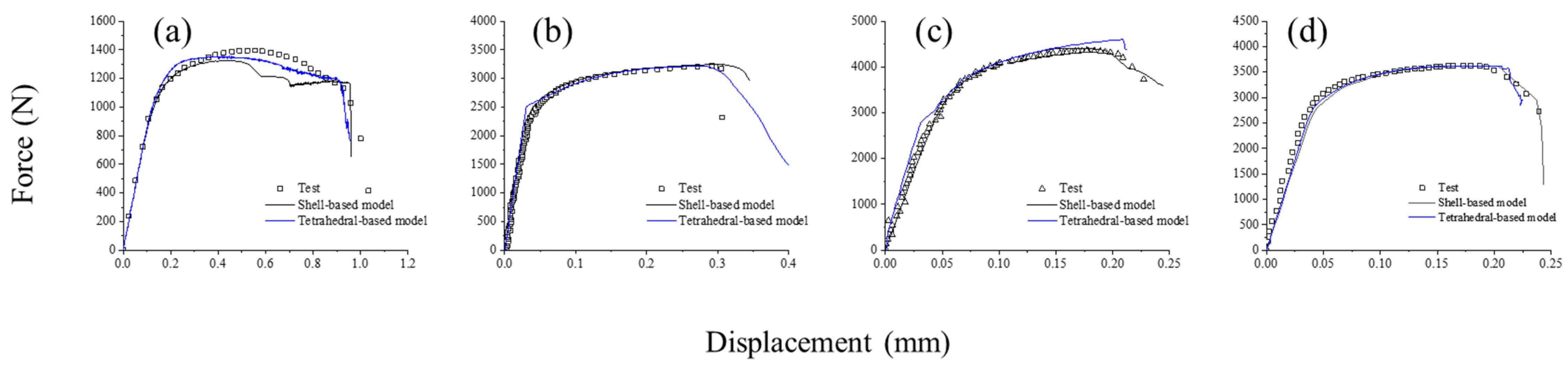

**Figure 9.**Shell-based model simulation vs. experiments for MAT 1 using GISSMO: (

**a**) shear specimen, (

**b**) tensile specimen, (

**c**) center hole specimen, and (

**d**) R5 specimen.

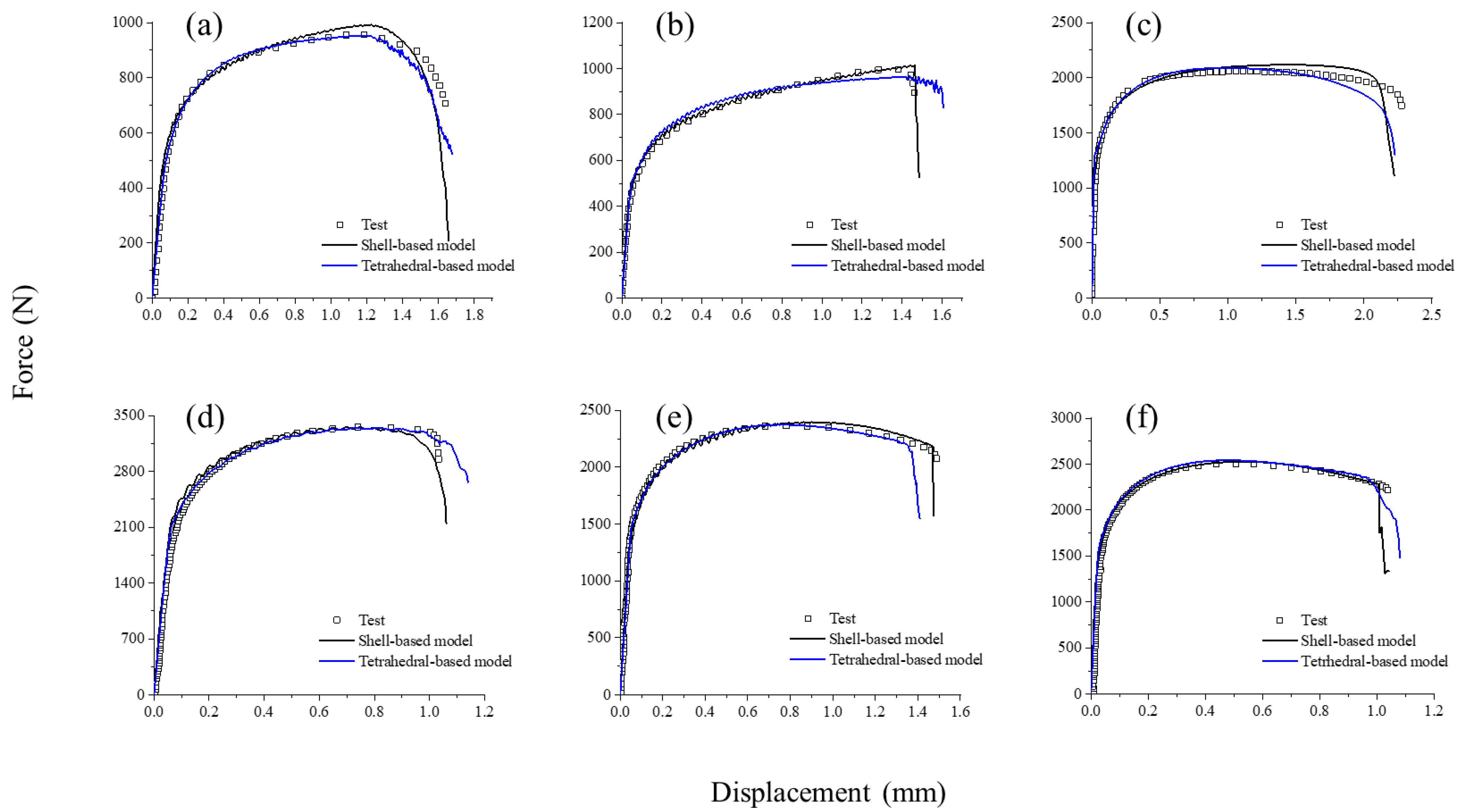

**Figure 10.**Shell-based model simulation vs. experiments for MAT 1 using GISSMO: (

**a**) shear specimen, (

**b**) tensile–shear specimen, (

**c**) tensile specimen, (

**d**) center hole specimen, (

**e**) R20 notched specimen, and (

**f**) R5 notched specimen.

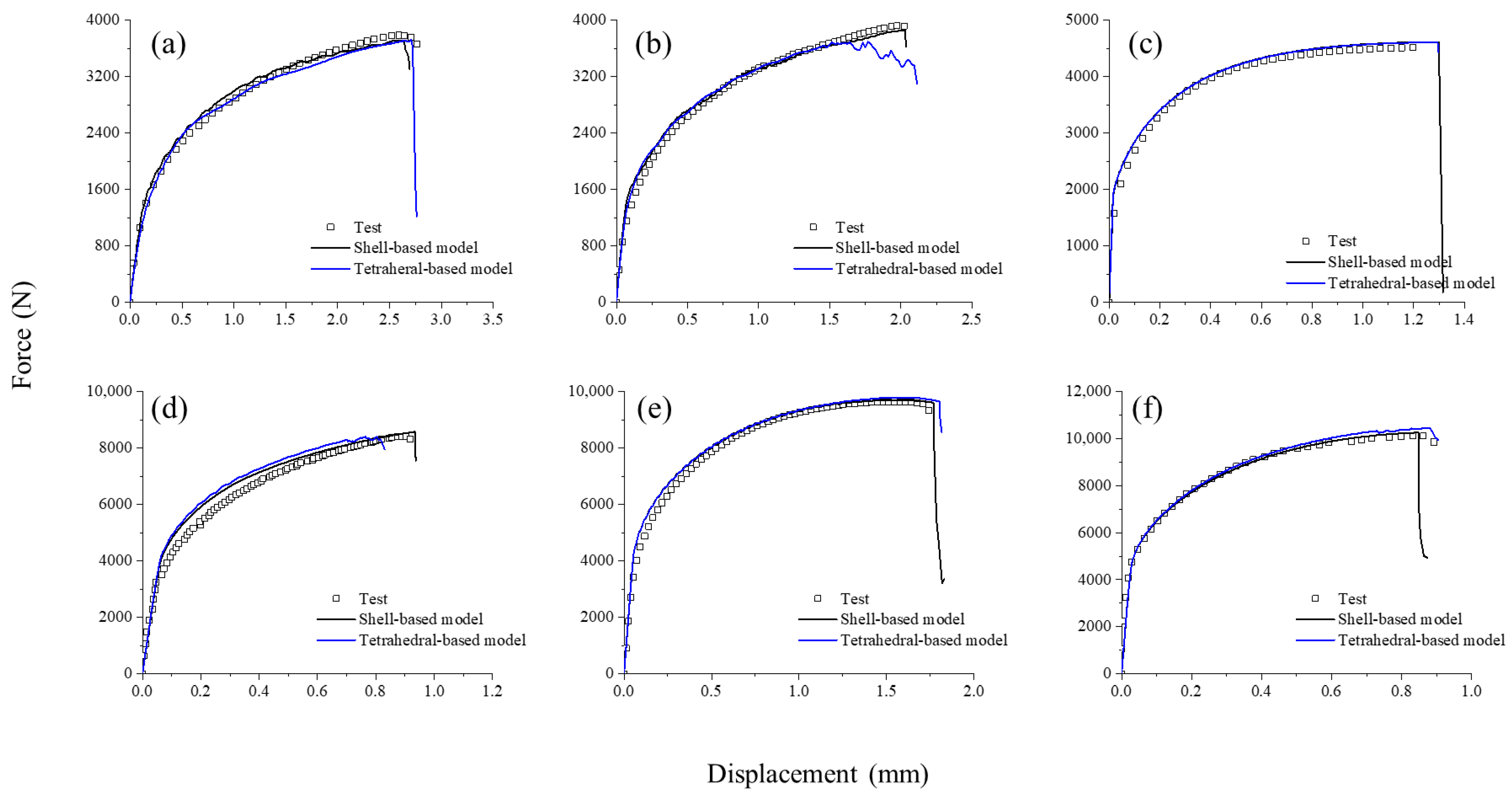

**Figure 11.**Shell-based model simulation vs. experiments for MAT 3 using GISSMO: (

**a**) shear specimen, (

**b**) tensile–shear specimen, (

**c**) tensile specimen, (

**d**) center hole specimen, (

**e**) R20 notched specimen, and (

**f**) R5 notched specimen.

**Figure 12.**Mesh-dependency regularization factors for shell-based models: (

**a**) Mesh dependency regularization factors, (

**b**) Simulation results and (

**c**) Tensile specimen models with different mesh sizes.

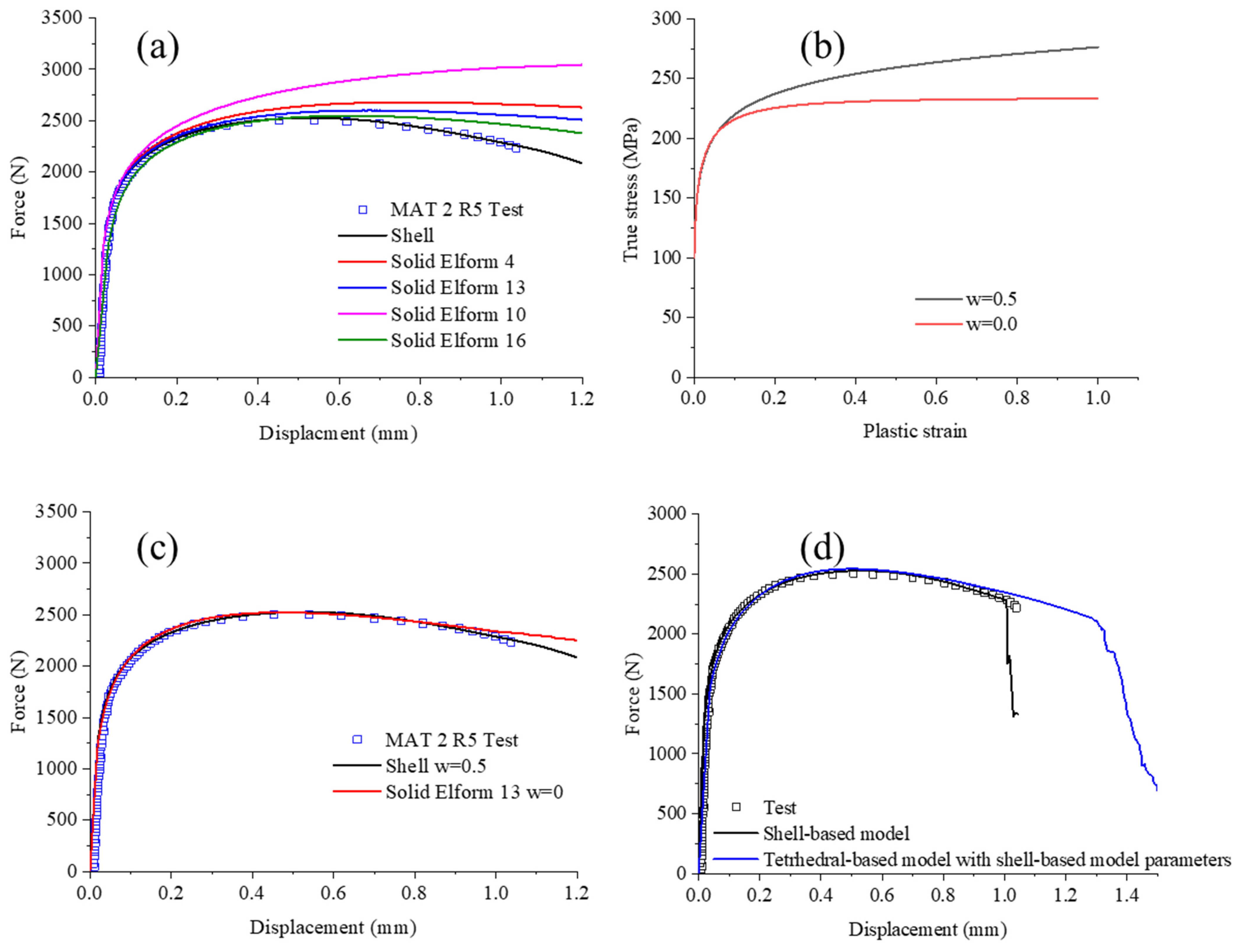

**Figure 13.**Tetrahedral elements comparisons for MAT 2: (

**a**) element formulas, (

**b**) extrapolating curves, (

**c**) R5 model with a recalibrated weighting factor, and (

**d**) R5 model with the shell-based GISSMO.

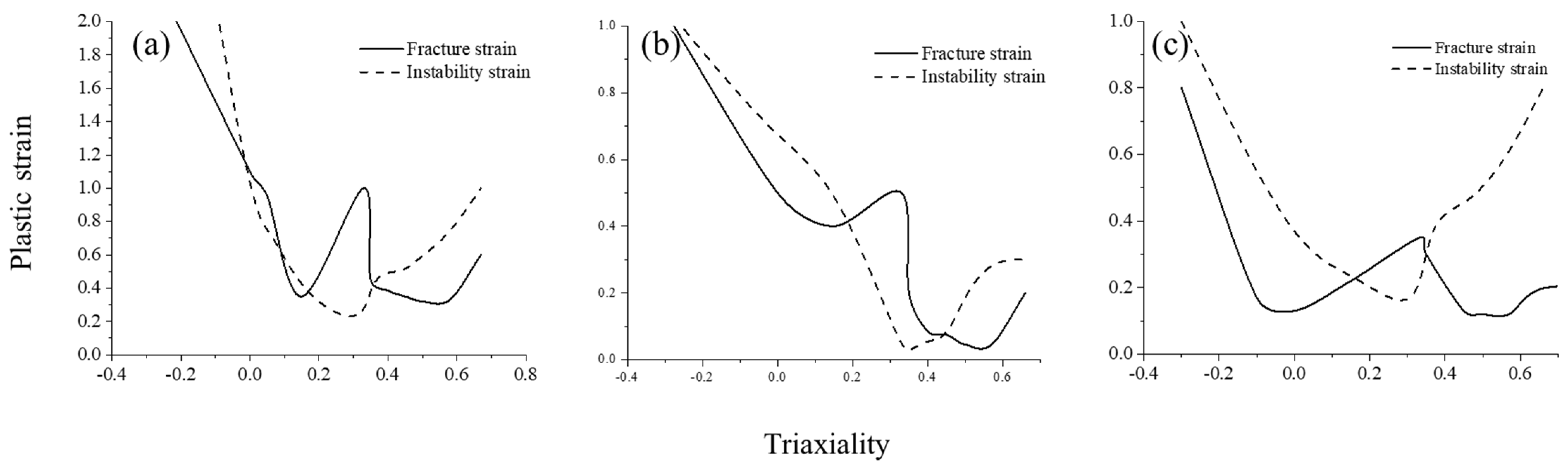

**Figure 15.**Optimized failure and instability loci using GISSMO for tetrahedral-based models: (

**a**) MAT 1, (

**b**) MAT 2, and (

**c**) MAT 3.

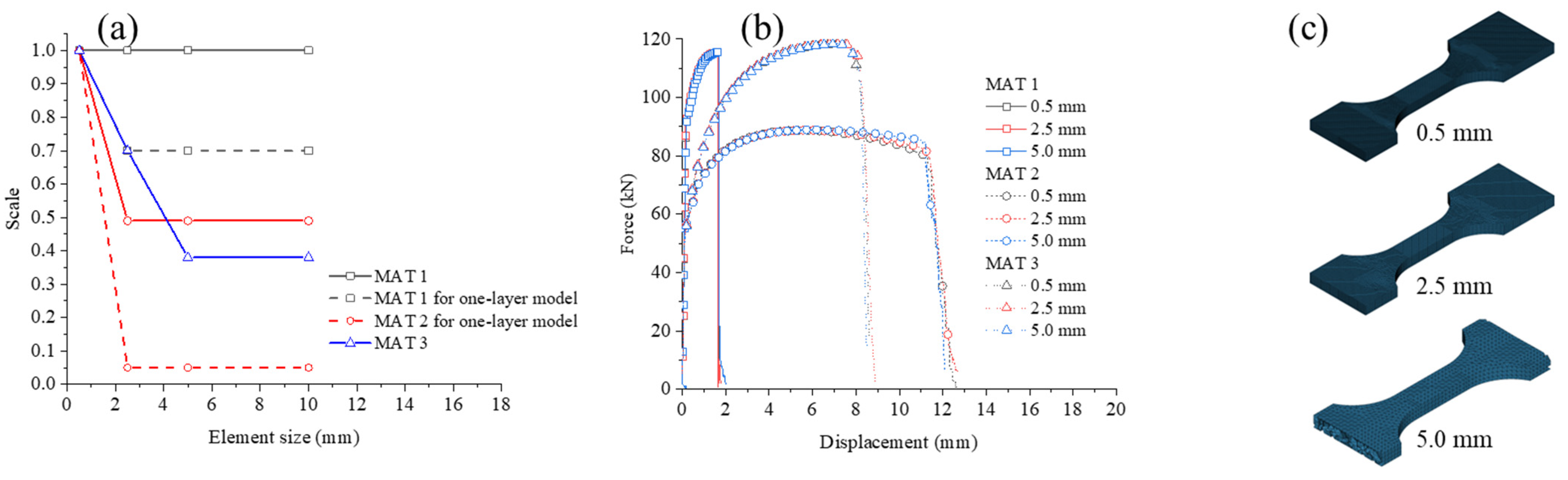

**Figure 16.**Mesh-dependency regularization factors for tetrahedral-based models: (

**a**) Mesh dependency regularization factors, (

**b**) Simulation results, and (

**c**) Tensile specimen models with different mesh sizes.

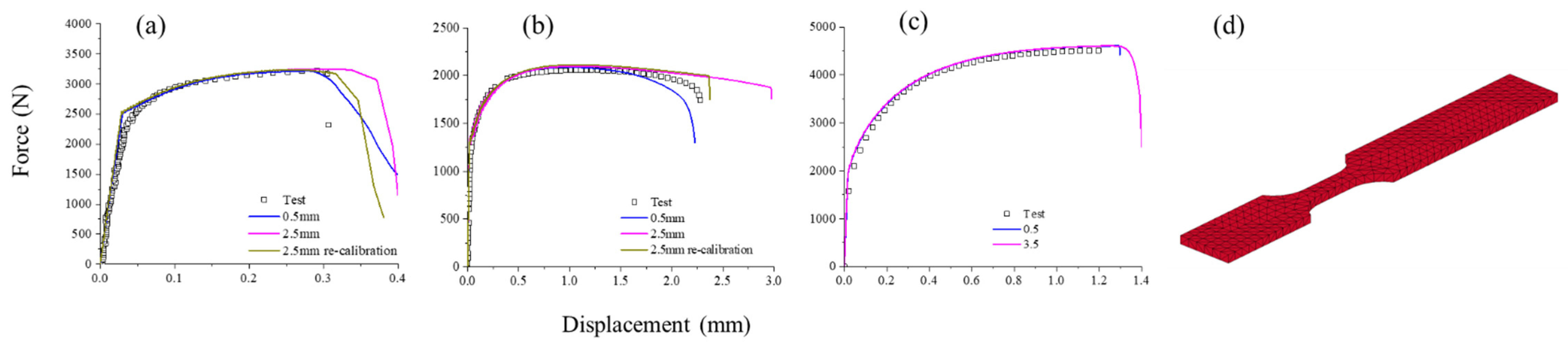

**Figure 17.**Recalibrated results for one-layer models: (

**a**) MAT 1, (

**b**) MAT 2, (

**c**) MAT 3 and (

**d**) One-layer tensile specimen models.

Test # | Specimen | Desired $\mathit{\eta}$ | Desired $\overline{\mathit{\theta}}$ |
---|---|---|---|

a | Tensile | 0.33 | 1 |

b | R5 notched | 0.5 | 0.35 |

c | Center hole | 0.38 | 0.85 |

d | R20 notched | 0.40 | 0.80 |

e | Tensile–shear | 0.10 | 0.25 |

f | Shear | 0.0 | 0.0 |

# | ${\mathit{A}}_{\mathit{s}}$ | ${\mathit{B}}_{\mathit{s}}$ | ${\mathit{C}}_{\mathit{s}}$ | ${\mathit{A}}_{\mathit{v}}$ | ${\mathit{B}}_{\mathit{v}}$ | ${\mathit{C}}_{\mathit{v}}$ | ${\mathit{D}}_{\mathit{v}}$ | $\mathit{w}$ |
---|---|---|---|---|---|---|---|---|

MAT 1 | 383.143 | 0.09532 | 2.20 × 10^{−5} | 267.504 | 94.2477 | 40.0521 | 0.68908 | 0.5 |

MAT 2 | 319.5 | 0.15532 | 1.2 × 10^{−5} | 267.504 | 186.023 | 6.12133 | 0.41562 | 0.5 |

MAT 3 | 488.515 | 0.22313 | 1.9 × 10^{−5} | 306.092 | 221.370 | 11.5027 | 0.68509 | 0.39 |

ELFORM 4 | ELFORM 10 | ELFORM 13 | ELFORM 16 |
---|---|---|---|

149 s | 43 s | 49 s | 205 s |
