Article

Spray-Pyrolytic Tunable Structures of Mn Oxides-Based Composites for Electrocatalytic Activity Improvement in Oxygen Reduction

by
Miroslava Varničić
1,
Miroslav M. Pavlović
1,2,*,
Sanja Eraković Pantović
1,
Marija Mihailović
1,
Marijana R. Pantović Pavlović
1,2,
Srećko Stopić
3 and
Bernd Friedrich
3
1
Department of Electrochemistry, Institute of Chemistry, Technology and Metallurgy, National Institute of the Republic of Serbia, University of Belgrade, Njegoševa 12, 11000 Belgrade, Serbia
2
Center of Excellence in Environmental Chemistry and Engineering-ICTM, University of Belgrade, Njegoševa 12, 11000 Belgrade, Serbia
3
Process Metallurgy and Metal Recycling, RWTH Aachen University, Intzestraβe 3, 52072 Aachen, Germany
*
Author to whom correspondence should be addressed.
Metals 2022, 12(1), 22; https://doi.org/10.3390/met12010022
Submission received: 20 November 2021 / Revised: 15 December 2021 / Accepted: 20 December 2021 / Published: 23 December 2021
(This article belongs to the Special Issue Advances in Understanding of Unit Operations in Non-ferrous Extractive Metallurgy 2021)
Browse Figures
Review Reports Versions Notes

Abstract

:
Hybrid nanomaterials based on manganese, cobalt, and lanthanum oxides of different morphology and phase compositions were prepared using a facile single-step ultrasonic spray pyrolysis (USP) process and tested as electrocatalysts for oxygen reduction reaction (ORR). The structural and morphological characterizations were completed by XRD and SEM-EDS. Electrochemical performance was characterized by cyclic voltammetry and linear sweep voltammetry in a rotating disk electrode assembly. All synthesized materials were found electrocatalytically active for ORR in alkaline media. Two different manganese oxide states were incorporated into a Co3O4 matrix, δ-MnO2 at 500 and 600 °C and manganese (II,III) oxide-Mn3O4 at 800 °C. The difference in crystalline structure revealed flower-like nanosheets for birnessite-MnO2 and well-defined spherical nanoparticles for material based on Mn3O4. Electrochemical responses indicate that the ORR mechanism follows a preceding step of MnO2 reduction to MnOOH. The calculated number of electrons exchanged for the hybrid materials demonstrate a four-electron oxygen reduction pathway and high electrocatalytic activity towards ORR. The comparison of molar catalytic activities points out the importance of the composition and that the synergy of Co and Mn is superior to Co3O4/La2O3 and pristine Mn oxide. The results reveal that synthesized hybrid materials are promising electrocatalysts for ORR.

1. Introduction

Economic development and extensive use of fossil fuels has led to fast depletion of energy resources. Hence, the development of clean energy storage and conversion devices, such as metal–air batteries, supercapacitors, fuel cells, and other renewable energy technologies, is in the main focus of numerous researchers and laboratories worldwide [1,2]. The efficiency of these energy devices mainly depends on the electrochemical oxygen reduction reaction (ORR) that occurs at the cathode side, as limiting reaction [3]. High activation barriers, poor rate capability, sluggish kinetics, and serious voltage gap of oxygen electrode reactions limit the performance of energy devices that rely on ORR [4,5,6].
Until now, the most investigated ORR catalysts have been based on noble metals such as Pt and Pt alloys, to achieve favorable reaction rates [7]. However, the high price and scarcity of the precious metals, inferior stability and sensitivity to CO poisoning, severely limit their widespread applications [2,3,8]. To overcome the above-mentioned issues, lowering the amount of noble metals and exploring new catalytic materials for ORR have triggered extensive research interests.
Transition metals (TMOs) and organic macrocycles represent promising candidates as alternatives to noble metals as catalytic materials for ORR [9,10,11,12,13,14]. Among them, manganese oxides (MnyOx) are of particular interest because of their prominent advantages of low cost, stability, environmental friendliness, abundance, and considerable catalytic activity toward oxygen reduction reaction [15,16,17,18,19,20]. Despite insufficient stability in acidic media, Mn-oxides can be applied as promising catalyst in air electrodes for both alkaline fuel cells and metal–air batteries. For example, various oxides have been studied, including perovskite-type, α-Mn2O3 (bixbyite), β-MnO2 (pyrolusite), Mn3O4 (spinel), α-MnOOH (manganite), and simple Mn oxides [15,16,17,18,19,20,21,22], and the ORR was found to be highly dependent on the crystal structure of the oxides. Additionally, there are many studies showing manganese-oxide as highly promising material for the metal air batteries. For example, it has been reported the application of MnO2 at the reduced graphene oxide as hybrid material in Mg-air battery [23], MnO2 on graphene coated microfibers for Na–air battery [24], and Mn oxide framework for lithium–oxygen batteries [25]. It is possible to increase the activity of manganese oxide by tuning its crystal structure and morphology, doping, compositing, vacancy creation, and hydrogenation. The continuous improvement of the oxygen electrochemical activity of Mn-oxide is still ongoing work.
Cobalt oxide (Co3O4) is also one of the well-known materials that has been extensively studied as promising candidate and corrosion resistant ORR catalysts in alkaline media for fuel cells and metal–air batteries. Cobalt oxide belonging to the family of transition metal oxides, is able to display significant morphology modulated catalytic activity for ORR [26,27]. Co3O4 has spinal structure, with magnetic Co2+ and non-magnetic Co3+ at its tetrahedral and octahedral sites [27], that are significant for cobalt oxide catalytic activity. Porous Co3O4 nanoplates have been used as ORR catalyst for Zn–air batteries in alkaline medium [28], while flake-particles Co3O4 have been employed as catalysts for Li-O2 batteries [29]. The structure of cobalt oxide has provided the abundant active sites together with ion and electron transport length, which eventually have improved the energy efficiency. Another investigation examines electrocatalyst for the oxygen reduction reaction based on a graphene-supported g-C3N4@cobalt oxide core–shell hybrid in alkaline solution with improved stability and activity, approaching to that of 20% Pt–C at the same potential [30]. It has been shown that the sole CoOx electrode exhibited only the two-electron mechanism with formation of hydrogen peroxide, rather than the four-electron mechanism, while the FCNTs electrode exhibited the two parallel mechanisms favoring four-electron mechanism only at higher overpotential. These results indicate the synergistic effect of the coupling between FCNTs and CoOx nanoparticles catalyzing the ORR via the direct four-electron mechanism. In another study, cobalt oxide nanocubes incorporated into reduced graphene oxide exhibited better electrocatalytic activity in terms of the current density, overpotential, and stability, compared to commercial Pt/C catalyst for the ORR in an alkaline medium [26]. Unfortunately, their ORR activity alone is generally poor. Thus, for further improvement, other metal atoms or carbon based materials have been incorporated into their catalysts structure [31,32,33,34,35].
La based perovskite materials are considered as a new class of materials in the mixed-oxide family and have attracted increasing attention for potential replacement of the noble metals. They have shown promising catalytic performance for ORR in alkaline media. The activity of these La-based oxides strongly correlated with the covalent bond strength between B-site cation and the oxygenated species. La is located in the middle of the octahedral structure and plays an important stabilizing role [36,37]. Additionally, La2O3 contain oxygen vacancies and interstitials with low oxygen vacancy energy, leading to low activation energy. Furthermore, the existing interlayer defect structure of the oxides is also helpful for the active oxygen adsorption, this all has a positive effect in catalyzing the ORR. However, even though lanthanum oxides have outstanding electronic structure, it is not electro-conductive, which limits its electrocatalytic capabilities and brings the necessity to combine it with other oxides and carbon materials [38,39,40]. Due to its high potential as a stabilizing agent and high activity when mixed with other oxides, in this work it was utilized in the synthesis with Mn- and Co-oxide.
It was shown that combination of oxides, especially TMOs, and their structures, like spinel and perovskite-type oxides, could exhibit excellent ORR activities owing to the combination of metal elements, compared to single-metal oxides [7,41,42]. For example, Co-oxide nanoparticles modified with Mn-oxide nanotube have served as oxygen cathode catalyst for rechargeable zinc–air batteries [43]. La-, Co-, Mn-oxide prepared with carbon nanotubes (CNT) as composite has been successfully used as a bi-functional air electrode in Zn–air batteries [37]. The improved synergy effect has been reported in comparing to single oxide utilization. For example, various structures like honeycomb double-layer MnO2/Cobalt doped for primary zinc–air batteries [44], 3D hollow sphere Co3O4/MnO2-CNT [45], and core-shell Co3O4@MnO2 [46] have been evaluated as bifunctional catalysts materials and applied for batteries and supercapacitors.
Therefore, we aimed to synthesize and investigate hybrid nanomaterials based on the Mn/Co/La oxides of ordered structure generated by ultrasonic spray pyrolysis (USP) as electrocatalyst for ORR. USP technique was chosen for the synthesis of these materials as it allows a simple single step approach of synthesizing nanomaterials with precisely controllable morphologies and chemical compositions. Different compositions and morphologies were synthesized depending on USP temperature and tested.
One of the issues to be considered is that the future ORR materials should not contain rather electrochemically unstable carbonaceous materials as support. The investigated MnOx-Co3O4 TMO hybrid electrode nanomaterials were carbon free. The influence of manganese oxide type on the ORR as well as difference in composition of Mn and Co was evaluated. The second important issue that we tackled is that the materials should be synthesized using a low-cost, simple technique that can be easily applied also for the large scales such as USP.

2. Experimental

2.1. Chemicals

Lanthanum(III)nitrate hexahydrate La(NO3)3 × 6H2O (99.9% rare earth oxide), manganese(II)nitrate tetrahydrate Mn(NO3)2 × 4H2O (99%), and cobalt(II)chloride hexahydrate CoCl2 × 6H2O (99%) were used during the synthesis process and were purchased all from Alfa Aeser, US. For the comparison, commercial manganese (IV) oxide, MnO2, was used and obtained from Sigma-Aldrich (Saint Louis, MO, USA). Potassium hydroxide and Nafion 117 solution (5 wt.%) were purchased from Sigma-Aldrich. All chemicals were of analytical reagent grade and all solutions were prepared using ultrapure water from Millipore.

2.2. Material Synthesis and Electrode Preparation

2.2.1. Material Synthesis

The synthesis of Co/Mn/La oxide hybrid materials was performed by single-step ultrasonic spray pyrolysis process. The solution for the material synthesis was prepared by mixing starting precursor solutions to give desired stoichiometric mole ratios La:Co:Mn = 3:5:10. The ratio of La:Co:Mn of 3:5:10 was chosen based on previous research [47,48], since we wanted to investigate the influence of Mn in mixture for ORR reaction. Aqueous 0.1 M solutions of La(NO3)3, Mn(NO3)2 and CoCl2 were used as precursors. The USP conversion temperature was adjusted and controlled using a thermostated furnace. All powders were synthesized by ultrasonic spray pyrolysis in the equipment with horizontal nebula flow.
Nebula generation from the prepared solutions of precursors took place in an ultrasonic atomizer (Gapusol 9001, RBI/France) with an ultrasonic nebulizer (Prizma Kragujevac, Serbia) to create an nebula-born aerosol [47,48]. The nebula with droplets having a diameter of around 2.3 µm was produced with an ultrasound frequency of 2.5 MHz. The nebulization/aerosol generation was carried out in O2/N2 atmosphere as carrier gas, having O2 to N2 in volume ratio of 2:1 and continuous flow rate of 3 dm3 min–1. The synthesis temperatures were set to 500, 600, or 800 °C.

2.2.2. Electrode Preparation

For the electrochemical measurements, the catalyst-modified surface of electrodes was prepared from the glassy carbon disc (Pine Research Instrumentation USA, 5 mm). Prior to the use, glassy carbon disc was polished with alumina slurry kit (Pine Research Instrumentation, Durham, NC, USA) of different grades, and then cleaned ultrasonically in ethanol and water.
The electrodes were prepared in the following way. Firstly, 5 mg mL−1 of water suspension of the USP-synthesized powder was agitated in an ultrasonic bath for 30 min in order to form homogeneous ink. Then, 20 µL of the ink were cast by micropipette onto the glassy carbon disc and left to air-dry for 2 h. In the next step, 10 µL of Nafion solution (100:1 diluted commercial Nafion solution) were pipetted onto the catalyst-covered GC disc, as binding agent, and left to dry at room temperature.

2.3. Measurements

2.3.1. Material Characterization

Structural and phase analysis of the synthesized materials was investigated by X-ray diffraction (XRD). The measurements were undertaken on a Philips PW 1050 powder diffractometer with Ni-filtered CuKα radiation at room temperature and scintillation detector within the range 10–82° in steps of 0.05° with the scanning rate of 5 s/step.
Scanning electron microscopy (SEM) with an energy dispersive X-ray spectroscopy (EDS) were employed to analyze morphology and element composition of porous Mn/Co/La oxide hybrid materials. Scanning electron microscope (Zeiss DSM 982 Gemini; Vega TS 5139MM Tescan, Brno, Czech Republic) was employed for the examination of obtained particles on a different magnification level providing different information on the morphology and particle shape and size. The elemental composition was determined by EDS with Si(Bi) X-ray detector connected to SEM and a multi-channel analyzer.

2.3.2. Electrochemical Measurements

Electrochemical measurements were performed using BioLogic potentiostat (BioLogic SAS, SP-240, Grenoble, France). The electrocatalytic properties of the hybrid materials were checked by means of cyclic voltammetry (CV) and linear sweep voltammetry (LSV), using the scan rate of 50 and 2 mV s−1, respectively. In order to check the material activity for oxygen reduction reaction, 3-electrode set-up, using a rotating disk working electrode was employed. The GC modified with synthesized materials as described in Section 2.2.2 were used as working electrode, while saturated calomel (SCE) and Pt electrode were employed as the reference and counter electrode, respectively. All the potentials presented are referred to the SCE. The supporting electrolyte was a 0.1 M aqueous KOH solution. All electrochemical experiments were performed at 25 °C under nitrogen or oxygen atmosphere at 600, 800, 1000, 1500, or 2500 rpm rotation of the working electrode. Prior to every experiment, either in N2 or O2 atmosphere, the gas was bubbled through the electrolyte for at least 20 min.

3. Results and Discussion

3.1. XRD Analysis

The hybrid nanomaterials based on rare earth/transition metal oxides were synthesized with facile and cost-effective USP procedure, bearing in mind the methodology as follows. One group of electrocatalyst is based on manganese, cobalt, and lanthanum metals and the effects of three different USP temperatures were investigated (500, 600, and 800 °C). The other group of materials was prepared by the same synthesis procedure, but without manganese component—it was only based on cobalt and lanthanum oxide, in order to investigate the influence of USP-synthesized Mn oxide within hybrid oxide electrocatalysts. For the sake of comparison, the electrocatalytical performance of commercial manganese oxide was also included in the investigations.
The crystalline structures of the hybrid materials were revealed by XRD analysis. X-ray diffraction patterns of synthesized materials are presented in Figure 1. As can be seen in Figure 1a, the materials synthesized at 500 and 600 °C are composed mainly of manganese (IV) oxide in the form of birnessite, also denoted as δ-MnO2, as defined by main diffraction peaks at 2θ of 12.4, 25.3, 37, and 66°. The specific XRD peaks correspond to a card no.: JCPDS 00-043-1456 (MnO2). Birnessite is reported as 2D layered manganese oxide with lamellar structure consisting of edge-sharing MnO6 octahedra, and is considered to be the most active phase for ORR among other crystalline structures of MnO2 [49,50,51]. In addition, the diffraction peaks at 18.9, 31.2, 45, and 59° reveal the presence of Co3O4 (JCPDS card no. 01-080-1535). However, La oxide or other compounds which should indicate the La presence are not evidenced. It follows that La is present as poorly crystalline or amorphous lanthanum compound(s). These “La-hided” states of Co-La oxide hybrids corresponds to our recent findings [48].
XRD pattern of the material sample synthesized at 800 °C is presented in Figure 1b. The presence of Co3O4 is clearly confirmed; however, the other type of Mn oxide-Mn3O4 is formed. It is evidenced by well-resolved peaks at the positions 14.4, 26.2, 40.1, and 44° (JCPDS card no. 03-06502776). Additionally, the diffraction peaks related to the JCPDS card no. 01-075-0440 confirms the formation of the perovskite structure-LaMnO3. It can be seen that XRD peaks in Mn-containing compounds synthesized at 800 °C are sharper than those at lower temperatures, which indicate highly crystalline nature of those compounds. The formation of different manganese oxide types at different temperatures is expected. It has been already reported that under these conditions Mn changes its form from Mn(IV) oxide to Mn(II, III) oxide [52]. Synthesized hybrid materials are denoted as MnO2/Co3O4-500, MnO2/Co3O4-600, and Mn3O4/Co3O4-800 in the further text, according to XRD findings.
The structural and phase characteristics of the Mn-free synthesized material, based on cobalt and lanthanum compounds, is presented in Figure 1c. XRD peaks clearly confirm formation of Co3O4. In addition, weak peaks at positions 26.2°, 29.8°, and 78° indicate the formation of La2O3, although it can be assumed that this oxide is present mainly in an amorphous form. Thus, this catalytic material is denoted as Co3O4/La2O3 in further text.

3.2. SEM and EDS Characterization

The morphology of as-synthesized catalytic materials was investigated by SEM. Depending on the preparation temperature the samples morphology appears different, as shown in Figure 2. For the materials prepared at the temperatures 500 and 600 °C, the results indicate formation of spherical grains, Figure 2a,c, with a petal-like structure discovered at the higher-resolution images (Figure 2b,d). It can be seen that the petal-structured grains, having the size of around 2 µm, are built from numerous nanosheets. The nanosheets appear finer and more densely packed at higher USP temperature (Figure 2b,d). The very similar structures were observed by Che et al. reporting the core-shell microspheres composed of Co3O4@MnO2 with flower-like structured Co3O4 as the core onto which MnO2 nanosheets have been subsequently grown [46]. This typical flower-like morphology of birnessite-MnO2 forming micro/nanospheres has been also reported to have high surface area that might exhibit fast electrode kinetics and good stability. MnO2 nanosheets are thus recognized as excellent candidates for electrocatalytic materials for electrochemical oxygen reactions [50,51,53].
On the other hand, the Mn3O4/Co3O4 material synthesized at 800 °C has homogenous dense structure as presented in Figure 3. The enlarged SEM image reveals well-defined sub-micron particles of the catalytic material (Figure 3b). Similar change in morphology, leading to the formation of defined particles instead of flower-like structure, has been reported and assigned to the presence of Mn3O4 type of Mn oxide, in comparison to the distinguished nanosheets typical for MnO2 [54,55]. The SEM images of Co3O4/La2O3 catalytic material shows highly agglomerated particles with irregular shapes and various sizes ranging from nano- to several μm (Figure 3d). The porous agglomerated particles of Co3O4 material have also been reported, providing large micro- and mesoporous surface [56].
The elemental composition, done by energy dispersive X-ray spectroscopy (EDS), confirms the presence of Mn, Co, La, and O with the atomic ratios presented in Table 1. It can be seen that for MnO2/Co3O4-500, MnO2/Co3O4-600, and Mn3O4/Co3O4-800 materials, the obtained atomic ratio of Mn:Co is close to 2:1, which is in accordance to the projected atomic ratio used for synthesis. On the other hand, the atomic ratio between lanthanum, cobalt, and manganese is smaller than projected ratio. This anticipates that the material is likely structured as separated phases of the oxides of well-resolved crystalline state, MnO2 and Co3O4, covering poorly crystalized La compounds, as found by XRD, which can mask its EDS response. Finally, it was seen in XRD patterns that Co3O4/La2O3 catalytic material exhibits diffraction peaks similar to La2O3 card, which can cause the apparently hidden XRD state of La2O3 by crystalline Co3O4.

3.3. Electrochemical Characterization

To study the electrocatalytic performances of synthesized Mn/Co/La-hybrid materials for oxygen reduction reaction, three-electrode half-cell design was used. Electrodes were prepared with catalytic material as described above in Section 2.2.2 and used as working electrodes in an RDE system to provide constant hydrodynamic conditions.
Cyclic voltammograms were recorded in the potential window between −0.9 and 0.6 V, at the scan rate of 20 mV s−1. Figure 4 presents CV responses of synthesized materials and pristine MnO2 electrode in deaerated 0.1 M KOH. The cyclic voltammograms of MnO2/Co3O4 electrodes exhibit almost featureless shape with capacitive current showing some reversible charge transfer processes at the potentials positive to 0.1 V, with counterparts negative to −0.1 V. This behavior is in accordance with the literature results for other MnO2 nanostructures electrodes reporting the similar behavior in nitrogen atmosphere as well as for pristine MnO2 [44,51,57]. The redox processes appeared suppressed upon increase in synthesis temperature. On the other hand, CV behavior of Co3O4/La2O3 hybrid material shows fully reversible redox transitions of much higher currents at the potentials positive to −0.1 V, which can be assigned to redox transitions of Co. This CV performance has been reported as typical behavior of cobalt oxide nanoparticles [58]. The shape of CV curves of Co3O4/La2O3 is different in comparison to that of MnO2/Co3O4 materials, with considerably higher capacitive currents. It seems that CV fingerprints follow the registered structural organization of the oxides in the Co3O4/La2O3 material. Cobalt oxide particles dictate the CV behavior of Co3O4/La2O3 material in a way to resemble completely the redox processes of pure Co3O4. On the other hand, Mn-based materials are of CV behavior similar to pristine MnO2, since the particle surface composition is of twice as much as nominal loading of manganese with respect to cobalt. CV response of MnO2/Co3O4 synthesized at lower temperature (MnO2/Co3O4-500) strives for the shape more similar to that of Co3O4. This could be related to the more spaced petals (Figure 2b) with respect to dense appearance of petals at higher synthesis temperature (MnO2/Co3O4-600, Figure 2d). It follows that CO3O4 contributes more to CV response through the more spaced MnO2-rich petals (Table 1). Additionally, it seems that the absence of petal-like structure and transition from MnO2 to Mn2O3 (Figure 1b and Figure 3d) in the case of Mn2O3/Co3O4-800 does not affect much the CV response of rather low-current featureless characteristics.
The electrocatalytic activities of the prepared nanocatalysts for ORR were evaluated by means of LSV in O2-saturated alkaline electrolyte. Figure 5 presents ORR electrochemical performances of Mn/Co/La oxides synthesized at three different temperatures. As can be seen, when the electrolyte was saturated with O2, remarkable reduction currents are observed, which introduces the synthesized materials as ORR-active. The onset potential of all electrodes was approx. −0.3 V vs. SCE, which is competitive to other TMO based materials [56]. The electrode material at 500° and 600° show similar curve shape and activity, which is expected for similar flower-like birnessite MnO2, having similar electrochemical activities between 1 and 2.5 mA cm−2 (Figure 5a) [51]. The Mn3O4/Co3O4 material, obtained at 800 °C, exhibits higher ORR activity than MnO2/Co3O4-500 and MnO2/Co3O4-600 materials. This can be ascribed to the presence of Mn3O4 as catalyst with mixed oxidation state (+2, +3) in comparison to the MnO2 with +4 oxidation state of Mn [20]. Additionally, as it is registered by SEM, two different manganese types provide different morphologies. Consequently, the ORR current increases continuously for Mn3O4/Co3O4-800, whereas the reduction on MnO2/Co3O4-500 and -600 appears stepped, with a transition around −0.7 V. This could be the indication of different ORR mechanisms on MnO2/Co3O4 and Mn3O4/Co3O4.
For the sake of comparison to pristine MnO2, electrode activities calculated per mass of MnO2 (mass activity) was performed, as presented in Figure 5b. It can be seen that nanostructured MnO2/Co3O4 materials are of significantly improved ORR activity compared to the pristine manganese oxide. This proves the validity of the hybrid oxides approach of ordered structure for the synthesis of materials for ORR.
In order to study ORR activity further, the series of polarization curves (LSV) in saturated oxygen atmosphere were recorded at different electrode rotating rates between 600 and 2500 rpm. As can be seen in Figure 6a, ORR current is increasing with the increase of the rotation rate at higher overpotentials, due to the improved mass transfer. However, the first reduction step (positive to −0.7 V) for MnO2/Co3O4-500 and -600 appears negligibly dependent on rotation rate. It follows that corresponding process(es) are not directly related to ORR, but to partial reduction of the material induced by the presence of oxygen (please see Equations (3)–(7)).
The number of the electrons that are involved in oxygen reduction reaction is an important parameter for evaluating the catalytic performance of the synthesized materials. Therefore, the ORR was further analyzed using Koutecky–Levitch (KL) equation (Equation (1)). The corresponding linear fit that is presented in Figure 6b at E = −1 V, was used to calculate the number of electrons transferred during the oxygen reduction with synthesized materials. In the equation:
1 j = 1 j L + 1 j k = 1 B ω 0.5 + 1 j k
B = 0.62 n F C 0 D 2 / 3 υ − 1 / 6
where j corresponds to the measured current density, n is the overall number of electrons exchanged, F stands for Faraday constant (F = 96486 C mol−1), C0 is the oxygen concentration in 0.1 M KOH (typically C0 = 1.2 × 10−6 mol cm−3), D is oxygen diffusion coefficient (typically D = 1.9 × 10−5 cm2 s−1), υ is the kinematic viscosity of the solution (υ = 0.01 cm2 s−1); surface area of the electrode used to calculate current density is A = 0.196 cm−2.
It has been reported that the ORR in alkaline media can proceed either via two-electron pathway, which involves the formation of hydrogen peroxide as an intermediate, or via direct four-electron reduction pathway where oxygen is directly reduced to OH− [59]. Generally, direct four-electron transfer pathways are more desirable than the partial reduction pathway since it provides a higher rate for ORR. Although the ORR mechanism on Mn-oxide is still not fully understood, the possible pathway suggests the reactions described:
MnO2(s) + H2O + e− ↔ MnOOH(s) + OH−
2MnOOH(s) + O2 ↔ 2(MnOOH….O) (s)
MnOOH(s) + O2 ↔ MnOOH….O2, ads (s)
(MnOOH….O) + e− ↔ MnO2(s) + OH−
MnOOH….O2, ads (s) + e− ↔ MnO2(s) + HO2−
The overall reaction of Equations (3), (4), and (6) equals to the four-electron reduction process, whereas the summary of Equations (3), (5), and (7) results in an overall two-electron transfer mechanism oxygen reduction. In the first step, Mn4+ is reduced to Mn3+, which is followed by adsorption and reduction of oxygen. Hence, the promotion of Mn3+ generation could lead to more effective ORR over stronger oxygen adsorption and accelerated O2 reduction to OH−, which results in overall increase in catalytic activity [49]. Furthermore, it has been reported that porous structure can also stabilize Mn3+ species at the particle surface [36]. For the synthesized materials, Figure 6b reveals that the number of transferred electrodes, calculated from the slope, for MnO2/Co3O4-500 and -600 catalytic materials are 3.6 and 3.89 which is close to 4 indicating that ORR catalyzed by those materials proceeds via quasi-four-electron ORR mechanism. However, the overall electron transfer number of Mn3O4/Co3O4-800 material is calculated to be 3, indicating that both of the suggested schemes coexist in the catalyzing process [60]. Even though the higher oxidation states of Mn (Mn4+ and Mn3+) are considered as crucial for manifestation of Mn cation defects and oxygen vacancies that are important as catalytically active sites, the morphology of samples at 500, 600, and 800, as well as their mutual interaction with Co-oxide, also plays an important role in catalytic activity.

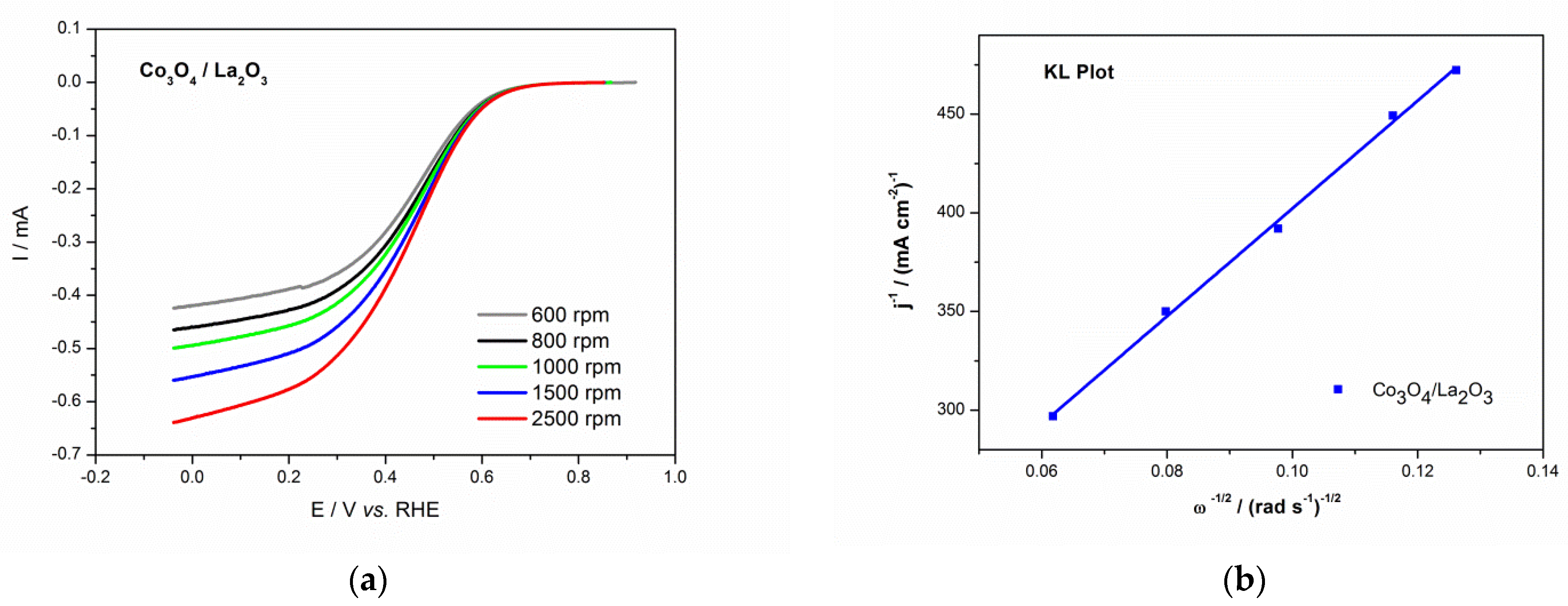

The Co3O4/La2O3 material was also checked for the ORR performance at various rotation speeds, as presented in Figure 7. The ORR on this hybrid material starts at approx. −0.35 V vs. SCE, which is in accordance to other Co3O4 reported nanomaterials, but still is considerably negative if compared to the commercial 20 wt.% Pt@XC-72 catalyst (−0.16 V) [56]. On the other hand, the current of approx. −3.3 mA cm−2 is higher in comparison to the performance of similar nanomaterials, found as −2.5 [56], −1.5 [43], and −1 mA cm−2 [58] at similar electrode potentials. ORR on synthesized Co3O4/La2O3 was studied also using a KL plot shown in Figure 7b. The number of electrons transferred, calculated based on KL equation, is 3.7 suggesting predominantly the pathway of direct four-electron reduction of oxygen. This is fairly comparable to the state-of-the-art electrode based on Pt (20% wt. Pt@XC-72), which is reported to be between 3.8 and 4.03 [56].

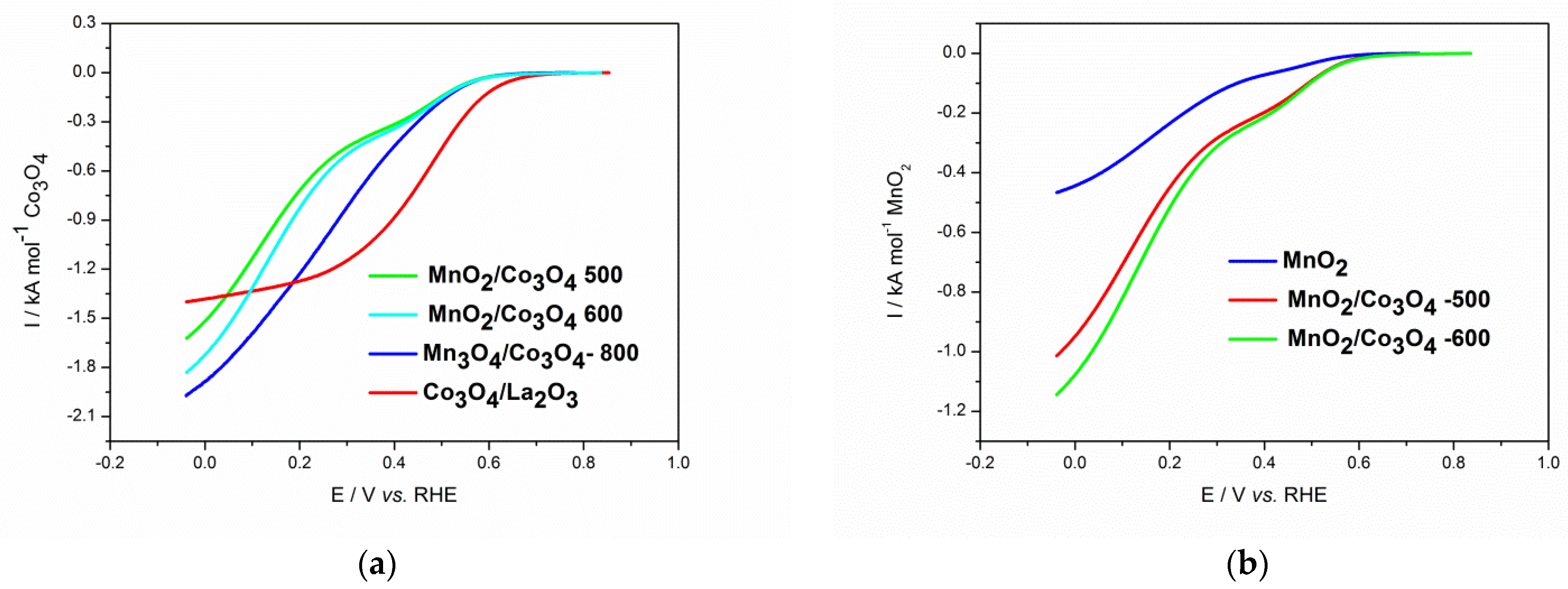

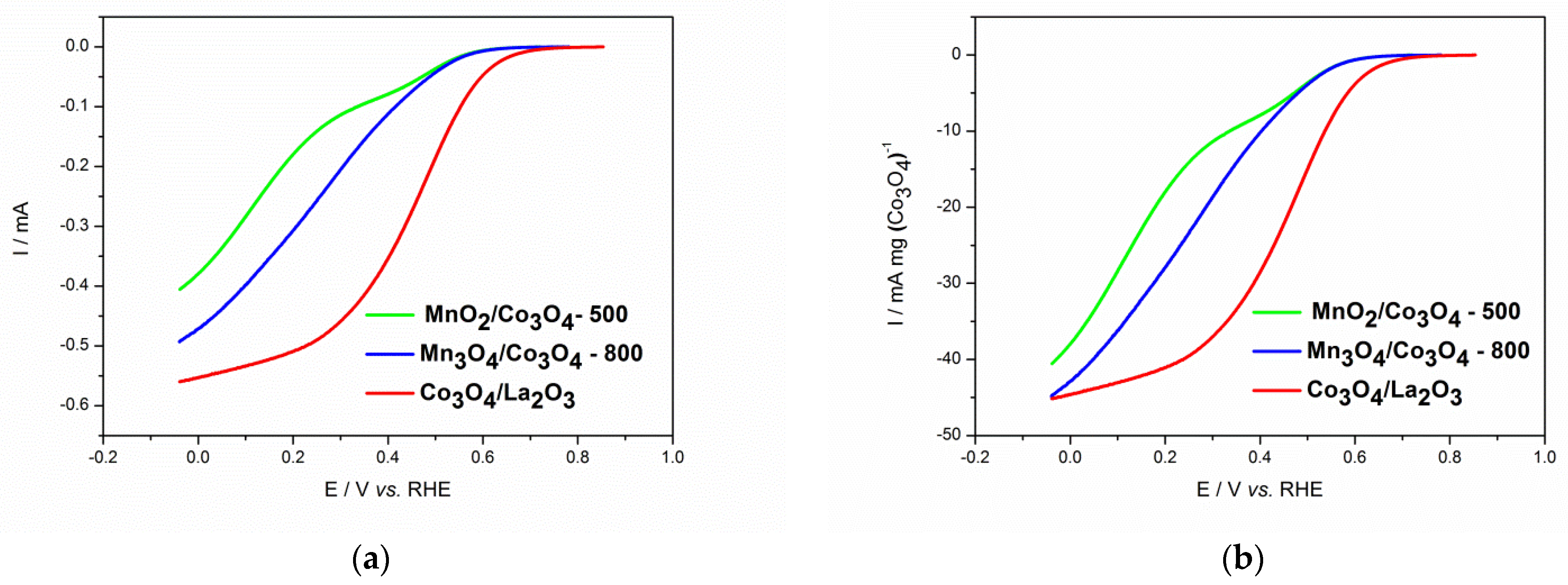

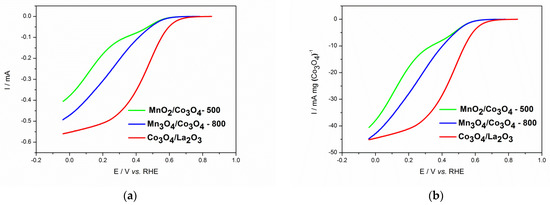

Finally, the comparison of all synthesized oxide combinations as catalytic materials is presented in Figure 8. As can be seen, Co3O4/La2O3 catalyst outperforms MnO2/Co3O4 and Mn3O4/Co3O4 materials, in comparison to the onset electrode potential, as well as in electrocatalytic activity toward ORR in the studied potential region. Similar behavior has been reported by Xu et al. showing that Co3O4/La2O3 supported by carbon nanotubes (CNT) has shown better activity in comparison to the MnO2/Co3O4–CNT. Although CNT have been used to increase catalytically active surface area, the activities of the studied hybrid materials are in the range 1.8–4 mA cm−2 that is comparable to our hybrid materials but without addition of a carbon support [37].
As mentioned above, the mechanism on the synthesized electrode most probably proceeds with an additional MnOOH reaction step. It has been reported that this reaction is unfavorable due to the strength of the Mn-O bond which makes the initial reduction more difficult. This leads to lower electrocatalytic activity of the electrodes with high percentage of Mn oxide of birnessite type. It is also speculated that the crystal phase (channel structure) can be another determining criterion for ORR kinetics at manganese oxides.
Additionally, the observed larger inner-spacing between nanoparticles in Co3O4/La2O3 (Figure 3) in comparison to dense structure of MnO6 octahedral sheet of birnessite MnO2, provides more active surface area that is more accessible to the electrolyte (reactant). In addition, it is reported that Co3O4 has high affinity toward O2 molecules, which enables better oxygen transport within its porous structure [61].
This all contributed to the observed behavior that the Co3O4/La2O3 electrode exhibits better catalytic activity in comparison to the MnO2/Co3O4 electrodes. Additionally, Du et al. stated that Co3O4 nanoparticles-modified MnO2 electrodes have much lower ORR activity in comparison to pure MnO2 nanomaterial due to partial occupation of active sites on MnO2 by Co3O4 [43]. This likely can be another reason for the lower catalytic activity of our MnO2/Co3O4 oxides catalysts. Although the synergic effect of MnO2 and Co3O4 oxides has been reported in many publications to increase ORR activity [43,45], the investigation of the parameters such as the composition, crystalline structure, and morphology are to be investigated in order to propose the most probable synergy mechanism.
Since the synthesized hybrid materials have different compositions, and consequently structures, the kinetic comparison would be more informative if would be presented as activity (currents) per mol of Co3O4 and MnO2. Figure 9 presents the comparison of molar activities with respect to Co3O4 for the samples containing Co oxide, and with respect to MnO2 for the samples synthesized at 500 and 600 °C, taking into account the compositions found by EDS (Table 1). As can be seen from Figure 9a, the Co3O4/La2O3 electrode is of higher activity at the beginning (at lower overpotentials) due to a different ORR reaction mechanism occurring in comparison to the Mn-based electrodes (additionally involves the Mn oxide electrochemical transformations). However, in the region of higher overpotentials that are more relevant for the electrochemical devices (fuel cells, batteries), the electrodes based on synergy of Mn/Co oxides outperform the electrode without Mn (Co3O4/La2O3). This result is somewhat contrary to the presented performance of the current calculated per mass (Figure 8), which indicated the electrode without Mn (Co3O4/La2O3) as the one of best performances. In addition, Figure 9b shows that trends of molar activities of MnO2-containing electrodes are similar to those of mass activity (Figure 5b). This clearly emphasizes the importance of the calculations to take into consideration the mole fractions in hybrid materials of different compositions in order to quantify the synergy effects.

4. Conclusions

In summary, highly active electrocatalysts based on Mn and rare earth oxides with Co3O4 for ORR, have been successfully synthesized using the ultrasonic spray pyrolysis process. For the sake of comparison, the hybrid materials with and without Mn oxides were investigated.
It was shown that different Mn oxides were well incorporated in the Co3O4 matrix. Different synthesis temperatures led to the formation of two different manganese oxides-birnessite type δ-MnO2 at 500 and 600 °C, and manganese (II, III) oxide-Mn3O4 at 800 °C. The catalysts morphology has been also affected by the state of Mn oxide. SEM images reveal flower-like nanosheets for hybrid materials with birnessite-MnO2 and well-defined spherical nanoparticles for material based on Mn3O4 and for the material based only on Co as catalysts (Co3O4/La2O3). The electrochemical performance of MnOx/Co3O4 and Co3O4/La2O3 demonstrate a comparable ORR activity to Pt/C and superior activity to the pristine Mn oxide electrodes. It was shown that the mass activity of synthesized hybrid materials not supported on carbon blacks outperforms the literature values of carbon-based materials. Mass activity performance was compared to the molar activity—calculated per mol of the Mn and Co oxides being in charge for the catalytic performance in oxygen reduction reaction. It was revealed that the synergic coupling of Mn oxides and Co3O4 have better catalytic performance in comparison to the electrodes based on pristine MnO2 and Co3O4/La2O3. It was found that molar and mass activities give different information, since different amounts of active components are affecting the synergistic catalysis.
The crystal structure and morphological characteristics, as well as right amounts of investigated oxides, play the crucial role for high catalytic activity. Taking into account that the investigated materials are very low-cost materials especially compared to the state-of-the-art Pt/C-based electrodes, the demonstrated hybrid materials are promising catalysts for practical application for rechargeable metal–air batteries and fuel cells.

Author Contributions

M.V.: Investigation, methodology, writing—review and editing, writing—original draft. M.M.P.: Validation, visualization, writing—review and editing. S.E.P.: Conceptualization, formal analysis, data curation. M.M.: Conceptualization, formal analysis. M.R.P.P.: Formal analysis, visualization. S.S.: Conceptualization. B.F.: Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Education, Science and Technological Development of the Republic of Serbia (Grant No. 451-03-9/2021-14/200026). The authors would like to thank the Ministry of Education, Science and Technological Development of the Republic of Serbia and DAAD, Germany, for funding of the Project No.: 57334757.

Data Availability Statement

All available data is contained within the article.

Acknowledgments

The authors would like to thank Tanja Barudžija and Miodrag Mitrić from Vinča Institute for support on the XRD measurements, Đorđe Veljović for SEM-EDS analysis. Special thanks to Vladimir Panić and Jasmina Stevanović for help in results analyses.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Wang, Y.; Diaz, D.F.R.; Chen, K.S.; Wang, Z.; Adroher, X.C. Materials, technological status, and fundamentals of PEM fuel cells—A review. Mater. Today 2020, 32, 178–203. [Google Scholar] [CrossRef]
  2. Wang, X.; Li, Z.; Qu, Y.; Yuan, T.; Wang, W.; Wu, Y.; Li, Y. Review of Metal Catalysts for Oxygen Reduction Reaction: From Nanoscale Engineering to Atomic Design. Chem 2019, 5, 1486–1511. [Google Scholar] [CrossRef]
  3. Ren, X.; Lv, Q.; Liu, L.; Liu, B.; Wang, Y.; Liu, A.; Wu, G. Current progress of Pt and Pt-based electrocatalysts used for fuel cells. Sustain. Energy Fuels 2020, 4, 15–30. [Google Scholar] [CrossRef]
  4. Xiong, Y.; Xiao, L.; Yang, Y.; DiSalvo, F.J.; Abruña, H.D. High-Loading Intermetallic Pt3Co/C Core–Shell Nanoparticles as Enhanced Activity Electrocatalysts toward the Oxygen Reduction Reaction (ORR). Chem. Mater. 2018, 30, 1532–1539. [Google Scholar] [CrossRef]
  5. Shi, W.; Wang, Y.-C.; Chen, C.; Yang, X.-D.; Zhou, Z.-Y.; Sun, S.-G. A mesoporous Fe/N/C ORR catalyst for polymer electrolyte membrane fuel cells. Chin. J. Catal. 2016, 37, 1103–1108. [Google Scholar] [CrossRef]
  6. Gómez-Marín, A.M.; Feliu, J.M. Oxygen Reduction on Platinum Single Crystal Electrodes. In Encyclopedia of Interfacial Chemistry; Wandelt, K.B.T.-E., Ed.; Elsevier: Oxford, UK, 2018; pp. 820–830. ISBN 978-0-12-809894-3. [Google Scholar]
  7. Yamada, I.; Takamatsu, A.; Asai, K.; Shirakawa, T.; Ohzuku, H.; Seno, A.; Uchimura, T.; Fujii, H.; Kawaguchi, S.; Wada, K.; et al. Systematic Study of Descriptors for Oxygen Evolution Reaction Catalysis in Perovskite Oxides. J. Phys. Chem. C 2018, 122, 27885–27892. [Google Scholar] [CrossRef] [Green Version]
  8. Kodama, K.; Nagai, T.; Kuwaki, A.; Jinnouchi, R.; Morimoto, Y. Challenges in applying highly active Pt-based nanostructured catalysts for oxygen reduction reactions to fuel cell vehicles. Nat. Nanotechnol. 2021, 16, 140–147. [Google Scholar] [CrossRef]
  9. Miura, A.; Rosero-Navarro, C.; Masubuchi, Y.; Higuchi, M.; Kikkawa, S.; Tadanaga, K. Nitrogen-Rich Manganese Oxynitrides with Enhanced Catalytic Activity in the Oxygen Reduction Reaction. Angew. Chem. Int. Ed. 2016, 55, 7963–7967. [Google Scholar] [CrossRef]
  10. Wang, Y.; Li, Y.; Lu, Z.; Wang, W. Improvement of O2 adsorption for α-MnO2 as an oxygen reduction catalyst by Zr4+ doping. RSC Adv. 2018, 8, 2963–2970. [Google Scholar] [CrossRef] [Green Version]
  11. Menezes, P.W.; Indra, A.; González-Flores, D.; Sahraie, N.R.; Zaharieva, I.; Schwarze, M.; Strasser, P.; Dau, H.; Driess, M. High-Performance Oxygen Redox Catalysis with Multifunctional Cobalt Oxide Nanochains: Morphology-Dependent Activity. ACS Catal. 2015, 5, 2017–2027. [Google Scholar] [CrossRef]
  12. Kumar, K.; Canaff, C.; Rousseau, J.; Arrii-Clacens, S.; Napporn, T.W.; Habrioux, A.; Kokoh, K.B. Effect of the Oxide–Carbon Heterointerface on the Activity of Co3O4/NRGO Nanocomposites toward ORR and OER. J. Phys. Chem. C 2016, 120, 7949–7958. [Google Scholar] [CrossRef]
  13. Wu, Y.; Wang, Y.; Xiao, Z.; Li, M.; Ding, Y.; Qi, M. Electrocatalytic oxygen reduction by a Co/Co3O4@N-doped carbon composite material derived from the pyrolysis of ZIF-67/poplar flowers. RSC Adv. 2021, 11, 2693–2700. [Google Scholar] [CrossRef]
  14. Wang, Y.; Li, J.; Wei, Z. Transition-metal-oxide-based catalysts for the oxygen reduction reaction. J. Mater. Chem. A 2018, 6, 8194–8209. [Google Scholar] [CrossRef]
  15. Yin, M.; Miao, H.; Hu, R.; Sun, Z.; Li, H. Manganese dioxides for oxygen electrocatalysis in energy conversion and storage systems over full pH range. J. Power Sources 2021, 494, 229779. [Google Scholar] [CrossRef]
  16. Nikitina, V.A.; Kurilovich, A.A.; Bonnefont, A.; Ryabova, A.S.; Nazmutdinov, R.R.; Savinova, E.R.; Tsirlina, G.A. ORR on Simple Manganese Oxides: Molecular-Level Factors Determining Reaction Mechanisms and Electrocatalytic Activity. J. Electrochem. Soc. 2018, 165, J3199–J3208. [Google Scholar] [CrossRef]
  17. Poux, T.; Bonnefont, A.; Kéranguéven, G.; Tsirlina, G.A.; Savinova, E.R. Electrocatalytic Oxygen Reduction Reaction on Perovskite Oxides: Series versus Direct Pathway. ChemPhysChem 2014, 15, 2108–2120. [Google Scholar] [CrossRef] [PubMed]
  18. Ryabova, A.S.; Napolskiy, F.S.; Poux, T.; Istomin, S.Y.; Bonnefont, A.; Antipin, D.M.; Baranchikov, A.Y.; Levin, E.E.; Abakumov, A.M.; Kéranguéven, G.; et al. Rationalizing the Influence of the Mn(IV)/Mn(III) Red-Ox Transition on the Electrocatalytic Activity of Manganese Oxides in the Oxygen Reduction Reaction. Electrochim. Acta 2016, 187, 161–172. [Google Scholar] [CrossRef]
  19. Zhong, X.; Oubla, M.; Wang, X.; Huang, Y.; Zeng, H.; Wang, S.; Liu, K.; Zhou, J.; He, L.; Zhong, H.; et al. Boosting oxygen reduction activity and enhancing stability through structural transformation of layered lithium manganese oxide. Nat. Commun. 2021, 12, 3136. [Google Scholar] [CrossRef] [PubMed]
  20. Dessie, Y.; Tadesse, S.; Eswaramoorthy, R.; Abebe, B. Recent developments in manganese oxide based nanomaterials with oxygen reduction reaction functionalities for energy conversion and storage applications: A review. J. Sci. Adv. Mater. Devices 2019, 4, 353–369. [Google Scholar] [CrossRef]
  21. Speck, F.D.; Santori, P.G.; Jaouen, F.; Cherevko, S. Mechanisms of Manganese Oxide Electrocatalysts Degradation during Oxygen Reduction and Oxygen Evolution Reactions. J. Phys. Chem. C 2019, 123, 25267–25277. [Google Scholar] [CrossRef]
  22. Lambert, T.N.; Vigil, J.A.; White, S.E.; Delker, C.J.; Davis, D.J.; Kelly, M.; Brumbach, M.T.; Rodriguez, M.A.; Swartzentruber, B.S. Understanding the Effects of Cationic Dopants on α-MnO2 Oxygen Reduction Reaction Electrocatalysis. J. Phys. Chem. C 2017, 121, 2789–2797. [Google Scholar] [CrossRef]
  23. Liu, H.; Zhang, J.; Fang, H.; Huang, J.; Wu, X.; He, X.; Song, J.; Li, Z.; Yan, Y.; Xu, W.; et al. Synthesis of δ–MnO2/Reduced Graphene Oxide Hybrid In Situ and Application in Mg–Air Battery. J. Electrochem. Soc. 2021, 168, 80518. [Google Scholar] [CrossRef]
  24. Khan, Z.; Park, S.; Hwang, S.M.; Yang, J.; Lee, Y.; Song, H.-K.; Kim, Y.; Ko, H. Hierarchical urchin-shaped α-MnO2 on graphene-coated carbon microfibers: A binder-free electrode for rechargeable aqueous Na–air battery. NPG Asia Mater. 2016, 8, e294. [Google Scholar] [CrossRef]
  25. Bi, R.; Liu, G.; Zeng, C.; Wang, X.; Zhang, L.; Qiao, S.-Z. 3D Hollow α-MnO(2) Framework as an Efficient Electrocatalyst for Lithium-Oxygen Batteries. Small 2019, 15, e1804958. [Google Scholar] [CrossRef] [PubMed]
  26. Shahid, M.M.; Rameshkumar, P.; Basirun, W.J.; Juan, J.C.; Huang, N.M. Cobalt oxide nanocubes interleaved reduced graphene oxide as an efficient electrocatalyst for oxygen reduction reaction in alkaline medium. Electrochim. Acta 2017, 237, 61–68. [Google Scholar] [CrossRef]
  27. Shahid, M.M.; Zhan, Y.; Alizadeh, M.; Sagadevan, S.; Paiman, S.; Oh, W.C. A glassy carbon electrode modified with tailored nanostructures of cobalt oxide for oxygen reduction reaction. Int. J. Hydrogen Energy 2020, 45, 18850–18858. [Google Scholar] [CrossRef]
  28. Tan, P.; Wu, Z.; Chen, B.; Xu, H.; Cai, W.; Ni, M. Exploring oxygen electrocatalytic activity and pseudocapacitive behavior of Co3O4 nanoplates in alkaline solutions. Electrochim. Acta 2019, 310, 86–95. [Google Scholar] [CrossRef]
  29. Lu, J.; Dey, S.; Temprano, I.; Jin, Y.; Xu, C.; Shao, Y.; Grey, C.P. Co3O4-Catalyzed LiOH Chemistry in Li–O2 Batteries. ACS Energy Lett. 2020, 5, 3681–3691. [Google Scholar] [CrossRef]
  30. Jin, J.; Fu, X.; Liu, Q.; Zhang, J. A highly active and stable electrocatalyst for the oxygen reduction reaction based on a graphene-supported g-C3N4@cobalt oxide core–shell hybrid in alkaline solution. J. Mater. Chem. A 2013, 1, 10538–10545. [Google Scholar] [CrossRef]
  31. Al-Hakemy, A.Z.; Nassr, A.B.A.A.; Naggar, A.H.; Elnouby, M.S.; Soliman, H.M.A.E.-F.; Taher, M.A. Electrodeposited cobalt oxide nanoparticles modified carbon nanotubes as a non-precious catalyst electrode for oxygen reduction reaction. J. Appl. Electrochem. 2017, 47, 183–195. [Google Scholar] [CrossRef]
  32. Yu, J.; Chen, G.; Sunarso, J.; Zhu, Y.; Ran, R.; Zhu, Z.; Zhou, W.; Shao, Z. Cobalt Oxide and Cobalt-Graphitic Carbon Core–Shell Based Catalysts with Remarkably High Oxygen Reduction Reaction Activity. Adv. Sci. 2016, 3, 1600060. [Google Scholar] [CrossRef] [PubMed]
  33. Liang, Y.; Wang, H.; Diao, P.; Chang, W.; Hong, G.; Li, Y.; Gong, M.; Xie, L.; Zhou, J.; Wang, J.; et al. Oxygen Reduction Electrocatalyst Based on Strongly Coupled Cobalt Oxide Nanocrystals and Carbon Nanotubes. J. Am. Chem. Soc. 2012, 134, 15849–15857. [Google Scholar] [CrossRef] [PubMed]
  34. Ahmed, J.; Kim, H.J.; Kim, S. Embedded cobalt oxide nano particles on carbon could potentially improve oxygen reduction activity of cobalt phthalocyanine and its application in microbial fuel cells. RSC Adv. 2014, 4, 44065–44072. [Google Scholar] [CrossRef]
  35. Kostuch, A.; Gryboś, J.; Wierzbicki, S.; Sojka, Z.; Kruczała, K. Selectivity of Mixed Iron-Cobalt Spinels Deposited on a N,S-Doped Mesoporous Carbon Support in the Oxygen Reduction Reaction in Alkaline Media. Materials 2021, 14, 820. [Google Scholar] [CrossRef]
  36. Zhu, H.; Zhang, P.; Dai, S. Recent Advances of Lanthanum-Based Perovskite Oxides for Catalysis. ACS Catal. 2015, 5, 6370–6385. [Google Scholar] [CrossRef]
  37. Xu, N.; Qiao, J.; Zhang, X.; Ma, C.; Jian, S.; Liu, Y.; Pei, P. Morphology controlled La2O3/Co3O4/MnO2–CNTs hybrid nanocomposites with durable bi-functional air electrode in high-performance zinc–air energy storage. Appl. Energy 2016, 175, 536–544. [Google Scholar] [CrossRef]
  38. Wang, N.; Liu, J.; Gu, W.; Song, Y.; Wang, F. Toward Synergy of Carbon and La2O3 in Their Hybrid as Efficient Catalyst for Oxygen Reduction Reaction. RSC Adv. 2016, 6, 77786–77795. [Google Scholar] [CrossRef]
  39. Liu, K.; Lei, Y.; Wang, G. Correlation between oxygen adsorption energy and electronic structure of transition metal macrocyclic complexes. J. Chem. Phys. 2013, 139, 204306. [Google Scholar] [CrossRef] [PubMed]
  40. Zhang, X.; Xiao, Q.; Zhang, Y.; Jiang, X.; Yang, Z.; Xue, Y.; Yan, Y.-M.; Sun, K. La2O3 Doped Carbonaceous Microspheres: A Novel Bifunctional Electrocatalyst for Oxygen Reduction and Evolution Reactions with Ultrahigh Mass Activity. J. Phys. Chem. C 2014, 118, 20229–20237. [Google Scholar] [CrossRef]
  41. Sugawara, Y.; Kobayashi, H.; Honma, I.; Yamaguchi, T. Effect of Metal Coordination Fashion on Oxygen Electrocatalysis of Cobalt–Manganese Oxides. ACS Omega 2020, 5, 29388–29397. [Google Scholar] [CrossRef]
  42. Li, M.; Xiong, Y.; Liu, X.; Bo, X.; Zhang, Y.; Han, C.; Guo, L. Facile synthesis of electrospun MFe2O4 (M = Co, Ni, Cu, Mn) spinel nanofibers with excellent electrocatalytic properties for oxygen evolution and hydrogen peroxide reduction. Nanoscale 2015, 7, 8920–8930. [Google Scholar] [CrossRef] [PubMed]
  43. Du, G.; Liu, X.; Zong, Y.; Hor, T.S.A.; Yu, A.; Liu, Z. Co3O4 nanoparticle-modified MnO2 nanotube bifunctional oxygen cathode catalysts for rechargeable zinc–air batteries. Nanoscale 2013, 5, 4657–4661. [Google Scholar] [CrossRef]
  44. Yang, X.; Peng, W.; Fu, K.; Mao, L.; Jin, J.; Yang, S.; Li, G. Nanocomposites of honeycomb double-layered MnO2 nanosheets /cobalt doped hollow carbon nanofibers for application in supercapacitor and primary zinc-air battery. Electrochim. Acta 2020, 340, 135989. [Google Scholar] [CrossRef]
  45. Li, X.; Nengneng, X.; Li, H.; Wang, M.H.; Zhang, L.; Qiao, J. 3D hollow sphere Co3O4/MnO2-CNTs: Its high-performance bi-functional cathode catalysis and application in rechargeable zinc-air battery. Green Energy Environ. 2017, 2, 316–328. [Google Scholar] [CrossRef]
  46. Che, H.; Lv, Y.; Liu, A.; Mu, J.; Zhang, X.; Bai, Y. Facile synthesis of three dimensional flower-like Co3O4@MnO2 core-shell microspheres as high-performance electrode materials for supercapacitors. Ceram. Int. 2017, 43, 6054–6062. [Google Scholar] [CrossRef]
  47. Eraković, S.; Pavlović, M.M.; Stopić, S.; Stevanović, J.; Mitrić, M.; Friedrich, B.; Panić, V. Interactive promotion of supercapacitance of rare earth/CoO3-based spray pyrolytic perovskite microspheres hosting the hydrothermal ruthenium oxide. Electrochim. Acta 2019, 321, 134721. [Google Scholar] [CrossRef]
  48. Pavlović, M.M.; Pantović Pavlović, M.R.; Eraković Pantović, S.G.; Stevanović, J.S.; Stopić, S.R.; Friedrich, B.; Panić, V. V The Roles of Constituting Oxides in Rare-Earth Cobaltite-Based Perovskites on their Pseudocapacitive Behavior. J. Electroanal. Chem. 2021, 897, 115556. [Google Scholar] [CrossRef]
  49. Zhang, T.; Ge, X.; Zhang, Z.; Tham, N.N.; Liu, Z.; Fisher, A.; Lee, J.Y. Improving the Electrochemical Oxygen Reduction Activity of Manganese Oxide Nanosheets with Sulfurization-Induced Nanopores. ChemCatChem 2018, 10, 422–429. [Google Scholar] [CrossRef]
  50. Chen, B.; Miao, H.; Hu, R.; Yin, M.; Wu, X.; Sun, S.; Wang, Q.; Li, S.; Yuan, J. Efficiently optimizing the oxygen catalytic properties of the birnessite type manganese dioxide for zinc-air batteries. J. Alloys Compd. 2021, 852, 157012. [Google Scholar] [CrossRef]
  51. Xiao, W.; Wang, D.; Lou, X.W. Shape-Controlled Synthesis of MnO2 Nanostructures with Enhanced Electrocatalytic Activity for Oxygen Reduction. J. Phys. Chem. C 2010, 114, 1694–1700. [Google Scholar] [CrossRef]
  52. Saputra, E.; Muhammad, S.; Sun, H.; Ang, H.-M.; Tadé, M.O.; Wang, S. Manganese oxides at different oxidation states for heterogeneous activation of peroxymonosulfate for phenol degradation in aqueous solutions. Appl. Catal. B Environ. 2013, 142–143, 729–735. [Google Scholar] [CrossRef] [Green Version]
  53. Li, Z.; Yang, Y.; Relefors, A.; Kong, X.; Siso, G.M.; Wickman, B.; Kiros, Y.; Soroka, I.L. Tuning morphology, composition and oxygen reduction reaction (ORR) catalytic performance of manganese oxide particles fabricated by γ-radiation induced synthesis. J. Colloid Interface Sci. 2021, 583, 71–79. [Google Scholar] [CrossRef] [PubMed]
  54. BOSE, V.; BIJU, V. Mixed valence nanostructured Mn3O4 for supercapacitor applications. Bull. Mater. Sci. 2015, 38, 865–873. [Google Scholar] [CrossRef] [Green Version]
  55. Sankar, V.; Kalpana, D.; Kalai Selvan, R. Electrochemical properties of microwave-assisted reflux-synthesized Mn3O4 nanoparticles in different electrolytes for supercapacitor applications. J. Appl. Electrochem. 2012, 42, 463–470. [Google Scholar] [CrossRef]
  56. Fink, M.; Eckhardt, J.; Khadke, P.; Gerdes, T.; Roth, C. Bifunctional α—MnO 2 and Co 3 O 4 Catalyst for Oxygen Electrocatalysis in Alkaline Solution. ChemElectroChem 2020, 7, 4822–4836. [Google Scholar] [CrossRef]
  57. Xia, H.; Zhu, D.; Luo, Z.; Yu, Y.; Shi, X.; Yuan, G.; Xie, J. Hierarchically Structured Co3O4@Pt@MnO2 Nanowire Arrays for High-Performance Supercapacitors. Sci. Rep. 2013, 3, 2978. [Google Scholar] [CrossRef]
  58. Paulraj, A.R.; Kiros, Y. La0.1Ca0.9MnO3/Co3O4 for oxygen reduction and evolution reactions (ORER) in alkaline electrolyte. J. Solid State Electrochem. 2018, 22, 1697–1710. [Google Scholar] [CrossRef] [Green Version]
  59. Xie, G.; Chen, B.; Jiang, Z.; Niu, X.; Cheng, S.; Zhen, Z.; Jiang, Y.; Rong, H.; Jiang, Z.-J. High catalytic activity of Co3O4 nanoparticles encapsulated in a graphene supported carbon matrix for oxygen reduction reaction. RSC Adv. 2016, 6, 50349–50357. [Google Scholar] [CrossRef]
  60. Zhao, Y.; Xu, L.; Mai, L.; Han, C.; An, Q.; Xu, X.; Liu, X.; Zhang, Q. Hierarchical mesoporous perovskite La0.5Sr0.5CoO2.91 nanowires with ultrahigh capacity for Li-air batteries. Proc. Natl. Acad. Sci. USA 2012, 109, 19569–19574. [Google Scholar] [CrossRef] [Green Version]
  61. Kim, G.-P.; Sun, H.-H.; Manthiram, A. Design of a sectionalized MnO2-Co3O4 electrode via selective electrodeposition of metal ions in hydrogel for enhanced electrocatalytic activity in metal-air batteries. Nano Energy 2016, 30, 130–137. [Google Scholar] [CrossRef] [Green Version]
Metals 12 00022 g001 550

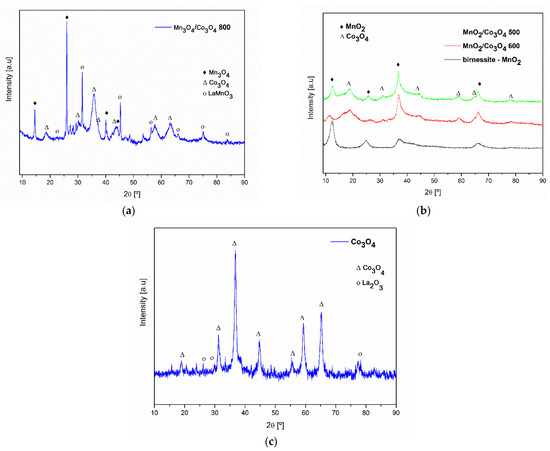

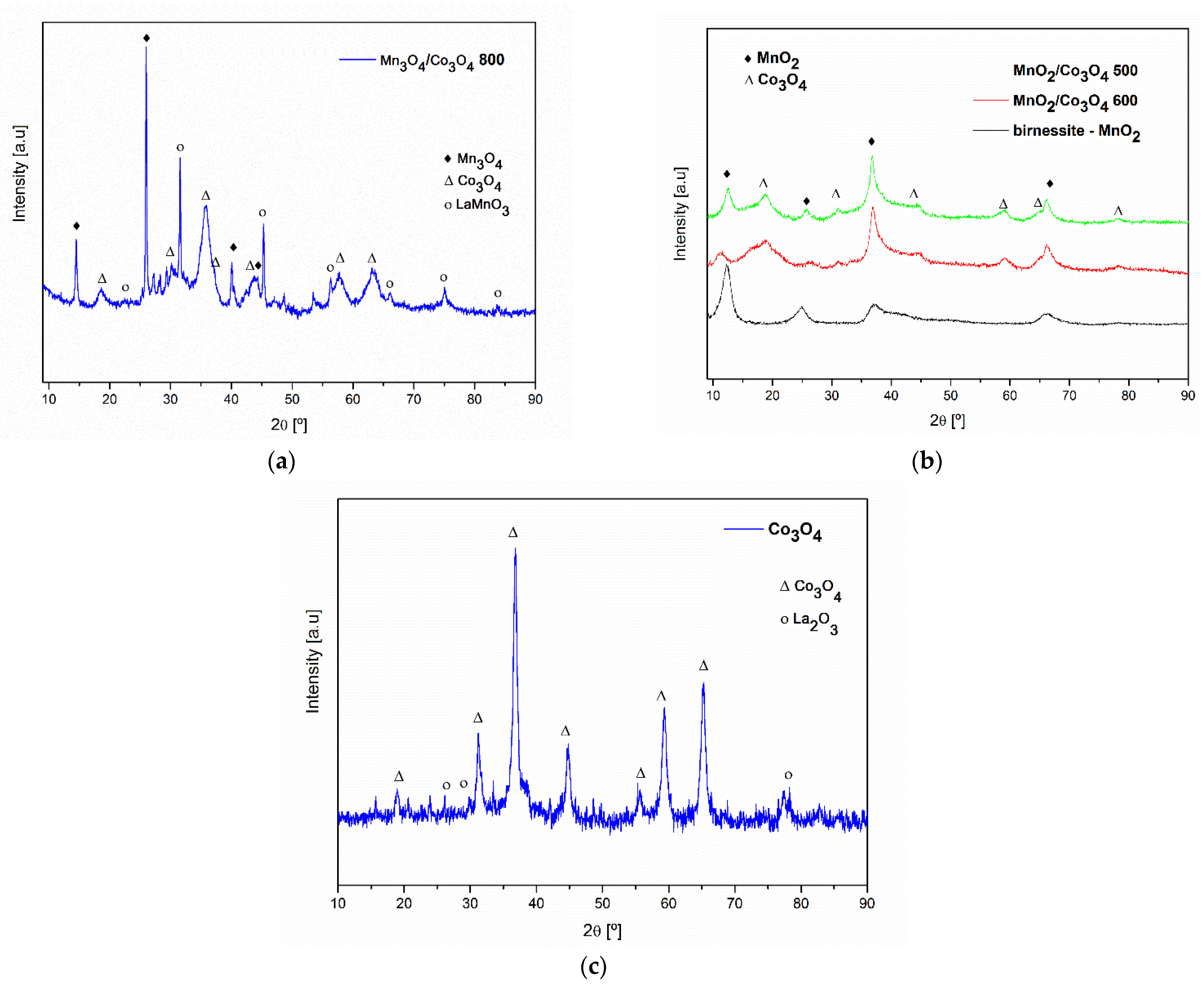

Figure 1. XRD patterns of (a) Mn/Co/La oxide hybrid materials synthesized on 500 and 600 °C, and commercial MnO2; (b) Mn/Co/La oxide material synthesized at 800 °C; (c) Co/La oxide hybrid material.
Figure 1. XRD patterns of (a) Mn/Co/La oxide hybrid materials synthesized on 500 and 600 °C, and commercial MnO2; (b) Mn/Co/La oxide material synthesized at 800 °C; (c) Co/La oxide hybrid material.
Metals 12 00022 g001
Metals 12 00022 g002 550

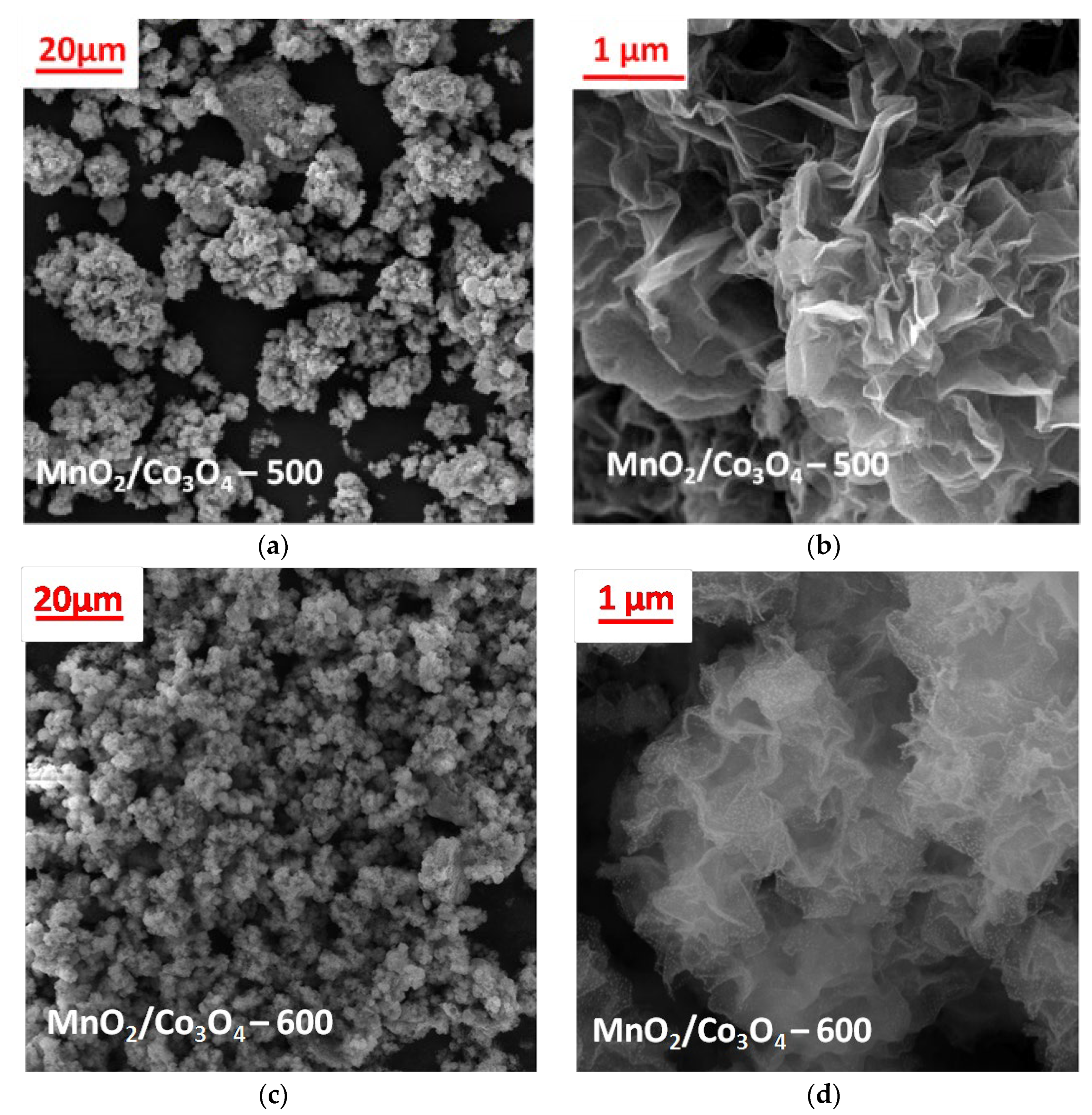

Figure 2. SEM images of (a,b) MnO2/Co3O4-500, (c,d) MnO2/Co3O4-600; at lower and higher magnifications.
Figure 2. SEM images of (a,b) MnO2/Co3O4-500, (c,d) MnO2/Co3O4-600; at lower and higher magnifications.
Metals 12 00022 g002
Metals 12 00022 g003 550

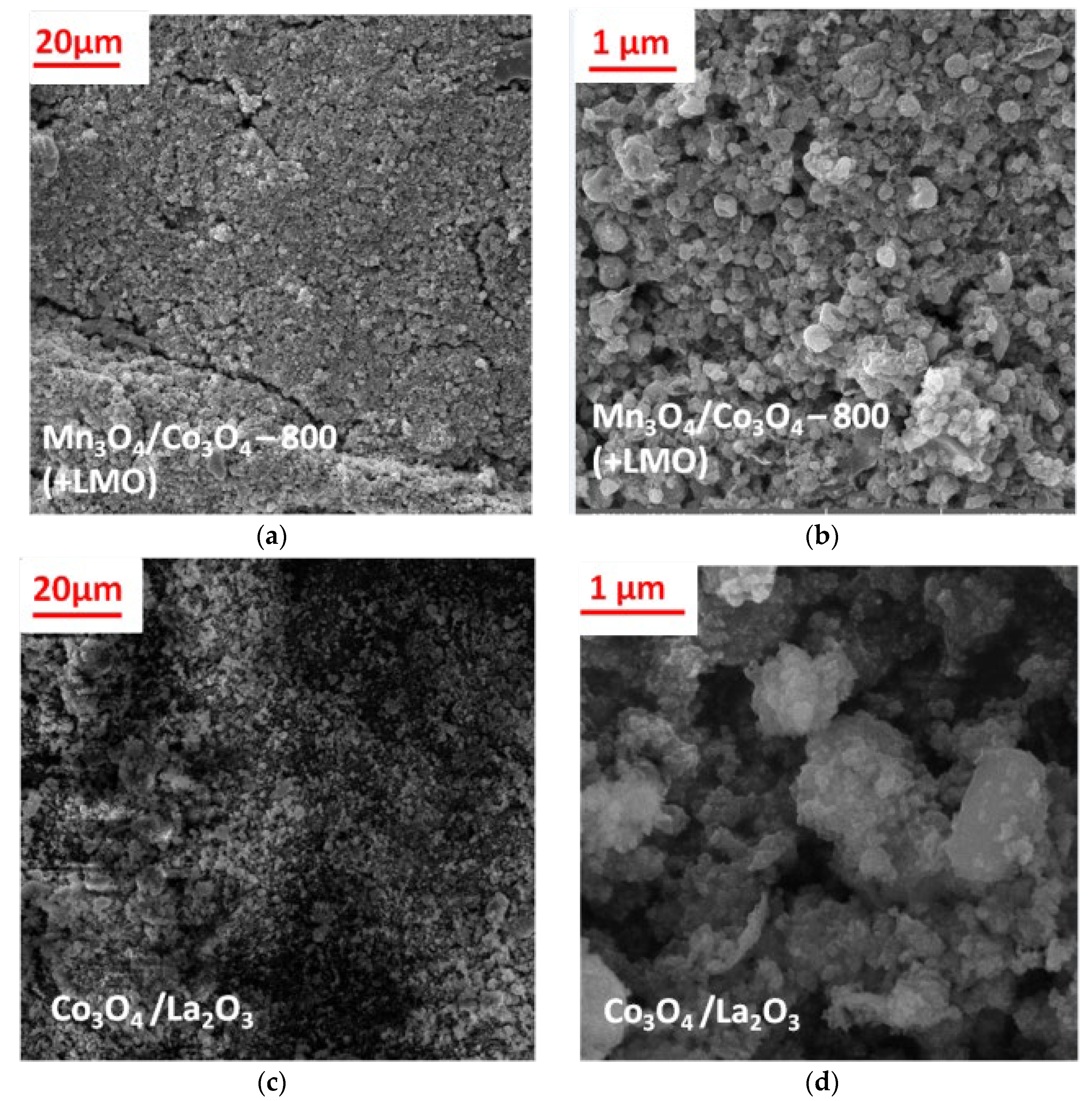

Figure 3. SEM images of (a,b) Mn3O4/Co3O4-800 and (c,d) Co3O4/La2O3; at lower and higher magnifications.
Figure 3. SEM images of (a,b) Mn3O4/Co3O4-800 and (c,d) Co3O4/La2O3; at lower and higher magnifications.
Metals 12 00022 g003
Metals 12 00022 g004 550

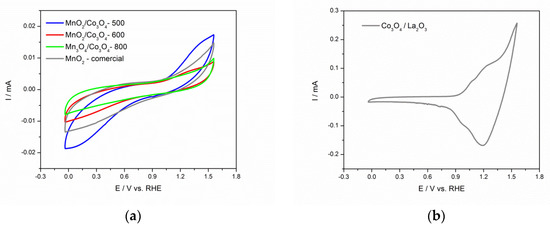

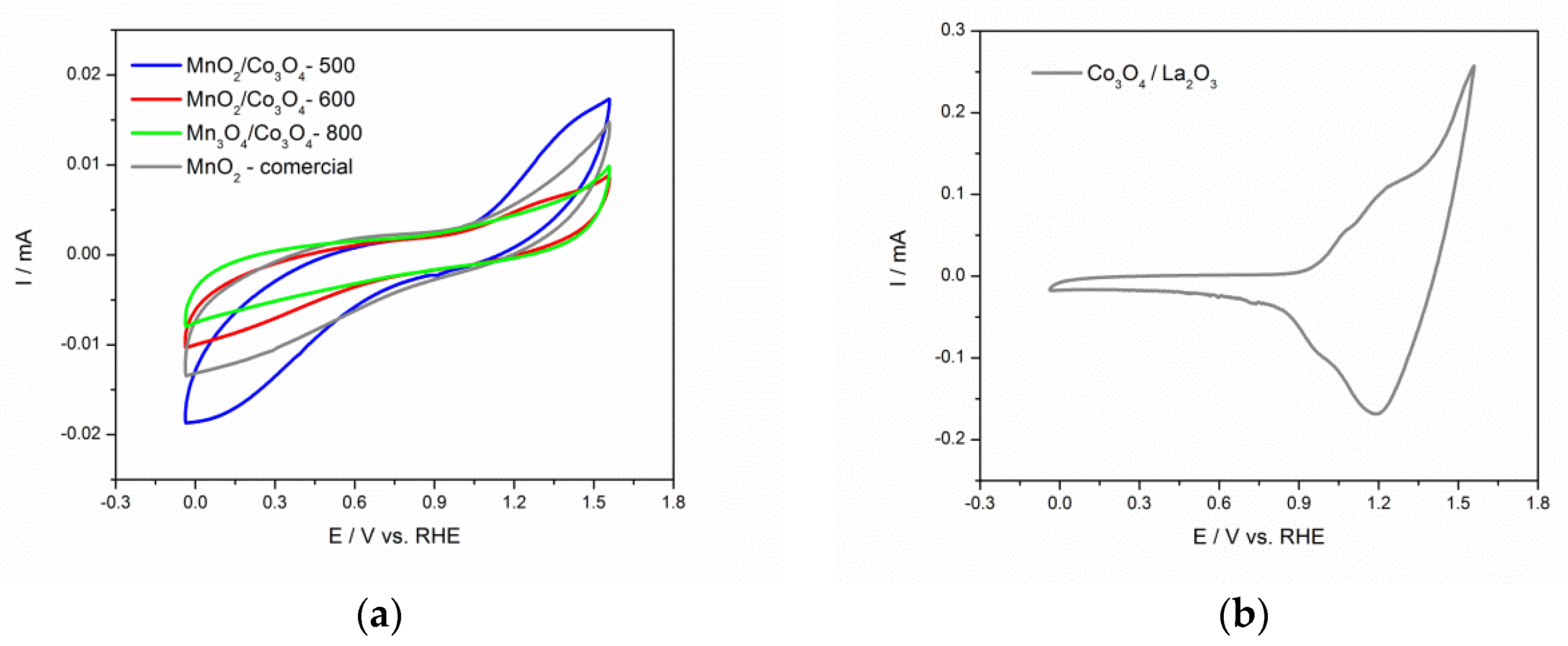

Figure 4. CV performance of synthesized catalytic materials (a) comparison between Mn-based materials and commercial MnO2, (b) Co-based electrode; 0.1 M KOH, N2 atmosphere, 20 mv s−1.
Figure 4. CV performance of synthesized catalytic materials (a) comparison between Mn-based materials and commercial MnO2, (b) Co-based electrode; 0.1 M KOH, N2 atmosphere, 20 mv s−1.
Metals 12 00022 g004
Metals 12 00022 g005 550

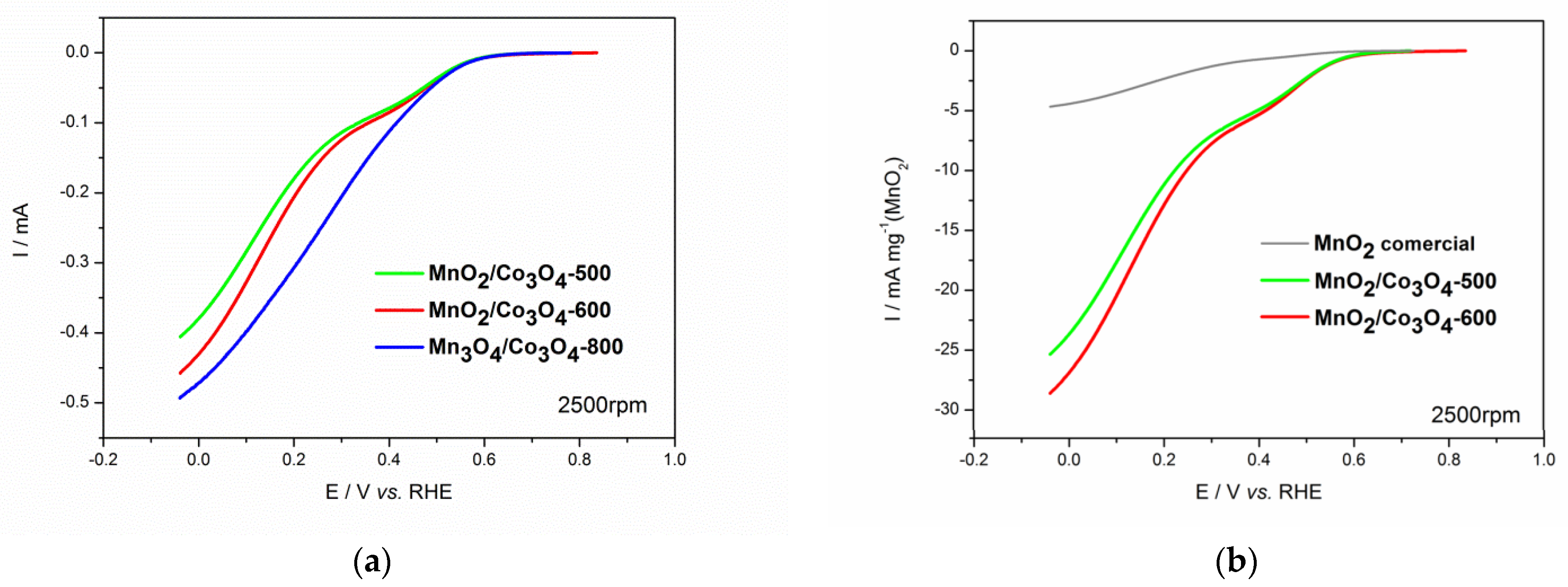

Figure 5. Comparison of ORR activities of Mn-based hybrid materials: (a) at different synthesis temperature and (b) commercial MnO2 for ORR per mass of MnO2.
Figure 5. Comparison of ORR activities of Mn-based hybrid materials: (a) at different synthesis temperature and (b) commercial MnO2 for ORR per mass of MnO2.
Metals 12 00022 g005
Metals 12 00022 g006 550

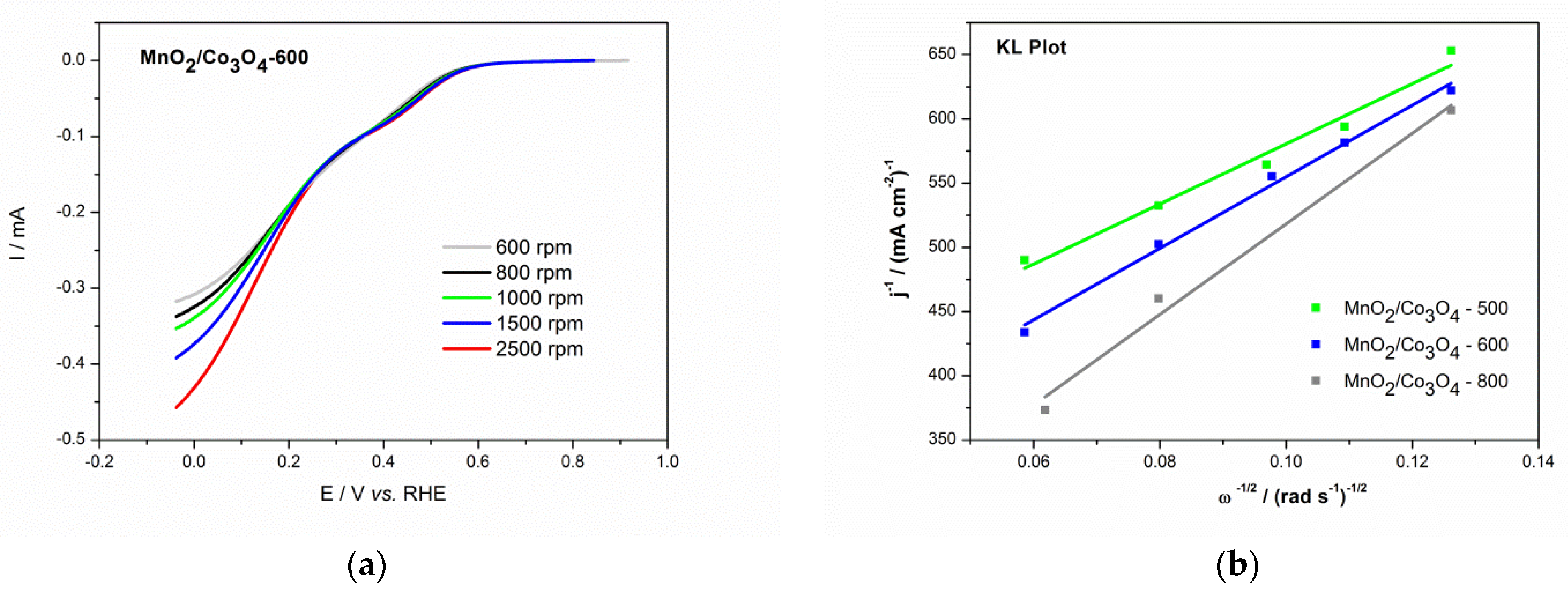

Figure 6. LSV performance of synthesized materials: MnO2/Co3O4-600 (a) at different electrode rotation rates; (b) KL-plot of the synthesized materials; 0.1 M KOH, O2 atmosphere.
Figure 6. LSV performance of synthesized materials: MnO2/Co3O4-600 (a) at different electrode rotation rates; (b) KL-plot of the synthesized materials; 0.1 M KOH, O2 atmosphere.
Metals 12 00022 g006
Metals 12 00022 g007 550
Figure 7. Reduction of O2 at the Co-based electrode (a,b) KL plot for Co3O4/La2O3.
Figure 7. Reduction of O2 at the Co-based electrode (a,b) KL plot for Co3O4/La2O3.
Metals 12 00022 g007
Metals 12 00022 g008 550
Figure 8. Comparison of (a) synthesized materials in mA (b) calculated per mass of Co.
Figure 8. Comparison of (a) synthesized materials in mA (b) calculated per mass of Co.
Metals 12 00022 g008
Metals 12 00022 g009 550
Figure 9. Comparison of all materials (a) per mol of Co oxide and (b) per mol of Mn oxide.
Figure 9. Comparison of all materials (a) per mol of Co oxide and (b) per mol of Mn oxide.
Metals 12 00022 g009
Table
Table 1. Element analysis of synthesized materials for EDS analysis (at. %).
Table 1. Element analysis of synthesized materials for EDS analysis (at. %).
ElementSample
MnO2/Co3O4-500MnO2/Co3O4-600Mn3O4/Co3O4/LaMnO3-800Co3O4 (+La2O3)MnO2
O68.7162.9261.78 69.7760.29
La2.043.783.11 2.26/
Co9.8811.2412.98 27.96/
Mn19.3722.0622.13 /32.43
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Varničić, M.; Pavlović, M.M.; Eraković Pantović, S.; Mihailović, M.; Pantović Pavlović, M.R.; Stopić, S.; Friedrich, B. Spray-Pyrolytic Tunable Structures of Mn Oxides-Based Composites for Electrocatalytic Activity Improvement in Oxygen Reduction. Metals 2022, 12, 22. https://doi.org/10.3390/met12010022

AMA Style

Varničić M, Pavlović MM, Eraković Pantović S, Mihailović M, Pantović Pavlović MR, Stopić S, Friedrich B. Spray-Pyrolytic Tunable Structures of Mn Oxides-Based Composites for Electrocatalytic Activity Improvement in Oxygen Reduction. Metals. 2022; 12(1):22. https://doi.org/10.3390/met12010022

Chicago/Turabian Style

Varničić, Miroslava, Miroslav M. Pavlović, Sanja Eraković Pantović, Marija Mihailović, Marijana R. Pantović Pavlović, Srećko Stopić, and Bernd Friedrich. 2022. "Spray-Pyrolytic Tunable Structures of Mn Oxides-Based Composites for Electrocatalytic Activity Improvement in Oxygen Reduction" Metals 12, no. 1: 22. https://doi.org/10.3390/met12010022

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
