Article

A First-Principles Study on Na and O Adsorption Behaviors on Mo (110) Surface

1
College of Materials Science and Engineering, Hunan University, Changsha 410082, China
2
Institute of Nuclear Physics and Chemistry, China Academy of Engineering Physics, Mianyang 621900, China
3
School of Physics and Electronics, Hunan University, Changsha 410082, China
*
Authors to whom correspondence should be addressed.
Metals 2021, 11(8), 1322; https://doi.org/10.3390/met11081322
Submission received: 16 July 2021 / Revised: 16 August 2021 / Accepted: 16 August 2021 / Published: 20 August 2021
(This article belongs to the Special Issue Numerical Modeling of Materials under Extreme Conditions)

Abstract

:
Molybdenum-rhenium alloys are usually used as the wall materials for high-temperature heat pipes using liquid sodium as heat-transfer medium. The corrosion of Mo in liquid Na is a key challenge for heat pipes. In addition, oxygen impurity also plays an important role in affecting the alloy resistance to Na liquid. In this article, the adsorption and diffusion behaviors of Na atom on Mo (110) surface are theoretically studied using first-principles approach, and the effects of alloy Re and impurity O atoms are investigated. The result shows that the Re alloy atom can strengthen the attractive interactions between Na/O and the Mo substrate, and the existence of Na or O atom on the Mo surface can slower down the Na diffusion by increasing diffusion barrier. The surface vacancy formation energy is also calculated. For the Mo (110) surface, the Na/O co-adsorption can lead to a low vacancy formation energy of 0.47 eV, which indicates the dissolution of Mo is a potential corrosion mechanism in the liquid Na environment with O impurities. It is worth noting that Re substitution atom can protect the Mo surface by increasing the vacancy formation energy to 1.06 eV.

1. Introduction

Alkali metal heat pipes (HPs) are initially designed for heat transfer in space nuclear power systems, of which the operating temperature is typically from 800 K to 1800 K. HPs using alkali metals are also promising in advanced energy and power systems such as high-efficiency waste heat utilization [1], hypersonic vehicles [2], and molten salt reactors [3].
A heat pipe consists of a sealed shell, wick structure and a vapor chamber containing working fluid, which is normally filled after the shell is evacuated [4]. Heat transfer in a heat pipe is achieved passively by the phase change and the circulation of the working fluid [5]. Different types of working fluid and shell material are adopted in heat pipes used under different working conditions. The type of heat pipe can be divided into four main types according to their working temperature: low temperature heat pipe (−270~0 °C), normal temperature heat pipe (0~200 °C), medium temperature heat pipe (200~600 °C) and high temperature heat pipe (above 600 °C) [6].
Alkali metal heat pipes operating at temperature above 800 K have typically been constructed taking liquid alkali metal: potassium, sodium, or lithium as the working fluid due to their high-power capacity and great thermal stability [7]. For alkali metal heat pipes used in nuclear power systems, a key requirement is the compatibility of structure materials with both nuclear fuel and alkali metal [8]. Refractory metals and alloys, for owning both high creep strength at high temperatures and excellent compatibility with alkali liquid metals as well as nuclear fuel, are often applied as the shell material of alkali metal heat pipes [9]. Molybdenum (Mo) is a kind of refractory metal that is reported to be one of the greatest candidates for use of alkali metal heat pipe walls [10,11,12,13]. Recently, Mo alloys are also considered as structural materials using in nuclear reactors [14,15]. However, pure Mo becomes brittle at about room temperature and below, which impacts heavily not only on the fabrication of heat pipes, but also the transportation process that easily leading to heat pipe breakage [16,17]. To tackle this problem, adding rhenium (Re) into pure molybdenum is found to be effective in enhancing low temperature ductility while also improving the high-temperature strength and creep resistance, known as the “rhenium effect” [18,19]. Mo-Re alloy has great advantage in high temperature heat pipes, where the operating environment is usually highly oxidizing and corrosive.
One issue for Mo-Re alloy in the heat pipe is the corrosion induced by the liquid metal working fluid and impurities. Studies have shown that dissolution, mass transfer and impurity reactions are the major corrosion mechanisms in refractory metal-alkali systems. Meanwhile, the most serious corrosion problems encountered are related to impurity reactions associated with oxygen [20]. Even though the addition of Re can improve the low temperature ductility, creep resistance and high temperature strength, it is not known that whether the Re atom could bring an improvement on the corrosion resistance of Mo. In addition, as the existence of oxygen (O) could lead to serious corrosion problems, it is important to learn the chemical interaction between O and Mo surface [21]. In this study, we used a first-principles approach to investigate basic properties such as adsorption, diffusion properties of Na atom and O atom on the pure Mo (110) surface and Mo-Re (110) surface. In addition, the formation of surface vacancy was calculated for evaluating if the adsorbates can prevent Mo from dissolution.

2. Computational Methods and Model

We employed the Vienna Ab-initio Simulation Package (VASP, version 5.4, developed by Vienna University) [22,23] to carry out our first-principles calculations. All calculations were implemented based on density-functional theory (DFT) [24,25], using a plane wave basis set [26]. The interactions between the core and valence electrons were described with the projector augmented wave (PAW) approach [27,28]. Generalized gradient approximation (GGA) of the Perdew–Burke–Ernzerhof (PBE) functional [29] was adopted in all the calculations. An energy cut-off for the plane-wave basis set was set to 380 eV for both the relaxed and static computations. The residual force for structure optimization was less than 0.02 eV/Å. The 7 × 7 × 1 k-point grids generated by the Monkhorst–Pack (MP) technique [30] was found to be sufficient for the present study.
The Mo (110) surface was used to explore the interaction between Na/O atoms and the Mo substrate because the Mo (110) surface has the lowest surface energy as reported in Materials Project Database [31]. Mo (110)-(2 × 2) surface cell was represented by a 5-layers slab model (8 atoms per layer) with the vacuum thickness of 10 Å. The upper two layers were fully relaxed and the bottom three layers were fixed as the bulk phase during structure optimization. In this study, we also investigated the effect of alloy element Re on the adsorption of Na and O atoms. For Mo-Re alloy, when the weight percentage of Re is less than 14%, Re atoms randomly replace Mo atoms at the lattice site [32]. We considered three adsorption sites for the Na and O atom on Mo/Mo-Re alloy: TOP site, Bridge site and Hollow site of Mo/Mo-Re (110) surface. Top site is located over the Mo atoms of the topmost layer, and bridge site is located between the two Mo atoms of the topmost layer, while Hollow site is above the Mo atoms of the second layer, as is shown in Figure 1. For one atom adsorbed on the (110)-(2 × 1) surface cell, the corresponding coverage ( Θ ) is 1 8 ML.
The climbing image nudged-elastic-band (CI-NEB) method was employed to calculate the Na diffusion barriers between two most stable adsorption sites on Mo/Mo-Re (110) surface [33].

3. Results and Discussion

3.1. Model Verification

Molybdenum (Mo) has a body centered cubic (bcc) structure with an experimental lattice constant of 3.14   [34] and each conventional cell has 2 atoms. The theoretical lattice constant found in this study is 3.15   which agrees well with the experimental value.
In order to find out the thermodynamically most stable surface structure of bcc-Mo, the surface energy is calculated by the following equation:
σ = E s l a b n × E b u l k / 2 A
where A is the surface area and n is the number of atoms in the slab model, E s l a b is the total energy of the surface, E b u l k is the energy per Mo atom of the ground state structure.
The surface energies of low-index Mo surfaces are shown in Table 1. The surface energies of Mo (100), Mo (110) and Mo (111) are 0.22 eV/Å2, 0.17 eV/Å2 and 0.18 eV/Å2, respectively. Our results are the same with date reported in Materials Project Database [31]. All above results demonstrate that the input parameters and surface models used in the present study are reliable. In addition, considering that Mo (110) surface has the lowest surface energy, we focus on understanding Na and O adsorption properties on this energetically most stable surface.

3.2. Na Atom and O Atom Adsorption

The adsorption behaviors of Sodium atom on both Mo (110) and Mo-Re (110) surfaces are investigated firstly. In the current calculations, the adsorption energy for the Na atom adsorbed on the Mo (110) or Mo-Re (110) surfaces is defined as:
    E a d s = E M o / M o R e N a E M o / M o R e s l a b E N a
Here E M o / M o R e N a is the total energy of the adsorbate–substrate system, E M o / M o R e s l a b is the total energy of the clean Mo/Mo-Re surface, and E N a is the average energy of BCC Na. A negative   E a d s value indicates the attractive interaction between the adsorbate and the substrate. The more negative adsorption energy implies the stronger attractive interaction between the adsorbate and the substrate.
Figure 2 shows the Initial states and final states of Na adsorption Mo (110) and Mo-Re (110) surfaces. The adsorption energies and structural parameters of Na on Mo or Mo-Re (110) surfaces are given in Table 2. For the Mo (110) surface, the hollow site is the energetically most favored for Na adsorption and the corresponding energy is −0.51 eV. The Bridge site is second preferred for Na adsorption with the adsorption energy of −0.44 eV. The Top site is a stable one for Na adsorption, but the adsorption energy is only −0.35 eV. For Mo-Re (110) surface, all un-equivalent Top, Hollow and Bridge sites are considered for Na adsorption. For each type of adsorption site, only the initial and final sites with the lowest energy are collected and shown in Figure 2 and Table 2. Compared with the pristine Mo (110) surface, Mo-Re (110) surface provides stronger affinity to the Na atom. It is worth noting that the Na atom initially placed at the Bridge site moves towards the Re atom after the structure optimization, as can be seen in Figure 2f, and this configuration delivers the lowest adsorption energy of −0.60 eV. The adsorption energies of Na adsorption on the Top site and Hollow site of Mo-Re (110) surface are −0.43 eV and −0.56 eV, respectively. The average vertical distance between adsorbed Na atom and the top layer ( d N a s u r ) is also listed in Table 2. It is interesting to found that the Na adsorption energy is proportional to d N a s u r f (Figure 3). A shorter distance between the Na atom and the top layer indicates a stronger attractive interaction. Both energetical and geometric parameters indicate that the Re atom can strengthen the attractive interaction between Na and the Mo surface. The electronic structure is analyzed for understanding the effect of Re atom on Na adsorption. On the Mo (110) surface, the Na atom only interacts with Mo atoms in the upmost layer, as shown in Figure 4a. The Re atom can significantly affect the charge redistribution induced a by Na adsorption. As shown in Figure 4b, electrons from the Mo settled in the second atomic layer migrate to the first layer, resulting to great electron accumulation. In this case, the columbic attraction between the Na atom and the substrate is enhanced and lead to a lower adsorption energy.
The adsorption energies of O on Mo and Mo-Re (110) surfaces are also investigated in the present study (Table 3). The adsorption energy for the O atom adsorbed on the Mo/Mo-Re (110) surfaces is defined as
  E a d s = E M o / M o R e O E M o / M o R e s l a b 1 2 E O 2
where E M o / M o R e O is the total energy of the adsorbate–substrate system, E M o / M o R e s l a b is the total energy of clean Mo/Mo-Re surfaces, and E O 2 is the energy of an isolated O2 molecule. The adsorption energy of a single O atom on the surface is always calculated to characterize the oxygen-substrate interactions for refractory materials, and the energy of an O atom is usually referenced to the half of the O2 molecule [35,36,37].
As listed in Table 3, The Hollow site is energetically preferred for O adsorption on the Mo (110) surface with the adsorption energy of −4.09 eV. It is worth noting that the O atom initially placed at the Bridge site will spontaneously move to the Hollow site after the structure optimization as shown in Figure 5c. The O atom can also be stabilized at the Top site, but the adsorption energy is only −2.80 eV. As with Na on Mo (110) surface, the shorter vertical distance between O atom and the substrate ( d O s u r f ) leads to a lower (more negative) adsorption energy. For the Mo-Re (110) surface, the Hollow site is also the most favored for O adsorption and the corresponding adsorption energy is −4.14 eV, which is even 0.05 lower than the adsorption energy of O at the Hollow site of Mo (110) surface. It is worth mentioning that all un-equivalent Hollow sites around the Re atoms are checked, and Figure 5 as well as Table 3 demonstrates configurations with the lowest energy. As with the pristine Mo (110) surface, the O atom initially placed at the Bridge site of the Mo-Re (110) surface will move to the Hollow site after the structure relaxation. In addition, the O atom can be stabilized at the Top site with a much higher adsorption energy of −2.82 eV. As with Na adsorption, the Re atom in the surface can also strengthen the attractive interaction between the adsorbed O atom and the Mo-based substrate.

3.3. Impact of O on Na Adsorption and Diffusion

O is the key impurity in liquid metal for the high-temperature heat pipe. The impact of pre-adsorbed O on Na adsorption behavior is also investigated. The configurations of pre-adsorbed O atom are adopted from Figure 6b,e. The adsorption energy for the Na on surface with a pre-adsorbed O is defined as
    E a d s = E M o O / M o R e O N a E M o O / M o R e O s l a b E N a
where E M o O / M o R e O N a is the total energy of the adsorbate–substrate system, E M o O / M o R e O s l a b is the total energy of Mo or Mo-Re surface with a pre-adsorbed O atom, and E N a is the energy of an Na atom in the BCC structure. In Equation (4), the subscript Mo-O represents the Mo (110) surface with a pre-adsorbed O atom and Mo-Re-O represent the Mo-Re (110) surface with a pre-adsorbed O atom.
All un-equivalent sites are considered and only the configurations with the lowest energies are shown in Figure 6. Adsorption energies and geometric parameters are given in Table 4. It is found that Na atoms initially placed at Top and Bridge sites move to Hollow sites after the optimization. The former one occupied the Hollow site which is 6.02 Å away from the pre-adsorbed O atom, and latter one occupied the Hollow site which is only 2.35 Å away from the O atom. However, these two final configurations lead to the same adsorption energy of 0.52 eV. For the Na atom initially placed at the Hollow site, the adsorption energy is −0.53 eV with d N a O = 2.36 Å. It can be inferred that the O atom does not affect the adsorption behavior of the Na atom.
For the Mo-Re (110) surface with a pre-adsorbed O, Na initially placed at the top site will spontaneously move to a Hollow site which is close to the O atom ( d N a O = 2.37 Å) as shown in Figure 6d. However, it should be noticed that the Na atom at the Hollow site which is closer to a Re atom has lowest adsorption energy of −0.61 eV in Figure 6e. The adsorption energy of Na at the Bridge site is −0.57 eV, which is also closer to the Re atom in Figure 6f and has a lower adsorption energy than the Na atom shown in Figure 6d. For the Na adsorption on the clean Mo-Re (110) surface, the adsorption energies of the Hollow site and Bridge site are −0.56 eV and −0.60 eV. As with the Mo (110) surface, pre-adsorbed O on the Mo-Re (110) surface cannot affect the Na adsorption behavior significantly.
Figure 7 show the energy barrier of Na migration from one most stable site to its first-nearest most stable site is also calculated in this work using CI-NEB method. Our theoretical results show that the diffusion barrier of Na on Mo (110) surface is 0.037 eV, while it is 0.063 eV on the Mo-Re (110) surface. It can be inferred that the Re atom can slower down the Na diffusion kinetics on the Mo surface. The impact of pre-adsorbed O on the Na diffusion is also investigated. For the Mo (110) surface, the pre-adsorbed O atom can increase the diffusion barrier to 0.087; for the Mo-Re (110) surface, the pre-adsorbed O can significantly increase the Na diffusion barrier to 0.221 eV. Therefore, it can be inferred that both the existence of O impurity and Re alloy atoms can block the Na diffusion on the Mo surface.

3.4. Impact of O/Na atom Adsorption on the Vacancy Formation of Mo (110) and Mo-Re (110) Surfaces

We propose that Mo dissolution into liquid Na is a potential scenario of Mo corrosion. In this study, the Mo vacancy formation energy is also calculated to evaluate the effect of O and Re on the corrosion resistance of Mo surface. The vacancy formation energy is defined using the following Equation (5):
E v a c f = E v a c s u r f a c e + E M o E s u r f a c e
where E s u r f a c e stands for the energy of surfaces without vacancies, E M o is the energy of a Mo atom in its BCC structure and E v a c s u r f a c e is the surface models with a Mo vacancy in the upmost layer.
Table 5 shows that the vacancy formation energies are 1.45 eV and 1.32 eV for the clean Mo (110) surface and the clean Mo-Re (110) surface, respectively. Therefore, introducing Re atom into the Mo (110) surface can enhance forming surface vacancies. The surface vacation formation energies of Mo (110) or Mo-Re (110) surface with an Na or O atom is also calculated. A single Na atom or O atom can reduce the surface vacancy formation energy by 0.4~0.5 eV. It can be inferred that a low coverage of Θ = 1 8 ML of Na or O can destabilize the Mo (110) and Mo-Re (110) surface. The effect of Na/O synergetic effect on vacancy formation is also studied. The present theoretical results show that the vacancy formation energy is significantly decreased when a Na atom and a O atom are co-adsorbed on the Mo (110) surface. Therefore, it can be inferred that impurity can facilitate the dissolution of Mo atoms and lead to corrosion. For the Na/O co-adsorption condition, the existence of Re atom can increase the surface vacancy formation energy to 1.06 eV. Hence, Re can prevent the Mo alloy from corrosion in liquid Na with O impurities.

4. Conclusions

In this study, the adsorption and diffusion behaviors of Na and O atoms on BCC-Mo (110) surface are investigated by a first-principles approach. It is found that the Hollow site is the most energetically preferred adsorption site for a single Na or O atom. The existence of a Re alloy atom in the first atomic layer of the surface can strengthen the attractive interaction between the adsorbate and the substrate. The diffusion barrier of the Na atom on the Mo (110) surface is only 0.037 eV, and the pre-adsorbed O atom and Re atom can significantly impede Na diffusion. The surface vacancy formation energy is calculated for evaluating the stability of the Mo (110) surface. It is found that the Na or O atom can decrease the formation energy of the surface vacancy. It is worth noting that the Na/O co-adsorption can significantly reduce the vacancy formation energy to 0.47 eV for the Mo (110) surface, which indicates that the dissolution of surface atoms is a potential mechanism for the Mo in the Na liquid with O impurity. However, Re as alloy element can increase the resistance to the dissolution induced by Na/O co-adsorption.

Author Contributions

Q.Z. performs simulation and data analyzation, and writes the original draft; Z.L. concept this work; W.L., M.M. and H.D. refine the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study is financially supported by the President Foundation of China Academy of Engineering Physics (YZJJLX2018002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, H.; Zhuang, J. Research, development and industrial application of heat pipe technology in China. Appl. Therm. Eng. 2003, 23, 1067–1083. [Google Scholar] [CrossRef]
  2. Ai, B.; Chen, S.; Yu, J.; Lu, Q.; Han, H.; Hu, L. Fabrication of lithium/C-103 alloy heat pipes for sharp leading edge cooling. Heat Mass Transf. 2017, 54, 1359–1366. [Google Scholar] [CrossRef]
  3. Wang, C.; Guo, Z.; Zhang, D.; Qiu, S.; Tian, W.; Wu, Y.; Su, G. Transient behavior of the sodium–potassium alloy heat pipe in passive residual heat removal system of molten salt reactor. Prog. Nucl. Energy 2013, 68, 142–152. [Google Scholar] [CrossRef]
  4. Faghri, A. Review and Advances in Heat Pipe Science and Technology. J. Heat Transf. 2012, 134, 123001. [Google Scholar] [CrossRef]
  5. Reay, D.; McGlen, R.; Kew, P. Heat Pipes: Theory, Design and Applications, 6th ed.; Elsevier: Amsterdam, The Netherlands, 2014. [Google Scholar]
  6. Jouhara, H.; Chauhan, A.; Nannou, T.; Almahmoud, S.; Delpech, B.; Wrobel, L. Heat pipe based systems—Advances and applications. Energy 2017, 128, 729–754. [Google Scholar] [CrossRef]
  7. Qu, W. Progress Works of High and Super High Temperature Heat Pipes. In Developments in Heat Transfer; Bernardes, M.A.D.S., Ed.; InTech: London, UK, 2011; pp. 503–522. ISBN 978-953-307-569-3. [Google Scholar]
  8. El-Genk, M.; Tournier, J.-M. Challenges and fundamentals of modeling heat pipes’ startup from a frozen state. AIP Conf. Proc. 2002, 608, 127–138. [Google Scholar]
  9. Lundberg, L.B. Refractory Metals in Space Nuclear Power. JOM 1985, 37, 44–47. [Google Scholar] [CrossRef]
  10. Lundberg, L. An evaluation of molybdenum and its alloys. In Proceedings of the 16th Thermophysics Conference, American Institute of Aeronautics and Astronautics (AIAA), Palo Alto, CA, USA, 23–25 June 1981. [Google Scholar]
  11. King, J.C.; El-Genk, M.S. Review of Refractory Materials for Alkali Metal Thermal-to-Electric Conversion Cells. J. Propuls. Power 2001, 17, 547–556. [Google Scholar] [CrossRef]
  12. El-Genk, M.S.; Tournier, J.-M. A review of refractory metal alloys and mechanically alloyed-oxide dispersion strengthened steels for space nuclear power systems. J. Nucl. Mater. 2005, 340, 93–112. [Google Scholar] [CrossRef]
  13. Hampel, C. Refractory Metals. Tantalum, Niobium, Molybdenum, Rhenium, and Tungsten. Ind. Eng. Chem. 1961, 53, 90–96. [Google Scholar] [CrossRef]
  14. Shmelev, A.N.; Kozhahmet, B.K. Use of molybdenum as a structural material of fuel elements for improving the safety of nuclear reactors. J. Phys. Conf. Ser. 2017, 781, 012022. [Google Scholar] [CrossRef]
  15. Gilbert, M.; Packer, L.; Stainer, T. Experimental validation of inventory simulations on molybdenum and its isotopes for fusion applications. Nucl. Fusion 2020, 60, 106022. [Google Scholar] [CrossRef]
  16. Lundberg, L. Critical Evaluation of Molybdenum and Its Alloys for Use in Space Reactor Core Heat Pipes; No. LA-8685-MS; Los Alamos Scientific Laboratory: Los Alamos, NM, USA, 1981. [Google Scholar] [CrossRef] [Green Version]
  17. Yu, X.; Kumar, K. Uniaxial, load-controlled cyclic deformation of recrystallized molybdenum sheet. Mater. Sci. Eng. A 2012, 540, 187–197. [Google Scholar] [CrossRef]
  18. Jörg, T.; Music, D.; Hauser, F.; Cordill, M.J.; Franz, R.; Köstenbauer, H.; Winkler, J.; Schneider, J.; Mitterer, C. Deformation behavior of Re alloyed Mo thin films on flexible substrates: In situ fragmentation analysis supported by first-principles calculations. Sci. Rep. 2017, 7, 7374. [Google Scholar] [CrossRef]
  19. Agnew, S.R.; Leonhardt, T. The low-temperature mechanical behavior of molybdenum-rhenium. JOM 2003, 55, 25–29. [Google Scholar] [CrossRef]
  20. DiStefano, J.R. Review of alkali metal and refractory alloy compatibility for Rankine cycle applications. J. Mater. Eng. 1989, 11, 215–225. [Google Scholar] [CrossRef]
  21. Tu, S.-T.; Zhang, H.; Zhou, W.W. Corrosion failures of high temperature heat pipes. Eng. Fail. Anal. 1999, 6, 363–370. [Google Scholar] [CrossRef]
  22. Kresse, G.; Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  23. Kresse, G.; Furthmüller, J. Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-wave Basis Set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef]
  24. Car, R.; Parrinello, M. Unified Approach for Molecular Dynamics and Density-Functional Theory. Phys. Rev. Lett. 1985, 55, 2471–2474. [Google Scholar] [CrossRef] [Green Version]
  25. Jones, R.O.; Gunnarsson, O. The density functional formalism, its applications and prospects. Rev. Mod. Phys. 1989, 61, 689–746. [Google Scholar] [CrossRef]
  26. Payne, M.C.; Teter, M.P.; Allan, D.C.; Arias, T.A.; Joannopoulos, A.J. Iterative minimization techniques for ab initio total-energy calculations: Molecular dynamics and conjugate gradients. J. Rev. Mod. Phys. 1992, 64, 1045. [Google Scholar] [CrossRef] [Green Version]
  27. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758. [Google Scholar] [CrossRef]
  29. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [Green Version]
  30. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  31. Jain, A.; Ong, S.P.; Hautier, G.; Chen, W.; Richards, W.D.; Dacek, S.; Cholia, S.; Gunter, D.; Skinner, D.; Ceder, G.; et al. Commentary: The Materials Project: A materials genome approach to accelerating materials innovation. APL Mater. 2013, 1, 011002. [Google Scholar] [CrossRef] [Green Version]
  32. Okamoto, H. Supplemental Literature Review of Binary Phase Diagrams: Ag-Yb, Al-Co, Al-I, Co-Cr, Cs-Te, In-Sr, Mg-Tl, Mn-Pd, Mo-O, Mo-Re, Ni-Os, and V-Zr. J. Phase Equilibria Diffus. 2016, 37, 726–737. [Google Scholar] [CrossRef]
  33. Henkelman, G.; Uberuaga, B.; Jónsson, H. A climbing image nudged elastic band method for finding saddle points and minimum energy paths. J. Chem. Phys. 2000, 113, 9901–9904. [Google Scholar] [CrossRef] [Green Version]
  34. American Society for Metals and ASM Handbook Committee. Properties and Selection: Nonferrous Alloys and Pure Metals, 9th ed.; American Society for Metals: Russell Township, OH, USA, 1979. [Google Scholar]
  35. Guo, F.; Wang, J.; Du, Y.; Wang, J.; Shang, S.-L.; Li, S.; Chen, L. First-principles study of adsorption and diffusion of oxygen on surfaces of TiN, ZrN and HfN. Appl. Surf. Sci. 2018, 452, 457–462. [Google Scholar] [CrossRef]
  36. Graciani, J.; Sanz, J.F.; Asaki, T.; Nakamura, K.; Rodriguez, J.A. Interaction of oxygen with TiN(001):N⟷O exchange and oxidation process. J. Chem. Phys. 2007, 126, 244713. [Google Scholar] [CrossRef] [PubMed]
  37. Osei-Agyemang, E.; Balasubramanian, G. Surface oxidation mechanism of a refractory high-entropy alloy. Npj Mater. Degrad. 2019, 3, 20. [Google Scholar] [CrossRef] [Green Version]

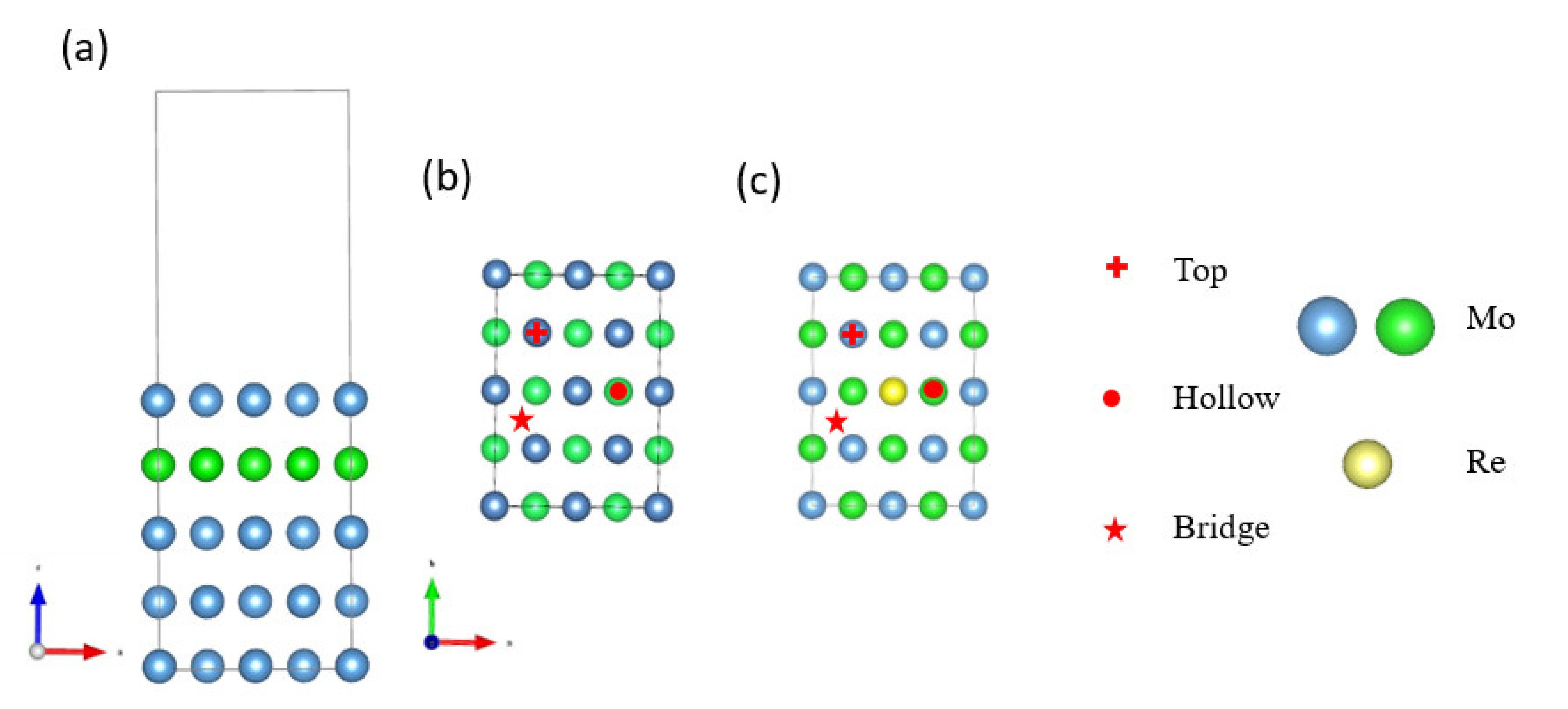

Figure 1. Structure of Mo/Mo-Re (110) surfaces and adsorption sites: (a) side view of Mo/Mo-Re (110) slab model; (b) Top view of Mo (110) surface and (c) top view of Mo-Re surface. Blue and green spheres represent Mo atoms, and yellow spheres represent Re atoms.
Figure 1. Structure of Mo/Mo-Re (110) surfaces and adsorption sites: (a) side view of Mo/Mo-Re (110) slab model; (b) Top view of Mo (110) surface and (c) top view of Mo-Re surface. Blue and green spheres represent Mo atoms, and yellow spheres represent Re atoms.
Metals 11 01322 g001

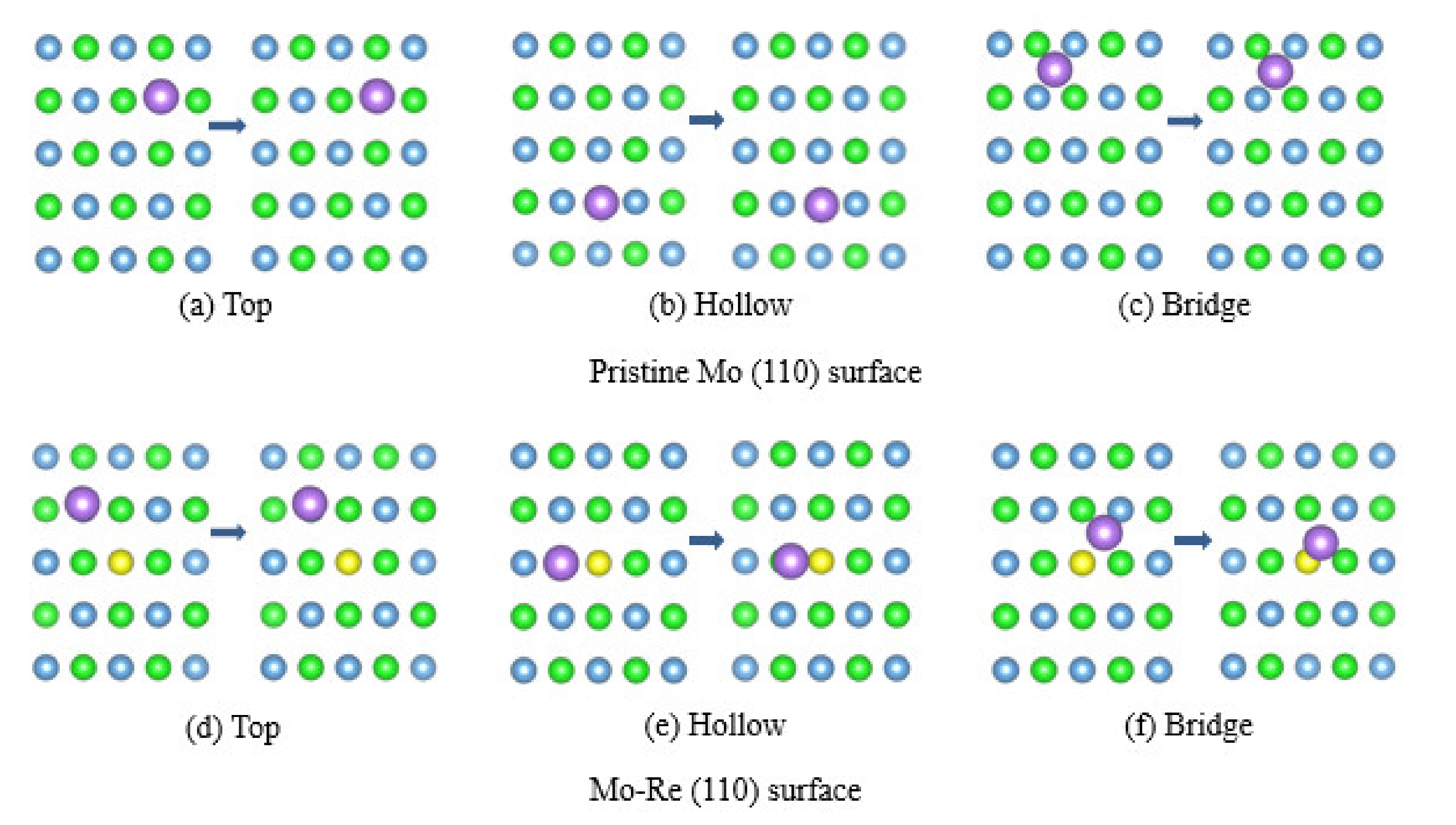

Figure 2. Initial and final configurations of Na adsorption on Mo (110) and Mo-Re (110) surfaces. Snaps (ac) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo (110) surface. Snaps (df) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo-Re (110) surface. Blue and green spheres represent Mo atoms in the first layer and the second layer. Yellow and purple spheres represent Re atoms and Na atoms, respectively.
Figure 2. Initial and final configurations of Na adsorption on Mo (110) and Mo-Re (110) surfaces. Snaps (ac) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo (110) surface. Snaps (df) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo-Re (110) surface. Blue and green spheres represent Mo atoms in the first layer and the second layer. Yellow and purple spheres represent Re atoms and Na atoms, respectively.
Metals 11 01322 g002

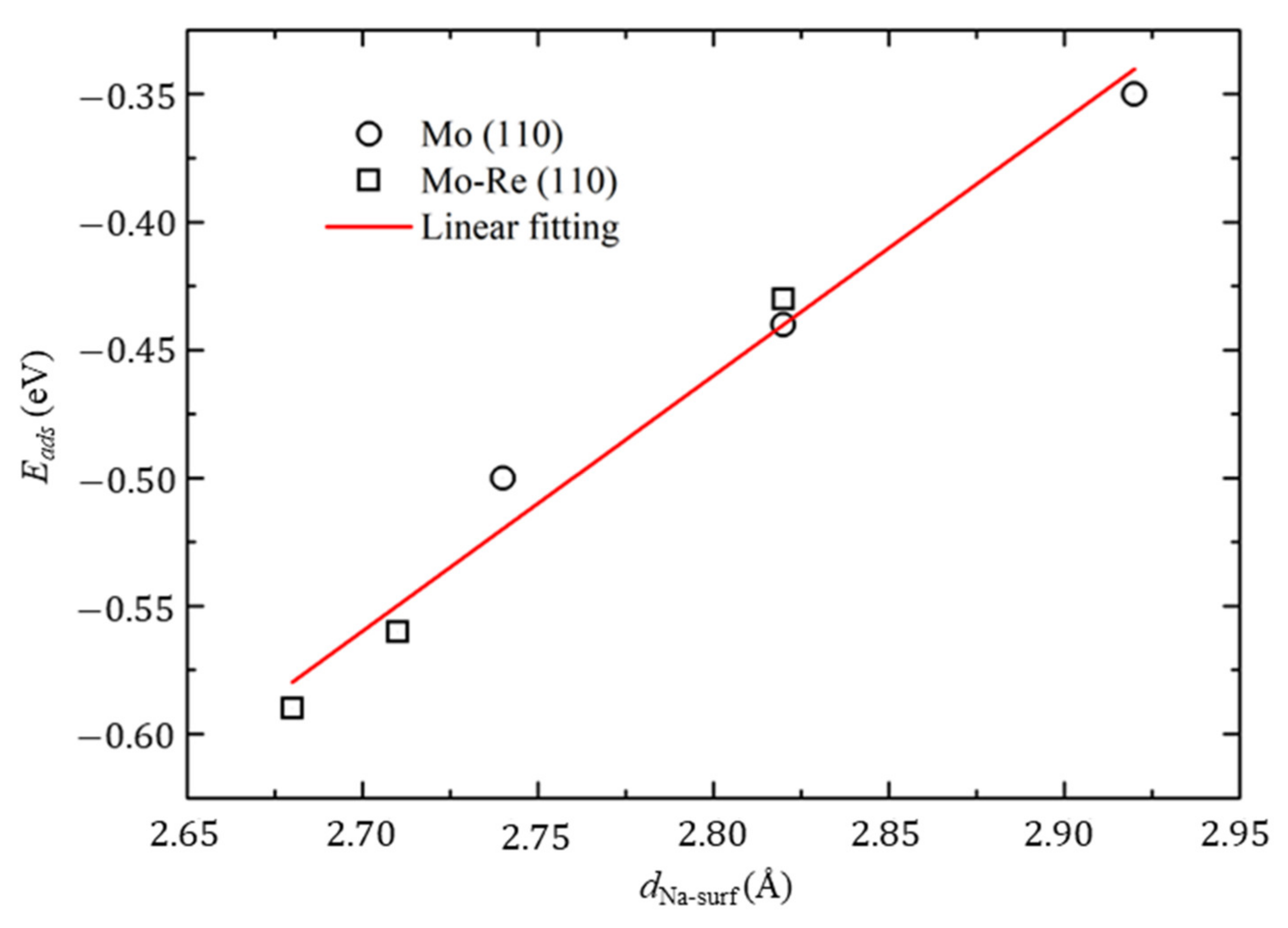

Figure 3. Na adsorption energy as the function of the average distance between the Na atom and the top layer of the substrate.
Figure 3. Na adsorption energy as the function of the average distance between the Na atom and the top layer of the substrate.
Metals 11 01322 g003

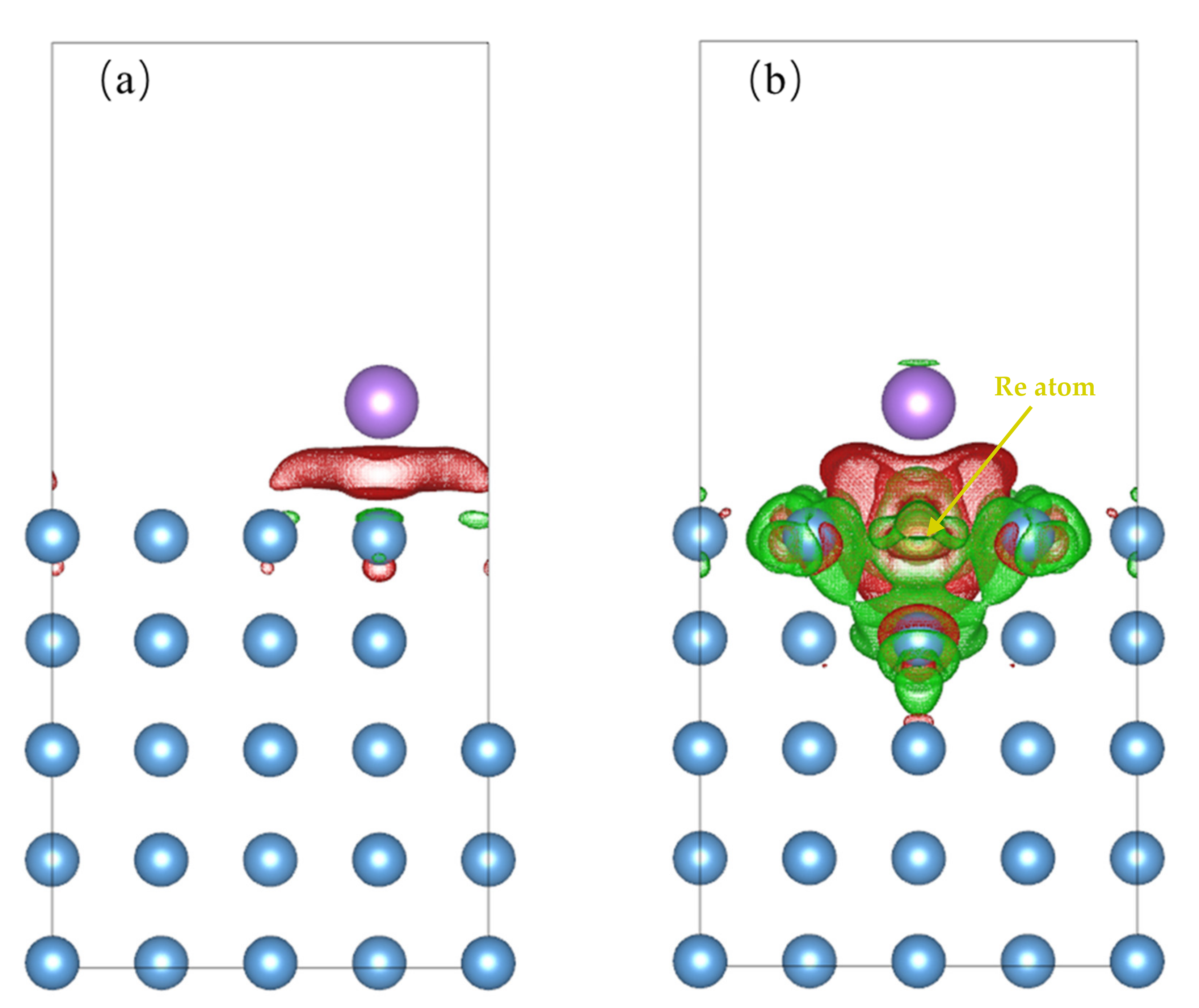

Figure 4. Difference charge density of Na adsorption at the hollow site of (a) Mo (110) surface and (b) Mo-Re (110) surface. The red isosurface represent the electron accumulation region, while the green isosurface represent the electron depletion region. The Re atom is located in the center of Mo (110) surface, as shown in Figure 1c.
Figure 4. Difference charge density of Na adsorption at the hollow site of (a) Mo (110) surface and (b) Mo-Re (110) surface. The red isosurface represent the electron accumulation region, while the green isosurface represent the electron depletion region. The Re atom is located in the center of Mo (110) surface, as shown in Figure 1c.
Metals 11 01322 g004

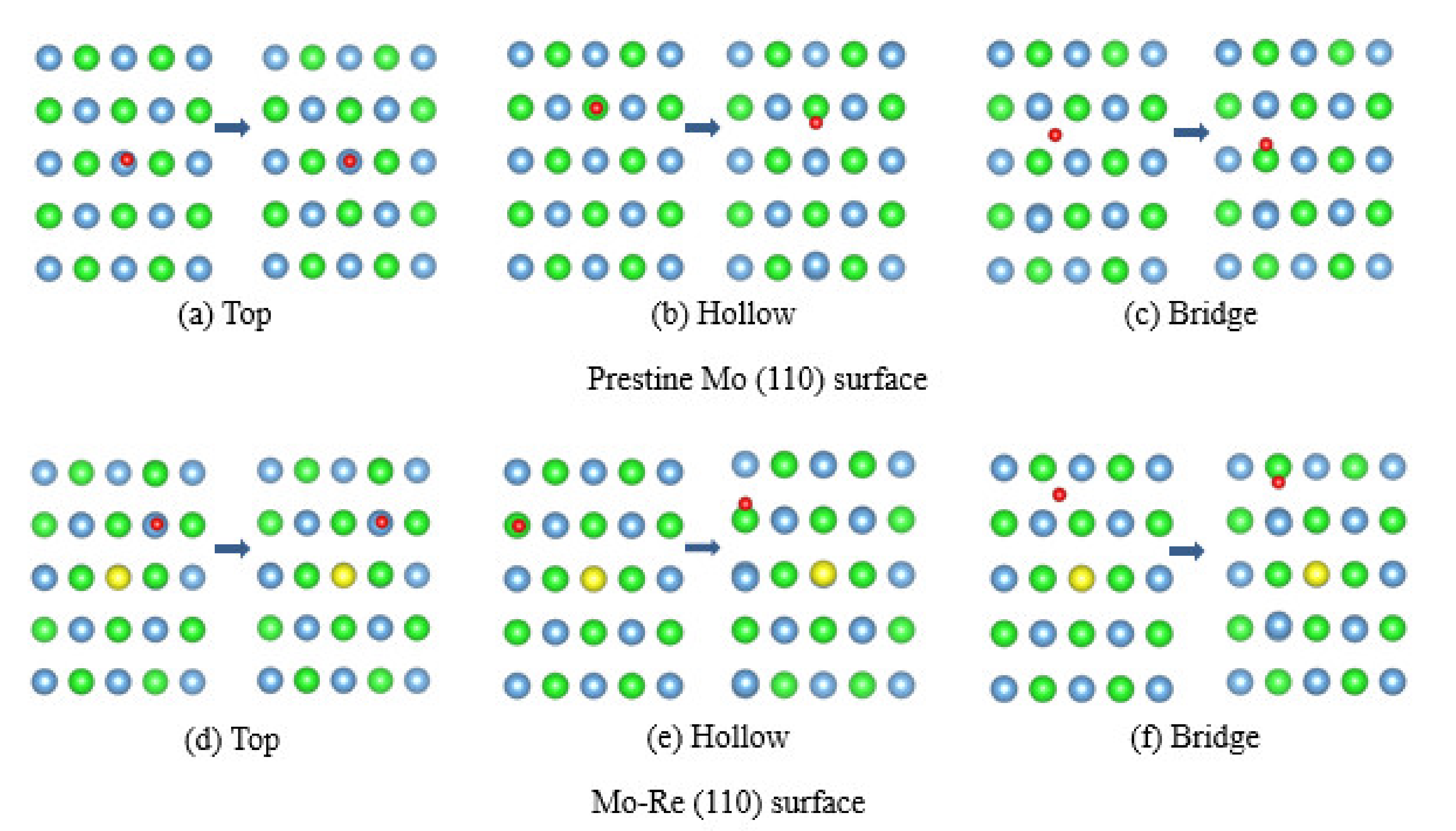

Figure 5. Initial and final configurations of O adsorption on Mo (110) and Mo-Re (110) surfaces. Scheme 110. surface. Snaps (ac) show O atoms initially placed at Top site, Hollow site and Bridge site of Mo (110) surface, while snaps (df) show O atoms initially placed at Top site, Hollow site and Bridge site of Mo-Re (110) surface. Blue and green spheres represent Mo atoms in the first layer and the second layer. Yellow and red spheres represent Re atoms and O atoms, respectively.
Figure 5. Initial and final configurations of O adsorption on Mo (110) and Mo-Re (110) surfaces. Scheme 110. surface. Snaps (ac) show O atoms initially placed at Top site, Hollow site and Bridge site of Mo (110) surface, while snaps (df) show O atoms initially placed at Top site, Hollow site and Bridge site of Mo-Re (110) surface. Blue and green spheres represent Mo atoms in the first layer and the second layer. Yellow and red spheres represent Re atoms and O atoms, respectively.
Metals 11 01322 g005

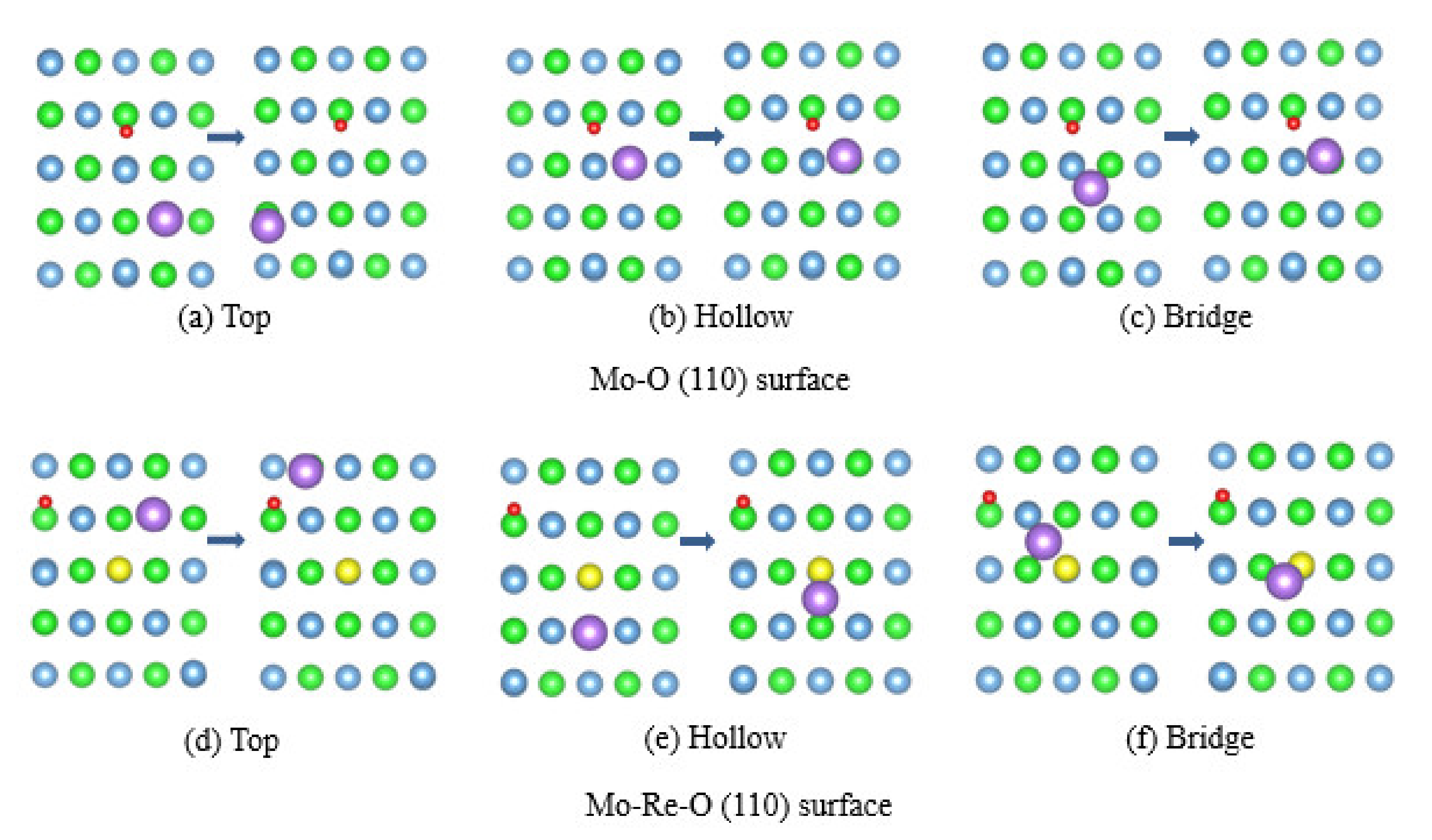

Figure 6. The initial and final configurations of Na atom adsorption on Mo-O (110) and Mo-Re-O (110) surface. Snaps (ac) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo-O (110) surface, while snaps (df) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo-Re-O (110) surface. Blue and green spheres represent Mo atoms in the first layer and the second layer. Yellow, purple and red spheres represent Re atoms, Na atoms and O atoms, respectively.
Figure 6. The initial and final configurations of Na atom adsorption on Mo-O (110) and Mo-Re-O (110) surface. Snaps (ac) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo-O (110) surface, while snaps (df) show Na atoms initially placed at Top site, Hollow site and Bridge site of Mo-Re-O (110) surface. Blue and green spheres represent Mo atoms in the first layer and the second layer. Yellow, purple and red spheres represent Re atoms, Na atoms and O atoms, respectively.
Metals 11 01322 g006

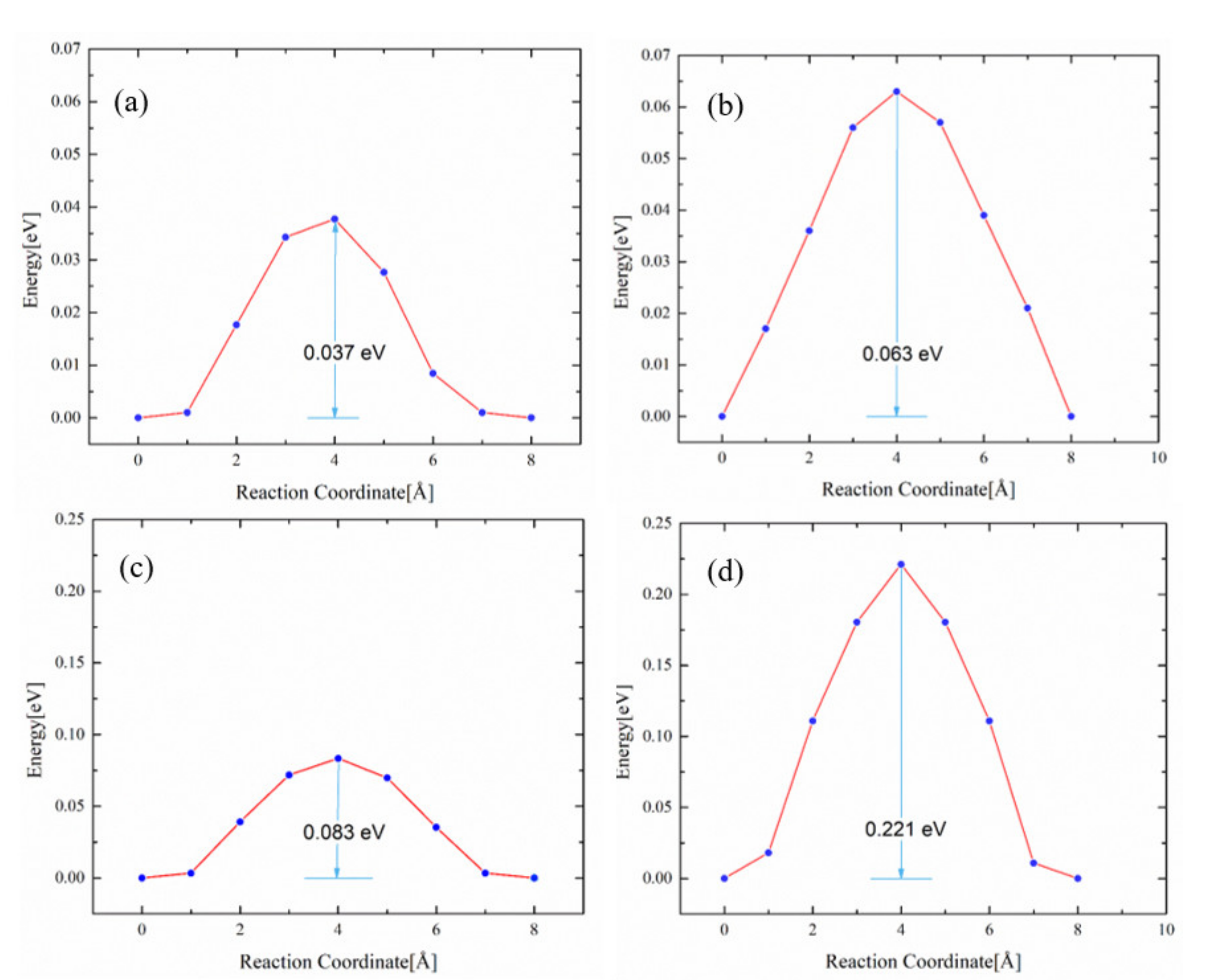

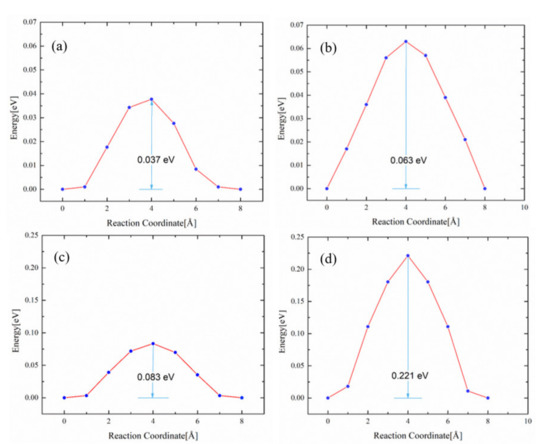

Figure 7. Calculated diffusion energy profiles for a Na atom diffusion on different surfaces: (a) Na diffusion on pure Mo (110) surface; (b) Na diffusion on Mo-Re (110) surface; (c) Na diffusion on Mo (110) surface with an adsorbed O atom; (d) Na diffusion on Mo-Re (110) surface with an adsorbed O atom.
Figure 7. Calculated diffusion energy profiles for a Na atom diffusion on different surfaces: (a) Na diffusion on pure Mo (110) surface; (b) Na diffusion on Mo-Re (110) surface; (c) Na diffusion on Mo (110) surface with an adsorbed O atom; (d) Na diffusion on Mo-Re (110) surface with an adsorbed O atom.
Metals 11 01322 g007
Table 1. Surface energies of low-index surfaces.
Table 1. Surface energies of low-index surfaces.
Surface Energy(eV/Å2)
SurfacePresent CalculationMaterials Project Database
(100)0.220.22
(110)0.170.17
(111)0.180.18
Table 2. Adsorption energy of Na on Mo (110) and Mo-Re (110) surfaces. E a d s is the adsorption energy, and d N a s u r f is the vertical distance between the adsorbate and the top layer of the slab model.
Table 2. Adsorption energy of Na on Mo (110) and Mo-Re (110) surfaces. E a d s is the adsorption energy, and d N a s u r f is the vertical distance between the adsorbate and the top layer of the slab model.
SurfaceInitial Site d N a s u r   ( Å ) E a d s   ( eV ) Final Site
Mo (110)Top2.92−0.35Top
Hollow2.74−0.51Hollow
Bridge2.82−0.44Bridge
Mo-Re (110)Top2.82−0.43Top
Hollow2.71−0.56Hollow
Bridge2.68−0.60Bridge
Table 3. Adsorption energy of O on Mo/Mo-Re (110) surface.
Table 3. Adsorption energy of O on Mo/Mo-Re (110) surface.
SurfaceInitial Site d O s u r f   ( ) E a d s   ( eV ) Final Site
Mo (110)Top2.18−2.80Top
Hollow1.15−4.09Hollow
Bridge1.15−4.09Hollow
Top1.73−2.82Top
Mo-Re (110)Hollow1.14−4.14Hollow
Bridge1.14−4.14Hollow
Table 4. Na adsorption energy on different surface models.
Table 4. Na adsorption energy on different surface models.
SurfaceInitial Site d N a O   ( ) d N a s u r   ( ) E a d s   ( eV ) Final Stie
Mo-O (110)Top6.022.78−0.52Hollow
Hollow2.362.68−0.53Hollow
Bridge2.352.83−0.52Hollow
Mo-Re-O (110)Top2.372.76−0.54Hollow
Hollow4.772.71−0.61Hollow
Bridge3.182.77−0.57Bridge
Table 5. Mo vacancy formation energy on different surface models.
Table 5. Mo vacancy formation energy on different surface models.
AdsorbateSurfaceVacancy Formation Energy (eV)
CleanMo (110)1.45
Mo-Re (110)1.32
A single O atomMo (110)0.97
Mo-Re (110)0.86
A single Na atomMo (110)0.93
Mo-Re (110)0.90
Na and O co-adsorption Mo (110)0.47
Mo-Re (110)1.06
