Microstructure Evolution in a Fast and Ultrafast Sintered Non-Equiatomic Al/Cu HEA
Abstract
:1. Introduction
2. Materials and Methods
3. Results

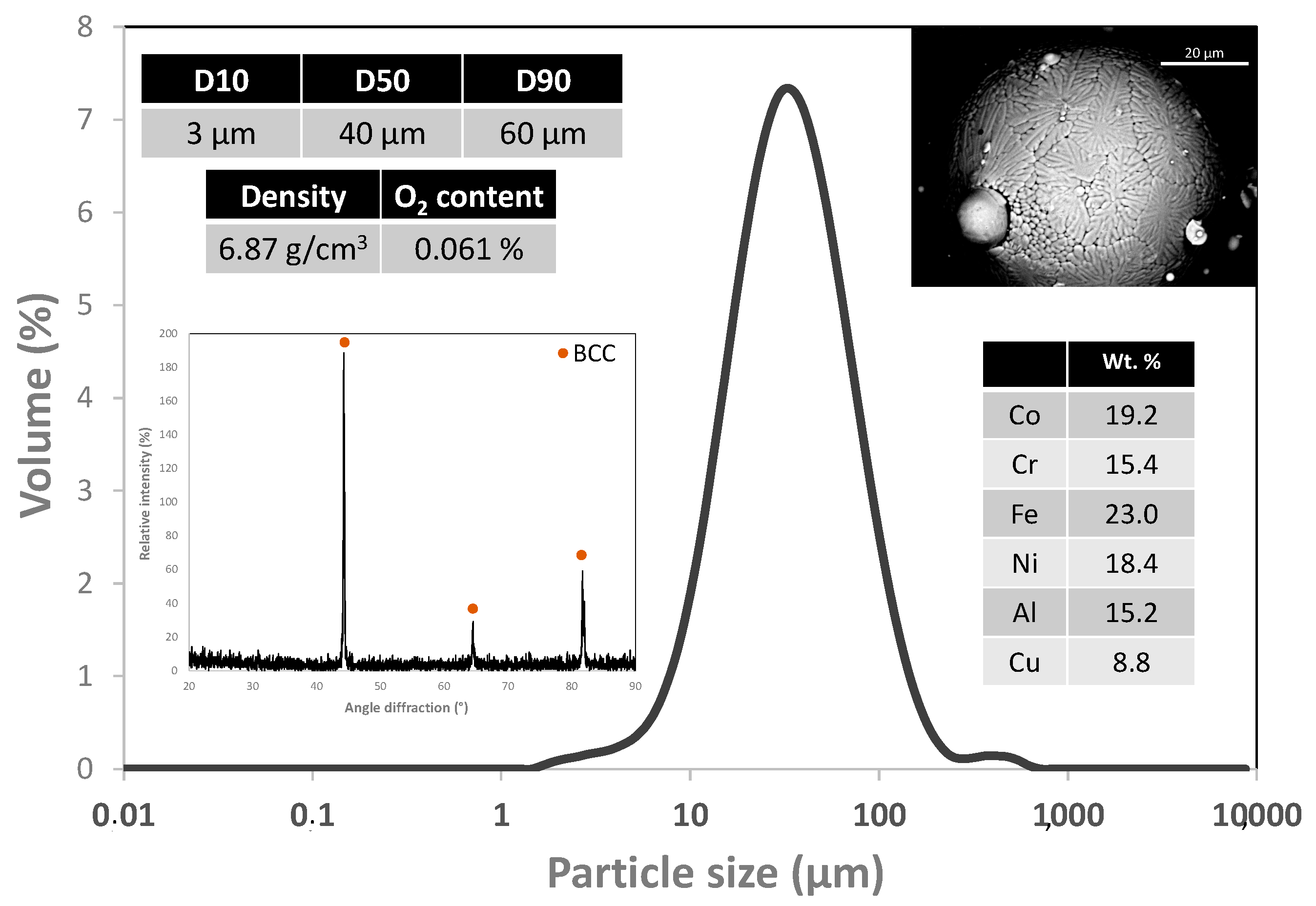

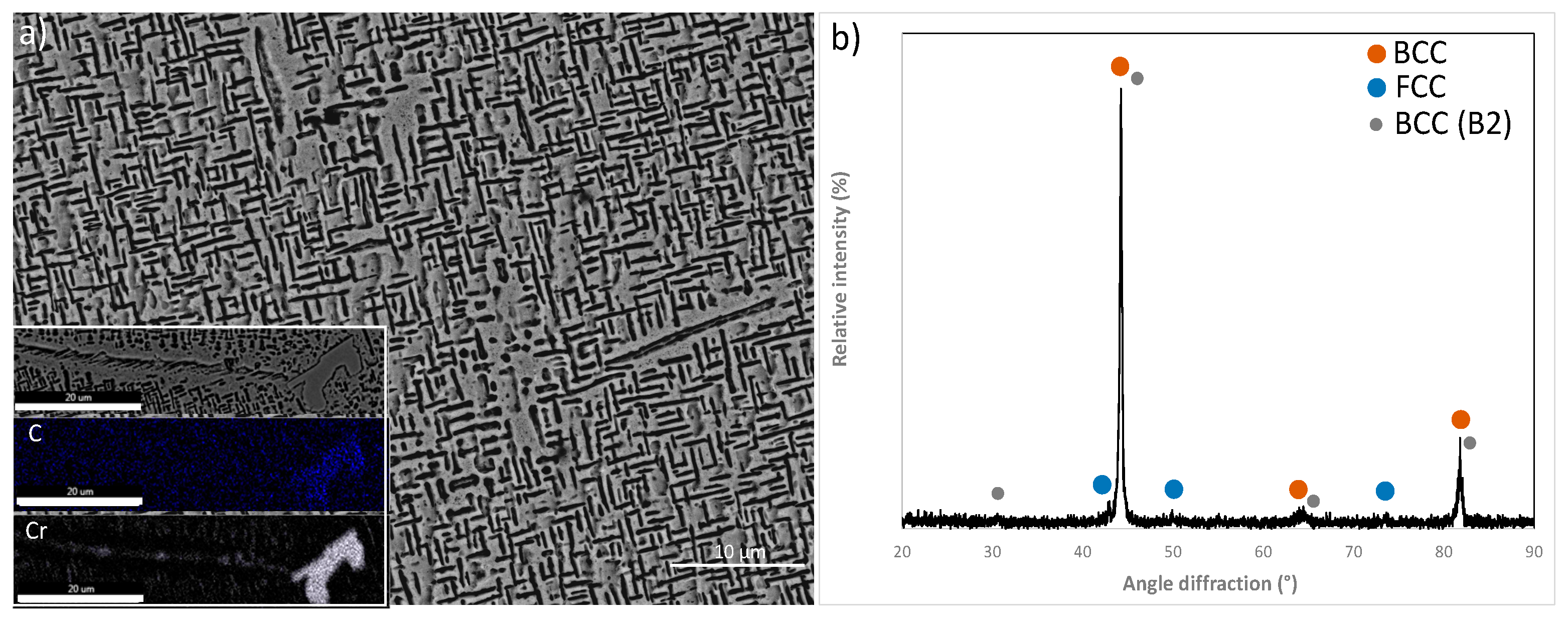

3.1. Powder Production: Gas Atomisation

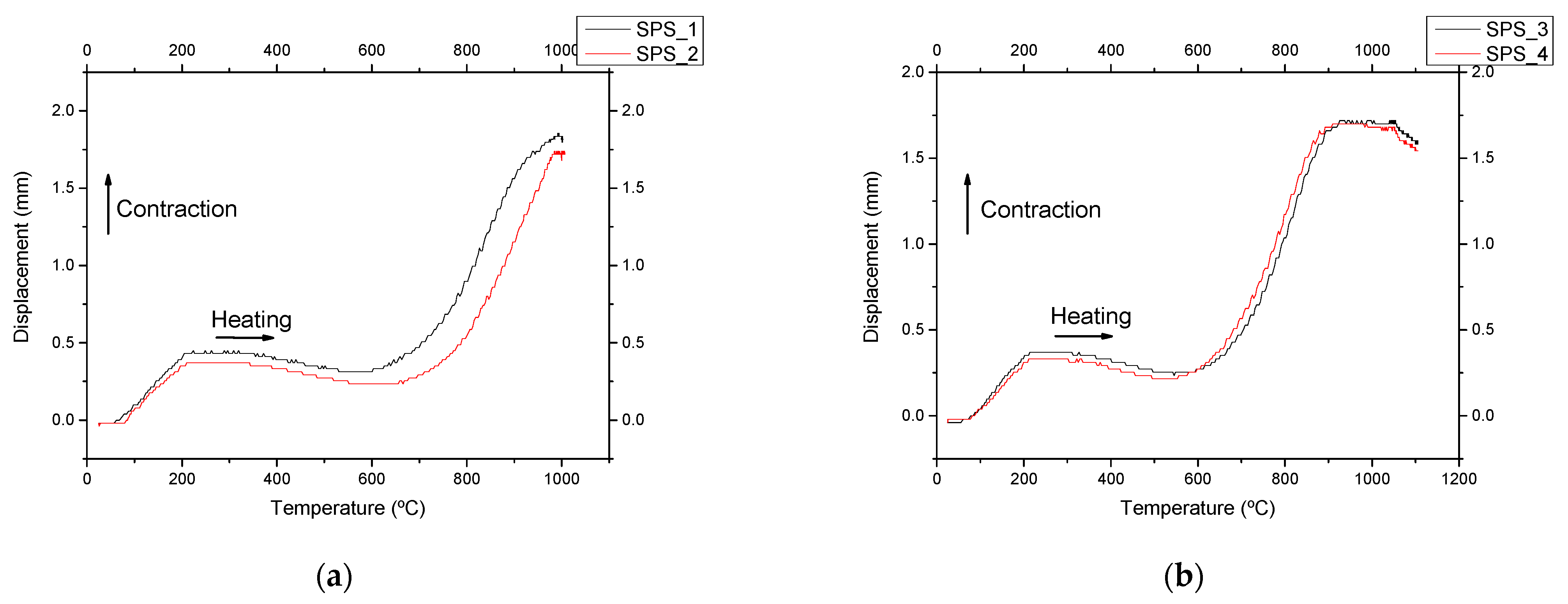

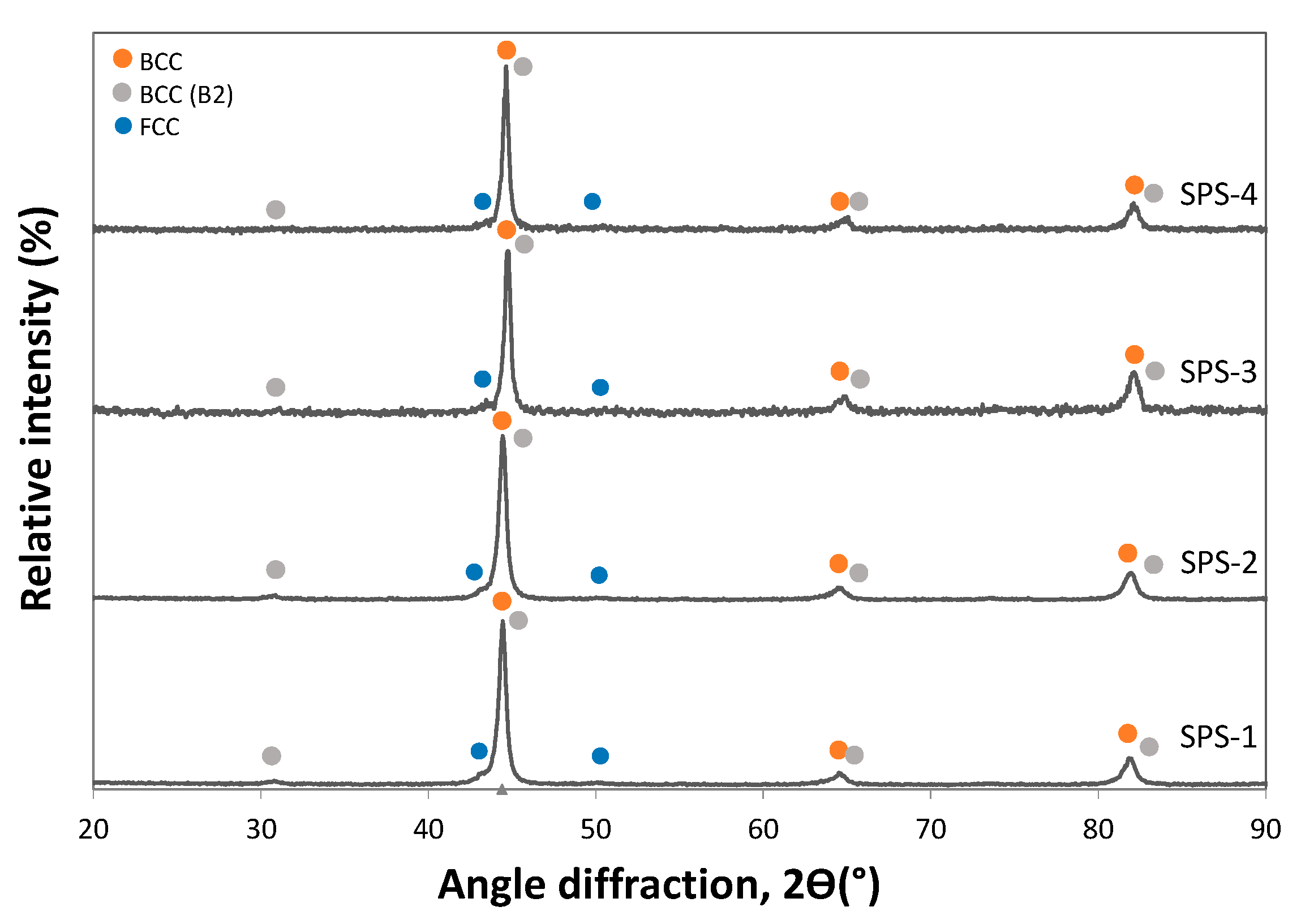

3.2. Spark Plasma Sintering
3.3. Conventional Pressing and Sintering
3.4. Electrical Resistance Sintering

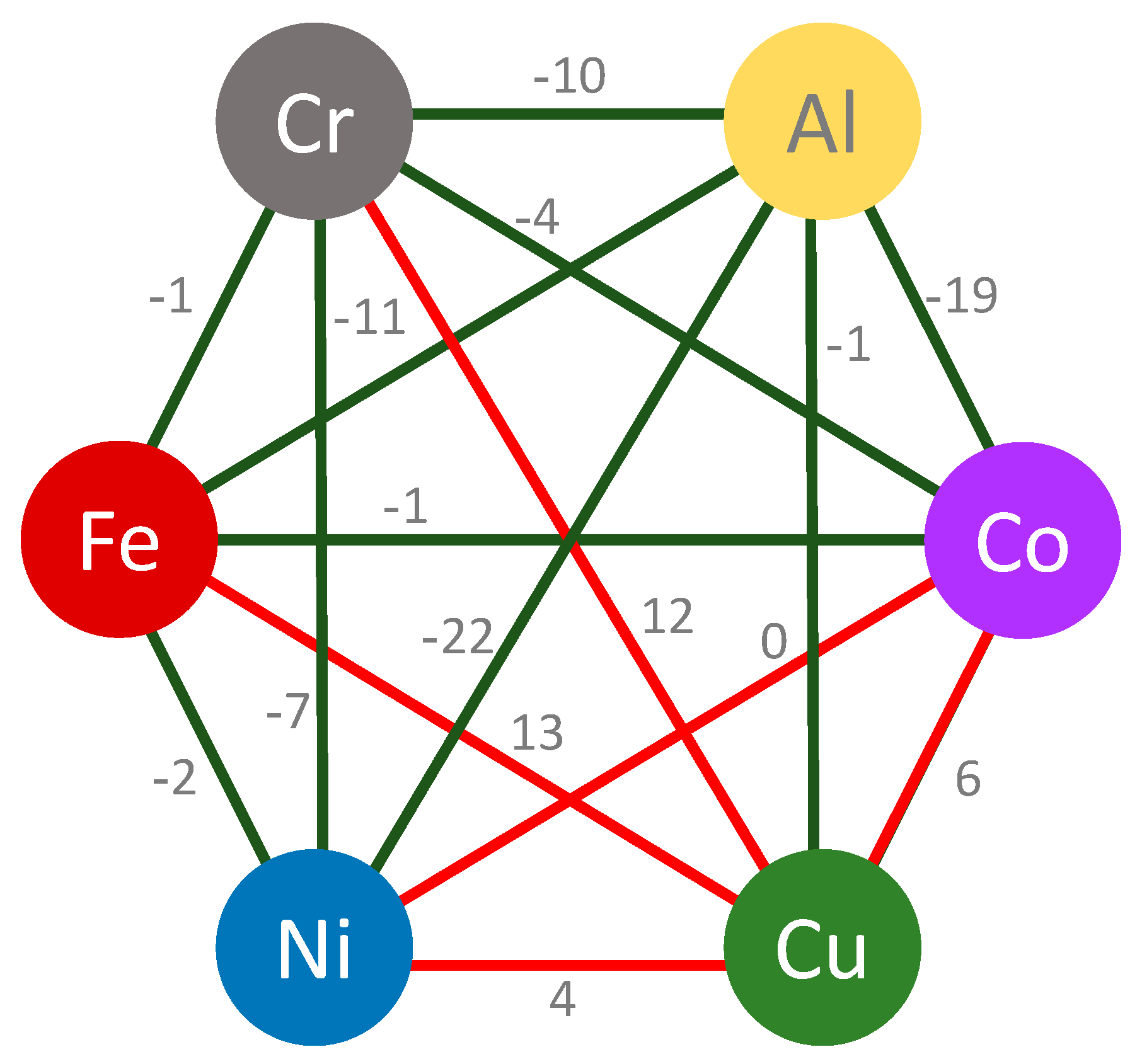

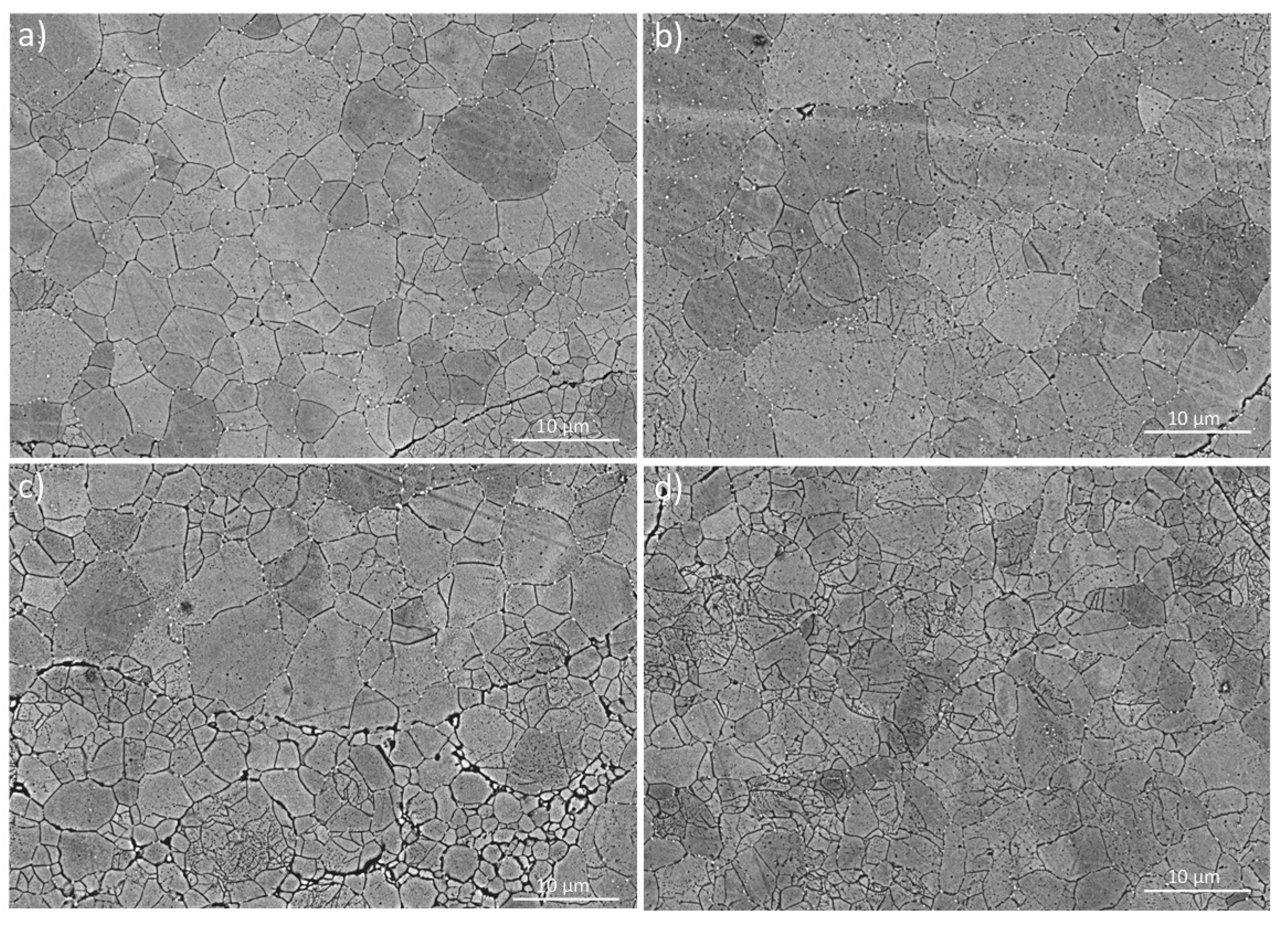

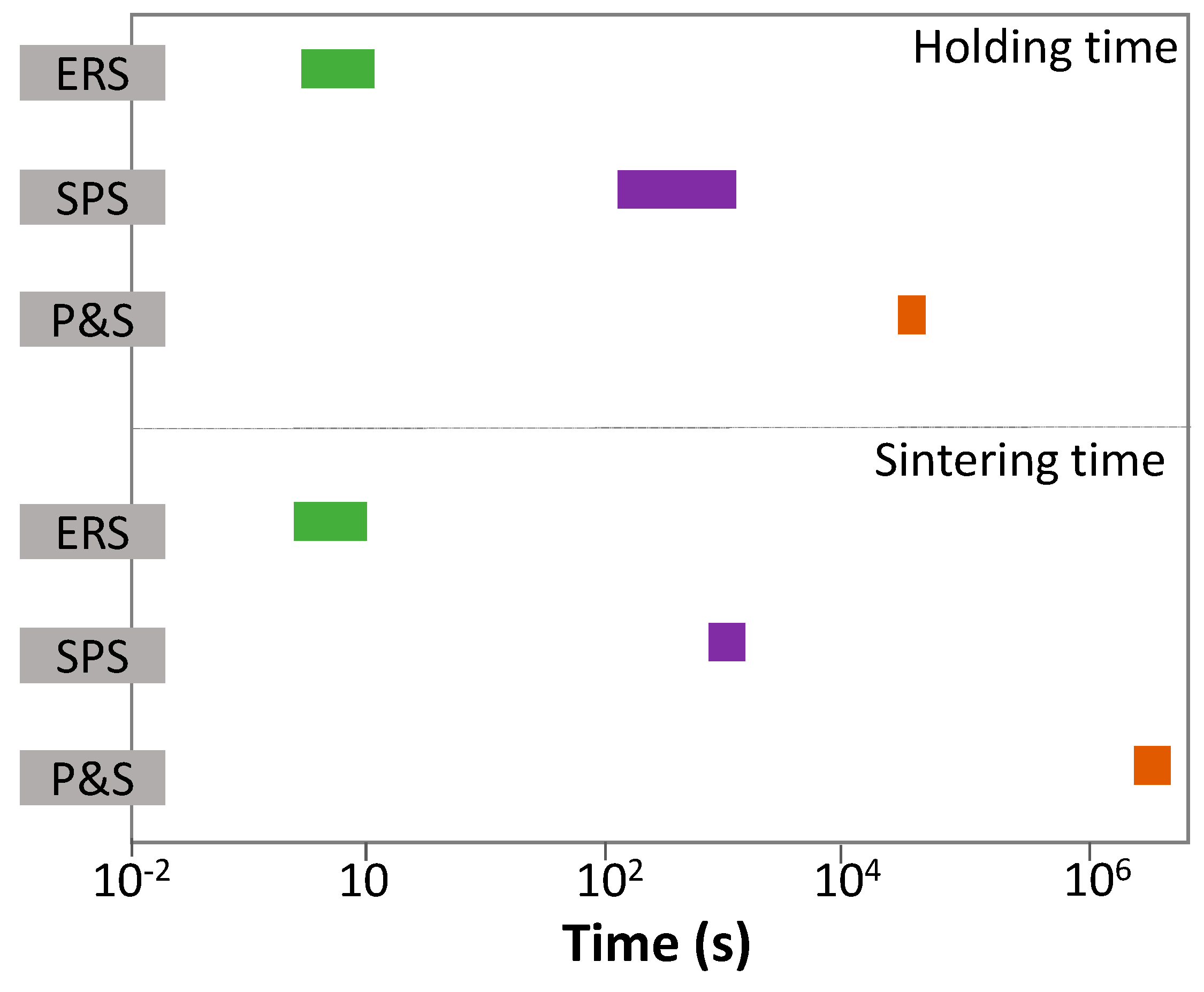

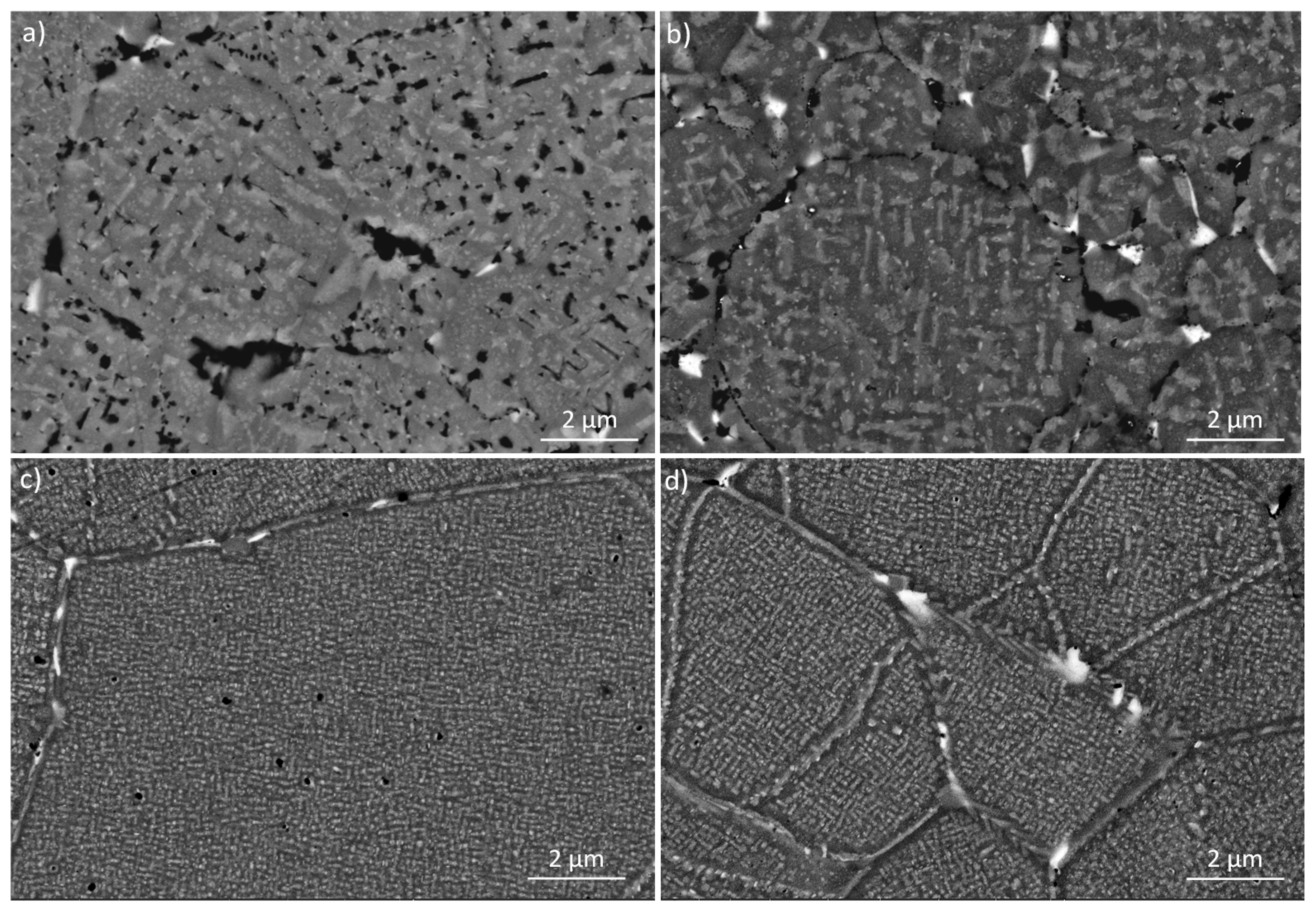

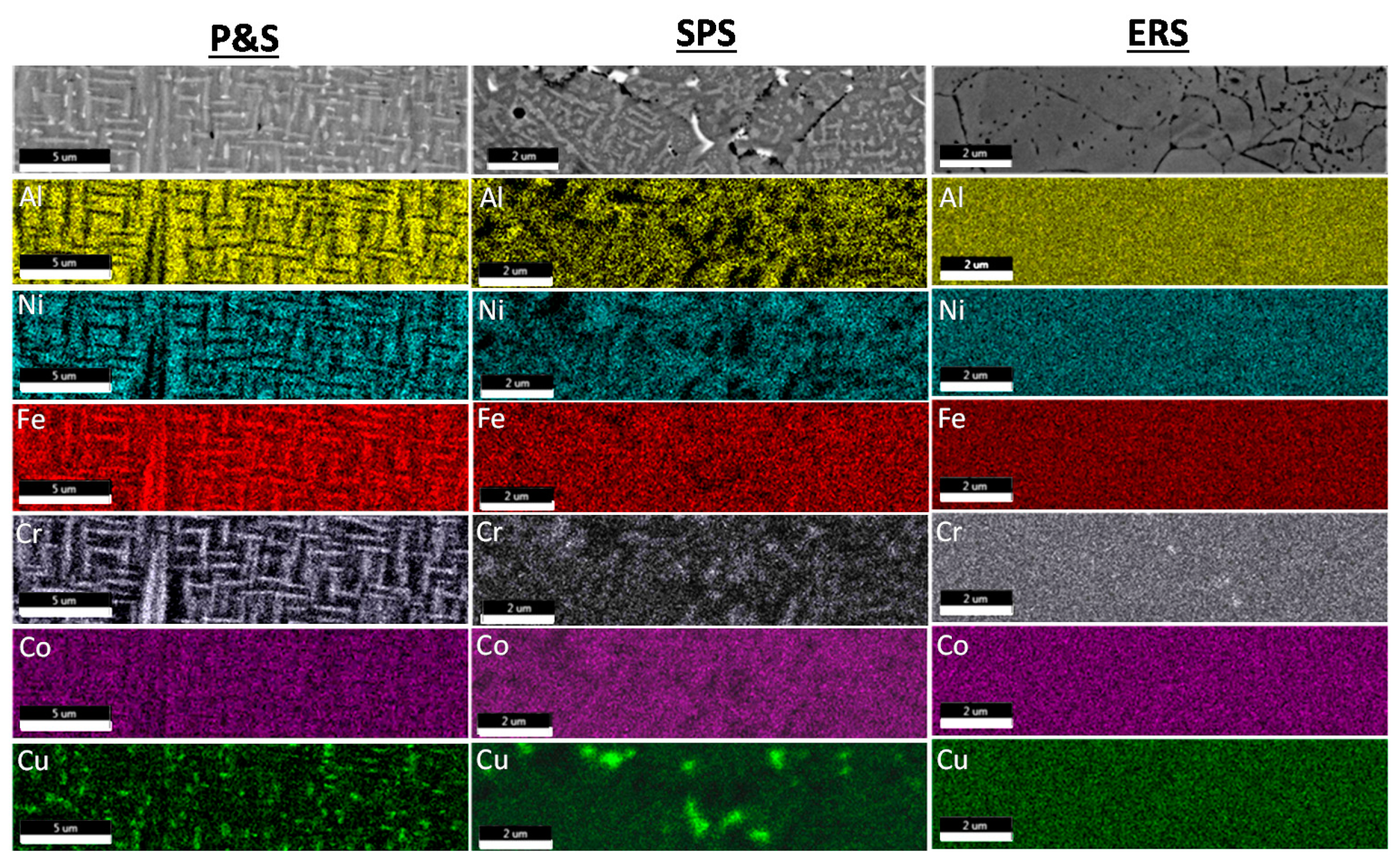

4. Discussion: Evolution of the Microstructure with the Sintering Time
5. Conclusions
- An increase in the total sintering time favours the separation of phases, stabilises the formation of the ordered B2 phase rich in AlNiCo and the subsequent appearance of minor FCC.
- By reducing the total sintering time using an ultrafast sintering technique, grain coarsening and element segregation (Cu) are minimised.

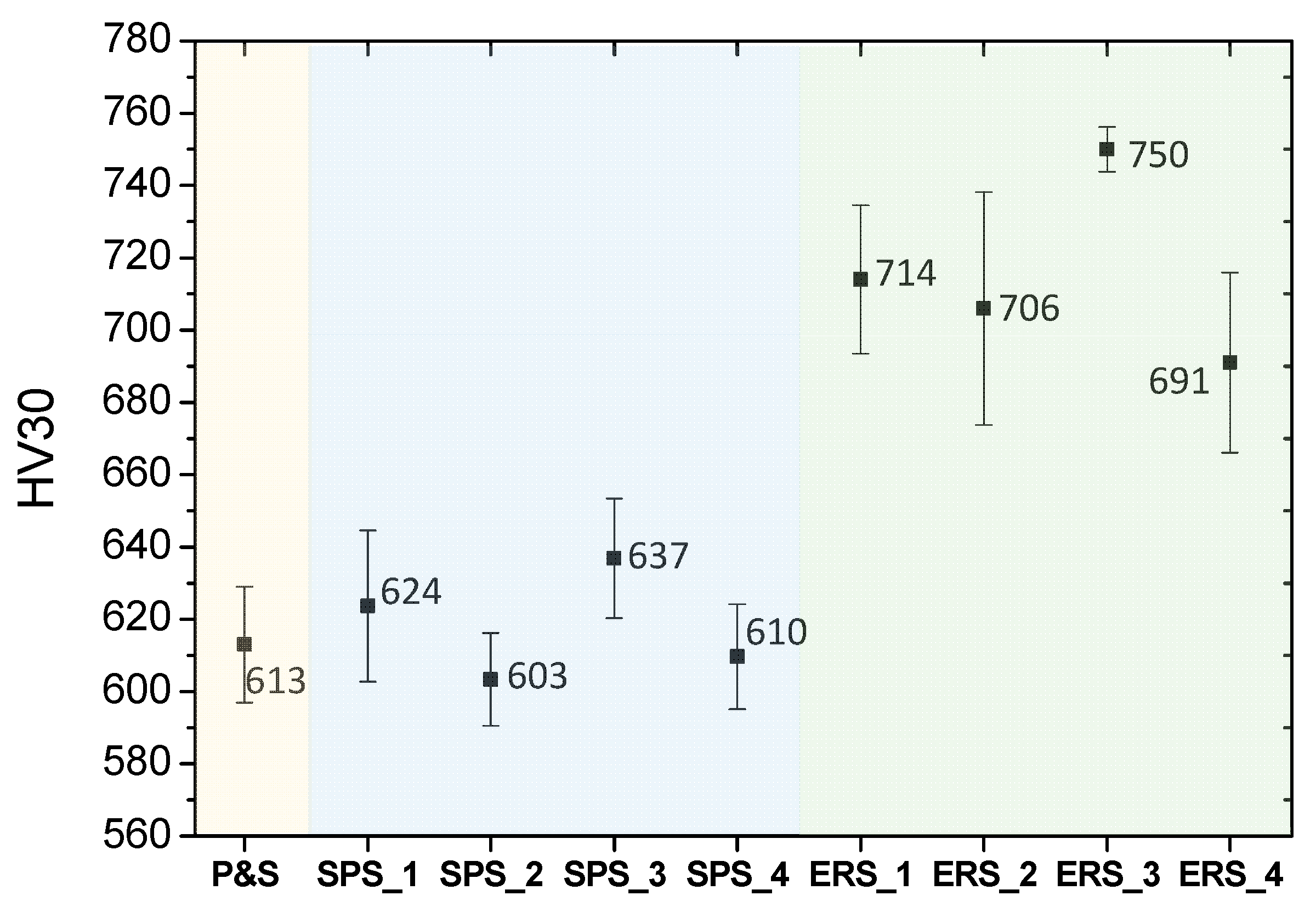

- The alloy consolidated by ERS shows the highest hardness values. In addition, the oxygen content is similar to that of consolidation techniques which use a protective atmosphere.
- ERS was presented as a novel and promising technique to consolidate HEAs, avoiding segregation and maintaining the crystalline structure.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Toda-Caraballo, I.; Rivera-Díaz-Del-Castillo, P. A criterion for the formation of high entropy alloys based on lattice distortion. Intermetallics 2016, 71, 76–87. [Google Scholar] [CrossRef]
- Qiu, X.-W. Microstructure and properties of AlCrFeNiCoCu high entropy alloy prepared by powder metallurgy. J. Alloys Compd. 2013, 555, 246–249. [Google Scholar] [CrossRef]
- Cantor, B.; Chang, I.; Knight, P.; Vincent, A. Microstructural development in equiatomic multicomponent alloys. Mater. Sci. Eng. A 2004, 375–377, 213–218. [Google Scholar] [CrossRef]
- Calvo-Dahlborg, M.; Brown, S. Hume-Rothery for HEA classification and self-organizing map for phases and properties prediction. J. Alloys Compd. 2017, 724, 353–364. [Google Scholar] [CrossRef] [Green Version]
- Poletti, M.; Battezzati, L. Electronic and thermodynamic criteria for the occurrence of high entropy alloys in metallic systems. Acta Mater. 2014, 75, 297–306. [Google Scholar] [CrossRef]
- Glasscott, M.W.; Pendergast, A.D.; Goines, S.; Bishop, A.R.; Hoang, A.T.; Renault, C.; Dick, J.E. Electrosynthesis of high-entropy metallic glass nanoparticles for designer, multi-functional electrocatalysis. Nat. Commun. 2019, 10, 1–8. [Google Scholar] [CrossRef] [Green Version]
- Ma, S.G.; Zhang, S.F.; Gao, M.C.; Liaw, P.K.; Zhang, Y. A Successful Synthesis of the CoCrFeNiAl0.3 Single-Crystal, High-Entropy Alloy by Bridgman Solidification. JOM 2013, 65, 1751–1758. [Google Scholar] [CrossRef]
- Xia, S.; Gao, M.C.; Yang, T.; Liaw, P.K.; Zhang, Y. Phase stability and microstructures of high entropy alloys ion irradiated to high doses. J. Nucl. Mater. 2016, 480, 100–108. [Google Scholar] [CrossRef] [Green Version]
- Guo, S.; Liu, C. Phase stability in high entropy alloys: Formation of solid-solution phase or amorphous phase. Prog. Nat. Sci. Mater. Int. 2011, 21, 433–446. [Google Scholar] [CrossRef] [Green Version]
- Tian, F.; Varga, L.K.; Chen, N.; Shen, J.; Vitos, L. Empirical design of single phase high-entropy alloys with high hardness. Intermetallics 2015, 58, 1–6. [Google Scholar] [CrossRef]
- Jiang, L.; Lu, Y.; Jiang, H.; Wang, T.; Wei, B.; Cao, Z.; Li, T. Formation rules of single phase solid solution in high entropy alloys. Mater. Sci. Technol. 2016, 32, 1–5. [Google Scholar] [CrossRef]
- Torralba, J.M.; Alvaredo, P.; García-Junceda, A. High-entropy alloys fabricated via powder metallurgy. A critical review. Powder Met. 2019, 62, 84–114. [Google Scholar] [CrossRef]
- Munir, Z.A.; Anselmi-Tamburini, U.; Ohyanagi, M. The effect of electric field and pressure on the synthesis and consol-idation of materials: A review of the spark plasma sintering method. J. Mater. Sci. 2006, 41, 763–777. [Google Scholar] [CrossRef]
- Hsu, C.-Y.; Juan, C.-C.; Wang, W.-R.; Sheu, T.-S.; Yeh, J.-W.; Chen, S.-K. On the superior hot hardness and softening resistance of AlCoCrxFeMo0.5Ni high-entropy alloys. Mater. Sci. Eng. A 2011, 528, 3581–3588. [Google Scholar] [CrossRef]
- Tong, C.J.; Chen, M.R.; Chen, S.K.; Yeh, J.W.; Shun, T.T.; Lin, S.J.; Chang, S.Y. Mechanical performance of the Alx-CoCrCuFeNi high-entropy alloy system with multiprincipal elements. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2005, 36, 1263–1271. [Google Scholar] [CrossRef]
- Wu, J.-M.; Lin, S.-J.; Yeh, J.-W.; Chen, S.-K.; Huang, Y.-S.; Chen, H.-C. Adhesive wear behavior of AlxCoCrCuFeNi high-entropy alloys as a function of aluminum content. Wear 2006, 261, 513–519. [Google Scholar] [CrossRef] [Green Version]
- Tong, C.J.; Chen, Y.L.; Chen, S.K.; Yeh, J.W.; Shun, T.T.; Tsau, C.H.; Lin, S.J.; Chang, S.Y. Microstructure characterization of AlxCoCrCuFeNi high-entropy alloy system with multiprincipal elements. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2005, 36, 881–893. [Google Scholar] [CrossRef]
- Tsai, C.-W.; Tsai, M.-H.; Yeh, J.-W.; Yang, C.-C. Effect of temperature on mechanical properties of Al0.5CoCrCuFeNi wrought alloy. J. Alloys Compd. 2010, 490, 160–165. [Google Scholar] [CrossRef]
- Manzoni, A.; Daoud, H.; Mondal, S.; Van Smaalen, S.; Völkl, R.; Glatzel, U.; Wanderka, N. Investigation of phases in Al23Co15Cr 23Cu8Fe15Ni16 and Al 8Co17Cr17Cu8Fe17Ni 33 high entropy alloys and comparison with equilibrium phases predicted by Thermo-Calc. J. Alloys Compd. 2013, 552, 430–436. [Google Scholar] [CrossRef]
- Fan, Q.C.; Li, B.S.; Zhang, Y. Influence of Al and Cu elements on the microstructure and properties of (FeCrNiCo)AlxCuy high-entropy alloys. J. Alloys Compd. 2014, 614, 203–210. [Google Scholar] [CrossRef]
- Middleburgh, S.; King, D.; Lumpkin, G.; Cortie, M.; Edwards, L. Segregation and migration of species in the CrCoFeNi high entropy alloy. J. Alloys Compd. 2014, 599, 179–182. [Google Scholar] [CrossRef]
- Chang, X.; Zeng, M.; Liu, K.; Fu, L. Phase Engineering of High-Entropy Alloys. Adv. Mater. 2020, 32, 1907226. [Google Scholar] [CrossRef] [PubMed]
- Grasso, S.; Sakka, Y.; Maizza, G. Electric current activated/assisted sintering (ECAS): A review of patents 1906–2008. Sci. Technol. Adv. Mater. 2009, 10, 053001. [Google Scholar] [CrossRef]
- Lagos, M.; Agote, I.; Schubert, T.; Weissgaerber, T.; Gallardo, J.; Montes, J.; Prakash, L.; Andreouli, C.; Oikonomou, V.; Lopez, D.; et al. Development of electric resistance sintering process for the fabrication of hard metals: Processing, microstructure and mechanical properties. Int. J. Refract. Met. Hard Mater. 2017, 66, 88–94. [Google Scholar] [CrossRef]
- Montes, J.M.; Rodríguez, J.A.; Cuevas, F.G.; Cintas, J. Consolidation by electrical resistance sintering of Ti powder. J. Mater. Sci. 2011, 46, 5197–5207. [Google Scholar] [CrossRef]
- Montes, J.M.; Cuevas, F.G.; Cintas, J.; Urban, P. A One-Dimensional Model of the Electrical Resistance Sintering Process. Met. Mater. Trans. A 2014, 46, 963–980. [Google Scholar] [CrossRef]
- Shon, J.-H.; Park, J.-M.; Cho, K.-S.; Hong, J.-K.; Park, N.-K.; Oh, M.-H. Effects of various sintering methods on microstructure and mechanical properties of CP-Ti powder consolidations. Trans. Nonferrous Met. Soc. China 2014, 24, s59–s67. [Google Scholar] [CrossRef]
- Montes, J.M.; Cuevas, F.G.; Ternero, F.; Astacio, R.; Caballero, E.S.; Cintas, J. Medium-Frequency Electrical Resistance Sintering of Oxidized C.P. Iron Powder. Metals 2018, 8, 426. [Google Scholar] [CrossRef] [Green Version]
- Lagos, M.; Agote, I.; Leizaola, I.; Lopez, D.; Calero, J. Fabrication of chromium carbide cermets by electric resistance sintering process: Processing, microstructure and mechanical properties. Int. J. Refract. Met. Hard Mater. 2021, 95, 105417. [Google Scholar] [CrossRef]
- Alshataif, Y.A.; Sivasankaran, S.; Al-Mufadi, F.A.; Alaboodi, A.S.; Ammar, H.R. Manufacturing Methods, Micro-structural and Mechanical Properties Evolutions of High-Entropy Alloys: A Review. Metals Mater. Int. 2020, 26, 1099–1133. [Google Scholar] [CrossRef]
- Tokita, M.; Fantozzi, G.; Estournes, C.; Ortiz, A.L.; Morita, K. Progress of Spark Plasma Sintering (SPS) Method, Systems, Ceramics Applications and Industrialization. Ceramics 2021, 4, 160–198. [Google Scholar] [CrossRef]
- McAlpine, S.W.; Logan, J.V.; Short, M.P. Predicting single phase stability and segregation in the NbMoTaTi–(W,V) high entropy alloy system with the vacancy exchange potential. Scr. Mater. 2021, 191, 29–33. [Google Scholar] [CrossRef]
- Guo, L.; Gu, J.; Gan, B.; Ni, S.; Bi, Z.; Wang, Z.; Song, M. Effects of elemental segregation and scanning strategy on the mechanical properties and hot cracking of a selective laser melted FeCoCrNiMn-(N,Si) high entropy alloy. J. Alloys Compd. 2021, 865, 158892. [Google Scholar] [CrossRef]
- Lu, Y.; Gao, X.; Jiang, L.; Chen, Z.; Wang, T.; Jie, J.; Kang, H.; Zhang, Y.; Guo, S.; Ruan, H.; et al. Directly cast bulk eutectic and near-eutectic high entropy alloys with balanced strength and ductility in a wide temperature range. Acta Mater. 2017, 124, 143–150. [Google Scholar] [CrossRef] [Green Version]
- Zhang, X.K.; Chou, T.H.; Li, W.P.; Wang, Y.N.; Huang, J.C.; Cheng, L. Microstructure and mechanical properties of (FeCoNi)100−x(NiAl)x eutectic multi-principal element alloys. J. Alloys Compd. 2021, 862, 158349. [Google Scholar] [CrossRef]
- Reverte, E.; Gordo, M.; Campos, M.; Calvo-Dahlborg, U.; Dahlborg, J.; Cornide, E. Design and Production of Novel FeCo-NiCrAlCu High Entropy Alloy. In Proceedings of the VII Congreso Español de Pulvimetalurgia y II Congreso Iberoamericano de Pulvimetalurgia, Madrid, Spain, 24–26 June 2019. [Google Scholar]
- Ma, Y.; Wang, Q.; Jiang, B.; Li, C.; Hao, J.; Li, X.; Dong, C.; Nieh, T. Controlled formation of coherent cuboidal nanoprecipitates in body-centered cubic high-entropy alloys based on Al2(Ni,Co,Fe,Cr)14 compositions. Acta Mater. 2018, 147, 213–225. [Google Scholar] [CrossRef]
- Fang, P.; Xu, Y.; Li, X.; Chen, Y. Influence of Atomizing Gas and Cooling Rate on Solidification Characterization of Nickel-based Superalloy Powders. Xiyou Jinshu Cailiao Yu Gongcheng/Rare Met. Mater. Eng. 2018, 47, 423–430. [Google Scholar]
- Praveen, S.; Murty, B.S.; Kottada, R.S. Phase Evolution and Densification Behavior of Nanocrystalline Multicomponent High Entropy Alloys During Spark Plasma Sintering. JOM 2013, 65, 1797–1804. [Google Scholar] [CrossRef]
- Zheng, H.; Chen, R.; Qin, G.; Li, X.; Su, Y.; Ding, H.; Guo, J.; Fu, H. Microstructure evolution, Cu segregation and tensile properties of CoCrFeNiCu high entropy alloy during directional solidification. J. Mater. Sci. Technol. 2020, 38, 19–27. [Google Scholar] [CrossRef]
- Monchoux, J.-P. Sintering Mechanisms of Metals Under Electric Currents. Spark Plasma Sinter. Mater. 2019, 978, 93–115. [Google Scholar]
- Xu, X.; Guo, S.; Nieh, T.; Liu, C.; Hirata, A.; Chen, M. Effects of mixing enthalpy and cooling rate on phase formation of AlxCoCrCuFeNi high-entropy alloys. Materialia 2019, 6, 100292. [Google Scholar] [CrossRef]
- Manzoor, A.; Pandey, S.; Chakraborty, D.; Phillpot, S.R.; Aidhy, D.S. Entropy contributions to phase stability in binary random solid solutions. NPJ Comput. Mater. 2018, 4, 47. [Google Scholar] [CrossRef]
- Takeuchi, A.; Inoue, A. Classification of Bulk Metallic Glasses by Atomic Size Difference, Heat of Mixing and Period of Constituent Elements and Its Application to Characterization of the Main Alloying Element. Mater. Trans. 2005, 46, 2817–2829. [Google Scholar] [CrossRef] [Green Version]
- Otto, F.; Yang, Y.; Bei, H.; George, E. Relative effects of enthalpy and entropy on the phase stability of equiatomic high-entropy alloys. Acta Mater. 2013, 61, 2628–2638. [Google Scholar] [CrossRef] [Green Version]
- Yeh, J.-W. Recent progress in high-entropy alloys. Eur. J. Control. 2006, 31, 633–648. [Google Scholar] [CrossRef]
- Matusiak, K.; Berent, K.; Marciszko, M.; Cieslak, J. The experimental and theoretical study on influence of Al and Cu contents on phase abundance changes in AlxCuyFeCrNiCo HEA system. J. Alloys Compd. 2019, 790, 837–846. [Google Scholar] [CrossRef]
- Ma, Y.; Jiang, B.; Li, C.; Wang, Q.; Dong, C.; Liaw, P.K.; Xu, F.; Sun, L. The BCC/B2 Morphologies in AlxNiCoFeCr High-Entropy Alloys. Metals 2017, 7, 57. [Google Scholar] [CrossRef] [Green Version]
- Ogura, M.; Fukushima, T.; Zeller, R.; Dederichs, P.H. Structure of the high-entropy alloy AlxCrFeCoNi: Fcc versus bcc. J. Alloys Compd. 2017, 715, 454–459. [Google Scholar] [CrossRef]
- Li, J.; Li, Z.; Wang, Q.; Dong, C.; Liaw, P. Phase-field simulation of coherent BCC/B2 microstructures in high entropy alloys. Acta Mater. 2020, 197, 10–19. [Google Scholar] [CrossRef]
Element | Al | Fe | Cr | Co | Ni | Cu |
---|---|---|---|---|---|---|
wt.% | 15.9 | 18.3 | 17 | 19.3 | 19.2 | 10.4 |
P&S | Sintering Temperature (°C) | Holding Time (h) | Heating Rate (°C/min) | Total Sintering Time (h) |
P&S | 1320 | 4 | 5 | 13.3 |
P&S | Sintering Temperature (°C) | Holding Time (min) | Heating Rate (°C/min) | Total Sintering Time (min) |
SPS_1 | 1000 | 1 | 200 | 12 |
SPS_2 | 1000 | 5 | 200 | 22.4 |
SPS_3 | 1100 | 1 | 200 | 11.9 |
SPS_4 | 1100 | 5 | 200 | 22.5 |

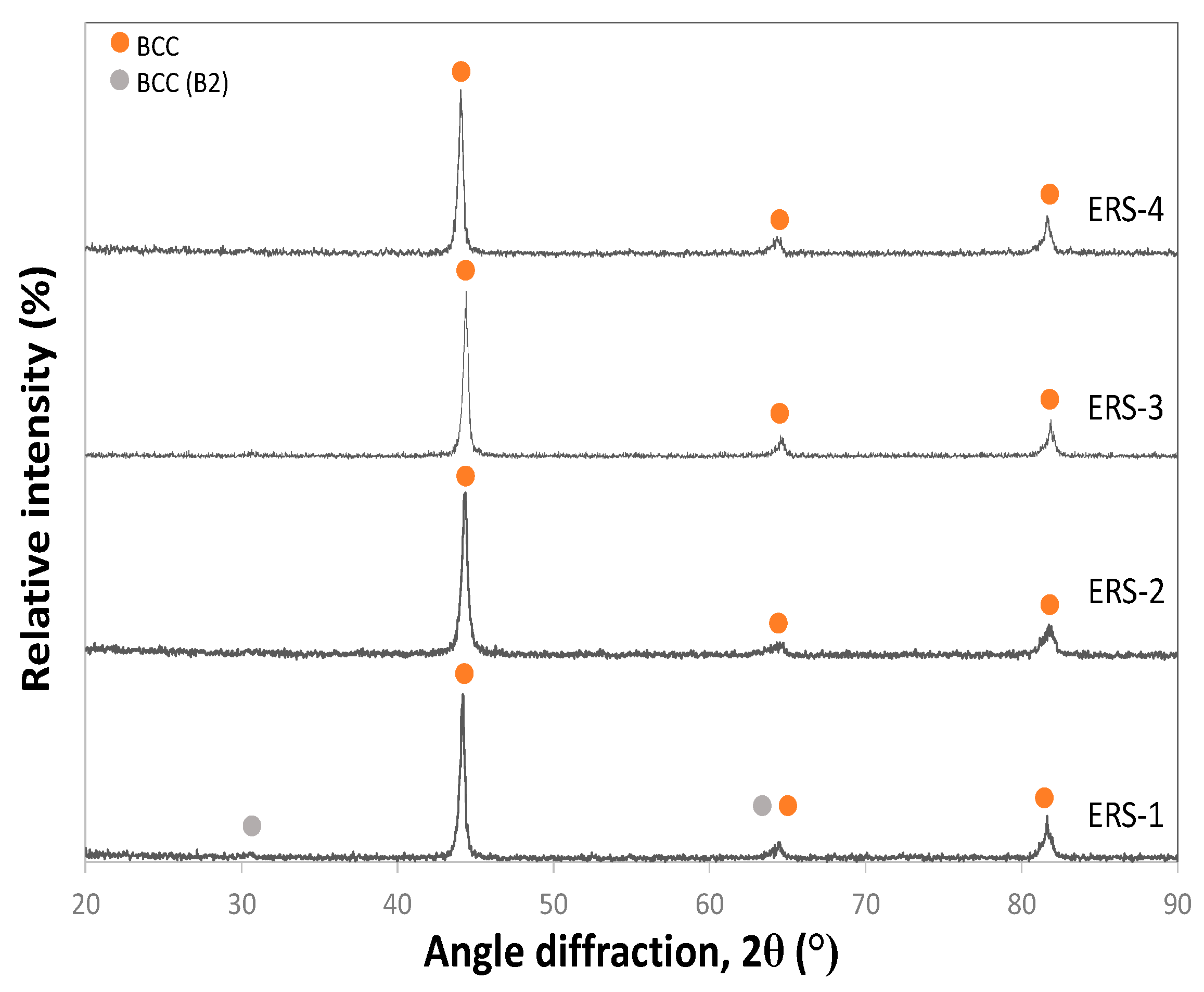

ERS | Current Intensity (kA) | Holding Time (ms) | Heating Rate (°C/min) | Total Sintering Time (s) |
ERS_1 | 8 | 500 | - | 0.5 |
ERS_2 | 7.5 | 300 | - | 0.3 |
ERS_3 | 7.5 | 500 | - | 0.5 |
ERS_4 | 7.5 | 700 | - | 0.7 |
Method | Phase | Composition (at. %) | ||||||
---|---|---|---|---|---|---|---|---|
Cr | Co | Fe | Ni | Al | Cu | Vol. % | ||
P%S | Fe-Cr-rich | 19.3 | 16 | 24.7 | 14.8 | 17.5 | 7.7 | 44 |
Al-Ni-rich | 10.6 | 18.1 | 20.2 | 19.1 | 23.1 | 8.6 | 50 | |
Cu-rich | 4.7 | 12 | 8.6 | 10.9 | 27.3 | 37.7 | <5 | |
SPS | Fe-Cr-rich | 25.7 | 16.1 | 12.9 | 21.5 | 20 | 3.7 | 41 |
Al-Ni-rich | 20.4 | 10.8 | 9.8 | 12.2 | 41.7 | 4.9 | 54 | |
Cu-rich | 19.4 | 10.1 | 8.9 | 11.7 | 24.2 | 25.5 | <5 | |

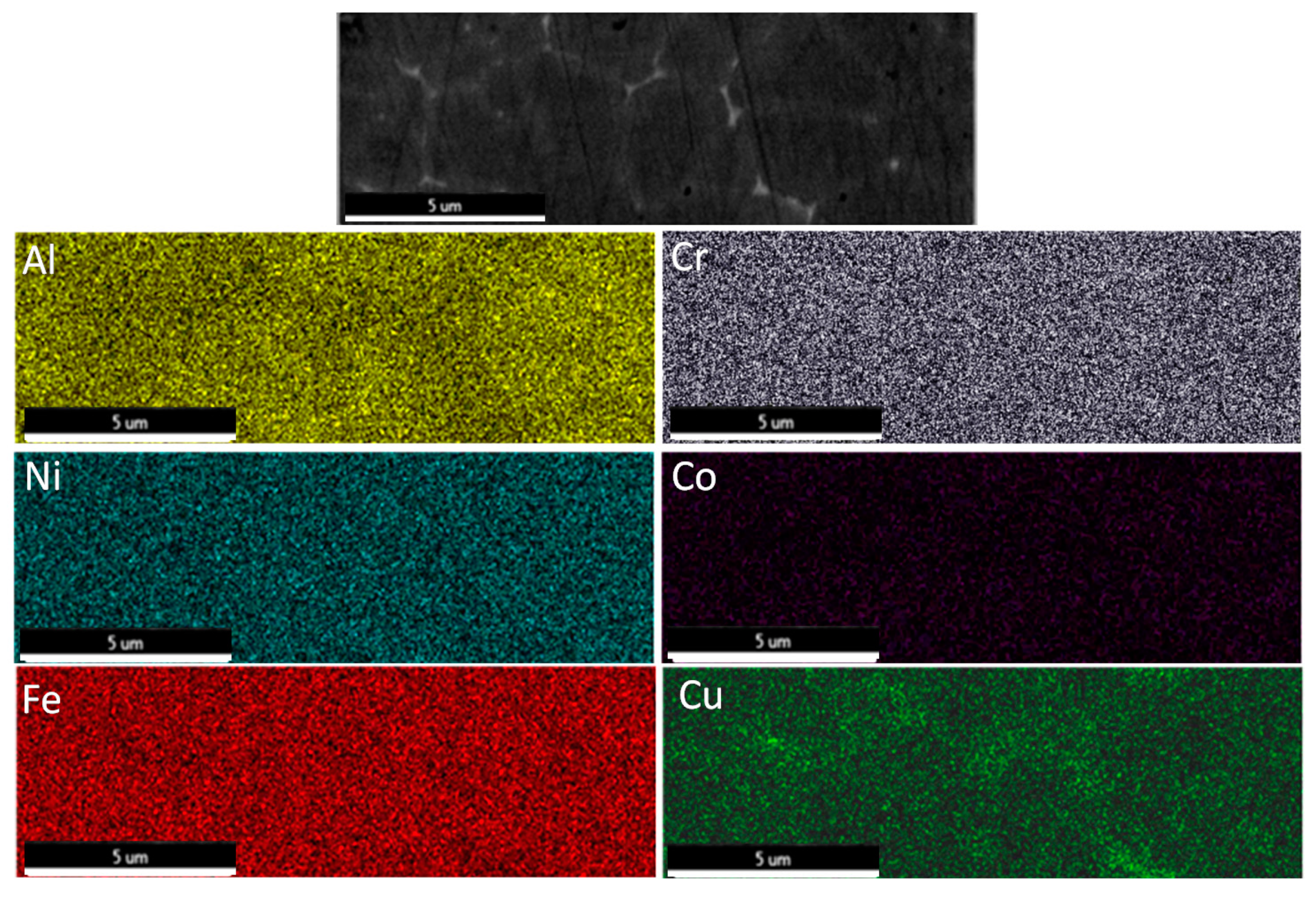

ERS | Homogenous | 23.8 | 12.2 | 11.4 | 15.2 | 29.7 | 7.6 | 95 |
Method | Powder | P&S | SPS_1 | SPS_2 | SPS_3 | SPS_4 | ERS_1 | ERS_2 | ERS_3 | ERS_4 |
---|---|---|---|---|---|---|---|---|---|---|
O (%) | 0.06 | 0.03 | 0.08 | 0.05 | 0.03 | 0.04 | 0.03 | 0.04 | 0.09 | 0.08 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Reverte, E.; Cornide, J.; Lagos, M.A.; Campos, M.; Alvaredo, P. Microstructure Evolution in a Fast and Ultrafast Sintered Non-Equiatomic Al/Cu HEA. Metals 2021, 11, 848. https://doi.org/10.3390/met11060848
Reverte E, Cornide J, Lagos MA, Campos M, Alvaredo P. Microstructure Evolution in a Fast and Ultrafast Sintered Non-Equiatomic Al/Cu HEA. Metals. 2021; 11(6):848. https://doi.org/10.3390/met11060848
Chicago/Turabian StyleReverte, Eduardo, Juan Cornide, Miguel A. Lagos, Mónica Campos, and Paula Alvaredo. 2021. "Microstructure Evolution in a Fast and Ultrafast Sintered Non-Equiatomic Al/Cu HEA" Metals 11, no. 6: 848. https://doi.org/10.3390/met11060848
