Next Article in Journal
How Austenitic Is a Martensitic Steel Produced by Laser Powder Bed Fusion? A Cautionary Tale
Previous Article in Journal
Enhanced Leaching of Zinc from Zinc-Containing Metallurgical Residues via Microwave Calcium Activation Pretreatment


Article

Production and Characterization of a 316L Stainless Steel/β-TCP Biocomposite Using the Functionally Graded Materials (FGMs) Technique for Dental and Orthopedic Applications

1
Institute of Mechanical Engineering, Unifei—Federal University of Itajubá. Av. BPS, 1303, Itajubá 37500-903, Brazil
2
Institute of Physics and Chemistry, Unifei—Federal University of Itajubá. Av. BPS, 1303, Itajubá 37500-903, Brazil
*
Author to whom correspondence should be addressed.
Academic Editors: Yadir Torres Hernández and Asit Kumar Gain
Metals 2021, 11(12), 1923; https://doi.org/10.3390/met11121923
Received: 15 October 2021 / Revised: 22 November 2021 / Accepted: 23 November 2021 / Published: 29 November 2021
(This article belongs to the Section Biobased and Biodegradable Metals)

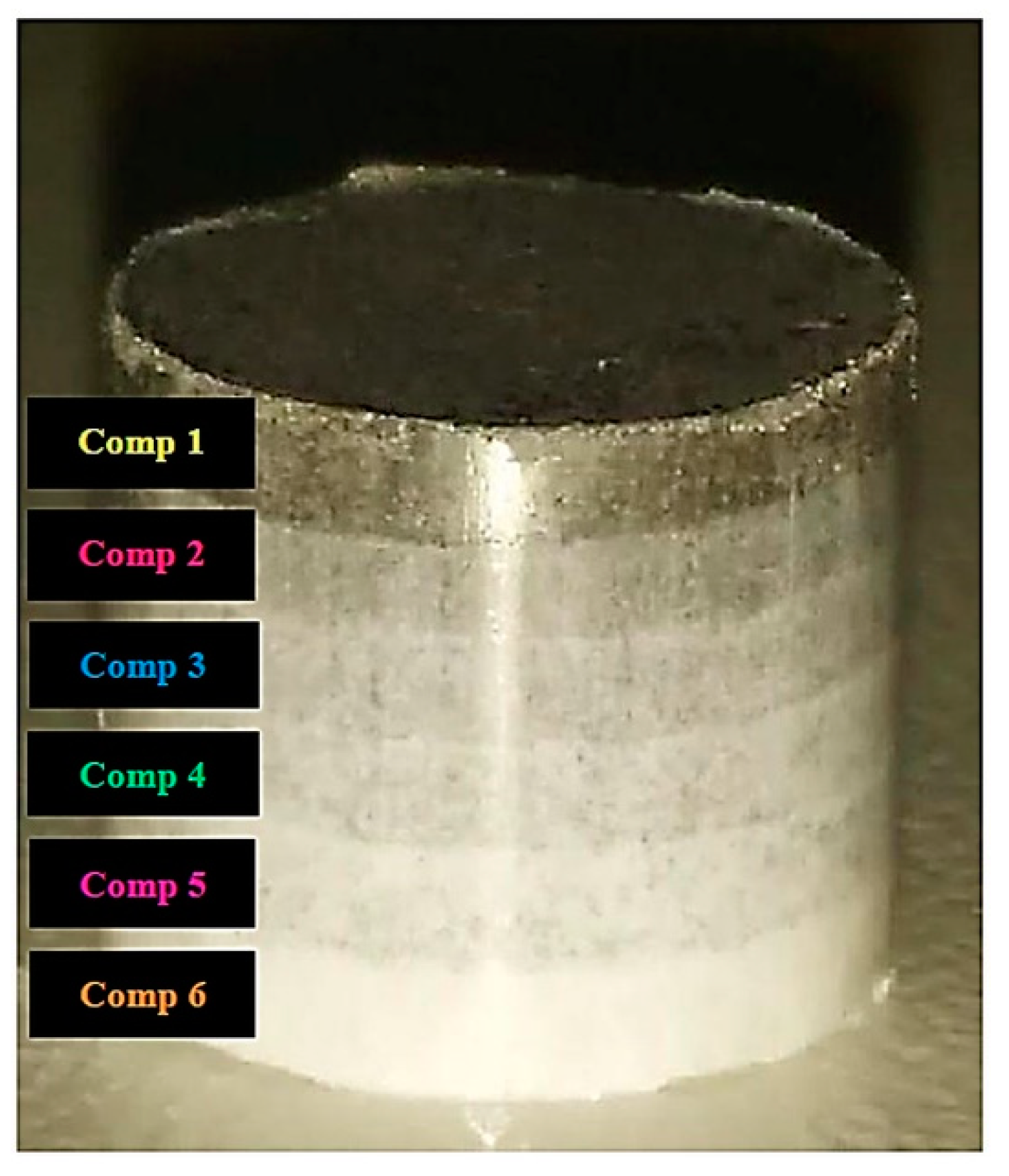

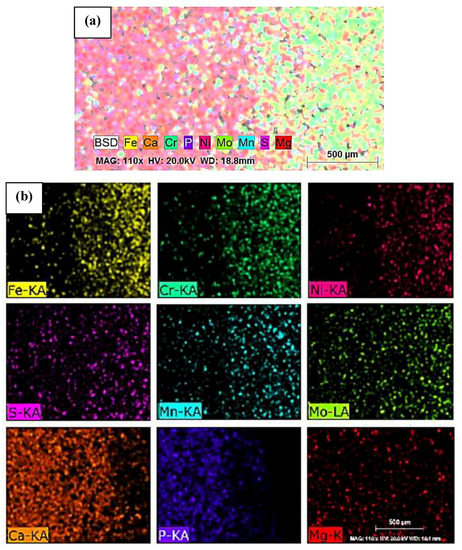

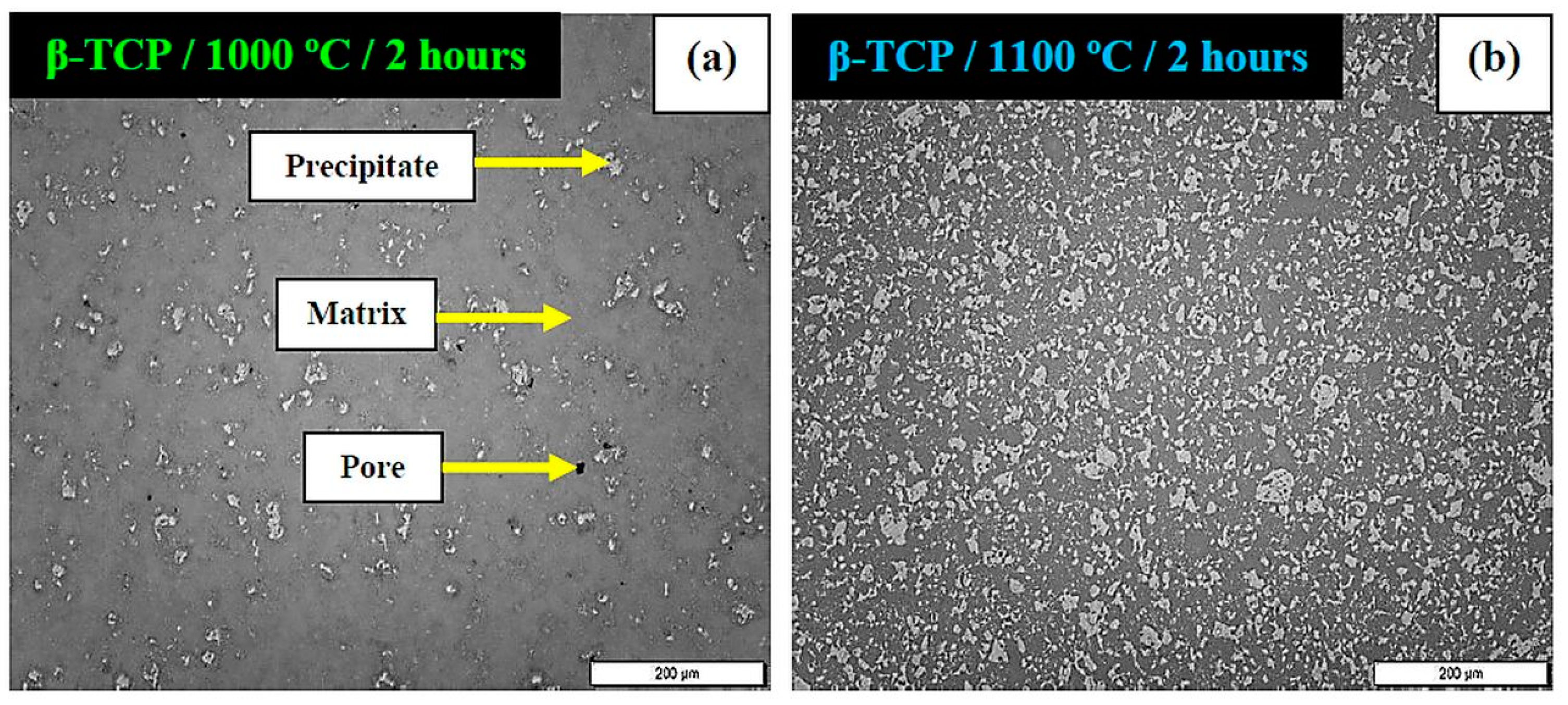

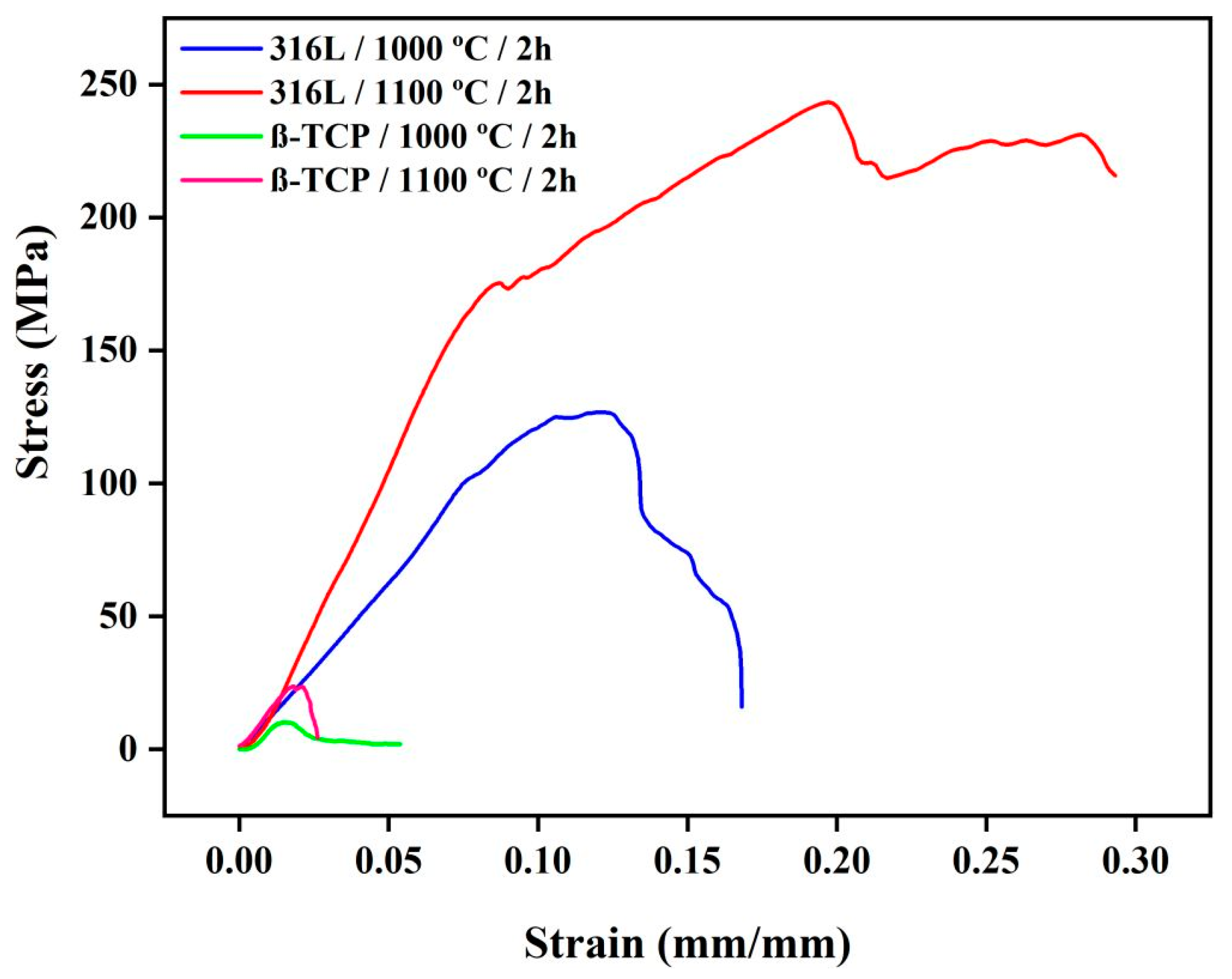

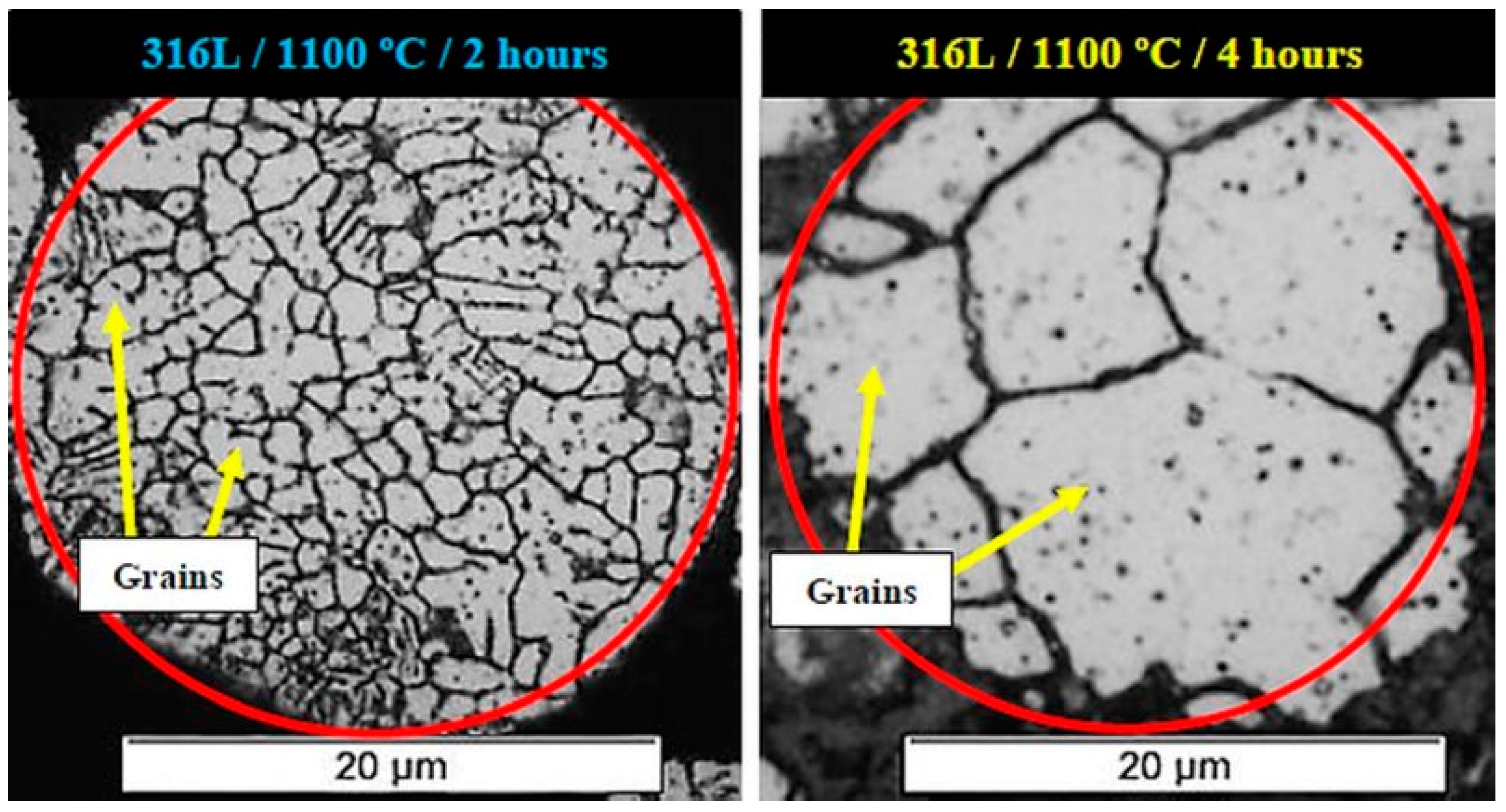

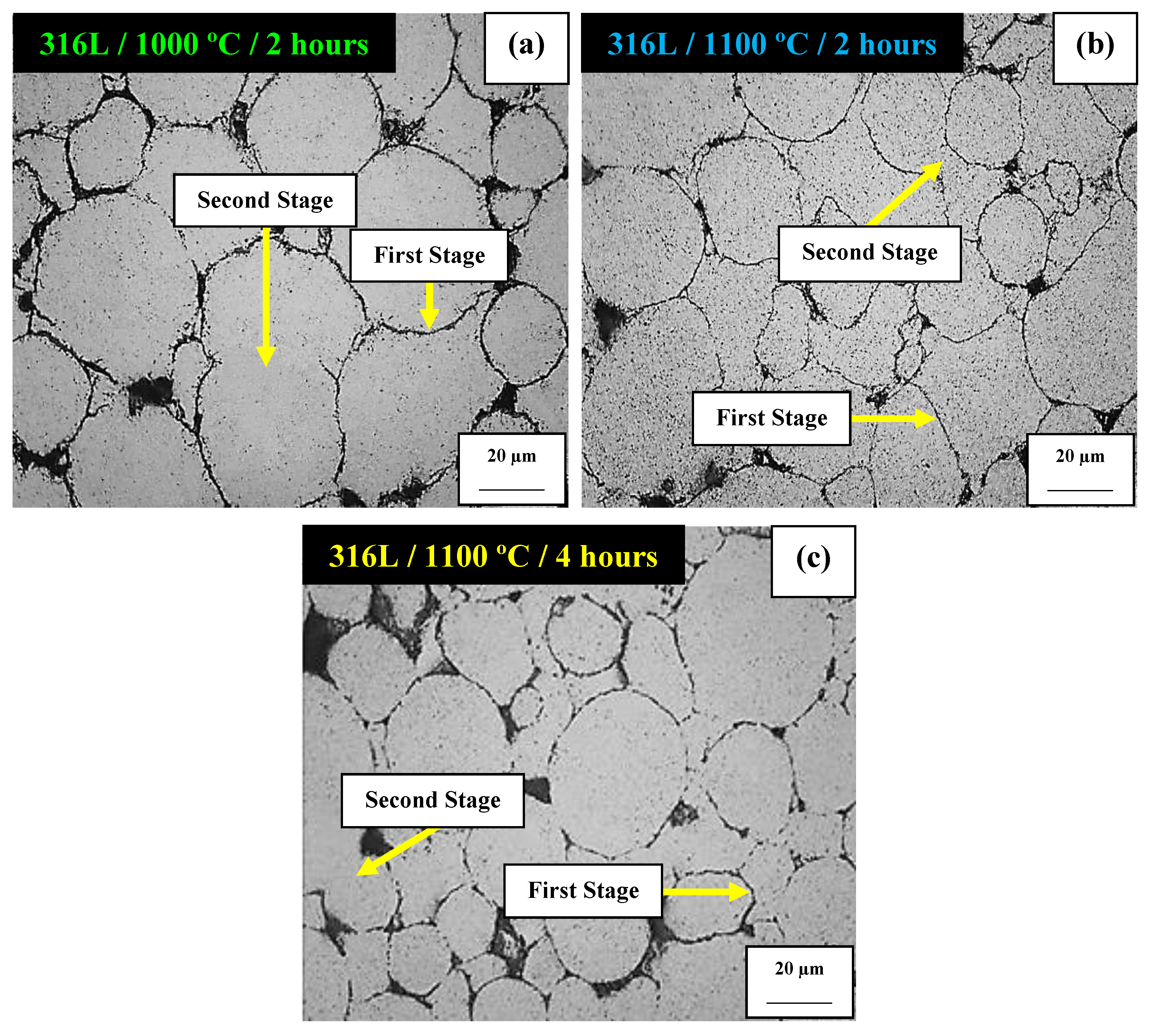

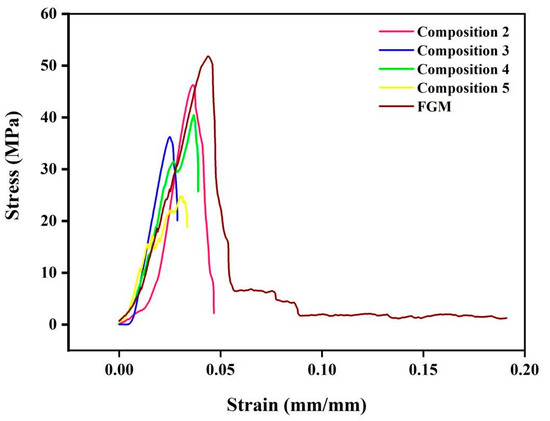

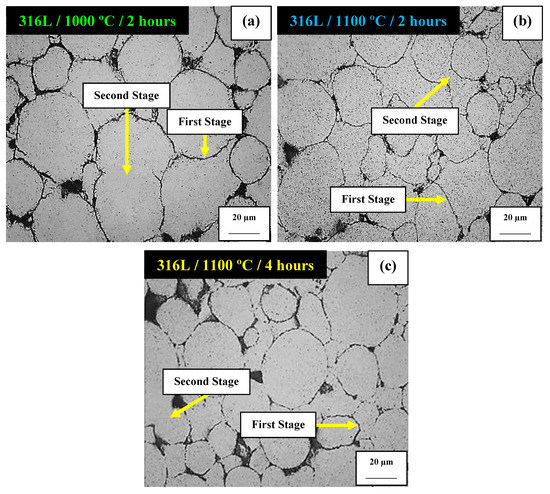

Metallic biomaterials are widely used for implants and dental and orthopedic applications due to their good mechanical properties. Among all these materials, 316L stainless steel has gained special attention, because of its good characteristics as an implantable biomaterial. However, the Young’s modulus of this metal is much higher than that of human bone (~193 GPa compared to 5–30 GPa). Thus, a stress shielding effect can occur, leading the implant to fail. In addition, due to this difference, the bond between implant and surrounding tissue is weak. Already, calcium phosphate ceramics, such as beta-tricalcium phosphate, have shown excellent osteoconductive and osteoinductive properties. However, they present low mechanical strength. For this reason, this study aimed to combine 316L stainless steel with the beta-tricalcium phosphate ceramic (β-TCP), with the objective of improving the steel’s biological performance and the ceramic’s mechanical strength. The 316L stainless steel/β-TCP biocomposites were produced using powder metallurgy and functionally graded materials (FGMs) techniques. Initially, β-TCP was obtained by solid-state reaction using powders of calcium carbonate and calcium phosphate. The forerunner materials were analyzed microstructurally. Pure 316L stainless steel and β-TCP were individually submitted to temperature tests (1000 and 1100 °C) to determine the best condition. Blended compositions used to obtain the FGMs were defined as 20% to 20%. They were homogenized in a high-energy ball mill, uniaxially pressed, sintered and analyzed microstructurally and mechanically. The results indicated that 1100 °C/2 h was the best sintering condition, for both 316L stainless steel and β-TCP. For all individual compositions and the FGM composite, the parameters used for pressing and sintering were appropriate to produce samples with good microstructural and mechanical properties. Wettability and hemocompatibility were also achieved efficiently, with no presence of contaminants. All results indicated that the production of 316L stainless steel/β-TCP FGMs through PM is viable for dental and orthopedic purposes. View Full-Text
Keywords: 316L stainless steel; beta-tricalcium phosphate; biomaterials; powder metallurgy; functionally graded materials 316L stainless steel; beta-tricalcium phosphate; biomaterials; powder metallurgy; functionally graded materials

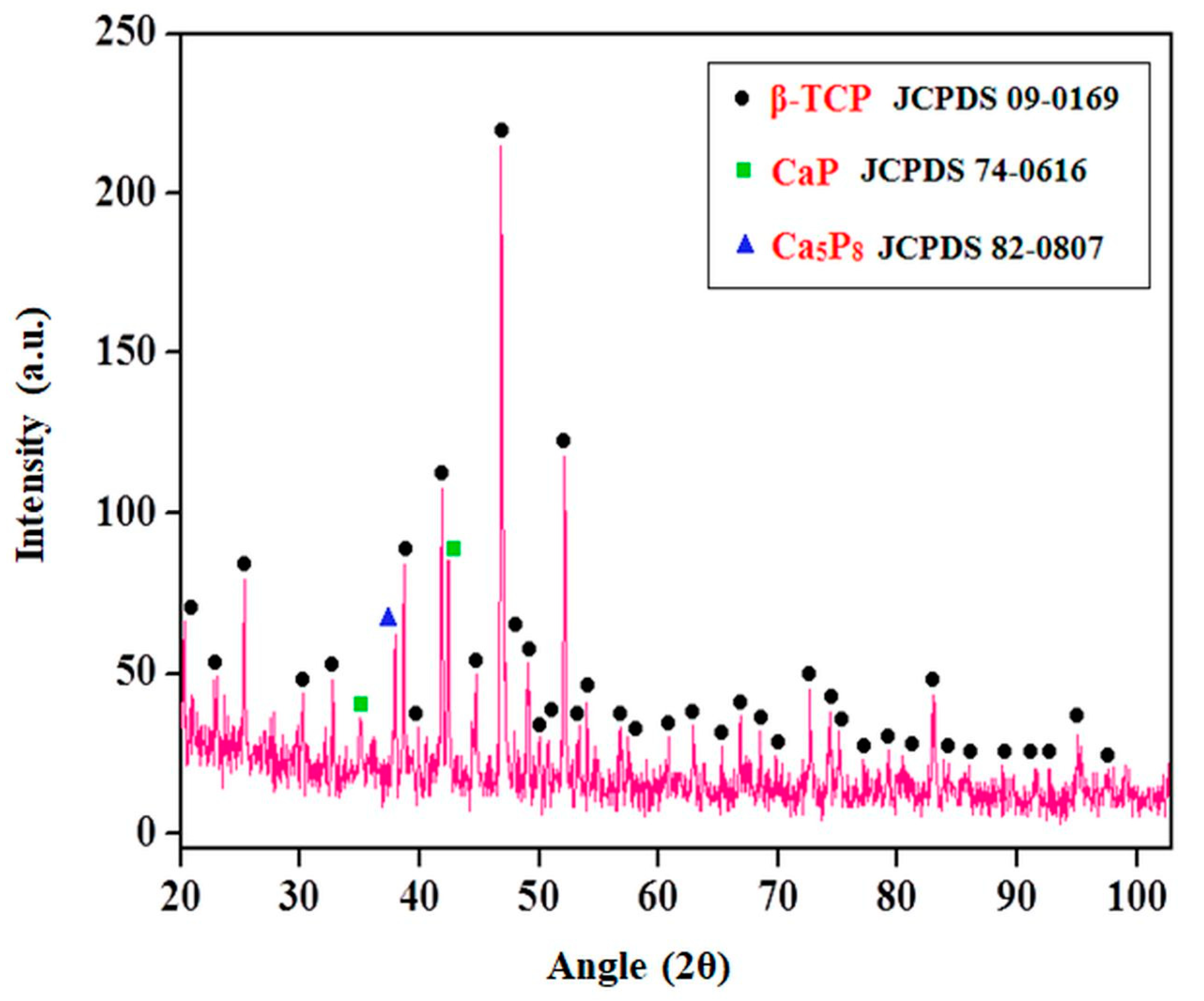

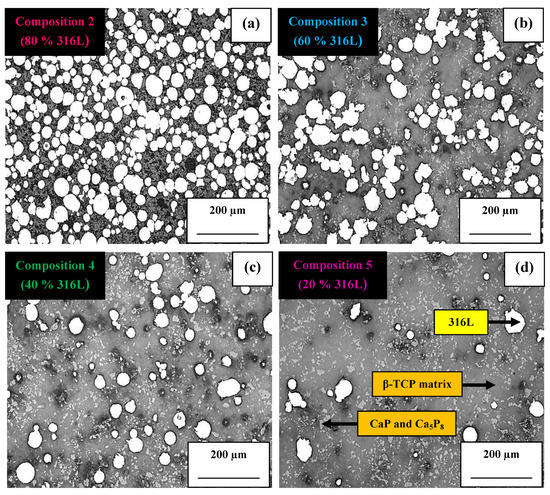

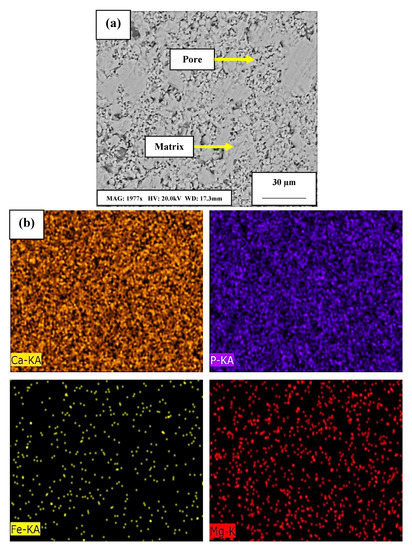

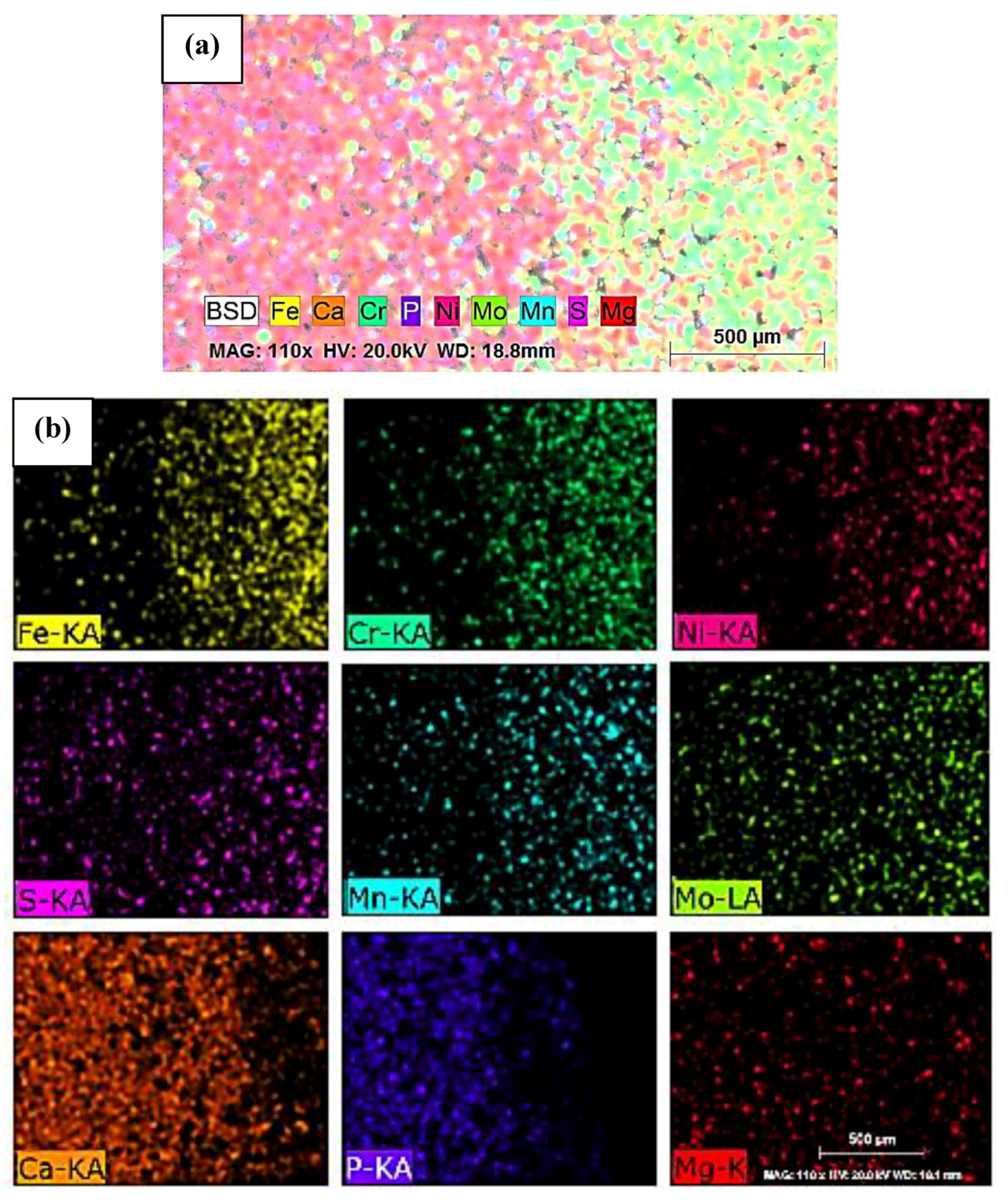

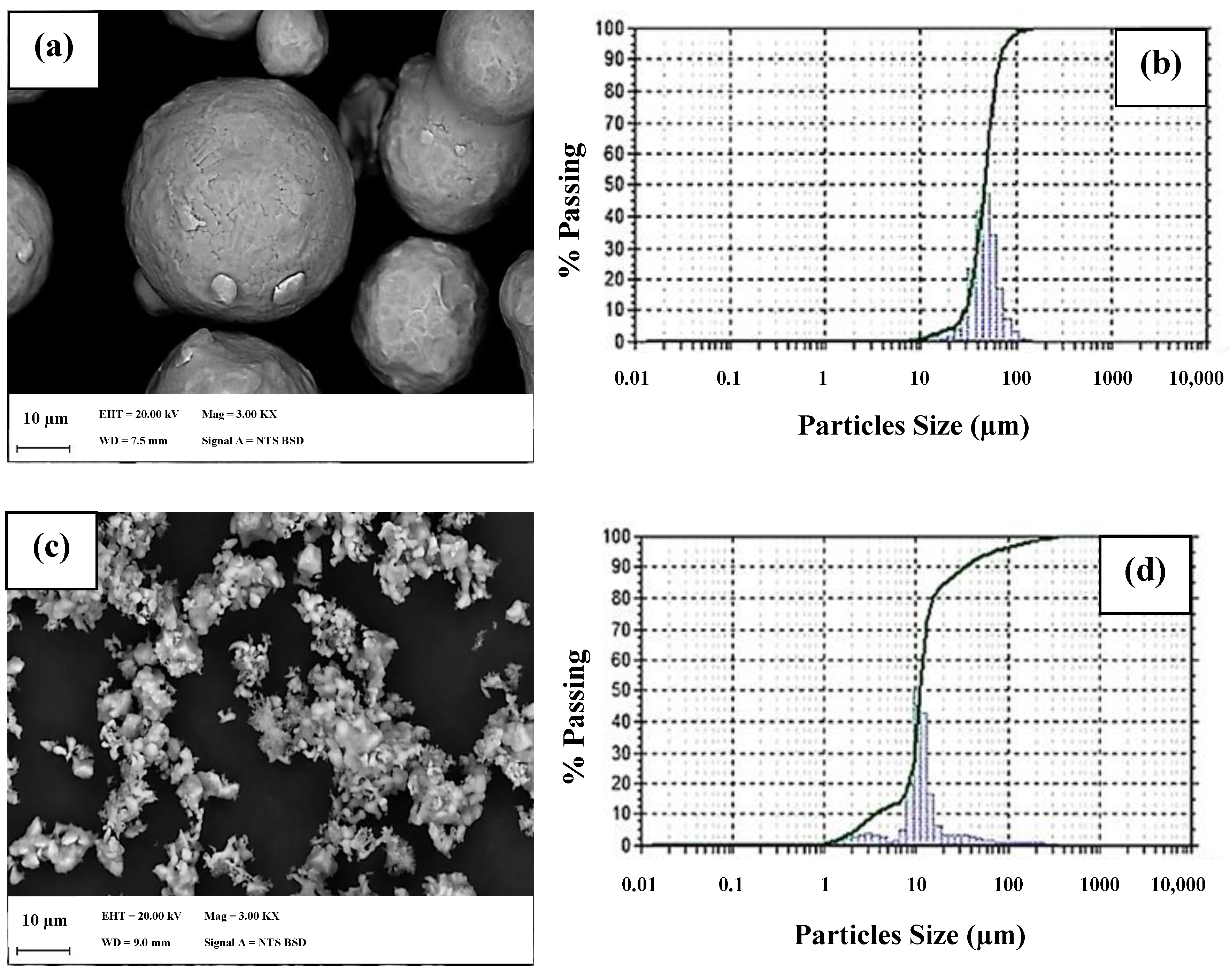

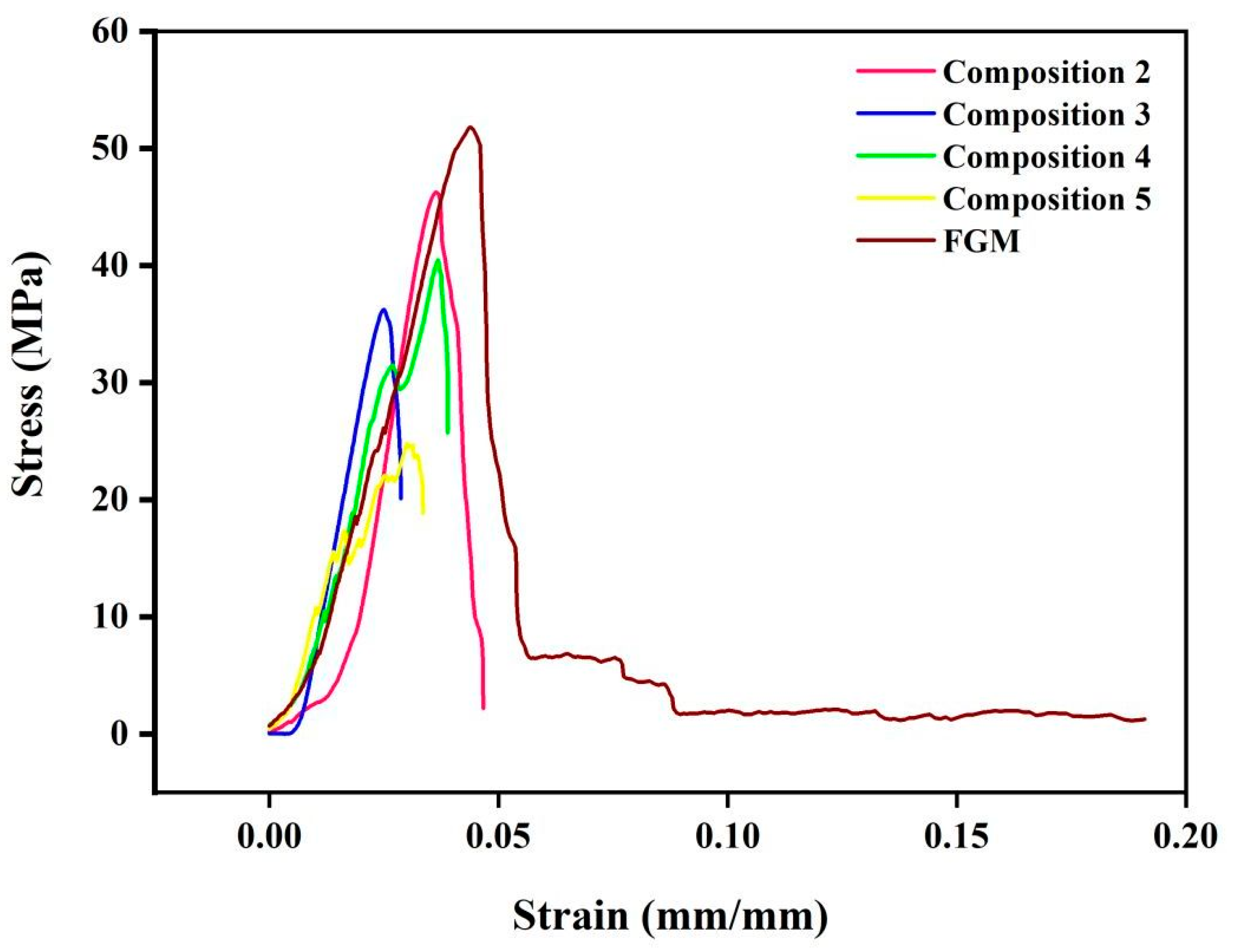

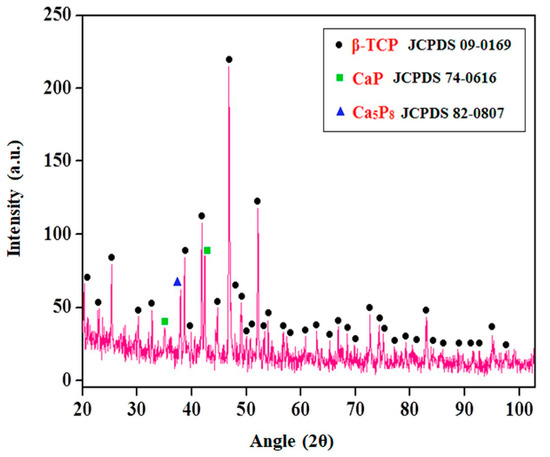

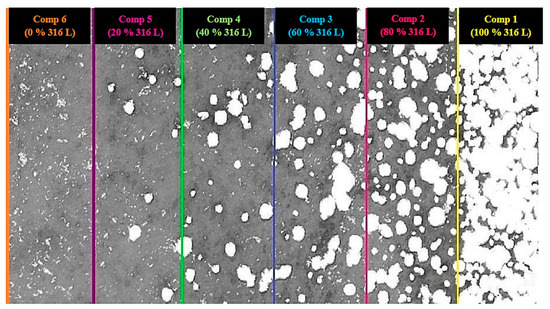

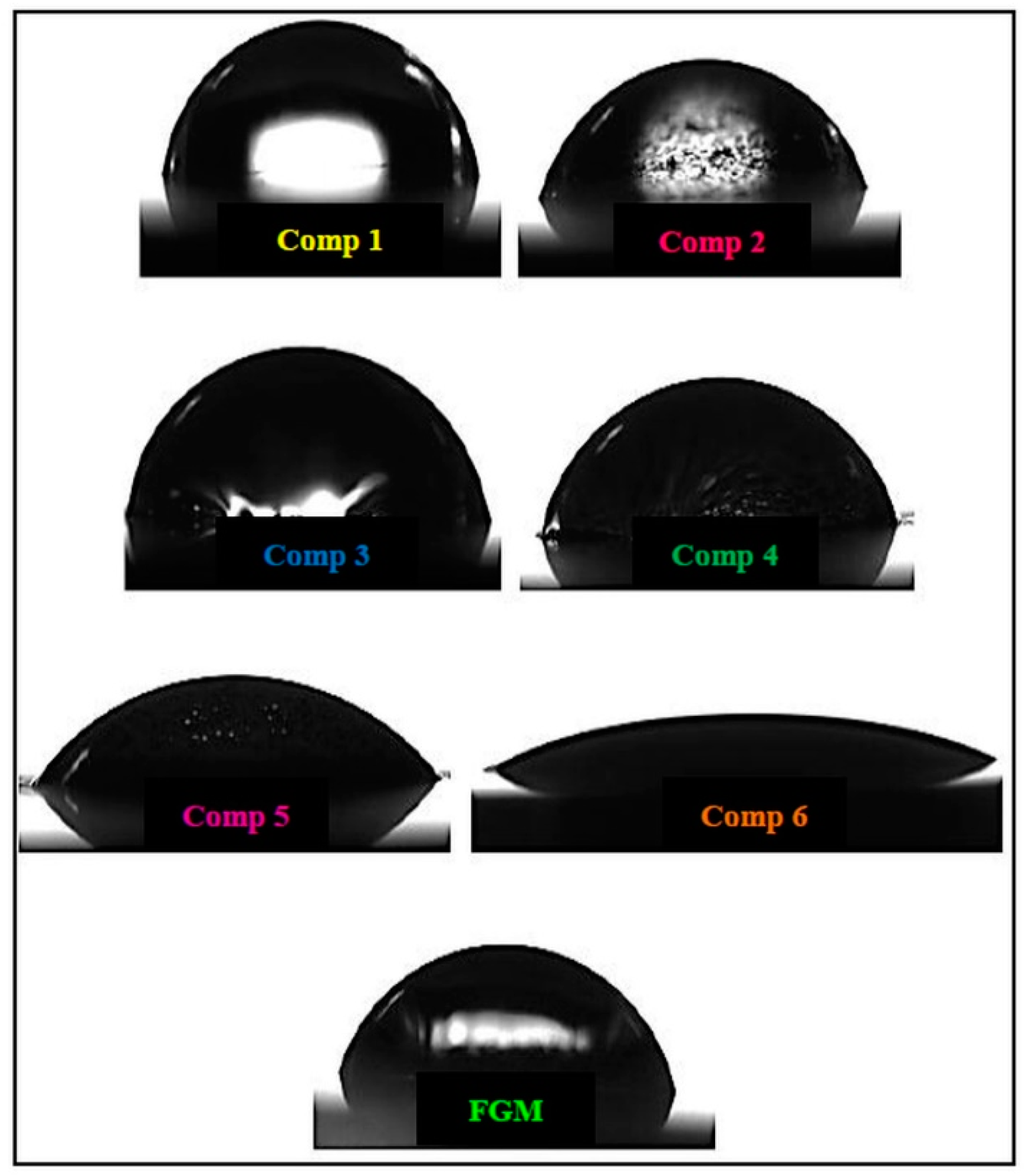

Show Figures

Graphical abstract

MDPI and ACS Style

Kuffner, B.H.B.; Capellato, P.; Ribeiro, L.M.S.; Sachs, D.; Silva, G. Production and Characterization of a 316L Stainless Steel/β-TCP Biocomposite Using the Functionally Graded Materials (FGMs) Technique for Dental and Orthopedic Applications. Metals 2021, 11, 1923. https://doi.org/10.3390/met11121923

AMA Style

Kuffner BHB, Capellato P, Ribeiro LMS, Sachs D, Silva G. Production and Characterization of a 316L Stainless Steel/β-TCP Biocomposite Using the Functionally Graded Materials (FGMs) Technique for Dental and Orthopedic Applications. Metals. 2021; 11(12):1923. https://doi.org/10.3390/met11121923

Chicago/Turabian Style

Kuffner, Bruna Horta Bastos, Patricia Capellato, Larissa Mayra Silva Ribeiro, Daniela Sachs, and Gilbert Silva. 2021. "Production and Characterization of a 316L Stainless Steel/β-TCP Biocomposite Using the Functionally Graded Materials (FGMs) Technique for Dental and Orthopedic Applications" Metals 11, no. 12: 1923. https://doi.org/10.3390/met11121923

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
