A Novel Alloy Development Approach: Biomedical Equiatomic Ta-Nb-Ti Alloy

Abstract

In the present manuscript, we report on the properties of an equiatomic Ta-Nb-Ti alloy as the basis for a novel, biomedical, multi-component alloy development. The alloy was produced using an arc melting furnace under Ar atmosphere, metallographically prepared, and investigated respectively. Furthermore, the alloy produced, as well as samples of elemental Ta, Nb, alloy Co-28Cr-6Mo, and alloy Ti-6Al-4V, were prepared with defined 1200 grit SiC grinding paper. The topography of the surfaces was evaluated using confocal microscopy and contact angle measurements subsequently. Afterwards, the biocompatibility of the novel alloy Ta-Nb-Ti was evaluated by means of cell (osteoblast) attachment as well as monocyte inflammatory response analysis. First results indicate competitive osteoblast attachment, as well as comparable expressions of fibrosis markers in comparison to conventionally used biomedical materials. In addition, the Ta-Nb-Ti alloy showed a markedly reduced inflammatory capacity, indicating a high potential for use as a prospective biomedical material.

1. Introduction

The modern material class of equiatomic multi-component alloys, especially high-entropy alloys (HEAs), has gained tremendous attention in the scientific community over recent years [1,2,3], which can be attributed to two main reasons. Firstly, the new concept of combining several elements (at least 5 principal elements with concentrations between 5 and 35 at. % [4]) in contrast to conventional alloys, mostly containing only two or three elements in addition to the main alloy constituent, results in a broad variety of possible combinations, thus leading to completely novel alloys with exceptional properties. Secondly, recently developed refractory metal based high-entropy alloys (RHEAs) have shown properties that are superior to those of current state-of-the-art alloys, which are attributed to several unique thermodynamic effects [1,5]. However, besides the outstanding mechanical properties, abrasion resistance, and thermal resistance, a vast variety of chemical elements used in RHEAs also belong to the category of biocompatible elements (highlighted in Figure 1), hence leading to potentially new biomedical materials [6,7,8].

To meet the demands for biomedical applications, specifically for implant materials, three main criteria must be fulfilled: Excellent mechanical properties (regarding the force transmission between implant and bone), corrosion resistance (prevention of corrosive damage to the implant), and biocompatibility (no tissue damage by the implant material or by corrosive/abrasive particles) [13].

The present study meets these targets on the basis of previous investigations regarding Mo-Nb-V-W-Ti high-entropy alloys [14], which have confirmed promising mechanical properties. Furthermore, several publications concerning the corrosive capabilities and degradation resistance [15,16,17] are considered to support our theories. In particular, alloys either based on, or at least containing high fractions of refractory metals, have shown favorable properties with regard to potential use in the field of biomedical materials [18,19,20]. Primarily, this can be attributed to their resilient character in general, meaning high melting temperatures, high hardness, oxidation resistance, etc. [21], as well as the good biocompatibility of the majority of refractory elements [22,23], leading to a desirable combination of component properties.

However, in consideration of this background and due to the excellent biocompatibility of the constituents [9,10], an equiatomic composition of Ta, Nb, and Ti as a multi-component base alloy was chosen for the experiments.

2. Materials and Methods

2.1. Production, Preparation and Analysis of the Substrate Materials

For sample production, high purity elemental chips or flakes of Ta (99.9%), Nb (99.9%) and Ti (99.6%) were used as starting materials and were carefully weighed. The alloying process was carried out in a conventional arc-melting device under Ar atmosphere. Each sample was re-melted five times to ensure sufficient homogeneity. Afterwards, the produced oblong-shaped (due to the use of an elongated mold) melted product was cut into 2 mm thick slices by means of electric discharge machining (EDM). One slice was used for microstructural analysis and thus metallographically prepared (grinded with SiC paper to a 1000 grit, polished using 3 µm and 1 µm diamond suspension and finished using colloidal silica suspension subsequently) afterwards. The remaining slices were cleaned from the EDM-burr and grinded to a defined grit size of 1200. To identify the phases present, X-ray diffraction analysis (XRD) were performed on a X’Pert Pro (PANalytical, Almelo, The Netherlands), using Co Kα radiation. Microstructural observations were carried out by means of scanning electron microscopy (ESEM XL30 FEG, FEI, Hillsboro, OR, USA), using back-scattered electron (BSE) imaging with the following setup: Centaurus BSE detector with an acceleration voltage of 25 kV, magnification of 100× and a working distance of 11.4 mm. To determine the elemental distribution and the chemical composition of the alloy, (Si(Li))-detector energy-dispersive X-ray spectroscopy (EDS) analysis equipped with Genesis software (EDAX, Mahwah, NJ, USA) was conducted. The surface roughness of the samples was analyzed by using a confocal microscope (µsurf expert, NanoFocus AG, Oberhausen, Germany) on a surface area of 322 × 321 µm, using a 20× magnification objective with a lateral (x, y) measuring range of 800 µm. In addition, the contact angles of the surfaces were determined using an optical contact angle and drop contour analyzer (OCA 20, DataPhysics Instruments GmbH, Filderstadt, Germany) and the corresponding software (SCA 20, DataPhysics Instruments GmbH, Filderstadt, Germany). To characterize the hardness of the alloy produced, microhardness analysis was carried out by means of 20 HV0.1 indents in a square grid across the entire sample surface, using an automatic hardness tester VH3300 (Wilson/Buehler, Esslingen, Germany). Furthermore, to examine and evaluate the biocompatibility of the alloy Ta-Nb-Ti, cell cultivation experiments were carried out on the surface of the specimens and compared to state-of-the-art biomaterials, such as wrought alloy Co-28Cr-6Mo or alloy Ti-6Al-4V, as well as to samples of pure Ta, Nb, and Ti.

2.2. Osteoblast (SaOs Cells) Attachment Assay

SaOs-2 cells were seeded with a cell number of 0.3 × ${10}^5$ in 100 µL for 2 h on the platelets to let the cells attach to the surface. Afterwards, 1 mL DMEM (Dulbecco Modified Eagle Medium) culture medium with the addition of 10% FCS (fetal calf serum) and 1% penicillin/streptomycin was pipetted into each well to cover the platelets with cells. On the following day, the cells were fixed with 4% formaldehyde and washed three times with PBS (phosphate buffered saline). Subsequently, the samples were incubated with 200 µL of a PBS with Phalloidin Alexa Fluor 488 (1:100) and DAPI (4′,6-Diamidino-2-phenylindol) (1:1000) in the dark for 15 min (room temperature, RT). Excess staining solution was removed by washing three times with PBS. The samples were stored at 4 °C in the dark until further use. Imaging was performed with a Zeiss fluorescence microscope (Axio Observer.Z1, Zeiss, Jena, Germany) at 630× magnification. Fluorescence was detected at the wavelengths 488 nm (Phalloidin green) and 454 nm (DAPI blue). Four images were taken of each sample. For evaluation, the area of one cell (green fluorescence) was divided by the size of the nucleus (blue fluorescence) using ImageJ.

2.3. Monocyte Inflammatory Reaction Test

Mono-mac-6 cells (MM6) are a human acute monocytic leukemia derived cell line. These cells were cultured in a density 0.5 × 10⁶ in 100 µL on the different alloy specimens for 24 h. Subsequently, the cells were lysed using TRIZol and RNA (ribonucleic acid) was isolated for quantitative RT-PCR (reverse transcription polymerase chain reaction).

2.4. RNA Extraction, cDNA Synthesis, Real-Time RT-PCR

Total RNA was extracted from cells using TRIZol reagent (Invitrogen, Thermo Fisher Scientific). Thus, 1 ng of total RNA from each sample was reverse transcribed using High-Capacity cDNA (complementary deoxyribonucleic acid) Reverse Transcription Kit (Applied Biosystems) using random primers. Quantitative PCR (polymerase chain reaction) was performed with SYBR green using Applied Biosystems™ Quantstudio 6 (Thermo Fisher Scientific). The following primers were used at an annealing temperature of 60 °C:

hIL-1β_For (human interleukin-1β):

ACAGATGAAGTGCTCCTTCCA

hIL-1β_Rev:

GTCGGAGATTCGTAGCTGGAT

hTNF-α_For (human tumor necrosis factor-α):

CAGCCTCTTCTCCTTCCTGAT

hTNF-α_Rev:

GCCAGAGGGCTGATTAGAGA

hIL-6_For (hyper interleukin-6):

CTTTTGGAGTTTGAGGTATACCTAG

hIL-6_Rev:

GCTGCGCAGAATGAG AGTAGTTGT

hGAPDH_for (human Glyceraldehyde-3-phosphate dehydrogenase):

CCCACTCCTCCACCTTTGAC

hGAPDH_rev:

AGCCAAATTCGTTGTCATACCAG

Absolute quantification was carried out using standard curves. Target gene expression was normalized to GAPDH.

2.5. Cleaning and Sterilization of the Samples

Before in vitro incubation, all samples were cleaned by incubation for 30 min in 10 mL of RIPA (radioimmunoprecipitation assay) buffer at room temperature under sonication and rinsed in distilled water. Afterwards, the platelets were incubated with Trypsin for 30 min at 37 °C under sonication. The specimens were rinsed with distilled water and incubated in 70% ethanol. For sterilization, the platelets were flamed and placed under UV (ultraviolet) light for 24 h. Applying this cleaning procedure, the specimens were reused for the repetition of experiments.

2.6. Statistical Analysis of the Biocompatibility Experiments

If not stated otherwise, the data are presented as mean ± standard deviation (SD). The Friedman test was applied to test for statistical significance. The level of significance was set at p < 0.05 for all statistical tests. Statistical analysis was performed using GraphPad Prism (Version 7, GraphPad Software, San Diego, CA, USA).

3. Results & Discussion

3.1. Alloy Design

In order to provide a comparable base with regard to the alloy design of Ta-Nb-Ti, the thermodynamic and geometrical calculations for high-entropy materials were used. Although the equiatomic alloy Ta-Nb-Ti reported on does not yet meet all criteria of the HEA definition [4], it should be noted that the current design is a base for further research. As it is widely reported in the literature (f.e. [24]), the formation of a solid solution phase (SS) is determined by the Gibbs free energy (∆G_mix), hence a combination of the present enthalpy of mixing (∆H_mix), the temperature (T), and the entropy of mixing (∆S_mix) [5,24,25,26]. Furthermore, the solid solution parameter (Ω), representing the ratio between entropy and enthalpy, and the difference in atomic radii of the elements involved (δ)were considered [27,28]. To put the results of the calculations in perspective and to demonstrate the potential of the alloy Ta-Nb-Ti, the values are compared to data from the RHEA group in

Table 1. Results of the thermodynamic and geometrical calculations of alloy Ta-Nb-Ti, using the equations presented in [24,25,26,27,28] and comparison with other high-entropy alloys for potential biomedical use.

Alloy	ΔSmix, J·K−1·mol−1	ΔHmix, kJ·mol−1	δ, %	Ω	References
Ta-Nb-Ti	9.13	1.3	1.5	18.2	this work
MoNbTaTiZr	13.38	−1.8	5.9	19.7	[16,18]
TiZrHfNbTa	13.38	2.7	5.5	12.4	[18,22]
TiNbTaZrW	13.38	−3.2	5.8	11.5	[18]
Ti2.6NbTaZrMo	12.57	−1.2	5.2	26.4	[32]
TiNbTa0.2ZrMo	12.57	−2.3	6.4	13.4	[32]
TiNbTaZr2.6Mo	12.57	−0.9	6.8	36.1	[32]
TiNbTaZrMo0.2	12.57	1.3	5.5	24.2	[32]

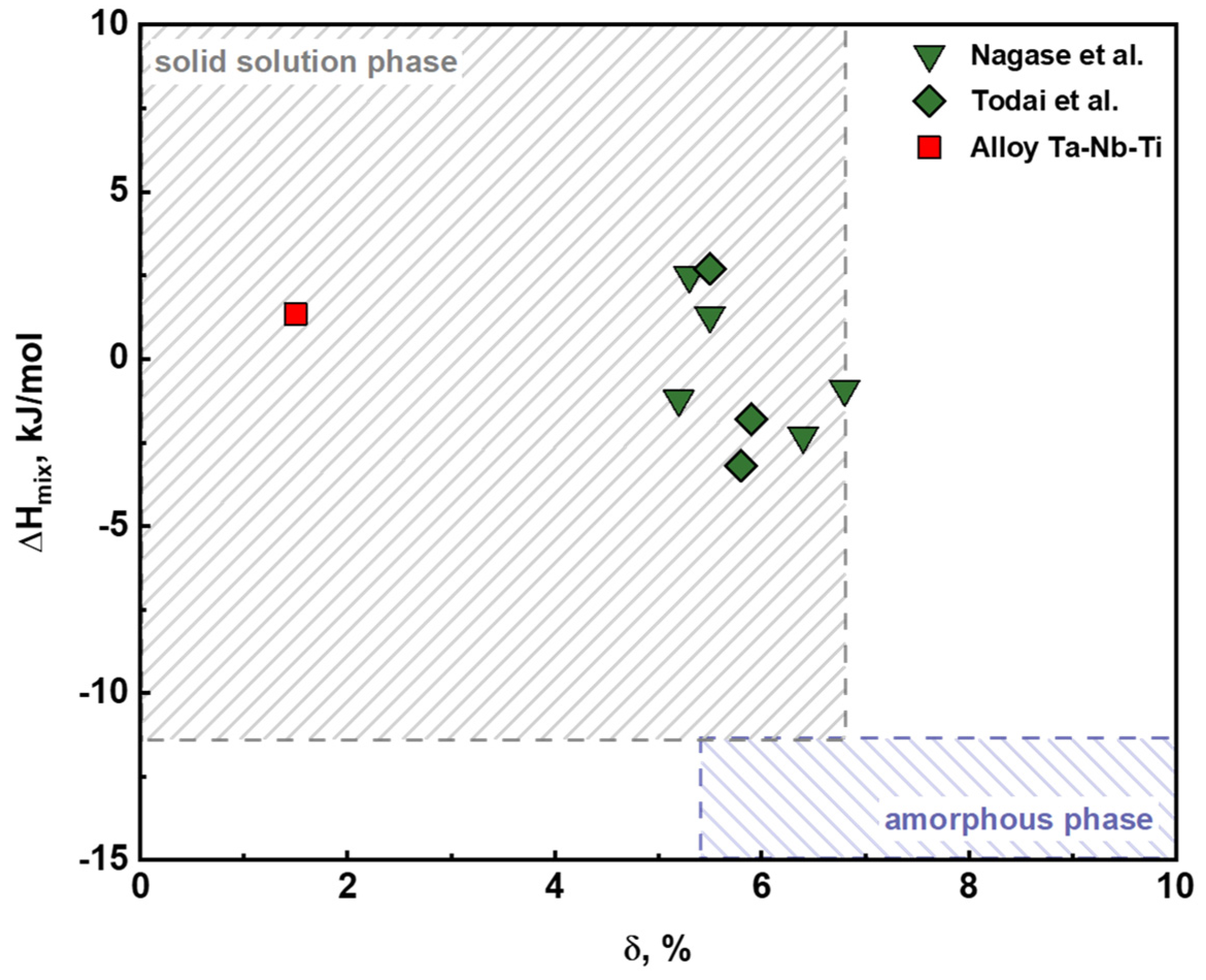

and depicted as ΔH_mix-δ plot in Figure 2. The diagram demonstrates the theoretical tendency of a HEA to either form a solid solution phase or an amorphous phase (cf. bulk metallic glasses) in the as-cast condition. Previous works [29,30] suggest that the delineation of aforementioned phase formations follows a rather simple rule: positive or slightly negative ΔH_mix values (ΔH_mix > ~ −11.6 kJ/mol) and moderate δ values (δ < ~ 0.066) support the formation of the solid solution phase, whilst a more negative ΔH_mix (ΔH_mix < ~ −12.2 kJ/mol) and corresponding higher δ (δ > ~ 0.064) benefit the formation of an amorphous phase. Hence being a key feature of HEAs, the formation of a single-phased structure is desired in the present study.

It should be mentioned here that a third region with regard to the formation of intermetallic phases (especially after heat treatment experiments) is not added in Figure 2 in this publication, firstly for the sake of simplicity and secondly due to the present lack of heat treatment results regarding the alloy developed. However, this can be found frequently in corresponding literature [30,31].

3.2. X-ray Diffraction and EDS Analysis of the Ta-Nb-Ti Alloy

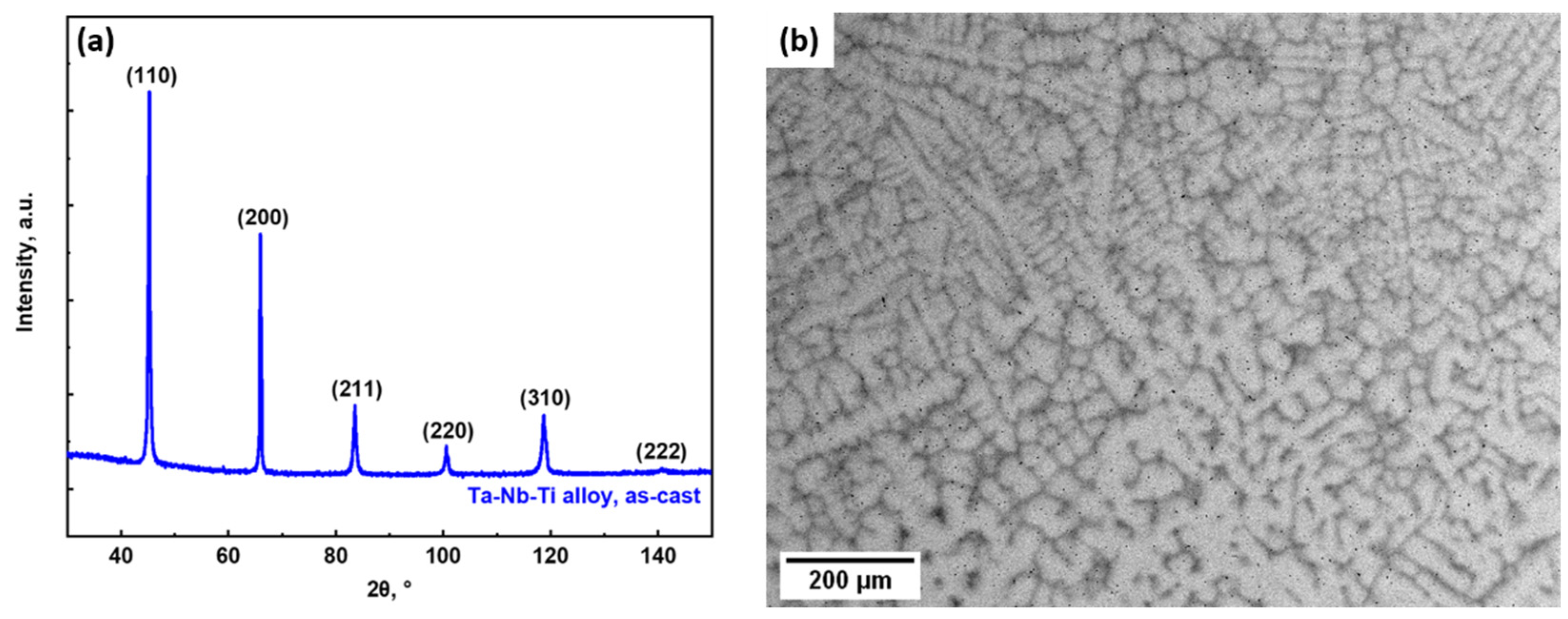

XRD analysis of the Ta-Nb-Ti alloy was carried out using a 2-θ-range from 30° to 150° and the results are displayed by means of the relative intensity of the reflexes obtained (Figure 3a). The results indicate a single-phase body centered cubical (bcc) crystal structure with an Im-3m space group. However, Rietveld refinement revealed the presence of two slightly different modifications of the lattice parameters (Im-3m I: a = 3.287 Å; Im-3m: a = 3.291 Å). This is in good agreement with the results of the BSE microstructural analysis, depicted in Figure 3b, which shows a dendritic structure with clearly distinguished interdendritic regions (dark regions).

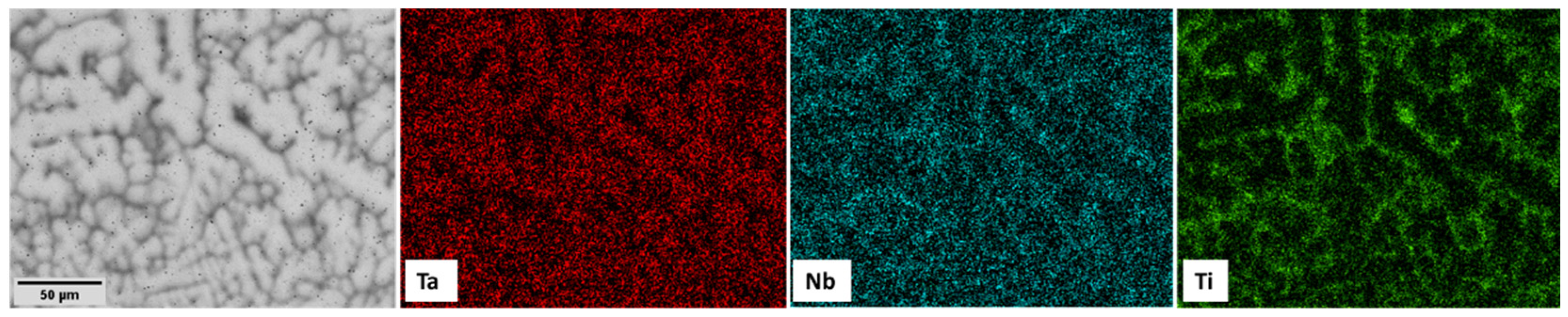

The difference in dendritic size, reaching from very pronounced and branched dendritic crystals in the upper section (with a roughly estimated dendritic arm spacing (DAS) of 10–20 µm), to a more coarse and bulky formation (no DAS measurements possible) in the lower region of the cross section, depicted in Figure 3b, can be attributed to the arc-melting procedure. The process related cooling rates are not constant, thus resulting in different solidification rates of the alloy [33,34]. The observed segregation is attributed to the difference in melting temperatures of the components, thus solidifying subsequently [5]. EDS analysis by means of element mappings (Figure 4) indicated a higher fraction of high melting Ta in the dendritic crystals, whilst the lower melting Ti was enriched in the interdendritic regions. Nb exhibits an intermediate melting temperature in the alloying composition, thus being present in the dendrites, as well as predominantly in the interdendritic regions. However, it is expected that long-term heat treatment will reduce the segregation effects [9].

3.3. Surface Preparation and Validation of the Samples

It has been widely investigated that the surface condition of endoprostheses plays a decisive role regarding cell adhesion and proliferation [35,36,37,38]. However, to determine and evaluate the interaction between the material and the attached tissue (rather than the cells and different surface structures) and to obtain a comparable reference value, all samples were manually grinded with a 1200 grit SiC grinding paper and investigated in that condition. For better handling, the specimens were mounted in cold embedding agent Technovit 4071 (Kulzer, Wehrheim, Germany). After successful preparation of the samples for the cell cultivation experiments, the embedding material was cracked and removed from the metallic samples.

3.3.1. Microhardness Analysis in Comparison to Competitive Implant Materials

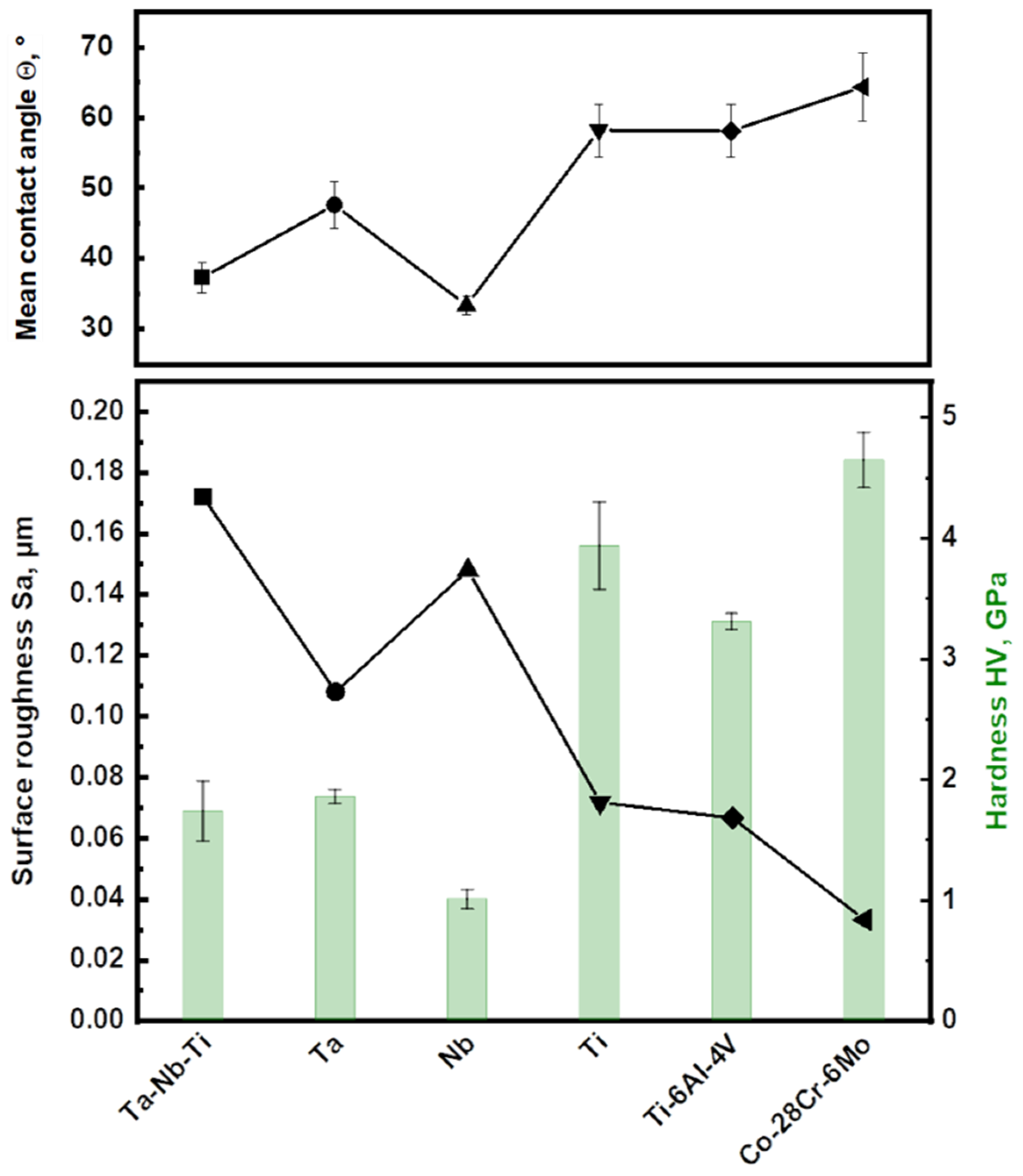

The hardness values are displayed and compared in Figure 5. It is noticeable that the hardness of alloy Ta-Nb-Ti is significantly lower than the values obtained from pure Titanium, however, higher than pure Niobium and comparable to Tantalum. This could be explained by the larger Ta- and Nb-rich dendrites, thus having a higher impact on the hardness development of the microstructure, compared to the smaller Ti-rich fractions in the interdendritic area. However, compared to the hardness values of the alloys Co-28Cr-6Mo and Ti-6Al-4V, the results obtained from alloy Ta-Nb-Ti are significantly lower. This is caused by the different types of alloy-specific microstructure and resulting strengthening effects (face-centered cubic (fcc) γ-phase with dispersed carbides regarding the Co-Cr-Mo alloys and the two phase α–β structure (α-Ti: hexagonal closest packed, hcp; β-Ti: bcc) concerning Ti-6Al-4V alloys) [37,39,40,41]. In general, the obtained hardness results show an opposing trend compared to the results of the OCA tests, as well as the surface roughness analysis. This coherence is based on the fact that if a consistent force is applied on the samples for the same time during preparation (grinding), the material with the lowest hardness undergoes the strongest abrasion and deformation, hence resulting in a rough surface. The samples exhibiting higher hardness values, however, have a smoother surface. These circumstances must be considered when the samples are compared with regard to cell adhesion and proliferation.

3.3.2. Contact Angle and Surface Roughness Analysis

To validate the surfaces of the samples for biocompatibility testing, different analysis methods were applied. The surface wettability analysis was conducted via contact angle measurements (OCA) on the prepared samples by means of the sessile-drop method. In accordance with DIN EN ISO 19403-2:2020-04 [42], 4 µL of water was applied on the sample surface, the drop contour was identified, and the contact angle Θ was determined using the Young–Laplace-method [43]. Prior to the measurements, the samples were cleaned with ethanol. Tests were repeated 5 times for each sample to obtain a valid statistic. The results are depicted in Figure 5.

The surface roughness of the different specimens were validated using a confocal microscope. The corresponding 3D surface parameters, such as Sa (arithmetic average height), Sz (maximum height), Sv (maximum recess height), etc., were determined according to DIN EN ISO 25178-1:2016-12 [44] and are displayed in

Table 2. Contact angles Θ in water and surface parameters Sa (arithmetic average height), Sz (maximum height) and Sv (maximum recess height) of the samples examined.

Sample	Mean Contact Angle Θ, °	Sa, µm	Sz, µm	Sv, µm
Ta-Nb-Ti	37 ± 2.1	0.172	2.48	1.41
Ta	48 ± 3.3	0.108	1.99	1.20
Nb	33 ± 1.3	0.148	3.16	1.75
Ti	58 ± 3.7	0.079	1.20	0.52
Ti-6Al-4V	58 ± 3.7	0.067	1.50	0.65
Co-28Cr-6Mo	64 ± 4.8	0.033	0.32	0.18
Mean	50 ± 11.4	0.101 ± 0.4	1.77 ± 0.9	0.95 ± 0.5

. The arithmetic average height is displayed in Figure 5 as the surface criterion of the samples prepared. The obtained maximum deviation between the sample with the highest surface roughness value (Ta-Nb-Ti; Sa = 0.172 µm) and the lowest surface roughness value (Co-28Cr-6Mo; Sa = 0.033 µm) was 0.139 µm.

When comparing the results of the OCA measurements and the surface roughness of the samples, the following correlation can be identified: Decreasing surface roughness results in an increasing contact angle. As all samples exhibited wettable surfaces (CA < 90°), this observation is based on an increase of surface area due to the rough surface, thus resulting in a better wettability, which is in good agreement with the literature [43]. It must be noted that these findings indicate differences of the samples’ surfaces, even though carefully prepared, and an influence on the comparability of the specimen regarding the biocompatibility experiments (cell attachment and spreading) can therefore not be excluded [45].

3.3.3. Biocompatibility

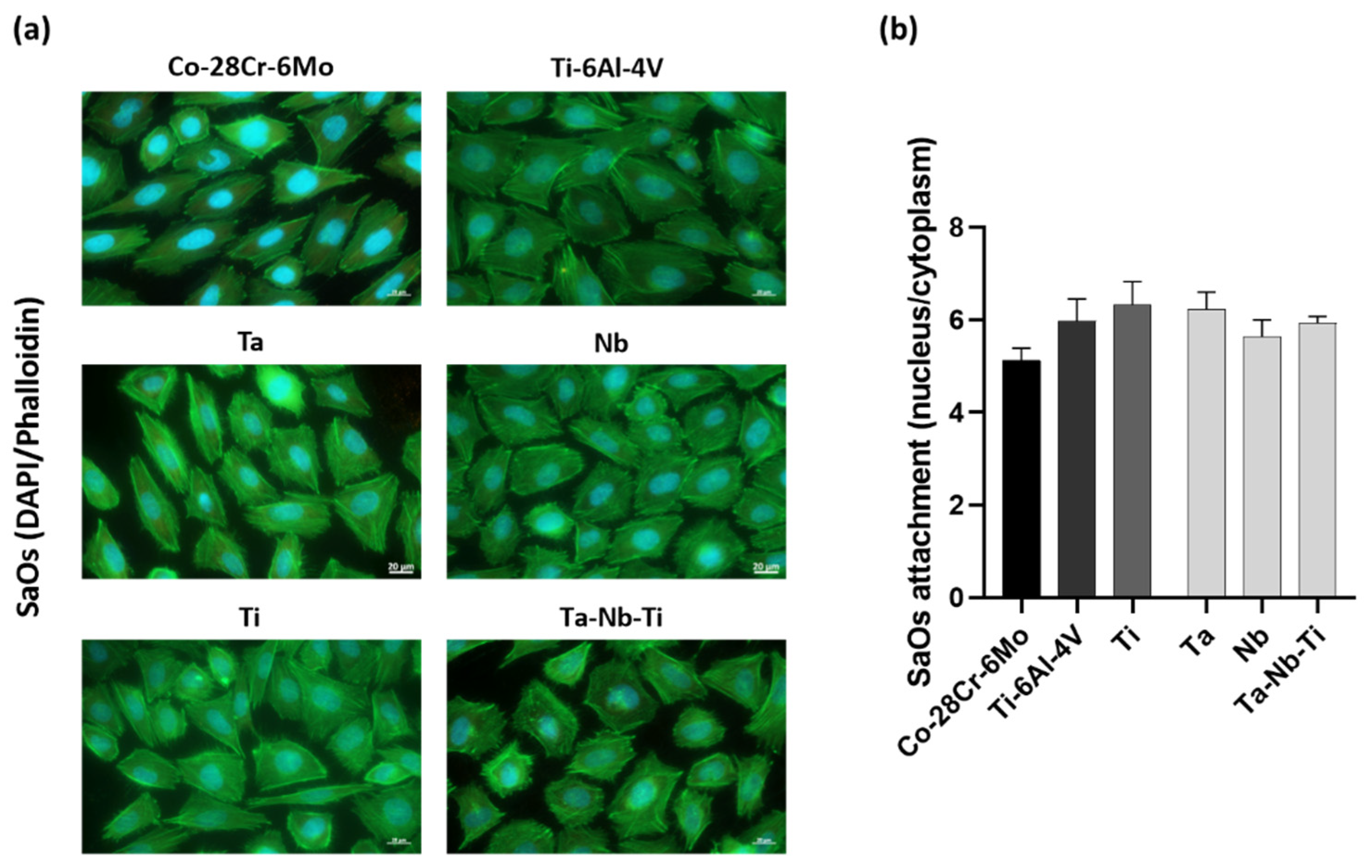

To test the potential usability of the novel alloys as an endoprosthetic implant material in an intraosseous application, human osteosarcoma cells (SaOs-2) were incubated on the novel alloy Ta-Nb-Ti, as well as on reference elements Ta and Nb and samples, which are already used as implant material [46] (Co-28Cr-6Mo, Ti-6Al-4V, and pure Ti). To evaluate the interaction of the osteoblast like cells with the different materials, the attachment and spreading of these cells on the surfaces were investigated. Phalloidin was used to visualize the cytoskeleton. Phalloidin can penetrate the cells and binds with high selectivity to the F-actin of the cytoskeleton. For imaging, the Phalloidin is fluorescently labelled with Alexa Fluor 488, which stains the cytoskeleton of the cell green. Figure 6a depicts the SaOs-2 cells on the different alloys. There is no difference in the number of osteoblasts attached to the different surfaces. Furthermore, the ratio between nucleus and cytoplasm was evaluated to compare the attachment behavior of the cells. Again, there was no difference observed between the alloys tested, indicating no negative effect on the osteoblasts (Figure 6b).

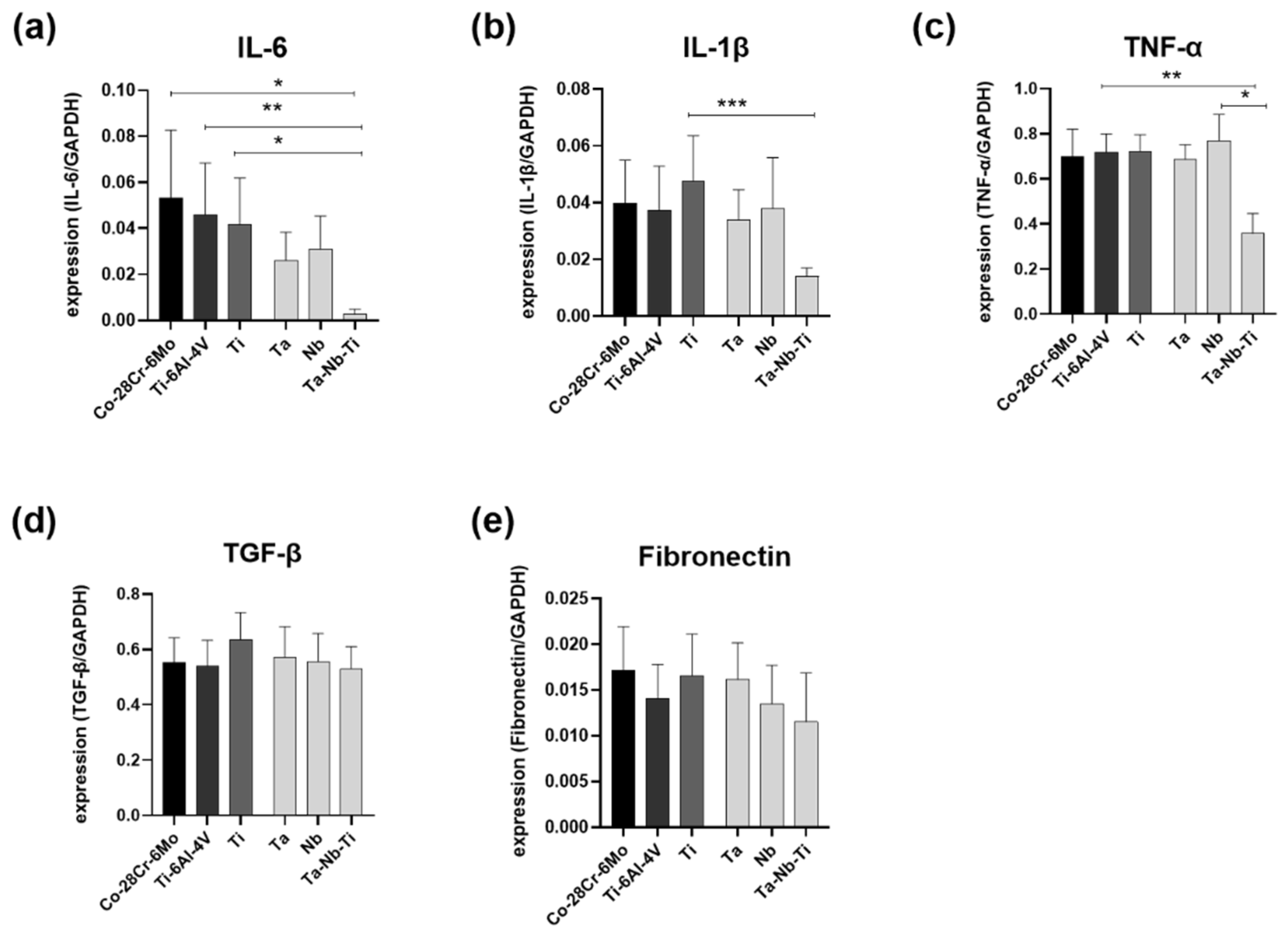

A reaction towards a foreign material in the human body is an unavoidable process that takes place whenever any material is implanted. This reaction is mostly inflammatory (e.g., IL-6 and TNF-α) and can develop into a fibrotic response (TGF-β and fibronectin) over time [47]. Therefore, in a subsequent step, the inflammatory potential of the novel alloys was tested using a monocytic cell line (MM6). These cells were incubated for 24 h on the different platelets and the reaction of these cells towards either inflammation (Figure 7a–c) or fibrosis marker genes (Figure 7d,e) was investigated using qRT-PCR. No significant differences between Co-28Cr-6Mo, Ti-6Al-4V, pure Ti, Ta, and Nb were observed. However, a significant reduced expression of IL-6 (~20-fold, p = 0.006), IL-1 (~3-fold, p = 0.007), and TNF alpha (~2-fold, p = 0.04) was observed comparing alloy Ta-Nb-Ti to the other samples examined. Especially, in comparison to pure Ti or Ti-6Al-4V, alloy Ta-Nb-Ti showed a markedly reduced inflammatory capacity. The most surprising result is that alloy Ta-Nb-Ti seems to be more resistant to inflammation in comparison with the respective elements Ta, Nb, and Ti. No changes in expression were observed with respect to fibrosis markers.

4. Conclusions

In the present manuscript, we report initial findings regarding the development of a novel multi-component Ta-Nb-Ti alloy for biomedical applications.

The investigations included equiatomic alloy Ta-Nb-Ti, as well as several metallic samples made from Ta, Nb, Ti, Ti-6Al-4V, and Co-28Cr-6Mo, which were metallographically prepared and examined by means of XRD and SEM analyses.

Furthermore, samples of the aforementioned elements and alloys were prepared with 1200 grit SiC grinding paper for subsequent cell cultivation experiments.

Validation experiments (contact angle measurements by means of the sessile drop method, confocal microscope surface roughness analysis, and microhardness analysis of the surface) revealed that, even though the samples were prepared cautiously, surface roughness differences are inevitable regarding the sample preparation methods used and an influence regarding cell attachment experiments could therefore not be excluded [45].

Biocompatibility experiments by means of the cultivation of human osteosarcoma cells (SaOs-2) were carried out on all samples. Analysis of the fluorescently labelled osteoblasts indicated no difference between novel alloy Ta-Nb-Ti and the other samples, considering the number of cells, as well as the ratio between nucleus and cytoplasm (cell attachment). Additionally, inflammatory experiments with monocytic cells (MM6) were performed on the samples for 24 h. Results demonstrated comparable expressions of fibrosis markers across all samples tested and significantly reduced inflammatory capacity regarding alloy Ta-Nb-Ti in comparison with the other alloys, although the latter has a higher roughness.

The overall results of the present study indicate a good biocompatibility of the novel alloy Ta-Nb-Ti in comparison with established biomedical materials [46], such as pure Ti, Ti-6Al-4V or Co-28Cr-6Mo, as well as elemental Ta and Nb.

To achieve even more distinguished results in the future, ongoing biocompatibility experiments are focused on sample preparation methodologies regarding the surface quality and comparability (f.e. by means of laser structuring). In addition, the spectrum of OCA analysis will be extended from water to the fluids that are used for cell cultivation experiments (i.e., artificial human body fluids) to obtain more specific contact angles.
