Research on the Mathematical Model of Local Equilibrium in the Top-Blown Smelting Process of Electronic Waste

Abstract

In the present study, the local equilibrium modeling and division method of the multiphase non-equilibrium for the top-blowing smelting process of electronic waste was investigated based on the local equilibrium hypothesis. And the mathematical description of the multi-phase equilibrium of each local area and the correlation method between the local areas were studied by analysis of relationships among the valence state, phase, composition, and Gibbs free energy of each element. Afterward, the reaction characteristic data such as melting material, product phase, composition, temperature, atmosphere, etc. were obtained via industrial measurement experiments. Based on these, a mathematical model of local equilibrium for the top-blowing smelting process of electronic waste was established. Finally, the thermodynamic digital simulation system was developed via the calculation of metallurgical process and online control platform MetCal Desk (v7.00, MetCal, Ganzhou, China), which can investigate the element distribution behavior during the smelting process and provide theoretical guidance for the industrial production practice.

1. Introduction

With continuous improvements in science and technology, the electronics industry has ushered in rapid changes. The number of eliminated electronics-related products is increasing rapidly due to the short replacement cycle of electronic products [1,2,3,4]. Currently, 20–50 million tons of e-waste are generated globally, and the average annual growth rate is three times that of other solid wastes according to an analysis report by the United Nations Environment Programme [5,6]. In addition, e-waste is increasing at an annual growth rate of 3% to 5% in EU countries, which will also increase more than three times in developing countries over the next five years [7]. These will not only cause huge environmental pressure, but also provide broad prospects for the utilization of valuable resources; the economic value and environmental benefits have also become increasingly prominent.

Since the 1970s, a variety of new technologies and equipment for the comprehensive utilization of rare and precious metal renewable resources have been developed, which use anode slime, electronic waste, and industrial slag containing rare and precious metals as raw materials [2,8]. For instance, Bydałek. A. et al. [9] reported a novel method of separating some metals from liquid slag; the structure of the slag in liquid state, the properties and interactions within the slag were discussed in detail. Furthermore, there are many valuable metals and organic substances in electronic waste, and its recycling and utilization can not only solve the problem of environmental pollution but also recover valuable secondary resources.

In recent years, the comprehensive recycling technology of electronic waste has become a hot topic globally and a wide variety of novel processes can be developed [10,11,12,13]. For instance, the United States uses Kaldor furnaces to smelt electronic waste, Germany and Belgium use ISA furnaces, and Japan and South Korea use Ausmelt furnaces. For China, after simple physical separation of electronic scrap, most of the rare and precious metals are enriched in the crude copper during the smelting process, realizing the separation from non-metals. Afterward, the crude copper is refined by the pyrorefining process, and then rare precious metals are recovered from the electrolytic anode slime. Nevertheless, there are lots of problems in the electrolysis process, such as serious depletion of copper ions, high cell voltage, and low current efficiency in terms of low copper grade and high impurities in crude copper [14,15,16]. Moreover, the existing process of copper anode slime has defects such as long process, difficult comprehensive recovery of precious metals, temperature distribution asymmetry, incomplete low-temperature cracking of organic matter, dioxins in tail gas [17], etc. Therefore, it can be seen that the overall treatment technology and equipment of electronic waste need to be further improved and innovated.

In view of these, the Nerin Recycling Technology (NRT), an innovative comprehensive recycling process for electronic waste, was developed and took the lead in realizing industrial applications. Similar to the Kaldor furnace, ISA furnace, and Ausmelt furnace, the NRT furnace is a high-temperature intensified top-blown bath smelting furnace, which has broad prospects for popularization and application. However, how to improve the direct recovery of valuable metals and reduce the emission of toxic and harmful gases is a key issue to realize efficient smelting and clean production of electronic waste.

The slag-gold-gas system has characteristics of great heat and mass transfer conditions and a high reaction rate due to the high-pressure swirling effect produced by the hydrocyclone based on the research of top-blowing submerged bath smelting [18]. It can be seen that the electronic waste reacts quickly with the gas by the continuous injection of excess oxygen during the process of high-temperature molten pool smelting, which indicates good reaction kinetic conditions. At the same time, the high-temperature smelting reaction system involves different phases such as blister copper, copper matte, slag, magnetite, and flue gas. The composition of electronic waste, smelting temperature, and reaction atmosphere are constantly changing in the process of high-temperature smelting for several hours. The reaction system has obvious non-equilibrium multiphase reaction characteristics because of the continuous phase transformation and component migration, and then gradually completes complex reactions such as oxidation, combustion, slagging, copper production, etc.

It is difficult to comprehensively analyze the physical and chemical behavior of electronic waste during the smelting process in the laboratory due to the complexity of the high-temperature non-equilibrium reaction system. To solve this problem, the predecessors have made many successful explorations, carrying out the experimental research directly in an industrial furnace [19,20]. Wołczyński. W. et al. [21] investigated copper droplets agglomeration/coagulation in conditions that were similar to those usually applied to the industrial process, and the influence of the liquid slag stirring on the copper droplets self-cleaning was also analysed. However, the production practice usually requires relatively stable process conditions, which makes it difficult to implement a large number of experiments in the factory. Thus, it is necessary to find a method to investigate the influence of various working situations on the physicochemical behavior of electronic waste in the smelting process.

Nowadays, digital–analog simulation technology has become an effective method for studying the laws of high-temperature pyrometallurgy with the rapid development of computer technology. For example, Wang [22], Xu [23], Zhang [24], Li [25], and the author of this work [26] performed thermodynamic computer simulations on high-temperature molten pool smelting. It can be found that they all regard the entire smelting furnace as a closed system reaching or approaching the equilibrium of chemical reactions. Besides, the smelting furnace is regarded as a “black box”, which cannot reflect the microscopic migration and transformation behavior of materials during the smelting process.

The local-equilibrium hypothesis is an important method for solving non-equilibrium thermodynamics problems by classical thermodynamics and has been successfully applied to some fields such as metallurgy and materials. Previous studies on the melting kinetics of top-blowing immersed bath smelting provide a feasible theoretical basis for introducing the local equilibrium assumption into the modeling of a non-equilibrium multiphase system in top-blowing smelting of electronic waste. Hence, the high-temperature molten pool smelting process is regarded as a multi-phase reaction system in which electronic waste and reaction gas continuously reach a local equilibrium, and the time is discrete in millisecond order. Simultaneously, the smelting process is divided into several microelement localities of time, and then a multi-phase equilibrium mathematical model is constructed for each time microelement region according to the principle of minimum Gibbs free energy. Afterward, the local models are associated based on the transfer relationship between electronic waste and reaction gas in each micro-element local area; in this way, the mathematical model of the composition transfer and transformation of electronic waste in the smelting process is established, and the non-equilibrium multiphase reaction system of the electronic waste smelting is also analyzed.

In conclusion, based on the local equilibrium hypothesis of the non-equilibrium system and combined with the production practice of the NRT smelting industry, the local equilibrium modeling and division method of the non-equilibrium multiphase reaction system of the electronic waste top-blowing smelting process are investigated in this study. The mathematical description of the multi-phase equilibrium of each local area and the correlation method between the local areas are studied on the basis of the analysis of the relationship between valence state, phase, composition, and Gibbs free energy of each element. In addition, reaction characteristic data such as melting material, product phase, composition, temperature, atmosphere, etc. are obtained by industrial measurement experiments. It can provide production practice data for the construction, verification, and optimization of digital models, which will help to further improve the consistency between the model and production practice. Furthermore, the establishment of a local equilibrium mathematical model for the top-blowing smelting process of electronic waste can provide theoretical guidance for the development of a thermodynamic digital simulation system.

2. Top-Blowing Smelting System of Electronic Waste

Figure 1 depicts the flow chart of the top-blowing smelting system of electronic waste. It can be seen that the smelting system mainly consists of a feeder, furnace stack, combustion chamber, waste heat boiler, and discharge outlet. The top-blowing melting process is as follows: firstly, the crushed electronic waste, slagging flux, and additives (iron powder) are put into the high-temperature furnace together with air. Secondly, refractory oxides such as plastics and glass fibers are burned and removed from the molten pool in the form of high-temperature flue gas. The heat in the furnace is ensured by exothermic reactions from the burden. Then the impurity metal is oxidized to form the slag phase with slagging flux, at the same time, the copper and precious metals such as gold, silver, platinum, and palladium form a molten metal phase. Finally, the metal phase and the slag phase are stratified due to the difference in immiscibility and density. Based on this, the main purpose of top-blowing smelting of electronic waste is to separate metals and non-metals, while enriching rare and precious metals such as gold, silver, platinum, and palladium in the crude copper as much as possible.

Generally, the thermodynamic equilibrium state is the stationary state of the zero-degree due to the thermodynamics of irreversible processes, and the course of the stationary process at the entropy production minimum was justified [27].

In this work, as the heat and mass transfer process in the slag-gold-gas system can be strengthened in the top-blowing submerged bath smelting, the composition of electronic waste, smelting temperature, and reaction atmosphere have typical characteristics of non-equilibrium heterogeneous reaction. Thus, the local equilibrium assumption can be introduced in this non-equilibrium system, and then a local equilibrium mathematical model for the top-blowing smelting process of electronic waste will be established.

2.1. Modeling Method of Local Equilibrium

The local-equilibrium hypothesis plays an important role in solving non-equilibrium thermodynamics issues based on the classical thermodynamic theory. It has been successfully applied to metallurgy, materials, and other fields. Koshikawa [28] effectively simulated the phase transformation behavior in the solidification process of metal alloy by introducing the local equilibrium assumption. Similarly, Zhang [29] carried out a local equilibrium thermodynamic calculation on the solidification process of cast iron and successfully predicted the phenomenon of carbide deposition. Furthermore, Wang [30] established the local equilibrium mathematical model of the reaction shaft in a copper flash smelting furnace and investigated the formation thermodynamics of Fe₃O₄ in the reaction tower, the results of which are consistent with the measured values in the literature.

The top-blowing smelting process of electronic waste has characteristics of uniform mixing of raw materials and gas, and rapid reaction, that is, in a very short time (such as 1 millisecond), it can be considered to reach or be close to an equilibrium state. In view of these, the molten pool smelting process is regarded as a multi-phase reaction system in which electronic waste and reaction gas continuously reach local equilibrium. Meanwhile, by introducing the local equilibrium assumption of a non-equilibrium system, the entire smelting process can be divided into several time micro-element regions, and the multi-phase equilibrium mathematical model can be constructed according to the principle of minimum Gibbs free energy. To establish a mathematical model for the migration and transformation of electronic waste components in the smelting process, it is necessary to associate electronic waste and reactive gas in each micro-element local model.

2.2. Physical Model Description

In this study, for the stabilization process of top-blowing smelting with a certain scale of electronic waste treatment, assuming that the entire smelting process is divided into n local regions with the same reaction time of 1 millisecond when burning and melting inhomogeneous and heterogeneous burden, the electronic waste and the reaction gas can be considered to reach or be close to the chemical equilibrium state due to the characteristics of uniform mixing and rapid reaction in the top-blowing melting process. Thus, the description of the local equilibrium physical model for top-blowing smelting of electronic waste is shown in Figure 2.

As to m_material tons of raw materials (including electronic wastes, fluxes, and additives), assuming that the total time of the smelting takes t hours and the reaction gas (industrial oxygen and air) needs V_gas Nm³, then the local number n can be calculated according to Equation (1):

$$n=t\times 60\times 60\times 1000=3,600,000t$$

(1)

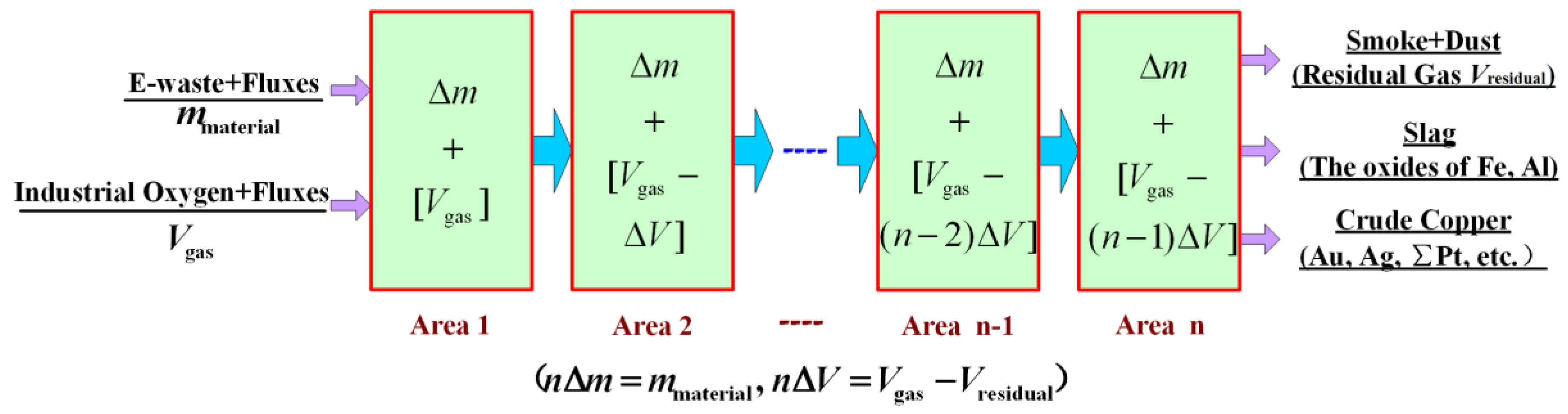

It will be divided into n parts and gradually react with the surrounding reaction gas when the raw material with quality m_material is put into the top-blown smelting furnace based on the local equilibrium assumption of a non-equilibrium system. That is, in the first region, the material with a mass of ∆m reacts with oxygen by a volume of V_gas and reaches a chemical equilibrium state, which consumes ∆V gas. Then, the materials with a mass of ∆m will react with oxygen by a volume of (V_gas − ∆V) in the second area when approaching the chemical equilibrium state, and so on until the reaction takes place for t hours. At this time, the last remaining material of ∆m will reach chemical equilibrium with the reaction gas by a volume of [V_gas − (n − 1) ∆V], and the residual gas V_residual forms flue gas, which is discharged out of the furnace.

In the above, ∆m and ∆V can be calculated via Equations (2) and (3), respectively:

$$\Delta m=\frac{1}{n}{m}_{material}$$

(2)

$$\Delta V=\frac{1}{n}(V_{gas}-V_{residual})$$

(3)

Therefore, the thermodynamic model of the top-blowing smelting process of electronic waste can be established by building a multi-phase equilibrium model of each area and using the phase transfer between the regions.

3. Mathematical Model and Algorithm

3.1. Mathematical Description

Based on the second law of thermodynamics [31,32], for each equilibrium region in the top-blowing smelting process of electronic waste, the total Gibbs free energy can be expressed by Equation (4):

$$G={\displaystyle \sum _{j=1}^s{G}_j^{\Theta }}{n}_j+{\displaystyle \sum _{j=s+1}^c{\displaystyle \sum _{l=1}^p{G}_{lj}{n}_{lj}}}$$

(4)

where c denotes the component fraction; p is the number of phases; s denotes the amount of pure condensed phases; j is the component of the system; n_j denotes the mole number of the j component; $G_j^{\Theta }$ is the standard Gibbs free energy of formation of component j; n_lj is the mole number of the j component in the l phase; G_lj denotes the chemical potential of j component in the l phase.

G_lj can be calculated by Equation (5):

$$G_{lj}=G_{lj}^{\Theta }+RT\ln {\gamma }_{lj}{x}_{lj}$$

(5)

where $G_{lj}^{\Theta }$ is the standard Gibbs free energy of formation of component j in the l phase; γ_lj denotes the activity coefficient of j component in the l phase; x_lj is the mole fraction of j component in the l phase; R denotes the gas constant; T is the temperature.

According to the law of mass conservation [33,34,35], the constraint conditions can be obtained as shown in Equation (6):

$$b_k={\displaystyle \sum _{j=1}^s{a}_{kj}}{n}_j^c+{\displaystyle \sum _{j=s+1}^c{\displaystyle \sum _{l=1}^p{a}_{kj}{n}_{lj}k=1,2,\cdots m}}$$

(6)

where b_k denotes the mole number of the k element; a_kj denotes the atomic number of the k element in component j.

In order to solve the local multi-phase equilibrium thermodynamic model consisting of Equations (4)–(6) and obtain the phase composition of each local area, the Rand algorithm [36,37] can be introduced in this work.

3.2. Solution Algorithm of the Model

The principle of the Rand algorithm is to expand Equation (4) of the total Gibbs free energy in the system with the second-order Taylor formula at $n^{(k)}=n_1^{(k)},n_2^{(k)},\cdots n_c^{(k)}$; simultaneously, combining with the law of conservation of mass and considering $n_i^{(k)}>0 (i=1,2,\cdots c)$, the following equation can be obtained:

$$\begin{array}{c}{Q}^{(k)}=G^{(k)}+{\displaystyle \sum _{j=1}^s\frac{\partial G^{(k)}}{\partial n_j^c}(N_j^c-n_j^{c(k)})+{\displaystyle \sum _{l=1}^p{\displaystyle \sum _{j=s+1}^c\frac{\partial G^{(k)}}{\partial n_{jl}}(N_{jl}-n_{jl}^{(k)})}}}\\ \begin{array}{l}+\frac{1}{2}{\displaystyle \sum _{j=1}^s\frac{{\partial }^2{G}^{(k)}}{\partial n_j^{c^2}}}(N_j^c-n_j^{c(k)}{)}^2\\ +\frac{1}{2}{\displaystyle \sum _{l=1}^p{\displaystyle \sum _{j=s+1}^c{\displaystyle \sum _{k=s+1}^c\frac{{\partial }^2{c}^{(k)}}{\partial n_{jl}\partial n_{kl}}(N_{jl}-n_{jl}^k)(N_{kl}-n_{kl}^k)}}}\end{array}\end{array}$$

(7)

Then, the constraint conditions are transformed into unconstrained conditions by introducing the Lagrange factor, and the following function of $F^{(k)}$ can be constructed:

$$F^{(k)}=Q^{(k)}+RT{\displaystyle \sum _{k=1}^M{\lambda }_k[b_k-{\displaystyle \sum _{j=1}^s{a}_{jk}{N}_j^c-{\displaystyle \sum _{l=1}^p{\displaystyle \sum _{j=s+1}^c{a}_{jk}{N}_{jl}]}}}}$$

(8)

where N denotes the vector of components at equilibrium, the corresponding expression is as follows:

$$N_l={\displaystyle \sum _{j=1}^c{N}_{jl}}l=1,\cdots p,j=1,\cdots c$$

(9)

In addition, the necessary conditions for extreme values are:

$$\frac{\partial F}{\partial N_j^c}=\frac{\partial F}{\partial N_{jl}}=\frac{\partial F}{\partial {\lambda }_k}=0l=1,\cdots p,k=1,\cdots M$$

(10)

Thus, in order to obtain the mole number of different components in each phase of the equilibrium system, the linear equations are solved, which are converted with nonlinear equations.

3.3. The Calculation Process of the Mathematical Model

Figure 3 depicts the mathematical model calculation process for the top-blowing smelting process of electronic waste. To ensure the accuracy and precision of the model calculation results, a three-layer cycle, including local iteration, composition iteration, and activity coefficient iteration [38] is adopted in this work.

• Local iteration

According to the specified smelting time, the iterative cycle calculation is performed on each local area, where the local number n is calculated via Equation (1), so as to ensure that the reaction balance calculation of each local area is carried out.

2.

Composition iteration

The initial value of each component has a great influence on the convergence of the solution process when solving the multiphase equilibrium equations via the iterative method. Especially, it can be determined by experience and trial calculations and ignore certain limitations. To ensure reliable convergence and a high convergence rate in the solution process when the input parameters change in a large range, a graded transition method to automatically adjust the initial value is proposed in this research, that is, based on the solution calculated by a group of similar system instances, it gradually approaches the current system via hierarchical adjustments and changes.

3.

Activity coefficient iteration

The calculation process of the composition of each phase in the equilibrium system involves the activity coefficient, component, and process conditions; the activity coefficient must be iteratively calculated to ensure the correctness of the calculation result when a new composition is generated after the iteration [39].

4. Results and Discussion

4.1. Thermodynamic Parameters

The activity coefficients of each phase component required for calculation are listed in

Table 1. The activity coefficient of different components [40,41,42].

Components	Phase	Activity Coefficient
Cu	Crude copper	1
Au	Crude copper	$exp(-1660/T)$
Ag	Crude copper	$exp(850/T-0.070)$
Pb	Crude copper	$exp(2670/T-1.064)$
Pd	Crude copper	1
FeO	Slag	$1.42x_{\mathrm{FeO}}-0.044$
Fe3O4	Slag	$0.69+568x_{{\mathrm{Fe}}_3{\mathrm{O}}_4}+5.45x_{{\mathrm{SiO}}_2}$
SiO2	Slag	2.1
CaO	Slag	1
PbO	Slag	1
Cu2O	Slag	$57.14x_{{\mathrm{Cu}}_2\mathrm{O}}$
Ag2O	Slag	$4.878\cdot exp(1523/T)\cdot P_{O2}^{0.0352}$
Al2O3	Slag	1
B2O3	Slag	1
Au	Slag	50
Ag	Slag	255
Pd	Slag	200

. Among them, the activity coefficients of the components are based on the reference, which is adjusted appropriately according to actual production data.

The Gibbs free energies of the components in various phases can be calculated according to Equation (11). Meanwhile, the Standard Gibbs energy of formation required for the calculation is listed in

Table 2. The Standard formation Gibbs free energy of component [39].

Component	State	$$\begin{gathered} \Delta {\mathit{H}}_{298}^{\mathit{\Theta }} \\ (\mathbf{kJ}/\mathbf{mol}) \end{gathered}$$	$$\begin{gathered} \Delta {\mathit{S}}_{298}^{\mathit{\Theta }} \\ (\mathbf{J}/\mathbf{Kmol}) \end{gathered}$$	$\mathit{C}\mathit{p}=\mathit{a}+\mathit{b}\times {10}^{-3}\mathit{T}+\mathit{c}\times {10}^5{\mathit{T}}^{-2}+\mathit{d}\times {10}^{-6}{\mathit{T}}^2(\mathbf{J}/\mathbf{kgK})$
				a	b	c	d
Cu	l	8.028	34.236	32.845	0.000	0.000	0.000
Au	l	0.000	47.489	23.326	6.053	0.237	−1.181
Ag	l	0.000	42.678	24.347	2.544	0.025	2.895
Pb	l	3.873	70.506	32.490	−3.088	0.000	0.000
Pd	l	0.000	37.824	32.192	−14.188	−3.368	11.480
FeO	l	−256.323	52.148	52.148	0.000	0.000	0.000
Fe3O4	l	−993.310	198.380	213.384	0.000	0.000	0.000
SiO2	l	−927.526	9.309	85.772	0.000	0.000	0.000
CaO	l	−572.895	40.979	62.760	0.000	0.000	0.000
PbO	l	−202.244	73.377	73.377	0.000	0.000	0.000
Cu2O	l	−130.221	96.399	99.914	0.000	0.000	0.000
Ag2O	l	−31.131	121.003	59.433	40.341	−4.812	−2.390
Al2O3	l	−1675.732	50.950	9.777	294.732	−2.485	−198.179
B2O3	l	−1273.530	59.971	64.160	64.598	−18.366	0.033
CO2	g	−393.515	213.774	22.227	56.202	0.105	−22.519
O2	g	0.000	205.154	22.060	20.887	1.621	−8.207
N2	g	0.000	191.615	23.529	12.116	1.210	−3.076
H2O	g	−285.837	69.952	186.889	−464.258	−19.565	548.644
Pb	g	0.000	64.802	26.354	−6.154	−0.157	25.977
PbO	g	70.300	240.042	33.413	6.852	−2.395	−2.940
HCl	g	−92.314	186.900	29.151	−0.365	0.000	1.099
Cl2	g	0.000	223.084	23.274	51.224	0.144	−53.560
Br2	g	0.000	152.214	−39.004	368.864	28.711	−310.331
HBr	g	−36.291	196.702	29.102	0.053	0.000	0.231

.

$$\Delta G_T=\Delta H_{298}^{\Theta }-T\cdot \Delta S_{298}^{\Theta }+{\displaystyle {\int }_{298}^{T}Cp}dT-T{\displaystyle {\int }_{298}^T\frac{Cp}{T}}dT$$

(11)

4.2. Process Parameters

4.2.1. Material and Methods

The raw material of the cutout of copper-clad laminate used in the present work was provided by a non-ferrous smeltery from Jiangxi Province in China. The chemical compositions of the materials were measured by X-ray fluorescence (XRF), as shown in

Table 3. Chemical compositions of the cutout of copper-clad laminate.

Contents	Cu	Au(g/t)	Ag(g/t)	Pd	Pb	Fe	SiO2	CaO	Al2O3	B2O3	H2O
(wt %)	19.43	0.20	0.50	0.48	0.038	0.19	16.91	9.59	6.84	16.89	5.00
Organic	C2H3Cl		C2H4	CH3NO2		C7H8O2	C12H6Cl4		C12H8Br2	C15H16O2
(wt %)	5.00		10.00	3.00		7.00	3.00		12.00	60.00

. It can be seen that the mass fraction of B₂O₃ in the scrap copper clad laminate is up to 16.89 wt% compared with the copper concentrate, but the Fe content and the ratio of Fe/SiO₂ are only 0.19 wt% and 0.011, respectively, which is difficult to meet the requirements of general slag type, resulting in the inability to obtain slag with suitable melting point and viscosity. In addition, the amount of organic matter in copper-clad laminate is approximately 23.9 wt%.

Moreover, the viscosity and temperature of the smelting slag of electronic waste decrease rapidly with the increase in B₂O₃ and the ratio of CaO/SiO₂, while the viscosity increases and the temperature increases first and then decreases with the rise in FeO, according to the author’s previous work [43].

Therefore, to achieve a slag state with good viscosity and melting point, it is necessary to appropriately increase the amounts of Fe and CaO in the slag and avoid the contamination of impurities. In this study, the limestone with 86 wt% CaCO₃ and iron powder with 95 wt% Fe, respectively, are added as the additive to the high-temperature melt, where the amount added of the fluxes are determined based on the types of slag.

Generally, the high-temperature quench sampling technology is used to collect samples from industrial smelting furnaces. Practice indicates that the important parameters including phase component and chemical composition of high-temperature melt can be obtained without affecting normal production, which provides a reliable method for sampling from high-temperature furnaces in the electronic waste industry.

According to the industrial production practice, the high-temperature melt can be taken out from the outlets of slag and crude copper by a steel spoon during the stable NRT smelting, which is a typical top-blown smelting of electronic waste. After being quenched with water, the reaction products can be collected at different times with the interval of 30 min, and the sampling time is repeated three times to eliminate the systematic error.

The chemical compositions of the above samples were determined by the X-ray Fluorescence Spectrometry (XRF, AXIOS-MAX, Almelo, The Netherlands) and direct-reading inductively coupled plasma-optical emission spectrometer (ICP-OES, IRIS Intrepid II XSP, Thermo Fisher Scientific Co., Waltham, MA, USA), respectively.

4.2.2. Conditional Control

Based on the industrial production practice of top-blown smelting of electronic waste, the process and control parameters are discussed in detail. In this work, the processing capacity of the scrap copper-clad laminate is up to 3.13 t/h. After smelting for 4 h with conditions of oxygen grade of 21% and total air of 6000 Nm³/h, the contents of CaO and FeO in the slag were found to be 31% and 3%, respectively. Meanwhile, the corresponding dust rate and air leakage rate are controlled at 5% and 10%, respectively. More importantly, the heat balance parameters are fixed as follows: the area of the furnace wall of 119 m², the lining thickness of 0.4 m, the ambient temperature of 25 °C, the convective heat-transfer coefficient of 18 W/(m²·K), and the coefficient of blackness with 0.8. The parameters of crude copper, slag, off-gas, dust, and flue gas are automatically calculated based on the balance of heat.

4.3. The Foundation of a Simulation System

After establishing the mathematical model of local equilibrium and thermodynamic parameters in top-blown smelting of electronic waste, the corresponding thermodynamic digital simulation system was developed based on the calculation of metallurgical process and an online control platform MetCal Desk (v7.00, MetCal, Ganzhou, China) [44], as illustrated in Figure 4. The simulation system links the relevant information of each metallurgical unit from top to bottom in an orderly manner and can effectively calculate the material balance and thermal balance of the electronic waste, which provides an effective method for investigating the distribution behavior of elements during the top-blowing smelting process.

4.4. Test Case

The calculation and verification of the simulation system were carried out based on industrial production. On this basis, the phase composition, component, feed rate, and other parameters of the optimization model can be adjusted to improve the consistency with the production practice.

4.4.1. Material Balance of Input-Output

Table 4. The input–output material balance in the NRT smelting of electronic waste.

No.	Input				Output
	Phase	°C	kg/h	Nm3/h	Phase	°C	kg/h	Nm3/h
1	Scrap of copper-clad laminate	25	3130.00		Crude copper	1250	515.60
2	Iron powder	25	67.51		Slag	1280	2058.51
3	Limestone	25	740.30		Off-gas	1317	8926.77	6730.56
4	Arenaceous quartz	25	0.00		Dust	1317	159.88
5	Industrial oxygen	25	0.00	0.00
6	Air	25	7722.94	6000.00
Total			11,660.75	6000.00	Total		11,660.75	6730.56

shows the input–output material balance in the NRT smelting of electronic waste combined with the production practice of the top-blown smelting industry. After inputting the scrap copper-clad laminate of 3130 kg/h, the iron powder of 67.51 kg/h, and the limestone of 740.3 kg/h, it produces 515.6 kg/h of the crude copper, 2058.51 kg/h of the slag, 8926.77 kg/h of the off-gas, and 159.88 kg/h of the dust, respectively. Significantly, both the temperature of off-gas and dust can be up to 1317 °C.

4.4.2. The Contents of Products

After the NRT smelting of electronic waste according to the thermodynamic digital simulation system, the element composition (XRF) of products was analyzed in detail, as shown in

Table 5. The contents of products in the NRT smelting of electronic waste.

No.	Crude Copper		Slag		Off-Gas			Dust
	Phase	wt%	Phase	wt%	Phase	wt%	v%	Phase	wt%
1	Cu	97.18	FeO	3.00	CO2	25.49	17.22	Cu	16.98
2	Au	1.14 × 10−4	SiO2	25.46	O2	0.05	0.05	Pb	0.05
3	Ag	2.73 × 10−4	Cu2O	4.37	N2	66.42	70.49	Fe	13.21
4	Pb	4.51 × 10−5	CaO	31.00	H2O	7.11	11.74	SiO2	23.49
5	Pd	2.82	Fe3O4	0.16	Pb	0.00	0.00	CaO	13.32
6	-	-	PbO	0.06	PbO	0.00	0.00	Al2O3	9.49
7	-	-	Au	0.00	HCl	0.38	0.31	B2O3	23.46
8	-	-	Ag	0.00	Cl2	0.00	0.00	-	-
9	-	-	Pd	0.02	Br2	0.01	0.00	-	-
10	-	-	Ag2O	0.00	HBr	0.53	0.19	-	-
11	-	-	Al2O3	9.66	-	-	-	-	-
12	-	-	B2O3	23.87	-	-	-	-	-
13	-	-	Other	2.40	-	-	-	-	-
	Total	100.00	Total	100.00	Total	100.00	100.00	Total	100.00

. It can be found that the elements of Cu, Au, Ag, and Pd mainly existed in the crude copper, simultaneously, 16.98 wt% of Cu entered into the dust. On the other hand, the slag phase consisted chiefly of FeO, SiO₂, CaO, Al₂O₃, and B₂O₃, with the corresponding contents of 3 wt%, 25.46 wt%, 31 wt%, 9.66 wt%, and 23.87 wt%, respectively. Moreover, the off-gas was mainly composed of CO₂ and N₂, and a small amount of H₂O.

4.4.3. Heat Balance of Input–Output

The heat balance of input–output during the NRT smelting of electronic waste is also an important parameter based on the simulation system, as illustrated in

Table 6. Heat balance of input–output in NRT smelting of electronic waste.

No.	Heat Income					Heat Output
	Type	Materials	T (°C)	MJ/h	%	Materials	T (°C)	MJ/h	%
1	Physical heat	Scrap of copper-clad laminate	25	0.00	0.00	Copper	1250	322.09	1.49
		Iron powder	25	0.00	0.00	Slag	1280	3605.05	16.62
		Limestone	25	0.00	0.00	Off-gas	1317	14,183.16	65.39
		Arenaceous quartz	25	0.00	0.00	Dust	1317	238.04	1.10
		Industrial oxygen	25	0.00	0.00
		Air	25	0.00	0.00
		Total		0.00	0.00	Total		18,348.34	84.60
2	Chemical heat		25	21,689.46	100.00		25
3	Exchanged heat	Top cooling water	25			Top cooling water	30	1044.34	4.81
4	Natural Cooling						208	2296.78	10.59
	Total			21,689.46	100.00			21,689.46	100.00

. It can be noted that all heat income was provided by the chemical heat with the amount of heat 21,689.46 MJ/h. On the contrary, the physical heat played an important role in terms of the heat expenditure, which occupied about 18,348.34 MJ/h of the heat. At the same time, the exchanged heat and natural heat dissipation were also part of the heat output, in which the quantities of heat were 1044.34 MJ/h and 2296.78 MJ/h, respectively.

4.4.4. Comparisons with Industrial Results

To verify the accuracy of the mathematical model of local equilibrium in the top-blown smelting process of electronic waste, the simulated results were compared with the industrial data based on the production practice of the NRT smelting, as shown in Figure 5. It can be found that the predictive values of the elements in the crude copper coincided with the industrial data. Similarly, the simulated results of oxides in the slag were in good agreement with the industrial values. In addition, some elements and oxides from the industrial data were slightly larger than the simulated results in terms of mechanical inclusion, as depicted in Figure 5b,d. Therefore, the simulation system established by the local equilibrium mathematical model can provide theoretical guidance for the industrial production practice for the top-blowing smelting process of electronic waste.

5. Conclusions

In summary, a mathematical model of local equilibrium for the top-blowing smelting process of electronic waste was established based on the non-equilibrium multiphase reaction system. Simultaneously, the corresponding thermodynamic digital simulation system was developed according to the calculation of metallurgical process and online control platform (MetCal Desk). The comparisons between the industrial values and simulated results of the elements in the crude copper and oxides in the slag were respectively validated in this study. Therefore, it provides an effective and innovative method for the study of elements distribution behavior in the top-blowing smelting process of electronic waste, which also can provide theoretical guidance for the industrial production practice.
