A Comprehensive Review on Hydrogen Absorption Behaviour of Metal Alloys Prepared through Mechanical Alloying

Abstract

Hydride-forming alloys are currently considered reliable and suitable hydrogen storage materials because of their relatively high volumetric densities, and reversible H₂ absorption/desorption kinetics, with high storage capacity. Nonetheless, their practical use is obstructed by several factors, including deterioration and slow hydrogen absorption/desorption kinetics resulting from the surface chemical action of gas impurities. Lately, common strategies, such as spark plasma sintering, mechanical alloying, melt spinning, surface modification and alloying with other elements have been exploited, in order to overcome kinetic barriers. Through these techniques, improvements in hydriding kinetics has been achieved, however, it is still far from that required in practical application. In this review, we provide a critical overview on the effect of mechanical alloying of various metal hydrides (MHs), ranging from binary hydrides (CaH₂, MgH₂, etc) to ternary hydrides (examples being Ti-Mn-N and Ca-La-Mg-based systems), that are used in solid-state hydrogen storage, while we also deliver comparative study on how the aforementioned alloy preparation techniques affect H₂ absorption/desorption kinetics of different MHs. Comparisons have been made on the resultant material phases attained by mechanical alloying with those of melt spinning and spark plasma sintering techniques. The reaction mechanism, surface modification techniques and hydrogen storage properties of these various MHs were discussed in detail. We also discussed the remaining challenges and proposed some suggestions to the emerging research of MHs. Based on the findings obtained in this review, the combination of two or more compatible techniques, e.g., synthesis of metal alloy materials through mechanical alloying followed by surface modification (metal deposition, metal-metal co-deposition or fluorination), may provide better hydriding kinetics.

1. Introduction

The physical storage of hydrogen through compressed H₂ tanks, liquid H₂ tanks and cryo-compressed tanks has been condemned, due to several limitations, including the high pressure required for compression of the hydrogen gas and a large amount of energy for liquefaction of hydrogen [1]. A convenient way to store hydrogen is through the absorption of hydrogen onto solid nanostructured materials such as metal alloys, chemical sorbents (metal organic frameworks (MOFs)) and carbon-based materials) or chemical hydrides [2]. Out of the above-mentioned chemical storage materials, metal hydrides offer a safe, volume-efficient technology aimed at hydrogen storage for reversible on-board applications due to their large hydrogen uptake capacity (7.6 wt. % by Mg-type alloys) [3,4]. There are excellent reviews, regarding MHs, prepared by equilibrium procedure for hydrogen storage application that have been published [4,5,6]. However, there are not a lot of reviews on the MHs prepared by non-equilibrium procedure.

It is well-documented that metallic hydrides are chemically formed from the reaction of hydrogen gas with metal or alloy according to Equation (1) [1]:

Metal (M) + H₂ (g) → metal hydride (MH).

(1)

The formation of metal hydride undergoes six distinct states of hydrogen absorption in metals: Hydrogen to metal; physisorption, which involves physical attachment of hydrogen to a metal through van der Waals interaction; chemisorption, the chemical attachment of hydrogen to metal by forming a chemical bond; subsurface hydrogen; solid solution (α-phase) and hydride (β-phase) [7]. The formation of α- and β-phases may be described by Equations (2) and (3), respectively [8]. An α-phase is formed when small amount of hydrogen occupies the interstitial sites of the host metal M, producing an H-poor solid solution, while β-phase involves saturation of the solid solution to generate a second phase:

$$\mathrm{M}+\frac{1}{2}y{\mathrm{H}}_2\leftrightarrow {\mathrm{MH}}_{\mathrm{y}}$$

(2)

$${\mathrm{MH}}_{\mathrm{y}}+\frac{1}{2}(x-y){\mathrm{H}}_2\leftrightarrow {\mathrm{MH}}_{\mathrm{x}}.$$

(3)

Where M represents metal and H represents hydrogen atoms. During the formation of β-phase, the equilibrium pressure is fixed at any given temperature. According to Gibbs’ phase rule (F = C – P + 2, in which F is degrees of freedom, C represent the components of a reaction and P is the number of phases), the number of degrees of freedom, F, is one during the interaction of metal (M) and hydrogen (H) atoms since three phases P (two solid and one gaseous) and two components C (H and M) are available [8]. The constant pressure level is referred to as the plateau pressure. During the formation, the metal atoms stretch apart to accommodate the hydrogen atoms and the physical structure of the metal atoms may also change to form a metal hydride. For example,

Table 1. Lattice parameter, a, of different types of alloys before and after hydrogenation and their hydrogen storage capacities.

Type of Alloy	Structure	Alloy Lattice Parameter, a, Å	Hydride Lattice Parameter, a, Å	Storage Capacity, wt. %	References
AB	BCC	2.976	7.029	1.75	[12]
AB2	C14	4.866	4.902	1.70	[13]
	C15	6.939	7.158	2.01	[11]
AB5	CaCu5	5.003	5.395	1.43	[10]
A2B	(P6222)	5.205	5.463	3.75	[11]
	(Fddd)	5.284	5.411	3.04	[11]

shows different types of metal alloys ranging from AB to AB₅, demonstrating that hydrogenation of metal is accompanied by increase in lattice parameters of the parent alloy [9,10,11,12,13]. The A₂B alloys were reported to possess higher hydrogen storage capacity of 3.75 and 3.04 wt. % for P6222, and Fddd phase, respectively [11]. On the other hand, AB₅ showed to have low absorption capacity of 1.43 wt. % [10]. Moreover, peaks from X-ray diffractogram may broaden and shift towards smaller 2θ values as a result of larger lattice parameters [9].

Conversely, metal hydrides release H₂ gas when heat is applied on the hydride. This process is called desorption. Hydrogen atoms (H) move from the metal to the surface of the material, combine into hydrogen molecules (H₂) and flow away as hydrogen gas. The metal atoms contract to form its original metal crystal structure [14]. The metal alloys in Table 1 can easily be synthesized by a well-known equilibrium procedure called arc or induction melting [15,16]. However, alloys prepared through this method suffer from poor hydrogenation performances and poisoning intolerance [17]. Recent findings reported that a convenient way to overcome some of these challenges is to prepare metal alloys using mechanical alloying (MA) through high-energy ball milling technique [15,18]. In this review, we provide the recent developments on hydrogenation performances of metal alloys prepared by mechanical alloying technique, comparison of MA with other non-equilibrium techniques. Moreover, we also consider the effect of combining MA with some surface modification technologies. We anticipate that this work can provide an inspiring perspective for further research on MHs with good hydrogen storage properties.

2. Non-Equilibrium Preparation Techniques

Mechanical, kinetic and thermodynamic performances related to the formation of metal hydride are affected by structure and phases of metal or metal alloy of interest. It is currently well-known that the structure and phase of alloy materials can be controlled by synthesizing them under non-equilibrium conditions [19]. There are several processes/techniques, which are in commercial use for the synthesis of alloy materials under such conditions. Amongst such techniques, much attention has been given to mechanical alloying, melt spinning and spark plasma sintering techniques [20]. According to Scudino et al. [21], the general underlying idea in all these techniques is to synthesize alloy materials in a non-equilibrium state by “energizing and quenching”. The energizing process involves the use of external dynamical force, such as melting; evaporation; irradiation; application of pressure; or storing of mechanical energy by plastic deformation on solid-state materials to put them onto a non-equilibrium state [22]. During this process, the solid-state materials change in phase to gas or liquid. In “quenching”, a subsequent step after “energization”, the material of interest is extinguished into a frozen state, and it is at this point where the desired structure or phase can be easily controlled [23,24]. The alloys synthesized in this sequence possess particular structural characteristics that are difficult or rare to attain by equilibrium preparation methods: Nano-crystalline grain size with a high density of grain boundaries and even lacking of long-range order (amorphous state). These structures alloy quick hydrogen uptake and excellent cycle-life behaviour [25]. Among all preparation methods that follow “energizing and quenching’’ mechanism, MA has been given much attention due to its user-friendly, comparatively less costly machinery and applicability to various metal alloys [19]. In this regard, mechanical alloying experimental technique is discussed with the point of interest being its effect on hydrogenation performances of metal alloy materials.

3. Mechanical Alloying

3.1. Background

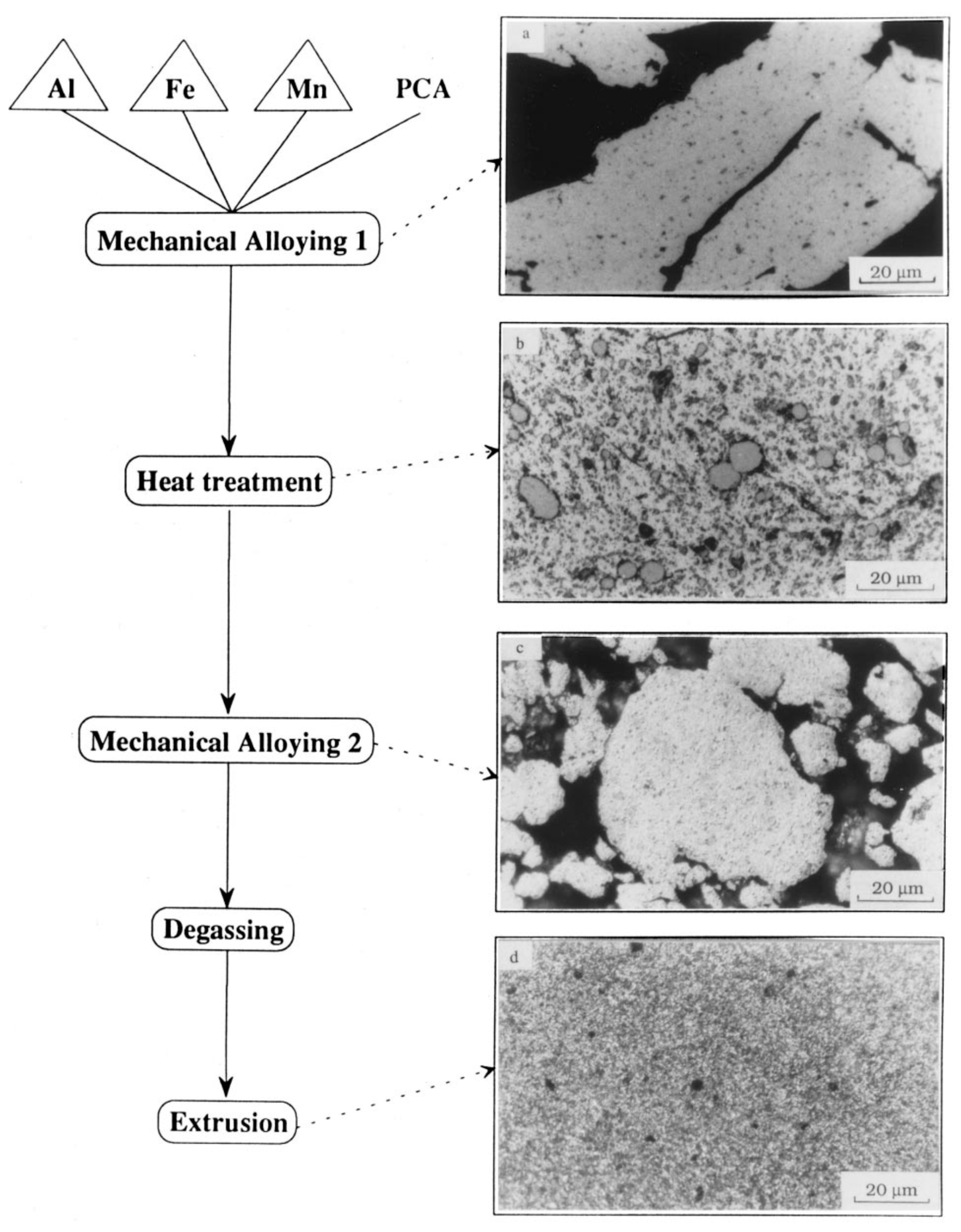

Mechanical alloying, also known as ball milling, is a solid-state powder processing technique involving repeated welding, fracturing, and rewelding of powder particles in a high-energy ball mill [19]. Repetitions of welding, as well as fracturing of particles, generate a lamellar structure within the powders. MA method is usually applied when synthesizing highly immiscible phases in a non-equilibrium state [26]. The immiscible phases that are prepared, include super-saturated solid solutions, non-equilibrium alloys that are usually amorphous in nature, metastable crystalline and quasicrystalline phases. The procedure of MA begins with blending of the powders in the correct extent and stacking the powder blend into the mill along with the grinding medium. This blend is then milled for the ideal time allotment until a consistent state is achieved when the arrangement of each powder particle is equivalent to the extent of the elements in the initial powder blend. The milled powder is then united into a mass shape and exposed to heat, in order to get the ideal phase and structure. Thus, the vital components of MA procedure are the raw materials, mill and procedure parameters. This procedure was described by Shang et al. [27]. Ares et al. [25] observed that diffraction peaks from the X-ray diffractogram (XRD) of Mm (Ni, Mn, Al, Co)_5.2 became broader with milling time. An example of MA process is depicted in Figure 1 (synthesis of Al–5wt. %Fe–4wt. %Mn blend), with scanning electron microscopic (SEM) images provided for all the steps. The double mechanical milling, as observed in the figure is necessary to refine the intermetallics and decrease the particle size of the blend [19]. MA has also been utilized to synthesize AB (FeTi), A₂B (Mg₂Ni) and AB₅ (binary LaNi₅) alloys [28]. In most cases, the rate of hydrogenation has been greatly enhanced when compared with that of materials prepared through conventional equilibrium methods, but due to the amorphous nature of milled alloys, a loss of hydrogen content was observed [25]. MA provides various advantages, including smaller restrictions with respect to composition and works much better when applied to A₂B alloys [29]. Moreover, through the use of MA method, nano-crystalline alloys are obtained, starting either with a pre-prepared alloy or with a mixture of pure elemental metals [28]. Nano-crystalline alloys that are prepared through MA technique possess better activation compared to their polycrystalline counterparts [28]. For example, Polycrystalline FeTi is activated by heating up to temperatures above 673 K for one to two hours followed by annealing at 7 bar pressure and its hydrogenation requires a high pressure of 40–70 bar [30]. However, with a mechanically-alloyed nano-crystalline FeTi alloy, a single vacuum heating at 673 K for 30 min is sufficient to obtain full hydrogen absorption cycles [30].

3.2. Mg-Based Alloys

3.2.1. Structural Characteristics of Mechanically Milled Mg-Based Alloys

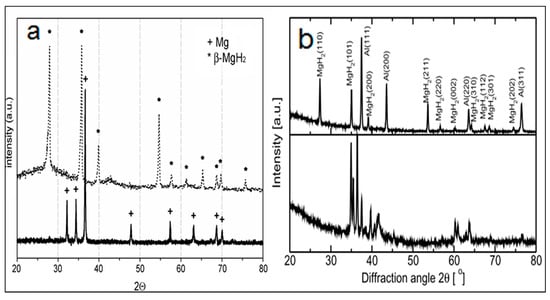

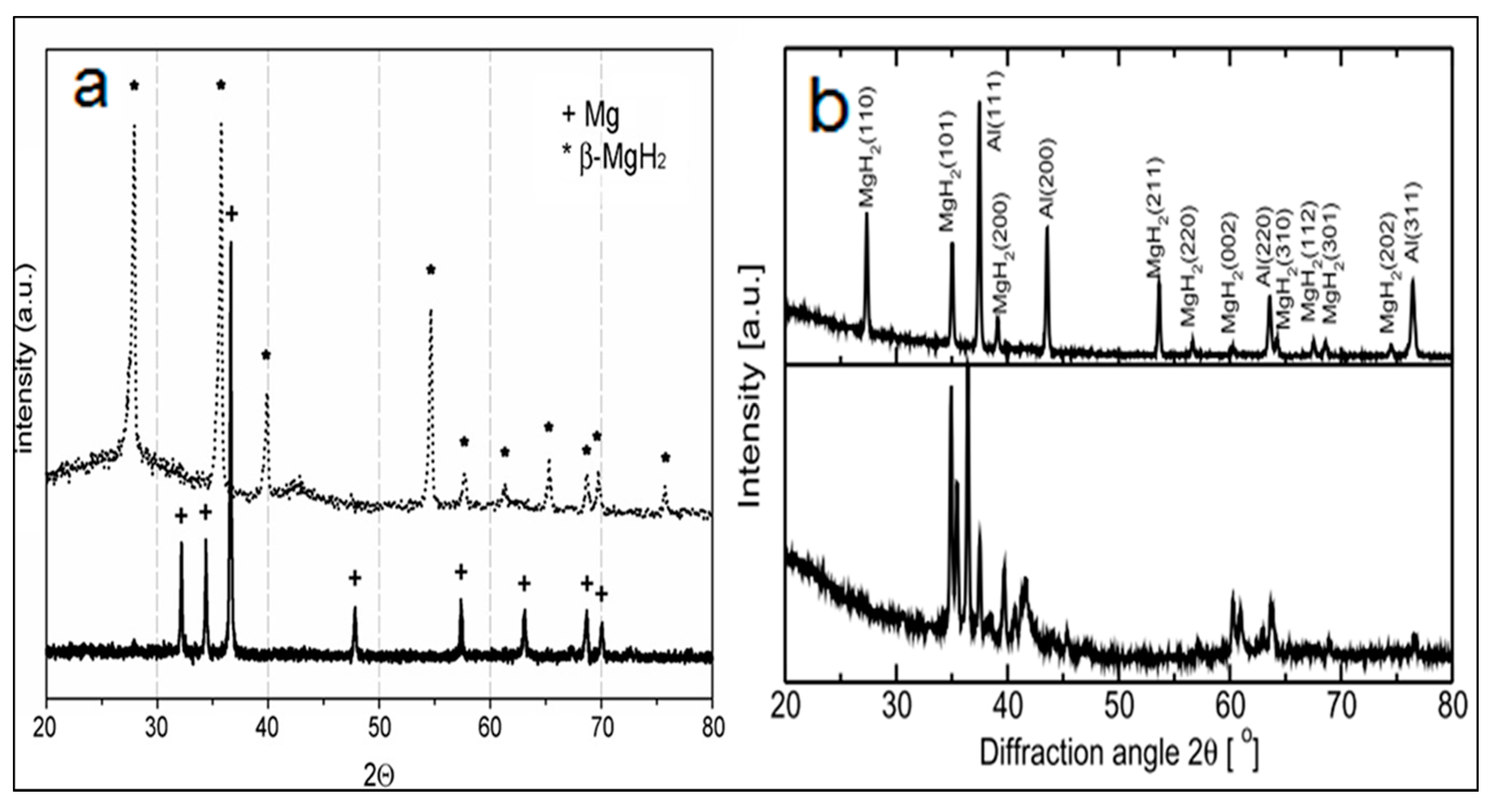

The crystal structure of a metallic Mg is hexagonal with lattice parameters a = 3.2094 Å and c = 5.2108 Å and a space group of P63/mmc [31]. Formation of MgH₂ hydride consists of two steps, i.e., preparation of Mg nanoparticles, followed by hydrogen absorption to form the metal hydride. A traditional method for preparing Mg nanoparticles is gas-phase condensation method, which is much better discussed in [32]. As depicted by Figure 2a, hydrogenation of Mg nanoparticles tempers with XRD diffraction pattern of the parent nanoparticles [33]. Diffraction peaks at 2θ ≈ 48°, 34° and 32° disappear, while several new peaks develop, forming tetragonal magnesium hydride (β-MgH₂) phase [33]. To illustrate the difference between traditionally synthesized MgH₂ hydride and those synthesized through mechanical/ball milling, XRD diffraction patterns of MgH₂ and as-milled hydrided Mg-Al alloy are compared in Figure 2a,b, respectively. For as-milled Mg-Al alloy, Li et al. [31] reported four stable phases: the fcc solid solution of magnesium in aluminum, the hcp solid solution of aluminum in magnesium, the β-phase (Mg₂Al₃) and the γ-phase (Mg₁₇Al₁₂). Such rewarding characteristic gives rise to excellent hydriding behavior of as-milled Mg-based alloys.

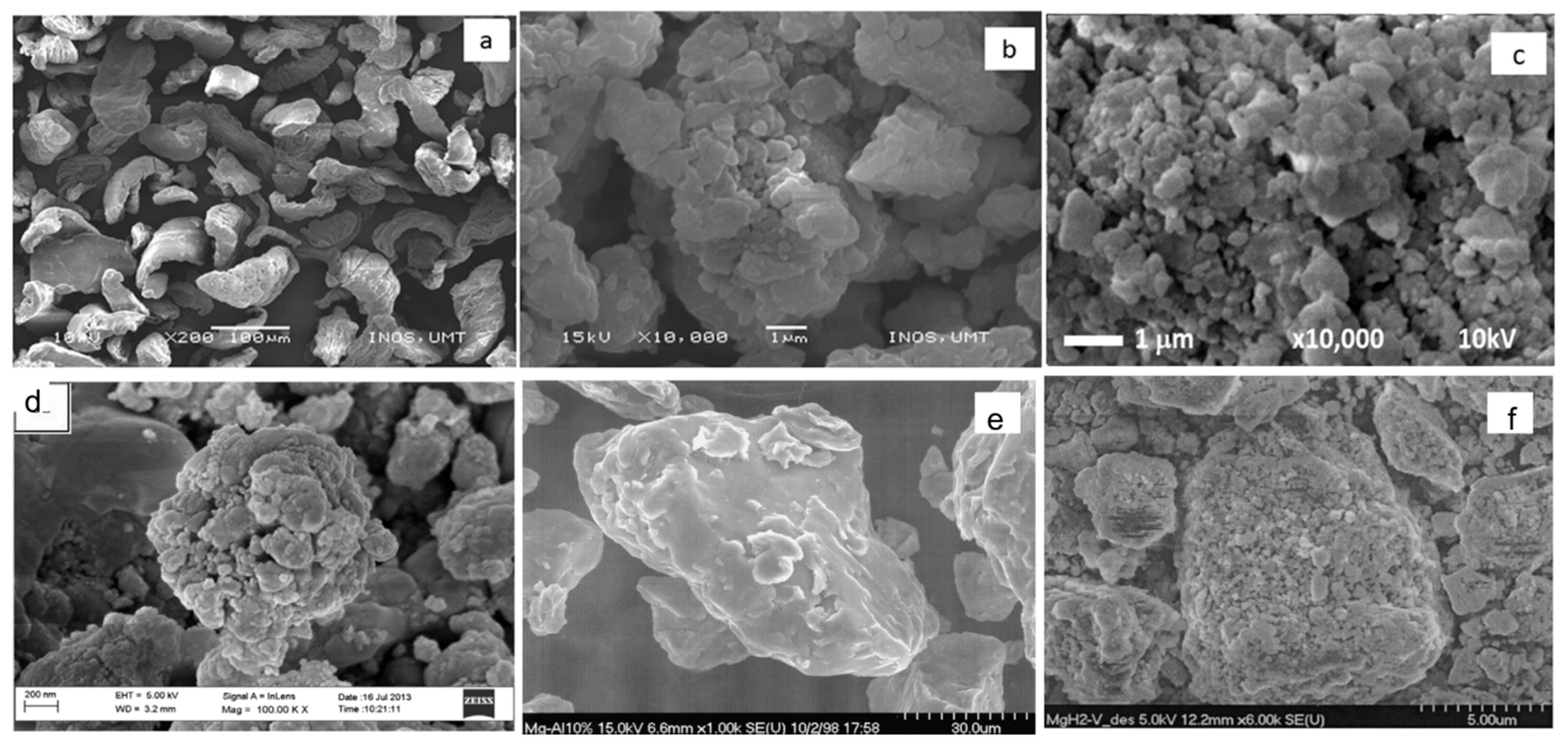

In general, the morphology and particle size distribution are also important structural parameters, carrying a huge responsibility for surface physisorption of molecular hydrogen (H₂), surface dissociative chemisorption, surface absorption, hydrogen diffusion and phase transformation [34]. These two parameters are well-interpreted using scanning electron microscopic (SEM) images. For Mg-based alloys, mechanically milled alloys show faster hydrogen absorption kinetics and larger uptake capacity, compared to their unmilled counterparts and one of the effective factors contributing to this, is the reduction of particle sizes of the parent materials during mechanical alloying [35]. According to the literature, small particle sizes allow easy mobility of molecular hydrogen and quick dissociation into atomic hydrogen on the surface of a material [33]. As shown in Figure 3, all the five SEM images of milled Mg-based alloys constitute of smaller particles than that of traditionally sysnthesized MgH₂, [33]. Therefore, their hydrogen uptake performance is expected to be superior to that of MgH₂. This is further discussed in the next section.

3.2.2. Hydrogen Absorption Behaviour of Mechanically Alloyed Mg-Based Alloys

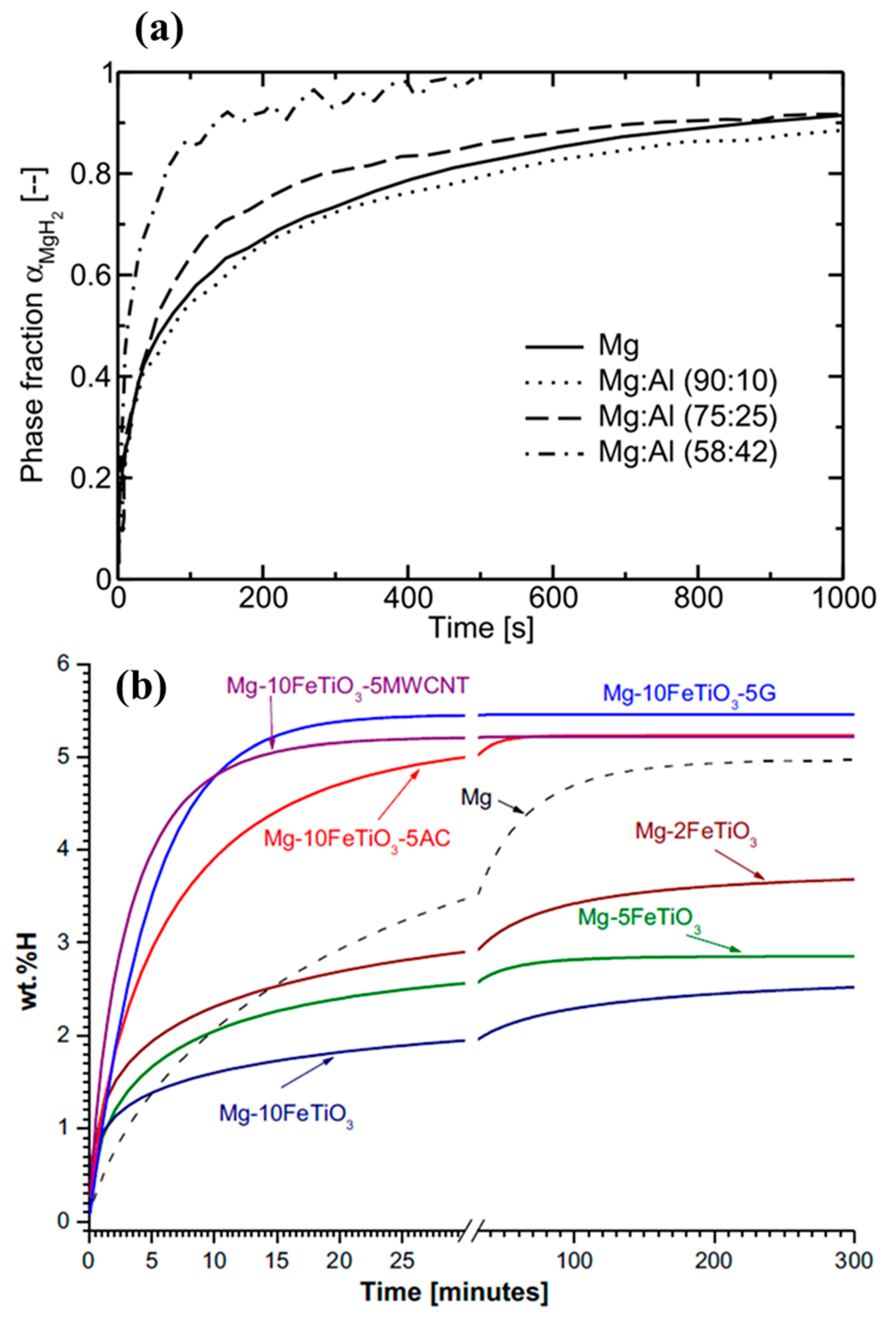

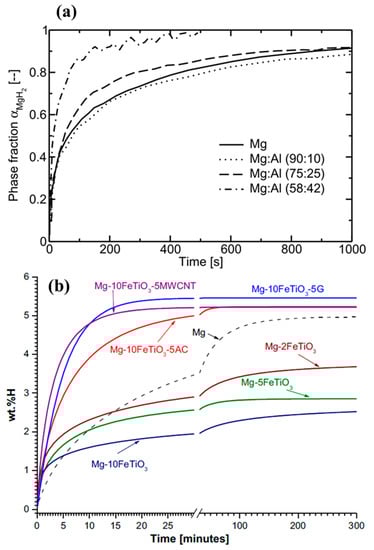

Mg-based alloys are reported to possess energy density of 9 MJ/kg and the highest maximum hydrogen storage capacity (7.6 and 3.6 wt. % for MgH₂, and Mg₂NiH₄, respectively) compared to all hydride-forming materials [40,41]. The hydride stability of this alloy is very high, and therefore, a high dissociation temperature of around 561 K is required to transform MgH₂ hydride into Mg and H₂ gas [42]. Furthermore, the hydriding kinetics of MgH₂ hydride is relatively slow because the dissociation of molecular hydrogen into hydrogen atoms is difficult on the surface of Mg metal [43]. Several reports are found in the literature concerning synthesis and hydrogen properties of Mg-based alloys synthesized by mechanical alloying [3,44,45,46]. Another interesting study is Andreasen [31]. The authors’work was based on the comparison of hydrogen kinetics, presented in Figure 4a, of un-milled Mg and those of ball milled Mg-Al compounds with varying Al content [31]. The kinetics increased gradually with an increase in Al content due to easy dissociation of hydrogen molecules on the surface of Al, as a result of negligible activation barrier for hydrogen dissociation for this metal. It is, therefore, understood that hydrogen molecules split into atomic hydrogen on the surface of Al before diffusing and attaching on the active sites of Mg, which has higher hydrogen sticking ability compared to Al [31]. Lototskyy et al. [37] reported the effect of synthesizing different Mg-based composites varying the amounts of multi-walled carbon nanotubes, activated carbon, FeTiO₃ and graphite using mechanical alloying at a rotation speed of 500 rpm for a period of 120 min on hydrogenation behaviour of Mg, Figure 4b. The authors discovered that hydrogenation behaviour (both the uptake capacity and kinetics) of Mg mechanically alloyed with carbon-based materials are exceptional. Ref. [46] reveals that the better hydrogenation behaviour possessed by milled alloys can be attributed to their combination of tetragonal (a = 4.52 Å, c = 3.02 Å) and orthorhombic (a = 4.48 Å, b = 5.40 Å, c = 4.90 Å) phases as major phases, since these two phases are associated with small particle size and a presence of strain in the particles. Similar trends of hydrogen capacity and kinetics were observed by Lototskyy et al. [47] and Williams et al. [48] when they assessed Mg-10(FeV)-5MWCNT and Mg-5Pd composites through mechanical alloying, respectively.

Table 2. Thermodynamic and kinetic properties of ball-milled MgH₂ doped with catalytic additives.

Catalyst Family	Catalyst Additive	ΔHdes, kJ/mol H2	Hydriding Kinetics, min−1	Hydrogen Capacity, wt. %	References
No catalyst	Undoped MgH2	76	1.4 × 10−3	7.66	[52,57]
Metal	MgH2+10 wt. % Ni	75	–	6.89	[49]
	MgH2+10 wt. % Co	71	–	5.62	[49]
Metal halides	MgH2+10 wt. % CeCl3	75.7	0.05	6.32	[36]
	MgH2+NbF5	79.7	3.42	6.40	[53]
	MgH2+ZrF4	76.4	3.2	6.44	[53]
Hydrides	MgH2+NaAlH4	–	0.28	3.10	[49]
Metal oxide	MgH2+SrTiO3	–	0.02	6.63	[50]
	MgH2+1 mol. % Nb2O5	74	0.22	5.45	[51]
Nano-sized alloys	MgH2+10 wt. % Zr2Ni	–	0.52	5.12	[55]
	MgH2+FeNb	–	0.35	5.55	[56]
Carbon materials	MgH2+5 wt. %SWNT	–	1.34	6.72	[54]

ΔH_des = Enthalpy of desorption*SWNT = Single-walled carbon nanotube.

and

Table 3. Hydrogenation properties of metal alloys synthesized by mechanical alloying.

Mg-based alloys
Alloy type	Alloy material	Milling conditions (rotation speed and milling time)	Particle size distribution, µm	Hydriding kinetics, min−1	Hydrogen capacity, wt. %	References
As-cast alloy	Mg	_	48–70	1.4 × 10−3	7.66	[57]
As-milled alloys	Mg Mg-10FeTiO3 Mg-10FeTiO3-5MWCNT	500 rpm for 120 min 500 rpm for 120 min 500 rpm for 120 min	<0.05 <0.05 <0.05	0.04 0.07 0.31	4.98 2.71 5.22	[37]
	Mg-10(FeV) Mg-10(FeV)-5MWCNT	500 rpm, for 300 min 500 rpm, for 300 min	0.001–0.01 ~0.01	0.02 0.02	6.96 6.69	[47]
	Mg-0.5Pd Mg-5Pd	500 rpm, for 360 min 500 rpm, for 360 min	0.05–0.1 <0.01	0.04 0.02	5.13 5.56	[48]
AB2-type alloys
Alloy type	Alloy material	Milling conditions (rotation speed and milling time)	Particle size distribution, µm	Hydriding kinetics, min−1	Hydrogen capacity, wt. %	References
As-cast alloy	Ti0.5Zr0.5MnCr	_	15–29	0.04	1.79	[65]
As-milled alloys	Ti0.5Zr0.5MnCr	Milled for 5 min Milled for 30 min Milled for 60 min	~8 3–6 0.5–1.7	0.13 0.05 0.06	1.82 1.65 1.15
As-milled alloys	Mg(Ni0.75Mn0.25)2 Mg(Ni0.1Mn0.9)2 MgMn2	350 rpm for 600 min 350 rpm for 600 min 350 rpm for 600 min	<10	0.25 0.14 0.1	0.43 0.93 1.21	[66]
AB5-type alloys
Alloy type	Alloy material	Milling conditions (rotation speed and milling time)	Particle size distribution, µm	Hydriding kinetics, min−1	Hydrogen capacity, wt. %	References
As-cast alloy	MmNi5	_	5–50	0.24	1.20	[67]
As-milled alloy	MmNi5	200 rpm for 180 min	1–2	0.28	1.42
As-cast alloy	MnNi4.6Fe0.4	_	~9.58	_	1.50	[62]
As-milled alloys	MnNi4.6Fe0.4	200 rpm for 10 min 200 rpm for 30 min 300 rpm for 10 min 300 rpm for 30 min	_ ~1.62 _ _	_ _ _ _	2.00 1.82 1.91 1.21

represent a compiled data of literature based on hydrogenation behaviour of Mg-based alloy materials synthesized through ball milling and mechanical alloying.

3.2.3. Ball-Milled MgH₂ Doped with Catalytic Additives

In the previous section, much attention is given to mechanically milled Mg-based alloys where a pure milled/un-milled Mg metal is admixed with other several materials, such as FeTiO₃ before their interaction with hydrogen is subsequently explored. Here, we discuss the influence of catalytic effect of doping ball milled MgH₂ with different catalystic additives. Previous experiments indicate clearly that admixing, deposition or doping of catalysts and additives could greatly enhance thermodynamic property and de/rehydrogenation kinetic parameters of MgH₂. In these studies, metal [49], metal oxide [50,51,52], metal halides [36,53], metal hydride [49], carbon materials [54] and nanosized alloys [55,56] were used as the catalysts and additives. Table 2 summarizes thermodynamic and kinetic effects of these catalysts. The materials in the table were prepared through ball milling technique.

We can conclude from the table that doped MgH₂ materials, prepared through mechanical milling, enjoy superior hydrogenation kinetics, compared to undoped materials. However, this particular excellent improvement significantly reduces the maximum absorption capacity of the system. For metal halide family, particularly MgH₂+10wt. %CeCl₃, the loss of capacity can be related to in situ formation of CeMg alloy and MgCl₂, which seem to be good catalysts for faster absorption but poor gas absorbers [53]. On the other hand, drastic decrease of absorption capacity revealed by MgH₂+SWNT composite is suggested to come from structure destruction of the SWNT during milling [54]. Table 2 also shows that composites which resulted in major decrease in hydrogen capacity are those with a dopant of 10 wt. % or more. We therefore suggest preparation of MgH₂ composites with dopants that are less than a concentration of 10 wt. %. Moreover, milling period should also be taken into consideration when these materials are formed, more especially when carbon materials are in abundance as they seem to be sensitive to milling conditions. The difference between enthalpy of desorption (ΔH_des) of the materials is negligible and as thus thermodynamic property of MgH₂ remain unchanged upon doping.

3.3. AB₅-Type Alloys

3.3.1. Structural Characteristics of Mechanically Milled AB₅-Type Alloys

Another interesting class of metal alloys is AB₅. The A site in AB₅ represents one or more strongly hydride-forming elements while B site represents one or more weakly hydride-forming elements, and usually helps to dissociate the H₂ molecules on the surface of alloy material [58]. The A site is usually occupied by La, Ca or rare earth element while Ni, Cu, Co, Pt or Fe fill the B site [59]. AB₅ alloys are known to have a CuCa₅-type hexagonal crystal structure which normally belongs to space group P6/mmm (#191) [60,61]. Singh et al. [62] evaluated the effect of milling MmNi_4:6Fe_0:4 alloy, where Mm refers to mischmetal, varying the milling period from 10, 20 and 30 min, at a milling speed of 200 rpm. As shown by Figure 5, mechanical milling of this alloy results in slight shift of diffraction peaks towards lower 2θ values, reflecting increase in lattice parameters, and peak width broadening. Peak width broadening is a reflection of decrease in particle size. In general, the lattice structure of MmNi₅-type alloy consists of two stacked planes at ɀ = 0 and ɀ = ½, and the first plane contains 1a and 2c, while the latter plane contains 3g crystallographic sites. Both Mm and Ni atoms occupy the 1a and 2c sites, while the 3g sites are occupied by Ni atoms only. Therefore in the presence of Fe to form MmNi_4:6Fe_0:4 alloy, Fe atoms replace Ni on the 3g sites [63]. Electronic configuration of Fe and that of Ni are very close (3d⁶4s² for Fe and 3d⁸4s² for Ni) and as a result covalent character, which is stronger than ionic character, is expected in the Ni/Fe-bearing planes. Thus, during mechanical milling of an alloy material with such character, strained platelet shaped particles are expected to form [64]. Such particles allow smooth movement of hydrogen during sorption better than fine powdered particles. This statement is supported by Table 3 as it is observed from the table that materials that were milled for longer period of time are associated with lower hydrogen uptake capacity compared to their counterparts that were milled for shorter period. This is due to the mechanical energy that is being pumped into the alloy matrix during milling, which breaks the particles, while forming strain in the matrix, and thus, for longer milling periods fractured and much finer powders, which are not recommended may result [63,64].

To be more accurate, not only particle size gives precise measurement of hydrogen uptake capacity by a material, but it also provides the nature of agglomeration, as well as homogeneity of the particles [62]. Short milling process yields non-homogeneous microstructural (wide distribution of nano-crystallite sizes and amorphous phase) and morphological alloy powders [25]. On the other hand, Parker et al. [35] recommends defects, fractures and porosity as faster absorption kinetics agents. However, it is very challenging to fully release hydrogen from a porous and fractured material. Figure 6 depicts SEM images of un-milled MmNi₅ alloy and those of MmNi₅ milled with different transition metals at concentration of 2.0 wt. %. for un-milled alloy, its structure lacks strain and consists of very large particles, and thus, hydrogen diffusion is difficult for such material [67].

In contrast to MmNi_4:6Fe_0:4 alloy, neither covalent nor ionic bonding is expected between the bulk alloy MmNi₅ and the added transition metals (Co, Ni, Mn and Fe), since there was no substitution or melting during mechanical milling, thus, a physical attachment was involved [67]. As a result, the extent to which the particles of each alloy crush and become reduced in size during milling depends largely on ductility and hardness of the transition metal used. According to Mohs scale of metal hardness, Mn has Mohs hardness of 6, followed by Co with hardness of 5 and the last two are Fe and Ni both with hardness of 4.5 and 4, respectively [68]. Therefore, during ball milling, it is difficult to fracture and form finer powders with Mn particles than with Ni particles.

3.3.2. Hydrogen Absorption Behaviour of Mechanically Alloyed AB₅-Type Alloys

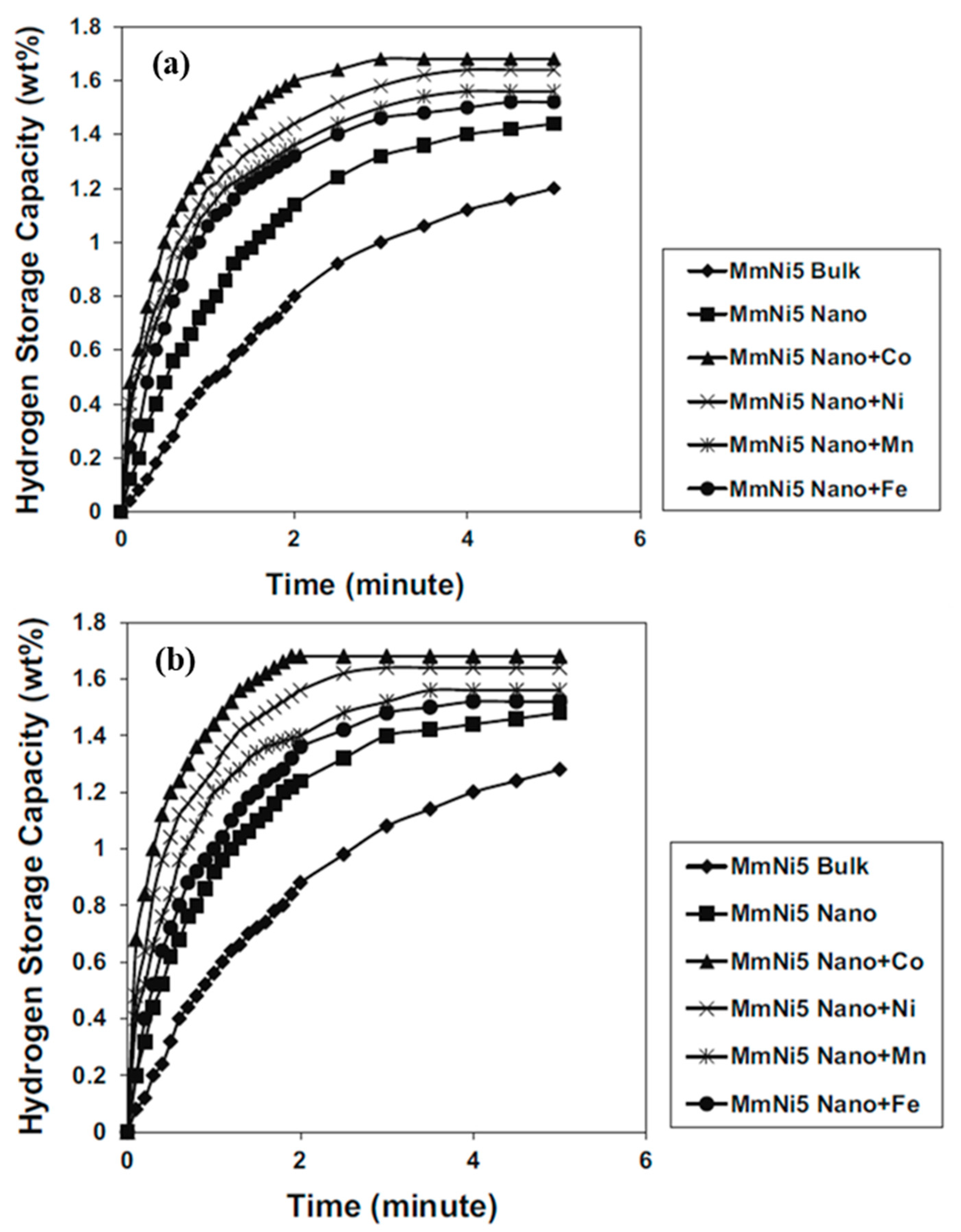

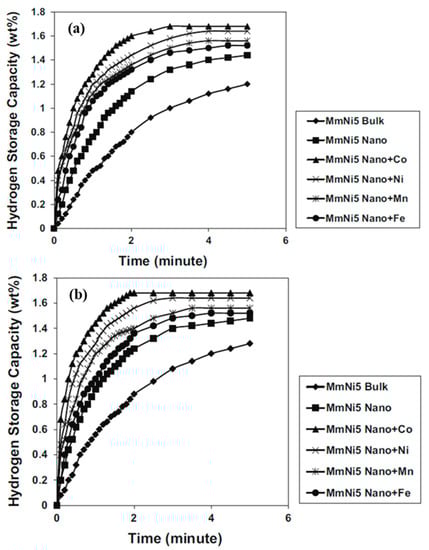

These metal hydride alloys are typified by LaNi₅ and they can be easily activated for hydrogen absorption [69]. A reaction between these alloys and hydrogen at a room temperature and pressure above equilibrium plateau pressure results in a ternary metal hydride [69]. Of 37 voids available within LaNi₅ lattice structure, only 6 voids are occupied by hydrogen atoms to form LaNi₅H₆ ternary hydride [70]. It is notable that the hysteresis effect in AB₅-type alloy is relatively small as compared to other low temperature systems with a large and distinct miscibility gap [59]. Mechanical alloying has also been employed to synthesize AB₅ alloys [25,62,67,71]. For example, MmNi₅ material mechanically alloyed at 200 rpm for milling time of 180 min exhibits faster hydrogenation kinetics as compared to arc-melted MmNi₅ material [67]. Furthermore, Figure 7a,b present the absorption and desorption kinetic curves of MmNi₅ alloy ball-milled with transition metals at concentration of 2.0 wt. %, respectively, showing reversible hydrogen absorption and desorption between 1.0 to 1.6 wt. % [67]. Singh and co-workers [62] observed that longer milling of MnNi_4.6Fe_0.4 alloy material improved hydriding kinetics, but this elevated kinetics behaviour comes at a cost of maximum uptake capacity as it deteriorated with increasing milling time. On the same note, an increase in rotation speed from 200 rpm to 300 rpm at constant milling time resulted in a reduction of hydrogen capacity. Similar trend was observed by Ares and co-workers [25] and they summarized that the trend is a result of extra hydrogen-trapping sites in amorphous domains, exhibited by short-milled alloys. For LaNi₅ alloy, it is reported that ball-milling convert a part of LaNi₅ to a non-absorbing state and as a result poor hydrogen uptake capacity is observed [71]. It was seen that there is quite a number of published work found in the literature for mechanical alloying of AB₅-type alloys [62,67]. However, understanding the general extent to which mechanical alloying enhance the ability of these type of alloys to absorb hydrogen, as compared to their traditionally or arc-melted counterparts is still a gap. Firstly, to our knowledge no proper measurements of the hydrogen sticking or diffusion probabilities on either un-milled or milled AB₅-type particles have been documented. The second issue is that mechanical alloying tempers with several physical properties that are vital for hydrogen sorption performance; these include expansion of the unit cell volume, strain and homogeneity of particles, particle size distribution, distance between adjacent voids and several more.

3.4. AB₂-Type Alloys

3.4.1. Structural Characteristics of Mechanically Milled AB₂-Type Alloys

In the AB₂ Laves phase alloy, metal A is usually Ti or Zr, and metal B is another transition metal including V, Cr or Mn. These alloys crystallize in Lave phase structures [72,73]. Three types of laves phases; namely: hexagonal C14 phase (MgZn₂), hexagonal C36 phase (MgNi₂) and cubic C15 phase (MgCu₂) represent AB₂- type alloys [72]. In comparison, hydrogenation performance of hexagonal C36 phase has been reported to be poor [73], and it is not reviewed here. C15 and C14 phases (corresponding to atomic ratio of R_A/R_B = 1.225) have shown better performance as hydrogen absorbents [73]. Based on their structural stability, which is dependent on the atomic ratio, electronegativity and valence of the elements used [74,75], hexagonal C14 ZrCr₂ Laves phases are more stable compared to cubic C15 [76].

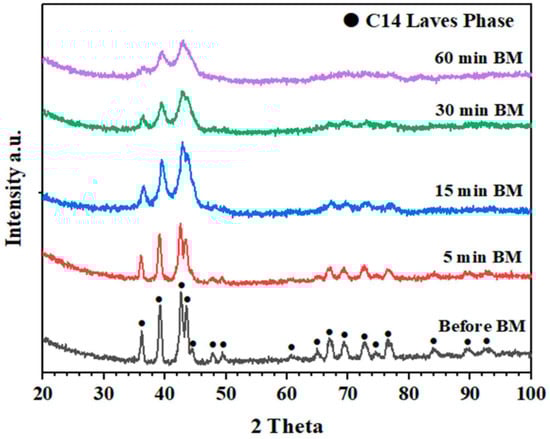

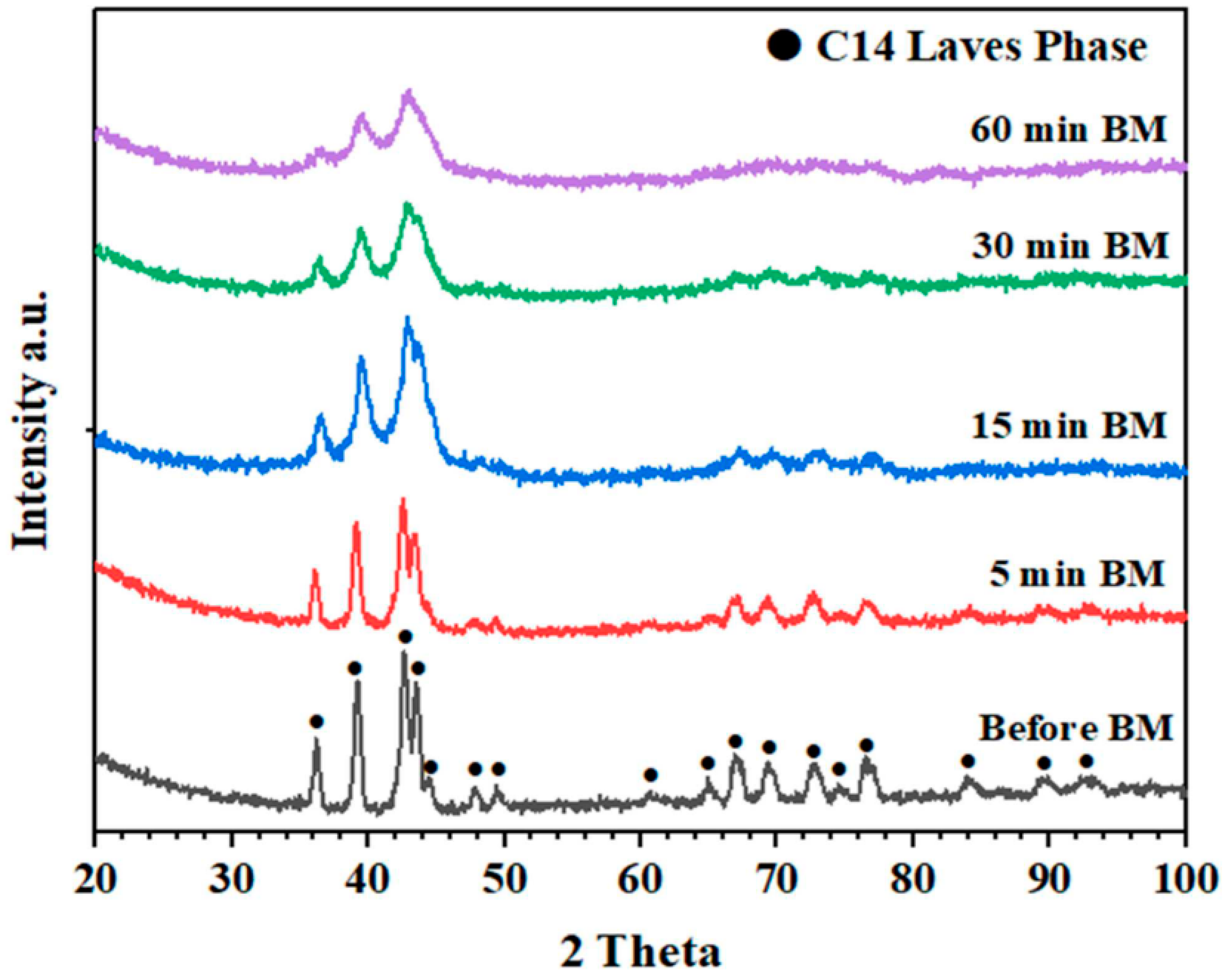

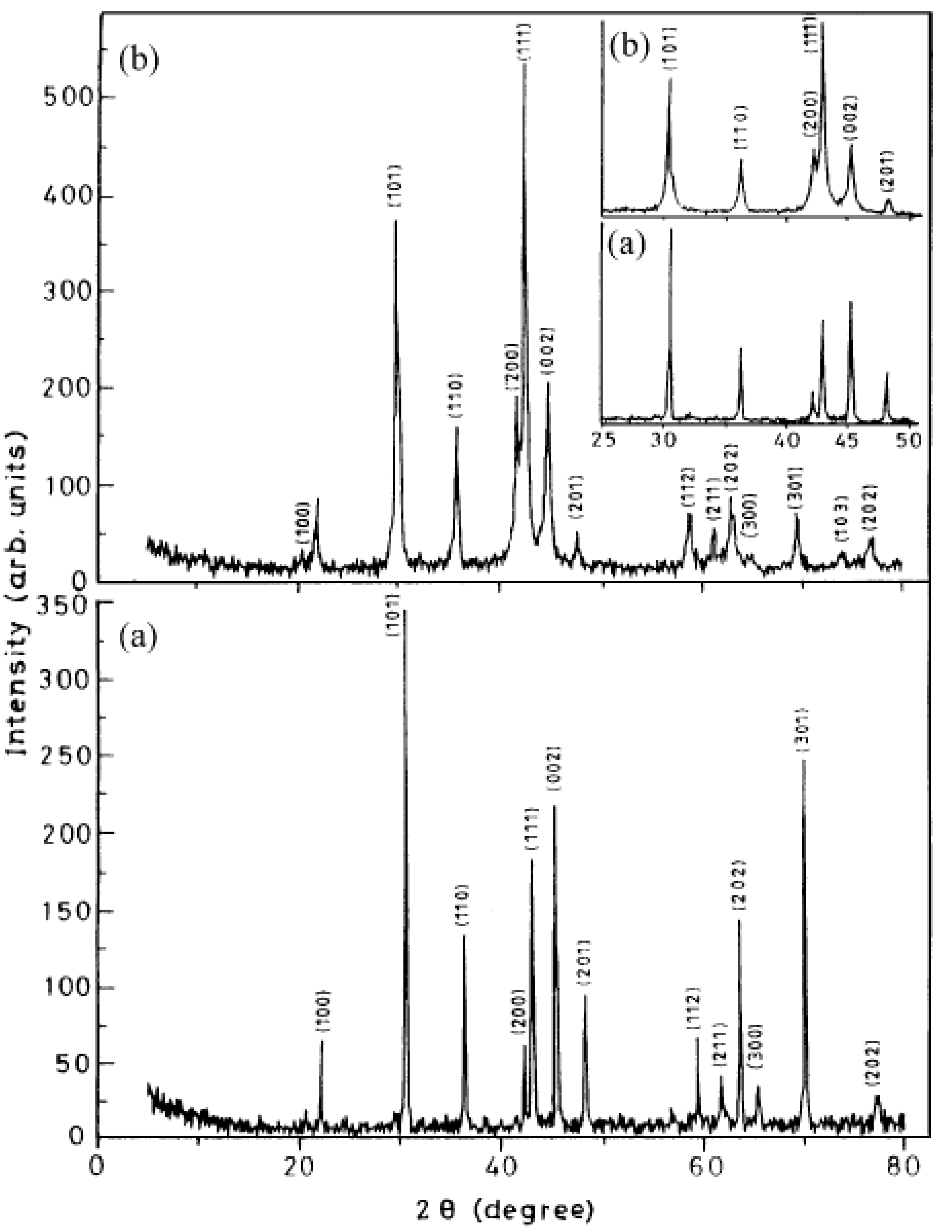

Figure 8 represents example of powder diffraction patterns for C14 Laves phase type alloys. As seen with Mg-based and AB₅-type alloys discussed earlier in this review, longer milling periods results in reduction of crystallite size and particle size. Furthermore, several other factors such as disappearance of peaks (between 2θ ≈ 48 and 100 in Figure 8), as well as peak broadening occur. To some extent, intense change of these factors may result in deterioration of hydrogen performance.

3.4.2. Hydrogen Absorption Behaviour of Mechanically Alloyed AB₂-Type Alloys

The reported hydrogen storage of AB₂-type alloys is nearly 2 wt. %, with low hysteresis [75]. But binary AB₂-type alloys prepared by equilibrium techniques suffer from poor surface activity and poisoning intolerance [77]. As a result, efforts through synthesizing AB₂ alloys utilizing non-equilibrium techniques such as mechanical alloying have been exploited [66]. For example, Ti_0.5Zr_0.5MnCr material prepared through mechanical alloying for a milling period of 5 min was reported to exhibit larger hydrogen absorption capacity compared to as-cast Ti_0.5Zr_0.5MnCr and materials milled much longer (Table 3 and Figure 9) [65].

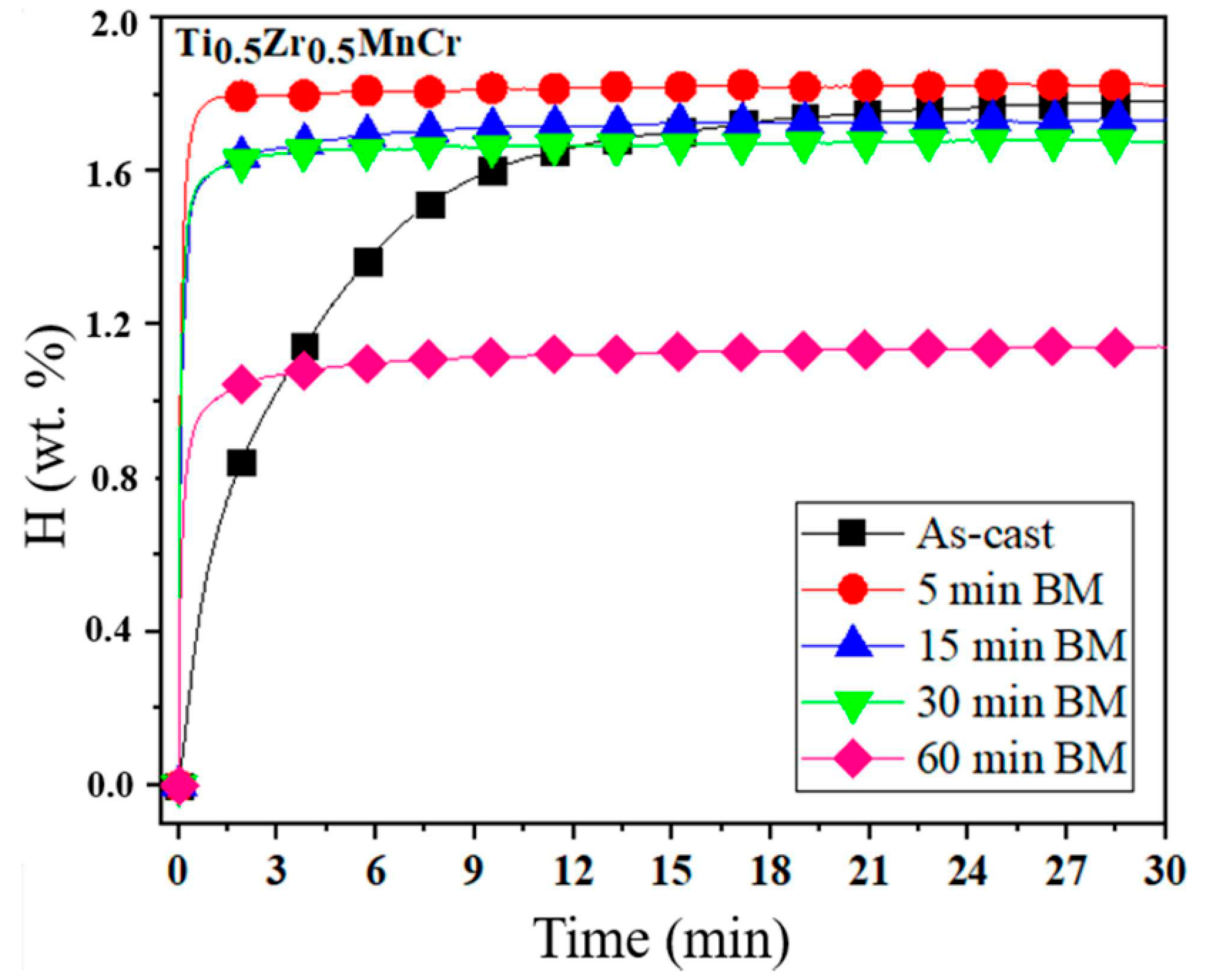

However, those that are milled longer than 5 min exhibit faster hydriding kinetics and poor hydrogen absorption capacity compared to as-cast alloy [65]. Based on the literature data contained in this document, we understand that fractured fine, smaller particle sizes and amorphous nature, which are obtained through milling time above 25 min favour faster hydrogenation kinetics. Whereas combination of large to moderate particles and nano-crystalline structure, obtained during short milling time of less than 10 min favours large hydrogen absorption capacity.

3.5. Comparison between Hydriding Kinetics of Materials Prepared by MA with Other Techniques

Apart from mechanical alloying, melt spinning and spark plasma sintering techniques are also prevailing synthesis methods and thus we opted to make some comparisons between these three methods. Melt-spinning technique is a useful method that is used to change structures of as-cast alloys to amorphous structure. This method improves the amorphous nature of materials by reducing their grain size [44]. The only problem related to this method is the poor cycle stability of the melt-spun alloys, due to the disappearing of the metastable structures generated by melt-spinning [78]. Another attracting technique is spark plasma sintering (SPS), due to its ability to easily synthesize metal powders, with different melting temperatures within just 5–10 min [79]. This technique involves generation of spark plasma through direct pulse current and working concurrently with a uniaxial pressure. Sintering takes place at low temperatures in a small period of time and this makes the alloys to have low porosity [80]. SPS offers numerous favourable advantages over customary sintering procedures such as atmospheric furnace. For instance, the heating rate around 1273 K per min can be accomplished [79]. Further focal points are the lower sintering temperature, short holding time, no need of pre-compaction and shorter sintering time results in the likelihood to sinter nanometric powder to near theoretical density [81]. Although this technique produces alloys with high purity surfaces, it is known that the hydriding kinetics of composites, prepared by SPS, is greatly improved only when hydrogen absorption is conducted at high temperatures (573 K) [79].

Huang et al. [82] reported that alloys with amorphous surfaces absorb hydrogen faster compared to their crystalline counterparts. Schwarz and Johnson [83] recommended that two conditions should be fulfilled for an amorphous phase to form from a mixed elemental powder blend. The first condition is that the metals involved must have a vast negative heat of blending in the liquid state. According to a study conducted by Termsuksawad et al. [84], metals that have large negative heat of mixing exhibited a complete amorphous phase, while those with smaller negative heat displayed partial amorphous nature. Second, the condition is that diffusion rates of such metal systems must differ greatly. Metal alloy materials with nano-crystalline and/or amorphous phases are easily obtainable through several preparation techniques, including mechanical milling, spark plasma sintering and melt spinning [85,86]. There are numerous published papers supporting the above statement, and we combined some of those findings in

Table 4. Comparison of hydrogenation kinetics and capacity of as-cast alloys and those prepared by MA, SPS and melt spinning.

Mechanical Alloying/Milling
Material	Rate constant (min−1)		Hydrogen absorption capacity (wt. %)		Conditions	References
Metal alloy material	As-cast	As-milled	As-cast	As-milled
Mg2Ni	0.06	0.15	2.91	2.60	473 K, 1.0 MPa	[66]
TiFe+4 wt. % Zr (60 min milling)	9.0 × 10−3	0.01	1.62	1.27	273 K, 4.5 MPa	[89]
TiFe+4 wt. % Zr (5 min milling)	9.0 × 10−3	8.5 × 10−3	1.62	1.41	273 K, 4.5 MPa	[89]
Ti0.5Zr0.5MnCr (60 min milling)	0.04	0.05	1.75	1.05	273 K, 2.0 MPa	[65]
Ti0.5Zr0.5MnCr (5 min milling)	0.04	0.05	1.75	1.82	273 K, 2.0 MPa	[65]
Melt-spinning technique
Material	Rate constant (min−1)		Hydrogen absorption capacity (wt. %)		Conditions	References
Metal alloy material	As-cast	Melt-spun	As-cast	Melt-spun
Mg11Y2Ni2	0.90	0.52	3.61	3.89	523 K, 3.0 MPa	[90]
Mg3LaNi0.1	0.25	0.60	2.73	2.90	573 K, 4.0 MPa	[24]
Mg-10Ni-2Mn	0.01	0.02	4.67	5.09	598 K, 1.0 MPa	[23]
Mg2Ni0.9Co0.1	9.0 × 10−3	0.02	2.38	3.00	473 K, 1.5 MPa	[91]
Spark plasma sintering
Material	Rate constant (min−1)		Hydrogen absorption capacity (wt. %)		Conditions	References
Metal alloy material	As-cast	Sintered	As-cast	Sintered
Mg sintered with 77% V77.8Zr7.4Ti7.4Ni7.4	1.7 × 10−3	6.7 × 10−3	7.26	2.52	573 K, 3.0 MPa	[87]
V35(Ti,Cr)65 sintered with ZrMn2	0.01	0.04	2.86	2.89	303 K, 0.6 MPa	[88]
Mg sintered with 30% ZrMn2	1.7 × 10−3	3.3 × 10−3	7.26	6.34	573 K, 3.0 MPa	[87]

. All the as-milled, as-spun and sintered alloy materials in Table 4 are reported to exhibit amorphous phases, and they are compared with their as-cast crystalline counterparts. According to the table, mechanical alloying of as-cast materials usually has a negative impact on the maximum hydrogen absorption capacity as all materials showed drastic decrease in their respective hydrogen content, except for Ti_0.5Zr_0.5MnCr alloy. Similar to other authors, Khajavi et al. [65] rationalized a loss in hydrogen capacity by deducing that milling process decreases the crystallite size, resulting in peak broadening. Nonetheless, milling significantly enhanced the absorption kinetics, and this is indicated by exceptional rate constants associated with all the as-milled counterparts in Table 4. Almost all the rate constants presented in the table were estimated from kinetic curves using chemisorption model [65] as shown by Equation (4),

α = kt

(4)

where α is the reacted fraction, t is hydrogenation time and k is rate constant. Metastable alloys (as amorphous, nano-crystalline, quasicrystalline, polycrystalline) can be prepared through melt spinning technique, since it allows quick quenching of melted metals. Most as-spun materials reported in this review have amorphous (examples being Mg₁₁Y₂Ni₂ and Mg₃LaNi_0.1) and nano-crystalline phases (examples being Mg-10Ni-2Mn and Mg₂Ni_0.9Co_0.1). On a contrary to mechanical alloying, melt spinning technique enhances both the hydrogen storage capacity and the kinetics (Table 4). The speedy hydrogenation kinetics for as-spun materials can be related to fine particle size and the crystal defects shaped as a result of rapid solidification, which facilitates swift nucleation and diffusion of hydrogen [23]. The enormous quantity of interfaces and grain boundaries created within the as-spun alloy offers easy access for hydrogen diffusion and facilitate easy absorption of hydrogen [23]. Another interesting technique featured in this review is spark plasma sintering. In the same way as MA and melt spinning, SPS-synthesized alloy materials exhibit an amorphous/nanocrystallite phase [87,88]. The absorption kinetics and capacity of sintered materials are affected by the amount (percentage), the type of material, and sintering conditions (temperature and pressure) used for SPS process. For example, hydrogen content of metallic Mg was reduced extremely from 7.26 wt. % to 2.52 wt. % upon blending with 77% V_77.8Zr_7.4Ti_7.4Ni_7.4 through SPS while hydrogen content of V₃₅(Ti,Cr)₆₅ sintered with ZrMn₂ remained almost the same [87,88]. Interestingly, the rate constants of sintered alloy materials in Table 4 are better than those of as-cast materials. This is a clear indication that the SPS method has a positive effect on hydrogen absorption kinetics. Thus, it can be seen that all these three techniques are good candidates for improvement of hydrogen absorption kinetics, but alloys prepared using SPS technique in most cases have low hydrogen capacity. Hence, we take a further comparison between the prevailing techniques–MA and melt spinning.

Zhang et al [44] and Wu et al [92] made some efforts to prepare and compare structures and hydrogenation behaviour of as-milled and as-spun alloy materials. Their findings are summarized in

Table 5. Comparison between kinetics and hydrogen content of as-milled and as-spun techniques.

Material	Rate constant, min−1		Absorption Capacity, wt. %		Conditions	References
Alloy material	As-milled	As-spun	As-milled	As-spun
Mg–10Ni–2Mm	0.04	0.01	3.21	4.22	573 K, 2.0 MPa	[92]
YMg11Ni	0.05	0.03	4.72	4.07	593 K, 3.0 MPa	[44]

. From the table, it can be seen that the hydrogen absorption capacity of Mg-10Ni-2Mm alloy is favoured by melt spinning technique as larger amount of hydrogen was stored by the material prepared through this technique than that prepared using mechanical alloying. However, YMg₁₁Ni in Table 5 showed a different trend. The rate constants of materials prepared by mechanical alloying are better than those of materials synthesized by melt spinning technique. This indicates that mechanical alloying plays a significant influence on increasing the hydrogenation kinetics of the alloys as compared to melt spinning.

Hydrogenation of metal alloys is usually governed by three steps, namely (i) dissociation of hydrogen molecules into atomic hydrogen, (ii) the penetration of atomic hydrogen through grain boundaries, and (iii) the binding of atomic hydrogen on the metal, transforming into metal hydride [44]. The rate-determining step of the as-milled alloy is most likely ascribed to the ball milling rendering the second step, i.e., the penetration of atomic hydrogen through grain boundaries. The milling of as-cast alloys during mechanical alloying results in reduction of particle size and increment of high surface-to-volume ratio of alloy particles [93]. Due to these two changes, the distance for atomic hydrogen penetrating through the material is extremely reduced, which facilitates absorption greatly.

3.6. Surface Modification of Ball Milled Metal Alloys

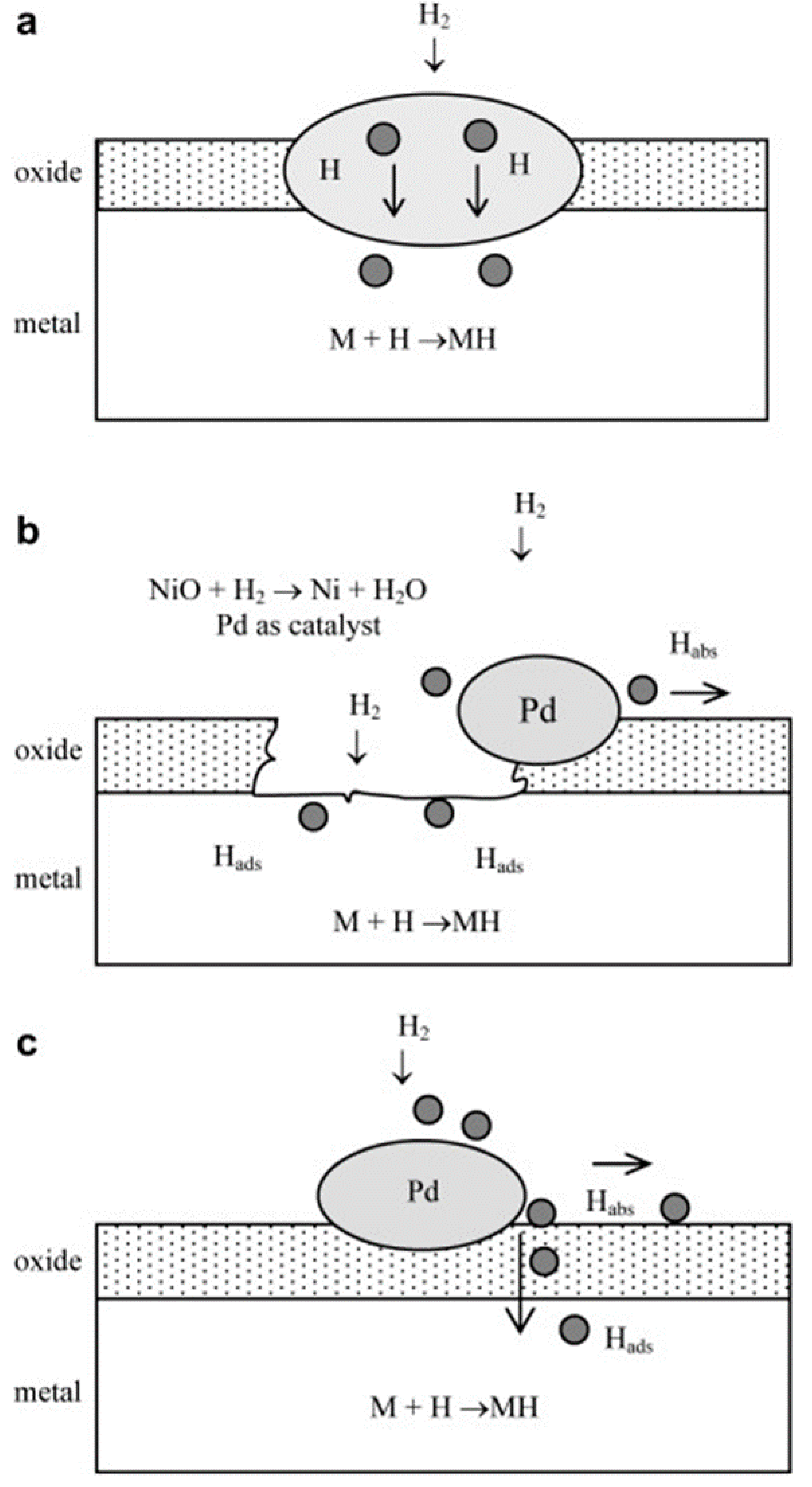

Better and improved hydrogenation kinetics are achieved by nano-crystalline and/or amorphous metal alloys synthesized by mechanical alloying, but such materials still encounter several limitations, including impurity interactions, which include poisoning of the metal by impure gases such as carbon monoxide, sulphur and carbon dioxide; disproportionation during absorption/desorption cycling; retardation; innocuous and difficulty of initial activation [94]. These shortcomings result in rapid loss of hydrogen capacity with cycling, caused by impurities strongly or irreversibly absorbed on the surface active sites, and loss in absorption kinetics due to surface blanketing [95]. To overcome the above-mentioned problem, nano-structuring of ball milled materials and surface modification technology can be employed before hydrogen sorption can take place [96]. Surface modification involves the formation of a protective layer on the surface of metal alloy, thus preventing oxide-containing film to form. The most common surface modification technologies include fluorination, potassium borohydride, Ni-weak acid, ion implantation, hydrochloric (HCl) acid, platinum group metals (PGMs) decomposition and Y₃O₂ deposition. Yeung et al. [97] reported that the surface modification techniques PGMs deposition is the most attractive technology due to its ability to simultaneously prevent deactivation by guarding the catalytically active sites on the surface of bulk material against and enhance the hydriding kinetics during hydrogen absorption [97,98,99,100]. Moreover, this technique does not only enhance the hydriding rate, but also the absorption capacity of the alloys [99]. In particular, palladium is capable of catalyzing hydrogen sorption reactions, promoting easy activation, and improving poisoning tolerance. It has high hydrogen affinity and it is impermeable to larger molecules such as CO₂ and sulphur [82]. Figure 10a–c show different mechanisms of hydrogen dissociation on the surface of Pd-treated AB₅-type alloys [100]. During the hydrogen spillover mechanism hydrogen molecules are dissociated into hydrogen atoms on the surface of palladium, which then spillover to the active sites of the bulk alloy [98]. Pd thin film on the surface of AB₅ alloy dissociates hydrogen molecules and allows the resulting hydrogen atoms to pass through the film as they diffuse into the bulk alloy. However, this technique is costly as huge amount of Pd is utilized [99].

Moreover, PGM-treated materials also exhibit the power to absorb hydrogen at low temperature, without the activation step prior to absorption, and enhanced kinetics of hydrogen sorption processes [101]. This method is extremely active towards dissociative hydrogen chemisorption and permeable for hydrogen atoms; enabling hydrogen to rapidly absorb into the bulk material while still maintaining the hydrogenation activity even after exposure to the impurities inhibiting hydrogen sorption [102]. The properties being improved include surface catalytic activity, specific surface area layer, activation characteristics, as well as protective nature of the complexes against poisoning materials, such as sulphur, water vapour and carbon oxides [82].

Davids et al. [103] exploited hydrogenation behaviour of ball-milled TiFe alloy surface modified using a metal-organic chemical vapour deposition technique (MOCVD), by the thermal decomposition of palladium (II) acetylacetonate (Pd[acac]₂), mixed with the powder of the parent alloy. The authors reported that alloy materials containing 0.5% Pd have better hydrogenation behaviour than materials containing 1% Pd. The same trend in deterioration of hydrogenation performance, with an increase in Pd content, was observed by Pasquini and co-workers [104] who varied Pd content (corresponding to 4, 8 and 13 wt. %) on the surface of Mg metal. The observations are due to the theory that large amount of metal deposits on the surface of TiFe alloy and Mg metal results in slow penetration of hydrogen over a given period [104], as a result of fracture and defect blockage of the parent alloy material, which are usually formed during ball milling. Doyle et al. [105] recommended that the total weight of PGMs during surface modification of metal hydride-forming alloy should be in trace amounts (≤0.1wt. %) to avoid losses in hydrogenation behaviour. Another interesting study in literature was conducted by Modibane et al. [106] in which the authors carried out ball milling of AB₅-type materials out using a FRITSCH Pulverisette planetary mill and subsequently deposited Pd nanoparticles using autocatalytic Pd deposition technique. Upon ball milling of the parent alloy (Figure 11a), porous agglomerates of micro-size particles (Figure 11b,c) were obtained due to blending and grinding of parent particles. Porous particles are fancied by Parker et al. [35] for enhancement of absorption kinetics. Palladium nanoparticles, which showed discontinuous nature and near-spherical shape, partially cover the AB₅ materials (Figure 11d–f) and are responsible for dissociation of hydrogen molecules [106].

Table 6. Hydrogenation properties of surface modified metal alloys prepared by mechanical alloying.

Alloy Type	Metal Alloy	Rate Constant, min−1	Hydrogen Capacity, wt. %	Hydrogenation Conditions	References
As-milled	LaNi5	0.04	5.30	313 K, 1.5 MPa	[28]
Pd deposition	Pd-LaNi5	2.38	5.18	313 K, 1.5 MPa
As-milled	Mg2Ni	0.06	3.55	673 K, 2.0 MPa	[28]
Pd deposition	Pd-Mg2Ni	0.59	2.64	573 K, 2.0 MPa
As-milled	LaNi4.25Al0.75	4.8 × 10−1	3.21	293 K, 1.5 MPa	[107]
Pd deposition	Pd-LaNi4.25Al0.75	1.33	3.89	293 K, 1.5 MPa
As-milled	La0.9Pr0.05Nd0.05Al0.3Mn0.4Co0.65Ni3.5	2.4 × 10−3	0.45	293 K, 0.5 MPa	[108]
Pt deposition	Pt-La0.9Pr0.05Nd0.05Al0.3Mn0.4 Co0.65Ni3.5	4.5 × 10−2	0.83	298 K, 0.1 MPa
Ru deposition	Ru-La0.9Pr0.05Nd0.05Al0.3Mn0.4 Co0.65Ni3.5	3.3 × 10−2	0.34	298 K, 0.1 MPa
Pt-Ru co-deposition	Pt-Ru-La0.9Pr0.05Nd0.05Al0.3 Mn0.4Co0.65Ni3.5	2.9 × 10−2	0.79	298 K, 0.1 MPa
As-milled	La0.40Ce0.48(Nd,Pr)0.16Ni3.34Co0.64Al0.63Mn0.58	1.6 × 10−4	1.24	293 K, 0.5 MPa	[101]
Pd deposition	Pd-La0.40Ce0.48(Nd,Pr)0.16 Ni3.34Co0.64Al0.63Mn0.58	6.2 × 10−4	2.75	293 K, 0.5 MPa
Pd-Ni co-deposition	Pd-Ni-La0.40Ce0.48(Nd,Pr)0.16 Ni3.34Co0.64Al0.63Mn0.58	1.1 × 10−3	3.60	293 K, 0.5 MPa

reveals some of reported literature on surface modified metal alloys synthesized through mechanical alloying. Surface modification techniques herein are based on PGMs deposition and co-deposition. All surface modified alloys exhibit better hydrogenation kinetics as compared to their as-milled counterparts. Variations arise when comparing the hydrogen capacities. For instance, Pt deposition on as-milled La_0.9Pr_0.05Nd_0.05Al_0.3Mn_0.4Co_0.65Ni_3.5 alloy results in increase of capacity, while Ru deposition on the same alloy lowers the hydrogen capacity. This is attributed to poor or little hydrogen affinity associated with Ru.

4. Conclusions

Hydrogenation kinetics and storage in solid state materials is a major concern in developing an up-and-coming hydrogen technology and economy. The present work reviews some challenges regarding the hydride-forming alloys, particularly their hydriding kinetics and capacity. In this regard, developments on hydrogenation performances of metal alloys, prepared by the mechanical alloying technique, were discussed. Moreover, this technique was compared with other preparation techniques, such as spark plasma sintering and melt spinning. The work is carried out in an attempt to facilitate suitable alloy preparation technique that can extensively improve the hydrogenation kinetics of different alloy materials. Although, much attention has been given to the techniques that are discussed in this work, with the aim of minimizing dehydrogenation temperature, enhancing the kinetics and poisoning-tolerance of different alloys, further research is needed. The collected literature data reveal encouraging improvements in terms of hydrogen storage kinetics through mechanical alloying. In the light of the achievements, through the combination of mechanical alloying and melt spinning techniques there is high potential in developing better metal hydride materials with high hydriding kinetics. Mechanically alloyed materials still suffer from cycling stability; they are prone to oxide layers formation, which hinders rapid absorption of hydrogen; and they also exhibit poisonous-intolerance. As a result, we further reviewed different surface modification techniques that can overcome these drawbacks. Surface modification of mechanically alloyed materials was overlooked at and it was seen that it promotes hydrogen storage kinetics by forming a protective layer on the surface of bulk alloy, thereby preventing the formation of oxide layer. Moreover, surface modification through deposition of PGMs on the surface of alloy materials stimulates poisonous tolerance of parent alloys.
