Next Article in Journal
A Study on Work Hardening in the Laser-Assisted Machining of Si3N4 Ceramics under Different Material Removal Modes
Previous Article in Journal
Grain Refinement Effect on the Hot-Tearing Resistance of Higher-Temperature Al–Cu–Mn–Zr Alloys
Open AccessArticle

Are Large Particles of Iron Detrimental to Properties of Powder Metallurgy Steels?

1
Department of material science, Technical Research Center, Cairo 11765, Egypt
2
Advanced Engineering, Stackpole International, Johnson Electric, Ancaster, ON L9G 4V5, Canada
3
Department of material science and engineering, McMaster University, Hamilton, ON L8S 4L7, Canada
*
Author to whom correspondence should be addressed.
Current address: Advanced powder and coating, Additive Manufacturing, General Electric, Montreal, QC J7R 0L5, Canada.
Metals 2020, 10(4), 431; https://doi.org/10.3390/met10040431
Received: 5 March 2020 / Revised: 17 March 2020 / Accepted: 22 March 2020 / Published: 25 March 2020

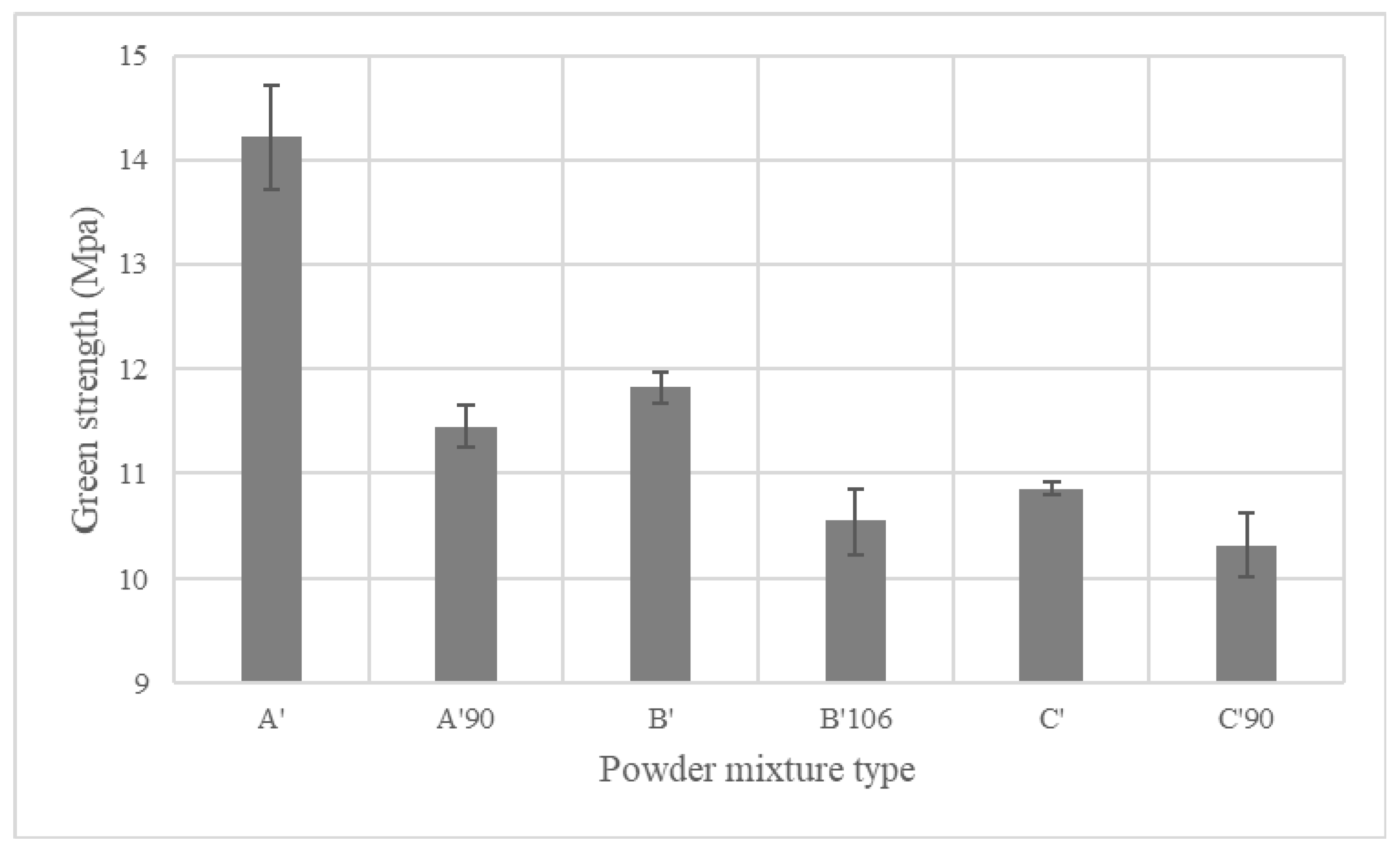

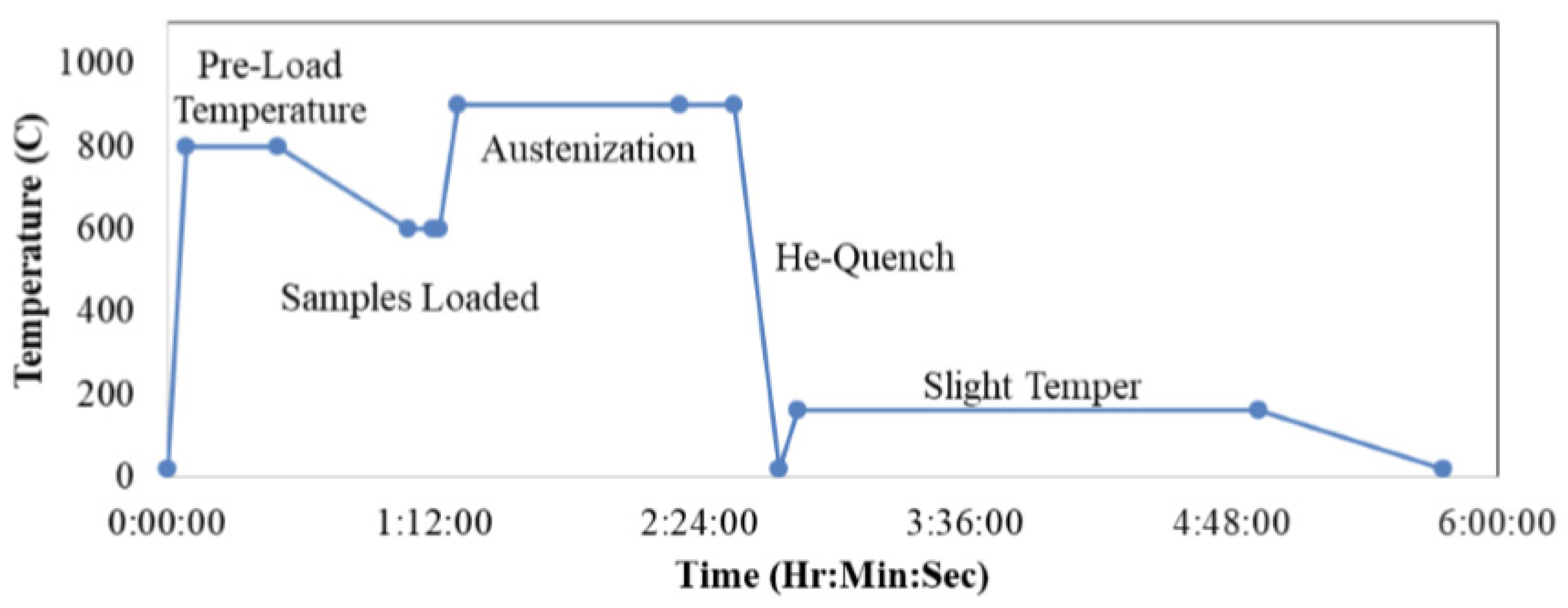

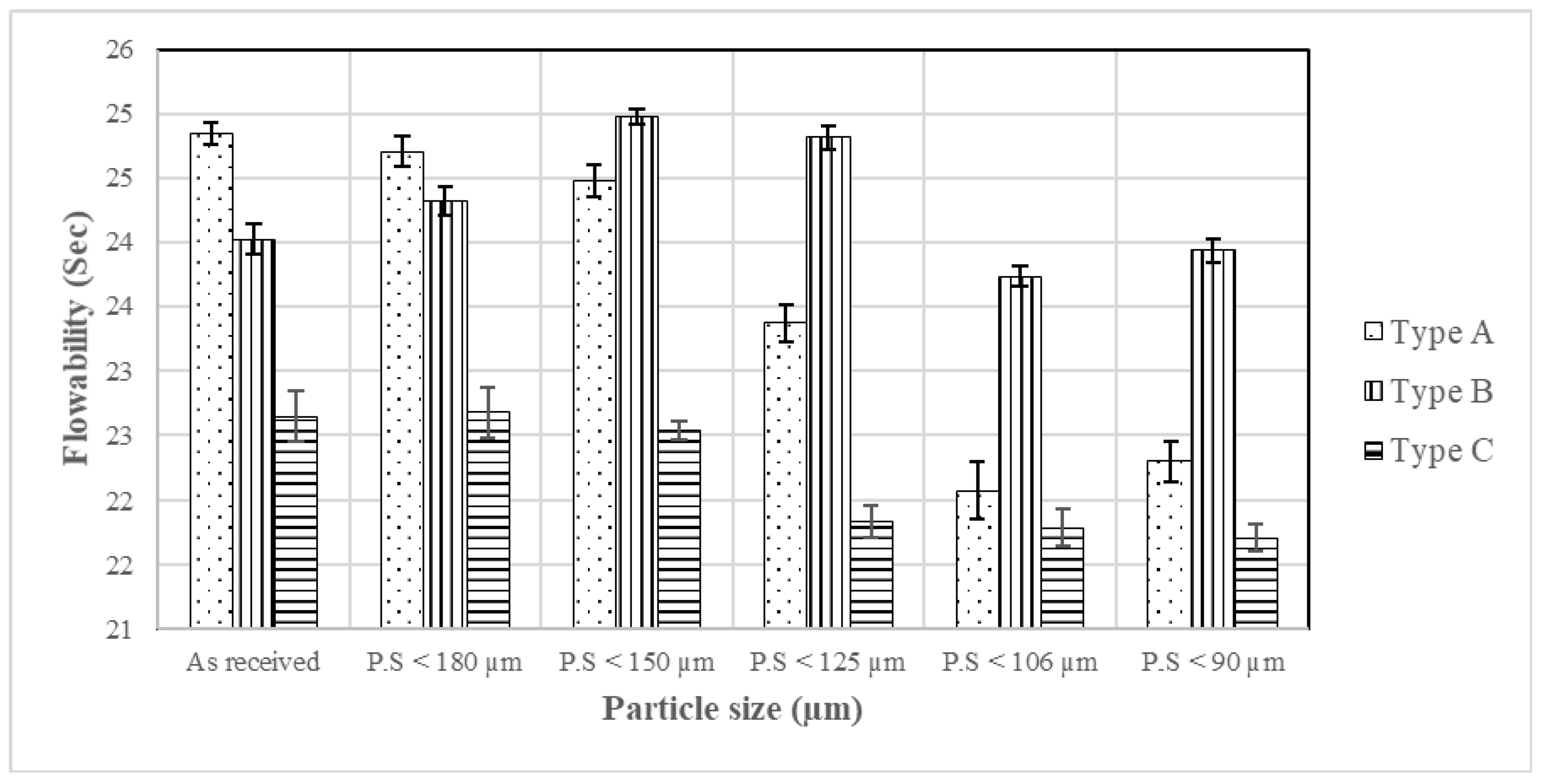

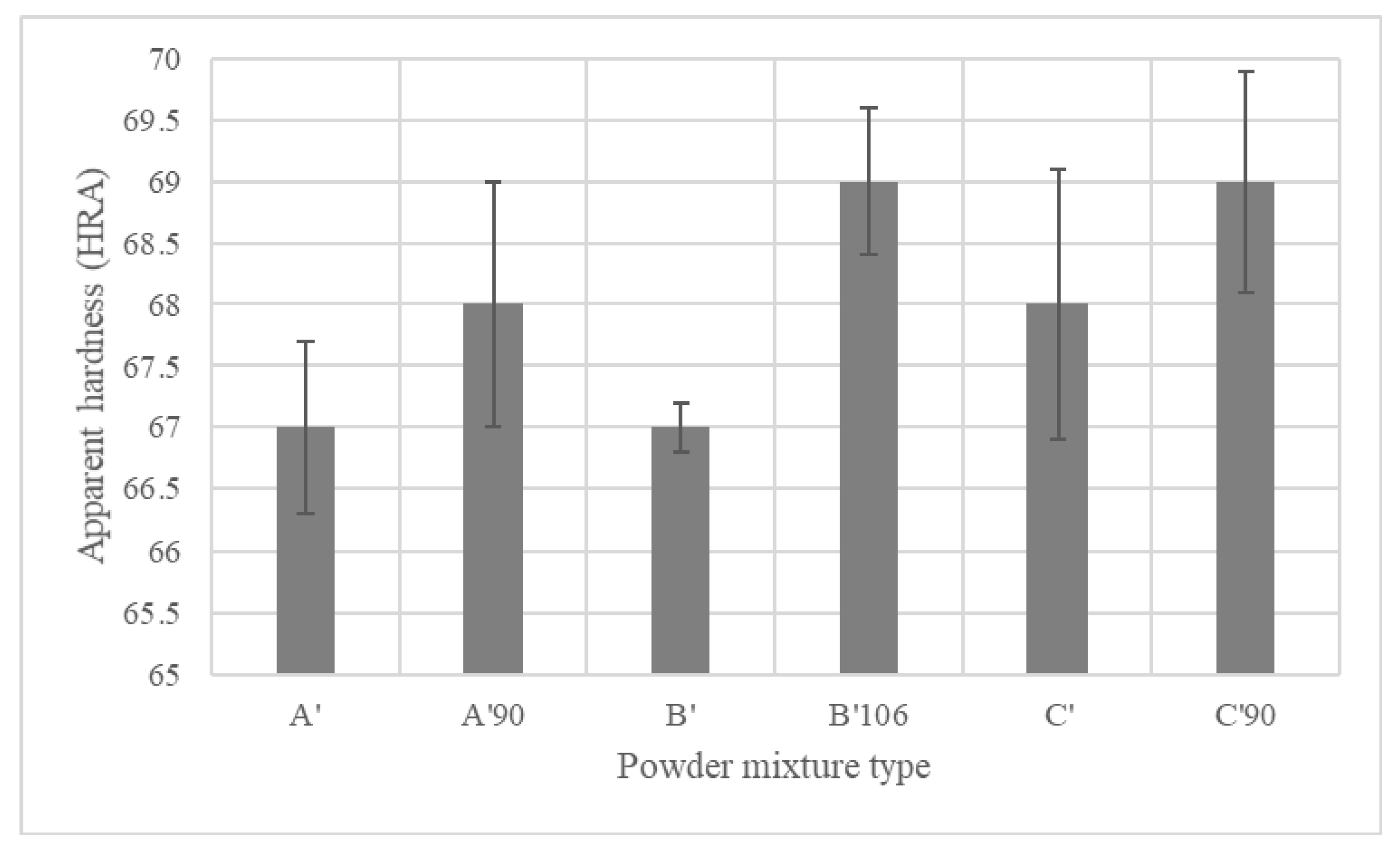

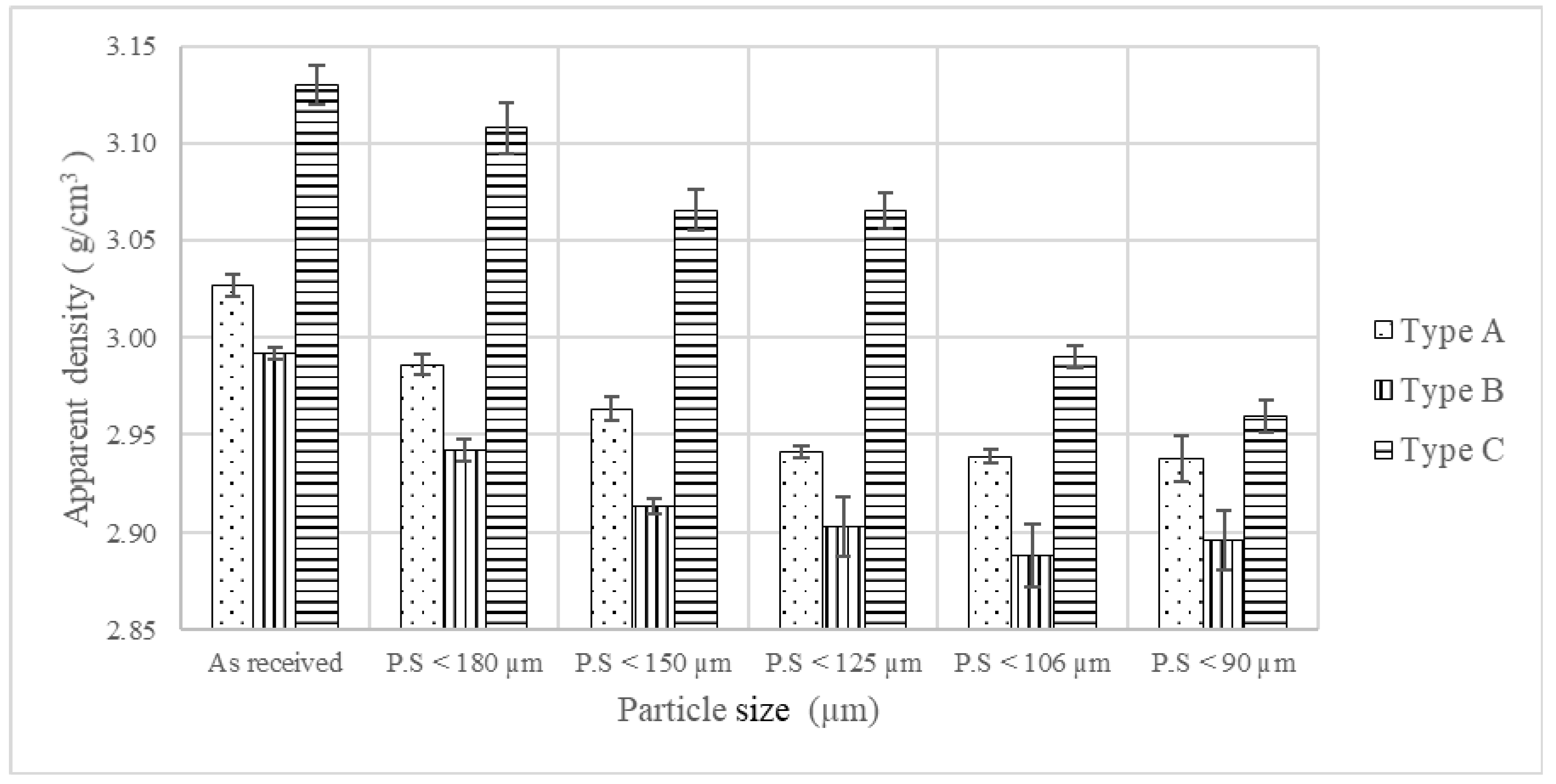

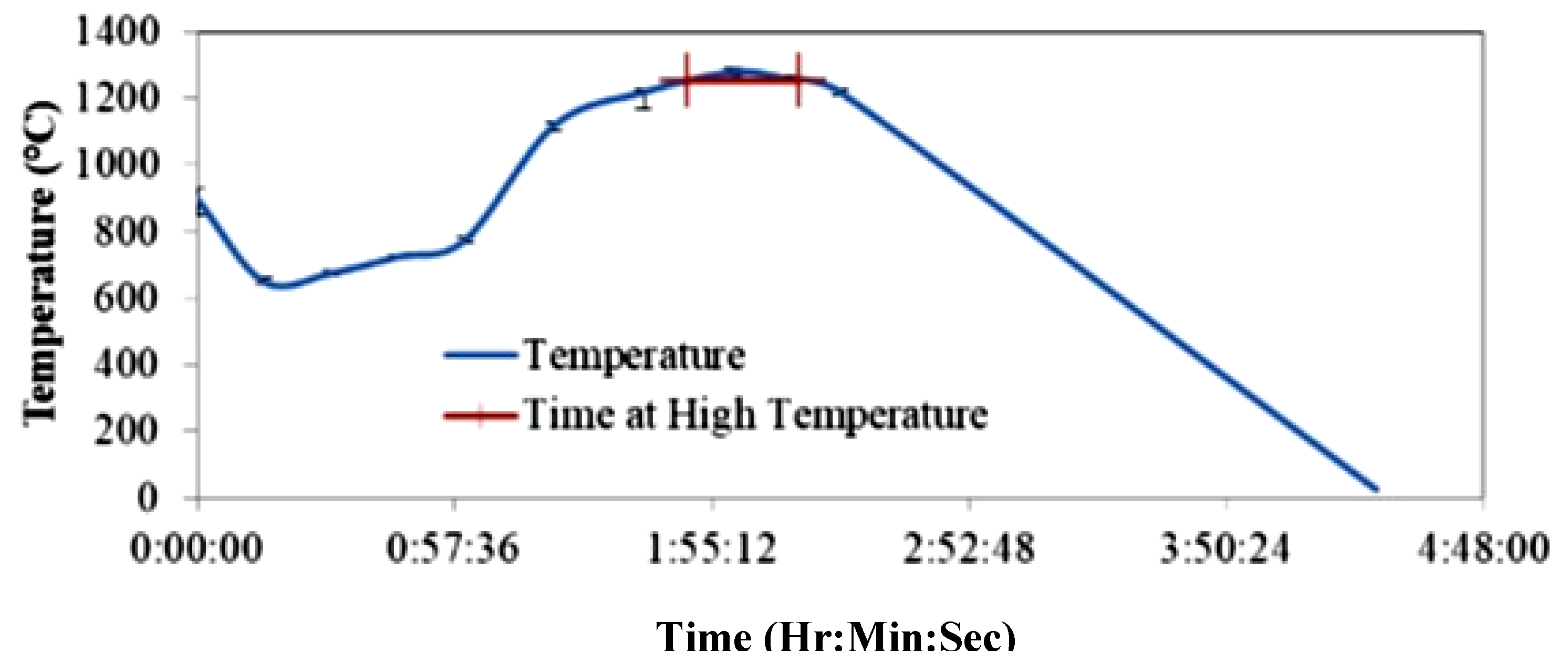

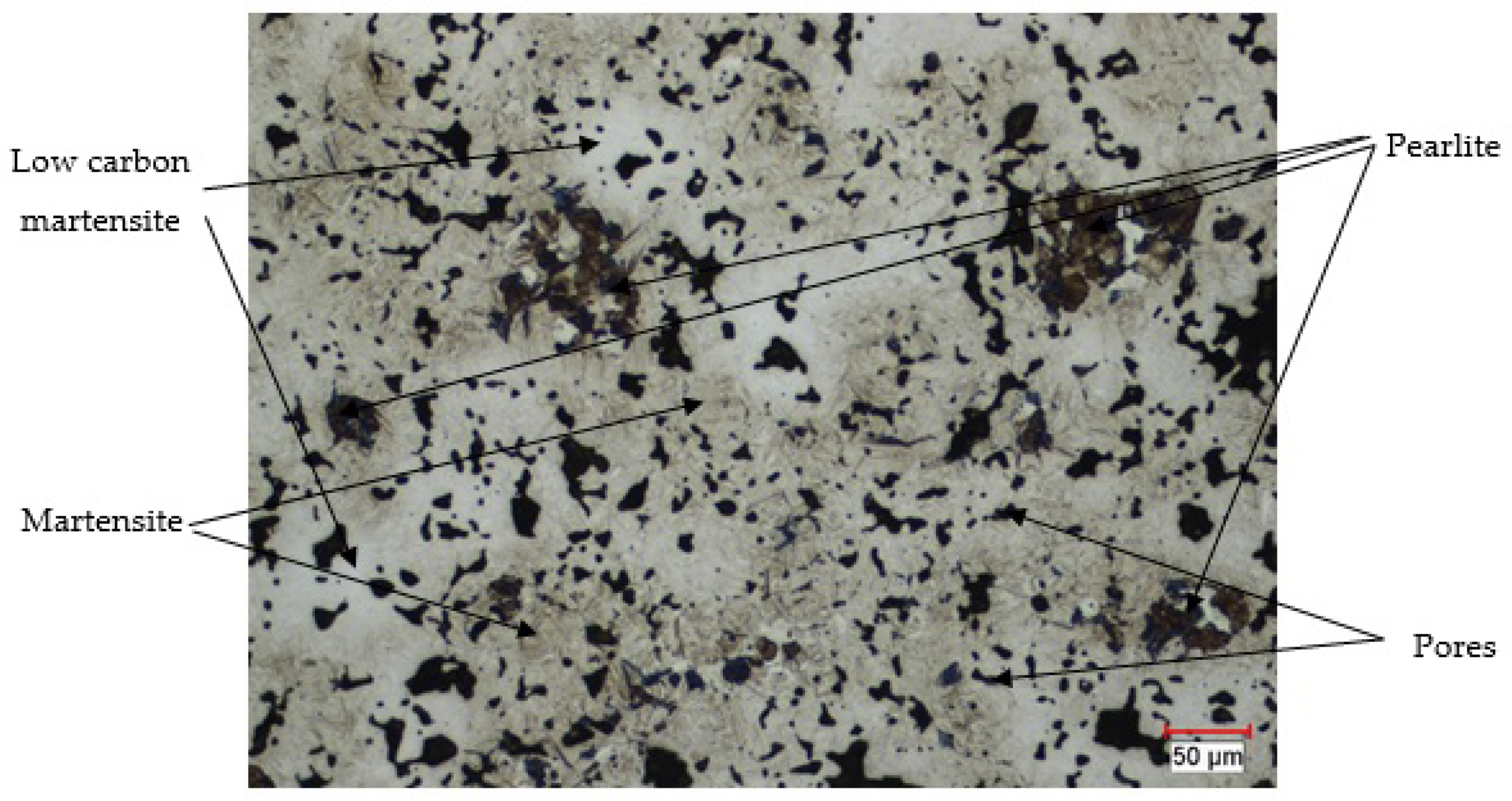

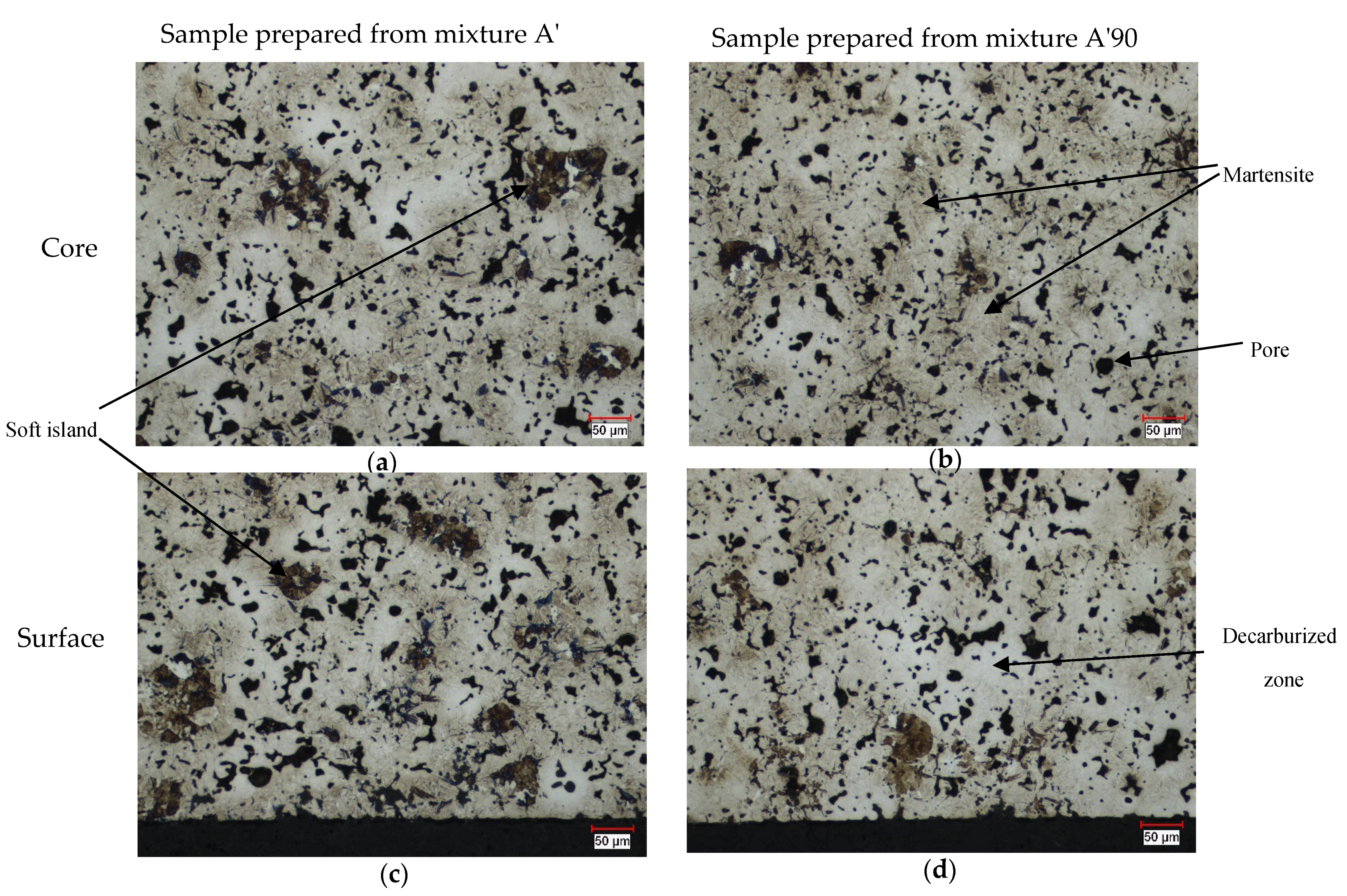

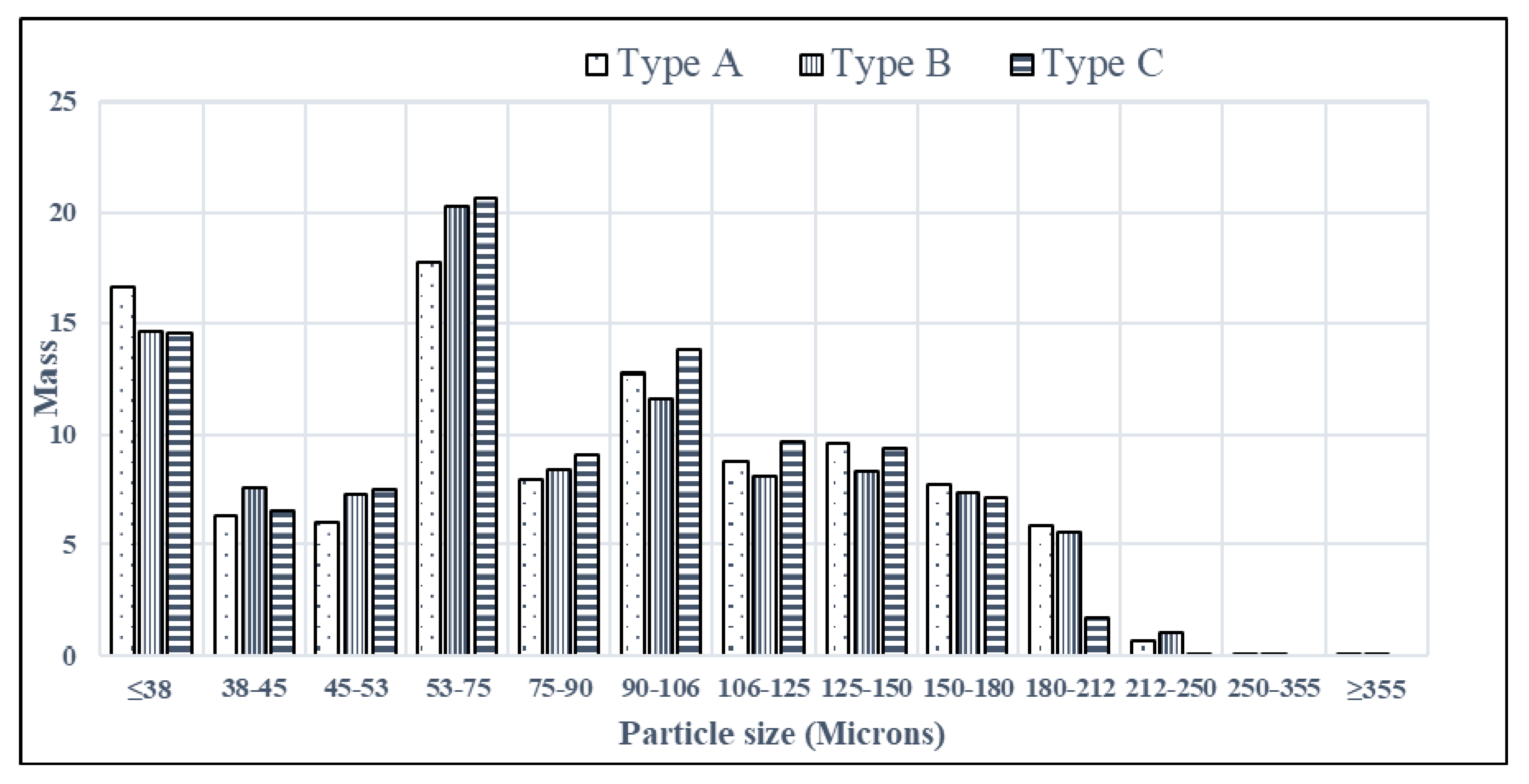

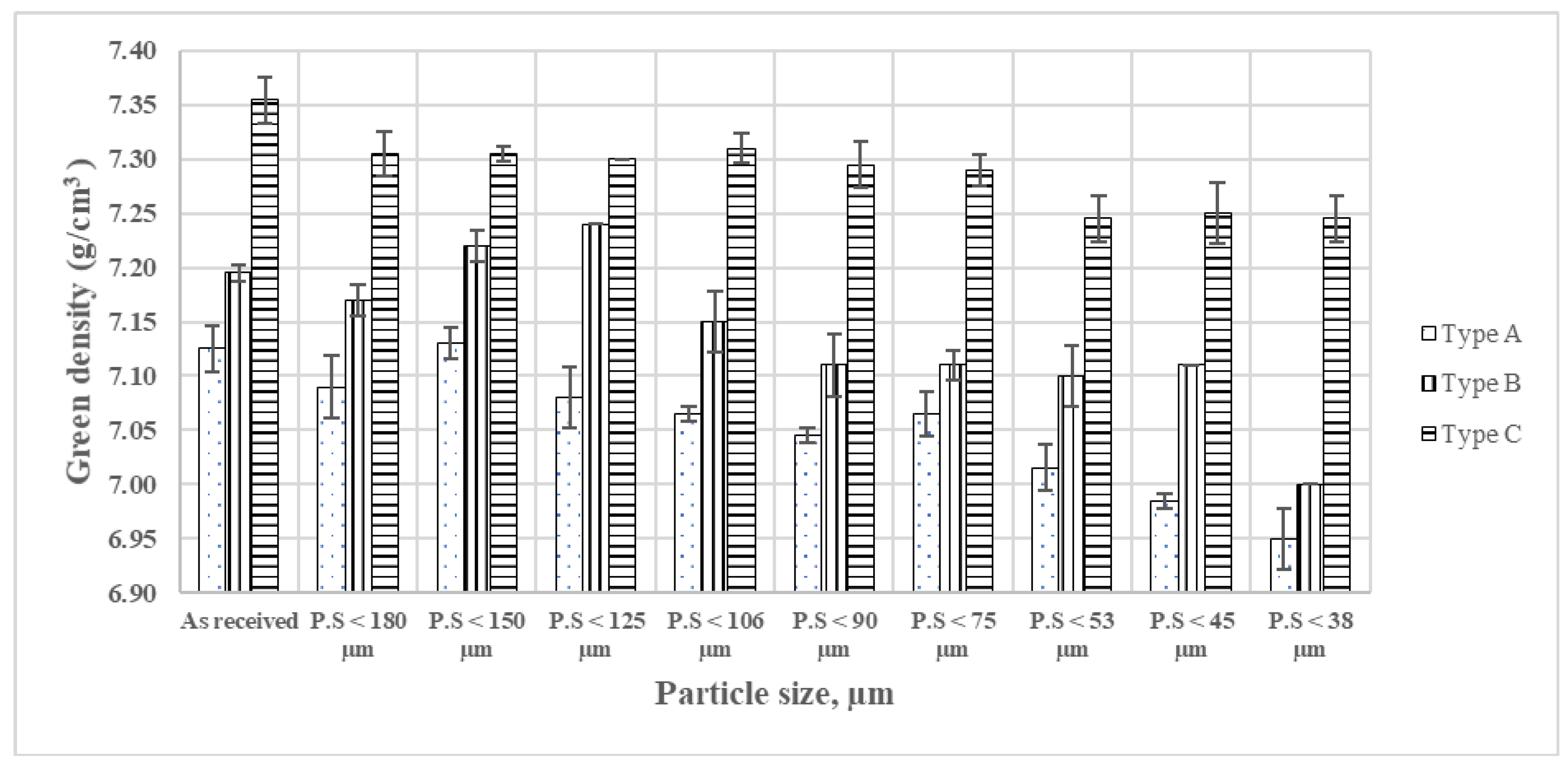

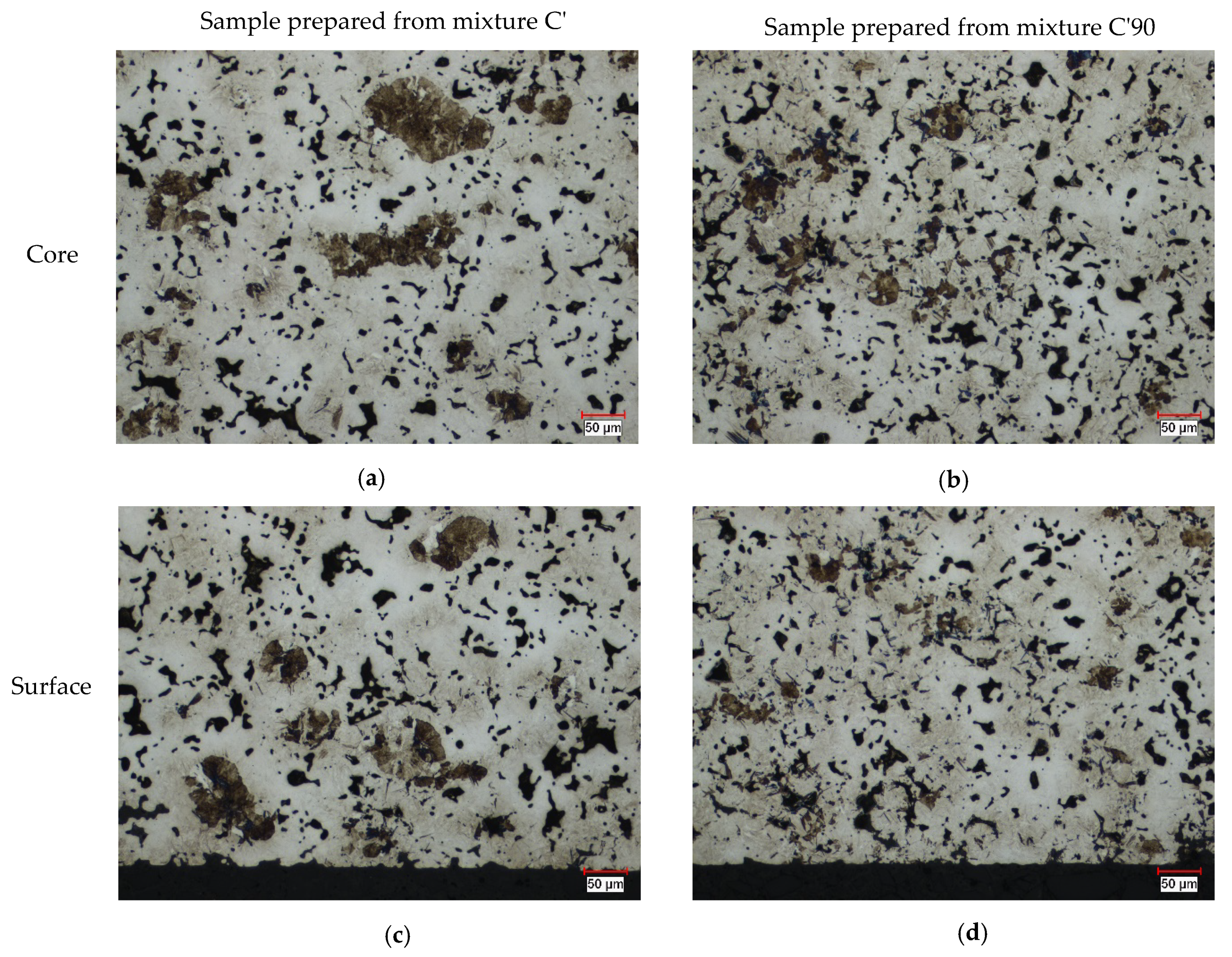

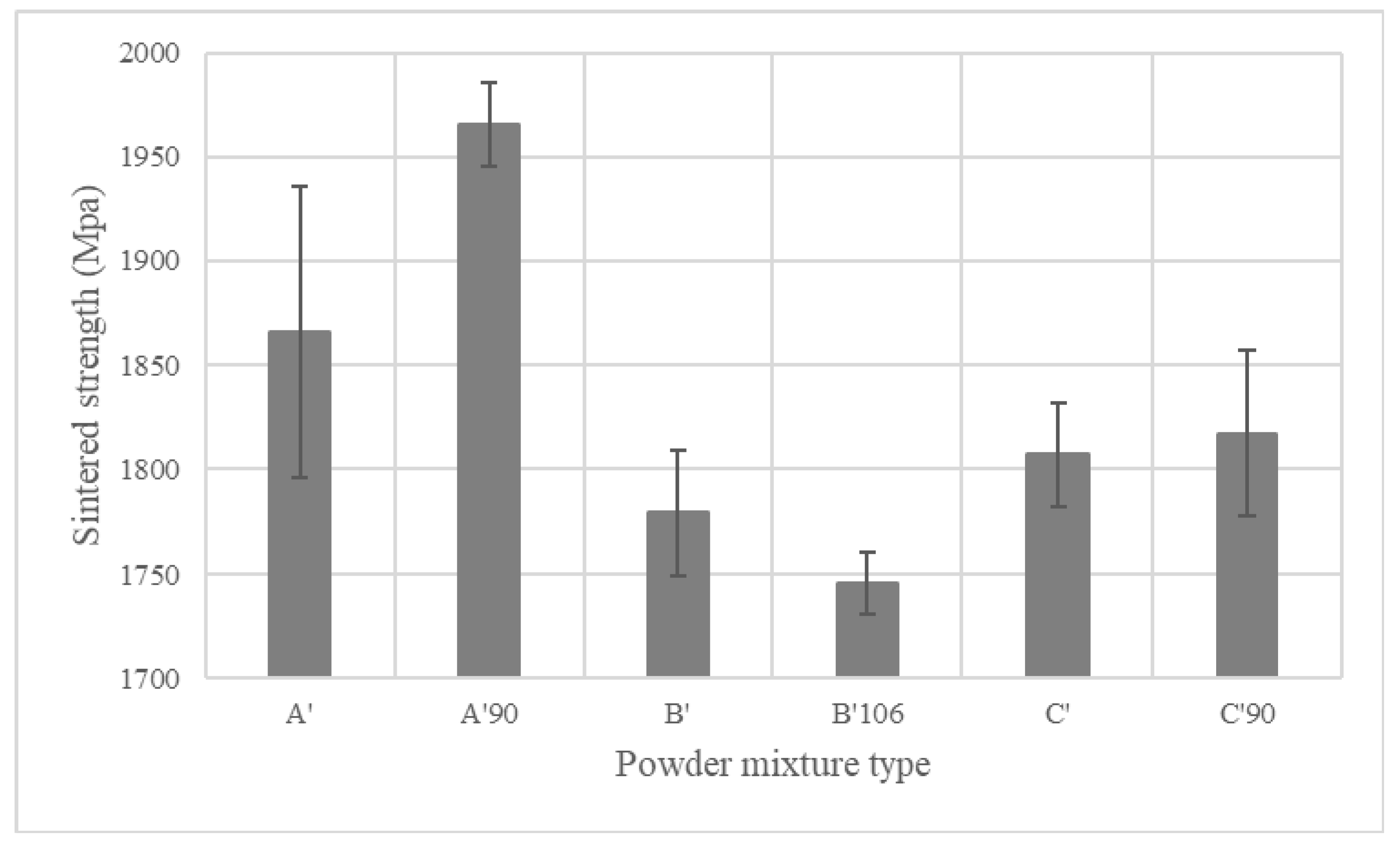

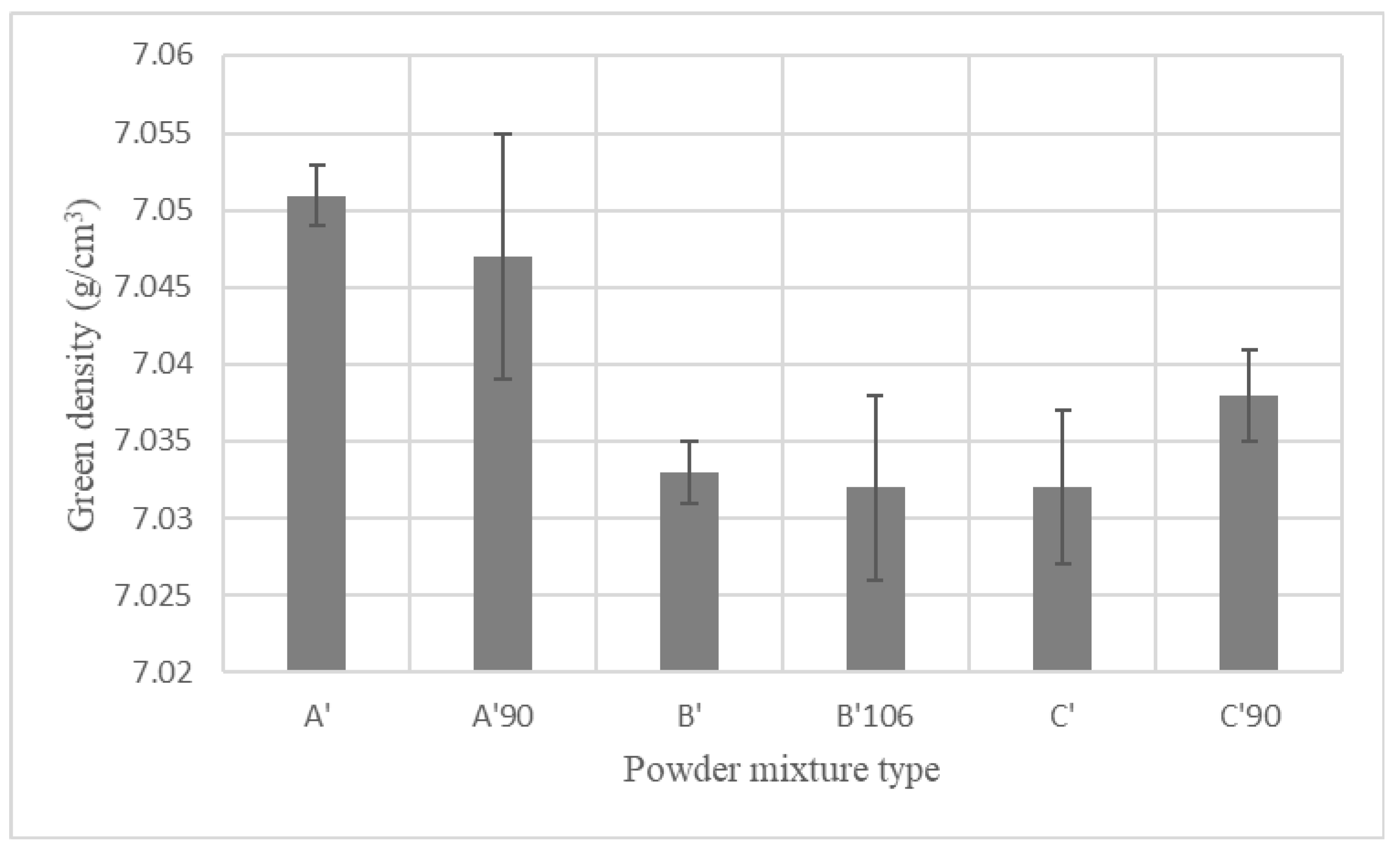

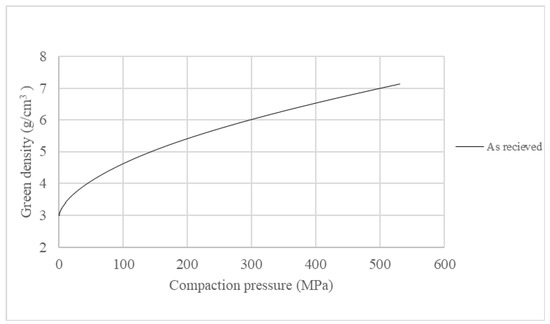

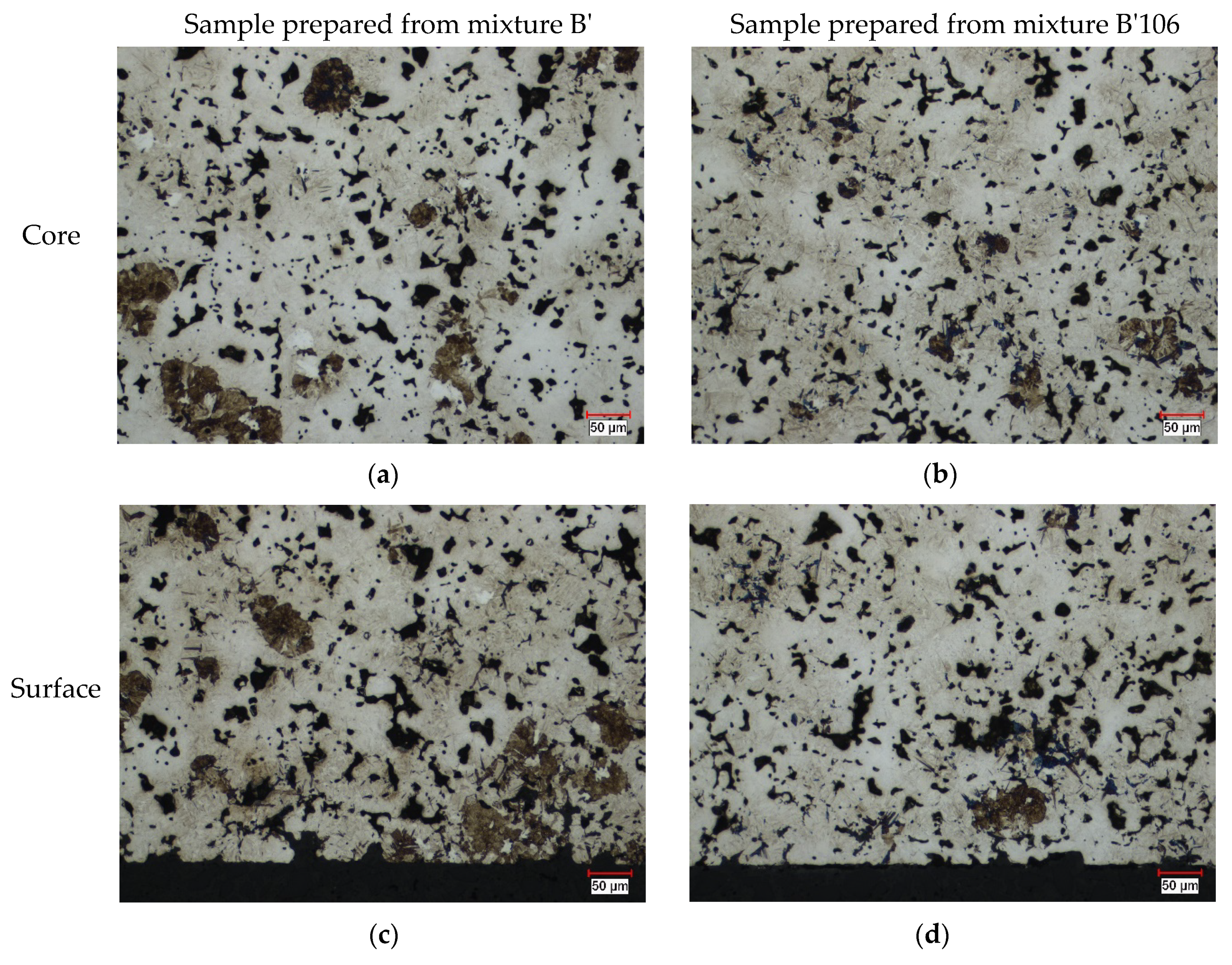

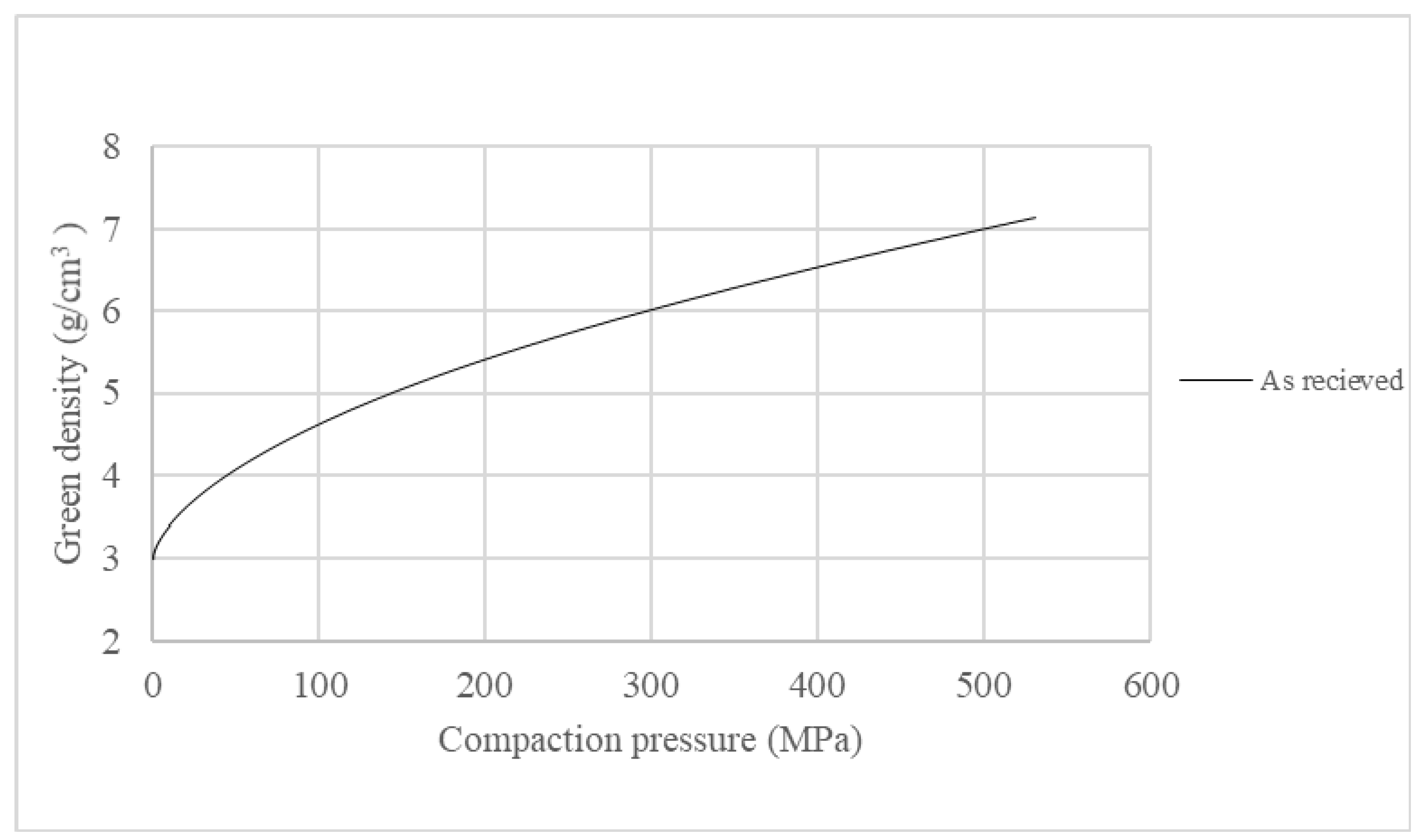

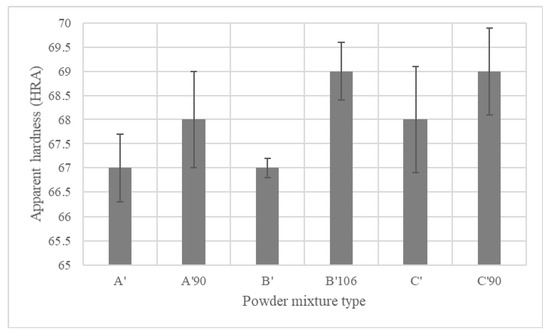

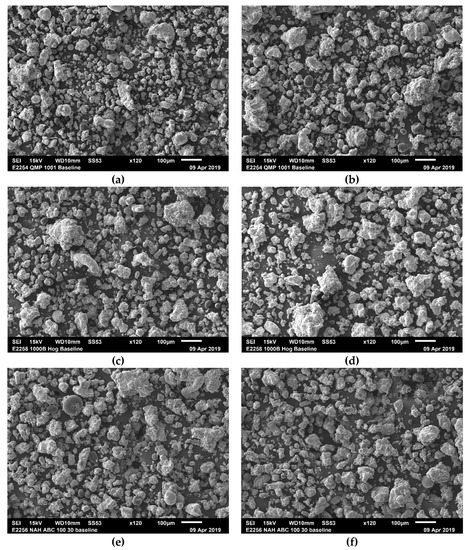

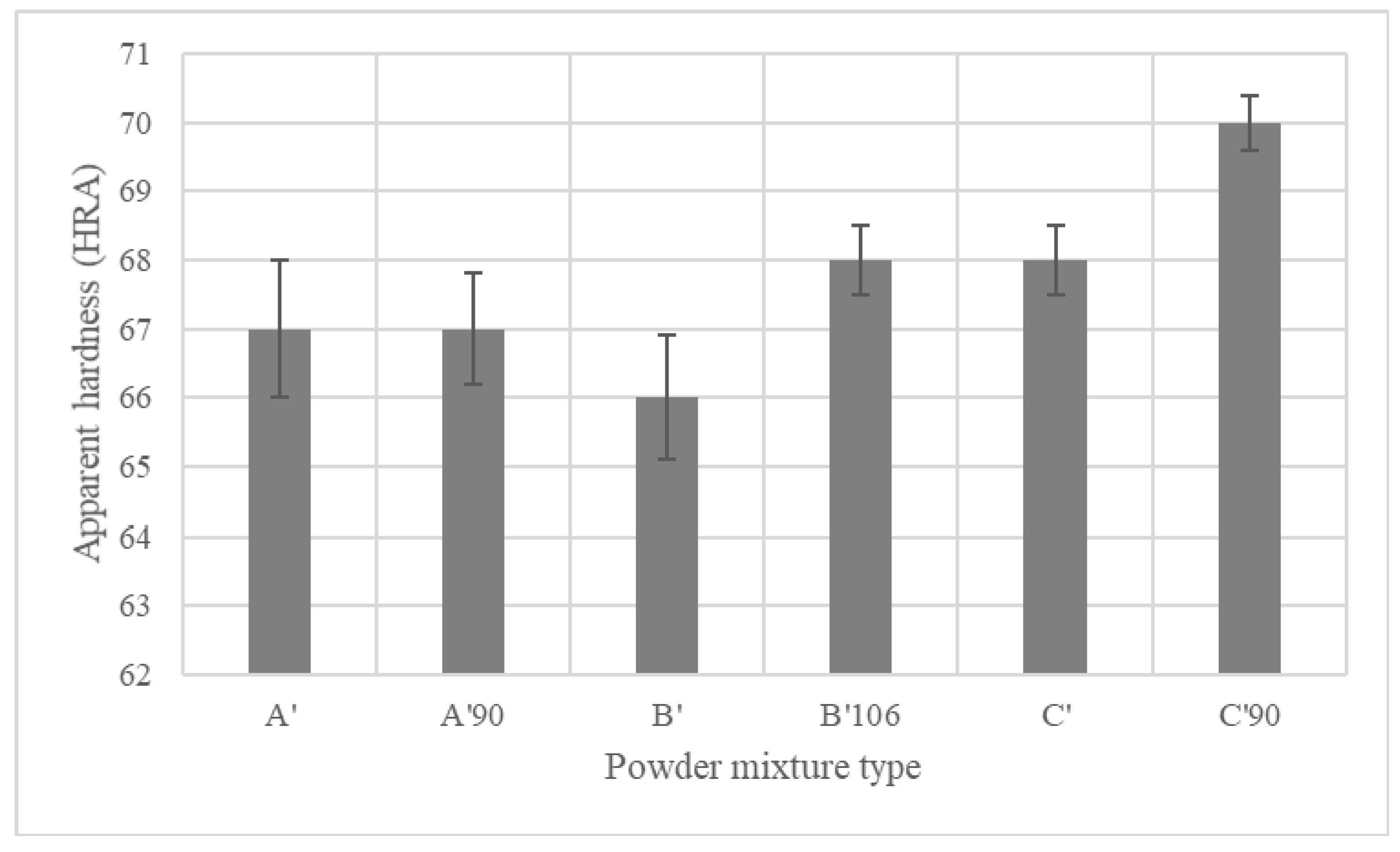

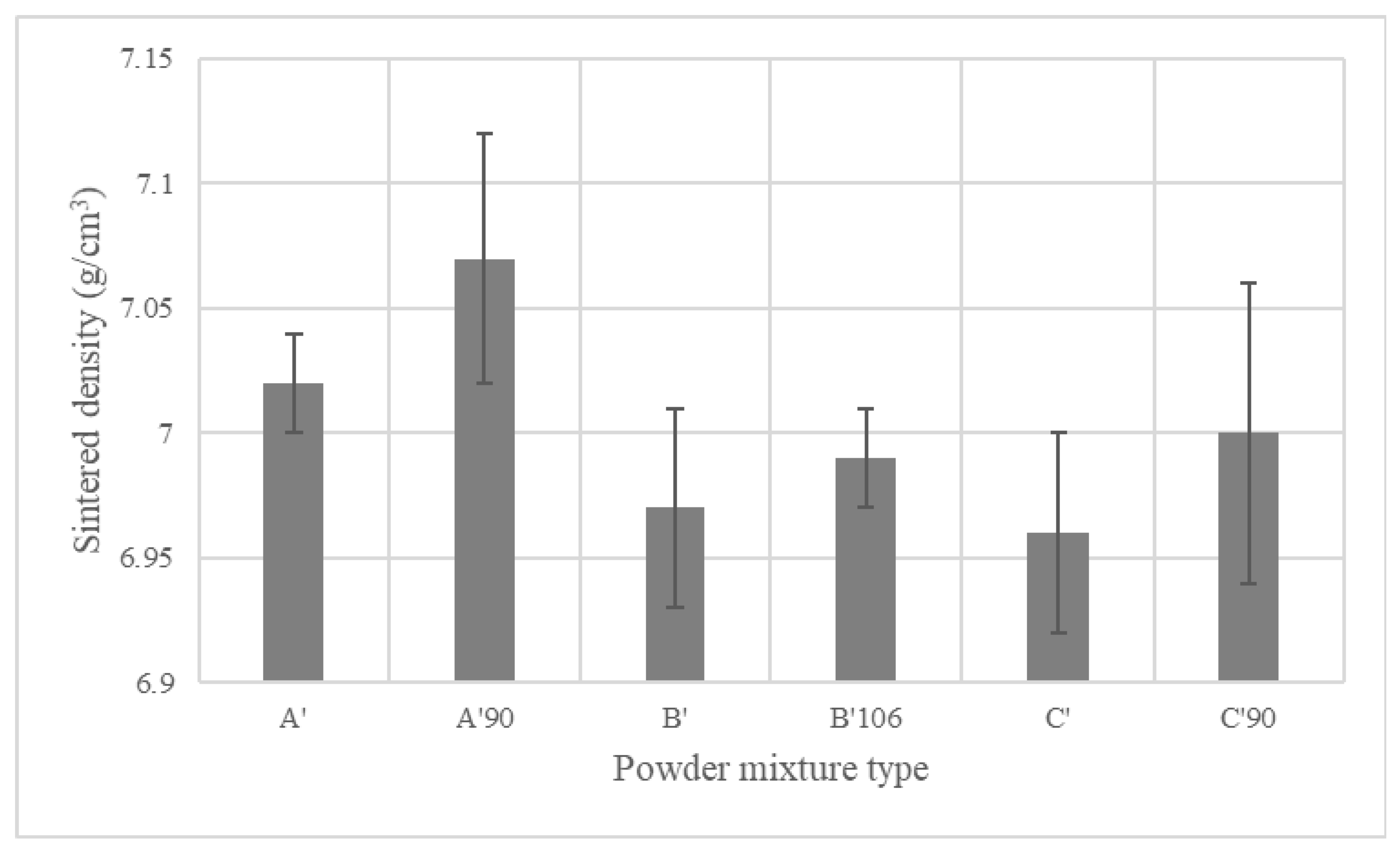

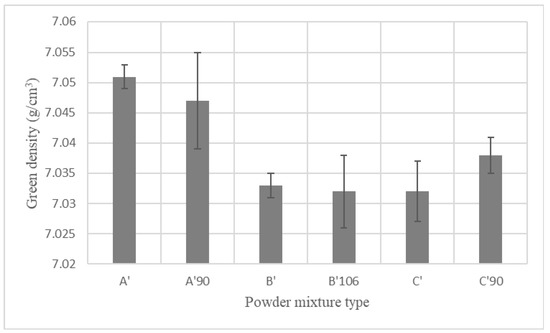

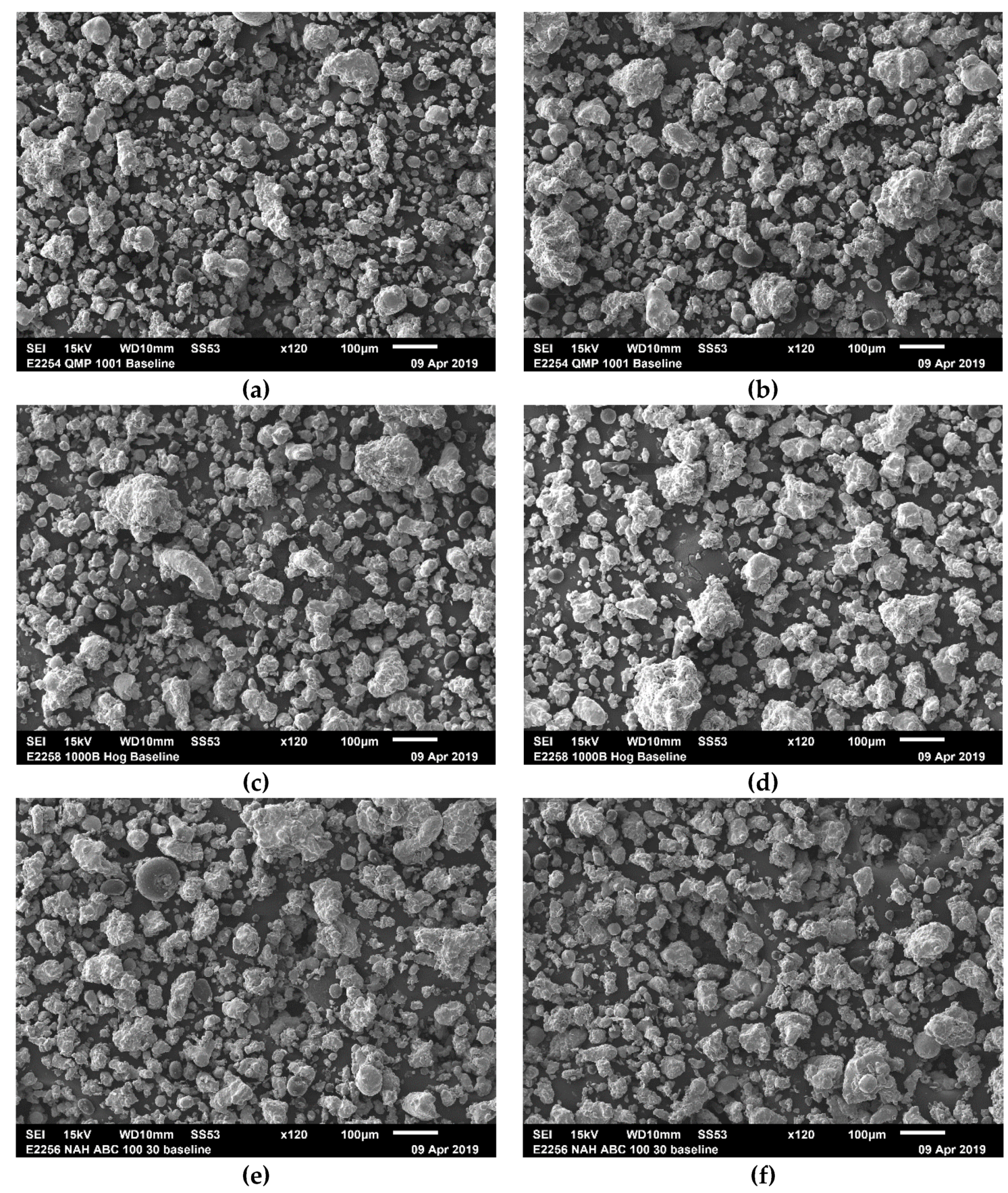

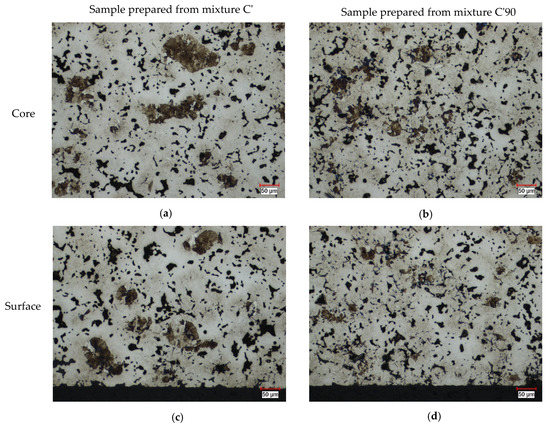

It is experimentally shown that a removal of particles exceeding 100 microns in size from iron powders typically used in the fabrication of medium density powder metallurgy steels has a weak effect on apparent density, flowability and compressibility of blends as well as on density and strength of green bodies. An elimination of such particles, i.e., cutting off a heavy tail of a size distribution histogram at the 100 μm threshold, improves a compositional uniformity of sintered materials, but has no noticeable beneficial effect upon the strength of a final product, which is likely be determined by a fraction of pores and their shapes. A presence of soft pearlitic inclusions hardly matters unless their number density becomes so large that a 3D continuity (integrity) of a hard martensitic matrix is lost. This finding suggests that such an expensive preparatory step as sieving away large particles from as-received mixtures would bear no technological advantages. It was experimentally found that an attempt to lower the threshold below 100 μm noticeably worsened apparent density, flowability and compressibility. View Full-Text
Keywords: powder metallurgy steel; iron powder; particle size distribution; compressibility; flowability; apparent density powder metallurgy steel; iron powder; particle size distribution; compressibility; flowability; apparent density
Show Figures

Figure 1

MDPI and ACS Style

Abdallah, A.; Habibnejad-Korayem, M.; Malakhov, D.V. Are Large Particles of Iron Detrimental to Properties of Powder Metallurgy Steels? Metals 2020, 10, 431.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
