Spark Plasma Sintering as an Effective Texturing Tool for Reprocessing Recycled HDDR Nd-Fe-B Magnets with Lossless Coercivity

1
Faculty of Mechanical Engineering, University of Ljubljana, Aškerčeva cesta 6, SI-1000 Ljubljana, Slovenia
2
Department for Nanostructured Materials, Jožef Stefan Institute, Jamova 39, SI-1000 Ljubljana, Slovenia
3
Jožef Stefan International Postgraduate School, Jamova 39, SI-1000 Ljubljana, Slovenia
4
School of Metallurgy and Materials, University of Birmingham, Edgbaston, Birmingham B15 2TT, UK
*
Author to whom correspondence should be addressed.
Metals 2020, 10(3), 418; https://doi.org/10.3390/met10030418
Received: 23 December 2019 / Revised: 12 March 2020 / Accepted: 23 March 2020 / Published: 24 March 2020

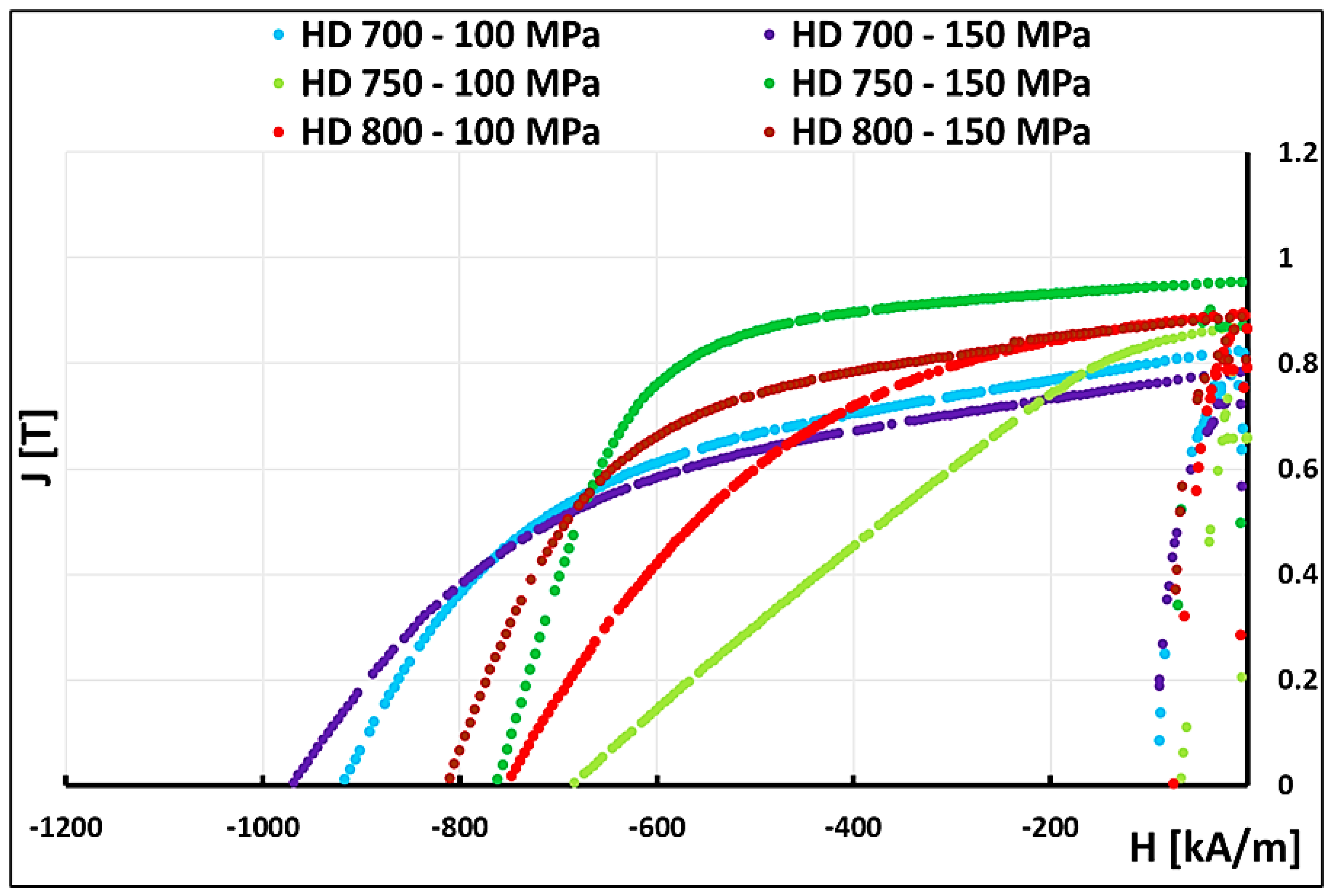

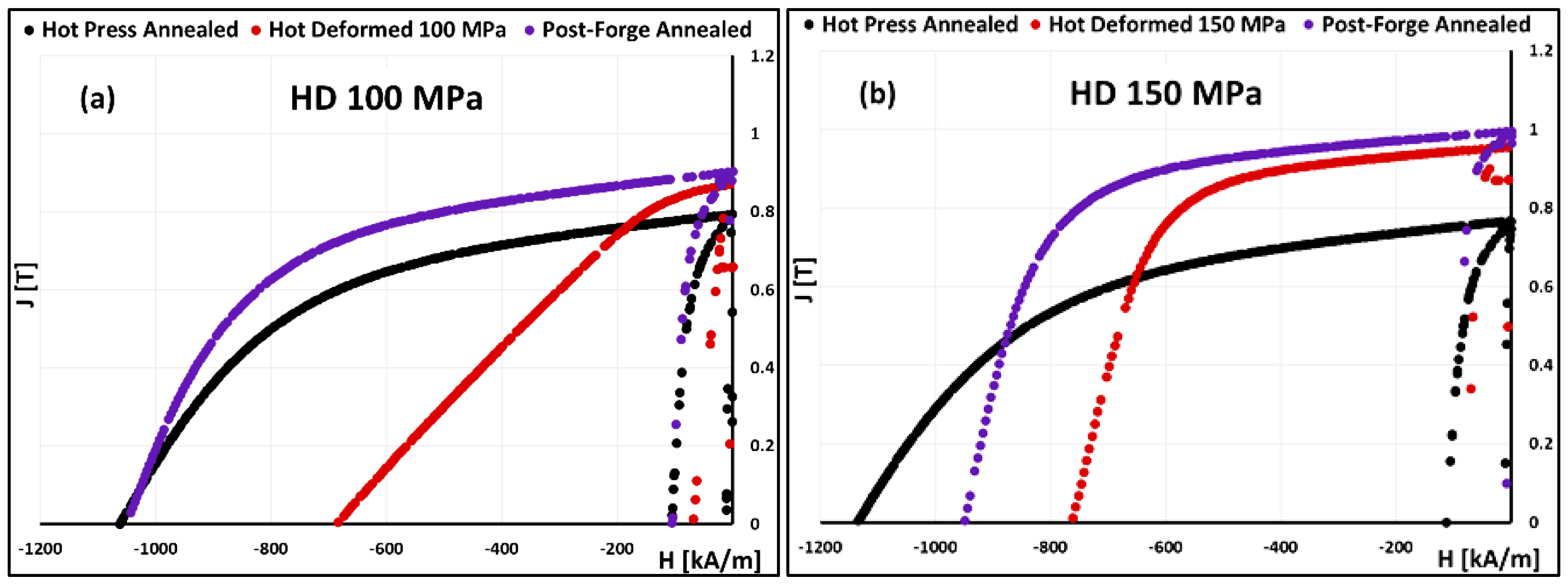

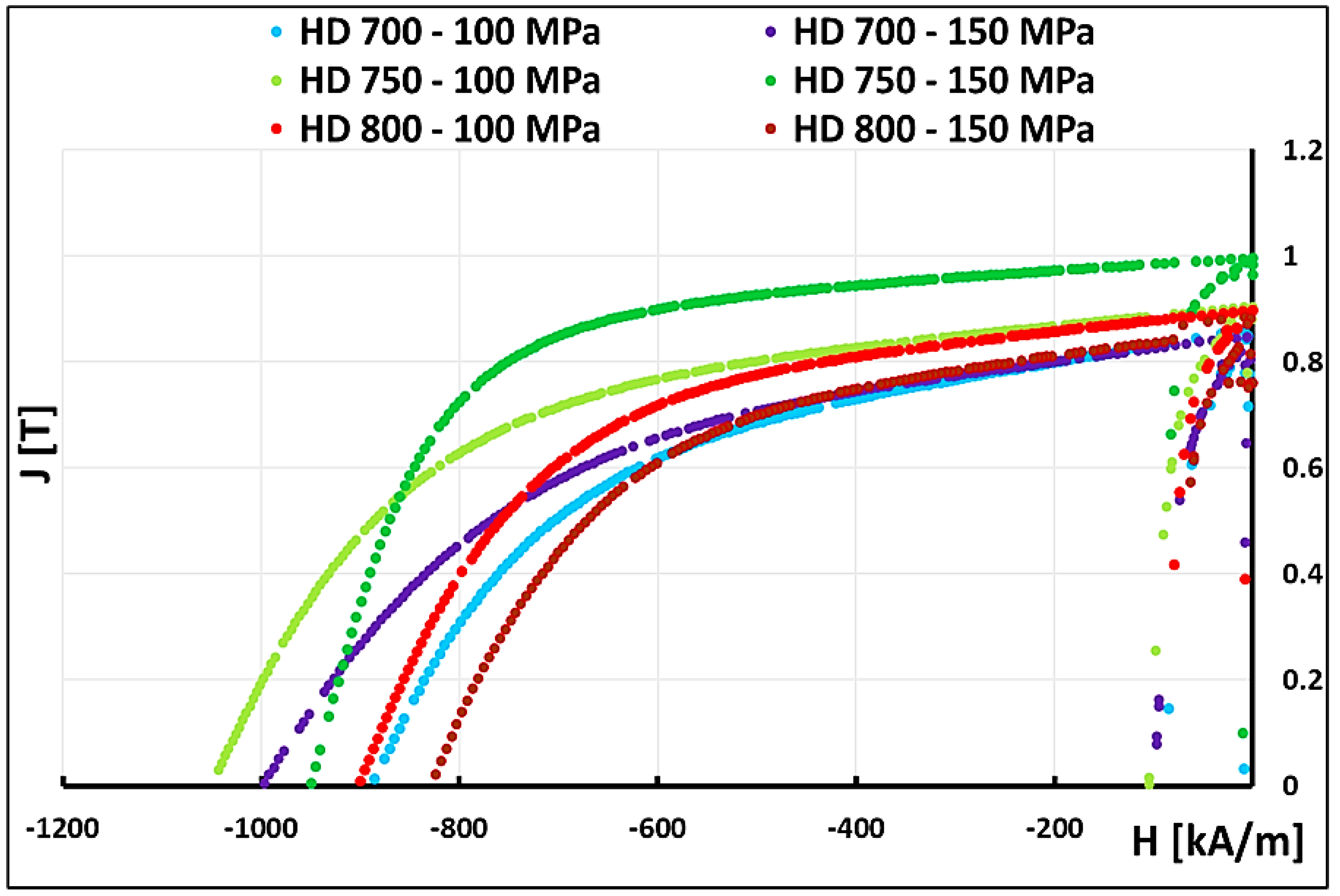

The low-pressure hot-deformation methodology was applied to reprocess the nanocrystalline hydrogenation–disproportionation–desorption–recombination (HDDR) Nd-Fe-B powders from end-of-life (EOL) permanent magnets’ waste to determine the mechanism of texture development and the resultant improvement in remanence (and BHmax) in the recycled material. Both the hot-pressed and hot-deformed magnets produced via spark plasma sintering (SPS) were compared in terms of their magnetic properties with respect to forging pressures. Also, a comparison was established with the microstructure to cite the effectiveness of texture development at low deformation rates and pressures which is pivotal for retaining high coercivity. The hot-pressed magnets maintain the high coercivity (better than 100%) of the original recycled powder due to the control of SPS conditions. The hot deformation pressure was varied from 100–150 MPa at 750 °C processing temperature to identify the optimal texture development in the sintered HDDR Nd-Fe-B magnets. The effect of post-hot-deformation thermal treatment was also investigated, which helped in boosting the overall magnetic properties and better than the recycled feedstock. This low-pressure hot deformation process improved the remanence of the hot-pressed magnet by 11% over the starting recycled powder. The Mr/MS ratio which was 0.5 for the hot-pressed magnets increased to 0.64 for the magnets hot-deformed at 150 MPa. Also, a 55% reduction in height of the sample was achieved with the c-axis texture, indicating approximately 23% higher remanence over the isotropic hot-pressed magnets. After hot deformation, the intrinsic coercivity (HCi) of 960 kA/m and the remanence (Br) value of 1.01 T at 150 MPa is indicative that the controlled SPS reprocessing technique can prevent microstructure related losses in the magnetic properties of the recycled materials. This route also suggests that the scrap Nd-Fe-B magnets can be treated with recoverable magnetic properties subsequently via HDDR technique and controlled hot deformation with a follow-up annealing. View Full-Text
Keywords: rare earth permanent magnets; anisotropic HDDR Nd2Fe14B; recycling; spark plasma sintering; texture development; hot deformation rare earth permanent magnets; anisotropic HDDR Nd2Fe14B; recycling; spark plasma sintering; texture development; hot deformation
