Evaluation of 2-Mercaptobenzimidazole Derivatives as Corrosion Inhibitors for Mild Steel in Hydrochloric Acid

Department of Crop Science, College of Sanghur Life Science, Konkuk University, Seoul 05029, Korea
Departement of Chemistry, Anugrah Narayan College, Patliputra University, Patna 800013, Bihar, India
Laboratory of Applied Chemistry and Environment, ENSA, University Ibn Zohr, P.O. Box 1136, Agadir 80000, Morocco
Energy, Materials and Sustainable Development Team, CERN2D, Higher School of Technology Salé, Mohammed V University, Rabat 8007, Morocco
Department of Chemistry, College of Science, King Khalid University, P.O. Box 9004, 61413 Abha, Saudi Arabia
Author to whom correspondence should be addressed.
Metals 2020, 10(3), 357;
Submission received: 12 February 2020 / Revised: 4 March 2020 / Accepted: 6 March 2020 / Published: 9 March 2020


This research aimed to develop a better understanding of the corrosion inhibition of the mild steel in acidic medium by new organic molecules. For this purpose, two new compounds namely, 2,3-dihydrobenzo[4,5]imidazo[2,1-b]thiazole (2-BIT) and 3,4-dihydro-2H-benzo[4,5]imidazo[2,1-b]thiazole (3-BIT) were synthesized and evaluated for mild steel (MS) corrosion in HCl. Analyses were carried out using weight loss measurements, electrochemical techniques, and scanning electron microscope (SEM). The adsorption of inhibitors onto the steel surface follows the Langmuir adsorption model. Generally, results showed that the corrosion inhibition efficiency of the investigated molecules was found to increase with increased concentration of inhibitors. Electrochemical tests, i.e., electrochemical impedance spectroscopy (EIS) and potentiodynamic polarization (PDP) techniques, showed that the addition of our investigated inhibitors decreases the dissolution of the metal and generally act as mixed-type inhibitors. In addition, the influence of temperature (from 303 to 333 K) on the corrosion inhibition was studied, and the results demonstrated that with an increase in temperature, the inhibition efficiency decrease. SEM results confirmed that the inhibition process is due to a protective film that prevents corrosion. Similarly, the results showed that the inhibitory efficiencies reach 93% at 5 × 10−3 M in the case of inhibitor 3-BIT. These results revealed that this compound could effectively control and reduce the corrosion rate of mild steel in the corrosion test solution.

1. Introduction

Carbon steel is among the alloys, which are in ample use and best to study as a model for inhibition of corrosion. Hydrochloric and sulfuric acid are examples of mineral acids, which are extensively used as pickling acid, industrial acid cleaner, etc. [1]. The industrial acid cleaner and acid purification treatments are extremely aggressive and can lead to considerable corrosion of metals in these environments. One of the many ways to minimize metal corrosion is using inhibitors, which may be considered as the safest and cheapest option [2,3,4,5,6]. The inhibitors work at a proper concentration by acting at the interface of the exposed metal surface and aggressive media. Those compounds which are rich in heteroatoms such as nitrogen, oxygen, sulphur, and phosphorous, etc. and multiple bonds present in aromatic rings or carbon chains were widely employed as corrosion inhibitors in mineral acid solutions [7,8,9,10]. The lone pair in heteroatoms and the planarity of molecules are also essential characteristics that must be taken into account for the explanation of the adsorption of inhibitors molecules onto the metallic surface [11,12]. These inhibitors resist deterioration by hindering the chemically active deteriorating sites in two ways: (i) By establishing a protective layer or an insoluble complex, (ii) by its high ability to adsorb on the metallic surfaces. Other properties such as the aromaticity, electron density, functional groups and steric factors, nature of metal and corrosion environment also play an important role in inhibitive action [13]. The potency of a compound having sulfur as corrosion resistance for metals has been well reported [13,14]. Thioureas, along with its derivatives, are versatile compounds, able to inhibit the corrosion of steels, and are superior to many compounds usually employed for this purpose in acidic media [15,16]. Several studies concerned with the corrosion inhibition properties of 2-mercaptobenzimidazole (MBI) have already been undertaken [17,18,19,20,21]. Results emerging from these efforts demonstrate that MBI can act as a good corrosion inhibitor [22,23]. However, developing a highly effective inhibitor is still a great challenge due to the diversity of organic compounds. In this context, the structural uniqueness of MBI can make it an attractive starting point for the development of new effective corrosion inhibitors.
In the present work, the inhibition effect of synthesized 2-mercaptobenzimidazole derivatives, namely, 2,3-dihydrobenzo[4,5]imidazo[2,1-b]thiazole (2-BIT) and 3,4-dihydro-2H-benzo[4,5]imidazo[2,1-b]thiazole (3-BIT) was evaluated for MS corrosion in a 1.0 M HCl solution. This study was carried out through several techniques such as gravimetric measurements, electrochemical impedance spectroscopy (EIS), and potentiodynamic polarization (PDP). Along with this, corrosion inhibition effectiveness was investigated by the surface analysis method.

2. Experimental Section

2.1. Synthesis of Benzimidazole Derivatives

Products (2-BIT) and (3-BIT) (2,3-dihydrobenzo[4,5]imidazo [n,1-b]thiazole, n = 2, or 3) were produced by the action of 2-mercaptobenzimidazol on 1, n-dibromoalcane in stoichiometric proportion in reflux ethanol for 6 h (Scheme 1). Products (2-BIT) and (3-BIT) were isolated with good yield (85%) and were identified based on spectral data NMR 1H and NMR 13C.
2-BIT: 1H NMR (300 MHz, DMSO-d6) (δ, ppm): 7.22 (2H, Ar-H); 7.59 (2H, Ar-H); 3.96 (2H, S-CH2-): 4.31 (2H, N-CH2-). 13C NMR (75 MHz, DMSO d6) (δ, ppm): 110.0; 115.2; 123.0; 123.0 (4CH, Benz), 134.2, 138.9 (2C, benz), 152.6 (C, Benzimi), 38.0 (1C, CH2), 56.4 (1C, CH2).
3-BIT: 1H NMR (300 MHz, DMSO-d6) (δ, ppm): 7.22 (2H, Ar-H); 7.59 (2H, Ar-H); 2.17 (2H, CH2); 2.93 (2H, S-CH2-); 3.99 (2H, N-CH2-). 13C NMR (75 MHz, DMSO d6) (δ, ppm): 110.0; 115.2; 123.0; 123.0 (4CH, Benz), 134.2, 138.9 (2C, Benz), 152.6 (C, Benzimi), 23.1 (1C, CH2), 24.8 (1C, CH2), 48.5 (1C, CH2).

2.2. Test Specimens and Solutions Used

The chemical distribution of elements present in mild steel with descending percentage is: 0.66 wt% Mn, 0.36 wt% C, 0.27 wt% Si, 0.22 wt% Cu, 0.21 wt% Cr, 0.06 wt% Al, 0.02 wt% S, 0.02 wt% Mo, 0.015 wt% P, and balance Fe.
The test solutions were made of 1.0 M HCl as aggressive blank while a stock solution of inhibitors with inhibitors concentration of 5 × 10−3 M was prepared in 1.0 M HCl. A large range of concentrations was used for preliminary tests. Then, the range of concentrations was kept in between 5 × 10−3 M and 1 × 10−4 M, which were obtained by diluting the stock solution with distilled water.

2.3. Weight Loss Measurements

The weight loss methods are the first approach to study the corrosion inhibition of steel in an electrolytic medium. In this way, gravimetric measurements were performed following the ASTM standard [24]. Multiple disk-shaped specimens with diameter 38 mm and thickness 3 mm with a hole of 8 mm diameter were prepared from obtained mild steel sheet for each test. The surface morphology of mild steel was prepared by employing emery papers of varying grades from 400–1600 and cleaned thoroughly.
Barely, MS specimens have been weighted with a precision balance and allowed to immerse in the solutions with different inhibitors concentrations at 303 K. The specimens have been immersed in triplicate. After that, it was removed and cleaned correctly using distilled water and acetone and allowed to dry and finally weighted accurately again as previously signaled. The difference in weight loss was confirmed. The inhibitory performance was evaluated by monitoring the consequence of immersion time (1–70 h). Equation (1) is employed to calculate the corrosion rate values (in mmy−1).
C = K × W A × t × ρ
where K represents a constant with the value of 8.76 × 104. W and t are the weight loss in gram and the time of immersion in hours, respectively. The density of MS is 7.86 g cm−3 as per the ASTM G1-03 standard [25]. While A is the exposed area of the sample in cm2 [26].

2.4. Electrochemical Techniques

For all electrochemical tests, the measurements were performed by Volta Lab (Tacussel-Radiometer PGZ 100) potentiostat (Radiometer Analytical, Lyon, France) combined with Voltamaster software (Version 4.0, Radiometer Analytical, France). The cell is composed of a three-electrode assembly, which includes MS as a working electrode with the surface area of 1 cm2, platinum plate (Pt) acts as an auxiliary electrode and a saturated calomel reference electrode. These measurements were performed using a cell that contains 80 mL of the solution. The mild steel is kept to its potential corrosion for 30 min before the commencement of all experiments. The potentiodynamic polarization measurements have been performed in the range from −800 to −200 mV of the corrosion potential with a scan rate of 0.5 mV s−1. For EIS measurements, the experiments have been conducted in the frequency range of 10 mHz–100 kHz and an AC amplitude of 10 mV.

2.5. Surface Study

Morphologies of the MS surface immersed in 1.0 M HCl without and with the addition of inhibitors were assessed by using scanning electron microscopy (SEM). Samples were prepared as described above (weight loss section). SEM analysis was done using JEOL JSM–6480 LV (JEOL Ltd., Tokyo, Japan).

3. Results and Discussion

3.1. Gravimetric Measurements

The corrosion behavior of MS in 1.0 M HCl without and with different concentrations of inhibitors was studied in the temperature range of 303–333 K by applying the weight loss technique. The obtained results, such as corrosion rates (W) and inhibition efficiencies (ηw) at each studied concentration, are given in Table 1. Equations (2) and (3) are applied to estimate the inhibition efficiency (ηw) and the surface coverage degree (θ) [27].
η w ( % ) = C r C r ° C r × 100
θ = η w ( % ) 100
where Cr and Cr° are corrosion rates before and after the addition of inhibitors in the aggressive media, respectively.
The concentration impact was thoroughly studied for both inhibitors separately employing the weight-loss method. It was observed that the corrosion rates are significantly lowered in the presence of inhibitors. According to Table 1, the inhibitor 3-BIT was found to be better in terms of inhibition efficiency. The lowering in the corrosion rates depends upon inhibitor 2-BIT and 3-BIT concentrations. The inhibitory effectiveness is raised by increasing the concentrations of inhibitor molecules. Moreover, at the concentration of 5 × 10−3 M at 303 K, the maximum values of inhibition efficiency of 3-BIT (93.4%) and 2-BIT (89.10%) were observed. The increased inhibition efficiency for the compound 3-BIT is because several molecules are adsorbed on the exposed surface of MS at higher concentrations and thus leads to the appearance of film protection [28].
Furthermore, the ability of adsorption of the molecules on MS surface in the acidic solution can be associated with the presence of benzene ring, single (C-N), and a double bond (C=N) between carbon and nitrogen along with the C-S bond. It can be noted that our target inhibitors are the derivatives of 2-mercaptobenzimidazole which can be borrowed from benzimidazole with thiol group in the 2-position. The existence of these groups leads to blockage of active sites on the MS surface. Hence, the higher adsorption onto the MS surface can be predicted through charge transfer between certain delocalized π-electrons of the benzene ring and the empty d-orbital of the iron atom [29]. Further, the existence of heteroatoms such as nitrogen and sulfur in the synthesized molecules may also justify their use as suitable inhibitors of corrosion [30]. The difference in inhibition efficiency of both inhibitors maybe because both compounds have a different geometric length of the carbon chain. Inhibitor 3-BIT may be adsorbed more pronounced onto the metal surface due to the greater number of carbon atoms or -CH2 groups attached to aromatic ring and heteroatoms. This causes more adsorption over the surface of the metal and leading to more molecules to be adsorbed compared to inhibitor 2-BIT, which has a lesser number of −CH2 groups.

3.1.1. Effect of Temperature

In this analysis, the dissolution of MS in 1.0 M HCl was investigated in the temperature range of 303 to 333 K in the absence and presence of the synthesized inhibitor 3-BIT. The effect of temperature was thoroughly tested at each concentration for all temperatures studied to get the steadiness of the protective film formed over the metal surface. Results in Table 2 show that the inhibition efficiency decreases with rising temperature. The highest inhibition efficiency with value of 93% was achieved for concentration 5 × 10−3 M at temperature 303 K, which drops to 78% on raising the temperature to 333 K, keeping the same concentration of inhibitor 2-BIT. The same trend was followed at all concentrations studied at different temperatures. This may be due to the desorption of adsorbed molecules from the metal surface with increasing temperature [31].

3.1.2. Effect of Immersion Time

To evaluate the stability of the behavior of inhibitor 3-BIT, the impact of immersion time was also studied at 303 K for all concentrations, and results are presented in Figure 1. As predicted from the graph, the highest inhibition efficiency was deduced from optimum concentration (5 × 10−3 M). In addition, there was a gradual increase in efficiency with an increase in immersion time up to a specific period (~10–15 h) and became constant. The establishment of a protective film on the MS surface might explain this result, which protects the metal surface over a more extended test period of approx. 70 h.

3.2. Electrochemical Impedance Spectroscopy (EIS)

To procure further inquiry related to the mechanism for inhibiting corrosion of MS, electrochemical impedance spectroscopy experiments have been performed in uninhibited and inhibited solutions for both inhibitors at temperature 303 K. The diagrams of Nyquist and Bode obtained for MS in 1.0 M HCl are shown in Figure 2. The smoothness of semicircles (Nyquist) as obtained slightly deviated from the standard EIS theory. These imperfections of the capacitive loop are resultant of the unevenness of the metal surface, heterogeneity, and dispersion in frequency [32]. It was observed that the capacitive loop for 1.0 M HCl alone had the smallest diameter. The diameter of loops expands with increasing inhibitors concentration, implying the increase of the impedance (Nyquist curves). These findings indicate that the tested compounds have good inhibitory behavior due to their adsorption on the metal surface at higher concentrations. Bode and phase angle plots were also analyzed and are represented in Figure 2. Distinctly, the value of the phase angle heightened considerably as the inhibitor concentration increased. It was marked that for both used inhibitors, the values of phase angle were always higher in comparison to the blank but lower than −90° that is indicative of the nonideal capacitor. Furthermore, the spectra obtained showed single depressed semicircles and a single one time constant. This is intriguing of the evidence that only one circumstance was prevailing for MS dissolution for metal/aggressive solution interface through the charge transfer process [33].
Electrochemical parameters can be obtained by fitting EIS results with an electrical equivalent circuit. By the cause of nonideal behavior of metal surface, constant phase element (CPE) is used instead of a pure capacitor to evaluate data obtained from the impedance. In the present study, all the EIS data were analyzed using the [Rs + (CPE/Rp)] equivalent circuit, where Rs is the solution resistance, Rp is the polarization resistance, and CPE is the constant phase element. The reason for using polarization resistance (Rp) instead of charge transfer resistance is previously discussed in detail [34]. The value of CPE can be extracted from the given formula [35]:
Z C P E = 1 Q ( j ω ) n
Here, terms “Q” represents CPE magnitude, “ω” signifies angular frequency, “j2” = −1 is the imaginary number, and “n” is related to phase shift which can be correlated with the unevenness of the metal surface. Most importantly, the CPE is also extensible for adjusting impedance spectra. Cdl is determined using the equation below [36].
C d l = Q × R p 1 n n
Table 3 lists the entire electrochemical impedance parameters in addition to the inhibition efficiency ηEIS(%). The effectiveness of corrosion inhibition can be estimated by the given equation [37]:
η E I S ( % ) = [ R p ( i n h ) R p R p ( i n h ) ] × 100
where the values of Rp and Rp (inh) reveal the polarization resistances of the MS specimen in 1.0 M HCl without and with the addition of the inhibitor, respectively, the obtained values showed that with the addition of both inhibitors 2-BIT and 3-BIT, the polarization resistance values are continuously enhanced and increase with increasing concentration of organic compounds tested, while the values of Cdl showed a significant decrease. This is reasonably due to the modification of the metal/electrolyte interface by a sharp rise of the double electric layer thickness because of the adsorption of a significant quantity of molecules on the MS surface.

3.3. Polarization Curves

The polarization curves of the MS in 1.0 M HCl with and without inhibitors at 303 K are graphically represented in Figure 3. Numerical values of electrochemical parameters such as corrosion potential (Ecorr), corrosion current density (icorr), and Tafel cathodic (βc) and anodic (βa) slopes, which are determined by the Tafel extrapolation method are summarized in Table 4. Moreover, the effectiveness of inhibition can be determined by the following formula [38]:
η P D P ( % ) = [ 1 i c o r r i c o r r ° ] × 100
where, icorr and i°corr are the corrosion current density in the HCl media with and without the addition of inhibitor, respectively.
As observed from Figure 3, when inhibitors were added to the aggressive solution, both cathodic and anodic reactions have been decreased, which became more pronounced at higher concentrations of inhibitors 3-BIT and 2-BIT. Moreover, there is no remarkable shift in corrosion potential to more anodic or more cathodic potentials in comparison with the corrosion potential observed in blank solution. In addition, we notice from Figure 3 that the cathodic current–potential curves significantly reduced compared to the blank and all curves result in the same trend of line shape which states that the inhibitor is unable to affect the hydrogen release mechanism and that this reaction is controlled by activation [39]. This leads to the fact that the real interaction process is kept the same while the surface available for hydrogen ions (H+) is significantly decreased [40]. This explained the inhibitory action of tested compounds, which can be linked to their adsorption, and formation of a protective film on the surface of MS. The presence of both inhibitors only decreases the value of icorr but is unable to modify the other parameters of the polarization behavior. The obtained values of icorr have been employed to estimate the inhibition efficacy. As can be seen from Table 4, the inhibition efficiencies increased with the addition of both inhibitors’ concentration compared to the aggressive solution. In our comparative study, inhibitor 3-BIT gives higher corrosion inhibition efficiencies compared to 2-BIT and is consistent with values obtained from the gravimetric method and electrochemical impedance spectroscopy.

3.4. Adsorption Isotherm

In this part, different types of adsorption isotherms, namely, Langmuir, Freundlich, Temkin, and Frumkin, are tested to give more insight about the corrosion inhibition mechanism, and thus providing details on the interaction of the inhibitor molecules with the metal surface. In this study, the best description of the adsorption behavior of tested corrosion inhibitors can be explained by the Langmuir adsorption isotherm; which is given by Equation (8) [41]:
C θ = 1 K a d s + C
In the given equation, Kads is the equilibrium constant of the adsorption process, C is the concentration of the used inhibitor, and θ is the degree of surface coverage.
It is given that the inhibition efficiency of corrosion inhibitor is η % = θ × 100 , where θ is the covering degree of the inhibiting protective film. It can be noted that the value of θ for different concentrations of inhibitors 3-BIT and 2-BIT in 1.0 M HCl solution was calculated from the gravimetric measurements. The given equation can be used for the calculation of ΔG°ads (free energy of adsorption) which is related to Kads:
Δ G a d s ° = RT   Ln ( K ads × 55.5 )
where 55.5 is the numerical value of the molar concentration of H2O in mol/L [42]. The plots of C/θ versus the concentration of both inhibitors are traced with slopes close to 1, which is typical of Langmuir’s adsorption isotherm (Figure 4). The value of regression constant, i.e., R2 for both inhibitors, is 0.999 giving more evidence that the adsorption of tested compounds obeys the Langmuir isotherm.
The high value of Kads suggests tenacious interactions between the inhibitor molecule and the MS surface. Further, inhibitor 3-BIT having a height value of Kads (58798 L/mol) indicates better adsorption of this inhibitor and hence better corrosion inhibition efficiency. Concerning the free energy of adsorption, the negative values obtained for inhibitors 3-BIT (−37.76 KJ/mol) and 2-BIT (−36.93 KJ/mol) show spontaneity of the adsorption process [43]. It is always considered that the value of ΔGads greater than −20 kJ/mol confirms physisorption, whereas, when the values of ΔGads is less than −40 kJ/mol, it corresponds to chemisorption interactions. Nevertheless, the values of ΔGads between −20 and −40 kJ mol−1 indicates a complex adsorption process. According to our study, it can be observed that the ΔGads adsorption values of the 3-BIT and 2-BIT inhibitors are −37.76 and −36.93 kJ mol−1, respectively, indicating that the adsorption of these molecules is a mixed type (both physisorption and chemisorption) [44].

3.5. Surface Characterization

To investigate the surface morphology of MS and the ability of tested compounds to inhibit its corrosion, the scanning electron microscope was employed. Figure 5 shows SEM images of the MS surface after 72 h of immersion in a 1.0 M HCl solution with and without 3-BIT at a concentration of 5 × 10−3 M. Figure 5 clearly shows that the MS is attacked in the absence of inhibitor. However, in its presence, we can see on the image of the steel surface after 72 h of immersion in a 1.0 M HCl medium that the corrosion of the mild steel surface is markedly reduced, and a smooth surface was obtained. This demonstrates that it is inhibited by the creation of a stable and tight deposit that limits the electrolyte’s access to the steel surface.

4. Conclusions

Anti-corrosion performance of two new sulfur-containing compounds 3-BIT and 2-BIT was analyzed using different experimental techniques for mild steel in HCl acid. The studied compounds showed good corrosion inhibition performances for MS in the HCl medium and their activity increased with increasing inhibitor concentration, while efficacy decreased with increasing temperature. Molecule 3-BIT showed a high corrosion inhibition property of MS in 1.0 M HCl in the temperature range of 303 to 333 K. The EIS study found that the addition of the inhibitor compounds increased both the resistance of polarization and the inhibition efficiency. The PDP measurements confirmed the mixed-type action mode of inhibitors. The adsorption isotherm study showed that adsorption of both inhibitors obeyed the Langmuir adsorption isotherm. The analysis of the MS morphology of the metal surface confirmed the remarkable adsorption tendency of tested compounds over the metal surface. Further efforts will be made soon to understand better interactions between investigated inhibitors and metal surface employing theoretical methods.

Author Contributions

H.L., M.C., and S.M., investigation, formal analysis, writing—original draft; M.D., A.C., and M.B., investigation; A.B., I.H.A., and M.M.A., investigation, resources, project administration, writing—review and editing; I.-M.C. and R.S., conceptualization, methodology, validation, supervision, writing—review and editing. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Deanship of Scientific Research at King Khalid University, grant number R.G.P.1/150/40.


The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through the research groups program under grant number R.G.P.1/150/40.

Conflicts of Interest

The authors of this manuscript have no conflict of interest to declare.


  1. Aljourani, J.; Golozar, M.A.; Raeissi, K. The inhibition of carbon steel corrosion in hydrochloric and sulfuric acid media using some benzimidazole derivatives. Mater. Chem. Phys. 2010, 121, 320–325. [Google Scholar] [CrossRef]
  2. Lindsay, R.; Kokalj, A. Corrosion Inhibition. Metals 2018, 8, 821. [Google Scholar] [CrossRef] [Green Version]
  3. Ehsani, A.; Nasrollahzadeh, M.; Mahjani, M.G.; Moshrefi, R.; Mostaanzadeh, H. Electrochemical and quantum chemical investigation of inhibitory of 1,4-Ph(OX)2(Ts)2 on corrosion of 1005 aluminum alloy in acidic medium. J. Ind. Eng. Chem. 2014, 20, 4363–4370. [Google Scholar] [CrossRef]
  4. Dehghani, A.; Bahlakeh, G.; Ramezanzadeh, B.; Ramezanzadeh, M. Detailed macro-/micro-scale exploration of the excellent active corrosion inhibition of a novel environmentally friendly green inhibitor for carbon steel in acidic environments. J. Taiwan Inst. Chem. Eng. 2019, 100, 239–261. [Google Scholar] [CrossRef]
  5. Asadi, N.; Ramezanzadeh, M.; Bahlakeh, G.; Ramezanzadeh, B. Utilizing Lemon Balm extract as an effective green corrosion inhibitor for mild steel in 1M HCl solution: A detailed experimental, molecular dynamics, Monte Carlo and quantum mechanics study. J. Taiwan Inst. Chem. Eng. 2019, 95, 252–272. [Google Scholar] [CrossRef]
  6. Bahlakeh, G.; Ramezanzadeh, B.; Dehghani, A.; Ramezanzadeh, M. Novel cost-effective and high-performance green inhibitor based on aqueous Peganum harmala seed extract for mild steel corrosion in HCl solution: Detailed experimental and electronic/atomic level computational explorations. J. Mol. Liq. 2019, 283, 174–195. [Google Scholar] [CrossRef]
  7. Verma, C.; Ebenso, E.; Bahadur, I.; Obot, I.; Quraishi, M. 5-(Phenylthio)-3H-pyrrole-4-carbonitriles as effective corrosion inhibitors for mild steel in 1 M HCl: Experimental and theoretical investigation. J. Mol. Liq. 2015, 212, 209–218. [Google Scholar] [CrossRef]
  8. Verma, C.; Quraishi, M.; Singh, A. 2-Amino-5-nitro-4, 6-diarylcyclohex-1-ene-1, 3, 3-tricarbonitriles as new and effective corrosion inhibitors for mild steel in 1 M HCl: Experimental and theoretical studies. J. Mol. Liq. 2015, 212, 804–812. [Google Scholar] [CrossRef]
  9. Daoud, D.; Douadi, T.; Hamani, H.; Chafaa, S.; Al-Noaimi, M. Corrosion inhibition of mild steel by two new S-heterocyclic compounds in 1 M HCl: Experimental and computational study. Corros. Sci. 2015, 94, 21–37. [Google Scholar] [CrossRef]
  10. Kubba, R.M.; Alag, A.S. Experimental and Theoretical Evaluation of new Quinazolinone Derivative as Organic Corrosion Inhibitor for Carbon Steel in 1M HCl Solution. Int. J. Sci. Res. IJSR6 2017, 6, 1832–1842. [Google Scholar]
  11. Bentiss, F.; Lagrenee, M.; Traisnel, M.; Hornez, J. The corrosion inhibition of mild steel in acidic media by a new triazole derivative. Corros. Sci. 1999, 41, 789–803. [Google Scholar] [CrossRef]
  12. Baskar, R.; Kesavan, D.; Gopiraman, M.; Subramanian, K. Corrosion inhibition of mild steel in 1.0M hydrochloric acid medium by new photo-cross-linkable polymers. Prog. Org. Coat. 2014, 77, 836–844. [Google Scholar]
  13. Verma, C.; Olasunkanmi, L.O.; Ebenso, E.E.; Quraishi, M.A. Substituents effect on corrosion inhibition performance of organic compounds in aggressive ionic solutions: A review. J. Mol. Liq. 2018, 251, 100–118. [Google Scholar] [CrossRef]
  14. Fouda, A.S.; Attia, A.A.; Negm, A. Some thiophene derivatives as corrosion inhibitors for carbon steel in hydrochloric acid solution. J Met. 2014, 2014, 1–15. [Google Scholar]
  15. Awad, M.K. Semiempirical investigation of the inhibition efficiency of thiourea derivatives as corrosion inhibitors. J. Electroanal. Chem. 2004, 567, 219–225. [Google Scholar] [CrossRef]
  16. Torres, V.; Rayol, V.; Magalhães, M.; Viana, G.; Aguiar, L.; Machado, S.; Orofino, H.; D’Elia, E. Study of thioureas derivatives synthesized from a green route as corrosion inhibitors for mild steel in HCl solution. Corros. Sci. 2014, 79, 108–118. [Google Scholar] [CrossRef]
  17. El-Hajjaji, F.; Belghiti, M.E.; Hammouti, B.; Jodeh, S.; Hamed, O.; Lgaz, H.; Salghi, R. Adsorption and corrosion inhibition effect of 2-mercaptobenzimidazole (surfactant) on a carbon steel surface in an acidic medium: Experimental and monte carlo simulations. Port. Electrochimica Acta 2018, 36, 197–212. [Google Scholar] [CrossRef]
  18. Popova, A.; Christov, M.; Raicheva, S.; Sokolova, E. Adsorption and inhibitive properties of benzimidazole derivatives in acid mild steel corrosion. Corros. Sci. 2004, 46, 1333–1350. [Google Scholar] [CrossRef]
  19. Zhang, G.A.; Hou, X.M.; Hou, B.S.; Liu, H.F. Benzimidazole derivatives as novel inhibitors for the corrosion of mild steel in acidic solution: Experimental and theoretical studies. J. Mol. Liq. 2019, 278, 413–427. [Google Scholar] [CrossRef]
  20. Morales-Gil, P.; Walczak, M.S.; Cottis, R.A.; Romero, J.M.; Lindsay, R. Corrosion inhibitor binding in an acidic medium: Interaction of 2-mercaptobenizmidazole with carbon-steel in hydrochloric acid. Corros. Sci. 2014, 85, 109–114. [Google Scholar] [CrossRef]
  21. Wang, L. Evaluation of 2-mercaptobenzimidazole as corrosion inhibitor for mild steel in phosphoric acid. Corros. Sci. 2001, 43, 2281–2289. [Google Scholar] [CrossRef]
  22. Mahdavian, M.; Ashhari, S. Corrosion inhibition performance of 2-mercaptobenzimidazole and 2-mercaptobenzoxazole compounds for protection of mild steel in hydrochloric acid solution. Electrochimica Acta 2010, 55, 1720–1724. [Google Scholar] [CrossRef]
  23. Aljourani, J.; Raeissi, K.; Golozar, M.A. Benzimidazole and its derivatives as corrosion inhibitors for mild steel in 1M HCl solution. Corros. Sci. 2009, 51, 1836–1843. [Google Scholar] [CrossRef]
  24. Scully, J.; Baboian, R. Standard Practice for Laboratory Immersion Corrosion Testing of Metals; ASTM: Philadelphia, PA, USA, 1995; p. 110. [Google Scholar]
  25. ASTM, E. 647: Standard test method for measurement of fatigue crack growth rates. Annu. Book ASTM Stand. 2011, 3, 591–630. [Google Scholar]
  26. Eduok, U.M.; Khaled, M.M. Corrosion protection of non-alloyed AIAI 316L concrete steel metal grade in aqueous H2SO4: Electroanalytical and surface analyses with Metiamide. Constr. Build. Mater. 2014, 68, 285–290. [Google Scholar] [CrossRef]
  27. Singh, A.; Ansari, K.R.; Chauhan, D.S.; Quraishi, M.A.; Lgaz, H.; Chung, I.-M. Comprehensive investigation of steel corrosion inhibition at macro/micro level by ecofriendly green corrosion inhibitor in 15% HCl medium. J. Colloid Interface Sci. 2020, 560, 225–236. [Google Scholar] [CrossRef]
  28. Singh, D.K.; Kumar, S.; Udayabhanu, G.; John, R.P. 4 (N, N-dimethylamino) benzaldehyde nicotinic hydrazone as corrosion inhibitor for mild steel in 1M HCl solution: An experimental and theoretical study. J. Mol. Liq. 2016, 216, 738–746. [Google Scholar] [CrossRef]
  29. Gopi, D.; Sherif, E.-S.M.; Surendiran, M.; Jothi, M.; Kumaradhas, P.; Kavitha, L. Experimental and theoretical investigations on the inhibition of mild steel corrosion in the ground water medium using newly synthesised bipodal and tripodal imidazole derivatives. Mater. Chem. Phys. 2014, 147, 572–582. [Google Scholar] [CrossRef]
  30. Guadalupe, H.J.; Garcia-Ochoa, E.; Maldonado-Rivas, P.J.; Cruz, J.; Pandiyan, T. A combined electrochemical and theoretical study of N, N′-bis (benzimidazole-2yl-ethyl)-1, 2-diaminoethane as a new corrosion inhibitor for carbon steel surface. J. Electroanal. Chem. 2011, 655, 164–172. [Google Scholar] [CrossRef]
  31. Dehri, İ.; Özcan, M. The effect of temperature on the corrosion of mild steel in acidic media in the presence of some sulphur-containing organic compounds. Mater. Chem. Phys. 2006, 98, 316–323. [Google Scholar] [CrossRef]
  32. Zhang, D.; Tang, Y.; Qi, S.; Dong, D.; Cang, H.; Lu, G. The inhibition performance of long-chain alkyl-substituted benzimidazole derivatives for corrosion of mild steel in HCl. Corros. Sci. 2016, 102, 517–522. [Google Scholar] [CrossRef]
  33. Zhou, J.; Chen, S.; Zhang, L.; Feng, Y.; Zhai, H. Studies of protection of self-assembled films by 2-mercapto-5-methyl-1, 3, 4-thiadiazole on iron surface in 0.1 M H2SO4 solutions. J. Electroanal. Chem. 2008, 612, 257–268. [Google Scholar] [CrossRef]
  34. Solmaz, R.; Kardaş, G.; Çulha, M.; Yazıcı, B.; Erbil, M. Investigation of adsorption and inhibitive effect of 2-mercaptothiazoline on corrosion of mild steel in hydrochloric acid media. Electrochimica Acta 2008, 53, 5941–5952. [Google Scholar] [CrossRef]
  35. Li, X.; Deng, S.; Lin, T.; Xie, X.; Du, G. 2-Mercaptopyrimidine as an effective inhibitor for the corrosion of cold rolled steel in HNO3 solution. Corros. Sci. 2017, 118, 202–216. [Google Scholar] [CrossRef]
  36. Cao, Z.; Tang, Y.; Cang, H.; Xu, J.; Lu, G.; Jing, W. Novel benzimidazole derivatives as corrosion inhibitors of mild steel in the acidic media. Part II: Theoretical studies. Corros. Sci. 2014, 83, 292–298. [Google Scholar] [CrossRef]
  37. Chaouiki, A.; Lgaz, H.; Chung, I.-M.; Ali, I.; Gaonkar, S.L.; Bhat, K.; Salghi, R.; Oudda, H.; Khan, M. Understanding corrosion inhibition of mild steel in acid medium by new benzonitriles: Insights from experimental and computational studies. J. Mol. Liq. 2018, 266, 603–616. [Google Scholar] [CrossRef]
  38. Li, L.; Zhang, X.; Lei, J.; He, J.; Zhang, S.; Pan, F. Adsorption and corrosion inhibition of Osmanthus fragran leaves extract on carbon steel. Corros. Sci. 2012, 63, 82–90. [Google Scholar] [CrossRef]
  39. Obot, I.; Obi-Egbedi, N.; Eseola, A. Anticorrosion potential of 2-mesityl-1H-imidazo [4,5-f][1,10] phenanthroline on mild steel in sulfuric acid solution: Experimental and theoretical study. Ind. Eng. Chem. Res. 2011, 50, 2098–2110. [Google Scholar] [CrossRef]
  40. Quraishi, M. Electrochemical and theoretical investigation of triazole derivatives on corrosion inhibition behavior of copper in hydrochloric acid medium. Corros. Sci. 2013, 70, 161–169. [Google Scholar]
  41. Saha, S.K.; Dutta, A.; Ghosh, P.; Sukul, D.; Banerjee, P. Novel Schiff-base molecules as efficient corrosion inhibitors for mild steel surface in 1 M HCl medium: Experimental and theoretical approach. Phys. Chem. Chem. Phys. 2016, 18, 17898–17911. [Google Scholar] [CrossRef]
  42. El Aoufir, Y.; Aslam, R.; Lazrak, F.; Marzouki, R.; Kaya, S.; Skal, S.; Ghanimi, A.; Ali, I.H.; Guenbour, A.; Lgaz, H.; et al. The effect of the alkyl chain length on corrosion inhibition performances of 1,2,4-triazole-based compounds for mild steel in 1.0 M HCl: Insights from experimental and theoretical studies. J. Mol. Liq. 2020, 303, 112631. [Google Scholar] [CrossRef]
  43. Yadav, D.K.; Quraishi, M. Electrochemical investigation of substituted pyranopyrazoles adsorption on mild steel in acid solution. Ind. Eng. Chem. Res. 2012, 51, 8194–8210. [Google Scholar] [CrossRef]
  44. Lgaz, H.; Saha, S.K.; Chaouiki, A.; Bhat, K.S.; Salghi, R.; Shubhalaxmi; Banerjee, P.; Ali, I.H.; Khan, M.I.; Chung, I.-M. Exploring the potential role of pyrazoline derivatives in corrosion inhibition of mild steel in hydrochloric acid solution: Insights from experimental and computational studies. Constr. Build. Mater. 2020, 233, 117320. [Google Scholar] [CrossRef]

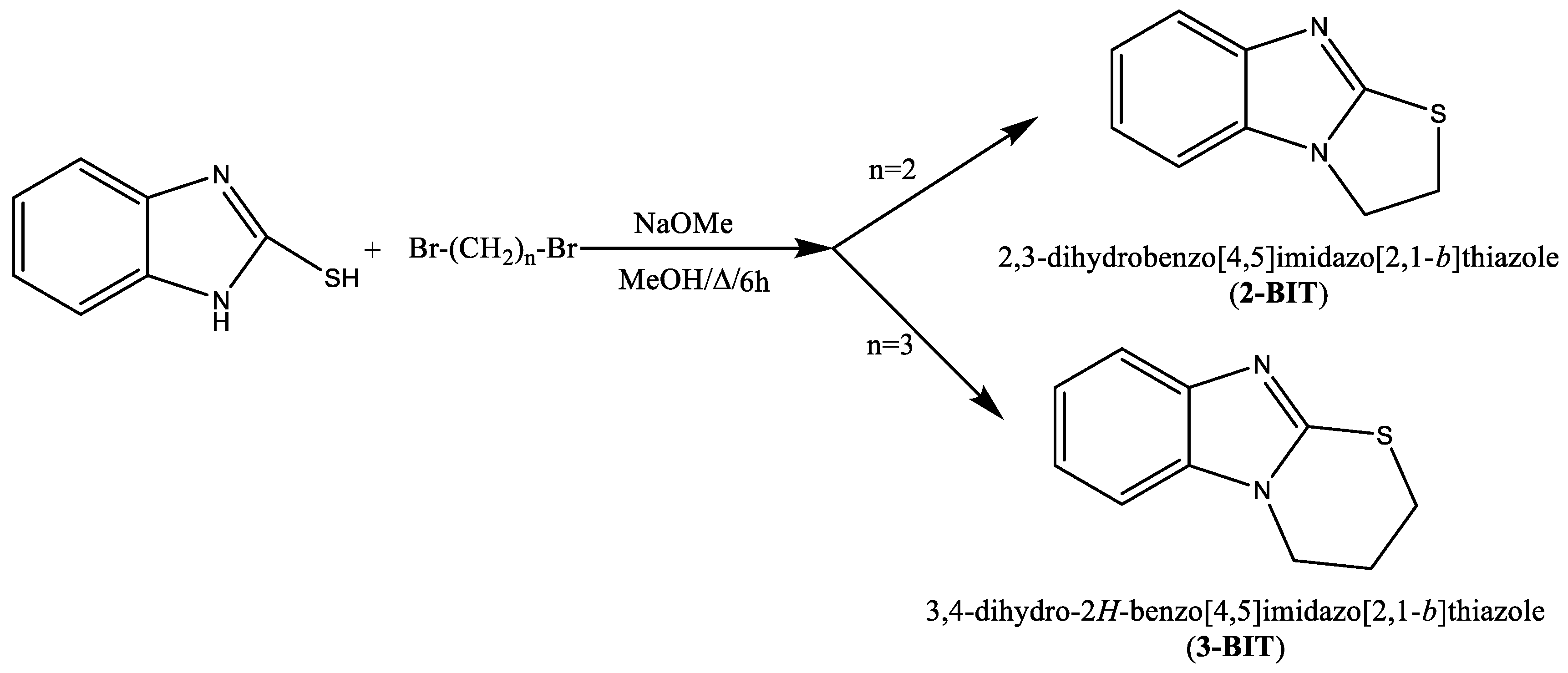

Scheme 1. Synthesis procedure of investigated molecules.
Scheme 1. Synthesis procedure of investigated molecules.
Metals 10 00357 sch001

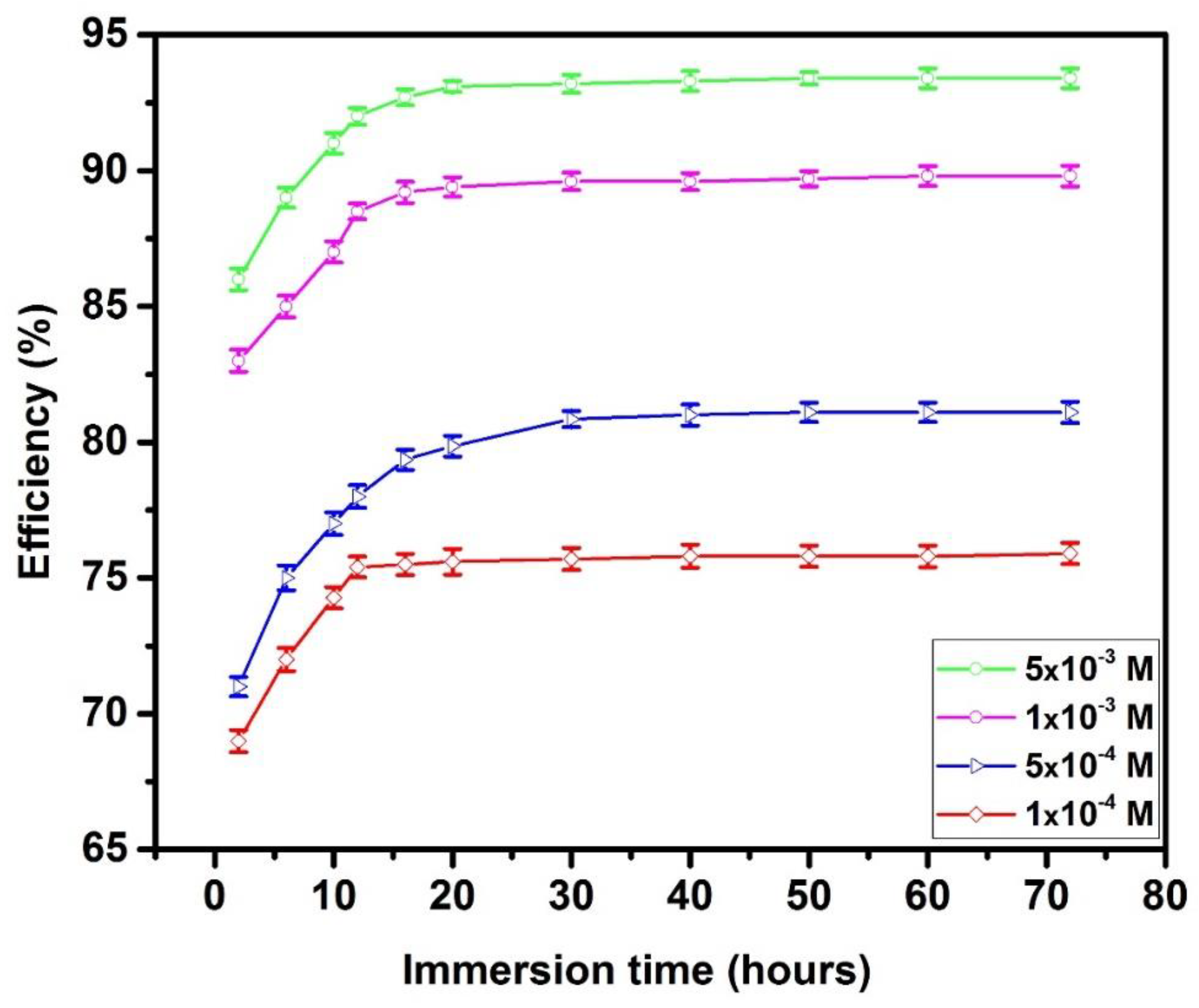

Figure 1. The inhibition efficiencies obtained for mild steel (MS) in 1.0 M HCl with the addition of various concentrations of 3-BIT at 303 K.
Figure 1. The inhibition efficiencies obtained for mild steel (MS) in 1.0 M HCl with the addition of various concentrations of 3-BIT at 303 K.
Metals 10 00357 g001

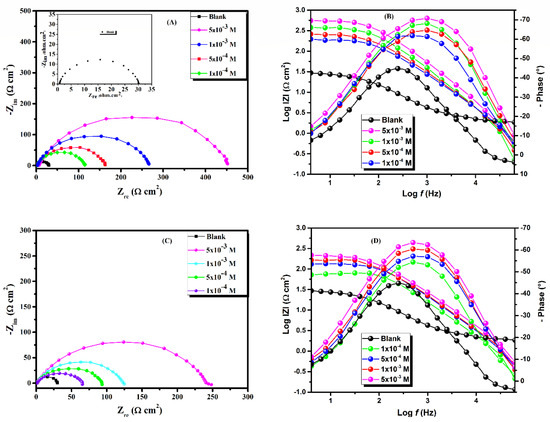

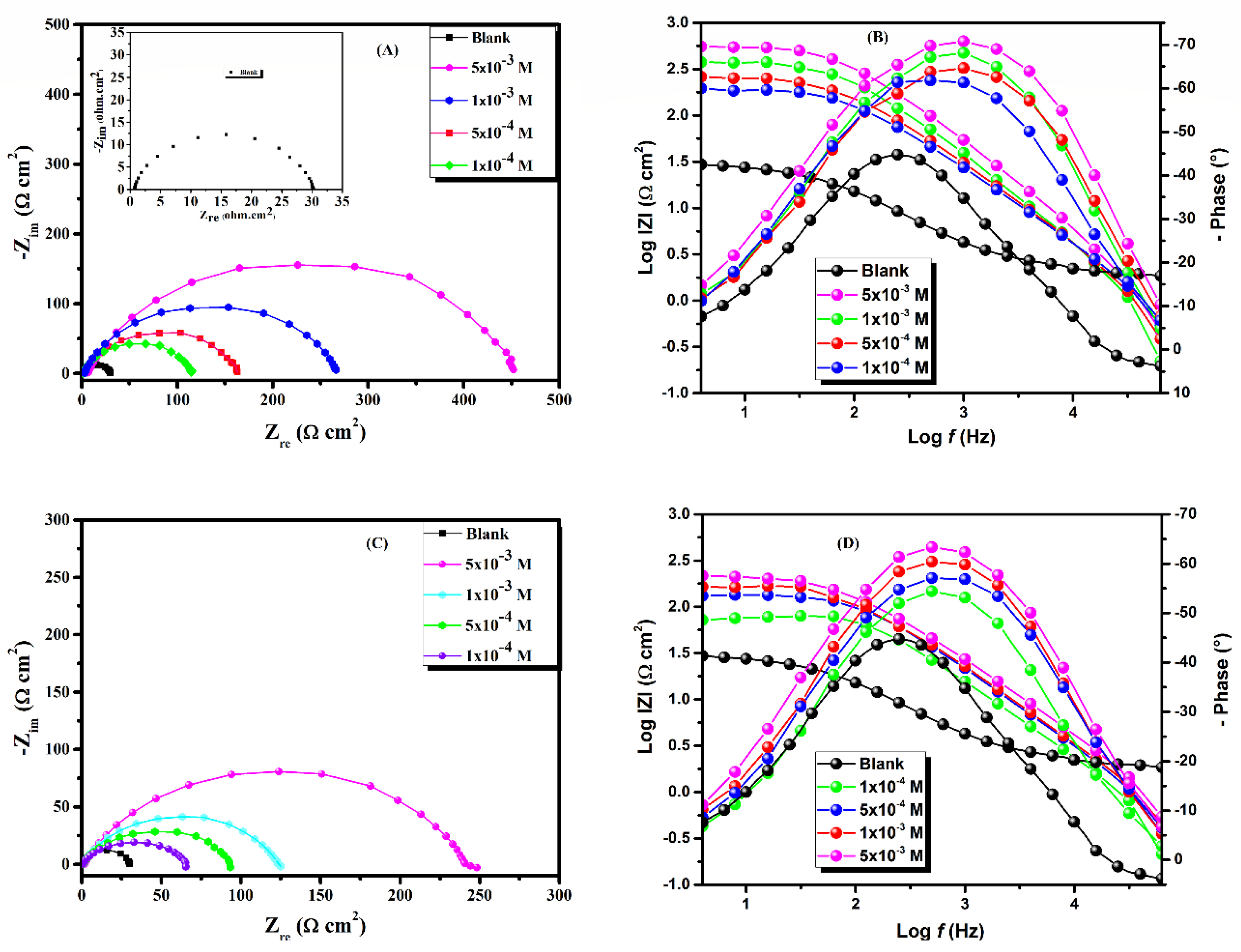

Figure 2. Nyquist curves and Bode and phase angle diagrams of MS in 1.0 M HCl without and with different concentrations of (A,B) 3-BIT and (C,D) 2-BIT at 303 K.
Figure 2. Nyquist curves and Bode and phase angle diagrams of MS in 1.0 M HCl without and with different concentrations of (A,B) 3-BIT and (C,D) 2-BIT at 303 K.
Metals 10 00357 g002

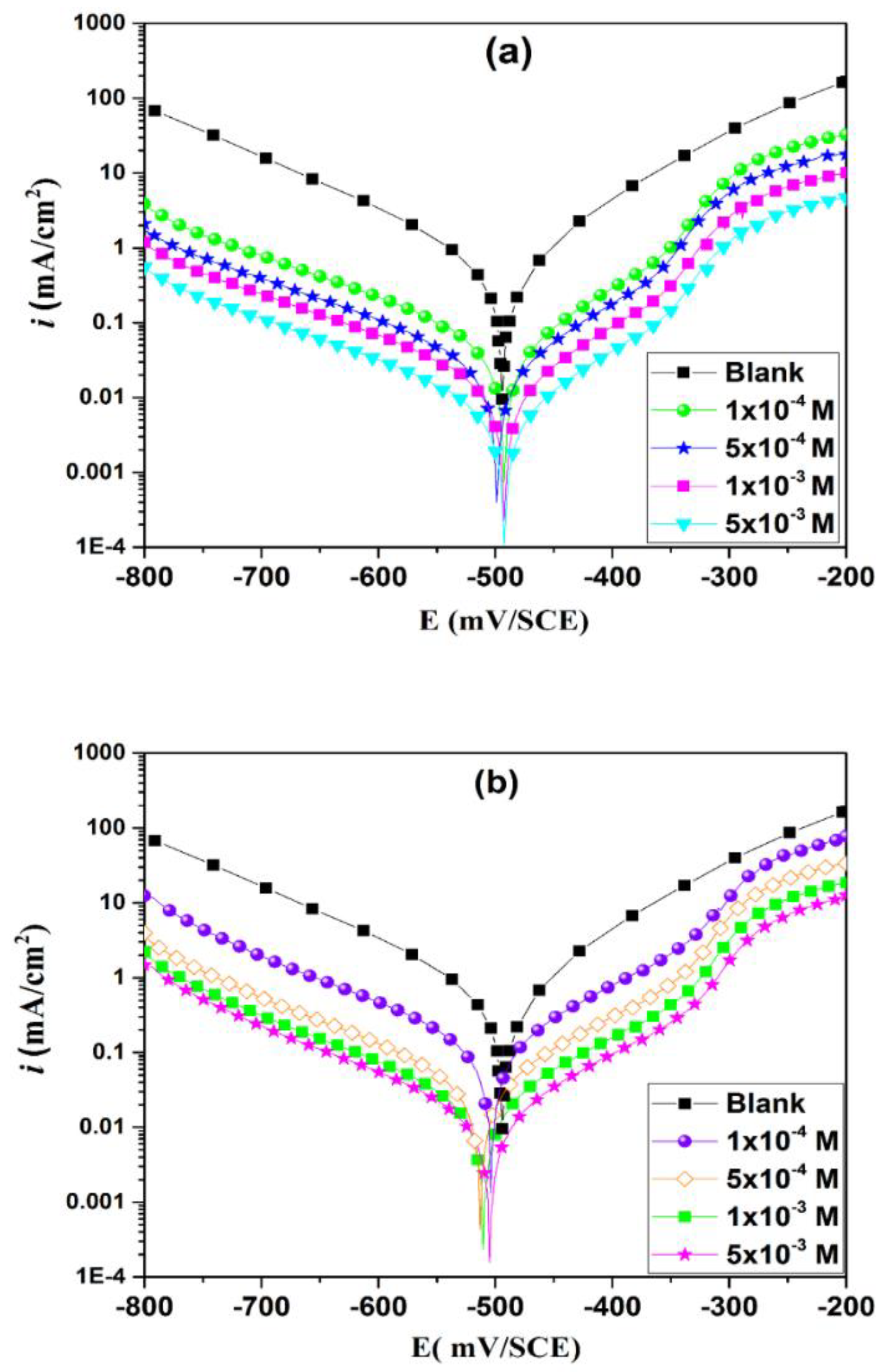

Figure 3. Potentiodynamic polarization curves of MS in 1.0 M HCl without and with different concentrations of 3-BIT (a) and 2-BIT (b) at 303 K.
Figure 3. Potentiodynamic polarization curves of MS in 1.0 M HCl without and with different concentrations of 3-BIT (a) and 2-BIT (b) at 303 K.
Metals 10 00357 g003

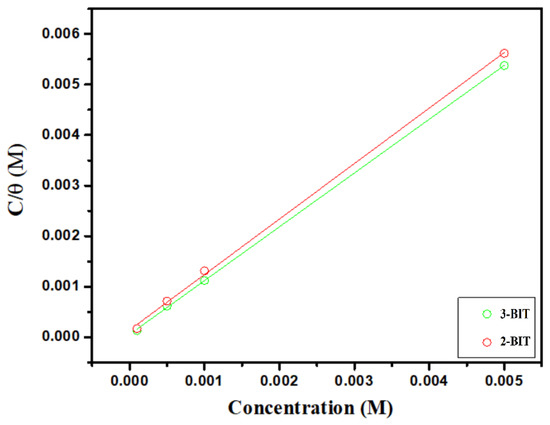

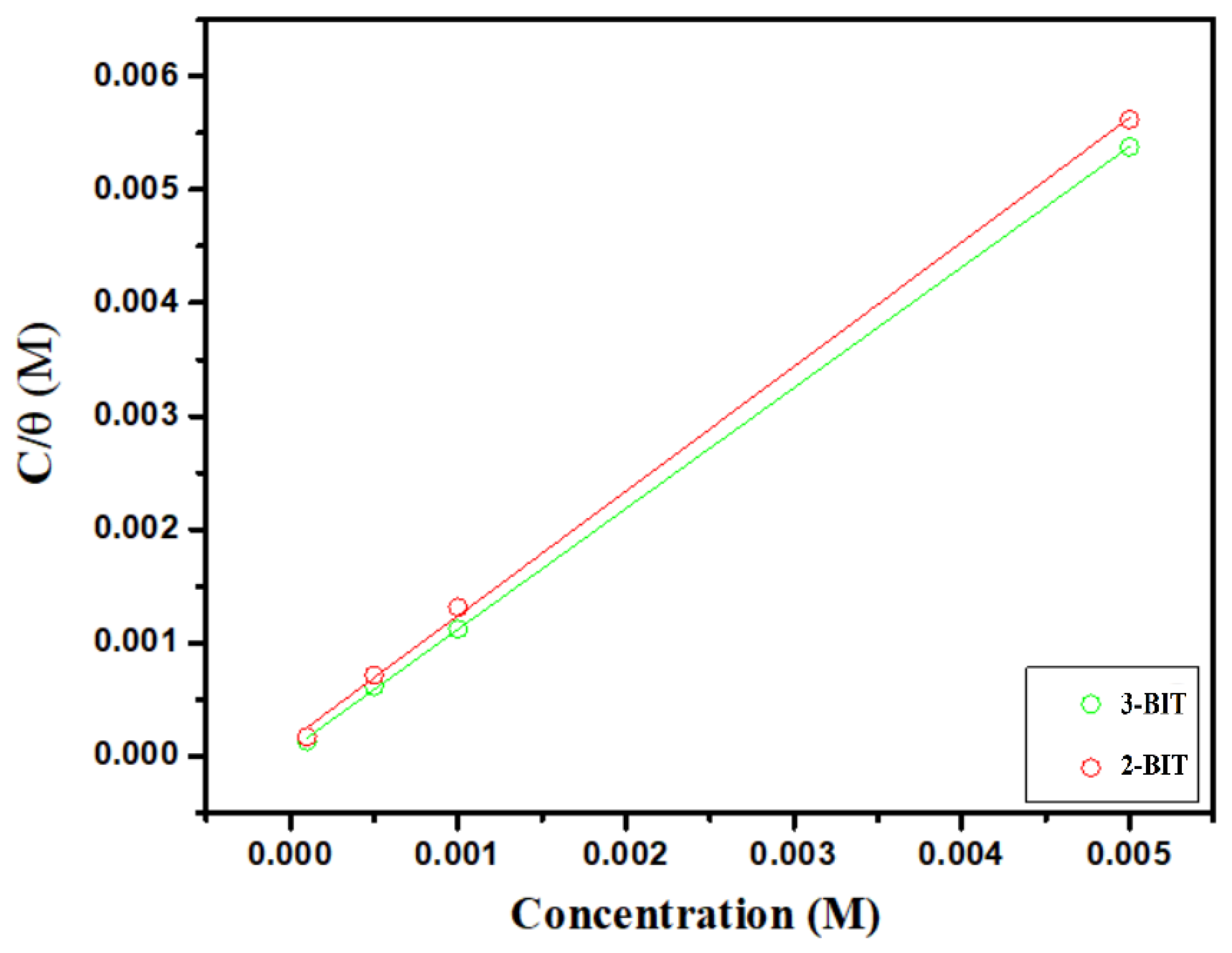

Figure 4. Langmuir adsorption isotherm of inhibitors 3-BIT and 2-BIT on the surface of the MS in 1.0 M HCl medium derived from weight loss measurement.
Figure 4. Langmuir adsorption isotherm of inhibitors 3-BIT and 2-BIT on the surface of the MS in 1.0 M HCl medium derived from weight loss measurement.
Metals 10 00357 g004
Figure 5. Surface morphology by SEM for MS immersed in 1.0 M HCl in the absence and presence of 3-BIT.
Figure 5. Surface morphology by SEM for MS immersed in 1.0 M HCl in the absence and presence of 3-BIT.
Metals 10 00357 g005
Table 1. Effect of 2-BIT and 3-BIT concentrations on corrosion data of mild steel in 1.0 M hydrochloric (HCl) at 303 K.
Table 1. Effect of 2-BIT and 3-BIT concentrations on corrosion data of mild steel in 1.0 M hydrochloric (HCl) at 303 K.
(mg/cm2 × h)
η W (%)
3-BIT 5 × 10 3 0.07493
1 × 10 3 0.11590
5 × 10 4 0.21481
1 × 10 4 0.27376
2-BIT 5 × 10 3 0.12389
1 × 10 3 0.26277
5 × 10 4 0.33270
1 × 10 4 0.47358
Table 2. The temperature effect toward inhibition efficiency and corrosion rate of 3-BIT.
Table 2. The temperature effect toward inhibition efficiency and corrosion rate of 3-BIT.
303 K313 K323 K333 K
(mg/cm2 × h)
η W (%) W
(mg/cm2 × h)
η W (%) W
(mg/cm2 × h)
η W (%) W
(mg/cm2 × h)
η W (%)
5 × 10−30.074930.147890.383810.55378
1 × 10−30.115900.276800.473760.72671
5 × 10−40.214810.317770.517740.76970
1 × 10−40.273760.385730.599700.85866
Table 3. Electrochemical impedance spectroscopy (EIS) results recorded for MS in the acidic medium at several concentrations of 3-BIT and 2-BIT at 303 K.
Table 3. Electrochemical impedance spectroscopy (EIS) results recorded for MS in the acidic medium at several concentrations of 3-BIT and 2-BIT at 303 K.
R p
( Ω ×   c m 2 )
n Q × 10 4
( S n Ω 1 c m 2 )
C d l
( μ F / c m 2 )
η E I S (%) Ɵ
3-BIT 5 × 10 3 4530.800.39814930.93
1 × 10 3 2660.760.58915890.89
5 × 10 4 1620.780.71220820.82
1 × 10 4 1150.811.08538740.74
2-BIT 5 × 10 3 2480.780.58317880.88
1 × 10 3 1250.790.65918760.76
5 × 10 4 940.800.89627690.69
1 × 10 4 690.821.14639570.57
Table 4. Potentiodynamic polarization (PDP) results obtained for MS in 1.0 M HCl at different concentrations of 3-BIT and 2-BIT along with their corresponding inhibition efficiency.
Table 4. Potentiodynamic polarization (PDP) results obtained for MS in 1.0 M HCl at different concentrations of 3-BIT and 2-BIT along with their corresponding inhibition efficiency.
E corr
β c
(mV dec−1)
β a
(mV dec−1)
i c o r r
(μA cm−2)
η P D P (%)Ɵ
3-BIT 5 × 10 3 5051708941920.92
1 × 10 3 5131729869870.87
5 × 10 4 5241679899820.82
1 × 10 4 50417796146740.74
2-BIT 5 × 10 3 4981639762890.89
1 × 10 3 49616899134760.76
5 × 10 4 50316293169700.70
1 × 10 4 49415495233580.58
