Prediction of Equilibrium Phase, Stability and Stress-Strain Properties in Co-Cr-Fe-Ni-Al High Entropy Alloys Using Artificial Neural Networks

Abstract

High entropy alloys (HEAs) are still a largely unexplored class of materials with high potential for applications in various fields. Motivated by the huge number of compounds in a given HEA class, we develop machine learning techniques, in particular artificial neural networks, coupled to ab initio calculations, in order to accurately predict some basic HEA properties: equilibrium phase, cohesive energies, density of states at the Fermi level and the stress-strain relation, under conditions of isotropic deformations. Known for its high tensile ductility and fracture toughness, the Co-Cr-Fe-Ni-Al alloy has been considered as a test candidate material, particularly by adjusting the Al content. However, further enhancement of the microstructure, mechanical and thermal properties is possible by modifying also the fractions of the base alloy. Using deep neural networks, we map structural and chemical neighborhood information onto the quantities of interest. This approach offers the possibility for an efficient screening over a huge number of potential candidates, which is essential in the exploration of multi-dimensional compositional spaces.

1. Introduction

High entropy alloys (HEAs) have gained significant interest in the past few years due to their potential use in various applications [1,2,3], encompassing fields like electronics, aerospace industry, hydrogen storage, coating technology, as well as base materials for components in nuclear facilities. Typically, HEAs exhibit superior strength [4], wear [5], corrosion [6,7], oxidation [8] and radiation [9] resistance, high hardness [10] and a good thermal stability [11]. The concept of HEA dates back to the seminal works of Cantor et al. [12] and Yeh et al. [13], where an exploration of the central region of multicomponent alloy phase space was first proposed and the possibility to use configurational entropy to control single-phase solid solutions versus intermetallic microstructures was indicated. The widely recognized definition of HEA assumes alloys composed of five or more elements, usually with equimolar or near-equimolar ratios. Since then, new classes of HEAs have been proposed, such a refractory HEAs [14] and HEAs with distinguished magnetic [15] and magnetocaloric [16,17] properties.

The enormous range of possible combinations poses a tough challenge from both a theoretical and experimental point of view, which makes direct exhaustive approaches rather unsuitable. Instead, the focus is on modifying and ultimately enhancing the physical properties of base alloys, e.g., CoCrFeNi alloy kernel, for adjusting the microstructure, mechanical and thermal properties. For instance, the CoCrFeNi alloy has been thoroughly investigated, particularly for its high tensile ductility and fracture toughness [18]. To increase the strength of the base alloy, several other CoCrFeNi-based HEAs have been considered, by including Al [19] and, in addition, other transition metals like Ti [20], Nb [21], Mn [22]. Furthermore, to diversify the HEA design, changing the composition of the base elements was suggested [18], which dramatically increases the number of potential alloy candidates.

Experimental investigations [23,24,25] of the CoCrFeNiAl${}_x$ alloy have previously shown that the structural configuration changes from single FCC to a duplex phase FCC/BCC, and finally reaching a single BCC phase as the Al concentration increases. This is further confirmed by theoretical stability calculations [26,27].

To handle the massive task of processing of the huge number of instances, more effective approaches are required to aid or complement traditional high throughput simulation schemes. So far, machine learning (ML) techniques have been employed for the guided exploration of phase design, using artificial neural networks (ANNs), convolutional neural networks and support vector machines [28,29], for predicting amorphous, intermetallic and solid solution character of the sample. ANNs were employed to predict the hardness using measurement records [30]. Recently, a property-oriented materials design strategy was developed using experimental data [31].

Here, we investigate HEAs based on the CoCrFeNi alloy kernel with additional Al using density functional theory (DFT) high throughput calculations, augmented by machine learning techniques, in particular, artificial neural networks (ANNs). The huge number of potential HEA candidates in a given class makes the ANN based approach an efficient tool for screening compounds targeting a given physical property. We focus here on four basic quantities, namely the total energy, the cohesive energy, the density of states at the Fermi energy and the stress induced by given strain. These are significant for phase prediction and stability and can further bring insights into magnetic and mechanical properties of HEAs. Within our approach, the ANNs are trained using the collected DFT data, using for inputs readily available structural information, i.e., the proportion and the chemical environment of each species and supercell dimensions, together with additional chemical neighborhood information.

2. Models and Methods

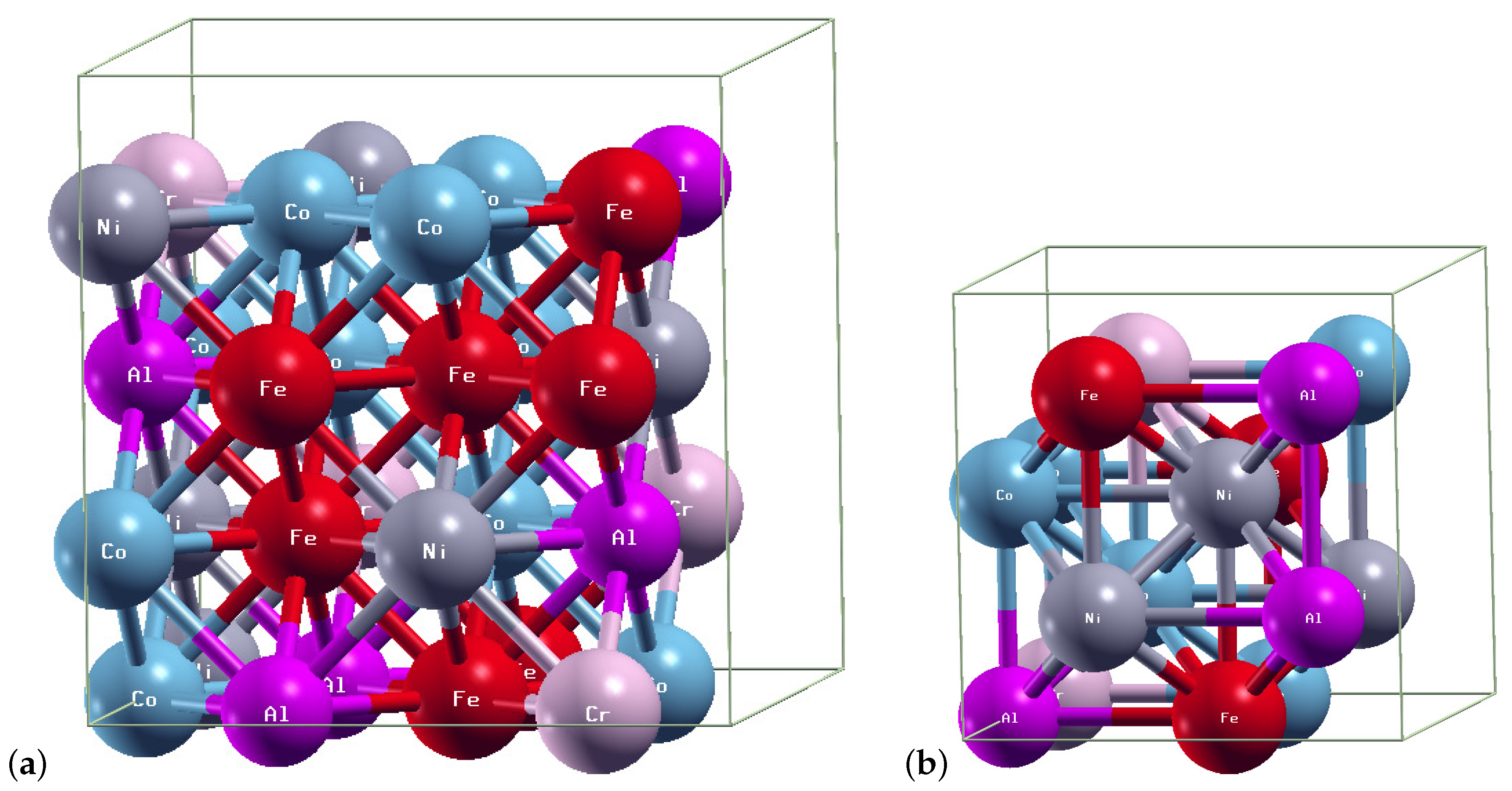

For the investigation of Co-Cr-Fe-Ni-Al HEA, we employ ab initio calculations at DFT level using a supercell approach. Typical instances of FCC and BCC structures, with $2\times 2\times 2$ unit cells, are depicted in Figure 1. The supercells are constructed in two steps. First, the base alloy elements (Co, Cr, Fe, Ni) in equimolar fractions are randomly distributed, each of the species having 8 atoms (FCC) and 4 atoms (BCC). In a second step, Al is introduced substitutionally on the base elements. The supercells constructed in this way have 32 atoms (FCC) and 16 atoms (BCC) respectively. For FCC structures, a number of $n_{\mathrm{Al}}=1,2,4,6$ Al atoms are substituted for each transition metal species to yield four compounds with finite Al content. Correspondingly, for BCC structures, half of the Al atoms have been used to match the same concentration. An exception is the lowest concentration ($n_{\mathrm{Al}}=1$), where a doubled supercell was considered in the BCC phase, i.e., with the size of 32 atoms. In order to reach the same molar fraction x, for both FCC and BCC, the number of Al atoms is always doubled in the FCC systems. This condition is later relaxed and samples with completely random atom fractions are assembled. In a typical calculation, the lattice constant is varied and the minimum of the total energy gives the equilibrium structure. The minimum total energy values are then compared for FCC and BCC structures and the equilibrium phase is identified. Due to disorder effects, several samples for the same distribution of species are considered and the averaged values are calculated. However, as is outlined in the next section, these deviations are typically not significant, as the number of atoms in the supercells is large enough to mostly cancel the disorder effects. The imposed periodicity by the supercell approach brings difficulties in describing random systems. An alternative approach is to employ the special quasi-random structures method in order to identify the best choice for the atomic configuration in small supercells [32]. However, one has to assess the computational effort needed to find the optimal configuration, especially since, in general, the primary advantage of the ANN based method relies on easy-to-obtain feature vectors and a relatively large volume of input data.

The DFT calculations are implemented using the SIESTA package [33], which has the advantage of linear scaling of the computational time with the system size, achieved by using strictly localized atomic numeric orbitals. For the exchange-correlation potential, we employed the local density approximation (LDA) in the parametrization proposed by Ceperley and Alder [34] and norm-conserving pseudopotentials by Troullier and Martins [35]. The self-consistent solution of the Kohn-Sham equations was obtained using a double-$\zeta$ polarized basis, a mesh cutoff of 150 Ry for the real space grid and a $9\times 9\times 9$ Monkhorst–Pack grid was used for the k-points sampling. A broadening of $0.05$ eV is applied to the density of states (DOS).

Following DFT calculations, several quantities of interest are determined: total energy $E_{\mathrm{tot}}$, cohesive energy $E_{\mathrm{coh}}$, density of states at the Fermi level $D\left(E_{\mathrm{F}}\right)$ and the average normal stress component $\langle \sigma \rangle$ in the cubic systems, by pre-setting the lattice constants ($a_{\mathrm{FCC}},a_{\mathrm{BCC}}$). The cohesive energy is defined as the difference between the total energy of the system and the individual atomic constituents, i.e., $E_{\mathrm{coh}}=E_{\mathrm{tot}}-{\sum }_i{n}_i{E}_i$, where $n_i$ is the number of atoms in species i and $E_i$ is the corresponding total energy of the isolated atoms, calculated with the same type of approximations and correlation-exchange potentials. The cohesive energy is one of the most important physical parameters in quantifying the thermal stability of materials [36], as illustrated for metallic clusters. The stress is obtained by averaging the values corresponding to the three orthogonal directions, due to an equal strain applied to each direction, i.e., $\langle \sigma \rangle =({\sigma }_{xx}+{\sigma }_{yy}+{\sigma }_{zz})/3$. Although we consider here only isotropic deformations, the method can be employed to investigate anisotropic deformations and shear stress.

The artificial neural networks (ANNs) are implemented using TensorFlow with the Keras frontend [37,38]. One key element for the ANN accuracy is the set-up of the input feature vectors, which should include readily available information. Here, we introduce a 21-feature input vector format, with the following structure: 5 entries corresponding to the species proportions ($M_i=$ Co, Cr, Fe, Ni, Al), 1 entry corresponding to the supercell dimension (lattice constant, $a_{\mathrm{FCC}}$ or $a_{\mathrm{BCC}}$) and 15 entries corresponding to the proportions of nearest neighbor pairs ($M_i\leftrightarrow M_j$). This set-up of the feature vectors takes into account structural information, as well as chemical neighborhood data, which enables an efficient and an accurate prediction of the targeted quantities. A related approach was successfully employed for the investigation of energy gaps in hybrid graphene-hexagonal boron nitride nanoflakes [39,40].

Technically, the ANNs are implemented as deep neural networks with 9 hidden layers, with $N_{\mathrm{in}}=21$ inputs and $N_{\mathrm{out}}=1$ output, corresponding to one of the predicted quantities. The number of neurons in the hidden layers, implemented as fully connected (dense) layers, are: 300, 250, 200, 150, 100, 75, 50, 25, 1. All neurons, except the one in last layer use relu as activation function. The weights and biases are initialized as random uniform. Adam optimizer is employed with a learning rate of ${10}^{-5}$ and typical values ${\beta }_1=0.9$, ${\beta }_2=0.999$. The loss function is the mean squared error and accuracy is measured by the statistical coefficient of determination $R^2$. The DFT data are split into train, validation and test disjoint sub-sets. The ANN model is trained on a typical 5000 epochs interval, using a batch size of 100 examples.

3. Results and Discussion

We start our investigation by using a class of HEAs with equimolar ratios of the base elements (Co, Cr, Fe, Ni) and varying Al content, i.e., compounds of type CoCrFeNiAl${}_x$. Equivalently, the system can be described as a pseudobinary alloy, of type (CoCrFeNi)${}_{1-y}$Al${}_y$, with $y=x/(4+x)$ [26]. Two sets of supercells are assembled, one for FCC and one for BCC structural configurations, as follows: each set contains 500 samples, corresponding to 10 values for the lattice constant $a_{\mathrm{FCC}}/a_{\mathrm{BCC}}$, 10 disorder realizations and 5 Al concentrations.

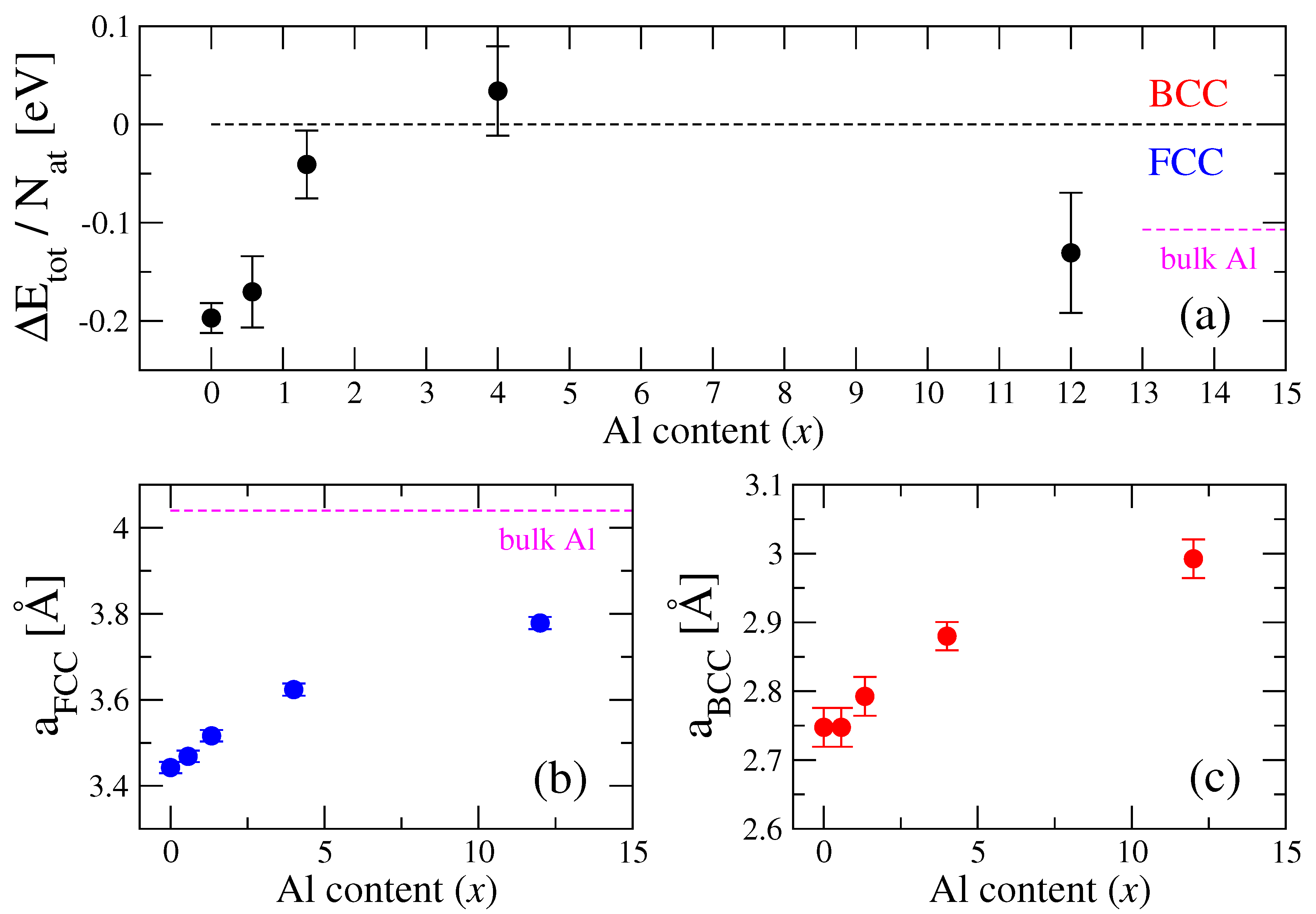

The equilibrium structural configurations are determined by varying the lattice constant and by evaluating the minimum energy, instead of performing structural relaxations. To obtain the equilibrium phase, we compare the disorder-averaged total energies in the FCC and BCC phases, $E_{\mathrm{tot}}^{FCC}$ and $E_{\mathrm{tot}}^{BCC}$, respectively. Figure 2a shows the total energy difference, $\Delta E_{\mathrm{tot}}=E_{\mathrm{tot}}^{FCC}-E_{\mathrm{tot}}^{BCC}$. Its sign determines the equilibrium phase, $\Delta E_{\mathrm{tot}}<0$ for FCC and $\Delta E_{\mathrm{tot}}>0$ for BCC. A first observation is that the FCC phase is favored in the case of the base alloy, CoCrFeNi, i.e., with no Al content ($x=0$), which is consistent with reported experimental data [41,42]. As the Al content increases, there is an evident trend towards stabilizing the BCC phase. As noted before [23,24,25], at low Al fractions ($x<0.3$), the equilibrium phase is FCC [43,44], while at larger Al fractions ($x\approx 0.9)$, the BCC phase becomes stabilized, while mixed FCC-BCC phases are typically found for intermediate Al concentrations [45]. We also explore structures with high Al content, where the FCC phase is recovered, as shown in Figure 2. Starting from an average lattice constant of 3.42Å for the CoCrFeNi base alloy (FCC), for larger Al concentrations, the lattice constant is systematically increased and the same trend is observed for BCC configurations.

By far most of the experimental and theoretical investigations have been focused on the relatively narrow sub-set of systems with equimolar base elements. However, in general, the variation of all HEA constituents may be of interest for optimizing a certain physical property. A very recent study investigated nonequimolar Co-Cr-Fe-Ni-Al HEAs in comparison with the equimolar CoCrFeNiAl${}_x$ counterpart [46]. It was revealed that there is a different solubility behavior of Al, with larger values at higher temperatures for the nonequimolar HEA, while both types of HEAs follow the same empirical phase formation rules. In particular, the FCC phase was identified for low Al content, followed by a mixed FCC+BCC phase for larger Al proportions.

Nonequimolar HEA systems require the exploration of a vast configurational state space, which cannot be performed exhaustively. In this context, we develop here machine learning techniques, based on artificial neural networks, to accurately predict key quantities necessary to determine the equilibrium phase, stability and mechanical properties.

Along these lines, we first perform DFT calculations on a set of 3000 samples with random fractions of the five elements, for each structural configuration, FCC and BCC. The two sets are each further split into 2000 samples for training the ANN, 500 for validation and 500 for test. Although there are multiple ways to train the ANN models, preliminary optimization tests indicate that an ANN architecture with 9 layers, 100 samples per batch and several other key aspects like the relu activation function, Adam optimizer provides accurate enough predictions.

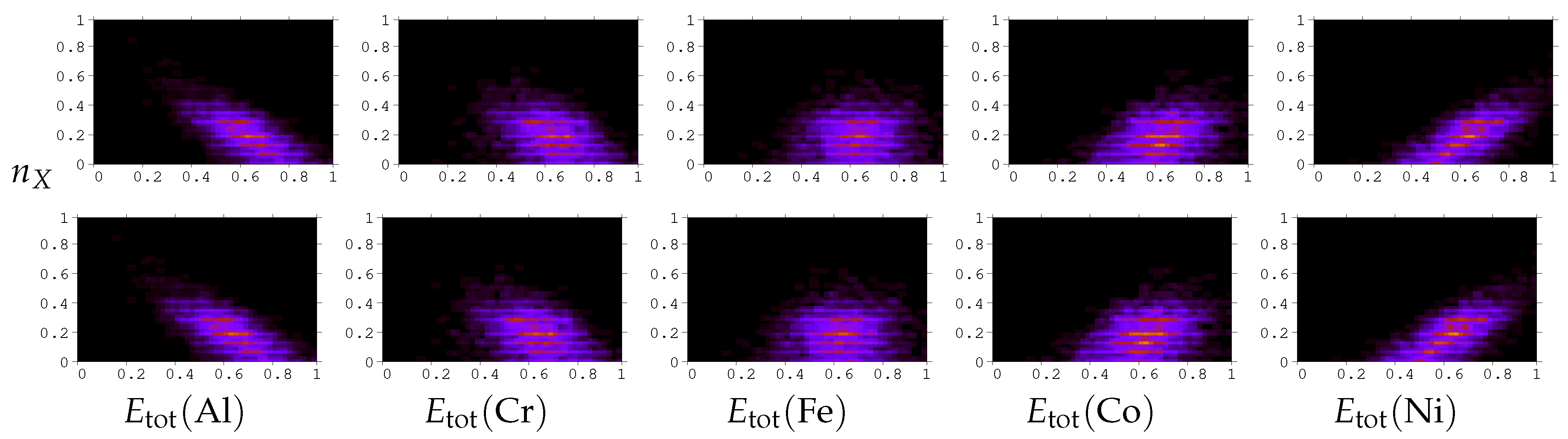

It is worth highlighting that the input data are organized as feature vectors containing only directly available structural information. The 21-position feature vectors include the lattice constant, the species proportions and the proportion of nearest neighbors pairs providing additional information concerning the chemical neighborhood. The species proportions together with the lattice constant form already a highly relevant list of features. Figure 3 shows heatmap maps containing counts of samples using $E_{\mathrm{tot}}$ vs. species proportions ($n_X$) coordinates. The results are qualitatively similar for FCC and BCC, while more significant differences are visible for the five metal species, ordered in increasing atomic number. This suggests that the species proportions are good candidates for the input feature vectors. However, this limited set of features cannot accomodate situations where different configurations, with the same lattice constant and composition, can lead e.g., to different $E_{\mathrm{tot}}$ values. To ensure a proper mapping of the input structural information, in the context of the variability induced by disorder at the same species proportions and lattice constant, the proportions of atomic pairs were added to the feature list. The feature list can be further enlarged by considering the atomic clusters of three or more atoms. Typically, as the number of possible features grows rapidly, a selection procedure must be enforced. As we show in the following, the selected 21-feature vector is a reasonable choice for accurate predictions of the four quantities of interest.

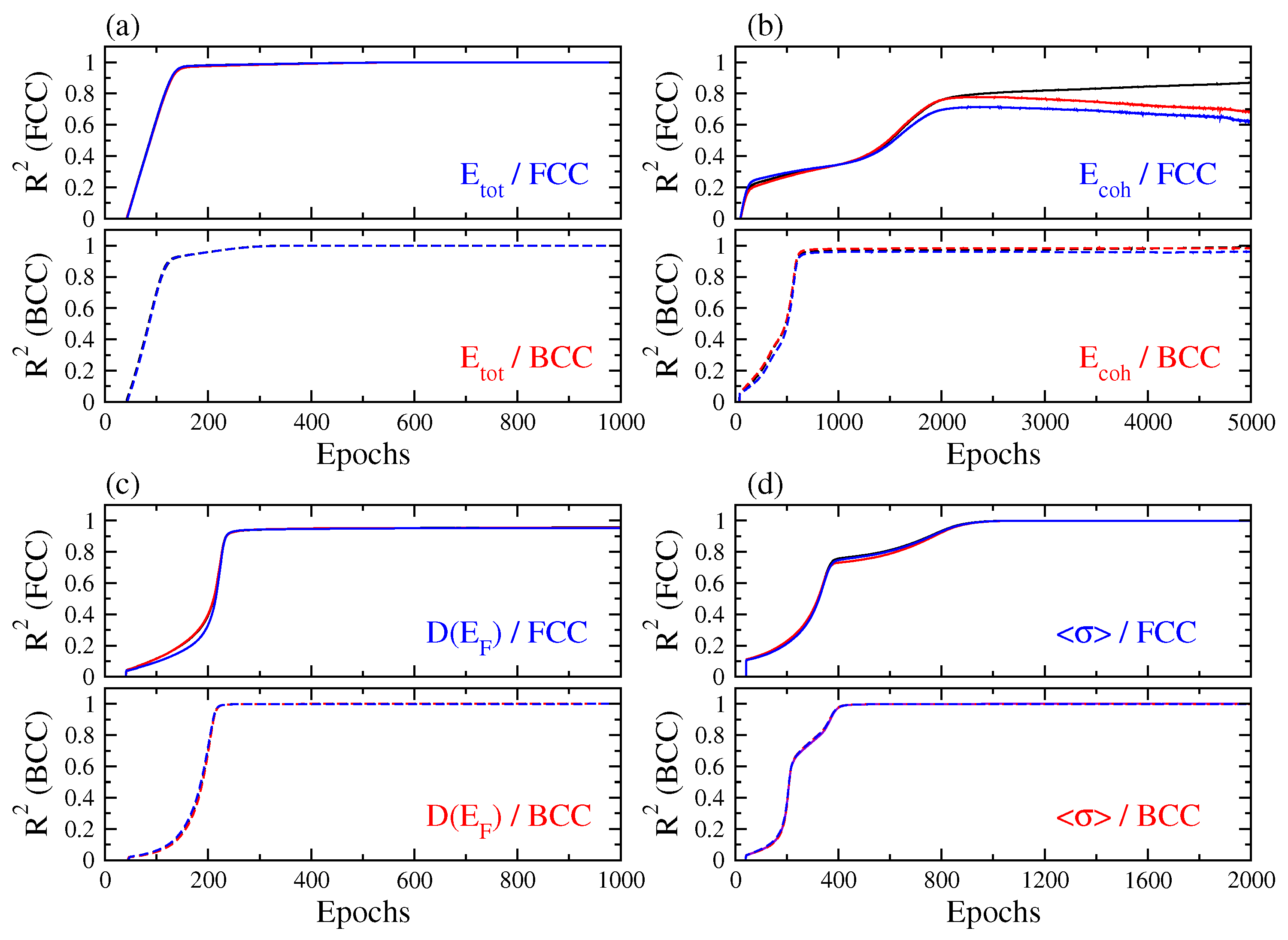

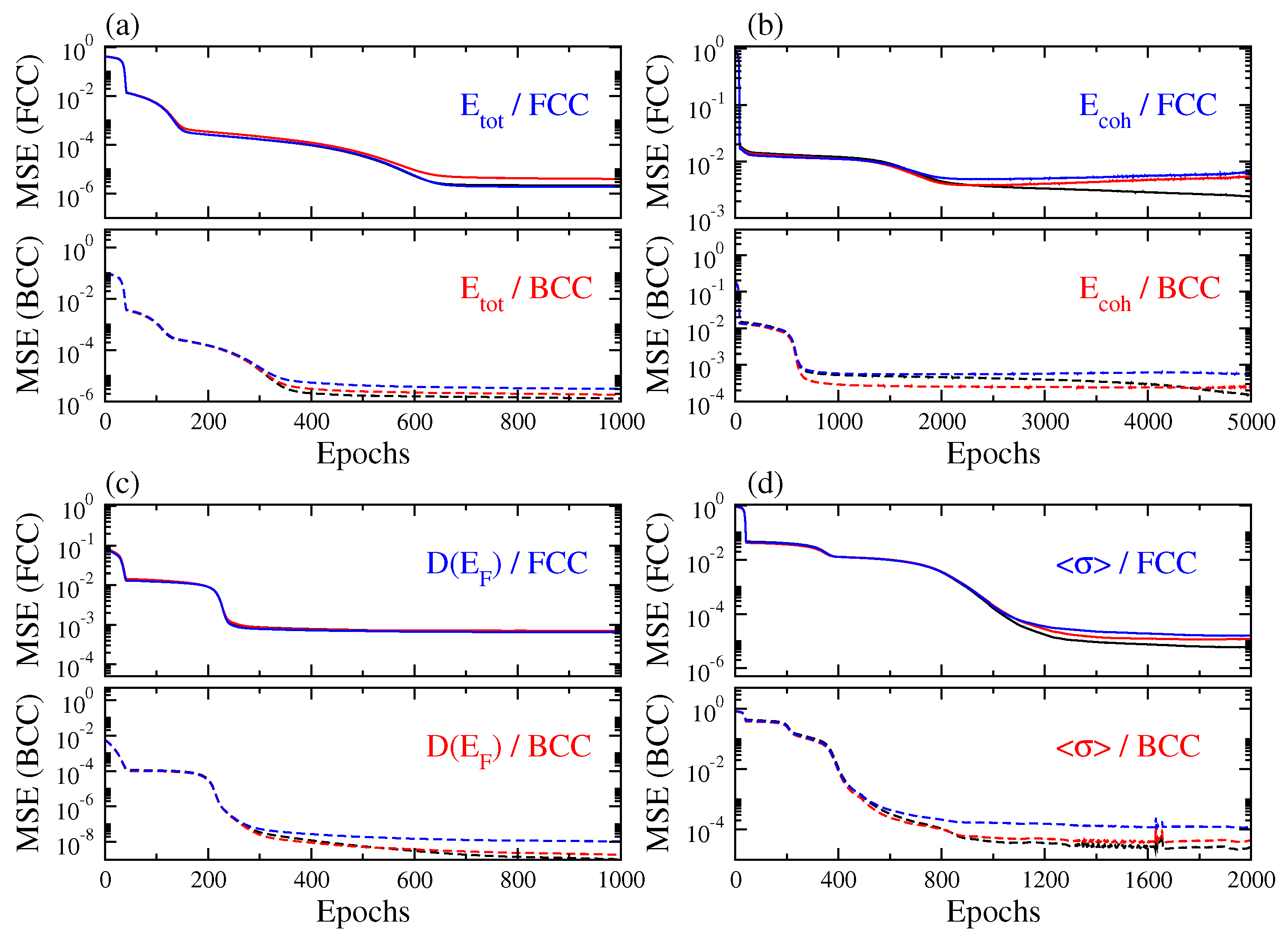

The validation sets provide a stopping criterion in the ANN training in order to maximize the accuracy. Afterwards, the ANN model is applied on distinct test set. Figure 4 shows the accuracy, measured by the $R^2$ coefficient of determination, for the quantities of interest, namely $E_{\mathrm{tot}}$, $E_{\mathrm{coh}}$, $D\left(E_{\mathrm{F}}\right)$ and $\langle \sigma \rangle$. Correspondingly, Figure 5 shows the loss functions in each case, given by the mean squared error of reference and current output values in the training process. With few exceptions, there is a very good convergence of the ANN model in less than 1000 epochs. The validation and test data closely follow the training process, which is indicative of the model consistency. The ANN models typically show improved performance for the BCC structural configurations, as compared to the FCC case. This may be due to the lower complexity of the BCC supercells with only half of the number of atoms in the FCC supercells. Among the monitored output parameters, $E_{\mathrm{tot}}$ was most accurately predicted with a rather quick convergence of the ANN model, followed by $D\left(E_{\mathrm{F}}\right)$ and $\langle \sigma \rangle$. For these three parameters, the obtained accuracies typically exceed 99%. The cohesive energies are mapped with less precision and an overtraining effect is evidenced in Figure 4b and Figure 5b: in the training process, $R^2$ increases (the loss function decreases) monotonically in the FCC case, while the validation and test data present a maximum for $R^2$ (minimum for MSE). In this context, the maximum $R^2$ for the validation set, of ∼75%, indicates the optimum training point at ∼2000 epochs. The accuracy for the test set also presents a maximum near this point, with a value for $R^2$ of only $68\%$. However, for the BCC case, the overtraining effect is much less prominent and the convergence and accuracy are significantly improved.

Furthermore, we investigate the accuracy of phase prediction by using a singleANN for a set samples randomly distributed between FCC and BCC configurations. As a test case, the total energies of 250 structures with the same composition, but randomly chosen lattice constants, have been determined by DFT calculations. The HEA composition was set by equimolar Co, Cr, Fe, Ni, with an Al content corresponding to $x=4/7$, i.e., one Al atom to seven atoms of each transition metal species. In order to have a direct comparison, the BCC cell was doubled along the z-direction, yielding an equal number of atoms as in the FCC supercell.

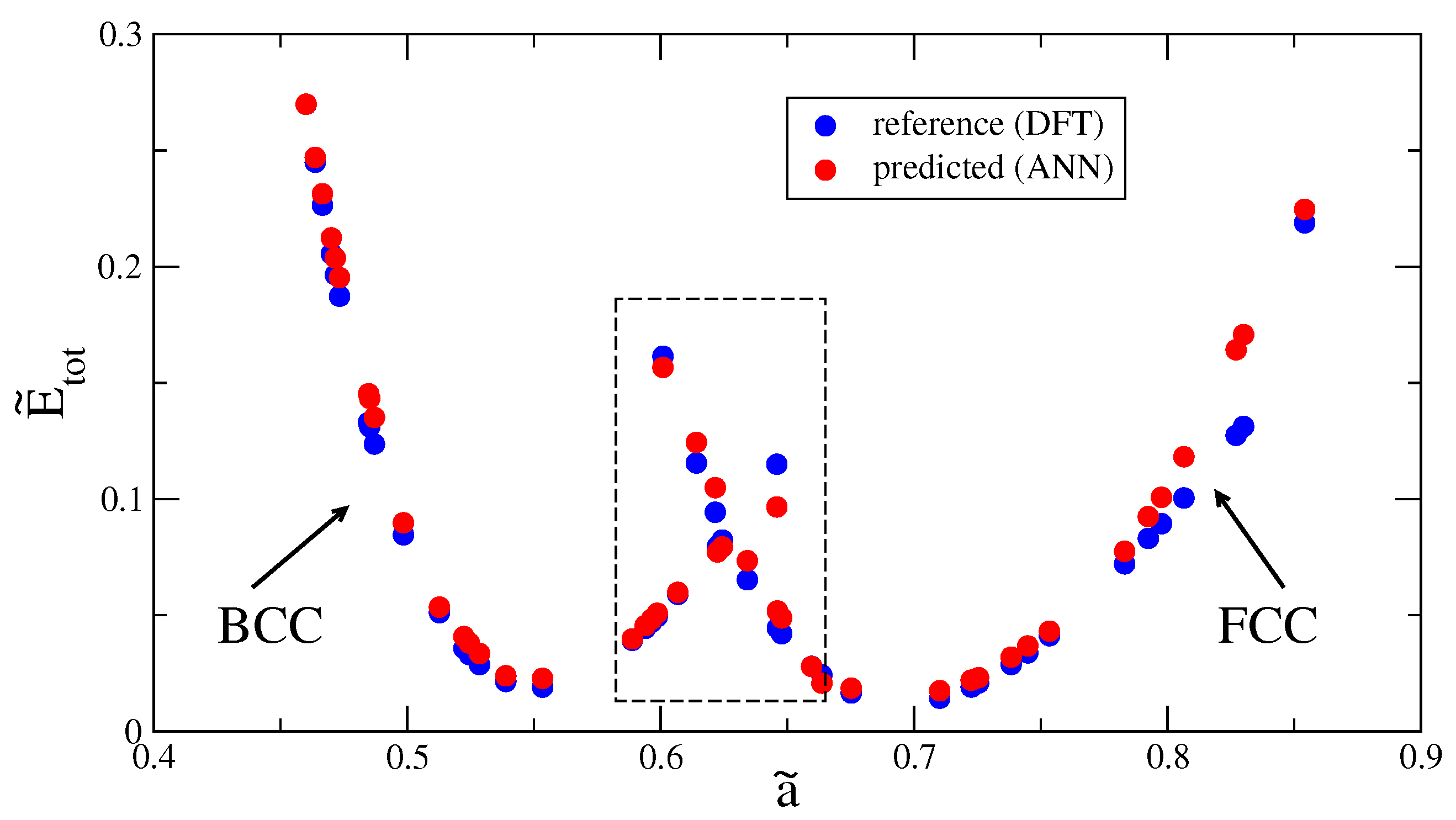

The predicted values of $E_{\mathrm{tot}}$ are presented in Figure 6, in comparison with the reference values and the equilibrium phase can be determined from the minimum energy. In this instance, a slightly lower $E_{\mathrm{tot}}$ was found, compared FCC to BCC, which is typical for this Al proportion. The obtained accuracy for the test set is $R^2=99.2\%$, which is high enough to distinguish between the two phases. The total energy and the lattice constants have been linearly transformed, so that the new corresponding parameters ${\tilde{E}}_{\mathrm{tot}}$ and $\tilde{a}$ are found in $(0,1)$. This procedure ensures a smooth convergence of the ANN model in the training process.

It is worth noting that the FCC/BCC overlap region, outlined by dashed lines, is also well mapped, proving that the choice of the feature vector can discriminate between different structural configurations. Depending on the candidate HEA class, the ML methods introduced here can be easily adapted to include other structural phases of interest, like the hexagonal closely packed phase. Moreover, although we only investigated here some basic quantities, which can be determined directly from ab initio calculations, other related properties can be further derived and predicted. In particular, by including anisotropic and shear stress, a more detailed description of mechanical properties can be performed, which is of practical interest. Moreover, our approach is general enough to accommodate output quantities which can be obtained with theories beyond DFT and can be extended to include external conditions like temperature and pressure.

4. Conclusions

Machine learning techniques have been developed and employed for the investigation of Co-Cr-Fe-Ni-Al HEAs, mapping DFT results. Using deep neural networks, several quantities of interest have been successfully predicted, such as total and cohesive energies, density of states at the Fermi level and the stress induced by a given strain. These quantities are essential to determine the equilibrium phase and stability, and for assessing the electronic and mechanical properties. The input feature vectors are constructed using directly available information, consisting of HEA composition, supercell dimensions and chemical neighborhood descriptors. Furthermore, we showed that this approach is able to distinguish between different structural phases. Although high throughput DFT calculations are widely used for the exploration of multi-component configurational state space, the ML techniques provide a significant step forward by efficiently screening a huge number of candidates, HEAs being in particular suited for this type of approach.
