Effect of Solution Treatment Temperature on Microstructural Evolution, Precipitation Behavior, and Comprehensive Properties in UNS S32750 Super Duplex Stainless Steel

by
Junhe Li
1,
Wei Shen
1,
Ping Lin
2,
Fuming Wang
1 and
Zhanbing Yang
1,*
1
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
Zhejiang Tsingshan Steel Co Ltd., Zhejiang 323000, China
*
Author to whom correspondence should be addressed.
Metals 2020, 10(11), 1481; https://doi.org/10.3390/met10111481
Submission received: 18 October 2020 / Revised: 31 October 2020 / Accepted: 4 November 2020 / Published: 6 November 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
The changes of microstructures, element distribution, and comprehensive properties were studied to explore their interactions with each other, induced by solution treatment of UNS S32750 super duplex stainless steel. The results showed that the ferrite content improved, while the austenite content declined as the temperature increased. From 900 to 1000 °C, the σ phase existing at α/γ grain boundaries and in ferrite grains gradually dissolved. At 1050 °C, the microstructures consisted of only ferrite and austenite. From 1050 to 1300 °C, the Cr2N precipitated in ferrite and gradually grew and coarsened. The impact energy and pitting potential of UNS S32750 first improved and then weakened, while the hardness is the opposite, owing to the combined effects of element distribution, microstructures, and precipitates. In the presence of the σ phase, the corrosion resistance and mechanical properties of UNS S32750 correspond directly to the σ phase fraction. Subsequently, the rise in temperature promoted γ → α phase transformation, and the elements partitioning ratios of Cr and Mo declined, resulting in reduced toughness and corrosion resistance and a rise in hardness. Consequently, when the solution treatment temperature is 1050 °C, the α/γ ratio of UNS S32750 approached 1:1, with excellent overall properties.

1. Introduction

Super duplex stainless steel (SDSS) has a double-phase ferritic-austenitic microstructure in approximately equal proportions, which provides it with excellent properties that cannot be achieved with austenitic or ferritic stainless steels [1,2,3]. In addition, its high resistance to pitting corrosion, with a pitting resistance equivalent number (PREN = wt% Cr + 3.3 wt% Mo + 20 wt% N) greater than 40 [4,5], renders it a high corrosion-resistant stainless steel. Compared with ordinary duplex stainless steel, super duplex stainless steel has higher strength and superior corrosion resistance, and is widely used in harsh environments such as petrochemicals and seawater desalination [6,7,8].
The high alloying of super duplex stainless steels increases the risk of secondary phase precipitation, and the corrosion resistance and mechanical properties of super duplex stainless steels are limited during the thermal processing in the range of 400–1000 °C, owing to the precipitation of sigma (σ), chi (χ), chromium nitrides (Cr2N), G phases, and so on [9,10,11]. Among them, the σ phase is commonly considered to be the most hazardous component and has been extensively studied by scholars [12,13,14]. It is a brittle intermetallic phase rich in Cr and Mo with a tetragonal crystallographic structure, which mainly precipitates at 600–1000 °C [15,16,17,18,19]. Its precipitation seriously affects the plasticity, toughness, and corrosion resistance of materials [20]. The study indicates that the precipitation of a 5% σ phase leads to an 80% drop in impact energy and a 25 °C reduction in critical pitting temperature [21,22,23,24]. The σ phase is able to re-dissolve after the solution treatment temperature rises to a certain value, but during the rapid cooling process after solution treatment above 1200 °C, chromium nitride precipitates within the ferrite grains, forming a high-density Cr2N zone and reducing the material properties [25,26,27]. Therefore, proper control of the solution treatment temperature seems to be the simplest solution to obtain the desired performance.
However, the solution treatment temperature also affects the ratio of ferritic (α) and austenitic (γ) phases, the distribution of alloying elements between the two phases, and the corrosion resistance of each phase. It has been noted that alloying elements have different partition coefficients in the two phases [28]; chromium and molybdenum are enriched in ferrite, while nickel and nitrogen are concentrated in austenite. The reduction of Cr and Mo content in ferrite leads to a drop in the precipitation dynamics of the σ phase, which effectively inhibits σ-phase precipitation and enhances the toughness and corrosion resistance of steel [9,12]. In the process of rapid cooling at a high temperature, the supersaturated N in ferrite grains easily combines with Cr to form Cr2N [29,30]. The corrosion resistance of duplex stainless steels is mainly attributed to the action of the elements Cr, Mo, and N. The different content of alloying elements in the austenitic and ferritic phases leads to variations in the corrosion resistance of the two phases [31,32,33]. In this regard, it is of great significance to study the correlation between the solution treatment parameters and the microstructural characteristics.
In the current studies, however, few works have provided a complete and detailed description of the precipitation phase, biphasic ratio, alloying element content, mechanical properties, and pitting resistance of UNS S32750 as a function of variable thermal treatment temperature. At present, few scholars have investigated elemental partitioning ratios as a function of σ phase content and biphasic ratios, revealing mechanical properties as a function of σ phase content, biphasic ratios, and elemental partitioning ratios. In the present work, various microstructural states were obtained by varying the treatment temperature between 900 °C and 1300 °C to investigate the variation of microstructure characteristics and overall properties, such as α/γ ratio, precipitates behavior, element partitioning ratios, hardness, impact toughness, and corrosion resistance of UNS S32750 duplex stainless steel. The aim of this paper is to provide a sufficient theoretical basis for establishing the reasonable heat treatment process for UNS S32750 duplex stainless steel and analyze the interaction among the microstructure transition, precipitation phase, and alloying element partitioning ratios, as well as their influence on the mechanical properties and corrosion resistance.

2. Materials and Methods

The material used for this experiment was a 75 mm diameter UNS S32750 super duplex stainless steel bar, the main chemical composition of which is shown in Table 1. The size of the solid solution treated specimen was 10 mm × 10 mm × 12 mm, the size of the electrochemical test specimen was 10 mm × 10 mm × 5 mm, and the impact specimen was 10 mm × 10 mm × 55 mm in the standard form of a Charpy V-impact specimen.
The thermodynamic equilibrium phase diagram of UNS S32750 super duplex stainless steel was calculated by Thermo-Calc thermodynamic software, as shown in Figure 1. The solution treatment temperature range of experimental steel was determined according to the equilibrium phase diagram. The specimens were held at solution treatment temperatures of 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, and 1300 °C for 40 min using a muffle furnace, the holding time including the time required to reach the target temperature, and then water quenched.
After mechanical grinding and polishing, the specimens were electrolytically etched with a 20% NaOH solution at a voltage of 10 V and an electrolysis time of 10–20 s. The microstructure was observed by the MX6R optical microscope (OM, SDPTOP, Shanghai, China), and the area fractions of ferrite and austenite were counted using ImageJ image analysis software. Each sample was measured at 20 fields of view and the average value was taken. The structure morphology and chemical composition of ferrite and austenite were studied by JSM-6701F scanning electron microscopy (SEM, JEOL, Tokyo, Japan) and NS7 energy dispersive spectroscopy (EDS, Thermo, Waltham, MA, USA), and nitrides were observed and analyzed by JEM-2200FS transmission electron microscopy (TEM, JEOL, Tokyo, Japan). To analyze the microstructural changes of the precipitates, the specimens were electrolytically eroded with a 10% oxalic acid solution. The specimens were etched in the reagent of 1 g K2S2O5 + 15 mL HCl + 85 mL H2O for 10–20 s before counting the area ratio of the σ phase.
The Rockwell hardness (HRC) of each heat-treated sample was measured with 150 kg load for 10 s by TH300 Rockwell hardness tester (Beijing Time High Technology Co Ltd., Beijing, China), with at least 10 indentations per specimen was determined and the average hardness value was calculated. The Charpy impact test was carried out at room temperature with JB-30B impact tester (Wuzhong material testing machine Co., Ltd., Ningxia, China), and data were the average values of three standard impact samples.
Electrochemical tests were carried out with AUTOLAB PGSTAT302N electrochemical workstation (Metrohm, Beijing, China) in a typical three-electrode system, with the specimen as the working electrode, the saturated calomel electrode (SCE) as the reference electrode, and the platinum electrode as the auxiliary electrode. The 3.5% NaCl solution simulating seawater was used as the test medium at room temperature. The working electrode was first poled at −1 V for 10 min to remove the oxide film formed on the surface of the sample in air, and then the open circuit potential was measured for 50 min. After the open circuit potential was stabilized, the electrochemical impedance spectroscopy and potentiodynamic polarization curves were tested. Electrochemical impedance spectroscopy (EIS) was carried out at open-circuit potential, the test frequency range was 100 mHz–100 kHz, and the amplitude of the AC excitation signal was 10 mV. The scanning range of the potential polarization curve is −0.3–1.4 V (relative to the open circuit potential), and the scanning frequency is 1 mV/s.

3. Results and Discussion

3.1. Effect of Solution Treatment Temperature on Microstructural Evolution

The proportion of ferrite (α) to austenite (γ) has an important influence on the mechanical properties and corrosion resistance of duplex stainless steel. The solution treatment temperature plays a key role in the ratio of α/γ at a given chemical composition [24]. Figure 2 illustrates the optical microstructures for UNS S32750 specimens as solution treated at 900–1300 °C. The ferrite gradually increases and the austenite gradually decreases with the rise in solution treatment temperature; the austenite and ferrite structures recover and recrystallize and grow, and the austenite structure gradually changes from long strips to islands distributed on the ferrite matrix. The σ phase distributes at the grain boundary of austenite and ferrite and within ferrite grain at 900–1000 °C. When the specimen is treated at 1050 °C, the microstructure of the specimen consists of ferrite and austenite phases, with no σ phase. It can be appreciated that the two main phases are found to be in approximately equal proportions.
Figure 3 presents the area fractions of ferrite and austenite and phase ratio after solution treatment at different temperatures. As can be observed, the ratio of α/γ improves rapidly, indicating the sharp increase in the content of ferrite during solution treatment at 900–1000 °C. At solution treatment temperatures ranging from 1000 °C to 1100 °C, the austenite transforms into ferrite slowly, the phase ratio is balanced, and the σ/γ ratio is 1.07–1.28. When the solution treatment temperature exceeds 1100 °C, the transformation rate from austenite to ferrite is accelerated, and the ratio of two phases (α/γ) rises rapidly. The reason is that the eutectoid reaction, α → γ2 + σ, is reversible, and the σ phase and austenite phase rapidly transform into the ferrite phase, leading to a significant rise in ferrite content. The nitrogen is a strong austenitic forming element, which can expand and stabilize the austenitic zone. In the temperature range of 1000–1100 °C, the N element inhibits the transformation from austenite to ferrite. However, the stabilizing effect of the N element on austenite begins to weaken with the rise in temperature, resulting in the accelerated transformation of austenite to ferrite.

3.2. Effect of Solution Treatment Temperature on Alloying Elements Distribution in Two-Phase Structures

The energy spectroscopic analysis of the ferrite and austenite phases is performed under scanning electron microscopy and the results are shown in Figure 4, where the N element content is calculated by Thermo-Calc thermodynamic software. The Cr and Mo elements are mainly enriched in the ferrite phase, and the content of N and Ni in the austenitic phase is significantly greater than that in the ferritic phase. At 900–1050 °C, the content of Cr and Mo in ferrite rises significantly, while the Cr and Mo content drops gradually at 1050–1300 °C. With the rise in temperature, the content of Mo and N in austenite increases significantly, while the content of Ni reduces slightly; the content of Ni and N in ferrite continuously improves.
The σ phase precipitates at the ferrite area along the phase boundaries or grain boundaries of γ/α and α/α in the 900–1000 °C range. Analysis of the relationship between the σ phase proportion and the content of Cr and Mo in ferrite, as shown in the Figure 5, shows that the rise in the precipitation of the σ-phase leads to the reduction of the content of Cr and Mo in ferrite. This is because, during the precipitation of the σ phase, the Cr and Mo elements in the ferrite diffuse to the σ phase and are enriched, resulting in a decline in the content of Cr and Mo in the ferrite. With the increase of the two-phase ratio, the Cr and Mo partitioning ratio gradually drops, while the Ni partitioning ratio continuously rises, as shown in Figure 6. The increase of solution treatment temperature promotes the transformation of austenite phase to ferrite phase, the ferrite content rises, and the austenite content decreases, so that the concentration of Cr and Mo in ferrite improves, while the concentration of Cr and Mo in austenite declines. The Ni in the austenite diffuses into ferrite, and the Ni content in the austenite reduces slightly, while the Ni content in the ferrite increases.
The N content in austenite is far higher than that in ferrite. The capacity of the face-centered cubic structure of austenite to accommodate interstitial atoms is much stronger than that of the body-centered cubic structure of ferrite, and the maximum solubility of N in the ferrite phase is about 0.05%, which makes N almost completely soluble in the austenitic phase. As the solution treatment temperature increases, the N content in austenite increases rapidly, while the N content in ferrite rises slightly [9,12]. In addition, the binding ability between N and Cr is strong, which hinders the dissolution of Cr in ferrite phase during phase transformation [4]. Therefore, Cr is more easily soluble in austenite phase during the phase transformation of austenite and ferrite.

3.3. Effect of Solution Treatment Temperature on the Precipitation Phase

Figure 7 shows the microstructure of the precipitated phase after solution at different temperatures. It is noticed that a large amount of σ phase precipitates in the matrix, after solution treatment at 900 °C. With the increase of solution treatment temperature, the precipitation of the σ phase gradually decreases, and as the solution treatment temperature rises to 1050 °C, the σ phase is completely dissolved. When the solution treatment temperature is between 1100 °C and 1300 °C, the black nitrides precipitates at the ferrite grain boundaries as well as inside the grains. With the increase of solution treatment temperature, these fine and dispersed precipitates begin to grow into the ferrite grains, and gradually grow coarse to form high-density regions.
The σ phase is formed during the eutectoid reaction, α → γ2 + σ, and it preferentially precipitates at the interface between the austenite and ferrite phase and the grain boundary of the ferrite phase. The precipitation temperature range of the σ phase is 600–1000 °C [34,35], as indicated in Figure 1. Figure 8 shows the SEM image of the σ phase, and Figure 9 indicates the variation of the σ phase precipitation at different solution treatment temperatures. It is clear that the σ phase is widely distributed within the ferrite grains and at the α/γ phase boundaries, after solution treatment at 900 °C. With the increase of solution treatment temperature, the precipitation of the σ phase decreases, and the σ phase changes from concentrated distribution to dispersed existence in ferrite. At 1000 °C, the σ phase distributed in the ferrite is completely dissolved; only a small amount of the σ phase exists at the grain boundaries of the two phases, which is only 0.8%. After solid-solution treatment at 1050 °C, no σ phase is present in the matrix. There are two reasons for the dissolution of the σ phase. First, with the increase of solution treatment temperature, the N element content in ferrite increases, which reduces the activity of Cr and inhibits the precipitation of the σ phase [14,28]. Second, the austenite structure decreases gradually; subsequently, the interface between ferrite and austenite decreases and the nucleation site of the σ phase decreases [16,18]. Therefore, the solution treatment temperature should be at least higher than 1000 °C in order to eliminate the σ phase in UNS S32750 duplex stainless steel.
Figure 4d shows that the N element content in the ferrite increases, as the solution treatment temperature increases. However, the solubility of the N element in the ferrite phase is relatively low; it easily reaches the saturation state. Therefore, the N element and Cr element are combined to precipitate Cr2N, during the rapid cooling process after dissolution [29,30]. Figure 10 exhibits the morphology of Cr2N analyzed by SEM and TEM. The Cr2N appears short and rod-like, and the Cr2N precipitates in ferrite grains are fine or coarse. The different size of Cr2N is probably due to sub grain boundaries and inhomogeneous nucleation at defects [27].

3.4. Effect of Solution Treatment Temperature on Mechanical Properties

The mechanical properties of UNS S32750 change curvilinearly with the increase of solution treatment temperature, as shown in Figure 11. The hardness of UNS S32750 decreases from 900 °C to 1050 °C and increases in the 1050–1300 °C range. The hardness of steel is the lowest at 1050 °C, while the impact energy is the opposite, reaching the highest value. The change of mechanical properties is consistent with that of microstructure. At 1050 °C, no σ-phase precipitation is present, and the ratio of ferrite to austenite is well balanced, approaching 1:1, resulting in the best performance.
When the solution treatment temperature is in the range of 900–1000 °C, the σ phase precipitates at the boundaries of ferrite and austenite and inside the ferrite grains. The σ phase is hard and brittle, whose precipitation has a great effect on the impact toughness and hardness of UNS S32750 duplex stainless steel. When the specimen is exposed to an impact load, the σ phase takes the lead in cracking, causing the grain boundary to become brittle and fracture along the grain, thereby reducing the impact toughness of the material. Figure 12 shows that the hardness of UNS S32750 corresponds directly to the proportion of σ phase. It is noteworthy that a small amount of the σ phase significantly reduces impact toughness, with only about 0.8% of σ phase decreasing the impact energy from 315.87 J to 100.93 J.
As the solution treatment temperature rises, the σ phase dissolves completely and the structural transformation proceeds slowly, the complete degree of recrystallization of the structure of the steel gradually increases, its constituent phases gradually grow larger, and the strength of the steel gradually weakens. Therefore, when the solution treatment temperature reaches 1050 °C, UNS S32750 has the highest impact toughness and the lowest hardness. Figure 13a shows the effect of α/γ phase ratio on impact energy and hardness, and it is clear that the impact toughness and hardness directly correspond to the biphasic ratio. At room temperature, the strength of the ferrite with a body-centered cubic structure is higher than that of the austenite with a face-centered cubic structure [36]. The toughness of UNS S32750 is mainly derived from the austenitic tissue and the strength is primarily reflected in ferrite structure. As a result, the impact toughness weakens, while the hardness increases with the raise of α/γ ratio. In addition, the influence of alloying elements, especially N elements, needs to be considered. With the rise in solution treatment temperature, the N partitioning ratio increases, and the hardness of the material improves, while the toughness weakens, as shown in Figure 13b. Nitrogen exists as interstitial atoms in the octahedral interstices of the matrix, forming an interstitial solid solution reinforcement that is about two orders of magnitude larger than the substitution solid solution reinforcement formed by chromium, nickel, and molybdenum [29]. Furthermore, it should be noted that the solubility of N in ferrite is low, and during the water-cooling process, supersaturated N combines with Cr to form Cr2N, which enhances the hardness of steel and reduces the impact toughness.

3.5. Effect of Solution Treatment Temperature on the Corrosion Resistance

It is evident from Figure 14a that the Nyquist diagrams at different solution treatment temperatures are in the form of the capacitive arc, indicating that a more complete passivation film is formed on the surface of the material and the corrosion mechanism of UNS S32750 steel does not change. The radius of the capacitive loop increases first and then decreases, and reaches the maximum at 1050 °C. A larger radius of the capacitive arc indicates a stronger resistance to charge transfer at the metal–solution interface, which means better corrosion resistance of the metal [37]. Therefore, from the changing trend of the capacitive arc radius, it can be observed that the increase of solution treatment temperature makes the corrosion resistance of UNS S32750 steel first stronger and then weaker, and the corrosion resistance performance is optimal at 1050 °C.
Figure 15 shows the dynamic potential polarization curves of UNS S32750 at different solid solution treatment temperatures, and it can be seen that all the anodic polarization curves show a passivation zone, which is related to the formation of the passive film on the metal surfaces. Based on the analysis of the polarization curves, Table 2 presents the main electrochemical parameters. As the solution treatment temperature rises, the pitting potential (Ep) of UNS S32750 duplex stainless steel first improves and then weakens, and the pitting potential reaches the highest at 1050 °C, which indicates that the tendency of pitting corrosion at this solution treatment temperature is inferior. Because of the precipitation of the σ phase between 900 and 1000 °C, chromium and molybdenum depleted zones are easily formed in the vicinity, which leads to pitting corrosion. The corrosion resistance of duplex stainless steel directly corresponds to the proportion of the σ precipitation phase. The two-phase structure (ferritic and austenitic phase) in UNS S32750 at 1050 °C is more uniformly distributed, which is conducive to the stability of the passivation film on the steel surface and has a better inhibitory effect on pitting corrosion, manifested by a higher pitting potential (Ep). When the temperature of solution treatment rises above 1100 °C, the distribution of elements in the two phases is uneven. With the rise in solution treatment temperature, the ferrite phase ratio improves, and the concentration of Cr and Mo, the key elements for pitting corrosion resistance, decreases in ferrite, causing the corrosion rate to rise. The element N, an austenite-forming element, has a high solubility in the austenitic phase [26], leading to preferential corrosion in the ferrite phase due to the lack of N, which makes an outstanding contribution to pitting resistance. At the same time, with the increase of the solution treatment temperature, the Cr2N precipitates in the ferrite during the water-cooling process, resulting in the reduction of pitting resistance of the ferrite phase. Therefore, the pitting potential (Ep) of UNS S32750 shows a downward trend at 1050–1300 °C.
In addition, the (Ep-Ecoor) values listed in Table 2 show the same trend as the (Ep) values, with a tendency to rise and then fall. Because the (Ep-Ecoor) value represents the resistance of the nucleus [15], the resistance of the pitting nucleus also increases and then reduces, i.e., the pitting resistance of the steel improves and then weakens as the solid solution temperature increases. Furthermore, as the solution temperature increases, the self-corrosion current density (Icoor) first becomes smaller and then larger. At 1050 °C, the lowest self-corrosion current density is 4.9744 × 10−8 A∙cm−2, indicating that UNS S32750 has quite good corrosion resistance.
The solution treatment temperature affects the alloying element content of austenite and ferrite in the steel, resulting in a variation in the corrosion resistance of both phases. The main alloying elements that affect pitting corrosion in chloride environment are Cr, Mo, and N. The pitting resistance equivalent number of the austenitic and ferritic phases can be calculated using the elemental contents of the austenitic and ferritic phases at different solution treatment temperatures in Figure 4. PREN is an empirical value for predicting the corrosion resistance of an alloy or phase; a larger PREN value represents a better the corrosion resistance of the alloy or phase [38,39], PPRENγ = w(Cr) + 3.3 w(Mo) + 20 w(N), PRENα = w(Cr) + 3.3 w(Mo) [1]. From Figure 16, it is evident that the PRENα of the ferrite phase first increases and then decreases with the rise in the solution treatment temperature, and the PRENγ of the austenite phase gradually increases, which is caused by the change of the chemical composition in each phase, and this change is consistent with the variations of the composition of each phase in Figure 4. When the solution treatment temperature exceeds 1000 °C, no σ phase precipitates in UNS S32750, and the PREN value of both ferrite and austenite is greater than 40, which complies with the standard of super duplex stainless steel. It should be pointed out that the formula only considers the role of alloying elements, and does not take into account the effects of tissue inhomogeneity and precipitation phases. It is not appropriate to use only the PREN value to assess the pitting corrosion resistance of duplex stainless steel, because the distribution of the decisive Cr, Mo, and N alloying elements between the two phases is not balanced. The poor zones of these elements are prone to pitting corrosion, and the actual pitting resistance of the steel is lower than what is represented by the PREN value.

4. Conclusions

(1) As the solution treatment temperature increases, the ferrite content rises, while the austenite content declines. At 1050 °C, the dual-phase ratio approaches 1:1. From 900 to 1000 °C, the σ phase fraction drops sharply from 19.33% to 0.80%. When the temperature exceeds 1050 °C, Cr2N precipitates in the ferrite grain, and continuously grows and coarsens to form a dense Cr2N region.
(2) The Cr and Mo are enriched in the ferrite, while Ni and N are concentrated in the austenite. From 900 to 1050 °C, the Cr and Mo content in the ferrite phase rises with the drop of σ phase precipitation. From 1050 to 1300 °C, the elements partitioning ratios of Cr and Mo decline with the increase of the α/γ ratio, while those of Ni and N continue to rise.
(3) With the rising solution treatment temperature, the mechanical properties of UNS S32750 vary in a curve. From 900 to 1050 °C, the hardness drops with σ phase dissolution, and the impact toughness improves. From 1050 to 1300 °C, as the α/γ ratio rises, the strength and hardness of the material rise, while the impact toughness weakens. At 1050 °C, the two-phase structure equilibrates, and UNS S32750 has a minimum hardness of 25.74 HRC and a maximum impact energy of 315.87 J.
(4) As the solution treatment temperature rises, the Ep and (Ep-Ecoor) values of UNS S32750 show a trend of increasing and then decreasing, while Icoor shows the opposite trend. UNS S32750 has the best resistance to pitting corrosion treated at 1050 °C. The AC impedance test indicates that the capacitive arc radius and maximum phase angle vary in a curve, which is consistent with the conclusions obtained from the potentiodynamic polarization curve.

Author Contributions

Conceived and designed the experiments, J.L., W.S. and Z.Y.; performed the experiments, J.L. and W.S.; contributed reagents/materials/analysis tools, P.L. and F.W.; analyzed the data and prepared the paper, J.L.; review and revised the manuscript, Z.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Open Funds of State Key Laboratory of Advanced Metallurgy (KF18-01).

Acknowledgments

The authors wish to thank Lianqi Li, Xi Chen, Kai Lu, and Yubin Lu for their advice and help with the experiments, and Lianqi Li and Qiang Cheng for their comments and suggestions on revising the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nilsson, J.O. Super duplex stainless steels. Mater. Sci. Technol. 1992, 8, 685–700. [Google Scholar] [CrossRef]
  2. Adhe, K.M.; Kain, V.; Madangopal, K.; Gadiyar, H.S. Influence of Sigma-Phase Formation on The Localized Corrosion Behavior of A Duplex Stainless Steel. J. Mater. Eng. Perform. 1996, 5, 500–506. [Google Scholar] [CrossRef]
  3. Momeni, A.; Dehghani, K. Effect of Hot Working on Secondary Phase Formation in 2205 Duplex Stainless Steel. J. Mater. Sci. Technol. 2010, 26, 851–857. [Google Scholar] [CrossRef]
  4. Yamamoto, M.; Ochi, R.; Yasuda, K.; Aramaki, M.; Munetoh, S.; Furukimi, O. Effect of γ-Phase Stability on Local Deformation Energy of α-γ Duplex Stainless Steel. Mater. Trans. 2017, 58, 1379–1385. [Google Scholar] [CrossRef]
  5. Pohl, M.; Storz, O.; Glogowski, T. Effect of Intermetallic Precipitations on The Properties of Duplex Stainless Steel. Mater. Charact. 2007, 58, 65–71. [Google Scholar] [CrossRef]
  6. Ziying, Z.; Zhao, H.; Zhang, H.; Hu, J.; Jin, J. Microstructure Evolution and Pitting Corrosion Behavior of UNS S32750 Super Duplex Stainless Steel Welds After Short-Time Heat Treatment. Corros. Sci. 2017, 121, 22–31. [Google Scholar]
  7. Jeon, S.H.; Hur, D.H.; Kim, H.J.; Park, Y.S. Effect of Ce Addition on The Precipitation of Deleterious Phases and The Associated Intergranular Corrosion Resistance of 27Cr–7Ni Hyper Duplex Stainless Steels. Corros. Sci. 2015, 90, 313–322. [Google Scholar] [CrossRef]
  8. Cojocaru, V.D.; Răducanu, D.; Angelescu, M.L.; Vintil, A.N.; Serban, N.; Dan, I.; Cojocaru, E.M.; Cinca, I. Influence of Solution Treatment Duration on Microstructural Features of An Industrial Forged UNS S32750/1.4410/F53 Super Duplex Stainless Steel (SDSS) Alloy. JOM 2017, 69, 1439–1445. [Google Scholar] [CrossRef]
  9. Jang, M.H.; Moon, J.; Lee, T.H.; Park, S.J.; Han, H.N. Effect of Nitrogen Partitioning on Yield Strength in Nitrogen-Alloyed Duplex Stainless Steel During Annealing. Metall. Mater. Trans. A 2014, 45, 1653–1658. [Google Scholar] [CrossRef]
  10. Kong, K.H.; Jeon, S.H.; Kim, S.T.; Kim, D.H.; Kim, B.J.; Guim, H.U.; Moon, M.B.; Park, Y.S. Effects of Cu Addition on the Microstructure and Localized Corrosion Resistance of Hyper Duplex Stainless Steels Aged at 748 K. Mater. Trans. 2015, 56, 749–754. [Google Scholar] [CrossRef] [Green Version]
  11. Lee, B.C.; Kang, C.Y. Effect of R Phase Formation on the Mechanical Properties of 25Cr-7Ni-2Mo-4W Super Duplex Stainless Steel. Korean J. Mater. Res. 2014, 24, 401–406. [Google Scholar] [CrossRef]
  12. Yang, Y.; Tan, H.; Zhang, Z.; Wang, Z.; Jiang, Y.; Jiang, L.; Li, J. Effect of Annealing Temperature on the Pitting Corrosion Behavior of UNS S82441 Duplex Stainless Steel. Corrosion 2013, 69, 167–173. [Google Scholar] [CrossRef]
  13. Gao, Z.; Li, J.; Chen, Y.; Wang, Y. Effect of Dual-Phase Structure on The Microstructure and Deformation Inhomogeneity of UNS S32750 Duplex Stainless Steel. Ironmak. Steelmak. 2020, 1–9. [Google Scholar]
  14. Han, Y.; Zou, D.N.; Zhang, W.; Yu, J.H.; Qiao, Y.Y. Influence of Sigma Phase Precipitation on Pitting Corrosion of UNS S32750 Super-Duplex Stainless Steel. Mater. Sci. Forum 2010, 658, 380–383. [Google Scholar] [CrossRef]
  15. Zhu, M.; Zhang, Q.; Yuan, Y.F.; Guo, S.Y. Effect of Microstructure and Passive Film on Corrosion Resistance of UNS S32750 Super Duplex Stainless Steel Prepared by Different Cooling Methods in Simulated Marine Environment. Int. J. Miner. Metall. Mater. 2020, 27, 1100–1114. [Google Scholar] [CrossRef]
  16. Kim, S.M.; Kim, K.T.; Lee, Y.D.; Lee, C.S. Effect of Heat Treatment on Mechanical Properties of Super Duplex Stainless Steel. Adv. Mater. Res. 2010, 89–91, 290–294. [Google Scholar] [CrossRef]
  17. Han, Y.; Zou, D.N.; Yao, H.H.; Zhang, W.; Yu, J.H. Microstructural Evolutions and its Influence on Properties of Super-Duplex Stainless Steel. Adv. Mater. Res. 2010, 97–101, 656–659. [Google Scholar] [CrossRef]
  18. Ferro, P. A Dissolution Kinetics Model and Its Application to Duplex Stainless Steels. Acta Mater. 2013, 61, 3141–3147. [Google Scholar] [CrossRef]
  19. Byun, S.-H.; Kang, N.; Lee, T.-H.; Ahn, S.-K.; Lee, H.; Chang, W.-S.; Cho, K.-M. Kinetics of Cr/Mo-rich Precipitates Formation for 25Cr-6.9Ni-3.8Mo-0.3N Super Duplex Stainless Steel. Met. Mater. Int. 2012, 18, 201–207. [Google Scholar] [CrossRef]
  20. Deng, B.; Jiang, Y.; Gao, J.; Li, J. Effect of Annealing Treatment on Microstructure Evolution and The Associated Corrosion Behavior of A Super-Duplex Stainless Steel. J. Alloys Compd. 2010, 493, 461–464. [Google Scholar] [CrossRef]
  21. Jin, L. Effect of Aging Treatment on Corrosion Resistance of S32750 Super Duplex Stainless Steel in Simulated Seawater at Low Temperature. Int. J. Electrochem. Sci. 2019, 14, 3651–3662. [Google Scholar] [CrossRef]
  22. Liu, J.M.; Liu, J.; Fan, G.W.; Du, D.F.; Li, G.P.; Chai, C.J. Effect of Solution Treatment on Microstructure and Properties of the UNS S32750 Super Duplex Stainless Steel. Mater. Sci. Forum 2012, 724, 3–6. [Google Scholar] [CrossRef]
  23. Tan, H.; Jiang, Y.; Deng, B.; Sun, T.; Xu, J.; Li, J. Effect of Annealing Temperature on The Pitting Corrosion Resistance of Super Duplex Stainless Steel UNS S32750. Mater. Charact. 2009, 60, 1049–1054. [Google Scholar] [CrossRef]
  24. Sato, Y.S.; Kokawa, H. Preferential Precipitation Site of Sigma Phase in Duplex Stainless Steel Weld Metal. Scr. Mater. 1999, 40, 659–663. [Google Scholar] [CrossRef]
  25. Pettersson, N.H.; Lindell, D.; Lindberg, F.; Borgenstam, A. Formation of Chromium Nitride and Intragranular Austenite in a Super Duplex Stainless Steel. Metall. Mater. Trans. A 2019, 50, 5594–5601. [Google Scholar] [CrossRef] [Green Version]
  26. Ramirez, A.J.; Lippold, J.C.; Brandi, S.D. The Relationship between Chromium Nitride and Secondary Austenite Precipitation in Duplex Stainless Steels. Metall. Mater. Trans. A 2003, 34, 1575–1597. [Google Scholar] [CrossRef]
  27. Pettersson, N.; Pettersson RF, A.; Wessman, S. Precipitation of Chromium Nitrides in The Super Duplex Stainless Steel UNS S32750. Metall. Mater. Trans. A 2015, 46, 1062–1072. [Google Scholar] [CrossRef]
  28. Weber, L.; Uggowitzer, P.J. Partitioning of Chromium and Molybdenum in Super Duplex Stainless Steels with Respect to Nitrogen and Nickel Content. Mater. Sci. Eng. A 1998, 242, 222–229. [Google Scholar] [CrossRef]
  29. Ha, H.Y.; Kwon, H.S. Effects of Cr2N on The Pitting Corrosion of High Nitrogen Stainless Steels. Electrochim. Acta 2007, 52, 2175–2180. [Google Scholar] [CrossRef]
  30. Shin, B.H.; Kim, D.; Park, S.; Hwang, M.; Park, J.; Chung, W. Precipitation Condition and Effect of Volume Fraction on Corrosion Properties of Secondary Phase on Casted Super-Duplex Stainless Steel UNS S32750. Anti-Corros. Methods Mater. 2018, 66, 61–66. [Google Scholar] [CrossRef]
  31. Ha, H.Y.; Jang, M.H.; Lee, T.H.; Moon, J. Interpretation of The Relation Between Ferrite Fraction and Pitting Corrosion Resistance of Commercial 2205 Duplex Stainless Steel. Corros. Sci. 2014, 89, 154–162. [Google Scholar] [CrossRef]
  32. Zhang, Z.; Wang, Z.; Jiang, Y.; Tan, H.; Han, D.; Guo, Y.; Li, J. Effect of Post-Weld Heat Treatment on Microstructure Evolution and Pitting Corrosion Behavior of UNS S31803 Duplex Stainless Steel Welds. Corros. Sci. 2012, 62, 42–50. [Google Scholar] [CrossRef]
  33. Kim, S.T.; Lee, I.S.; Kim, J.S.; Jang, S.H.; Park, Y.S.; Kim, K.T.; Kim, Y.S. Investigation of The Localized Corrosion Associated with Phase Transformation of Tube—To–Tube Sheet Welds of Hyper Duplex Stainless Steel in Acidified Chloride Environments. Corros. Sci. 2012, 64, 164–173. [Google Scholar] [CrossRef]
  34. Lee, T.-H.; Ha, H.-Y.; Kang, J.-Y.; Hwang, B.; Woo, W.; Shin, E. In Situ and Ex Situ Neutron Diffraction Study on Deformation Behavior of High-Nitrogen, Ni-Free Duplex Stainless Steel. Scr. Mater. 2012, 67, 141–144. [Google Scholar] [CrossRef]
  35. Da Fonseca, G.S.; De Oliveira, P.M.; Diniz, M.G.; Bubnoff, D.V.; De Castro, J.A. Sigma Phase in Superduplex Stainless Steel: Formation, Kinetics and Microstructural Path. Mater. Res. 2017, 20, 249–255. [Google Scholar] [CrossRef] [Green Version]
  36. Wei, Z.; Laizhu, J.; Jincheng, H.; Hongmei, S. Effect of Ageing on Precipitation and Impact Energy of 2101 Economical Duplex Stainless Steel. Mater. Charact. 2009, 60, 50–55. [Google Scholar] [CrossRef]
  37. Cabral, A.M.; Trabelsi, W.; Serra, R.; Montemor, M.F.; Zheludkevich, M.L.; Ferreira MG, S. The Corrosion Resistance of Hot Dip Galvanised Steel and AA2024-T3 Pre-Treated with bis-[triethoxysilylpropyl] tetrasulfide solutions doped with Ce(NO3)3. Corros. Sci. 2006, 48, 3740–3758. [Google Scholar] [CrossRef]
  38. Cervo, R.; Ferro, P.; Tiziani, A. Annealing Temperature Effects on Super Duplex Stainless Steel UNS s32750 Welded Joints. I: Microstructure and Partitioning of Elements. J. Mater. Sci. 2010, 45, 4369–4377. [Google Scholar] [CrossRef]
  39. Cervo, R.; Ferro, P.; Tiziani, A.; Zucchi, F. Annealing Temperature Effects on Superduplex Stainless Steel UNS S32750 Welded Joints. II: Pitting Corrosion Resistance Evaluation. J. Mater. Sci. 2010, 45, 4378–4389. [Google Scholar] [CrossRef]
Metals 10 01481 g001 550

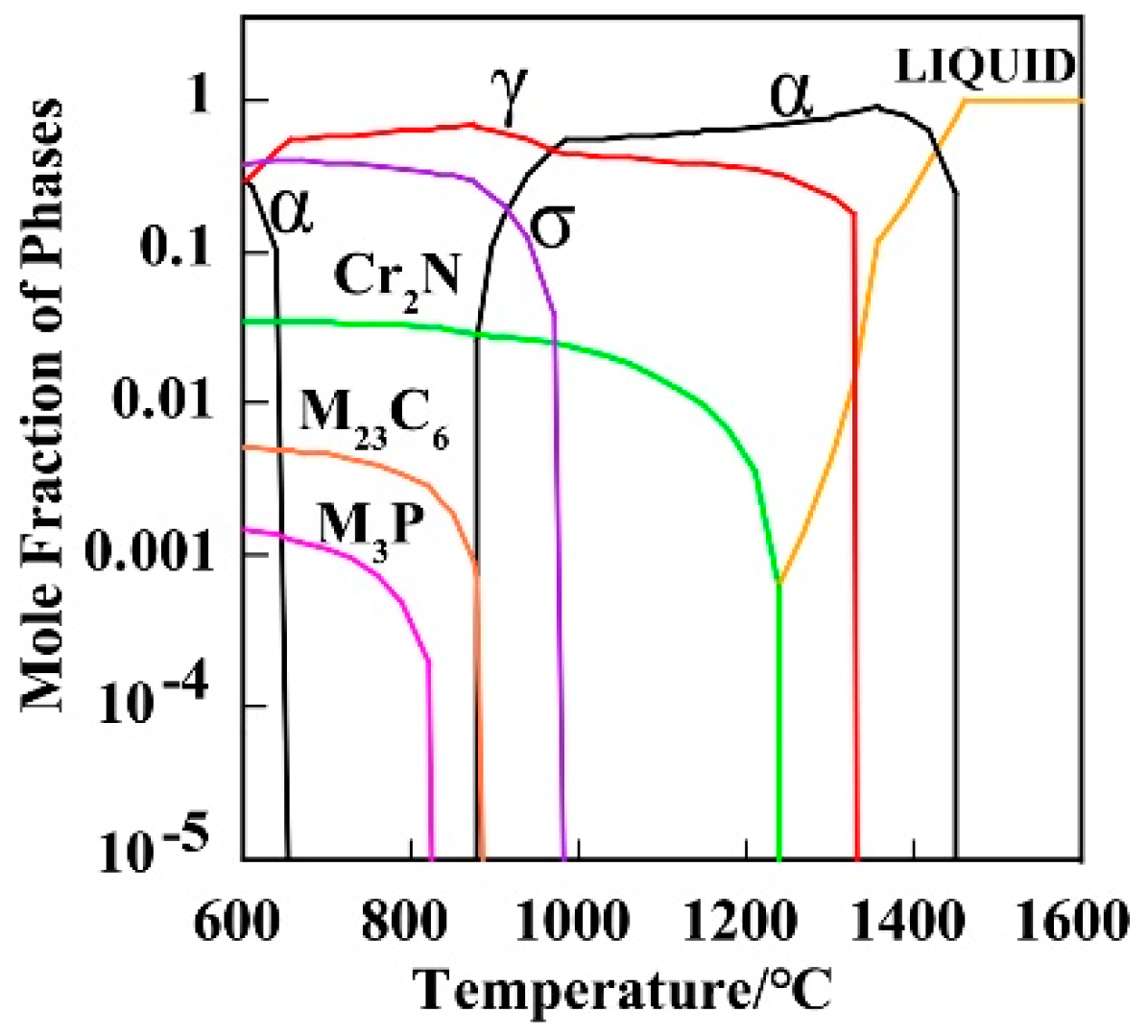

Figure 1. Equilibrium phase diagram of the UNS S32750 duplex stainless steel calculated by Thermo-calc software.
Figure 1. Equilibrium phase diagram of the UNS S32750 duplex stainless steel calculated by Thermo-calc software.
Metals 10 01481 g001
Metals 10 01481 g002 550

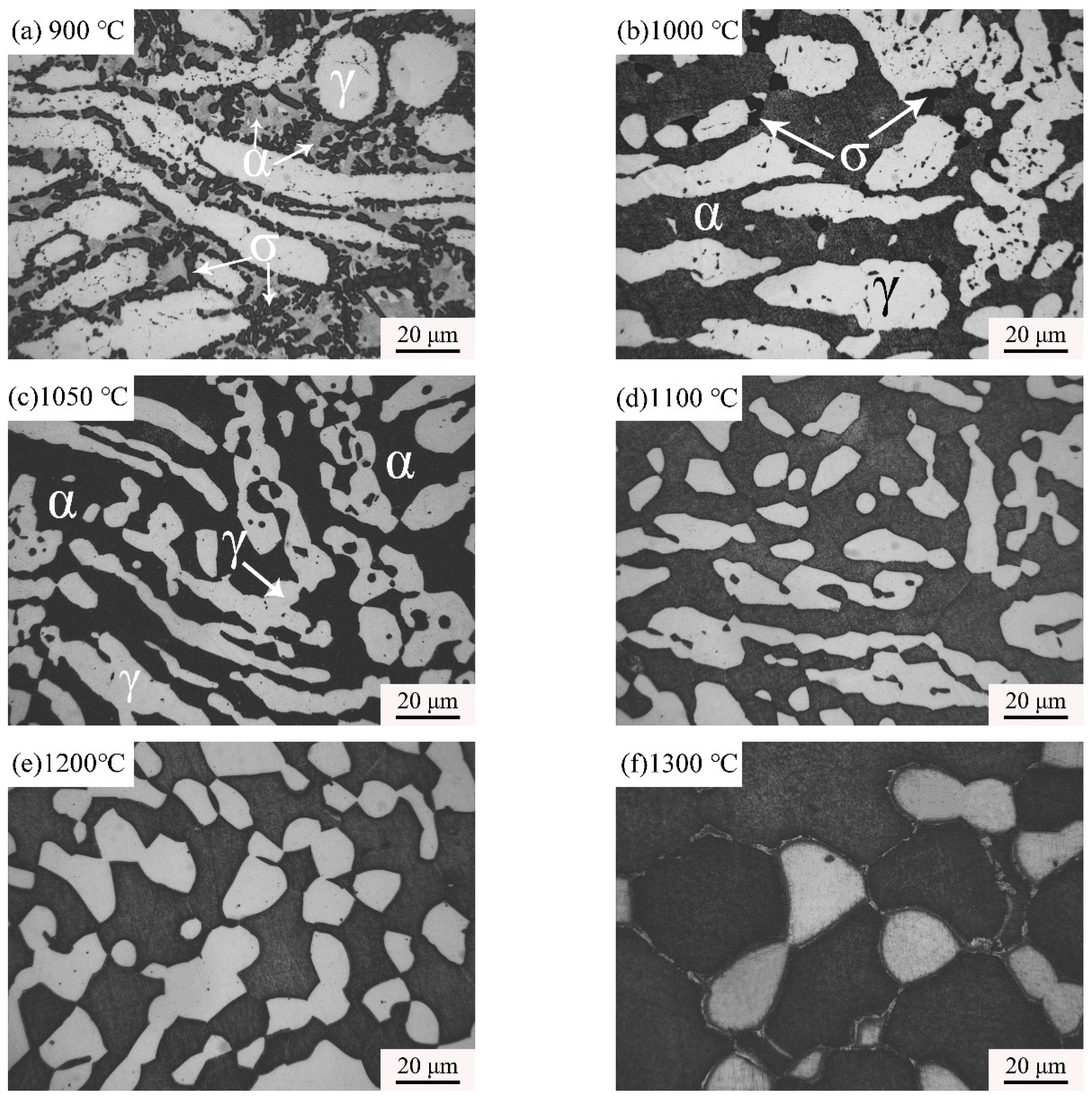

Figure 2. Microstructures of the UNS S32750 super duplex stainless steel treated at different solution treatment temperatures. (a) 900 °C; (b) 1000 °C; (c) 1050 °C; (d) 1100 °C; (e) 1200 °C; and (f) 1300 °C.
Figure 2. Microstructures of the UNS S32750 super duplex stainless steel treated at different solution treatment temperatures. (a) 900 °C; (b) 1000 °C; (c) 1050 °C; (d) 1100 °C; (e) 1200 °C; and (f) 1300 °C.
Metals 10 01481 g002
Metals 10 01481 g003 550
Figure 3. Relationship between solution treatment temperature and (a) area fraction of α and γ phase and (b) phase ratio (α/γ) (error bars represent standard deviation).
Figure 3. Relationship between solution treatment temperature and (a) area fraction of α and γ phase and (b) phase ratio (α/γ) (error bars represent standard deviation).
Metals 10 01481 g003
Metals 10 01481 g004 550

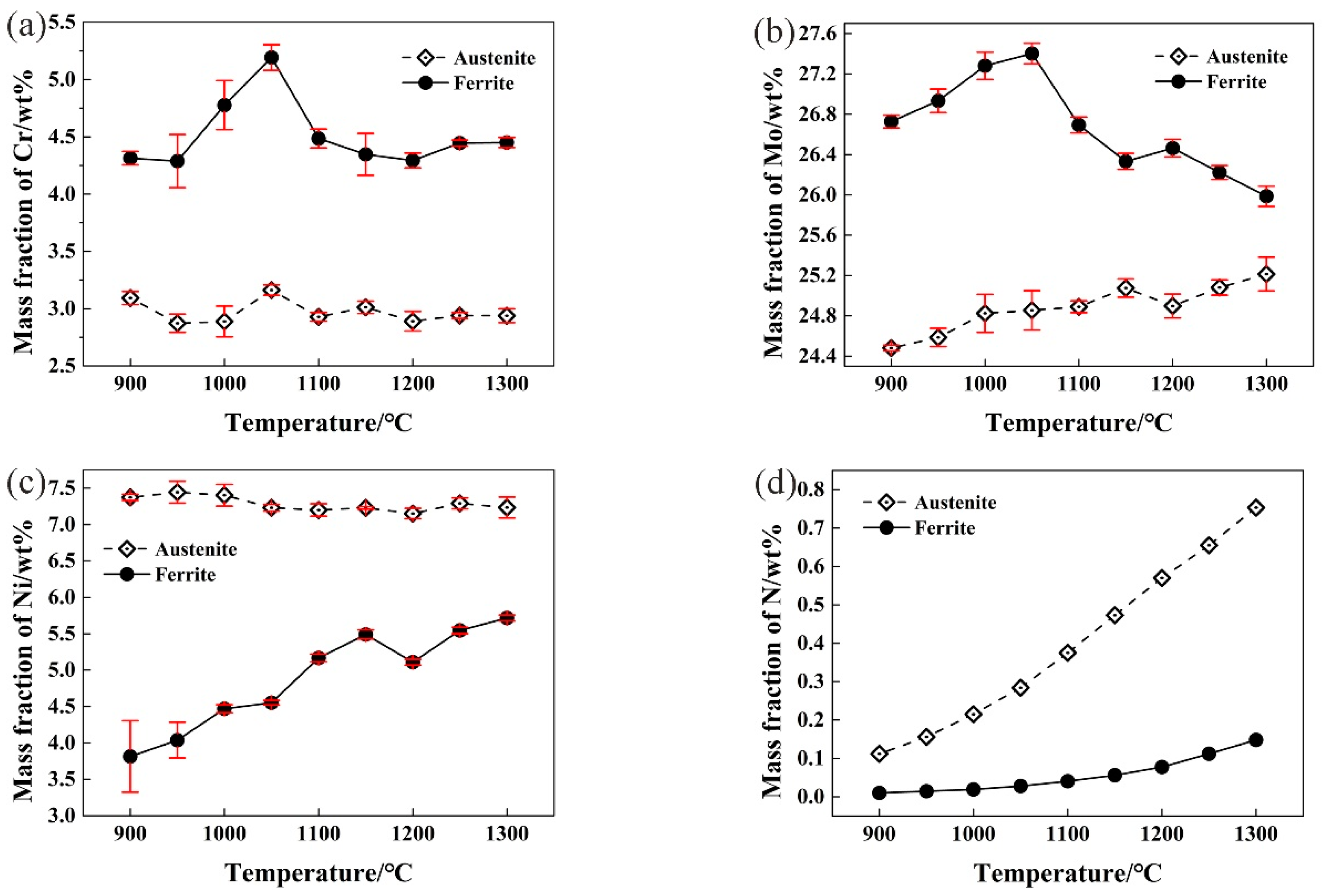

Figure 4. Chemical composition of austenite and ferrite phase in the UNS S32750 steel varies with solution treatment temperature. (a) Cr content; (b) Mo content; (c) Ni content; and (d) N content (error bars represent standard deviation).
Figure 4. Chemical composition of austenite and ferrite phase in the UNS S32750 steel varies with solution treatment temperature. (a) Cr content; (b) Mo content; (c) Ni content; and (d) N content (error bars represent standard deviation).
Metals 10 01481 g004
Metals 10 01481 g005 550

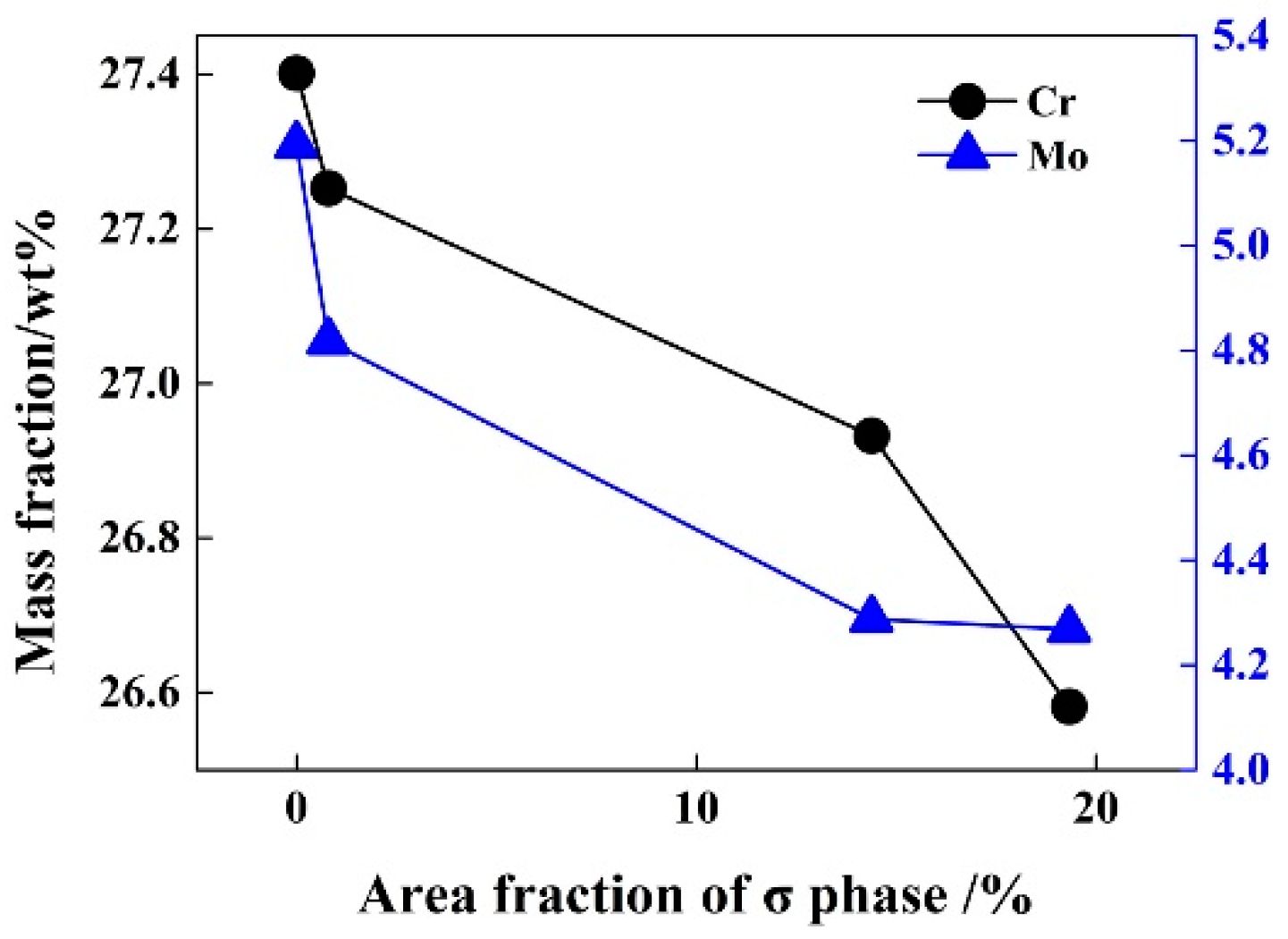

Figure 5. The relationship between the area ratio of the σ phase and the mass fraction of Cr and Mo in ferrite.
Figure 5. The relationship between the area ratio of the σ phase and the mass fraction of Cr and Mo in ferrite.
Metals 10 01481 g005
Metals 10 01481 g006 550

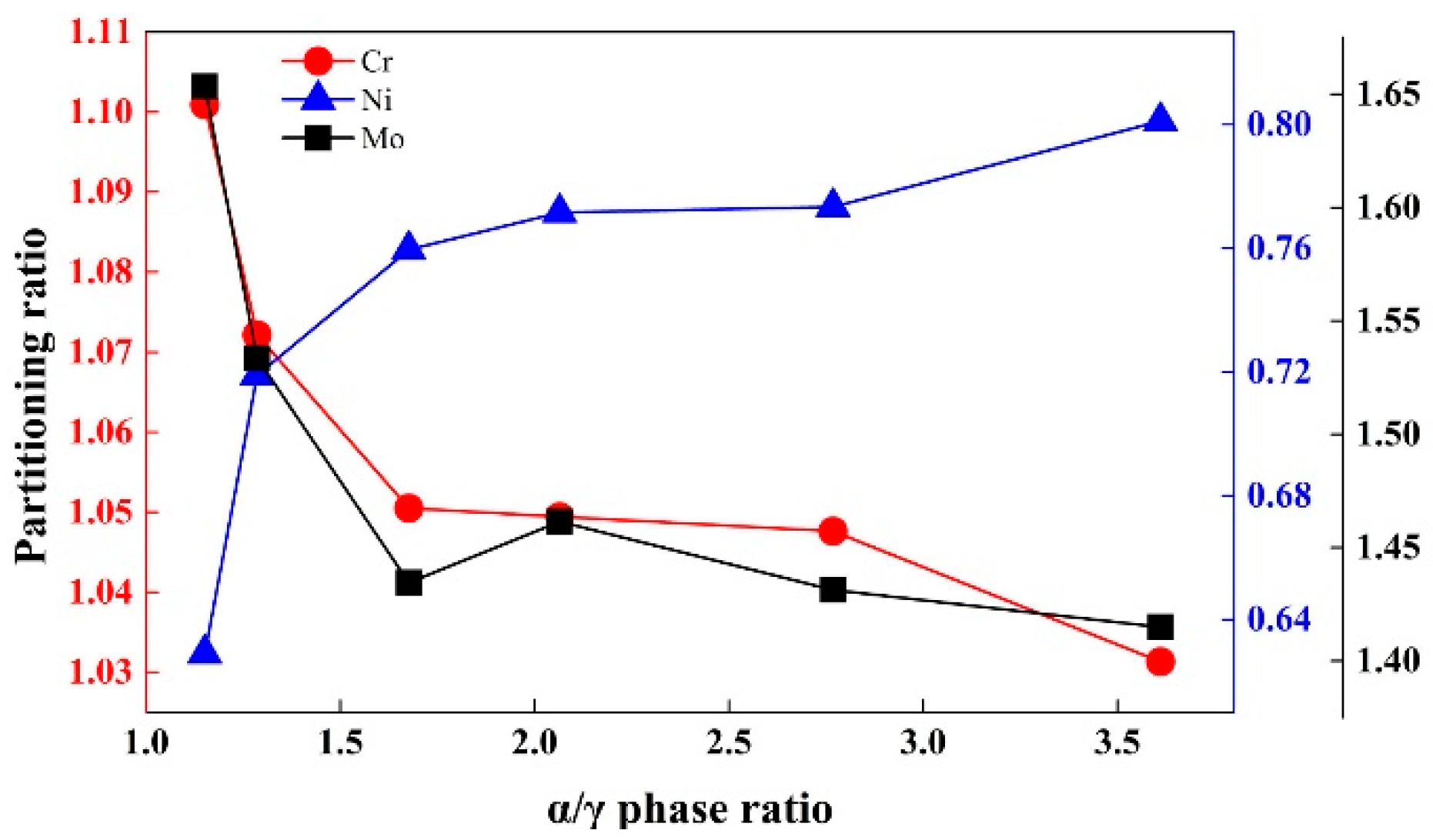

Figure 6. The elements partitioning ratio varies with the α/γ ratio.
Figure 6. The elements partitioning ratio varies with the α/γ ratio.
Metals 10 01481 g006
Metals 10 01481 g007 550
Figure 7. Metallographic picture of precipitated phase morphology at different solution treatment temperatures. (a) 900 °C; (b) 950 °C; (c) 1000 °C; (d) 1050 °C; (e) 1100 °C; (f) 1200 °C; and (g) 1300 °C.
Figure 7. Metallographic picture of precipitated phase morphology at different solution treatment temperatures. (a) 900 °C; (b) 950 °C; (c) 1000 °C; (d) 1050 °C; (e) 1100 °C; (f) 1200 °C; and (g) 1300 °C.
Metals 10 01481 g007
Metals 10 01481 g008 550

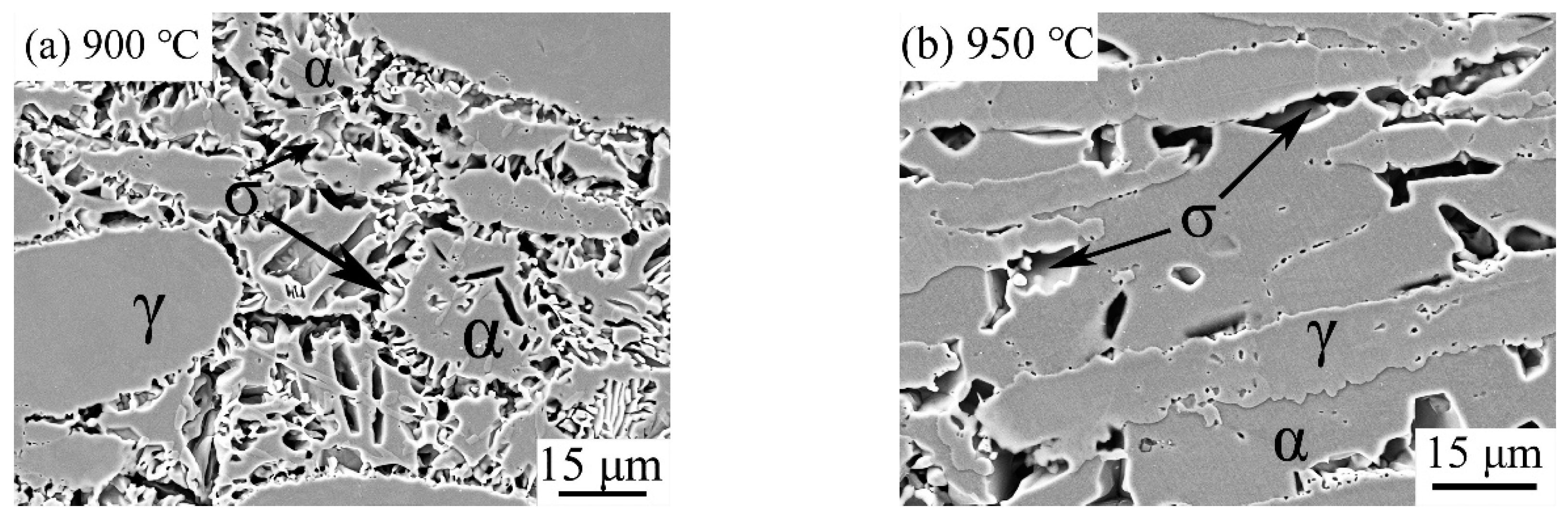

Figure 8. Scanning electron microscopy (SEM) micrograph of σ phase. (a) 900 °C; (b) 950 °C.
Figure 8. Scanning electron microscopy (SEM) micrograph of σ phase. (a) 900 °C; (b) 950 °C.
Metals 10 01481 g008
Metals 10 01481 g009 550

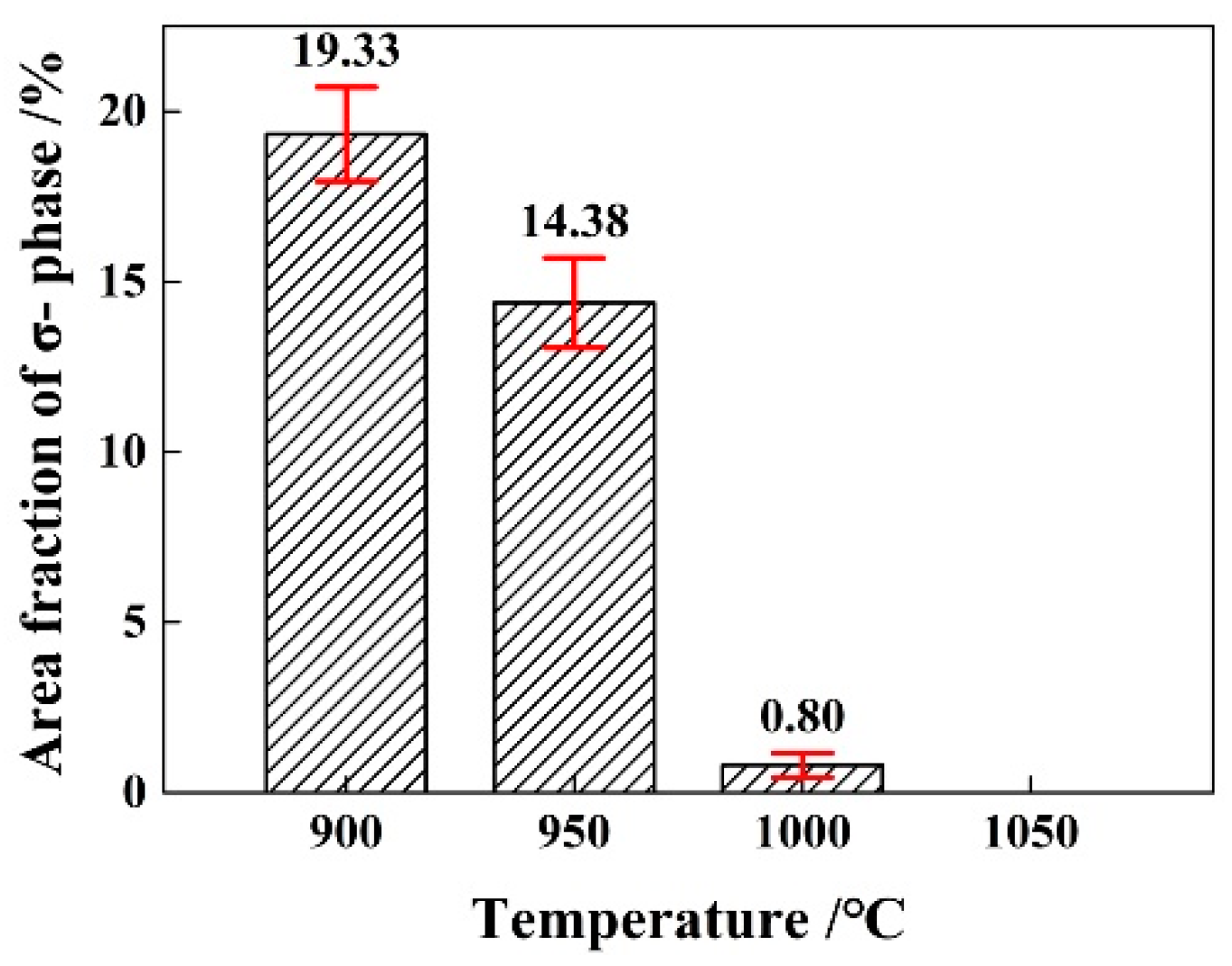

Figure 9. Area fraction of σ phase at different solution treatment temperatures (error bars represent standard deviation).
Figure 9. Area fraction of σ phase at different solution treatment temperatures (error bars represent standard deviation).
Metals 10 01481 g009
Metals 10 01481 g010a 550Metals 10 01481 g010b 550

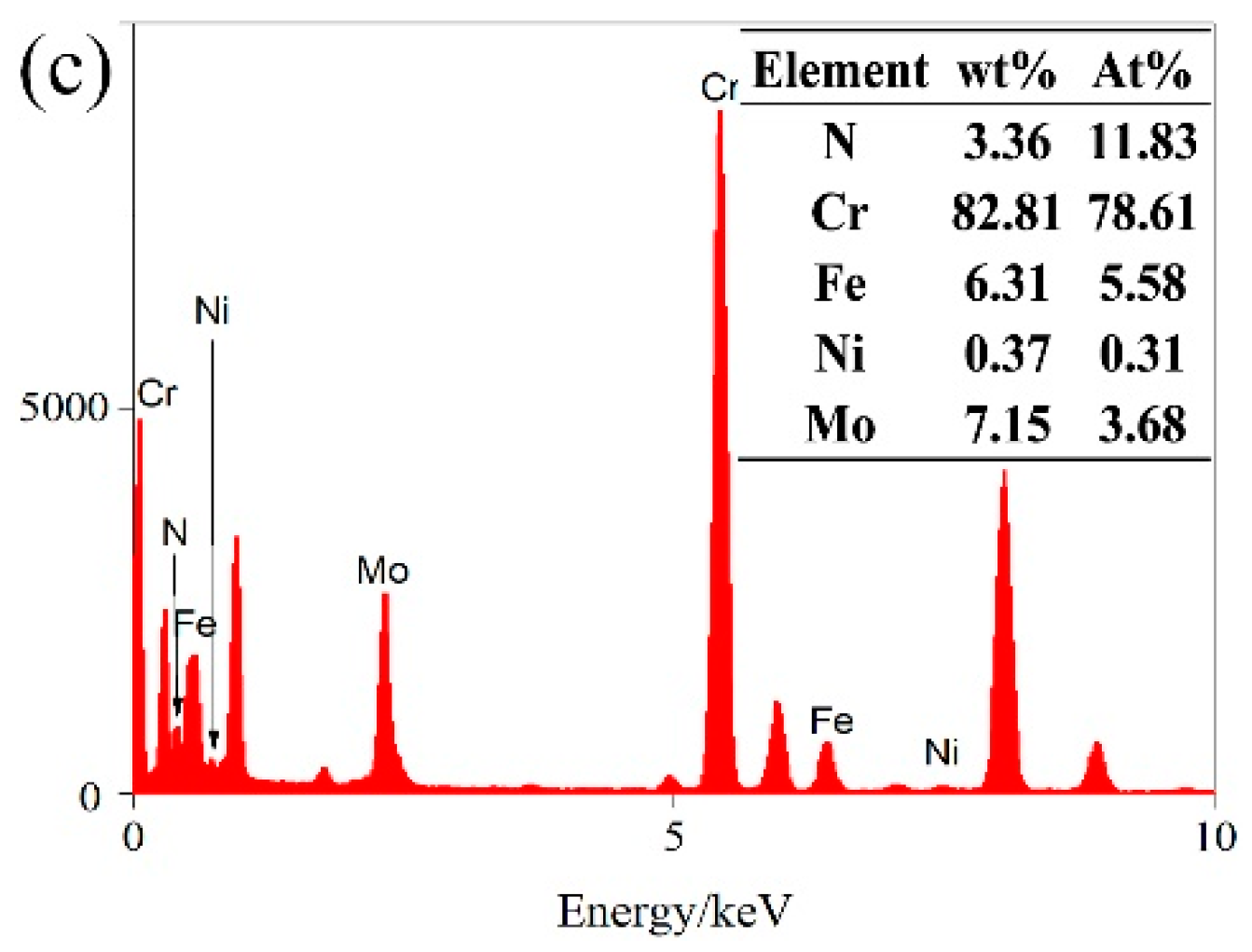

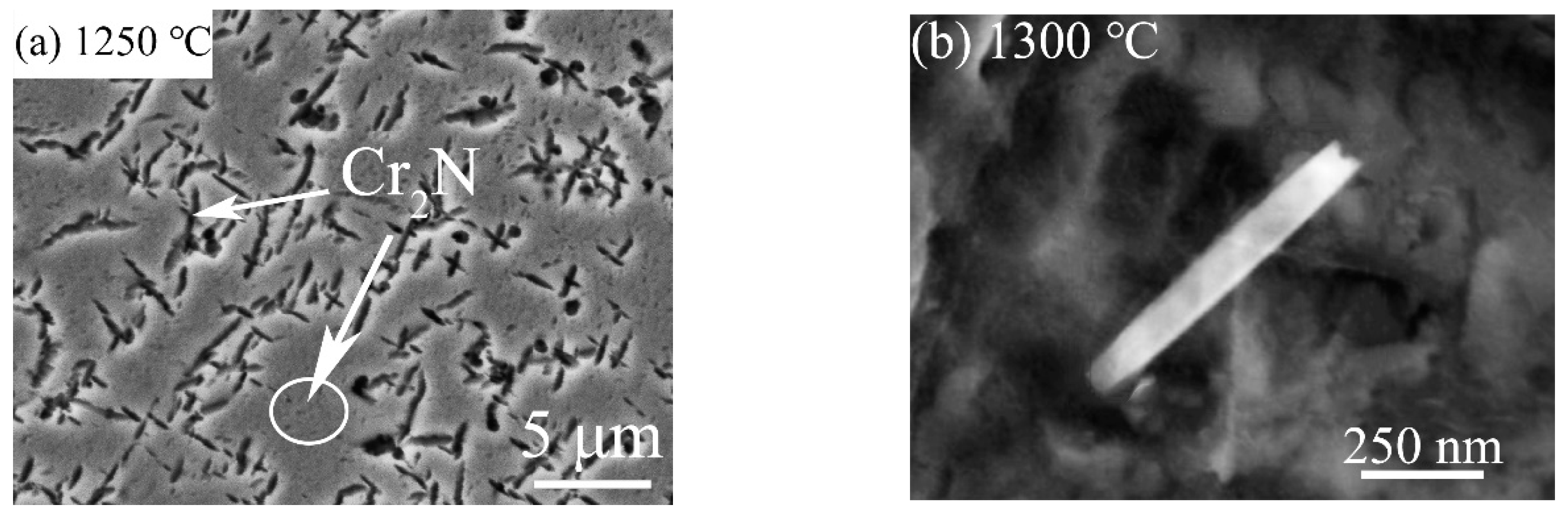

Figure 10. SEM and transmission electron microscopy (TEM) micrograph of Cr2N. (a) SEM image; (b) TEM image; (c) energy dispersive spectroscopy (EDS) of Cr2N.
Figure 10. SEM and transmission electron microscopy (TEM) micrograph of Cr2N. (a) SEM image; (b) TEM image; (c) energy dispersive spectroscopy (EDS) of Cr2N.
Metals 10 01481 g010aMetals 10 01481 g010b
Metals 10 01481 g011 550

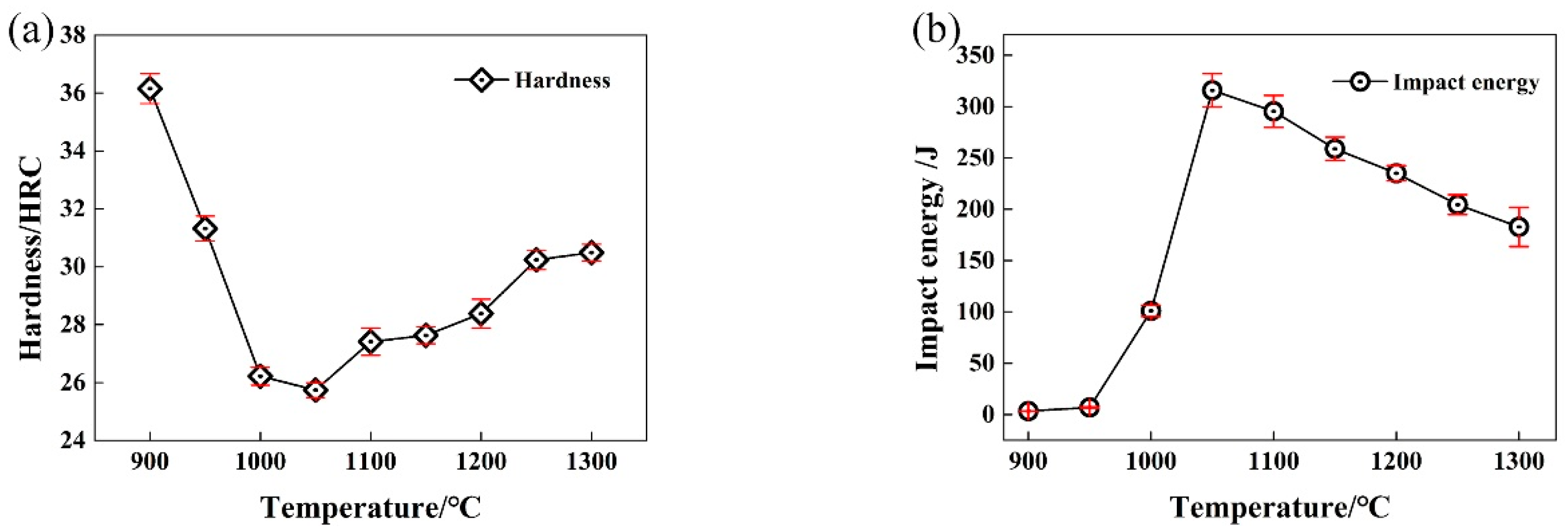

Figure 11. Mechanical properties of the UNS S32750 steel vary with solution treatment temperature. (a) Hardness; (b) impact energy (error bars represent standard deviation).
Figure 11. Mechanical properties of the UNS S32750 steel vary with solution treatment temperature. (a) Hardness; (b) impact energy (error bars represent standard deviation).
Metals 10 01481 g011
Metals 10 01481 g012 550

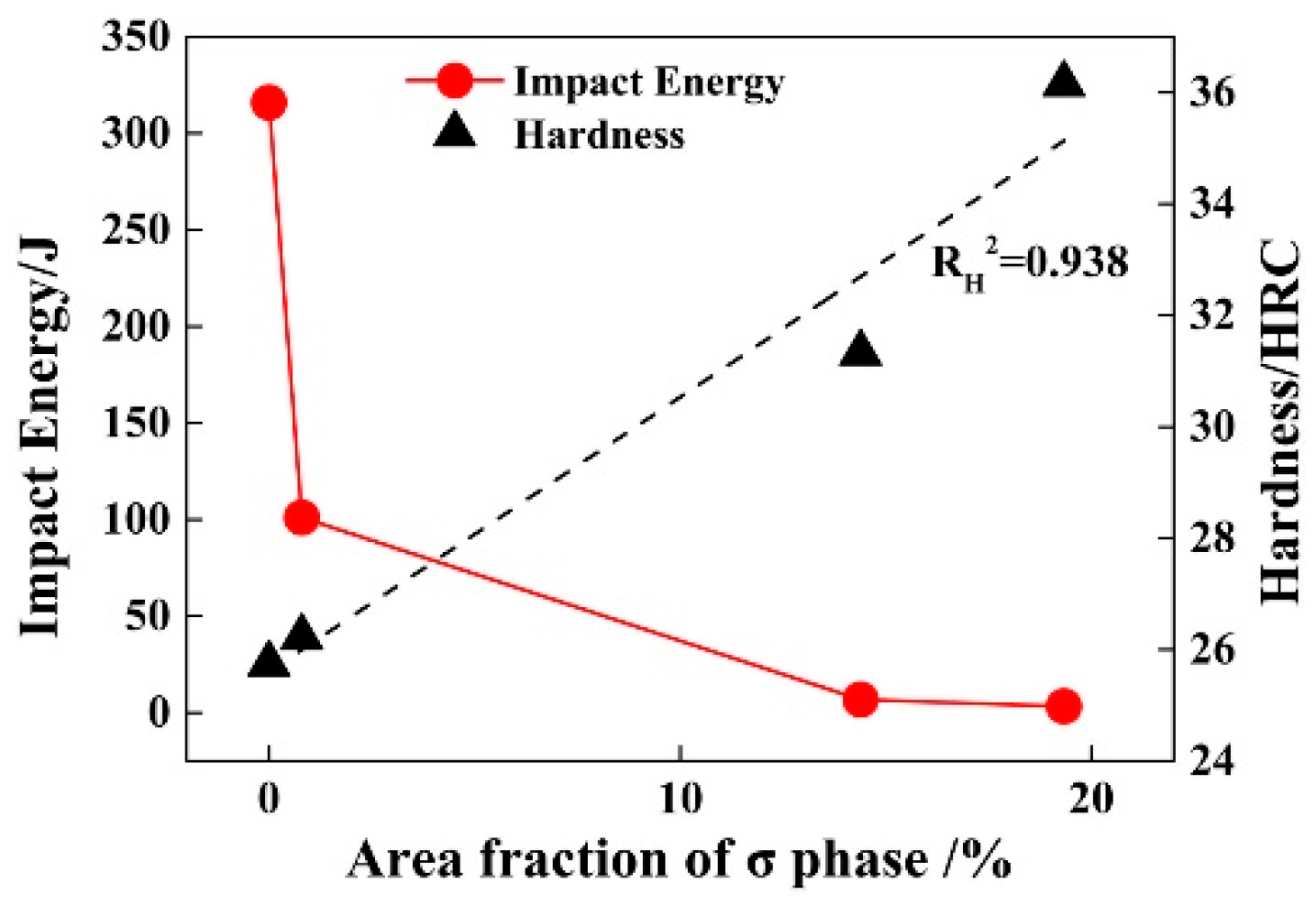

Figure 12. Effect of σ phase on impact energy and hardness.
Figure 12. Effect of σ phase on impact energy and hardness.
Metals 10 01481 g012
Metals 10 01481 g013 550

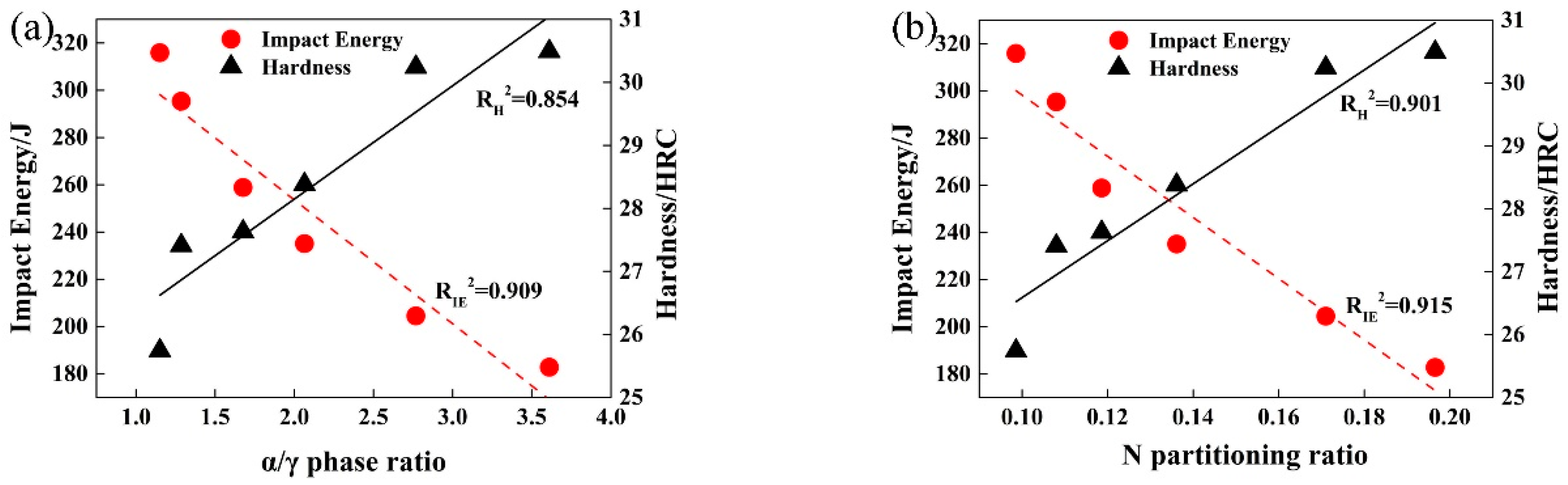

Figure 13. (a) Effect of α/γ phase ratio on impact energy and hardness; (b) effect of N partitioning ratio on impact energy and hardness.
Figure 13. (a) Effect of α/γ phase ratio on impact energy and hardness; (b) effect of N partitioning ratio on impact energy and hardness.
Metals 10 01481 g013
Metals 10 01481 g014 550

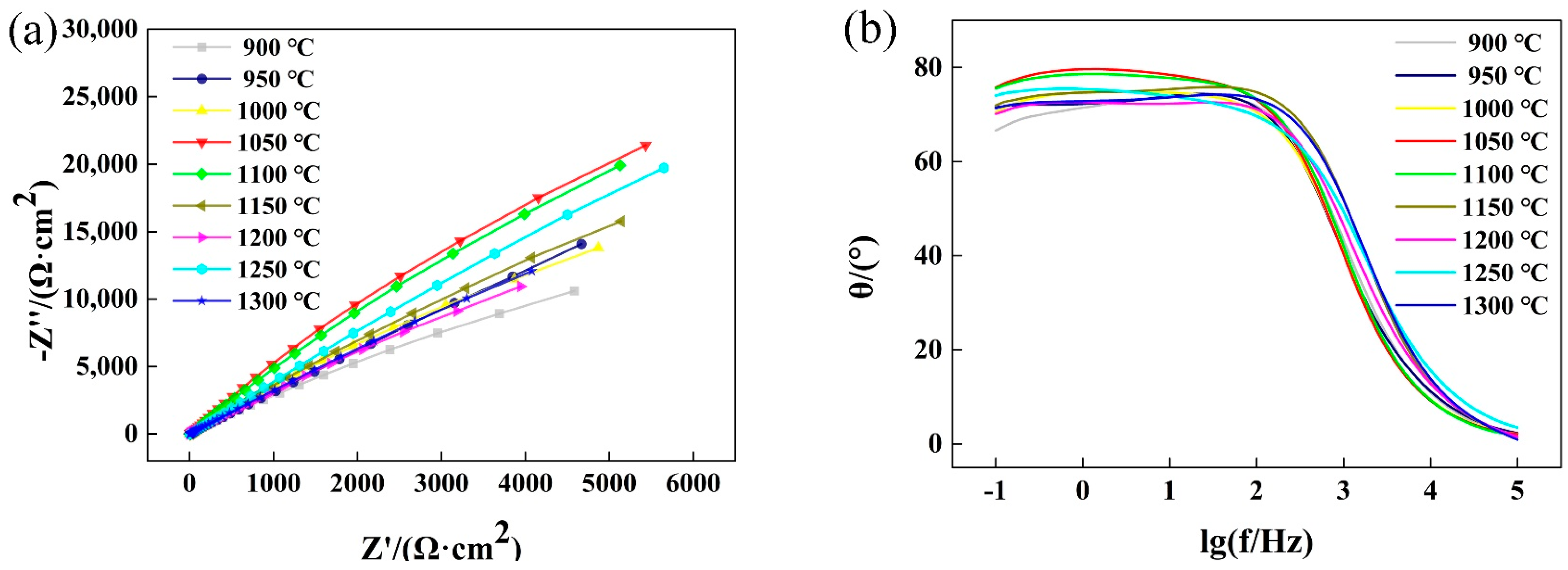

Figure 14. Electrochemical impedance spectroscopy (EIS) diagrams of UNS S32750 duplex stainless steel treated at different solution treatment temperatures. (a) Nyquist plot; (b) Bode plot.
Figure 14. Electrochemical impedance spectroscopy (EIS) diagrams of UNS S32750 duplex stainless steel treated at different solution treatment temperatures. (a) Nyquist plot; (b) Bode plot.
Metals 10 01481 g014
Metals 10 01481 g015 550
Figure 15. Polarization curves of UNS S32750 solution treated at different temperatures.
Figure 15. Polarization curves of UNS S32750 solution treated at different temperatures.
Metals 10 01481 g015
Metals 10 01481 g016 550

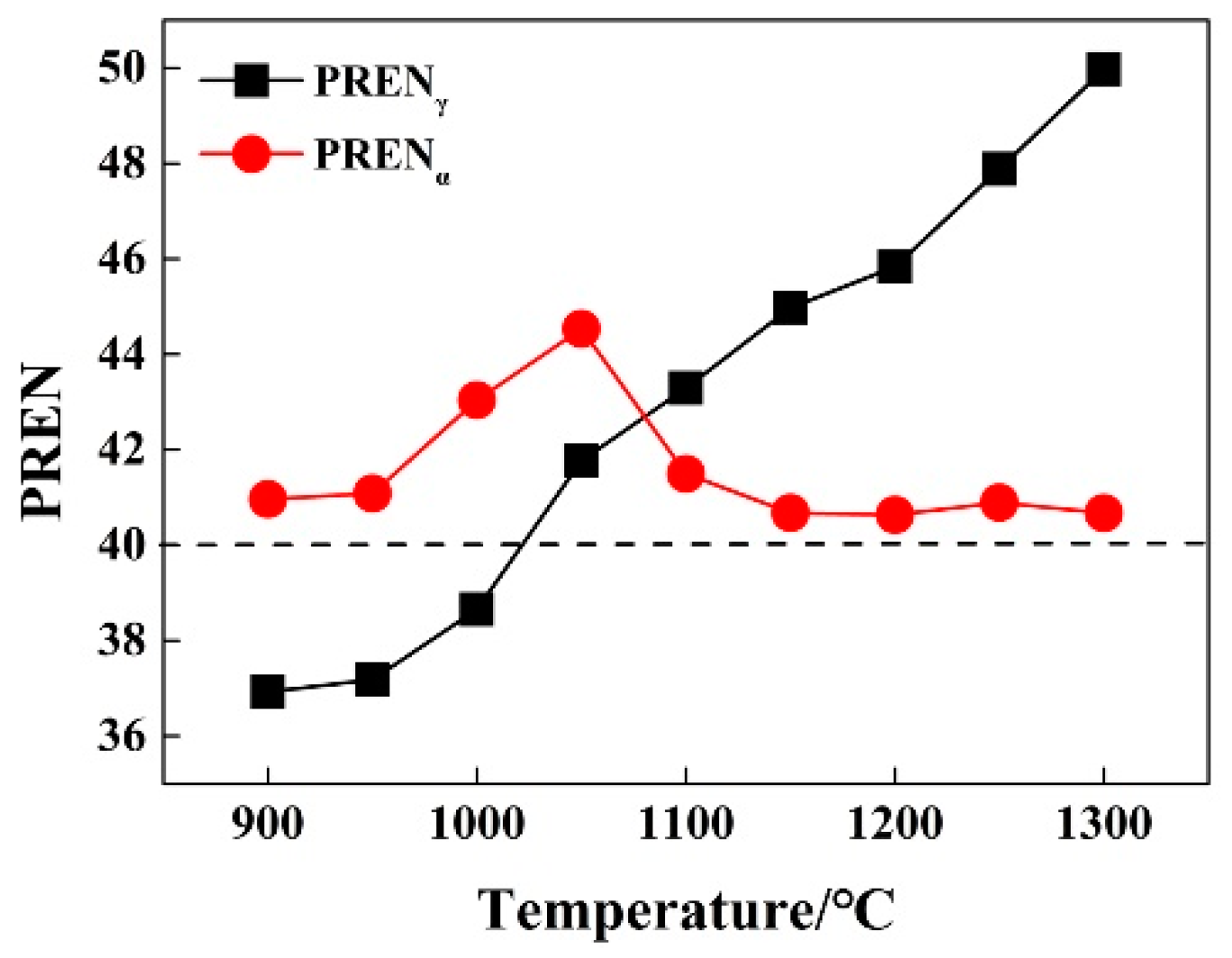

Figure 16. Pitting resistance equivalent number (PREN) of UNS S32750 solution treated at different temperatures.
Figure 16. Pitting resistance equivalent number (PREN) of UNS S32750 solution treated at different temperatures.
Metals 10 01481 g016
Table
Table 1. Composition analysis of UNS S32750 super duplex stainless steel (mass fraction, wt%).
Table 1. Composition analysis of UNS S32750 super duplex stainless steel (mass fraction, wt%).
CSiMnPSCrNiMoNFe
0.0240.390.670.0220.00225.496.183.470.288Bal.
Table
Table 2. The electrochemical parameters for UNS S32750 super duplex stainless steel (SDSS) after solution treatment at different temperature. Icoor: corrosion current density, Ecorr: corrosion potential, Ep: pitting potential. SCE, saturated calomel electrode.
Table 2. The electrochemical parameters for UNS S32750 super duplex stainless steel (SDSS) after solution treatment at different temperature. Icoor: corrosion current density, Ecorr: corrosion potential, Ep: pitting potential. SCE, saturated calomel electrode.
Temperature/°CIcoor/A∙cm−2Ecoor vs. SCE/VEp vs. SCE/V (Ep-Ecoor)/V
9009.8877 × 10−8−0.26860.84601.1146
9507.4826 × 10−8−0.28310.87721.1603
10006.1035 × 10−8−0.29560.96341.2590
10504.9744 × 10−8−0.28121.00191.2831
11005.7373 × 10−8−0.29280.94511.2380
11505.1575 × 10−8−0.28980.96941.2592
12005.8594 × 10−8−0.28840.96161.2500
12505.8948 × 10−8−0.27190.94251.2144
13006.1156 × 10−8−0.26340.93171.1951
