Next Article in Journal
Precipitation during γ-ε Phase Transformation in Biomedical Co-Cr-Mo Alloys Fabricated by Electron Beam Melting
Previous Article in Journal
Quantitative Relationships between Mechanical Properties and Microstructure of Ti17 Alloy after Thermomechanical Treatment
Open AccessArticle

Cold-Rolling Strain Hardening Effect on the Microstructure, Serration-Flow Behaviour and Dislocation Density of Friction Stir Welded AA5083

1
Department of Mechanical and Manufacturing Engineering, Faculty of Engineering and Built Environment, Universiti Kebangsaan Malaysia, Bangi 43600 UKM, Malaysia
2
Department of Materials Science and Engineering, Sharif University of Technology, Azadi Avenue, Tehran 145888-9694, Iran
3
Department of Mechanical and Nuclear Engineering, College of Engineering, University of Sharjah, Sharjah 27272, UAE
*
Authors to whom correspondence should be addressed.
Metals 2020, 10(1), 70; https://doi.org/10.3390/met10010070
Received: 26 November 2019 / Revised: 10 December 2019 / Accepted: 12 December 2019 / Published: 2 January 2020

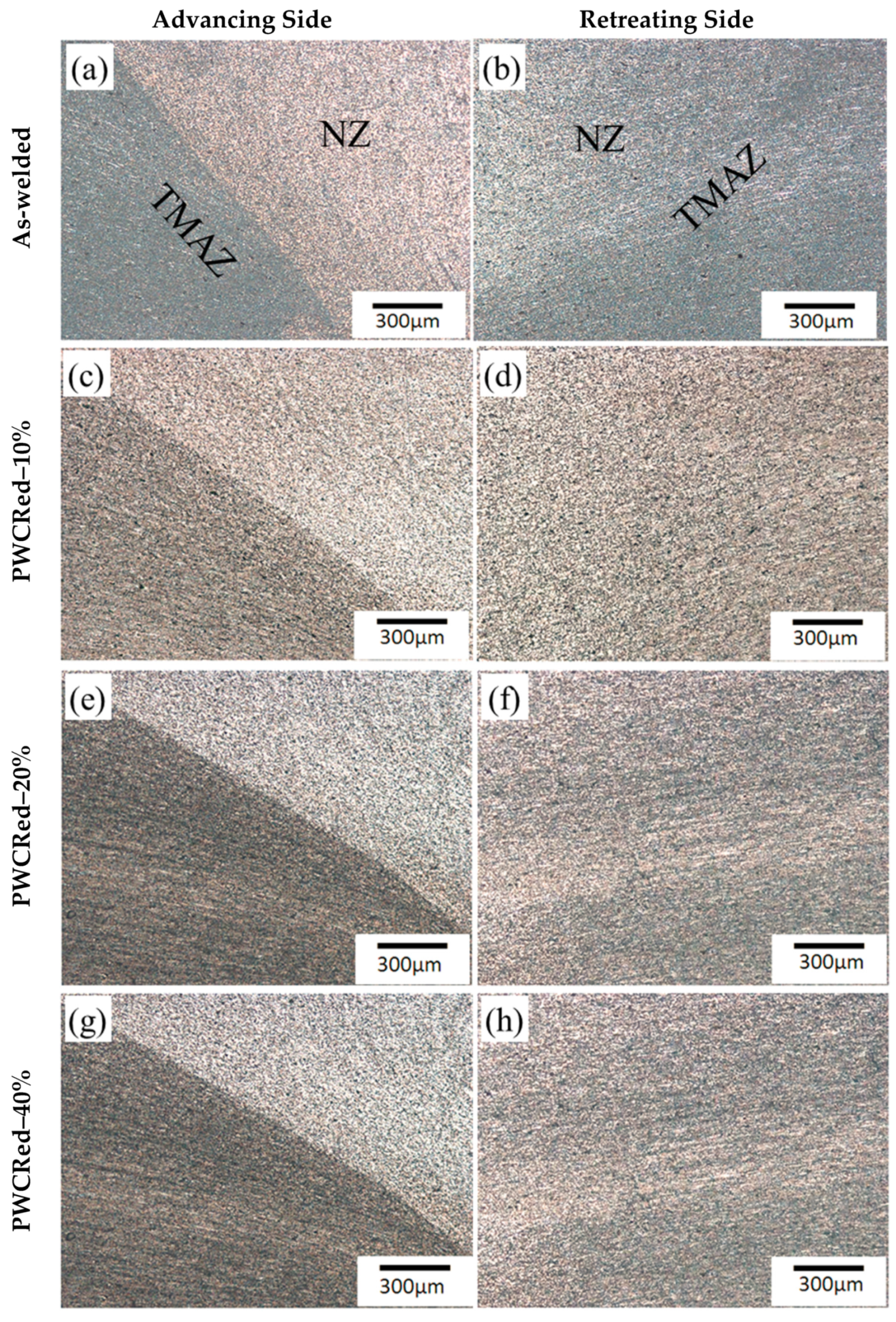

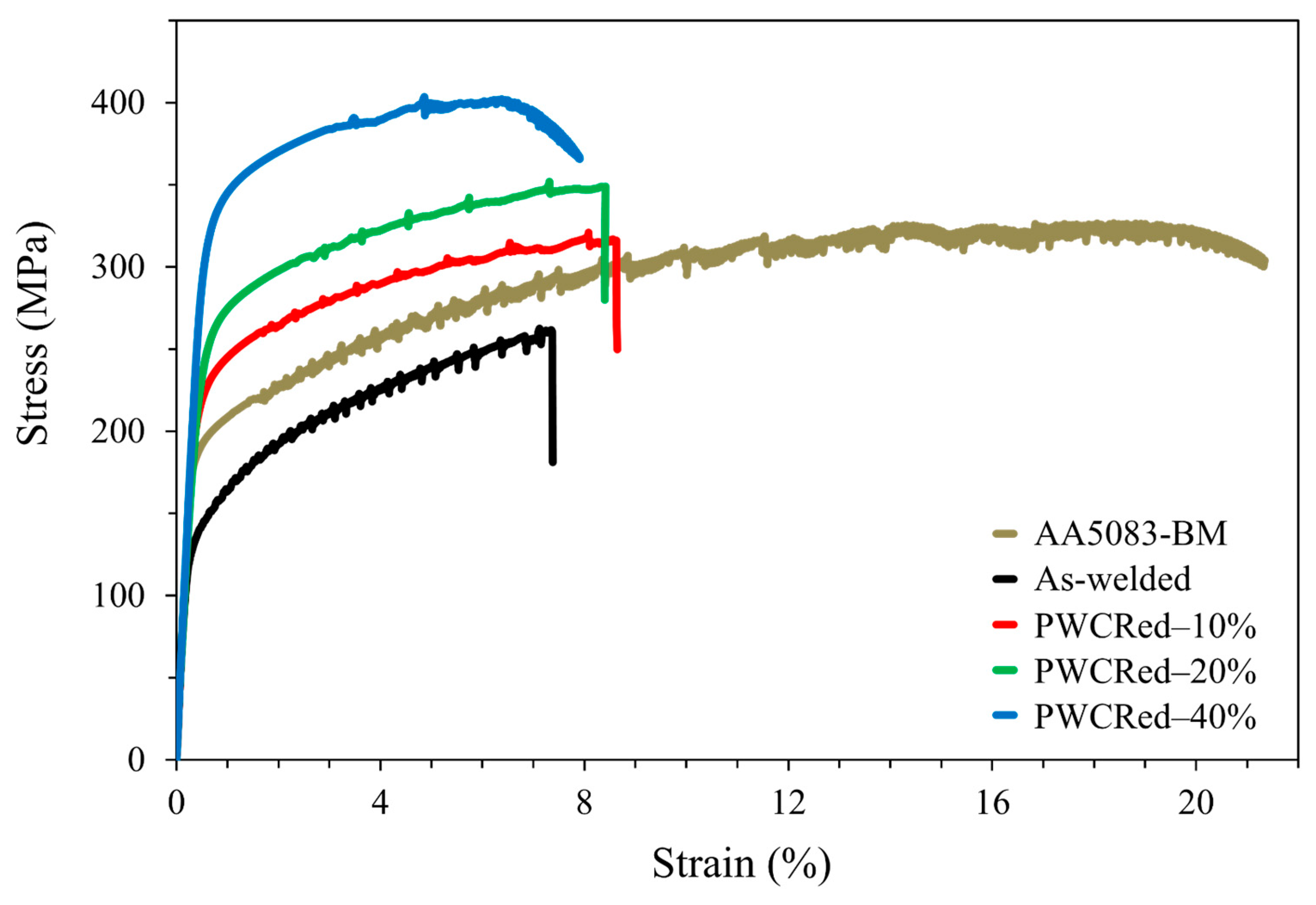

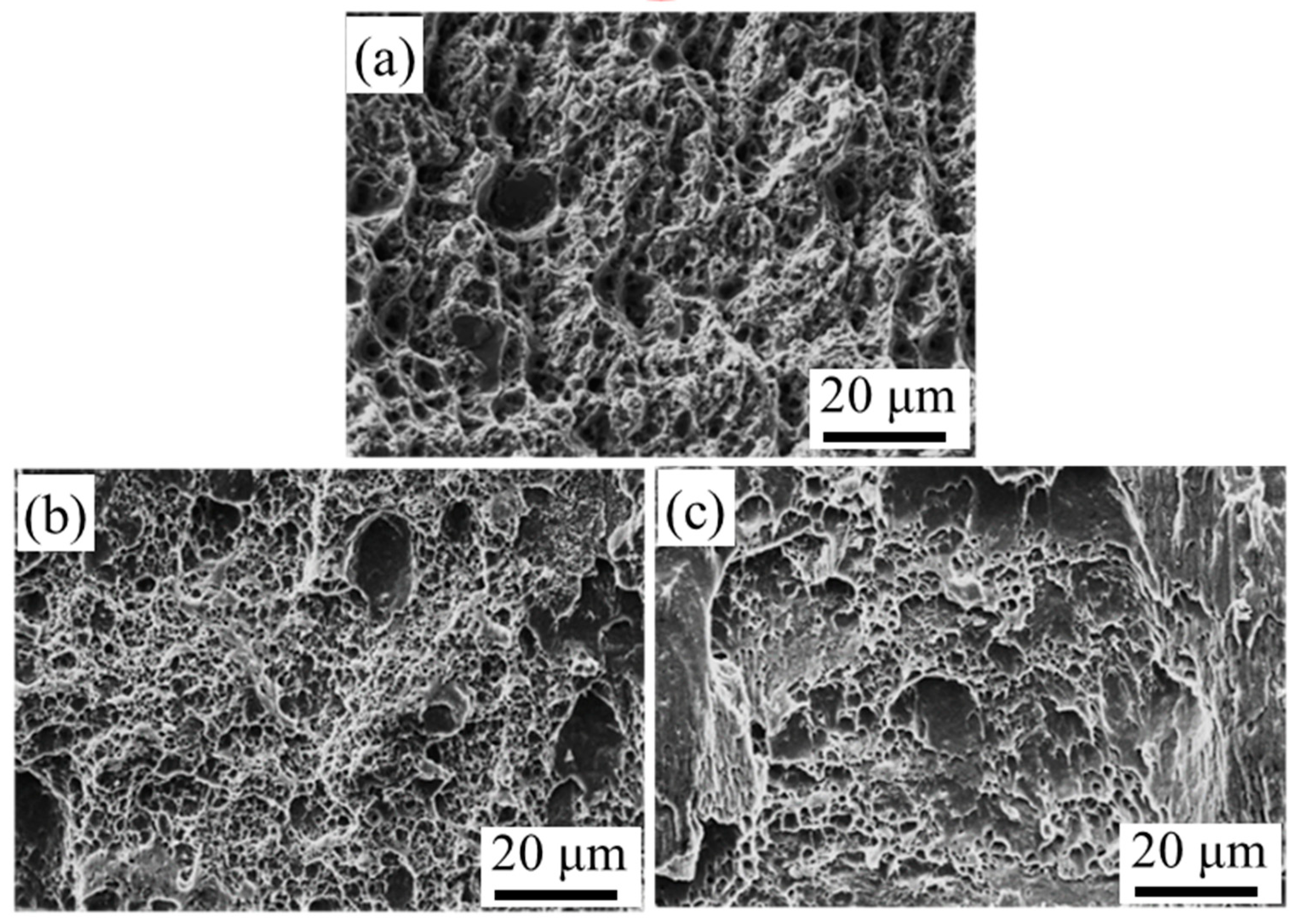

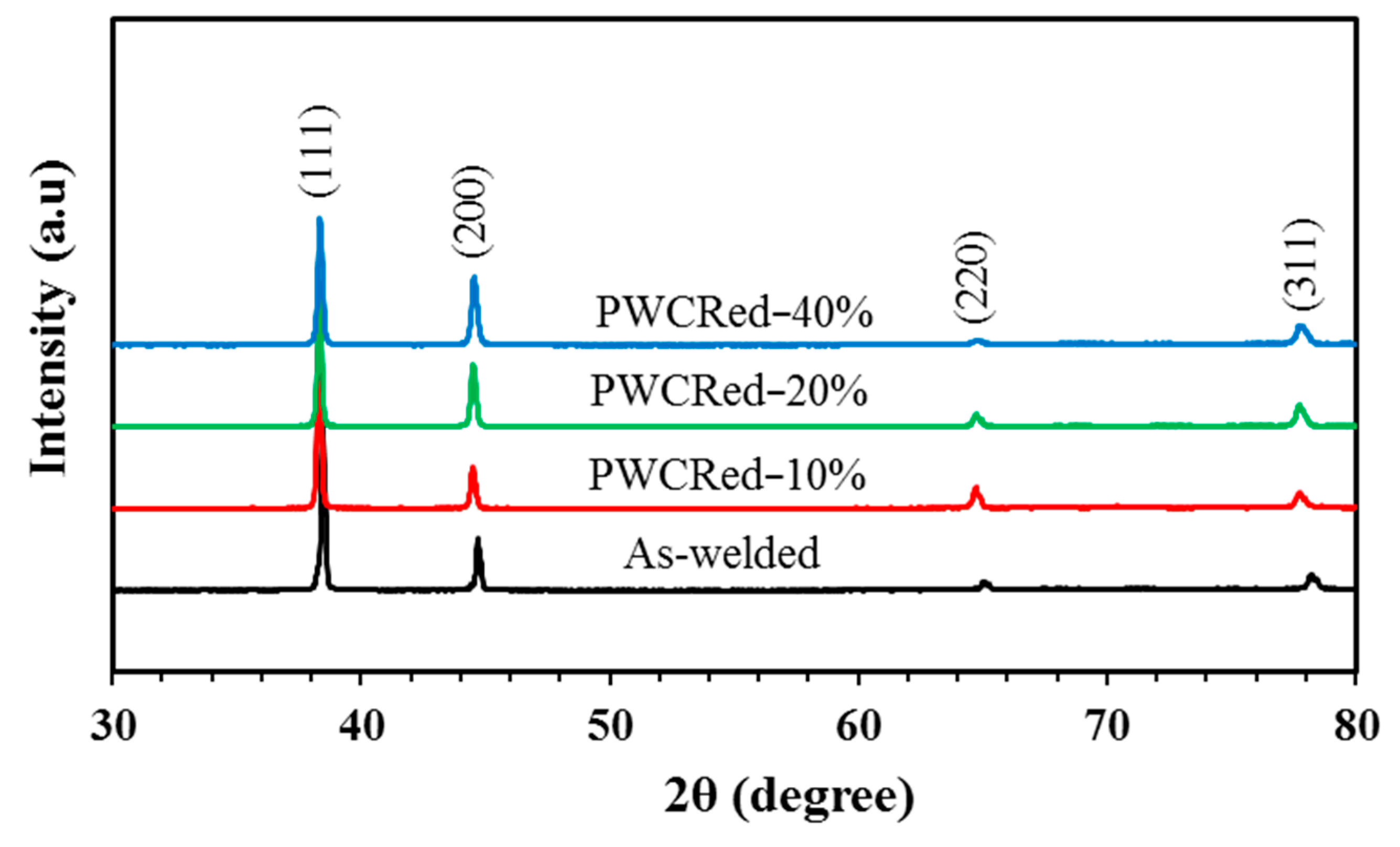

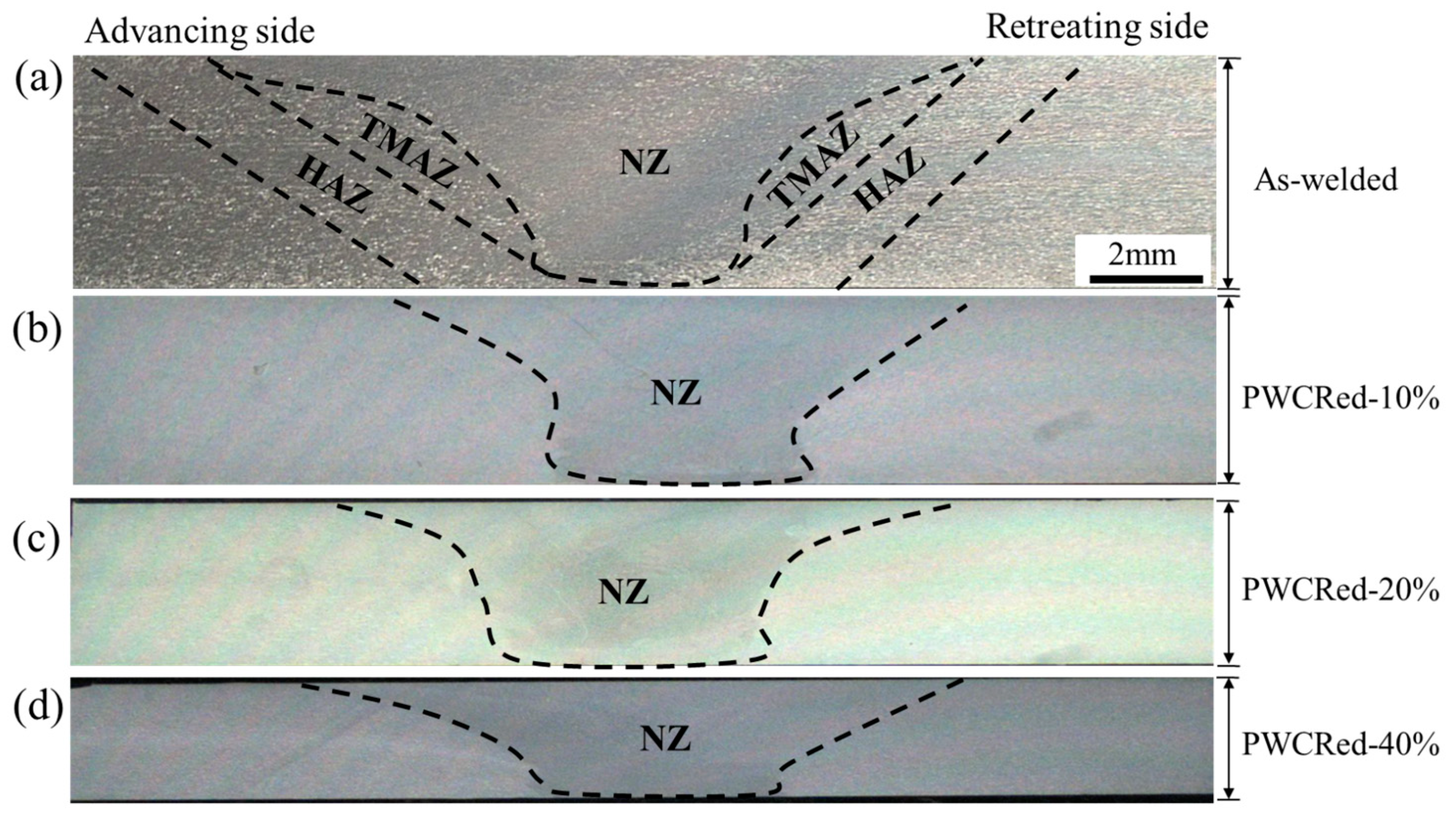

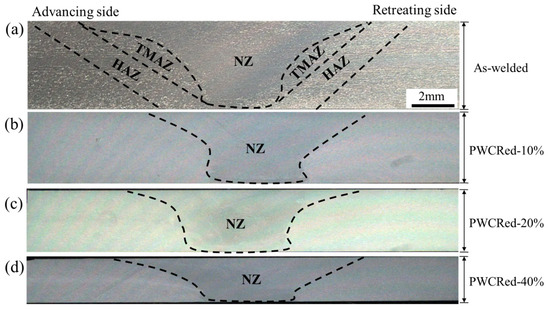

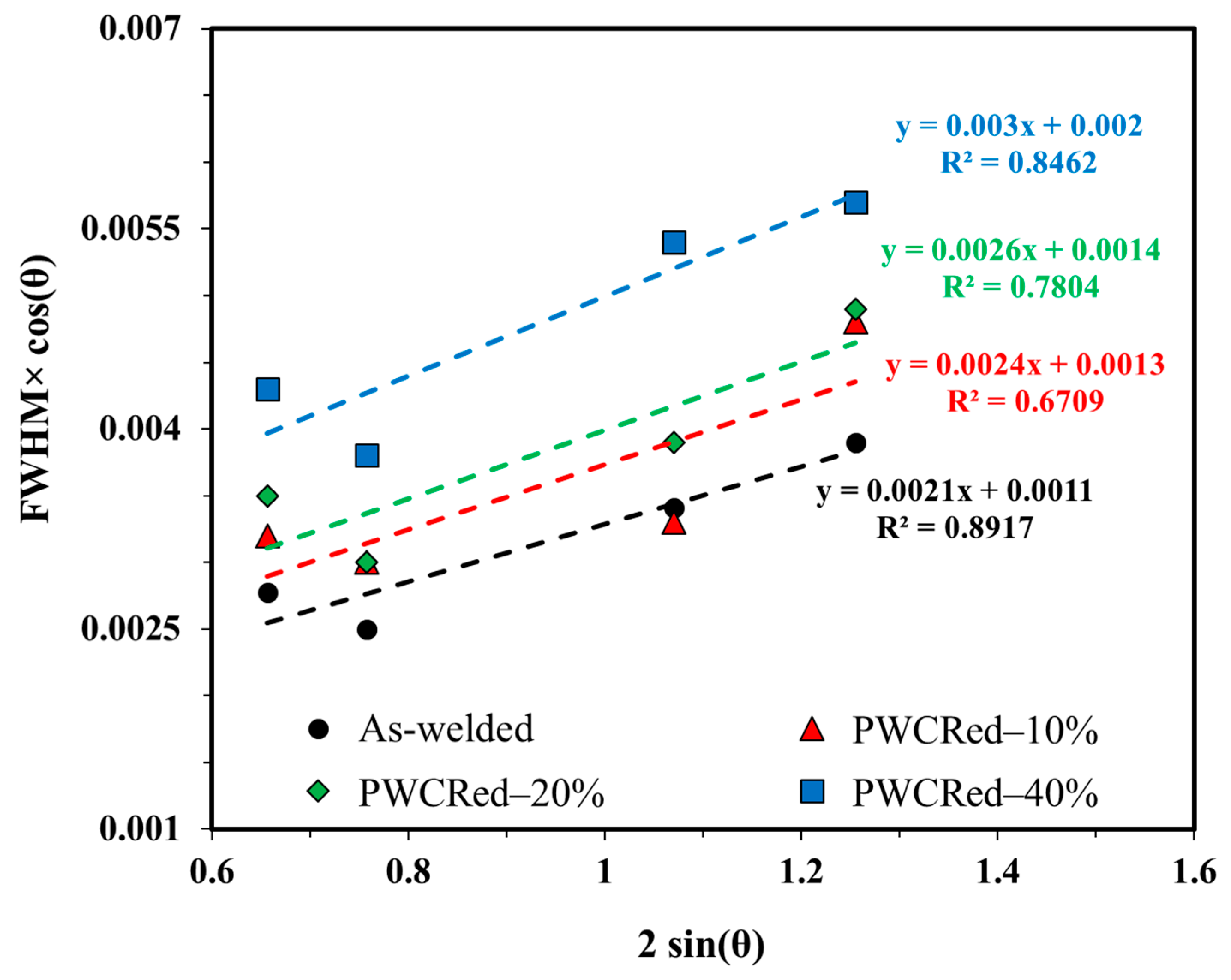

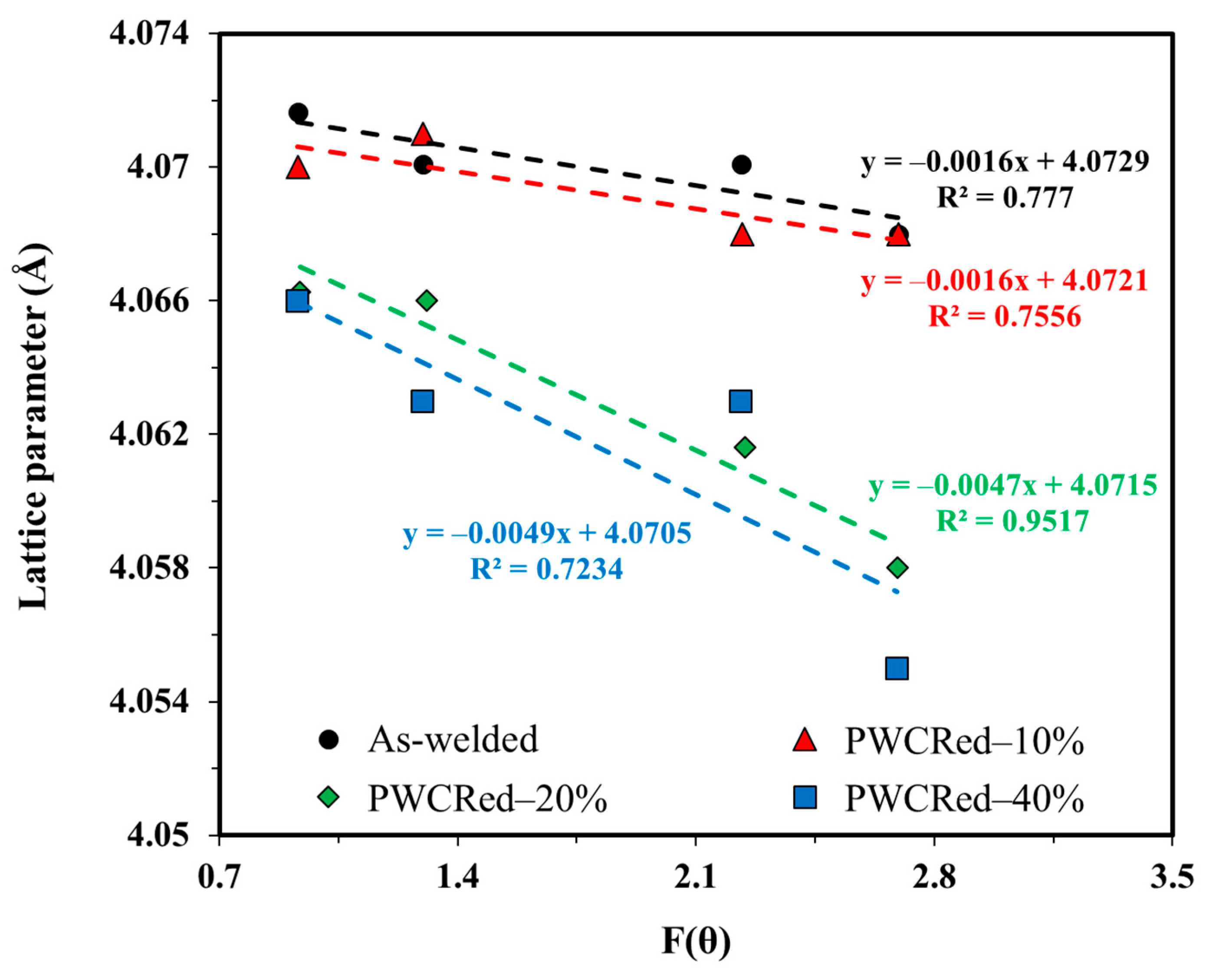

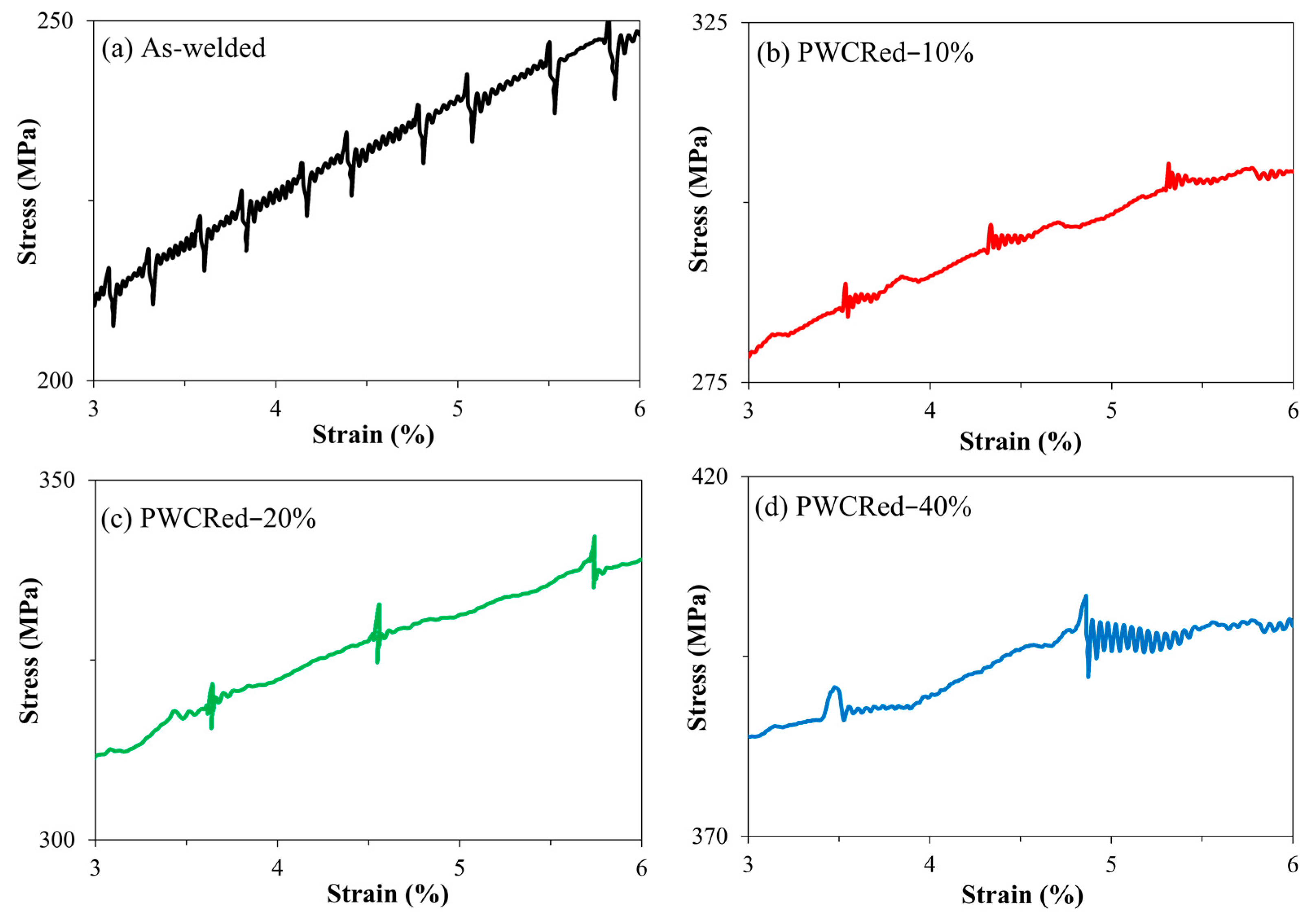

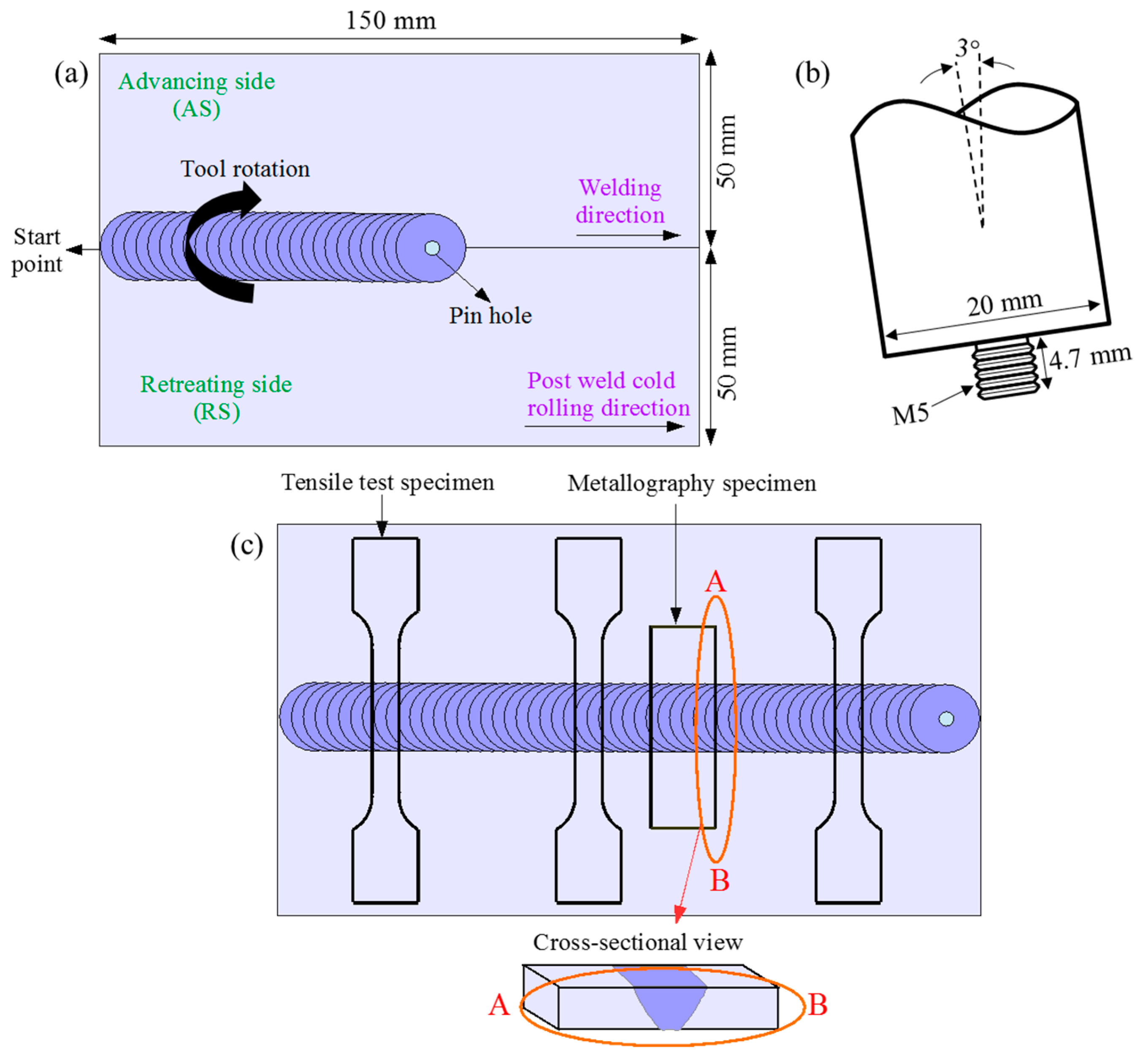

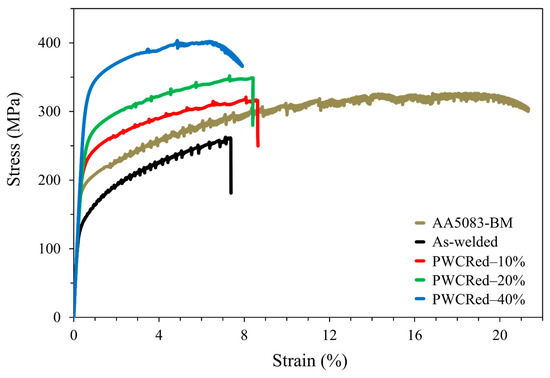

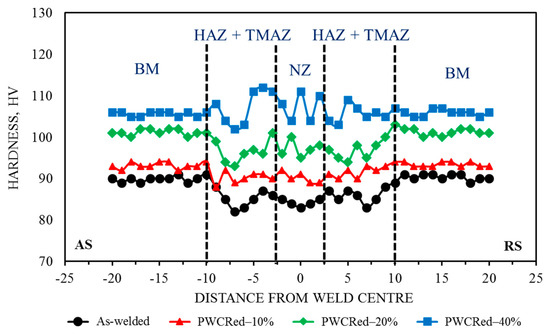

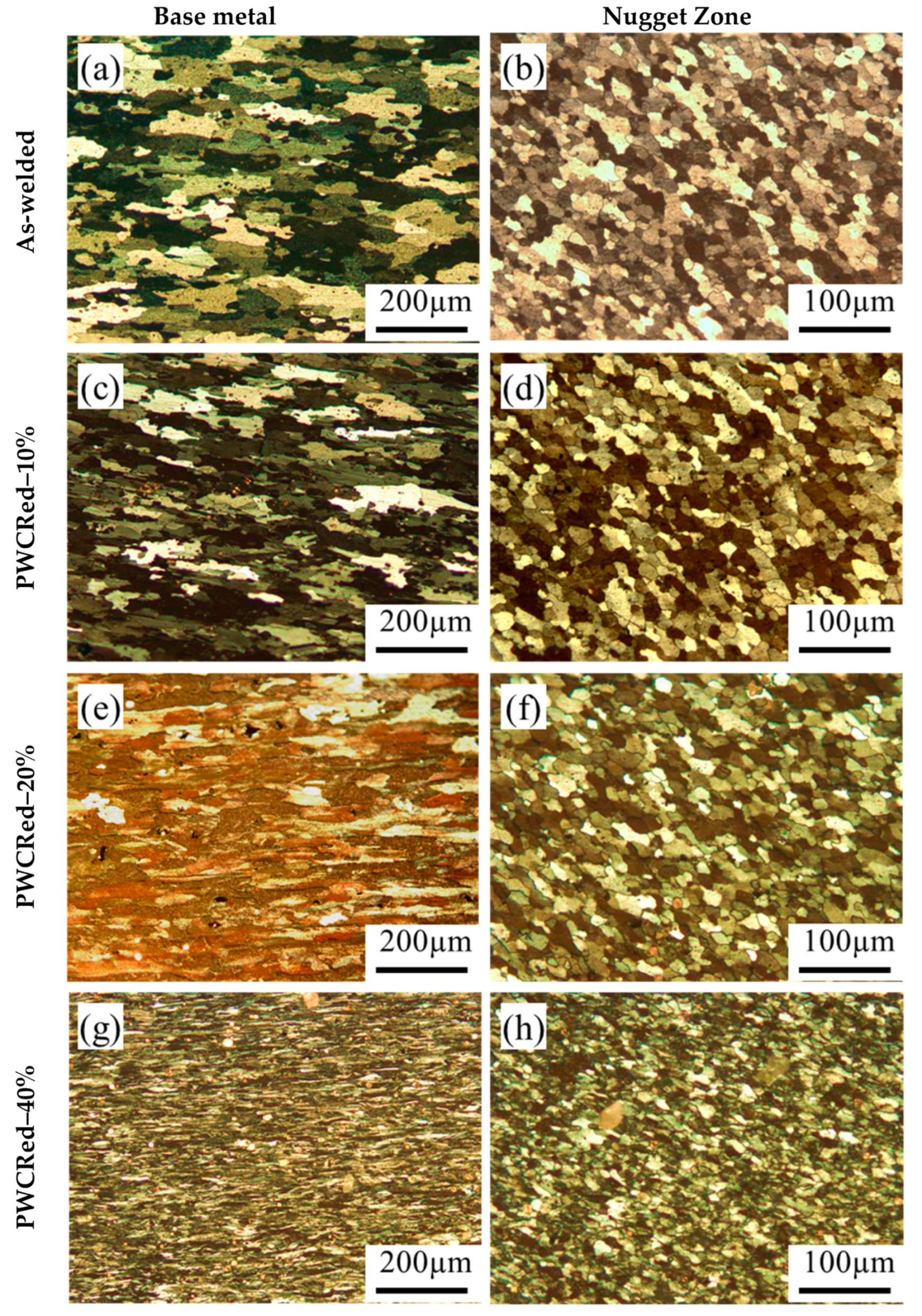

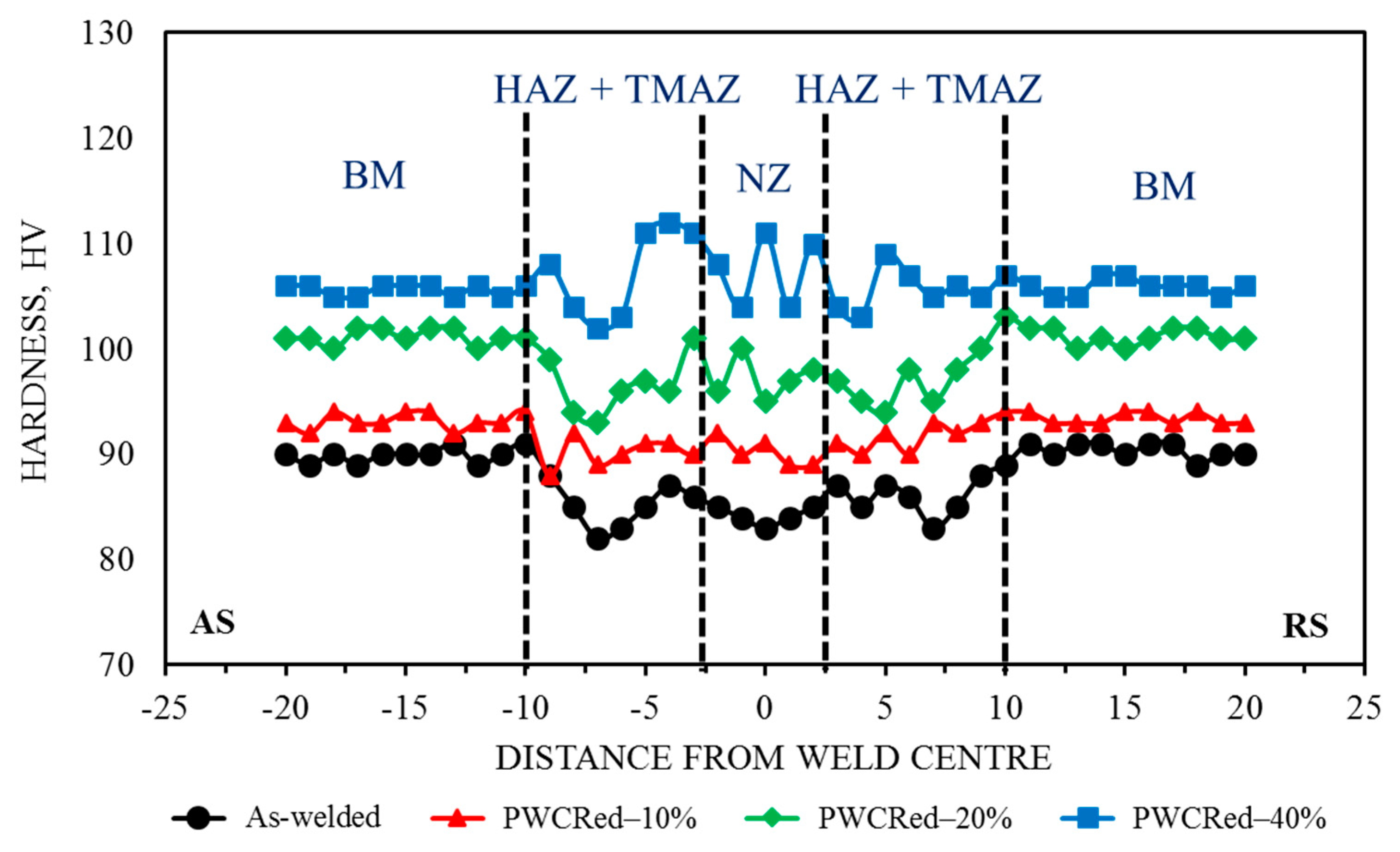

5083 aluminium (Al) alloy materials have extensive structural applications in transportation industries because of their high strength-to-weight ratio and corrosion resistance. However, under conventional fusion weldings, these materials are limited by their porosity, hot cracking, and distortion. Herein, friction stir welding (FSW) was performed to join a similar AA5083 alloy. A post-weld cold-rolling (PWCR) process was applied on joint samples at different thickness-reduction percentages (i.e., 10%, 20%, and 40%) to identify the effect of strain hardening on the microstructure and mechanical properties of the friction-stir-welded joint of AA5083 while considering the serration-flow behaviour at stress–strain curves and dislocation density of the post-weld cold-rolled (PWCRed) samples. FSW induced a 20% reduction in the tensile strength of the joint samples relative to the base metal. PWCR also reduced the average grain size at the nugget zone and base metal because of the increase in plastic deformation imposed on the samples. Furthermore, PWCR increased the dislocation density because of the interaction among dislocation stress fields. Consequently, the tensile strength of the friction-stir-welded joint increased with the increased cold-rolling percentage and peaked at 403 MPa for PWCRed–40%, which significantly improved the serration-flow behaviour of stress–strain and welding efficiency up to 123%. View Full-Text
Keywords: friction stir welding; post-weld cold-rolling; microstructure; mechanical properties; serration flow behaviour; dislocation density friction stir welding; post-weld cold-rolling; microstructure; mechanical properties; serration flow behaviour; dislocation density
Show Figures

Figure 1

MDPI and ACS Style

Sajuri, Z.; Mohamad Selamat, N.F.; Baghdadi, A.H.; Rajabi, A.; Omar, M.Z.; Kokabi, A.H.; Syarif, J. Cold-Rolling Strain Hardening Effect on the Microstructure, Serration-Flow Behaviour and Dislocation Density of Friction Stir Welded AA5083. Metals 2020, 10, 70.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
