Article

Transcriptomic Analysis of Chilo suppressalis (Walker) (Lepidoptera: Pyralidae) Reveals Cold Tolerance Mechanisms Under Parasitism Stress

1
International Research Center for the Collaborative Containment of Cross-Border Pests in Central Asia, Xinjiang Key Laboratory of Special Species Conservation and Regulatory Biology, College of Life Sciences, Xinjiang Normal University, Urumqi 830054, China
2
Tacheng, Research Field (Migratory Biology), Observation and Research Station of Xinjiang, Tacheng 834700, China
3
College of Plant Protection & Institute of Applied Entomology, Yangzhou University, Yangzhou 225009, China
4
Jiangsu Province Engineering Research Center of Green Pesticides, Yangzhou University, Yangzhou 225009, China
*
Authors to whom correspondence should be addressed.
Insects 2025, 16(9), 907; https://doi.org/10.3390/insects16090907 (registering DOI)
Submission received: 23 June 2025 / Revised: 28 August 2025 / Accepted: 30 August 2025 / Published: 1 September 2025
(This article belongs to the Special Issue Insect Transcriptomics)

Simple Summary

Parasitoid wasps like Cotesia chilonis manipulate their host, the rice stem borer Chilo suppressalis, to ensure their offspring’s survival. In this study, we used transcriptome sequencing to explore how C. chilonis alters the cold tolerance of C. suppressalis larvae. We found that the host’s cold tolerance peaked 3 days (SCP values in −6.93 °C) after parasitism but dropped sharply by day 4 (SCP values in −4.25 °C). Analysis revealed 507 genes with altered expression, including 235 induced by parasitism. These genes were mainly involved in ribosome function, protein processing in the endoplasmic reticulum (ER), and energy production. Notably, genes related to temperature tolerance, such as heat shock proteins (HSPs) and calcium signaling, were also affected. Further experiments confirmed that parasitism stress reduced ER activity but did not significantly impact HSP expression or calcium levels in the host. This study deepens our understanding of the complex molecular and physiological changes in C. suppressalis when parasitized.

Abstract

Parasitoids exhibit remarkable abilities to manipulate host physiology, ensuring offspring survival and development. This study investigated the molecular mechanisms underlying how the parasitoid Cotesia chilonis modulates cold tolerance in its host, the rice stem borer Chilo suppressalis, using transcriptome sequencing. We found that the host larvae’s supercooling point was lowest at 3 days post-parasitism but increased significantly by day 4. Transcriptome analysis identified 507 differentially expressed genes (DEGs), including 235 up-regulated by parasitism. Functional enrichment revealed that these DEGs were primarily associated with ribosome biogenesis, protein processing in the endoplasmic reticulum (ER), and oxidative phosphorylation under parasitism stress. Notably, 24 DEGs linked to temperature tolerance were predominantly heat shock proteins (HSPs) and calcium signaling-related genes. The reliability of transcriptome data was confirmed via RT-qPCR for eight randomly selected DEGs. Functional assays demonstrated that parasitism stress significantly inhibited ER activity. However, HSP expression did not significantly affect ER activity or cytosolic Ca2+ concentration in the hemolymph cells of C. suppressalis larvae. This research provides insights into the complex physiological and molecular mechanisms through which C. suppressalis responds to parasitism stress, particularly concerning cold tolerance modulation.

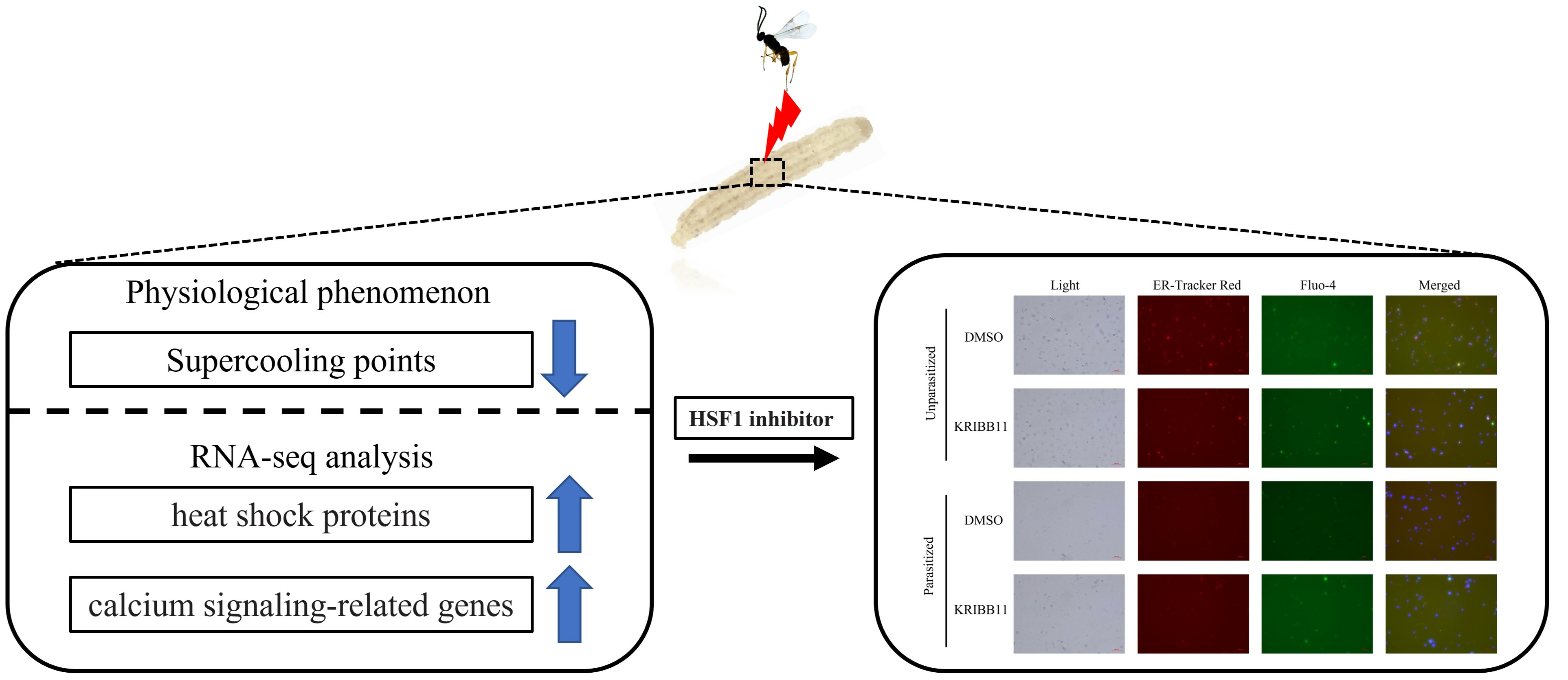

Graphical Abstract

1. Introduction

Parasitoids manipulate the host behavior or physiological processes to benefit the development and survival of their offspring [1]. It has been shown that parasitoids activate insulin and insulin-like peptide (ILP) signaling pathways to reduce host energy expenditure and free water content, thereby increasing host cold tolerance [2,3]. Xing et al. (2023) found that Spodoptera frugiperda feeding behavior was modulated by Microplitis manilae to reduce uptake of heterogeneous ice nuclei and to promote the synthesis of small-molecule cryoprotectants to improve host cold tolerance [4]. In addition, parasitism stress stimulates the expression of specific genes, especially heat shock proteins (HSPs), which increase the temperature tolerance of the host. Understanding the impact of parasitism stress by measuring the supercooling point (SCP) of individuals has proven to be useful in predicting long-term temperature-tolerant behavior of insects [5]. For instance, when Sarcophaga crassipalpis was parasitized by Nasonia vitripennis, the up-regulation of ScHsp23 and ScHsp26 expression levels was accompanied by a significant decrease in the SCP, and the host showed strong cold tolerance [6].
The host hemolymph plays an essential role in the growth and development of most endoparasitoids [7]. Studies indicate that endoparasitoids exert parasitism stress on hosts by injecting secreted effector factors (such as venom, polydnavirus, teratocyte, etc.), which disrupt the host’s development, immune system, and metabolism, ultimately leading to changes in the host’s supercooling point [8]. This process also involves the rearrangement of cellular structure and polarized redistribution of organelles [9]. For example, parasitism stress induces irreversible mitochondrial outer membrane permeabilization (MOMP), leading to increased intracellular Ca2+ concentrations and endoplasmic reticulum (ER) stress [10]. Sustained ER stress leads to disruptions in protein processing and glycogen and lipid production, which directly affect host cold tolerance. However, the effects of parasitism stress on ER activity and intracellular Ca2+ concentrations in host hemolymph cells, and their relationship with host cold tolerance, have been rarely reported.
The rice striped stem borer, Chilo suppressalis (Walker) (Lepidoptera: Crambidae), is a widespread rice pest in China, and its population size is closely related to environmental factors and natural enemies [11,12]. Cotesia chilonis, an obligate endoparasitoid, parasitizes up to 90% of overwintering C. suppressalis larvae in the field [13]. However, it is unclear if C. chilonis enhances the host’s cold tolerance and aids the parasitoid’s overwintering, as well as the underlying molecular mechanisms. In this study, we initially quantified the changes in the SCP of C. suppressalis larvae at various time intervals following parasitism by C. chilonis. Subsequently, transcriptome sequencing (RNA-seq) was used to identify genes associated with the temperature tolerance of C. suppressalis, and the molecular functions of these genes were further validated. This study enhances understanding of the molecular mechanisms in host–parasitoid interactions and parasitism-induced changes in host temperature tolerance, offering a theoretical foundation for the improved biological control of C. suppressalis.

2. Materials and Methods

2.1. Insects

The C. suppressalis larvae and its obligate endoparasitoid C. chilonis were collected from fields in Yangzhou (32.39° N, 119.42° E). Chilo suppressalis larvae were reared on an artificial diet and maintained at 27 ± 1 °C, 75 ± 5% RH, and 16 h light/8 h dark in the laboratory. Cotesia chilonis adults were fed with a 10% (v/v) honey–water solution and propagated using fifth instar C. suppressalis larvae. More than three generations of C. suppressalis and C. chilonis were continuously reared prior to experiments.

2.2. Determination of Supercooling Point (SCP)

One fifth instar C. suppressalis larva from the same batch was placed in a test tube with two female and one male C. chilonis adults to facilitate parasitism at 27 °C in darkness. On completion of parasitism, C. suppressalis larvae were reared normally, and the supercooling point (SCP) was measured every 24 h for nine consecutive days using a thermocouple connected to an automatic temperature recorder (UT-325, Uni-Trend Technology, Shenzhen, China). The thermocouple tip in contact with the larva was secured in an Eppendorf with cotton, and the larva was then placed at −20 °C. After the larva temperature dropped below 0 °C, their body fluids froze due to the release of heat, and the temperature rose abruptly, with the lowest temperature being recorded as the SCP [14]. The unparasitized C. suppressalis larvae from the same batch were used as controls. All treatments included 20 individuals.

2.3. RNA Isolation and Transcriptome Sequencing

Chilo suppressalis larvae were collected separately after 3 and 4 days of parasitism, frozen with dry ice, and sent to Beijing Biomarker Technology Co., Ltd. (Beijing, China). Samples were only collected for subsequent RNA extraction and sequencing after we directly witnessed a successful parasitism event by the female Cotesia chilonis. Briefly, high-purity and high-integrity RNA of all samples was examined prior to cDNA library construction and sequencing. Sequencing libraries were prepared using the Illumina TruSeq RNA Sample Preparation Kit (Illumina, San Diego, CA, USA), and samples (n = 9) were sequenced using an Illumina HiSeq™ 2500 instrument as recommended by the manufacturer.

2.4. Transcriptome Assembly and Gene Expression Analysis

Raw transcriptomic data were preprocessed to remove clip adapter sequences and filter low-quality reads. To obtain a full-length unigene library, the high-quality clean reads were de novo-assembled using Trinity software (Version 2.1.1). Then, unigene annotation was performed using the Nr, Nt, Swiss-prot, COG, Pfam, and KEGG databases, considering an E-value cut off of 10−5. Unigenes were automatically assigned an internal ID.
The fragments per kilobase of transcript per million mapped fragments (FPKM) was calculated to find the area of candidate differentially expressed genes (DEGs) using the DESeq2R package with default parameters [15]. Then, the resulting p-values were adjusted across all candidate DEGs by applying the false discovery rate (FDR) to control false discovery rates. Finally, DEGs were defined with the absolute value of fold-change ≥ 2 and false discovery rate (FDR) ≤ 0.05 [16]. To ensure the accuracy of transcriptomic analysis, all sequence alignment, assembly, and annotation processes were based on the genome-wide data of Chilo suppressalis (taxid: 168631).

2.5. Real-Time Quantitative PCR

To verify the reliability of the RNA-seq data, the transcript levels of 8 representative DEGs were randomly chosen for real-time quantitative PCR (RT-qPCR) analysis. The primers (Table S1) for DEGs were designed using Oligo 7 software, and specifications were confirmed by NCBI Primer-BLAST (https://www.ncbi.nlm.nih.gov/tools/primer-blast/). Real-time PCR reactions were carried out as follows: 10 μL STBR Premix Ex Taq (2×) (Bio-Rad, Hercules, CA, USA); 2 μL cDNA templates; 6 μL ddH2O; 1 μL forward primer (10 μM); and 1 μL reverse primer (10 μM). Three biological replicates of each treatment and each gene were examined by RT-qPCR in quadruplicate. Relative changes in target gene expression were quantified using the 2−ΔΔCt method, and tubulin served as a reference gene [17].

2.6. ER Activity and Cytosolic Ca2+ Concentration Assay

Chilo suppressalis larvae parasitized for 3 days were injected with the HSF1 inhibitor KRIBB11 (LC50 of 1.2 μM) configured with dimethyl sulfoxide. After 24 h of injection, host hemolymph was collected into tubes containing 200 μL of PBS buffer (containing 0.025% phenylthiourea) and centrifuged at 1000× g for 5 min at 4 °C to collect hemolymph cells. After centrifugation, the cells were resuspended and stained with 5 μL ER-Tracker Red working solution, 100 μL Fluo-4 AM, and 5 μL Hoechst staining solution for 30 min in the dark at 37 °C (Biyuntian, Suzhou, China). Finally, the smears were observed and photographed under a fluorescent microscope (Nikon, Ts2R, Tokyo, Japan). Images were analyzed using ImageJ Software (version 1.52: Bethesda, MD, USA). The cells collected from unparasitized and noninjected HSF1 inhibitor larvae were used as controls.

2.7. Statistical Analyses

Data were analyzed using one-way analysis of variance (ANOVA) followed by Duncan’s multiple comparison test. SPSS v. 20.0 software (IBM, Armonk, NY, USA) was used for statistical analyses, and results are presented as means ± SE (standard error). Data were considered significant at p < 0.05.

3. Results

3.1. SCP Values of Host Larvae After Parasitism

SCPs of C. suppressalis larvae were measured after being parasitized for different periods of time (Figure 1). The results showed that the SCP of host larvae reached its lowest value after 3 days of parasitism and rebounded significantly on the fourth day, after which there was no significant difference with the duration of parasitism (F8,146 = 4.902, p < 0.001). Meanwhile, the SCP of unparasitized larvae changed significantly with their own developmental process (F8,153 = 8.774, p < 0.001). Interestingly, the SCP of C. suppressalis larvae was significantly higher after 4 and 6 days of parasitism compared to unparasitized larvae (4 days: t = 8.028, p < 0.001; 6 days: t = 2.192, p = 0.035).

3.2. mRNA Sequencing of the Larval Transcriptome

RNA-seq sequencing analysis was performed on larvae parasitized for 3 and 4 days (P3d and P4d) and compared with unparasitized larvae as control (CK). The clean reads of each sample were individually sequence-aligned with the reference genome of C. suppressalis (taxid: 168631) [18]. High-quality clean reads were obtained from raw reads by removing low-quality reads, with clean reads comprising more than 96% of raw reads in each sample. Then, clean reads from all groups were mapped to the reference genome, and the total mapping rate reached 61.93–77.38%. After quality control, the GC percentages and Q20 were 42–46% and 96.38–97.75%, respectively (Table 1).

3.3. Differential Gene Expression

Pairwise comparison of transcriptomes between parasitism treatment groups and control (P3d vs. CK, P4d vs. CK, and P4d vs. P3d) indicated that 335 (264 up- and 71 down-regulated), 389 (290 up- and 99 down-regulated), and 48 (33 up- and 15 down-regulated) unigenes, respectively, were DEGs (Figure 2A–C). Regarding the cluster analysis of DEGs among the different treatment groups, there were no common DEGs among the three treatment groups, and two-by-two cluster analysis revealed 10, 20, and 235 common DEGs, respectively (Figure 2D).
The molecular functions involved in DEGs were further analyzed using the KEGG database, and the 30 most significantly enriched KEGG pathways are shown in Figure 3. The results of the enrichment analysis indicated that DEGs were mainly related to ribosome, protein processing in endoplasmic reticulum, and oxidative phosphorylation functions during parasitism stress (Figure 3A,B). On the other hand, with prolonged parasitism, DEGs were mainly related to phagosome and gap junction functions (Figure 3C).

3.4. Expression Patterns of Temperature Tolerance Associated Genes

Twenty-four DEGs related to temperature tolerance were identified and annotated, of which 21 and 3 genes were up- and down-regulated, respectively (Table 2). Analysis revealed that numerous heat shock proteins (HSPs) and calcium signaling-related genes linked to host temperature tolerance were significantly up-regulated under parasitism stress. Conversely, two small heat stress proteins (sHsp20 and sHsp21.3) and a cuticle protein gene were significantly down-regulated. In addition, DEGs associated with temperature tolerance were involved in endoplasmic reticulum function and stabilization of the intracellular environment.

3.5. Transcriptional Profiles of Selected Genes by RT-qPCR

RT-qPCR was performed to validate eight DEGs obtained from RNA-seq data (Figure 4). The results showed that all genes except sHsp20 gene (Contig_27582) exhibited the same expression trend as RNA-seq data. On the fourth day of parasitism, the sHsp21.3 gene (Contig_428) was significantly suppressed in the host. The cuticle protein gene (First_Contig3423) showed a trend of increasing and then decreasing. On the other hand, five genes associated with ER function (Contig_68453, Contig_54342, and Contig_48819) and stabilization of the intracellular environment (Contig_65241 and Contig_60591) showed significant up-regulation with prolonged parasitism compared with CK treatment.

3.6. Detection of ER Activity and Cytosolic Ca2+ Concentration

The ER activity and cytosolic Ca2+ concentration were measured in hemolymph cells of parasitized C. suppressalis larvae after injection of HSF1 inhibitor (Figure 5A). The results showed that parasitism stress had a significant inhibitory effect on ER activity in hemolymph cells of C. suppressalis larvae, but no significant effect on the cytosolic Ca2+ concentration (Figure 5B). On the other hand, injection of HSF1 inhibitor had no significant effect on cytosolic Ca2+ concentration in hemolymph cells of C. suppressalis larvae (Figure 5C). The above results indicate that parasitism stress only had a significant inhibitory effect on ER activity in host hemolymph cells

4. Discussion

As poikilotherms, insects have evolved physiological and behavioral strategies to survive winter; they can either tolerate freezing of extracellular fluid (freeze tolerance) or can reduce the freezing point of extracellular fluid to avoid freezing (freeze avoidance) [19]. An important consideration in insect cold tolerance is the supercooling point (SCP), which is affected by a range of variables, including body size, developmental stage, and weight, as well as rearing conditions, external temperature, and photoperiod [20,21]. In this study, the potential effects of parasitism stress on host cold tolerance were investigated by determining changes in the SCP of parasitized C. suppressalis larvae. The results indicated that the SCP of host larvae was lowest after 3 days of parasitism, rebounded significantly on the 4th day, and then remained stable (Figure 1). Furthermore, the SCP is implicated in physiological processes such as the accumulation of cryoprotectants, the elimination of ice nucleating substances, and the synthesis of HSPs in insects [22,23]. This is consistent with our transcriptome data, which revealed an alteration in C. suppressalis larvae SCP accompanied by changes in gene expression (Table 2). Research has demonstrated that the lipid content of Drosophila melanogaster varies with the duration of exposure to a temperature environment [24]. In Harmonia axyridis, a notable elevation in glycogen content and soluble trehalase activity contributes to enhanced cold tolerance and facilitates overwintering [25].
Transcriptome analysis of C. suppressalis showed that numerous HSPs were induced to be expressed under parasitism stress in C. chilonis (Table 2). Numerous studies have found that HSPs are synthesized by cells or organisms under the action of heat shock and other stress factors, and are mainly divided into four major families, such as HSP90, HSP70, HSP60, and small heat shock proteins (sHSPs), depending on protein size and relatedness [26,27]. It has been shown that sHSPs are able to protect cells against protein aggregation and proteotoxic stress by disrupting the association with trapped misfolded proteins and delivering misfolded proteins to autophagosomes in the involvement of HSP70 [28]. In addition, the interactions between sHSPs and other chaperones of the ATP-dependent Hsp70 and Hsp90 lead to protein homeostasis, ensuring efficient substrate solubilization and refolding of damaged proteins [29,30]. In this study, we found that the expression of HSP70 and HSP90 was significantly induced in parasitized C. suppressalis, whereas the diametrically opposite situation was observed in sHSPs. The synchrony of transcript levels of various HSP genes may constitute a significant factor contributing to the loss of protein function and the altered cold tolerance observed in C. suppressalis.
This study demonstrated that DEGs were primarily enriched in the “phagosome” and “gap junction” of the KEGG pathway (Figure 3). Phagosomes are essential organelles that play a pivotal role in the immune response and the degradation of intracellular substances, with their functionality being contingent upon interactions with other organelles [31]. Parasitoids demonstrate a diverse array of parasitism mechanisms, which encompass the injection of various parasitic factors that suppress the host’s immune response and induce apoptosis [32]. Research has indicated that Microplitis bicoloratus specifically inhibits mitochondrial activity and triggers apoptosis in the hemolymph cells of the host [33]. This indicates that there are significant interactions between different organelles and even cells during the immune response induced by parasitism stress in C. suppressalis, potentially implicating the role of gap junction functions.
The oxidative property and elevated concentration of Ca2+ that characterize the internal environment of the endoplasmic reticulum (ER) are essential for protein synthesis, protein post-translational modification, and trafficking [34]. When the internal environment of the ER becomes imbalanced due to the accumulation of large amounts of misfolded proteins, it is referred to as endoplasmic reticulum stress (ER stress) [35]. Meanwhile, the chaperone proteins, especially the HSPs, are involved in the refolding of misfolded proteins and inhibiting the progress of protein synthesis to reduce the level of ER stress [36,37]. However, the transcription of HSPs is in turn regulated by heat shock factor (HSF), and once the transcriptional regulation is disrupted, the ER function and cytosolic Ca2+ concentration may be altered. In this study, we observed that a large number of genes associated with Ca2+ signaling were up-regulated (e.g., Calmodulin, Calcium-transporting ATPase, and Calcium-transporting ATPase sarcoplasmic) in parallel with the activation of HSPs (Table 2), suggesting a possible functional link between the two. The functional verification results show that parasitism stress had a significant inhibitory effect on ER activity (Figure 5), but the link between HSPs and ER function needs to be further investigated.
Parasitoid larvae primarily consume host hemolymph during the initial stages of their embryonic development, and they regulate the synthesis of low molecular sugars in hemolymph to promote their own growth and alter the host’s cold tolerance [38,39]. In the advanced stages of development, parasitoid larvae feed directly on the host’s fat body, which serves as a crucial energy store and as a metabolic organ, consequently diminishing the host’s tolerance to low temperatures [40,41]. The above results indicate that the changes in cold tolerance of C. suppressalis caused by C. chilonis involve a complex regulatory network.

5. Conclusions

This study reveals that parasitism by Cotesia chilonis modulates cold tolerance in Chilo suppressalis larvae, which is associated with transcriptomic changes, particularly in ribosome biogenesis and ER function. Functional assays showed parasitism inhibits ER activity, but not via HSPs or calcium signaling pathways. These findings highlight complex molecular mechanisms underlying host responses to parasitoid manipulation, especially concerning cold tolerance.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/insects16090907/s1, Table S1. Primers used in this study.

Author Contributions

C.-L.D.: data curation, software, writing–original draft, funding acquisition; E.A.: data curation, software; R.J.: data curation, software; writing—review and editing; M.-X.L.: data curation, funding acquisition, software. Y.-Z.D.: data curation, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

“Tianchi Talent” Young Doctoral Program of the Xinjiang Uygur Autonomous Region. The National Natural Science Foundation of China (31401733), the National Key R&D Program of China (2017YFD0200400), the Postgraduate Research & Practice Innovation Program of Jiangsu Province (KYCX21_3255), and Yangzhou University Excellent Doctoral Dissertation Funds.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gulinuer, A.; Xing, B.L.; Yang, L. Host transcriptome analysis of Spodoptera frugiperda larvae parasitized by Microplitis manila. Insects 2023, 14, 100. [Google Scholar] [CrossRef]
  2. Wang, Z.-Z.; Ye, X.-Q.; Shi, M.; Li, F.; Wang, Z.-H.; Zhou, Y.-N.; Gu, Q.-J.; Wu, X.-T.; Yin, C.-L.; Guo, D.-H.; et al. Parasitic insect-derived miRNAs modulate host development. Nat. Commun. 2018, 9, 2205. [Google Scholar] [CrossRef]
  3. Wang, B.B.; Ren, C.D.; Yang, L.; Fang, Q.; Song, Q.S.; Ye, G.Y. Venom α-amylase of the endoparasitic wasp Pteromalus puparum influences host metabolism. Pest Manag. Sci. 2020, 76, 2180–2189. [Google Scholar] [CrossRef]
  4. Xing, B.L.; Wang, S.F.; Gulinuer, A.; Ye, G.Y.; Yang, L. Transcriptional regulation of host insulin signaling pathway genes controlling larval development by Microplitis manilae parasitization. Arch. Insect Biochem. 2023, 113, e22003. [Google Scholar] [CrossRef]
  5. MacQuarrie, C.J.K.; Derry, V.; Gray, M.; Mielewczyk, N.; Crossland, D.; Ogden, J.B. Effect of a severe cold spell on overwintering survival of an invasive forest insect pest. Curr. Opin. Insect Sci. 2024, 5, 100077. [Google Scholar] [CrossRef]
  6. Rivers, D.B.; Lee, R.E.; Denlinger, D.L. Cold hardiness of the fly pupal parasitoid Nasonia vitripennis is enhanced by its host Sarcophaga crassipalpis. J. Insect Physiol. 2000, 46, 99–106. [Google Scholar] [CrossRef]
  7. Raimundo, N.; Krisko, A. Cross-organelle communication at the core of longevity. Aging 2018, 10, 15–16. [Google Scholar] [CrossRef] [PubMed]
  8. Teng, Z.W.; Wu, H.Z.; Ye, X.H.; Fang, Q.; Zhou, H.X.; Ye, G.Y. An endoparasitoid uses its egg surface proteins to regulate its host immune response. Insect Sci. 2022, 29, 1030–1046. [Google Scholar] [CrossRef]
  9. Burke, B.; Roux, K.J. Nuclei take a position: Managing nuclear location. Dev. Cell 2009, 17, 587–597. [Google Scholar] [CrossRef] [PubMed]
  10. Kuwana, T.; Newmeyer, D.D. Bcl-2-family proteins and the role of mitochondria in apoptosis. Curr. Opin. Cell Biol. 2003, 15, 691–699. [Google Scholar] [CrossRef] [PubMed]
  11. Cheng, X.; Chang, C.; Dai, S.M. Responses of striped stem borer, Chilo suppressalis (Lepidoptera: Pyralidae), from Taiwan to a range of insecticides. Pest. Manag. Sci. 2010, 66, 762–766. [Google Scholar] [CrossRef]
  12. Lu, Z.; Zhu, P.; Gurr, G.M.; Zheng, X.; Chen, G.; Heong, K.L. Rice Pest Management by Ecological Engineering: A Pioneering Attempt in China. In Rice Planthoppers: Ecology, Management, Socio Economics and Policy; Springer: Dordrecht, The Netherlands, 2014; pp. 161–178. [Google Scholar]
  13. Pan, D.D.; Liu, Z.X.; Lu, M.X.; Cao, S.S.; Yan, W.F.; Du, Y.Z. Species and occurrence dynamics of parasitic wasps of the rice stem borer, Chilo suppressalis (Walker) (Lepidoptera: Pyralidae) in Yangzhou. J. Enviro. Entomol. 2016, 38, 1106–1113. [Google Scholar]
  14. Sinclair, B.J.; Alvarado, L.E.C.; Ferguson, L.V. An invitation to measure insect cold tolerance: Methods, approaches, and workflow. J. Therm. Biol. 2015, 53, 180–197. [Google Scholar] [CrossRef]
  15. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome. Biol. 2010, 11, R106. [Google Scholar] [CrossRef]
  16. Banani, H.; Marcet-Houben, M.; Ballester, A.R.; Abbruscato, P.; González-Candelas, L.; Gabaldón, T.; Spadaro, D. Genome sequencing and secondary metabolism of the postharvest pathogen Penicillium griseofulvum. BMC Genom. 2016, 1, 19. [Google Scholar] [CrossRef]
  17. Li, Z.L.; Pan, D.D.; Lu, M.X.; Du, Y.Z. Identification of qRT-PCR reference genes for Chilo suppressalis (Walker) during parasitism by Cotesia chilonis (Matsumura). J. Asia. Pac. Entomol. 2020, 23, 107–112. [Google Scholar] [CrossRef]
  18. Ma, W.; Zhao, X.; Yin, C.; Jiang, F.; Du, X.; Chen, T.; Zhang, Q.; Qiu, L.; Xu, H.; Hull, J.J.; et al. A chromosome-level genome assembly reveals the genetic basis of cold tolerance in a notorious rice insect pest, Chilo suppressalis. Mol. Ecol. Resour. 2020, 20, 268–282. [Google Scholar] [CrossRef] [PubMed]
  19. Overgaard, J.; MacMillan, H.A. The integrative physiology of insect chill tolerance. Annu. Rev. Physiol. 2017, 79, 187–208. [Google Scholar] [CrossRef] [PubMed]
  20. Lee, R.E.; Elnitsky, M.A.; Rinehart, J.P.; Hayward, S.A.L.; Sandro, L.H.; Denlinger, D.L. Rapid cold-hardening increases the freezing tolerance of the Antarctic midge Belgica antarctica. J. Exp. Biol. 2006, 209, 399–406. [Google Scholar] [CrossRef] [PubMed]
  21. Kawarasaki, Y.; Teets, N.M.; Denlinger, D.L.; Lee, R.E. The protective effect of rapid cold-hardening develops more quickly in frozen versus supercooled larvae of the Antarctic midge, Belgica antarctica. J. Exp. Biol. 2013, 216, 3937–3945. [Google Scholar] [CrossRef]
  22. Duman, J.G. Antifreeze and ice nucleator proteins in terrestrial arthropods. Annu. Rev. Physiol. 2001, 63, 327–335. [Google Scholar] [CrossRef] [PubMed]
  23. Sinclair, B.J.; Vernon, P.; Klok, C.J.; Chown, S.L. Insects at low temperatures: An ecological perspective. Trends Ecol. Evol. 2003, 18, 257–262. [Google Scholar] [CrossRef]
  24. Cooper, B.S.; Hammad, L.A.; Fisher, N.P.; Karty, J.A.; Montooth, K.L. In a variable thermal environment selection favors greater plasticity of cell membranes in Drosophila melanogaster. Evolution 2012, 66, 1976–1984. [Google Scholar] [CrossRef]
  25. Zeng, B.; Wang, S.; Li, Y.; Xiao, Z.; Zhou, M.; Wang, S.; Zhang, D.; Gao, Y. Effect of long-term cold storage on trehalose metabolism of pre-wintering Harmonia axyridis adults and changes in morphological diversity before and after wintering. PLoS ONE 2020, 15, e0230435. [Google Scholar] [CrossRef]
  26. Feder, M.E.; Hofmann, G.E. Heat-shock proteins, molecular chaperones, and the stress response: Evolutionary and ecological physiology. Annu. Rev. Physiol. 1999, 61, 243–282. [Google Scholar] [CrossRef]
  27. Sørensen, J.G.; Kristensen, T.N.; Loeschcke, V. The evolutionary and ecological role of heat shock proteins. Ecol. Lett. 2003, 6, 1025–1037. [Google Scholar] [CrossRef]
  28. Wang, L.; Shan, D.; Zhang, Y.; Liu, X.; Sun, Y.; Zhang, Z.; Fang, J. Effects of high temperature on life history traits and heat shock protein expression in chlorpyrifos-resistant Laodelphax striatella. Pestic. Biochem. Phys. 2017, 136, 64–69. [Google Scholar] [CrossRef]
  29. Liberek, K.; Lewandowska, A.; Ziętkiewicz, S. Chaperones in control of protein disaggregation. Embo. J. 2008, 27, 328–335. [Google Scholar] [CrossRef]
  30. Żwirowski, S.; Kłosowska, A.; Obuchowski, I.; Nillegoda, N.B.; Piróg, A.; Ziętkiewicz, S.; Bukau, B.; Mogk, A.; Liberek, K. Hsp70 displaces small heat shock proteins from aggregates to initiate protein refolding. Embo. J. 2017, 36, 783–796. [Google Scholar] [CrossRef]
  31. Rogers, L.D.; Foster, L.J. The dynamic phagosomal proteome and the contribution of the endoplasmic reticulum. Proc. Natl. Acad. Sci. USA 2007, 104, 18520–18525. [Google Scholar] [CrossRef] [PubMed]
  32. Teng, Z.-W.; Xu, G.; Gan, S.-Y.; Chen, X.; Fang, Q.; Ye, G.-Y. Effects of the endoparasitoid Cotesia chilonis (Hymenoptera: Braconidae) parasitism, venom, and calyx fluid on cellular and humoral immunity of its host Chilo suppressalis (Lepidoptera: Crambidae) larvae. J. Insect Physiol. 2016, 85, 46–56. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, P.; Liu, Z.; Yu, D.; Xu, C.; Hu, Y.; Liang, Y.; Jin, J.; Li, M. Microplitis bicoloratus parasitism promotes cyclophilin D-p53 interaction to induce apoptosis of hemocytes in Spodoptera litura. Arch. Insect Biochem. 2022, 112, e21970. [Google Scholar] [CrossRef] [PubMed]
  34. Mekahli, D.; Bultynck, G.; Parys, J.B.; Smedt, H.D.; Missiaen, L. Endoplasmic-reticulum calcium depletion and disease. Cold Spring Harb. Perspect. Biol. 2011, 3, a004317. [Google Scholar] [CrossRef]
  35. Roest, G.; Hesemans, E.; Welkenhuyzen, K.; Luyten, T.; Engedal, N.; Bultynck, G.; Parys, J.B. The ER stress inducer l-Azetidine-2-Carboxylic acid elevates the levels of Phospho-eIF2α and of LC3-II in a Ca2+-dependent manner. Cells 2018, 7, 239. [Google Scholar] [CrossRef]
  36. Chakrabarti, A.; Chen, A.W.; Varner, J.D. A review of the mammalian unfolded protein response. Biotechnol. Bioeng. 2011, 108, 2777–2793. [Google Scholar] [CrossRef]
  37. Hetz, C. The unfolded protein response: Controlling cell fate decisions under ER stress and beyond. Nat. Rev. Mol. Cell Bio. 2012, 13, 89–102. [Google Scholar] [CrossRef]
  38. Nakamatsu, Y.; Fujii, S.; Tanaka, T. Larvae of an endoparasitoid, Cotesia kariyai (Hymenoptera: Braconidae), feed on the host fat body directly in the second stadium with the help of teratocytes. J. Insect Physiol. 2002, 48, 1041–1052. [Google Scholar] [CrossRef]
  39. Salvador, G.; Cônsoli, F.L. Changes in the hemolymph and fat body metabolites of Diatraea saccharalis (Fabricius) (Lepidoptera: Crambidae) parasitized by Cotesia flavipes (Cameron) (Hymenoptera: Braconidae). Biol. Control 2008, 45, 103–110. [Google Scholar] [CrossRef]
  40. Behroozia, E.; Izadia, H.; Samiha, M.A.; Moharamipour, S. Physiological strategy in overwintering larvae of pistachio white leaf borer, Ocneria terebinthina Strg. (Lepidoptera: Lymantriidae) in Rafsanjan, Iran, Ital. J. Zool. 2012, 79, 44–49. [Google Scholar]
  41. Bemani, M.; Izadi, H.; Mahdian, K.; Khani, A.; Samih, M.A. Study on the physiology of diapause, cold hardiness and supercooling point of overwintering pupae of the pistachio fruit hull borer, Arimania comaroffi. J. Insect Physiol. 2012, 58, 897–902. [Google Scholar] [CrossRef]

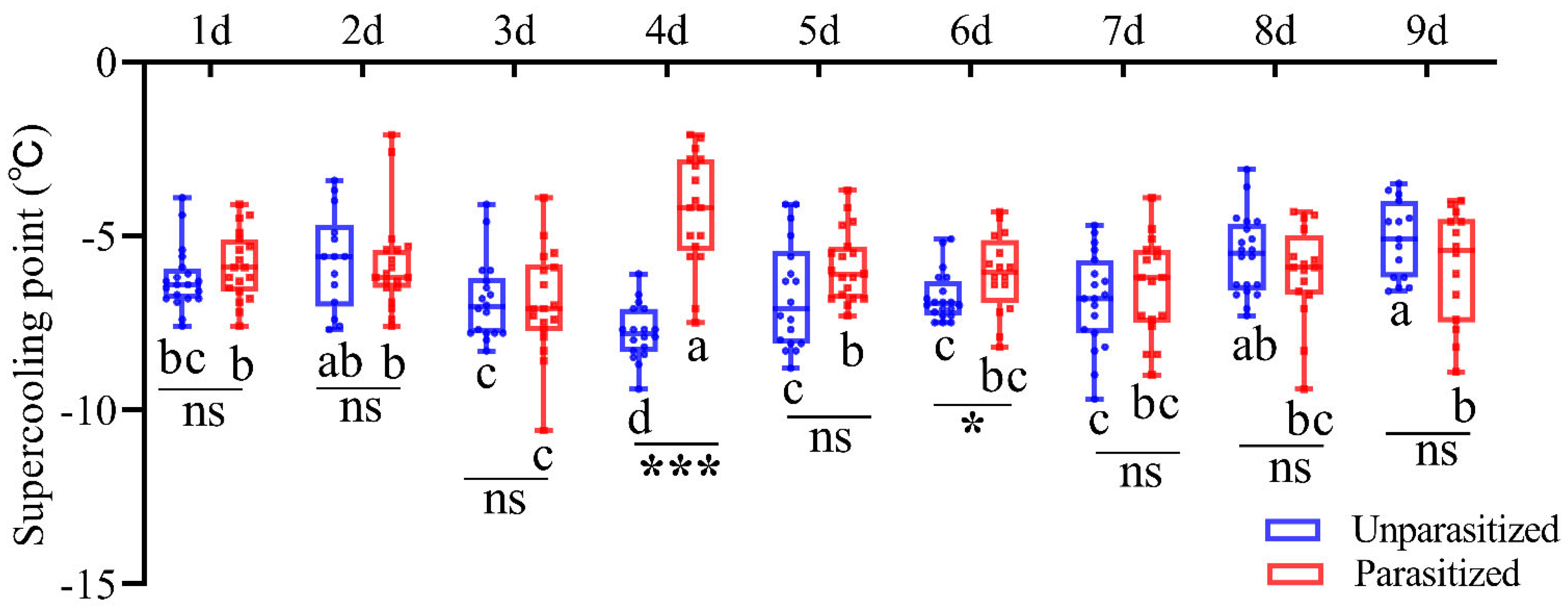

Figure 1. Determination of the supercooling points of Chilo suppressalis either unparasitized (blue boxes) or parasitized (red boxes) by Cotesia chilonis. Means marked with the same letter are not significantly different (Duncan’s multiple comparison test: p > 0.05). Asterisks indicate significant differences between temperatures (t-tests: * 0.01 < p < 0.05, *** p < 0.001), and ns (p ≥ 0.05).
Figure 1. Determination of the supercooling points of Chilo suppressalis either unparasitized (blue boxes) or parasitized (red boxes) by Cotesia chilonis. Means marked with the same letter are not significantly different (Duncan’s multiple comparison test: p > 0.05). Asterisks indicate significant differences between temperatures (t-tests: * 0.01 < p < 0.05, *** p < 0.001), and ns (p ≥ 0.05).
Insects 16 00907 g001

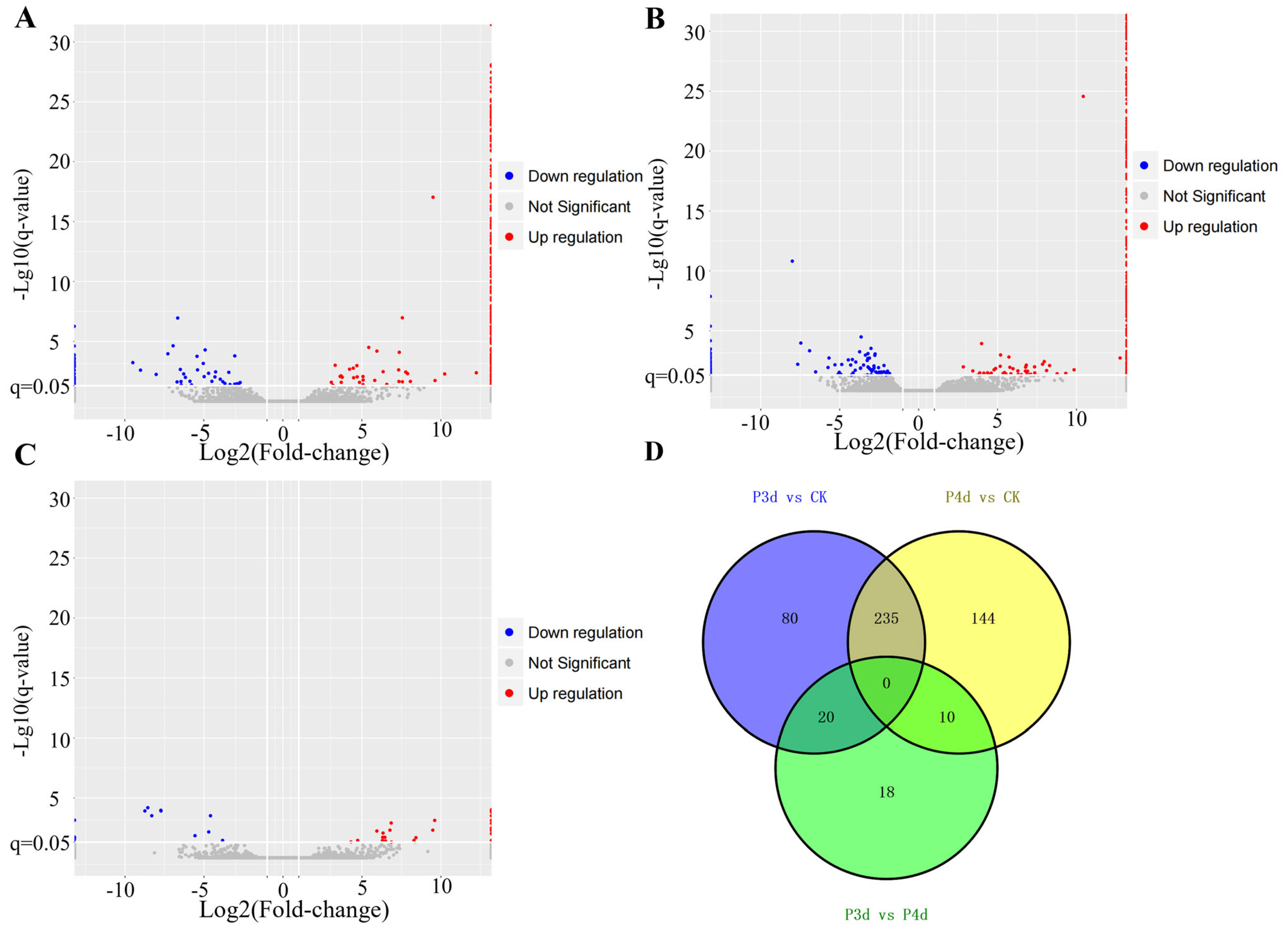

Figure 2. Differentially expressed genes (DEGs) in Chilo suppressalis transcriptomes. Volcano plots of (A) P3d vs. CK, (B) P4d vs. CK, (C) P4d vs. P3d, and Venn diagram of (D).
Figure 2. Differentially expressed genes (DEGs) in Chilo suppressalis transcriptomes. Volcano plots of (A) P3d vs. CK, (B) P4d vs. CK, (C) P4d vs. P3d, and Venn diagram of (D).
Insects 16 00907 g002

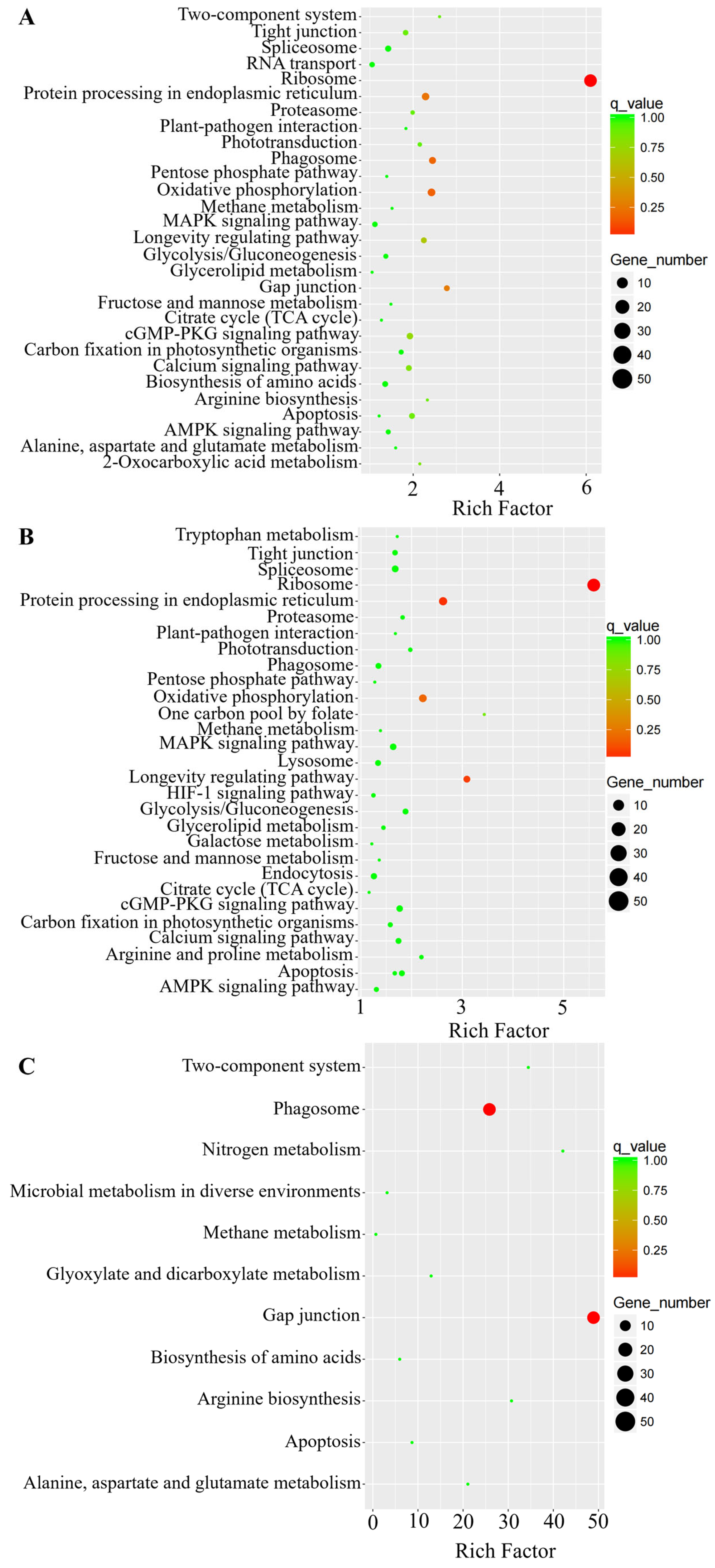

Figure 3. The 30 most enriched KEGG pathways among DEGs. The x-axis represents the level of Rich factor, and y-axis represents the type of pathway. Dot size represents the number of DEGs, and colors indicate corrected p-values. (A) P3d vs. CK, (B) P4d vs. CK, and (C) P4d vs. P3d.
Figure 3. The 30 most enriched KEGG pathways among DEGs. The x-axis represents the level of Rich factor, and y-axis represents the type of pathway. Dot size represents the number of DEGs, and colors indicate corrected p-values. (A) P3d vs. CK, (B) P4d vs. CK, and (C) P4d vs. P3d.
Insects 16 00907 g003

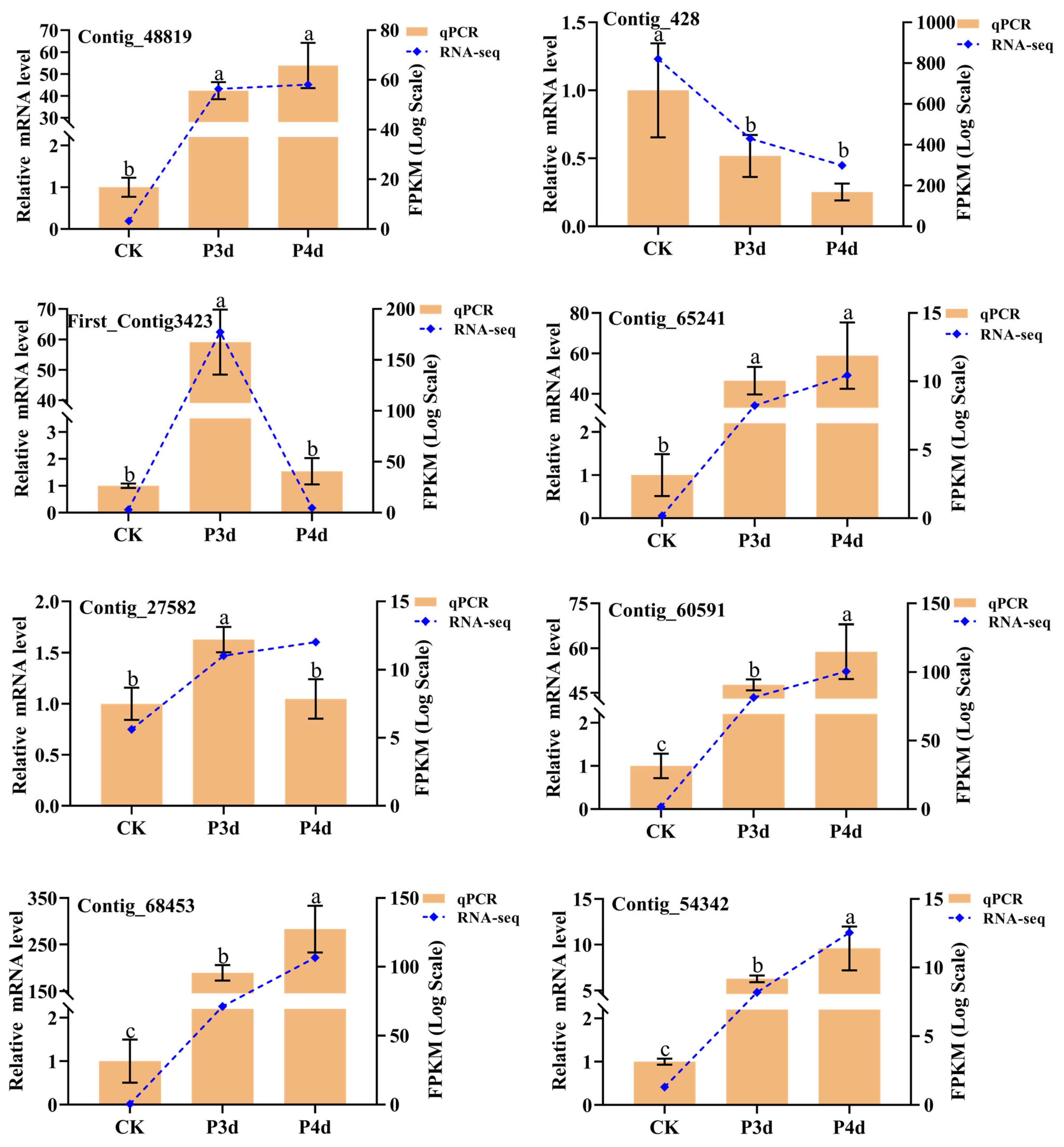

Figure 4. Validation of gene expression by RT-qPCR of selected genes. Different lowercase letters indicate significant differences among treatments (p < 0.05). Orange bars indicate the relative expression level (y-axis on left), and the blue lines represent the FPKM values (y-axis on right).
Figure 4. Validation of gene expression by RT-qPCR of selected genes. Different lowercase letters indicate significant differences among treatments (p < 0.05). Orange bars indicate the relative expression level (y-axis on left), and the blue lines represent the FPKM values (y-axis on right).
Insects 16 00907 g004

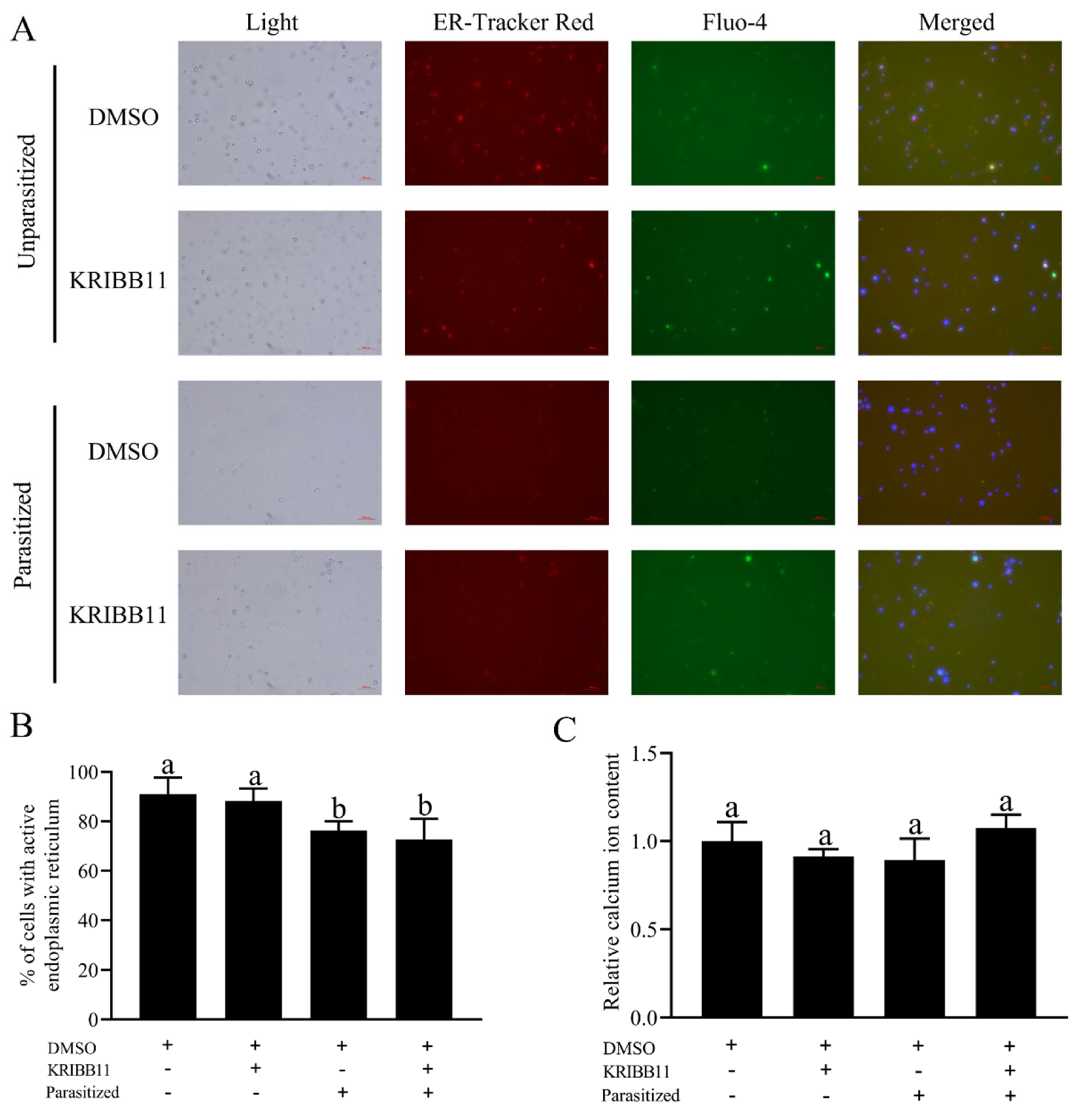

Figure 5. Effect of parasitic stress on endoplasmic reticulum activity and Ca2+ concentration in hemolymph cells of Chilo suppressalis. (A) Representative fluorescence images from each group. (B) Percentage of cells with active endoplasmic reticulum. (C) Relative Ca2+ concentration. Different lowercase letters indicate significant differences among treatments (p < 0.05).
Figure 5. Effect of parasitic stress on endoplasmic reticulum activity and Ca2+ concentration in hemolymph cells of Chilo suppressalis. (A) Representative fluorescence images from each group. (B) Percentage of cells with active endoplasmic reticulum. (C) Relative Ca2+ concentration. Different lowercase letters indicate significant differences among treatments (p < 0.05).
Insects 16 00907 g005
Table 1. Quality control results of sequence data.
Table 1. Quality control results of sequence data.
Sample IDRaw ReadsClean ReadsMapped ReadsClean/Raw (%)Mapping Ratio (%)GC Content (%)Q20 Percentage (%)
CK-139,298,08037,947,75029,348,81296.5677.38%4596.5
CK-240,288,97438,875,52924,922,40296.4964.15%4396.38
CK-338,032,52636,554,30527,541,20496.1175.39%4696.39
P3d-140,815,77639,096,63525,993,33995.7966.56%4497.47
P3d-240,568,98239,148,39529,423,48196.5075.24%4597.5
P3d-341,113,49239,735,61024,592,43896.6561.93%4297.61
P4d-135,184,07034,032,41821,634,57096.7363.61%4397.72
P4d-238,969,53237,868,90727,525,10497.1872.73%4497.72
P4d-336,991,34836,000,19122,920,86897.3263.70%4397.75
Table 2. Annotation information on temperature tolerance-associated genes in Chilo suppressalis.
Table 2. Annotation information on temperature tolerance-associated genes in Chilo suppressalis.
Internal IDP3d vs. CKP4d vs. CKP4d vs. P3dAnnotationBest Blast Hit Species
log2FCp Valuelog2FCp Valuelog2FCp Value
Up-regulated gene
contig_6725281.841.38 × 10−1699.141.19 × 10−150.287.16 × 10−1Heat shock protein 90Lacanobia wlatinum
contig_53467294.182.45 × 10−26505.654.38 × 10−330.781.99 × 10−1Heat shock protein 70Melitaea cinxia
contig_62749280.069.52 × 10−28480.183.18 × 10−320.782.05 × 10−1Heat shock protein 70Cataclysta lemnata
contig_45562103.131.56 × 10−27175.891.24 × 10−340.772.07 × 10−1Heat shock protein 70Globia sparganii
contig_665972.327.42 × 10−315.022.51 × 10−92.701.83 × 10−3Heat shock protein 70Globia sparganii
contig_6671131.828.47 × 10−768.102.91 × 10−111.102.82 × 10−1Heat shock protein 70Cotesia rubecula
contig_486681.955.40 × 10−310.023.16 × 10−82.369.82 × 10−3Heat shock protein 70Galleria mellonella
contig_5349643.341.87 × 10−1785.322.12 × 10−250.981.23 × 10−1Hsc70-3 proteinGalleria mellonella
contig_6059164.804.19 × 10−1680.533.13 × 10−180.316.50 × 10−1Activating transcription factor of chaperoneDiatraea saccharalis
contig_4656764.613.46 × 10−17132.349.84 × 10−261.037.89 × 10−2Cathepsin L ProteinFopius arisanus
contig_5368618.691.17 × 10−629.052.42 × 10−90.644.22 × 10−1ActinScoparia ambigua
contig_6221225.377.96 × 10−927.032.48 × 10−110.098.76 × 10−1Translocator proteinMelipona quadrifasciata
contig_4460324.513.57 × 10−1135.708.64 × 10−140.544.32 × 10−1AlphaTub84BDrosophila yakuba
contig_652415.578.07 × 10−310.447.57 × 10−60.914.45 × 10−1Apoptosis-inducing factor 1Microplitis demolitor
contig_711964.691.98 × 10−310.235.52 × 10−61.122.37 × 10−1Sterile 20-like proteinMicroplitis demolitor
contig_6845351.242.28 × 10−9119.921.59 × 10−221.231.37 × 10−1CalreticulinHelicoverpa zea
contig_4881935.713.23 × 10−950.131.83 × 10−150.495.73 × 10−1CalmodulinCyphomyrmex costatus
contig_692749.502.80 × 10−511.234.80 × 10−60.247.87 × 10−1Calcium-transporting ATPaseHelicoverpa zea
contig_591314.978.38 × 10−58.012.31 × 10−60.694.64 × 10−1Calcium-transporting ATPaseNasonia vitripennis
contig_6088−9.011.23 × 10−50.607.05 × 10−19.602.03 × 10−7Alpha-tubulinOstrinia furnacalis
contig_543426.861.47 × 10−69.863.12 × 10−80.525.20 × 10−1Calcium-transporting ATPase sarcoplasmic/
Down-regulated gene
contig_428−1.066.46 × 10−2−1.991.71 × 10−4−0.921.38 × 10−1Heat shock protein 21.3Chilo suppressalis
contig_275824.865.74 × 10−24.602.51 × 10−4−0.258.86 × 10−1Heat shock protein 20Bicyclus anynana
First_Contig34234.684.86 × 10−6−0.029.54 × 10−1−4.703.60 × 10−6Cuticle proteinAmyelois transitella
