Morphological and Molecular Investigation of Non-Simulium damnosum Black Flies in Cameroon Using Nuclear ITS 2 and Mitochondrial Cox 1 Genes

by
Pierre Kamtsap
1,2,*,
Archile Paguem
2,3,
Flore Nguemaïm Ngoufo
4 and
Alfons Renz
1,2
1
Institute for Evolution and Ecology, Department of Comparative Zoology, University of Tübingen, Auf der Morgenstelle 28, 72076 Tübingen, Germany
2
Onchocerciasis Program Field Station of the University of Tübingen, Ngaoundéré, Cameroon
3
Faculty of Agriculture and Veterinary Medicine, Department Veterinary Medicine, University of Buea, Buea P.O. Box 63, South West, Cameroon
4
Faculty of Health Sciences, University of Bamenda, Bambili Po. Box 39, Cameroon
*
Author to whom correspondence should be addressed.
Insects 2025, 16(6), 572; https://doi.org/10.3390/insects16060572
Submission received: 31 December 2024 / Revised: 17 February 2025 / Accepted: 28 February 2025 / Published: 28 May 2025
(This article belongs to the Section Medical and Livestock Entomology)

Simple Summary

Using morphological and molecular techniques, we investigated the biodiversity of black flies in Cameroon, with a special emphasis on non-Simulium-damnosum species. After gathering 1184 pupae from 13 different locations, we used gill morphology and DNA sequencing (Cox1 and ITS2 genes) to identify 19 species. The first identification of 2 undescribed (based on identification keys we used) Simulium species in Cameroon and the validation of the known onchocerciasis vectors, Simulium vorax (first time to be described in Cameroon) and Simulium dentulosum, are important discoveries. For reference, DNA sequences were uploaded to GenBank. This study emphasizes the advantages of molecular approaches in revealing the diversity of cryptic species and the drawbacks of conventional morphological techniques. The most widely dispersed species was found to be Simulium cervicornutum, while species such as S. alcocki and S. kenyae showed restricted distributions. This study highlights the possibility that, in the right circumstances, non-damnosum species could spread illness, urging increased molecular analysis and vector surveillance in Cameroon. To improve vector control techniques and obtain a deeper understanding of species-specific roles in pathogen transmission, future research should integrate whole-genome sequencing and more comprehensive ecological and taxonomy studies.

Abstract

Background: This study enhances knowledge of black fly biodiversity in Cameroon by integrating morphological and molecular analyses. A total of 19 Simulium species were identified from 1184 pupae collected across 13 sites, using morphological examination of gills and DNA sequencing of Cox1 and ITS2 markers. Key findings include the first report of 2 not yet described (based on identification keys used) species in Cameroon and confirmation of S. vorax and S. dentulosum as known vectors of onchocerciasis. DNA sequences have been deposited in GenBank for reference. Methods: Combining morphological and molecular approaches revealed more species diversity than previously described, showing the potential of molecular techniques in black fly study. Notably, the presence of species not typically associated with human-biting behavior (e.g., S. cervicornutum) raises the possibility that such flies could act as vectors under favorable conditions. Conclusion: This study underscores the importance of identifying Simulium species for understanding their role in pathogen transmission. The results provide a foundation for further research on undescribed Simulium species and their potential vectorial capacities. Future studies should explore the ecological and behavioral factors influencing vector status, especially in the context of environmental changes. By bridging morphology and DNA analysis, this research advances the study of black flies and sets the stage for improved vector monitoring and disease control in Cameroon and beyond.

1. Introduction

Despite the importance of black flies in the transmission of various parasites, few studies have been carried out concerning the general diversity and identification (on the molecular level) of black flies in Cameroon. Larvae and pupae are widespread in fast-flowing water of rivers and tributaries [1,2]. Some adult females are bloodsucking, their life cycle includes feeding on vertebrates, e.g., wild and domestic animals and humans, as blood-hosts [3,4]. Thereby, black flies transmit important pathogens such as Onchocerca volvulus and O. ochengi, causative agents of human onchocerciasis (river blindness) and bovine onchocercosis [5,6], respectively, Leucocytozoon to birds in Asia and North America [7,8], and numerous other filarial parasites of wild and domestic animals (Onchocerca dukei, O. ramachandrini, O. lienalis, O. lupi, O. flexuosa, Lappnema sp.) [3,4,9,10,11,12].
Black flies (Diptera: Simuliidae) are present worldwide, there being 31 genera containing 2348 species (2331 living and 17 fossil species) [13]. In Africa, 124 black fly species have been described, mostly in the Ethiopian region in the 1950s [14]. In Cameroon, 55 species have been morphologically described (Table 1) [13] and only a few are as yet well classified [15]. Similarly, species diversity and identity on the molecular level in Cameroon remain insufficiently understood. Not only knowledge of the geographical characteristics and the geographical diversity of the members of the S. damnosum complex but also the determination of the differentiation scale and estimation of the distance between populations are necessary for any planned vector control.
In a previous study [16], we focused on the molecular diversity of members of the Simulium damnosum complex in Cameroon, which are the main local vectors of Onchocerca volvulus, O. ochengi, and O. ramachandrini. We now extend this study to the non-S. damnosum black flies, which constitute the majority of all species in this country.
A wide range of cytological and molecular markers have been used for population studies in Simuliidae [17,18]. These include chromosomal inversions [19], allozymes [20], and random amplified DNA polymorphisms (RAPD) [21]. Furthermore, the sequencing of mitochondrial Cytochrome oxidase 1 (Cox1) genes [22,23], nuclear genes (ITS), and microsatellite loci analyses [23] have been carried out.
The ITS2 region of nuclear ribosomal DNA is regarded as one of the candidate DNA barcodes because it possesses a number of valuable characteristics, such as the availability of conserved regions for designing universal primers, the ease of its amplification, and sufficient variability to distinguish even closely related species [24].
All the above-mentioned techniques have led to the conclusion that morphological classifications do not distinguish between many populations that should be recognized as true species (‘cytospecies’, etc.). An ideal barcode should be sufficiently variable to identify closely related species, while carefully identifying distantly related species. Indeed, a prediction has been made that, worldwide, more than 3000 black fly species are potentially undiscovered morpho species and sibling species [2].
Because of their impact on public and animal health, the correct identification of this insect group is of a fundamental importance in order to provide correct information on species distribution and biology so that targeted control measures can be correctly applied. However, standard methods for black fly species identification are mainly based on morphology, which typically requires expert knowledge, and sometimes the resolution can be poor because of the presence of hidden diversity [25,26,27].
In the present study, we used the morphological aspect of pupal gills and developed a molecular platform based on the ITS2 and the Cox1 in order to support the species identification of the poorly studied black fly fauna of Cameroon.

2. Materials and Methods

2.1. Source of Material and Morphological Identification

Substrates to which pupae were attached were collected by hand in Cameroon (Figure 1, Table 2) and included trailing vegetation, debris, stones, and refuse such as plastic and glass. Pupae which were attached to their substrate were immediately placed in boxes and covered with wet tissue. Pupae were removed from substrates, cleaned using a fine brush and forceps, and preserved in 70 to 96% ethanol.
Pupae were identified under a Wild M5 dissection and a Zeiss Axioplan compound microscope by using standard keys as described by Freeman and de Meillon and others (molecular aspect) [14,28,29]. Identified species were cleared in 10% potassium hydroxide (KOH) solution for about 24 h at room temperature. Gills were cut out carefully using fine needles and forceps, transferred on a clean slide containing a drop (approximately 50 μL) of polyvinyl lactophenol, and covered with a coverslip. All mounted slides were kept on a heat bloc (Omni lab Jürgens, Germany) set at 60 °C for approximately 24 h. Images were taken with an incorporated Canon EOS-650D camera.

2.2. DNA Extraction, PCR, and Sequencing

The Wizard Genomic DNA Purification Kit (Promega, Madison, WI, USA) [30] was used, as instructed by the manufacturer, to extract total genomic deoxyribonucleic acid (DNA) from the individual pupae that had been identified morphologically [28]. Gene amplification of the mitochondrial protein-coding gene CoxI, which is about 650 bp long, was performed by the Polymerase Chain Reaction (PCR) with the Lep primers: forward (5′-ATTCAACCAATCATAAAGATATTGG-3′) and reverse (5′-TAAACTTCTGGATGTCCAAAAAATCA-3′) [21], whereas ITS2, which is about 400 bp long, was identified by using forward (5′-TGTGAACTGCAGGACACAT-3′) and reverse (5′-ATGCTTAAATTTAGGGGGT-3′) primers [31,32]. All the PCRs were performed in a final volume of 25 µL comprising 2 µL genomic DNA, 5 µL Promega 5× DNAgo Buffer, 2 mM MgCl2, 0.25 mM each dNTPs, 50 pmol forward and reverse primers and 1 U Promega Taq Polymerase (Promega) [30]. Amplifications were performed in a Master Cycler (Eppendorf Master Cycler). For the Lep primers, PCR consisted of an initial denaturation (95 °C, 2 min), followed by 35 cycles of denaturation at 95 °C for 30 s, an annealing step at 51 °C for 30 s, an extension at 72 °C for 60 s, and then a final extension at 72 °C for 5 min [30]. For the ITS2, PCR consisted of an initial denaturation at 94 °C for 2 min, followed by 35 cycles of denaturation at 94 °C for 40 s, an annealing step at 51 °C for 60 s, extension at 72 °C for 60 s, and then a final extension at 72 °C, for 5 min [32]. The amplified amplicons were checked by electrophoresis on a 1.5% agarose gel. Finally, PCR products were sent to a commercial sequencing facility (Macrogen, Amsterdam, The Netherlands).

2.3. Sequence Analysis

All bi-directional sequences were combined to produce a single consensus sequence in Geneious Prime v. 2023.2.1. The alignment was performed with ClustalW with default parameters, and the neighbor-joining (NJ) analysis was undertaken using the K2P distance to represent species distribution patterns in the NJ tree. The robustness of the NJ tree was calculated using the bootstrap methodology employing 1000 as pseudoreplicates. All obtained sequences for Simuliidae from this study (GenBank accessions for ITS2: see Supplementary File S1) were chosen to encompass the range of Simuliidae species occurring in Cameroon based on morphology. The optimal tree with the sum of branch length is shown. The trees are drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The ME tree was searched using the Close Neighbor Interchange (CNI) algorithm at a search level of 1. The number of nucleotide sequences implicated in the analysis is indicated. Codon positions included were 1st + 2nd + 3rd + Non-coding. All ambiguous positions were removed for each sequence pair. The number of the total position in the final dataset is indicated. We analyzed the dataset in MEGA v.7 [33].

3. Results

3.1. Morphological Identification

Thirteen sample collection points (see Table 2 with collection sites, sample collector, and collection date; Supplementary File S2 with the number of each species per location and percentage of appearance of each species from a specific location) were included in this study. A total of 19 non-Simulium damnosum species were identified by morphology based on pupae respiratory gills including Simulium dentulosum type A (14 filaments per respiratory gill), dentulosum type B (16 filaments per respiratory gill), dentulosum type C (12 filaments per respiratory gill); Simulium adersi; Simulium alcocki; Simulium bovis; Simulium cervicornutum; Simulium medusaeforme f. Pomeroy; S. medusaeforme f. hargreavesi; Simulium hirsutum; Simulium katangae; Simulium kenyae; Simulium nigritarsis; Simulium ruficorne; Simulium schoutedeni; Simulium unicornutum; Simulium vorax; and 2 not yet described Simulium species based on the identification keys that we used (Simulium undescribed 1 and 2) see Figure 2a–s.
The heatmap (Figure 3) and the Supplementary File S2 reveal strong spatial patterns in species dominance and diversity, with S. cervicornutum emerging as the most widely distributed and numerically dominant species across multiple locations, including Mawong River, Menchum Falls, and around IRAD. Conversely, S. medusaeforme f. hargreavesi demonstrates extreme localization, dominating Soramboum (96.97%). Species like S. katangae and the undescribed species exhibit regional importance, particularly around IRAD and Menchum Falls. High-diversity areas such as Mawong River, despite being dominated by S. cervicornutum, host over 12 species. In contrast, sites like Karna Manga and Aladji Marafat show near-monospecific populations.

3.2. Molecular Identification

A total of 1184 non-Simulium black fly specimens were collected from 14 distinct geographic locations in the Ethiopian region, encompassing varied ecological zones. Genomic DNA was successfully extracted from and subjected to PCR amplification targeting the nuclear ITS2 region and the mitochondrial Cox1 gene.
Sequences were critically assessed for quality upon receipt from the sequencing facility. Only high-quality sequences with clear chromatograms were included in subsequent analyses. Despite genetic variation, individuals belonging to the same species consistently clustered together regardless of their ecological zone, as illustrated in Figure 4.
PCR amplification of the ITS2 region was successful, producing clear, single bands of approximately 400 bp, as visualized by agarose gel electrophoresis. The absence of non-specific products or primer-dimers confirmed the high quality of both the extracted DNA and the primers. Sanger sequencing of these amplicons yielded high-quality bidirectional chromatograms, with average scores exceeding 30 across both strands, ensuring reliable base calling. Sequence alignment revealed conserved regions with minimal variation, supporting the intra-species consistency of ITS2. BLASTn (Figure 4) analysis against GenBank showed >98% similarity to known non-Simulium black fly species, thereby confirming species identity. Notably, pairwise sequence divergence ranged from 1.2% to 4.8%, indicating the presence of distinct haplotypes and potential cryptic diversity. Geographic analysis suggested clustering of similar ITS2 sequences within specific regions, hinting at possible population structuring.
To assess broader genetic diversity and phylogeographic relationships, samples were sequenced for the Cox1 gene (~650 bp). A Neighbor-Joining phylogenetic tree based on Cox1 sequences (Figure 4b) resolved the samples into six well-supported clades with bootstrap values >70%. Reference sequences from GenBank aided in confirming the taxonomic identity of each clade. Sequences such as S. vorax (MT323206) and S. ruficorne (KY421710, unpublished) showed notable alignment, supporting the validity of the identified groupings.
Sequences generated in this study have been deposited in GenBank, with accession numbers provided in Supplementary S1.
Table 3 presents the estimation of Average Evolutionary Divergence over Sequence Pairs within Groups by ITS2 region. The ITS2 region analysis revealed varying levels of intra-species divergence among sampled Simulium species. Very low divergence values (≤0.005) were observed in S. ruficorne (0.002), S. undescribed 1 (0.003), S. hargreavesi (0.004), and S. alcocki (0.005), indicating high genetic similarity likely due to recent common ancestry or limited geographic separation. Moderate divergence was found in S. unicornutum (0.008) and S. dentulosum (0.024), suggesting modest genetic variation, with S. dentulosum possibly reflecting population sub-structuring or ecological adaptation. High divergence values (≥0.05) in S. cervicornutum (0.053) and S. katangae (0.063) point to significant genetic variability, potentially due to cryptic speciation, long-term isolation, or misclassification, warranting further study. S. nigritarsis exhibited zero divergence (0.000), indicating identical sequences across individuals, possibly from recent divergence or limited sampling. Divergence for the outgroup could not be calculated, which is expected and does not impact intra-species comparisons.
Table 4 represents the substitution matrix where each entry is the probability of substitution (r) from one base (row) to another base (column). Transitions (purine↔purine: A↔G; pyrimidine↔pyrimidine: C↔T) exhibit significantly higher substitution rates (15.5722) compared to transversions (purine↔pyrimidine: A↔T, A↔C, G↔T, G↔C), which have lower rates (4.7139). This pronounced transition bias, a common feature in molecular evolution, is due to biochemical constraints, as transitions involve simpler molecular changes between structurally similar bases and thus occur more frequently. The substitution matrix is symmetric, indicating that the rates of substitution are equal in both directions (e.g., A→G equals G→A), reflecting reversible mutation processes typical of models like Kimura 2-parameter (K2P) and General Time Reversible (GTR). The rates are relative and scaled so that the average substitution rate across all pairs equals one, with the highest rate (15.5722) being approximately 3.3 times greater than the lowest (4.7139), signifying that some substitutions are markedly more probable. This pattern, especially the elevated A↔G and C↔T rates, is characteristic of the ITS2 region, which, while moderately conserved, allows sufficient variability to reveal meaningful substitution trends. Such biases can influence phylogenetic tree topology and affect divergence time estimates, underscoring the importance of accurate substitution rate modeling. Maximum Likelihood Estimation ensures that the matrix best fits the sequence data, enhancing the reliability of phylogenetic inference, molecular clock calibration, and insights into evolutionary pressures acting on specific gene regions.

4. Discussion

The molecular analysis presented in Figure 4a confirms the species identity of non-Simulium damnosum specimens through ITS2-based Sanger sequencing. Clear and specific PCR amplification products, alongside high-quality sequence data, demonstrate successful differentiation of multiple non-Simulium damnosum taxa. These results support the utility of ITS2 as a reliable marker for species-level resolution within Diptera, particularly in Simuliidae and related groups.
Our findings align with previous studies that underscore the robustness of the ITS2 region in resolving species boundaries among hematophagous insects [34,35]. The distinct ITS2 sequence profiles observed suggest notable genetic diversity, potentially indicating cryptic species or substantial intraspecific variation—both critical considerations for accurate vector surveillance and ecological research.
Importantly, the analyzed samples originated from diverse geographic regions, and the sequence divergence observed corresponds with known patterns of geographical structuring in black fly populations [36,37]. This geographic differentiation likely reflects local adaptation or historical biogeographic separation and underscores the importance of integrating molecular tools into vector control initiatives.
The identification of non-Simulium damnosum species contributes significantly to understanding species composition in black fly communities, with direct implications for vectorial capacity and potential disease transmission. This is especially pertinent in areas where onchocerciasis transmission dynamics may be influenced by non-primary vectors, as recent evidence suggests [38,39].
Our application of both ITS2 and Cox1 molecular markers facilitated precise species identification, revealed intra- and inter-specific genetic diversity, and elucidated geographic variation among non-Simulium damnosum black flies. ITS2-based Sanger sequencing proved reliable for routine species confirmation, especially in field settings where morphological identification is complicated by cryptic species or degraded specimens. ITS2 sequences displayed minimal intraspecific variation, aligning with its conserved nature, yet provided high-confidence species confirmation via BLAST matching [34,35].
Conversely, the mitochondrial Cox1 gene—owing to its higher mutation rate—revealed significant haplotype diversity and geographic clustering (Figure 4b), offering insights into population structure and phylogeography. These patterns support previous work using Cox1 barcoding to differentiate black fly populations across regions [36,37]. The formation of geographically distinct clades suggests restricted gene flow due to environmental barriers, breeding site isolation, or host specificity. Understanding this population structuring is crucial, as it may influence vector competence, transmission dynamics, and response to control efforts. Notably, even non-primary vectors could contribute to disease transmission, particularly where zoonotic Onchocerca spp. have been detected in non-Simulium species [38].
Our findings complement and refine the classical morphological taxonomy established by Freeman and de Meillon for Simuliidae in Africa [39]. The molecular approaches utilized here provide enhanced resolution and accuracy in species identification, vital for epidemiological monitoring and biodiversity assessments. Additionally, Sanger sequencing remains a cost-effective and accessible method for field laboratories, enabling rapid and reliable surveillance, particularly in resource-limited settings.
In this study, we have, for the first time, undertaken a combined morphological and molecular analysis of non-Simulium damnosum black fly populations in Cameroon. Notably, 2 undescribed Simulium species were detected for the first time in Cameroon. The presence of such species in distinct locales suggests that ecological or environmental factors significantly influence their distribution. High species concentration in certain areas may guide conservation and surveillance efforts.
Ecological patterns also emerged: S. cervicornutum was found across multiple locations, indicating ecological adaptability. In contrast, species like S. medusaeforme f. Pomeroy and S. vorax were limited to specific environments (Aladji Marafat), suggesting niche specialization. Similarly, S. kenyae and S. alcocki were restricted to certain locations, implying highly specialized environmental preferences.
Furthermore, our molecular analysis revealed the presence of S. vorax in Mayo Djouroum near Galim, Adamaoua Region. This species clustered with a previously identified S. vorax specimen from the Kakoi–Koda focus in the Democratic Republic of Congo, where it has been implicated in onchocerciasis transmission [40]. This suggests that S. vorax in northern Cameroon may also play a role in transmission, possibly including novel or zoonotic Onchocerca spp.
Additionally, we present molecular data for three subspecies of S. dentulosum, which cluster closely together. This species was previously identified as a primary vector in Kakoi–Koda [40]. For the first time, such molecular data for the Cameroonian subspecies of S. dentulosum have been presented.
Historically, studies in Cameroon have focused on the S. damnosum complex as the sole vectors of onchocerciasis [16,41]. However, our results suggest that other blackfly species may also serve as potential vectors under favorable environmental conditions, emphasizing the need to broaden the scope of vector surveillance.
Lastly, our data also identified S. ruficorne, previously described in a phylogenetic study of Simulium on Réunion Island [42], underscoring the broader biogeographic connections and potential for species migration or introduction.

5. Conclusions

According to these data, some species (like S. cervicornutum and S. katangae) exhibit a large, extensive range, whereas others (like S. alcocki) are more location-specific. The diverse distributions of species and their concentration in particular regions imply that ecological elements, including competition, habitat type, and environmental circumstances, are important determinants of species success. To further understand the underlying reasons for these trends and to improve conservation initiatives, more ecological research would be helpful, including habitat surveys and environmental monitoring. Our study should help to provide useful methods or techniques for vector sibling identification and the spatial distribution of sub-Saharan and tropical elements. Nevertheless, other members of the Simulium, and not only the damnosum complex, need to be included, such as populations from other regions of Cameroon. In addition, analyses of the whole genome might help to improve the resolution of the relationships. Indeed, the application of identification to other African Simulium species with a similar geographical distribution might be useful for underlining Simuliid biogeography and evolution in Africa. The implementation of the suggested ideas and methods will aid the planning of undescribed Simulium species that could be implicated in the transmission of onchocerciasis and some unknown pathogens that could be transmitted by black flies. Most species in this study showed low to moderate intra-group divergence, supporting the utility of the ITS2 region for species identification and taxonomic resolution among non-Simulium damnosum black flies. The elevated divergence in S. katangae and S. cervicornutum suggests potential taxonomic complexity and the presence of cryptic species. These results provide valuable insights for phylogenetic analysis, species delimitation, and vector control strategies, where accurate identification is crucial.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/insects16060572/s1, Supplementary file S1: Sample details and GenBank accession numbers of individual species used for DNA sequence analysis; Supplementary file S2: species’ count and percentage distribution across locations; Supplementary file S3: Species used to align samples in this study using the ITS2 gene.

Author Contributions

Conceptualization, P.K.; methodology, P.K.; software, P.K. and A.P.; validation, P.K., A.P., F.N.N., and A.R.; formal analysis, P.K.; investigation, P.K. and A.P.; resources, P.K., F.N.N., and A.R.; data curation, P.K.; writing—original draft preparation, P.K.; writing—review and editing, P.K., A.P., F.N.N., and A.R.; project administration, A.R. and F.N.N.; funding acquisition, F.N.N. and A.R. All authors have read and agreed to the published version of the manuscript.

Funding

This study is supported by the Medical Research Council of the UK through the Global Challenges Research Fund and granted by the United Kingdom’s Official Development Assistance (ODA) through the Centre for Research in Infectious Diseases (CRID), Grant/Award Number MR/P027873/1. This study was partially supported by the DFG-COBE grant (DFG RE-1536/ff) and the Programme Onchocercoses laboratory in Ngaoundéré-Cameroon.

Data Availability Statement

Sequences were deposited in GenBank, and prepared slides are in the Institute for Evolution and Ecology, Department of Comparative Zoology, University of Tübingen, Germany.

Acknowledgments

We acknowledge David Ekale and Jeremi Yembo from the ProgOncho Laboratory in Ngaoundere Cameroon for their involvement in sample collections.

Conflicts of Interest

The authors have no conflicts of interest to declare that are relevant to the content of this article.

References

  1. Sankarappan, A.; Mani, K.; Sundaram, D.; Muthukalingan, K. Species diversity of black flies (Diptera: Simuliidae) in Oriental region and molecular phylogeny of the subgenus Gomphostilbia members. J. Vector Borne Dis. 2017, 54, 7. [Google Scholar]
  2. Currie, D.C.; Adler, P.H. Global diversity of black flies (Diptera: Simuliidae) in freshwater. Hydrobiologia 2008, 595, 469–475. [Google Scholar] [CrossRef]
  3. Wahl, G. Identification of a Common Filarial Larva in Simulium damnosum s.l. (Type D, Duke, 1967) as Onchocerca ramachandrini from the Wart Hog. J. Parasitol. 1996, 82, 520–524. [Google Scholar] [CrossRef]
  4. Bain, O.; Wahl, G.; Renz, A. Onchocerca ramachandrini n. sp. from the warthog in Cameroon. Ann. Parasitol. Hum. Comparée 1993, 68, 139–143. [Google Scholar] [CrossRef]
  5. Crosskey, R.W. The Natural History of Blackflies; Wiley: Chichester, UK, 1990; 711p. [Google Scholar]
  6. Wahl, G.; Achu-Kwi, M.D.; Mbah, O.; Renz, A. Bovine onchocercosis in North Cameroon. Vet. Parasitol. 1994, 52, 297–311. [Google Scholar] [CrossRef]
  7. Akiba, K. Leucocytozoonosis of chickens. Natl. Inst. Anim. Health Q. 1970, 10, 131–147. [Google Scholar]
  8. Li, G.; Lin, H.; Ong, Y.; Qiu, Z.; Jun, Z.; Zhong, C. Epidemiological surveys of Leucocytozoon caulleryi infection in chicks in Guangdong, Shandong and Fujian, China. Chin. J. Vet. Sci. Technol. 1998, 28, 17–19. [Google Scholar]
  9. Hassan, H.K.; Bolcen, S.; Kubofcik, J.; Nutman, T.B.; Eberhard, M.L.; Middleton, K.; Wekesa, J.W.; Ruedas, G.; Nelson, K.J.; Dubielzig, R.; et al. Isolation of Onchocerca lupi in Dogs and Black Flies, California, USA. Emerg. Infect. Dis. 2015, 21, 789–796. [Google Scholar] [CrossRef]
  10. Wahl, G.; Ekale, D.; Renz, A. The development of Onchocerca dukei and O. ochengi microfilariae to infective-stage larvae in Simulium damnosum s.l. and in members of the S. medusaeforme group, following intra-thoracic injection. Ann. Trop. Med. Parasitol. 1991, 85, 329–337. [Google Scholar] [CrossRef]
  11. Bain, O.; Renz, A. Infective larvae of a new species of Robertdollfusidae (Adenophorea, Nematoda) in the gut of Simulium damnosum in Cameroon. Ann. Parasitol. Hum. Comparée 1993, 68, 182–184. [Google Scholar] [CrossRef]
  12. Schulz-Key, H. Investigations on the filariae of cervids in southern Germany, 1, Nodule formation, sex determination and microfilariae release in Onchocerca flexuosa (Wedl, 1856) in red deer (Cervus elaphus). Trop. Med. Parasitol. 1975, 26, 60–69. [Google Scholar]
  13. Adler, P.H.; Crosskey, R.W. World Blackflies (Diptera: Simuliidae): A Comprehensive Revision of the Taxonomy and Geographical Inventory; Natural History Museum: London, UK, 2016. [Google Scholar]
  14. Freeman, P.; de Meillon, B. Simuliidae of the Ethiopian Region. Paul Freeman and Botha de Meillon. British Museum (Natural History), London, 1953. vii + 224 pp. Illus. £2 10s. Science 1954, 120, 178–179. [Google Scholar] [CrossRef]
  15. Fain, A.; Elsen, P. Notes on Simulies of Eastern Cameroon. J. Afr. Zool. Bot. 1973, 87, 34. [Google Scholar]
  16. Kamtsap, P.; Paguem, A.; Renz, A. Molecular Diversity in the Simulium damnosum complex (Diptera: Simuliidae) in Cameroon. Mitt. Dtsch. Ges. Allg. Angew. Ent. 2024, 23, 147–152. [Google Scholar]
  17. Đuknić, J.; Jovanović, V.M.; Popović, N.; Živić, I.; Raković, M.; Čerba, D.; Paunović, M. Phylogeography of Simulium Subgenus Wilhelmia (Diptera: Simuliidae). Insights From Balkan Populations. J. Med. Entomol. 2019, 56, 967–978. [Google Scholar] [CrossRef]
  18. McCreadie, J.W.; Adler, P.H. Scale, Time, Space, and Predictability: Species Distributions of Preimaginal Black Flies (Diptera: Simuliidae). Oecologia 1998, 114, 79–92. [Google Scholar] [CrossRef]
  19. Vajime, C.G.; Dunbar, R.W. Chromosomal identification of eight species of the subgenus Edwardsellum near and including Simulium (Edwardsellum) damnosum Theobald (Diptera: Simuliidae). Trop. Med. Parasitol. 1975, 26, 111–138. [Google Scholar]
  20. Thomson, M.C.; Renz, A.; Davies, J.B. A new PGM electromorph diagnostic for S. squamosum from Sierra Leone and Togo but not found in S. squamosum from Cameroun. Acta Leiden. 1990, 59, 303–305. [Google Scholar]
  21. Duncan, G.A.; Adler, P.H.; Pruess, K.P.; Powers, T.O. Molecular differentiation of two sibling species of the black fly Simulium vittatum (Diptera: Simuliidae) based on random amplified polymorphic DNA. Genome 2004, 47, 373–379. [Google Scholar] [CrossRef]
  22. Hajibabaei, M.; Janzen, D.H.; Burns, J.M.; Hallwachs, W.; Hebert, P.D. DNA barcodes distinguish species of tropical Lepidoptera. Proc. Natl. Acad. Sci. USA 2006, 103, 968–971. [Google Scholar] [CrossRef]
  23. Simard, F.; Lehmann, T.; Girod, R.; Brutus, L.; Gopaul, R.; Dournon, C.; Collins, F.H. High amounts of genetic differentiation between populations of the malaria vector Anopheles arabiensis from West Africa and eastern outer islands. Am. J. Trop. Med. Hyg. 1999, 60, 1000–1009. [Google Scholar] [CrossRef] [PubMed]
  24. Krueger, A.; Hennings, I.C. Molecular phylogenetics of blackflies of the Simulium damnosum complex and cytophylogenetic implications. Mol. Phylogenetics Evol. 2006, 39, 83–90. [Google Scholar] [CrossRef] [PubMed]
  25. Yao, H.; Song, J.; Liu, C.; Luo, K.; Han, J.; Li, Y.; Pang, X.; Xu, H.; Zhu, Y.; Xiao, P.; et al. Use of ITS2 Region as the Universal DNA Barcode for Plants and Animals. PLoS ONE 2010, 5, e13102. [Google Scholar] [CrossRef]
  26. Hernández-Triana, L.; Montes De Oca, F.; Prosser, S.W.J.; Hebert, P.D.N.; Gregory, T.R.; McMurtrie, S. DNA barcoding as an aid for species identification in Austral black flies (Insecta: Diptera: Simuliidae). Genome 2016, 60, 348–357. [Google Scholar] [CrossRef]
  27. Cywinska, A.; Hunter, F.F.; Hebert, P.D. Identifying Canadian mosquito species through DNA barcodes. Med. Vet. Entomol. 2006, 20, 413–424. [Google Scholar] [CrossRef]
  28. Hernández-Triana, L.M.; Chaverri, L.G.; Rodriguez-Perez, M.A.; Prosser, S.; Hebert, P.; Gregory, T.; Johnson, N. DNA barcoding of Neotropical black flies (Diptera: Simuliidae): Species identification and discovery of cryptic diversity in Mesoamerica. Zootaxa 2015, 3936, 93–114. [Google Scholar] [CrossRef]
  29. Ilmonen, J.; Adler, P.H.; Malmqvist, B.; Cywinska, A. The Simulium vernum group (Diptera: Simuliidae) in Europe: Multiple character sets for assessing species status. Zool. J. Linn. Soc. 2009, 156, 847–863. [Google Scholar] [CrossRef]
  30. Zwick, H.; Crosskey, R.W. The taxonomy and nomenclature of the blackflies (Diptera: Simuliidae) described by J.W. Meigen. Aquat. Insects 1980, 2, 225–247. [Google Scholar] [CrossRef]
  31. Kim, S.R.; Kim, K.Y.; Jeong, J.S.; Kim, M.J.; Kim, K.H.; Choi, K.H.; Kim, I. Population genetic characterization of the Japanese oak silkmoth, Antheraea yamamai (Lepidoptera: Saturniidae), using novel microsatellite markers and mitochondrial DNA gene sequences. Genet. Mol. Res. 2017, 16, 19. [Google Scholar] [CrossRef]
  32. Kononov, A.; Ustyantsev, K.; Wang, B.; Mastro, V.; Fet, V.; Blinov, A.; Baranchikov, Y. Genetic diversity among eight Dendrolimus species in Eurasia (Lepidoptera: Lasiocampidae) inferred from mitochondrial COI and COII, and nuclear ITS2 markers. BMC Genet. 2016, 17, 157. [Google Scholar] [CrossRef]
  33. Prakash, A.; Walton, C.; Bhattacharyya, D.R.; O’Loughlin, S.; Mohapatra, P.K.; Mahanta, J. Molecular characterization and species identification of the Anopheles dirus and An. minimus complexes in north-east India using r-DNA ITS-2. Acta Trop. 2006, 100, 156–161. [Google Scholar] [CrossRef] [PubMed]
  34. Thanwisai, A.; Kuvangkadilok, C.; Baimai, V. Molecular phylogeny of black flies (Diptera: Simuliidae) from Thailand, using ITS2 rDNA. Genetica 2006, 128, 177–204. [Google Scholar] [CrossRef]
  35. Krüger, A.; Strübing, F.; Hennings, I.; Garms, R. Molecular identification and phylogenetic analysis of black flies (Diptera: Simuliidae) from Uganda and Cameroon. Trop. Med. Int. Health 2006, 11, 1227–1234. [Google Scholar] [CrossRef]
  36. Post, R.J.; Crainey, J.L.; Ramirez, C.R.; Maia-Herzog, M.; Shelley, A.J. A preliminary investigation of mitochondrial DNA variation in the Simulium damnosum complex (Diptera: Simuliidae) in Cameroon. Med. Vet. Entomol. 2007, 21, 345–350. [Google Scholar] [CrossRef]
  37. Adler, P.H.; Cheke, R.A.; Post, R.J. Evolution, epidemiology, and population genetics of black flies (Diptera: Simuliidae). Infect. Genet. Evol. 2010, 10, 846–865. [Google Scholar] [CrossRef]
  38. Basáñez, M.G.; Walker, M.; Turner, H.C.; Coffeng, L.E.; de Vlas, S.J.; Stolk, W.A. River blindness: Mathematical models for control and elimination. Adv. Parasitol. 2021, 113, 33–126. [Google Scholar] [CrossRef]
  39. Inci, A.; Yildirim, A.; Duzlu, O.; Onder, Z.; Ciloglu, A.; Seitz, G.; Adler, P.H. Genetic Diversity and Identification of Palearctic Black Flies in the Subgenus Wilhelmia (Diptera: Simuliidae). J. Med. Entomol. 2017, 54, 888–894. [Google Scholar] [CrossRef]
  40. Post, R.J.; Laudisoit, A.; Dunbar, R.W.; Mandro, M.; Lakwo, T.; Laemmer, C.; Pfarr, K.; Hoerauf, A.; Tortosa, P.; Gomard, Y.; et al. Identification of the onchocerciasis vector in the Kakoi–Koda focus of the Democratic Republic of Congo: Implications for control. Parasit. Vectors 2022, 15, 26. [Google Scholar] [CrossRef]
  41. Mank, R.; Wilson, M.D.; Rubio, J.M.; Post, R.J. A molecular marker for the identification of Simulium squamosum (Diptera: Simuliidae). Ann. Trop. Med. Parasitol. 2004, 98, 197–208. [Google Scholar] [CrossRef]
  42. Phayuhasena, S.; Baimai, V.; Adler, P.H.; Pramual, P. Phylogenetic Relationships among the Black Fly Species (Diptera: Simuliidae) of Thailand Based on Multiple Gene Sequences. Genetica 2010, 138, 633–648. [Google Scholar] [CrossRef]

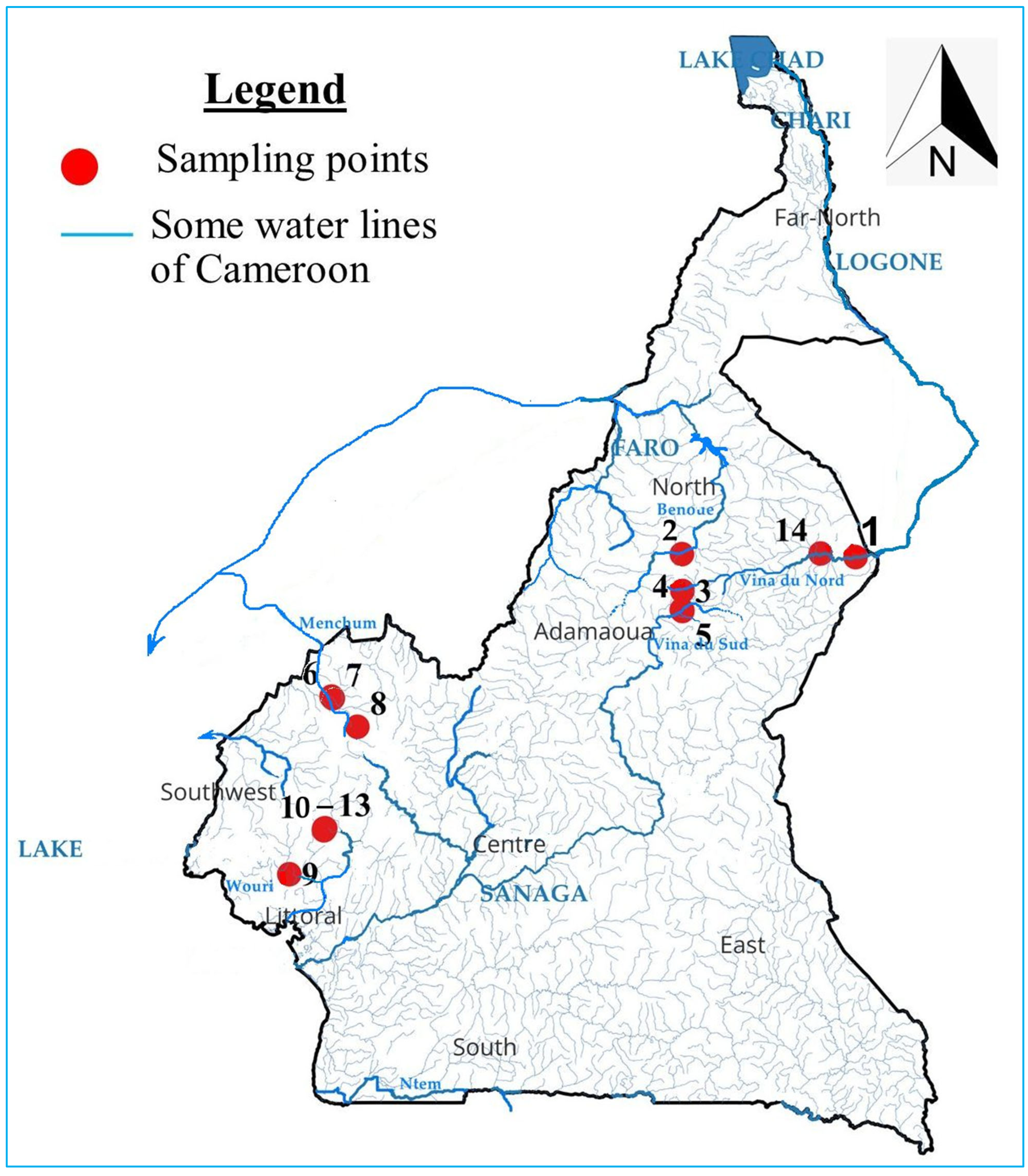

Figure 1. Map of Cameroon showing the localities where samples were collected in this study. Sample points are indicated by red dots with numbers from 1 to 13 (see Table 2 for geographical coordinates).
Figure 1. Map of Cameroon showing the localities where samples were collected in this study. Sample points are indicated by red dots with numbers from 1 to 13 (see Table 2 for geographical coordinates).
Insects 16 00572 g001
Figure 2. Respiratory gills of pupal stages: (a) Simulium adersi; (b) Simulium alcocki; (c) Simulium bovis; (d) Simulium cervicornutum; (e) Simulium dentulosum A; (f) Simulium dentulosum B; (g) Simulium dentulosum C; (h) Simulium medusaeforme f. Pomeroy; (i) S. medusaeforme forme hargreavesi (j) Simulium undescribed 1; (k) Simulium undescribed 2; (l) Simulium hirsutum; (m) Simulium katangae; (n) Simulium kenyae; (o) Simulium nigritarsis; (p) Simulium ruficorne; (q) Simulium schoutedeni; (r) Simulium unicornutum; (s) Simulium vorax. Scale- 1 mm.
Figure 2. Respiratory gills of pupal stages: (a) Simulium adersi; (b) Simulium alcocki; (c) Simulium bovis; (d) Simulium cervicornutum; (e) Simulium dentulosum A; (f) Simulium dentulosum B; (g) Simulium dentulosum C; (h) Simulium medusaeforme f. Pomeroy; (i) S. medusaeforme forme hargreavesi (j) Simulium undescribed 1; (k) Simulium undescribed 2; (l) Simulium hirsutum; (m) Simulium katangae; (n) Simulium kenyae; (o) Simulium nigritarsis; (p) Simulium ruficorne; (q) Simulium schoutedeni; (r) Simulium unicornutum; (s) Simulium vorax. Scale- 1 mm.
Insects 16 00572 g002aInsects 16 00572 g002bInsects 16 00572 g002cInsects 16 00572 g002dInsects 16 00572 g002eInsects 16 00572 g002fInsects 16 00572 g002gInsects 16 00572 g002hInsects 16 00572 g002i

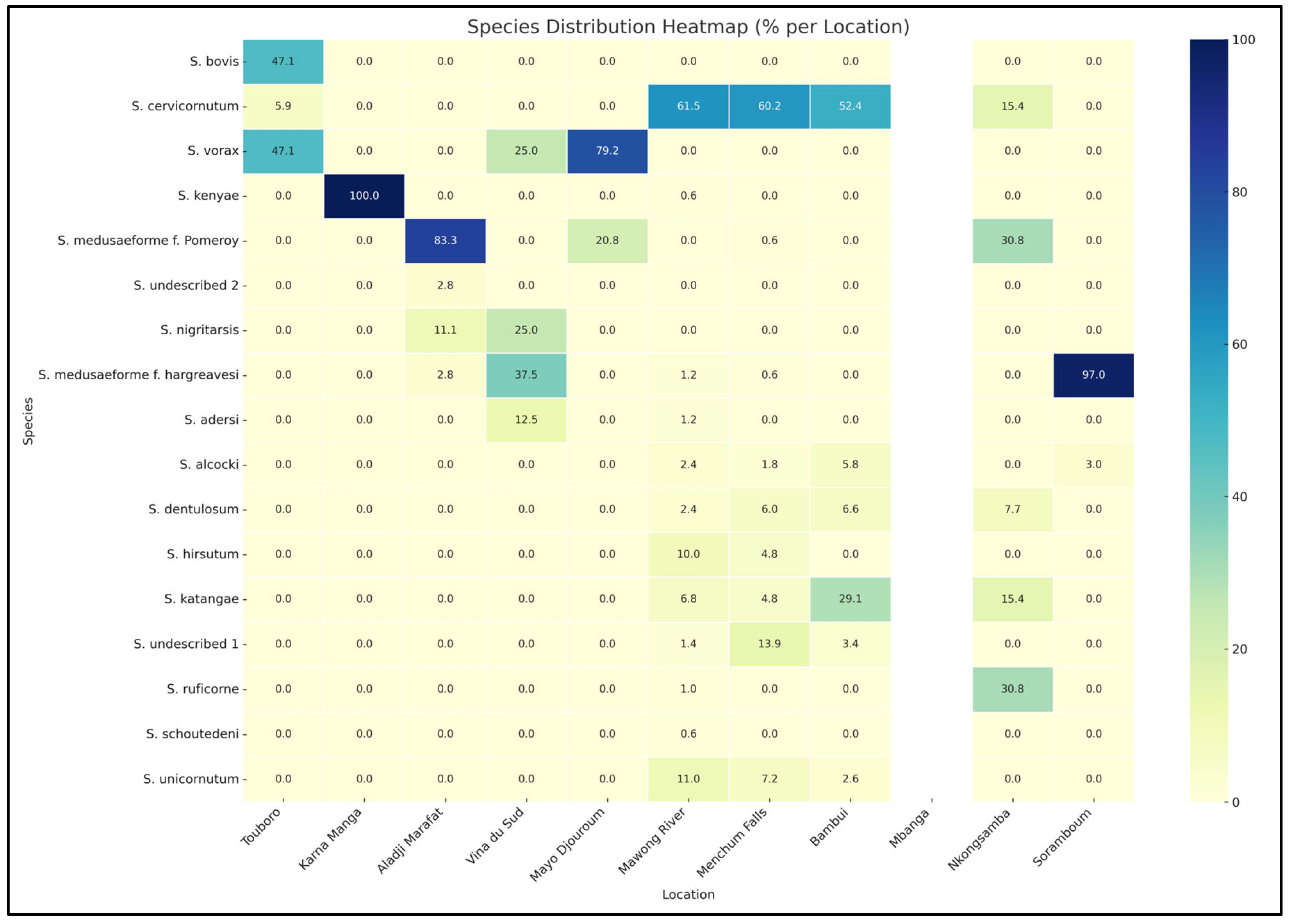

Figure 3. Heatmap showing the percentage distribution of non Simulium damnosum species across surveyed locations in Cameroon. Color intensity reflects relative abundance, with dominant species like S. cervicornutum and S. medusaeforme f. hargreavesi clearly concentrated in specific areas (e.g., Mawong River, Soramboum), while other species show localized or low-frequency patterns.
Figure 3. Heatmap showing the percentage distribution of non Simulium damnosum species across surveyed locations in Cameroon. Color intensity reflects relative abundance, with dominant species like S. cervicornutum and S. medusaeforme f. hargreavesi clearly concentrated in specific areas (e.g., Mawong River, Soramboum), while other species show localized or low-frequency patterns.
Insects 16 00572 g003

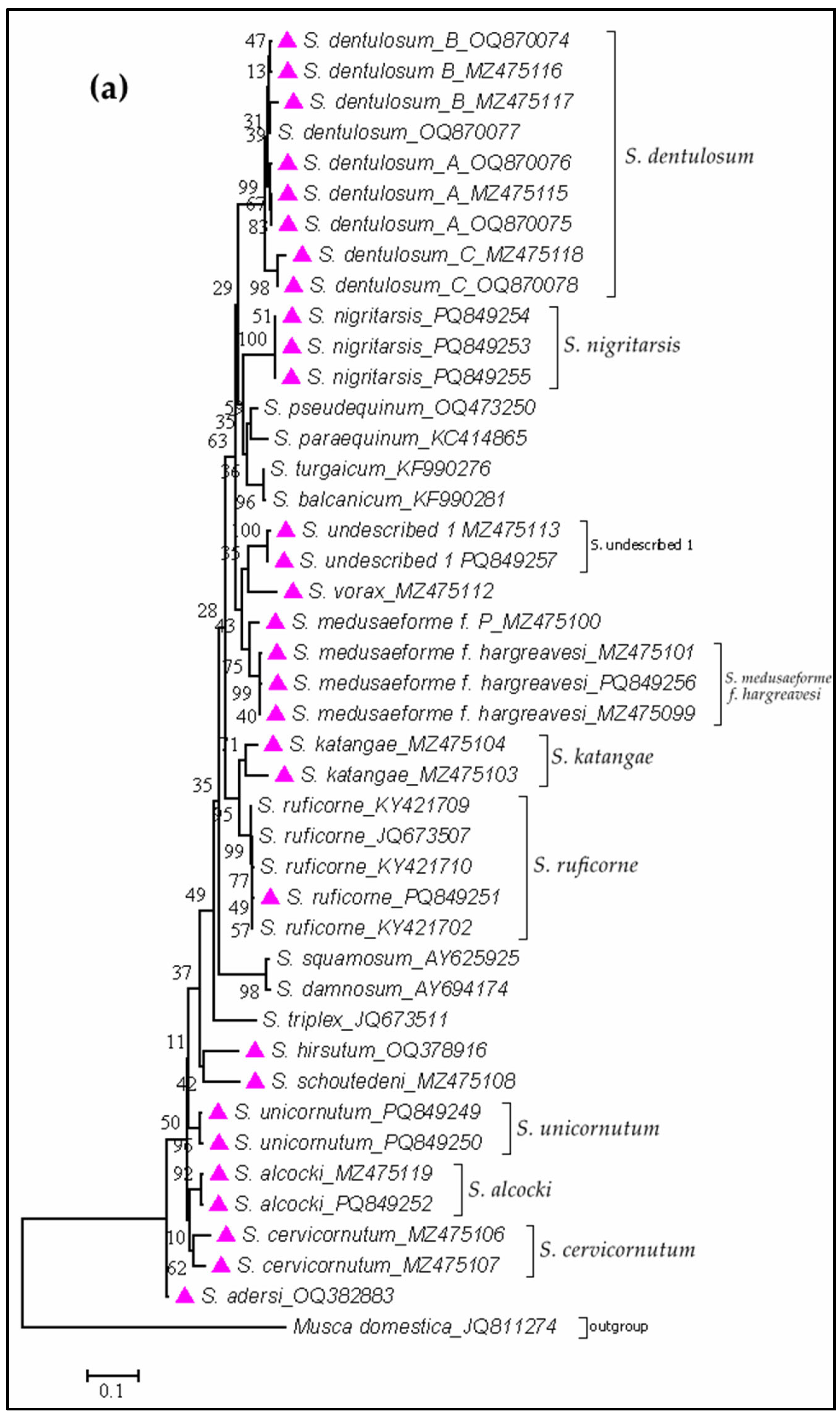

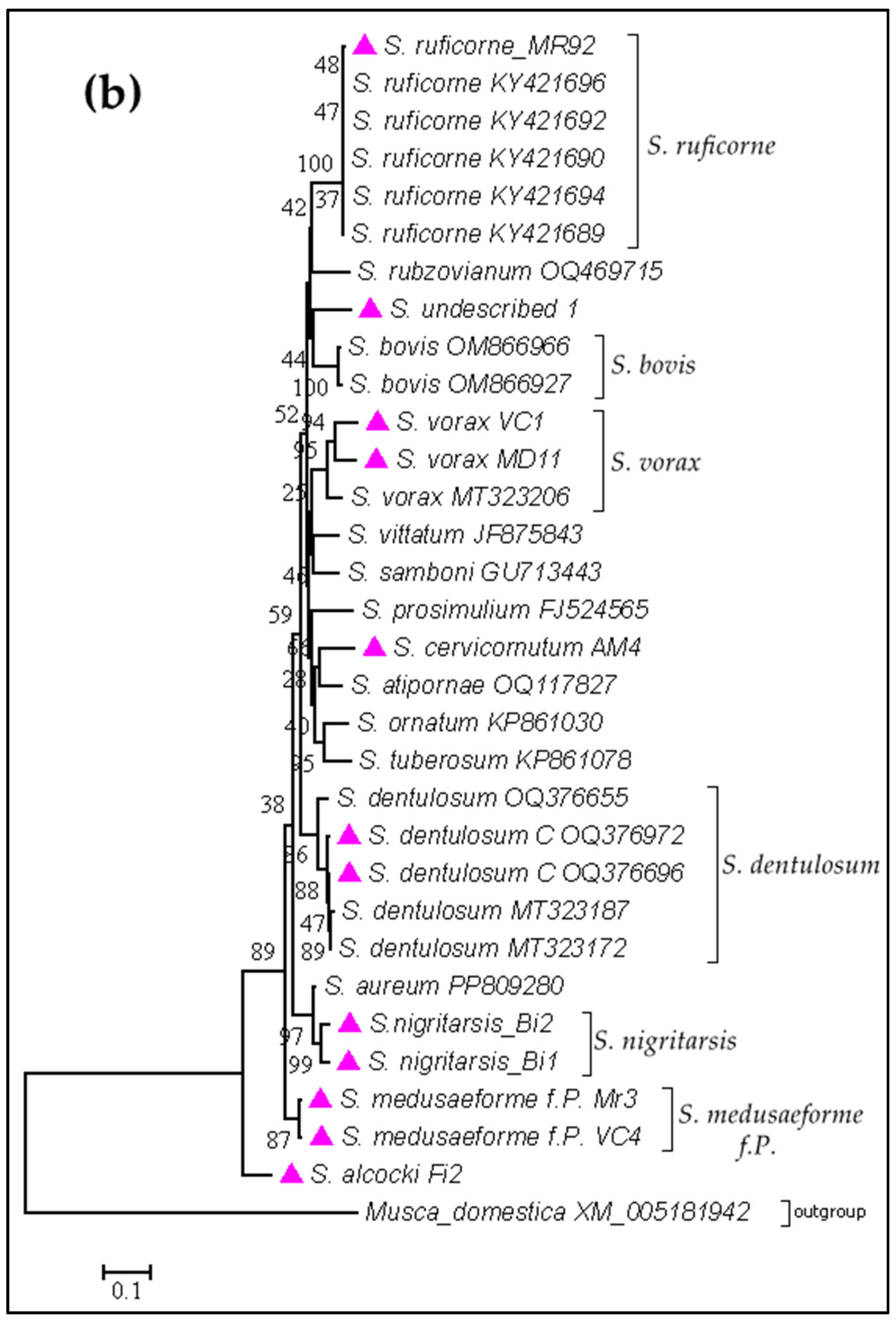

Figure 4. Molecular phylogenetic analysis by neighbor-joining method using ITS2 (a) and Cox1 (b). Species marked in purple/violet triangles are from this study and others are from the GenBank submitted by other authors (see Supplementary File S3 for references) and used in this analysis to align our findings. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree.
Figure 4. Molecular phylogenetic analysis by neighbor-joining method using ITS2 (a) and Cox1 (b). Species marked in purple/violet triangles are from this study and others are from the GenBank submitted by other authors (see Supplementary File S3 for references) and used in this analysis to align our findings. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree.
Insects 16 00572 g004aInsects 16 00572 g004b
Table 1. Comprehensive list of Simuliidae species described from Cameroon [13,15].
Table 1. Comprehensive list of Simuliidae species described from Cameroon [13,15].
SubgenusSpecies-GroupSpeciesAuthorsYears
BYSSODON EnderleinGriseicollegriseicolleBecker1903
ANASOLEN Enderlein dentulosumRoubaud1915
EDWARDSELLUM EnderleinDamnosumdamnosum complexTheobald1903
damnosum s. strDunbar and Vajime1981
mengenseVajime and Dunbar1979
sirbanumVajime and Dunbar1975
squamosum (complex)Enderlein1921
yahenseVajime and Dunbar1975
soubrenseAyissi et al. 2022
LEWISELLUM Crosskey atyophilumLewis and Disney1969
ovazzaeGrenier and Mouchet1959
MEILLONIELLUM Rubtsov adersiPomeroy1922
hirsutumPomeroy1922
METOMPHALUS EnderleinBovisbovisDe Meillon1930
eouzaniGermain and Grenier1970
wellmanniRoubaud1906
MedusaeformeakouenseFain and Elsen1973
colasbelcouriGrenier and Ovazza1951
crosskeyiLewis and Disney1970
futaenseGarms and Post1966
hargreavesiGibbins1934
medusaeforme s. str.Pomeroy1920
ngouenseFain and Elsen1973
tondewandouenseFain and Elsen1973
NEVERMANNIA EnderleinLoutetenseloutetenseGrenier and Ovazza1951
RuficorneantibrachiumFain and Dujardin1983
aureosimilePomeroy1920
ekomeiLewis and Disney1972
katangaeFain1951
nigritarseCoquillett1901
ruficorneMacquart1838
PHORETOMYIA Crosskey afronuriLewis and Disney1970
dukeiLewis, Disney, and Crosskey1969
berneriFreeman1954
kumboenseGrenier, Germain, and Mouchet1966
baetiphilumLewis and Disney1972
lumbwanumDe Meillon1944
rickenbachiGermain, Grenier, and Mouchet1966
POMEROYELLUM RubtsovAlcockialcockiPomeroy1922
coalitumPomeroy1922
djallonenseRoubaud and Grenier1943
duodecimumGibbins1936
vargasiGrenier and Rageau1949
garmsiCrosskey1969
hissetteumGibbins1936
impukaneDe Meillon1936
johannaeWanson1947
oguamaiLewis and Disney1972
CervicornutumcervicornutumPomeroy1920
leberreiGrenier, Germain, and Mouchet1966
palmeriPilaka and Elouard1999
unicornutumPomeroy1920
KenyaekenyaeDe Meillon1940
SchoutedeniaudreyaeGarms and Disney1974
schoutedeniWanson1947
Table 2. Sampling points with coordinates, sample collectors, sample type, and species collected in each point.
Table 2. Sampling points with coordinates, sample collectors, sample type, and species collected in each point.
SNRiverSiteLatitudeLongitudeDateCollectorMorphological Identification.
1Vina du Nord Touboro Vina bridge7.750215.363616-March-11AR S. bovis,
S. cervicornutum, S. vorax
2Benoue Near Karna Manga7.780813.587405-September-14AE, DES. kenyae;
3Tributary to river Vina du NordAladji Marafat7.401613.552210-January-20PK S. nigritarsis,
S. medusaeforme f. Pomeroy,
S. adersi,
S. unicornutum,
S. undescribed 2
S. cervicornutum
4Vina du Sud Vina fall at Galim Pont7.210013.586218-June-20DE S. vorax,
S. nigritarsis,
S. medusaeforme f. hargreavesis,
S. adersi
5Mayo DjouroumNear Galim7.201113.593026-April-19PK, DE S. vorax,
S. medusaeforme f. Pomeroy,
S. medusaeforme f. hargreavesis,
S. cervicornutum
6Mawong river Near Befang6.324210.003717-November-17PKS. schoutedeni,
S. unicornutum,
S. katangae,
S. hirsutum,
S. cervicornutum,
S. medusaeforme f. hargreavesis,
S. alcocki,
S. dentulosum
S. ruficorne,
S. adersi,
S. undescribed 1,
S. kenyae
7Tunga (Menchum) riverMenchum
Falls
6.306910.016902-August-18PK S. cervicornutum, S. unicornutum,
S. katangae,
S. dentulosum
S. hirsutum,
S. alcocki,
S. undescribed 1
8River near IRADBambui6.014910.267729-October-18PK S. cervicornutum,
S. unicornutum,
S. katangae,
S. dentulosum
S. alcocki,
S. undescribed 1
9Tributary of river NkamMbanga near the slaughterhouse4.50449.571928-December-21PKNo Simulium found
10Lele Nkongsamba4.97249.928929-December-21PK S. cervicornutum, S. katangae,
S. dentulosum
S. medusaeforme f. Pomeroy,
S. ruficorne
11Boriko Nkongsamba4.95449.925929-December-21PK S. cervicornutum,
S. katangae,
S. dentulosum
S. medusaeforme f. Pomeroy,
S. ruficorne
12Tributary near Total Nkongsamba4.95779.930029-December-21PK S. cervicornutum,
S. katangae,
S. dentulosum
S. medusaeforme f. Pomeroy,
S. ruficorne
13Esoa Nkongsamba4.97499.939929-December-21PK S. cervicornutum,
S. katangae,
S. dentulosum
S. medusaeforme f. Pomeroy,
S. ruficorne
14Vina du Nord Soramboum 7.787215.006131-October-16DES. alcocki
PK: Pierre Kamtsap; DE: David Ekale; AE: Albert Eisenbarth; AR: Alfons Renz.
Table 3. Estimates of Average Evolutionary Divergence over Sequence Pairs within Groups by ITS2 region.
Table 3. Estimates of Average Evolutionary Divergence over Sequence Pairs within Groups by ITS2 region.
SpeciesAverage DivergenceStandard Error
S. alcocki0.0050.004
S. dentulosum0.0240.004
S. nigritarsis00
S. hargreavesi0.0040.002
S. katangae0.0630.013
S. unicornutum0.0080.005
S. ruficorne0.0020.001
S. cervicornutum0.0530.011
Outgroupn/cn/c
The presence of n/c in the results denotes cases in which it was not possible to estimate evolutionary distances.
Table 4. Maximum Likelihood Estimate of Substitution Matrix.
Table 4. Maximum Likelihood Estimate of Substitution Matrix.
From/ToATCG
A4.71394.713915.5722
T4.713915.57224.7139
C4.713915.57224.7139
G15.57224.71394.7139
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kamtsap, P.; Paguem, A.; Nguemaïm Ngoufo, F.; Renz, A. Morphological and Molecular Investigation of Non-Simulium damnosum Black Flies in Cameroon Using Nuclear ITS 2 and Mitochondrial Cox 1 Genes. Insects 2025, 16, 572. https://doi.org/10.3390/insects16060572

AMA Style

Kamtsap P, Paguem A, Nguemaïm Ngoufo F, Renz A. Morphological and Molecular Investigation of Non-Simulium damnosum Black Flies in Cameroon Using Nuclear ITS 2 and Mitochondrial Cox 1 Genes. Insects. 2025; 16(6):572. https://doi.org/10.3390/insects16060572

Chicago/Turabian Style

Kamtsap, Pierre, Archile Paguem, Flore Nguemaïm Ngoufo, and Alfons Renz. 2025. "Morphological and Molecular Investigation of Non-Simulium damnosum Black Flies in Cameroon Using Nuclear ITS 2 and Mitochondrial Cox 1 Genes" Insects 16, no. 6: 572. https://doi.org/10.3390/insects16060572

APA Style

Kamtsap, P., Paguem, A., Nguemaïm Ngoufo, F., & Renz, A. (2025). Morphological and Molecular Investigation of Non-Simulium damnosum Black Flies in Cameroon Using Nuclear ITS 2 and Mitochondrial Cox 1 Genes. Insects, 16(6), 572. https://doi.org/10.3390/insects16060572

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
