Annual Crops Contribute More Predators than Perennial Habitats during an Aphid Outbreak

by
Crystal D. Almdal
† and
Alejandro C. Costamagna
*
Department of Entomology, University of Manitoba, 217 Animal Science/Entomology Building, 12 Dafoe Road, Winnipeg, MB R3T 2N2, Canada
*
Author to whom correspondence should be addressed.
†
Part of the MSc thesis of first author.
Insects 2023, 14(7), 624; https://doi.org/10.3390/insects14070624
Submission received: 15 June 2023 / Revised: 6 July 2023 / Accepted: 6 July 2023 / Published: 11 July 2023
(This article belongs to the Section Insect Pest and Vector Management)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Understanding how insect predators utilize different crops and natural habitats is crucial to improve the ecological service of pest control in agricultural landscapes. The aim of this study was to develop a better understanding of how adjacent habitats contribute predators during pest outbreaks. We used a soybean aphid outbreak to test how adjacent habitats impact predator movement and abundance in soybean. We found that hoverflies and ladybeetles were the most common predators moving into soybean and their movement was related to the presence of aphids. In general, we found annual crops had more predators than a perennial crop or habitat. Our study suggests that adjacent wheat and canola fields result in more predators moving into soybean to control aphids than adjacent alfalfa or woody vegetation.

Abstract

Crops and semi-natural habitats provide predator populations with varying floral and prey resources, but their individual role on predator movement has seldom been studied. Here, we tease apart the role of adjacent habitats, predator abundance in the adjacent habitat, and soybean aphid (Aphis glycines Matsumura) abundance in soybean (Glycine max (L.) Merr.) on predator movement into soybean. We studied 12 soybean fields adjacent to alfalfa (Medicago sativa L.), canola (Brassica napus L.), spring wheat (Triticum aestivum L.), or woody vegetation, during a soybean aphid outbreak. Bidirectional Malaise traps and sticky traps were used to quantify predator movement between and abundance within soybean and adjacent habitats, respectively. Field plant counts were conducted to quantify aphid abundance in soybean. Coccinellidae and Syrphidae were the two most abundant families collected. Coccinellids and Eupeodes americanus (Wiedemann) (Diptera: Syrphidae) had net movement in soybean and their movement increased with aphid abundance. Movement of E. americanus was highest from wheat, coccinellid abundance was higher in wheat than woody vegetation, Toxomerus marginatus (Say) (Diptera: Syrphidae) abundance was highest in canola, and all other predators were more abundant in canola than woody vegetation. In general, our study suggests that annual crops have and provide more predators to soybean during aphid outbreaks than perennial habitats.

1. Introduction

Predators have two main resource requirements to survive and reproduce: food and shelter. Food resources include crop pests and alternative prey and non-prey items such as nectar and pollen, and shelter resources include sites that provide refuge during times of disturbance and for overwintering [1,2]. Generalist predator assemblages have varying resource requirements and may require multiple resources throughout their life cycle [3,4]. Insects that are predaceous as larvae and anthophilous as adults will have different resource requirements than those who are predaceous as both larvae and adults, requiring several habitats to complete their life cycle [4]. Therefore, ease of movement between habitats may be crucial for obtaining the resources necessary for development.
Habitats may be utilized by generalist predators at different times of the growing season. Perennial habitats such as semi-natural habitat or alfalfa may be important early season habitats for predators as they provide floral and prey resources before flowering and pest establishment in managed fields [5]. Additionally, perennial habitats are thought to provide shelter during the growing season from pesticide applications and harvesting activities and at the late phase of the growing season for overwintering [2,6,7]. Alternatively, annual crops may provide floral and prey resources in the mid and late portion of the growing season [5]. Therefore, adjacent habitats may be important in providing generalist predators with food and shelter resources during times of low prey availability and disturbance events and be important contributors of predators to control pest populations [6,7,8].
Thus far, most studies on the movement of aerial natural enemies have focused on movement between managed land and adjacent semi-natural habitats [8,9,10,11,12]. Natural enemies have been observed moving from semi-natural habitat to adjacent crops early in the season [13], and from crops to semi-natural habitat late in the season [8,9,10,11,12] and during times of disturbance [7]. However, movement of natural enemies between other perennial habitats and annual crops in the landscape may also be important, especially in landscapes dominated by crops [11,13,14,15], but has received less attention [13,16]. Indirect evidence of the role of different crops comes from studies showing that crop diversity in the surrounding landscape benefits natural enemy populations [17,18,19], and is associated with lower pest abundances [20,21] and increased aphid suppression [22]. However, direct evidence on the function of different habitats and crops in contributing predators to adjacent crops, particularly during pest outbreaks, is lacking.
In this study, we compared aphidophagous predator movement between soybean (Glycine max (L.) Merr.) and four adjacent habitats during an outbreak of the soybean aphid (Aphis glycines Matsumura), which is a rare event in Manitoba [22,23]. We selected adjacent habitats that may provide different resources for aphidophagous predators: two annual crops, canola (Brassica napus L.) and spring wheat (Triticum aestivum L.), a perennial crop, alfalfa (Medicago sativa L.), and a perennial habitat, woody vegetation. Specifically, we asked: (1) Do adjacent habitats affect predator movement into and out of soybean? (2) Does the role of adjacent habitats differ for predators that have anthophilous adults? and (3) Do other factors affect the movement of predators into soybean? (i.e., specifically, (a) predator abundance in adjacent habitats, and (b) soybean aphid abundance). We expected canola would mostly provide pollen and nectar resources [24], and benefit more anthophilous predators (syrphids, chrysopids); wheat would provide aphids [25] and benefit more non-anthophilous predators (coccinellids, hemerobiids, anthocorids, nabids, etc.); alfalfa would provide aphids, pollen and nectar [3,26] benefiting all aphidophagous predators, and woody vegetation would provide shelter and early season resources, but its benefit would be limited for predators at the time of our study [13,27]. In addition, we expected predators that are aphidophagous throughout their life would have net movement into soybean and be mostly influenced by aphid abundance compared to anthophilous syrphid adults, who we expect would be mostly influenced by the adjacent habitat type and their abundance in the adjacent habitat. Our study occurred when soybean was vulnerable to aphid damage and population numbers were approaching or surpassing economic thresholds [28]. This study provides insight on how adjacent habitats contribute predators during unique outbreak events.

2. Materials and Methods

2.1. Site Selection

Twelve soybean field sites were selected in 2017 in Manitoba, Canada. Soybean fields were adjacent to either canola, spring wheat, alfalfa, or woody vegetation (n = 3 for each adjacent habitat type; Table S1). During the time of sampling, soybean was between full bloom and beginning pod stage (Table S1), canola was in the late flowering and seed development stage, wheat was ripening, and alfalfa was in the beginning to mid-flowering stage. Woody vegetation included saskatoon (Amelanchier alnifolia (Nutt.) Nutt.) and chokecherry (Prunus virginiana L.) bushes, a grassy understorey, and the overstorey was dominated by deciduous trees, mainly white poplar (Populus spp.), oak (Quercus spp.), Manitoba maple (Acer negundo L.), and American elm (Ulmus americana L.).

2.2. Insect Sampling

Double sided yellow sticky traps (18 × 14 cm; Alpha Scent, Inc., West Linn, OR, USA) were used to sample predator abundance in each habitat and bidirectional Malaise traps (Townes style, 190 cm front height × 160 cm length × 110 cm back height; Sante Traps, Lexington, KY, USA) were used to sample predator movement between habitats. Bidirectional Malaise traps have been successfully used to track the movement of insects, including bees [29], parasitoids [10], and various agricultural pests and their natural enemies [13,14,16,22,23,30]. Traps were set up the third week in July for a period of two weeks (removed first week of August), at the time soybean aphid populations were abundant and likely to cause economic damage [31]], and insects were sampled weekly (n = 2). Adults of the following predator families were identified: Anthocoridae, Chrysopidae, Coccinellidae, Hemerobiidae, Nabidae, Staphylinidae, and Syrphidae as these groups have been shown to attack and provide strong control of soybean aphids [32,33,34,35,36]. Five sticky traps were placed 5 m apart, in soybean 15 m from the adjacent field border (n = 5) and in the adjacent habitat 20 m from the soybean field border (n = 5) parallel with the shared border. Sticky traps were set at the height of the surrounding vegetation using bamboo stakes and twist ties. Upon collection, sticky traps were wrapped in plastic and preserved in freezer conditions (−18 °C) prior to and after identification (n = 240). Predator counts were summed within each site and habitat type (n = 48; Figure S1). One bidirectional Malaise trap was placed in the field border between soybean and its adjacent habitat, centered around sticky trap placement, to quantify the movement of aphid predators into and out of soybean (n = 48). In each field, the Malaise trap was placed approximately 75 m from the road border. The following references were used to identify specimens from the Malaise and sticky trap samples: coccinellids [37,38] and chrysopids [39,40]. Hemerobiids were identified to species in Malaise traps but only to family in sticky traps due to difficulties distinguishing wing venation on the traps [41,42]. For syrphids, Toxomerus marginatus (Say) was identified in both Malaise and sticky trap samples, and Eupeodes americanus (Wiedemann) was identified to species in Malaise traps [43] but identification by genitalia was not possible in sticky trap samples. We conducted destructive plant counts weekly for two weeks in soybean to determine aphid abundance (Aphis glycines M.), in an area of approximately 75 m × 75 m, near the sticky traps. A haphazard process was used to select plants, in which a flag was thrown in the soybean field and the nearest plant to the flag was chosen. Twenty plants were selected per field, unless plants had over 1000 aphids/plant on average, then only 10 plants were selected [31].
Due to logistical reasons, two field sites were sampled after six days, and one site was sampled after eight days instead of seven during the second week of our study. Therefore, predator captures from bidirectional Malaise traps and sticky traps were adjusted to seven days in these sites by dividing predator abundance by the number of days sampled and multiplying by 7. In addition, aphid field plant counts were adjusted to seven days to correspond with the adjustments made for predator abundance. This was carried out by calculating the intrinsic rate of growth from the predator exclusion cages used in a separate experiment [22]. Briefly, each soybean field had five predator exclusion cages placed 20 m from the adjacent habitat border to measure aphid growth unimpacted by predator populations. Cages ran parallel to the adjacent habitat and were separated by 10 m. Each cage consisted of a pot with two soybean plants surrounded by a wire tomato cage (0.4 m width × 1 m height) and fine mesh (0.24 mm2 no-see-um netting) that prevented aphid and predator movement. Each cage was infested with 14 sentinel soybean aphids the third week of July and aphid counts were conducted weekly for two weeks [22]. Aphid counts were adjusted assuming exponential growth, using Equation (1),
r = ln(Nt) − ln(N0)/t
which includes the population size at exclusion cage set up (N0) and removal (Nt), and the number of days since set up (t) [22]. Aphid abundance in soybean at 14 days was then adjusted using the intrinsic rate of growth calculated from the exclusion cage using Equation (2)
N14days = N7daysrt

2.3. Statistical Analysis

All statistical analyses were performed in R [44]. We divided our statistical analyses into three steps to avoid overparameterization of models. First, linear models were constructed to test whether predator abundance in soybean differed as a function of adjacent habitat type (alfalfa, canola, woody vegetation, or spring wheat). Similar models were constructed to test whether predator abundance in the adjacent habitat differed as a function of habitat type. Models only included data from the second sampling week, as the first week had very low captures at most sites (n = 12). Response variables in both models included the number of syrphids, T. marginatus, coccinellids, and all other predators combined for predators in soybean and in the adjacent habitat from sticky traps. All other predators combined included summed predator counts of members from the families Anthocoridae, Nabidae, Chrysopidae, Hemerobiidae, and Staphylinidae, which had limited numbers of individuals captured across both sticky traps and Malaise trap samples. The Box–Cox method was performed to select an appropriate transformation for each model to meet model assumptions of normality [45]. A one-way ANOVA with field as a blocking factor was conducted to determine if the mean number of aphids/plants differed between the two sampling weeks.
Second, factors affecting predator bidirectional movement were investigated to determine whether predators had higher movement into than movement out of soybean and how adjacent habitats impact overall predator movement in soybean. We tested this by constructing three separate linear mixed effects models by sequentially adding explanatory variables: (1) movement direction, (2) movement direction and adjacent habitat type, and (3) the two previous factors and their interaction. Week was included as a fixed covariate as it only had two levels and the field site was a random factor in all models to account for the two directions of the trap and the two sampling weeks. Model selection using Akaike information criteria (AIC) was performed to select the best model fit with the maximum likelihood estimation. The AIC was corrected for small sample sizes using the package ‘AICcmodavg’ [46]. Models were selected if there was a significant improvement in model fit based on p-values from likelihood ratio tests using the anova function in R and an alpha level of 0.05. Selected models were then fit again using restricted maximum likelihood to achieve unbiased estimates of variance [47]. Response variables included bidirectional movement (individuals/trap) of syrphids, T. marginatus, E. americanus, coccinellids, and all other predators combined.
Finally, we fit linear mixed effects models to test how predator movement into soybean (i.e., unidirectional movement) was affected by adjacent habitat type, while controlling for predator abundance in the adjacent habitat (predators/5 sticky traps) and aphid abundance in soybean (mean # aphids/plant). Eupeodes americanus was not identified in sticky trap samples, therefore, only field aphids and adjacent habitat type were included as predictors. Field site was included as a random factor in all models to account for the two sampling weeks. Response variables were the same as in the previous analysis but only included individuals captured moving into soybean (individuals/trap).
All linear mixed effects models were constructed in the ‘nlme’ package [48], the ‘emmeans’ package was used for pairwise comparisons of adjacent habitat types using a post hoc Tukey test [49]. Model residuals were plotted to visually check model assumptions of normality and homogeneity of variances. All predator variables were (log10) + 1 transformed (syrphids, coccinellids, all other predators combined, T. marginatus, and E. americanus), and aphid abundances were log10 transformed to meet model assumptions. Field means ± standard errors are presented.

3. Results

Over the two sampling weeks, we observed on average 551.04 ± 145.09 aphids/plant in soybean from field plant counts, and aphid abundance was higher the second sampling week (833.25 ± 256.65) than the first (268.83 ± 87.61; F1,11 = 39.18, p < 0.0001). Syrphids were the most abundant predator group in soybean with over 11,000 syrphids captured, followed by coccinellids with over 400 individuals captured on sticky traps over the two sampling weeks (Table 1). Harmonia axyridis (Pallas) was the most abundant coccinellid, followed by Coccinella septempunctata L. and Hippodamia tredecimpunctata (L.) (Table S2). Fewer anthocorids, staphylinids, and chrysopids were captured, and no nabids were collected in soybean (Table S2). Over 31,000 syrphids were collected from bidirectional Malaise traps over the two weeks (Table S3). Eupeodes americanus was the most abundant syrphid (60%) followed by T. marginatus (33%). We collected 458 staphylinids and 459 coccinellids, with Coccinella septempunctata (68%), H. tredecimpunctata (13%), and H. axyridis (10%) the most abundant coccinellids found moving into and out of soybean. Intermediate numbers of chrysopids (134) and hemerobiids (68) and low numbers of nabids (26) and anthocorids (21) were captured.
In soybean, the abundance of syrphids (cube root transformed; F3,8 = 1.96, p = 0.20), T. marginatus (log transformed; F3,8 = 1.19, p = 0.37), coccinellids (square root transformed; F3,8 = 0.37, p = 0.78), and all other predators combined (log transformed; F3,8 = 0.12, p = 0.95) did not differ as a function of adjacent habitat type (Table 1). Adjacent habitats significantly affected the abundance of all predator groups (Table 1): syrphids (cube root transformed; F3,8 = 6.00, p = 0.019) were higher in canola than alfalfa (p = 0.017) and woody vegetation (p = 0.045); T. marginatus (cube root transformed; F3,8 = 16.90, p = 0.0008) was higher in canola than in alfalfa (p = 0.019), wheat (p = 0.0068) or woody vegetation (p = 0.0009); coccinellids (square root transformed; F3,8 = 4.85, p = 0.033) were higher in wheat than woody vegetation (p = 0.044); and all other predators combined (log10 + 1 transformed; F3,8 = 4.34, p = 0.043) were almost significantly higher in canola (p = 0.064) and wheat (p = 0.052) than in woody vegetation.
No significant interactions between adjacent habitat and movement direction were observed among all tested models (Tables S4 and S5). The best bidirectional movement model for syrphids, E. americanus, and coccinellids was the model with movement direction, week, and adjacent habitat, and for T. marginatus and all other predators combined was the model with movement direction and week (Table S4). All predator groups tested had higher movement the second sampling week except for all predators combined (Table 2). We found syrphids, E. americanus, and coccinellids had higher movement into soybean than out of soybean, and T. marginatus and all other predators combined were unaffected by movement direction (Table 2). Bidirectional movement of syrphids and E. americanus was affected by adjacent habitat type (Table 2), with movement lower in woody vegetation compared to wheat (Syrphid p = 0.043, Figure 1a; E. americanus p = 0.035, Figure 1b), and E. americanus movement lower in alfalfa (p = 0.049; Figure 1b) compared to wheat. By contrast, movement of T. marginatus was unaffected by adjacent habitat type (Table 2 and Table S5). Coccinellid bidirectional movement was marginally impacted by adjacent habitat (Figure 1c) and movement of all other predator families combined was similar across both movement directions (Table 2).
Syrphid movement into soybean was positively associated with syrphid abundance in the adjacent habitat (Figure 2a), aphid abundance in soybean had no effect, and movement into soybean differed among adjacent habitats (Table 3); however, there was not enough power to detect these differences using pairwise comparisons (Figure 2b). Movement of E. americanus into soybean was affected by both the abundance of aphids in soybean (Figure 2c) and by the adjacent habitat (Table 3), with alfalfa (p = 0.042) and woody vegetation (p = 0.023) having fewer individuals moving into soybean than wheat (Figure 2d). Movement of T. marginatus into soybean was only affected by the number of T. marginatus in the adjacent habitat (Figure 2e). Coccinellid movement into soybean was positively affected by aphid abundance (Figure 2f); however, adjacent habitat type and the number of coccinellids in the adjacent habitat had no effect (Table 3). Movement of all other predator families combined into soybean was unaffected by adjacent habitat, their abundance in the adjacent habitat, and aphid abundance in soybean (Table 3).

4. Discussion

Overall, we found that aphidophagous predators moving between soybean and adjacent habitats were dominated by syrphids, followed by coccinellids and then fewer individuals of other groups. We observed that adjacent habitat type affected the overall movement of syrphids, but only marginally affected coccinellids. In general, movement into soybean was higher than movement out of soybean, but the factors affecting movement into soybean varied among the main predator groups. This included positive effects of the number of syrphids in the adjacent habitat and wheat on syrphid movement into soybean, and aphid abundance in soybean on syrphid and coccinellid movement into soybean. Therefore, we demonstrate anthophilous syrphid adults were more affected by adjacent habitat type than predacious coccinellid adults, but contrary to our predictions, some species of anthophilous predators were also moving to soybean in response to aphid abundance. In general, we found that annual crops contributed to higher predator abundance and movement than perennial habitats.
Coccinellid movement into soybean was driven by aphid abundance. Coccinellids had higher movement into soybean than out of soybean, and higher levels of movement were observed during the second week of our study, coinciding with higher aphid abundances. Previous studies have shown that coccinellid movement is positively associated with aphid abundance [50], that they aggregate in areas with high aphid densities [15,51,52,53], and have higher movement into soybean than out of soybean even in low aphid years [16]. We expected wheat and alfalfa to contribute more coccinellids to soybean than canola and woody vegetation as we anticipated these habitats would provide aphids early in the season before aphid establishment in soybean [16,25,26]. Although coccinellids were more abundant in wheat than woody vegetation, our study showed little evidence of effects of adjacent habitat type or coccinellid abundance in the adjacent habitat on coccinellid movement into soybean, suggesting coccinellids may be moving from further distances to reach soybean infested fields. This is supported by previous results from mark–release–recapture experiments that found coccinellids travelling long distances for food when prey availability was low [54]. In summary, our study provides direct evidence that coccinellids are highly responsive to aphid density and demonstrates that their positive response occurs regardless of the adjacent habitat type or their abundance in adjacent habitats, suggesting they locate aphids at larger spatial scales.
In our study, the coccinellid community was primarily composed of two exotic and one native species. Although previous studies have demonstrated exotic coccinellids can disrupt and displace some native coccinellid species in agricultural landscapes [55,56,57], we show that the native coccinellid H. tredecimpunctata was abundant and responded in high numbers to aphid density in soybean alongside exotic H. axyridis and C. septempunctata. Hippodamia tredecimpunctata has been shown to be similarly unaffected by exotic coccinellids in Michigan; however, this species was rarely observed [55,57]. In Manitoba, H. tredecimpunctata was the second most abundant coccinellid moving in soybean when aphid abundance was low [16]. Therefore, we provide further evidence that H. tredecimpunctata remains unaffected by exotic coccinellids and can respond to aphid populations in soybeans in Manitoba.
The two most common syrphids had contrasting responses to soybean aphid density and were differentially impacted by the type of adjacent habitat. Moreover, their varied response to aphid density is likely why we see higher movement of E. americanus into than out of soybean but no directionality in the movement of T. marginatus. In our study, E. americanus and T. marginatus comprised 92% of the syrphids collected in Malaise traps, with E. americanus 1.8-fold more abundant than T. marginatus (Table S3). Both species are anthophilous as adults, have aphidophagous larvae that feed on Aphis species, and have been observed attacking aphids in soybean [58,59,60]. When soybean aphid abundance is low, T. marginatus makes up 90% and E. americanus less than 3% of syrphid movement in soybean, in Manitoba [16]. Here, we show E. americanus increases its bidirectional movement in soybean and becomes more abundant than T. marginatus in an outbreak year, suggesting E. americanus is more responsive to aphid outbreaks than T. marginatus.
Movement of E. americanus into soybean was in response to both aphid abundance and adjacent habitat type. This species is common in North America, feeds on a variety of plant species (60 reported), and its larvae are generalist aphid predators [59,61]. Eupeodes americanus has been shown to respond numerically to woolly apple aphid, Eriosoma lanigerum (Haussman) [62] and balsam twig aphid, Mindarus abietinus Koch (Hemiptera: Aphididae) abundance [63]. Here, bidirectional movement of E. americanus was higher the second sampling week, coinciding with higher aphid abundance and changes in plant phenology in canola and wheat. Aphid honeydew has been shown to be an important oviposition cue for syrphids and is often substituted for nectar when it is scarce [64,65,66]. Therefore, E. americanus may have been moving to soybean to oviposit, mate and/or to feed on aphid honeydew since wheat was ripening and canola was transitioning from the flowering to pod stage at the time of sampling.
Canola was one of the main crops contributing to E. americanus movement in soybean, which we expected, as it provides a vast area of floral resources [5,67,68,69]. Canola was in the late flowering stage/early pod stage and syrphids have been observed to increase movement from canola in response to changes in canola phenology [67], therefore E. americanus was likely moving to soybean for floral and prey resources. Wheat was also a major contributor of E. americanus and adults were likely moving to soybean to oviposit in response to aphid abundance [67,68,69]. We hypothesize that wheat may have harbored aphids earlier in the season and been an oviposition site, since it was in the ripening stage and flowers were no longer present [68,70,71]. The lower movement of E. americanus from alfalfa than wheat may be due to E. americanus feeding on alfalfa, as previous studies have observed E. americanus feeding on species of Medicago [72]. We expected few syrphids to move between woody vegetation and soybean since syrphids mainly use semi-natural habitat for feeding and oviposition sites during times of low floral and prey resources in crop fields [67,69]. Although we were unable to test the contribution of the abundance of E. americanus in the adjacent habitat on its movement into soybean, the impact of syrphid abundance in the adjacent habitat on overall syrphid movement into soybean suggests there would be a positive association, since syrphid movement into soybean is primarily composed of E. americanus individuals (Table S3). In addition, syrphids were more abundant in canola than alfalfa and woody vegetation, which is likely why we see higher movement of E. americanus in soybean associated with canola and wheat. In summary, our results suggest canola and wheat are the main contributors of E. americanus to soybean during aphid outbreaks, providing complementary resources to this abundant syrphid species.
Movement of T. marginatus was similar in both directions and the type of adjacent habitat had no impact on their movement. Similarly, movement of T. marginatus into soybean was unaffected by aphid abundance and adjacent habitat type even though they were more abundant in canola than alfalfa, wheat, and woody vegetation, and instead their movement was associated to the number of T. marginatus in the adjacent habitat. This species is abundant and widespread in North America, and adults feed on a variety of plants (114 reported), but larvae feed on relatively few aphid species [16,58,61]. When T. marginatus was more abundant in the adjacent habitat, we saw passive diffusion of T. marginatus in soybean. In general, syrphids tend to oviposit in fields with high aphid densities [58,70]. Therefore, their lack of response to aphid density was surprising, since their bidirectional movement was higher the second sampling week and their abundance was higher when there were more aphids in soybean [16,22]. Our results show that T. marginatus moves into soybean in high numbers when its abundant in the adjacent habitat, and moves interchangeably in and out of soybean, suggesting T. marginatus may move to soybean to oviposit and/or mate and move to other habitats to feed on nectar resources.
All other predator groups combined had similar movement in both directions, and their movement into soybean was not affected by aphid abundance or adjacent habitat type, although their abundance was higher in canola and wheat than woody vegetation. Samaranayake and Costamagna [16] also found movement of anthocorids, hemerobiids, and nabids was unaffected by adjacent habitat type and that they moved similarly into and out of soybean. Combining predator families into one grouping was carried out due to low capture rates; however, not all families included had the same feeding and oviposition strategies, and thus may be differentially affected by habitat function, which has been shown to affect predator movement [15,73,74,75]. However, we note that the densities of these other predator groups were 1.4-fold (Table S3) greater during this outbreak year than in previous low aphid years [23,76], suggesting that the lack of response to adjacent habitats found in our study is not an artifact of low predator density. In summary, we observed that predators other than syrphids and coccinellids had low capture rates, moved interchangeably between soybean and its adjacent habitats and were unresponsive to aphid density in soybean.

5. Conclusions

Our study shows coccinellids and E. americanus syrphids are likely the main groups contributing to soybean aphid suppression and is the first one to tease apart the factors affecting aphidophagous predator movement from adjacent habitats into soybean. Annual crops (canola, wheat) tended to have and provide more predators than perennial habitats (alfalfa, woody vegetation), probably because they harbored more resources for aphidophagous predators at the time of the study. Perennial crops and habitats are likely more important for predator populations early in the season before aphid establishment in annual crops. In general, our findings suggest that planting wheat and canola adjacent to soybean likely allows for the timely arrival of aphidophagous predators when aphid colonization is occurring. Future studies should investigate the functional role of these and other crops and habitats supporting predator populations and their movement into soybean at various times during the field season.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects14070624/s1, Figure S1: Sticky trap and bidirectional Malaise trap placement per field site; Table S1: Field locale, the latitude and longitude of each soybean field site, field size in hectares (ha), the adjacent habitat where bidirectional Malaise traps were placed, and the vegetative (V) and reproductive (R) stage of soybean from field plant counts (n = 20) in 2017. For growth stages with NA’s, plant counts were not conducted in these fields. Woody vegetation included saskatoon (Amelanchier alnifolia (Nutt.) Nutt.) and chokecherry (Prunus virginiana L.) bushes, a grassy understorey, and an overstorey dominated by deciduous trees, mainly white poplar (Populus spp.), oak (Quercus spp.), Manitoba maple (Acer negundo L.), and American elm (Ulmus americana L.); Table S2: Comparing predator abundance in soybean and across adjacent habitats. The average number of individuals captured per day in sticky traps (±the standard error, S.E.) in soybean (n = 12), alfalfa (n = 3), canola (n = 3), spring wheat (n = 3), and woody vegetation (n = 3). In each field, counts of the five sticky traps were summed prior to averaging across weeks and fields (n = 48); Table S3: Average predator movement into soybean, movement out of soybean, and bidirectional movement (average into + out of soybean) per day, and the total number of individuals captured moving in soybean (n = 12 fields). Averaged values were averaged across weeks prior to averaging across field sites; Table S4: Effects of movement direction (into or out of soybean), adjacent habitat type (alfalfa, canola, spring wheat, woody vegetation), and week (1 or 2) on predator bidirectional movement in soybean from a linear mixed effects model (n = 48). Number of parameters (k), corrected Akaike’s information criterion (AICc), Akaike’s weights (wi), log-likelihood (Log-lik), ratio of log-likelihood tests (L ratio), and the significance of the models compared (p-value) are presented. Models in bold were selected as the best model by AIC and log-likelihood tests; Table S5: Average predator movement into and out of soybean fields adjacent to alfalfa, canola, spring wheat, and woody vegetation of the main predator groups across weeks (n = 2) and study sites (n = 12) from bidirectional Malaise traps. Means ± standard errors are presented.

Author Contributions

Conceptualization, C.D.A. and A.C.C.; Methodology, C.D.A. and A.C.C.; Software, C.D.A.; Validation, C.D.A. and A.C.C.; Formal Analysis, C.D.A.; Investigation, C.D.A.; Resources, A.C.C.; Data Curation, C.D.A.; Writing—Original Draft Preparation, C.D.A.; Writing—Review and Editing, C.D.A. and A.C.C.; Visualization, C.D.A.; Supervision, A.C.C.; Project Administration, A.C.C.; Funding Acquisition, C.D.A. and A.C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the project “Determining the role of crop and non-crop habitats to provide sustainable aphid suppression in soybeans”, funded by the Manitoba Pulse Growers Association and Western Grains Research Foundation awarded to ACC, and by the Orval G. Caldwell and H. Ruth Gardner Caldwell Fellowship in Sustainable Agriculture (University of Manitoba, Canada) awarded to CDA.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank all those members of the Costamagna lab who assisted in the laboratory and field. We are grateful to the members of C. D. Almdal M. Sc. Committee, the Editor and two anonymous reviewers for their comments on a previous version of this paper. We appreciate the soybean producers who permitted the use of their fields.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Iuliano, B.; Gratton, C. Temporal resource (dis)continuity for conservation biological control: From field to landscape scales. Front. Sust. Food Syst. 2020, 4. [Google Scholar] [CrossRef]
  2. Landis, D.A.; Wratten, S.D.; Gurr, G.M. Habitat management to conserve natural enemies of arthropod pests in agriculture. Annu. Rev. Entomol. 2000, 45, 175–201. [Google Scholar] [CrossRef] [PubMed]
  3. Lundgren, J.G. Relationships of Natural Enemies and Non-Prey Foods; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2009; Volume 7. [Google Scholar]
  4. Schellhorn, N.A.; Gagic, V.; Bommarco, R. Time will tell: Resource continuity bolsters ecosystem services. Trends. Ecol. Evol. 2015, 30, 524–530. [Google Scholar] [CrossRef] [PubMed]
  5. Pons, X.; Núñez, E.; Lumbierres, B.; Albajes, R. Epigeal aphidophagous predators and the role of alfalfa as a reservoir of aphid predators for arable crops. Eur. J. Entomol. 2005, 102, 519–525. [Google Scholar] [CrossRef] [Green Version]
  6. Heimoana, V.; Pilkington, L.J.; Raman, A.; Mitchell, A.; Nicol, H.I.; Johnson, A.C.; Gurr, G.M. Integrating spatially explicit molecular and ecological methods to explore the significance of non-crop vegetation to predators of brassica pests. Agric. Ecosyst. Environ. 2017, 239, 12–19. [Google Scholar] [CrossRef]
  7. Villegas, C.M.; Verdugo, J.A.; Grez, A.A.; Tapia, J.; Lavandero, B. Movement between crops and weeds: Temporal refuges for aphidophagous insects in Central Chile. Ciencia Investig. Agr. 2013, 40, 317–326. [Google Scholar] [CrossRef] [Green Version]
  8. Rand, T.A.; Tylianakis, J.M.; Tscharntke, T. Spillover edge effects: The dispersal of agriculturally subsidized insect natural enemies into adjacent natural habitats. Ecol. Lett. 2006, 9, 603–614. [Google Scholar] [CrossRef]
  9. Blitzer, E.J.; Dormann, C.F.; Holzschuh, A.; Klein, A.-M.; Rand, T.A.; Tscharntke, T. Spillover of functionally important organisms between managed and natural habitats. Agric. Ecosyst. Environ. 2012, 146, 34–43. [Google Scholar] [CrossRef] [Green Version]
  10. Frost, C.M.; Didham, R.K.; Rand, T.A.; Peralta, G.; Tylianakis, J.M. Community-level net spillover of natural enemies from managed to natural forest. Ecology 2015, 96, 193–202. [Google Scholar] [CrossRef]
  11. Gonzalez, E.; Salvo, A.; Defago, M.T.; Valladares, G. A moveable feast: Insects moving at the forest-crop interface are affected by crop phenology and the amount of forest in the landscape. PLoS ONE 2016, 11, e0158836. [Google Scholar] [CrossRef] [Green Version]
  12. Tscharntke, T.; Rand, T.A.; Bianchi, F. The landscape context of trophic interactions: Insect spillover across the crop-noncrop interface. Ann. Zool. Fenn. 2005, 42, 421–432. [Google Scholar]
  13. Macfadyen, S.; Hopkinson, J.; Parry, H.; Neave, M.; Bianchi, F.; Zalucki, M.; Schellhorn, N. Early-season movement dynamics of phytophagous pest and natural enemies across a native vegetation-crop ecotone. Agric. Ecosyst. Environ. 2015, 200, 110–118. [Google Scholar] [CrossRef] [Green Version]
  14. Macfadyen, S.; Muller, W. Edges in agricultural landscapes: Species interactions and movement of natural enemies. PLoS ONE 2013, 8, e59659. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Schellhorn, N.A.; Bianchi, F.J.; Hsu, C.L. Movement of entomophagous arthropods in agricultural landscapes: Links to pest suppression. Annu. Rev. Entomol. 2014, 59, 559–581. [Google Scholar] [CrossRef] [PubMed]
  16. Samaranayake, K.G.L.I.; Costamagna, A.C. Adjacent habitat type affects the movement of predators suppressing soybean aphids. PLoS ONE 2019, 14, e0218522. [Google Scholar] [CrossRef] [Green Version]
  17. Aguilera, G.; Roslin, T.; Miller, K.; Tamburini, G.; Birkhofer, K.; Caballero-Lopez, B.; Lindström, S.A.M.; Öckinger, E.; Rundlöf, M.; Rusch, A.; et al. Crop diversity benefits carabid and pollinator communities in landscapes with semi-natural habitats. J. Appl. Ecol. 2020, 57, 2170–2179. [Google Scholar] [CrossRef]
  18. Redlich, S.; Martin, E.A.; Steffan-Dewenter, I.; Willis, S. Landscape-level crop diversity benefits biological pest control. J. Appl. Ecol. 2018, 55, 2419–2428. [Google Scholar] [CrossRef]
  19. Sirami, C.; Gross, N.; Baillod, A.B.; Bertrand, C.; Carrie, R.; Hass, A.; Henckel, L.; Miguet, P.; Vuillot, C.; Alignier, A.; et al. Increasing crop heterogeneity enhances multitrophic diversity across agricultural regions. Proc. Natl. Acad. Sci. USA 2019, 116, 16442–16447. [Google Scholar] [CrossRef] [Green Version]
  20. Bosem Baillod, A.; Tscharntke, T.; Clough, Y.; Batáry, P.; Marini, L. Landscape-scale interactions of spatial and temporal cropland heterogeneity drive biological control of cereal aphids. J. Appl. Ecol. 2017, 54, 1804–1813. [Google Scholar] [CrossRef] [Green Version]
  21. Kheirodin, A.; Cárcamo, H.A.; Costamagna, A.C. Contrasting effects of host crops and crop diversity on the abundance and parasitism of a specialist herbivore in agricultural landscapes. Land. Ecol. 2020, 35, 1073–1087. [Google Scholar] [CrossRef]
  22. Almdal, C.D.; Costamagna, A.C. Crop diversity and edge density benefit pest suppression through bottom-up and top-down processes, respectively. Agric. Ecosyst. Environ. 2023, 349, 108447. [Google Scholar] [CrossRef]
  23. Samaranayake, K.G.L.I.; Costamagna, A.C. Levels of predator movement between crop and neighboring habitats explain pest suppression in soybean across a gradient of agricultural landscape complexity. Agric. Ecosyst. Environ. 2018, 259, 135–146. [Google Scholar] [CrossRef]
  24. Carruthers, J.M.; Cook, S.M.; Wright, G.A.; Osborne, J.L.; Clark, S.J.; Swain, J.L.; Haughton, A.J. Oilseed rape (Brassica napus) as a resource for farmland insect pollinators: Quantifying floral traits in conventional varieties and breeding systems. Glob. Chang. Biol. Bioen. 2017, 9, 1370–1379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Elliott, N.C.; Kieckhefer, R.W.; Lee, J.H.; French, B.W. Influence of within-field and landscape factors on aphid predator populations in wheat. Land. Ecol. 1998, 14, 239–252. [Google Scholar] [CrossRef]
  26. Ximenez-Embun, M.G.; Zaviezo, T.; Grez, A. Seasonal, spatial and diel partitioning of Acyrthosiphon pisum (Hemiptera: Aphididae) predators and predation in alfalfa fields. Biol. Control 2014, 69, 1–7. [Google Scholar] [CrossRef]
  27. Gurr, G.M.; Wratten, S.D.; Landis, D.A.; You, M. Habitat Management to Suppress Pest Populations: Progress and Prospects. Annu. Rev. Entomol. 2017, 62, 91–109. [Google Scholar] [CrossRef]
  28. Ragsdale, D.W.; McCornack, B.P.; Venette, R.C.; Potter, B.D.; MacRae, I.V.; Hodgson, E.W.; O’Neal, M.E.; Johnson, K.D.; O’Neil, R.J.; Difonzo, C.D.; et al. Economic threshold for soybean aphid (Hemiptera: Aphididae). J. Econ. Entomol. 2007, 100, 1258–1267. [Google Scholar] [CrossRef]
  29. Cunningham, S.A.; Schellhorn, N.A.; Marcora, A.; Batley, M. Movement and phenology of bees in a subtropical Australian agricultural landscape. Austral Ecol. 2013, 38, 456–464. [Google Scholar] [CrossRef]
  30. Hossain, Z.; Gurr, G.M.; Wratten, S.D.; Raman, A. Habitat manipulation in lucerne Medicago sativa: Arthropod population dynamics in harvested and ’refuge’ crop strips. J. Appl. Ecol. 2002, 39, 445–454. [Google Scholar] [CrossRef]
  31. Johnson, K.D.; O’Neal, M.E.; Ragsdale, D.W.; Difonzo, C.D.; Swinton, S.M.; Dixon, P.M.; Potter, B.D.; Hodgson, E.W.; Costamagna, A.C. Probability of cost-effective management of soybean aphid (Hemiptera: Aphididae) in North America. J. Econ. Entomol. 2009, 102, 2101–2108. [Google Scholar] [CrossRef] [Green Version]
  32. Costamagna, A.C.; Landis, D.A. Predators exert top-down control of soybean aphid across a gradient of agricultural management systems. Ecol. Appl. 2006, 16, 1619–1628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Costamagna, A.C.; Landis, D.A. Quantifying predation on soybean aphid through direct field observations. Biol. Control 2007, 42, 16–24. [Google Scholar] [CrossRef]
  34. Costamagna, A.C.; Landis, D.A. Lack of strong refuges allows top-down control of soybean aphid by generalist natural enemies. Biol. Control 2011, 57, 184–192. [Google Scholar] [CrossRef]
  35. Gardiner, M.M.; Landis, D.A.; Gratton, C.; DiFonzo, C.D.; O’Neal, M.; Chacon, J.M.; Wayo, M.T.; Schmidt, N.P.; Mueller, E.E.; Heimpel, G.E. Landscape diversity enhances biological control of an introduced crop pest in the north-central USA. Ecol. Appl. 2009, 19, 143–154. [Google Scholar] [CrossRef]
  36. Ragsdale, D.W.; Landis, D.A.; Brodeur, J.; Heimpel, G.E.; Desneux, N. Ecology and management of the soybean aphid in North America. Annu. Rev. Entomol. 2011, 56, 375–399. [Google Scholar] [CrossRef] [Green Version]
  37. Gordon, R.D. The Coccinellidae (Coleoptera) of America north of Mexico. J. N. Y. Entomol. Soc. 1985, 93. [Google Scholar]
  38. Gordon, R.D. The first North American records of Hippodamia variegata (Goeze)(Coleoptera: Coccinellidae). J. N. Y. Entomol. Soc. 1987, 95, 307–309. [Google Scholar]
  39. Garland, J.A.; Kevan, D.K.M. Chrysopidae of Canada and Alaska ( Insecta, Neuroptera): Revised checklist, new and noteworthy records, and geo-referenced localities. Zootaxa 2007, 1486, 1–84. [Google Scholar] [CrossRef]
  40. Penny, N.D.; Adams, P.A.; Stange, L.A. Species catalog of the Neuroptera, Megaloptera, and Raphidioptera of America north of Mexico. Proc. Calif. Acad. Sci. 1997, 50, 39–114. [Google Scholar]
  41. Klimaszewski, J.; McE. Kevan, D. Review of Canadian and Alaskan brown lacewing flies (Neuroptera: Hemerobiidae) with a key to the genera. Part IV: The genera Megalomus Rambur, Boriomyia Banks, Psectra Hagen and Sympherobius Banks. Ann. Transvaal Mus. 1992, 35, 435–457. [Google Scholar]
  42. Carpenter, F.M. A revision of the Nearctic Hemerobiidae, Berothidae, Sisyridae, Polystoechotidae and Dilaridae (Neuroptera). Proc. Am. Acad. Arts Sci. 1940, 74, 193–280. [Google Scholar] [CrossRef]
  43. Vockeroth, J.R. The Flower Flies of the Subfamily Syrphinae of Canada, Alaska, and Greenland: Diptera, Syrphidae; Agriculture Canada: Ottawa, ON, Canada, 1992; Volume 1867. [Google Scholar]
  44. R Development Core Team. R: A Language and Environment for Statistical Computing. Available online: http://www.R-project.org (accessed on 1 July 2023).
  45. Venables, W.N.; Ripley, B.D. Modern Applied Statistics with S, 4th ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
  46. Mazerolle, M.J.; Mazerolle, M.M.J. AICcmodavg, R Package Version 2.3-2. Available online: https://cran.pau.edu.tr/web/packages/AICcmodavg/AICcmodavg.pdf (accessed on 1 July 2023).
  47. Faraway, J.J. Extending the Linear Model with R: Generalized Linear, Mixed Effects and Nonparametric Regression Models; CRC press: Boca Raton, FL, USA, 2016. [Google Scholar]
  48. Pinheiro, J.; Bates, D.; DebRoy, S.; Sarkar, D. nlme: Linear and Nonlinear Mixed Effects Models, R Package Version 3.1-162. Available online: https://CRAN.R-project.org/package=nlme (accessed on 1 July 2023).
  49. Lenth, R.; Buerkner, P.; Herve, M.; Love, J.; Riebl, H.; Singmann, H. Estimated Marginal Means, aka Least-Squares Means, R Package Version 1.5.5-1. Available online: https://CRAN.R-project.org/package=emmeans (accessed on 1 July 2023).
  50. Honěk, A. Population density of aphids at the time of settling and ovariole maturation in Coccinella septempunctata [Col.: Coccinellidae]. Entomophaga 1980, 25, 427–430. [Google Scholar] [CrossRef]
  51. Lundgren, J.G.; Hesler, L.S.; Anderson, R.L. Preceding crop affects soybean aphid abundance and predator-prey dynamics in soybean. J. Appl. Entomol. 2017, 141, 669–676. [Google Scholar] [CrossRef]
  52. Maisonhaute, J.-É.; Labrie, G.; Lucas, E. Direct and indirect effects of the spatial context on the natural biocontrol of an invasive crop pest. Biol. Control 2017, 106, 64–76. [Google Scholar] [CrossRef]
  53. Woltz, J.M.; Landis, D.A. Coccinellid immigration to infested host patches influences suppression of Aphis glycines in soybean. Biol. Control 2013, 64, 330–337. [Google Scholar] [CrossRef]
  54. van der Werf, W.; Evans, E.W.; Powell, J. Measuring and modelling the dispersal of Coccinella septempunctata (Coleoptera: Coccinellidae) in alfalfa fields. Eur. J. Entomol. 2000, 97, 487–493. [Google Scholar] [CrossRef] [Green Version]
  55. Bahlai, C.A.; Colunga-Garcia, M.; Gage, S.H.; Landis, D.A. The role of exotic ladybeetles in the decline of native ladybeetle populations: Evidence from long-term monitoring. Biol. Invas. 2015, 17, 1005–1024. [Google Scholar] [CrossRef]
  56. Gardiner, M.M.; O’Neal, M.E.; Landis, D.A. Intraguild Predation and Native Lady Beetle Decline. PLoS ONE 2011, 6, e23576. [Google Scholar] [CrossRef]
  57. Lamb, R.J.; Bannerman, J.A.; Costamagna, A.C. Stability of native and exotic lady beetle populations in a diverse landscape. Ecosphere 2019, 10. [Google Scholar] [CrossRef] [Green Version]
  58. Eckberg, J.O.; Peterson, J.A.; Borsh, C.P.; Kaser, J.M.; Johnson, G.A.; Luhman, J.C.; Wyse, D.L.; Heimpel, G.E. Field abundance and performance of hoverflies (Diptera: Syrphidae) on soybean aphid. Ann. Entomol. Soc. Am. 2015, 108, 26–34. [Google Scholar] [CrossRef] [Green Version]
  59. Kaiser, M.E.; Noma, T.; Brewer, M.J.; Pike, K.S.; Vockeroth, J.R.; Gaimari, S.D. Hymenopteran parasitoids and dipteran predators found using soybean aphid after its midwestern United States invasion. Ann. Entomol. Soc. Am. 2007, 100, 196–205. [Google Scholar] [CrossRef] [Green Version]
  60. Noma, T.; Brewer, M.J. Seasonal abundance of resident parasitoids and predatory flies and corresponding soybean aphid densities, with comments on classical biological control of soybean aphid in the Midwest. J. Econ. Entomol. 2008, 101, 278–287. [Google Scholar] [CrossRef] [PubMed]
  61. Tooker, J.F.; Hauser, M.; Hanks, L.M. Floral host plants of Syrphidae and Tachinidae (Diptera) of central Illinois. Ann. Entomol. Soc. Am. 2006, 99, 96–112. [Google Scholar] [CrossRef]
  62. Gontijo, L.M.; Cockfield, S.D.; Beers, E.H. Natural enemies of woolly apple aphid (Hemiptera: Aphididae) in Washington State. Environ. Entomol. 2012, 41, 1364–1371. [Google Scholar] [CrossRef] [Green Version]
  63. Berthiaume, R.; Hébert, C.; Pelletier, G.; Cloutier, C. Seasonal natural history of aphidophagous Syrphidae (Diptera) attacking the balsam twig aphid in balsam fir (Pinaceae) Christmas tree plantations. Can. Entomol. 2016, 148, 466–475. [Google Scholar] [CrossRef]
  64. Rodríguez-Gasol, N.; Alins, G.; Veronesi, E.R.; Wratten, S. The ecology of predatory hoverflies as ecosystem-service providers in agricultural systems. Biol. Control 2020, 151, 104405. [Google Scholar] [CrossRef]
  65. van Rijn, P.C.; Kooijman, J.; Wackers, F. The impact of floral resources on syrphid performance and cabbage aphid biological control. IOBC WPRS Bull. 2006, 29, 149. [Google Scholar]
  66. Wäckers, F.L.; Van Rijn, P.C.; Heimpel, G.E. Honeydew as a food source for natural enemies: Making the best of a bad meal? Biol. Control 2008, 45, 176–184. [Google Scholar] [CrossRef] [Green Version]
  67. Haenke, S.; Kovacs-Hostyanszki, A.; Fruend, J.; Batary, P.; Jauker, B.; Tscharntke, T.; Holzschuh, A. Landscape configuration of crops and hedgerows drives local syrphid fly abundance. J. Appl. Ecol. 2014, 51, 505–513. [Google Scholar] [CrossRef] [Green Version]
  68. Haenke, S.; Scheid, B.; Schaefer, M.; Tscharntke, T.; Thies, C. Increasing syrphid fly diversity and density in sown flower strips within simple vs. complex landscapes. J. Appl. Ecol. 2009, 46, 1106–1114. [Google Scholar] [CrossRef]
  69. Meyer, B.; Jauker, F.; Steffan-Dewenter, I. Contrasting resource-dependent responses of hoverfly richness and density to landscape structure. Basic Appl. Ecol. 2009, 10, 178–186. [Google Scholar] [CrossRef]
  70. Almohamad, R.; Verheggen, F.; Haubruge, É. Searching and oviposition behavior of aphidophagous hoverflies (Diptera: Syrphidae): A review. Biotech. Agron. Soc. Environ. 2009, 13, 467–481. [Google Scholar]
  71. Chambers, R.; Adams, T. Quantification of the impact of hoverflies (Diptera: Syrphidae) on cereal aphids in winter wheat: An analysis of field populations. J. Appl. Ecol. 1986, 23, 895–904. [Google Scholar] [CrossRef]
  72. Skevington, J.H.; Locke, M.M.; Young, A.D.; Moran, K.; Crins, W.J.; Marshall, S.A. Field Guide to the Flower Flies of Northeastern North America; Princeton University Press: Princeton, NJ, USA, 2019. [Google Scholar]
  73. Bianchi, F.J.J.A.; Schellhorn, N.A.; Cunningham, S.A. Habitat functionality for the ecosystem service of pest control: Reproduction and feeding sites of pests and natural enemies. Agric. For. Entomol. 2013, 15, 12–23. [Google Scholar] [CrossRef]
  74. Duelli, P. Dispersal and oviposition strategies in Chrysoperla carnea. In Progress in world’s neuropterology: 1st International Symposium on Neuropterology (Insecta, Megaloptera, Raphidioptera, Planipennia) in Graz, Austria; Gepp, J., Aspock, H., Holzel, H., Eds.; Smithsonian Libraries: Washington, DC, USA, 1984; pp. 133–145. [Google Scholar]
  75. Janković, M.; Plećaš, M.; Sandić, D.; Popović, A.; Petrović, A.; Petrović-Obradović, O.; Tomanović, Ž.; Gagić, V. Functional role of different habitat types at local and landscape scales for aphids and their natural enemies. J. Pest Sci. 2016, 90, 261–273. [Google Scholar] [CrossRef]
  76. Almdal, C. Landscape Heterogeneity Impacts Aphid Suppression While Adjacent Habitats and Aphid Abundance Impact Predator Movement in Soybean; University of Manitoba: Winnipeg, MB, Canada, 2022. [Google Scholar]
Insects 14 00624 g001 550

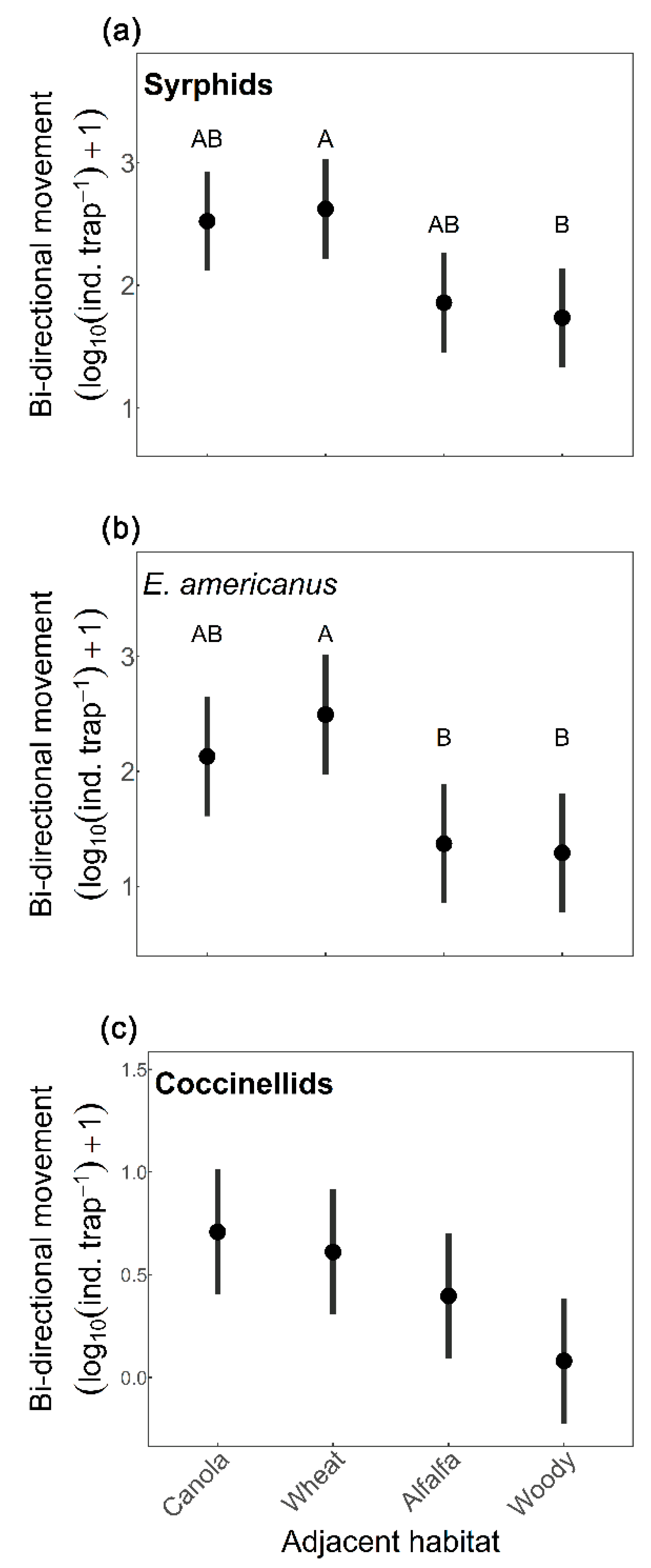

Figure 1. Effects of adjacent habitat type (canola, spring wheat, alfalfa, and woody vegetation) on predator bidirectional movement (log10 [individuals/trap] +1) in soybean, across two weeks collected from bidirectional Malaise traps, for (a) syrphids, (b) Eupeodes americanus, and (c) coccinellids. Confidence intervals (95%) were plotted. Different letters denote significant differences between adjacent habitat types (Tukey test; p < 0.05), see Table 2 for model statistics.
Figure 1. Effects of adjacent habitat type (canola, spring wheat, alfalfa, and woody vegetation) on predator bidirectional movement (log10 [individuals/trap] +1) in soybean, across two weeks collected from bidirectional Malaise traps, for (a) syrphids, (b) Eupeodes americanus, and (c) coccinellids. Confidence intervals (95%) were plotted. Different letters denote significant differences between adjacent habitat types (Tukey test; p < 0.05), see Table 2 for model statistics.
Insects 14 00624 g001
Insects 14 00624 g002 550

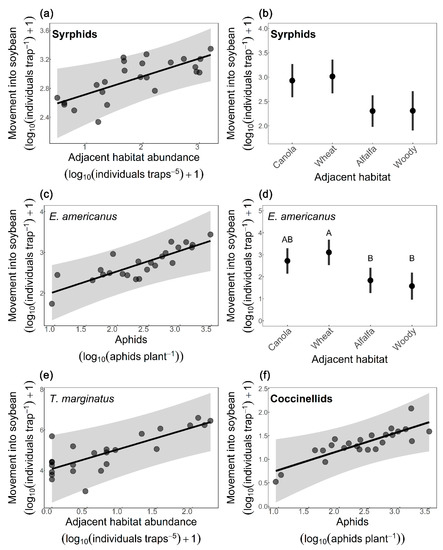

Figure 2. Factors affecting movement of predators into soybean (log10 [individuals/trap] +1) across two weeks collected from bidirectional Malaise traps. Effects of (a) number of syrphids in adjacent habitats and (b) adjacent habitat types on syrphid movement into soybean, of (c) number of aphids in soybean and (d) adjacent habitat types on Eupeodes americanus movement into soybean, of (e) number of Toxomerus marginatus in adjacent habitats on T. marginatus movement into soybean, and of (f) number of aphids in soybean on coccinellid movement into soybean. Adjacent habitat abundance was estimated using sticky traps (log10 [#/5 sticky traps] +1) and aphid abundance was estimated by plant counts (log10 [mean # aphids/plant]). Continuous variables in linear models are presented as black lines, partial residuals as gray dots and confidence intervals (95%) as grey area; categorical variables are presented as means ± standard errors. Different letters denote significant differences between adjacent habitat types (Tukey test; p < 0.05), see Table 3 for full model statistics.
Figure 2. Factors affecting movement of predators into soybean (log10 [individuals/trap] +1) across two weeks collected from bidirectional Malaise traps. Effects of (a) number of syrphids in adjacent habitats and (b) adjacent habitat types on syrphid movement into soybean, of (c) number of aphids in soybean and (d) adjacent habitat types on Eupeodes americanus movement into soybean, of (e) number of Toxomerus marginatus in adjacent habitats on T. marginatus movement into soybean, and of (f) number of aphids in soybean on coccinellid movement into soybean. Adjacent habitat abundance was estimated using sticky traps (log10 [#/5 sticky traps] +1) and aphid abundance was estimated by plant counts (log10 [mean # aphids/plant]). Continuous variables in linear models are presented as black lines, partial residuals as gray dots and confidence intervals (95%) as grey area; categorical variables are presented as means ± standard errors. Different letters denote significant differences between adjacent habitat types (Tukey test; p < 0.05), see Table 3 for full model statistics.
Insects 14 00624 g002
Table
Table 1. Average predator abundance (± the standard error) in soybean and adjacent habitats across adjacent habitat types (alfalfa n = 3, canola n = 3, spring wheat n = 3, and woody vegetation n = 3) from sticky traps (#/5 sticky traps) collected the second sampling week. Statistics of linear models are presented in the text.
Table 1. Average predator abundance (± the standard error) in soybean and adjacent habitats across adjacent habitat types (alfalfa n = 3, canola n = 3, spring wheat n = 3, and woody vegetation n = 3) from sticky traps (#/5 sticky traps) collected the second sampling week. Statistics of linear models are presented in the text.
AlfalfaCanolaWheatWoody
Soybean
Syrphids529.7 ± 157.21809.0 ± 164.91085.7 ± 477.8821.3 ± 575.8
Toxomerus marginatus82.0 ± 40.3287.3 ± 110.564.3 ± 22.4201.3 ± 159.3
Coccinellids36.0 ± 18.526.0 ± 5.250.7 ± 22.626.3 ± 20.9
All other predators21.3 ± 8.730.7 ± 22.737.0 ± 18.721.7 ± 8.1
Adjacent habitat
Syrphids108.3 ± 6.2 a1210.0 ± 188.8 b525.7 ± 209.6 ab302.0 ± 272.2 a
Toxomerus marginatus18.3 ± 9.0 a149.3 ± 17.3 b43.0 ± 25.4 a3.7 ± 1.3 a
Coccinellids4.7 ± 2.4 ab2.3 ± 0.9 ab21.0 ± 4.4 b3.3 ± 2.9 a
All other predators a7.7 ± 3.8 a11.0 ± 4.4 a15.0 ± 9.5 a0.7 ± 0.7 a
a All other predators includes anthocorids, chrysopids, hemerobiids, nabids, and staphylinids. Different letters within a row denote differences among adjacent habitats (Tukey test; p < 0.05).
Table
Table 2. The effect of bidirectional movement (movement into or out of soybean; df = 1, 34), week (1 or 2; df = 1, 34), and adjacent habitat (alfalfa, canola, spring wheat, woody vegetation; df = 3, 8) on predator bidirectional movement (log10 [individuals/direction/trap] +1) in soybean from linear mixed effects models. Estimates of fixed effects parameters (Est.) are presented.
Table 2. The effect of bidirectional movement (movement into or out of soybean; df = 1, 34), week (1 or 2; df = 1, 34), and adjacent habitat (alfalfa, canola, spring wheat, woody vegetation; df = 3, 8) on predator bidirectional movement (log10 [individuals/direction/trap] +1) in soybean from linear mixed effects models. Estimates of fixed effects parameters (Est.) are presented.
DirectionWeekAdjacent Habitat
Est.FpEst.FpFp
Syrphids0.194.280.0460.4422.00.00015.70.022
Eupeodes americanus0.329.60.00390.3411.10.00215.70.022
Toxomerus marginatus0.0240.0430.840.8552.70.0001
Coccinellids0.217.450.0100.3520.50.00013.90.055
All other predators a0.0600.450.510.142.40.13
a All other predators includes anthocorids, chrysopids, hemerobiids, nabids, and staphylinids.
Table
Table 3. The effect of the field population of aphids in soybean (log10 [mean # aphids/plant]; df = 1, 10), predator abundance in the adjacent habitat (log10 [#/5 sticky traps] + 1); df = 1, 10 except E. americanus df = 1, 11), and adjacent habitat type (alfalfa, canola, spring wheat, or woody vegetation; df = 3, 8) on predator movement into soybean from linear mixed effects models. Adjacent habitat abundance refers to the response group’s abundance. Estimates of fixed effects parameters (Est.) are presented.
Table 3. The effect of the field population of aphids in soybean (log10 [mean # aphids/plant]; df = 1, 10), predator abundance in the adjacent habitat (log10 [#/5 sticky traps] + 1); df = 1, 10 except E. americanus df = 1, 11), and adjacent habitat type (alfalfa, canola, spring wheat, or woody vegetation; df = 3, 8) on predator movement into soybean from linear mixed effects models. Adjacent habitat abundance refers to the response group’s abundance. Estimates of fixed effects parameters (Est.) are presented.
Aphid AbundanceAdjacent Habitat AbundanceAdjacent Habitat
Est.FpEst.FpFp
Syrphids0.663.80.0790.577.80.0194.30.044
Eupeodes americanus1.1610.20.0085---6.50.015
Toxomerus marginatus0.830.620.451.010.20.0100.680.59
Coccinellids0.946.60.0280.471.80.213.70.062
All other predators a0.573.90.0760.340.650.442.00.19
a All other predators includes anthocorids, chrysopids, hemerobiids, nabids, and staphylinids.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Almdal, C.D.; Costamagna, A.C. Annual Crops Contribute More Predators than Perennial Habitats during an Aphid Outbreak. Insects 2023, 14, 624. https://doi.org/10.3390/insects14070624

AMA Style

Almdal CD, Costamagna AC. Annual Crops Contribute More Predators than Perennial Habitats during an Aphid Outbreak. Insects. 2023; 14(7):624. https://doi.org/10.3390/insects14070624

Chicago/Turabian Style

Almdal, Crystal D., and Alejandro C. Costamagna. 2023. "Annual Crops Contribute More Predators than Perennial Habitats during an Aphid Outbreak" Insects 14, no. 7: 624. https://doi.org/10.3390/insects14070624

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
