Synergism between Hydramethylnon and Metarhizium anisopliae and Their Influence on the Gut Microbiome of Blattella germanica (L.)

by
Yu Chao
1,†,
Mingyue Wang
1,†,
Wei Dai
1,
Fengyue Dong
1,
Xuejun Wang
2,* and
Fan Zhang
1,*
1
Key Laboratory of Animal Resistance Biology of Shandong Province, College of Life Science, Shandong Normal University, 88 East Wenhua Road, Jinan 250014, China
2
Shandong Center for Control and Prevention, 16992 Jingshi Road, Jinan 250014, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Insects 2020, 11(8), 538; https://doi.org/10.3390/insects11080538
Submission received: 29 June 2020 / Revised: 11 August 2020 / Accepted: 12 August 2020 / Published: 15 August 2020
(This article belongs to the Special Issue Biological Control and Insect Pathology)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

The widespread use of insecticides has cause extensive resistance in German cockroach (Blattella germanica) populations globally. Biological control has the potential to mitigate insecticide resistance, and Metarhizium anisopliae, an entomopathogenic fungus, alone and in combination with various insecticides has shown good effects against cockroaches. This experiment compared the cumulative mortality after infecting B. germanica with M. anisopliae conidia by per os infection and topical dorsal infection. To probe the mechanisms that underlie the synergism between M. anisopliae and hydramethylnon, we conducted dose-response assays with cockroaches fed combinations of them and characterized the gut microbiome of treated cockroaches. The results showed that the mortality of per os infection was lower than that of topical dorsal infection. In addition, the combination of M. anisopliae and hydramethylnon had a synergistic effect. The gut microbiome was also altered by hydramethylnon treatment. Therefore, we speculate that one of the mechanism underlying this synergism is that hydramethylnon promotes the survival of M. anisopliae in the harsh gut environment and enhances its virulence on German cockroaches by altering the gut microbiome. This may help to develop new types of bio-control glue baits for the control of cockroaches.

Abstract

(1) Background: The widespread use of insecticides has cause extensive resistance in German cockroach (Blattella germanica) populations globally. Biological control has the potential to mitigate insecticide resistance, and Metarhizium anisopliae (Meschn.) Sorokin, an entomopathogenic fungus, alone and in combination with various insecticides, has shown good effects against cockroaches. (2) Methods: This experiment compared the cumulative mortality after infecting B. germanica with M. anisopliae conidia by two routes, per os and topical application. To probe the mechanisms that underlie the synergism between M. anisopliae and hydramethylnon, we conducted dose–response assays with cockroaches fed combinations of M. anisopliae and hydramethylnon and characterized the gut microbiomes of the treated cockroaches. (3) Results: The study showed that the mortality with per os infection was lower than that with topical application. In addition, the combination of M. anisopliae and hydramethylnon had a synergistic effect in 16 treatments. The gut microbiome was also altered by hydramethylnon treatment. The abundance of Parabacteroides and Enterococcus declined with the hydramethylnon and combination treatments, which are known to have anti-inflammatory and antifungal activities. The abundance of Alistipes, which is a fungal cell wall component, significantly increased in these treatments. (4) Conclusions: Therefore, we speculate that the major mechanism underlying this synergism is hydramethylnon promoting the survival of M. anisopliae in the harsh gut environment and enhancing its virulence for German cockroaches by altering the gut microbiome. This may provide a method for the fight against B. germanica and lay the foundation for the development of new baits.

1. Introduction

The German cockroach Blattella germanica (L.) (Blattaria: Blattellidae) (B. germanica), a nuisance pest distributed worldwide, carries a variety of pathogenic microorganisms and eggs of parasites such as cestodes, hookworm and round worms, which can spread diseases and allergens [1,2,3]. Concerning the threat B. germanica poses to human health, various measures have been widely applied to control B. germanica. Currently, chemical control has become the most important means of controlling B. germanica due to its efficiency, low cost and other advantages [3]. However, the extensive use of pesticides, such as pyrethroids, carbamate, neonicotinoids and organofluorine, against B. germanica has resulted in the evolution of insecticide resistance, which has become a major challenge for pesticide efficacy [4,5]. Assays indicated that German cockroaches have different levels of resistance to insecticides such as beta-cypermethrin, acephate and carbamate [6,7,8]. There is an urgent need to explore alternative strategies for cockroach control.
Some reagents with great effects have already been developed, and one of them is hydramethylnon [9]. Hydramethylnon is effective in the control of cockroaches and ants [10]. It is a mitochondrial respiratory blocker in insect cells and is a terpenoid [11,12]. It is mainly used as an active ingredient in stomach poison bait, which has relatively mild killing symptoms with the addition of a sputum attractant. Meanwhile, hydramethylnon has been shown to have low toxicity to mammals and cannot cause allergic reactions. Hydramethylnon has been used around the world for more than a decade, and to date, only low resistance has been developed against it [13,14].
Biological control is also very promising for combating cockroaches [2]. In pest management, entomopathogenic fungi, such as Metarhizium and Beauveria [15,16,17,18,19], are a potential alternative with high biodegradability and specificity and a low likelihood of resistance development [20]. Because entomopathogenic fungi are environmentally friendly and have low virulence for non-target insects, fungus-based microbial source pesticides have been widely used [21,22,23,24,25,26]. Due to the different properties of Metarhizium anisopliae (M. anisopliae) strains, some of them have shown low virulence for German cockroaches [27,28], and some strains have shown to induce high mortality in cockroaches, which have been deployed in commercial biocontrol products [29]. However, biological agents have limitations such as a long response and slow effect compared with conventional insecticides, limiting their wider use [2]. The combination of entomopathogenic fungi and chemical pesticides provides a great solution for the control of insects. For the control of German cockroaches, a synergistic interaction between boric acid and M. anisopliae resulted in great mortality. According to a previous study, the topical application of M. anisopliae alone (8.96 × 109 conidia/m2) required 28 days to cause 92% cockroach mortality (LT50 = 10 days), but in combination with boric acid, M. anisopliae conidia dust (8.96 × 108 conidia/m2) with either 12.5% (w/w) boric acid dust or 0.1% (w/v) boric acid in drinking water killed 100% of the cockroaches in only 8 days (LT50 = 5 days) and 10 days (LT50 = 6 days), respectively [21]. The cumulative mortality induced by the M. anisopliae and β-cypermethrin compounds in the locusts reached 97.8% and 97.3% after 5 days, respectively, which was significantly higher than that in locusts treated with 1 × 1010 conidia/mL of M. anisopliae [30]. These results showed that M. anisopliae has good compatibility with a variety of insecticides.
The gut lumen of German cockroaches contains an abundance of microbes, which are considered to be essential for the growth, development and fertility of the host [3,26,31,32,33]. In addition to producing all of the essential amino acids, various vitamins and other required compounds, these microbes also play important roles in protecting the host insect from the invasion of entomopathogens and boost the immune system of the host [34,35,36,37,38,39,40,41]. Some microbes with anti-entomopathogenic fungal activity contribute to resisting pathogenic fungal infections. For instance, Lactobacillus and Weissella can produce many antimicrobial agents, such as bacteriocins, adhesion inhibitors and organic acids [33,42]. Bacteroides can protect the host insect from pathogens proliferating in the gut by stimulating the immune system of the host, and Pseudomonas is characterized by the secretion of versatile secondary metabolites [43,44] and is known for its antifungal activities. The ingestion of entomopathogens also appears to be a rare route of infection and has been reported in a few species of insects [26,45,46,47]. The low efficacy of entomopathogens when ingested matters particularly in the context of delivering conidia in baits, and hydramethylnon has a stomach poisoning effect.
Since M. anisopliae has good compatibility with a variety of insecticides and the development level of resistance to hydramethylnon is low, the effect of their combination was evaluated in this study. Because intestinal microbes play important roles in combating insect pathogenic fungi, we conducted high-throughput sequencing of the intestinal microbes of cockroaches to reveal the mechanism of the compounds of M. anisopliae and hydramethylnon. This approach may help to provide a promising and effective method for cockroach control.

2. Materials and Methods

2.1. Insects

Blattella germanica were provided by the Key Laboratory of Animal Resistance Biology of Shandong Province. These cockroaches were cultured in a growth chamber at an appropriate temperature and humidity [27 ± 1 °C, 60 ± 5% relative humidity (RH)] with a 12:12 h light/dark cycle and fed water and rat pellets. The tested insects were adult males of B. germanica.

2.2. Entomopathogenic Fungi and Fungal Cultivation

The M. anisopliae strain EB0732 was isolated from field-collected Eupolyphaga sunensis cadavers [19] and preserved by the Key Laboratory of Animal Biology, Shandong Normal University. The entomopathogenic fungal conidia were maintained on potato dextrose agar (PDA) and incubated for 9 days at 28 °C. The growth of the fungi was checked daily, and uncontaminated fungi were transferred to fresh PDA without additional antibiotics to prepare a pure culture. After the growth period, conidia were collected with a sterile metal loop and suspended in sterile phosphate buffered saline (PBS, 3 mM) containing 0.1% (v/v) Tween 80. The required concentrations of conidial suspensions were determined using a Neubauer hemocytometer (Kanwin Biotechnology Co., Ltd., Shanghai, China).

2.3. Hydramethylnon Baits

To produce baits containing 0.25, 0.50, 0.75 and 1.0% (w/w) hydramethylnon in rat pellet feed, hydramethylnon was grounded into power, mixed with 2 mL of cooking oil and incorporated into 2 g of rat pellet feed powder (v/w) to generate 2.5, 5, 7.5 and 10 mg of hydramethylnon, respectively, per gram of semisolid bait. The baits were left to dry at room temperature for 12 h. Cockroaches were provided with fresh treated or untreated baits every 5 days, and the old baits were removed.

2.4. Experimental Design of Per Os Infection and Topical Dorsal Infection with M. anisopliae of German Cockroaches

Before the experiment, male German cockroach adults were starved for 24 h. The cockroaches were divided into ten groups of 20 cockroaches. The first five groups were inoculated on the surface of the dorsal cuticle with 2 μL of conidial suspensions of 1 × 105, 1 × 106, 1 × 107, 1 × 108 or 1 × 109 cfu/mL. Conidia (in 2 μL) was applied to the other five groups with a microinjector between the paraglossae (mouthparts); the surface was sterilized with 0.1% mercuric chloride and rinsed three times with sterile water to remove adhering conidia [19]. Sterile PBS (0.1% (v/v) Tween 80) was used as a negative control. Each concentration was replicated 3 times. After the conidial suspension was added for 24 h, the mortality was recorded every 24 h for 14 days. Only dead cockroaches covered with mycelium were counted as having a fungal infection. Bioassays were monitored daily for 14 days. The data were analyzed by probit analysis with the SPSS 20.0 software.

2.5. Experimental Design of M. anisopliae and Hydramethylnon

Before the experiment, male German cockroach adults were starved for 24 h in advance. For bioassays with M. anisopliae alone, the cockroaches were divided into four groups of 20, and 1 × 105, 1 × 106, 1 × 107 and 1 × 108 cfu/mL M. anisopliae conidial suspensions were added to each group by means of per os infection as indicated in Section 2.4. Each group was replicated 3 times. The bioassays were monitored daily for 14 days. For the bioassays with hydramethylnon baits alone, the cockroaches were divided into four groups of 20, and 0.25, 0.5, 0.75 or 1.0% (w/w) hydramethylnon bait was given to each group. Each concentration was replicated 3 times. The bioassays were monitored daily for 14 days. Control cockroaches were treated only with PBS solution and pure rat food. For the synergy bioassays, four concentrations of hydramethylnon (0.25, 0.5, 0.75 and 1.0% w/w) and four concentrations of M. anisopliae (1 × 105, 1 × 106, 1 × 107 and 1 × 108 cfu/mL conidial suspensions) were combined in 16 treatments, each of which was replicated 3 times. Each cockroach was fed 2 μL of M. anisopliae conidial suspension first; the surface was sterilized with 0.1% mercuric chloride and rinsed three times with sterile water to remove conidia adhering to its external surface. The cockroaches were in groups of 20, hydramethylnon bait was continuously provided, and the old baits were removed. The bioassays were monitored daily for 7 days. The data were subjected to probit analysis using SPSS 20.0 for Windows, and the LT50 values were estimated with 95% confidence intervals.
The joint action of the fungus and insecticide was determined using chi-square tests [24]. The 7 day cumulative mortality due to each component of a mixture and the binary mixture was determined empirically from the dosage–mortality curves. The expected values were calculated using the formula Oi + Om (1-Oi), where Oi was the empirical mortality caused by insecticides and Om was the empirical mortality caused by M. anisopliae. The expected value was then converted into percentage mortality. Therefore, the chi-square values were equal to
(observed% mortality − expected% mortality)2/expected% mortality
Significant differences between the treatment combinations according to factorial analysis indicate that there is an interaction between the M. anisopliae and insecticide and that the effect observed might be synergistic or antagonistic. By contrast, if there is no significant difference for the M. anisopliae plus insecticide combination, it is implied that the effects are additive.

2.6. Preparation of Gut Homogenates

German cockroach male adults were divided into 4 groups, with 30 in each group. After 24 h of starvation, the first group was provided with 1% hydramethylnon baits (H), group two was orally fed 1 × 108 cfu/mL of M. anisopliae suspension (2 μL) (M), the third group was provided with 1% hydramethylnon baits and 2 μL of M. anisopliae suspension at 1 × 108 cfu/mL (HM), and group four was a negative control fed 2 μL of deionized water (C). Each concentration was replicated 3 times. Considering that the characteristics of the gut, physiology and biochemistry of B. germanica changed greatly, the cockroaches that were treated for three days were sterilized with 75% ethanol for 90 s and rinsed with sterile water 3 times. Then, the guts were dissected and stored at −80 °C in Eppendorf tubes for further use.

2.7. PCR Amplification and Pyrosequencing

Gut homogenates of 120 cockroaches was prepared, and the DNA from the samples was extracted using the K2306 Karroten Microbial Genomic DNA extraction kit (Novoprotein Scientific Inc., Shanghai, China). The V6 variable regions of the 16S rRNA gene were amplified using the primers 515F and 907R (5′-GTGCCAGCMGCCGCGG-3′ and 5′-CCGTCAATTC MTTTRAGTTT-3′, respectively) [3,26]. PCR was conducted in a total volume of 20 μL containing 2 μL of dNTPs (2.5 mM), 4 µL of 5×FastPfu buffer, 10 ng of DNA template, 0.4 µL of FastPfu polymerase (Novoprotein Scientific Inc), 0.8 µL of each primer (0.5 μM) and deionized ultrapure water (to 20 μL). The amplification program was as follows: initial denaturation at 95 °C for 3 min; amplification with 27 cycles of denaturation at 95 °C for 30 s, annealing at 55 °C for 30 s, and extension at 72 °C for 30 s; and a final extension at 72 °C for 10 min. The target PCR product (3 μL) was visualized by electrophoresis on a 2% agarose gel. After the PCR products were purified and quantified, the samples were combined at equal concentrations. Parallel tagged sequencing was performed using MiSeq Sequencing in MAJORBIO based on Solexa Sequencing Technology (Illumina, San Diego, CA, USA).

2.8. Bioinformatic and Statistical Analysis

Since the MiSeq sequencing resulted in paired-end sequences, first, the paired reads were spliced to form sequences according to the overlap relations between the paired-end reads; the quality of the reads and the effect of merging were quality controlled and filtered to obtain high-quality reads using the FLASH software (http://ccb.jhu.edu/software/FLASH), with a minimum overlap of 10 bp. Other parameters were left at default settings. The pyrosequencing data were subjected to bioinformatic analysis. Before analysis, the original pyrosequencing data were filtered and optimized using MOTHUR (http://www.mothur.org) and TRIMMOMATIC to obtain valid and trimmed sequences. Chimeric sequences were removed using UCHIME; valid sequences were simplified using the “unique.seqs” command to obtain a unique set of sequences, aligned using the “align.seqs” command and compared to the Bacterial SILVA database (http://www.arb-silva.de). The ”Screen.seqs”, “filter.seqs”, “unique.seqs” and “dist.seqs” commands were used in order. Furthermore, unique sequences were clustered into operational taxonomic units (OTUs), defined at the 97% similarity threshold with MOTHUR and chopseq (MAJORBIO), using MOTHUR and plot rarefaction (MAJORBIO) to carry out rarefaction analysis. According to these results, the community richness (Chao1 and ACE) and diversity indexes (Shannon and Simpson) were estimated using MOTHUR. Community comparison was carried out using the UniFrac Server. A heatmap was generated based on the relative abundance of genera using the R package heatmap followed by principal component analysis (PCA) and nonmetric multidimensional scaling (NMDS) using the R package vegan [48,49].
The results are represented as the mean ± standard error (SE). Statistical analysis was performed by one-way analysis of variance (ANOVA) using SPSS version 20.0 for Windows (IBM, Armonk, NY, USA). A p-value less than 0. 05 was considered to be statistically significant. Blattabacterium was identified in the results, but the content in each experimental group was less than 0.01%, so it was merged into “others”.

2.9. Data Accessibility

All the original data related to the 16S rRNA and metagenomic sequencing in this study are available at Mendeley Data [50]. All the sequences were deposited in the NCBI SRA (Sequence Read Archive) database under the BioProject accession numbers from SRR11668662 to SRR11668673.

3. Results

3.1. Mortality of Cockroaches with M. anisopliae and Hydramethylnon

The mortality with per os infection was lower than that with topical dorsal infection, and the difference between the two became increasingly obvious as the concentration of M. anisopliae increased (Figure 1A). At a concentration of 1 × 109 cfu/mL, the mortality rate caused by topical dorsal infection was 68.3%, while the per os infection rate was 16.67% (p < 0.05). In addition, the mortality with per os infection was not affected by the changing concentrations, but the mortality with topical infection increased in a dose-dependent manner. The cockroaches treated with different concentrations of hydramethylnon exhibited 100% mortality within 14 days. Especially, when they were treated with hydramethylnon at concentrations of 0.75% and 1% w/w, 100% mortality was achieved within 12 days, respectively (Figure 1B).

3.2. Mortality Bioassays and Synergistic Effect Analysis across 16 Treatment Groups

For hydramethylnon treatment, ingested hydramethylnon killed cockroaches in a dose-dependent manner, and the LT50 values decreased with increasing concentration (Table 1). At 1.00% w/w hydramethylnon, the LT50 value was 6.6 days, with an LT50 of 8.1 days at 0.25% w/w.
The effect of M. anisopliae delivered by ingestion on cockroaches was significantly lower than that of hydramethylnon (Table 1). No more than half of the insects in the experimental group died within 14 days of being recorded.
The infection results induced by the compound baits were compared (Table 2, Figure 2), and the combination treatments of four hydramethylnon concentrations and four M. anisopliae concentrations showed strong synergistic interactions between the two insecticidal agents. All of the treatments, including the lowest concentrations of both (1 × 105 cfu/mL M. anisopliae and 0.25% hydramethylnon), resulted in much higher mortality than the additive mortality of hydramethylnon alone and M. anisopliae alone (Table 2). Simultaneously, all four combinations of hydramethylnon with 1 × 108 cfu/mL M. anisopliae resulted in higher mortality (Table 2). Statistical analysis for the synergistic, additive and antagonistic effects demonstrated strong synergistic interactions between M. anisopliae and hydramethylnon in 16 combination treatments. No antagonistic effects were observed in any group. Overall, the use of hydramethylnon strengthened the virulence of M. anisopliae for German cockroaches. The control sample showed an extremely low mortality rate of only 3.33% (in 8 days).

3.3. Bioinformatic Analysis

After pyrosequencing, a total of 834,715 valid reads and 6458 OTUs were obtained from twelve samples. Each sample contained a different number of phylogenetic OTUs, ranging from 470 to 528 (Table 3), and the maximum number of OTUs reached 404 species in the cockroach gut. Good’s coverage estimations revealed that over 99% of the species were obtained, demonstrating that a sufficient sampling depth was reached for all samples (Table 3). As shown in Supplementary Figure S1, the rarefaction curves tended to approach the saturation plateau and indicated that there were some differences in the total number of OTUs between different samples. In addition, the OTU density in the upper layer was greater than that in the lower parts. In addition, the rarefaction curves revealed that community richness was higher in the control samples (C), but there was no significant difference among all groups.
We estimated the community richness using the ACE and Chao1 indexes and the diversity of the four groups using the Shannon and Simpson indexes. One-way ANOVA was applied to test whether the diversity and richness indexes were significantly different between samples. Both the Shannon and Simpson indexes revealed that the diversity indexes were not significantly different among samples, but the ACE indexes were significantly different (p < 0.05) between the H (hydramethylnon), M (M. anisopliae), HM (hydramethylnon and M. anisopliae) and C samples (Table 3), indicating that the community richness of the four groups was particularly different.
All sequences were classified from the species to phylum level with the Mothur software using the default settings, and 22 phyla and 187 genera were detected (Figure 3 and Figure 4). Sequences that could not be classified were classified as “no rank”. “Others” were taxa with an abundance <1%. The representative sequences at the phylum level are enumerated in Figure 3. Bacteroidetes, Firmicutes, Proteobacteria and Actinobacteria were common to all samples, and Bacteroidetes, Firmicutes and Proteobacteria were the most abundant taxa in all of the samples. The relative abundances of Firmicutes and Proteobacteria were significantly different among the four treatment groups (Firmicutes: HM, 18.70%; H, 38.50%; M, 35.10%; C, 33.01%; p < 0.01; Proteobacteria: HM, 19.94%; H, 9.53%; M, 8.55%; C, 13.73%; p < 0.05).
At the genus level, the detected OTUs were distributed among 187 different bacterial genera, and the H, M, HM and C samples were composed of 132, 135, 136 and 134 different bacterial genera (Figure 4). The composition of the bacterial genera was similar across the four treatment groups, but their relative abundance varied significantly. In pairwise comparisons of the four treatments at the genus level, there were eight statistically significant differences (Table 4). In the hydramethylnon treatment, the relative abundance of Parabacteroides (4.98%) declined significantly relative to that of the control samples (9.29%; p < 0.01), as well as Enterococcus (1.37% vs. 3.52%, respectively; p < 0.05). The relative abundance of Tyzzerella in the M. anisopliae treatment group was significantly higher (6.63%) than that in the control samples (3.81%; p < 0.05). In the M. anisopliae–hydramethylnon combination treatment group, the abundance of Alistipes (12.98% vs. 7.57%; p < 0.01), as well as Dysgonomonas (9.33% vs. 6.38%; p < 0.05), was significantly increased compared to that in the control samples. However, the abundance of Enterococcus was significantly lower in the combination treatment samples than in the control samples (3.52% vs. 1.60%, p < 0.05); this was also the case for Bacteroides (2.08% vs. 5.78%, p < 0.05) in the M. anisopliae samples (Figure 4, Table 4).
We performed PCA with the weighted UniFrac distance and clustering analysis depending on the pyrosequencing data above. The PCA score plot indicated that the H and HM groups were closely related and grouped to both the left and right of the graph along PC1 and PC2, which explained 27.62% and 13.55% of the variance, respectively. In addition, the C and M groups were separated from H and HM along PC1 and PC2, but they were close to each other along PC1. Overall, the two PCA axes explained 41.17% of the variation between the different communities (Figure 5A). The NMDS analysis, according to the Bray–Curtis distance, also confirmed that bacterial communities in the H and HM samples were significantly different from those in either the C or M samples (Figure 5B). The heat map graphically shows that, at the genus level, the compositions of the bacterial communities in the H and HM groups were more similar than those in the other groups (Figure 6).

4. Discussion

Our study shows that the M. anisopliae infection rate with per os infection is lower than that with topical dorsal infection (Figure 1A). For the entomopathogenic fungi, the infection cycle can usually be divided into five stages: adhesion to the cuticle, germination, penetration through the exoskeleton, host tissue colonization and sporulation [51,52,53]. M. anisopliae could produce some specific degrading enzymes to penetrate the cuticle of the insect and adapt to the highly permeable environment of the host’s hemolymph based on a MOS1 osmosensor to combat the insect immune system in long-term evolution [54,55,56]. This allows the fungus, to a certain extent, to escape the immune mechanism of the host hemocoel and the production of hyphal bodies [57]. These mechanisms help conidia to successfully invade the hemocoel of cockroaches by topical dorsal infection. For the per os infection, we concluded that the characteristics of the digestive tract environment in cockroaches, including the digestive enzymes, pH, low O2 and high osmotic pressure, are not conducive to the germination and reproduction of conidia, and the symbiotic bacteria in gut may also produce antimicrobial peptides and other substances to inhibit and kill conidia [27,33]. As for there being no dose response in per os infection, this may be due to most conidia remaining too short in the digestive tract to successfully infect cockroaches (Figure 1A).
In this study, we found that the greatest mortality occurred with the lowest M. anisopliae dosage, but lower mortality was seen with a higher M. anisopliae dosage (Table 2). We speculated that the high concentration of M. anisopliae conidia would affect the taste of the bait of hydramethylnon, reducing the palatability of the bait and thus affecting the appetite of the insects, thereby reducing the intake of the bait, leading to the decrease in the mortality rate. Thus, we suspect that is why increasing the M. anisopliae and hydramethylnon concentration did not cause a linear increase in mortality. In addition, M. anisopliae can infect insects through body wall contact. If M. anisopliae is added to the bait, it would be likely to come into contact with the body of the insect, which could cause contact-associated mortality and confound the experimental results.
Multiple studies have shown synergistic effects between M. anisopliae and various chemical insecticides, such as cypermethrin and boric acid. The mixture of M. anisopliae and cypermethrin can assist the infection of M. anisopliae spores by reducing the expression of hemolymph protein [58]. Boric acid, also known as a stomach toxin, had a high insecticidal effect in complex with M. anisopliae [21,28]. Based on previous studies, it was thought that the synergistic mechanism involved boric acid leading to damage to gut epithelial cells or gut cuticles, thus facilitating the penetration of M. anisopliae. There may have been a similar mechanism in the experiments we performed [59,60]. Meanwhile, several studies have shown insecticidal impacts on the gut microbiome of cockroaches, such as M. anisopliae and beta-cypermethrin [3,26]. Thus, the recognition that the gut microbiome is a significant participant in insecticide toxicology also prompted us to compare the microbiomes of cockroaches exposed to various hydramethylnon and M. anisopliae combinations. Thus, we analyzed the gut microbiota of four different cockroach treatment groups and performed Solexa high-throughput sequencing.
According to the results of the experiments, the structure and composition of the intestinal microbiomes of cockroaches in our study are roughly the same as those in previous studies [3,26], but the use of hydramethylnon would cause additional changes. The groups treated with hydramethylnon and M. anisopliae combined with hydramethylnon had some differences from the others (Table 4). Hydramethylnon ingestion decreased the relative abundance of Parabacteroides, Tyzzerella and Enterococcus compared with that in the control samples. The relative abundance of Tyzzerella and Enterococcus was also lower in the combined hydramethylnon–M. anisopliae treatment group, implying that hydramethylnon was responsible for these changes. All the bacterial taxa are known to have anti-inflammatory effects and protect the host from fungal invasion [61]. Enterococcus has antifungal activity against several fungi, including Candida albicans, Debaryomyces hansenii and Penicillium roqueforti. It also produces three bacteriocins, EntV, durancin A5-11a and durancin A5-11b, which have similar antimicrobial properties [62,63]. Although we do not know the role of Tyzzerella in the guts of cockroaches, activity tests of the purified proteins revealed that Tyzzerella was able to hydrolyze the disaccharide unit from Galβ1-3GalNAc-α-pNP [64]. Parabacteroides is involved in the degradation of complex organic matter, providing amino acids and cofactors for the nutrition of the cockroach host and producing many antimicrobial agents such as organic acids, bacteriocins and adhesion inhibitors [65,66,67]. Considering that hydramethylnon inhibits both Parabacteria and Enterococci, we speculate that it assists M. anisopliae in penetrating the intestinal wall of German cockroaches. By contrast, the relative abundance of Alistipes and Dysgonomonas significantly increased in the hydramethylnon–M. anisopliae treatment group. The genus Alistipes resembles the Bacteroides fragilis group and appears to be involved in carbohydrate metabolism. It is of particular interest that Alistipes species can hydrolyze chitin, which is a fungal cell wall component [34,68]. Dysgonomonas is a dominant bacterial genus in the intestinal tract of many insects. It can ferment sucrose and glucose to produce lactic acid, acetic acid, propionate, etc. [69]. Accordingly, it can be surmised that hydramethylnon can enhance the infection effect of M. anisopliae by causing a nutritional imbalance in cockroach intestines.
In general, hydramethylnon has a stomach poisoning effect, and it can destroy the intestinal flora [70] and the peritrophic membranes of lepidopteran insects, increasing the chances of M. anisopliae infection in the digestive tract. Furthermore, hydramethylnon can be absorbed by cockroaches and acts on the mitochondria, destroying cell respiration, thereby inhibiting the metabolic system of the cockroach. Meanwhile, hydramethylnon is a type of respiratory chain inhibitor that can inhibit complex III activity to block ATP production [12,71]. Hydramethylnon is widely used in various insects and has been shown to be effective [72]. Accordingly, the combination of hydramethylnon and M. anisopliae proved to be an efficient insecticide through different insecticidal mechanisms, and the use of hydramethylnon can greatly enhance the insecticidal effect of M. anisopliae. Overall, our results demonstrate that hydramethylnon and fungal conidia can be used in combination to enhance efficacy, providing safer and effective methods of cockroach control.
Resistance is an obstacle in cockroach control, and the combination of chemical agents and biological agents is an important research direction for managing insecticide resistance [21,28,30,58]. A variety of studies have shown the combination of the two can delay the emergence of insect resistance and improve insecticidal effects [21,28,30,58]. The results of the virulence bioassay in our experiment proved that there is a synergistic effect between M. anisopliae and hydramethylnon against B. germanica, and the compound is expected to play a beneficial role in practical applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4450/11/8/538/s1. Figure S1: Rarefaction analysis of the different samples. Rarefaction curves of OTUs clustered at the 97% phylotype similarity level. Sobs represents the observed number of species. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.

Author Contributions

Conceptualization, F.Z.; methodology, Y.C., M.W. and W.D.; software, M.W.; validation, F.Z. and X.W.; formal analysis, Y.C. and M.W.; investigation, Y.C., M.W., W.D. and F.D.; resources, F.Z.; data curation, Y.C. and M.W.; writing—original draft preparation, Y.C.; writing—review and editing, Y.C. and F.Z.; visualization, Y.C., M.W. and F.Z.; supervision, F.Z.; project administration, F.Z.; funding acquisition, F.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This study was supported by the National Natural Science Foundation of China (81572027), the Shandong Province Medical and Health Science and Technology Development Program (2014WS0386) and the Shandong Provincial Natural Science Foundation (ZR2012CQ040).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ahmad, A.; Ghosh, A.; Schal, C.; Zurek, L. Insects in confined swine operations carry a large antibiotic resistant and potentially virulent enterococcal community. BMC Microbiol. 2011, 11, 23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Pan, X.Y.; Zhang, F. Advances in biological control of the German cockroach, Blattella germanica (L.). Biol. Control 2020, 142, 104104. [Google Scholar] [CrossRef]
  3. Zhang, F.; Yang, R. Life history and functional capacity of the microbiome are altered in beta-cypermethrin-resistant cockroaches. Int. J. Parasitol. 2019, 49, 715–723. [Google Scholar] [CrossRef] [PubMed]
  4. DeVries, Z.C.; Santangelo, R.G.; Crissman, J.; Suazo, A.; Kakumanu, M.L.; Schal, C. Pervasive Resistance to Pyrethroids in German Cockroaches (Blattodea: Ectobiidae) Related to Lack of Efficacy of Total Release Foggers. J. Econ. Entomol. 2019, 112, 2295–2301. [Google Scholar] [CrossRef]
  5. Zhang, F.; Yang, C.; Zhang, X.; Zhu, H.; Zhao, D.; Huang, Y. Isolation of an anti-entomopathogenic fungal protein secreted from Pseudomonas aeruginosa BGf-2: An intestinal bacteriam of Blattella germanica (L.). J. Invertebr. Pathol. 2020, 173, 107371. [Google Scholar] [CrossRef]
  6. Valles, S.M.; Dong, K.; Brenner, R.J. Mechanisms Responsible for Cypermethrin Resistance in a Strain of German Cockroach, Blattella germanica. Pestic. Biochem. Physiol. 2000, 66, 195–205. [Google Scholar] [CrossRef]
  7. Valles, S.M.; Strong, C.A. A Microsomal Esterase Involved in Cypermethrin Resistance in the German Cockroach, Blattella germanica. Pestic. Biochem. Physiol. 2001, 71, 56–67. [Google Scholar] [CrossRef]
  8. Chai, R.-Y.; Lee, C.-Y. Insecticide resistance profiles and synergism in field populations of the German cockroach (Dictyoptera: Blattellidae) from Singapore. J. Econ. Entomol. 2010, 103, 460–471. [Google Scholar] [CrossRef]
  9. Plentovich, S.; Swenson, C.; Reimer, N.; Richardson, M.; Garon, N. The effects of hydramethylnon on the tropical fire ant, Solenopsis geminata (Hymenoptera: Formicidae), and non-target arthropods on Spit Island, Midway Atoll, Hawaii. J. Insect Conserv. 2010, 14, 459–465. [Google Scholar] [CrossRef]
  10. Plentovich, S.; Russell, T.; Fejeran, C.C. Yellow crazy ants (Anoplolepis gracilipes) reduce numbers and impede development of a burrow-nesting seabird. Boil. Invasions 2017, 20, 77–86. [Google Scholar] [CrossRef]
  11. Lawrence, J.M.; Samways, M.J.; Henwood, J.; Kelly, J. Effect of an invasive ant and its chemical control on a threatened endemic Seychelles millipede. Ecotoxicology 2011, 20, 731–738. [Google Scholar] [CrossRef] [PubMed]
  12. Strain, G.M. Evoked potential and EEG study of the neurotoxicity of hydramethylnon in rats. Res. Vet. Sci. 2019, 124, 452–460. [Google Scholar] [CrossRef] [PubMed]
  13. Liang, D.; McGill, J.; Pietri, J.E. Unidirectional Cross-Resistance in German Cockroach (Blattodea: Blattellidae) Populations Under Exposure to Insecticidal Baits. J. Econ. Entomol. 2017, 110, 1713–1718. [Google Scholar] [CrossRef] [PubMed]
  14. Shahraki, G.H.; Noor, H.M.; Rafinejad, J.; Shahard, M.K.; Ibrahim, Y.B. Field efficacy of siege gel bait in an IPM program on life stages of German cockroach (Blataria, Blattellidae) in a residential building. Asian Biomed. 2011, 5, 619–624. [Google Scholar]
  15. Maniania, N.; Ekesi, S.; Songa, J.M. Managing Termites in Maize with the Entomopathogenic Fungus Metarhizium anisopliae. Int. J. Trop. Insect Sci. 2002, 22, 41–46. [Google Scholar] [CrossRef] [Green Version]
  16. Wu, S.; He, Z.; Wang, E.; Xu, X.; Lei, Z. Application of Beauveria bassiana and Neoseiulus barkeri for improved control of Frankliniella occidentalis in greenhouse cucumber. Crop. Prot. 2017, 96, 83–87. [Google Scholar] [CrossRef]
  17. Sahayaraj, K. Role of Entomopathogenic Fungus in Pest Management. In Basic and Applied Aspects of Biopesticides; Springer: Berlin, Germany, 2014; Chapter 3; pp. 31–46. [Google Scholar]
  18. Shi, N.; Yang, G.; Wang, P.; Wang, Y.; Yu, D.; Huang, B. Complete genome sequence of a novel partitivirus from the entomogenous fungus Beauveria bassiana in China. Arch. Virol. 2019, 164, 3141–3144. [Google Scholar] [CrossRef]
  19. Zhang, X.C.; Li, X.X.; Gong, Y.W.; Li, Y.R.; Zhang, K.L.; Huang, Y.H.; Zhang, F. Isolation, Identification, and Virulence of a New Metarhizium anisopliae Strain on the German Cockroach. J. Econ. Entomol. 2018, 6. [Google Scholar] [CrossRef]
  20. Quiroz, R.D.L.C.; Maldonado, J.J.C.; Alanis, M.D.J.R.; Torres, J.A.; Saldívar, R.P. Fungi-based biopesticides: Shelf-life preservation technologies used in commercial products. J. Pest Sci. 2019, 92, 1003–1015. [Google Scholar] [CrossRef]
  21. Zurek, L.; Watson, D.; Schal, C. Synergism between Metarhizium anisopliae (Deuteromycota: Hyphomycetes) and Boric Acid against the German Cockroach (Dictyoptera: Blattellidae). Boil. Control. 2002, 23, 296–302. [Google Scholar] [CrossRef] [Green Version]
  22. Gutierrez, A.C.; Machado, J.A.R.; Hubner-Campos, R.; Pennisi, M.A.; Rodrigues, J.; Lástra, C.C.L.; García, J.J.; Fernandes, É.K.K.; Luz, C. New insights into the infection of the American cockroach Periplaneta americana nymphs with Metarhizium anisopliae s.l. (Ascomycota: Hypocreales). J. Appl. Microbiol. 2016, 121, 1373–1383. [Google Scholar] [CrossRef] [PubMed]
  23. Kaakeh, W.; Reid, B.L.; Bennett, G.W. Toxicity of fipronil to German and American cockroaches. Entomol. Exp. Appl. 1997, 84, 229–237. [Google Scholar] [CrossRef]
  24. Pachamuthu, P.; Kamble, S.T. In vivo study on combined toxicity of Metarhizium anisopliae (Deuteromycotina: Hyphomycetes) strain ESC-1 with sublethal doses of chlorpyrifos, propetamphos, and cyfluthrin against German cockroach (Dictyoptera: Blattellidae). J. Econ. Entomol. 2000, 93, 60–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Quesada-Moraga, E.; Ruiz-García, A.; Santiago-Alvarez, C. Laboratory evaluation of entomopathogenic fungi Beauveria bassiana and Metarhizium anisopliae against puparia and adults of Ceratitis capitata (Diptera: Tephritidae). J. Econ. Entomol. 2006, 99, 1955–1966. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, F.; Sun, X.X.; Zhang, X.C.; Zhang, S.; Lu, J.; Xia, Y.M.; Huang, Y.H.; Wang, X.J. The interactions between gut microbiota and entomopathogenic fungi: A potential approach for biological control of Blattella germanica (L.). Pest Manag. Sci. 2017, 74, 438–447. [Google Scholar] [CrossRef] [PubMed]
  27. Lopes, R.B.; Alves, S.B. Differential susceptibility of adults and nymphs of Blattella germanica (L.) (Blattodea: Blattellidae) to infection by Metarhizium anisopliae and assessment of delivery strategies. Neotrop. Entomol. 2011, 40, 368–374. [Google Scholar]
  28. Dayer, M.S.; Karvandian, K. Toxicity of Metarhizium anisopliae (Deuteromycota: Hyphomycetes) and boric acid against nosocomial cockroaches, Blattella germanica. Arthropods 2016, 5, 114–124. [Google Scholar]
  29. De Faria, M.R.; Wraight, S.P. Mycoinsecticides and Mycoacaricides: A comprehensive list with worldwide coverage and international classification of formulation types. Boil. Control. 2007, 43, 237–256. [Google Scholar] [CrossRef]
  30. Peng, G.; Xia, Y. Synergistic activity of combination of Metarhizium anisopliae and beta-cypermethrin on Locusta migratoria manilensis (Mey.). Chin. J. Biol. Control 2010, 26, 442–447. [Google Scholar]
  31. Guo, T.; Zhang, L.; Cheng, D.; Liu, T.; An, L.; Li, W.-P.; Zhang, C. Low-density lipoprotein receptor affects the fertility of female mice. Reprod. Fertil. Dev. 2015, 27, 1222–1232. [Google Scholar] [CrossRef]
  32. Yang, H.-T.; Zou, S.-S.; Zhai, L.-J.; Wang, Y.; Zhang, F.; An, L.; Yang, G. Pathogen invasion changes the intestinal microbiota composition and induces innate immune responses in the zebrafish intestine. Fish Shellfish. Immunol. 2017, 71, 35–42. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, X.C.; Zhang, F. The Potential Control Strategies Based on the Interaction between Indoor Cockroaches and Their Symbionts in China. Adv. Insect Physiol. 2018, 55, 55–122. [Google Scholar]
  34. Li, H.; Zhang, F.; Guo, H.; Zhu, Y.; Yuan, J.; Yang, G.; An, L. Molecular characterization of hepcidin gene in common carp (Cyprinus carpio L.) and its expression pattern responding to bacterial challenge. Fish Shellfish. Immunol. 2013, 35, 1030–1038. [Google Scholar] [CrossRef] [PubMed]
  35. Carrasco, P.; Pérez-Cobas, A.E.; Van de Pol, C.; Baixeras, J.; Moya, A.; Latorre, A. Succession of the gut microbiota in the cockroach Blattella germanica. Int. Microbiol. 2014, 17, 99–109. [Google Scholar] [PubMed]
  36. Berasategui, A.; Shukla, S.; Salem, H.; Kaltenpoth, M. Potential applications of insect symbionts in biotechnology. Appl. Microbiol. Biotechnol. 2015, 100, 1567–1577. [Google Scholar] [CrossRef] [Green Version]
  37. Li, T.; Li, H.; Peng, S.; Zhang, F.; An, L.; Yang, G. Molecular characterization and expression pattern of X box-binding protein-1 (XBP1) in common carp (Cyprinus carpio L.): Indications for a role of XBP1 in antibacterial and antiviral immunity. Fish Shellfish Immunol. 2017, 67, 667–674. [Google Scholar] [CrossRef]
  38. Sabree, Z.L.; Kambhampati, S.; Moran, N.A. Nitrogen recycling and nutritional provisioning by Blattabacterium, the cockroach endosymbiont. Proc. Natl. Acad. Sci. USA 2009, 106, 19521–19526. [Google Scholar] [CrossRef] [Green Version]
  39. Herren, J.K.; Lemaitre, B. Spiroplasma and host immunity: Activation of humper os immune responses increases endosymbiont load and susceptibility to certain Gram-negative bacterial pathogens in Drosophila melanogaster. Cell Microbiol. 2011, 13, 1385–1396. [Google Scholar] [CrossRef] [Green Version]
  40. Kikuchi, Y.; Hayatsu, M.; Hosokawa, T.; Nagayama, A.; Tago, K.; Fukatsu, T. Symbiont-mediated insecticide resistance. Proc. Natl. Acad. Sci. USA 2012, 109, 8618–8622. [Google Scholar] [CrossRef] [Green Version]
  41. Giovanna, R.M.; Rosanna, G.; Morio, U.; Giuliano, C.; Battista, J.R. Wolbachia-Mediated Male Killing Is Associated with Defective Chromatin Remodeling. PLoS ONE 2012, 7, e30045. [Google Scholar]
  42. Stiles, M.E.; Holzapfel, W.H. Lactic acid bacteria of foods and their current taxonomy. Int. J. Food Microbiol. 1997, 36, 1–29. [Google Scholar] [CrossRef]
  43. Palleroni, N.J. Introduction to the Family Pseudomonadaceae. In The Prokaryotes; Springer Science and Business Media LLC: Berlin, Germany, 1981; pp. 655–665. [Google Scholar]
  44. Bäckhed, F. Host-Bacterial Mutualism in the Human Intestine. Science 2005, 307, 1915–1920. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Jeffs, L.B.; Feng, M.-G.; Falkowsky, J.E.; Khachatourians, G.G. Infection of the Migratory Grasshopper (Orthoptera: Acrididae) by Ingestion of the Entomopathogenic Fungus Beauveria bassiana. J. Econ. Entomol. 1997, 90, 383–390. [Google Scholar] [CrossRef]
  46. Lacey, C.M.; Lacey, L.A.; Roberts, D.R. Route of invasion and histopathology of Metarhizium anisopliae in Culex quinquefasciatus. J. Invertebr. Pathol. 1988, 52, 108–118. [Google Scholar] [CrossRef]
  47. Ahmad, B.Y. Efficacy of two species of entomopathogenic fungi against the stored-grain pest, Sitophilus granarius L. (Curculionidae: Coleoptera), via per os ingestion. Egypt. J. Biol. Pest Control 2018, 28, 44. [Google Scholar]
  48. Fan, W.; Tang, Y.; Qu, Y.; Cao, F.; Huo, G. Infant formula supplemented with low protein and high carbohydrate alters the intestinal microbiota in neonatal SD rats. BMC Microbiol. 2014, 14, 279. [Google Scholar] [CrossRef] [Green Version]
  49. Oksanen, J.; Blanchet, F.G.; Kindt, R.; Legendre, P.; Minchin, P.R.; O’Hara, R.B.; Simpson, G.L.; Solymos, P.; Stevens, M.H.; Wagner, H. Vegan: Community Ecology Package, R package version 2.0-5; R Foundation for Statistical Computing: Vienna, Austria, 2012. [Google Scholar]
  50. Wang, M.Y. Composition of the Intestinal Microbial Community of Blattella germanica. Available online: https://data.mendeley.com/datasets/x4r8wc4yxx/draft?a=9aaacc2e-5c2a-4aa7-9b6c-e582801dd550 (accessed on 15 August 2020).
  51. Ferron, P. Biological Control of Insect Pests by Entomogenous Fungi. Annu. Rev. Entomol. 1978, 23, 409–442. [Google Scholar] [CrossRef]
  52. Wahlman, M.; Davidson, B.S. New Destruxins from the Entomopathogenic Fungus Metarhizium anisopliae. J. Nat. Prod. 1993, 56, 643–647. [Google Scholar] [CrossRef]
  53. Bechara, I.; Destéfano, R.H.R.; Bresil, C. Histopathological events and detection of Metarhizium anisopliae using specific primers in infected immature stages of the fruit fly Anastrepha fraterculus (wiedemann, 1830) (Diptera: Tephritidae). Braz. J. Biol. 2011, 71, 91–98. [Google Scholar] [CrossRef]
  54. Manalil, N.S.; Te’O, V.S.J.; Braithwaite, K.; Brumbley, S.; Samson, P.; Nevalainen, H. A proteomic view into infection of greyback canegrubs (Dermolepida albohirtum) by Metarhizium anisopliae. Curr. Genet. 2009, 55, 571–581. [Google Scholar] [CrossRef]
  55. Leger, R.S.; Charnley, A.; Cooper, R. Cuticle-degrading enzymes of entomopathogenic fungi: Mechanisms of interaction between pathogen enzymes and insect cuticle. J. Invertebr. Pathol. 1986, 47, 295–302. [Google Scholar] [CrossRef]
  56. Charnley, A.K. Fungal pathogens of insects: Cuticle degrading enzymes and toxins. Adv. Bot. Res. 2003, 40, 241–321. [Google Scholar] [CrossRef]
  57. Wang, C.; Duan, Z.; Leger, R.J.S. MOS1 Osmosensor of Metarhizium anisopliae is Required for Adaptation to Insect Host Hemolymph. Eukaryot. Cell 2007, 7, 302–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Zhang, M.; Liu, N.; Qian, C.; Wang, Q.; Wang, Q.; Long, Y.; Huang, Y.; Zhou, Z.; Yan, X. Phylogenetic and Functional Analysis of Gut Microbiota of a Fungus-Growing Higher Termite: Bacteroidetes from Higher Termites Are a Rich Source of β-Glucosidase Genes. Microb. Ecol. 2014, 68, 416–425. [Google Scholar] [CrossRef]
  59. Cochran, D.G. Toxic effects of boric acid on the German cockroach. Experientia 1995, 51, 561. [Google Scholar] [CrossRef]
  60. Habes, D.; Morakchi, S.; Aribi, N.; Farine, J.-P.; Soltani, N. Boric acid toxicity to the German cockroach, Blattella germanica: Alterations in midgut structure, and acetylcholinesterase and glutathione S-transferase activity. Pestic. Biochem. Physiol. 2006, 84, 17–24. [Google Scholar] [CrossRef]
  61. Wu, T.-R.; Lin, C.-S.; Chang, C.-J.; Lin, T.-L.; Martel, J.; Ko, Y.-F.; Ojcius, D.M.; Lu, C.-C.; Young, J.D.; Lai, H.-C. Gut commensal Parabacteroides goldsteinii plays a predominant role in the anti-obesity effects of polysaccharides isolated from Hirsutella sinensis. Gut 2018, 68, 248–262. [Google Scholar] [CrossRef]
  62. Huang, Y.H.; Wang, X.J.; Zhang, F.; Huo, X.B.; Fu, R.S.; Liu, J.J.; Sun, W.B.; Kang, D.M.; Jing, X. The identification of a bacterial strain BGI-1 isolated from the intestinal flora of Blattella germanica, and its anti-entomopathogenic fungi activity. J. Econ. Entomol. 2013, 106, 43–49. [Google Scholar] [CrossRef]
  63. Xie, W.; Zhou, J. Aberrant regulation of autophagy in mammalian diseases. Boil. Lett. 2018, 14, 20170540. [Google Scholar] [CrossRef]
  64. Kulinich, A.; Wang, Q.; Duan, X.C. Biochemical characterization of the endo-α-N-acetylgalactosaminidase pool of the human gut symbiont Tyzzerella nexilis. Carbohydr. Res. 2020, 490, 107962. [Google Scholar] [CrossRef]
  65. Allaker, R.P.; Douglas, C.I. Novel anti-microbial therapies for dental plaque-related diseases. Int. J. Antimicrob. Agents 2009, 33, 8–13. [Google Scholar] [CrossRef] [PubMed]
  66. Yuki, M.; Kuwahara, H.; Shintani, M.; Izawa, K.; Sato, T.; Starns, D.; Hongoh, Y.; Ohkuma, M. Dominant ectosymbiotic bacteria of cellulolytic protists in the termite gut also have the potential to digest lignocellulose. Environ. Microbiol. 2015, 17, 4942–4953. [Google Scholar] [CrossRef] [PubMed]
  67. Berlanga, M.; Lloréns, C.; Comas, J.; Guerrero, R. Gut Bacterial Community of the Xylophagous Cockroaches Cryptocercus punctulatus and Parasphaeria boleiriana. PLoS ONE 2016, 11, e0152400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Liu, N.; Zhang, L.; Zhou, H.; Zhang, M.; Yan, X.; Wang, Q.; Long, Y.; Xie, L.; Wang, S.; Huang, Y.; et al. Metagenomic Insights into Metabolic Capacities of the Gut Microbiota in a Fungus-Cultivating Termite (Odontotermes yunnanensis). PLoS ONE 2013, 8, e69184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Krieg, N.R.; Ludwig, W.; Euzeby, J.; Whitman, W.B. Phylum XIV. Bacteroidetes phyl. nov. In Bergey’s Manual® of Systematic Bacteriology; Springer Science and Business Media LLC: Berlin, Germany, 2010; pp. 25–469. [Google Scholar]
  70. Decio, P.; Silva-Zacarin, E.C.; Bueno, F.C.; Bueno, O.C. Toxicological and histopathological effects of hydramethylnon on Atta sexdens rubropilosa (Hymenoptera: Formicidae) workers. Micron 2013, 45, 22–31. [Google Scholar] [CrossRef]
  71. Hollingshaus, J. Inhibition of mitochondrial electron transport by hydramethylnon: A new amidinohydrazone insecticide. Pestic. Biochem. Physiol. 1987, 27, 61–70. [Google Scholar] [CrossRef]
  72. Hollingshaus, J.; Little, R. Comparative toxicology of AC 217,300 in various species of insects. Pestic. Biochem. Physiol. 1984, 22, 337–345. [Google Scholar] [CrossRef]
Insects 11 00538 g001 550

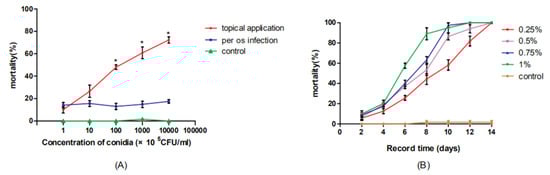

Figure 1. (A) The cumulative mortality of B. germanica infected with M. anisopliae conidia at different concentrations with per os infection and topical application at 14 days postinoculation under laboratory conditions; * indicates that the mortality with topical dorsal infection significantly differs (p < 0.05) from that with per os infection. (B) The cumulative mortality of B. germanica fed with hydramethylnon at different concentrations in baits at 14 days postinoculation under laboratory conditions.
Figure 1. (A) The cumulative mortality of B. germanica infected with M. anisopliae conidia at different concentrations with per os infection and topical application at 14 days postinoculation under laboratory conditions; * indicates that the mortality with topical dorsal infection significantly differs (p < 0.05) from that with per os infection. (B) The cumulative mortality of B. germanica fed with hydramethylnon at different concentrations in baits at 14 days postinoculation under laboratory conditions.
Insects 11 00538 g001
Insects 11 00538 g002 550

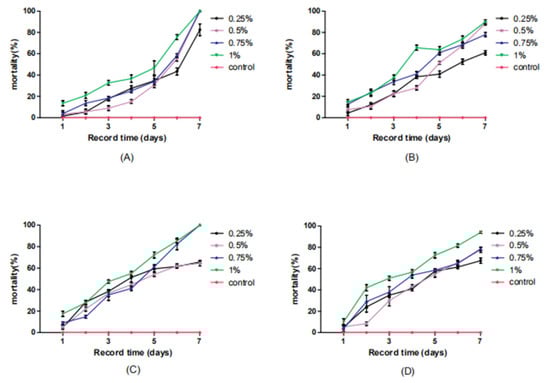

Figure 2. The cumulative mortality of B. germanica infected with M. anisopliae and hydramethylnon at different concentrations in baits at 7 days postinoculation under laboratory conditions. (A) 1 × 105 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon (B) 1 × 106 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon (C) 1 × 107 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon (D) 1 × 108 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon.
Figure 2. The cumulative mortality of B. germanica infected with M. anisopliae and hydramethylnon at different concentrations in baits at 7 days postinoculation under laboratory conditions. (A) 1 × 105 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon (B) 1 × 106 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon (C) 1 × 107 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon (D) 1 × 108 cfu/mL M. anisopliae and 0.25%, 0.5%, 0.75% or 1% hydramethylnon.
Insects 11 00538 g002
Insects 11 00538 g003 550
Figure 3. Bacterial composition of the different communities at the phylum level. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Figure 3. Bacterial composition of the different communities at the phylum level. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Insects 11 00538 g003
Insects 11 00538 g004 550
Figure 4. Bacterial composition of the different communities at the genus level. The relative read abundances of different bacterial genera within the different communities are shown. Taxa with an abundance <1% are included in “others.” H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Figure 4. Bacterial composition of the different communities at the genus level. The relative read abundances of different bacterial genera within the different communities are shown. Taxa with an abundance <1% are included in “others.” H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Insects 11 00538 g004
Insects 11 00538 g005 550

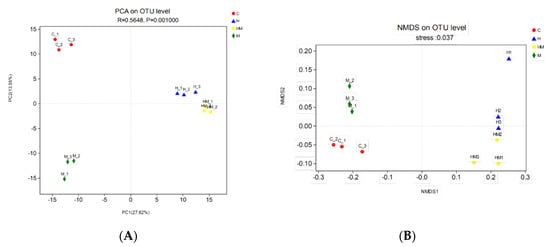

Figure 5. (A) Sample sorting analysis. The scatter plot of principal component analysis (PCA) scores shows the similarity of the twelve bacterial communities based on UniFrac distance. Principal components (PCs) 1 and 2 explained 27.62% and 13.55% of the variance, respectively. (B) Sample sorting analysis. Nonmetric multidimensional scaling (NMDS) shows the difference among bacterial communities according to Bray–Curtis distance. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Figure 5. (A) Sample sorting analysis. The scatter plot of principal component analysis (PCA) scores shows the similarity of the twelve bacterial communities based on UniFrac distance. Principal components (PCs) 1 and 2 explained 27.62% and 13.55% of the variance, respectively. (B) Sample sorting analysis. Nonmetric multidimensional scaling (NMDS) shows the difference among bacterial communities according to Bray–Curtis distance. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Insects 11 00538 g005
Insects 11 00538 g006 550
Figure 6. Heatmap of the top 50 most abundant genera in the bacterial communities detected in the 16 samples. Dendrograms for hierarchical cluster analysis grouping genera and sample locations are shown at the left and at the top, respectively. The color scale represents the normalized values of relative abundances transformed by log10. Zero values were added as 1 and log10 transformed. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Figure 6. Heatmap of the top 50 most abundant genera in the bacterial communities detected in the 16 samples. Dendrograms for hierarchical cluster analysis grouping genera and sample locations are shown at the left and at the top, respectively. The color scale represents the normalized values of relative abundances transformed by log10. Zero values were added as 1 and log10 transformed. H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample.
Insects 11 00538 g006
Table
Table 1. Mortality of B. germanica adult males fed various concentrations of M. anisopliae and various concentrations of hydramethylnon.
Table 1. Mortality of B. germanica adult males fed various concentrations of M. anisopliae and various concentrations of hydramethylnon.
TreatmentConcentrationMortality (%)LT50 (95% CI)X2Slopen
Ma1 × 105 cfu/mL6 ± 0.63NANANA60
1 × 106 cfu/mL8 ± 1.07NANANA60
1 × 107 cfu/mL9 ± 0.00NANANA60
1 × 108 cfu/mL9 ± 2.28NANANA69
Hy0.25% w/w36 ± 2.498.1(6.9–9.2)0.60790.172660
0.50% w/w48 ± 1.117.4(6.7–7.6)1.42100.178460
0.75% w/w49 ± 2.997.2(6.9–7.9)2.36060.177460
1.00% w/w71 ± 4.666.6(6.1–7.2)0.45260.169060
Control--0NANANA60
Ma, M. anisopliae; Hy, hydramethylnon; the mortality was at Day 7; LT50 = days until 50% mortality occurred; CI = 95% confidence interval for LT50; NA = not applicable (mortality did not reach 50%).
Table
Table 2. Bioassays assessing the interactive effects of combination treatments of M. anisopliae and hydramethylnon on adult male German cockroaches.
Table 2. Bioassays assessing the interactive effects of combination treatments of M. anisopliae and hydramethylnon on adult male German cockroaches.
Treatment% Mortality ± SDLT50 (95% CI) dEffectX2n
Ma (cfu·mL−1)Hy (%)
1 × 1050.2593 ± 5.776.4 (5.7–7.2)Synergistic70.9360
0.50100 ± 0.005.4 (5.3–5.5)Synergistic46.7460
0.75100 ± 0.005.4 (4.9–5.2)Synergistic44.1560
1.00100 ± 0.004.7 (4.6–4.8)Synergistic10.2260
1 × 1060.2563 ± 3.675.7 (5.3–6.1)Synergistic11.6460
0.5090 ± 1.815.1 (4.3–5.9)Synergistic27.4560
0.7587 ± 9.534.9 (4.7–5.0)Synergistic21.6860
1.0090 ± 6.934.2 (3.6–4.7)Synergistic4.2660
1 × 1070.2565 ± 3.885.3 (4.8–5.8)Synergistic12.9360
0.5067 ± 5.324.5 (4.0–4.9)Synergistic3.8960
0.75100 ± 0.004.2 (3.5–4.9)Synergistic40.1960
1.00100 ± 0.004.5 (4.2–4.9)Synergistic9.4660
1 × 1080.2570 ± 6.734.5 (4.0–4.9)Synergistic19.1060
0.5080 ± 2.114.5 (3.9–5.0)Synergistic14.1760
0.7577 ± 6.484.2 (3.2–5.3)Synergistic10.2360
1.0093 ± 4.524.0 (3.5–4.9)Synergistic5.1160
Hy+Ma, the combination of M. anisopliae and hydramethylnon; LT50 = days until 50% mortality occurred; CI = 95% confidence interval for LT50; chi-square values calculated using the formula (observed % mortality − expected % mortality) 2/expected % mortality (X2 = 3.84, df = 1, α = 0.05).
Table
Table 3. Richness and diversity indexes relative to each gut sample (operational taxonomic unit (OTU) cut-off of 0.03).
Table 3. Richness and diversity indexes relative to each gut sample (operational taxonomic unit (OTU) cut-off of 0.03).
Alpha Diversity
SampleThresholdCoverageNumber of OTUsShannonSimpsonAceChao
H_10.030.9988684903.9059180.096218521.9473515.5185
H_20.030.9986644964.6986160.021041533.7328555.0323
H_30.030.9989095064.6596490.023202540.7188557.2069
M_10.030.9986355184.8276460.017409568.0368577.7568
M_20.030.9986595014.725360.019885536.879530.2041
M_30.030.9988474934.5931360.027867521.5302533.8333
HM_10.030.9989675034.6381240.028481548.5247558.4545
HM_20.030.9987914974.7078760.025847524.4121540.9655
HM_30.030.9989134704.6974420.020668497.2496503.3871
C_10.030.9986015234.8534770.015883565.2743565.9773
C_20.030.9989164934.6897010.020989520.4105528.25
C_30.030.998595284.6299030.026876567.794571.1707
p-value 0.0630690.36340.3040640.0159430.200845
OTUs were defined at the 97% similarity level (the threshold is 0.03); H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample; p < 0.05 is considered to indicate a significant difference.
Table
Table 4. p-Values for relative abundance comparison between different treatments.
Table 4. p-Values for relative abundance comparison between different treatments.
GenusHMHM
HMaCMaCC
Alistipes+0.0018 **+0.0023 **+0.0003 ***+0.6159+0.0596+0.1587
Fusobacterium−0.2478−0.1879−0.1556−0.5388−0.3774−0.7121
Parabacteroides−0.4078+0.5644+0.3913+0.0084 **+0.0016 **+0.4692
Dysgonomonas−0.0643−0.0004 ***−0.0207 *−0.5971−0.5136−0.7123
Desulfovibrio−0.1868−0.6274−0.6464+0.2918+0.4321−0.945
Bacteroides+0.1495+0.0448 *+0.0446 *+0.1813+0.1739+0.9564
Enterococcus−0.6811+0.0931+0.0145 *+0.0097 **+0.018 *+0.0951
Tyzzerella−0.2728+0.0049 **+0.0049 **+0.0017 **+0.0344 *−0.0427 *
H, hydramethylnon sample; M, M. anisopliae sample; HM, hydramethylnon and M. anisopliae sample; C, control sample. The sample in the first row is compared with the sample in the second row; an increase or decrease in the abundance of a genus is shownwith “+” and “−“, respectively. * p < 0.05, ** p < 0.01, *** p < 0.001 (one-way ANOVA).

Share and Cite

MDPI and ACS Style

Chao, Y.; Wang, M.; Dai, W.; Dong, F.; Wang, X.; Zhang, F. Synergism between Hydramethylnon and Metarhizium anisopliae and Their Influence on the Gut Microbiome of Blattella germanica (L.). Insects 2020, 11, 538. https://doi.org/10.3390/insects11080538

AMA Style

Chao Y, Wang M, Dai W, Dong F, Wang X, Zhang F. Synergism between Hydramethylnon and Metarhizium anisopliae and Their Influence on the Gut Microbiome of Blattella germanica (L.). Insects. 2020; 11(8):538. https://doi.org/10.3390/insects11080538

Chicago/Turabian Style

Chao, Yu, Mingyue Wang, Wei Dai, Fengyue Dong, Xuejun Wang, and Fan Zhang. 2020. "Synergism between Hydramethylnon and Metarhizium anisopliae and Their Influence on the Gut Microbiome of Blattella germanica (L.)" Insects 11, no. 8: 538. https://doi.org/10.3390/insects11080538

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
