Article

Use of Molecular Gut Content Analysis to Decipher the Range of Food Plants of the Invasive Spotted Lanternfly, Lycorma delicatula

Department of Entomology, University of Maryland, College Park, MD 20742, USA
*
Author to whom correspondence should be addressed.
Insects 2020, 11(4), 215; https://doi.org/10.3390/insects11040215
Received: 14 February 2020 / Revised: 25 March 2020 / Accepted: 26 March 2020 / Published: 1 April 2020

Abstract

Spotted lanternfly, Lycorma delicatula (Hemiptera: Fulgoridae), is an introduced highly invasive insect pest in the US that poses a significant risk to forestry and agriculture. Assessing and predicting plant usage of the lanternfly has been challenging, and little is known regarding the lanternfly nymph association with its host plants. In this study, we focused on: (a) providing a protocol for using molecular markers for food plant identification of L. delicatula; (b) determining whether the ingested plant DNA corresponds with DNA of the plants from which the lanternfly was collected; and, (c) investigating the spectrum of ingested plants. We utilized gut contents of third and fourth instar nymphs that were collected from multiple plants; we isolated ingested plant DNA and identified consumed plants. We demonstrated that (a) up to 534 bp of the rbcL gene from ingested plants can be detected in L. delicatula guts, (b) ingested plants in ~93% of the nymphs did not correspond with the plants from which the nymphs were collected, and (c) both introduced and native plants, as well as woody and non-woody plants, were ingested. This information will aid effective the monitoring and management of the lanternfly, as well as predict the lanternfly host plants with range expansion.
Keywords: insect gut content; invasive species; Lycorma delicatula; plant DNA barcoding; trophic interactions insect gut content; invasive species; Lycorma delicatula; plant DNA barcoding; trophic interactions

1. Introduction

Spotted lanternfly, Lycorma delicatula (White), is emerging as one of the most aggressive invasive auchenorrynchan pests in in the eastern US: it is extremely polyphagous and it can feed on over 70 host plants, such as apple, plum, cherry, peach, apricot, grape, pine, tree of heaven (preferred tree host), as well as many ornamental plants [1,2,3,4,5,6]. Nymphs and adults cause severe plant damage through the sucking of phloem sap from the vascular bundles of young stems or leaves, as well as producing honeydew and, consequently, creating conditions for sooty mold [1,6,7]. As nymphs mature, their host plant range decreases; and. they have a few preferred host plants at the late nymphal stage and, especially, adult stage [1]. Exploring the mechanisms of such an unusual use of plant hosts during development (i.e., polyphagous behavior of early instars and nearly monophagous behavior of adults; [1,3]) is instrumental in understanding the lanternfly host plant switch, as well as preventing their rapid infestation of fruit crop plants and, particularly, apples and grapes. Furthermore, it is critical to not only determine a possible host plant range that can be attacked at each nymphal stage, but also confirm the utilization of the host plants for feeding as opposed to resting, migration, laying eggs, etc.
The diet composition of L. delicatula has been traditionally explored by field surveys (i.e., observation of the lanternfly occurrence on host plants) and laboratory feeding assays [8,9]. This traditional approach for investigating plant-insect associations is not only time-consuming and challenging, due to, for example, species cryptic coloration or nocturnal activity, but it can also result in taxonomic misidentifications, modifying species feeding behavior in captivity, and other subjective errors [10,11]. In contrast, using molecular biology techniques for plant DNA detection in insect gut contents has been among the most accurate ways to confirm host plant utilization [12,13,14]. This approach overcomes issues with the observational approach, as described above, and potentially represents an unbiased method to record realized plant-insect interactions [10,11,15]. Additionally, the molecular approach can provide higher species resolution and detect plants that were not sampled by the traditional field observations of insect co-occurrence on plants [15].
However, the molecular approach has its own technical limitations [11]. This method becomes even more challenging when dealing with sap-feeding insects as a lack of plant tissue in the gut of a piercing-sucking insect that feeds on phloem makes gut contents difficult to discern. Additional challenges with detecting plant DNA from L. delicatula gut contents include, but are not limited to: (a) choice of the plant DNA region, which can be successfully amplified; and, (b) lack of information of feeding behavior of L. delicatula, such as feeding time, digestion time, frequency and time for feeding breaks, etc. All of these factors potentially affect the amplification of plant DNA from L. delicatula gut contents and plant sequence quality needed for plant identification.
Previous studies on sap-feeding insects, other than L. delicatula, showed that issues with molecular approaches still can be overcome, and a portion of various regions of the chloroplast DNA can be successfully detected in insect gut contents [16,17,18]. To date, many studies on the L. deliculata feeding preferences have used behavioral or observational approaches [2,3,8,9,19], whereas the protocols for the detection of plant DNA in the lanternfly gut contents are not yet available from literature. Meanwhile, more information on L. delicatula biology, behavior, and host range is urgently needed for its effective management [9]. The availability of the detailed protocol for molecular gut content analysis of L. delicatula would help researchers not only quickly confirm the ingestion of the plants, but also predict the host plants, which will be more likely attacked by L. delicatula at each developmental stage.
In this study we focused on the following objectives to address these issues and develop an effective protocol for plant DNA detection in gut contents of L. delicatula: (a) to provide an optimized step-by-step protocol for using molecular markers for identification of plants ingested by L. delicatula; (b) to determine whether the detected plant DNA in the insect gut contents corresponds with DNA of the plants from which L. delicatula was collected; and, (c) to investigate the spectrum of ingested plant species. We also provide a number of methodological recommendations and potential directions for future studies on the host plant use by L. delicatula.
For the purpose of this study, we use the term “host plants” to refer to L. delicatula feeding plants—i.e., the plants which L. delicatula utilizes as a food source (and not for egg-laying, resting, molting, etc.). Therefore, these are the plants that this insect pest can attack and damage due to its feeding. Based on previous studies on successful plant DNA detection within the gut contents of sap-feeders [18], we expected to detect DNA of ingested plants from the gut contents of L. delicatula. We also expected that the detected ingested plant DNA might not correspond with DNA of the plants on which the nymphs were collected. This expectation was based on the extreme mobility of L. delicatula, both horizontally and vertically, at all nymphal stages: nymphs ascend and descend their feeding plants from May–July as they develop into mature adults in mid-summer [1,3,4]. Finally, we expected to identify the ingested plants of various life forms and both native and introduced in the US based on a wide range of plants that L. delicatula attacks in its native and introduced range [5].
To the best of our knowledge, this is the first study on utilizing molecular markers for detecting plant DNA within the gut contents of L. delicatula. We specifically focused on using third and fourth nymphal instars as these developmental stages are extremely polyphagous and they can potentially damage a wide range of plant species [1]. Such protocol will be extremely valuable as a tool for providing evidence of the nymphal feeding on certain plants, determining and predicting the range of feeding plants, as well as assessing the approximate time of food consumption, and potentially the required time that the lanternfly nymphs use between switching food plants. Ultimately, this information is critical for developing effective strategies for the monitoring and management of L. delicatula.

2. Materials and Methods

2.1. Insect and Plant Collection

For this study, we utilized third and fourth instar nymphs of L. delicatula collected in Berks County, PA in July 2018. The nymphs were collected from multiple plants from four locations (Locations 1 and 2: field sites with multiple plants; Location 3: a trap tree Acer rubrum; Location 4: Ailanthus altissima, one tree). Acer rubrum and Ailanthus altissima were chosen as the preferred host plants for L. delicatula [8], to further explore whether observing L. delicatula on their preferred host plants demonstrates that the insect feeds on them. From all the locations, the nymphs of L. delicatula were collected from a total of 17 various plants. Sequence analysis of the collected leaf samples (described further in Section 2.2) showed that the 17 plants on which the nymphs of L. delicatula were collected and from which the leaves were sampled belonged to seven species: Ailanthus altissima, Lonicera maackii, Vitis acerifolia, Celastrus orbiculatus, Rhus typhina, Acer rubrum, and Acer distylum. (Table 1).
Weather conditions at the collection sites were, as follows: partly cloudy, air temperature ranged from 27–28 °C, and humidity was 39% (retrieved from Weather Underground, www.wunderground.com). The nymphs at the collection sites were constantly moving ascending and descending in the trees; and they were collected from tree trunks, branches, and leaves (Figure 1).
Once collected, the nymphs were immediately preserved in 80% ethanol (to follow the quarantine restrictions and prevent bringing live specimens in Maryland), transported to our laboratory at the University of Maryland, and then stored at +4 °C until the DNA extraction. The DNA extraction was performed within two weeks after insect collection. Following our previous collection procedures [13,20], the leaf samples (hereafter referred as intact plant samples) of each plant the lanternfly nymphs were collected from were immediately dry-frozen, also being transported to the laboratory, and stored at −20 °C until the DNA extraction.

2.2. DNA Extraction, PCR, and Sequencing

A total of 41 nymphs of L. delicatula (both third and fourth nymphal instars) and 13 intact plant samples (i.e., leaf tissue from 13 different plants from which the nymphs were collected) were selected for DNA extraction. Genomic DNA from both intact plants and individual lanternfly nymphs was extracted while using DNeasy blood and tissue kit (catalog no. 69506, Qiagen Inc., Germantown, MD, USA; www.qiagen.com) following QIAGEN guidelines. Following an approach that was modified from Cooper et al. [18], the body surface of the nymphs was sterilized with 2% bleach solution (by submerging an insect in bleach for 1 min.). The whole insect body and a 10-mm diameter disk from each leaf sample were used for DNA extraction. After DNA isolation, the samples with genomic DNA were either stored at −4 °C or used immediately for PCR amplification.
We modified our previously developed PCR-based method for detecting a non-coding region of plant chloroplast gene (trnL intron) from grasshopper gut contents, to provide an optimized step-by-step protocol for using molecular markers for host plant identification of L. delicatula [13,20]. In the preliminary testing of the same region of the trnL-gene, we were unable to successfully amplify this DNA region from the gut contents of L. delicatula: sequences of ingested plant DNA were obtained from <5% of the nymphs (data are not included in this manuscript).
However, for the present study, we utilized a coding region of the chloroplast DNA, rbcL gene (codes for ribulose-1,5-biphosphate carboxylase-oxygenase). This region is highly conserved and it is commonly used for the analysis of plant taxonomy and phylogeny, as it is able to resolve higher level relationships across a wide range of plants [21,22]. As the focus of our study was the host plant DNA detection in the lanternfly guts (i.e., developing a tool), rather than precise species identification of ingested plants, the choice of rbcL fits our goal best. Primers rbcLaF (5′-ATG TCA CCA CAA ACA GAG ACT AAA GC-3′) and rbcLaR (5′-GTA AAA TCA AGT CCA CCR CG-3′), which amplify approximately a 530-bp region of the rbcL gene, were used to detect plant DNA from both plants and insect gut contents. For each PCR reaction, we used 2μM primers rbcla-F-rbcla-R, 2 μL of each; 10 μL of 2X PCR PreMix, with Dye (Syd Labs Inc., Natick, MA, USA); 5.2 μL of ddH2O; and, 0.8 μL of a template DNA. Thermocycler conditions were set up following manufacturer guidelines for 2X PCR PreMix (the annealing temperature was adjusted for the best amplification results): initial denaturation of 94 °C for 4 min.; followed by 35 cycles of 94 °C for 30 s, 57 °C for 30 s, and 72 °C for 30 s; followed by a final extension of 72 °C for 2 min. 1% agarose gel was used to verify PCR amplification; PCR products were then visualized under a UV transilluminator. PCR products were purified using ExoSAP-IT (catalog no. 78201.1.ML, Affymetrix Inc., Santa Clara, CA, USA), and then sequenced using Sanger sequencing at GENEWIZ (GENEWIZ Inc., South Plainfield, NJ). The sequences were then trimmed and aligned using BioEdit [23], and species identity was determined using BLAST engine in the National Center for Biotechnology Information (NCBI) GenBank database (http://www.ncbi.nlm.nih.gov/genbank/) (Figure 2). The life form and native status (native or introduced) of the ingested plants were retrieved from the USDA PLANT database (https://plants.usda.gov/java/, accessed on 12 March 2020).

2.3. Data Analysis

Two values were used to estimate sequence quality: (1) Quality Score (QS) and (2) Contiguous Read Length (CRL). Both values, for each forward and reverse sequences, were obtained from GENEWIZ for each submitted sample (i.e., the gut content from an individual nymph). As indicated by GENEWIZ (genewiz.com), the QS-value represents the average of the quality values (QV) for each base in the sequence [QV = −10log10(Pe), where Pe is the probability of error]. The QS-value of 24 and higher indicates a usable sequence with the QS-value of 40 and higher being of very good quality. The CRL-value is the longest uninterrupted length of the sequence that contains bases with the QV-values of 20 and higher.
The QS and CRL values were averaged between forward and reverse sequences for each intact plant sample and insect gut content sample to estimate overall sequence quality, and particularly, the quality of contig sequences which were used for species identification. To compare the quality of both forward and reverse sequences among third and fourth-instar nymphs, one-way ANOVA with a post-hoc TukeyHSD were used. Plant sequences from the collected plant samples were also used as a positive control to evaluate sequence quality from ingested plants. The Shapiro–Wilk and Bartlett tests verified the normality and heteroscedasticity of data, respectively. Data analysis was conducted in R v.3.5.2 [24].

3. Results

A total of 41 nymphs of L. delicatula (15 third nymphal instars and 26 fourth nymphal instars) were used for host plant DNA isolation. Our sequencing results demonstrated that ingested plant DNA can be reliably detected in L. delicatula gut contents. The primers rbcLa-F and rbcLa-R successfully amplified a portion of the chloroplast rbcL gene from gut contents of 46% of the lanternfly nymphs with the average CRL of 269 ± 27 bp (CRLmax = 534 bp). The obtained sequences of the ingested plant DNA showed 84–100% identity with the sequences that are available in the NCBI GenBank database.
Using the rbcL gene, we have confidently determined the species identity for the following ingested plants: Ailanthus altissima, Vitis vinifera, Celastrus orbiculatus, Betula pendula, and Acer pseudoplatanus (Table 2). We have determined the genus for the following ingested plants: Cucurbita sp. (possibly Cucurbita pepo), Vitis sp. (possibly Vitis rotundifolia), Ampelopsis sp. (possibly Ampelopsis brevipedunculata), and Platanus sp. (possibly Platanus occidentalis). Two ingested plant samples were identified as Eupatorium compositifolium and Rhus typhina (with ~85% match with available sequences in the NCBI GenBank database); when considering such a low match, it is possible that plants from other genera within the same families (Asteraceae and Anacardiaceae respectively) were ingested. All of the identified ingested plant species are present in Pennsylvania (based on current information available in the USDA PLANT database (https://plants.usda.gov/java/, accessed on 12 March 2020). All of the unique sequences of ingested plant DNA with 100% species match identity are deposited to the NCBI GenBank database (accession numbers: MN856629, MN862495, MT119453, MT108179, and MN862496). Using Sanger sequencing we were not able to obtain the ingested plant DNA sequences from 54% of L. delicatula nymphs due to no priming because of low DNA concentration, or mixed DNA templates in the PCR products. Among the successfully sequenced samples, 37% (i.e., seven out of 19 nymphs) were derived from the gut contents from third nymphal instars and 63% (i.e., 12 out of 19 nymphs) of fourth nymphal instars.
The average sequence quality scores and contiguous read length did not differ among plant sequences that were isolated from third and fourth nymphs, but they were significantly higher in the sequences isolated from the intact plants (ANOVA; QSmean: F (2,38) = 11.24, p = 0.002; CRLmean: F (2,38) = 16.32, p = 0.0003; Figure 3). Similarly, the QS and CRL of the forward and reverse sequences were significantly higher in intact plants, but did not differ among the nymphal stages (ANOVA; QS: F (3,108) = 110.58, p < 0.0001; CRL: F (3,108) = 53.96, p < 0.0001).
The results of plant DNA identification of intact plant samples showed that the nymphs of L. delicatula were collected from seven unique plant species; and, we identified nine unique ingested plant species that were isolated from the lanternfly gut contents (Table 2). Up to seven different plant species were found in the gut contents of the lanternfly nymphs that were collected from one plant species. Only three nymphs, all being collected from Ailanthus altissima (samples #12, 18, and 19 in Table 2), showed the DNA in their guts from the plant they were collected from (i.e., A. altissima). The rest of the nymphs (~93%) showed the ingested plants other than the plants that they were collected from. We also found that 9% and 27% of nymphs collected from Location 1 (“L1” in Table 2) revealed the ingested plant DNA that corresponds to the plants of the same species and genus, respectively, which were present at the collection site. Among the ingested plants (Figure 4a), 55% of species were introduced and 83% of species were woody plant species (Figure 4b,c). Interestingly, we did detect herbaceous plant species among the ingested plant species (18%) (Figure 4c).

4. Discussion

Overall, our results demonstrated that (a) a portion of the chloroplast rbcL gene (up to 534 bp) from ingested plants can be reliably detected in L. delicatula gut contents, (b) ~93% of L. delicatula nymphs, for which the ingested plant DNA was obtained, revealed the ingested plants that did not correspond with the plant species the nymphs were collected from (moreover, the number of ingested plant species was higher than the number of plants on which insects were sampled), and (c) they both introduced and native plant species, as well as woody and non-woody plant species were identified among the ingested plants. We have also detected the ingested plant species that have not been previously reported as the host plants for L. delicatula from the eastern US.

4.1. Plant DNA Detection from the Gut Contents of L. delicatula

To the best of our knowledge, our study is the first to show that the host plant DNA can be detected in the gut contents of L. delicatula. Our findings were consistent with our expectations of the possible detection of ingested plant DNA from a sap-feeder, such as L. delicatula: we have successfully isolated a portion of the rbcL gene from the most plants consumed by L. delicatula: the use of the rbcL gene and Sanger sequencing allowed for us to determine the species identity for approximately 55% of ingested plants and the genus identity for 44% of ingested plants.
Previous studies have demonstrated that ingested plant DNA can be obtained from phloem-feeding insects, such as psyllids, due to occasional penetration of the insect stylets through the plant cells [18]. Little is known regarding stylet penetration through the plant tissue by L. delicatula, but it is possible that they can also directly rupture phloem cells and, thus, obtain plant DNA in their gut contents. In our recent study on the stylet morphology of L. delicatula [25], we found that the tip of mandibular stylets carries additional indentations as the lanternfly grows, which is likely associated with deeper penetration and anchoring in plant tissue while the lanternfly is feeding. It was also shown previously with psyllids that treating insects with bleach does not prevent the plant DNA from being detected suggesting that all of the detected plant DNA is ingested [18]. Our findings similarly showed that all of the detected plant DNA from L. delicatula gut contents was ingested.
There are several factors, as discussed below, which could have potentially affected the detectability and identification of host plant DNA within L. delicatula gut contents in our study, including (a) the choice of the plant DNA barcode; (b) longevity of ingested plant DNA; and, (c) the presence of a mixed DNA template in PCR products.
The choice of the plant DNA barcode might have affected the number of successfully identified ingested plants at the species level. We used a portion of the rbcL gene that is considered to be an excellent plant DNA barcode that is easy to amplify and analyze, and that has a low level of mutation [22]. The rbcL gene provides a good resolution at genus level and higher; however, some of the previous studies indicated a lower species resolution of the rbcL gene when compared to that of the trnL intron [21]. Additionally, not all of the sequences for these DNA regions are available in the NCBI GenBank database, which might prevent the precise species identification using a molecular approach. However, our main focus was to provide evidence that the ingested plant DNA can be detected in the gut contents of L. delicatula, as we indicated previously. We did not aim to precisely identify the ingested plant at the species level; nevertheless, we were able to identify ~55% of ingested plants at the species level and ~44% of ingested plants at the genus level; so, we believe this approach can be successfully used for identifying a potential host plant range of L. delicatula. Future studies might focus on using a combination of several loci of the chloroplast DNA: it has been suggested in previous studies that using a multi-locus plant barcode (ideally a coding and non-coding region) might provide a higher species resolution and may better resolve phylogenetic relationships [10,21].
Plant DNA longevity in L. delicatula gut contents might have affected the successful amplification of ingested DNA from some of the samples that we used. It has been previously suggested in studies with other insects (e.g., the mirid bugs) that DNA from different host plants can show different longevity in insect guts [26]; so, it is possible that some of the plants the lanternfly nymphs consumed before being collected were digested quickly and, therefore, the DNA from those plants was not detected.
Finally, we used Sanger sequencing technology, which allowed us to sequence a DNA fragment from a single plant species only, to obtain sequences of ingested plant DNA. This approach has worked successfully for 46% of the samples (i.e., individual nymphs) that we used in our study. However, through the analysis of sequence chromatogram, we observed that a substantial number of samples (~33%) contained mixed DNA templates. As separating sequences from a mixed DNA template is beyond the capacity of Sanger sequencing, it is possible that some of the ingested plant species could have been missed in our analysis. Therefore, we strongly suggest using metabarcoding of L. delicatula gut contents using a next-generation sequencing (NGS) approach for future studies. This can be done targeting the same portion of rbcL-gene we used in this study. In fact, in our preliminary testing of this approach using a non-coding region of the chloroplast trnL-gene we were able to obtain sequences for >100 ingested plant DNA fragments from the gut contents of one insect individual (third nymphal instar; data are not shown here).

4.2. Potential Implications for Host Plant Usage by L. delicatula

In our study, we did not aim to decipher all of the potential host range of L. delicatula, but rather we wanted to demonstrate the potential of molecular diet analysis for revealing the consumption of the plants by L. delicatula that field observations cannot detect. Thus, our results have confirmed the ingestion of plant tissue from Ailanthus, Acer, and Vitis: heavy lanternfly feeding on these plants was indicated in the previous studies [3,8]. Interestingly, we have detected DNA of Ailanthus altissima in the gut contents of all the lanternfly nymphs that were collected from this tree. This also supports the previous findings on the lanternfly feeding preferences for Ailanthus [9,27]. We have also found the ingested plant tissue from Betula and Vitis vinifera: oviposition and feeding on these plants were reported for both China and Pennsylvania [9]. Finally, we have detected (for the first time) the ingestion of Celastrus and Cucurbita: no previous reports on the consumption of these species by the L. delicatula have been published yet.
The presence of a substantial number of introduced plant species in the gut contents of L. delicatula is not surprising for such a polyphagous invasive insect. It is also expected that the invasive L. delicatula would tend to feed on the plants that are present in their native range, such as Ailanthus altissima, which is considered to be its primary host plant [2,27]. However, previous studies demonstrated that other factors in conjunction with the plant origin might also affect the feeding choice of a generalist insect: of those, plant phylogenetic relationships and plant local abundance are especially important [28,29]. Wang et al. [30], for example, showed in their study on the polyphagous mirid bug, Apolygus lucorum, that the local composition of host plants at a collection site might greatly affect the data from gut contents of insects that were collected in the field. It would be helpful for future studies to explore a combined effect of these factors and investigate (a) whether native and introduced species that L. delicatula feeds on are closely related and (b) whether the most abundant plant species at a field site are most likely to be chosen, regardless of the plant origin or relatedness to other food plants.
Our finding of the presence of non-woody plant species in the gut contents of L. delicatula is somewhat surprising: most of the previous studies reported woody plants (trees and vines) as preferred host plants for the lanternfly [2,3,9,27]. Although a few herbaceous species, such as Metaplexis japonica (the rough potato), were reported as plants that L. delicatula uses to lay eggs in China [9]; to the best of our knowledge, there are no records currently available of using herbaceous plants by L. delicatula for egg laying or feeding on the territory of the eastern US. This information is critically important for monitoring L. delicatula in its introduced range.
Finally, as we used the Sanger sequencing technology, we detected the ingested plant species that were presumably abundant in L. delicatula gut contents and most likely these were the lanternfly’s “last meal”. Given that 36% of the ingested plant samples from site 1 (with the area of ~100 m2) “revealed” the species and genus of the plants which were present at this site, it is possible that third and fourth nymphal instars feed on the host plants which grow relatively close to each other and the nymphs do not move far during their meal breaks. Future studies might expand the sample size of L. delicatula nymphs and using a larger collection site collect leaf samples from all of the plants that are present at a site; as well as nearby within the insect migration distance; then, similar to our previous study on molecular diet confirmation of grasshoppers [20], further investigations could assess how the distance between plants, plant abundance at a site, and/or plant phylogenetic relatedness affect the lanternfly feeding choice.

4.3. Practical Applications, Methodological Recommendations, and Additional Future Directions

The protocol that was developed in our study has many applications for both a better understanding of feeding behavior of L. delicatula and in effective management of this pest. Tracking trophic interactions of L. delicatula and predicting distribution and movement of L. delicatula are among the most important applications.
Specifically, the protocol is a useful tool for tracking the movement and host switch of L. delicatula nymphs among various host plants. The molecular gut content analysis is a commonly used approach for tracking trophic interactions [12,20,26,31,32]. For example, in the experiments with the polyphagous mirid bug, Apolygus lucorum, while using a DNA-based gut content analysis, it was successfully demonstrated the movement of this pest from cotton to adjacent mungbean fields [26]. It would be particularly helpful for future studies on L. delicatula feeding preferences to explore the host plants at each developmental stage and better understand how the host range narrows down at each stage and toward what type of the plants (woody, introduced, etc.). Additionally, as we expected, the majority of ingested plant species that DNA was detected from insect gut contents did not correspond with the tree species on which the nymphs were collected. This evidence supports the fact that the nymphs of L. delicatula potentially demonstrate active feeding behavior quickly moving between food plants. This information would be also critical for choosing a trap plant during management of this pest species [17], tracking non-host and shelter plants [33], as well as exploring multiple host plant use [34].
It would be also helpful to include the host plant range, as an additional variable, in modeling the potential distribution of the lanternfly, in addition to climate data, which were previously investigated [7]. Furthermore, it would be interesting to combine this information with the lanternfly morphology. In particular, there is a drastic morphological change in the wing and mouthpart morphology at the adult stage, which might affect L. delicatula dispersal and flight tendency [35,36,37], as well as feeding [25]. Additionally, combining DNA barcoding with other techniques, such as stable isotope analysis [38] and/or the immunomarking technique [39], might provide interesting insights into feeding behavior of L. delicatula.
From the methodological perspective, feeding behavior and mobility of L. delicatula at each developmental stage might have affected the success of the detection of ingested plant DNA in our study. Cadena et al. [11] suggested that large and passive insect herbivores, as well as those which frequently feed may be the best candidate for successful amplification of ingested plant DNA. Therefore, both active late instars that we used in our study, as well as adults that spend most of the time on their preferred host plant [1], should be ideal stages for applying our protocol. We believe that the first and second nymphal instars would not provide successful plant DNA amplification as small active insects might be exposed to various sources of environmental DNA [11].
The chance of successful detection of ingested plant DNA can be also improved by collecting the nymphs (and adults) of L. delicatula, while they are actually feeding on a plant rather than moving on the plant surface. This will ensure the present of nondigested plant tissue in the lanternfly guts, which, in turn, will improve the quality of plant DNA template [11,15]. It has also been suggested that insect collection is best done in the morning than afternoon, because of the high foraging activity [15]. Finally, as we mentioned above, supplemental metabarcoding sequencing using a NGS-approach, as well as using multiple chloroplast markers, will improve the identification of the ingested plant fragments that are present at low concentration in the guts of L. delicatula [15,21].

5. Conclusions

Molecular analysis of the gut contents of sap-feeding insects is a challenging approach due to the quick digestion and/or degradation of plant host DNA. Meanwhile, the availability of the protocol for the DNA-based identification of insect host plants is critical, especially for agriculturally important insect pests. In this study, we demonstrated, for the first time, that the host plant DNA can be detectable from the gut contents of the spotted lanternfly, Lycorma delicatula. We have provided a step-by-step protocol for the DNA-based host plant identification of L. delicatula, as well as a number of methodological recommendations and potential directions for future studies on host plant use by L. delicatula.

Author Contributions

A.A. and W.O.L. designed the study, conducted insect and plant collections, and wrote the paper. A.A. developed the protocol, conducted sequence analysis, and deposited sequences to GenBank. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Maryland Department of Agriculture’s Specialty Crop Block Grant Program, grant no. 191501-02; and partially by the Hatch Project, MD-ENTM-1802.

Acknowledgments

The authors thank David Hawthorne (Department of Entomology, University of Maryland) for providing lab equipment and helpful discussions; Jessica Ho, Darsy Smith, and Nurani Illahi for help with DNA extractions and amplification, as well as for depositing sequences to GenBank. We also thank Claire Hirt and Greg Krawczyk’s lab (Fruit Research and Extension Center, Biglerville, PA, USA) for their help with species collection and access to collection sites.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, J.G.; Lee, E.H.; Seo, Y.M.; Kim, N.Y. Cyclic behavior of Lycorma delicatula (Insecta: Hemiptera: Fulgoridae) on host plants. J. Insect Behav. 2011, 24, 423–435. [Google Scholar] [CrossRef]
  2. Barringer, L.E.; Donovall, L.R.; Spichiger, S.-E.; Lynch, D.; Henry, D. The first New World record of Lycorma delicatula (Insecta: Hemiptera: Fulgoridae). Entomol. News 2015, 125, 20–23. [Google Scholar] [CrossRef]
  3. Dara, S.K.; Barringer, L.; Arthurs, S.P. Lycorma delicatula (Hemiptera: Fulgoridae): A new invasive pest in the United States. J. Integr. Pest Manag. 2015, 6, 20. [Google Scholar] [CrossRef]
  4. Lee, D.H.; Park, Y.L.; Leskey, T.C. A review of biology and management of Lycorma delicatula (Hemiptera: Fulgoridae), an emerging global invasive species. J. Asia-Pac. Entomol. 2019, 22, 589–596. [Google Scholar] [CrossRef]
  5. Liu, H.; Hartlieb, R.J. Spatial Distribution of Lycorma delicatula (Hemiptera: Fulgoridae) Egg Masses on Tree-Of-Heaven, Black Walnut, and Siberian Elm in North America. J. Econ. Entomol. 2019. [Google Scholar] [CrossRef]
  6. Wakie, T.T.; Neven, L.G.; Yee, W.L.; Lu, Z. The establishment risk of Lycorma delicatula (Hemiptera: Fulgoridae) in the United States and globally. J. Econ. Entomol. 2020, 113, 306–314. [Google Scholar] [CrossRef]
  7. Jung, J.M.; Jung, S.; Byeon, D.H.; Lee, W.H. Model-Based prediction of potential distribution of the invasive insect pest, spotted lanternfly Lycorma delicatula (Hemiptera: Fulgoridae), by using CLIMEX. J. Asia-Pac. Biodivers. 2017, 10, 532–538. [Google Scholar] [CrossRef]
  8. Cooperband, M.F.; Wickham, J.; Cleary, K.; Spichiger, S.E.; Zhang, L.; Baker, J.; Carrillo, D. Discovery of three kairomones in relation to trap and lure development for spotted lanternfly (Hemiptera: Fulgoridae). J. Econ. Entomol. 2019, 112, 671–682. [Google Scholar] [CrossRef]
  9. Liu, H. Oviposition substrate selection, egg mass characteristics, host preference, and life history of the spotted lanternfly (Hemiptera: Fulgoridae) in North America. Environ. Entomol. 2019, 48, 1452–1468. [Google Scholar] [CrossRef]
  10. Bafeel, S.O.; Arif, I.A.; Bakir, M.A.; Al Homaidan, A.A.; Al Farhan, A.H.; Khan, H.A. DNA barcoding of arid wild plants using rbcL gene sequences. Genet. Mol. Res. 2012, 11, 1934–1941. [Google Scholar] [CrossRef]
  11. De la Cadena, G.; Papadopoulou, A.; Maes, J.M.; Gómez-Zurita, J. Evaluation of bias on the assessment of diet breadth of herbivorous insects using molecular methods. Insect Sci. 2017, 24, 194–209. [Google Scholar] [CrossRef] [PubMed]
  12. Garcia-Robledo, C.; Erickson, D.L.; Staines, C.L.; Erwin, T.L.; Kress, W.J. Tropical plant–Herbivore networks: Reconstructing species interactions using DNA barcodes. PLoS ONE 2013, 8, e52967. [Google Scholar] [CrossRef] [PubMed]
  13. Avanesyan, A. Plant DNA detection from grasshopper gut contents: A step-By-Step protocol, from tissues preparation to obtaining plant DNA sequences. Appl. Plant Sci. 2014, 2, 1300082. [Google Scholar] [CrossRef] [PubMed]
  14. Huang, X.; McNeill, M.R.; Ma, J.; Qin, X.; Tu, X.; Cao, G.; Wang, G.; Nong, X.; Zhang, Z. Gut transcriptome analysis shows different food utilization efficiency by the grasshopper Oedaleous asiaticus (Orthoptera: Acrididae). J. Econ. Entomol. 2017, 110, 1831–1840. [Google Scholar] [CrossRef] [PubMed]
  15. Zhu, C.; Gravel, D.; He, F. Seeing is believing? Comparing plant–Herbivore networks constructed by field co-occurrence and DNA barcoding methods for gaining insights into network structures. Ecol. Evol. 2019, 9, 1764–1776. [Google Scholar] [CrossRef] [PubMed]
  16. Latif, M.A.; Omar, M.Y.; Tan, S.G.; Siraj, S.S.; Ali, M.E.; Rafii, M.Y. Food assimilated by two sympatric populations of the brown planthopper Nilaparvata lugens (Delphacidae) feeding on different host plants contaminates insect DNA detected by RAPD-PCR analysis. Genet. Mol. Res. 2012, 11, 30–41. [Google Scholar] [CrossRef]
  17. Hereward, J.P.; DeBarro, P.J.; Walter, G.H. Resolving multiple host use of an emergent pest of cotton with microsatellite data and chloroplast markers (Creontiades dilutus Stål; Hemiptera, Miridae). Bull. Entomol. Res. 2013, 103, 611–618. [Google Scholar] [CrossRef]
  18. Cooper, W.R.; Horton, D.R.; Unruh, T.R.; Garczynski, S.F. Gut content analysis of a phloem-Feeding insect, Bactericera cockerelli (Hemiptera: Triozidae). Environ. Entomol. 2016, 45, 938–944. [Google Scholar] [CrossRef]
  19. Baker, T.C.; Smyers, E.C.; Urban, J.M.; Meng, Z.; Damadaram, K.P.; Myrick, A.J.; Cooperband, M.F.; Domingue, M.J. Progression of seasonal activities of adults of the spotted lanternfly, Lycorma delicatula, during the 2017 season of mass flight dispersal behavior in eastern Pennsylvania. J. Asia-Pac. Entomol. 2019, 22, 705–713. [Google Scholar] [CrossRef]
  20. Avanesyan, A.; Culley, T.M. Feeding preferences of Melanoplus femurrubrum grasshoppers on native and exotic grasses: Behavioral and molecular approaches. Entomol. Exp. Appl. 2015, 157, 152–163. [Google Scholar] [CrossRef]
  21. Kress, W.J.; Erickson, D.L.; Jones, F.A.; Swenson, N.G.; Perez, R.; Sanjur, O.; Bermingham, E. Plant DNA barcodes and a community phylogeny of a tropical forest dynamics plot in Panama. Proc. Natl. Acad. Sci. USA 2009, 106, 18621–18626. [Google Scholar] [CrossRef] [PubMed]
  22. Sundari, N.; Papuangan, N. Amplification and Analysis of Rbcl Gene (Ribulose-1, 5-Bisphosphate Carboxylase) of Clove in Ternate Island. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Malang, Indonesia, 2019; Volume 276, No. 1; p. 012061. [Google Scholar]
  23. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. In Nucleic Acids Symposium Series; Information Retrieval Ltd.: London, UK, 1999; Volume 41, No. 41; pp. 95–98. [Google Scholar]
  24. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2014. Available online: http://www.R-project.org/ (accessed on 20 December 2018).
  25. Avanesyan, A.; Maugel, T.K.; Lamp, W. External morphology and developmental changes of tarsal tips and mouthparts of the invasive spotted lanternfly, Lycorma delicatula. PLoS ONE 2019. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, Q.; Bao, W.F.; Yang, F.; Xu, B.; Yang, Y.Z. The specific host plant DNA detection suggests a potential migration of Apolygus lucorum from cotton to mungbean fields. PLoS ONE 2017, 12, e0177789. [Google Scholar] [CrossRef] [PubMed]
  27. Cooperband, M.F.; Mack, R.; Spichiger, S.E. Chipping to destroy egg masses of the spotted lanternfly, Lycorma delicatula (Hemiptera: Fulgoridae). J. Insect Sci. 2018, 18, 7. [Google Scholar] [CrossRef]
  28. Lambdon, P.W.; Hulme, P.E. How strongly do interactions with closely-Related native species influence plant invasions? Darwin’s naturalization hypothesis assessed on Mediterranean islands. J. Biogeogr. 2006, 33, 1116–1125. [Google Scholar] [CrossRef]
  29. Avanesyan, A. Should I eat or should I go? Acridid grasshoppers and their novel host plants: Implications for biotic resistance. Plants 2018, 7, 83. [Google Scholar] [CrossRef]
  30. Wang, Q.; Bao, W.; Zhang, Q.; Fu, X.; Yang, Y.; Lu, Y. Host plant use of a polyphagous mirid, Apolygus lucorum: Molecular evidence from migratory individuals. Ecol. Evol. 2019, 9, 11518–11528. [Google Scholar] [CrossRef]
  31. Jurado-Rivera, J.A.; Vogler, A.P.; Reid, C.A.; Petitpierre, E.; Gómez-Zurita, J. DNA barcoding insect–Host plant associations. Proc. R. Soc. B Biol. Sci. 2008, 276, 639–648. [Google Scholar] [CrossRef]
  32. Wang, Q.; Bao, W.; Yang, F.; Yang, Y.; Lu, Y. A PCR-Based analysis of plant DNA reveals the feeding preferences of Apolygus lucorum (Heteroptera: Miridae). Arthropod-Plant Interact. 2018, 12, 567–574. [Google Scholar] [CrossRef]
  33. Cooper, W.R.; Horton, D.R.; Wildung, M.R.; Jensen, A.S.; Thinakaran, J.; Rendon, D.; Nottingham, L.B.; Beers, E.H.; Wohleb, C.H.; Hall, D.G.; et al. Host and Non-Host ‘Whistle Stops’ for Psyllids: Molecular Gut Content Analysis by High-Throughput Sequencing Reveals Landscape-Level Movements of Psylloidea (Hemiptera). Environ. Entomol. 2019, 48, 554–566. [Google Scholar] [CrossRef]
  34. Hereward, J.P.; Walter, G.H. Molecular interrogation of the feeding behaviour of field captured individual insects for interpretation of multiple host plant use. PLoS ONE 2012, 7, e44435. [Google Scholar] [CrossRef] [PubMed]
  35. Kang, C.; Moon, H.; Sherratt, T.N.; Lee, S.I.; Jablonski, P.G. Multiple lines of anti-Predator defence in the spotted lanternfly, Lycorma delicatula (Hemiptera: Fulgoridae). Biol. J. Linn. Soc. 2016, 120, 115–124. [Google Scholar] [CrossRef]
  36. Song, S.; Kim, S.; Kwon, S.W.; Lee, S.I.; Jablonski, P.G. Defense sequestration associated with narrowing of diet and ontogenetic change to aposematic colours in the spotted lanternfly. Sci. Rep. 2018, 8, 16831. [Google Scholar] [CrossRef] [PubMed]
  37. Myrick, A.J.; Baker, T.C. Analysis of Anemotactic Flight Tendencies of the Spotted Lanternfly (Lycorma delicatula) during the 2017 Mass Dispersal Flights in Pennsylvania. J. Insect Behav. 2019, 32, 11–23. [Google Scholar] [CrossRef]
  38. Whitaker, M.R.; Baker, C.C.; Salzman, S.M.; Martins, D.J.; Pierce, N.E. Combining stable isotope analysis with DNA metabarcoding improves inferences of trophic ecology. PloS ONE 2019, 14. [Google Scholar] [CrossRef] [PubMed]
  39. Hagler, J.R. It’s Gut Check Time! A Universal Food Immunomarking Technique for Studying Arthropod Feeding Activities. Ann. Entomol. Soc. Am. 2019, 112, 211–219. [Google Scholar] [CrossRef]
Figure 1. Lycorma delicatula third (black) and fourth instar nymphs (red) observed on tree trunks (a), tree branches (b), and leaves (c). (Berks County, PA, USA; July, 2018; Photos by William O. Lamp).
Figure 1. Lycorma delicatula third (black) and fourth instar nymphs (red) observed on tree trunks (a), tree branches (b), and leaves (c). (Berks County, PA, USA; July, 2018; Photos by William O. Lamp).
Insects 11 00215 g001

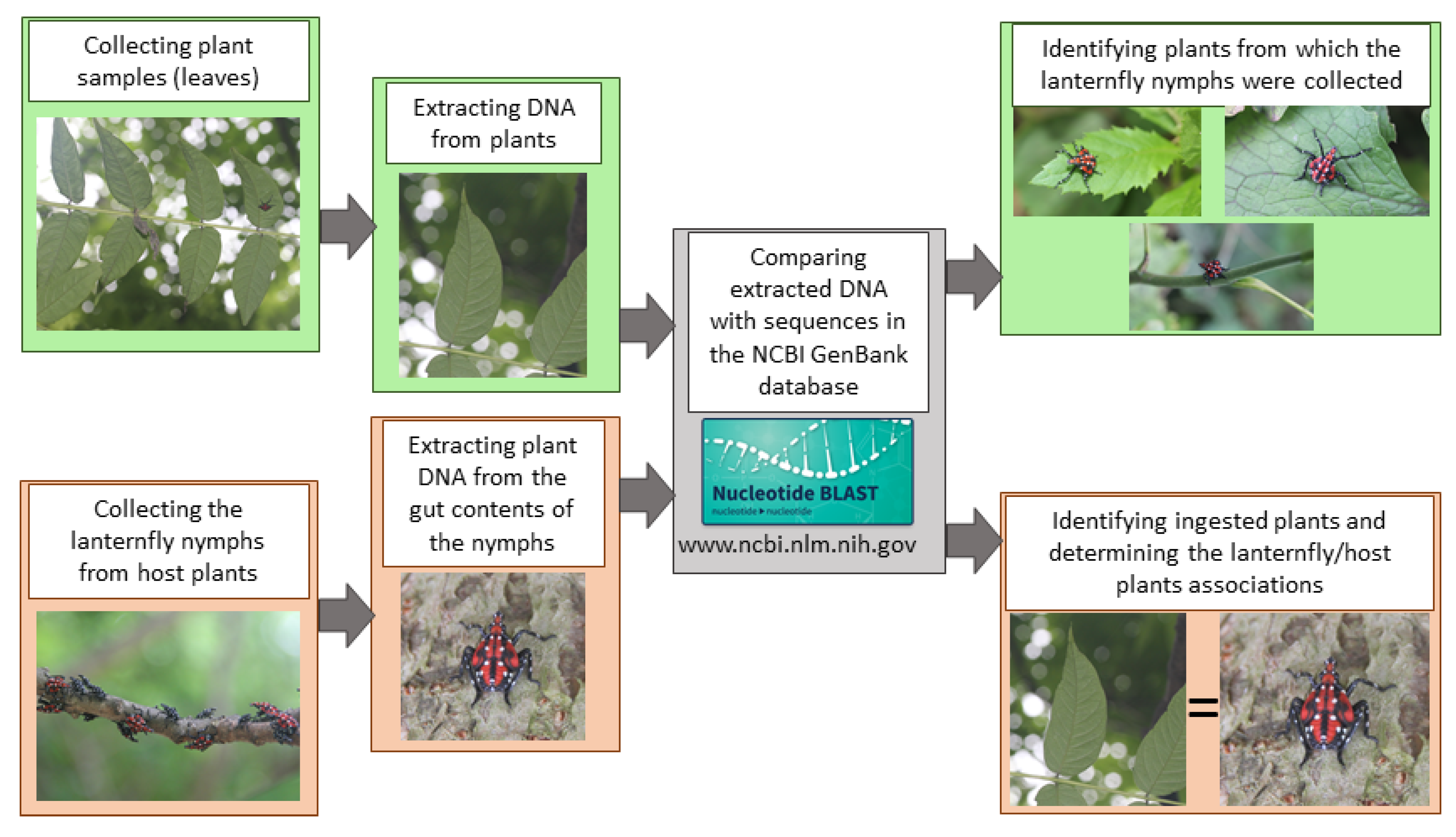

Figure 2. Overview of the main activities of the study: collection L. delicatula nymphs and plant samples, DNA isolation from plant samples and L. delicatula gut contents, identification plant species, and determining lanternfly-plant associations.
Figure 2. Overview of the main activities of the study: collection L. delicatula nymphs and plant samples, DNA isolation from plant samples and L. delicatula gut contents, identification plant species, and determining lanternfly-plant associations.
Insects 11 00215 g002

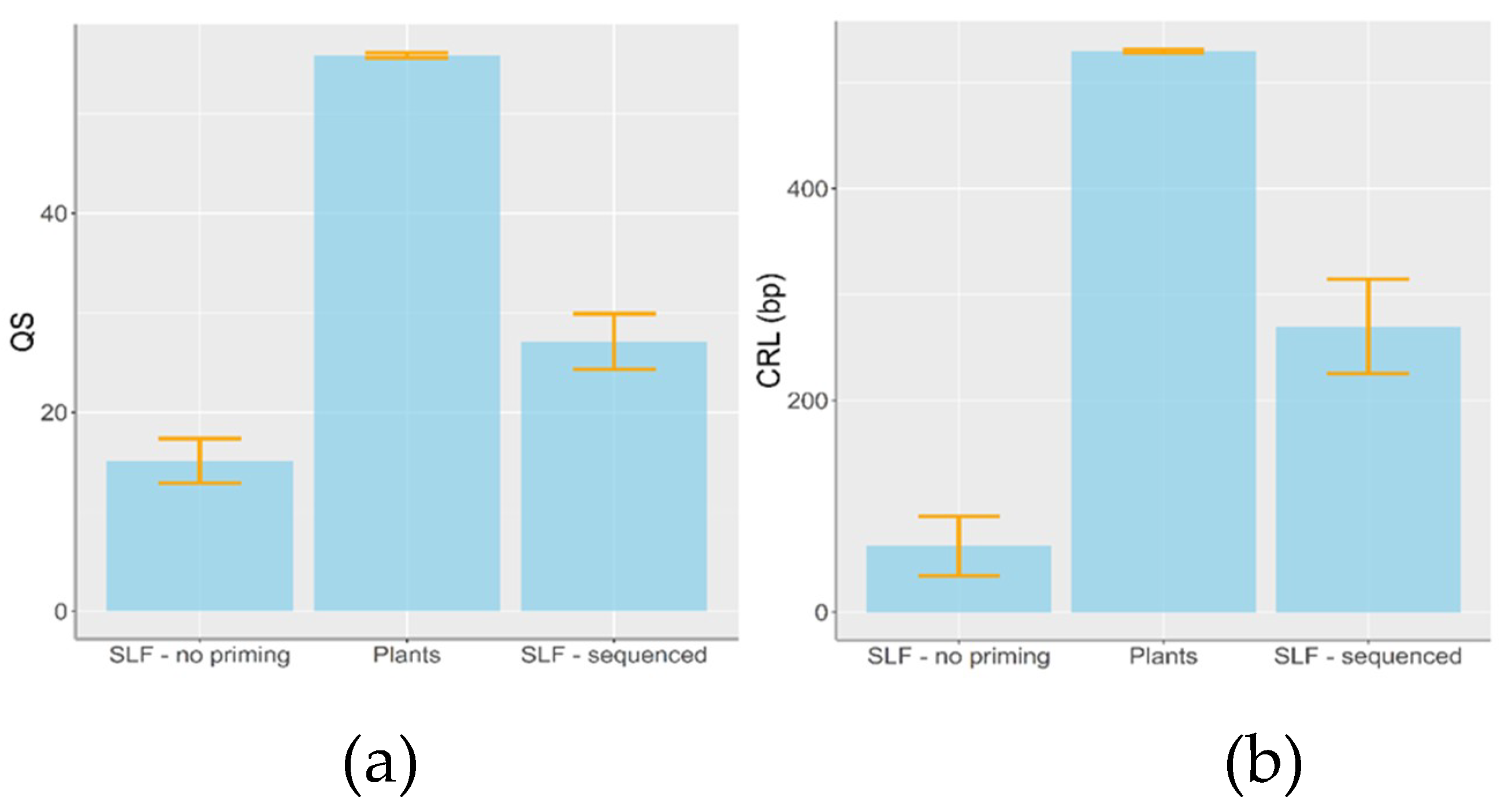

Figure 3. Average sequence quality scores (QS) and contiguous read length (CRL) of the plant sequences isolated from gut contents of L. delicatula nymphs (SLF) and from the intact plant samples: (a) QS averaged between forward and reverse sequences, (b) CRL averaged between forward and reverse sequences. Bars indicate Mean ± SE values.
Figure 3. Average sequence quality scores (QS) and contiguous read length (CRL) of the plant sequences isolated from gut contents of L. delicatula nymphs (SLF) and from the intact plant samples: (a) QS averaged between forward and reverse sequences, (b) CRL averaged between forward and reverse sequences. Bars indicate Mean ± SE values.
Insects 11 00215 g003

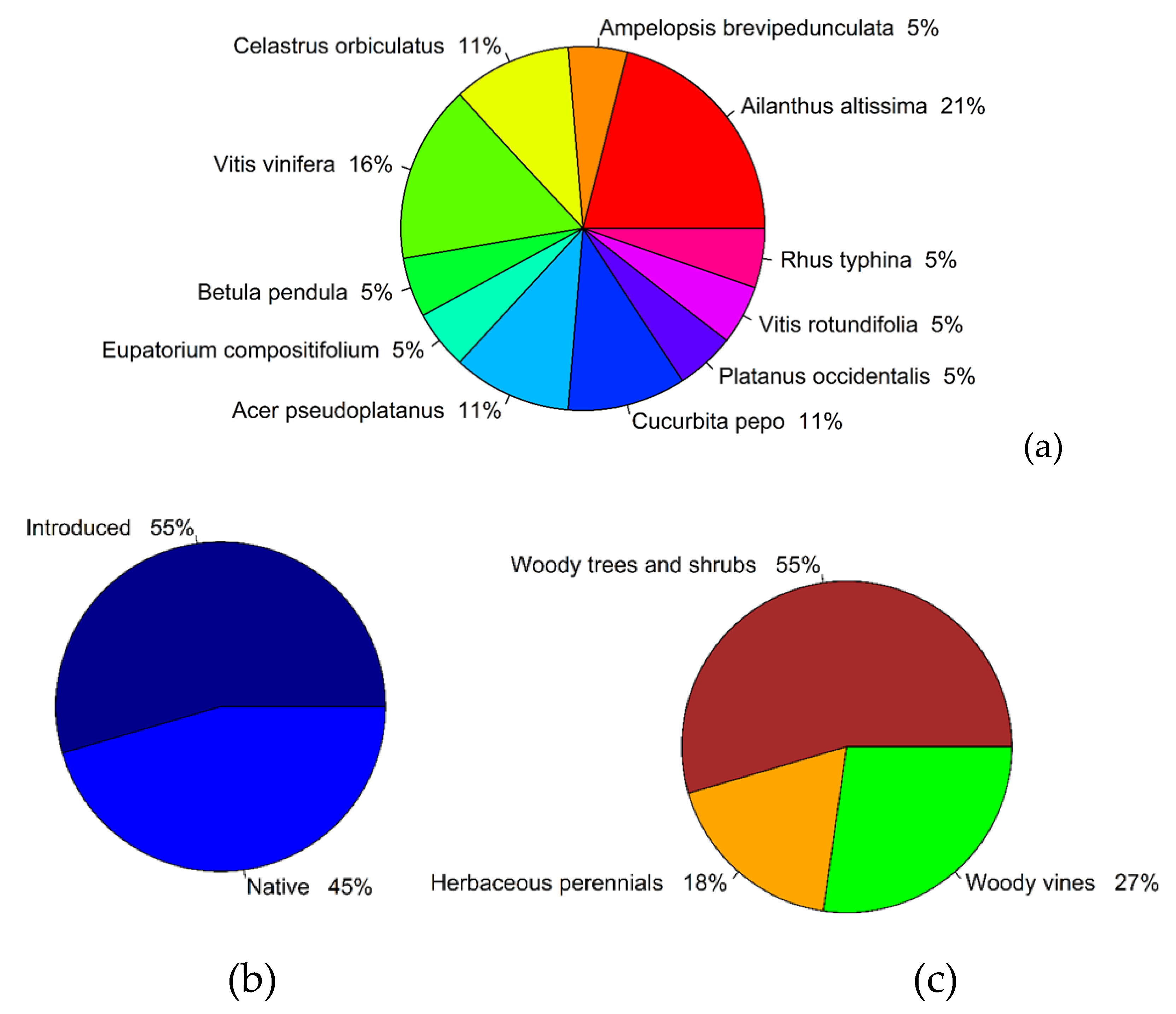

Figure 4. Results of identification of plant species ingested by L. delicatula nymphs, based on sequences obtained for a portion of the chloroplast rbcL gene: (a) Overall proportion of unique plant species isolated from the gut contents of the by L. delicatula nymphs (the presented species correspond to the best match in the NCBI GenBank database); (b) Proportion of ingested plants with different plant origin (native and introduced in the USA); and, (c) Proportion of ingested plants with different life form (woody trees and shrubs, woody vines, and herbaceous plants).
Figure 4. Results of identification of plant species ingested by L. delicatula nymphs, based on sequences obtained for a portion of the chloroplast rbcL gene: (a) Overall proportion of unique plant species isolated from the gut contents of the by L. delicatula nymphs (the presented species correspond to the best match in the NCBI GenBank database); (b) Proportion of ingested plants with different plant origin (native and introduced in the USA); and, (c) Proportion of ingested plants with different life form (woody trees and shrubs, woody vines, and herbaceous plants).
Insects 11 00215 g004
Table 1. The collection sites description with indication of unique plant species from which L. delicatula nymphs were collected (Berks County, PA, USA).
Table 1. The collection sites description with indication of unique plant species from which L. delicatula nymphs were collected (Berks County, PA, USA).
LocationDescriptionUnique Plant Species 1Nymphs Gut Contents Sequenced 2
Location 1Private territory (backyard);
7 trees; ~ 12 × 8 m2 -area
Lonicera maackiiYes
Vitis acerifoliaYes
Celastrus orbiculatusYes
Rhus typhinaYes
Location 2Private forest territory;
8 trees; ~ 10 × 10 m2 -area
Ailanthus altissimaYes
Erechtites hieraciifoliusNo
Rubus caesiusNo
Acer platanoidesNo
Acer distylumYes
Phytolacca dioicaNo
Eupatorium serotinumNo
Location 3Private territory; 1 trap treeAcer rubrumYes
Location 4Private forest territory; randomly chosen tree (preffered host plant)Ailanthus altissimaYes
1 Unique plant species at each location. The plant species identity was determined using the BLAST engine in the National Center for Biotechnology Information (NCBI) GenBank database on 10 March 2020. 2 Plant species from which the collected nymphs were successfully sequenced.
Table 2. The species identity of plant samples collected in the field and the ingested plants that were obtained from the gut contents of L. delicatula nymphs.
Table 2. The species identity of plant samples collected in the field and the ingested plants that were obtained from the gut contents of L. delicatula nymphs.
#InstarLocation 1Plants at Field Location 2Ingested Plant
Best Match 3Match %Origin 4Plant Life Form 4
13L1Lonicera maackiiVitis vinifera100introducedwoody vine
23L1Vitis acerifoliaVitis vinifera100introducedwoody vine
34L1Vitis acerifoliaCelastrus orbiculatus98.06introducedwoody vine
43L1Celastrus orbiculatusAmpelopsis brevipedunculata94introducedshrub
54L1Rhus typhinaBetula pendula100%introducedtree
64L1Rhus typhinaEupatorium compositifolium85.19nativeherbaceous perennial
73L1Rhus typhinaVitis vinifera100introducedwoody vine
84L1Rhus typhinaAcer pseudoplatanus100introducedtree
93L1Rhus typhinaCucurbita pepo96.70%introducedherbaceous perennial
104L1Rhus typhinaAcer pseudoplatanus99%introducedtree
114L1Rhus typhinaPlatanus occidentalis95.45%nativetree
124L2Ailanthus altissimaAilanthus altissima99%introducedtree
134L2Acer distylumRhus typhina84%nativetree
143L3Acer rubrumAilanthus altissima96.32%introducedtree
154L3Acer rubrumCelastrus orbiculatus100%introducedwoody vine
164L3Acer rubrumVitis rotundifolia95.22%nativewoody vine
173L3Acer rubrumCucurbita pepo85%introducedherbaceous perennial
184L4Ailanthus altissimaAilanthus altissima99%introducedtree
194L4Ailanthus altissimaAilanthus altissima98%introducedtree
1 See location descriptions in Table 1 (L1: Location 1; L2: Location 2; L3: Location 3; L4: Location 4) 2 A tree on which the insect was collected. 3 The species identity was determined using the BLAST engine in the National Center for Biotechnology Information (NCBI) GenBank database on 10 March 2020. 4 The plant life form and plant origin (i.e., native status in the USA, and particularly in PA) were retrieved from the USDA PLANT database (https://plants.usda.gov/java/, accessed on 12 March 2020).
