Colony-Level Effects of Amygdalin on Honeybees and Their Microbes

Bee Research Laboratory, Beltsville Agricultural Research Center, US Department of Agriculture, Beltsville, MD 20705, USA
Department of Agricultural Biotechnology, Faculty of Agriculture, Yüzüncü Yıl University, Van 65000, Turkey
Department of Biology, Fort Lewis College, 1000 Rim Drive, Durango, CO 81301, USA
Department of Applied Ecology, North Carolina State University, Raleigh, NC 27695, USA
Department of Biology, University of Massachusetts, Amherst, MA 01003, USA
Authors to whom correspondence should be addressed.
Insects 2020, 11(11), 783;
Submission received: 1 September 2020 / Revised: 4 November 2020 / Accepted: 5 November 2020 / Published: 11 November 2020
(This article belongs to the Collection Bees and Their Symbionts)



Simple Summary

Nectar compounds have the potential to affect microbial communities and pollinator immunity. Here, we investigated how the almond compound, amygdalin, influences the microbial community of the western honeybee. Using RNA sequencing technology to count microbial reads and bee gene transcripts, we show relatively no large change of bacterial counts, fungal counts or bee transcripts due to amygdalin treatment at the colony level. Larger fluctuations, perhaps due to amygdalin, were observed for pathogenic viruses and the pathogen Lotmaria passim; however, these changes could have been seasonal. Overall, amygdalin consumption at field-relevant, colony-levels may not have a large impact on bee symbionts or immune gene expression.


Amygdalin, a cyanogenic glycoside, is found in the nectar and pollen of almond trees, as well as in a variety of other crops, such as cherries, nectarines, apples and others. It is inevitable that western honeybees (Apis mellifera) consistently consume amygdalin during almond pollination season because almond crops are almost exclusively pollinated by honeybees. This study tests the effects of a field-relevant concentration of amygdalin on honeybee microbes and the activities of key honeybee genes. We executed a two-month field trial providing sucrose solutions with or without amygdalin ad libitum to free-flying honeybee colonies. We collected adult worker bees at four time points and used RNA sequencing technology and our HoloBee database to assess global changes in microbes and honeybee transcripts. Our hypothesis was that amygdalin will negatively affect bee microbes and possibly immune gene regulation. Using a log2 fold-change cutoff at two and intraday comparisons, we show no large change of bacterial counts, fungal counts or key bee immune gene transcripts, due to amygdalin treatment in relation to the control. However, relatively large titer decreases in the amygdalin treatment relative to the control were found for several viruses. Chronic bee paralysis virus levels had a sharp decrease (−14.4) with titers then remaining less than the control, Black queen cell virus titers were lower at three time points (<−2) and Deformed wing virus titers were lower at two time points (<−6) in amygdalin-fed compared to sucrose-fed colonies. Titers of Lotmaria passim were lower in the treatment group at three of the four dates (<−4). In contrast, Sacbrood virus had two dates with relative increases in its titers (>2). Overall, viral titers appeared to fluctuate more so than bacteria, as observed by highly inconstant patterns between treatment and control and throughout the season. Our results suggest that amygdalin consumption may reduce several honeybee viruses without affecting other microbes or colony-level expression of immune genes.

1. Introduction

Given the value of pollinators in agriculture coupled with declining populations, due to a variety of stressors, including pathogens, it is important to understand how natural plant products found in nectar impact pollinator health and immunity [1,2,3]. Model systems ideal for studying these relationships are the western honeybee (Apis mellifera) and bumblebee species (Bombus terrestris and B. impatiens). Pathogens that affect bees have been correlated with honeybee colony loss [4]. Key agents include Deformed wing virus (DWV; a single-stranded RNA virus), Nosema ceranae (an intracellularly reproducing fungal spore-producing parasite), and Lotmaria passim (eukaryotic trypanosomatid) [5,6]. Conversely, numerous microorganisms benefit honeybee health and immunity, such as bacterial mutualists found in the intestine, including Snodgrassella alvi, Gilliamella apicola, and Lactobacillus spp. [7]. The role of Frischella perrara is less clear [8].
Numerous studies have shown how natural plant products, specifically phytochemicals, can reduce pathogen loads in bees (reviewed [9]). For example, thymol (an essential oil from thyme plants, including in the nectar [10]) reduced Nosema ceranae spore loads and increased honeybee longevity relative to control worker bees [11]. Modeling data from feeding assays of phytochemicals during nosemosis showed that the interaction between concentration and compound was responsible for reduced spore counts at the end of the experiment [12]. In bumblebees, multiple nectar phytochemicals also reduced infection intensity by the gut pathogen Crithidia bombi [3,13]. Bees may forage on specific phytochemicals as a means of reducing colony pathogen loads. The notion of reducing pathogens by collecting plant resins or specific nectars has been considered a form of “social medication” [14]. While self-medication for bees is defined by the collection of remedies like phytochemicals to support individual health, social medication describes the collection of such remedies for the benefit of the colony [14]. As one example, honeybees will increase resin collection when the colony is infected with A. apis [15]. Additionally, at the colony level, collected plant resins reduce honeybee immune gene expression, which suggests that plant-derived compounds may reduce individual immunity costs [16,17]. Other potential benefits of phytochemicals may include improved memory and learning [18].
Despite these potential benefits, there may be costs and tradeoffs to collecting nectar with phytochemicals, especially when there are few nectar choices available, and those costs may be concentration- and species-dependent [19,20]. Costs may include both outright death [21], as well as sublethal ones. One example of a potential sublethal effect from a natural product is from thymol ingestion, where body mass was significantly reduced at non-lethal concentrations [22]. Despite an energetic cost, the collection of compounds may nonetheless be beneficial for the overall health of the colony [23]. In monoculture agricultural contexts, the consumption of specific nectar or pollen phytochemicals may be the only option for insects during specific times of the year, and it is important to know how this consumption impacts pollinator health and immunity.
The almond crop is worth billions of dollars per annum in the USA and Australia [24], and this commercial enterprise uses western honeybees as a major pollinator. Almond orchards (Prunus dulcis) are pollinated early in the year. Phytochemicals in almond nectar are collected by honeybees and consumed during the pollination season, potentially even if they are detrimental. Although it is possible that bees also forage on other plants during almond bloom, bees appear to have fidelity to forage on specific trees in orchards if the plant provides enough nutrition (reviewed in [25]). However, in another study, non-almond pollen was identified on bees foraging in almond orchards, presumably because bees were foraging on other plant species [25]. Thus, it is possible that bees have foraging options during almond bloom, but because almond is the major blooming floral resource and bees have fidelity towards crop trees, there is likely little potential for “social medication” or “social detoxification” (the latter by diluting toxic compounds through other foraging [26]).
Almond nectar and pollen contain amygdalin, a cyanogenic glycoside [27,28]. When amygdalin is broken down in animals, it forms cyanide, which is toxic to animals. However, despite its potential toxicity, honeybees can tolerate relatively high doses of amygdalin, as shown in survival assays where bees fed three log-scale concentrations of amygdalin, up to 100 ppm (ad libitum), had similar survival to the control for up to 22 days [29]. In another study using unnaturally high concentrations of amygdalin (up to 10 mM), the ingestion of amygdalin led to malaise signs, such as increased time spent upside down, as well as more abdomen dragging, but presumably, this was not lethal [30]. In a study using the bumblebee B. impatiens infected with the pathogen Crithidia bombi, amygdalin did not reduce pathogen titers nor increase mortality [3]. Natural concentrations of amygdalin average 4.9–6.7 ppm in P. dulcis nectar [27]. It has also been observed that bees do not avoid amygdalin at natural concentrations [31].
Since honeybees collect nectar and pollen containing amygdalin in almond orchards with likely only a few other major sources of nectar for dilution, we measured the effects of season-long amygdalin consumption on honeybee microbiota and immune gene expression. We hypothesized that season-long amygdalin ingestion would reduce honeybee microbial loads, which include parasites, viruses, mutualists and commensals. Although amygdalin’s derivative is considered toxic, animals can tolerate it, but we also hypothesized that microbes are less tolerant. Additionally, the toxin could harm host cells, which have intracellular pathogens. Other subtler host-pathogen-natural product interactions may also be at play. Understanding the effects of amygdalin on the bee microbiome and pathobiome will provide insight into other efforts for improving honeybee health using natural products [32], as well as our general understanding of mechanisms affecting pollinator health during commercial operations.

2. Materials and Methods

2.1. Experimental Setup and Compound Feeding

Twelve free-flying A. mellifera ligustica US domestic hybrid colonies located in a bee yard at the USDA in Beltsville, Maryland, were used. Colonies had been established from packages of honeybees delivered from a commercial breeder in Georgia, USA. We placed colonies on concrete blocks in a circular array with 2 m distance between colonies. In April 2013, we randomly assigned twelve healthy and similarly sized colonies into treatment and control groups, and then fed all colonies with sterile 50% sucrose-distilled water solutions placed in clean Mason jars with lids that had pin-sized punctured holes (Boardman hive-front feeders). The treatment group received this sucrose solution supplemented with 10 ppm (10 mg/L) dissolved amygdalin (Sigma, St. Louis, USA; CAS 29883-15-6). The control colonies received sucrose water. The amygdalin concentration was chosen to be slightly higher than in P. dulcis nectar (ca. 4.9–6.7 ppm [27]) under the assumption that these field colonies were also taking advantage of an active local nectar flow that might dilute amygdalin consumption. During this study, the mid-Atlantic region of the US is in full bloom [33]. Colonies were fed ad libitum throughout the experiment. The USDA-ARS apiary in Beltsville, Maryland, is not adjacent to any almond orchards. The experiment lasted approximately two months.

2.2. RNA Isolation and Sequencing

After two weeks of treatment and approximately every 14-18 days thereafter, approximately 80 adult bees were collected from each colony using a hand vacuum [32] to remove bees from the surface of populated brood frames. Four collection time points were made during the experiment. Total RNA was extracted from a pool of 50 bees per colony per time point using homemade RNA isolation buffer and phenol-chloroform, as described in the COLOSS BEEBOOK [34].
Total RNA was first quantified using a Nanodrop ND-8000 (ThermoFisher Scientific, Inc. Wilmington, DE, USA) with 2 μL of each sample (Supplementary Information). Additionally, RNA integrity was confirmed using a Bioanalyzer instrument. For each time point, we produced twelve total RNA extracts, one from each colony. Before RNA sequencing, we pooled the six total RNA samples from treated colonies at an equimolar concentration to produce one sample per time point per treatment for RNA sequencing. We did this separately for the six treatment colonies and the six control colonies. Library preparation and sequencing were done at the University of Maryland (UMD) Institute of Genome Sciences (IGS), Baltimore, Maryland. Library preparation was strand-unspecific and not a reduced representation. We produced 100 bp, paired-end data in an Illumina Hi-Seq 2000 machine [35]. The reads were received demultiplexed and trimmed of the adaptor.

2.3. Identification of Microbes

We ran the paired FASTQ files received from UMD in fastp for further quality control [36]. These FASTQ files were uploaded to the public NCBI SRA database (project PRJNA630027, containing files SRR11671127-34). Deposited samples were labeled consecutively as A1, A2, B1, B2, C1, C2, D1 and D2: for each time point (A (May 10, 2013); B (May 28, 2013); C (June 14, 2013); and D (July 1, 2013) with the amygdalin treatment (labeled with 1) and the control (labeled with 2). We aligned the paired-end, quality-controlled reads against an index of the A. mellifera genome (GCF_003254395.2_Amel_HAv3.1_genomic.fa [37]) using Hisat2 with default parameters (-1 -2 -S –dta) to remove honeybee reads (Supplementary Information). Reads that did not map to the bee genome were further processed for microbe titer analysis. We used samtools view (-S -f4 -h), flagstat, sort (-n), and fastq (-1 -2 -s -n) to extract the unmapped reads, check the file, order the reads and convert the file for Kraken2 input [38]. The unmapped, paired reads were then run in Kraken2 (2.0.8-beta) (--db –paired –report –report-zero-counts –use-names –confidence 0.04) to count microbes [39]. The Kraken2 database was built based on the organisms listed in our HoloBee dataset ( which included bacteria, fungi, metazoa, protozoa and viruses that are known associates of bees. To this end, we built the Kraken2 database by preferentially selecting one ‘representative genome’ for each species or genus. In some cases, we skipped a species or strain because no specific genome was available, or if the identity of the organism was ambiguous. Genomes are listed in Table S1. We added two yeasts that we have since isolated from honeybee intestines (Metschnikowia reukaufii (unpublished) and Wickerhamomyces anomalus [40]). Bracken [41] was then used on the Kraken2 output for count correction by read bp length.
Microbe and virus titers were examined in two ways. For the first method, which is only presented in Table 1 and used to evaluate how comprehensive our HoloBee-based search was, the Kraken-style Bracken output was modified to include the unclassified reads that were previously specified in the Kraken2 output. For each clade, these reads were divided by total unmapped bee reads that were available for microbe counting (i.e., microbe classified plus microbe unclassified reads) in each sample and multiplied by 100 to obtain a percentage of relative fragment coverage (Table 1; Table S2). Using this methodology, samples were essentially independent of one another with a normalization factor of 1. These results were compared to a run using a Kraken2 database built from NCBI’s RefSeq sequence data for bacteria, fungi and viruses. Comparison of the two runs showed similar classified percentages, except for fungi, for which the RefSeq database does not include Nosema (Table 1). This indicated that our HoloBee database captured most of the microbes and viruses in the samples because increasing the number of species from a reliable database did not clearly increase the number of hits.
In the second method, we imported the non-redundant clade counts (third column of the output) from the Kraken-style Bracken output into EdgeR within R Gui and normalized the samples together using TMM and CPM (Table S2, which contains the R script and library size adjustments) [42,43]. Estimating microbial abundances using the weighted trimmed mean of M-values and exporting them as count-per-million (CPM) was similar to previous honeybee microbe count work [44], except that we included unclassified microbe reads for the sample size adjustment. Although some assumptions of the TMM method are presumably not met, such that most microbes will have consistent abundance over time and microbes that are not consistent will have balanced count changes over time [45], we believe this method helps compensate for confounding factors, and thus, our interpretation of data was based on this second method (Figures 1 and 2).
Microsoft Excel, Inkscape (0.92.4; PC), and Pavian [46] (the latter using Rgui, 32-bit (; PC; v3.6.3)) were used to view data and to produce graphics.
To supplement Kraken2, we prepared de novo assembled scaffolds. The .fastq paired (-1 and -2) and unpaired (-s) data from samtools, as described above, were de novo assembled using the script [47]. The scaffolds were run with BLASTN [48] (--remote) using an E-value threshold of 1e-100, megablast, the nt database and accepting/culling five hits (April 2020). We summarized microbe and virus hits after filtering out scaffolds less than 1 kb and looking for the highest percent identity (Table S3).

2.4. Gene Expression Analysis

Using the reads that mapped to the bee genome from Hisat2, we used samtools to modify the .sam output using view (-S -b) and then sort. Stringtie [49] was then used (-e -o -G) with GCF_003254395.2_Amel_Hav3.1_genomic.gff to assemble transcripts and estimate coverage values. After each sample was independently run, we merged all transcripts using Stringtie merge. The files were then again run with Stringtie using the merged file as the reference (-G -b -o -A -e -C), limiting the search to only known transcripts. A gene count matrix was extracted from the Stringtie output using Stringtie’s script (-l 100 -i ./Stringtie.index). Counts were then imported into rGui for analyses using DESeq2 (as well as vsn, hexbin, pheatmap, rColorBrewer, and ggplot2) [50]. Phenotypic data were similarly imported and included treatment (amygdalin or control) and time point (A, B, C and D, as listed above). The design included treatment and time as variables. Because we only have one replicate per condition per time point, we did not consider doing any differential expression analysis (and estimation of dispersion would be misleading). To this end, we chose to look at FC (fold-change). Normalized log2 +1 was calculated within DESeq2 and exported to Excel (Table S4). This was merged with GCF_003254395.2_Amel_hAv3.1_feature_table.csv with readr in R. We sorted the table, and the fold-change was calculated as follows: log2FC = log2(amygdalin)– log2(control) and then FC = 2log2FC. We selected the top 20 to 40 up- and down-regulated genes from each time point. HymenopteraMine v1.4 [51] was used for GO term enrichment from these FC genes. For graphing Figure 3, we first transformed the data using rlog (blind=FALSE) to create a PCA plot (plotPCA) using these transformed data [52]. High performance computing servers were provided by the BAM (Berlin, Germany), and software was used in Gnome.

3. Results

3.1. Amygdalin Consumption May Change Certain Microbe and Viral Titers

In general, microbes and viruses fluctuated over time regardless of the treatment (Figure 1 and Figure 2). Our search used the Kraken2 algorithm and was limited to our curated HoloBee dataset, which includes microbes and viruses that have been isolated from Apis spp. Because we had only one pooled replicate per treatment group per time point, we did not conduct formal statistical analyses, but instead describe patterns below. We provide log2 fold-change (FC) as amygdalin/control with a cutoff of <−2.0 for relatively lower titers and >2 for relatively higher titers of amygdalin compared to the control within a specific date (as provided in parenthesis throughout the text). This corresponds to a fourfold increase or decrease, due to diet treatment.
For bacteria (Figure 1), when we apply our fold-change cutoff criteria, we observed no notable change in Bifidobacterium asteroids, Lactobacillales, Gilliamella, Snodgrassella, Frischella perrara, Parasaccharibacter apium nor Serratia marcescens loads in the amygdalin treatment relative to the control. However, we note certain trends. When we compare the overall seasonal patterns of Gilliamella, Snodgrassella, Serratia and total bacterial loads, they followed the same pattern, that is, each had similarly higher or lower titers on a specific date. Additionally, when looking at particular microbes, we saw that Snodgrassella had generally higher counts in the amygdalin treatment relative to the control throughout the season, which was the opposite for Gilliamella and Bifidiobacterium. Lastly, while Snodgrassella and Gilliamella titers fluctuated to higher and lower levels of overtime, Bifidiobacterium loads in both groups constantly increased over the summer, while F. perrara loads, for the most part, decreased over the summer.
For fungi and eukaryotes (Figure 1), when we apply our fold-change cutoff criteria, L. passim titers were lower in the amygdalin treatment relative to the control for three of the four dates (<−4), but one date had higher loads (7.2). We observed no notable changes in Nosema nor Ascosphaera apis, although at the last time point levels of A. apis increased in the amygdalin group (3.0). Nosema loads were relatively lower in three of the four time points in the amygdalin group, although not below the preset cutoff.
Several virus titers appeared to be reduced from amygdalin compared to control treatments, although this was not the case for every date (Figure 2). We observed lower DWV-A titers at two dates (<−6.3), DWV-B had one date with lower titers (−2.5), lower loads of Chronic bee paralysis virus at three dates (<−3.1), and lower Black queen cell virus loads at three dates (<−2.3). Conversely, higher titers in the amygdalin group relative to the control were found for Sacbrood virus titers at two dates (>3.0), Israeli acute paralysis virus (IAPV) at one date (2.9), and Sinaivirus at one date (3.7). Of all four dates, June 14 had the largest increase in total viral loads (1.7), with three of the seven key viruses having increased titers on this day. The last date (July 1) had a markedly lower total viral titers (−2.3), driven by Sacbrood virus (−2.3), Israeli acute paralysis virus (−8.0), Black queen cell virus (−3.1), and Sinaivirus (−2.7), except for DWV-A and DWV-B which had relatively higher titers (2.6 and 6.2, respectively). As a control, we also looked at the Tobacco ringspot virus, which is found in honeybees, but currently has no concrete evidence showing that it is adapted in the western honeybee [53,54]. There were no clear differences in the amygdalin and control treatment for the Tobacco ringspot virus count data, which was not the case for almost every other honeybee virus inspected.
De novo assembled scaffolds were used to support the presence of a microbe (Table S3). Although consistent taxonomic hits for scaffolds were not found across all eight samples, every HoloBee-oriented microbe of interest was identified in at least one sample through BLASTN, except for the following: bacteria (P. apium and S. marcescens); fungi (aspergilli and yeasts); other (L. passim and T. mercedesae). This could be due to our stringent megablast parameters, relatively lower abundance of these organisms or technical reasons, such as short 100 bp cDNA reads. Across the eight samples, the most consistently identified microbes were bacteria (G. apicola and S. alvi; found in all samples except one sample did not have a hit for S. alvi); fungi (Nosema ceranae, found in all but one sample); and viruses (Sacbrood virus, Black queen cell virus and Lake Sinai virus; found in all samples). Other viruses were identified, including Apis rhabdovirus, which coincides with a recent report that honeybees harbor more viruses than described in the curated HoloBee database [55].

3.2. Honey Bee Transcriptome Was Not Heavily Altered by Amygdalin Treatment

Although we found some shifts in microbial and viral levels between treatments and controls, we generally found limited changes in immune gene expression by fold-change. We calculated the fold-change per time point from transformed gene expression count data to discover any large gene expression changes, due to amygdalin consumption, reported as amygdalin treatment relative to the control. We focused on antimicrobial peptides (AMPs), upstream genes in the immunity pathways of Immune deficiency (Imd) and toll, RNA interference (RNAi) genes, and nutrition and behavior genes. None of the assessed immune-system genes, nor the age- and nutrient-sensitive marker vitellogenin or major royal jelly protein 1, showed large fold-change differences between treatment and control samples that were consistent across all time points (Table 2 and Table S4). One gene, annotated as a toll-like receptor Tollo, was found in the top 20 up-regulated genes at the time point ’10 May 2013′ in the amygdalin treatment. The last time point (1 July 2013) seemed to have an overall decrease in gene expression relative to the other three time points in our gene set in the amygdalin treatment (Table 2), except for vitellogenin. Expanding to the top 40 genes with the largest fold-change, we used a Gene Ontology (GO; enrichment analysis, but we found no statistically significant enriched GO terms for the sample points (Table S4). We saw no apparent pattern between gene expression and either bacterial or viral loads.
Lastly, we used the rlog normalized gene expression data to build a principal component analysis (PCA) plot, which showed that most of the variance between samples could be explained by time point rather than by treatment (Figure 3).

4. Discussion

We consider our experimental design to be a reasonable simulation of commercial operations. We roughly tested the concentration found in nectar [27]. Presumably, some foragers feeding in almond orchards may be consuming a higher concentration of amygdalin than what we had tested. By the same token, the precise amount of amygdalin that free-flying and nestmate bees consumed remains unknown. However, our results provide insights into how the nectar compound amygdalin may affect the honeybee microbial community and immune gene expression. This includes pathogens that are of critical interest to sustainable agricultural pollination, such as Deformed wing virus and L. passim, where we observed lower titers in the amygdalin group compared to control on certain dates. In addition, we did not observe large changes in bacterial titers given our fold-change cutoff.
When we looked for trends of relative loads of bacteria rather than fold-change cutoffs, we consistently observed fewer counts of beneficial Gilliamella and Bifidobacterium in treated colonies and simultaneously saw increased counts of beneficial Snodgrassella. Therefore, our results could suggest that amygdalin may cause slight dysbiosis where Snodgrassella replaces Gilliamella, the latter possibly being more susceptible to the compound. Consequences of increased Snodgrassella could help explain decreased DWV levels, which is something we have observed from our cage feeding studies (Birke, Tauber, and Evans, 2020, in review). However, the loss of an established mutualistic bacterial community could be detrimental to proper immune stimulation, host physiology and pathogen protection [62]. We also saw no apparent pattern relating the relative expression of AMPs with relative bacterial loads, as well as relative virus loads. Therefore, it is plausible that the general change in microbe titers was not related to gene expression of AMPs, for which microbe and virus loads may be dependent on the season and/or plausibly somewhat influenced by the amygdalin treatment.
Indeed, mutualistic bacteria are in the bee’s intestine and may be in direct contact with xenobiotics. However, amygdalin itself does not show antibacterial effects in vitro, and the almond nectar’s bacterial community appears not to be significantly shaped by amygdalin [63]. The effects of amygdalin are plausibly due to its derivative. Beta-glucosidase, a hydrolase enzyme that catalyzes the initial breakdown of amygdalin, is secreted into the mouth from the hypopharyngeal glands of the honeybee, and this enzyme can then be transferred to the midgut [64,65]. The final conversion to toxic cyanide is possible with water. Additionally, the toxicity of amygdalin in bees is supported by the observation that amygdalin ingestion, but not injection, induces abnormal behavior [30]. Therefore, it is probable that the bee is degrading amygdalin into a toxic product when ingested, and there exists a mechanism for controlled chemical absorption in the gut. One hypothesis is that amygdalin’s derivative is toxic to certain gut microbes, although not enough so to decimate the symbionts. How amygdalin is processed in the bee gut or hemolymph and/or by the intestinal microbiota should be a future focus to understand with greater resolution how amygdalin could change the microbial composition.
Viruses are mainly located in the hemocoel, although Sinaivirus may have overall higher titers in gut tissue [66]. But given that amygdalin and plausibly its degraded product can also be found in the hemolymph after oral ingestion [30], albeit at an almost tenfold reduced amount, it is possible that the compound can interact with many viral pools. Another hypothesis is that amygdalin’s derivative is toxic to host cells, thus disrupting viral replication. In Palmer-Young et al. [67], amygdalin-fed honeybees, whether completely reared in bee cages or released back to the colony, had higher levels of hymenoptaecin, lower levels of DWV and no increase in mortality; however, these changes were not statistically significant. In the current study, we used near-natural concentrations of amygdalin, which were five-fold lower than the concentration of amygdalin used in this study by Palmer-Young et al. [67]. That said, the previous experiment complements our current work because, in both instances, DWV titers were lower, albeit not statistically significant, in bees that had consumed amygdalin. Therefore, the decrease in DWV makes our finding even more intriguing. This is because DWV may be considered the most serious of the RNA viral pathogens because this virus, in concert with Varroa that transmits the virus, causes deformity, colony loss and reduced individual lifespan [68,69]. Black queen cell virus and Chronic bee paralysis virus were also both consistently lower in the amygdalin group.
We included the Tobacco ringspot virus (TRSV), which is a virus that bees pick up from plants, as a control for the virus group. We used TRSV as a control because there is a lack of sufficient evidence to support that it is a bee pathogen [54]. Interestingly, the titer counts for TRSV between the treatment and control essentially overlapped and followed the same pattern over the two months (relative fold-change was not greater than 2 on any date). This was in contrast to most honeybee-associated viruses. Given the possible lack of evidence that TRSV is adapted to honeybees [54] and replicates in bees [70], despite some debate [71], if we consider that the majority of TRSV present in the bee is not adapted, then our results, which show large viral count differences of honeybee-associated viruses between conditions, suggest that amygdalin was somehow affecting these honeybee viruses that are adapted to bees.
There can be substantial seasonal variation in titers of microbes and viruses. Virus [72], bacteria [73] and L. passim [74] presence in bees is typically seasonal. For example, in a year-long survey [72], Lake Sinai Virus was very sparse outside of the spring and summer months of February to July, whereas DWV had the highest titers in the cooler months (September to February). In contrast to these two virus titers, the Black queen cell virus was consistently high over the surveyed months. Pathogens in colonies for commercial almond pollination also have seasonally dependent pathogen prevalence [75]. Pathogen prevalence can also vary by geography and climate [76]. In our current study, total viral loads generally decreased from May to July in all bees, which seemed mostly driven by Sinaivirus, which had the largest abundance. Sinaivirus prevalence decreased from May to July, a similar seasonal swing that was observed in previous work [77], while IAPV and DWV-B were inconsistent across dates. Although Sinaivirus loads in our work did not exactly follow the month-to-month observations in [77], we similarly observed a gradual decrease in Sinaivirus over the summertime. Furthermore, the larger total viral abundance in the amygdalin treatment on June 14 appears driven by both Sinaivirus and Sacbrood virus. Future studies are needed to confirm these survey results as consistent year-to-year observations, as both a survey to understand viral prevalence and to see if amygdalin may affect these viruses under varying temporal circumstances. Although one study found an increase in Sinaivirus in “weak” colonies [66] and despite its large persistence [78], there is a gap in our knowledge on its pathogenicity and disease phenotypes. The uptick of DWV at the last date could be the effect of amygdalin weaning off or from seasonal fluctuations. Altogether, it is difficult to pinpoint a reason. Other studies could analyze freshly dead bees that died due to higher viral loads, which were missed in our work because we only tested living bees, as well as to test colonies from other apiaries that have a different balance of virus richness and evenness. One could also track commercial honeybees as they are moved into and out of almond orchards to observe if symbiont alterations are persistent, and involve both experimental manipulations of amygdalin exposure (as was done here) and testing during a foraging season with plants, such as almonds that contain amygdalin. As noted in [67], repeating compound feeding experiments can yield different results due to such factors as the genetic lineage of bees, season, year, infection level, the experimental setup and molecular techniques [79,80].
Phytochemicals can be harnessed as treatments to improve bee health, and we are currently focusing on natural products as safe and reliable remedies to reduce pathogen loads and/or improve colony health [32]. We are focused on compounds generally recognized as safe (GRAS) to consume, listed by the Federal Food and Drug Administration (FDA) ( Amygdalin is not a GRAS compound; however, we felt it was important to test this compound since honeybees have limited foraging options during almond pollination and so are predominately exposed to this compound. In general, both the understanding of forage nectar constituents on bee health and the development of phytochemical applications require an understanding of detrimental and beneficial effects. Many phytochemicals can be deterrents for pollinators or toxic in certain concentrations or contexts, and may have evolved to combat microbes or herbivores [21,81,82,83]. Consumption preferences by concentration appear to be the case for various nectar compounds except for amygdalin [84]. Tiedeken et al. (2014) reported that honeybees do not respond to levels of some compounds, including amygdalin, with a threshold of 10 mmol l−1, whereas bumblebees were more sensitive to amygdalin at thresholds of 1 mmol l−1 [85]. Generalist bee species may have reduced detection of toxins because they have fewer gustatory receptors. Consequentially, although amygdalin and other nectar phytochemicals may be problematic during individual consumption, their dilution in the colony may make them have negligible effects on the colony, which is important to consider given that the colony is the unit on which eusocial selection acts. In fact, amygdalin consumption in a natural setting may actually be seasonal and due to nectar dearth [27]. Nevertheless, there is a growing body of literature suggesting that phytochemicals in nectars and pollen, even those considered toxic in some cases, can improve pollinator health at certain concentrations by reducing disease. For our work, with no discernable pattern of immune gene expression and microbe and virus titers after ingestion of amygdalin, it is possible that any amygdalin-induced shifts may not overall impact colony health, although future studies are needed to measure whole colony health in this context. We will cautiously approach amygdalin’s effects until we follow colony health metrics over a full commercial operation.

5. Conclusions

We fed amygdalin, a secondary compound in the nectar of almond trees, to free-flying honeybees over two months at a natural concentration. Amygdalin treatment appeared to reduce certain microbial and viral titers at specific dates. We did not observe significant changes in honeybee gene expression, due to amygdalin consumption. For future work, one needs to consider the tradeoff of dysbiosis of beneficial symbionts with a reduction in pathogen loads. As is the case with purported mass bee deaths due to linden tree nectar [86], to truly understand the consequences of nectar chemicals on bees, including the holobiont, we need evidence in the context of the floral season, bee biology, reward drivers, total nectar chemistry, as well as cumulative and interactive effects. Natural products remain an intriguing aspect of bee biology, which could influence the livelihood of the backyard and commercial beekeeping.

Supplementary Materials

The following are available online at, Supplementary Information.

Author Contributions

D.L., C.Ö.T., R.S.S. and J.D.E. performed experiments. J.P.T. analyzed data. J.P.T. wrote the manuscript with input from others. J.D.E., L.S.A. and R.E.I. designed and financially supported the project. All authors have read and agreed to the published version of the manuscript.


J.D.E., J.P.T. and D.L. were supported through in-house appropriation funds and Fund 18-8130-0787-IA from USDA-APHIS. James Tauber was also supported by the ARS Research Associate Program (Class of 2018). The APC charge was covered through BRL in-house funds. Research was also supported by USDA-AFRI 2013-02536 and NSF-DEB-1258096 (L.S.A., R.E.I. and J.E.) and the North American Pollinator Protection Campaign (J.E., L.S.A. and R.E.I.).


USDA is an equal opportunity provider and employer. All authors declare that they have no concerning competing interests. All opinions expressed in this paper are the authors’ and do not necessarily reflect the policies and views of USDA, ARS, or other funding agencies. Mention of trade names or commercial products in this publication is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture. We thank Dino McMahon and the Federal Institute for Materials Research and Testing (BAM; Berlin, Germany) for support. Lastly, we thank Francisco Posada-Florez for contributing literature.

Conflicts of Interest

The authors declare no conflicting interests.


  1. Tamer, C.E.; Suna, S.; Özcan-Sinir, G. Toxicological Aspects of Ingredients Used in Nonalcoholic Beverages. In Non-Alcoholic Beverages; Woodhead Publishing: Cambridge, UK, 2019; pp. 441–481. [Google Scholar]
  2. Goulson, D.; Nicholls, E.; Botías, C.; Rotheray, E.L. Bee declines driven by combined stress from parasites, pesticides, and lack of flowers. Science 2015, 347, 1255957. [Google Scholar] [CrossRef] [PubMed]
  3. Richardson, L.L.; Adler, L.S.; Leonard, A.S.; Andicoechea, J.; Regan, K.H.; Anthony, W.E.; Manson, J.S.; Irwin, R.E. Secondary metabolites in floral nectar reduce parasite infections in bumblebees. Proc. R. Soc. B Biol. Sci. 2015, 282, 20142471. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Highfield, A.C.; El Nagar, A.; Mackinder, L.C.M.; Laure, M.L.N.; Hall, M.J.; Martin, S.J.; Schroeder, D.C. Deformed Wing Virus Implicated in Overwintering Honeybee Colony Losses. Appl. Environ. Microbiol. 2009, 75, 7212–7220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Evans, J.D.; Schwarz, R.S. Bees brought to their knees: Microbes affecting honey bee health. Trends Microbiol. 2011, 19, 614–620. [Google Scholar] [CrossRef] [PubMed]
  6. Schwarz, R.S.; Huang, Q.; Evans, J.D. Hologenome theory and the honey bee pathosphere. Curr. Opin. Insect Sci. 2015, 10, 1–7. [Google Scholar] [CrossRef] [PubMed]
  7. Moran, N.A. Genomics of the honey bee microbiome. Curr. Opin. Insect Sci. 2015, 10, 22–28. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Engel, P.; Bartlett, K.D.; Moran, N.A. The Bacterium Frischella perrara Causes Scab Formation in the Gut of its Honeybee Host. mBio 2015, 6, e00193-15. [Google Scholar] [CrossRef] [Green Version]
  9. Stevenson, P.C. For antagonists and mutualists: The paradox of insect toxic secondary metabolites in nectar and pollen. Phytochem. Rev. 2019, 19, 603–614. [Google Scholar] [CrossRef] [Green Version]
  10. Palmer-Young, E.C.; Sadd, B.M.; Stevenson, P.C.; Irwin, R.E.; Adler, L.S. Bumble bee parasite strains vary in resistance to phytochemicals. Sci. Rep. 2016, 6, 37087. [Google Scholar] [CrossRef]
  11. Costa, C.; Lodesani, M.; Maistrello, L. Effect of thymol and resveratrol administered with candy or syrup on the development of Nosema ceranaeand on the longevity of honeybees (Apis mellifera L.) in laboratory conditions. Apidologie 2009, 41, 141–150. [Google Scholar] [CrossRef] [Green Version]
  12. Bernklau, E.; Bjostad, L.B.; Hogeboom, A.; Carlisle, A.; Arathi, H.S. Dietary Phytochemicals, Honey Bee Longevity and Pathogen Tolerance. Insects 2019, 10, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Palmer-Young, E.C.; Sadd, B.M.; Irwin, R.E.; Adler, L.S. Synergistic effects of floral phytochemicals against a bumble bee parasite. Ecol. Evol. 2017, 7, 1836–1849. [Google Scholar] [CrossRef] [PubMed]
  14. Spivak, M.; Goblirsch, M.; Simone-Finstrom, M. Social-medication in bees: The line between individual and social regulation. Curr. Opin. Insect Sci. 2019, 33, 49–55. [Google Scholar] [CrossRef] [PubMed]
  15. Simone-Finstrom, M.D.; Spivak, M. Increased Resin Collection after Parasite Challenge: A Case of Self-Medication in Honey Bees? PLoS ONE 2012, 7, e34601. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Simone-Finstrom, M.; Evans, J.D.; Spivak, M. Resin collection and social immunity in honey bees. Evolution 2009, 63, 3016–3022. [Google Scholar] [CrossRef] [PubMed]
  17. Simone-Finstrom, M.; Borba, R.S.; Wilson, M.; Spivak, M. Propolis Counteracts Some Threats to Honey Bee Health. Insects 2017, 8, 46. [Google Scholar] [CrossRef] [Green Version]
  18. Wright, G.A.; Baker, D.D.; Palmer, M.J.; Stabler, S.; Mustard, J.A.; Power, E.F.; Borland, A.M.; Stevenson, P.C. Caffeine in floral nectar enhances a pollinator’s memory of reward. Science 2013, 339, 1202–1204. [Google Scholar] [CrossRef] [Green Version]
  19. Adler, L.S. The ecological significance of toxic nectar. Oikos 2000, 91, 409–420. [Google Scholar] [CrossRef]
  20. Zhang, J.; Wang, Z.; Wen, P.; Qu, Y.; Tan, K.; Nieh, J.C. The reluctant visitor: A terpenoid in toxic nectar can reduce olfactory learning and memory in Asian honey bees. J. Exp. Biol. 2018, 221. [Google Scholar] [CrossRef] [Green Version]
  21. Detzel, A.; Wink, M. Attraction, deterrence or intoxication of bees (Apis mellifera) by plant allelochemicals. Chemoecology 1993, 4, 8–18. [Google Scholar] [CrossRef]
  22. Charpentier, G.; Vidau, C.; Ferdy, J.-B.; Tabart, J.; Vetillard, A. Lethal and sub-lethal effects of thymol on honeybee (Apis mellifera) larvae reared in vitro. Pest Manag. Sci. 2013, 70, 140–147. [Google Scholar] [CrossRef] [PubMed]
  23. Simone-Finstrom, M.; Spivak, M. Propolis and bee health: The natural history and significance of resin use by honey bees. Apidologie 2010, 41, 295–311. [Google Scholar] [CrossRef] [Green Version]
  24. Reilly, J.R.; Artz, D.R.; Biddinger, D.; Bobiwash, K.; Boyle, N.K.; Brittain, C.; Brokaw, J.; Campbell, J.W.; Daniels, J.; Elle, E.; et al. Crop production in the USA is frequently limited by a lack of pollinators. Proc. R. Soc. B Biol. Sci. 2020, 287, 20200922. [Google Scholar] [CrossRef] [PubMed]
  25. DeGrandi-Hoffman, G.; Thorp, R.; Loper, G.; Eisikowitch, D. Identification and Distribution of Cross-Pollinating Honey-Bees on Almonds. J. Appl. Ecol. 1992, 29, 238. [Google Scholar] [CrossRef]
  26. Berenbaum, M.R.; Johnson, R.M. Xenobiotic detoxification pathways in honey bees. Curr. Opin. Insect Sci. 2015, 10, 51–58. [Google Scholar] [CrossRef] [Green Version]
  27. London-Shafir, I.; Shafir, S.; Eisikowitch, D. Amygdalin in almond nectar and pollen—Facts and possible roles. Plant Syst. Evol. 2003, 238, 87–95. [Google Scholar] [CrossRef]
  28. Kevan, P.G.; Ebert, T. Can almond nectar & pollen poison honey bees? Am. Bee J. 2005, 145, 507–509. [Google Scholar]
  29. Lecocq, A.; Green, A.A.; Pinheiro De Castro, É.C.; Olsen, C.E.; Jensen, A.B.; Zagrobelny, M. Honeybees Tolerate Cyanogenic Glucosides from Clover Nectar and Flowers. Insects 2018, 9, 31. [Google Scholar] [CrossRef] [Green Version]
  30. Hurst, V.; Stevenson, P.C.; Wright, G.A. Toxins induce ‘malaise’ behaviour in the honeybee (Apis mellifera). J. Comp. Physiol. A 2014, 200, 881–890. [Google Scholar] [CrossRef] [Green Version]
  31. Stevenson, P.C.; Nicolson, S.W.; Wright, G.A. Plant secondary metabolites in nectar: Impacts on pollinators and ecological functions. Funct. Ecol. 2016, 31, 65–75. [Google Scholar] [CrossRef]
  32. Tauber, J.P.; Collins, W.R.; Schwarz, R.S.; Chen, Y.; Grubbs, K.; Huang, Q.; Lopez, D.; Peterson, R.; Evans, J.D. Natural Product Medicines for Honey Bees: Perspective and Protocols. Insects 2019, 10, 356. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Program, M.B. Beekeeping calendar for the Northeast; Cornell University: Ithaca, NY, USA, 2020. [Google Scholar]
  34. Evans, J.D.; Schwarz, R.S.; Chen, Y.; Budge, G.; Cornman, R.S.; De La Rua, P.; De Miranda, J.R.; Foret, S.; Foster, L.; Gauthier, L.; et al. Standard methods for molecular research in Apis mellifera. J. Apic. Res. 2013, 52, 1–54. [Google Scholar] [CrossRef] [Green Version]
  35. Tozkar, C.Ö.; Kence, M.; Kence, A.; Huang, Q.; Evans, J.D. Metatranscriptomic analyses of honey bee colonies. Front. Genet. 2015, 6, 100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Chen, S.; Zhou, Y.; Chen, Y.; Gu, J. fastp: An ultra-fast all-in-one FASTQ preprocessor. Bioinformatics 2018, 34, i884–i890. [Google Scholar] [CrossRef] [PubMed]
  37. Wallberg, A.; Bunikis, I.; Pettersson, O.V.; Mosbech, M.-B.; Childers, A.K.; Evans, J.D.; Mikheyev, A.S.; Robertson, H.M.; Robinson, G.E.; Webster, M.T. A hybrid de novo genome assembly of the honeybee, Apis mellifera, with chromosome-length scaffolds. BMC Genom. 2019, 20, 1–19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. 1000 Genome Project Data Processing Subgroup. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Wood, D.E.; Lu, J.; Langmead, B. Improved metagenomic analysis with Kraken 2. Genome Biol. 2019, 20, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Tauber, J.P.; Nguyen, V.; Lopez, D.; Evans, J.D. Effects of a Resident Yeast from the Honeybee Gut on Immunity, Microbiota, and Nosema Disease. Insects 2019, 10, 296. [Google Scholar] [CrossRef] [Green Version]
  41. Lu, J.; Breitwieser, F.P.; Thielen, P.; Salzberg, S.L. Bracken: Estimating species abundance in metagenomics data. PeerJ Comput. Sci. 2017, 3, e104. [Google Scholar] [CrossRef]
  42. Chen, Y.; Lun, A.T.; Smyth, G.K. From reads to genes to pathways: Differential expression analysis of RNA-Seq experiments using Rsubread and the edgeR quasi-likelihood pipeline. F1000Research 2016, 5, 1438. [Google Scholar]
  43. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Huang, Q.; Evans, J.D. Targeting the honey bee gut parasite Nosema ceranae with siRNA positively affects gut bacteria. BMC Microbiol. 2020, 20, 1–6. [Google Scholar] [CrossRef] [PubMed]
  45. Weiss, S.; Xu, Z.Z.; Peddada, S.; Amir, A.; Bittinger, K.; Gonzalez, A.; Lozupone, C.; Zaneveld, J.R.; Vázquez-Baeza, Y.; Birmingham, A.; et al. Normalization and microbial differential abundance strategies depend upon data characteristics. Microbiome 2017, 5, 1–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Breitwieser, F.P.; Salzberg, S.L. Pavian: Interactive analysis of metagenomics data for microbiome studies and pathogen identification. Bioinformatics 2019, 36, 1303–1304. [Google Scholar] [CrossRef]
  47. Nurk, S.; Meleshko, D.; Korobeynikov, A.; Pevzner, P.A. metaSPAdes: A new versatile metagenomic assembler. Genome Res. 2017, 27, 824–834. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Camacho, C.; Coulouris, G.; Avagyan, V.; Ma, N.; Papadopoulos, J.; Bealer, K. BLAST plus: Architecture and applications. BMC Bioinformatics. BioMed Cent. 2009, 10, 1. [Google Scholar]
  49. Pertea, M.; Pertea, G.M.; Antonescu, C.M.; Chang, T.-C.; Mendell, J.T.; Salzberg, S.L. StringTie enables improved reconstruction of a transcriptome from RNA-seq reads. Nat. Biotechnol. 2015, 33, 290–295. [Google Scholar] [CrossRef] [Green Version]
  50. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 002832. [Google Scholar] [CrossRef] [Green Version]
  51. Elsik, C.G.; Tayal, A.; Diesh, C.M.; Unni, D.R.; Emery, M.L.; Nguyen, H.N.; Hagen, D.E. Hymenoptera Genome Database: Integrating genome annotations in HymenopteraMine. Nucleic Acids Res. 2016, 44, D793–D800. [Google Scholar] [CrossRef] [Green Version]
  52. Love, M.I.; Anders, S.; Kim, V.; Huber, W. RNA-Seq workflow: Gene-level exploratory analysis and differential expression. F1000Research 2015, 4, 1070. [Google Scholar] [CrossRef]
  53. Li, J.L.; Cornman, R.S.; Evans, J.D.; Pettis, J.S.; Zhao, Y.; Murphy, C.; Peng, W.J.; Wu, J.; Hamilton, M.; Boncristiani, H.F.; et al. Systemic Spread and Propagation of a Plant-Pathogenic Virus in European Honeybees, Apis mellifera. mBio 2014, 5, e00898–e00913. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Cornman, R. Available Genetic Data Do Not Support Adaptation of Tobacco Ringspot Virus to an Arthropod Host. mBio 2017, 8, e01875–e01916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ray, A.M.; Lopez, D.L.; Iturralde Martinez, J.F.; Galbraith, D.A.; Rose, R.; van Engelsdorp, D.; Rosa, C.; Evans, J.D.; Grozinger, C.M. Distribution of recently identified bee-infecting viruses in managed honey bee (Apis mellifera) populations in the USA. Apidologie 2020, 171, 736–745. [Google Scholar] [CrossRef]
  56. Evans, J.D.; Aronstein, K.; Chen, Y.P.; Hetru, C.; Imler, J.-L.; Jiang, H.; Kanost, M.; Thompson, G.J.; Zou, Z.; Hultmark, D. Immune pathways and defence mechanisms in honey bees Apis mellifera. Insect Mol. Biol. 2006, 15, 645–656. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Doublet, V.; Poeschl, Y.; Gogol-Doering, A.; Alaux, C.; Annoscia, D.; Aurori, C.; Barribeau, S.M.; Bedoya-Reina, O.C.; Brown, M.J.F.; Bull, J.C.; et al. Unity in defence: Honeybee workers exhibit conserved molecular responses to diverse pathogens. BMC Genom. 2017, 18, 207. [Google Scholar] [CrossRef] [PubMed]
  58. Barroso-Arévalo, S.; Vicente-Rubiano, M.; Puerta, F.; Molero, F.; Sánchez-Vizcaíno, J.M. Immune related genes as markers for monitoring health status of honey bee colonies. BMC Veter. Res. 2019, 15, 72. [Google Scholar] [CrossRef] [Green Version]
  59. Erban, T.; Sopko, B.; Kadlikova, K.; Talacko, P.; Harant, K. Varroa destructor parasitism has a greater effect on proteome changes than the deformed wing virus and activates TGF-beta signaling pathways. Sci. Rep. 2019, 9, 9400. [Google Scholar] [CrossRef]
  60. Chan, Q.W.; Melathopoulos, A.P.; Pernal, S.F.; Foster, L.J. The innate immune and systemic response in honey bees to a bacterial pathogen, Paenibacillus larvae. BMC Genom. 2009, 10, 387. [Google Scholar] [CrossRef] [Green Version]
  61. Corona, M.; Branchiccela, B.; Madella, S.; Chen, Y.P.; Evans, J.D. Decoupling the effects of nutrition, age and behavioral caste on honey bee physiology and immunity. BioRxiv 2019, 667931. [Google Scholar] [CrossRef]
  62. Zheng, H.; Steele, M.I.; Leonard, S.P.; Motta, E.V.S.; Moran, N.A. Honey bees as models for gut microbiota research. Lab Anim. 2018, 47, 317–325. [Google Scholar] [CrossRef]
  63. Fridman, S.; Izhaki, I.; Gerchman, Y.; Halpern, M. Bacterial communities in floral nectar. Environ. Microbiol. Rep. 2011, 4, 97–104. [Google Scholar] [CrossRef] [PubMed]
  64. Ricigliano, V.A.; Fitz, W.; Copeland, D.C.; Mott, B.M.; Maes, P.; Floyd, A.S.; Dockstader, A.; Anderson, K.E. The impact of pollen consumption on honey bee (Apis mellifera) digestive physiology and carbohydrate metabolism. Arch. Insect Biochem. Physiol. 2017, 96, e21406. [Google Scholar] [CrossRef] [PubMed]
  65. Pontoh, J.; Low, N.H. Purification and characterization of beta-glucosidase from honey bees (Apis mellifera). Insect Biochem. Mol. Biol. 2002, 32, 679–690. [Google Scholar] [CrossRef]
  66. Daughenbaugh, K.F.; Martin, M.; Brutscher, L.M.; Cavigli, I.; Garcia, E.; Lavin, M.; Flenniken, M.L. Honey Bee Infecting Lake Sinai Viruses. Viruses 2015, 7, 3285–3309. [Google Scholar] [CrossRef] [Green Version]
  67. Palmer-Young, E.C.; Tozkar, C.Ö.; Schwarz, R.S.; Chen, Y.; E Irwin, R.; Adler, L.S.; Evans, J.D. Nectar and Pollen Phytochemicals Stimulate Honey Bee (Hymenoptera: Apidae) Immunity to Viral Infection. J. Econ. Entomol. 2017, 110, 1959–1972. [Google Scholar] [CrossRef]
  68. De Miranda, J.R.; Genersch, E. Deformed wing virus. J. Invertebr. Pathol. 2010, 103 (Suppl. 1), S48–S61. [Google Scholar] [CrossRef]
  69. Dainat, B.; Evans, J.D.; Chen, Y.P.; Gauthier, L.; Neumann, P. Dead or Alive: Deformed Wing Virus and Varroa destructor Reduce the Life Span of Winter Honeybees. Appl. Environ. Microbiol. 2011, 78, 981–987. [Google Scholar] [CrossRef] [Green Version]
  70. Miller, W.A.; Carrillo-Tripp, J.; Bonning, B.C.; Dolezal, A.G.; Toth, A.L. Conclusive Evidence of Replication of a Plant Virus in Honeybees Is Lacking. mBio 2014, 5, e00985–e01014. [Google Scholar] [CrossRef] [Green Version]
  71. Li, J.L.; Cornman, R.S.; Evans, J.D.; Pettis, J.S.; Zhao, Y.; Murphy, C.; Peng, W.J.; Wu, J.; Hamilton, M.; Boncristiani, H.F.; et al. Reply to “Conclusive Evidence of Replication of a Plant Virus in Honeybees Is Lacking”. mBio 2014, 5, e01250–e01314. [Google Scholar] [CrossRef] [Green Version]
  72. D’Alvise, P.; Seeburger, V.; Gihring, K.; Kieboom, M.; Hasselmann, M. Seasonal dynamics and co-occurrence patterns of honey bee pathogens revealed by high-throughput RT-qPCR analysis. Ecol. Evol. 2019, 9, 10241–10252. [Google Scholar] [CrossRef] [Green Version]
  73. Kešnerová, L.; Emery, O.; Troilo, M.; Liberti, J.; Erkosar, B.; Engel, P. Gut microbiota structure differs between honeybees in winter and summer. ISME J. 2020, 14, 801–814. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Vejnovic, B.; Stevanovic, J.; Schwarz, R.S.; Aleksic, N.; Mirilovic, M.; Jovanovic, N.M.; Stanimirovic, Z. Quantitative PCR assessment of Lotmaria passim in Apis mellifera colonies co-infected naturally with Nosema ceranae. J. Invertebr. Pathol. 2018, 151, 76–81. [Google Scholar] [CrossRef] [PubMed]
  75. Glenny, W.; Cavigli, I.; Daughenbaugh, K.F.; Radford, R.; Kegley, S.E.; Flenniken, M.L. Honey bee (Apis mellifera) colony health and pathogen composition in migratory beekeeping operations involved in California almond pollination. PLoS ONE 2017, 12, e0182814. [Google Scholar] [CrossRef] [PubMed]
  76. Meixner, M.D.; Francis, R.M.; Gajda, A.; Kryger, P.; Andonov, S.; Uzunov, A.; Topolska, G.; Costa, C.; Amiri, E.; Berg, S.; et al. Occurrence of parasites and pathogens in honey bee colonies used in a European genotype-environment interactions experiment. J. Apic. Res. 2014, 53, 215–229. [Google Scholar] [CrossRef]
  77. Runckel, C.; Flenniken, M.L.; Engel, J.C.; Ruby, J.G.; Ganem, D.; Andino, R.; DeRisi, J.L. Temporal Analysis of the Honey Bee Microbiome Reveals Four Novel Viruses and Seasonal Prevalence of Known Viruses, Nosema, and Crithidia. PLoS ONE 2011, 6, e20656. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Cornman, R.S. Relative abundance and molecular evolution of Lake Sinai Virus (Sinaivirus) clades. PeerJ 2019, 7, e6305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Johnson, B.R.; Atallah, J.; Plachetzki, D.C. The importance of tissue specificity for RNA-seq: Highlighting the errors of composite structure extractions. BMC Genom. 2013, 14, 586. [Google Scholar] [CrossRef] [Green Version]
  80. Williams, G.R.; Alaux, C.; Costa, C.; Doublet, V.; Eisenhardt, D.; Kuhn, R.; Murray, T.E.; Neumann, P.; Oliver, R.; Tanner, G.; et al. Standard methods for maintaining adult Apis mellifera in cages under in vitro laboratory conditions. J. Apic. Res. 2013, 52, 1–36. [Google Scholar] [CrossRef] [Green Version]
  81. Maia, M.F.; Moore, S.J. Plant-based insect repellents: A review of their efficacy, development and testing. Malar. J. 2011, 10, S11–S14. [Google Scholar] [CrossRef] [Green Version]
  82. Barlow, S.E.; Wright, G.A.; Ma, C.; Barberis, M.; Farrell, I.W.; Marr, E.C.; Brankin, A.; Pavlik, B.M.; Stevenson, P.C. Distasteful Nectar Deters Floral Robbery. Curr. Biol. 2017, 27, 2552–2558.e3. [Google Scholar] [CrossRef]
  83. Irwin, R.E.; Bronstein, J.L.; Manson, J.S.; Richardson, L. Nectar Robbing: Ecological and Evolutionary Perspectives. Annu. Rev. Ecol. Evol. Syst. 2010, 41, 271–292. [Google Scholar] [CrossRef]
  84. Singaravelan, N.; Nee’Man, G.; Inbar, M.; Izhaki, I. Feeding Responses of Free-flying Honeybees to Secondary Compounds Mimicking Floral Nectars. J. Chem. Ecol. 2005, 31, 2791–2804. [Google Scholar] [CrossRef] [PubMed]
  85. Tiedeken, E.J.; Stout, J.C.; Stevenson, P.C.; Wright, G.A. Bumblebees are not deterred by ecologically relevant concentrations of nectar toxins. J. Exp. Biol. 2014, 217, 1620–1625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Koch, H.; Stevenson, P.C. Do linden trees kill bees? Reviewing the causes of bee deaths on silver linden (Tilia tomentosa). Biol. Lett. 2017, 13, 20170484. [Google Scholar] [CrossRef] [Green Version]

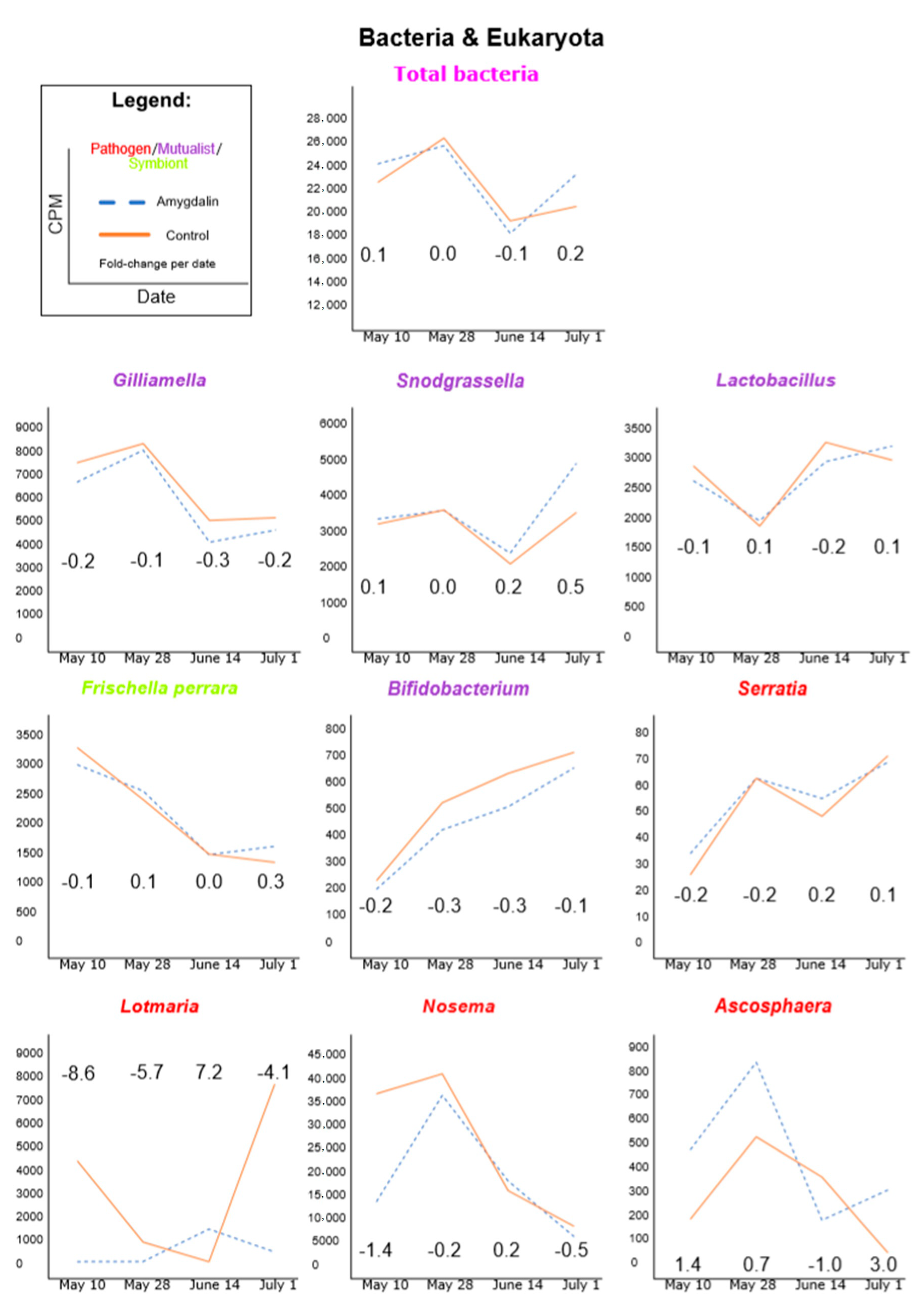

Figure 1. Bracken-corrected Kraken2 microbe counts (excluding viruses) using a Kraken2-HoloBee database. Counts were TMM normalized and presented as CPM (counts per million). Graphs were ordered from highest to lowest counts and by taxonomy. Numbers within the graph’s area indicate the log2 fold-change of amygdalin/control for that date. We considered a large increase in counts when the fold-change was greater than 2 and a large decrease when less than −2.
Figure 1. Bracken-corrected Kraken2 microbe counts (excluding viruses) using a Kraken2-HoloBee database. Counts were TMM normalized and presented as CPM (counts per million). Graphs were ordered from highest to lowest counts and by taxonomy. Numbers within the graph’s area indicate the log2 fold-change of amygdalin/control for that date. We considered a large increase in counts when the fold-change was greater than 2 and a large decrease when less than −2.
Insects 11 00783 g001

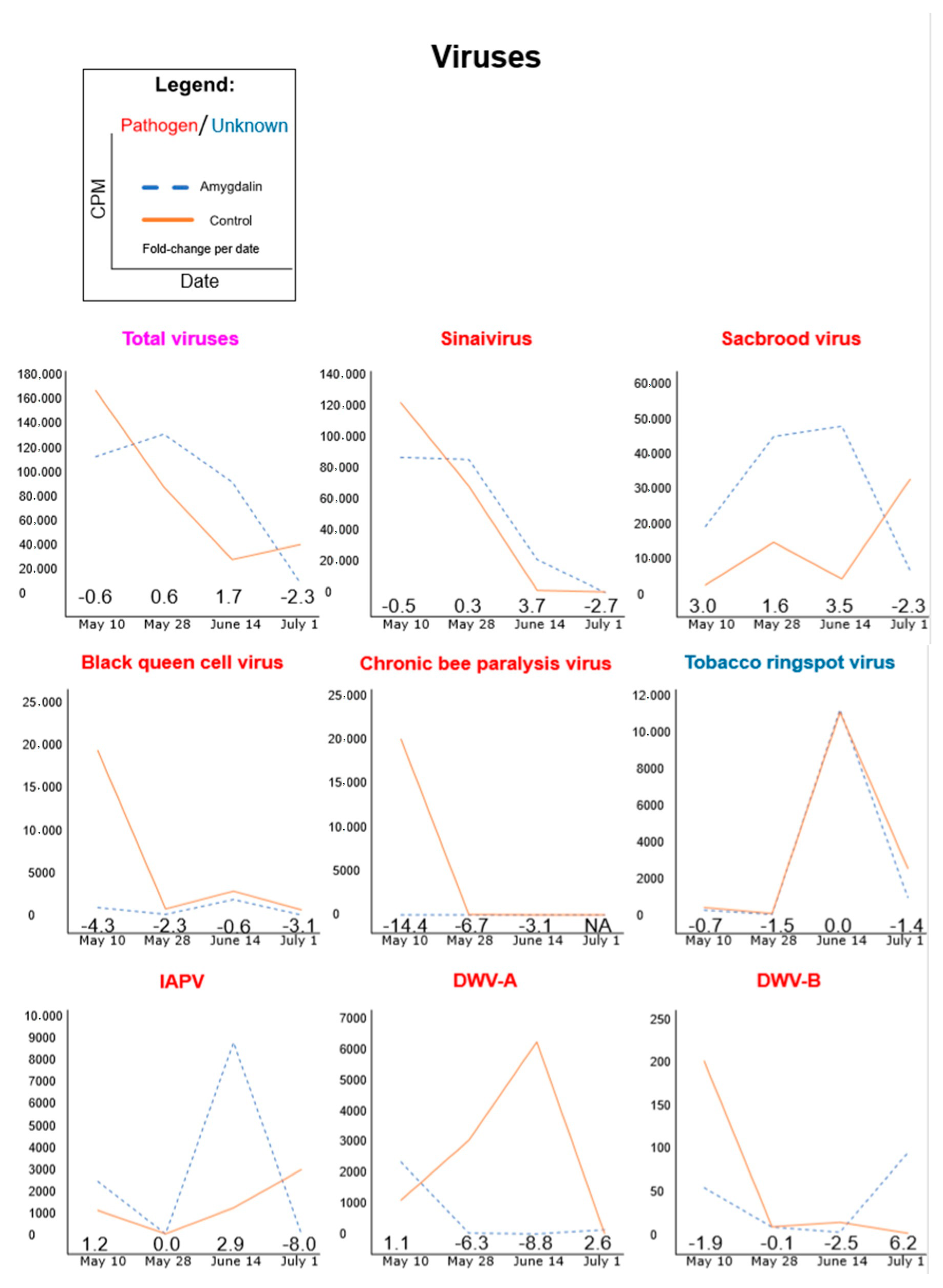

Figure 2. Bracken-corrected Kraken2 viral counts using a Kraken2-HoloBee database. Counts were TMM normalized and presented as CPM (counts per million). Graphs were ordered from highest to lowest counts. Numbers within the graph’s area indicate the log2 fold-change of amygdalin/control for that date. We considered a large increase in counts when the fold-change was greater than 2 and a large decrease when less than −2. Total viral titers appeared driven by Sinaivirus and Sacbrood virus.
Figure 2. Bracken-corrected Kraken2 viral counts using a Kraken2-HoloBee database. Counts were TMM normalized and presented as CPM (counts per million). Graphs were ordered from highest to lowest counts. Numbers within the graph’s area indicate the log2 fold-change of amygdalin/control for that date. We considered a large increase in counts when the fold-change was greater than 2 and a large decrease when less than −2. Total viral titers appeared driven by Sinaivirus and Sacbrood virus.
Insects 11 00783 g002

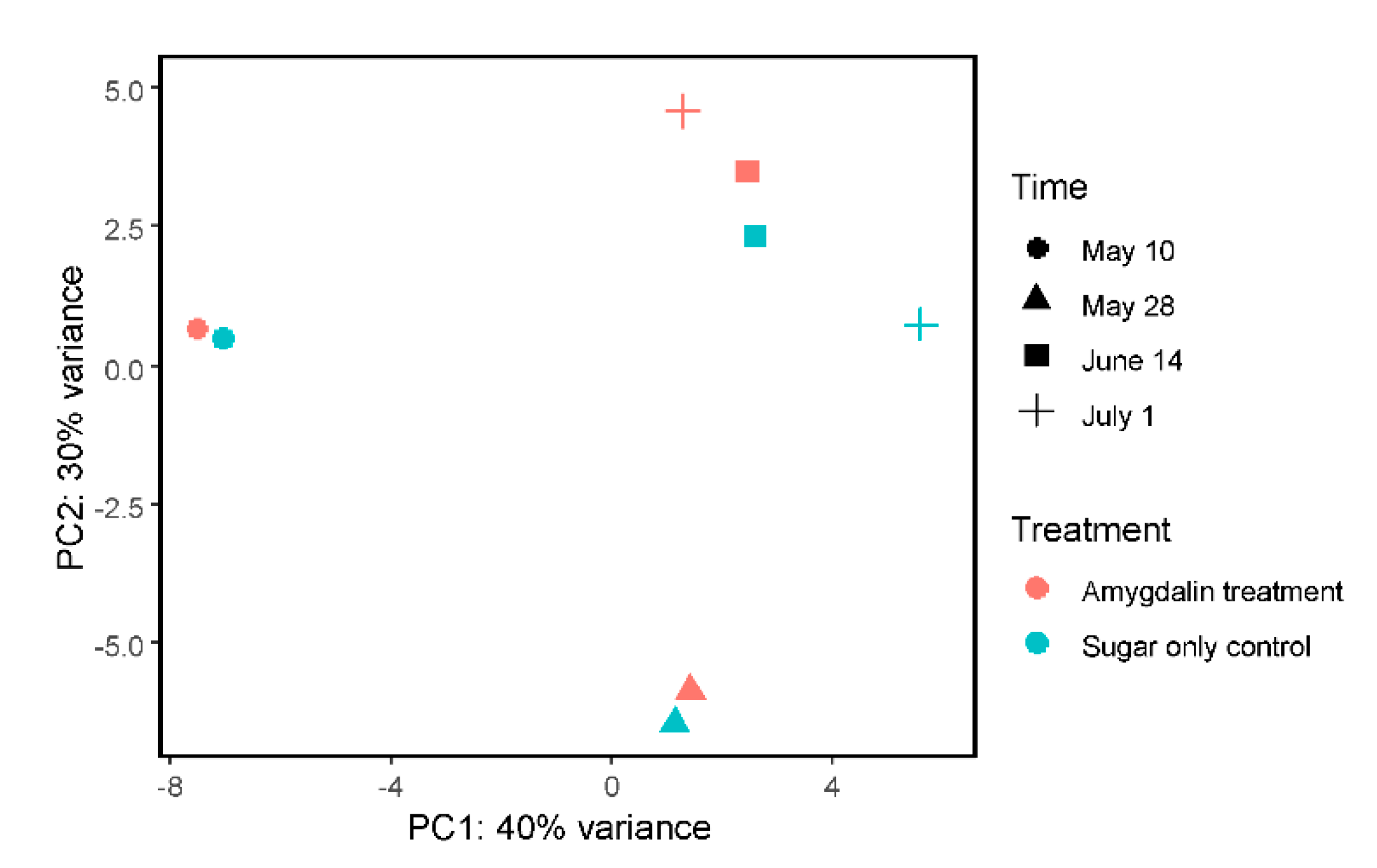

Figure 3. PCA plot using rlog-transformed data of known honeybee transcript counts from all RNAseq data for all four collection time points for both the amygdalin treatment and sugar-only control.
Figure 3. PCA plot using rlog-transformed data of known honeybee transcript counts from all RNAseq data for all four collection time points for both the amygdalin treatment and sugar-only control.
Insects 11 00783 g003
Table 1. Alignment data for microbe and virus counts for each of the four time points and treatments (amygdalin and control). Kraken2 data are a percentage of classified RNA reads (i.e., microbe counts) of all leftover reads after the Hisat2 alignment to the bee genome (“normalization factor” = 1). Hisat2 data are the percentage of RNA reads mapped to the A. mellifera genome (further detailed in the Supplementary Information document). When we compare the HoloBee search to the RefSeq search using total viral, total bacterial and total fungal reads, we see comparable values for both virus and bacteria, but a relatively large discrepancy for fungi. We note that the RefSeq database is missing some organisms in the HoloBee database, notably Nosema. Overall, we believe that this indicates that our HoloBee-derived search captured most of the expected honeybee-associated microbes.
Table 1. Alignment data for microbe and virus counts for each of the four time points and treatments (amygdalin and control). Kraken2 data are a percentage of classified RNA reads (i.e., microbe counts) of all leftover reads after the Hisat2 alignment to the bee genome (“normalization factor” = 1). Hisat2 data are the percentage of RNA reads mapped to the A. mellifera genome (further detailed in the Supplementary Information document). When we compare the HoloBee search to the RefSeq search using total viral, total bacterial and total fungal reads, we see comparable values for both virus and bacteria, but a relatively large discrepancy for fungi. We note that the RefSeq database is missing some organisms in the HoloBee database, notably Nosema. Overall, we believe that this indicates that our HoloBee-derived search captured most of the expected honeybee-associated microbes.
10 May 201328 May 201314 June 20131 July 2013
Alignment/count detailsAmygdalinControlAmygdalinControlAmygdalinControlAmygdalinControl
A. mellifera Hisat2 overall alignment rate87.0895.489.1997.0691.197.9190.9988.61
Kraken2-HoloBee total viral reads4.3023.697.0423.656.3010.780.642.74
Kraken2-RefSeq total viral reads4.6625.207.2924.366.6211.930.682.80
Kraken2-HoloBee total bacterial reads0.903.141.326.711.237.41.851.40
Kraken2-RefSeq total bacterial reads1.083.481.497.311.478.142.151.61
Kraken2-HoloBee total fungal reads0.545.201.9210.
Kraken2-RefSeq total fungal reads0.
Table 2. Fold change (FC) for key bee immune-related genes. We chose genes based on immunity [56,57,58,59,60], and also nutrition and behavior [61]. We calculated fold-change by using log2FC = log2(amygdalin) − log2(control), and then FC = 2log2FC, where FC > 1 is higher expression and 0-1 is lower expression of amygdalin-treated colonies relative to the control colonies.
Table 2. Fold change (FC) for key bee immune-related genes. We chose genes based on immunity [56,57,58,59,60], and also nutrition and behavior [61]. We calculated fold-change by using log2FC = log2(amygdalin) − log2(control), and then FC = 2log2FC, where FC > 1 is higher expression and 0-1 is lower expression of amygdalin-treated colonies relative to the control colonies.
May 10May 28June 14July 1
Antimicrobial peptidesHymenoptaecin1.020.642.530.53
Upstream toll and Imd/JNK pathwaysPeptidoglycan-recognition protein 11.170.960.991.06
Peptidoglycan recognition protein S21.
Beta-1,3-glucan-binding protein 1
Nuclear factor NF-kappa-B p100 subunit (relish)1.150.941.030.84
Hormone (nutrition/behavior)Vitellogenin2.300.971.234.76
Major royal jelly protein 11.0570.890.950.83
Apisimin 1.080.940.880.80
Other immunityApidermin
Lysozyme 0.830.890.700.86
RNAiProtein argonaute-2 1.301.041.151.05
RISC-loading complex subunit TARBP2 1.471.031.180.61
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tauber, J.P.; Tozkar, C.Ö.; Schwarz, R.S.; Lopez, D.; Irwin, R.E.; Adler, L.S.; Evans, J.D. Colony-Level Effects of Amygdalin on Honeybees and Their Microbes. Insects 2020, 11, 783.

AMA Style

Tauber JP, Tozkar CÖ, Schwarz RS, Lopez D, Irwin RE, Adler LS, Evans JD. Colony-Level Effects of Amygdalin on Honeybees and Their Microbes. Insects. 2020; 11(11):783.

Chicago/Turabian Style

Tauber, James P., Cansu Ö. Tozkar, Ryan S. Schwarz, Dawn Lopez, Rebecca E. Irwin, Lynn S. Adler, and Jay D. Evans. 2020. "Colony-Level Effects of Amygdalin on Honeybees and Their Microbes" Insects 11, no. 11: 783.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
