Article

Neuronal Innervation of the Subgenual Organ Complex and the Tibial Campaniform Sensilla in the Stick Insect Midleg

by
Johannes Strauß
AG Integrative Sensory Physiology, Institute for Animal Physiology, Justus-Liebig-Universität Gießen, Heinrich-Buff-Ring 26 (IFZ), 35392 Gießen, Germany
Insects 2020, 11(1), 40; https://doi.org/10.3390/insects11010040
Submission received: 11 December 2019 / Revised: 28 December 2019 / Accepted: 2 January 2020 / Published: 4 January 2020
Browse Figures
Versions Notes

Abstract

:
Mechanosensory organs in legs play are crucial receptors in the feedback control of walking and in the detection of substrate-borne vibrations. Stick insects serve as a model for the physiological role of chordotonal organs and campaniform sensilla. This study documents, by axonal tracing, the neural innervation of the complex chordotonal organs and groups of campaniform sensilla in the proximal tibia of the midleg in Sipyloidea sipylus. In total, 6 nerve branches innervate the different sensory structures, and the innervation pattern associates different sensilla types by their position. Sensilla on the anterior and posterior tibia are innervated from distinct nerve branches. In addition, the variation in innervation is studied for five anatomical branching points. The most common variation is the innervation of the subgenual organ sensilla by two nerve branches rather than a single one. The fusion of commonly separated nerve branches also occurred. However, a common innervation pattern can be demonstrated, which is found in >75% of preparations. The variation did not include crossings of nerves between the anterior and posterior side of the leg. The study corrects the innervation of the posterior subgenual organ reported previously. The sensory neuroanatomy and innervation pattern can guide further physiological studies of mechanoreceptor organs and allow evolutionary comparisons to related insect groups.

Graphical Abstract

1. Introduction

Insects have multiple types of mechanoreceptors and other sensilla on body appendages like legs or antenna [1,2,3,4,5,6,7]. The neuronal innervation pattern shows the organization of motor nerves and muscles [8,9] or sensory nerves and their relation to different sensory organs in insect legs [10,11,12,13].
Large internal organs are the chordotonal organs consisting of scolopidial sensilla [14,15], responding to mechanical forces that act on the insect body through substrate vibration, airborne sound, or joint movements, resulting in the stretch or tilting of the dendrites of the bipolar sensory neurons. The femoral chordotonal organ (FCO) and the subgenual organ (SGO) are important chordotonal organs present in all leg pairs [15]. The SGO spans the proximal tibia and is an important receptor for substrate vibrations [16]. In orthopteroid insects, the SGO is accompanied by additional chordotonal organs, forming together the subgenual organ complex [15,17]. At least one further chordotonal organ is usually present just distally of the SGO, termed the distal organ (DO; e. g. in stick insects, cockroaches, locusts) or intermediate organ (e.g., in bushcrickets) [17,18]. These organs respond to substrate vibrations and, in certain insects, also to airborne sound [19]. In stick insects, where the scolopidial sensilla of the SGO (~40) form a hemi-circle in the tibia, the sensilla of the DO (~20) are extending distally from the SGO [18]. A sub-group of the subgenual sensilla is located close to the DO in a cluster, termed the anterior-ventral SGO (avSGO) [18]. By the position of these sensilla which is continuous to the main subgenual organ and the lack of a distinct innervating nerve, these sensilla belong to the SGO [18].
Another important type of mechanoreceptors are the campaniform sensilla (CS) with cuticular caps on the body surface into which the dendrites of sensory neurons insert [14,20,21]. On legs, they detect cuticle strain resulting from leg movements in different directions, muscle contractions, and load increases and decreases, which provide sensory feedback for adaptive movements [22,23,24,25,26,27]. Several groups of CS occur on different leg segments [28,29]. CS also respond to substrate-borne vibrations of low frequencies [30,31], which are transmitted over the leg cuticle [32]. Both chordotonal organs and CS respond to structural deformations by mechanical forces acting on the cuticle or in the body [14].
The mechanoreceptors in stick insects have been studied in detail for their physiology and functional morphology, with a focus on the proximal leg, including the femur [9,33,34,35]. The subgenual organ complex of stick insects was investigated for the neuroanatomy and sensory responses to vibration stimuli [16,18]. The CS in stick insects occur in the proximal tibia in a complex grouping into three separate subgroups (group 6 [29]). These sensilla respond differently to forces on the leg from joint flexion and anterior displacements (proximal CS: Group 6A) or leg extension and posterior displacements (distal CS: Group 6B) [25,27].
The neuronal innervation of tibial CS in relation to the chordotonal organs has thus far not been documented. In other orthopteroid insects, groups of tibial CS are usually closely associated with the larger chordotonal organs, including the SGO [12,30,36,37]. In the stick insect Carausius morosus (Sinéty, 1901), the CS are more widely distributed on the proximal tibia in three subgroups [25,29]. Therefore, the innervation of the CS and the chordotonal organs (SGO, DO) is studied here in detail for Sipyloidea sipylus (Westwood, 1859) (Phasmatodea: Necrosciinae). This species is a model for sensory neuroanatomy [16,18] due to the light cuticle, which allows documentation of the neuronal structures within the legs. The aim here is to document the nerve innervation of the subgenual organ complex and the tibial CS. The peripheral innervation pattern is analyzed for the spatial relation of the respective nerves, and the influence of distinct sensillum types or the tibial position/proximity of sensilla. In addition, the variation in nerve branches is analyzed since nerve branches of sensory organs occasionally fuse or split in the periphery [17]. These data establish the common neuronal organization of the subgenual organ complex and other mechanoreceptors. The detailed sensory neuroanatomy and innervation patterns can guide further functional studies of mechanoreceptor organs.

2. Materials and Methods

2.1. Specimens

Adult females of Siypolidea sipylus were reared in terraria at the Institute for Animal Physiology, Justus-Liebig-Universität Gießen. The females reproduce parthenogenetically [38]. Animals were kept at 21–23 °C, under a 12:12 light-dark cycle. Individuals were fed with leaves of Rosaceae ad libitum. The insects used for neuroanatomical studies were several days after the final molt, and only individuals with intact legs and tarsi were included.
Here, the innervation pattern of the midleg was investigated, which was analyzed in numerous physiological studies [25,26,27,29,39,40,41]. The sensory organization of all leg pairs was very similar [16].
The experiments documented here complied with the principles of animal care of the Justus-Liebig-Universität Gießen, and with the current law of the Federal Republic of Germany.

2.2. Leg Morphology

Isolated midlegs were photographed using a Leica 9Si dissection microscope with an integrated camera (1024 × 768 pixels) with the Leica Application Suite version 4.12 (Leica Microsystems CMS GmbH, Wetzlar, Germany).

2.3. Scanning Electron Microscopy

For scanning electron microscopy, legs from adult specimens were cut off with scissors at the mid-femur and stored in 70% ethanol (Carl Roth, Karlsruhe, Germany). They were dehydrated in a graded ethanol series (Carl Roth, Karlsruhe, Germany), point-dried (CPD 030, Balzers, Liechtenstein), and mounted with lateral or dorsal sides up on metal holders (Plano, Wetzlar, Germany) [42]. Legs mounted with the dorsal side up were supported using conductive silver cement (Plano Wetzlar, Germany). The legs were sputter-coated with gold (Sputter Coater SCD 004, Balzers, Liechtenstein), and viewed with a LEO 982 SEM (Leo Elektronenmikroskopie GmbH, Oberkochen, Germany). Legs were mounted in different positions, for dorsal view (n = 6) and lateral view (n = 4). Digital micrographs were stored in tif format (1280 × 1024 pixels).

2.4. Staining of Nerves and Sensory Structures by Axonal Tracing

Leg nerves and sensilla were stained by retrograde axonal tracing by infusion with cobalt ions [43]. Prior to staining of the nerves, animals were briefly cold-anesthetized for 5 min at 4 °C. Midlegs were cut off at the coxa-trochanter joint with scissors. Legs were individually fixed in glass dishes covered with Sylgard (Sylgard 184, Suter Kunststoffe AG, Fraunbrunnen, Switzerland) with insect pins, with the ventral side oriented upward, and covered with Carausius saline (177.96 mmol NaC1, 17.4 mmol KC1, 25.1 mmol MgC12 × 6 H2O, all from Roth, Karlsruhe, Germany; 7.48 mmol CaC12 × 2 H2O, from Merck, Darmstadt, Germany; 1.98 mmol Tris, from Sigma-Aldrich, St. Louis, MO, USA; dissolved in Aqua dest, pH = 7.4; [44]). The legs' main nerve, nervus cruris [8,44,45], was exposed by cutting and removing the cuticle of the ventral side of the femur with a piece of a blade and removing tendons and muscles with forceps (Dumont #5, Fine Science Tools, Heidelberg, Germany). The nervus cruris was cut close to the femur-tibia joint with iridectomy scissors, and the free end was transferred into a glass capillary filled with a 5% cobalt solution (CoCl2 × 6H2O, from Merck, Darmstadt, Germany, dissolved in distilled water). Midleg preparations were incubated for 48 h at 4 °C. The intracellular cobalt was precipitated by transferring the legs into a solution of ammonium sulphide (Alpha Aesar, Karlsruhe, Germany; solution of 1% in Carausius saline). The legs were rinsed briefly with Carausius saline, and fixed in 4% paraform aldehyde (Sigma-Aldrich, St. Louis, MO, USA) for 1 h. They were consecutively rinsed in phosphate buffer (40 mmol Na2HPO4, 5.74 mmol NaH2PO4 × 2 H2O; both from Merck, Darmstadt, Germany; pH = 7.4), dehydrated in a graded ethanol series (Carl Roth, Karlsruhe, Germany), and cleared in methyl salicylate (Merck, Darmstadt, Germany). Preparations were incubated in methyl salicylate overnight prior to microscopy. Preparations were stored further in methyl salicylate.
Data were obtained for preparations of 44 middle legs from 29 animals. Details in innervation and sensory organ anatomy were analyzed for the anterior innervation (nerve branch T1) for 41 legs and for the posterior innervation (T2) for 44 legs.

2.5. Terminology of Nerves and Nerve Branches

The main leg nerve is termed the nervus cruris [8,44,45]. Nerve branches originating from the main nerve were consecutively numbered from proximal to distal in the respective leg segments [9,18,46]. Further nerve branches from the first-order branches were numbered accordingly.

2.6. Microscopy and Documentation

Digital photographs were acquired using a Leica DFC 7000 T digital camera (1920 × 1440 pixel; Leica Microsystems CMS GmbH, Wetzlar, Germany) and the Leica Application Suite version 4.9. Most preparations were documented in a series of different focal planes and consecutively stacked with the program CombineZP. The photographs were adjusted for contrast and brightness, and figure panels were assembled and labeled using CorelDraw version 11 (Corel, Ottawa, ON, Canada).
The innervation pattern of the subgenual organ complex and the campaniform sensilla was drawn with a Leitz Dialux microscope (Leitz, Wetzlar, Germany) using a drawing attachment (Leitz), and then digitally redrawn in CorelDraw version 11.

3. Results

3.1. External Morphology of the Midleg and Location of Campaniform Sensilla

The morphology of the midleg tibia shows the elongated and slender form characteristic for stick insects (Figure 1a). The external cuticle of the tibia is solid and has almost flat areas with strong cuticular ridges ventrally on both sides, and another ridge medially (Figure 1b,c). There are no apparent structural differences between the anterior and posterior sides.
CS have cuticular caps on the leg surface (Figure 2). On the proximal tibia of S. sipylus, they form two groups, the more proximal group 6A (Figure 2a,b) and 6B (Figure 2c,d) (the numbering of the CS groups follows reference [29]). Group 6B consists of two sensilla located more proximally (Figure 2a,c) and a group of 5–6 medial sensilla located more distally (Figure 2a,d).

3.2. Innervation Pattern of Sensory Elements in the Proximal Tibia

The innervation pattern in the proximal tibia was revealed by axonal staining (Figure 3 and Figure 4). The internal chordotonal organs of the subgenual organ complex are located in the region where the CS occur (Figure 3). The chordotonal organs and CS are innervated by two larger nerve branches of the nervus cruris (T1, T2) (Supplementary Figure S1), and each of these branches supplies the sensilla through three successive smaller branches (T11–T13; T21–T23; Figure 3). The most proximal branches (T11 and T21) innervate the two 6A sensilla on their respective sides of the tibia, together with adjacent hair sensilla (Figure 4a–c).
The following branches (T12 and T22) innervate the SGO, with the anterior SGO innervated by T12 and the posterior SGO by T22 (Figure 3 and Figure 4d). Notably, the proximal 6B sensilla are closely associated with the SGO (Figure 3 and Figure 4d). The nerve branches T12 and T22 also innervate the proximal 6B CS located ipsilaterally to the respective nerve (Figure 3 and Figure 4 (di–diii)). The proximal 6B CS are located slightly distally to the SGO sensilla (Figure 3 and Figure 4d).
The third nerve branches (T13 and T23) are less symmetrical between the anterior and posterior tibia in their course, and in the sensory elements they supply. T13 is entering T1 closely distally to T12, and supplies the sensilla of the anterior-ventral subgenual organ (avSGO) and the DO (Figure 3 and Figure 5a). The avSGO is not innervated by a separate nerve branch. T23 supplies the distal 6B CS (Figure 3 and Figure 4a,e). The distal 6B group contained, on average, 5 stained CS in tracing preparations (n = 23; minimum: 4 CS, maximum: 6 CS). In general, the cuticular cap of a CS is placed slightly distally of the sensillum’s soma (Figure 4b,c,(di,dii),e,(fi,fii)). T2 extends further distally in the tibia and innervates sensory hairs (Figure 3). The innervation in fore- and hind-legs is highly similar to the midleg with respect to nerve branches and the sensory organs (not shown).
In sum, the innervation pattern reflects the position of sensory structures rather than the types of sensilla: T1 generally supplies the anterior sensory elements in the proximal tibia, and T2 the posterior ones (Figure 3).

3.3. Variation in the Innervation of Sensory Structures

While the overall sensory organization was consistent among the analyzed legs, some variations in the innervation pattern among different legs were notable. This variation usually addressed the occurrence of fused nerve branches, which were commonly separated.
The variation in branching patterns was quantified for five nerve branchings of T1 and T2. In general, the SGO and DO/avSGO were innervated by a single nerve each (Figure 5a; SGO: T12 and DO: T13). The most common variation in the subgenual organ complex was the occurrence of two nerve branches from T1 that both innervated the SGO (Figure 5b; found in 24.4% of preparations; 10 out of 41 preparations). In these cases, the presence of one or two nerve branches to the SGO was always independent of the innervation of the DO, which was innervated by another branch (Figure 5b). The single anterior 6B CS was always innervated by the proximal, most dorsal nerve branch innervating the SGO (Figure 5b). While SGO and DO are usually innervated independently, some variation occurred in the formation of the branches innervating the entire complex: In 82.9% of preparations (34 out of 41), separate nerves for SGO and DO/avSGO leaving T1 were observed (compare Figure 3 and Figure 5a,b). However, in two other preparations (4.9%), the nerve branches innervating the SGO and DO originated together from a swollen part of T1 (Figure 5c). Further, in five preparations (12.2%), a common nerve branch from T1 was found from which the branches innervating the SGO and DO split off (Figure 5d).
For the branches of T1 supplying the 6A and proximal 6B CS, no obvious variation was noted: The nerve branch T11, innervating the proximal hair sensilla, and CS (6A) were always independent of the branches T12 and T13 (n = 41).
For the branches of T2, in few preparations, the branches T21 and T22 were not separated, but a single nerve branch split into the two branches supplying the posterior 6A CS as well as the posterior SGO and the posterior 6B CS (Figure 6a,b). The common pattern with separate T21 (posterior 6A) and T22 (proximal 6B, SGO) was found in 39 out of 44 preparations (88.6% of the middle legs). In animals with a common branch innervating 6A and the proximal 6B CS, this was always restricted to only one of the midlegs in cases where both legs were compared (n = 4). In one further preparation (out of 44 legs inspected; 2.3%), the nerve branch innervating the posterior SGO and the proximal 6B CS did not extend further distally to innervate the distal 6B CS (Figure 4b), and those were innervated from the anterior-dorsal branch of nervus cruris (Figure 6c). In sum, a common nerve pattern innervating the proximal tibia can be identified (Figure 3), and the variation in nerve branches on this pattern is limited concerning mainly fused nerve branches from the main nerve branches (T1, T2). Notably, the fused nerve branches are rather short (Figure 5d and Figure 6a), and the separate branches to sensory organs are longer after the point of divergence than the fused nerve branch from T1/T2.

4. Discussion

4.1. Innervation of the Subgenual Organ Complex and the Campaniform Sensilla in the Proximal Tibia

In stick insects, important mechanosensory organs occur in all segments of the thoracic leg pairs [9,16,28,29]. The present study analyses the neuronal innervation of the subgenual organ complex and 6A/6B CS in the proximal tibia. Axonal tracing shows that the subgenual organ complex and the 6B CS are placed at a similar level of the tibia. The 6A CS are placed more proximally and innervated together with proximal hair sensilla. The CS (6A and 6B) in the tibia have been investigated in Carausius morosus (Lonchodinae) for their functional morphology and physiology [25,29]. The distribution of CS in S. sipylus is highly similar with respect to position and number of sensilla. In the distal 6B CS, the caps have round shapes and are placed towards the proximal margin of the cuticular collar, a morphology also described in C. morosus, and discussed as a morphological basis for the observed directional responses to loads applied in different directions [27]. Notably, in the distal 6B group, the most proximal and distal caps are located medially in a cross-shape, while there is no central cap in C. morosus [29].
Overall, the documented innervation of sensilla in S. sipylus depends on the position rather than the sensillum types, as sensilla in close proximity are innervated together. This was found for CS and hair sensilla (T11, T21, and T23) and CS and scolopidial sensilla (T12, T22). The innervation pattern reflects both the proximo-distal and the anteroposterior position of sensilla. The distal 6B CS with size differences of the caps [27] are jointly supplied by T23. In S. sipylus, the influence of the position on the innervation pattern is prominent along the proximo-distal axis due to the separate groups of CS, in comparison with related insect groups: In cockroaches, the tibial CS are in closer proximity with each other [23,30] and are innervated by one nerve branch together with the SGO [30], while in the locust, less CS occur in the proximal tibia [12].
In S. sipylus, the posterior subgenual organ is innervated by T22 and contains sensilla, which are continuously organized with the adjacent sensilla of the subgenual organ innervated by T12. It is, therefore, not possible to count the sensilla separately that are innervated by the distinct nerve branches T12 and T22 [18]. At the posterior side of the SGO, there is no indication of the presence of the accessory organ. This small chordotonal organ is usually located close to the posterior subgenual organ and to one or a few posterior CS in several groups of orthopteroid insects, but it is missing in others such as locusts [47,48]. The scolopidial sensilla of the accessory organ can usually be distinguished by small sensory neurons and a proximal orientation of the dendrites [47].
Overall, the CS in the proximal tibia in S. sipylus is closely associated with placement and in innervation with chordotonal organs. From a comparative perspective, this is similar to Orthoptera [12,36,37,49], where, however, the largest group of tibial CS is located close to the subgenual organ [12,37,50]. This is notably different in stick insects, where the largest group 6B is placed ~400 µm more distally at the level of the DO, and innervated independently from the chordotonal organs.

4.2. Variation in the Neuronal Innervation

While some variation in the sensory innervation is notable, an innervation pattern that is most common can be identified (Figure 3). The observed variation in innervation concerns the proximo-distal order of nerve branches (Figure 5 and Figure 6). The common innervation pattern, however, was found to be robust (present in >75% of preparations for different branching points). The nerve branches T11 and T21 from the 6A CS and sensory hairs had the lowest variation ratios. A variation occurred more often for the sensilla which are in close proximity, especially from the SGO, either by forming a second SGO branch or by fusion with the DO branch. This implies that the innervation reported for S. sipylus and C. morosus with a single branch from T2 for the posterior hair sensilla and the posterior SGO [18] constitutes an exception from the more common pattern with the two nerves separated (T21, T22).
Obviously, the innervation pattern is not strictly determined, and sensory nerves are organized during embryonic development from the peripheral sensilla, which sends axons towards the central nervous system [51,52]. This growth direction depends on morphogens in the limb bud [53,54]. It is likely that the observed variation in the peripheral nerves—like the fusion of nerve branches from T1 or T2—has no functional correlation, as this depends on the axonal projection into specific neuropils in the central nervous system (discussed below). Notably, no variation exchanging the innervation between the anterior and posterior sides of the tibia was observed, which indicates a mechanism to separate axonal directions in this leg axis during embryogenesis. Hence, common or separate positions in the leg may also sort the axons in the periphery and set up the central sensory projections.

4.3. Functional Aspects of Innervations Considering the Central Projections

The spatial organization of sensilla and the innervation pattern in the periphery can influence the central projection of sensory afferents. Sensory neurons project into specific neuropils of the central nervous system [55,56], though the determination of projections can depend on the peripheral position (somatotopy) or the sensillum types (modality specificity). Somatotopic projections were shown for leg sensory hairs [57,58,59] and chordotonal organs [13,60,61]. For mechanoreceptors (CS and hair plates) in locusts, sensilla from similar locations share similar central projections that are not largely influenced by the specific sensillum types [62]. However, in the proximal leg, projection areas correlate with the different sensillum types [11].
The tibial CS respond differentially to directed force increases/decreases muscle forces [25,27] but are not involved in sensory feedback by the CS on more proximal leg segments that control the coxal protractor and retractor muscles [29]. Notably, the 6B CS and CS from other leg segments in C. morosus were shown to form overlapping projections in the central nervous system [29]. Likely, the 6A CS also share the similarities in central projection. Those are also similar to projections of other leg mechanoreceptors like hair sensilla in C. morosus [63]. That similarity has been interpreted as an input system to pre-motor interneurons over distinctly separated sensory units [29,33]. The SGO/DO projections have thus far not been documented for stick insects. The central projections of afferents from 6A CS as well as the vibrosensitive SGO [16] will complement the data on sensory inputs and their specificity. Another topic concerning the neuroanatomy is the developmental organization of the innervation pattern, especially its molecular mechanisms, which has thus far not been analyzed in stick insects.

5. Conclusions

This study shows the close association of nerve branches innervating the tibial CS and the subgenual organ complex, as well as some variation in the innervation. Overall, the shared innervation of sensilla depends on their position rather than on sensillum types, as is highlighted by the innervation of the anterior and posterior SGO together with the single proximal CS located ipsilaterally. The distal 6B sensilla, located more distally from the SGO, are innervated distinctly from the chordotonal organs. The innervation data comparing several preparations show the variation in nerve branches and correct the previously reported innervation of the posterior tibia. The sensory neuroanatomy and innervation pattern can guide further functional studies of mechanoreceptor organs, e.g., for the central projections of different afferents and the consecutive processing of sensory inputs. They also allow comparisons with other insect groups to infer adaptive changes in the mechanoreceptor system.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4450/11/1/40/s1, Figure S1: Innervation of the anterior and posterior tibia from nervus cruris.

Funding

Funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation)—STR 1329/2-1.

Acknowledgments

I wish to thank Reinhard Lakes-Harlan, Gießen, for support of this study. I thank Mirjam Buß and Anja Schnecko for their help with raising of insects. I thank Sabine Agel and Martin Hardt, Imaging Unit, Justus-Liebig-Universität Gießen, for excellent help with scanning electron microscopy analysis. I am indebted to Matthias Strauß for linguistic corrections of the manuscript. Two anonymous reviewers are acknowledged for their constructive comments, which improved the manuscript.

Conflicts of Interest

The author declares no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Iwasaki, M.; Itoh, T.; Tominaga, Y. Mechano- and phonoreceptors. In Atlas of Arthropod Sensory Receptors. Dynamic Morphology in Relation to Function; Eguchi, E., Tominaga, Y., Eds.; Springer: Tokyo, Japan, 1999; pp. 177–196. [Google Scholar]
  2. Devetak, D.; Pabst, M.A.; Delakorda, S.L. Leg chordotonal organs and campaniform sensilla in Chrysoperla Steinmann 1964 (Neuroptera): Structure and function. Denisia 2004, 13, 163–171. [Google Scholar]
  3. Čokl, A.; Virant-Doberlet, M.; Zorović, M. Sense organs involved in the vibratory communication of bugs. In Insect Sounds and Communication: Physiology, Behaviour, Ecology and Evolution; Drosopoulos, S., Claridge, M., Eds.; CRC Press: Boca Raton, FL, USA, 2006; pp. 71–80. [Google Scholar]
  4. Joel, A.-C.; Adamova, H.; Bräunig, P. Mechanoreceptive sensillum fields at the tarsal tip of insect legs. J. Morphol. 2018, 279, 1654–1664. [Google Scholar] [CrossRef] [PubMed]
  5. Nowińska, A.; Brożek, J. Antennal sensory structures in water bugs of Nepoidea (Insecta: Hemiptera: Nepomorpha), their morphology and function. Zoomorphology 2019, 138, 307–319. [Google Scholar] [CrossRef] [Green Version]
  6. Wang, X.-S.; Shaukat, A.; Han, Y.; Yang, B.; Tang, L.-D.; Wu, J.-H. Morphology and distribution of the antennal sensilla of two species, Megalurothrips usitatus and Thrips palmi (Thysanoptera: Thripidae). Insects 2019, 10, 251. [Google Scholar] [CrossRef] [Green Version]
  7. Zhu, Q.; Wu, N.; Brożek, J.; Dai, W. Antennal morphology and sexual dimorphism of antennal sensilla in Callitettix versicolor (Fabricius) (Hemiptera: Cercopidae). Insects 2019, 10, 56. [Google Scholar] [CrossRef] [Green Version]
  8. Godden, D.H. The motor innervation of the leg musculature and motor output during thanatosis in the stick insect, Carausius morosus Br. J. Comp. Physiol. 1972, 80, 201–225. [Google Scholar] [CrossRef]
  9. Bässler, U. Neural Basis of Elementary Behaviour on Stick Insects; Springer: Berlin, Germany, 1983. [Google Scholar]
  10. Schumacher, R. Morphologische Untersuchungen der tibialen Tympanalorgane von neun einheimischen Laubheuschrecken-Arten (Orthoptera, Tettigonioidea). Zoomorphology 1973, 75, 267–282. [Google Scholar] [CrossRef]
  11. Hustert, R.; Pflüger, J.H.; Bräunig, P. Distribution and specific central projections of mechanoreceptors in the thorax and proximal leg joints of locusts. III. The external mechanoreceptors: The campaniform sensilla. Cell Tissue Res. 1981, 216, 97–111. [Google Scholar] [CrossRef]
  12. Mücke, A. Innervation pattern and sensory supply of the midleg of Schistocerca gregaria (Insecta, Orthopteroidea). Zoomorphology 1991, 110, 175–187. [Google Scholar] [CrossRef]
  13. Nishino, H.; Field, L.H. Somatotopic mapping of chordotonal organ neurons in a primitive ensiferan, the New Zealand tree weta Hemideina femorata: II. Complex tibial organ. J. Comp. Neurol. 2003, 464, 327–342. [Google Scholar] [CrossRef]
  14. Keil, T. Functional morphology of insect mechanoreceptors. Microsc. Res. Tech. 1997, 39, 506–531. [Google Scholar] [CrossRef]
  15. Field, L.H.; Matheson, T. Chordotonal organs of insects. Adv. Insect Physiol. 1998, 27, 1–228. [Google Scholar]
  16. Strauß, J.; Lakes-Harlan, R. Vibrational sensitivity of the subgenual organ complex in female Sipyloidea sipylus stick insects in different experimental paradigms of stimulus direction, leg attachment, and ablation of a connective tibial sense organ. Comp. Biochem. Physiol. A 2017, 203, 100–108. [Google Scholar] [CrossRef] [PubMed]
  17. Strauß, J.; Stritih, N.; Lakes-Harlan, R. The subgenual organ complex in the cave cricket Troglophilus neglectus (Orthoptera: Rhaphidophoridae): Comparative innervation and sensory evolution. R. Soc. Open Sci. 2014, 1, 140240. [Google Scholar] [CrossRef] [Green Version]
  18. Strauß, J.; Lakes-Harlan, R. Sensory neuroanatomy of stick insects highlights the evolutionary diversity of the orthopteroid subgenual organ complex. J. Comp. Neurol. 2013, 521, 3791–3803. [Google Scholar] [CrossRef]
  19. Kalmring, K.; Rössler, W.; Unrast, C. Complex tibial organs in the forelegs, midlegs, and hindlegs of the bushcricket Gampsocleis gratiosa (Tettigoniidae): Comparison of the physiology of the organs. J. Exp. Zool. 1994, 270, 155–161. [Google Scholar] [CrossRef]
  20. McIver, S.B. Structure of cuticular mechanoreceptors of arthropods. Ann. Rev. Entomol. 1975, 20, 381–397. [Google Scholar] [CrossRef]
  21. Tuthill, J.C.; Wilson, R.A. Mechanosensation and adaptive motor control in insects. Curr. Biol. 2016, 26, R1022–R1038. [Google Scholar] [CrossRef] [Green Version]
  22. Delcomyn, F. Activity and directional sensitivity of leg campaniform sensilla in a stick insect. J. Comp. Physiol. A 1991, 168, 113–119. [Google Scholar] [CrossRef]
  23. Noah, J.A.; Quimby, L.; Frazier, S.F.; Zill, S.N. Force detection in cockroach walking reconsidered: Discharges of proximal tibial campaniform sensilla when body load is altered. J. Comp. Physiol. A 2001, 187, 769–784. [Google Scholar] [CrossRef]
  24. Ritzmann, R.E.; Zill, S.N. Walking and jumping. In Encyclopedia of Insects, 2nd ed.; Resh, V.H., Cardé, R.T., Eds.; Academic Press: Amsterdam, The Netherlands, 2009; pp. 1044–1048. [Google Scholar]
  25. Zill, S.N.; Büschges, A.; Schmitz, J. Encoding of force increases and decreases by tibial campaniform sensilla in the stick insect, Carausius morosus. J. Comp. Physiol. A 2011, 197, 851–867. [Google Scholar] [CrossRef] [PubMed]
  26. Zill, S.N.; Schmitz, J.; Chaudhry, S.; Büschges, A. Force encoding in stick insect legs delineates a reference frame for motor control. J. Neurophysiol. 2012, 108, 1453–1472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Zill, S.N.; Chaudhry, S.; Büschges, A.; Schmitz, J. Directional specificity and encoding of muscle forces and loads by stick insect campaniform sensilla, including receptors with round cuticular caps. Arthropod Struct. Dev. 2013, 42, 455–467. [Google Scholar] [CrossRef]
  28. Zill, S.N.; Chaudhry, S.; Büschges, A.; Schmitz, J. Force feedback reinforces muscle synergies in insect legs. Arthropod Struct. Dev. 2015, 44, 541–553. [Google Scholar] [CrossRef] [PubMed]
  29. Haberkorn, A.; Gruhn, M.; Zill, S.N.; Büschges, A. Identification of the origin of force feedback signals influencing motor neurons of the thoraco-coxal joint in an insect. J. Comp. Physiol. A 2019, 205, 253–270. [Google Scholar] [CrossRef]
  30. Schnorbus, H. Die subgenualen Sinnesorgane von Periplaneta americana: Histologie und Vibrationsschwellen. Zeitschrift für vergleichende Physiologie 1971, 71, 14–48. [Google Scholar]
  31. Kühne, R. Neurophysiology of the vibration sense in locusts and bushcrickets: Response characteristics of single receptor units. J. Insect Physiol. 1982, 28, 155–163. [Google Scholar] [CrossRef]
  32. Stritih-Peljhan, N.; Rühr, P.T.; Buh, B.; Strauß, J. Low-frequency vibration transmission and mechanosensory detection in the legs of cave crickets. Comp. Biochem. Physiol. A 2019, 233, 89–96. [Google Scholar] [CrossRef]
  33. Zill, S.N.; Schmitz, J.; Büschges, A. Load sensing and control of posture and locomotion. Arthropod Struct. Dev. 2004, 22, 273–286. [Google Scholar] [CrossRef]
  34. Büschges, A.; Gruhn, M. Mechanosensory feedback in walking: From joint control to locomotor patterns. Adv. Insect Physiol. 2008, 34, 193–230. [Google Scholar]
  35. Bidaye, S.S.; Bockemühle, T.; Büschges, A. Six-legged walking in insects: How CPGs, peripheral feedback, and descending signals generate coordinated and adaptive motor rhythms. J. Neurophysiol. 2018, 119, 459–475. [Google Scholar] [CrossRef] [PubMed]
  36. Lakes, R.; Mücke, A. Regeneration of the foreleg tibia and tarsi of Ephippiger ephippiger (Orthoptera: Tettigoniidae). J. Exp. Zool. 1989, 250, 176–187. [Google Scholar] [CrossRef]
  37. Strauß, J.; Lomas, K.; Field, L.H. The complex tibial organ of the New Zealand ground weta: Sensory adaptations for vibrational signal detection. Sci. Rep. 2017, 7, 2031. [Google Scholar] [CrossRef] [PubMed]
  38. Carlberg, U. Postembryonic ontogeny in Sipyloidea sipylus. Zoologische Jahrbücher. Abteilung für Anatomie und Ontogenie der Tiere 1987, 115, 273–279. [Google Scholar]
  39. Stein, W.; Sauer, A.E. Physiology of vibration-sensitive afferents in the femoral chordotonal organ of the stick insect. J. Comp. Physiol. A 1999, 184, 253–263. [Google Scholar] [CrossRef]
  40. Akay, T.; Bässler, U.; Gerharz, P.; Büschges, A. The role of sensory signals from the insect coxa-trochanteral joint in controlling motor activity of the femur-tibia joint. J. Neurophysiol. 2001, 85, 594–604. [Google Scholar] [CrossRef] [Green Version]
  41. Von Twickel, A.; Guschlbauer, C.; Hooper, S.L.; Büschges, A. Swing velocity profiles of small limbs can arise from transient passive torques of the antagonist muscle alone. Curr. Biol. 2019, 29, 1–12. [Google Scholar] [CrossRef] [Green Version]
  42. Mulisch, M.; Welsch, U. (Eds.) Romeis—Mikroskopische Technik, 19th ed.; Springer: Berlin, Germany, 2015. [Google Scholar]
  43. Pitman, R.M.; Tweedle, C.D.; Cohen, M.J. The form of nerve cells: Determination by cobalt impregnation. In Intracellular Staining in Neurobiology; Nicholson, C., Kater, S.B., Eds.; Springer: Berlin, Germany, 1973; pp. 83–97. [Google Scholar]
  44. Bässler, U. Sense organs in the femur of the stick insect and their relevance to the control of position of the femur-tibia-joint. J. Comp. Physiol. 1977, 121, 99–113. [Google Scholar] [CrossRef]
  45. Goldammer, J.; Büschges, A.; Schmidt, J. Motoneurons, DUM Cells, and sensory neurons in an insect thoracic ganglion: A tracing study in the stick insect Carausius morosus. J. Comp. Neurol. 2012, 520, 230–257. [Google Scholar] [CrossRef]
  46. Büschges, A. The physiology of sensory cells in the ventral scoloparium of the stick insect femoral chordotonal organ. J. Exp. Biol. 1994, 189, 285–292. [Google Scholar]
  47. Strauß, J. The scolopidial accessory organs and Nebenorgans in orthopteroid insects: Comparative neuroanatomy, mechanosensory function and evolutionary origin. Arthropod Struct. Dev. 2017, 46, 765–776. [Google Scholar] [CrossRef] [PubMed]
  48. Strauß, J. Are the scolopidial accessory organs and Nebenorgans in orthopteroid insects homologous? A comparative neuroanatomical analysis. Mitteilungen der Deutschen Gesellschaft für Allgemeine und Angewandte Entomologie 2018, 21, 165–169. [Google Scholar]
  49. Strauß, J.; Stritih, N. Neuronal regression of internal leg vibroreceptor organs in a cave-dwelling insect (Orthoptera: Rhaphidophoridae: Dolichopoda araneiformis). Brain Behav. Evol. 2017, 89, 104–116. [Google Scholar] [CrossRef] [PubMed]
  50. Strauß, J. Scolopidial accessory organ in the Jerusalem cricket (Orthoptera: Stenopelmatidae). Arthropod Struct. Dev. 2017, 46, 171–177. [Google Scholar] [CrossRef]
  51. Keshishian, H.; Bentley, D. Embryogenesis of peripheral nerve pathways in grasshopper leg. II. The major nerve routes. Dev. Biol. 1983, 96, 103–115. [Google Scholar] [CrossRef]
  52. Hartenstein, V. Development of insect sensilla. In Comprehensive Molecular Insect Science; Gilbert, L.I., Ed.; Reproduction and development; Elsevier: Amsterdam, The Netherlands, 2005; Volume 1, pp. 379–419. [Google Scholar]
  53. Bonner, J.; O’Connor, T.P. Semaphorin function in the developing invertebrate peripheral nervous system. Biochem. Cell Biol. 2000, 78, 603–611. [Google Scholar] [CrossRef]
  54. Isbister, C.M.; Mackenzie, P.J.; To, K.C.; O’Connor, T.P. Gradient steepness influences the pathfinding decisions of neuronal growth cones in vivo. J. Neurosci. 2003, 23, 193–202. [Google Scholar] [CrossRef] [Green Version]
  55. Pflüger, H.-J.; Bräunig, P.; Hustert, R. The organization of mechanosensory neuropiles in locust thoracic ganglia. Philos. Trans. R. Soc. Lond. B 1988, 321, 1–26. [Google Scholar] [CrossRef]
  56. Blagburn, J.M.; Bacon, J.P. Control of central synaptic specificity in insect sensory neurons. Ann. Rev. Neurosci. 2004, 27, 29–51. [Google Scholar] [CrossRef]
  57. Kent, K.S.; Levine, R.B. Neural control of leg movements in a metamorphic insect: Sensory and motor elemenst of the larval thoracic legs in Manduca sexta. J. Comp. Neurol. 1988, 271, 559–576. [Google Scholar] [CrossRef]
  58. Thompson, K.S.; Blagburn, J.M.; Gibbon, C.R.; Bacon, J.P. Correlation of filiform hair position with sensory afferent morphology and synaptic connections in the second instar cockroach. J. Comp. Neurol. 1992, 320, 213–227. [Google Scholar] [CrossRef] [PubMed]
  59. Mücke, A.; Lakes-Harlan, R. Central projections of sensory cells of the midleg of the locust, Schistocerca gregaria. Cell Tissue Res. 1995, 280, 391–400. [Google Scholar] [CrossRef]
  60. Nishino, H. Topographic mapping of the axons of the femoral chordotonal organ neurons in the cricket Gryllus bimaculatus. Cell Tissue Res. 2000, 299, 145–157. [Google Scholar] [CrossRef] [PubMed]
  61. Nishino, H. Somatotopic mapping of chordotonal organ neurons in a primitive ensiferan, the New Zealand tree weta Hemideina femorata: I. Femoral chordotonal organ. J. Comp. Neurol. 2003, 464, 312–326. [Google Scholar] [CrossRef] [PubMed]
  62. Bräunig, P.; Pflüger, H.-J.; Hustert, R. The specificity of central nervous projections of locust mechanoreceptors. J. Comp. Neurol. 1983, 218, 197–207. [Google Scholar] [CrossRef]
  63. Schmitz, J.; Dean, J.; Kittmann, R. Central projections of leg sensory organs in Carausius morosus (Insecta, Phasmida). Zoomorphology 1991, 111, 19–33. [Google Scholar] [CrossRef]
Insects 11 00040 g001 550

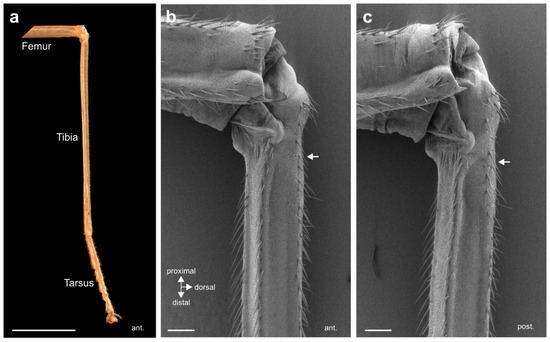

Figure 1. The external cuticle of the S. sipylus midleg. (a) Photograph of the midleg tibia and tarsus, anterior view. (b) Anterior SEM of the cuticle at the femur-tibia joint and proximal tibia. (c) Posterior SEM of the cuticle at the femur-tibia joint and proximal tibia. The position of the subgenual organ in the tibia is indicated by white arrows. Scales: (a) = 5 mm; (b,c) = 250 µm.
Figure 1. The external cuticle of the S. sipylus midleg. (a) Photograph of the midleg tibia and tarsus, anterior view. (b) Anterior SEM of the cuticle at the femur-tibia joint and proximal tibia. (c) Posterior SEM of the cuticle at the femur-tibia joint and proximal tibia. The position of the subgenual organ in the tibia is indicated by white arrows. Scales: (a) = 5 mm; (b,c) = 250 µm.
Insects 11 00040 g001
Insects 11 00040 g002 550

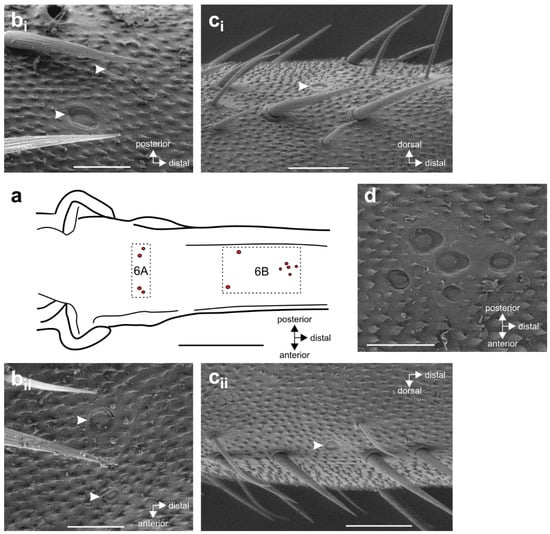

Figure 2. Localization of the tibial campaniform sensilla in S. sipylus. (a) Schematic of the proximal midleg tibia indicating the position of the tibial CS, groups 6A and 6B, indicated by hatched frames. Cuticular caps are shown in red. (b) Group 6A CS in the proximal tibia consists of two posterior (bi) and two anterior (bii) sensilla; cuticular caps of CS are indicated by white arrowheads; dorsal view. (c) The single 6B CS on the posterior (ci) and anterior (cii) tibia; lateral view. (d) The distal group 6B CS; dorsal view. Scales: (a) = 500 µm (b,d) = 50 µm; (c) = 100 µm.
Figure 2. Localization of the tibial campaniform sensilla in S. sipylus. (a) Schematic of the proximal midleg tibia indicating the position of the tibial CS, groups 6A and 6B, indicated by hatched frames. Cuticular caps are shown in red. (b) Group 6A CS in the proximal tibia consists of two posterior (bi) and two anterior (bii) sensilla; cuticular caps of CS are indicated by white arrowheads; dorsal view. (c) The single 6B CS on the posterior (ci) and anterior (cii) tibia; lateral view. (d) The distal group 6B CS; dorsal view. Scales: (a) = 500 µm (b,d) = 50 µm; (c) = 100 µm.
Insects 11 00040 g002
Insects 11 00040 g003 550

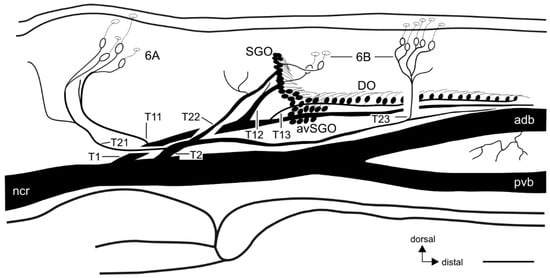

Figure 3. Schematic of the neuronal innervation of the subgenual organ complex and the campaniform sensilla, viewed from the posterior side of the leg. Open nerve branches innervate sensory hairs that are not included in the schematic. Abbreviations: adb, anterior-dorsal branch; avSGO, anterior-ventral subgenual organ; DO, distal organ; ncr, nervus cruris; pvb, posterior-ventral branch; SGO, subgenual organ. Scale = 100 µm.
Figure 3. Schematic of the neuronal innervation of the subgenual organ complex and the campaniform sensilla, viewed from the posterior side of the leg. Open nerve branches innervate sensory hairs that are not included in the schematic. Abbreviations: adb, anterior-dorsal branch; avSGO, anterior-ventral subgenual organ; DO, distal organ; ncr, nervus cruris; pvb, posterior-ventral branch; SGO, subgenual organ. Scale = 100 µm.
Insects 11 00040 g003
Insects 11 00040 g004 550

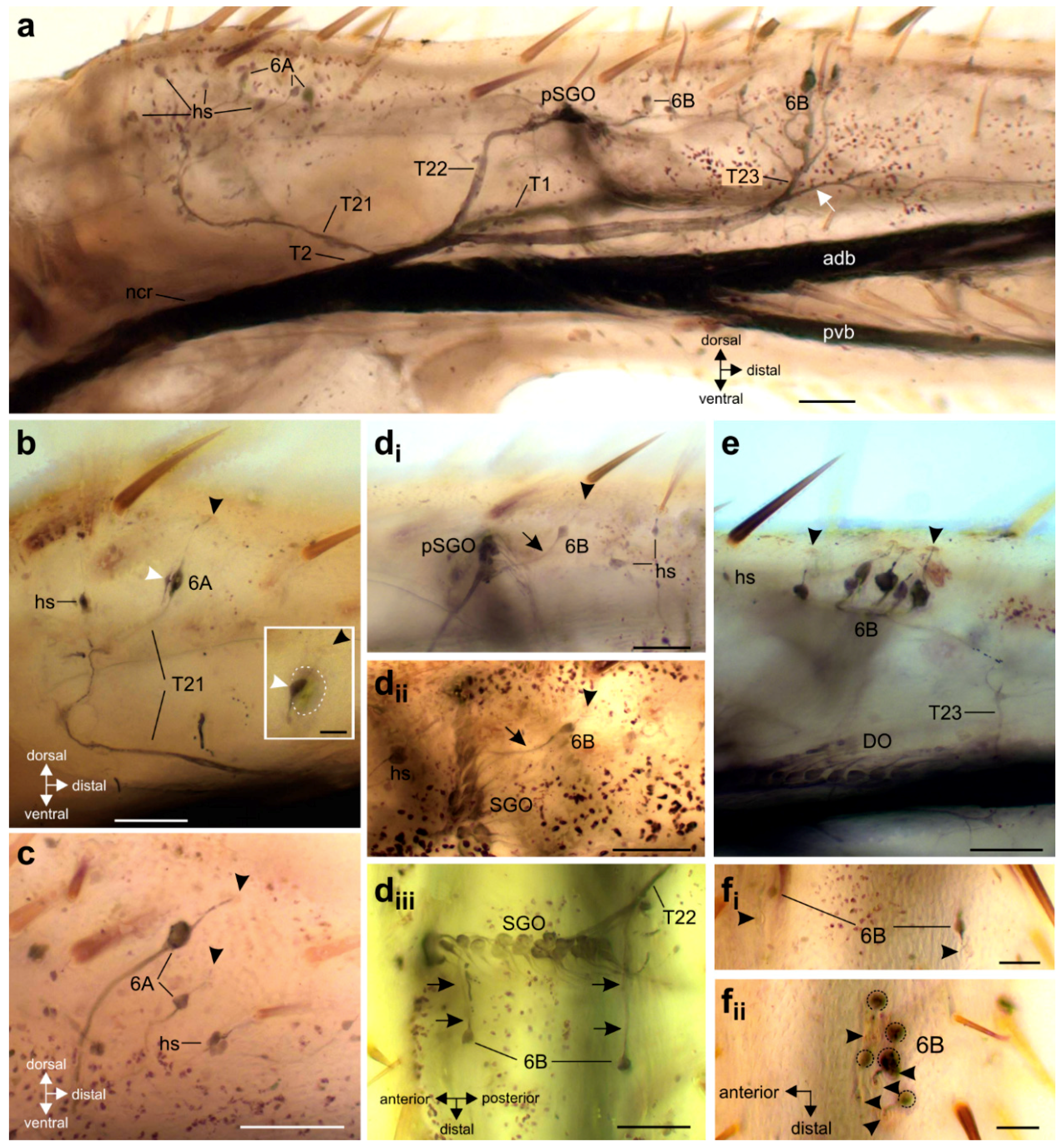

Figure 4. Innervation of the tibial campaniform sensilla. Black arrowheads indicate the cuticular caps of CS. The perspective is a lateral view unless noted otherwise. (a) The posterior tibia with sensory elements innervated by nerve branch T2 of nervus cruris (ncr) with successive dorsal branches T21–T23. Note that T2 continues distally of the 6B group of CS (white arrow). (b) The posterior 6A CS are innervated by nerve branch T21 (smaller lateral CS indicated by white arrowhead), together with adjacent hair sensilla. Inset shows the soma of the smaller lateral CS, indicated by white arrowhead; the dotted line indicates the outline of the soma of the larger median CS. (c) Staining of 6A CS on the anterior tibia. (d) The proximal single 6B CS on the posterior (di) and anterior (dii) tibia is innervated by a nerve branch (arrow) associated with the respective SGO nerve. (diii) The dorsal view shows the two separate nerve branches innervating the proximal 6B CS (double arrows) from the two sides of the SGO. (e) The larger, distal group of 6B CS at the level of the DO. (f) Dorsal view of the 6B CS, (fi) proximal sensilla, and (fii) distal sensilla, with stained somata encircled. The somata are located proximally to the cuticular caps. Abbreviations: adb, anterior dorsal branch; DO, distal organ; hs, hair sensillum; ncr, nervus cruris; pSGO, posterior subgenual organ; pvb, posterior ventral branch; SGO, subgenual organ. Scales: (a–e) = 100 µm; (f) = 50 µm; inset in (b) = 25 µm.
Figure 4. Innervation of the tibial campaniform sensilla. Black arrowheads indicate the cuticular caps of CS. The perspective is a lateral view unless noted otherwise. (a) The posterior tibia with sensory elements innervated by nerve branch T2 of nervus cruris (ncr) with successive dorsal branches T21–T23. Note that T2 continues distally of the 6B group of CS (white arrow). (b) The posterior 6A CS are innervated by nerve branch T21 (smaller lateral CS indicated by white arrowhead), together with adjacent hair sensilla. Inset shows the soma of the smaller lateral CS, indicated by white arrowhead; the dotted line indicates the outline of the soma of the larger median CS. (c) Staining of 6A CS on the anterior tibia. (d) The proximal single 6B CS on the posterior (di) and anterior (dii) tibia is innervated by a nerve branch (arrow) associated with the respective SGO nerve. (diii) The dorsal view shows the two separate nerve branches innervating the proximal 6B CS (double arrows) from the two sides of the SGO. (e) The larger, distal group of 6B CS at the level of the DO. (f) Dorsal view of the 6B CS, (fi) proximal sensilla, and (fii) distal sensilla, with stained somata encircled. The somata are located proximally to the cuticular caps. Abbreviations: adb, anterior dorsal branch; DO, distal organ; hs, hair sensillum; ncr, nervus cruris; pSGO, posterior subgenual organ; pvb, posterior ventral branch; SGO, subgenual organ. Scales: (a–e) = 100 µm; (f) = 50 µm; inset in (b) = 25 µm.
Insects 11 00040 g004
Insects 11 00040 g005 550

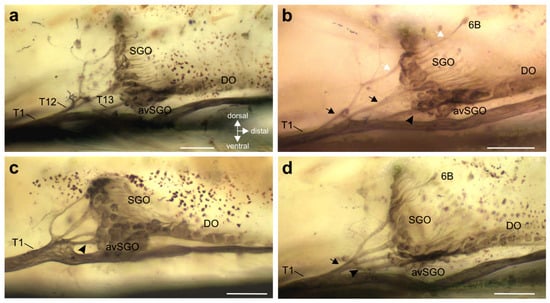

Figure 5. Variation in the innervation pattern of the subgenual organ complex. (a) Commonly, the sensilla of the SGO and DO/avSGO are innervated by distinct nerve branches (T12 and T13). (b) The SGO can be innervated by two nerve branches (arrows), and an additional branch innervates the DO (arrowhead). White arrows indicate the most proximal, dorsal nerve branch also innervating the proximal 6B CS. (c) A joint origin from the tibial nerve branch 1 (T1) for the branches innervating SGO and DO/avSGO (arrowhead) was rarely seen. (d) From T1, a common nerve branch for the sensory organs can occur (arrow) from which the branches for SGO, avSGO, and DO (arrowhead) split off. Note that in this preparation, three branches from the common nerve supply the SGO. Abbreviations: avSGO, anterior-ventral subgenual organ; DO, distal organ; SGO, subgenual organ. Scales = 100 µm.
