Tribochemistry and Lubrication of Alkaline Glass Lubricants in Hot Steel Manufacturing

School of Mechanical, Materials, Mechatronics and Biomedical Engineering, University of Wollongong, Wollongong, NSW 2500, Australia
Author to whom correspondence should be addressed.
Lubricants 2020, 8(7), 70;
Received: 14 May 2020 / Revised: 12 June 2020 / Accepted: 29 June 2020 / Published: 30 June 2020
(This article belongs to the Special Issue Friction Reduction at Interfaces)


Nowadays, the increasing demand to reduce energy consumption and improve process reliability requires an alternative lubricant with an effective tribological performance and environmentally friendly properties to replace traditional lubricants in hot steel manufacturing. The current work reviews recent comprehensive experimental and theoretical investigations in a new generation of alkaline-based glass lubricants, with phosphate, borate, and silicate being intensively researched. This class of lubricants showed an outstanding friction reduction, anti-wear, and anti-oxidation performance on coupled steel pairs over a wide range of temperatures (from 650 °C to 1000 °C). Each type had different tribochemical reactions within itself and with oxidized steel surfaces, which were largely determined by their chemical nature. In addition, the critical role of each structural component was also determined and corroborated by computational simulation. The theoretical studies at quantum and atomic levels reinforced our experimental findings by providing insights into the reaction mechanism using the static and dynamic simulations of the adsorption of lubricant molecules onto iron oxide surfaces. Additionally, the new reactive molecular dynamics (MD) model developed for alkali phosphate will need to be extended further to consider the realistic operating conditions of these lubricants at the atomic scale.

Graphical Abstract

1. Introduction

Hot metal forming has existed for centuries, however, efforts have always been made to constantly increase the overall productivity. There is a growing interest in the tribology of steel hot rolling, which refers to the multidisciplinary science of contacting bodies during the hot rolling of steel. Steel is often preheated at 800–1200 °C before undergoing a series of rolls at high speed (1–10 m/s) [1] and under high loading conditions (~0.5–1 GPa). The interface between the cold work tools and heated workpiece governs heat transfer, friction, and wear mechanisms [2]. During the pre-heating stage, oxidation invariably occurs on the steel workpiece surface, forming a thick oxide layer with a thickness up to several millimetres [3]. The oxide scale is deemed to be the cause of high friction, severe roll wear, and increased chances of seizure. In addition, if the oxide scale remains on the workpiece surface after rolling, it requires costly removal processing to meet the required final quality specifications. To minimize energy consumption, and to reduce oxidation and prolong the roll service life, there is a pressing demand to achieve the optimum lubrication during rolling. The use of lubricant has proven to be an effective approach to address the above concerns.
An oil-in-water emulsion was used widely in the rolling industry in the early stages, followed by other alternatives, like graphite, MoS2, and oxide nanoparticles. However, most of them undergo thermal decomposition upon contact with the heated steel surface and subsequently lose their lubrication function. Factoring in potential environmental concerns, the use of those traditional lubricants is consequently discouraged. Glass-based lubricants are essentially alkaline-based inorganic polymers with exceptional thermal stability. They are compositionally constructed by alkaline elements and glass-forming compounds (phosphates, borates, silicates) which are accountable for their polymeric nature. The lubricants generally melt at the working temperature, wet the oxidized steel surface, and provide viscous fluid lubrication. Thermally driven and tribological reactions determine frictional and wear behaviors. This set of reactions is complex by nature and varies from one lubricant to another. The following part details the experimental findings of the tribological properties of three types of glass lubricants (polyphosphate, borate, silicate) whose working mechanisms were elaborated by in-depth chemical characterization, in combination with computational simulations at different scales. It is noted that the review mostly revolves around sodium-based glasses, however, potassium- and lithium-based counterparts are occasionally mentioned.

2. Results and Discussion

2.1. Experimental Studies

High temperature lubricants, as summarized in Figure 1, can be divided into five different types depending on their working temperature range, molecular structure, thermal stability, and reactivity with the atmosphere [4]. Oil-based lubricants with an oil-in-water mixture are classified as conventional lubricants and are commonly used in the hot rolling of steel because of the reduction in rolling force due to a lower friction and a longer life of the work roll due to the reduced roll wear [5,6,7]. Nevertheless, their thermal decomposition at high temperatures, cost, and from the environmental perspective, the usage of fossil fuel, are the drawbacks of this type of lubricant [8]. Apart from soluble additives of phosphorus, chlorine, and sulfur, a solid lubricant of fine powder can be applied to tribological surfaces. The well-known lamella solid lubricants, such as graphite, h-BN, transition metal dichalcogenides (MX2 with M=W, Mo, Nb, Ga, and X=S, Se, Te), mica, and talc are also often formulated in the lubricant to enhance its lubricating performance due to the weak van der Waals interactions between 2D layers [9]. However, transition metal dichalcogenides degrade rather quickly in moist and oxidizing environments. Moreover, most these 2D materials lose their intrinsic lubricity above 500 °C due to thermal degradation [10,11]. Solid lubricants of soft metals (Au, Ag, Pb, In, Sn), single (B2O3, Re2O7, MoO3, TiO2) and mixed oxides (CuO–Re2O7, CuO–MoO3, PbO–B2O3, CoO–MoO3, Cs2O–MoO3, NiO–MoO3, Cs2O–SiO2), fluorides (CaF2, BaF2, SrF2, LiF, MgF2), and sulfates of alkaline earth metals (CaSO4, BaSO4, SrSO4) have also been considered as alternatives [12,13]. The self-lubricating behavior of ternary ceramic and its composite coating materials containing different solid lubricants, such as Ni–CoCrAlY–Cr2O3–Ag–Mo, VN–Ag, NbN/Ag, and TaN/Ag, performed well from room temperature to 1000 °C [14,15,16]. In comparison with liquid and grease, solid lubricants can withstand a high pressure while being relatively insensitive to temperature [13]. However, this type of lubricant can still have major shortcomings, which include: (i) poor thermal conductivity, (ii) a relatively high and unstable friction coefficient, (iii) having a short wear life and difficult replenishment, (iv) degradation during service, and (v) irreversible structural–chemical changes [13]. At extreme temperatures, the melt products that can function effectively are glasses, such as alkali phosphates, borates, and silicates. These glasses gain lubricity when they transition into viscous melt phases above their melting point to produce a tribofilm that reduces friction, wear, and oxidation. The last type of lubricant is reactive gases, such as gaseous halogen-substituted methane derivatives, which are used under extreme conditions with the excessive chemical reactions that are manifested in corrosive wear [17]. This paper is focused on a series of glass lubricants with regard to their tribological performance and the underlying mechanochemical mechanism for tribofilm formation between sliding steel surfaces at high temperatures.

2.1.1. Sodium Polyphosphate

Potassium/sodium (K/Na) polyphosphate begins melting at 600 °C and demonstrates exceptional friction- and wear-reducing ability on steel tribopairs from 600 °C to 900 °C. Friction was lowered by more than 50%, while the wear rate reduction varied with temperature, but often fell in the range of 30–90% [18,19]. On the rubbing surface, the tribofilm structure was characterized by two layers of K/Na polyphosphate sandwiching a thick iron oxide layer [19]. The complex tribofilm structure was a result of thermal diffusion and tribochemical reactions between composite polyphosphate and iron oxides. Chemical analysis (XPS) revealed a significant reduction in polyphosphate chain length induced on the lubricated surface while a wear reduction mechanism via chemical digestion was also observed [18,20]. Using energetic synchrotron radiation, the fine chemical structure of the K/Na polyphosphate tribofilm was studied in detail, showing a long chain–short chain hierarchy as a function of tribofilm depth. As a result of this tribochemical reaction, iron oxide was disintegrated and digested into the polyphosphate network to form ferric orthophosphate (FePO4), as well as iron and sodium mixed phosphates, such as (NaFePO4) [20] and Na3Fe2(PO4)3 [19]. The digestion of iron oxide is accountable for the excellent wear resistance of polyphosphate tribofilm. As presented in Figure 2, this tribofilm contains a 5 nm short-chain polyphosphate layer on the top, above a 5 nm long-chain polyphosphate layer below, which adheres to the oxide surface through a short-chain layer [21]. However, this polyphosphate film was mainly covering the valley area of the worn surface and was chemically inhomogeneous at the submicron level [19,21]. Interestingly, Na and P existed not only in the top sodium layer, but they were also found in the grain boundary of iron oxide layer [19]. The phosphate glass was also beneficial for the pickling of silicon steel surfaces, with a quicker scale removal and a thinner fayalite layer than an unlubricated one [19].
It was proposed that the tribochemical reaction occurs on the basis of hard–soft acid–bases (HSAB) principles, in which Fe3+ from oxide surfaces actively reacted and diffused into a polyphosphate bulk under shearing stress, depolymerizing the network while simultaneously strengthening the whole tribofilm. Later, a series of sodium polyphosphates (ortho-, meta-, and pyro-) with different molecular structures was examined regarding their tribological properties. It was found that the extent of polymerization in the starting materials exerts distinguishable effects on their friction and wear behaviors on a steel tribopair. An abundance of Na2O was produced as a consequence of the tribochemical reaction between sodium polyphosphate and different iron oxides [19]. Having an abundance of Na without the ability to polymerize, sodium orthophosphate demonstrated the best tribological performance among the three, while the depolymerization of meta- and pyrophosphate was triggered by both thermal and tribological reactions [20]. In addition, higher loading was proven to accelerate the diffusion of Fe into polyphosphate networks [20], while an increase in temperature resulted in a reduction of long-chain polyphosphates on the rubbing surface [18].

2.1.2. Sodium Borate

Sodium borate, Na2B4O7·10H2O, begins melting around 525 °C and can provide good lubricity on siding steel surfaces over 600–800 °C [22,23]. Results from ball-on-disc tribotesting showed different tribofilm structures on different mating surfaces. On the disc, the tribofilm was composed of a bottom layer rich in Na and an upper layer of condensed boron oxide with a total thickness of 60 nm (Figure 3). There were signs of the polymerization of boron oxide networks, which could be the result of tribochemical reactions within the lubricant film. The tribofilm was notably depleted in oxygen, which consequently improved its oxidation resistance on the steel surface. On the ball, the tribofilm experienced a drastic molecular transformation, evidenced by a dominant presence of BO3 species. Subsequently, complementary experiments revealed that the adsorption of Na occurred independently of tribological exposure. In other words, it is thermally driven, which establishes a necessary adhesion between the lubricant and the iron oxide surface and allows borate to lubricate effectively. The profound role of Na in sodium borate was later discovered, as it provides anchoring effects due to electrostatic interactions with the iron oxide surfaces. Without Na, the boron oxide system (B2O3) failed to adhere on the surface, thus leading to a lubrication failure, which could be attributed to a weak interaction between boron oxide and iron oxides. A sodium element was also believed to alleviate direct asperity contact due to its strong adsorption and high mobility. Borate tribofilm provides an amorphous low-shearing layer, which lowers the frictional resistance, while its wear-reducing mechanism relies on the tribologically activated condensation of the boron oxide network with good endurance. In comparison with phosphate glass at 900 °C, sodium borax showed a better anti-wear performance than the other, but it has a lower friction reduction [20]. The lower friction of borax glass could be the consequence of a high temperature of 900 °C, which is out of its optimal working condition and it was in a molten state.

2.1.3. Sodium Silicate

Sodium metasilicate (Na2SiO3·5H2O), having a relatively high melting point (920 °C), has proven to be an effective lubricant around 1000 °C [26,27]. The silicate melt stimulates the outward migration of Mn from a steel bulk to the sliding surfaces, which, in combination with Na adsorption, forms a unique tribofilm layer [28]. The composited tribofilm reduces friction and wear effectively, while simultaneously providing anti-oxidation resistance. The formation of a Na-rich layer is relatively similar to what was observed in the case of sodium borate. An addition of expandable graphite lowered the minimum operating temperature of metasilicate to 850 °C [29]. This is a result of the in situ formation of sodium carbonate melts and spinels (MnFe2O4, Na5FeO4), with crystallographic planes favouring low friction and wear.

2.2. Theoretical Simulations

Despite the significant progress that has been made in surface characterization, an in situ observation of tribochemical processes and the measurement of tribological properties under harsh operating conditions remains a critical challenge for the experiments, or may not even be feasible. To tackle this challenge, the atomic-scale simulations using quantum mechanics (QM), ab initio molecular dynamics (AIMD), and reactive MD have been used to observe these chemical phenomena. During the working conditions, the inorganic lubricant melts and adsorbs onto the iron oxide surface as a result of thermal effects; this adsorption includes the chemical reaction and dissociation, as well as polymerization. It is well known that adhesion is one of the most important properties of lubricants since their anti-wear performances consistently depend on the adhesion capability [30]. Although experiments have successfully characterized the hierarchical structure and tribological performance of the tribofilms at room temperature, the chemical heterogeneity of the tribofilm formed at elevated temperatures and its spatial distribution at the atomic level were not understood with a high degree of certainty. Furthermore, alkali cations played an important role in the tribological performance of glass lubricants, but the detailed reaction and the influence of temperature and pressure need more work, especially on the theoretical calculation, to provide a full understanding of the mechanism. It is important to investigate the chemical mechanism of how a glassy lubricant works when it is applied in practice at high temperature and pressure in metal forming. We have carried out some theoretical investigations of the adsorption and thin film lubrication of Na4P2O7 and Na5P3O10 [31,32,33,34], sodium tetraborate (Na2B4O7), and boron oxide (B2O3) molecules [25,35,36], as well as sodium silicate, Na6Si2O7, on iron and iron oxide surfaces [37,38]. These studies have overcome the drawbacks of previous experiments and provided a deep insight into the chemical reactions in the tribofilm.

2.2.1. Phosphate Glass

Unlike organic phosphite/phosphate additives used in automotive applications, where the direct Fe–P bonding was found on iron surfaces because of the chemical dissociation of phosphite/phosphate under friction, leading to the formation of Fe2P [39,40], the AIMD simulations in Figure 4 revealed that the cross-linking with the Fe–O–P bond between phosphate and the iron substrate was the main chemical structure in phosphate glass [31,32]. The Fe–P bond only occurred in a combination of an elevated temperature of 1500 K, a high exposure of Fe, and an appearance of under-coordinated P [33]. The pure ionic Na–O bond, the moderate covalent P–O interaction, and the mixed ionic/covalent Fe–O bond exist inside the tribological system [32]. Among these bonds, the P–Ob (bridging O) bond has the highest chance to dissociate because it is the weakest, which results in depolymerization when the phosphate lubricant contacts the iron and iron oxide surfaces [31,32].
It is thermodynamically preferable that both pyrophosphate, Na4P2O7, and triphosphate, Na5P3O10, clusters, which are different from each other by their molecular chain length, are chemisorbed on the surface first, followed by the P–Ob dissociation. There was a slight difference in the total energy of absorbed clusters and their decomposed products, which indicated that the breaking and non-breaking phosphate bonds can coexist during the tribological process. A deformed FeO4 tetrahedral structure between a surface iron cation and four oxygen anions (three oxygens from the surface and one from the lubricant) was found, and its number of coordination of 4 was lower than the value of 6 from FeO6 octahedra, which are found in Fe(III) oxide crystals. These FeO4 tetrahedra connection with PO4 tetrahedra by a strong chemical P–O–Fe linkage, which provides a strong adherence of phosphate chains to the surface, although the oxide still maintains the flexibility of the phosphate chain due to the partial anchor. Thus, the lubricant network could produce a durable layer which provides a wear reduction and oxidation prevention in the rolling process.
Temperature, especially at the working conditions of the hot rolling process, is a factor that contributes to the depolymerization process. An AIMD simulation at 1100 K indicated that the monodentate linkage was the most observable interaction between the lubricant and the surface. However, there was no P–Onb (non-bridging O) bond cleavage at neither normal nor high temperatures. The chain length also has an influence on the depolymerization behavior. In fact, Na4P2O7 indicated no bond breaking for the P–Ob bond at 1100 K, while there was a coexistence of bond breaking and reforming during simulation for Na5P3O10 on the iron oxide surface [32]. This simultaneous depolymerization and polymerization of phosphate chains from AIMD simulations affirmed the previous XPS experimental characterizations [1]. The smaller P–Ob dissociative energy and bond overlap population, as well as the longer bond length calculated for Na5P3O10 compared with Na4P2O7, could be an explanation for this behavior, as a longer bond length results in a weaker bond strength [32]. The better anti-wear performance of short-chain phosphate compounds in the aforementioned experiment is promoted by their better adhesive strength, which is characterized by their larger bond order population of Oglass-Fe bonds than that in long-chain molecules [31,32].
Experimental characterization indicated that iron oxide was digested into polyphosphate glass to form a hierarchical structure including iron, sodium, and phosphate oxides [20]. The AIMD simulations of (NaPO3)n glass and iron/iron oxide clusters at high temperatures unveiled a transformation mechanism, in which the dominant chemical Fe–Oglass bond caused the weakening of the oxide surface topmost Fe–O bond and resulted in the removal of the top Fe atoms from the iron oxide surface [33].

2.2.2. Borate Glass

For sodium borate, Na2B4O7, Onb from its structure also approaches the nearest Fe atoms to form the Fe–O–B covalent bond [25]. The AIMD simulation indicated that this bond resulted in a strong adsorption of Na2B4O7 onto the Fe2O3 (0001) surface [25]. This molecule decomposed at 1073 K to transform the BO4 complexes into BO3 and Onb by activating sodium mobility. When the lubricant was subjected to an applied pressure, the confined sodium borate layer started a geometrical rearrangement because of volume change [35]. This arrangement was more favourable for higher sodium concentrations as the large ratio of sodium could break long polymer chains into shorter ones [41]. An increase in pressure yielded to a chemical modification; however, when this pressure rose up to a critical value, the BO3 group transformed into BO4 with an increase in the boron coordination number from three to four [35]. This critical pressure for polymerization was varied with sodium concentration, with the largest trigging pressure at 33% of Na2O. As explained in Figure 5, the chemical mechanism for this polymerization was that the boron atoms created new bonds with molecular oxygen via the lone-pair electrons to form cross-links between long borate chains, which increased linearly with applied pressure [35]. This polymerization was more preferable in the system with fewer BO4 groups and sodium cations [35]. This mechanism also revealed the anti-oxidation mechanism for borate glass, in which the diffused oxygen is digested by BO3 groups to form BO4 in harsh conditions. Conversely, there was an insignificant decomposition of BO4 into BO3 in the decompression process, indicating that the formed polymer was retained after mechanical impact [35].

2.2.3. Silicate Glass

With a sodium silicate lubricant, the silicate cluster chemically adsorbs onto the iron surface by forming multiple Fe–Onb bonds, which have a strong covalent characteristic compared to the Si–O bonds [38]. This strong covalent bond confirms the adhesion capability of the sodium silicate to the metal surface. The number of Onb involved in this reaction increases gradually from one to three during the simulation. An increase in Fe–Onb bonds consequently resulted in the negative charges on Fe surface atoms, which attracted positively charged atoms from the lubricant by the Coulombic interaction to form the tribofilm. In contrast, the strength of Si–Onb bonds within the molecule was reduced significantly. This influenced its bond dissociation and resulted in the instability of the tribofilm, which caused the higher wear and friction at high temperatures. In fact, previous experiments reported an increase in the CoF of sodium silicate lubricant when the temperature rose above 1000 °C [27].
Interestingly, the depolymerization and formation of small fragments were observed for sodium phosphate at 1100 K and for sodium silicate at 1500 K, but these phenomena resulted in different tribological performance. The friction and wear were reduced with a sodium phosphate lubricant [1], whilst they were increased for sodium silicate [27]. The cause of this contrasting behavior may have originated from the strength of the Fe–Onb bonds, which were stronger for Na6Si2O7 than Na4P2O7 and Na5P3O10 molecules. These data indicate that sodium silicate adsorbs more strongly onto iron surfaces than sodium phosphate.
Similarly, with borate glass [35], the level of polymerization increased when the proportion of Na2O decreased from 50% to 33% [37]. Silicate glass also formed covalent bonds between Onb and surface iron atoms, while some Si atoms formed direct covalent bonds with surface oxygen [37]. As presented in Figure 6, an AIMD simulation at 1361 K and 1 GPa demonstrated a continuous process of polymerization and depolymerization in the glass lubricant. As described in scheme 1 of Figure 4d and the stable adsorption configuration in Figure 4b, the depolymerization of the sodium silicate molecules formed active sites that strengthened the adhesion of the lubricant to metal oxide surfaces via these covalent bonds. Due to the excessive complexity and lengthy processing time, studies on sodium silicate have not taken into account the effects of other steel components (e.g., the diffusion of Mn) on surface chemistry at high temperatures. This will be considered in future investigations. Nevertheless, experimental findings on sodium silicate suggested very complex interactions between the lubricant and oxide surfaces, in which thermally driven reactions should not be underestimated.

2.2.4. The Roles of Na in Glass Lubricants

All of the considered inorganic compounds contain a sodium element, which has a vital role in the tribological performance of these glassy lubricants. Na attacks the Ob and stimulates the P–Ob bond dissociation by reducing the bond dissociation energy [32]. In addition, the weak network former role, along with the dominant network modifier role of sodium, has been observed, along with its prominent network modifier role. The phenomena in which the mobile sodium atoms either terminate Onb or occupy three oxygen on the surface were observed in both static QM calculations and high temperature AIMD simulations. An investigation of the adsorption of sodium atoms on Fe2O3 (0001) surfaces indicated that sodium preferred to adsorb on hollow positions where it could bind with three surface oxygens [42]. Therefore, the presence of the iron oxide surface attracts sodium atoms in a glass lubricant onto the surface oxygens and reduces the interaction between these alkaline atoms and the Ob of the lubricant. Consequently, this surface affects the decomposition caused by sodium cations.
When the adsorption of Na2B4O7 on the Fe2O3 (0001) surface at 1073 K was investigated, we also observed a movement of Na atoms toward this surface via an interaction with surface oxygen to form a Na-rich layer [25,35], which agrees with previous experiments [22]. A comparison between Na2B4O7 and B2O3 lubricants was made to investigate the influence of Na. The results indicate that Na2B4O7 adsorbs onto the surface more strongly than B2O3. The main reason leading to the different behavior between these lubricants was the absence of Na and Onb in B2O3, which results in the absence of Na–O ionic bonds and Fe–Onb covalent bonds for the Fe2O3–B2O3 system. In contrast, for the Fe2O3–Na2B4O7 system, a sodium-rich layer was formed mainly through strong electrostatic interactions between Na cations, the surface, and lubricant oxygen. In this borate system, along with Onb atoms, Na ions acted as bridging elements which connected the surface and lubricant. Meanwhile, the absence of Na cations induced a weak interaction because there was a rich layer of negatively charged oxygen at the surface–lubricant interface.
In addition, the anti-wear property has benefited from the polymerization of discrete borate chains with the contribution of Onb to create the cross-links between molecules [35]. Na2O is considered as an appropriate compound to deliver the necessary Onb atoms. When this Onb joined the polymerization process, the modification role of Na+ cations was inevitably reduced, so they were attracted to surface oxygen to create a Na-rich layer. In shearing conditions, the higher concentration of sodium oxide resulted in smaller energy barriers, which indicated that lower friction could be obtained because of this Na-rich layer [36]. Moreover, the energy barrier of sodium borate with 33% Na2O was close to potassium, but the confined systems with a higher concentration of Na showed much smaller energy barriers than those using K and Li elements [36]. Among the considered alkali elements, Li provided the highest energies barriers at low and high applied pressures [36]; this unveiled that friction in this system could be higher than in the others. The calculation of the number of bonds between Fe and O in borate molecules showed that this number is under five for systems with Na2O concentrations larger than 33%, whilst values larger than six were found for Li and K systems [36]. This calculation revealed that the Li and K systems have larger energy barriers due to their larger numbers of Fe–Oborate bonds. Additionally, the small shearing energy barrier in borate glass with a high Na concentration was also contributed by the layering structure of sodium borate layers in tribofilm [36]. When considered the sole role of Na elements, it has been reported that the stacking of sodium onto hematite (0001) surfaces could yield a surface adhesive strength of only a half, and a much smaller lateral friction force than that calculated for pure oxide surfaces [42].
The Na-rich layer was also found in silicate glass. In fact, the confined system of Na2O.SiO2 and Na2O·2SiO2 displayed this layer at surface–silicate interfaces due to the migration of Na atoms out of the glass network to adsorb onto Fe2O3 (0001) surfaces. The rearrangement of sodium elements promoted the polymerization process in the middle of the glass lubricant [37]. When considering the influence of a shearing effect on silicate glass, Tran et al. [37] confirmed the previous observation by Ta et al. [36] for sodium borate glass that silicate lubricants with a higher Na2O concentration provided a better tribological performance than the lower one because of it greater adhesive strength. The better tribological performance was because of the sodium-rich layer, which worked as a lubricating layer thanks to the nature of their weak electrostatic interaction [37].

2.2.5. Reactive Molecular Dynamics Lubrication Simulations

The experimental findings indicated that tribofilm formation is thermally and mechanically driven under extreme pressure and sliding velocity. The quantum mechanics modeling has described the adsorption mechanism and chemical reactions between alkali glass lubricants and iron oxide surfaces in static conditions well. However, the model scale is limited to several hundred atoms due to a high computational cost. Therefore, the realistic tribosystem with surface roughness, a large number of molecules, and a long-chain molecular structure could not be handled by QM/AIMD simulations. The critical role that the tribo-mechanical effect plays in driving the first steps of tribofilm formation reactions has not been described yet on a larger scale. The reactive MD simulation with several thousand atoms has been used to understand how these reactions take place when the lubricant was subjected to a continuous applied load and shear force. Additionally, this simulation also helped to design the new and optimized additives by altering the ratio of mixed glass lubricants under a wide range of applied loads and sliding velocities. Unfortunately, the current tribological system contains many different elements in combinations for which the ReaxFF parameters are not available. Recently, we have developed a new set of ReaxFF parameters for Fe/Na/P/O systems to simulate the tribological performance of Na4P2O7 confined between Fe2O3 surfaces. The developed force field properly reproduced the quantum data of relative energy, the heat of formation, partial charges, bulk modulus, and crystal cell parameters of binary, ternary, and quaternary oxides for the considered system. The chemical reaction between sodium and iron oxide, which caused a penetration of Na atoms into oxide surfaces, as well as the removal of iron cations from the glass lubricant because of its reaction with phosphate, have been observed. Moreover, as presented in Figure 7, the Na-rich layers were observed at the Fe2O3–Na4P2O7 interface. These phenomena confirmed our scanning electron microscopy with energy dispersive X-ray (SEM/EDX) analysis from the experiments well [20]. However, the current work is still limited for sodium phosphate lubricants, while the determination of ReaxFF parameters for sodium borate and sodium silicate lubricants confined between iron oxide surfaces is still under progress. Following the successful development of the ReaxFF parameters for sodium phosphate and iron oxide tribosystems, future work to complete the new set of parameters for sodium borate and silicate lubricants will help to understand the influence of the ratio of oxidation inhibitor/anti-wear compound on: (i) chemical properties of the tribofilm under shear effects and (ii) tribological performance, such as shear stress/friction at the shear sliding interface at elevated temperatures. These outputs will help researchers to design the optimum lubricant composition ratio used in metal forming.

3. Conclusions

The tribological performance of glass lubricants of alkaline-based inorganic polymers at temperatures up to 1000 °C has been investigated. The lubricating mechanism of phosphate glass was characterized by the chemical reactions between this lubricant and iron oxide surfaces to form an amorphous iron phosphate glass. The tribochemical reaction was triggered by the combination of thermal and shearing mechanisms, resulting in the iron oxide being disintegrated and digested into polyphosphate networks. Our theoretical and experimental results showed that the improvement of the chemical and mechanical stability of phosphate lubricant was attributed to the strong Fe–O–P formed during the reaction between the Fe2O3 surface and P2O74− groups. Sodium borate lubricant provides a low coefficient of friction at low applied loads, but this lubricating performance decreased with increasing load. A distinct Na-rich layer (20 nm), residing on the tribosurface interfaces, has been observed from the experiments.
The quantum simulation revealed that this was the result of weak interactions between borate and iron oxide surfaces. Under extreme temperature and load, a metallic silicate tribofilm was generated due to the reaction between sliding metal substrates and the silicate lubricant. The melt of sodium silicate contributed to the diffusion and aggregation of Mn atoms from the iron substrate, and the formed Na-rich layer was also found. These layers contributed significantly to the anti-oxidation performance. The QM calculation indicated that the Fe–Onb bond between the iron oxide surface and silicate was the mechanism for the tribofilm formation of this lubricant. This calculation also revealed that a higher wear could be found at a temperature higher than 1000 °C because of the dissociation of silicate molecules. A realistic reactive MD simulation was carried out for sodium polyphosphate confined between iron oxide surfaces, which confirmed the vital role of sodium in phosphate tribofilms, as well as the digestion and diffusion of iron cations into the glass lubricant.


This project is supported by Australian Research Council Discovery Projects DP170103173 and Linkage Project LP160101871.


This work was supported by computational resources provided by the Australian Government through the University of Wollongong (UOW) under the National Computational Merit Allocation Scheme (NCMAS). The authors also would like to thank the Australia National Computational Infrastructure (NCI) for computing time on the High Performance Computing Cluster through the UOW/NCI Partner Share Scheme.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Cui, S.; Wan, S.; Zhu, Q.; Tieu, A.K.; Zhu, H.; Wang, L.; Cowie, B. Tribochemical Behavior of Phosphate Compounds at an Elevated Temperature. J. Phys. Chem. C 2016, 120, 25742–25751. [Google Scholar] [CrossRef]
  2. Beynon, J.H. Tribology of hot metal forming. Tribol. Int. 1998, 31, 73–77. [Google Scholar] [CrossRef]
  3. Chen, R.Y.; Yuen, W.Y.D. Oxide-Scale Structures Formed on Commercial Hot-Rolled Steel Strip and Their Formation Mechanisms. Oxid. Met. 2001, 56, 89–118. [Google Scholar] [CrossRef]
  4. Schey, J.A. Tribology in Metalworking: Friction, Lubrication, and Wear. J. Appl. Met. 1984, 3, 173. [Google Scholar] [CrossRef]
  5. Shirizly, A.; Lenard, J.G. The effect of lubrication on mill loads during hot rolling of low carbon steel strips. J. Mater. Process. Technol. 2000, 97, 61–68. [Google Scholar] [CrossRef]
  6. Shirizly, A.; Lenard, J.G. The effect of scaling and emulsion delivery on heat transfer during the hot rolling of steel strips. J. Mater. Process. Technol. 2000, 101, 250–259. [Google Scholar] [CrossRef]
  7. Azushima, A.; Xue, W.; Yoshida, Y. Influence of Lubricant Factors on Coefficient of Friction and Clarification of Lubrication Mechanism in Hot Rolling. ISIJ Int. 2009, 49, 868–873. [Google Scholar] [CrossRef][Green Version]
  8. Allam, I.M. Solid lubricants for applications at elevated temperatures. J. Mater. Sci. 1991, 26, 3977–3984. [Google Scholar] [CrossRef]
  9. Bay, N.O.; Azushima, A.; Groche, P.; Ishibashi, I.; Merklein, M.; Morishita, M.; Nakamura, T.; Schmid, S.; Yoshida, M. Environmentally benign tribo-systems for metal forming. CIRP Ann. 2010, 59, 760–780. [Google Scholar] [CrossRef][Green Version]
  10. Feher, R. Graphite-Based Lubricants. In Encyclopedia of Lubricants and Lubrication; Mang, T., Ed.; Springer: Berlin/Heidelberg, Germany, 2014; pp. 758–769. [Google Scholar] [CrossRef]
  11. Friedman, P.A.; Luckey, S.G. High-Temperature Lubricants for Superplastic Forming of Metals. In Superplastic Forming of Advanced Metallic Materials; Giuliano, G., Ed.; Woodhead Publishing: Cambridge, UK, 2011; pp. 72–82. [Google Scholar] [CrossRef]
  12. Voevodin, A.; Muratore, C.; Aouadi, S. Hard coatings with high temperature adaptive lubrication and contact thermal management: Review. Surf. Coat. Technol. 2014, 257, 247–265. [Google Scholar] [CrossRef]
  13. Erdemir, A. Solid Lubricants and Self Lubricating Films. In Modern Handbook of Tribology; CRC Press: Boca Raton, FL, USA, 2001. [Google Scholar]
  14. Shi, X.; Zhai, W.; Wang, M.; Xu, Z.; Yao, J.; Song, S.; Wang, Y. Tribological behaviors of NiAl based self-lubricating composites containing different solid lubricants at elevated temperatures. Wear 2014, 310, 1–11. [Google Scholar] [CrossRef]
  15. Zhu, S.; Bi, Q.; Yang, J.; Liu, W.; Xue, Q. Ni3Al matrix high temperature self-lubricating composites. Tribol. Int. 2011, 44, 445–453. [Google Scholar] [CrossRef]
  16. Zhu, S.; Cheng, J.; Qiao, Z.; Yang, J. High temperature solid-lubricating materials: A review. Tribol. Int. 2019, 133, 206–223. [Google Scholar] [CrossRef]
  17. Johnson, R.L.; Swikert, M.A.; Buckley, D.H. High Temperature Lubrication in Reactive Atmospheres. Corrosion 1960, 16, 395t–398t. [Google Scholar] [CrossRef]
  18. Tieu, A.K.; Kong, N.; Wan, S.; Zhu, H.; Zhu, Q.; Mitchell, D.R.; Kong, C. The Influence of Alkali Metal Polyphosphate on the Tribological Properties of Heavily Loaded Steel on Steel Contacts at Elevated Temperatures. Adv. Mater. Interfaces 2015, 2, 1500032. [Google Scholar] [CrossRef]
  19. Wang, L.; Tieu, A.K.; Deng, G.; Wang, J.; Tran, B.H.; Zhu, H.; Yang, J. In-situ interfacial tribochemistry toward eliminating red-scale of silicon steel in friction process. Tribol. Int. 2020, 143, 106077. [Google Scholar] [CrossRef]
  20. Cui, S.; Zhu, H.; Wan, S.; Tran, B.; Wang, L.; Tieu, K.A. Investigation of different inorganic chemical compounds as hot metal forming lubricant by pin-on-disc and hot rolling. Tribol. Int. 2018, 125, 110–120. [Google Scholar] [CrossRef]
  21. Wan, S.; Tieu, A.K.; Zhu, Q.; Zhu, H.; Cui, S.; Mitchell, D.R.; Kong, C.; Cowie, B.; Denman, J.A.; Liu, R. Chemical nature of alkaline polyphosphate boundary film at heated rubbing surfaces. Sci. Rep. 2016, 6, 26008. [Google Scholar] [CrossRef]
  22. Tran, B.H.; Tieu, K.; Wan, S.; Zhu, H.; Cui, S.; Wang, L. Understanding the tribological impacts of alkali element on lubrication of binary borate melt. RSC Adv. 2018, 8, 28847–28860. [Google Scholar] [CrossRef][Green Version]
  23. Tran, B.H.; Tieu, A.K.; Wan, S.; Zhu, H.; Liu, R. Hot corrosion of borate melt and interface chemistry of borate-coated steel under tribological stimulation. Corros. Sci. 2018, 140, 231–240. [Google Scholar] [CrossRef][Green Version]
  24. Tran, B.H.; Wan, S.; Tieu, A.K.; Zhu, H. Tribological performance of inorganic borate at elevated temperatures. Tribol. Trans. 2020, 1–9. [Google Scholar] [CrossRef]
  25. Ta, H.T.; Tieu, A.K.; Zhu, H.; Yu, H.; Tran, N.V.; Tran, B.H.; Wan, S.; Ta, T.D. Ab initio study on physical and chemical interactions at borates and iron oxide interface at high temperature. Chem. Phys. 2020, 529, 110548. [Google Scholar] [CrossRef]
  26. Wang, L.; Tieu, A.K.; Zhu, H.; Cui, S.; Deng, G.; Hai, G.; Yang, J. Contribution of Sodium Metasilicate to the Diffusion of Mn in Steel under Tribological Contact at High Temperatures. J. Phys. Chem. C 2019, 123, 14468–14479. [Google Scholar] [CrossRef]
  27. Matsumoto, K.; Izawa, M.; Nakanishi, T.; Tsubouchi, K. Tribological Properties of Water Glass Lubricant for Hot Metalworking. Tribol. Trans. 2009, 52, 553–559. [Google Scholar] [CrossRef]
  28. Wang, L.; Tieu, A.K.; Cui, S.; Deng, G.; Wang, P.; Zhu, H.; Yang, J.; Wamg, P. Lubrication mechanism of sodium metasilicate at elevated temperatures through tribo-interface observation. Tribol. Int. 2020, 142, 105972. [Google Scholar] [CrossRef]
  29. Wang, L.; Tieu, A.K.; Zhu, H.; Deng, G.; Hai, G.; Wang, J.; Yang, J. The effect of expanded graphite with sodium metasilicate as lubricant at high temperature. Carbon 2020, 159, 345–356. [Google Scholar] [CrossRef]
  30. Zhou, Y.; Jiang, S.; Çaǧın, T.; Yamaguchi, E.S.; Frazier, R.; Ho, A.; Tang, Y.; Goddard, W.A.; Çağın, T. Application of the Self-Assembled Monolayer (SAM) Model to Dithiophosphate and Dithiocarbamate Engine Wear Inhibitors. J. Phys. Chem. A 2000, 104, 2508–2524. [Google Scholar] [CrossRef]
  31. Ta, H.T.T.; Tieu, A.K.; Zhu, H.; Yu, H.; Ta, T.D.; Wan, S.; Tran, N.V.; Le, H.M. Chemical Origin of Sodium Phosphate Interactions on Iron and Iron Oxide Surfaces by First Principle Calculations. J. Phys. Chem. C 2017, 122, 635–647. [Google Scholar] [CrossRef]
  32. Le, H.M.; Tieu, A.K.; Zhu, H.; Ta, T.D.; Yu, H.; Ta, T.T.H.; Tran, V.N.; Wan, S. Depolymerization of sodium polyphosphates on an iron oxide surface at high temperature. Phys. Chem. Chem. Phys. 2018, 20, 7819–7835. [Google Scholar] [CrossRef][Green Version]
  33. Le, M.H.; Tieu, A.K.; Zhu, H.; Ta, D.T.; Yu, H.; Ta, T.T.H.; Tran, V.N. Surface Transformation and Interactions of Iron Oxide in Glassy Lubricant: An Ab Initio Study. Chem. Phys. 2020. proofreading. [Google Scholar]
  34. Ta, T.D.; Le, H.M.; Tieu, A.K.; Zhu, H.; Ta, H.T.T.; Tran, N.V.; Wan, S.; Xiao, J. Reactive Molecular Dynamics Study of Hierarchical Tribochemical Lubricant Films at Elevated Temperatures. ACS Appl. Nano Mater. 2020, 3, 2687–2704. [Google Scholar] [CrossRef]
  35. Ta, H.T.T.; Tieu, A.K.; Zhu, H.; Yu, H.; Tran, N.V.; Ta, T.D. Mechanisms of Pressure-Induced Structural Transformation in Confined Sodium Borate Glasses. J. Phys. Chem. B 2019, 124, 277–287. [Google Scholar] [CrossRef]
  36. Ta, H.T.T.; Tieu, K.A.; Zhu, H.; Yu, H.; Tran, N.V.; Le, H.M.; Ta, T.D. Structural Response of Alkali Metal Borates at Sliding Interface: The Effect of Alkali Cations. Comput. Mater. Sci. 2020. under review. [Google Scholar]
  37. Tran, N.V.; Tieu, A.K.; Zhu, H.; Ta, H.T.; Sang, P.T.; Le, H.M.; Ta, T.D. Insights into the tribochemistry of sliding iron oxide surfaces lubricated by sodium silicate glasses: An ab initio molecular dynamics study. Appl. Surf. Sci. 2020, 528, 147008. [Google Scholar] [CrossRef]
  38. Tran, N.V.; Tieu, A.K.; Zhu, H.; Ta, H.T.T.; Ta, T.D.; Le, H.M. First-Principles Study of the Adsorption and Depolymerization Mechanisms of Sodium Silicate on Iron Surfaces at High Temperature. J. Phys. Chem. C 2018, 122, 20827–20840. [Google Scholar] [CrossRef]
  39. Riga, A.; Cahoon, J.; Pistillo, W.R. Organophosphorus chemistry structure and performance relationships in FZG gear tests. Tribol. Lett. 2001, 9, 219–225. [Google Scholar] [CrossRef]
  40. Asensio, M.C.; Righi, M.C.; Philippon, D.; Mambingo-Doumbe, S.; Le-Mogne, T.; Martin, J.M.; Bouffet, A. Tribochemistry of phosphorus additives: Experiments and first-principles calculations. RSC Adv. 2015, 5, 49270–49279. [Google Scholar] [CrossRef][Green Version]
  41. Jabraoui, H.; Vaills, Y.; Hasnaoui, A.; Badawi, M.; Ouaskit, S. Effect of Sodium Oxide Modifier on Structural and Elastic Properties of Silicate Glass. J. Phys. Chem. B 2016, 120, 13193–13205. [Google Scholar] [CrossRef]
  42. Tran, N.V.; Tieu, A.K.; Zhu, H.; Ta, H.T.T.; Le, H.M.; Ta, T.D. An ab initio study on the effects of Na passivation on friction reduction of an iron oxide surface. J. Appl. Phys. 2020, 127, 065305. [Google Scholar] [CrossRef]

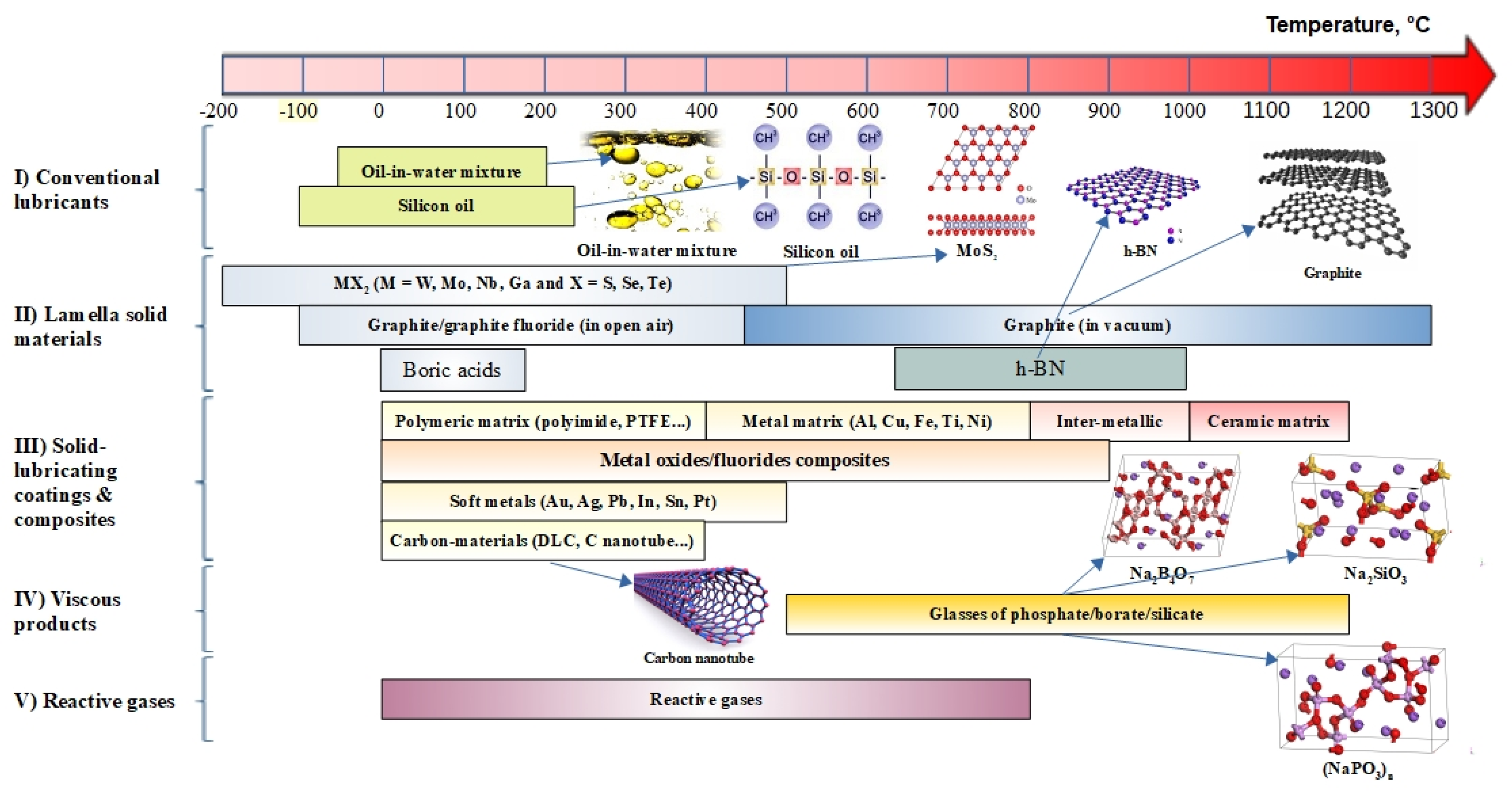

Figure 1. Working temperature range of different lubricant classes.
Figure 1. Working temperature range of different lubricant classes.
Lubricants 08 00070 g001
Figure 2. Schematic illustration of hierarchical structure of tribofilm obtained from the work by Wan et al. [21], with (a) depth profile of the composition in the worn steel disc at 800 °C by secondary ion mass spectrometry (SIMS), and P L-edge X-ray adsorption near edge structure (XANES) spectra of the polyphosphate tribofilm in fluorescence yield (FY) and total electron yield (TEY) modes, respectively. (b) Transmission electron microscopy (TEM) images and the corresponding selected area electron diffraction pattern (SAED) of the tribofilm.
Figure 2. Schematic illustration of hierarchical structure of tribofilm obtained from the work by Wan et al. [21], with (a) depth profile of the composition in the worn steel disc at 800 °C by secondary ion mass spectrometry (SIMS), and P L-edge X-ray adsorption near edge structure (XANES) spectra of the polyphosphate tribofilm in fluorescence yield (FY) and total electron yield (TEY) modes, respectively. (b) Transmission electron microscopy (TEM) images and the corresponding selected area electron diffraction pattern (SAED) of the tribofilm.
Lubricants 08 00070 g002
Figure 3. (a) STEM image of the tribofilm on the lubricated disc and according EDS mapping, (b) SIMS depth profile of the contact interface for B, Na, and Fe elements (800 °C, normal load 30 N, sliding speed 0.1 m/s) from the experimental work by Tran et al. [24]; and (c) binding energies of Fe2O3–Na2B4O7 and Fe2O3–B2O3 as a function of the separate distances obtained from the DFT calculation by Ta et al. [25].
Figure 3. (a) STEM image of the tribofilm on the lubricated disc and according EDS mapping, (b) SIMS depth profile of the contact interface for B, Na, and Fe elements (800 °C, normal load 30 N, sliding speed 0.1 m/s) from the experimental work by Tran et al. [24]; and (c) binding energies of Fe2O3–Na2B4O7 and Fe2O3–B2O3 as a function of the separate distances obtained from the DFT calculation by Ta et al. [25].
Lubricants 08 00070 g003
Figure 4. (a) NaPO3 glass layer and Fe2O3 (0001) surface dimension; (b) enlarged and tilted structure of the glass–oxide interface from the work by Le et al. [33], sodium atoms have been removed for clear visualization. O atoms are colored in red, Fe in gold, P in purple, and Na in yellow.
Figure 4. (a) NaPO3 glass layer and Fe2O3 (0001) surface dimension; (b) enlarged and tilted structure of the glass–oxide interface from the work by Le et al. [33], sodium atoms have been removed for clear visualization. O atoms are colored in red, Fe in gold, P in purple, and Na in yellow.
Lubricants 08 00070 g004
Figure 5. Ball and stick model of the selective configurations before (left) and after (right) the polymerization in the system following three mechanisms: M1 (a,b), M2 (c,d), and M3 (e,f) from the work by Ta et al. [35]. These configurations before and after the chemical reactions were captured from two consecutive steps with Δz = 0.05 Å. Sodium has been removed for better visualization.
Figure 5. Ball and stick model of the selective configurations before (left) and after (right) the polymerization in the system following three mechanisms: M1 (a,b), M2 (c,d), and M3 (e,f) from the work by Ta et al. [35]. These configurations before and after the chemical reactions were captured from two consecutive steps with Δz = 0.05 Å. Sodium has been removed for better visualization.
Lubricants 08 00070 g005

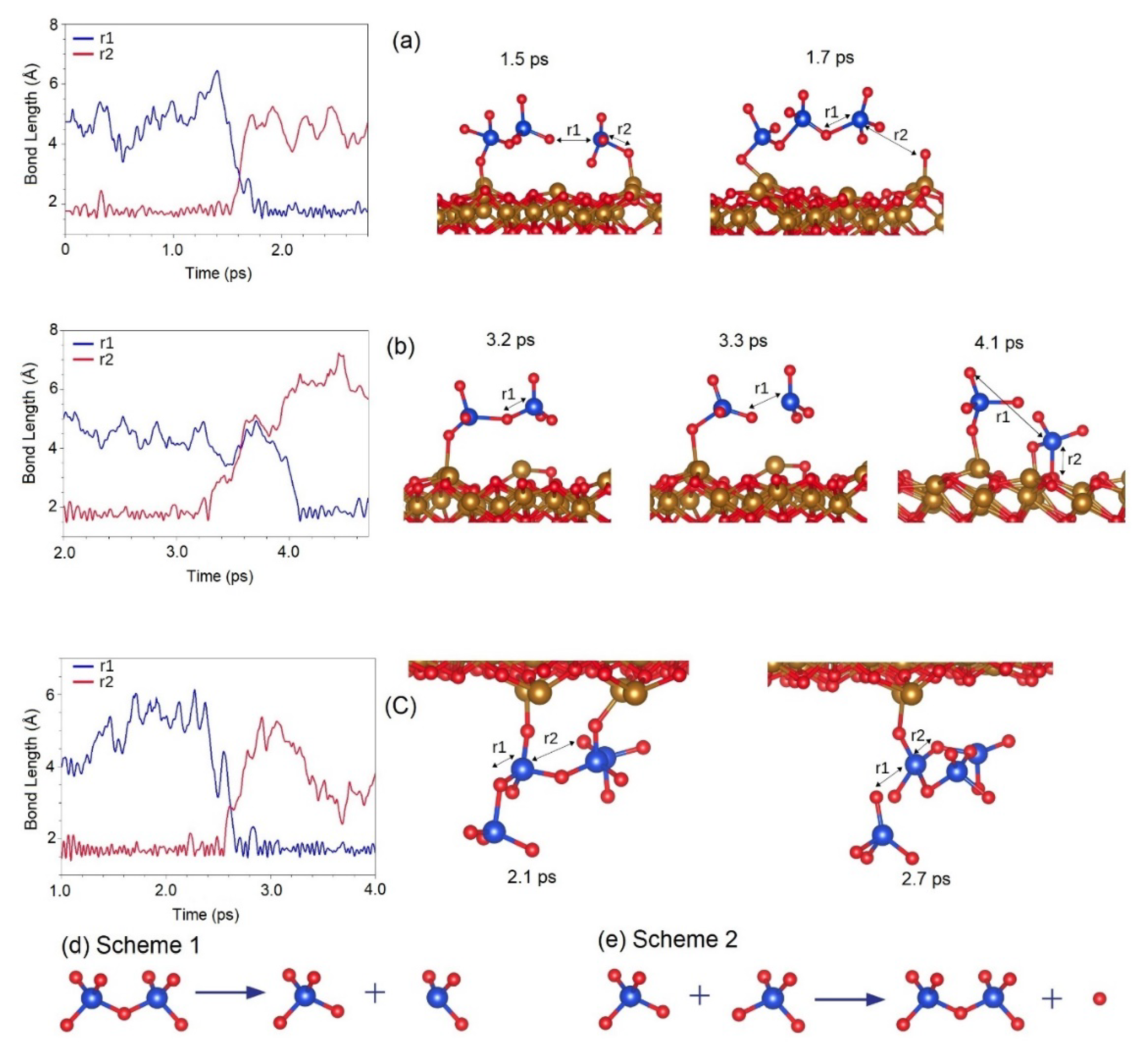

Figure 6. Evolution of the Si−O bond lengths and different snapshots taken during the AIMD simulation at 1361 K and 1 GPa obtained from Tran et al. [37]. (a,b) illustrate the polymerization and dissociation of the FeNSO11 system, respectively. (c) shows the bond exchange in the FeNSO12 glass network. (d,e) demonstrate the reaction schemes for the polymerization and depolymerization, respectively.
Figure 6. Evolution of the Si−O bond lengths and different snapshots taken during the AIMD simulation at 1361 K and 1 GPa obtained from Tran et al. [37]. (a,b) illustrate the polymerization and dissociation of the FeNSO11 system, respectively. (c) shows the bond exchange in the FeNSO12 glass network. (d,e) demonstrate the reaction schemes for the polymerization and depolymerization, respectively.
Lubricants 08 00070 g006

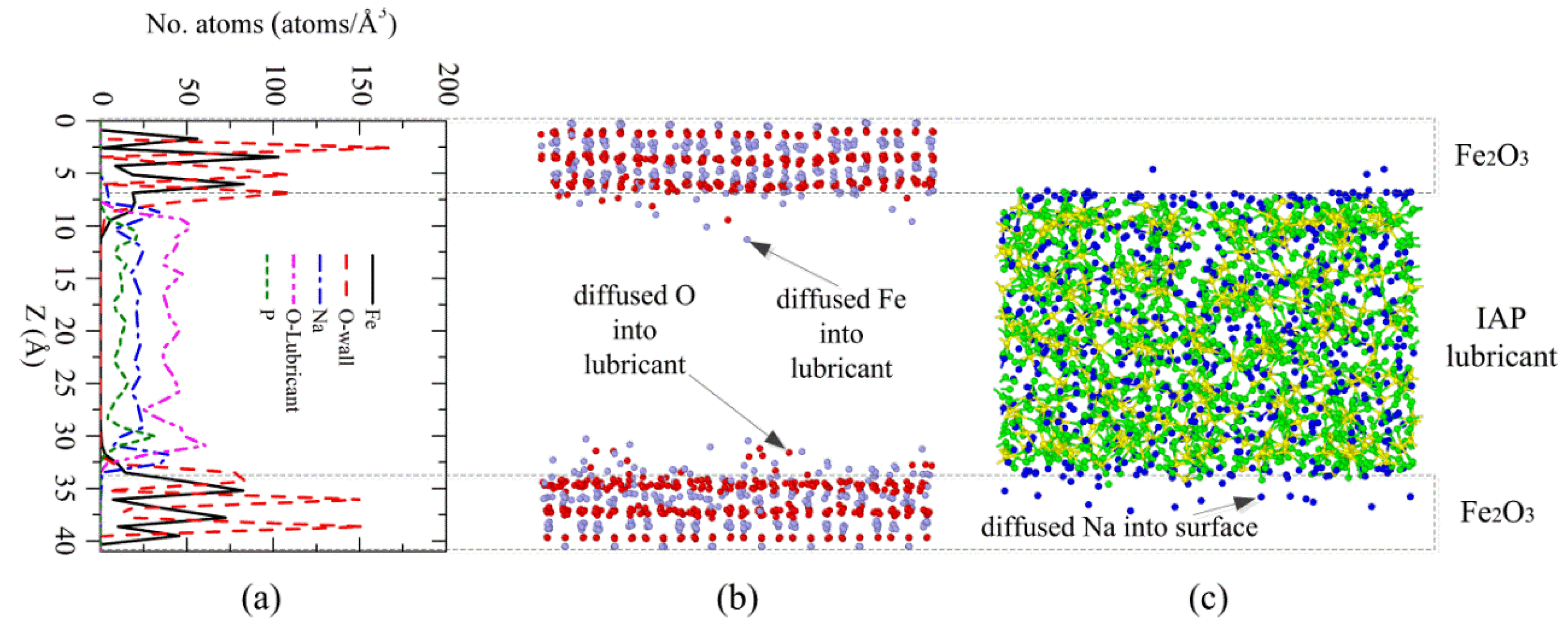

Figure 7. (a) Atomic density of different elements across the thin lubricant film thickness of sodium polyphosphate confined between Fe2O3 (001) surfaces; (b) snapshot of Fe2O3 (001) surfaces; and (c) phosphate glass obtained from the work by Ta et al. [34].
