Dispersion of Nanoparticles in Lubricating Oil: A Critical Review

Abstract

Nanolubricants have attracted great interest due to the promise of friction and wear reduction by introducing nanoparticles. To date, the foremost challenge for developing a new nanolubricant is particle suspension. To understand the mechanisms of nanoparticle dispersion and identify bottlenecks, we conducted a comprehensive review of published literature and carried out an analysis of dispersion based on available data from the past 20 years. This research has led to three findings. First, there are two primary methods in dispersion: formulation with dispersant and surface modification. Second, surfactant and alkoxysilanes are primary chemical groups used for surface modification. Third, functionalization using surfactant is found to be suitable for nanoparticles smaller than 50 nm. For larger particles (>50 nm), alkoxysilanes are the best. The existence of a critical size has not been previously known. To better understand these three findings, we conducted an analysis using a numerical calculation based on colloidal theory. It revealed that a minimal thickness of the grafted layer in surfactant-modified nanoparticles was responsible for suspending small nanoparticles. For larger nanoparticles (>50 nm), they were suitable for silanization of alkoxysilane due to increased grafting density. This research provides new understanding and guidelines to disperse nanoparticle in a lubricating oil.

1. Introduction

In mechanical systems, the frictional loss is one of many factors in energy consumption [1]. To reduce friction and wear, nanoparticles have been studied to be used as lubricant additives that have promising effects on friction and wear reduction in automotive [2,3], mining [4], and other industrial applications [5]. Nanoparticles of various compositions and sizes have demonstrated certain degrees of friction modifying and anti-wear effects. We recently reported that in the boundary lubrication region, the addition of nanoparticles can reduce the friction coefficient up to 70%, and wear volume as high as 75% [5]. Such lubricants consisting of a base oil and dispersed nanoparticles emerged as a new class of nanolubricants [5,6]. The bottleneck for further development, however, is the aggregation of nanoparticles in a base oil. A stable suspension of nanoparticles is essential for a usable lubricant. The aggregation of nanoparticles limits their ability to lubricate the contact area [7]. The ${\mathrm{MoS}}_2$ nanoparticle can reduce 75% of friction when mixed with lubricant oil. Such reduction was achieved by ultrasonic dispersion immediately before testing [8,9]. The aggregation of nanoparticles could increase friction due to the reduced “shear” effects [9]. Understanding the principles of dispersion is essential to developing novel lubricants. This review is divided into two parts. The first part reviews the methods used to disperse nanoparticles in lubricant oil. The second studies the mechanisms of dispersion.

2. Dispersion Methods

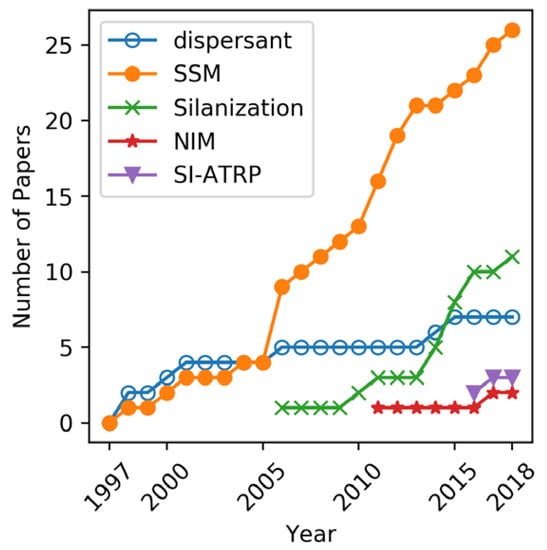

There are many ways to characterize nanoparticles suspended in oil. As nanolubricants require a long time to become stable, methods have been reported to examine dispersion in time. The widely used method is visual inspection [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. The lubricant dispersed with nanoparticles is visually different compared to a lubricant. This makes the occurrence of aggregation and the following sedimentation distinguishable through visual inspection.

One of the commonly used method is visible light scattering. The dynamic light scattering (DLC) method has been used to measure the hydrodynamic radius of nanoparticles. This method tracks the scattering of polarized light from a work piece [28] and calculates the radius of the nanoparticles. The increase of hydrodynamic radius of nanoparticles signals the occurrence of aggregation. Several studies used UV-visible spectroscopy to track the sample’s light absorption. The decrease of optical absorption inferred the aggregation and sedimentation of nanoparticles [29]. A previous study reported on stabilization time of the nanoparticle dispersion in a base oil. The time to reach stable for nanoparticles is summarized in

Table 1. The publications researched in this review.

Particle	Size (nm)	Media	Disperse Method *	Stability	Stable Time
Oxides
TiO2	2	liquid paraffin	SSM.	stable	1 month [10]
	5	liquid paraffin	SSM.	not reported [33]
	10	liquid paraffin	SSM.	stable	Claimed [34]
	15	PAO Spectrasyn 4	SI-ATRP	stable	56 days [11]
	23	PAO	None	aggregated [35]
	25	liquid paraffin	Silanization + Dispersant	stable	5 months [12]
	75	AOI group III	None	not reported [36]
SiO2	12	PAO	NIM	stable	2 days [13]
	15	Ionic liquid	None	aggregated [37]
	23	PAO Spectrasyn 4	SI-ATRP	stable	56 days [11]
	23	PAO	SI-ATRP	stable	60 days [14,38]
	25	GMO	Silanization	stable	5 months [39]
	45	EOT5	None	not reported [15]
	60	PAO 100	Silanization	stable	2 months [16]
	100	RO base oil	Silanization	stable	8 days [17]
	110	PAO	Silanization	stable	2 months [40]
	200	PAO	Silanization	stable	4 months [18]
	200	PAO	Silanization	stable	2 months [41]
ZrO2/SiO2	100	20# machine oil	Other	stable	12 h [42]
Al2O3/SiO2	70	liquid paraffin	Silanization	stable	3 months [19]
CuO	5	PAO	SSM.	stable	30 days [43]
	40	PAO 6	None	not reported [44]
ZnO/CuO	40	vegetable oil	None	not reported [45]
ZrO2	25	PAO 6	None	not reported [44]
ZnO	20	PAO 6	None	not reported [44]
ZnO/Al2O3	50	20# machine oil	SSM.	stable	28 days [20]
Fe3O4	10	liquid paraffin	SSM.	stable	Claimed [46]
Fe2O3	30	500 SN basic oil	Dispersant	Stable	Claimed [47]
Al2O3	80	20# machine oil	SSM.	stable	20 days [21]
Al2O3/TiO2	100	base oil	Silanization	stable	110 h [48]
GO/ZrO2	5	liquid paraffin	Other	stable	48 h [22]
Sulfide
PbS	5	liquid paraffin	SSM.	stable	Claimed [49]
IF-WS2	65	PAO	None	not reported [50]
	100	PAO	None	stable	hours [51]
	110	liquid paraffin	Silanization	stable	14 days [23]
	120	liquid paraffin	None	aggregated [52]
WS2	7	PAO	SSM.	stable	6 months [24]
	100	liquid paraffin	SSM.	stable	Claimed [25]
	200	liquid paraffin	SSM.	stable	1 day [53]
IF-MoS2	35	PAO/Hexane	None	not reported [54]
MoS2	3	PAG	SSM.	stable	2 weeks [55]
	15	250X base oil	Dispersant	stable	Claimed [56]
	85	EOT5	None	not reported [15]
	90	coconut/paraffin oil	SSM.	stable	2 days [57]
MoS2 sheets	N/A	PAO	SSM	stable	7 days [58]
Mo15S19	10	Linseed Oil	None	not reported [59]
MoS2/TiO2	125	rapeseed oil	None	stable	2 days [26]
CuS	20	liquid paraffin	SSM.	stable	Claimed [60]
Metal
Cu	5	liquid paraffin	SSM.	stable	months [10]
	9	500SN base oil	SSM.	stable	Claimed [61]
	15	liquid paraffin	SSM.	stable	Claimed [62]
	40	raw oil	Dispersant	not reported [63]
	75	500SN base oil	Dispersant	aggregated [64]
Carbon-coated Cu	65	PAO6	None	not reported [65]
Mo	60	PEG	None	not reported [66]
Ni	8	PAO	SSM.	stable	1 month [67]
	20	500SN base oil	Dispersant	stable	Claimed [68]
	20	PAO	None	stable	hours [69]
Ag	4	liquid paraffin	SSM.	stable	months [10]
	4	PAO	SSM.	stable	3 months [70]
	6	PEG	SSM.	stable	7 months [71]
	6	Kerosene	SSM.	stable	months [72]
	10	liquid paraffin	SSM.	not reported [73]
	15	liquid paraffin	SSM.	stable	7 days [74]
Pd	2	liquid paraffin	SSM.	stable	Claimed [75]
	2	liquid paraffin	SSM.	not reported [76]
	3	PAO	SSM.	stable	months [77]
Pb	40	liquid paraffin	SSM.	stable	claimed [78]
Carbon
Graphene	N/A	liquid paraffin	Dispersant	not reported [79]
	N/A	SAE 10W30	None	not reported [80]
	N/A	PAO 9	SSM.	stable	Claimed [81]
	N/A	SN350	SSM.	stable	6 h [29]
	N/A	hexadecane	SSM.	stable	2 days [82]
	N/A	PEG400	NIM	stable	30 days [83]
Graphene Oxide	N/A	mineral oil	Dispersant	not reported [84]
	N/A	SAE 5W30	None	not reported [85]
	N/A	PAO	None	not reported [86]
Carbon Spheres	200	SAE 5W30	None	not reported [87]
Nanodiamond	5	paraffin	None	not reported [88]
	10	paraffin	SSM	not reported [89]
	30	Diisodecy Adipate	None	not reported [90]
	10	ISO68 base oil	None	not reported [91]
Fullerene	10	mineral oil	None	not reported [92]
Carbon nano-onions	4	PAO	None	aggregated [93]
	10	PAO	None	not reported [94]
	5	PAO	None	not reported [95]
Carbon nano-horns	97	Mobil Pegasus 1005	Dispersant	stable	14 days [27]
Carbon nanotube	100	PAO	Dispersant	stable	24 h [96]
	N/A	lubricant oil	Dispersant	not reported [97]
	N/A	liquid paraffin	None	not reported [98]
	N/A	sunflower oil	Dispersant	not reported [99]
	N/A	ionic liquid	None	stable	Claimed [100]
	N/A	rapeseed oil	SSM	stable	10 days [101]
Other
CaCO3	20	500SN base oil	Dispersant	not reported [102]
	40	PAO	SSM.	stable	Claimed [103]
	45	dodecane /decane	Dispersant	stable	Claimed [104]
Zinc borate	35	500 SN basic oil	Dispersant	stable	Claimed [105]
ZnAl2O4	95	Lubricant oil	SSM.	unstable [106]
La(OH)3	30	liquid paraffin	None	Not reported [107]
LaB	30	500SN base oil	Dispersant	stable	Claimed [108]
LaF3	6	liquid paraffin	SSM.	stable	Claimed [109]
	8	liquid paraffin	SSM.	stable	months [10]
BN	70	POE	Silanization	stable	10 days [110]

* Abbreviations: SSM: Surfactant/organic surface modification. NIM: Nanoscale ionic materials. SI-ATRP: Surface-induced atomic transfer radical polymerization.

. The factors affecting suspension are particle size, medium, and methods to disperse. Results shown in Table 1 lead to the conclusion that Brownian motion and gravity could affect dispersion [30]. Ironically, the stability has been characterized in only a small quantity in most studies. Those studies, in addition, cannot be applied directly to colloidal particles [31,32]. In particular, understanding the dispersion of nanoparticles at high concentration is needed.

There are two strategies to achieve stable suspension of nanoparticles in lubricant oil. One is to change the formulation of the lubricating oil by incorporating dispersant with nanoparticles. The other is to modify nanoparticles with amphiphilic chemicals or alkoxysilanes. Both methods alter the surface of nanoparticles by absorption or chemical reaction to form an organic layer.

The property of nanoparticles, the dispersion method, and resulting suspension are listed in Table 1. The stable time was retrieved from either visual inspection or light scattering results. Each time represents the duration of nanoparticles which stay dispersed in a lubricating oil without aggregation and sedimentation. If there was no stabilizing time given or no empirical proof of long-term stabilization, the stabilization time was marked as “Claimed”.

One conclusion can be immediately deduced from Table 1 that all well-dispersed nanoparticle additives are either formulated with dispersants or with surface modification. Without a proper dispersion method, the aggregation always occurs, no matter the material or shape of nanoparticles.

2.1. Formulation with Dispersant

In early research (before 2005), the common method used to study the effects of nanoparticles in lubricant was to disperse these nanoparticles using dispersants [47,56,64,68,79,102,105]. The dispersants used including Aliquat 336 [68], Estisol 242 [12], oleic acid [12], sorbitol monostearate [47,105], and several others. These dispersants were mixed with the nanoparticles and the lubricant oil to create a stable dispersion. In some cases, multiple types of dispersants were used simultaneously [12].

The mechanism of dispersant-stabilizing nanoparticles was through absorption on the surface of the nanoparticle. Those dispersants were amphiphilic molecules which had both lipophobic and lipophilic functional groups. The lipophobic part can absorb on the surface of the nanoparticle, forming an organic layer [111]. This organic layer can sterically stabilize the nanoparticles. In some cases, the addition of dispersant lowered the effectiveness of nanoparticles [112].

Among the studies where only dispersant was used, none achieved long-time stability. The stable time was either untested or less than a few weeks. The one which reached long-time stability (5 months) used a nanoparticle with silane surface modification [12].

Furthermore, the dispersion agent also changed the formulation of lubricant oil. The mechanism of dispersant-stabilizing nanoparticles was absorption on the surface of the nanoparticles. This absorption could occur on the surface of the tribological pairs where lubricant was used. In addition, the amount of dispersant added was more than the amount of nanoparticles in this method [56,68,105,108], and the property of nanolubricant was altered. In the case of IF-WS₂ nanoparticles, the addition of dispersant lowered its effectiveness [112].

Recently, the synergetic friction modification effects between ionic liquid and nanoparticle additives have been investigated [38,66,80]. It is possible that the addition of ionic liquid improves the dispersion stability of nanolubricants. One report, in particular, showed a long stable time [38].

The drawbacks mentioned above rendered formulation with dispersant an unideal method to disperse nanoparticles in lubricant oil. It was clear that surface modification methods were needed to form a stable nanoparticle dispersion.

2.2. Surface Modification

In recent years, methods of surface modification of nanoparticles as lubricant additives have shown visible improvements. Figure 1 shows the accumulated number of papers on different methods plotted against the publication year. This section discusses about methods, specifically the processes, their effectiveness and corresponding processes in achieving stable suspension.

2.2.1. Surfactant

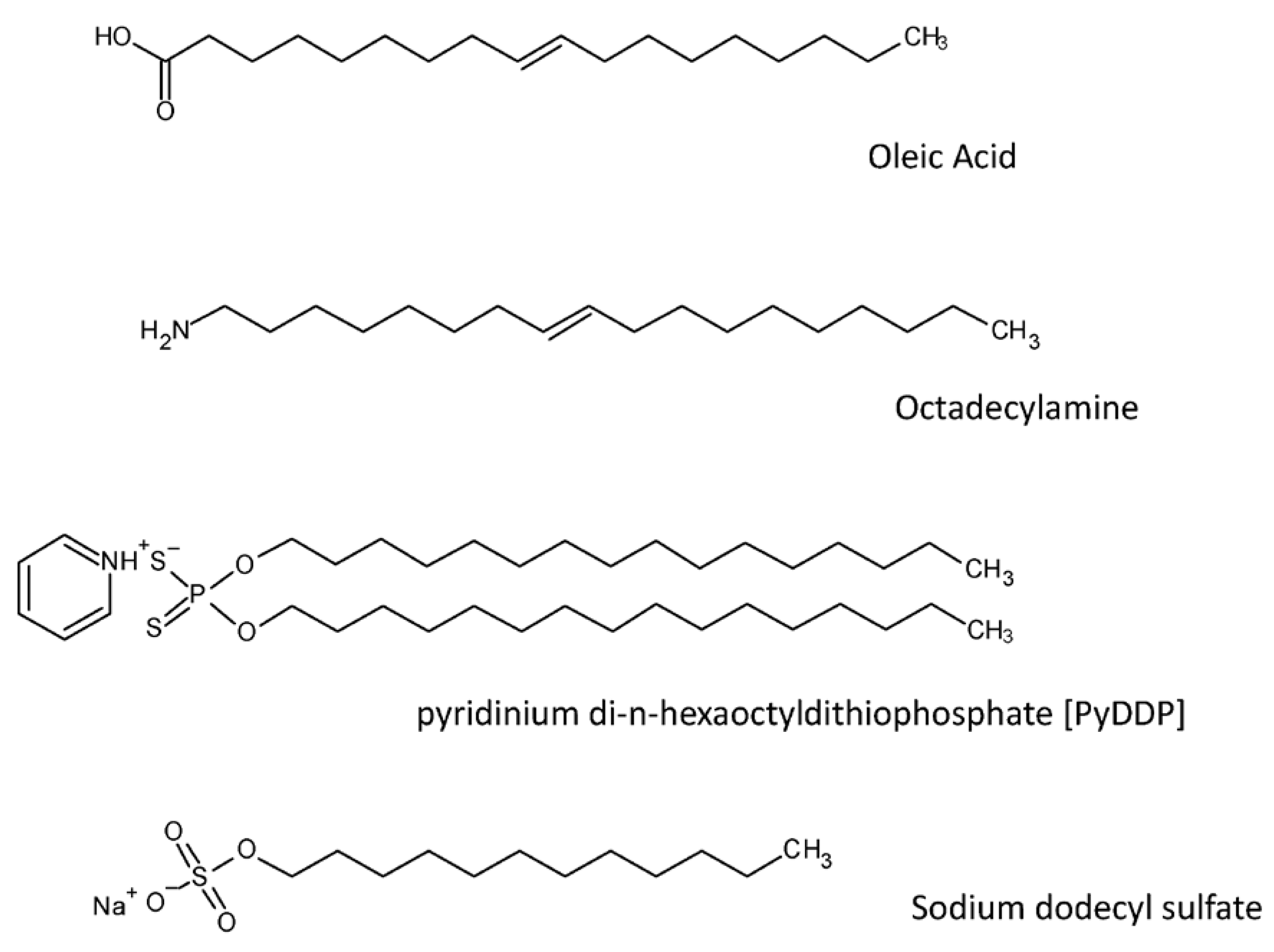

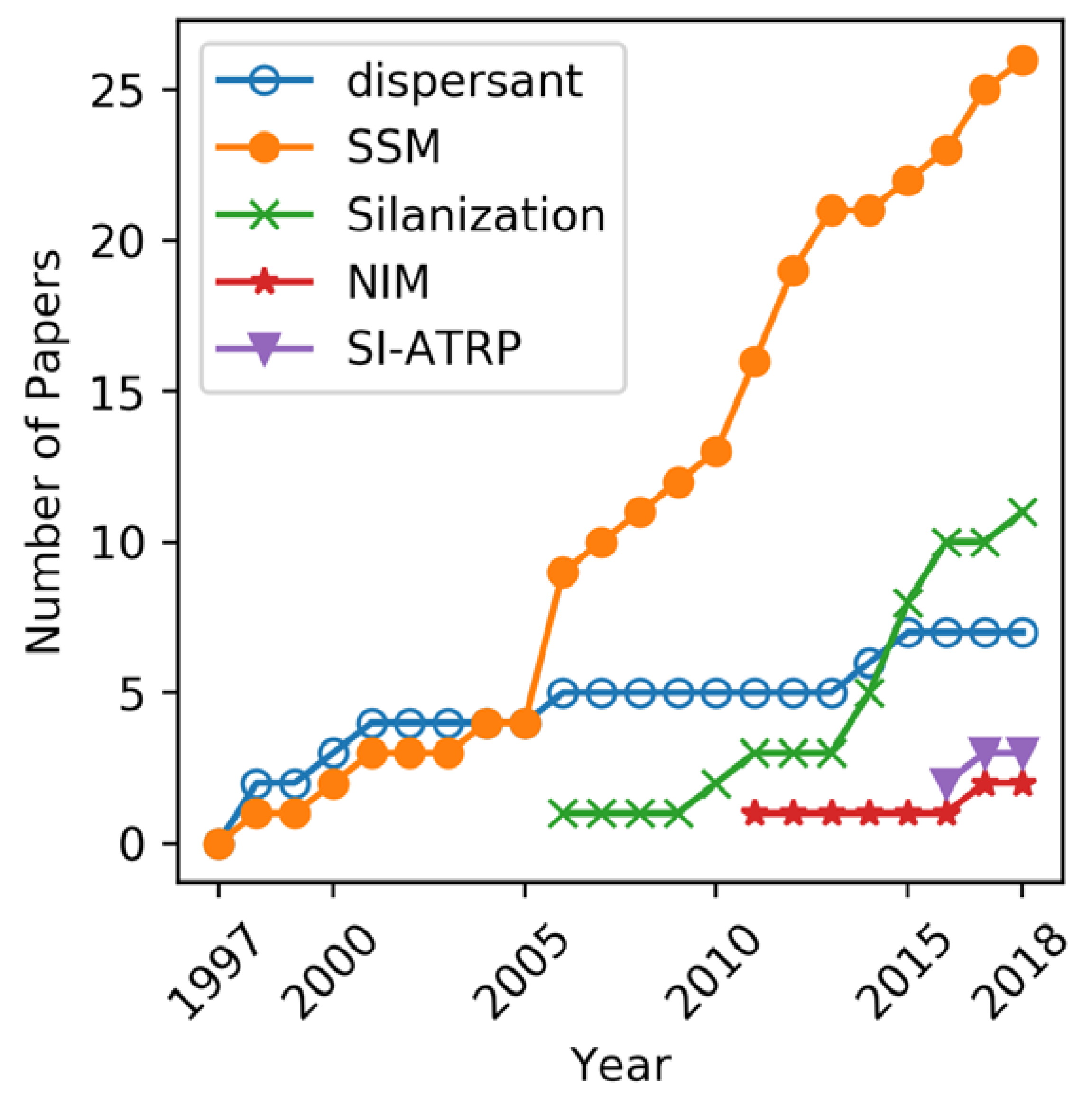

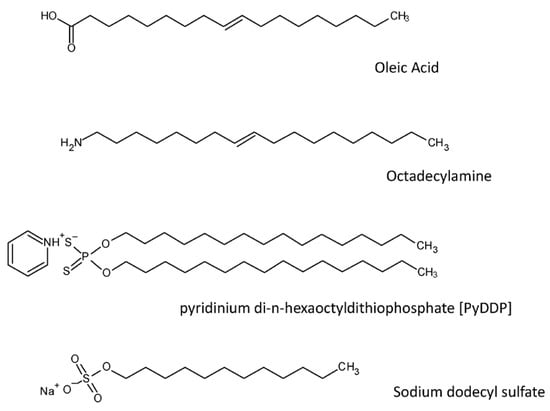

Surfactant modification was one of the most widely used methods for nanoparticle dispersion (Table 1). Instead of adding surfactants to the lubricant oil as a dispersant, this method attaches surfactant molecules onto the surface of the nanoparticle. The formulation of lubricant oil was not changed to suit the need of nanoparticle dispersion.

The method of surfactant modification uses the surfactant with functional groups that can react with nanoparticle surfaces. Some examples of these surfactants are shown in Figure 2 [113]. Each of these surfactants has an active group and a long alkyl chain containing about 15 carbon atoms. These surfactants were used to directly modify nanoparticles’ surfaces. This was performed by mixing nanoparticles, solvent, and surfactant at an elevated temperature for a certain amount of time. Nanoparticles need to be well dispersed in the solvent, or the surface modification process can be impeded [114]. Different nanoparticles and surfactants have different reaction mechanisms. For example, the carboxyl group in carboxylic acid can react with the hydroxyl group on the oxide nanoparticles through esterification [34,81,115,116], while cationic surfactants can ionically bond to the surface of the nanoparticles [10,53,62,67,117].

Treating the metal oxide nanoparticle surface first with acid or oxidant can enhance the binding between nanoparticles and surfactant, thus, enhancing the dispersibility of nanoparticles [114,118]. Without these treatments, some of the surfactant do not chemically bond to the surface of the nanoparticle [115,116], and can be dissolved into the lubricant oil when the solubility of the surfactant in the oil is high [116]. However, these treatments cannot effectively modify metal sulfide nanoparticles [57]. The metal sulfide nanoparticles have the best performance as a friction modifying additive [5]. Due to the lack of the hydroxyl group, however, modifying metal sulfide nanoparticles’ surfaces with amine or carboxylic acids was difficult. Therefore, the sulfide nanoparticles modified with surfactant resulted in dispersions with low stability [57].

To solve this problem, another modification method was developed. Instead of modifying nanoparticles, this method uses a surfactant to modify the precursor of nanoparticles first, which allows synthesizing of nanoparticles with a pre-attached surfactant. The tungsten sulfide nanoparticles synthesized using this method achieved remarkable dispersion stability in both room temperature and low temperature conditions [24]. This method can also synthesize other types of metal sulfide. However, their dispersion stability in lubricant and their tribological impact is still unknown [119].

The dispersion stability of surfactant-modified nanoparticles was also closely linked to their size. Nanoparticles under 10 nm in size show better stability of dispersion by using the surfactant surface modification method [10,24,53,55,57,74]. This result can be explained by the steric stabilization theory discussed in the next chapter.

2.2.2. Silanization

The surface silanization method is almost exclusively applicable to metal oxides and metal nanoparticles with surface oxidations. This method uses alkoxysilanes to modify the nanoparticle surface. Figure 3 presents a few examples of alkoxysilanes used to modify nanoparticles [10,16,19,21,40,41,110,113]. Similar to surfactants, alkoxysilane molecules have a functional group capable of reacting with nanoparticle surfaces (Si-CH3), and a functional group that can stabilize the nanoparticles in oil. The surface silanization process can graft not just alkyl functional groups but also other functional groups like the amino group or the epoxide group.

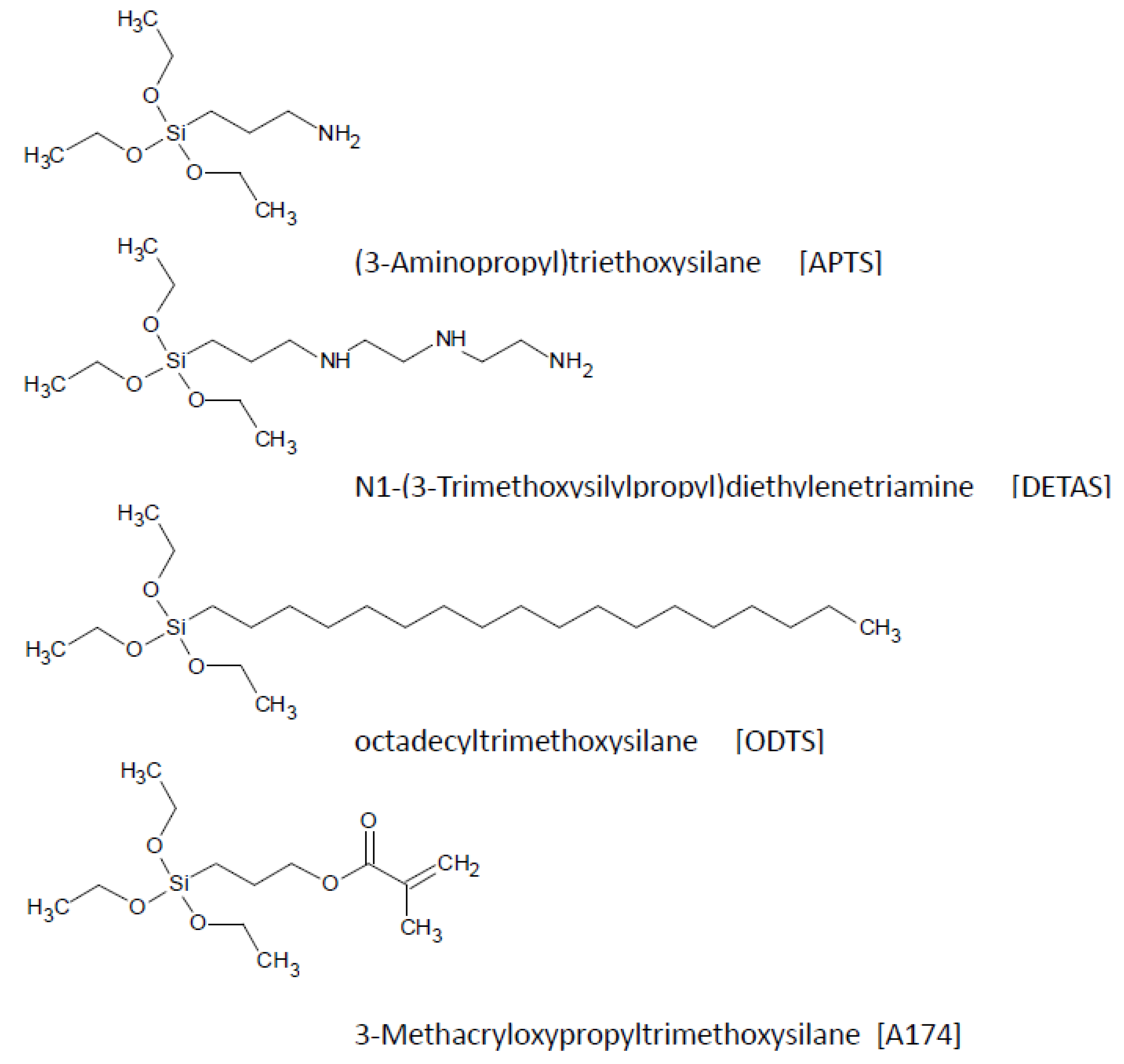

Typical treatment of ${\mathrm{TiO}}_2$ or ${\mathrm{SiO}}_2$ nanoparticles was mixing the alkoxysilanes and nanoparticles in a basic solvent at an elevated temperature [10,16,19,21,40,41,110]. Two chemical processes would occur during the surface silanization process: formation of Si-O-Metal bonds on a nanoparticle’s surface through hydrolysis and condensation of silane alkoxy groups, and oligomerization between two alkoxysilane molecules [120,121,122]. These two competing chemical processes created a structure on the surface layer which had a complex conformation (Figure 4). Studies surveyed in Table 1 all used silanes with three silanes functional group and long reaction times under aqueous solvent. Under this condition, a thick interlinking layer formed [121]. However, even with this thick layer, the nanoparticles functionalized with the amino group still had poor stability compared to the nanoparticles functionalized with alkyl chains in lubricant oil [41].

For nanoparticles which have little or no surface hydroxyl group, it was difficult to directly use silanes to perform surface modification. The IF-${\mathrm{WS}}_2$ treated with ODTS (octadecyltrichlorosilane) could only be stabilized in liquid paraffin for less than one week [23], but similar sized silica nanoparticles with similar treatment could be stable for more than 4 months [41]. Surface oxidation [110,118] or coating the surface of nanoparticle with silica [123] are alternative methods.

Even though nanoparticles with long alkyl chains grafted on its surface could form more stable dispersion in lubricant oil, the alkoxysilanes with long alkyl chains were not used by majority of the research reviewed. This was likely because those types of alkoxysilanes were more expensive compared to amino silanes, such as APTEOS ((3-Aminopropyl)triethoxysilane) or DETAS (N1-(3-Trimethoxysilylpropyl)diethylenetriamine).

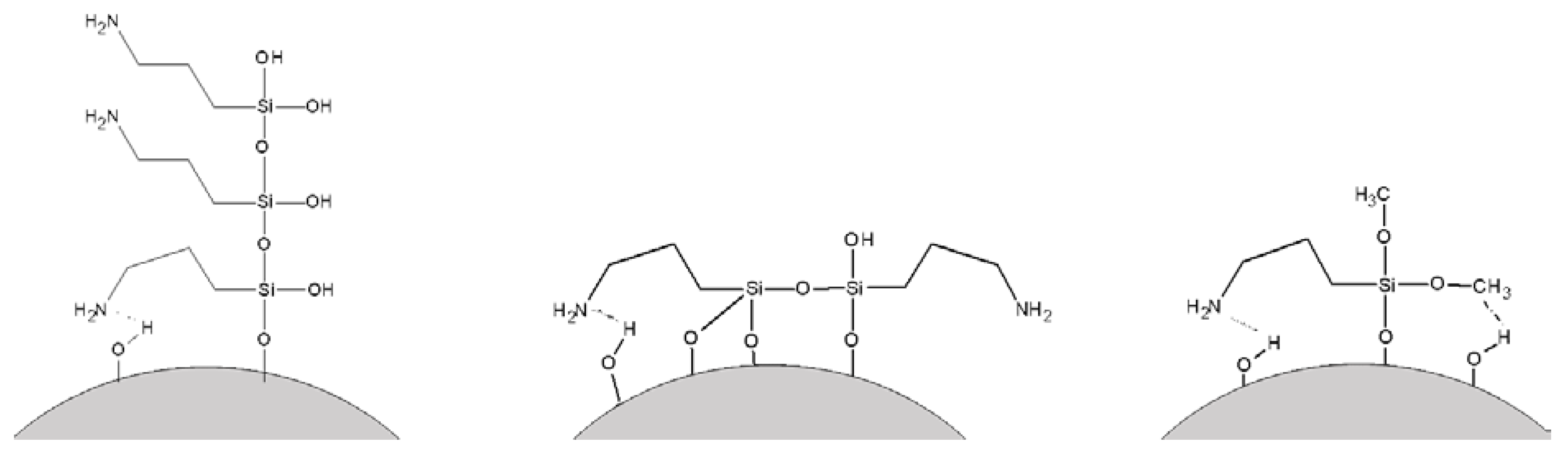

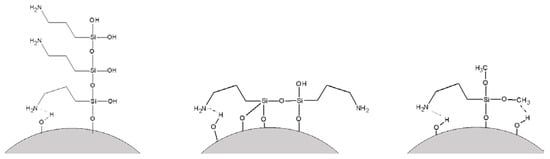

A two-step functionalization method was developed to solve this problem. The first step of the modification was the grafting of alkoxysilanes with an amino group. APTEOS [17,124] or DETAS [16,40] was used in this process. The second step was to bond a carboxylic acid surfactant, such as lauric acid [17] or stearic acid [16,40,124], to the amino group. This method grafted long alkyl chains on the silica surface without the use of expensive ODTS (octadecyltrichlorosilane). This method can result in a thicker grafted layer with a preferred chemical structure.

In contrast to the surfactant surface modification, all the nanoparticles which used surface silanization were larger than 10 nm in size. The large curvature of small nanoparticles could limit the reaction between alkoxysilane and a hydroxyl group, reducing the grafting density [125]. Additionally, almost all the papers reviewed used an excessive amount of silane in the surface modification process. However, this practice could cause irreversible aggregation of nanoparticles in the modification process when small nanoparticles were used [126].

2.3. Other Methods

Some recent work reported the adaption of the silane modification method to develop nanolubricants based on surface-induced-atom-transfer-radical polymerization (SI-ATRP) and nanoscale ionic material (NIM).

The SI-ATRP method can graft a long chain polymer on the surface of nanoparticles [11,14,127,128]. Instead of grafting long chain molecules on the nanoparticle surface, this method grafted silanes with initiator groups. This initiator was then used to react with monomers, forming a polymer chain on the surface [11,14]. This method could graft polymers with more than 100 C–C bonds [11], an order of magnitude higher compared to the results from the surfactant modification or surface silanization methods. It also achieved remarkable dispersion stability. The ${\mathrm{TiO}}_2$ and ${\mathrm{SiO}}_2$ particle treated with this method could stay stable over a large temperature range (−20 °C to 140 °C) for a long period of time (>2 months) [11,14].

The NIM method employed a two-step surface modification process. For the first step of the surface modification, an ionic corona was tethered on nanoparticles by surface silanization or ion exchange. For the second step, an organic counter-ion was linked to the surface [13,129]. This formed a liquid-like material which could disperse into both polar and non-polar solvents [83].

Essentially, those two methods further altered the nanoparticles’ physical and chemical properties forming a new type of nanomaterials.

2.4. Evaluation

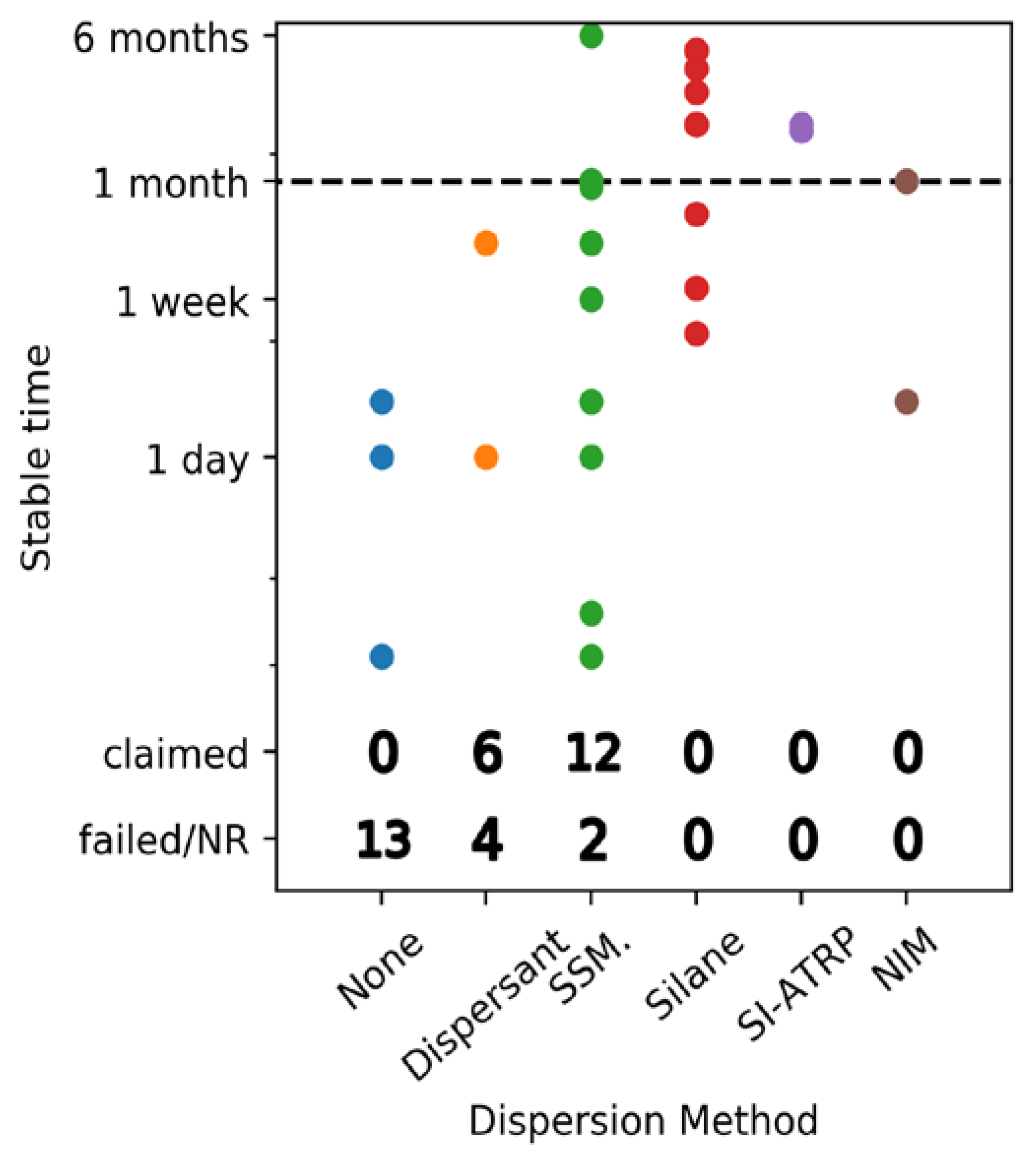

The methods discussed have different effectiveness and reliability. In Figure 5 the reported minimum stabilizing time is plotted. In the figure, each marker represents one report on the stable time of one type of nanoparticle. According to the aggregated data, modifying the nanoparticle surface is undeniably more effective compared to dispersing nanoparticles directly or formulating the oil with dispersant. Among the surface modification methods, the surface silanization method appears more reliable.

In comparison to the types of materials, oxides appear to have the longest stable time. Due to the abundance of the hydroxyl group on their surface, oxide is well suited to be modified by both surfactant and silane [115,125,130]. In existing reports, there was only one non-oxide nanoparticle additive suspended for more than 1 month [24]. This was made possible by adding surfactant to modify the precursors of WS₂ nanoparticles with oleyamin. This may suggest that the difficulty in forming a stable dispersion with non-oxide particles can be solved with suitable surface modification methods.

3. Theory

3.1. Some Basics

The dispersion of nanoparticles can be explained by colloidal theories [131]. The dispersed particles studied in colloidal science ranged between 1 nm and 1000 nm in size, a range which overlaps the size of nanoparticles.

In colloidal theories, the tendency in aggregation of nanoparticles was determined by two factors: the thermal agitation particles received from the solvent and the interaction between nanoparticles. The thermal agitation in the solvent has an energy of $K_{b}T$, where $K_b$ is Boltzmann constant and $T$ is temperature. This thermal agitation was shown to push the nanoparticles to move randomly in the solvent, causing the famous Brownian motion [132]. The interaction between particles resulted in the attractive and repulsive forces between two particles [132]. Stable dispersion formed when the thermal agitation overcame the attractive force between particles.

The DLVO (Derjaguin and Landau 1941, Verwey and Overbeek 1948) theory has been widely accepted to explain the colloidal stability of particles. It explained the dispersion stabilization through attractive van der Waals forces and repulsive screened electrostatic forces [132]. The van der Waals force originate from the polarization of particles. These polarized particles act as electric dipoles which attract each other and aggregate if no repulsive force exists. This tendency of aggregation is opposed by the electrostatic force between the particles. Although this force is weak in a non-polar solvent, it is enhanced through ion screening process in polar solvent [133,134]. However, the polarity of lubricants renders electrostatic stabilization difficult in lubricant oil. In the context of colloidal dispersion, the dielectric constant ($ϵ)$ can be used to measure polarity. In organic media, with $ϵ\le 5$ the electrostatic interaction is weak even when nanoparticles have surface charge [133,135]. Most lubricants’ dielectric constant are around 2.5 [136], far lower than the dielectric constants of water or other polar solvents. Thus, the surface charge of nanoparticles cannot improve dispersion in the lubricant oil. In some of the surveyed publications, $\zeta$-potential (surface potential) is characterized and used to reflect the dispersion stability [40,41,42]. However, it is incorrect for proving dispersion stability using this characterization because surface potential contributes little to the particles’ interactions in lubricant oil.

Another widely adapted theory is “steric stabilization” [137,138,139]. This theory states that a grafted particle generates a repulsive force when another particle approaches it. With sufficient repulsive force acting against the van der Waals potential, a balanced state is possible resulting stable suspension. In the following, further discussion about this theory is carried out.

3.2. Steric Stabilization

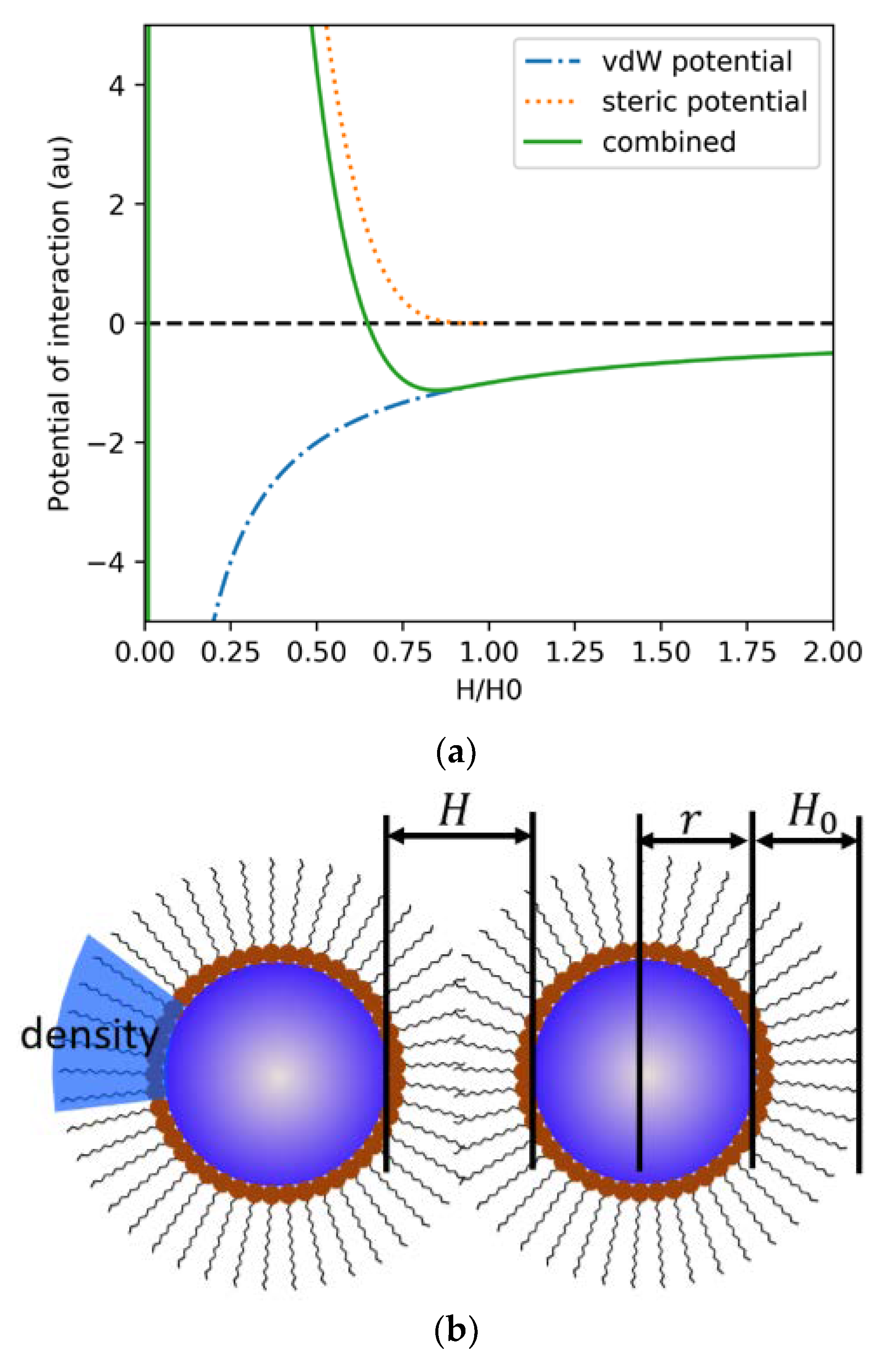

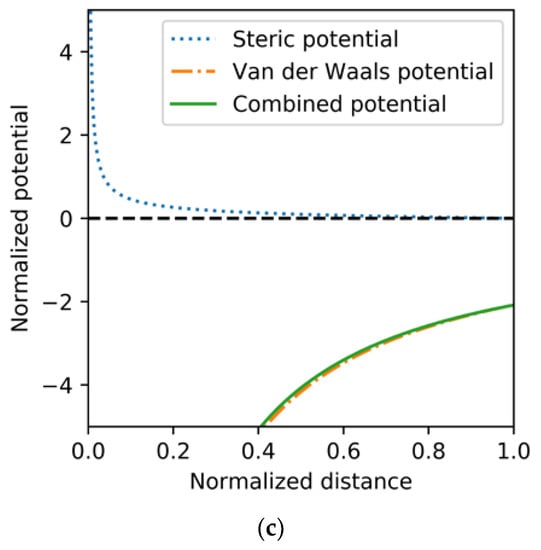

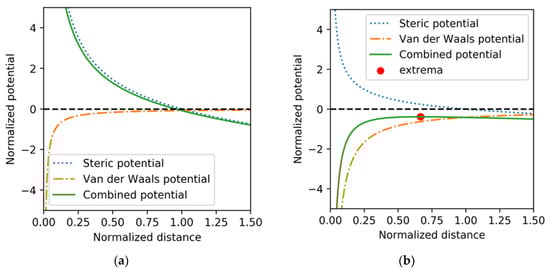

Steric stabilization is established by the balance between two forces: the van der Waals attractive force and the elastic steric force [137,138,139,140]. Although van der Waals force is complex in nature, a simplified form by Hamaker was used when analyzing colloidal systems [141]. Assuming the size of the nanoparticles are small compared with the average distance between them, we use London van der Waals potential [141]:

$$V_{vdw}\left(z,R\right)= -\frac{A}{6}\left(\frac{2R^2}{z^2-R^2}+\frac{2R^2}{z^2}+\ln \left(\frac{z^2-4R^2}{z^2}\right)\right)$$

(1)

Here $z$ is the distance between two particles’ centers, R is the radius of the particle and A is the effective Hamaker constant. The effective Hamaker constant can be approximated by the Hamaker constant of the particles and the medium [132]:

$$A=\left(\sqrt{A_{particle}}-\sqrt{A_{medium}}\right)$$

(2)

The nanoparticles have a Hamaker constant of ${10}^{-20}-{10}^{-19} \mathrm{J}$ [142] and the organic media has a Hamaker constant normally about ${10}^{-20}\mathrm{J}$ [143,144,145]. For example, the Hamaker constant of Silica in vacuum is $6.35\times {10}^{-20}\mathrm{J}$ [142]. Compared to inorganic compound, the metals have a larger Hamaker constant $22\times {10}^{-20}\mathrm{J}$ [146]. Their Hamaker constants also increases with decrease in size [147,148]. The Hamaker constant of a 5 nm sized Ag nanoparticle is $34\times {10}^{-20}\mathrm{J}$ [148], larger than that of bulk material. Thus, an effective Hamaker constant of ${10}^{-20}-{10}^{-19}\mathrm{J}$ is used to analyze the van der Waals attraction in lubricant oil.

The repulsive force originates from the deformation of the absorbed or grafted surface layer. When two particles with surface grafted layers approach, the surface layer deforms, and the conformation of the grafted molecule changes (Figure 6). This leads to the change of the free energy and the repulsive force [139]: $f=\frac{d\mathsf{\Delta }F}{dH}$, here, $f$ is the repulsive force, $\mathsf{\Delta }F$ is the free energy of the surface layer, and $H$ is the height of this polymer layer. In small deformations, the elastic potential between two approaching particles are (modified from Reference [139] Equation (54)):

$$\mathsf{\Delta }{V}_{steric}\cong \frac{d}{2} \left(\frac{H_0-H/2}{r}\right)\mathsf{\Delta }F\left(H/2\right) when H<2H_0$$

(3)

Here, $d$ is the density of grafted chains, $H_0$ is the thickness of the grafted layer, $r$ is particle radius, $\mathsf{\Delta }F$ is the free energy of one molecule, and H is the distance between particles. A potential well appears when van der Waals potential and steric potential are combined (Figure 6a). If the thermal agitation is larger than this potential well, a stable dispersion can be expected.

A qualitive analysis on Equation (3) leads to the major factor influencing steric stability: the size of the particles, the thickness of the surface layer, the density of grafted chains, and the free energy of the grafted chains. These factors are discussed in following sections.

3.3. Size Effects

The theoretical analysis from the previous chapter indicates that when the same surface modification is used, a reduction in the size of nanoparticles will decrease the attractive van der Waals force and increase the repulsive steric force. The result from the surfactant surface modification best illustrates this size effect. In Figure 7, the stable time of seven different research articles using a similar surfactant surface modification method is plotted against the size of the nanoparticle used in their research. It appears that the nanoparticles with a size smaller than 10 nm have better stability compared to the nanoparticles with a size larger than 10 nm.

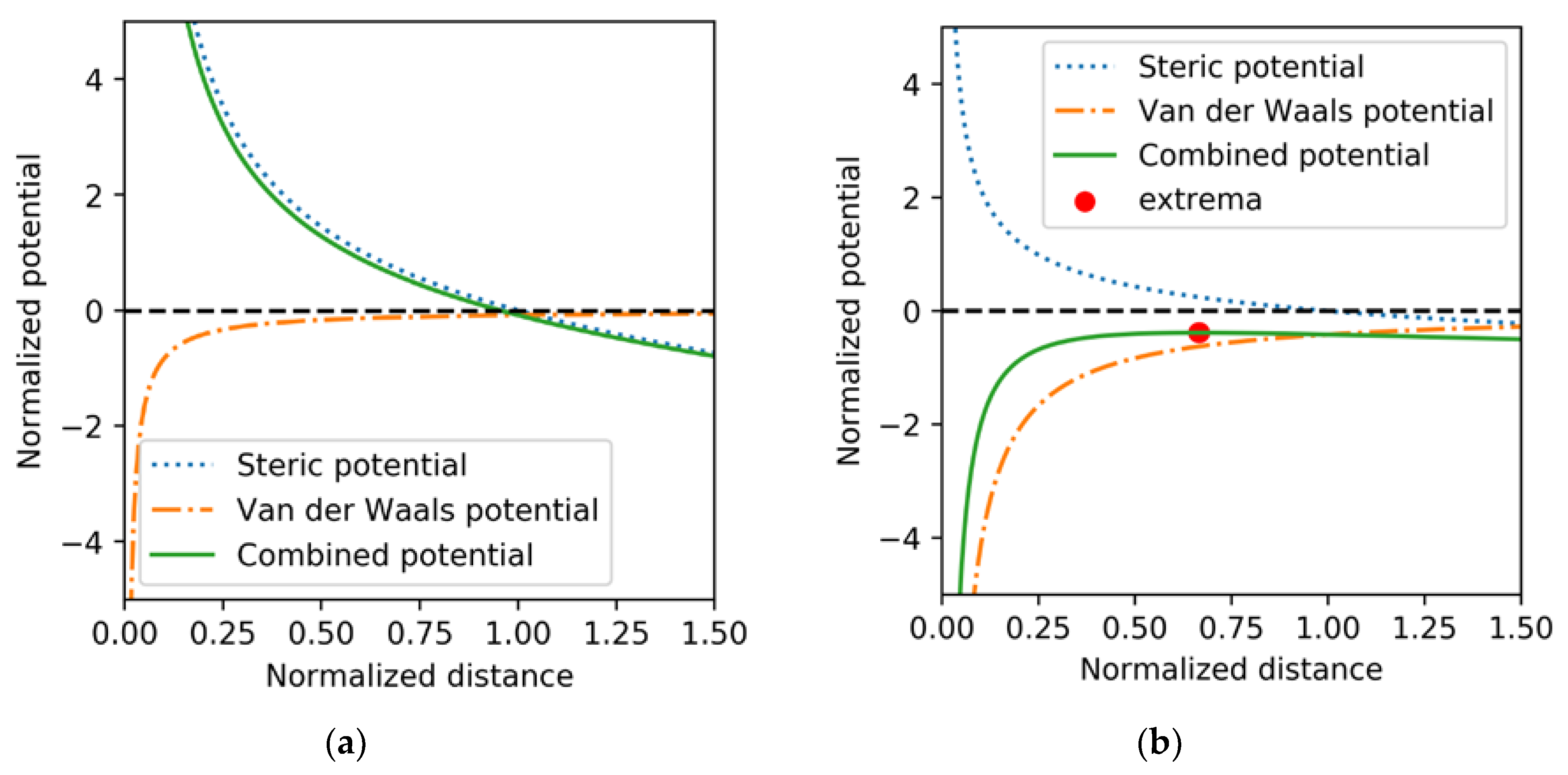

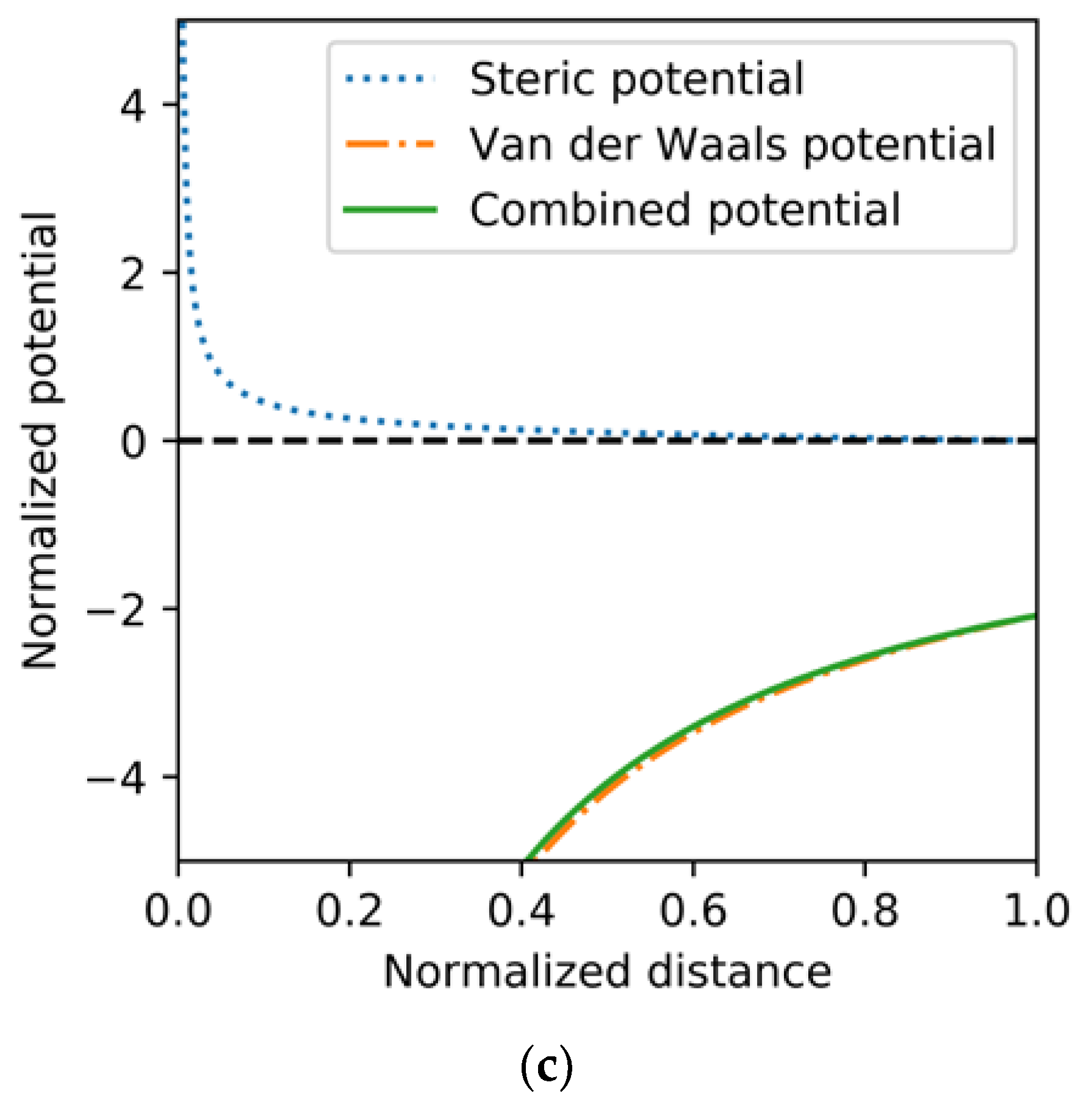

A simple estimation based on colloidal theory can explain this phenomenon. The potential well of the steric stabilization is correlated to the size of interacting particles. There is no elastic steric force beyond the thickness of the surface polymer layer. Thus, one minimum of the potential energy is around the thickness of the surface layer. The value of this minimum is smaller than the value of van der Waals potential. Only considering these two factors (surface layer thickness and van der Waals potential), an upper limit of the nanoparticle that can be stabilized by a surface layer of thickness $H_0$. The estimated upper limit of a nanoparticle is the root of R in:

$$V_{vdw}\left(H_0,R\right)-k_{b}T=0$$

(4)

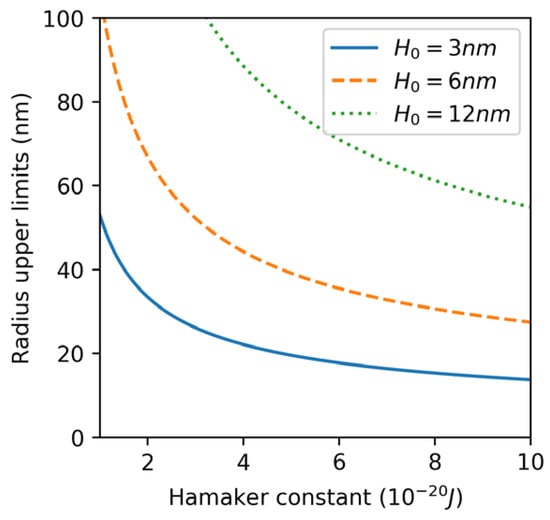

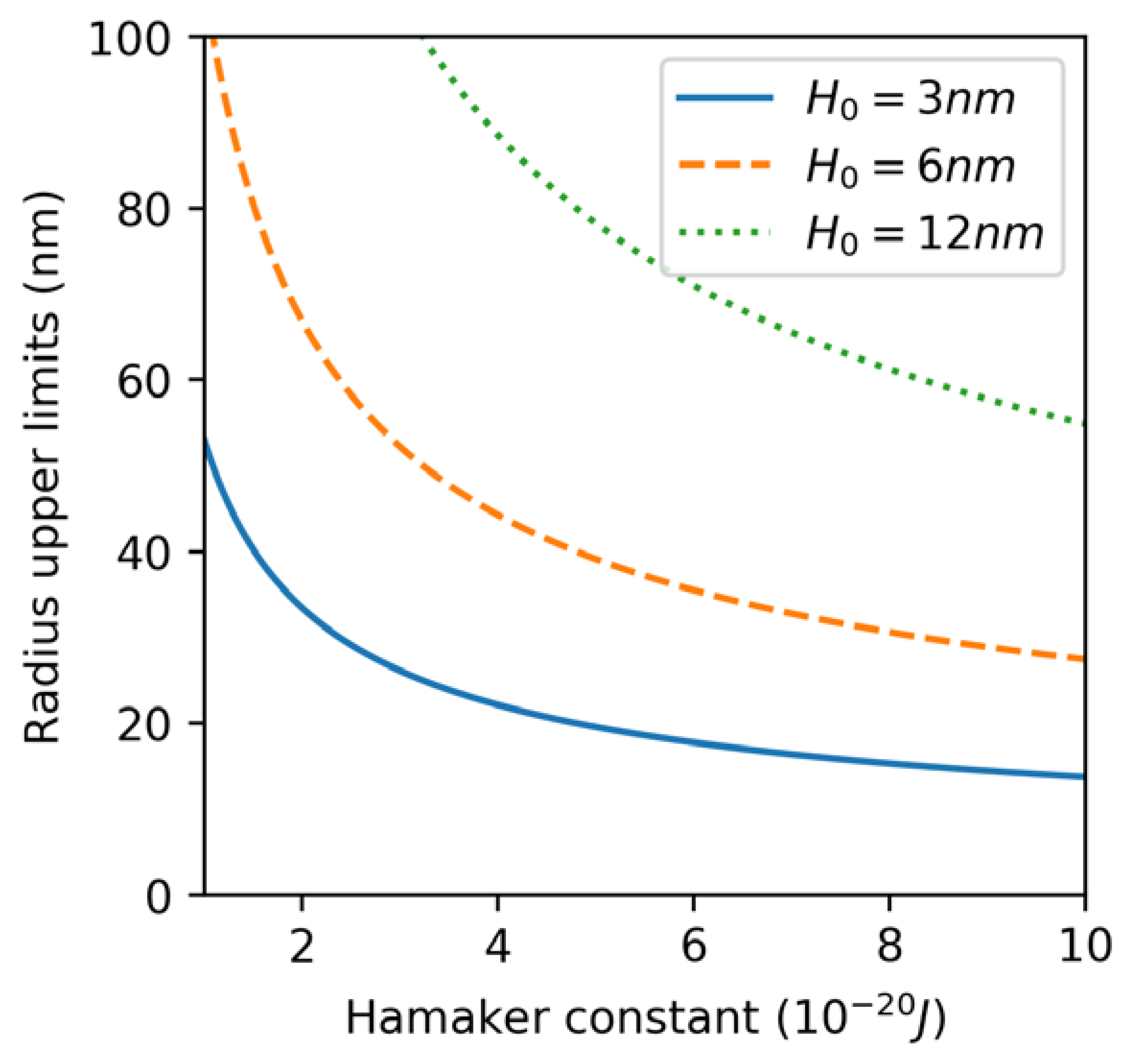

The surface layer thickness $H_0$ of surface modification by surfactant is about 3 nm [149,150]. The estimated upper limit is plotted in Figure 8. This estimation is in agreement with the literature surveyed in this paper (Table 1).

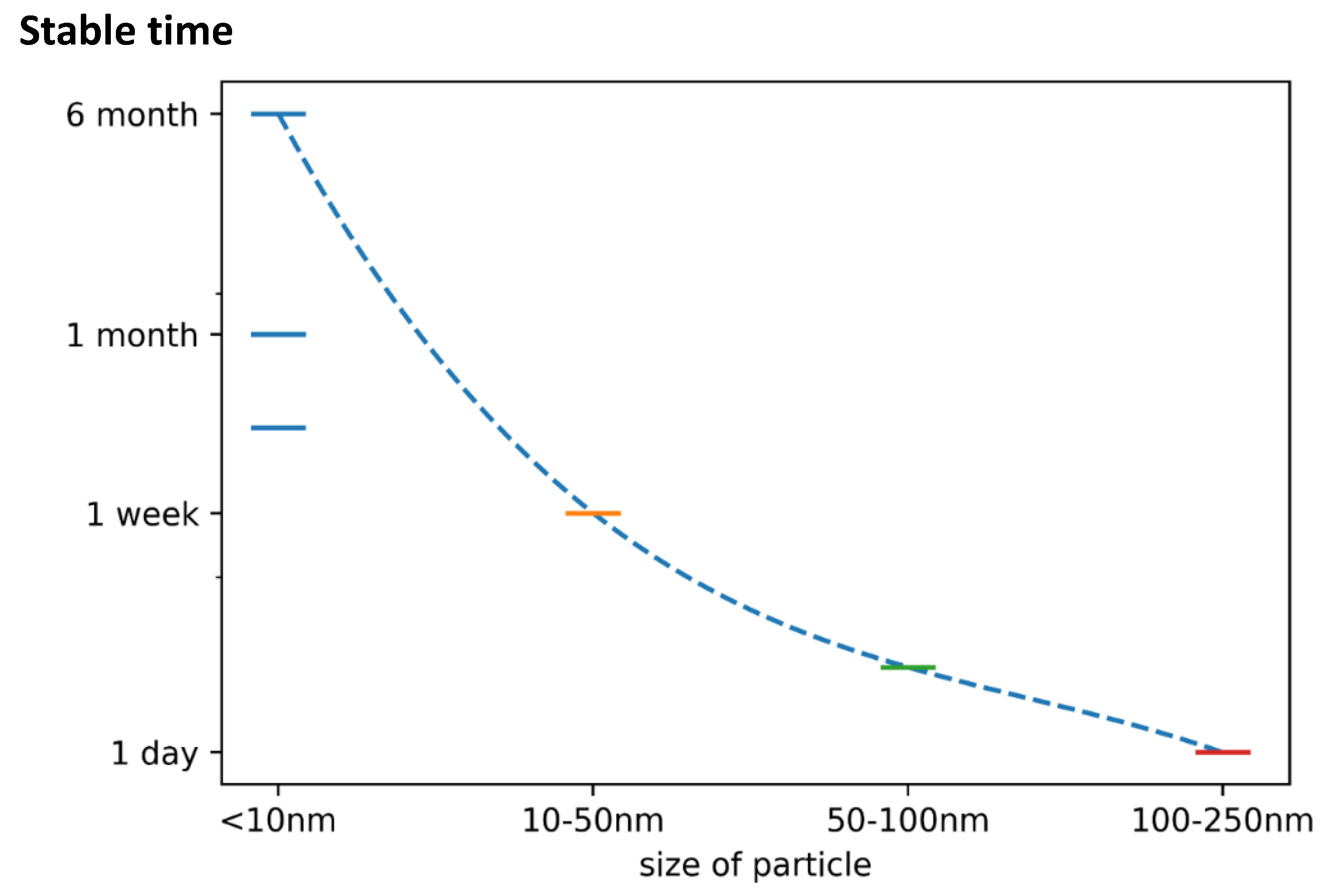

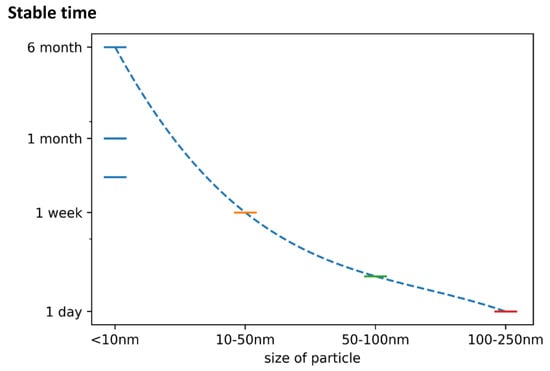

However, according to Figure 7, the nanoparticles with a radius less than 200 nm still have poor stability. Both the van der Waals and the steric forces need to be considered to explain this [139]. In Figure 9, the potential of particle–particle interaction is plotted against the distance between two particles. All three figures are based on the nanoparticles with the same parameters except the particle radius. The steric potential was calculated using models proposed in Reference [109]. In this figure, the potential is normalized by the free energy of the surface molecule layer, and distance is normalized by the thickness of the grafted layer under $\theta$ conditions. The diameter of the nanoparticle was the only different parameter in those three calculations. With the increase of nanoparticle size, the total repulsive force decreased until it totally vanished.

3.4. Grafted Surface Layers

The properties of the grafted layer are believed to influence the ability of nanoparticles to disperse in organic media [40,41,116,149]. For the same nanoparticle, a change in the grafting density, the thickness of the surface grafted layer or the free energy can alter the strength of the repulsive force in Equation (4).

The effectiveness of the surface modification method requires a sufficient grafting density. In the case of surfactant surface modification, an increase in the concentration of surfactant used has a positive impact on the dispersion stability [115,116,149]. When the nanoparticle reacted with the surfactant in the solvent, if the nanoparticle aggregated and does not fully react with the surfactant, its re-dispersity is impeded [114]. This is the reason why surface silanization is suitable for nanoparticles lager than 50 nm size. The high curvature of nanoparticles smaller than 30 nm leads to poor grafting density of silane [125]. This poor grafting density causes the low steric repulsion force, and the dispersion stability is reduced.

The chemical composition of the interface between nanoparticles and grafted layers can influence the grafting density and the stability of nanolubricants. Nanoparticles modified with silane provide overall better dispersion [16,19,21,40,41] compared with nanoparticles modified with surfactant [10,53,57,67,74,106]. Both silane and surfactant can react with the hydroxyl group to form a bond with the nanoparticle surface [115,116,149,151,152]. However, compared with surfactant, silane can fully react with the hydroxyl group on the surface of nanoparticles. In the case of silica nanoparticle treatment, the research using an oleic acid surface modification of the hydroxyl group did not fully react even with the excess amount of reactant [115]. In contrast, the silica nanoparticles modified with silane coupling agent have almost no hydroxyl group left after the reaction [151]. Moreover, the conformation of the grafted layer changes when the surface density increases [153]. The grafted layer had a “mushroom-like” conformation when the grafting is low but changes to “brush-like” with a high grafting density [153]. This results in a higher $\mathsf{\Delta }F\left(H\right)$ value in Equation (4), increasing the steric repulsive force.

Another factor affecting suspension is the chemical composition of the grafted molecule chain. Steric stabilization is far more effective when the dispersant is a good solvent of the molecules grafted on the nanoparticle [138,139]. A good solvent can also expand the grafted layer beyond the $\theta$-condition, resulting in a thicker layer with a higher interaction force [139]. The nanoparticles grafted with the alkyl group show better stability compared to nanoparticles grafted with the amino, phenyl or carboxyl groups [16,40]. This is due to the high-solubility of the alkyl group in the hydrocarbon lubricant [116]. Even changing the property of the end group of the grafted layer can alter the nanoparticles’ dispersion ability. ${\mathrm{Fe}}_3{\mathrm{O}}_4$ modified with oleic acid can disperse well in a non-polar solvent, but not in a polar solvent. Changing the end group of oleic acid to oleate reverses the dispersion behavior, resulting in a good dispersion in polar solvent instead of non-polar solvent [149].

According to Equation (3) and previous analysis of particle sizes, the thick surface layer is beneficial to the stability of nanoparticles (Figure 8). The study on ${\mathrm{TiO}}_2$ with amine surfactant found that increasing the number of carbon atoms in grafted surfactant from 3 to 12 increaseds the dispersity in a non-polar solvent [114]. However, both the surfactant surface modification method and the surface modification method result in a surface layer with similar thickness [122,149]. The only method which has significantly thicker surface layer is the SI-ATRP method. This method can graft the longest chain on the surface of nanoparticles [11,14]. This explains the high stability of nanoparticles modified by this method. Even in temperatures lower than −20 Celsius, the nanoparticle dispersion can stay stable for more than 2 months [11,14].

4. Conclusions

In this review, the approach and theory of nanoparticle dispersion in lubricant oils were critically analyzed. Dispersion of nanoparticles was studied using colloidal theory. The influence of material, particle size, and surface modification on dispersion were examined. The findings are summarized below.

Surface modification is essential to disperse nanoparticles into a lubricating oil. Theoretical analysis indicated that steric stabilization played important roles in oils, more so than other mechanisms due to the non-polar nature. Steric stabilization is promoted by formulating oil with a dispersant or particle modification to form an organic surface layer. However, the use of dispersant is limited because it hinders the friction modification of nanoparticles.

To obtain a stable suspension, it is essential for the surface of nanoparticles to have long alkyl chains with sufficient grafting density and thickness-to-size ratio. For particles with sizes under 50 nm, using surfactants to modify their surfaces results in desirable suspension. For oxide particles larger than 10 nm, surface silanization has a clear advantage because of its higher grafting density and versatility.
