The Tribological Behavior of Cast Iron by Laser Surface Texturing under Oil-Lubricated Initial Line Contact for Rotary Compressor
Abstract

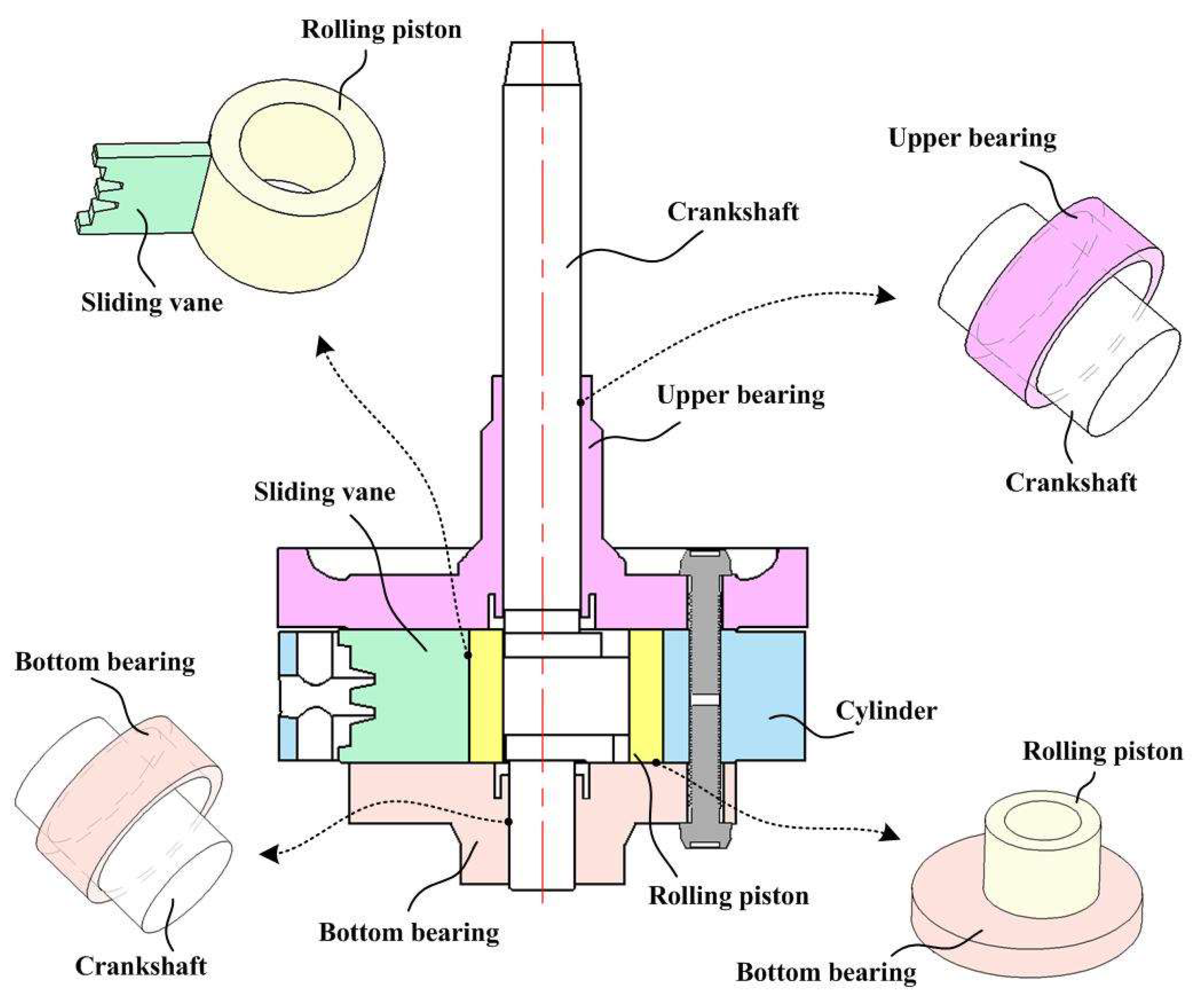

:1. Introduction
2. Tribological Experiments

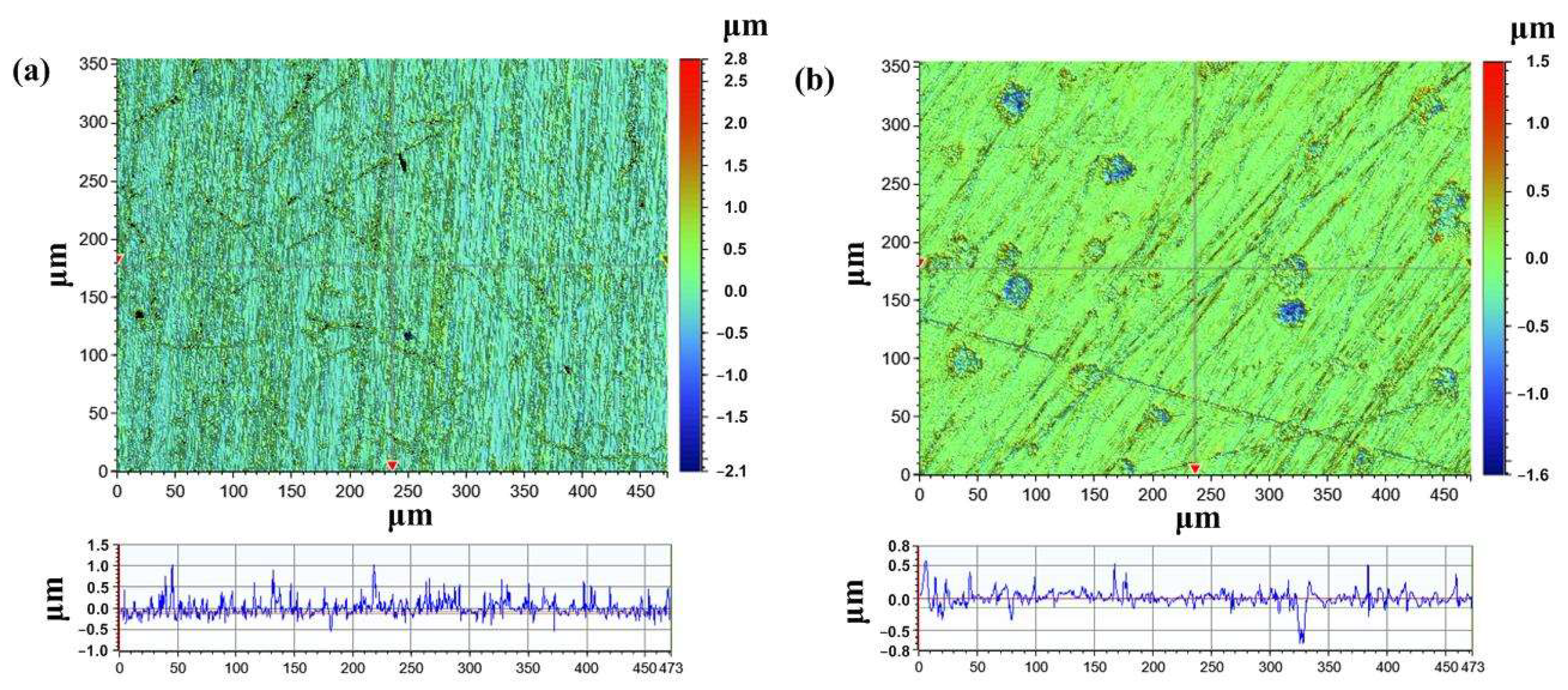

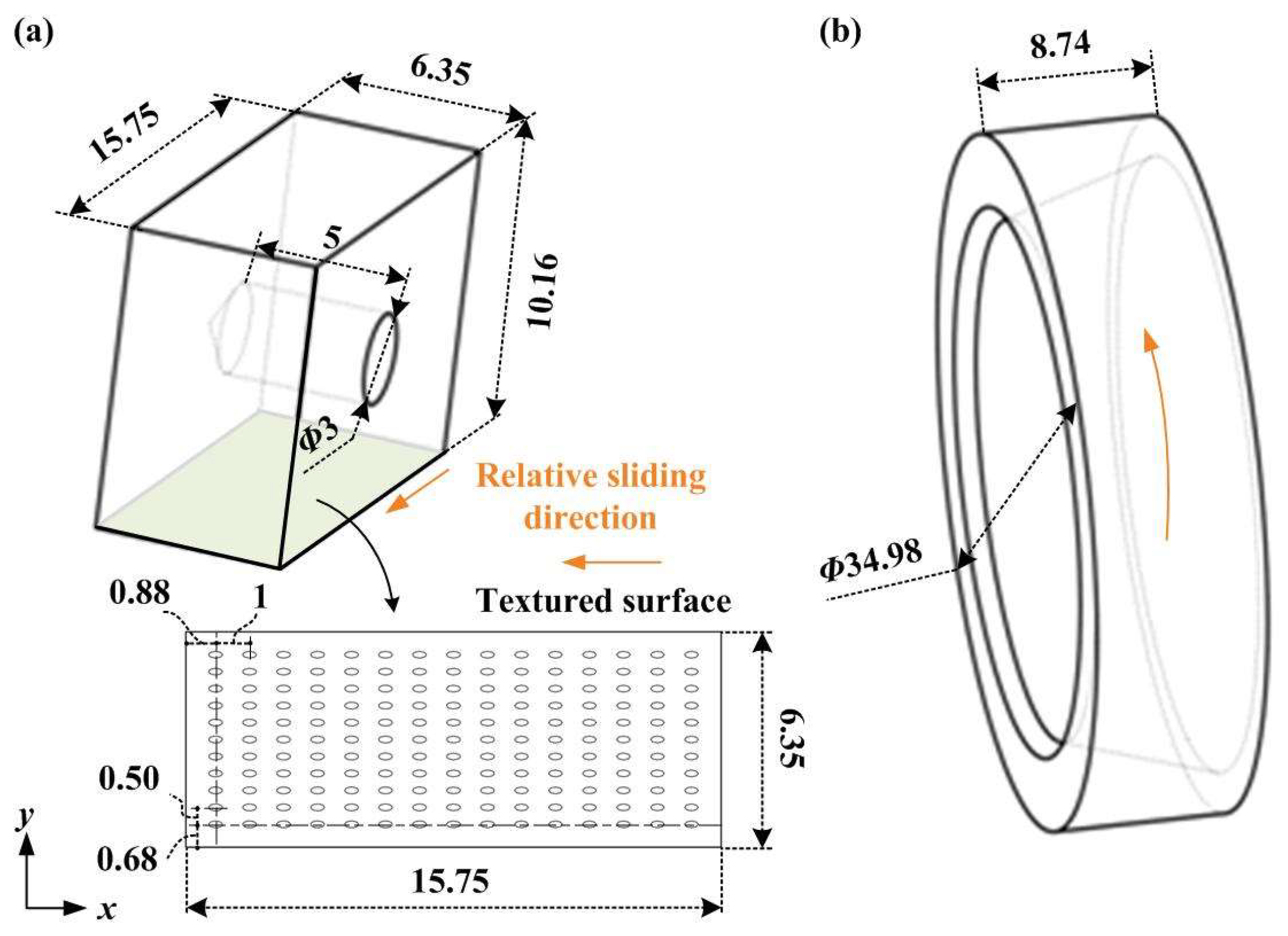

2.1. Samples

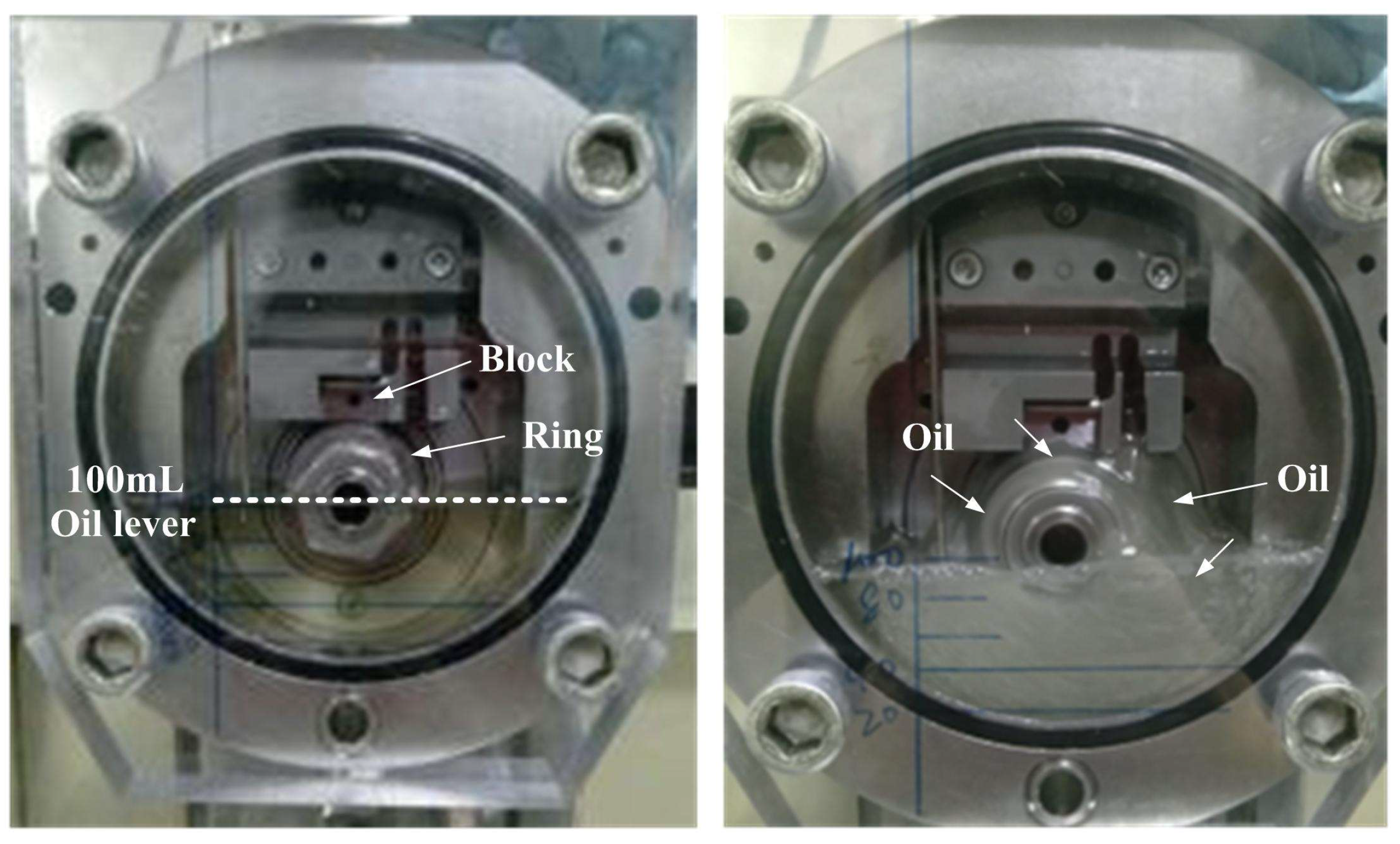

2.2. Testing Parameters
3. Results and Discussion

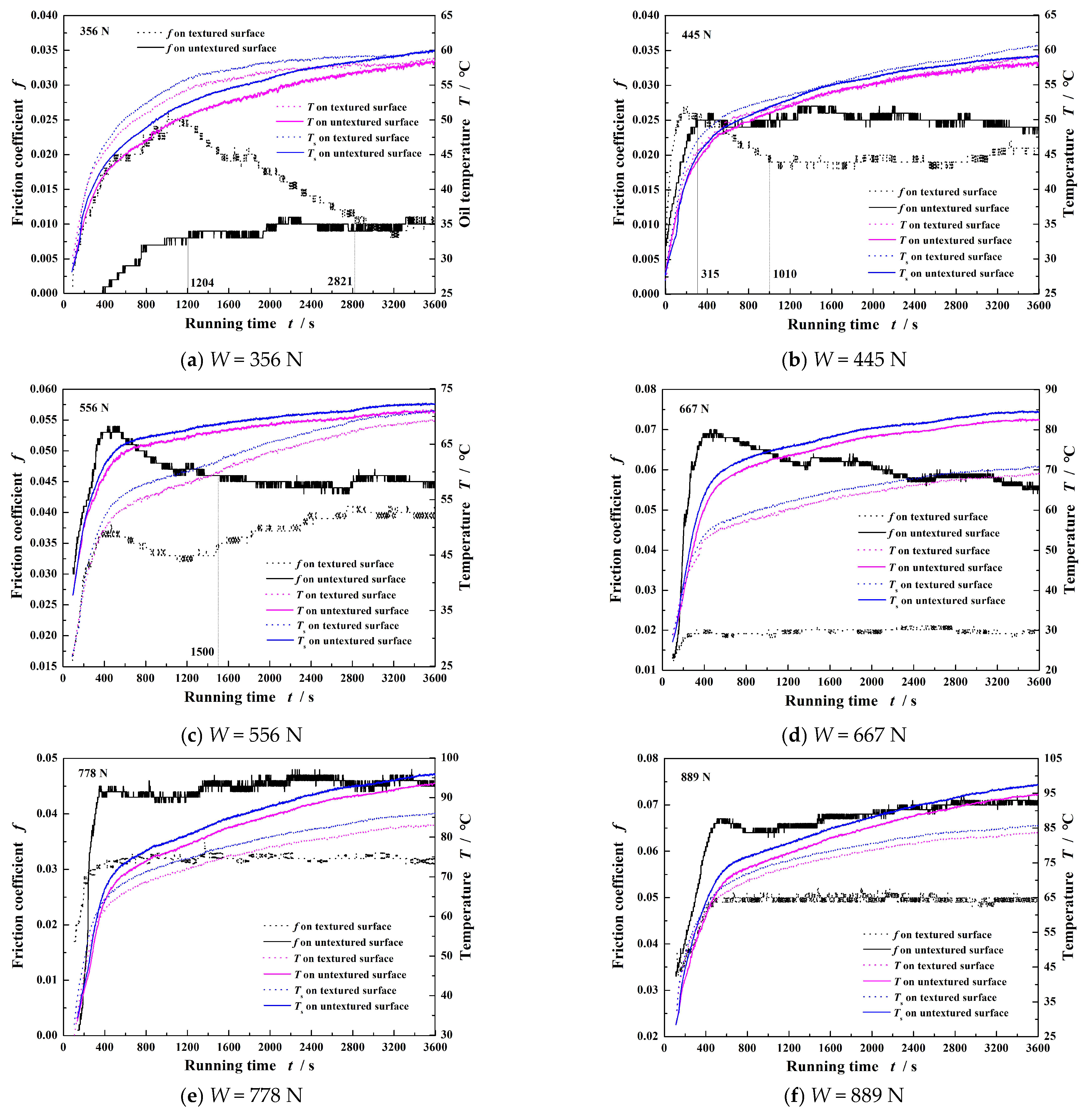

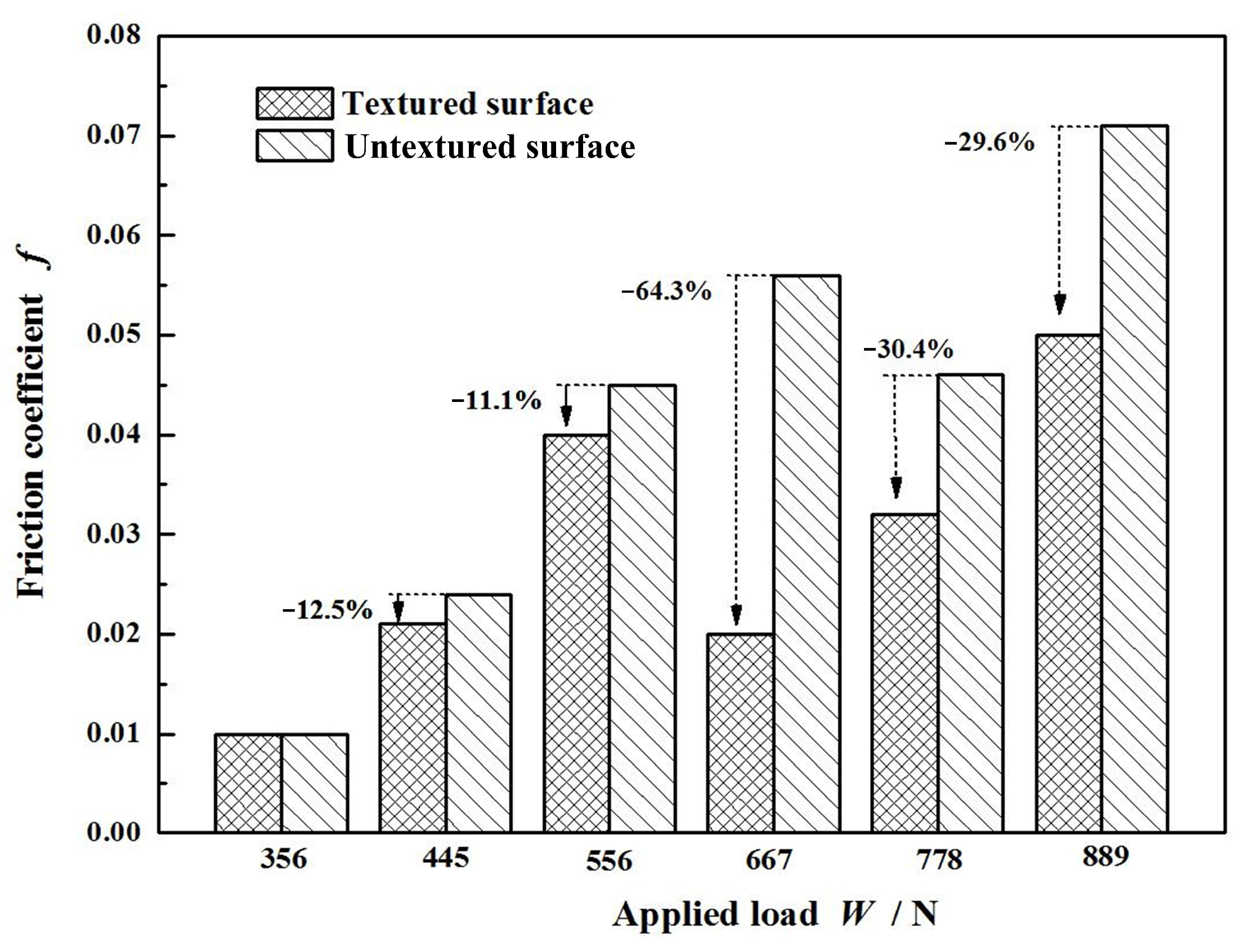

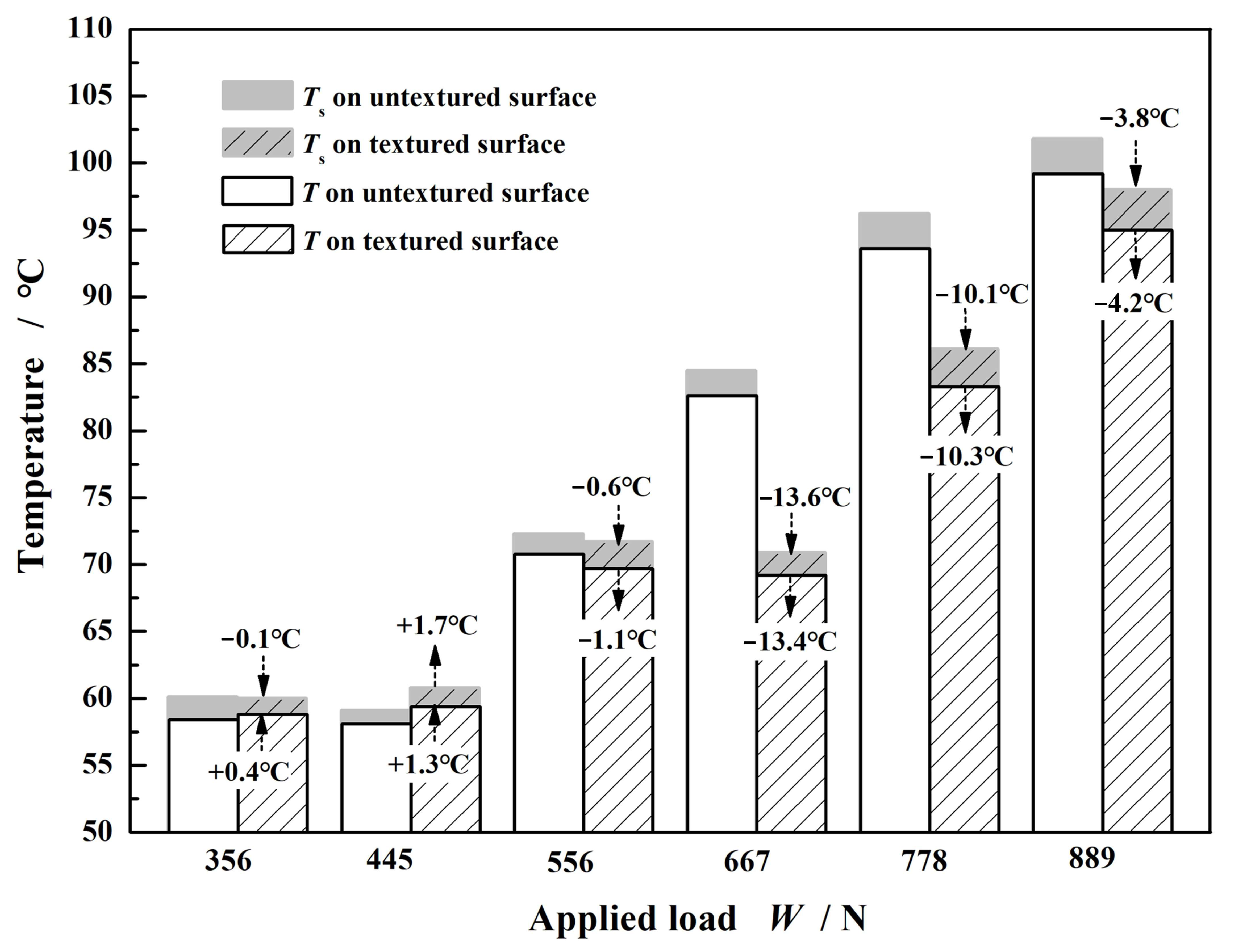

3.1. Friction Characteristics

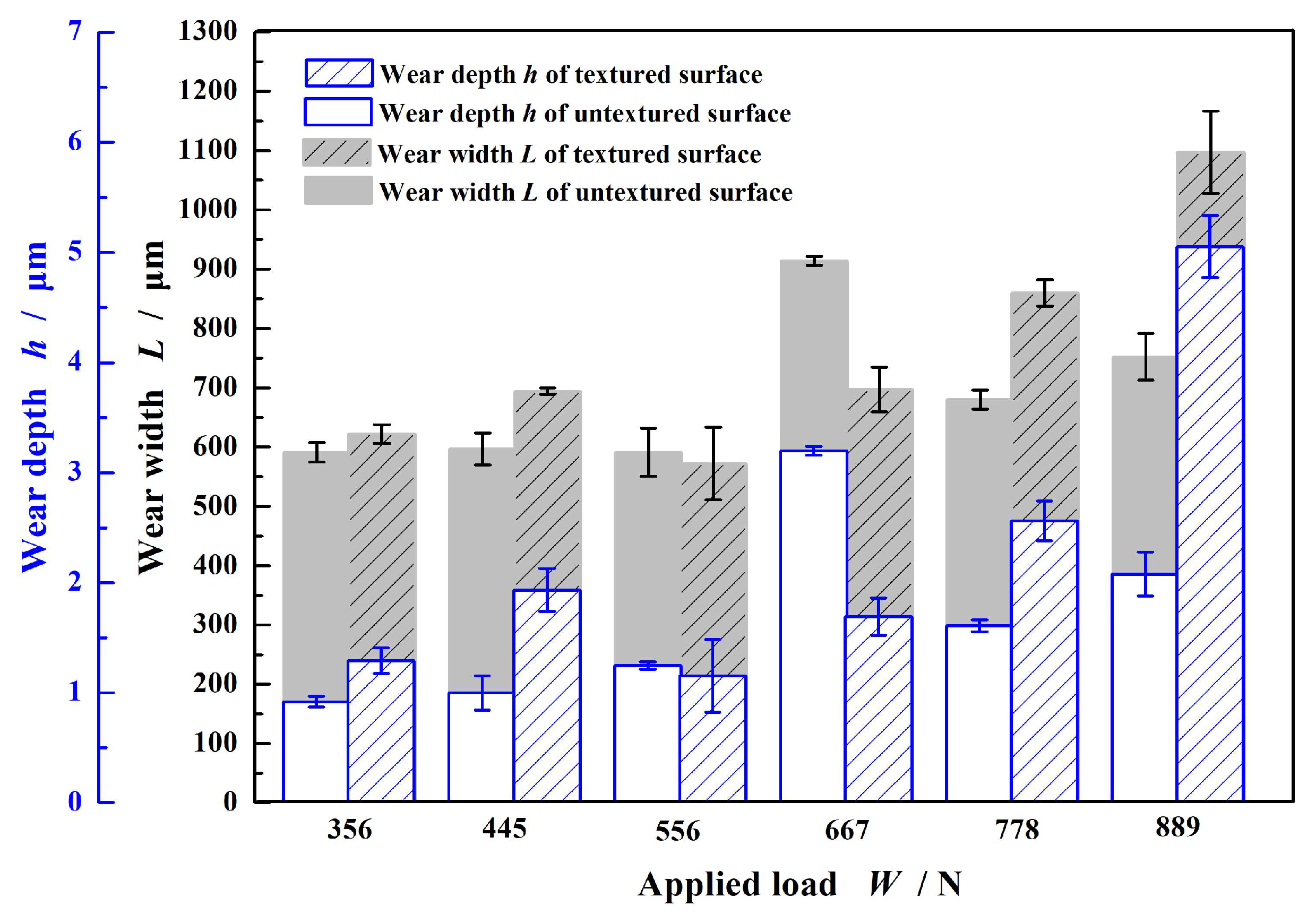

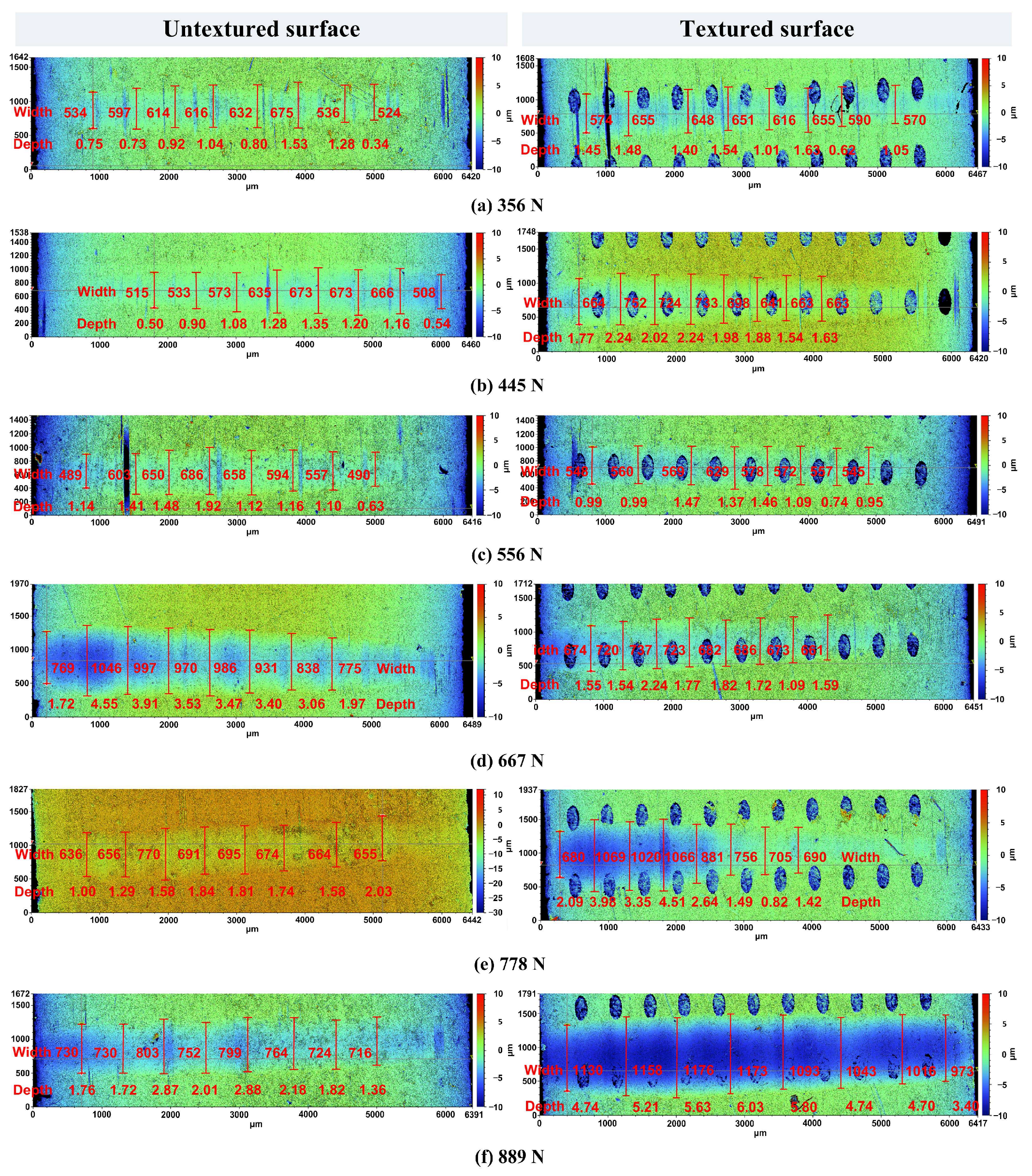

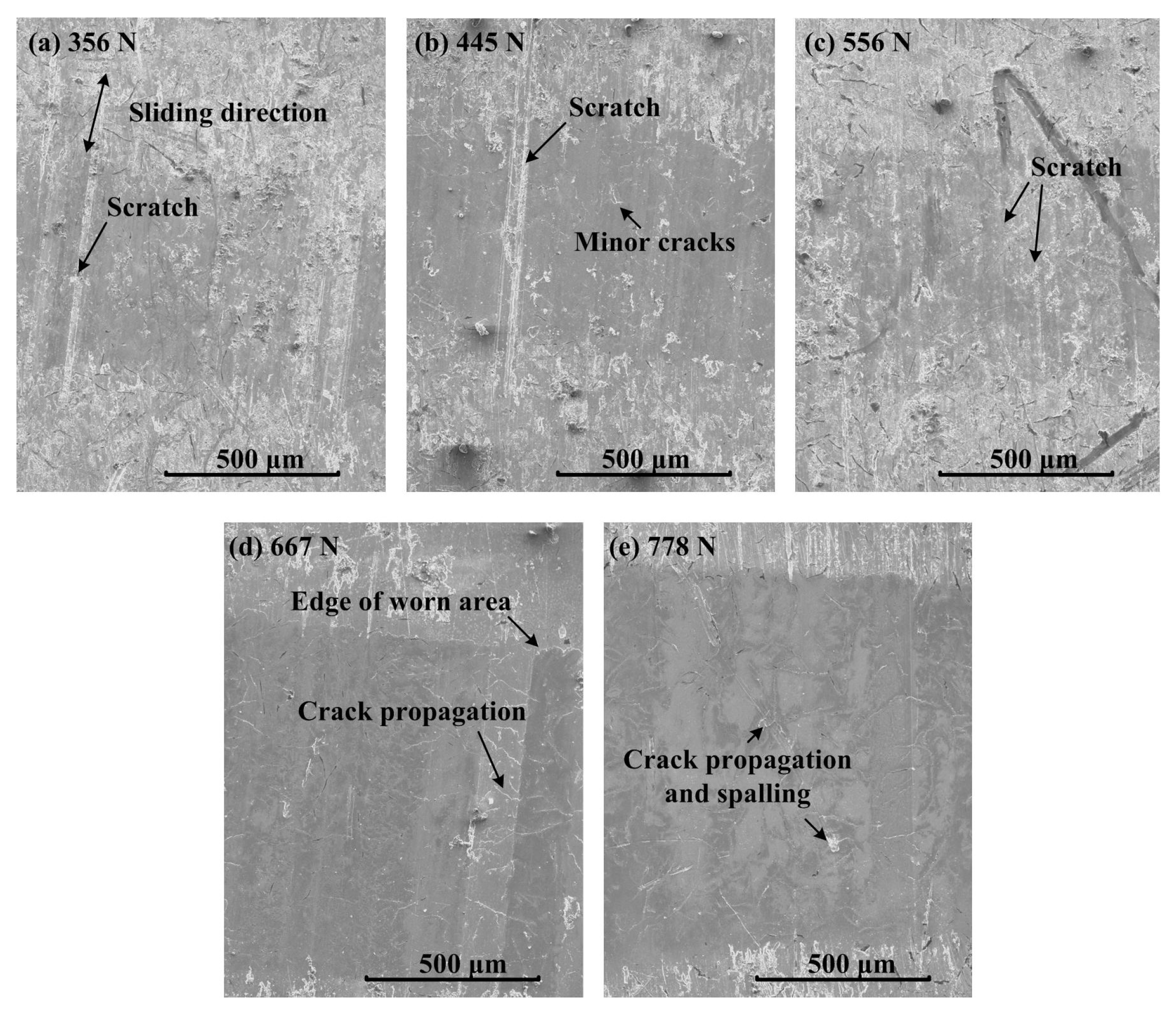

3.2. Wear Performances
4. Conclusions
- (1)
- The tribological improvement brought about by textured surfaces strongly depends on the contact form. For the oil-lubricated initial line contact in this study, the textured surface showed better frictional advantage with a lower friction coefficient and slower temperature rise. The advantage gradually expanded with the increase in the applied load. The friction coefficients on the textured surface were 11~64% lower than the friction coefficients on the untextured one. However, the textured surface deteriorated in terms of the wear behavior with a greater wear depth and width; namely, the laser surface texturing (LST) did not improve the wear resistance.
- (2)

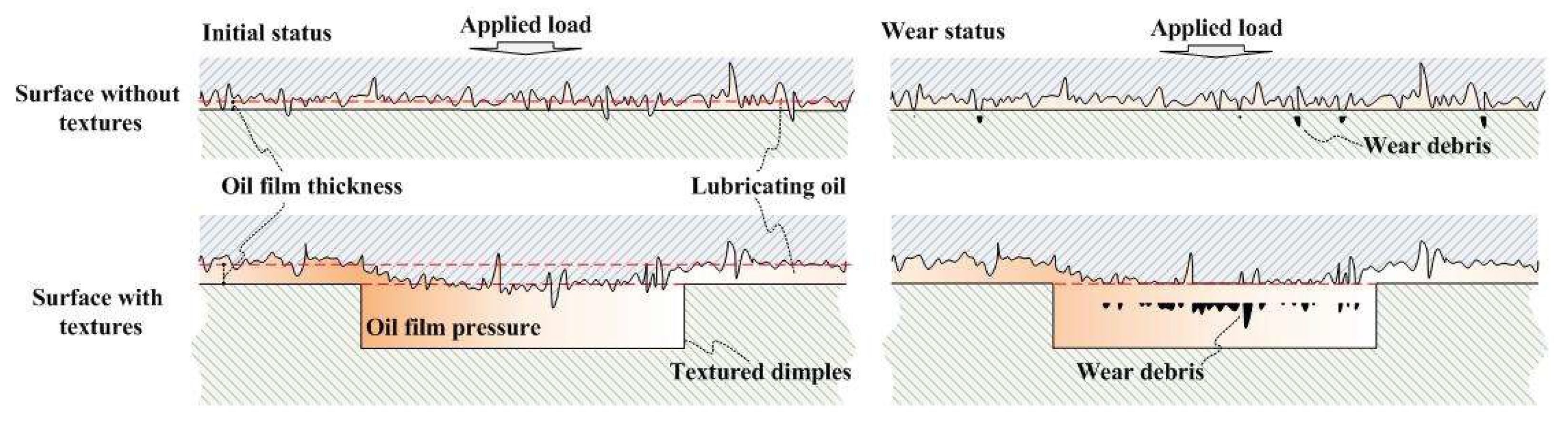

- The textured micro-dimples generated a hydrodynamic effect to enhance the load-carrying capacity of the oil film and increase the film thickness, thus reducing the friction coefficient. However, the coupling effect between the material deformations of counter surface and the micro-cutting effect of the texture edges generated repetitive cutting wear between the textured region and its counter region, which caused more severe wear loss than for the untextured one. The abrasive wear and fatigue wear were the dominant wear mechanisms.
- (3)
- Differing from wide applications in face contact, for the initial line contact, laser surface texturing has the potential to reduce the friction power consumption in refrigeration and air-conditioning compressors. But it needs to avoid direct contact and collision with the high applied load between friction pairs for material reliability and durability. The coupling processing of the textured surface and a protective surface coating is an important way to keep the friction reduction and improve the wear resistance.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Gropper, D.; Wang, L.; Harvey, T.J. Hydrodynamic lubrication of textured surfaces: A review of modeling techniques and key findings. Tribol. Int. 2016, 94, 509–529. [Google Scholar] [CrossRef]
- Etsion, I.; Halperin, G. A laser surface textured hydrostatic mechanical seals. Tribol. Trans. 2002, 45, 430–434. [Google Scholar] [CrossRef]
- Podgornik, B.; Vilhena, L.M.; Sedlacek, M.; Rek, Z.; Zun, I. Effectiveness and design of surface texturing for different lubrication regimes. Meccanica 2012, 47, 1613–1622. [Google Scholar] [CrossRef]
- Liew, K.W.; Kok, C.K.; Ervina, M.N. Effect of EDM dimple geometry on friction reduction under boundary and mixed lubrication. Tribol. Int. 2016, 101, 1–9. [Google Scholar] [CrossRef]
- Braun, D.; Greiner, C.; Schneider, J.; Gumbsch, P. Efficiency of laser surface texturing in the reduction of friction under mixed lubrication. Tribol. Int. 2014, 77, 142–147. [Google Scholar] [CrossRef]
- Meng, Y.; Deng, J.X.; Zhang, Y.; Wang, S.J.; Li, X.M.; Yue, H.Z.; Ge, D.L. Tribological properties of textured surfaces fabricated on AISI 1045 steels by ultrasonic surface rolling under dry reciprocating sliding. Wear 2020, 460, 203488. [Google Scholar] [CrossRef]
- Xing, Y.Q.; Deng, J.X.; Wu, Z.; Wu, F.F. High friction and low wear properties of laser-textured ceramic surface under dry friction. Opt. Laser Technol. 2017, 93, 24–32. [Google Scholar] [CrossRef]
- Yu, H.W.; Wang, X.L.; Zhou, F. Geometric shape effects of surface texture on the generation of hydrodynamic pressure between conformal contacting surfaces. Tribol. Lett. 2010, 37, 123–130. [Google Scholar] [CrossRef]
- Kovalchenko, A.; Ajayi, O.; Erdemir, A.; Fenske, G.; Etsion, I. The effect of laser surface texturing on transitions in lubrication regimes during unidirectional sliding contact. Tribol. Int. 2005, 38, 219–225. [Google Scholar] [CrossRef]
- Cho, M. Effect of contact configuration on the tribological performance of micro-textured AISI 1045 steel under oscillating conditions. Mater. Trans. 2014, 55, 363–370. [Google Scholar] [CrossRef]
- Arslan, A.; Masjuki, H.H.; Kalam, M.A.; Varman, M.; Mosarof, M.H.; Mufti, R.A.; Quazi, M.M.; Khuong, L.S.; Liaqat, M.; Jamshaid, M.; et al. Investigation of laser texture density and diameter on the tribological behavior of hydrogenated DLC coating with line contact configuration. Surf. Coat. Technol. 2017, 322, 31–37. [Google Scholar] [CrossRef]
- Kovalchenko, A.; Ajayi, O.; Erdemir, A.; Fenske, G. Friction and wear behavior of laser textured surface under lubricated initial point contact. Wear 2011, 271, 1719–1725. [Google Scholar] [CrossRef]
- Nunez, E.E.; Gheisari, R.; Polycarpou, A.A. Tribology review of blended bulk polymers and their coatings for high-load bearing applications. Tribol. Int. 2019, 129, 92–111. [Google Scholar] [CrossRef]
- Ji, L.T.; He, Z.L.; Han, Y.X.; Chen, W.Q.; Xing, Z.W. Investigation on the performance improvement of the scroll compressor by DLC film. IOP Conf. Ser. Mater. Sci. Eng. 2019, 604, 012078. [Google Scholar] [CrossRef]
- Park, S.Y.; Lee, J.; Heo, J.T.; Lee, G.B.; Kim, H.H.; Choi, B.H. Assessment of fatigue lifetime and characterization of fatigue crack behavior of aluminium scroll compressor using C-specimen. Appl. Sci. 2020, 10, 3226. [Google Scholar] [CrossRef]
- He, Z.L.; Ji, L.T.; Xing, Z.W. Experimental investigation on the DLC film coating technology in scroll compressors of automobile air conditioning. Energies 2020, 13, 5103. [Google Scholar] [CrossRef]
- Solzak, T.A.; Polycarpou, A.A. Tribology of WC/C coatings for use in oil-less piston-type compressors. Surf. Coat. Technol. 2006, 201, 4260–4265. [Google Scholar] [CrossRef]
- De Mello, J.D.B.; Binder, R.; Demas, N.G.; Polycarpou, A.A. Effect of the actual environment present in hermetic compressors on the tribological behavior of a Si-rich multifunctional DLC coating. Wear 2009, 267, 907–915. [Google Scholar] [CrossRef]
- Liu, Y.G.; Hung, C.H.; Chang, Y.C. Design optimization of scroll compressor applied for frictional losses evaluation. Int. J. Refrig. 2010, 33, 615–624. [Google Scholar] [CrossRef]
- Meng, Y.G.; Xu, J.; Jin, Z.M.; Prakash, B.; Hu, Y.Z. A review of recent advances in tribology. Friction 2020, 8, 221–300. [Google Scholar] [CrossRef]
- Ryk, G.; Etsion, I. Testing piston rings with partial laser surface texturing for friction reduction. Wear 2006, 261, 792–796. [Google Scholar] [CrossRef]
- Wang, R.; Bai, S.X. Modeling and experimental analysis of thermocapillary effect on laser grooved surfaces at high temperature. Appl. Surf. Sci. 2019, 465, 41–47. [Google Scholar] [CrossRef]
- Yu, H.W.; Huang, W.; Wang, X.L. Dimple patterns design for different circumstances. Lubr. Sci. 2013, 25, 67–78. [Google Scholar] [CrossRef]
- Galda, L.; Pawlus, P.; Sep, J. Dimples shape and distribution effect on characteristics of Stribeck curve. Tribol. Int. 2009, 42, 1505–1512. [Google Scholar] [CrossRef]
- Li, D.; Yang, X.F.; Lu, C.Y.; Cheng, J.; Wang, S.R.; Wang, Y.J. Tribological characteristics of a cemented carbide friction surface with chevron pattern micro-texture based on different texture density. Tribol. Int. 2020, 142, 106016. [Google Scholar]
- Tala-Ighil, N.; Fillon, M.; Maspeyrot, P. Effect of textured area on the performances of a hydrodynamic journal bearing. Tribol. Int. 2011, 44, 211–219. [Google Scholar] [CrossRef]
- Andersson, P.; Koskinen, J.; Varjus, S.; Gerbig, Y.; Haefke, H.; Georgiou, S.; Zhmud, B.; Buss, W. Microlubrication effect by laser-textured steel surfaces. Wear 2007, 262, 369–379. [Google Scholar] [CrossRef]
- Zhang, N.; Yang, F.Z.; Jiang, F.L.; Zhang, Y.; Liu, G.H. Investigation of tribological performance of micro-groove textured cemented carbide surfaces. Surf. Eng. 2019, 36, 1190–1199. [Google Scholar] [CrossRef]
- Bai, L.Q.; Bai, S.X. Frictional performance of a textured surface with elliptical dimples: Geometric and distribution effects. Tribol. Trans. 2014, 57, 1122–1128. [Google Scholar] [CrossRef]
- He, D.Q.; He, C.; Li, W.S.; Shang, L.L.; Wang, L.P.; Zhang, G.G. Tribological behaviors of in-situ textured DLC films under dry and lubricated conditions. Appl. Surf. Sci. 2020, 525, 146581. [Google Scholar] [CrossRef]
- Yang, J.; Fu, H.; He, Y.Y.; Gu, Z.H.; Fu, Y.H.; Ji, J.H.; Zhang, Y.H.; Zhou, Y. Investigation on friction and wear performance of volcano-shaped textured PVD coating. Surf. Coat. Technol. 2022, 431, 128044. [Google Scholar] [CrossRef]
- Ding, S.P.; Xu, J.; Liu, P.F.; Shi, Z.L.; Yang, O.X.; Hu, Y.P. Geometric influence on friction and wear performance of cast iron with a micro-dimpled surface. Results Eng. 2021, 9, 100211. [Google Scholar] [CrossRef]
- Zhan, X.H.; Yi, P.; Liu, Y.C.; Xiao, P.F.; Zhu, X.Y.; Ma, J. Effects of single- and multi-shape laser-textured surfaces on tribological properties under dry friction. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2020, 234, 1382–1392. [Google Scholar] [CrossRef]
- Liu, K.; Liu, Z.Q.; Khan, A.M.; Chen, L.X.; Zhao, M. Effects of the inclination angles of DLC end face micro-texture on the tribological properties of dry gas seal rings. Surf. Topogr. Metrol. 2021, 9, 045014. [Google Scholar] [CrossRef]
- Hao, L.C.; Meng, Y.G. Numerical prediction of wear process of an initial line contact in mixed lubrication conditions. Tribol. Lett. 2015, 60, 31. [Google Scholar] [CrossRef]
- Hao, L.C.; Meng, Y.G.; Chen, C. Experimental investigation on effects of surface texturing on lubrication of initial line contacts. Lubr. Sci. 2014, 26, 363–373. [Google Scholar] [CrossRef]
- Da Silva, L.R.R.; Costa, H.L. Tribological behavior of gray cast iron textured by maskless electrochemical texturing. Wear 2017, 376, 1601–1610. [Google Scholar] [CrossRef]
- Meylan, B.; Saeidi, F.; Wasmer, K. Effect of surface texturing on cast iron reciprocating against steel under cyclic loading in boundary and mixed lubrication conditions. Lubricants 2018, 6, 2. [Google Scholar] [CrossRef]
- Nagata, S.; Kohsokabe, H.; Sekiyama, N. A low friction thrust bearing for reciprocating compressors. In Proceedings of the International Compressor Engineering Conference, West Lafayette, IN, USA, 16–19 July 2012; p. 1160. [Google Scholar]
- Mishra, S.P.; Polycarpou, A.A. Tribological studies of unpolished laser surface textures under starved lubrication conditions for use in air-conditioning and refrigeration compressors. Tribol. Int. 2011, 44, 1890–1901. [Google Scholar] [CrossRef]
- Lyu, B.G.; Jing, L.L.; Meng, X.H.; Liu, R.C. Texture optimization and verification for the thrust bearing used in rotary compressors based on a transient tribo-dynamics model. ASME J. Tribol. 2022, 144, 081801. [Google Scholar] [CrossRef]
- Ding, S.P.; Wei, H.J.; Yang, O.X.; Wang, J.; Mu, D.; Hu, Y.P. Tribological behavior and applicability analysis of cast iron and iron-based powder metallurgy for rolling piston rotary compressor under different applied loads. J. Braz. Soc. Mech. Sci. Eng. 2023, 45, 4. [Google Scholar] [CrossRef]
- Wakuda, M.; Yamauchi, Y.; Kanzaki, S.; Yasuda, Y. Effect of surface texturing on friction reduction between ceramicand steel materials under lubricated sliding contact. Wear 2003, 254, 356–363. [Google Scholar] [CrossRef]

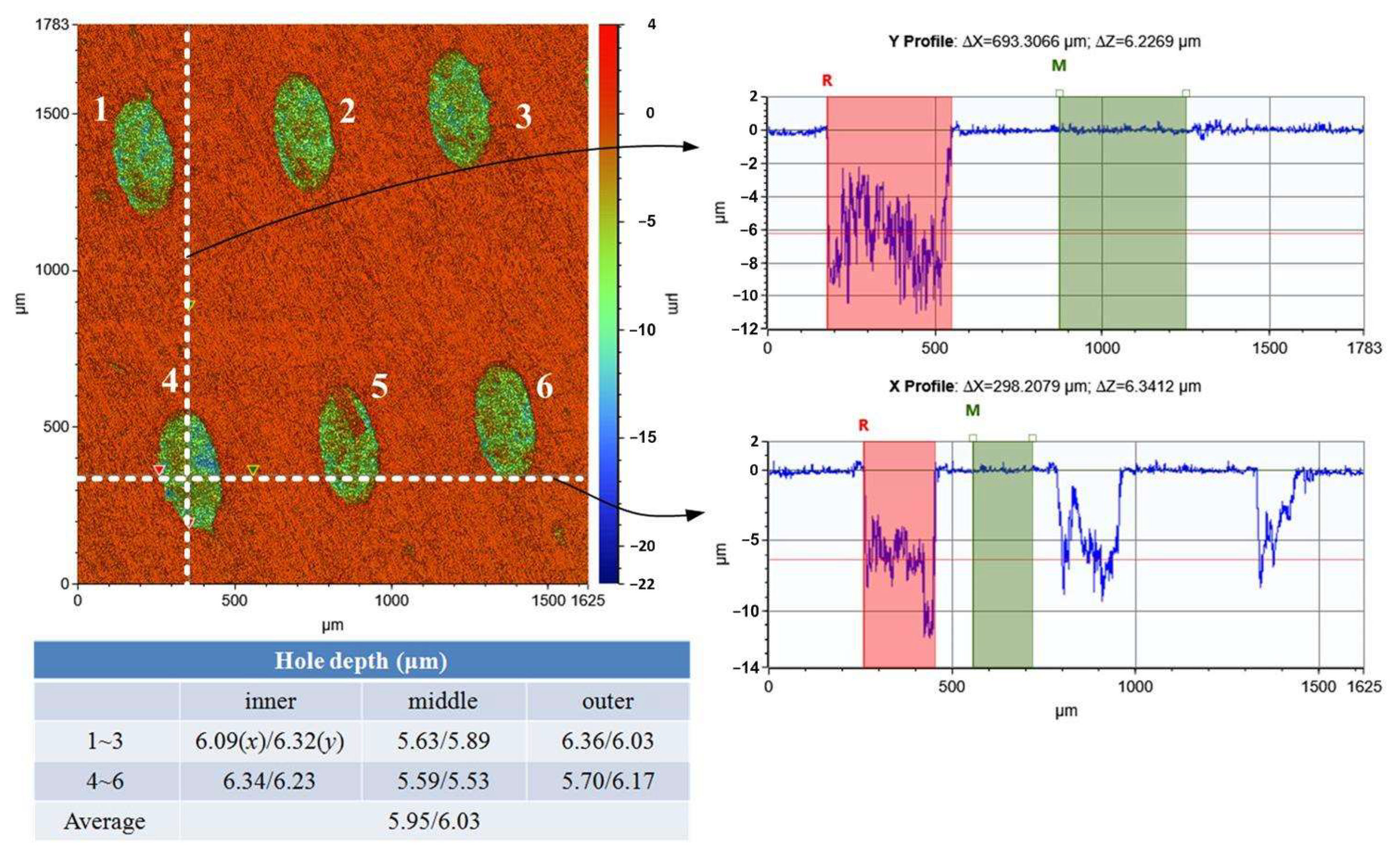

No. | Designed Depth/μm | Dimple Diameter/mm | Dimple Area Density | Dimple Numbers | Dimple Patterns | ||
---|---|---|---|---|---|---|---|
Major | Minor | x-Direction | y-Direction | ||||
1# | -- | -- | -- | -- | -- | -- | Untextured |
2# | 6.0 | 0.4 | 0.2 | 10.36% | 15 | 11 | Ellipse |

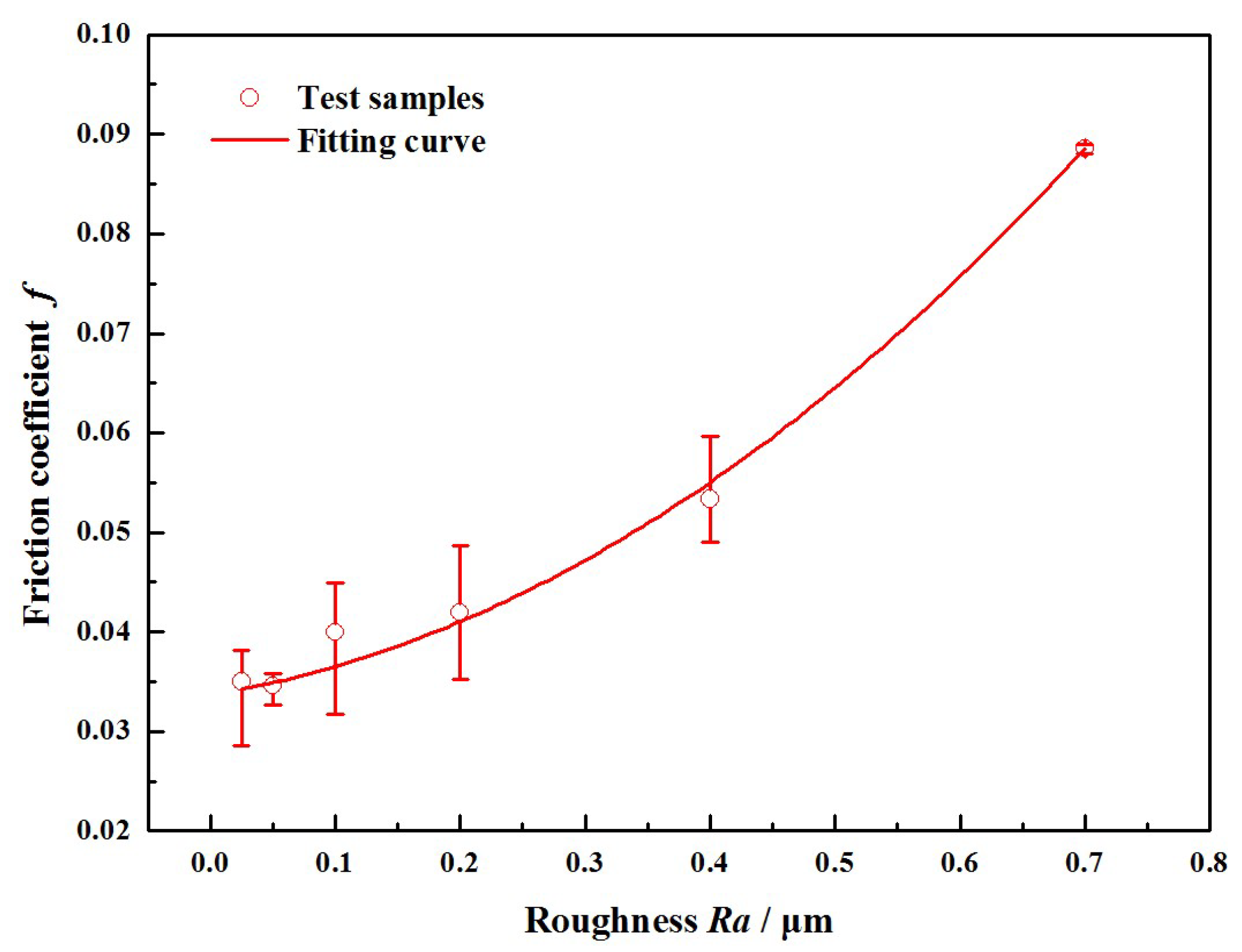

Specimen Numbers | Test 1# | Test 2# | Test 3# | Average Value |
---|---|---|---|---|
No. 1# | 0.136 | 0.127 | 0.138 | 0.134 |
No. 2# | 0.139 | 0.143 | 0.128 | 0.137 |
No. 3# | 0.122 | 0.135 | 0.133 | 0.130 |
No. 4# | 0.130 | 0.121 | 0.127 | 0.126 |
No. 5# | 0.114 | 0.138 | 0.129 | 0.127 |

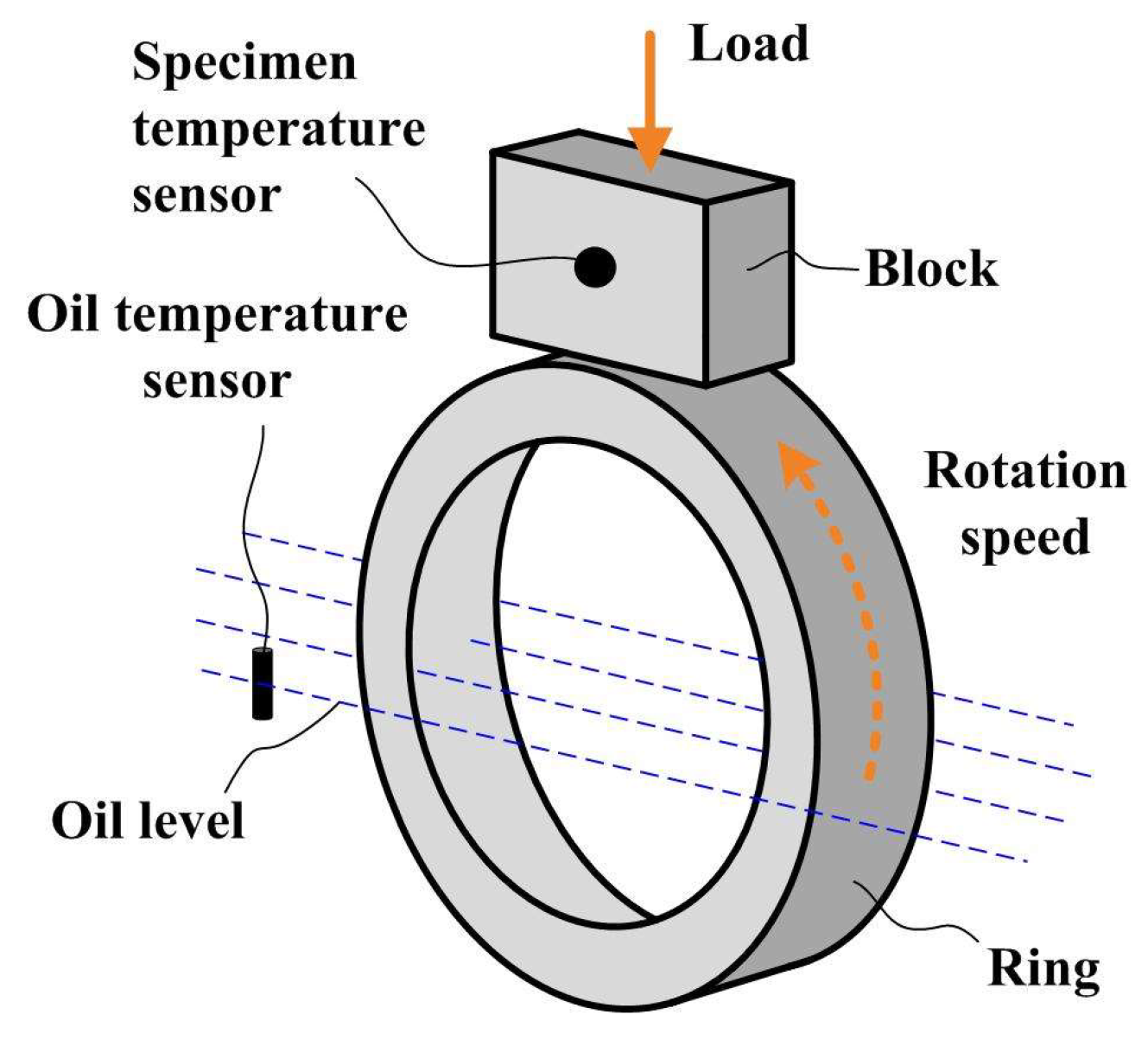

Item | Symbol | Dimensions and Data |
---|---|---|
Rotational speed | ω | 1000 rpm |
Applied load | W | 356, 445, 556, 667, 778, 889 N |
Running time | t | 3600 s |
Lubrication condition | / | oil lubrication with 100 mL |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Ding, S.; Hu, Y.; Wei, H.; Mu, D.; Zhan, X.; Wang, J.; Yang, O.; Xu, J. The Tribological Behavior of Cast Iron by Laser Surface Texturing under Oil-Lubricated Initial Line Contact for Rotary Compressor. Lubricants 2023, 11, 486. https://doi.org/10.3390/lubricants11110486
Ding S, Hu Y, Wei H, Mu D, Zhan X, Wang J, Yang O, Xu J. The Tribological Behavior of Cast Iron by Laser Surface Texturing under Oil-Lubricated Initial Line Contact for Rotary Compressor. Lubricants. 2023; 11(11):486. https://doi.org/10.3390/lubricants11110486
Chicago/Turabian StyleDing, Shaopeng, Yusheng Hu, Huijun Wei, Di Mu, Xiangzhi Zhan, Jun Wang, Ouxiang Yang, and Jia Xu. 2023. "The Tribological Behavior of Cast Iron by Laser Surface Texturing under Oil-Lubricated Initial Line Contact for Rotary Compressor" Lubricants 11, no. 11: 486. https://doi.org/10.3390/lubricants11110486
