Magnetogenesis and the Cosmic Web: A Joint Challenge for Radio Observations and Numerical Simulations

Abstract

The detection of the radio signal from filaments in the cosmic web is crucial to distinguish possible magnetogenesis scenarios. We review the status of the different attempts to detect the cosmic web at radio wavelengths. This is put into the context of the advanced simulations of cosmic magnetism carried out in the last few years by our MAGCOW project. While first attempts of imaging the cosmic web with the MWA and LOFAR have been encouraging and could discard some magnetogenesis models, the complexity behind such observations makes a definitive answer still uncertain. A combination of total intensity and polarimetric data at low radio frequencies that the SKA and LOFAR2.0 will achieve is key to removing the existing uncertainties related to the contribution of many possible sources of signal along deep lines of sight. This will make it possible to isolate the contribution from filaments, and expose its deep physical connection with the origin of extragalactic magnetism.

1. Introduction

1.1. The Puzzling Origin of Cosmic Magnetism

Understanding how the observed magnetic fields in the largest structures in the Universe emerged is an important open issue in modern astrophysics.

Theoretical and numerical work has shown that the microgauss (μG) magnetic fields inferred from radio observations e.g., [1,2,3,4] could be produced by small-scale turbulent dynamo amplification, provided that the magnetic Reynolds number in the intracluster medium (ICM1) is large enough e.g., [5,6,7,8]. In typical ICM conditions (density $n\ge {10}^{-4}$ [cm⁻³], temperature $T\sim {10}^7$–${10}^8$ K and plasma beta ${\beta }_{\mathrm{pl}}\sim {10}^2$), a dynamo can bring the magnetic energy density close to equipartition with the turbulent plasma kinetic energy in galaxy clusters. A small-scale dynamo also erases the memory of the initial magnetic field level, as verified by direct numerical simulations e.g., [9,10,11,12,13,14,15,16,17]. While all previous results are based on ideal magneto-hydrodynamical (MHD) simulations, kinetic simulations have recently started to explore the more realistic situation of weakly collisional plasmas. They confirmed the action of a dynamo but also highlighted the important role of Prandtl number variations on the initial magnetisation value and of kinetic instabilities e.g., [18,19,20].

Regardless of the exact nature of the small-scale dynamo process in the ICM, a non-zero seed magnetic field is necessary for the dynamo to start. Then, different sources and mechanisms to generate and amplify magnetic fields in diluted cosmic plasmas are viable. At present, we still do not know whether the observed fields have mostly a “primordial” origin (meaning they are the result of processes that happened soon after the Big Bang) or are connected to the evolution of galaxies and of their black holes.

Several processes might have created truly primordial seed fields, either during inflation by breaking the conformal invariance for the electromagnetic field, or by coupling it to other light fields and generating helicity e.g., [21,22,23]. In the post-inflationary epoch, a causal process could lead to the production of large amplitudes and small (below the size of the Hubble radius at the generation time) coherence lengths [24,25,26]. Recently, the first pilot cosmological simulations for the evolution of helical magnetic fields have been presented by [27]. Assessing whether primordial magnetic fields were present at the epoch of the Cosmic Microwave Background (CMB) is important as they impact the Big Bang Nucleosynthesis, alter CMB anisotropies patterns and affect angular power spectra in temperature and polarisation e.g., [28,29,30].

Alternatively, or in addition, magnetic field seeds may have been injected by feedback events following the overcooling of gas onto the massive halos as well as the formation of stellar populations and supermassive black holes (SMBH). Such astrophysical sources can seed magnetic fields in cosmic structures at low redshift ($z\le 10$), in an inside-out fashion which starts from galaxies: star formation drives winds of magnetised plasma into the circumgalactic medium e.g., [31,32,33,34,35] as well as into voids [36]. Jets and winds from active galactic nuclei (AGN) can magnetise the central regions of clusters and groups e.g., [37,38] and affect the transport of heat, entropy, metals and cosmic rays during the formation of cosmic structures e.g., [39].

Somewhat in between primordial and astrophysical scenarios, additional processes such as the “Biermann-battery” mechanism [40], aperiodic plasma fluctuations in the inter-galactic plasma [41], resistive mechanisms [42], ionization fronts around the first stars [43,44] or even the accretion of magnetic monopoles at the formation of primordial black holes [45] might provide additional seed magnetic fields.

Overall, it is fair to say that the present uncertainty in the amplitude of seed fields in the Universe, based on theory, is uncomfortably large. Basically, it allows for primordial fields with amplitudes in the range of ~${10}^{-34}$–${10}^{-9}$ G e.g., [22,46,47]. A recent survey of astrophysical seeding scenarios, with state-of-the-art cosmological MHD simulations, has inferred a lower limit of $B\sim {10}^{-31}\mathrm{G}$ for the magnetisation of voids [48]. Other limits have been suggested by modelling magnetic effects on CMB anisotropies from magnetically induced perturbations on post-recombination heating e.g., [49]. Such very low bounds seem to be incompatible with the absence of detected Inverse Compton Cascade emission from blazars e.g., [50,51,52,53,54], which yields limits of ∼${10}^{-16}$ G2. Other stringent limits have been suggested by modelling magnetic effects on post-recombination heating e.g., [57,58,59] or by the small-scale baryonic density fluctuation induced by primordial magnetic fields, which would alter CMB anisotropies by promoting to inhomogeneous recombination and heating e.g., [60,61,62]. Recent limits for the average present-day magnetisation of the Universe have also been derived by the level of excess in diffuse radio emission detected by ARCADE2 and EDGES 21cm line experiments, yielding ≤${10}^{-3}$–$0.3$ nG depending on the unknown spectral index of primordial seed fields [63].

1.2. The Magnetic Cosmic Web and Its Radio Observations

In the present situation, any significant detection of, or constraints on, magnetic fields beyond the scale of galaxies and galaxy clusters will have the potential of discriminating between different hypotheses for the origin of cosmic magnetism. Previous work has shown that the radio signatures of drastically different magnetic field scenarios would leave very different imprints in Faraday Rotation and/or synchrotron emission from the magnetised cosmic web [33,64,65], in regions where small-scale dynamo is not expected to operate, due to the different local plasma conditions there e.g., [66,67].

In the (numerically) simple scenario in which magnetic fields were already in place at very early cosmic epochs, and got later advected, compressed and amplified up to the observed values within galaxy clusters and groups, we expect that the three-dimensional distribution of the magnetic cosmic web pretty much follows that of the matter cosmic web.

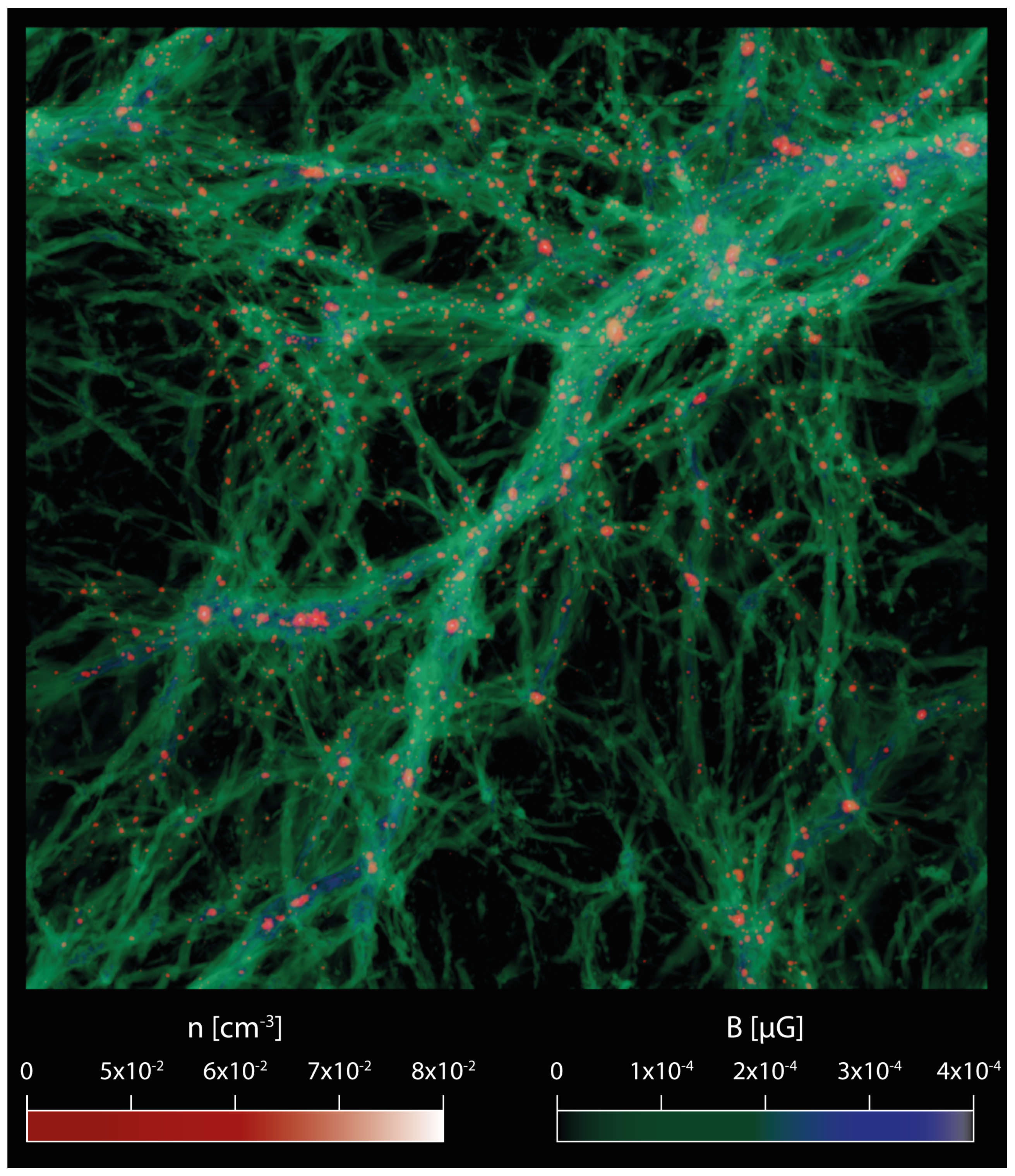

Figure 1 shows a volume rendering3 of baryon gas density and magnetic fields in one of the largest MAGCOW simulations (and cosmological MHD simulations in general), i.e., a comoving ${100}^3$ Mpc³ volume simulated with ${2400}^3$ cells and dark matter particles, for a constant spatial comoving resolution of $41.6$ kpc and assuming a simple uniform seed magnetic field of $B_0=0.1$ nG comoving, seeded at the beginning of the run ($z=40$). For further analysis of this simulation, see [68,69,70,71]. Spectacular threads of magnetic fields that trace the underlying matter distribution of the cosmic web are clearly seen in the image. These fields are the result of an initially uniform magnetic field distribution that has been compressed by the matter field. Given that the isotropic adiabatic compression of magnetic field lines increases the strength by $\left|B\right|\propto {(\rho /\langle \rho \rangle )}^{2/3}$ (where $\rho$ is the gas density and $\langle \rho \rangle$ is the gas mean density) in the absence of dynamo amplification the range of amplitude in magnetic field strength is smaller than the range of gas densities across the cosmic web. We anticipate that, in astrophysical scenarios, on the other hand, the distribution of magnetic fields is much more confined closer to the high density peaks of the cosmic web e.g., [65].

The diffuse gas in the cosmic web, especially in the low redshift Universe ($z\le 1$), has not been imaged in X-ray, owing to the scarcity of detectable X-ray photons from the warm-hot intergalactic medium e.g., [72,73]. The exceptions are attempts involving massive galaxy clusters [74,75], or stacking techniques [76]. In the radio band, the situation may be less challenging because cosmic filaments are surrounded by strong accretion shocks e.g., [77,78], which may also accelerate cosmic rays and produce synchrotron emission e.g., [64,79,80,81].

In the last few years, a new low-frequency radio telescope have detected magnetic fields beyond the scale of galaxy clusters. In several cases, our MAGCOW simulations were used to quantify the implications of such limits, and turn them into constraints on the different models of cosmic magnetism.

Table 1. (Incomplete) list of recent and relevant measures or upper limits that attempted to detect magnetic fields on extragalactic scales, together with the estimated overdensity range they refer to.

Observation	Estimate on $\left|\mathit{B}\right|$	Approx. Density Range	Instrument(s)	References
Sync.in cluster bridges	∼0.2–0.5 μG	$\rho /\langle \rho \rangle \sim 50$–200	LOFAR-HBA (120 MHz)	[82,84]
Sync. in cluster pairs	≤0.25 μG	$\rho /\langle \rho \rangle \sim 5$–50	LOFAR-HBA (120 MHz)	[86]
Optical-radio cross-corr.	≤0.25 μG	$\rho /\langle \rho \rangle \sim 10$–${10}^2$	MWA-EoR0 (180 MHz)	[87,88]
Sync. stacking of cluster pairs	∼10–20 nG	$\rho /\langle \rho \rangle \sim 5$–50	MWA+LWA (50–120 MHz)	[70]
$\mathsf{\Delta }RM\left(\theta \right)$ of radio gal. pairs	≤40 nG	$\rho /\langle \rho \rangle \sim 1$–10	VLA-NVSS (1400 MHz)	[98]
$\mathsf{\Delta }RM\left(\theta \right)$ of radio gal. pairs	≤4 nG	$\rho /\langle \rho \rangle \sim 1$–10	LOFAR-HBA (120 MHz)	[99,100]
$RM$ cross-correlation	≤30 nG	$\rho /\langle \rho \rangle \sim 1$–10	VLA-NVSS (1400 MHz)	[97]
Excess $RM$ across z	≤1.7 nG	$\rho /\langle \rho \rangle \sim 1$	VLA-NVSS (1400 MHz)	[94]
CMB anisotropies T&P	≤2.8 nG	$\rho /\langle \rho \rangle \sim 1$	PLANCK2018+BK15+SPTPol	[49]
CMB heating	≤0.83 nG	$\rho /\langle \rho \rangle \sim 1$	PLANCK-2015	[59]
Excess Sync. Radiation	≤${10}^{-3}$–$3.7\mathrm{nG}$	$\rho /\langle \rho \rangle \sim 1$	ARCADE2+LW1 (78 MHz)	[63]
Blazar Inv. Compton	≥${10}^{-7}$–${10}^{-5}\mathrm{nG}$	$\rho /\langle \rho \rangle \sim {10}^{-2}$–1	VERITAS, HAWC, FERMI	[50,51,52,53,54]

gives an (incomplete) overview of relevant estimates or limits on the magnetisation of the cosmic web at different scales, for a very heterogeneous collection of observations.

First, a few short (≤$3\mathrm{Mpc}$) and overdense ($\rho \sim 50-{10}^2\langle \rho \rangle$) filaments between pre-merging clusters were detected by LOFAR-High Band Antenna (HBA): in Abell 399-Abell 401 [82] and Abell 1758A and B [83]. The modelling of the steep spectrum ($\alpha \le -1.3$, where $I\left(\nu \right)\propto {\nu }^{\alpha }$) emission in Abell 399-Abell 401, which currently prefers a scenario based on turbulent re-acceleration of fossil relativistic electrons, suggested volume-filling ∼$0.5$ μG magnetic fields [84]. A similar case, albeit more internal to the cluster volume, appears to be the bridge connecting the halo and relic region in the Coma cluster, whose recent LOFAR-HBA observation has also been modelled with our simulations [85].

On the other hand, LOFAR-HBA observations of two clusters connected by longer filaments (∼10–20 Mpc, which are expected to enclose a $\rho \sim 5$–$50\langle \rho \rangle$ gas overdensity) could not detect diffuse radio emission, suggesting a $\le 0.25$ μG upper limit for the magnetisation of such extended filaments, under the hypothesis that relativistic electrons are accelerated by structure formation shocks here [86].

On even larger scales, upper limits on the amplitude of magnetic fields have been statistically derived from the lack of detection of the cross-correlated signal between the large-scale distribution of galaxies in optical and IR surveys, and MWA surveys, which was used to suggest a $\le 0.1$ μG upper limit on the average magnetisation of the $z\le 0.1$ cosmic web surrounding halos, i.e., $\rho \sim 10-{10}^2\langle \rho \rangle$ [87,88].

Finally, Ref. [70] have made a statistical detection of the diffuse radio emission between pairs of halos separated by ≤$15\mathrm{Mpc}$, with the stacking of 390,808 pairs of luminous red galaxies identified in the Sloan Digital Sky Survey Data Release 5 and observed at four different radio frequencies (from 50 to 120 MHz) using the the GLEAM survey with MWA and with the Owens Valley Radio Observatory Long Wavelength Array. The reported detection is at the ∼$5\sigma$ level, has a spectral index of $\alpha \approx -1.0$ and appears difficult to explain with any known population of radio galaxies and AGN. Based on the analysis of our MAGCOW simulations, the emission was suggested to be compatible with a diffuse magnetic field in filaments, in the ∼10–20 nG ballpark for a typical expected gas density in the $\rho \sim 5$–$50\langle \rho \rangle$ range.

However, building a consistent mock statistical analysis with simulations is far from trivial, and more recent work using the same MAGCOW simulations has suggested that it is difficult to reproduce the same excess signal from cluster pairs, if all outliers are removed [89].

A way to overcome sensitivity limitations of total intensity in radio observations is to use the Faraday Rotation Measure (RM) along the line-of-sight to a polarised background radio source. This can be used to perform a tomography of the cosmic web, with a fine grid of background sources e.g., [90,91]. Fully exploiting this method currently suffers from the lack of large and dense grids of polarised sources, which should become available with the SKA [67]. Early attempts to constrain extragalactic magnetic fields statistically have set very high upper limits at the level of 0.3–7 μG e.g., [91,92,93]. Later work by [94] used the (lack of) evolution of RM in sources observed with the NRAO VLA Sky Survey (NVSS) to infer much lower, 0.65–1.7 nG limits for the extragalactic magnetic fields. More recently, Ref. [95] claimed the detection of the RM contribution by filaments overlapping the polarised emission by a giant radio galaxy using LOFAR-HBA.

By cross-correlating the RM signal of 1742 radio galaxies in the NVSS [96] with the distribution of optical and IR $z\le 0.5$ galaxies, Ref. [97] recently measured a $\le 3.8\mathrm{rad}/{\mathrm{m}}^2$ upper bound to the RM contribution of the magnetised cosmic web, which may suggest a $\le 30\mathrm{nG}$ upper limit on the magnetisation of the cosmic web on 1–$2.5\mathrm{Mpc}$ scales ($\rho \sim 5$–$50\langle \rho \rangle$).

The excess RM between random pairs of extended radio galaxies can be used to constrain the amplitude of intergalactic magnetic fields. This is done by comparing the $\mathsf{\Delta }RM$ difference, as a function of angular scale, between physically related pairs of extended radio galaxies, and random associations of radio lobes [98,99]. In particular, Ref. [100] found that the RM difference between random and physical pairs of 349 radio galaxies observed with LOFAR-HBA was $|\mathsf{\Delta }R{M}^2|\le 1.9{\mathrm{rad}}^2/{\mathrm{m}}^4$. Such a difference constrains the magnetisation of cosmic matter to ≤$4\mathrm{nG}$ for field with a coherence length $\le \mathrm{Mpc}$, and $\rho \sim 1$–$10\langle \rho \rangle$.

Finally, more indirect constraints on the amplitude of magnetic fields on the largest scales have been inferred from the Cosmic Microwave Background (see Section 1.1). These can be turned into an estimate on the current magnetisation of voids, under the reasonable hypothesis of ideal MHD and lack of other sources of magnetisation in the very low density Universe ($\rho \sim {10}^{-2}$–$1\langle \rho \rangle$). See

Table 2. Main parameters of MAGCOW runs employed in this work. All quantities given are comoving. For more details, see Section 2 and Appendix A.

${\mathit{N}}_{\mathbf{grid}}$	$\mathsf{\Delta }\mathit{x}$	${\mathit{L}}_{\mathbf{box}}$	Astroph. Seeding	Initial ${\mathit{B}}_{\mathbf{Mpc}}$	${\mathit{\alpha }}_{\mathit{B}}$	Sub-Grid Dynamo	ID
	[kpc]	[Mpc]		[nG]
10243	83.3	85	no	1.0	-	no	P
10243	83.3	85	no	10−9	-	dynamo mod.1	DYN5
10243	83.3	85	stellar feedback	10−9	-	no	CSF2
10243	83.3	85	stellar & SMBH feedback	10−9	-	no	CSFBH2
10243	83.3	85	no	0.1	-	dynamo mod.2	P01
10243	83.3	85	no	1.87	−1.0	dynamo mod.2	CMB2
10243	83.3	85	no	0.35	0.0	dynamo mod.2	CMB3
10243	83.3	85	no	0.042	1.0	dynamo mod.2	CMB4

for a summary of observational limits on cosmic magnetic fields.

In Section 3, we will attempt to translate such measurements into constraints on extragalactic magnetic fields on different scales, with the strong caveat that each different measurement comes from very different selection functions, class of sources and redshift selection. They are also very differently affected by cosmic foregrounds, background and observational limitations. In Section 4, we present our conclusions and put them in the broader context of the aim to find the origin of cosmic magnetism.

2. Methods and Materials: Cosmological Simulations of the Cosmic Web

The MAGCOW project, funded by a Starting Grant from the European Research Council4, is built around the idea of exploring the origin of cosmic magnetism, through the combination of radio observations capable of probing the most rarefied cosmic regions of the Universe, and advanced numerical simulations.

Over the latest few years, we produced large simulations for the co-evolution of dark matter (DM), gas matter, supermassive black holes and stellar populations, together with their associated magnetic fields, in an expanding space-time, with customized versions of the ENZO code [101].

This paper is not meant to be too detailed on the numerical subtleties of our simulations, which have been documented elsewhere [102,103,104,105]. Here, we review the most relevant physical aspects of the models examined in our old and new runs, and refer to the Appendix A for a more complete overview of the numerical details and code implementation specifics.

A first large set of (25) simulations has been already described in detail in [65]. In this contribution, we also include the results from more recent re-simulations, tailored to improve the comparison with new observational results.

All models use some prescription for the seeding of magnetic fields, either at the start of the simulation, mimicking primordial mechanisms, or during the simulation, mimicking astrophysical generation of magnetic fields.

The older simulations included in this paper are (for consistency, we keep the same naming given in previous papers):

• P: a baseline primordial model in which we initialised a spatially uniform $B_0=1\mathrm{nG}$ seed field at the start of the simulation;
• DYN5: a run starting from a negligible and spatially uniform $B_0={10}^{-9}\mathrm{nG}$ seed field, in which we used a sub-grid model for turbulent dynamo amplification (see Appendix A), for cells with a gas density $\rho \ge 2\langle \rho \rangle$, i.e., basically already within filaments;
• CSF2: a run including radiative cooling, star formation and feedback, starting from a negligible and spatially uniform $B_0={10}^{-9}\mathrm{nG}$ seed field. Magnetic fields are released at every episode of thermal feedback from star formation (with a fixed small conversion efficiency per event, ≤10%), to reproduce an astrophysical seeding scenario in which winds from supernova remnant magnetise the large-scale structures.
• CSFBH2: similar to CSF2, but also including the formation, growth, merger and feedback events of supermassive black holes. In addition, in this case, magnetic energy is released by SMBH feedback events (∼10% of the feedback energy) mimicking an astrophysical seeding scenario in which active galactic nuclei magnetise large-scale structures. The model parameters for baryon physics were tuned in previous work to reproduce cosmic star formation history and galaxy groups/clusters scaling relations (see Appendix A).

The new runs are introduced here for the first time:

• P01: a simple primordial model in which we initialised a spatially uniform $B_0=0.1\mathrm{nG}$ seed field at the start of the simulation, and in which we allowed for the sub-grid dynamo amplification of magnetic fields only for cells with a gas density $\rho \ge 50\langle \rho \rangle$, which approximately marks region within the virial radius of halos, where turbulence is predicted to be well developed and mostly solenoidal [106]. As a further relevant difference with the “old” DYN5, the amplification efficiency is increased by a factor 10 for $z\le 1$, leading to more realistic magnetic fields in low-redshift clusters and groups.
• CMB2, CMB3, and CMB4: we simulated primordial magnetic fields derived from the constraints by the Cosmic Microwave Background observations following our recent work [105]. In detail, the fields scale dependence is described by a power law spectrum: $P_B\left(k\right)=P_{B0}{k}^{\alpha }$ characterised by a constant spectral index and an amplitude, commonly referred by smoothing the fields within a scale $\lambda =1\mathrm{Mpc}$, and therefore in the remainder of the paper we will use $B_{\mathrm{Mpc}}$ to refer to the smoothed magnetic field amplitude. In this work, we used the three models outlined in [105], which resulted as the least challenged by low-redshift radio observations of the cosmic web: we assumed $\alpha =-1.0$ (CMB2), $0.0$ (CMB3) and $1.0$ (CMB4) and $B_{\mathrm{Mpc}}=1.87$, $0.35$ and $0.042\mathrm{nG}$ (comoving), respectively. All runs also adopted the same run-time sub-grid model for dynamo amplification, as in the P01 model.

Table 2 summarises all relevant parameters of our runs and more information is given in the Appendix A.

All runs assumed a $\Lambda$CDM cosmological model, with density parameters ${\mathsf{\Omega }}_{\mathrm{BM}}=0.0478$, ${\mathsf{\Omega }}_{\mathrm{DM}}=0.2602$, ${\mathsf{\Omega }}_{\Lambda }=0.692$, and a Hubble constant $H_0=67.8$ km/s/Mpc [107]. Runs were started at $z=40$ and have the constant spatial resolution of $83.3\mathrm{kpc}/\mathrm{cell}$ (comoving) and the constant mass resolution for DM of $m_{\mathrm{dm}}=6.19\times {10}^7{M}_{\odot }$ per particle.

Our simulations are limited to the ideal MHD scenario, meaning that the resistive dissipation of magnetic fields, kinetic plasma effects and other features connected with the departure from the single fluid model cannot be accounted for. Although it is fair to say that these phenomena have been scarcely studied in the very low-density regime which we are mostly concerned with here. The numerical work that investigated non-ideal MHD effects reported negligible differences compared to ideal MHD in the periphery of galaxy clusters, or in even more rarefied environments e.g., [108,109].

3. Results

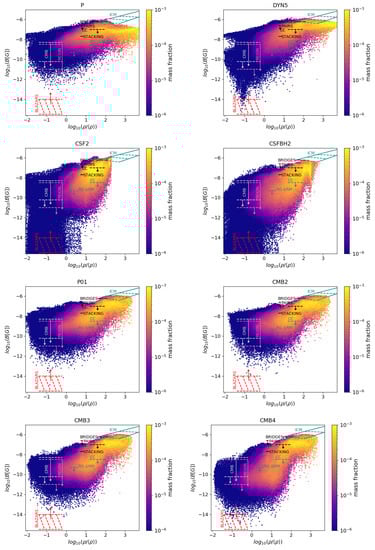

We start by looking at the statistical distribution of magnetic field strength as a function of gas overdensity, $\left(\right|B|,\rho /\langle \rho \rangle )$. This was measured at $z=0.02$ in the old MAGCOW runs presented in Section 2, which are the first four panels in Figure 2. Each pixel in the phase diagram is weighted by the relative gas mass fraction. We overlay onto the various phase distributions the approximate constraints that can be derived from observations, according to our best estimate of the gas overdensity along the line-of-sight which is mostly probed by each observation, as in Section 1.2.

As expected, most cosmic environments carry the memory of magnetic seeding and show very different trends. For example, in sheets and low-density filaments, $\rho \sim \langle \rho \rangle$, most of gas matter in the P model carries memory of the seed field, having $B\sim 1\mathrm{nG}$. This is significantly lower in the DYN5 model owing to the partial effect of dynamo amplification here, which is assumed to operate even in very low density regimes. In the astrophysical scenarios (CSF2 and CSFBH2), the average magnetisation is much lower (≤$0.01\mathrm{nG}$) and there is a ∼6 order of magnitude spread in the possible values of $\left|B\right|$. The latter depends on the proximity of cells to a nearby source of magnetisation. Such differences persist in the denser environment of cluster outskirts, where the magnetic field strengths are better approximated by the adiabatic $\left|B\right|\propto {(\rho /\langle \rho \rangle )}^{2/3}$ relation.

On densities larger than the typical density enclosed by virialised halos, all models struggle to match the magnetisation observed in real clusters and groups (which we show using the latest compilation of RM results in galaxy clusters by [110,111]). This is due to both the lack of resolution (which is only partially compensated by the subgrid dynamo model in DYN5) and of the scarcity of big clusters of galaxies that can form in our ${85}^3{\mathrm{Mpc}}^3$ volume. The comparison with the approximate magnetic field constraints that can be derived from the observations listed in Section 1.2 suggested first important trends:

• none of these simulations is optimal to simulate the ICM or intracluster bridges in detail because their modest resolution prevents us from properly resolving the “MHD scale” which is key for the development of a small-scale dynamo e.g., [14]. Hence, the comparison is not very informative here.
• in the very low-density Universe, the P and the DYN5 models have some tension with CMB limits. This problem is not as severe for astrophysical models. Vice versa, both CSF2 and CSFBH2 models produce a too low magnetisation in very low-density regions, in disagreement with blazar limits [54].
• the non-detection of diffuse emission in cluster–cluster filaments with LOFAR-HBA [86] is consistent with all models. The non-detection of the galaxy-synchrotron cross-correlation [88] is in disagreement with the primordial model as well as on the DYN5 model because an excess cross-correlated signal is to be expected, as we discussed in [104].
• likewise, the upper limits on Faraday Rotation by [97], and even more the RM difference between pairs of giant radio galaxies by [100], appear hard to reconcile with the large primordial seed field of the P model, as well as with the widespread amplification of magnetic fields in filaments included in the DYN5 model.
• the stacking detection of flat spectrum synchrotron emission between pairs of halos by [70] is only apparently consistent with all models. However, in that work, the detailed analysis of these simulations also showed that the DYN5 and CSFBH2 models are incapable of producing enough radio emission compatible with the observed extend of the stacking excess. In all astrophysical scenarios, some patches of high magnetic field can be found within filaments. These are typically confined to the active galaxies, from which they were released, and cannot efficiently fill the most peripheral layers of filaments, where most of the emission from the shocked gas comes from in our models.

Based on the work mentioned above, it may be tempting to conclude that a primordial model with a seed field of ∼$0.5\mathrm{nG}$ (i.e., a primordial model similar to the P, but with initial amplitude down scaled by a factor ∼2) is presently favoured by the observational data. However, there are a number of caveats:

The statistical detections or limits to the radio signature of the cosmic web always come jointly with the complex removal of fore- and backgrounds, which are always present (and sometimes even dominant) on the large angular scales (≥${10}^{\prime }$) at which most of these observations are taken. For example, the contamination by the magnetised screen of the Milky Way is always present, and can produce artefacts e.g., [112]. The removal of radio galaxies is also particularly difficult, and assessing the contribution from the background of faint or/and unresolved sources is non-trivial e.g., [70], as well as very challenging to properly include in simulations e.g., [71,113]. Finally, estimates coming from synchrotron emission needs a guess on the quantity of accelerated electrons to derive the amplitude of magnetic fields, but the acceleration efficiency by cosmic shocks is largely unknown e.g., [114,115,116], also based on the modelling of real radio observations of cluster radio shocks e.g., [117,118,119]. Moreover, the possible additional contribution from turbulent re-acceleration operating on scales larger than cluster “bridges” is largely unconstrained [84].

Motivated by the above comparison with observational constraints, to improve the simulated amplification of magnetic fields in halos, as well as to incorporate more realistic primordial seed fields as in [105], we produced our new P01, CMB2, CMB3 and CMB4 runs. Their phase diagrams are given in the last four panels of Figure 2. Overall, these models match the boundaries of observations better than the original P model. In particular, the “blue” CMB4 model gives the most conservative (and low) average magnetic field on the scale of voids, making this model compatible at least with some of the existing limits from CMB analysis and reionization, and at the same time with limits from blazars. To better illustrate the different volumetric properties of these models, we give in Figure 3 an example of the maps of Faraday Rotation and synchrotron radio emission at 120 MHz from shock accelerated relativistic electrons (based on the same diffusive shock acceleration model used in [68]) at $z=0.05$ and integrated along a line-of-sight of $85\mathrm{Mpc}$, for our most realistic primordial model (P01, CMB2, CMB3 and CMB4) and for the most complete astrophysical scenario (CSFBH2).

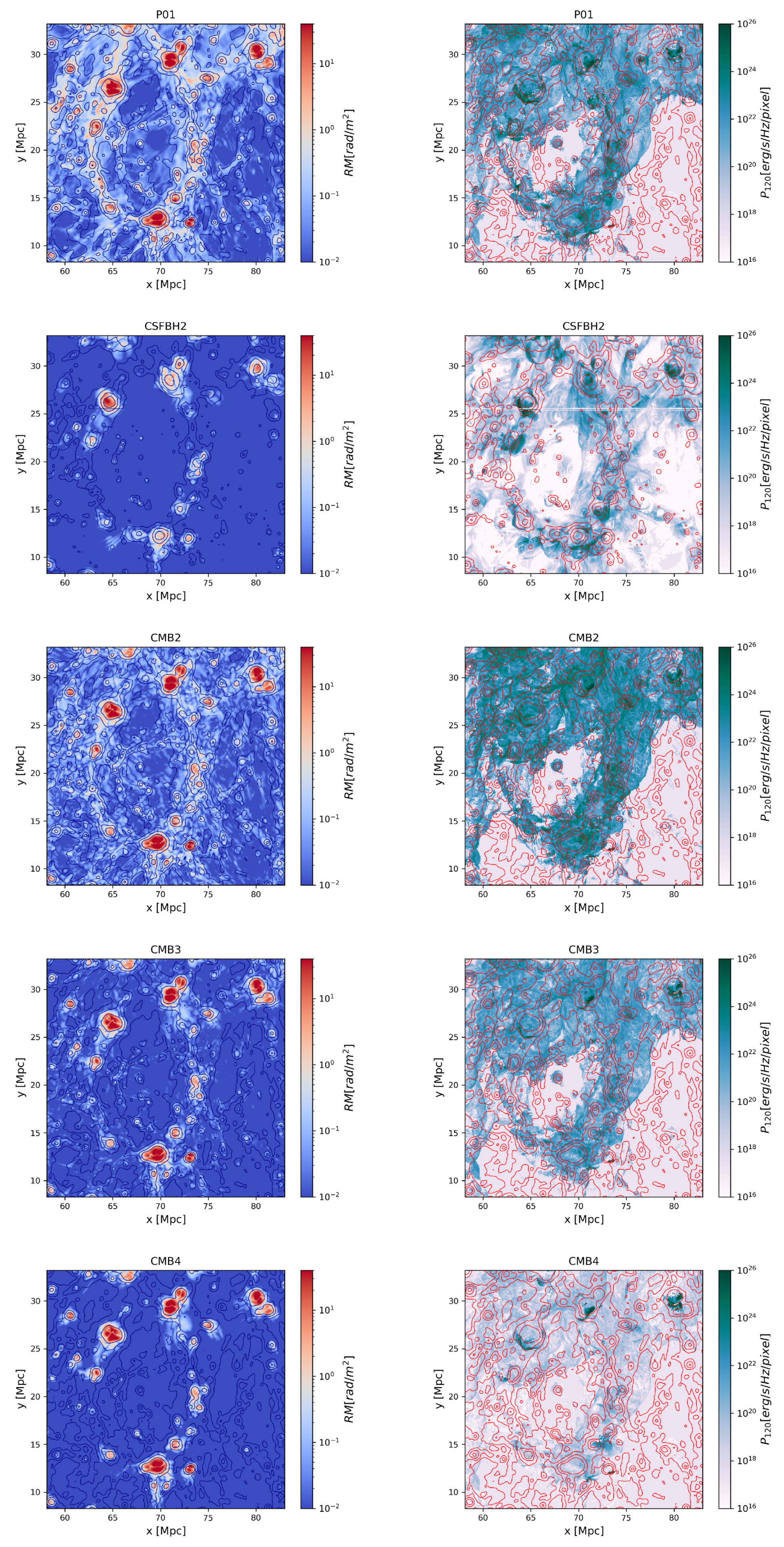

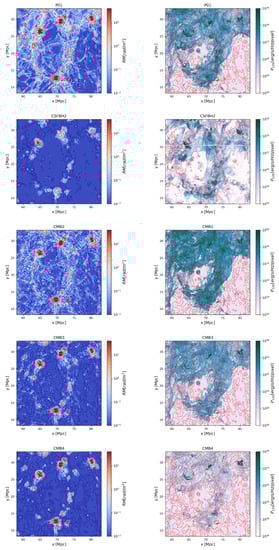

The P01, CMB2 and CMB3 models show a very diffuse RM signal (≥${10}^{-1}\mathrm{rad}/{\mathrm{m}}^2$) on most scales, while the CSFBH2 and CMB4 models show signatures mostly correlated with halos. The synchrotron emission in the CSFBH2 model is patchier than in all other models, which have instead more uniform and volume filling emission patterns associated with filaments, with up to several Megaparsec from the halo they contain. It shall be noticed that the gas density structure underlying the synchrotron and RM signals (in contours) is not exactly the same in all runs. The presence (or absence) of feedback from galaxies and, to a lesser extent, the dynamical impact of different large-scale magnetic fields influence the gas distribution in filaments, as tested in our work [102,103].

Since several detection attempts are relying on stacking or statistical techniques, it is useful to use a sample of simulated filaments to predict the typical Faraday Rotation and synchrotron signal from the average population.

Here, we limit to low redshift data ($z\le 0.05$, i.e., ∼200 Mpc) and focus on the population of filaments with three-dimensional length between 5–20 Mpc, which is abundant also in the small simulated volume at our disposal e.g., [120], and which is typically targeted by direct or stacking observations of cluster-cluster pairs e.g., [70,86].

First, we extract from each three-dimensional volume a catalog of filaments in the given range of lengths, using the algorithm developed in [121] for our simulations. By construction, all detected filaments are delimited by $M_{100}\ge {10}^{13}{M}_{\odot }$ halos, and are filled with gas with an average $T\ge 5\times {10}^5\mathrm{K}$ temperature. The RM and synchrotron emission maps are finally rescaled to the same projected angular size of ≈${2.8}^{\circ }$, i.e., of the order of the maximum angular scale sample by the recent stacking observation by [70], and corresponding to a projected linear size of 10 Mpc at $z=0.05$. Finally, we produced the average of both observables over the entire population of extracted filaments. For each of the ∼50 filaments extracted with this procedure, we computed the average profile along a narrow stripe connecting the two nearest halos (corresponding to $\mathrm{dx}=200$ kpc at the reference distance) and averaged the profile with the rest of the population. All ≤$R_{100}$ of halos identified in the simulation are masked out from the analysis, to mimic the masking of galaxies and halos which is typically done in real observations.

As in real observations, we also need to compare this signal with the sort of “baseline emission level” produced by the average cosmic web along the line-of-sight. We followed two approaches here: first, we generate a control set of profiles in the same 5–20 Mpc length range, by extracting pairs of halos with a projected distance in this range, which gives only a ≤30% chance of having a true filament in between such halos [86]. In a second approach, we randomly drew segments in the same length range over our projected sky model, with the contribution from halos masked out (a procedure which most often selects fields without large filaments, as it can be guessed from Figure 1).

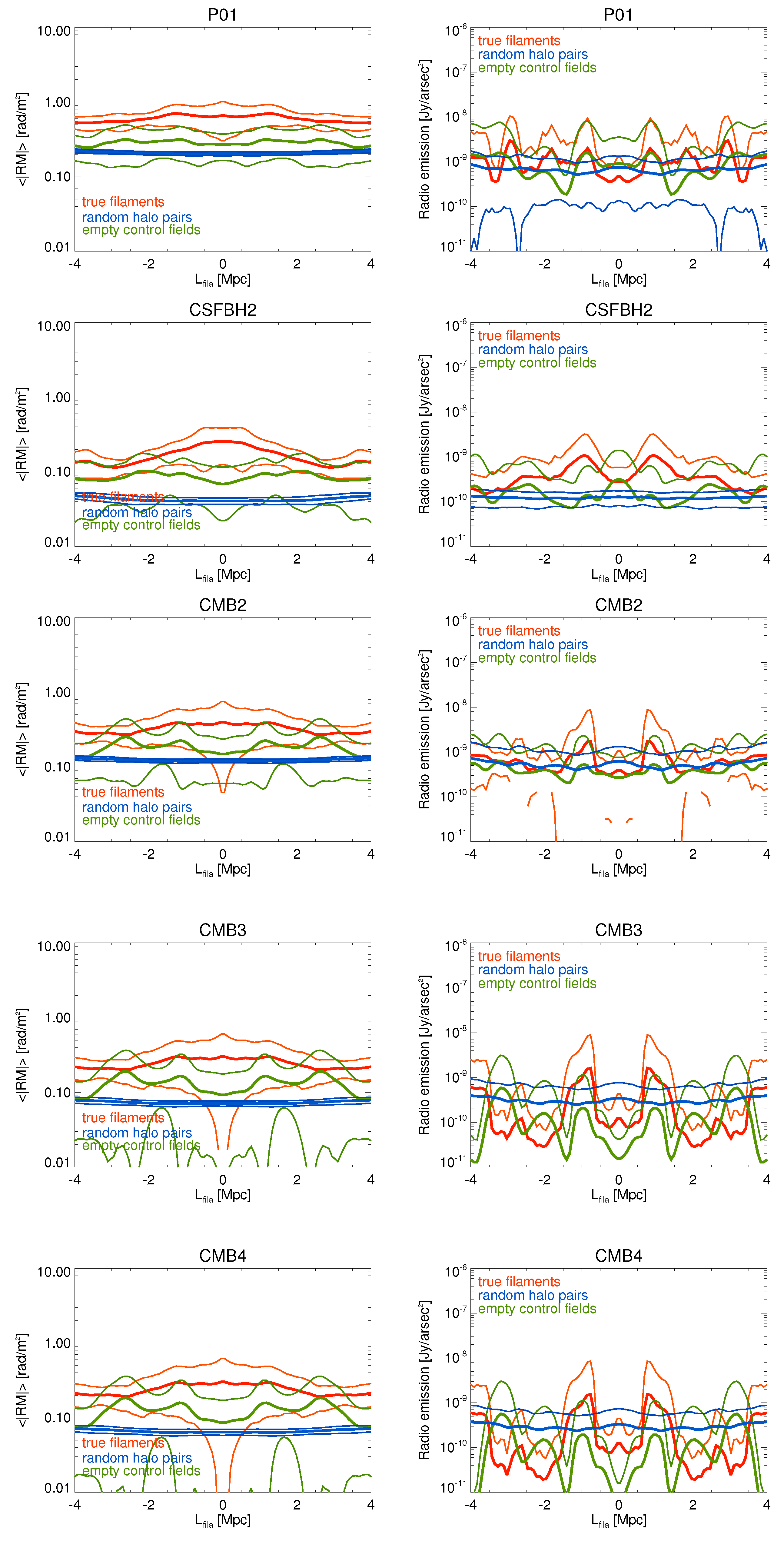

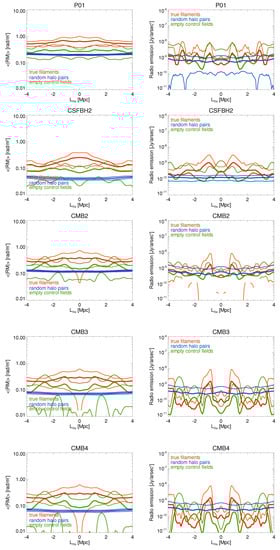

Figure 4 gives the average profiles of Faraday Rotation and synchrotron emission for our simulated population of filaments, random pairs of halos or random empty fields. This attempts to quantify the realistic level of difference between magnetised filaments and control samples in a selection of our most realistic scenarios.

In all cases, the true filaments give a higher RM and a higher synchrotron emission profile than both control samples (halo pairs and empty fields). However, the RM signal is affected by less scatter raising the chances of detection. The middle region of filaments has an RM signal which is typically ≥2–$3\sigma$ above our control samples. However, the amplitude of the RM is here very low, ∼$0.3$–$1\mathrm{rad}/{\mathrm{m}}^2$, which makes detection a real challenge for existing radio polarimetric observations.

Even for targets at high galactic latitude, the RM fluctuations of the Galactic foreground can be as large as ${\sigma }_{R{M}_{\mathrm{Gal}}}\sim$$8\mathrm{rad}/{\mathrm{m}}^2$ on a ∼${0.5}^{\circ }$ angular scale [122]. On the other hand, the typical intrinsic RM contribution from polarised background sources is ${\sigma }_{R{M}_{\mathrm{Source}}}\sim 6$–$12\mathrm{rad}/{\mathrm{m}}^2$, depending on whether the source is a compact AGN or a star forming galaxy e.g., [123,124]. Finally, a representative RM sensitivity that can be presently reached with the JVLA is ${\delta }_{\mathrm{RM}}\approx 8\mathrm{rad}/{\mathrm{m}}^2$ for wide total bandwidth $\mathsf{\Delta }\nu \simeq 1$ GHz observations of bright polarised sources. Future SKA-MID-like observations are expected to reach ${\delta }_{\mathrm{RM}}=1\mathrm{rad}/{\mathrm{m}}^2$ see, e.g., [67] for a more detailed discussion. On the other hand, the sample-averaged synchrotron emission presents a larger scatter, both for true filaments and for the control samples, which causes the latter to statistically overlap with the signature of true filaments within our control sample, within the scatter. Interestingly, all profiles for true filaments show a peak of emission at a distance of ∼3–4 Mpc from their surrounding halos, which may mark the presence of substructures and shocks within such filaments, a feature which has been already noticed by [89]. These features appear more pronounced when the average background magnetic field level is lower, as visible by the sequence of our CMB2-3–4 runs, and they are also related to some level of magnetic field amplification around the subhalos present in these large regions. Even if the virial volume of (sub)halos is masked out in our analysis, patches of magnetised gas can stream out of them and mix with the surrounding intergalactic medium here, increasing the scatter in the synchrotron profile. In any case, the average amplitude of the signal is very low, and about a factor ∼10–10² below what can be reached with current instruments.

The difference between the simple uniform P01 model and the astrophysical scenario is of a factor ∼2 in RM and ∼5–10 in emission for such objects, while a range of values is predicted for the different spectral models of the CMB2, CMB3 and CMB4 models. All the latter models show a large variance in the profile, the highest being associated with the “blue” CMB4 model. This variance is caused by the large magnetic field fluctuations present in the initial conditions, which are mostly also present in the evolved filament population [105].

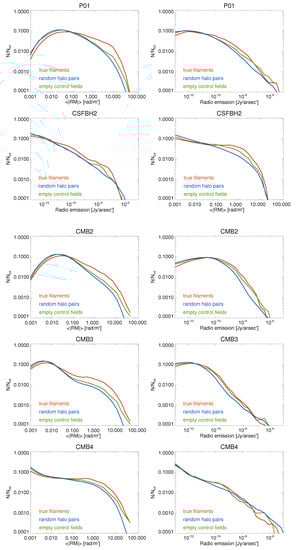

However, here we only showed the average signal of the populations, which is faint and nearly impossible to detect. Current observations can still hope to detect ∼3–$4\sigma$ positive fluctuations, which can bring the previous quantities to ∼$10\mathrm{rad}/{\mathrm{m}}^2$ and ∼$1\mathsf{\mu }\mathrm{Jy}/{\mathrm{arcsec}}^2$ in primordial models, e.g., at the edge of detection with present instruments, also via stacking techniques. This is more clearly seen in the full distribution of RM and synchrotron emission across the selected sample of filaments and control fields in the various models, shown in Figure 5. Assessing the contribution of such large fluctuations in real stacking experiments [70], as well as defining strategies to build observational samples which can maximise their presence, is still a non-trivial task.

As a final remark, it is worth stressing that the signal in all profiles shown here is a signature of the magnetic cosmic web. The latter represents a ubiquitous foreground and background (depending on where the main targets are located): by definition, only gas and magnetic fields in the cosmic web contribute to the RM and synchrotron emission in our models. While it makes a clear detection of the radio signature of filaments only more difficult in practice e.g., [89], any detection of the radio signal from the matter distribution of the cosmic web (provided that other contaminants and foregrounds are removed) would be a powerful probe of cosmic magnetism [86].

4. Discussion and Conclusions

The origin of extragalactic magnetism is still unknown. Studies of the low-density cosmic web, outside of galaxies and clusters of galaxies, have the potential of discovering this origin because most possible scenarios for the origin of magnetic fields observed in self-gravitating halos would predict very different amplitudes and topologies of magnetic fields on the scale of filaments and voids. Therefore, the chance of detecting an unambiguous radio signature from cosmic filaments has recently triggered many exciting observational attempts, which mostly involved low-frequency radio surveys, with LOFAR and MWA. Given the complexity of observations (which can be variously contaminated by astrophysical backgrounds, foregrounds, outliers and contaminants) and their often statistical nature, advanced numerical simulations, such as the MAGCOW ones presented here, are often essential to turn a radio measurement into a realistic constraint on three-dimensional magnetic fields.

At present, the non-detection of the inverse Compton cascade signal from blazars, as well as detection of the stacked signal from halo pairs, seem to exclude purely astrophysical scenarios. In addition, primordial scenarios in which magnetic fields are maximally amplified in filaments and halos can be discarded as they would overpredict the cross-correlation between synchrotron emission and galaxies, as well as the typical RM difference between pairs of extended polarised sources. Clearly, astrophysical sources of magnetic fields related to galaxy evolution exist and are observed. However, the existing hints for large-scale signature of magnetic fields are found to require a primordial and volume-distributed seeding mechanism.

Inflationary primordial models, such as our latest simulation with tangled initial magnetic fields, are least constrained by existing observational bounds and detections. In particular, the bluest primordial spectrum, explored here, ($P\left(k\right)\propto k^{1.0}$, CMB4) yields the best match with observational constraints. This match would have profound implications for the physics of the early Universe and the dynamics of inflation. More work is necessary to explore this intriguing possibility.

To conclude, it is worth stressing that a few more observable astrophysical effects are suitable to constrain the distribution of cosmic magnetic fields. We did not include them here explicitly because recent works, including our MAGCOW simulations too, have exposed many additional uncertainties related to their use.

The first example charged cosmic rays with energies ≥${10}^{18}\mathrm{eV}$ (aka Ultra High Energy Cosmic Rays, UHECR) are believed to have a predominantly extra-galactic origin, and their propagation towards Earth is affected by the Lorentz force e.g., [125,126]. Large deflection angles will hamper the possibility of locating the real sources of UHECRs at the highest energies, yet the amplitude of these deflections can greatly vary depending on model assumptions, ranging from ≤$1^{\circ }$ to ∼${30}^{\circ }$ e.g., [126,127,128]. With MAGCOW simulations, we tackled the propagation of such high energy cosmic rays, reporting the observed level of isotropy of ≥${10}^{18}\mathrm{eV}$ event can in principle be used to rule out primordial models with a uniform magnetic field larger than ∼$10\mathrm{nG}$ [129] in addition to very red or very blue primordial spectra [105], yet the present uncertainties in the distribution and duty cycle of sources and on the composition of cosmic rays make such estimates still too model dependent, and degenerate with other model uncertainties [130,131].

Second, the RM of Fast Radio Bursts (FRB), e.g., [132], together with their often detected Dispersion Measure, can be used to derive the average magnetic field along the line-of-sight e.g., [133,134,135]. However, the limited amount of FRBs with an observed RM, and the large existing uncertainties on the physical conditions at the progenitor, its location in the host galaxy, and the additional Faraday screen of our Galaxy, make it presently impossible to use FRBs as a reliable proxy of cosmic magnetism [130,136], even if big progresses are also expected from the SKA here e.g., [137,138].

Finally, also the puzzling lack of infrared absorption in the observed spectra of distant blazars e.g., [139,140] can be explained by the oscillation of high energy photons into axion-like particles, mediated by large scale magnetic fields [141]. We tested that a realistic distribution of ∼0.1–1 nG magnetic fields in voids and filaments can account for the observed spectra [142]. However, such a possibility remains speculative.

To summarise, the combination of total intensity and polarimetric data at low frequencies with existing (e.g., LOFAR and MWA) and future (SKA, LOFAR2.0) large surveys is the best way to remove the existing uncertainties coming from different sources along deep cosmic lines of sight. Finally, low frequency observations are the best tool to detect cosmic filaments and to measure both their magnetic content and their deep physical connection with the origin of magnetism in the Universe.
