Open AccessArticle

Frequency of Planets in Binaries

1
SUPA, Institute for Astronomy, University of Edinburgh, Blackford Hill, Edinburgh EH9 3HJ, UK
2
Centre for Exoplanet Science, University of Edinburgh, Edinburgh EH9 3HJ, UK
3
INAF—Osservatorio Astronomico di Padova, Vicolo dell’Osservatorio 5, I-35122 Padova, Italy
*
Author to whom correspondence should be addressed.
Galaxies 2020, 8(1), 16; https://doi.org/10.3390/galaxies8010016
Received: 22 November 2019 / Revised: 4 February 2020 / Accepted: 6 February 2020 / Published: 18 February 2020
(This article belongs to the Special Issue Habitability of Planets in Stellar Binary Systems)

Abstract

The frequency of planets in binaries is an important issue in the field of extrasolar planet studies because of its relevance in the estimation of the global planet population of our galaxy and the clues it can give to our understanding of planet formation and evolution. Multiple stars have often been excluded from exoplanet searches, especially those performed using the radial velocity technique, due to the technical challenges posed by such targets. As a consequence and despite recent efforts, our knowledge of the frequency of planets in multiple stellar systems is still rather incomplete. On the other hand, the lack of knowledge about the binarity at the time of the compilation of the target samples means that our estimate of the planet frequency around single stars could be tainted by the presence of unknown binaries, especially if these objects have a different behavior in terms of planet occurrence. In a previous work we investigated the binarity of the objects included in the Uniform Detectability sample defined by Fisher and Valenti (2005), showing how more than 20% of their targets were, in fact, not single stars. Here, we present an update of this census, made possible mainly by the information now available thanks to the second Gaia Data Release. The new binary sample includes a total of 313 systems, of which 114 were added through this work. We were also able to significantly improve the estimates of masses and orbital parameters for most of the pairs in the original list, especially those at close separations. A few new systems with white dwarf companions were also identified. The results of the new analysis are in good agreement with the findings of our previous work, confirming the lack of difference in the overall planet frequency between binaries and single stars but suggesting a decrease in the planet frequency for very close pairs.
Keywords: (Stars:) Planetary systems; (Stars:) binaries: general; (Stars:) binaries: visual; (Stars:) binaries: spectroscopic; (Stars:) statistics (Stars:) Planetary systems; (Stars:) binaries: general; (Stars:) binaries: visual; (Stars:) binaries: spectroscopic; (Stars:) statistics

1. Introduction

More than 70% of massive early-type stars [1,2] and 50%–60% of solar-type stars [3,4] are observed in binary or higher order multiple systems, with the fraction decreasing to 30%–40% for M-stars [5,6,7]. Therefore, in order to properly assess the global frequency of planets, it is crucial to consider the role of stellar companions. Any difference between frequencies or properties of planets in single and multiple systems would shed light on the effects of the presence of the companion star on the planet formation mechanisms, particularly in the case of very close binaries [8]. This review studies the impact of binarity on the planet formation process.
On the observational side, several serendipitous discoveries and a few recent dedicated surveys have revealed a significant number of exoplanets both around individual components of binary systems (circumstellar or S-like configurations; see, e.g., [9,10,11]) and around both components of tight binaries (circumbinary or P-like configurations; see, e.g., [12,13,14]). These discoveries have triggered several studies investigating the impact of stellar binarity on planet formation and on the planet demographics; see, e.g., [9,11,15,16,17,18,19]). Some of these studies highlighted a strong deficit of binary companions within ∼50–100 au for planet hosts [20,21,22,23,24], while others seem to suggest a low impact of the presence of stellar companions on planet formation [25]. A first work on planet candidates from the Transiting Exoplanets Survey Satellite (TESS) indicates a paucity of binaries with separations of closer than 100 au and an overabundance of binaries around stars with Hot Jupiter candidates [26], confirming the recent findings by [27], who pointed out how giant planets and brown dwarf desert inhabitants are almost exclusively observed in multiple systems. Overall, while it is clear that both the properties and the occurrence of planets in binaries can be different with respect to those orbiting single stars, the precise nature and extent of such differences remain unclear. A robust statistical analysis, based on well-defined samples with complete or well-characterized detection limits both for planetary companions and for stellar companions over the full separation range, is therefore crucial to obtaining useful constraints to this problem.
The work by [28] (hereafter BD07) represents one of the first attempts in this direction. They performed a search for stellar companions of the stars in the Uniform Detectability (UD) sample by [29] (hereafter FV05). The UD sample includes a total of 850 stars from the Keck, Lick, and Anglo Australian Telescope (AAT) radial velocity (RV) surveys for which the detectability of planets is considered complete for orbital periods shorter than four years and RV semi-amplitudes larger than 30 m/s. A total of 50 stars in the sample have at least one planet within these limits. It should be noticed that these surveys have biases against binaries, excluding visual binaries with projected separations of smaller than 2 and spectroscopic binaries known at the time of the sample selection. Nevertheless, thanks to the completeness of planet detection and the large sample size, the UD sample can still be used to draw conclusions about the frequency of planets in binary stars. Via a thorough search of both the literature and data available at that time, BD07 highlighted the presence of 199 multiple systems in the UD sample, spanning a wide range of separations. The resulting statistical analysis pointed towards a lower frequency of planets among these binaries with respect to single stars, but only for those with separations of below 100 au.
The UD sample is still a reference sample for statistics of giant planets, as no other similar works have been published from other surveys. The accumulation of data in the last years and, in particular, the Gaia DR2 release [30] now allow for a significant improvement of the census of binaries both at wide and short separations. Minor updates to the census of planets within the UD boundaries should also be applied following the recent literature.
The purpose of this study is therefore to present a much-needed update of the work by BD07.
The paper is organized as follows: The methods used to update the UD binary sub-sample are presented in Section 2, while Section 3 summarizes the results and their implications on the frequency of planetary companions. Finally, the conclusion of the study is presented in Section 4.

2. Updates of the UD Binary Sample

The completeness, in terms of binary detection, around FGK stars, such those included in the UD sample, has significantly improved since the publication of the census performed by BD07. The FV05 UD sample is still used as reference for the statistics of planets around FGK stars from the RV technique but, besides a minor update presented in [31], there has been no further work aimed at characterizing the binary frequency among its targets, despite all of the new information available. We therefore decided to repeat the search for binaries among the UD stars in order to re-assess the frequency of planets around single stars and stars in multiple systems at various separations, thus updating the work presented by BD07.
Apart from the extension of the sample, the new search was also necessary for clarifying the nature of several tens of targets which were included in the UD binary sample by BD07 only because of the presence of long-term RV trends (mostly from [32]) or astrometric signatures of binarity (proper motion difference between Tycho and Hipparcos, [33]), without many details on the masses and separation of the unseen companions. For most cases, these ambiguities are now solved, thanks to the determination of the RV orbital solution and/or the direct detection of the companions.
In addition to several studies published about individual systems, the new census of UD binaries was possible mainly thanks to the availability of data from:
  • Gaia DR2 [30], which provided a major source of directly detected companions down to moderately small separations and faint magnitudes [34]. It also allowed for the determination of physical associations from parallaxes and proper motions of the components, and for the identification of additional Δ μ targets (see below).
  • The works by [35,36], which included spectroscopic orbital solutions for binaries detected in the surveys that formed the UD sample.
  • Several dedicated adaptive optics (AO) surveys targeting stars with RV planets [9,10,37], objects with RV long-term trends [38,39], and stars with astrometric acceleration from Tycho and Hipparcos [40], all published after BD07.
  • The full RV time series for the Keck and Lick planet search surveys which were published in [41] and [42]. These allowed us to assess whether the astrometric trends observed for some of the UD stars were due to unknown massive companions and, if so, to confirm their stellar or planetary natures. We were also able to to derive preliminary orbital solutions for a few binaries not included in previous works1.
The impact of each of these sources on the final updated UD binary sub-sample is described in detail in the following sections.

2.1. New Spectroscopic Orbital Solutions

The availability of RV time series from the Keck and Lick RV surveys allowed us to investigate the case of five previously unpublished spectroscopic binaries. The orbital parameters, reported in Table 1, were derived according to the approach described in [44]. In most cases, the orbital periods are longer than the time baselines of the observations, making the retrieved orbital parameters preliminary but still useful in the context of our work. All of the companions are low-mass stars (minimum mass 0.1–0.25 M ) with semi-major axes in the range of 6 to 16 au.

2.2. New Visual Binaries from Gaia

We used the method described in [27] to search for additional companions of the UD stars in the Gaia DR2 catalogue. For each star in the sample, we used a search radius corresponding to 10 4 au, then selected the sources with relative parallaxes and at least one of the two proper motion components differing by no more than 20%, with the second component being within 50%. Using these criteria, we retrieved 103 pairs already included in the original BD07 compilation, either because of previous detection of the companion or due to the presence of a dynamic signature, and added 95 new companions.

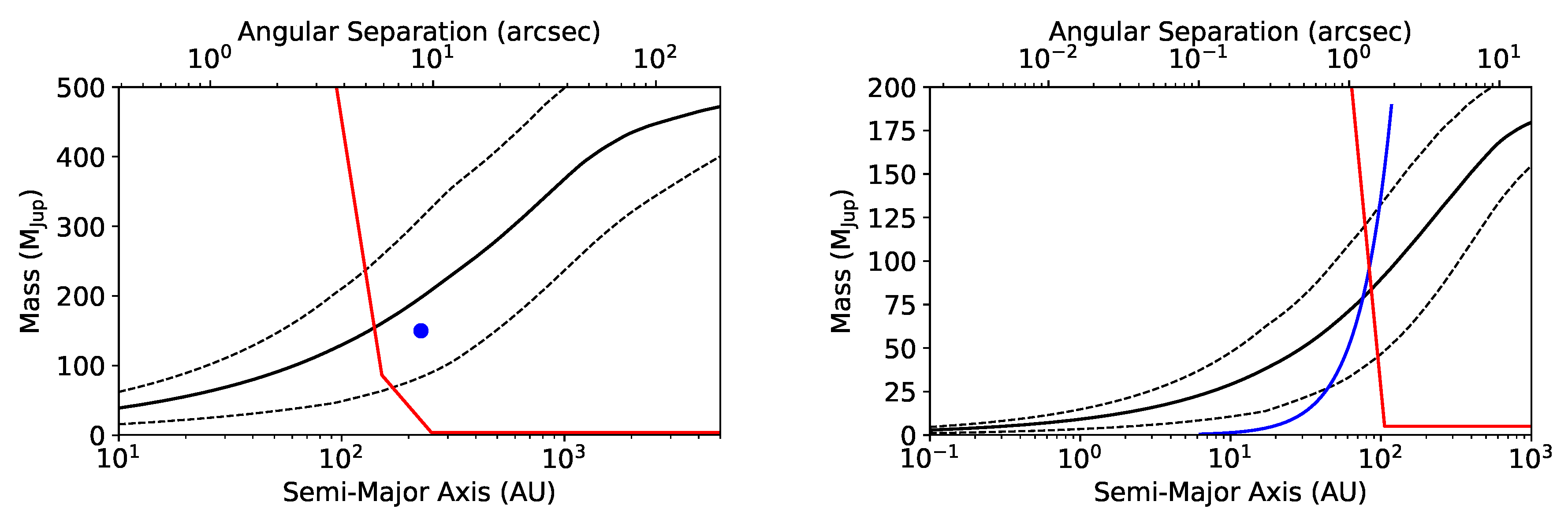

As discussed in detail in [27], these criteria are rather conservative, as they are meant to ensure that no spurious objects are included. This lead to 25 cases2 in which companions already confirmed and included in BD07 were not retrieved in our cross-match with the Gaia catalogue, mainly because the proper motion or parallax difference between the components was larger than the adopted threshold. These cases were checked individually and a suitable explanation for the discrepancies was found in nearly all of them. In most cases, either the pair is close enough to have relevant orbital motion, or one of the components is itself a known close binary (14 and 10 stars, respectively). The remaining ambiguous case (HD 50281) is discussed in the Appendix B. Cases like those discussed above should be relatively rare, and we do not expect them to lead to significant incompleteness in our census of binaries. In fact, very close companions, which would cause large proper motion differences, would have already been included, thanks to other indicators such as long-term RV trends, and then checked individually. Wider companions are, in principle, more challenging to disentangle, but, as shown in Section 3, our final sample is nearly complete at separations larger than 2 .

2.3. Dynamically Inferred Systems

A significant discrepancy in proper motion measurements between catalogs of different time spans ( Δ μ ) is considered to be a good indication of the presence of a perturbing body, and has been successfully used in the past to select potential stellar binaries (e.g., Makarov and Kaplan 2005; Tokovinin et al. 2013). A total of 38 objects were included in the original UD binary sample from BD07 solely because of the presence of significant Δ μ between Tycho-II [45] and Hipparcos [46] or because of other dynamical signatures (RV trends, astrometric acceleration detected in Hipparcos, etc.). Thanks to the search described in Section 2.2 or through the new information available in the literature, we were able to confirm the binary nature of 27 of these. Such a high binary fraction among Δ μ targets, in agreement with the recent results by [47], and the availability of new and more precise proper motion measurements justified a new search for UD stars with discrepancies in proper motion between Gaia DR2 [30] and both Gaia DR1 TGAS [48] and Tycho-II [45] catalogs. The objects for which the astrometric signature was compatible with the presence of planetary mass companions, including six of the BD07 Δ μ pairs, were removed, leaving us with 65 new Δ μ potential pairs. Of these, 37 had already been included in the binary sub-sample based on the search described in Section 2.2 or because of previously published results. We also systematically investigated the Δ μ systems by evaluating the presence of confirmed RV planets or the presence of long-term RV trends, exploiting the published RV time series [41,42].
For the remaining objects with no confirmed companions, including the remaining six unconfirmed Δ μ pairs from BD07, we used COPAINS (Code for Orbital Characterization of Astrometrically Inferred New Systems; see [47] for details) to estimate the mass and separation of a possible unseen companion compatible with the observed Δ μ . For consistency with what was later assumed for the evaluation of the critical semi-major axis for dynamical stability [49], we adopted a uniform distribution for the eccentricity of the secondary (also in agreement with the results by [4,40])3. The left panel of Figure 1 shows an example of the output of the code (black curves) as well as the expected detection limits for Gaia (red curve), calculated using the results of [50] and following the approach of [27]. The position of the companion identified in Gaia DR2 for the same target is marked by a blue dot. As expected, the secondary is both within the parameter space identified by COPAINS and also above Gaia’s detection limit.
In case an RV trend was also detected for those targets, we used this information to further constrain the mass and separation of a companion to those compatible with both signatures. The right panel of Figure 1 shows an example of the output of COPAINS for one of these objects, together with the values compatible with the RV trend calculated using the method described by [51] (blue curve).

2.4. Revision of Individual Masses

The availability of high-quality Gaia G-band magnitudes allowed for a systematic revision of stellar masses of the companions from mass–luminosity relationships. To this end, we used the the tables by [52]4 to perform a polynomial fit of the stellar mass and absolute G, J, and K magnitudes. The adopted solutions, displayed in Equations (1) to (3), were derived for stars of spectral types from F0 to L2 (intended as nominal substellar limits) and the values of the masses obtained have an estimated error of 0.01 M . The actual uncertainty of the mass is most likely much higher and can vary according to, among other things, the distance of the target from the main sequence (both at young and old ages) and the stellar metallicity (not included in the tables by [52]). Although a proper derivation of the total uncertainties is challenging, we do not expect it to be higher than 0.05 M for unevolved late-type stars, as the companions to the UD stars considered in this study.
M a s s ( G ) = 2.53615 0.549060 M G + 0.143017 M G 2 0.0542299 M G 3 + 0.0127813 M G 4 0.00163578 M G 5 + 0.000113799 M G 6 4.06116 e 06 M G 7 + 5.82965 e 08 M G 8
M a s s ( J ) = 3.95501 2.87761 M J + 1.58846 M J 2 0.568685 M J 3 + 0.125674 M J 4 0.0169899 M J 5 + 0.00136157 M J 6 5.91812 e 05 M J 7 + 1.07257 e 06 M J 8
M a s s ( K ) = 6.17137 7.08845 M K + 4.79712 M K 2 1.89004 M K 3 + 0.446451 M K 4 0.0641778 M K 5 + 0.00549026 M K 6 0.000256553 M K 7 + 5.03656 e 06 M K 8
In the case of wide companions, the adopted mass value included in Table A1 was calculated as the mean of the ones obtained from each of the solutions. The value obtained from Equation (1) was preferred for binaries with separations smaller than 7– 10 , as the quality of 2MASS photometry degrades for close visual binaries. When detailed information on the system was available in the literature, the published values were preferred (these objects have M f l a g = c in Table A1, with the corresponding reference listed in the notes at the bottom).

2.5. Revision of the UD Sample

We revised the classification of several stars with/without planets within the UD boundaries on the basis of the updated results from the RV time series or the determination of astrometric masses that moved a detected companion outside the planetary regime. In more detail, we changed the status for the following targets with respect to BD07:
  • HD 196885 is put back among the stars with planets, as the RV planet is confirmed [53,54].
  • HD 136118 was originally flagged as a star with planets, but the astrometric analysis by [55] shows that the true mass of the companion (41 M J u p ) is significantly larger than the minimum mass from RV only and larger than our adopted limit for planetary mass companions. We therefore included this object among the stars without planets.
  • HD 137510 has a minimum mass above 24 M J u p [56], and is therefore classified as a star without planets.
  • HD 159868 was considered as without planets in FV05. After the revision of the planetary orbits, a second planet was discovered [57]. As one the planets fulfills the UD definition, the star is now considered to be with planets. It is not known to be a binary.

3. Results

3.1. The Updated UD Binary Sample

The full list of UD binaries as assembled above includes 313 of of the 850 stars in the sample. A total of 114 targets were added with respect to BD07 and three were removed (physical association rejected by Gaia, possibility of planetary companion explaining the astrometric signature). For all of the pairs, we derived the critical semi-major axis for dynamical stability (hereafter a c r i t ; see [49] and BD07 for details). When available, we exploited the binary orbits. For the cases in which only the projected separation was available, we used the same approach as [58] and estimated a(au) as ρ ( )d(pc), thus assuming a flat eccentricity distribution (see Section 2.3 for details). In agreement with the assumption used for the semi-major axis calculation, an eccentricity value of 0.5 was adopted for the systems for which no information on the orbit was available5. The properties of all of the objects in the updated UD binary sample are listed in Table A1. Figure 2 shows the values of a c r i t as a function of the mass ratio ( M A / M B ) for all pairs, highlighting the newly added objects.

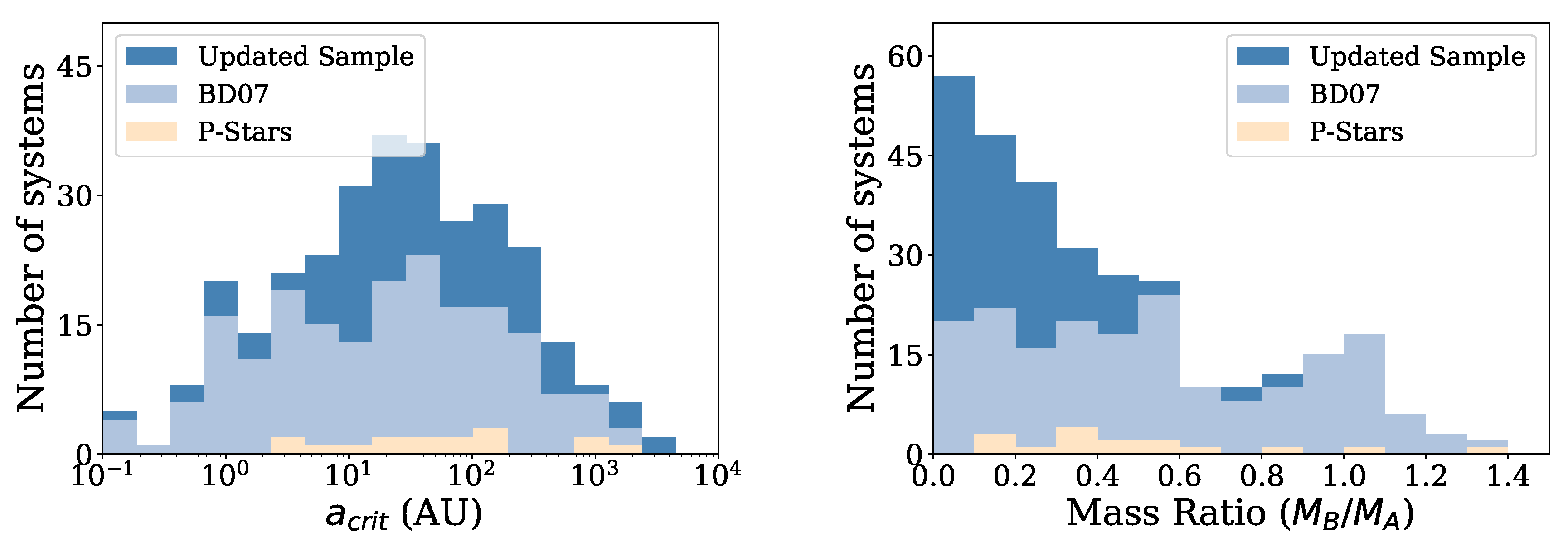

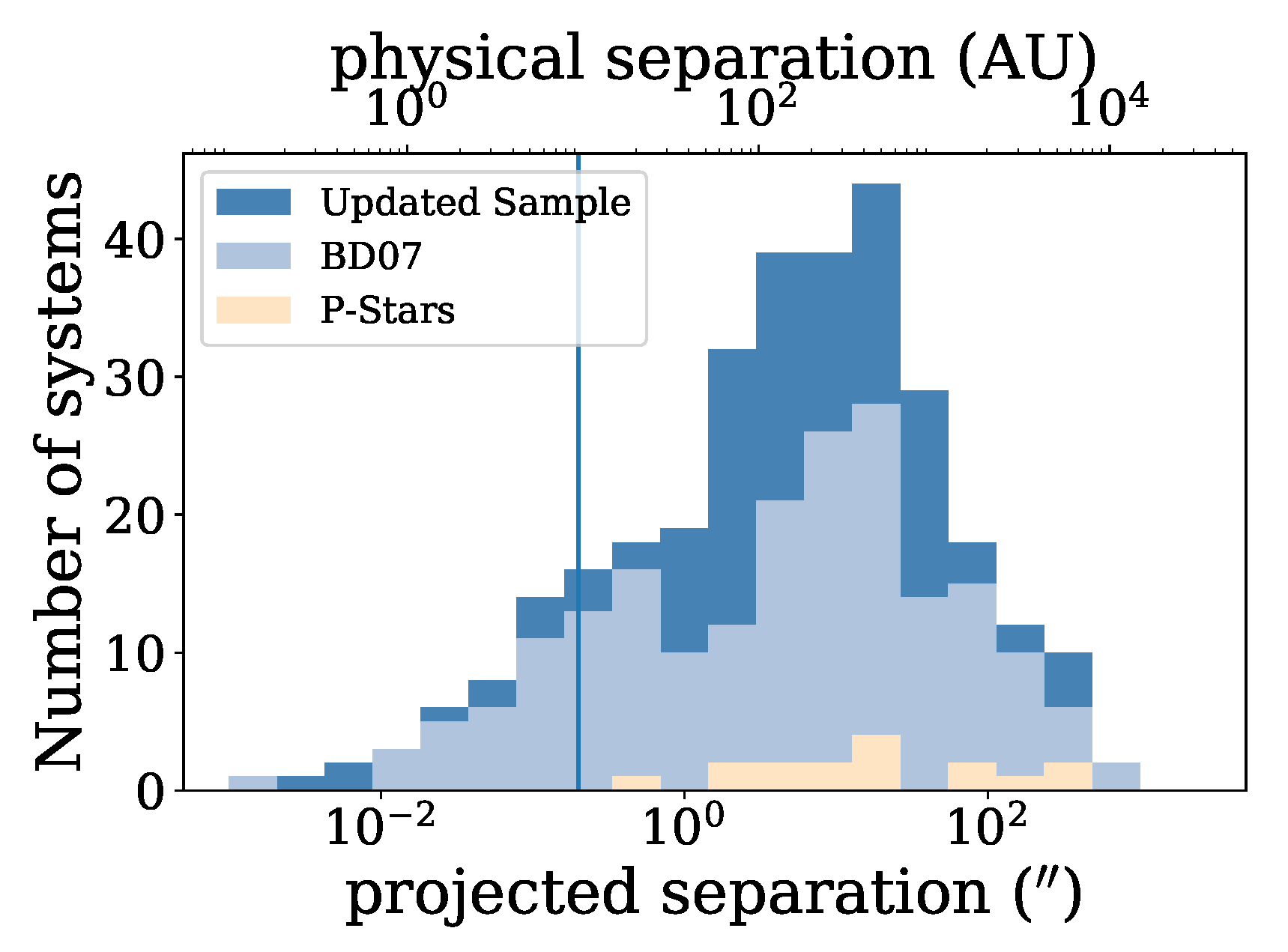

Despite the increased size of the binary sub-sample, we still observe a lower overall frequency of binaries ( 37 % as opposed to 47 % ) compared to what was predicted by [3] for a volume-limited sample of the same size as the UD. As discussed in BD07, this difference is most likely due to the fact that the input lists used to build the UD sample had an explicit bias against close binaries. According to [3], in a sample of the same size as the UD, we would have expected a total of 484 binaries, of which 45.7 % would have had projected separations below 2 and would therefore have been excluded from the UD sample. If restricted to binaries with ρ > 2 , our updated UD binary sample includes 211 pairs, thus implying a level of completeness of 95 % : A significant improvement with respect to the 62 % achieved in BD07, as also highlighted in Figure 3.
On the other hand, the fraction of close binaries did not significantly increase with respect to the original BD07 sample ( 32.25 % as opposed to 30 % ). While it is true that a clear assessment of the incompleteness of the sample at such separations is hard to complete, we should note that the quality of the information available for these systems in the updated sample is much higher. Several systems in the original sample had been selected solely on the basis of dynamical signatures and were included in the lowest mass ratio and a c r i t bins due to the lack of information on the companion masses and orbits. As discussed in Section 2.3, most of those systems were confirmed and can now be correctly placed in the appropriate bins. The fact that most of these systems had low-mass companions, undetectable at the time of the BD07 compilation, explains the clear increase of low-mass ratio systems shown in the right panel of Figure 4.

3.2. Frequency vs. Critical Semi-Major Axis for Dynamical Stability

With 16 of the 313 pairs in the updated UD binary sample hosting a planetary companion, we estimated the global frequency of planets in the UD binary sample to be 5.1%. This value is compatible, within the errors, with the the frequency of planets in the UD single-star sub-sample, which is 6.3% (see Table 2).

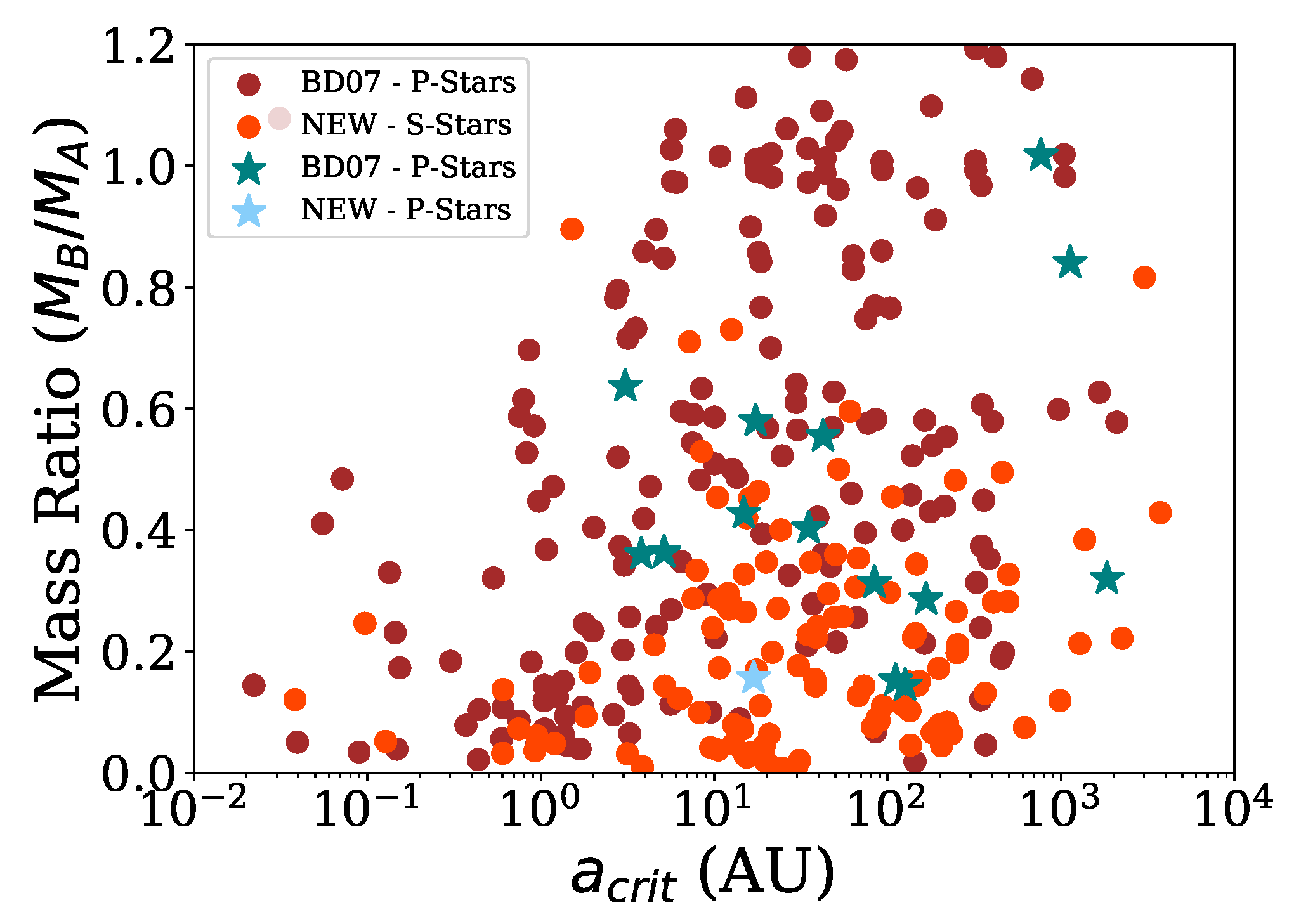

In order to investigate the dependence of the planet frequency on dynamical effect due to the presence of stellar companions, we divided the binary sample into some sub-samples according to the value of a c r i t . This feature, in fact, includes both the orbital parameters and the mass ratio, representing the maximum value of the semi-major axis for stable planetary orbits around planet hosts (see [3] for details).
Table 2 shows the values of the frequency for different intervals of a c r i t , as well as the values of the frequency in the full UD binary sample compared to those of the UD singles. Following the approach adopted in [28], the errors on the frequency values were estimated as: σ f = N p l a n e t s 1 / 2 + N s t a r 1 / 2 N p l a n e t s N s t a r s .
Thanks to the improvement in the information on both companion masses and orbital characteristics, especially for the closest pairs, we were able to better characterize the planet frequencies for these systems by splitting the a c r i t < 20 a u bin from BD07 into three smaller bins. This allowed us to check the planet occurrence in binaries with a c r i t comparable to the baseline used for the definition of the completeness of the UD sample, 2.5 au (see [29] for details). The results shown in Figure 5 seem to suggest that the planet frequency, which is low for very close pairs, rapidly increases and remains stable for higher separations.
The lack of planets in the innermost bin is strong evidence of the negative effects of very close companions for planets around the components. A binary system with a c r i t < 2.5 au is expected to have undergone a truncation of the circumstellar disk to separations below the snowline, most likely preventing the formation of giant planets (see, e.g., [59]). The observed null result in this range is therefore not surprising. The run of planet frequency with a c r i t at larger separations needs additional considerations, as it somewhat depends on the adopted binning a c r i t . With the binning shown in the left panel of Figure 5, the planet frequency results are similar overall. However, the cumulative distribution, shown in the right panel of the same figure, highlights an irregular run of a c r i t for stars with planets, with several plateaus seemingly suggesting a lack of planets in some separation ranges. Three out of 25 binaries with a c r i t between to 3 to 5.9 au host planets, though none of the 31 pairs with a c r i t between 6 to 14 au host planets. This may be due to the small-number statistics and partially due to some remaining ambiguity in the a c r i t value for binaries without direct detection of the companions.
One should also note that a value of a c r i t between 6 to 14 au corresponds to physical separations between the components of the order of 100 au. According to [60], this represents the distance at which the effect of the presence of the secondary on the protoplanetary disk starts to become important. They suggest that a companion closer than 100 au would alter the properties of the disk, causing disk fragmentation to be the dominant process of planet formation and resulting in a higher fraction of high-mass planets in these systems. If indeed the planet formation process acting in this kind of binary is more effective at closer separations, this could explain the observed bi-modal distribution. Unfortunately, the small number of objects considered and the ambiguities in the determination of a c r i t render these conclusions merely tentative. Additional observational efforts aimed both at mass and orbit determinations for these systems will allow more robust assessment.
The fact that the planet frequency of planets around components of wide binaries and single stars is very similar agrees with this overall picture, where one would expect that wide companions do not have any significant effect on the disk properties. The only exception to this behavior in the cumulative plot is the lack of planets in binaries with a c r i t between to 200 to 700 au, corresponding to physical separations of a few thousands of au. Any impact of the presence of a companion at such large separations is hard to explain from a theoretical perspective, and may be due to small-number statistics.

3.3. Stars with White Dwarfs Companions

Our extensive census of binary companions allows us to consider the specific case of stars with white dwarf companions known as Sirius-like systems (see [61] for details). Ten systems belonging to this category are identified in the sample, including three which were previously unknown6. Planets fulfilling the UD definition are found around two of these stars (HD 13445 and HD 27442). This would indicate a rather large frequency of planets in these systems (20%), which is surprising given that the presence of a white dwarf companion implies an originally tighter binary configuration, due to the mass loss from the white dwarf progenitor [11]. On the other hand, a larger planet frequency for stars with white dwarf companions may be ascribed to accretion of material lost by the white dwarfs on low-mass planets existing around the companion, making them detectable with the RV technique, or even the formation of second-generation planets [62]. These scenarios are quite speculative, and any claims that the observed higher frequency is real are definitely premature. Our census of white dwarf companions is, in fact, most likely incomplete, as they are typically faint and may also escape correct classifications when detected in one photometric band only (about a dozen of objects from Gaia) or only by dynamical signatures. Moreover, we expect the original selection biases of the RV planet surveys to have also caused the exclusion of white dwarf companions with short cooling ages when close enough to have caused spin-up of the companions (see, e.g., [63]).

4. Summary and Conclusions

This paper presents a new, and long overdue, census of the binarity of the stars in the Uniform Detectability (UD) sample by FV05, a widely used reference sample for statistics of giant planets detected via the radial velocity method. Building upon the work presented in BD07, we extended the search for binary companions to the stars in the Uniform Detectability (UD) sample by FV05, and were able to add 114 new pairs to the 199 included in the original UD binary sub-sample. The information made available in the past few years, in particular thanks to the second Gaia Data Release [30], allowed us to partially overcome the incompleteness affecting previous studies, which was mainly due to the lack of information on the binary population in most RV survey samples, both in terms of detection and orbital characterization.
In the updated sample, the level of completeness for binaries with separations >2″, and therefore not excluded due to the selection biases affecting the UD input lists, is 95 % . As a result, the new value of the overall frequency of binaries in the UD sample is 37 % , which is closer to, although still lower that, what is expected for a volume-limited sample—57%, according to [3].
We used this larger and improved UD binary sample to perform a more unbiased statistical analysis, much less affected by the incompleteness that characterized the original work. Our final goal was to assess the nature and extent of the influence of stellar multiplicity on the formation and, consequently, on the frequency of planets. Given the high level of precision achieved in the estimation of the system’s parameters, we were able to attempt a characterization of the behavior of the planet frequency among several different sub-sets of binaries in the updated sample. For this analysis, we chose to use the critical semi-major axis ( a c r i t ) defined by [49] as a reference, as it allows one to better take into account the dynamical effects of the presence of the companion on the circumstellar region as well as on planet formation and stability.
Similarly to BD07, we did not find any evidence of statistically significant differences in the overall planet occurrence between the UD binaries and single stars (5.1 ± 1.57% and 6.3 ± 1.36%, respectively). The lack of planets in close systems ( a c r i t < 2.5 au) found by BD07 was also confirmed, once again reinforcing the expectation of the effect of the presence of a companion on the tidal truncation of the disk. We also observed an increase of the frequency for systems with 3 < a c r i t < 6 au, followed by a decrease for 6 < a c r i t < 14 au. This apparent bi-modal distribution, if confirmed, could point towards a positive effect of the binarity on the planet formation process. This could also imply that disk fragmentation is more effective than core accretion in these environments, thanks to the altered properties of the disk caused by these kinds of stellar companions. Finally, we found a relatively high value of the planet frequency in the subset of stars hosting white dwarf companions. Several scenarios could be responsible for this, although we feel that it is premature to speculate on the causes without being certain of the authenticity of the result.
Unfortunately, given the small number of systems considered and the uncertainties still affecting the estimation of the a c r i t , most of the observed trends still need clarification and will certainly benefit from future updates to the information on the binary population, which will soon be available through future Gaia data releases as well as new dedicated observing campaigns. Nevertheless, our results represent a further confirmation that planets can form in binary systems in spite of the unfavorable conditions, and the observed trends, if confirmed, could point towards the need for a different formation scenario to explain the observed behavior of the frequency, especially in the case of very tight binaries.

Author Contributions

Data curation, M.B. and S.D.; Investigation, M.B. and S.D.; Methodology, M.B.; Writing—original draft, M.B.; Writing—review and editing, S.D. All authors have read and agreed to the published version of the manuscript.

Funding

M.B. acknowledges funding by the UK Science and Technology Facilities Council (STFC) grant no. ST/M001229/1. S.D. acknowledges the support by INAF/Frontiera through the “Progetti Premiali” funding scheme of the Italian Ministry of Education, University, and Research.

Acknowledgments

We thank the anonymous referees for their extensive feedback that significantly improved the clarity of the paper. This work made use of data from the European Space Agency (ESA) mission Gaia (https://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, https://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, particularly the institutions participating in the Gaia Multilateral Agreement. This research made use of the SIMBAD database, operated at CDS, Strasbourg, France.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. The UD Binary Sample

Table A1. Properties of binaries found in the UD sample. The new companions are marked with N. If the companion was retrieved in Gaia DR2 [30], the coordinates of the pair were used to update the projected separation ( r h o ). If an orbital solution was available, the appropriate semi-major axis ( a ( a u ) ) was included, together with the value of the eccentricity ( e c c ) and of the masses of both the primary ( M A ) and the companions ( M B ), if available. For systems for which only the projected separation was available (empty spaces in the eccentricity column), the semi-major axis was derived from the r h o using the relation a ( a u ) = 1.0 r h o ( a r c s e c ) d ( p c ) . The last two columns include a flag reporting notes for the object from BD07 ( F B D 07 :) and any additional notes arising from the present update. A dedicated entry can be found in the appendix for the objects marked with * in the last column. The mass flag indicates the source for the companion mass: a: M c o m p from VF06; b: M c o m p from Reid and Gizis [64], Delfosse et al. [65]; c: M c o m p from individual papers (see Reference list below), d: minimum M c o m p compatible with Δ μ and/or RV trend and null detection in GDR2, and e: preliminary orbital solution based on available RV measurements.
Table A1. Properties of binaries found in the UD sample. The new companions are marked with N. If the companion was retrieved in Gaia DR2 [30], the coordinates of the pair were used to update the projected separation ( r h o ). If an orbital solution was available, the appropriate semi-major axis ( a ( a u ) ) was included, together with the value of the eccentricity ( e c c ) and of the masses of both the primary ( M A ) and the companions ( M B ), if available. For systems for which only the projected separation was available (empty spaces in the eccentricity column), the semi-major axis was derived from the r h o using the relation a ( a u ) = 1.0 r h o ( a r c s e c ) d ( p c ) . The last two columns include a flag reporting notes for the object from BD07 ( F B D 07 :) and any additional notes arising from the present update. A dedicated entry can be found in the appendix for the objects marked with * in the last column. The mass flag indicates the source for the companion mass: a: M c o m p from VF06; b: M c o m p from Reid and Gizis [64], Delfosse et al. [65]; c: M c o m p from individual papers (see Reference list below), d: minimum M c o m p compatible with Δ μ and/or RV trend and null detection in GDR2, and e: preliminary orbital solution based on available RV measurements.
Stars with planets (as defined in FV05)
IDplx (mas)rho (″)ecca (au)acrit (au)MA MMB MMFlagBD07Notes
HD14238.163.89 14.791.240.53b Δ μ
HD982674.5755.62 125.921.320.19b
HD1344592.7 0.418.43.070.770.49c Δ μ (*) Δ μ RV
HD2078227.76252.99 1127.21.00.84c(*)
HD2744254.7113.04 34.991.490.6c(*)
HD3852923.58283.65 1839.641.470.47bG(*)
HD4097929.31191.38 765.141.191.21c(*) Δ μ (*)
HD4637533.8110.44 42.40.920.51b Δ μ
HD7573279.4384.82 166.230.910.26b
HD12013663.86 0.87221.05.131.350.49c(*)
HD 17783015.91.6 16.861.470.23c N
HD178911B24.3813.6 60.281.421.89c(*) Δ μ
HD18801519.7113.03 111.061.250.19b
HD19501926.63.39 17.321.070.62b
HD19605019.7110.77 83.851.150.36b (*)
HD19688529.24 0.4221.03.81.250.45c(*) Δ μ (*)
HD22258223.69113.3 715.480.990.36b
Stars without planets (as defined in FV05)
IDplx (mas)rho (″)ecca (au)acrit (au)MA MMB MMFlagBD07Notes
HD531A14.215.23 43.491.661.64a Δ μ
HD531B14.15.23 43.521.641.66a Δ μ
HD138837.11 106.8518.431.180.13d N Δ μ
HD307429.464.8 21.151.20.84b
HD307920.813.43 24.231.050.42b N Δ μ
HD365189.7943.2 85.340.890.06b(*)
HD377014.970.3 2.791.250.65bS RV Δ μ
HD379535.13 92.0210.791.941.97dS RV Δ μ Δ μ
HD382137.748.45 29.721.00.64b
HD382339.67.31 30.561.250.22b N
HD430730.814.08 21.641.310.26b N
HD4614168.75 0.4972.010.00.990.58b
HD474753.18 0.7410.010.750.820.07cSB Δ μ
HD490318.05 84.7315.471.170.03d N Δ μ
HD547014.85 20.53.241.130.29c Δ μ
HD655812.1819.02 253.261.230.26b N Δ μ
HD673421.37 80.013.992.250.2a Δ μ Δ μ RV
HD6872A11.0814.51 180.951.911.03a
HD6872B11.0414.51 127.911.031.91a
HD79638.55 0.0423.45.980.840.89b(*)
HD864825.04 105.7619.191.160.04d N Δ μ
HD867326.38 0.548.57.551.360.39c N Δ μ (*)
HD876520.47 0.05.30.951.20.06cG Δ μ Δ μ (*)
HD933118.0116.33 152.460.930.14b N
HD10360122.06 0.5352.25.660.750.77a Δ μ
HD10361122.13 0.5352.25.740.770.75a Δ μ
HD1111222.52.2 12.561.371.0c N Δ μ (*)
HD1196429.7929.68 138.661.130.59b(*)
HD1241421.499.64 60.590.840.50c N (*)
HD1304326.9279.21 400.021.140.66b
HD13612 B26.0916.76 58.581.022.32c(*) Δ μ
HD1350738.18 0.388.541.791.140.28cSB Δ μ (*) Δ μ
HD1353138.270.7 2.980.940.19c Δ μ
HD1382538.89 105.1317.471.180.2d N Δ μ
HD1614126.446.27 37.061.150.32b(*)
HD16160138.21 0.7515.01.040.760.09c(*)
HD1641739.3545.01 201.231.380.11b N
HD1628741.09 169.3331.030.970.02d N Δ μ
HD1689589.7 0.13249.574.231.240.49b
HD1814344.376.5 18.570.90.69b(*)
HD1844540.26 0.561.060.140.780.18cS(*) Δ μ
HD1890731.25 0.2813.03.862.040.02c N SB Δ μ (*)
HD1946731.231.65 9.541.450.06c N SB Δ μ (*)
HD2076683.06310.0 405.510.911.19a
HD2080783.01310.0 418.80.951.12a
HD2101926.233.9 20.311.110.63b
HD2287938.5319.19 87.071.120.1b N Δ μ
HD2343941.836.89 18.00.670.86c(*) Δ μ
HD2449648.813.55 10.431.080.49b N Δ μ
HD2568223.910.16 65.471.340.41b N Δ μ
HD2649142.46 0.5710.01.181.060.5c Δ μ SB (*)
HD28255A36.185.34 17.431.071.06a
HD28255B36.265.34 17.291.061.07a Δ μ
HD2946122.12 0.07.31.251.20.15cRV Δ μ (*)
HD2983623.51141.71 682.331.191.36c(*)
HD3033914.74 0.250.130.041.390.07cSB Δ μ
HD3064930.88 0.616.51.990.90.21eRV (*) Δ μ
HD3125317.17416.02 3020.571.251.02b N
HD3141227.740.2 1.081.170.43cRV (*) Δ μ (*)
HD3196626.5310.51 67.591.260.16b N
HD3292362.95 0.92.860.031.031.11b Δ μ
HD3347318.1910.28 76.931.320.76b Δ μ
HD3363237.6533.99 144.931.090.25b N
HD3363633.72 0.483.40.611.020.14c N Δ μ (*)
HD3568129.1710.13 54.91.050.27b N
HD3595633.72 0.622.60.30.980.18cSB(*)
HD3739481.4398.03 163.550.930.54b
HD3921316.37 0.22.30.750.970.07c N SB Δ μ (*)
HD39587113.12 0.455.91.131.050.14cSB Δ μ
HD3988136.3447.78 233.681.550.1b N
HD4039741.092.23 7.490.920.5b Δ μ
HD4065036.05 96.3815.171.020.27d N Δ μ
HD4202416.8 0.190.380.131.350.07c N SB (*)
HD4383497.93.0 5.180.980.14c N
HD4412027.6640.8 212.931.230.54c Δ μ (*)
HD4358751.8 0.811.60.531.060.34cSB (*) Δ μ
HD4498529.919.29 49.140.90.23b N
HD4558834.1441.3 175.381.210.52b
HD4570131.3 0.1722.285.121.181.0c Δ μ SB Δ μ (*)
HD4715724.7710.7 61.761.130.52b
HD50281114.358.3 63.320.760.63b (*)
HD5063925.68 0.020.03.411.160.15dRV Δ μ
HD5192926.710.72 3.930.860.36c Δ μ Δ μ (*)
HD5244712.51 36.276.21.140.14d N RV, Δ μ (*)
HD5370558.6421.25 43.730.970.89a(*)
HD5370658.6421.25 41.610.890.97a (*)
HD6160670.9257.9 103.540.810.62b
HD6375419.885.61 42.291.50.54b Δ μ
HD6418429.94 0.240.130.041.410.17c N SB
HD6446850.34 0.260.560.150.810.14cSB
HD6527756.655.13 12.720.720.36c Δ μ Δ μ (*)
HD6543042.54 0.324.01.050.830.06cSB Δ μ
HD6590761.7358.62 135.931.770.81c(*)
HD6745838.868.82 38.341.050.15b N Δ μ
HD6617121.1449.3 347.180.910.34b Δ μ
HD6801746.33 61.08.471.550.82d N Δ μ
HD7188123.86 115.9221.411.010.01d N Δ μ
HD7276047.40.9 3.210.910.13c Δ μ (*) Δ μ
HD7278019.27 0.09.31.681.280.05cRV Δ μ (*)
HD7334428.33 132.0124.411.260.01d N Δ μ
HD7366828.07 0.08.01.351.130.17c Δ μ (*)
HD7401428.74 0.537.221.21.040.05c N SB Δ μ
HD7675226.14 68.2810.631.050.3d N Δ μ
HD7740729.531.72 8.251.120.54c(*) Δ μ
HD8091316.27 0.071.612.881.270.06d N RV Δ μ (*)
HD8626414.7246.6 493.81.880.53b N
HD8672867.0134.38 343.641.080.13b(*)
HD8742442.949.73 38.020.780.12b N
HD8735931.95 77.7912.051.050.31d N Δ μ
HD8821831.52.0 8.451.090.69c RV Δ μ
HD9083977.43122.86 217.961.120.62b(*)
HD9222214.4818.1 148.781.091.05b(*)
HD9338523.0410.39 67.81.160.41b N Δ μ
HD9374516.94435.71 3730.81.120.48b N
HIP529426.0717.52 322.581.041.24b(*) Δ μ
HIP529405.72 0.372.60.61.120.12cSB(*)
HD9657420.04 89.0816.181.210.04d N Δ μ
HD9703730.82 116.920.791.260.08d N Δ μ
HD9733444.1489.88 366.551.090.05c(*) Δ μ
HD9861824.242.7 15.991.040.47b N Δ μ
HD9949154.9228.18 63.231.010.86a
HD9949254.9128.18 57.620.861.01a (*)
HD10018042.2615.5 48.921.10.69b
HD100623104.7415.3 17.970.770.66c RV Δ μ (*)
HD10117742.799.7 26.240.991.05c(*)
HD10125914.767.99 93.362.270.25b N Δ μ
HD102365107.6222.73 34.290.860.18b Δ μ
HD10343225.2473.41 345.760.920.89b
HD1038299.93 0.276.21.751.20.13bRV Δ μ
HD10511320.655.74 31.161.281.51c (*)
HD10645334.034.3 18.040.820.38b N Δ μ
HD10714820.2134.98 253.381.370.66c N
HD10770533.3220.96 85.421.220.71b Δ μ
HD10769238.4117.79 81.711.060.08b N Δ μ
HD109358116.13 293.7745.51.050.31d N Δ μ
HD11081050.4921.81 72.980.770.11b N Δ μ
HD11139827.575.73 452.541.060.2b
HD111484A11.459.03 92.671.381.39a
HD111484B11.459.03 93.061.391.38a
HD11417437.91 0.7733.41.511.341.2c N Δ μ (*)
HD11472926.428.19 46.921.00.34b(*)
HD11485339.9235.34 149.431.040.15b N
HD11644260.2526.2 51.80.760.73a
HD11644360.3426.2 50.530.730.76a
HD11793933.693.29 14.881.070.35b N RV (*)
HD12006631.76488.5 2092.191.160.67b
HD12023733.2211.65 47.871.160.66b
HD12047673.92 0.4433.154.630.760.68b
HD12069053.88 0.344.730.911.120.64c Δ μ SB (*)
HD12078059.555.7 13.530.740.36bG Δ μ Δ μ (*)
HD12138425.69 0.840.610.021.180.17c SB (*)
HD12274260.84 0.485.30.750.920.54cSB
HD12469425.4482.73 457.920.970.48b N
HD12545548.615.18 50.550.790.17b Δ μ
HD12661413.650.49 5.641.190.32c Δ μ RV (*)
HD12842816.750.8 6.451.260.75b RV Δ μ
HD128621743.0 0.5122.762.440.891.12a(*)
HD128620743.0 0.5122.762.791.120.89a(*)
HD12867438.92484.73 1661.710.830.52b
HD12981423.81 0.030.04.271.060.5dRV Δ μ Δ μ
HD13094854.912.6 8.221.110.11c N
HD131156148.52 0.5132.83.930.920.79b(*)
HD13150912.91 57.9910.51.330.05d N Δ μ
HD13151187.91 0.510.520.070.930.45cSB Δ μ
HD13192342.08 0.288.72.021.040.42cG Δ μ SB Δ μ (*)
HD131977170.0124.9 15.980.760.98c(*)(*)
HD13237529.179.75 50.111.280.46b N
HD13316126.030.5 2.861.180.44b Δ μ SB Δ μ
HD13404433.344.42 20.00.980.34b N Δ μ
HD13444033.8300.62 1041.810.550.56a Δ μ
HD13443933.99300.62 1046.860.560.55a Δ μ
HD13433131.8949.7 188.481.121.02a Δ μ
HD13433031.8849.7 178.61.021.12a
HD13510130.923.27 92.551.070.92c
HD13611819.41 0.352.360.61.250.04cPN S Δ μ
HD13644227.5214.03 89.312.440.21b N
HD13658024.6 0.020.03.021.170.4dRV Δ μ Δ μ
HD13751023.27 0.41.880.441.390.03cP Δ μ
HD13777848.3852.21 106.450.91.6c(*)(*)
HD13947751.1542.54 122.260.750.3b
HD13932344.51121.29 270.560.891.55c(*)(*)
HD13945720.82 61.319.790.880.21d N Δ μ
HD14078518.374.43 38.851.480.33b N
HD14090165.5314.5 30.251.080.61c (*)
HD14091320.67 0.540.550.091.170.04cSB
HD14110319.9214.19 122.770.990.11b N
HD14090165.5314.46 29.631.00.61c Δ μ
HD14222921.62 6.91.171.090.15cRVSB Δ μ (*)
HD14457969.5970.0 162.950.750.16b Δ μ
HD14458536.3136.88 180.311.510.1b N
HD14543527.121.59 9.091.190.35b Δ μ Δ μ
HD145958A41.26 0.39124.018.660.90.89a(*) Δ μ
HD145958B41.26 0.39124.018.530.890.9a(*) Δ μ
HD14582545.03 0.347.31.821.080.1c N SB Δ μ (*)
HD14636244.13 0.72119.25.61.122.23c Δ μ (*)
HD14648122.424.84 34.691.670.38b N
HD14723124.86 73.512.941.390.11d N Δ μ
HD14772330.564.08 16.21.291.16a Δ μ
HD14772230.564.08 15.241.161.29a Δ μ
HD14920019.4179.27 1368.851.120.43b N
HD14980649.36.3 18.840.940.37b Δ μ
HD15024835.99 0.674.360.440.960.1c Δ μ SB Δ μ (*)
HD15055421.16 0.07.61.351.130.07c Δ μ (*)
HD15069821.2526.73 220.761.680.14b N
HD15104434.09 161.5329.841.060.01d N Δ μ
HD15109022.75163.08 967.041.170.7b Δ μ
HD15199536.49 107.8119.420.890.04d N Δ μ
HD15416027.454.08 23.321.440.39b N
HD15506027.316.5 35.911.010.35b N Δ μ
HD15682620.94120.18 984.332.610.31b N Δ μ
HD156274120.180.79 0.850.790.55b
HD156274B120.18 0.063.510.240.90.2c SB (*)
HD15733830.18 55.637.20.930.66d N Δ μ
HD15878324.23 0.055.01.921.150.19c N SB Δ μ (*)
HD15986817.88 82.5815.041.390.04d N Δ μ
HD161797119.11 0.3222.05.631.150.13cRV Δ μ (*)RV, Δ μ
HD16225522.63 0.060.270.11.340.33c N SB Δ μ (*)
HD16459535.3688.12 358.120.980.44b
HD16450722.0125.01 204.751.80.08b N Δ μ
HD16655320.251.13 7.551.220.72b RV (*)
HD16721512.2 0.371.560.371.150.09cG Δ μ (*)SB Δ μ
HD16738928.894.18 498.321.010.33b N
HD16766532.01 0.345.471.411.110.05cSBSB Δ μ (*)
HD16958620.93 0.354.30.831.290.68c Δ μ SB Δ μ (*)
HD16982229.98 0.480.840.130.910.3cSB (*)
HD17077827.1420.19 106.640.880.4b N Δ μ
HD17046916.5943.19 406.221.60.45b N
HD17445717.35 0.231.90.61.070.06cSB Δ μ (*)
HD17534524.2 0.750.920.061.170.48c SB Δ μ (*)
HD1769829.7815.46 248.721.430.38b N
HD17914018.170.5 3.531.120.82c
HD17995739.67.2 21.291.011.03a Δ μ
HD17995839.67.2 21.531.031.01a Δ μ
HD18068417.85 52.287.941.50.5d N Δ μ
HD18165539.6534.6 140.612.020.45b N
HD18123420.875.17 39.51.160.28b N
HD18248864.06 0.5721.13.161.280.04c N Δ μ
HD18438547.8537.06 134.250.880.09b N
HD18486035.36 0.671.40.150.770.03cSB (*) Δ μ
HD18539554.23116.71 343.671.340.32b Δ μ
HD18769151.1921.49 66.421.370.35b(*)
HD19006751.832.86 9.580.80.08b(*) Δ μ
HD19036062.44178.02 465.971.010.2b(*)
HD19040656.430.80.518.33.251.090.07cRV Δ μ (*)
HD19077152.59 0.538.611.391.070.1eRV Δ μ Δ μ
HD191408166.237.1 6.440.690.24b RV Δ μ (*)
HD19178548.85103.84 326.170.830.26b
HD19202040.8715.16 52.120.780.39b N
HD19234315.8543.27 322.181.281.27a
HD19234415.8543.27 320.721.271.28a
HD19301725.0253.62 364.740.840.11b N
HD19330732.0521.26 102.641.380.41b N
HD19476621.759.88 257.391.12.33c
HD19639029.67235.08 1283.821.080.23b N
HD19556440.382.9 10.051.120.57b Δ μ
HD19606824.9816.62 84.271.691.3c
HD19620124.320.52 2.70.870.68b RV Δ μ
HD19707647.85125.0 351.330.990.6c(*)
HD19808924.772.62 15.41.00.42a N
HD19838724.05 0.536.71.051.320.19eG Δ μ (*)RV Δ μ
HD19880222.62 107.8419.791.60.03d N Δ μ
HD19959831.18 0.015.12.631.150.11c Δ μ SB Δ μ (*)
HD20056515.29 0.59.81.61.060.21cRV Δ μ SB Δ μ
HD20053818.2463.63 615.791.340.1b N Δ μ
HD20120311.59 27.864.522.230.47d N Δ μ
HD20638719.732.96 18.551.21.01b
HD20686055.1643.2 143.711.070.02c
HD20770026.02362.17 2244.491.40.31b N RV Δ μ (*)
HD20877626.07 0.274.20.971.140.51cSB Δ μ
HD20899827.4821.65 132.571.340.2b N Δ μ
HD21168113.82 0.05.30.941.310.08c N SB Δ μ
HD21216842.7220.1 54.521.061.12c (*)
HD21233048.89 0.2116.214.641.120.27c RV Δ μ (*)
HD21270826.911.01 6.421.060.13c N RV Δ μ (*)
HD21351924.3662.37 385.161.050.37b
HD21495341.977.43 24.641.130.59b RV, Δ μ (*)
HD2155784.21 0.3517.783.171.020.73cRV (*)SB Δ μ (*)
HD21564862.411.05 27.01.260.41b
HD21662523.78 64.4410.691.390.24d N Δ μ
HD21700415.629.17 74.91.270.95b
HD21716522.74 0.05.10.921.10.04c N SB Δ μ
HD21795816.151.25 12.151.150.31c N Δ μ (*)
HD21810125.84 0.586.670.881.260.23e Δ μ SB Δ μ
HD21823523.8217.9 135.32.410.11b N
HD21826133.26 80.2312.541.150.32d N Δ μ
HD21873027.2441.85 251.130.910.18b N
HD21886842.4550.4 197.040.930.16b N Δ μ
HD219542A18.365.37 34.721.081.05c(*)
HD219542B18.195.37 34.481.051.08c(*)
HD21983444.912.33 24.220.741.87c(*)
HD22007712.870.66 6.091.091.06b
HD22114627.6 82.3414.561.660.12d N Δ μ
HD22183029.98.13 39.580.950.4b
HD22308426.950.16 0.81.090.67cRV Δ μ
HD22323822.3224.92 196.701.290.1b N
HD22369113.9813.6 146.971.60.55c N (*)
Remarks: N: System not listed in FV05; SB: Spectroscopic Binaries; RV: Stars with RV linear trends (see [32]); G: Stars with accelerating proper motions in Hipparcos. (see [33]). Δ μ : Stars with discrepant proper motion between Hipparcos and Thyco II (see [33]), or between Gaia DR2 and Thyco II and/or TGAS, see Section 2.3 for details). References: HD 4614: Worley and Heintz [66]; HD 4747: Peretti et al. [67]; HD 5470: Patel et al. [35]; HD 8673: Roberts et al. [68]; HD 8765: Patel et al. [35]; HD 10360/61 Worley and Heintz [66]; HD 11112: Rodigas et al. [69]; HD 12414: Gentile Fusillo et al. [70]; HD 13445: Desidera and Barbieri [11], Lagrange et al. [71]; HD 13507: Perrier et al. [72]; HD 13531: Metchev [73]; HD 13612B: Duquennoy and Mayor [3], Worley [74]; HD 16160: Allen et al. [75], Golimowski et al. [76]; HD 16895: Worley and Heintz [66]; HD 18445: Duquennoy and Mayor [3], Halbwachs et al. [77], Zucker and Mazeh [78]; HD 18907: Jenkins et al. [36] HD 19467: Crepp et al. [39] HD 20782: Desidera and Barbieri [11]; HD 23439: Allen et al. [75]; HD 26491: Jenkins et al. [36]; HD 27442: Desidera and Barbieri [11], Chauvin et al. [79]; HD 29461: Patel et al. [35]; HD 29836: Griffin and Gunn [80]; HD 30339: Nidever et al. [32]; HD 30649: Nidever et al. [32], Dommanget and Nys [81]; HD 31412: Eggenberger et al. [9], Patel et al. [35]; HD 33636: Bean et al. [82]; HD 35956: Vogt et al. [83]; HD 38529: Desidera and Barbieri [11], Reffert and Quirrenbach [84]; HD 39213: Jenkins et al. [36]; HD 39587: Nidever et al. [32]; HD 40979: Mugrauer et al. [10]; HD 42024: Jenkins et al. [36]; HD 43587: Duquennoy and Mayor [3], Vogt et al. [83], Salim and Gould [85]; HD 43834: Eggenberger et al. [9]; HD 44120: Gentile Fusillo et al. [70]; HD 45701: Kane et al. [38]; HD 51929: Kane et al. [38]; HD 64184: Jenkins et al. [36]; HD 64468: Vogt et al. [83]; HD 65430: Nidever et al. [32]; HD 65907: Tokovinin [86]; HD 72760: Metchev [73]; HD 72780: Patel et al. [35]; HD 73668: Patel et al. [35]; HD 74014: Sahlmann et al. [87]; HD 77407: Mugrauer et al. [88], Metchev [73]; HD 88218: Tokovinin [86]; HIP 52940: Nidever et al. [32]; HD 97334: Burgasser et al. [89]; HD 100623: Gentile Fusillo et al. [70]; HD 101177: Duquennoy and Mayor [3], Salim and Gould [85]; HD 105113: Tokovinin [86]; HD 107148: Gentile Fusillo et al. [70]; HD 114174: Bacchus et al. [90]; HD 120136: Justesen and Albrecht [91]; HD 120690: Jenkins et al. [36], dos Santos et al. [92]; HD 121384: Jenkins et al. [36]; HD 122742: Nidever et al. [32]; HD 126614: Howard et al. [93]; HD 128620 - HD 128627: Worley and Heintz [66]; HD 130948: Dupuy et al. [94]; HD 131156: Duquennoy and Mayor [3], Worley and Heintz [66]; HD 131511: Nidever et al. [32]; HD 131923: Jenkins et al. [36]; HD 131977: Torres et al. [95]; HD 135101: Desidera et al. [96]; HD 136118: Martioli et al. [55]; HD 137510: Díaz et al. [56]; HD 137778: Tokovinin [97]; HD 139323: this paper; HD 140901: Gentile Fusillo et al. [70]; HD 140913: Nidever et al. [32]; HD 142229: Patel et al. [35]; HD 145825: Kane et al. [38] HD 146362 B: Raghavan et al. [98]; HD 150248: Jenkins et al. [36]; HD 150554: Patel et al. [35]; Metchev [73]; HD 156274B: Jenkins et al. [36]; HD 158733: Jenkins et al. [36]; HD 161797: Nidever et al. [32], Makarov and Kaplan [33],Worley and Heintz [66],Wittenmyer et al. [99]; HD162255: Jenkins et al. [36]; HD 167215: Díaz et al. [56]; HD 167665: Patel et al. [35]; HD 169586: Jenkins et al. [36]; HD 169822: Vogt et al. [83]; HD 174457: Nidever et al. [32]; HD 175345: Jenkins et al. [36]; HD 177830: Eggenberger et al. [9]; HD 178911 B: Tokovinin et al. [100]; HD 179140: Tokovinin [86]; HD 182488: Bowler et al. [101]; HD 184860: Vogt et al. [83]; HD 190406: Crepp et al. [102]; HD 194766: Tokovinin [86]; HD 196050: Eggenberger et al. [9]; HD 196068: Marmier et al. [103]; HD 197076: Duquennoy and Mayor [3]; HD 196885: Chauvin et al. [104]; HD 199598: Patel et al. [35]; HD 200565: dos Santos et al. [92]; HD 206860: Luhman et al. [105] HD 208776: Nidever et al. [32]; HD 211681: Patel et al. [35]; HD 212168: Tokovinin [86]; HD 212330: Kane et al. [38]; HD 212708: Kane et al. [38]; HD 215578: Patel et al. [35]; HD 217165: Patel et al. [35]; HD 217958: Kane et al. [38]; this paper; HD 219542: Desidera et al. [96]; HD 219834: Docobo et al. [106]; HD 223084: Tokovinin et al. [40]; HD 223691: This paper.

Appendix B. Notes on Individual Systems

HD 8673: This star hosts a massive planet in a highly eccentric orbit with a period slightly longer than the UD boundaries [107]. Adaptive optics (AO) observations by [68] revealed a stellar companion at 0.3 . They estimated a mass of 0.33–0.45 M . The orbit is constrained to be a = 35–60 au and e < 0.5. The star also has a Δ μ signature, which may be due to the planet and/or the stellar companion, while there are no indications of long-term trends from RV measurements that yielded planet discovery.
HD 8765: Star already considered as binary in BD07 on the basis of the astrometric trend reported by [33]. The presence of a stellar companion is confirmed by [35].
HD 11112: Star with an RV trend and Δ μ . The responsible for the trend was identified by [69] as a white dwarf at 2.2” with a probable mass of 0.9–1.1 M .
HD 12414: New companion identified through Gaia DR2. The blue BP-RP color indicates that it is white dwarf companion. This is further confirmed by the analysis of Gentile Fusillo et al. [70]. Therefore, this star is a new Sirius-like system.
HD 18907: Spectroscopic binary (SB) from [36] (very preliminary orbital solution due to the long period). The star has also a Δ μ signature.
HD 19467: The star has a long-term RV trend, astrometric Δ μ , and direct detection with AO. The companion is a T-type brown dwarf [39].
HD 26491: SB from [36] (incomplete orbital solution due to long period). The star was already in BD07 as Δ μ binary.
HD 29461, HD 72780, HD 142229, HD 167665, HD 215578: Already included in the UD binary sub-sample, on the basis of the RV trend reported by [32], are now confirmed by the work of P07.
HD 31412: E07 confirmed that this system is made by a close pair (HD 31412Ab ρ = 0.194 ) orbited by a distant companion, HD 31412B, at 22 . HD 31412Aa is likely an early M-dwarf with a mass of 0.42 M . This mass estimate is in agreement with P07 which reported a mass between 0.36–0.41 M for HD 31412Aa.
HD 33636: Observations from the Hubble Space Telescope (HST) indicate that the RV planet (msini=9 M J u p ) is instead a low-mass star (see [82] for details).
HD 39213: SB with an orbital solution from [36]. This also has a Δ μ signature. The minimum mass from the RV orbital solution is formally in the brown dwarf (BD) regime (69.7 M J u p ).
HD 40979: The comoving companion reported by [108] was found to be a close pair ( ρ = 3.9 ) by [10], with a total mass of 1.21 M (0.833 M for HD 40979B and 0.380 M for HD 40979C).
HD 42024: Triple system. SB with an orbital solution from [36]. The companion has minimum mass in the substellar regime (68.9 M J u p ). There is also a visual companion at 2.67 from Gaia.
HD 44120: The companion is a white dwarf. The F-type star HD 44105 at 34 is not physically associated, according to Gaia DR2 astrometric parameters.
HD 45701: Included in BD07 as Δ μ binary. Full orbital solution from RV is presented in [38], with mass in the stellar regime.
HD 50281: The two components of this binary system show a large difference in proper motion ( Δ μ α = 32.6 mas/yr; Δ μ δ = 9.8 mas/yr). Nevertheless, we consider it as a binary system, considering the very similar parallax in Gaia DR2 (114.30 mas for the primary and 114.41 mas for the secondary), the large proper motion (–543.62 and –3.49 mas/yr for the primary), and the very similar radial velocities. The origin of the large proper motion difference is unclear, as the pair has a projected separation of 510 au, ruling out significant orbital motion, and there are no indications of close companions around either of the components (HD50281B also has high-precision RV monitoring from [41]).
HD 51929: Included in BD07 as Δ μ binary. The companion likely responsible for the astrometric acceleration was detected using both RV (long-term trend) and imaging by [38].
HD 52447: Star with a long-term RV trend [38] and Gaia2/TGAS Δ μ . From the properties of the long-term trend, it results that, most likely, the companion is stellar.
HD 65277: The star has a close source (HD 65277B) at 5 , which we consider as a physical companion, as the μ α and parallax are very similar. The large discrepancy in μ δ (23 mas/yr) could be due to the presence of an additional companion and/or to the orbital motion of the pair (projected separation of about 90 au). The secondary has a highly significant astrometric excess noise from Gaia DR2, suggesting that it could have an additional companion. The UD target (the primary) has a shallow RV trend, which is compatible with the presence of the secondary.
HD 73668: Previously included in BD07 because of a companion reported at 26.50 , it was found by [35] to have an additional companion with a period of 20.4 years and a mass of 164 M J u p .
HD 80913: Star with a long-term RV trend [38] and Gaia2/TGAS Δ μ . From the properties of the long-term trend, it results that, most likely, the companion has mass larger than 20 M J u p .
HIP 52940 and HIP 52942: Probable quadruple system. The two components have a separation of 17.5 . HIP 52940 is a close visual and spectroscopic binary. At a wide separation ( 437 ), there is the white dwarf SDSS J104937.10+124827.8, which has similar values of parallax with some discrepancy in proper motion.
HD 100623: Included in BD07 as a wide binary (separation of 17 ), confirmed by Gaia DR2. The companion is a white dwarf. The star has also a long-term RV trend [38] and Δ μ signature, which might be due to the WD (projected separation of about 160 au).
HD 105113: The secondary HD 105113B is a close binary, identified as SB2 by [86] and close visual binary by [109].
HD 107148: New companion identified through Gaia DR2. The blue BP-RP color indicates that it is white dwarf companion. This is further confirmed by the analysis of Gentile Fusillo et al. [70]. Therefore, this star is a new Sirius-like system. The star also has a planet below the RV amplitude threshold of the UD sample.
HD 114174: White dwarf companion at 0.7 detected by [110]. It is responsible for the RV trend and astrometric signature. Detailed studies show some ambiguities in the properties of the white dwarf [90,111]. We adopt a mass of 1.20 and the corresponding orbital solution from [90].
HD 117939: New companion from Gaia DR2 at 3.29 = 99.4 au. This object could be responsible for the long-term RV trend found by [38].
HD 120690: SB with an orbital solution from [36,92]. The companion also has direct detection, which yields a mass close to the minimum mass from the spectroscopic orbit [86]. It was already included in BD07 as a Δ μ binary.
HD 121384: SB with an orbital solution from [36]. There is also a wide companion at 34.2 from Gaia.
HD 126614: Companion at 0.49 detected by [93]. It is responsible for the RV trend and astrometric signature. There is an additional comoving object at 41.85 from Gaia.
HD 131923: SB from [36] (incomplete orbital solution due to the long period). The star was already in BD07 as a Δ μ binary and a star with Hipparcos astrometric acceleration.
HD 131977: The 28 companion to the UD target is itself a close binary with individual masses adopted from [95]. There is also an additional companion, the brown dwarf GJ 570D, at 262 .
HD 137778: The large difference in parallax and proper motion between the components is likely due to the binarity of the companion, the G star HD 137763, which is a close visual and spectroscopic binary with an orbital solution [97].
HD 139323: The secondary (HD 139341) is a close visual and spectroscopic binary.
HD 140901: The companion is a WD [70].
HD 145825: New binary from the RV orbital solution [38], with mass in the stellar regime.
HD 150248: SB with orbital solution from [36]. The star was already in BD07 as a Δ μ binary.
HD 150554: BD07 reported the companion listed in [94] at 11.60 , but P07 discovered a further low-mass companion (Msini 68.8 M J u p ) with a period of 11.8 years.
HD 156274B: SB from [36] (incomplete orbital solution due to the long period). The star is part of a triple system with HD 156274A at 8.65 ,
HD 158783: SB with an orbital solution from [36]. The star also has a Δ μ signature.
HD 162255: SB with an orbital solution from [36]. The star also has a Δ μ signature. There is also a wide companion at 85 , which is likely a white dwarf from the moderately blue BP-RP color and lack of detection in 2MASS.
HD 166553: Already in the UD sample as a close visual binary (separation of 1.4 ). Confirmed from the RV long-term trend and direct imaging detection [38].
HD 169586: SB with an orbital solution from [36]. The star was already included in BD07 as a Δ μ binary.
HD 175345: SB with an orbital solution from [36]. This also has a Δ μ signature from Gaia. There is also a companion at a wider separation ( 6.19 ).
HD 191408: Included in BD07 as a visual binary (separation of ρ = 7.1 ). The companion (GJ 783B; spectral type M3.5) is not included in Gaia DR2, most likely because of the brightness of the primary (mag 5) and very large proper motion. The star also an RV long-term trend [38] and significant Δ μ . The known companion (projected separation of 42 au) is likely responsible for these dynamical signatures.
HD 196885: The occurrence of a planetary companion fulfilling the UD definition was confirmed by [53,54]. The authors of [104] derived a binary orbital solution including the AO observations and the RV trend.
HD 196050: The comoving companion reported in BD07 was found by [9] to be a close pair made of an M1.5–M4.5 dwarf with a mass of 0.29 ± 0.02 M plus an M2.5–M5.5 dwarf of 0.19 ± 0.02 M .
HD 199598: Already considered as a binary in BD07 on the basis of the astrometric trend reported by [33], and is now confirmed by the work of [35].
HD 207700: New very wide visual binary from Gaia DR2 (projected separation of 362 ). The star also has a long-term RV trend from [38] and proper motion difference from GaiaDR2-TGAS. This close companion may be of planetary mass, and is therefore not included in this paper as a binary companion.
HD 212168: The wide companion at 20.1 from the UD target is itself a close (projected separation of 0.077 ) binary [86].
HD 212330: Included in BD07 as a wide binary because of the presence of a wide companion at 81 . The physical association is confirmed by Gaia DR2. An additional companion at closer separation was identified by [38] with an RV orbital solution and detection by direct imaging. The system is then triple.
HD 212708: New binary from RV long-term trend and direct imaging detection [38].
HD 214953: Originally in BD07 as a visual binary (separation of 7 ) It also has an RV long-term trend [38] and a Δ μ signature. These trends might be due to the known companion or to an additional one of much smaller mass at closer separation.
HD 217958: New binary from the RV long-term trend and direct imaging detection [38], with mass in the stellar regime.
HD 223691: The new companion detected by Gaia at 13" results in a probable white dwarf from the position on the color magnitude diagram ( M G = 15.11 , BP-RP=1.33), well within the locus of white dwarfs from Gentile Fusillo et al. [70]. The modest amount of photometric contamination (phot bprp excess factor = 1.91) supports the classification based on BP-RP. The star then results in a new Sirius-like system. We adopt a mass of 0.55 M for the companion, typical for this kind of star.

References

  1. Kouwenhoven, M.B.N.; Brown, A.G.A.; Portegies Zwart, S.F.; Kaper, L. The primordial binary population. II.. Recovering the binary population for intermediate mass stars in Scorpius OB2. Astron. Astrophys. 2007, 474, 77–104. [Google Scholar] [CrossRef]
  2. Peter, D.; Feldt, M.; Henning, T.; Hormuth, F. Massive binaries in the Cepheus OB2/3 region. Constraining the formation mechanism of massive stars. Astron. Astrophys. 2012, 538, A74. [Google Scholar] [CrossRef]
  3. Duquennoy, A.; Mayor, M. Multiplicity among solar-type stars in the solar neighbourhood. II - Distribution of the orbital elements in an unbiased sample. Astron. Astrophys. 1991, 248, 485–524. [Google Scholar]
  4. Raghavan, D.; McAlister, H.A.; Henry, T.J.; Latham, D.W.; Marcy, G.W.; Mason, B.D.; Gies, D.R.; White, R.J.; ten Brummelaar, T.A. A Survey of Stellar Families: Multiplicity of Solar-type Stars. Astrophys. J. Suppl. Ser. 2010, 190, 1–42. [Google Scholar] [CrossRef]
  5. Fischer, D.A.; Marcy, G.W. Multiplicity among M dwarfs. Astrophys. J. 1992, 396, 178–194. [Google Scholar] [CrossRef]
  6. Delfosse, X.; Beuzit, J.L.; Marchal, L.; Bonfils, X.; Perrier, C.; Ségransan, D.; Udry, S.; Mayor, M.; Forveille, T. M dwarfs binaries: Results from accurate radial velocities and high angular resolution observations. In Spectroscopically and Spatially Resolving the Components of the Close Binary Stars, Proceedings of the Astronomical Society of the Pacific Conference Series Workshop held 20-24 October 2003 in Dubrovnik, Croatia; Hilditch, R.W., Hensberge, H., Pavlovski, K., Eds.; ASP Conference Series; Astronomical Society of the Pacific: San Francisco, CA, USA, 2004; Volume 318, pp. 166–174. [Google Scholar]
  7. Janson, M.; Hormuth, F.; Bergfors, C.; Brandner, W.; Hippler, S.; Daemgen, S.; Kudryavtseva, N.; Schmalzl, E.; Schnupp, C.; Henning, T. The AstraLux Large M-dwarf Multiplicity Survey. Astrophys. J. 2012, 754, 44. [Google Scholar] [CrossRef]
  8. Marzari, F.; Thebault, P. Planets in Binaries: Formation and Dynamical Evolution. Galaxies 2019, 7, 84. [Google Scholar] [CrossRef]
  9. Eggenberger, A.; Udry, S.; Chauvin, G.; Beuzit, J.L.; Lagrange, A.M.; Ségransan, D.; Mayor, M. The impact of stellar duplicity on planet occurrence and properties. I. Observational results of a VLT/NACO search for stellar companions to 130 nearby stars with and without planets. Astron. Astrophys. 2007, 474, 273–291. [Google Scholar] [CrossRef]
  10. Mugrauer, M.; Neuhäuser, R.; Mazeh, T. The multiplicity of exoplanet host stars. Spectroscopic confirmation of the companions GJ 3021 B and HD 27442 B, one new planet host triple-star system, and global statistics. Astron. Astrophys. 2007, 469, 755–770. [Google Scholar] [CrossRef]
  11. Desidera, S.; Barbieri, M. Properties of planets in binary systems. The role of binary separation. Astron. Astrophys. 2007, 462, 345–353. [Google Scholar] [CrossRef]
  12. Doyle, L.R.; Carter, J.A.; Fabrycky, D.C.; Slawson, R.W.; Howell, S.B.; Winn, J.N.; Orosz, J.A.; Přsa, A.; Welsh, W.F.; Quinn, S.N.; et al. Kepler-16: A Transiting Circumbinary Planet. Science 2011, 333, 1602. [Google Scholar] [CrossRef] [PubMed]
  13. Orosz, J.A.; Welsh, W.F.; Carter, J.A.; Fabrycky, D.C.; Cochran, W.D.; Endl, M.; Ford, E.B.; Haghighipour, N.; MacQueen, P.J.; Mazeh, T.; et al. Kepler-47: A Transiting Circumbinary Multiplanet System. Science 2012, 337, 1511. [Google Scholar] [CrossRef]
  14. Beuermann, K.; Hessman, F.V.; Dreizler, S.; Marsh, T.R.; Parsons, S.G.; Winget, D.E.; Miller, G.F.; Schreiber, M.R.; Kley, W.; Dhillon, V.S.; et al. Two planets orbiting the recently formed post-common envelope binary NN Serpentis. Astron. Astrophys. 2010, 521, L60. [Google Scholar] [CrossRef]
  15. Eggenberger, A.; Udry, S.; Chauvin, G.; Forveille, T.; Beuzit, J.L.; Lagrange, A.M.; Mayor, M. Probing the impact of stellar duplicity on the frequency of giant planets: Final results of our VLT/NACO survey. In The Astrophysics of Planetary Systems: Formation, Structure, and Dynamic al Evolution, Proceedings of the International Astronomical Union, IAU Symposium 276 held in Turin, Italy from October 11 to 15th; Cambridge University Press: Cambridge, UK, 2011; Volume 276, pp. 409–410. [Google Scholar] [CrossRef]
  16. Daemgen, S.; Hormuth, F.; Brandner, W.; Bergfors, C.; Janson, M.; Hippler, S.; Henning, T. Binarity of transit host stars. Implications for planetary parameters. Astron. Astrophys. 2009, 498, 567–574. [Google Scholar] [CrossRef]
  17. Adams, E.R.; Ciardi, D.R.; Dupree, A.K.; Gautier, T.N., III; Kulesa, C.; McCarthy, D. Adaptive Optics Images of Kepler Objects of Interest. Astron. J. 2012, 144, 42. [Google Scholar] [CrossRef]
  18. Adams, E.R.; Dupree, A.K.; Kulesa, C.; McCarthy, D. Adaptive Optics Images. II. 12 Kepler Objects of Interest and 15 Confirmed Transiting Planets. Astron. J. 2013, 146, 9. [Google Scholar] [CrossRef]
  19. Ginski, C.; Mugrauer, M.; Seeliger, M.; Eisenbeiss, T. A lucky imaging multiplicity study of exoplanet host stars. Mon. Not. R. Astron. Soc. 2012, 421, 2498–2509. [Google Scholar] [CrossRef]
  20. Roell, T.; Neuhäuser, R.; Seifahrt, A.; Mugrauer, M. Extrasolar planets in stellar multiple systems. Astron. Astrophys. 2012, 542, A92. [Google Scholar] [CrossRef]
  21. Bergfors, C.; Brandner, W.; Daemgen, S.; Biller, B.; Hippler, S.; Janson, M.; Kudryavtseva, N.; Geißler, K.; Henning, T.; Köhler, R. Stellar companions to exoplanet host stars: Lucky Imaging of transiting planet hosts. Mon. Not. R. Astron. Soc. 2013, 428, 182–189. [Google Scholar] [CrossRef]
  22. Wang, J.; Xie, J.W.; Barclay, T.; Fischer, D.A. Influence of Stellar Multiplicity on Planet Formation. I. Evidence of Suppressed Planet Formation due to Stellar Companions within 20 AU and Validation of Four Planets from the Kepler Multiple Planet Candidates. Astrophys. J. 2014, 783, 4. [Google Scholar] [CrossRef]
  23. Wang, J.; Fischer, D.A.; Xie, J.W.; Ciardi, D.R. Influence of Stellar Multiplicity on Planet Formation. II. Planets are Less Common in Multiple-star Systems with Separations Smaller than 1500 AU. Astrophys. J. 2014, 791, 111. [Google Scholar] [CrossRef]
  24. Kraus, A.L.; Ireland, M.J.; Huber, D.; Mann, A.W.; Dupuy, T.J. The Impact of Stellar Multiplicity on Planetary Systems. I. The Ruinous Influence of Close Binary Companions. Astron. J. 2016, 152, 8. [Google Scholar] [CrossRef]
  25. Horch, E.P.; Howell, S.B.; Everett, M.E.; Ciardi, D.R. Most Sub-arcsecond Companions of Kepler Exoplanet Candidate Host Stars are Gravitationally Bound. Astrophys. J. 2014, 795, 60. [Google Scholar] [CrossRef]
  26. Ziegler, C.; Tokovinin, A.; Briceno, C.; Mang, J.; Law, N.; Mann, A.W. SOAR TESS Survey. I: Sculpting of TESS planetary systems by stellar companions. arXiv 2019, arXiv:1908.10871. [Google Scholar] [CrossRef]
  27. Fontanive, C.; Rice, K.; Bonavita, M.; Lopez, E.; Mužić, K.; Biller, B. A high binary fraction for the most massive close-in giant planets and brown dwarf desert members. Mon. Not. R. Astron. Soc. 2019, 485, 4967–4996. [Google Scholar] [CrossRef]
  28. Bonavita, M.; Desidera, S. The frequency of planets in multiple systems. Astron. Astrophys. 2007, 468, 721–729. [Google Scholar] [CrossRef]
  29. Fischer, D.A.; Valenti, J. The Planet-Metallicity Correlation. Astrophys. J. 2005, 622, 1102–1117. [Google Scholar] [CrossRef]
  30. Gaia Collaboration; Brown, A.G.A.; Vallenari, A.; Prusti, T.; de Bruijne, E.A. Gaia Data Release 2. Summary of the contents and survey properties. Astron. Astrophys. 2018, 616, A1. [Google Scholar] [CrossRef]
  31. Gożdziewski, K.; Niedzielski, A.; Schneider, J. On the Frequency of Planets in Multiple Systems: An Update. Eur. Astron. Soc. Publ. Ser. 2010, 42, 105–108. [Google Scholar] [CrossRef]
  32. Nidever, D.L.; Marcy, G.W.; Butler, R.P.; Fischer, D.A.; Vogt, S.S. Radial Velocities for 889 Late-Type Stars. Astrophys. J. Suppl. Ser. 2002, 141, 503–522. [Google Scholar] [CrossRef]
  33. Makarov, V.V.; Kaplan, G.H. Statistical Constraints for Astrometric Binaries with Nonlinear Motion. Astron. J. 2005, 129, 2420–2427. [Google Scholar] [CrossRef]
  34. Brandeker, A.; Cataldi, G. Contrast sensitivities in the Gaia Data Release 2. Astron. Astrophys. 2019, 621, A86. [Google Scholar] [CrossRef]
  35. Patel, S.G.; Vogt, S.S.; Marcy, G.W.; Johnson, J.A.; Fischer, D.A.; Wright, J.T.; Butler, R.P. Fourteen New Companions from the Keck and Lick Radial Velocity Survey Including Five Brown Dwarf Candidates. Astrophys. J. 2007, 665, 744–753. [Google Scholar] [CrossRef]
  36. Jenkins, J.S.; Díaz, M.; Jones, H.R.A.; Butler, R.P.; Tinney, C.G.; O’Toole, S.J.; Carter, B.D.; Wittenmyer, R.A.; Pinfield, D.J. The observed distribution of spectroscopic binaries from the Anglo-Australian Planet Search. Mon. Not. R. Astron. Soc. 2015, 453, 1439–1457. [Google Scholar] [CrossRef]
  37. Moutou, C.; Vigan, A.; Mesa, D.; Desidera, S.; Thébault, P.; Zurlo, A.; Salter, G. Eccentricity in planetary systems and the role of binarity. Sample definition, initial results, and the system of HD 211847. Astron. Astrophys. 2017, 602, A87. [Google Scholar] [CrossRef]
  38. Kane, S.R.; Dalba, P.A.; Li, Z.; Horch, E.P.; Hirsch, L.A.; Horner, J.; Wittenmyer, R.A.; Howell, S.B.; Everett, M.E.; Butler, R.P.; et al. Detection of Planetary and Stellar Companions to Neighboring Stars via a Combination of Radial Velocity and Direct Imaging Techniques. Astron. J. 2019, 157, 252. [Google Scholar] [CrossRef]
  39. Crepp, J.R.; Johnson, J.A.; Howard, A.W.; Marcy, G.W.; Brewer, J.; Fischer, D.A.; Wright, J.T.; Isaacson, H. The TRENDS High-contrast Imaging Survey. V. Discovery of an Old and Cold Benchmark T-dwarf Orbiting the Nearby G-star HD 19467. Astrophys. J. 2014, 781, 29. [Google Scholar] [CrossRef]
  40. Tokovinin, A.; Hartung, M.; Hayward, T.L.; Makarov, V.V. Revealing Companions to Nearby Stars with Astrometric Acceleration. Astron. J. 2012, 144, 7. [Google Scholar] [CrossRef]
  41. Butler, R.P.; Vogt, S.S.; Laughlin, G.; Burt, J.A.; Rivera, E.J.; Tuomi, M.; Teske, J.; Arriagada, P.; Diaz, M.; Holden, B.; et al. The LCES HIRES/Keck Precision Radial Velocity Exoplanet Survey. Astron. J. 2017, 153, 208. [Google Scholar] [CrossRef]
  42. Fischer, D.A.; Marcy, G.W.; Spronck, J.F.P. The Twenty-five Year Lick Planet Search. Astrophys. J. Suppl. Ser. 2014, 210, 5. [Google Scholar] [CrossRef]
  43. Tal-Or, L.; Trifonov, T.; Zucker, S.; Mazeh, T.; Zechmeister, M. Correcting HIRES/Keck radial velocities for small systematic errors. Mon. Not. R. Astron. Soc. 2019, 484, L8–L13. [Google Scholar] [CrossRef]
  44. Desidera, S.; Carolo, E.; Gratton, R.; Martinez Fiorenzano, A.F.; Endl, M.; Mesa, D.; Barbieri, M.; Bonavita, M.; Cecconi, M.; Claudi, R.U.; et al. A giant planet in the triple system HD 132563. Astron. Astrophys. 2011, 533, A90. [Google Scholar] [CrossRef]
  45. Høg, E.; Fabricius, C.; Makarov, V.V.; Urban, S.; Corbin, T.; Wycoff, G.; Bastian, U.; Schwekendiek, P.; Wicenec, A. The Tycho-2 catalogue of the 2.5 million brightest stars. Astron. Astrophys. 2000, 355, L27–L30. [Google Scholar]
  46. Perryman, M.A.C.; ESA. The HIPPARCOS and TYCHO Catalogues. Astrometric and Photometric Star Catalogues Derived from the ESA HIPPARCOS Space Astrometry Mission; The Hipparcos and Tycho Catalogues, Astrometric and Photometric Star Catalogues Derived from the ESA Hipparcos Space Astrometry Mission; ESA Publications Division Series: ESA SP Series vol no: 1200; ESA: Noordwijk, The Netherlands, 1997; ISBN 9290923997. [Google Scholar]
  47. Fontanive, C.; Mužić, K.; Bonavita, M.; Biller, B. A new method for target selection in direct imaging programmes with COPAINS. Mon. Not. R. Astron. Soc. 2019, 490, 1120–1134. [Google Scholar] [CrossRef]
  48. Gaia Collaboration; Prusti, T.; de Bruijne, J.H.J.; Brown, A.G.A.; Vallenari, A.; Babusiaux, C.; Bailer-Jones, C.A.L.; Bastian, U.; Biermann, M.; Evans, D.W.; et al. The Gaia mission. Astron. Astrophys. 2016, 595, A1. [Google Scholar] [CrossRef]
  49. Holman, M.J.; Wiegert, P.A. Long-Term Stability of Planets in Binary Systems. Astron. J. 1999, 117, 621–628. [Google Scholar] [CrossRef]
  50. Ziegler, C.; Law, N.M.; Baranec, C.; Morton, T.; Riddle, R.; De Lee, N.; Huber, D.; Mahadevan, S.; Pepper, J. Measuring the Recoverability of Close Binaries in Gaia DR2 with the Robo-AO Kepler Survey. Astron. J. 2018, 156, 259. [Google Scholar] [CrossRef]
  51. Torres, G. Substellar Companion Masses from Minimal Radial Velocity or Astrometric Information: A Monte Carlo Approach. Publ. Astron. Soc. Pac. 1999, 111, 169–176. [Google Scholar] [CrossRef]
  52. Pecaut, M.J.; Mamajek, E.E. Intrinsic Colors, Temperatures, and Bolometric Corrections of Pre-main-sequence Stars. Astrophys. J. Suppl. Ser. 2013, 208. [Google Scholar] [CrossRef]
  53. Correia, A.C.M.; Udry, S.; Mayor, M.; Eggenberger, A.; Naef, D.; Beuzit, J.L.; Perrier, C.; Queloz, D.; Sivan, J.P.; Pepe, F.; et al. The ELODIE survey for northern extra-solar planets. IV. HD 196885, a close binary star with a 3.7-year planet. Astron. Astrophys. 2008, 479, 271–275. [Google Scholar] [CrossRef]
  54. Fischer, D.; Driscoll, P.; Isaacson, H.; Giguere, M.; Marcy, G.W.; Valenti, J.; Wright, J.T.; Henry, G.W.; Johnson, J.A.; Howard, A.; et al. Five Planets and an Independent Confirmation of HD 196885Ab from Lick Observatory. Astrophys. J. 2009, 703, 1545–1556. [Google Scholar] [CrossRef]
  55. Martioli, E.; McArthur, B.E.; Benedict, G.F.; Bean, J.L.; Harrison, T.E.; Armstrong, A. The Mass of the Candidate Exoplanet Companion to HD 136118 from Hubble Space Telescope Astrometry and High-Precision Radial Velocities. Astrophys. J. 2010, 708, 625–634. [Google Scholar] [CrossRef]
  56. Díaz, R.F.; Santerne, A.; Sahlmann, J.; Hébrard, G.; Eggenberger, A.; Santos, N.C.; Moutou, C.; Arnold, L.; Boisse, I.; Bonfils, X.; et al. The SOPHIE search for northern extrasolar planets. IV. Massive companions in the planet-brown dwarf boundary. Astron. Astrophys. 2012, 538, A113. [Google Scholar] [CrossRef]
  57. Luhn, J.K.; Bastien, F.A.; Wright, J.T.; Johnson, J.A.; Howard, A.W.; Isaacson, H. Retired A Stars and Their Companions. VIII. 15 New Planetary Signals around Subgiants and Transit Parameters for California Planet Search Planets with Subgiant Hosts. Astron. J. 2019, 157, 149. [Google Scholar] [CrossRef]
  58. Bonavita, M.; Desidera, S.; Thalmann, C.; Janson, M.; Vigan, A.; Chauvin, G.; Lannier, J. SPOTS: The Search for Planets Orbiting Two Stars. II. First constraints on the frequency of sub-stellar companions on wide circumbinary orbits. Astron. Astrophys. 2016, 593, A38. [Google Scholar] [CrossRef]
  59. Pichardo, B.; Sparke, L.S.; Aguilar, L.A. Circumstellar and circumbinary discs in eccentric stellar binaries. Mon. Not. R. Astron. Soc. 2005, 359, 521–530. [Google Scholar] [CrossRef]
  60. Duchêne, G. Planet Formation in Binary Systems: A Separation-Dependent Mechanism? Astrophys. J. Lett. 2010, 709, L114–L118. [Google Scholar] [CrossRef]
  61. Holberg, J.B.; Oswalt, T.D.; Sion, E.M.; Barstow, M.A.; Burleigh, M.R. Where are all the Sirius-like binary systems? Mon. Not. R. Astron. Soc. 2013, 435, 2077–2091. [Google Scholar] [CrossRef]
  62. Perets, H.B. Second generation planets. arXiv 2010, arXiv:1001.0581. [Google Scholar]
  63. Zurlo, A.; Vigan, A.; Hagelberg, J.; Desidera, S.; Chauvin, G.; Almenara, J.M.; Biazzo, K.; Bonnefoy, M.; Carson, J.C.; Covino, E.; et al. Astrophysical false positives in direct imaging for exoplanets: A white dwarf close to a rejuvenated star. Astron. Astrophys. 2013, 554, A21. [Google Scholar] [CrossRef]
  64. Reid, I.N.; Gizis, J.E. Low-Mass Binaries and the Stellar Luminosity Function. Astron. J. 1997, 113, 2246. [Google Scholar] [CrossRef]
  65. Delfosse, X.; Forveille, T.; Ségransan, D.; Beuzit, J.L.; Udry, S.; Perrier, C.; Mayor, M. Accurate masses of very low mass stars. IV. Improved mass-luminosity relations. Astron. Astrophys. 2000, 364, 217–224. [Google Scholar]
  66. Worley, C.E.; Heintz, W.D. Fourth catalog of orbits of visual binary stars. Public. U.S. Naval Observ. Second Ser. 1983, 24. [Google Scholar]
  67. Peretti, S.; Ségransan, D.; Lavie, B.; Desidera, S.; Maire, A.L.; D’Orazi, V.; Vigan, A.; Baudino, J.L.; Cheetham, A.; Janson, M.; et al. Orbital and spectral analysis of the benchmark brown dwarf HD 4747B. arXiv 2018, arXiv:1805.05645. [Google Scholar] [CrossRef]
  68. Roberts, L.C., Jr.; Mason, B.D.; Neyman, C.R.; Wu, Y.; Riddle, R.L.; Shelton, J.C.; Angione, J.; Baranec, C.; Bouchez, A.; Bui, K.; et al. Know the Star, Know the Planet. IV. A Stellar Companion to the Host Star of the Eccentric Exoplanet HD 8673b. Astron. J. 2015, 149, 144. [Google Scholar] [CrossRef]
  69. Rodigas, T.J.; Bergeron, P.; Simon, A.; Arriagada, P.; Faherty, J.K.; Anglada-Escudé, G.; Mamajek, E.E.; Weinberger, A.; Butler, R.P.; Males, J.R.; et al. MagAO Imaging of Long-period Objects (MILO). II. A Puzzling White Dwarf around the Sun-like Star HD 11112. Astrophys. J. 2016, 831, 177. [Google Scholar] [CrossRef]
  70. Gentile Fusillo, N.P.; Tremblay, P.E.; Gänsicke, B.T.; Manser, C.J.; Cunningham, T.; Cukanovaite, E.; Hollands, M.; Marsh, T.; Raddi, R.; Jordan, S.; et al. A Gaia Data Release 2 catalogue of white dwarfs and a comparison with SDSS. Mon. Not. R. Astron. Soc. 2019, 482, 4570–4591. [Google Scholar] [CrossRef]
  71. Lagrange, A.M.; Beust, H.; Udry, S.; Chauvin, G.; Mayor, M. New constrains on Gliese 86 B. VLT near infrared coronographic imaging survey of planetary hosts. Astron. Astrophys. 2006, 459, 955–963. [Google Scholar] [CrossRef]
  72. Perrier, C.; Sivan, J.P.; Naef, D.; Beuzit, J.L.; Mayor, M.; Queloz, D.; Udry, S. The ELODIE survey for northern extra-solar planets. I. Six new extra-solar planet candidates. Astron. Astrophys. 2003, 410, 1039–1049. [Google Scholar] [CrossRef]
  73. Metchev, S. Brown Dwarf Companions to Young Solar Analogs: An Adaptive Optics Survey Using Palomar and Keck. Ph.D. Thesis, California Institute of Technology, Pasadena, CA, USA, 2006. [Google Scholar]
  74. Worley, C.E. Micrometer measures of companions to bright stars. Astron. J. 1967, 72, 899. [Google Scholar] [CrossRef]
  75. Allen, C.; Poveda, A.; Herrera, M.A. Wide binaries among high-velocity and metal-poor stars. Astron. Astrophys. 2000, 356, 529–540. [Google Scholar]
  76. Golimowski, D.A.; Henry, T.J.; Krist, J.E.; Schroeder, D.J.; Marcy, G.W.; Fischer, D.A.; Butler, R.P. The Very Low Mass Component of the Gliese 105 System. Astron. J. 2000, 120, 2082–2088. [Google Scholar] [CrossRef]
  77. Halbwachs, J.L.; Arenou, F.; Mayor, M.; Udry, S.; Queloz, D. Exploring the brown dwarf desert with Hipparcos. Astron. Astrophys. 2000, 355, 581–594. [Google Scholar]
  78. Zucker, S.; Mazeh, T. Analysis of the Hipparcos Observations of the Extrasolar Planets and the Brown Dwarf Candidates. Astrophys. J. 2001, 562, 549–557. [Google Scholar] [CrossRef]
  79. Chauvin, G.; Lagrange, A.M.; Udry, S.; Fusco, T.; Galland, F.; Naef, D.; Beuzit, J.L.; Mayor, M. Probing long-period companions to planetary hosts. VLT and CFHT near infrared coronographic imaging surveys. Astron. Astrophys. 2006, 456, 1165–1172. [Google Scholar] [CrossRef]
  80. Griffin, R.F.; Gunn, J.E. Spectroscopic Orbits for the Hyades Dwarfs 23DEG635 VB162 and VB182 and the Nonmember J318. Astron. J. 1981, 86, 588–595. [Google Scholar] [CrossRef]
  81. Dommanget, J.; Nys, O. The visual double stars observed by the Hipparcos satellite. A&A 2000, 363, 991–994. [Google Scholar]
  82. Bean, J.L.; McArthur, B.E.; Benedict, G.F.; Harrison, T.E.; Bizyaev, D.; Nelan, E.; Smith, V.V. The Mass of the Candidate Exoplanet Companion to HD 33636 from Hubble Space Telescope Astrometry and High-Precision Radial Velocities. Astron. J. 2007, 134, 749–758. [Google Scholar] [CrossRef]
  83. Vogt, S.S.; Butler, R.P.; Marcy, G.W.; Fischer, D.A.; Pourbaix, D.; Apps, K.; Laughlin, G. Ten Low-Mass Companions from the Keck Precision Velocity Survey. Astrophys. J. 2002, 568, 352–362. [Google Scholar] [CrossRef]
  84. Reffert, S.; Quirrenbach, A. Hipparcos astrometric orbits for two brown dwarf companions: HD 38529 and HD 168443. Astron. Astrophys. 2006, 449, 699–702. [Google Scholar] [CrossRef]
  85. Salim, S.; Gould, A. Improved Astrometry and Photometry for the Luyten Catalog. II. Faint Stars and the Revised Catalog. Astrophys. J. 2003, 582, 1011–1031. [Google Scholar] [CrossRef]
  86. Tokovinin, A. From Binaries to Multiples. II. Hierarchical Multiplicity of F and G Dwarfs. Astron. J. 2014, 147, 87. [Google Scholar] [CrossRef]
  87. Sahlmann, J.; Ségransan, D.; Queloz, D.; Udry, S.; Santos, N.C.; Marmier, M.; Mayor, M.; Naef, D.; Pepe, F.; Zucker, S. Search for brown-dwarf companions of stars. Astron. Astrophys. 2011, 525, A95. [Google Scholar] [CrossRef]
  88. Mugrauer, M.; Neuhäuser, R.; Guenther, E.W.; Hatzes, A.P.; Huélamo, N.; Fernández, M.; Ammler, M.; Retzlaff, J.; König, B.; Charbonneau, D.; et al. HD 77407 and GJ 577: Two new young stellar binaries. Detected with the Calar Alto Adaptive Optics system ALFA. Astron. Astrophys. 2004, 417, 1031–1038. [Google Scholar] [CrossRef]
  89. Burgasser, A.J.; Kirkpatrick, J.D.; Lowrance, P.J. Multiplicity among Widely Separated Brown Dwarf Companions to Nearby Stars: Gliese 337CD. Astron. J. 2005, 129, 2849–2855. [Google Scholar] [CrossRef]
  90. Bacchus, E.; Parry, I.R.; Oppenheimer, R.; Aguilar, J.; Beichman, C.; Brenner, D.; Burruss, R.; Cady, E.; Luszcz-Cook, S.; Crepp, J.; et al. Project 1640 observations of the white dwarf HD 114174 B. Mon. Not. R. Astron. Soc. 2017, 469, 4796–4805. [Google Scholar] [CrossRef]
  91. Justesen, A.B.; Albrecht, S. Constraining the orbit of the planet-hosting binary τ Boötis. Clues about planetary formation and migration. Astron. Astrophys. 2019, 625, A59. [Google Scholar] [CrossRef]
  92. Dos Santos, L.A.; Meléndez, J.; Bedell, M.; Bean, J.L.; Spina, L.; Alves-Brito, A.; Dreizler, S.; Ramírez, I.; Asplund, M. Spectroscopic binaries in the Solar Twin Planet Search program: From substellar-mass to M dwarf companions. Mon. Not. R. Astron. Soc. 2017, 472, 3425–3436. [Google Scholar] [CrossRef]
  93. Howard, A.W.; Johnson, J.A.; Marcy, G.W.; Fischer, D.A.; Wright, J.T.; Bernat, D.; Henry, G.W.; Peek, K.M.G.; Isaacson, H.; Apps, K.; et al. The California Planet Survey. I. Four New Giant Exoplanets. Astrophys. J. 2010, 721, 1467–1481. [Google Scholar] [CrossRef]
  94. Dupuy, T.J.; Liu, M.C.; Ireland, M.J. Dynamical Mass of the Substellar Benchmark Binary HD 130948BC. Astrophys. J. 2009, 692, 729–752. [Google Scholar] [CrossRef]
  95. Torres, G.; Andersen, J.; Giménez, A. Accurate masses and radii of normal stars: Modern results and applications. Astron. Astrophys. Rev. 2010, 18, 67–126. [Google Scholar] [CrossRef]
  96. Desidera, S.; Gratton, R.G.; Scuderi, S.; Claudi, R.U.; Cosentino, R.; Barbieri, M.; Bonanno, G.; Carretta, E.; Endl, M.; Lucatello, S.; et al. Abundance difference between components of wide binaries. Astron. Astrophys. 2004, 420, 683–697. [Google Scholar] [CrossRef]
  97. Tokovinin, A. New Orbits Based on Speckle Interferometry at SOAR. Astron. J. 2016, 152, 138. [Google Scholar] [CrossRef]
  98. Raghavan, D.; McAlister, H.A.; Torres, G.; Latham, D.W.; Mason, B.D.; Boyajian, T.S.; Baines, E.K.; Williams, S.J.; ten Brummelaar, T.A.; Farrington, C.D.; et al. The Visual Orbit of the 1.1 Day Spectroscopic Binary σ2 Coronae Borealis from Interferometry at the Chara Array. Astrophys. J. 2009, 690, 394–406. [Google Scholar] [CrossRef]
  99. Wittenmyer, R.A.; Endl, M.; Cochran, W.D.; Hatzes, A.P.; Walker, G.A.H.; Yang, S.L.S.; Paulson, D.B. Detection Limits from the McDonald Observatory Planet Search Program. Astron. J. 2006, 132, 177–188. [Google Scholar] [CrossRef]
  100. Tokovinin, A.A.; Griffin, R.F.; Balega, Y.Y.; Pluzhnik, E.A.; Udry, S. The Triple System HR 7272. Astron. Lett. 2000, 26, 116–121. [Google Scholar] [CrossRef]
  101. Bowler, B.P.; Dupuy, T.J.; Endl, M.; Cochran, W.D.; MacQueen, P.J.; Fulton, B.J.; Petigura, E.A.; Howard, A.W.; Hirsch, L.; Kratter, K.M.; et al. Orbit and Dynamical Mass of the Late-T Dwarf GL 758 B. Astron. J. 2018, 155, 159. [Google Scholar] [CrossRef]
  102. Crepp, J.R.; Johnson, J.A.; Fischer, D.A.; Howard, A.W.; Marcy, G.W.; Wright, J.T.; Isaacson, H.; Boyajian, T.; von Braun, K.; Hillenbrand, L.A.; et al. The Dynamical Mass and Three-dimensional Orbit of HR7672B: A Benchmark Brown Dwarf with High Eccentricity. Astrophys. J. 2012, 751, 97. [Google Scholar] [CrossRef]
  103. Marmier, M.; Ségransan, D.; Udry, S.; Mayor, M.; Pepe, F.; Queloz, D.; Lovis, C.; Naef, D.; Santos, N.C.; Alonso, R.; et al. The CORALIE survey for southern extrasolar planets. XVII. New and updated long period and massive planets. Astron. Astrophys. 2013, 551, A90. [Google Scholar] [CrossRef]
  104. Chauvin, G.; Beust, H.; Lagrange, A.M.; Eggenberger, A. Planetary systems in close binary stars: The case of HD 196885. Combined astrometric and radial velocity study. Astron. Astrophys. 2011, 528, A8. [Google Scholar] [CrossRef]
  105. Luhman, K.L.; Patten, B.M.; Marengo, M.; Schuster, M.T.; Hora, J.L.; Ellis, R.G.; Stauffer, J.R.; Sonnett, S.M.; Winston, E.; Gutermuth, R.A.; et al. Discovery of Two T Dwarf Companions with the Spitzer Space Telescope. Astrophys. J. 2007, 654, 570–579. [Google Scholar] [CrossRef]
  106. Docobo, J.A.; Tamazian, V.S.; Campo, P.P.; Piccotti, L. Visual Orbit and Individual Masses of the Single-lined Spectroscopic Binary 94 AQR A (HD 219834A; MCA 74). Astron. J. 2018, 156, 85. [Google Scholar] [CrossRef]
  107. Hartmann, M.; Guenther, E.W.; Hatzes, A.P. A Sub-stellar Companion around the F7 V Star HD 8673. Astrophys. J. 2010, 717, 348–356. [Google Scholar] [CrossRef]
  108. Halbwachs, J.L. Common proper motion stars in the AGK 3. AAS 1986, 66, 131–148. [Google Scholar]
  109. Mason, B.D.; Hartkopf, W.I.; Miles, K.N.; Subasavage, J.P.; Raghavan, D.; Henry, T.J. Speckle Interferometry of Red Dwarf Stars. Astron. J. 2018, 155, 215. [Google Scholar] [CrossRef]
  110. Crepp, J.R.; Johnson, J.A.; Howard, A.W.; Marcy, G.W.; Gianninas, A.; Kilic, M.; Wright, J.T. The TRENDS High-contrast Imaging Survey. III. A Faint White Dwarf Companion Orbiting HD 114174. Astrophys. J. 2013, 774, 1. [Google Scholar] [CrossRef]
  111. Matthews, C.T.; Crepp, J.R.; Skemer, A.; Hinz, P.M.; Gianninas, A.; Kilic, M.; Skrutskie, M.; Bailey, V.P.; Defrere, D.; Leisenring, J.; et al. Mid-infrared High-contrast Imaging of HD 114174 B: An Apparent Age Discrepancy in a “Sirius-like” Binary System. Astrophys. J. Lett. 2014, 783, L25. [Google Scholar] [CrossRef]
1.
[43] identified low-amplitude (about 1 m/s) systematic effects in the Keck-HIRES RV time series from [41] and published the time series corrected for these effects. The impact of these systematic errors is negligible for the purpose of our work given their low amplitude. In any case, we adopted the corrected time series for our orbit-fitting and trend evaluations.
2.
Note that systems for which both components were included in the UD sample were counted twice.
3.
The validity of this choice is also further justified by the assumption that tidal circularization is not expected to play a significant role for binaries, such those in our sample. Close binaries with tidally circularized orbits are likely to have been excluded from the original survey samples because they are easier to discover, thanks to the short orbital periods and large RV amplitudes. Furthermore, active stars (as tidally-locked binaries) were typically excluded from the survey to avoid the negative effect of activity jitter of planet detectability.
4.
5.
Note that this approach is slightly different from that adopted in BD07 and, therefore, the critical semi-major axis values cannot be compared directly.
6.
Three additional UD objects have white dwarf companions at separations wider than another closer companion, whose dynamical effect is then dominant over that of the white dwarf.
Figure 1. Mass vs. semi-major axes of companions compatible with the observed Δ μ for HD 67458 (left panel) and HD 80913 (right panel), calculated using the COPAINS (Code for Orbital Characterization of Astrometrically Inferred New Systems; see [47] for details) and assuming a uniform distribution for the eccentricity. The red curve shows Gaia’s sensitivity limits [27,50]. The blue dot in the left panel shows the position of the companion to HD 67458 retrieved in Gaia DR2. The blue solid line in the right panel shows the position of the companions compatible with the RV trend observed by [38] for HD 80913.
Figure 1. Mass vs. semi-major axes of companions compatible with the observed Δ μ for HD 67458 (left panel) and HD 80913 (right panel), calculated using the COPAINS (Code for Orbital Characterization of Astrometrically Inferred New Systems; see [47] for details) and assuming a uniform distribution for the eccentricity. The red curve shows Gaia’s sensitivity limits [27,50]. The blue dot in the left panel shows the position of the companion to HD 67458 retrieved in Gaia DR2. The blue solid line in the right panel shows the position of the companions compatible with the RV trend observed by [38] for HD 80913.
Galaxies 08 00016 g001
Figure 2. Critical semi-major axis vs. mass ratio ( M A / M B ) for the pairs in the Uniform Detectability (UD) sample with (stars) and without (filled circles) planetary companions. The new pairs not in BD07 are shown in light blue and orange, respectively.
Figure 2. Critical semi-major axis vs. mass ratio ( M A / M B ) for the pairs in the Uniform Detectability (UD) sample with (stars) and without (filled circles) planetary companions. The new pairs not in BD07 are shown in light blue and orange, respectively.
Galaxies 08 00016 g002
Figure 3. Histogram of the projected separation for the pairs in the updated (dark blue) and the original (light blue) UD binary sample. The number of stars with planets (P-Stars) in the final sample is shown in light orange. The solid line corresponds to ρ = 2 .
Figure 3. Histogram of the projected separation for the pairs in the updated (dark blue) and the original (light blue) UD binary sample. The number of stars with planets (P-Stars) in the final sample is shown in light orange. The solid line corresponds to ρ = 2 .
Galaxies 08 00016 g003
Figure 4. Histogram of the critical semi-major axis ( a c r i t , left panel) and mass ratio ( M B / M A , right panel) for the pairs in the updated (dark blue) and the original (light blue) UD binary sample. The number of stars with planets (P-Stars) in the final sample is shown in light orange.
Figure 4. Histogram of the critical semi-major axis ( a c r i t , left panel) and mass ratio ( M B / M A , right panel) for the pairs in the updated (dark blue) and the original (light blue) UD binary sample. The number of stars with planets (P-Stars) in the final sample is shown in light orange.
Galaxies 08 00016 g004
Figure 5. Left: Fraction of planet-host binaries as a function of a c r i t . Right: Cumulative distribution of the a c r i t for UD pairs with (red) and without (blue) planetary companions.
Figure 5. Left: Fraction of planet-host binaries as a function of a c r i t . Right: Cumulative distribution of the a c r i t for UD pairs with (red) and without (blue) planetary companions.
Galaxies 08 00016 g005
Table 1. Preliminary spectroscopic orbital solutions from the individual radial velocity time series published by [42] for Lick and by [41] for Keck surveys.
Table 1. Preliminary spectroscopic orbital solutions from the individual radial velocity time series published by [42] for Lick and by [41] for Keck surveys.
HDP (d)K (m/s)ecc ω deg T0 JD-2450000msini M a (au)RV Source
HD 306492325017520.56310.23966.30.2116.5Keck
HD 103829488014390.27360.01545.70.136.20Keck
HD 190771852711390.53103.63707.20.108.61Lick
HD 190387515520810.5374.64155.80.196.70Keck
HD 218101515626840.58161.35169.10.236.67Lick
Table 2. Frequency of planets in binaries with different values of a c r i t .
Table 2. Frequency of planets in binaries with different values of a c r i t .
a crit N star N planets N planets / N stars
<2.5 au570
2.5–10 au5030.060 ± 0.0431
10–20 au4730.064 ± 0.0462
20–50 au4420.045 ± 0.0390
50–100 au3320.061 ± 0.0534
100–250 au3930.077 ± 0.0567
> 250 au4330.070 ± 0.0509
UD Singles sub-sample537340.063 ± 0.0136
Entire UD binary sub-sample313160.051 ± 0.0157
Back to TopTop
