Infrared Observations of the Asymmetric Mass Loss of an AGB Star

Abstract

We report on the observations of the circumstellar envelope of the AGB star II Lup in the near- and mid-infrared with the use of direct imaging and interferometric techniques. Our findings indicate that the circumstellar envelope is not spherically symmetric and that the majority of the emission originates within 0.5 arcsec from the star.

1. Introduction

The study of the asymmetries found in the majority of planetary nebulae have been the core subject of this conference series. However, as it has been stressed in the last two APNmeetings, these asymmetries ought to be generated by mechanisms that act as early as the AGB phase. It is currently believed that these mechanisms are the result of an interplay between two shaping mechanisms, binarity and magnetic fields, and both could be investigated in AGB stars.

Different spatial scales at different wavelength ranges help us to dissect different parts of the circumstellar envelope (CSE) of evolved stars. The outer and colder layers of a CSE are observed in the sub-mm and far-infrared wavelengths (e.g., ∼ 1” with ALMA and Herschel telescopes), while the warmer layers of the CSE can be observed in the mid-infrared (e.g., ∼ 0.5” with VISIR/Very Large Telescope (VLT)). The layers of the CSE closer to the central star, including the stellar photosphere and its hot, dusty atmosphere, can be explored in the near-infrared (e.g., ≤0.2” with NACO/VLT).

Until now, there have been only a few imaging surveys that have explored this: two in the sub-mm wavelengths [1,2], one in the far-infrared [3] and one in the mid-infrared [4]. The initial target lists are very similar in all four surveys, and the majority of the objects were found to depart from spherical symmetry at large spatial scales (≥1”). However, many of the targets, especially the inner layers of the CSEs of the AGB stars, were unresolved at smaller spatial scales (≤0.4”). We therefore initiated a survey of 22 objects in the period 2009–2018 to look for any asymmetries in evolved stars and explored the possibility of binary interactions with the use of interferometry, to access the sub-arcsecond angular scales needed, and direct imaging in the infrared. The targets were selected from the initial list of [4]. Some of the most striking results of this survey have been presented in [5,6,7], and the analysis of the final sample is on-going.

One of the AGB stars in our sample is II Lup. It is a carbon-rich AGB star, and the typical masses for such stars range from 1–4 M${}_{\odot }$. The star is placed near the tip of the AGB ($m_{\mathrm{bol}}=3.73$,8]) in the evolutionary tracks of [9], and therefore, it is not yet hot enough to ionize its CSE. II Lup shows a peculiar variability in the near-infrared (J–L bands), where its light curve can be fitted by two periods: a short-term one at 575 days and a long-term one at ∼19 years [10]. The latter was characterized as an obscuration event and is thought to be related to asymmetric1 mass loss [10]. We reported the first-ever detection of asymmetries in II Lup’s CSE in the near-infrared and sub-mm wavelengths in Lykou et al. [11]. Here, we present complementary (near- and mid-infrared) images to that work.

2. Results

The observations of II Lup in the near- and mid-infrared were carried with 8 m-class telescopes by Lykou et al. [11]. A brief description of the observing modes is given below, while the results can be easily compared to [11].

II Lup was observed with the VISIR mid-infrared instrument in March 2016 (JD = 2,457,468). VISIR is a spectrometer and imager on the Very Large Telescope (VLT) [12]. The observations were carried in burst mode, which can provide diffraction-limited images (e.g., ${\theta }_{\mathrm{res}}=0.25$” at 8 $\mathsf{\mu }$m). Observations of the science target and a calibrator were obtained with the PAH_1 and PAH_2 filters2 (hereby, 8 $\mathsf{\mu }$m and 11 $\mathsf{\mu }$m for simplicity). The data were reduced and analysed using the method of [4]. The science data suffered from saturation from the central star; therefore, we present here a tentative analysis of this dataset.

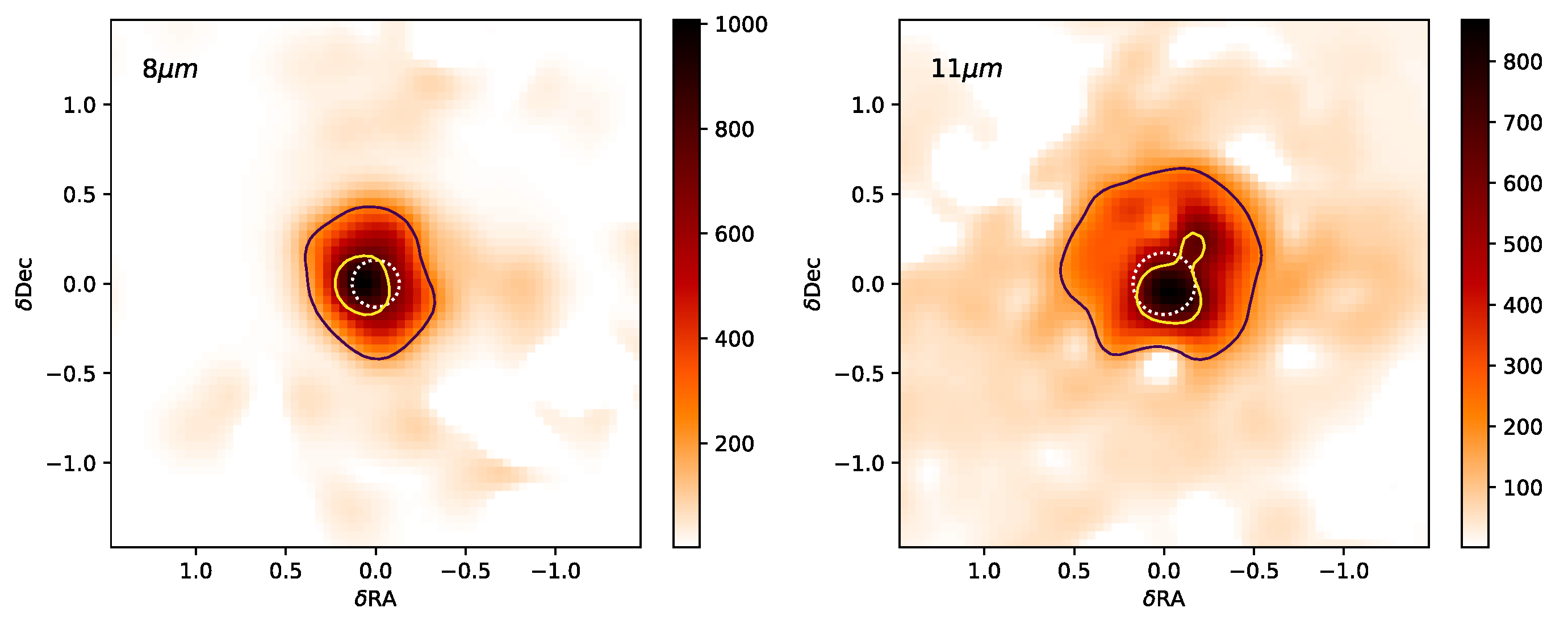

Each science image was deconvolved following the Lucy–Richardson method, using the cropped images of the corresponding PSF calibrator (radius ∼1 arcsec) and thus removing the noise of the otherwise empty field-of-view (10” × 10”). This significantly minimizes the computation time for the deconvolution. The process was stopped after 30 iterations. Each image was then smoothed (convolved) with a two-pixel Gaussian kernel. The deconvolved images (2.9” × 2.9”) are shown in Figure 1.

As expected, the central star is unresolved, and any deviations from symmetry within the resolution elements in Figure 1 should be ignored. The morphology of the envelope at 8 $\mathsf{\mu }$m is relatively similar to that at L and M (cf. Figure 7 in Lykou et al. [11]) with respect to its north-south orientation. At 11 $\mathsf{\mu }$m, the CSE appears to be more round with a small displacement to the north; however, the brightness distribution is not entirely uniform. Although the data suffered from saturation, we can tentatively deduce that the CSE extends up to a radius of 0.47” and 0.6” at 8 $\mathsf{\mu }$m and 11 $\mathsf{\mu }$m, respectively (black contours in Figure 1). Therefore, the CSE appears to be a relatively compact object in the mid-infrared with respect to the size of the envelope in the far-infrared (e.g., 70 $\mathsf{\mu }$m PACS/Herschel map where CSE size ∼40”; see also [13]). However, the size of the photosphere must be less than 0.25”.

II Lup was also observed in June 2010 (JD = 2,455,377) in the near-infrared (K, L and M) with the Sparse Aperture Masking mode on NACO/VLT [14,15,16,17]. This technique uses a nine-hole mask that converts the single-dish 8 m-class telescope into an interferometer with 36 baselines3 to produce diffraction-limited images (e.g., ${\theta }_{\mathrm{res}}=72$ mas in M). The data reduction used a custom-made pipeline, and the analysis and image reconstruction processes were performed as described in [6,11,17].

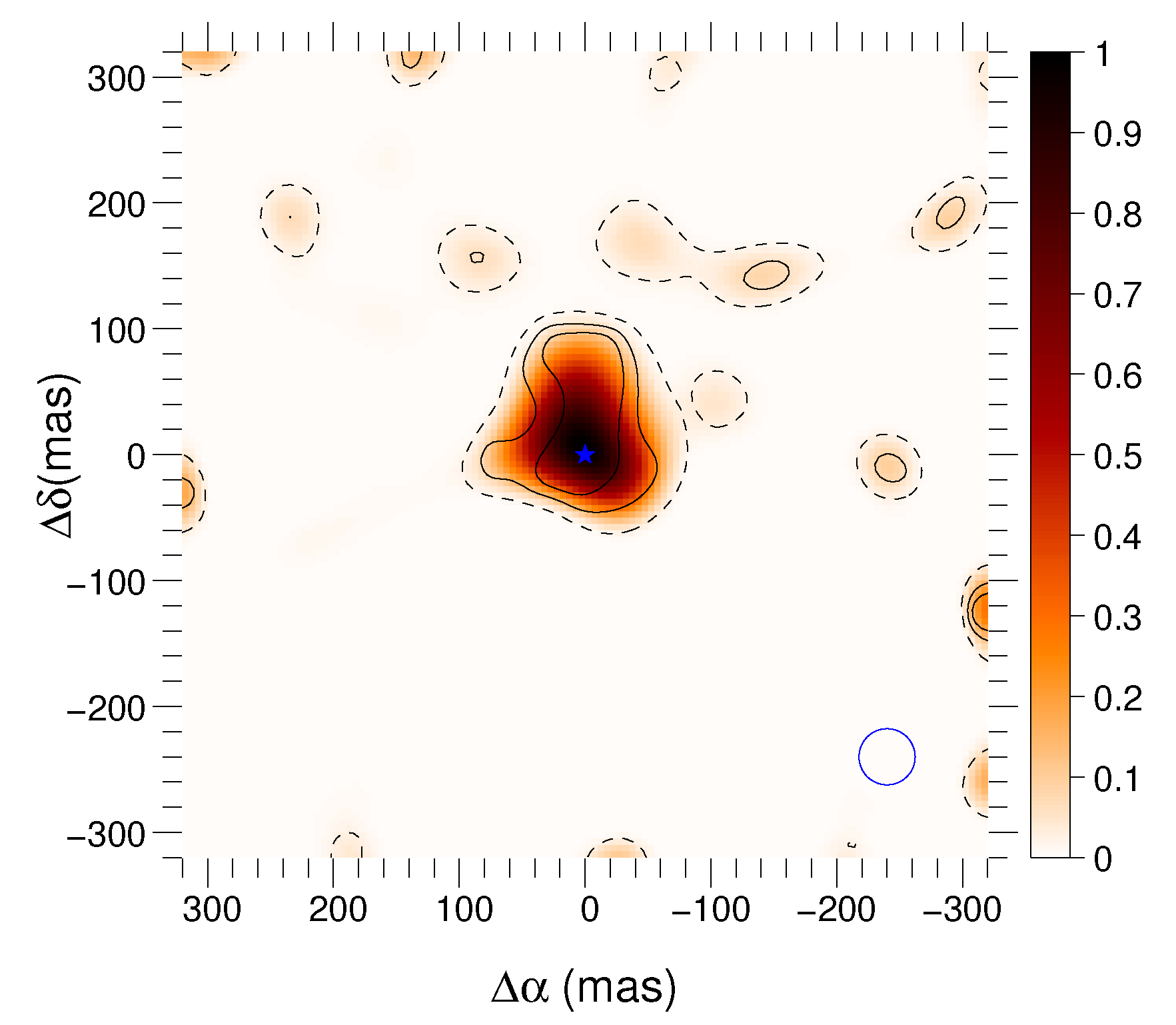

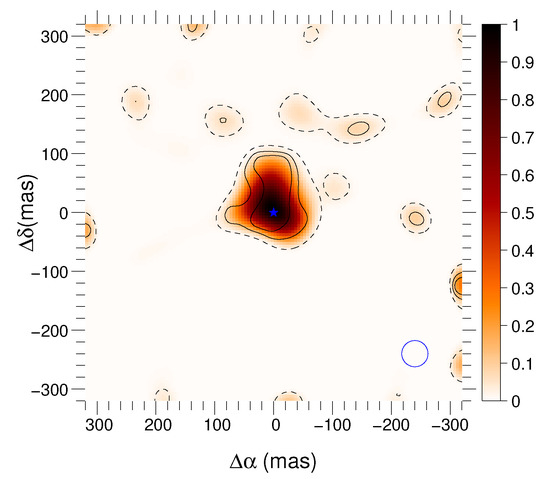

Figure 2 shows the image reconstruction for the M data with the MiRA algorithm [18,19]. It is evident that the circumstellar envelope departs from spherical symmetry and extends up to 120 milliarcseconds (mas) north with another protrusion extending approximately 80 mas south-west. The photosphere of the AGB star is unresolved, and therefore, its size must be smaller than 32 mas, as shown by the K-band images of Lykou et al. [11]. The entire structure fits well inside the resolution element (white circle) of the VISIR 8 $\mathsf{\mu }$m image (left panel, Figure 1); hence, we were able to resolve the CSE of this AGB star at the smallest spatial scale possible with this technique in the M band.

The upper limits of the radii of CSE’s detected layers are tabulated in

Table 1. Upper-limits for the circumstellar envelope sizes for an adopted distance of 590 pc.

Band	Radius		Reference
	(arcsec)	(au)
M	0.12	71	this work
8 $\mathsf{\mu }$m	0.47	277	this work
11 $\mathsf{\mu }$m	0.6	354	this work
70 $\mathsf{\mu }$m	20	11,800	this work and [13]

. The angular sizes were converted to physical values for an adopted distance of 590 pc [13]. Using these sizes and assuming that the expansion velocity of II Lup ($v_{\exp }=23$ km s${}^{-1}$; [20]) remains the same4 throughout the CSE, the approximate time scales for the expansion of the layers ought to be shorter than 14.6, 57, 73 and 2430 years, respectively. This would suggest that the NACO observations detected a relatively recent mass-loss event.

3. Discussion

The near- and mid-infrared observations of II Lup reveal that the hot- and warm-dust layers of its circumstellar envelope are very compact (size ≤ 1.2”) with respect to the larger and spherically-symmetric, cold-dust envelope (size ∼ 40”; [3,13]). Although the mid-infrared images are not conclusive on the asymmetry of the circumstellar envelope, which was mainly due to the quality of the data and the imaging method used, the near-infrared data indicate an oblate envelope (Figure 2).
