Monitoring the Size and Flux Density of Sgr A* during the Active State in 2019 with East Asian VLBI Network

Abstract

In this work, we studied the Galactic Center supermassive black hole (SMBH), Sagittarius A* (Sgr A${}^{*}$), with the KVN and VERA Array (KaVA)/East Asian VLBI Network (EAVN) monitoring observations. Especially in 13 May 2019, Sgr A${}^{*}$ experienced an unprecedented bright near infra-red (NIR) flare; so, we find a possible counterpart at 43 GHz (7 mm). As a result, a large temporal variation of the flux density at the level ∼15.4%, with the highest flux density of 2.04 Jy, is found on 11 May 2019. Interestingly, the intrinsic sizes are also variable, and the area and major-axis size show marginal correlation with flux density with ≳2 $\sigma$. Thus, we interpret that the emission region at 43 GHz follows the larger-when-brighter relation in 2019. The possible origins are discussed with an emergence of a weak jet/outflow component and the position angle change of the rotation axis of the accretion disk in time.

1. Introduction

The supermassive black hole (SMBH) in our Galactic Center, Sagittarius A* (Sgr A${}^{*}$ ), is the closest known SMBH with a mass $M_{\mathrm{BH}}$∼$4\times {10}^6{M}_{\odot }$ (e.g., [1,2]) at a distance D∼8.1 kpc [3]. Thanks to its proximity, Sgr A${}^{*}$ subtends the largest angular size (Schwarzschild radius, ${\mathrm{R}}_{\mathrm{s}}$∼10 $\mathsf{\mu }$as) on the sky among all known black holes and is one of the most promising targets for the Event Horizon Telescope (EHT) to study the vicinity of a black hole through direct imaging. Recently, the EHT Collaboration published the Sgr A${}^{*}$ black hole shadow results at $\lambda$ = 1.3 mm, showing angular diameter d${}_{\mathrm{sh}}$ = 48.7 ± 7.0 $\mathsf{\mu }$as with a bright and thick emission ring of a diameter $\theta$ = 51.8 ± 2.3 $\mathsf{\mu }$as [4,5,6,7,8,9]. However, the emission mechanism of Sgr A${}^{*}$ is being debated as to whether the jet base (e.g., [10]) or a radiatively inefficient accretion flow (RIAF) (e.g., [11]).

Unlike the extragalactic active galactic nuclei (AGNs), the relativistic jet feature has not been observed yet in Sgr A${}^{*}$ with the Very Long Baseline Interferometry (VLBI) observations. Especially at centimeter (cm) wavelengths, the source structure is dominated by scatter broadening caused by the ionized interstellar scattering medium (ISM) along the line of sight [12,13]; thus, it is difficult to resolve the fine structure. However, as the observed size follows the relation of square of observing wavelength, $\lambda$, the effect becomes weaker at shorter wavelengths so that the intrinsic source structure can be visible [14].

Sgr A${}^{*}$ also shows variability from minutes to months timescale at a variety of wavelengths (e.g., [15,16]). The rapid increase in near-infrared (NIR) flux is seen several times per day [15]. The brighter NIR flares are often associated with the X-ray flares after a few tens of minutes, but there are numerous NIR flares without an X-ray counterpart [17,18,19,20]. The millimetre (mm)/sub-mm emission is much more stable [21]. Recently, Do et al. [22] reported that the NIR peak flux levels were brighter in 2019 April 20 than 99.7% of all historical data points, and an NIR flare of unprecedented brightness in 2019 May 13 with flux peaks (∼6 mJy) that are twice the values from previous measurements. The flare has shown rapid, continuous decrease from the peak to ∼1 mJy in 1 h. They also find the flux variations observed in 2019 to be significantly different than in the historical data from Witzel et al. [23]. They suggest that this may indicate that Sgr A${}^{*}$ is experiencing a physical change in the accretion activity, possibly due to the pericenter passage of the star S0-2 in 2018 or the gaseous object G2 in 2014 [24,25]. However, Ressler et al. [26] have argued that the effect of S0-2 on the RIAF structure should be negligible. As for the G2, on the other hand, a longer timescale (5–10 years) between the increased mass accretion and magnetic energy/flux enhancement has been predicted [27], so its impact may still be valid to investigate.

To look for the possible imprints of G2 encounter, the Korean VLBI Network (KVN1) and VLBI Exploration of Radio Astrometry (VERA2) Array, KaVA, started regular observations of Sgr A${}^{*}$ , as one of the main targets of the large AGN program, at 22 and 43 GHz from March 2014 [28,29,30]. In the second half of 2018, the East Asian VLBI Network (EAVN) also started its open-use program  [31,32,33]. The EAVN campaign was performed by making use of the slots allocated to the KaVA AGN Large Program that intensively monitored the nearby SMBHs, M 87 and Sgr A${}^{*}$ , at 22 and 43 GHz. From our long-term monitoring results since 2014, the highest flux density of Sgr A${}^{*}$ at 43 GHz (∼2.04 Jy) was detected in 2019 May, which may be related to the NIR flare and possibly the G2 encounter.

In this work, therefore, we report the accurate measurements of flux density and intrinsic size of Sgr A${}^{*}$ from the KaVA/EAVN observations at 43 GHz in 2019. In Section 2, we present the observations and data analysis. Section 3 presents the light curves, size measurement, and correlation test. Section 4 presents the discussion of potential physical explanations for these observations.

2. Observations and Data Analysis

2.1. Observations

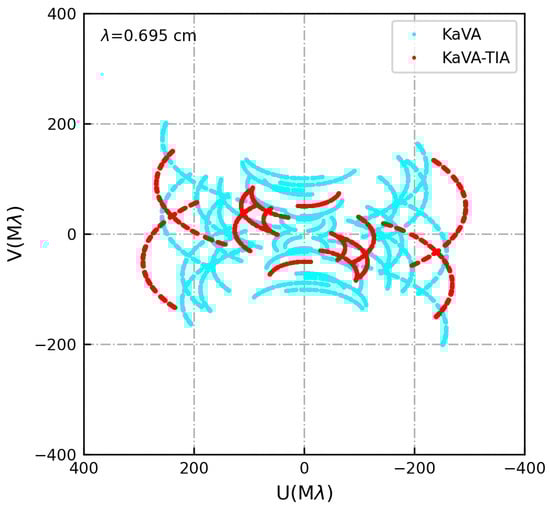

Twelve observations were performed at 43 GHz with the EAVN as part of the KaVA/EAVN AGN large program [30] in 2019. The participating stations are KaVA and 2 additional East Asian telescopes (Tianma 65m and Nobeyama 45m; [33]). Three of the observations failed due to bad weather or station maintenance. This study is mainly based on the nine successful observations, as listed in

Table 1. Summary of the EAVN observations.

Project Code	Experiment Date	Participating Stations ${}^{\mathit{a}}$	Image rms ${}^{\mathit{b}}$ mJy beam${}^{-1}$	Peak Intensity ${}^{\mathit{c}}$ Jy beam${}^{-1}$	${\mathit{\theta }}_{\mathbf{FWHM}}$ (mas, mas, deg)
(1)	(2)	(3)	(4)	(5)	(6)
a19mk01a	2019-02-27	KaVA (−IRK) + TIA	2.01	1.240	(1.33, 0.79, −5.7)
a19kh01a	2019-03-22	KaVA + TIA	1.78	0.624	(1.37, 0.37, −16.3)
a19kh01c	2019-03-29	KaVA + TIA + NRO45	1.41	0.579	(1.25, 0.38, −17.8)
a19kh01f	2019-04-12	KaVA + TIA (− KYS)	1.69	0.712	(1.01, 0.37, −16.6)
a19mk01c	2019-05-11	KaVA + TIA	1.96	0.961	(1.24, 0.43, −16.3)
a19mk01e	2019-09-10	KaVA (− KYS)	2.56	1.039	(1.37, 0.62, −8.3)
a19mk01g	2019-10-10	KaVA + TIA (− OGA)	1.89	0.564	(1.77, 0.42, −17.3)
a19mk01h	2019-11-23	KaVA	2.10	0.764	(1.32, 0.37, −9.9)
a19mk01i	2019-12-18	KaVA + TIA	1.55	0.861	(1.48, 0.65, −6.5)

Note. ^a In brackets, (−) means the KaVA stations that were not used in individual observation, and (+) means the non-KaVA but EAVN stations that participated in the observation. ^bThe image sensitivity is based on the model fitting and self-calibration. ^c The peak intensity is based on the uniform weighting and the corresponding synthesized beam.

. The data were recorded with 256 MHz total bandwidth in left-handed circular polarization (LCP), resulting in a sampling rate of 1 Gbps. While three observations (a19kh01a, a19kh01c, and a19kh01f) were recorded with 32 MHz × 8 intermediate frequencies (IFs) band, the other six observations used 16 MHz × 16 IFs. Each observation lasted for about 6 h and the on-source time for Sgr A${}^{*}$ and the main calibrator NRAO 530 was about 200 and 30 min, respectively. Figure 1 displays an example of EAVN $(u,v)$ coverage towards Sgr A${}^{*}$ at 43 GHz. The correlation was carried out in the Korea–Japan Correlation Center (KJCC) at Daejeon, Korea [29]. Tianma 65m (TIA) participated in seven (out of nine) observations, and two of them (a19mk01a and a19mk01c) had no fringes due to frequency setup. Nobeyama 45m (NRO45) participated in one observation (a19kh01c), but no fringes were detected.

2.2. Data Reduction

The data were calibrated with the NRAO Astronomical Image Processing System (AIPS) software package [34]. Firstly, the sampler voltage offsets were corrected by auto-correlation and a multiplicative correction factor of 1.3 was applied to all data to correct the quantization loss in the Daejeon hardware correlator [35]. The a-priori amplitude calibrations (APCAL) were conducted using the information of the gain curve (GC) and system temperature (TY) for KaVA and NRO45 telescopes. Because of the large amplitude offset for TIA, we used the template spectrum method (ACFIT) for the amplitude calibration by using the SiO maser lines from OH 0.55–0.06 and VX Sgr, which can give a more realistic antenna gain curve as a function of the elevation than the a priori calibration method [36]. The phase contributions from the antenna parallactic angles were removed before any other phase corrections were applied. The station KUS was chosen as the reference antenna. After removing instrumental phase offsets from each IF by using NRAO 530 (i.e., manual PCAL), the fringe-fitting and bandpass calibration were conducted directly to the Sgr A${}^{*}$ visibilities. The visibilities at lower elevations <5° at either telescope of a baseline were flagged. We also excluded the first and sixteenth IFs for 16 MHz × 16 IFs mode data because of their very low correlation amplitude. Finally, the data were averaged over all IFs and 30 s and split into single-source files.

Before model fitting, we first add the fractional systematic error to the data, which inflates the thermal noises. This is mainly to account for the non-closing error budget, as well as to avoid biases in the fitted model by the uncalibrated station gains (e.g., 10%). For instance, the determined overall telescope gain correction factors were found to be small in NRAO 530, typically within 10%, in agreement with the typical mm VLBI observations (

Table 2. Amplitude gain correction factors for each station.

Epoch	Source	KTN	KYS	KUS	OGA	MIZ	ISG	IRK	TIA
(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10)
a19mk01a	Sgr A${}^{*}$	0.96	1.01	1.01	0.86	1.08	1.00
	NRAO 530	0.99	1.01	0.97	1.00	1.02	1.00
a19kh01a	Sgr A${}^{*}$	0.96	1.03	0.94	0.91	1.07	1.01	1.03	1.19
	NRAO 530	0.94	1.03	0.94	0.97	0.99	1.01	0.99	1.25
a19kh01c	Sgr A${}^{*}$	0.89	1.17	1.00	1.13	1.06	0.98	0.90	1.32
	NRAO 530	0.89	1.04	0.94	1.01	0.99	1.01	0.93	1.36
a19kh01f	Sgr A${}^{*}$	0.96		0.98	0.92	1.14	1.01	0.96
	NRAO 530	0.94		0.97	1.02	1.01	1.02	0.98
a19mk01c	Sgr A${}^{*}$	1.01	1.02	1.00	1.07	0.99	0.97	0.98
	NRAO 530	0.99	1.01	0.97	1.01	1.01	1.02	0.98
a19mk01e	Sgr A${}^{*}$	1.00		0.98	1.00	1.02	0.99	1.01
	NRAO 530	0.94		0.98	1.00	1.02	1.03	0.96
a19mk01g	Sgr A${}^{*}$	1.01	0.89	0.97		1.23	1.05	0.89	1.11
	NRAO 530	0.98	0.96	0.98		1.02	1.03	1.01	1.23
a19mk01h	Sgr A${}^{*}$	1.01	0.97	1.01	0.98	1.10	0.94	1.01
	NRAO 530	1.03	0.91	0.97	1.03	1.02	1.04	1.04
a19mk01i	Sgr A${}^{*}$	1.00	0.99	1.01	0.98	1.03	1.01	1.00
	NRAO 530	1.06	0.98	0.90	0.88	0.95	0.88	0.96

). For TIA data, on the other hand, we add 30% of the visibility amplitude as the systematic error to account for additional uncertainties (e.g., from residual bandpass, system temperature measurements, and pointing; [33]).

2.3. Self-Calibration with a Gaussian Model

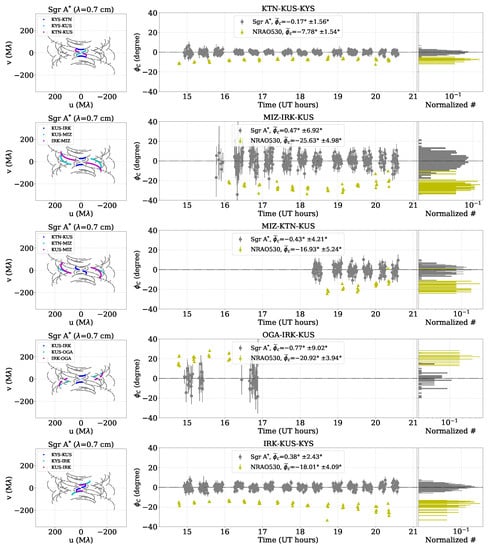

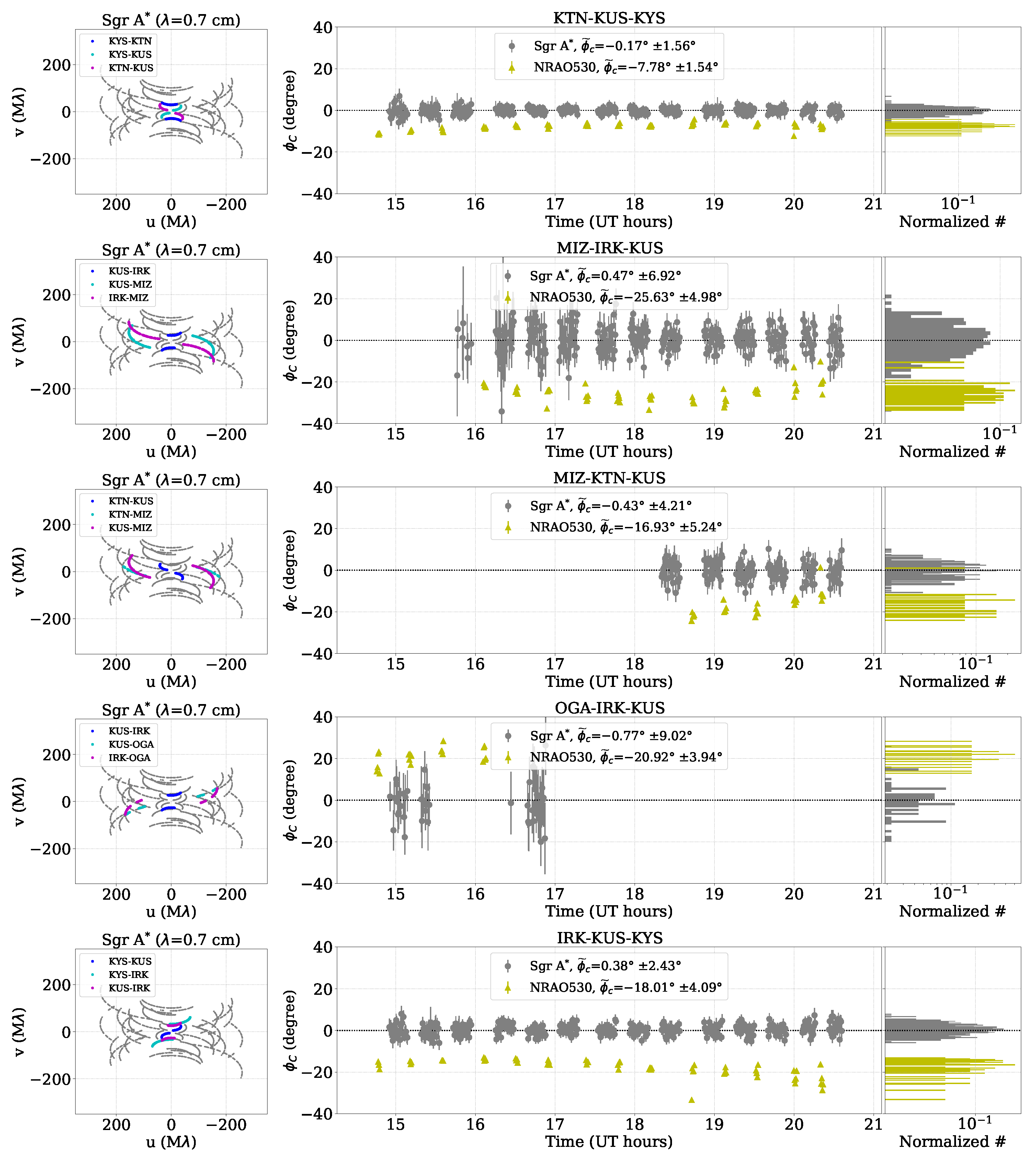

First, we checked the closure phases of Sgr A${}^{*}$ and confirmed that they are mostly distributed around zero degrees (i.e., no clear evidence of non-zero deviation; see Figure 2). This implies that Sgr A${}^{*}$ can be reasonably modeled with a symmetric structure (e.g., a single Gaussian). Based on this, we have fitted the data with an elliptical Gaussian model and self-calibrated the complex visibility with the result using DIFMAP [37]. Note that we have only used the visibilities where the baseline lengths are shorter than 176 M$\mathsf{\lambda }$ (i.e., ensemble-average image; e.g., [38]). This is to avoid biases by the scattering effects, especially at long baselines where the refractive scattering noises get larger.

The cm–mm VLBI observations toward Sgr A${}^{*}$ is largely affected by the ISM as it looks through the Galactic Center. Therefore, the observed result itself is a combination of the intrinsic property of Sgr A${}^{*}$ with the scattering effects, mainly the diffractive and refractive scattering. The diffractive scattering provides a Gaussian blurring, which is dominant at the “short” baseline lengths in the visibility domain. Due to the effect, the observed size of Sgr A${}^{*}$ is roughly the quadratic sum of its intrinsic size and the size of the scattering kernel (e.g., [39]), and is proportional to the square of the observing wavelength. On the other hand, the refractive scattering introduces non-Gaussian sub-structures (in the image domain) and complex noises (in the visibility domain) which are dominant at long baseline lengths. Here, the baseline length is determined by $(1+D/R)r_{\mathrm{in}}$, where D, R, and $r_{\mathrm{in}}$ are the distance between Earth and the scattering screen, the distance between Sgr A${}^{*}$ and the scattering screen, and a finite inner scale of interstellar turbulence, respectively. With $D=2.7$ kpc, $R=5.4$ kpc, $r_{\mathrm{in}}=800$ km [40], therefore, the “short” baseline length corresponds to $176\mathrm{M}\lambda$ at 43 GHz so we have applied this threshold to avoid the effects of refractive noise in our model fitting. In addition, we have flagged the data with a signal-to-noise ratio (S/N) lower than 3 (for thermal noise) and 4 (for refractive noise) (e.g., [40]). Note that the refractive noises are derived following the previous study [38].

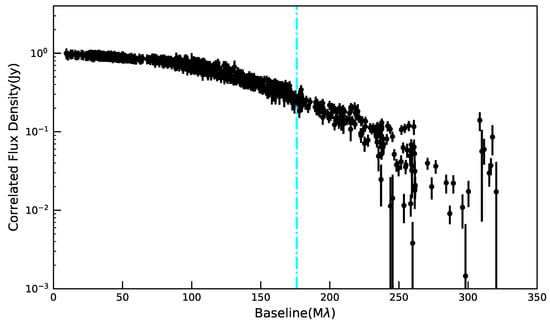

Figure 3 shows the self-calibrated visibility amplitudes, as a function of the ($u,v$)-distance. Since there are more than half of the data in the “short” baseline range, we can still get the gain corrections for all the antennas with only the data in this range (see Table 2). The resultant image of Sgr A${}^{*}$ , from the iterative Gaussian model fitting and self-calibration, is shown in Figure 4 (right). Note that this is an ensemble-average image which is scatter-broadened, and the derived structural parameters are listed in

Table 3. Gaussian Model Fitting Results.

Date	Method	S${}_{\mathit{\nu }}^{\mathbf{tot}}$	${\mathit{\theta }}_{\mathbf{maj}}^{\mathbf{en}}$	${\mathit{\theta }}_{\mathbf{min}}^{\mathbf{en}}$	${\mathit{r}}^{\mathbf{en}}$	${\mathit{\theta }}_{\mathbf{PA}}^{\mathbf{en}}$	${\mathit{\theta }}_{\mathbf{maj}}^{\mathbf{int}}$	${\mathit{\theta }}_{\mathbf{min}}^{\mathbf{int}}$	${\mathit{r}}^{\mathbf{int}}$	${\mathit{\theta }}_{\mathbf{PA}}^{\mathbf{int}}$
(Exp.code)		(Jy)	($\mathsf{\mu }$as)	($\mathsf{\mu }$as)		(deg)	($\mathsf{\mu }$as)	($\mathsf{\mu }$as)		(deg)
(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10)	(11)
2019-02-27	Gfit/Amp	1.61$\pm$0.16	727.8$\pm$8.9	418.8$\pm$16.1	1.74$\pm$0.07	81.2$\pm$0.8	293.6$\pm$23.9	238.4$\pm$34.8	1.23$\pm$0.21	73.9$\pm$7.2
(a19mk01a)	CA	…	731.8$\pm$9.2	416.4$\pm$25.6	1.76$\pm$0.22	84.1$\pm$1.8	303.8$\pm$24.7	229.5$\pm$60.8	1.32$\pm$0.60	92.5$\pm$13.1
2019-03-22	Gfit/Amp	1.48$\pm$0.15	737.2$\pm$8.6	412.0$\pm$11.5	1.79$\pm$0.05	82.6$\pm$0.5	336.2$\pm$22.8	236.6$\pm$19.9	1.41$\pm$0.11	86.5$\pm$3.4
(a19kh01a)	CA	…	739.4$\pm$9.2	421.7$\pm$20.8	1.75$\pm$0.08	82.1$\pm$1.2	341.5$\pm$28.9	247.8$\pm$41.9	1.36$\pm$0.20	85.0$\pm$7.8
2019-03-29	Gfit/Amp	1.42$\pm$0.14	734.6$\pm$8.6	449.3$\pm$12.1	1.63$\pm$0.03	83.5$\pm$0.6	317.1$\pm$25.6	283.9$\pm$11.2	1.13$\pm$0.04	114.1$\pm$12.1
(a19kh01c)	CA	…	734.3$\pm$10.0	458.3$\pm$22.8	1.60$\pm$0.07	82.6$\pm$1.1	317.8$\pm$25.0	298.9$\pm$20.5	1.05$\pm$0.07	122.7$\pm$42.0
2019-04-12	Gfit/Amp	1.88$\pm$0.19	736.2$\pm$8.7	483.6$\pm$10.4	1.52$\pm$0.03	85.5$\pm$0.6	361.7$\pm$25.1	292.8$\pm$8.8	1.24$\pm$0.04	142.1$\pm$5.1
(a19kh01f)	CA	…	737.0$\pm$9.1	482.0$\pm$32.6	1.53$\pm$0.11	86.2$\pm$1.6	348.6$\pm$25.1	293.6$\pm$25.8	1.26$\pm$0.13	137.4$\pm$17.1
2019-05-11	Gfit/Amp	2.04$\pm$0.20	729.3$\pm$8.5	458.4$\pm$8.1	1.59$\pm$0.03	80.8$\pm$0.7	322.2$\pm$23.5	300.2$\pm$9.2	1.08$\pm$0.04	17.2$\pm$22.4
(a19mk01c)	CA	…	730.2$\pm$9.7	459.1$\pm$26.9	1.58$\pm$0.09	83.6$\pm$1.7	312.6$\pm$27.5	289.9$\pm$15.8	1.08$\pm$0.11	130.7$\pm$37.9
2019-09-10	Gfit/Amp	1.67$\pm$0.17	732.6$\pm$8.9	467.4$\pm$16.5	1.57$\pm$0.04	81.1$\pm$0.7	370.4$\pm$27.3	244.4$\pm$9.8	1.52$\pm$0.04	80.9$\pm$1.3
(a19mk01e)	CA	…	735.5$\pm$8.8	471.0$\pm$23.6	1.57$\pm$0.10	82.8$\pm$7.7	361.6$\pm$30.3	240.7$\pm$57.7	1.50$\pm$0.41	95.7$\pm$10.8
2019-10-10	Gfit/Amp	1.23$\pm$0.12	714.2$\pm$8.7	450.4$\pm$12.1	1.58$\pm$0.04	83.6$\pm$0.8	298.7$\pm$23.9	248.0$\pm$10.5	1.21$\pm$0.08	151.1$\pm$7.7
(a19mk01g)	CA	…	722.7$\pm$9.0	434.9$\pm$26.0	1.76$\pm$0.15	82.5$\pm$1.6	310.0$\pm$26.0	262.3$\pm$20.6	1.15$\pm$0.22	94.0$\pm$39.7
2019-11-23	Gfit/Amp	1.71$\pm$0.17	738.2$\pm$8.7	412.8$\pm$12.4	1.79$\pm$0.06	81.1$\pm$0.5	337.7$\pm$23.1	220.6$\pm$23.6	1.53$\pm$0.22	77.4$\pm$2.3
(a19mk01h)	CA	…	735.7$\pm$9.2	417.2$\pm$22.1	1.76$\pm$0.14	80.9$\pm$1.1	336.2$\pm$27.9	248.7$\pm$34.7	1.35$\pm$0.56	77.1$\pm$5.6
2019-12-18	Gfit/Amp	1.35$\pm$0.14	726.2$\pm$8.6	412.3$\pm$15.2	1.76$\pm$0.06	79.7$\pm$0.8	295.9$\pm$24.3	222.3$\pm$26.6	1.33$\pm$0.17	61.3$\pm$7.7
(a19mk01i)	CA	…	722.3$\pm$8.9	399.7$\pm$25.5	1.76$\pm$0.02	80.8$\pm$2.5	281.8$\pm$26.6	214.8$\pm$62.9	1.33$\pm$0.49	77.9$\pm$23.2

which are close to the size of the asymptotic Gaussian scattering kernel (e.g., [38]). This also supports that the self-calibration with the Gaussian model fitting reasonably alternates the imaging for Sgr A${}^{*}$ at these frequencies, as the scattering kernel dominates the structure (see also [38] for comparison between model fitting and imaging). The derived station gains (Table 2) confirm that there is no significant biases in the models. Note that the image of NRAO530 from CLEAN imaging and the gain corrections are also shown in Figure 4 (left) and Table 2, respectively, for comparison.

3. Results

3.1. Flux Density Variability

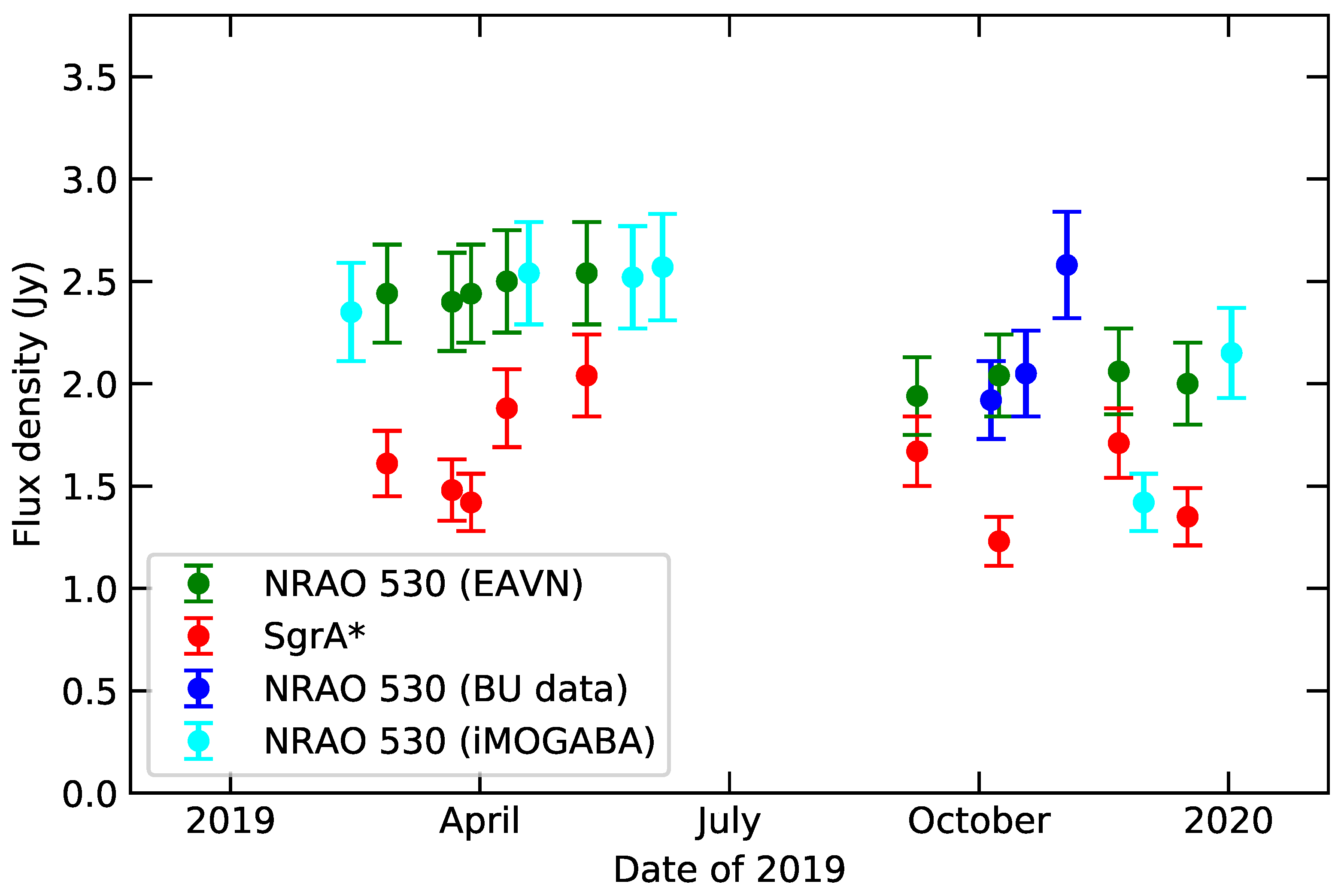

Total flux density of Sgr A${}^{*}$ , S${}_{\mathrm{tot}}$, is found from the final fitted Gaussian model, together with the parameters of elliptical structure (i.e., ${\theta }_{\mathrm{maj}}^{\mathrm{en}}$, ${\mathrm{r}}^{\mathrm{en}}$, and ${\mathrm{PA}}^{\mathrm{en}}$, which are major axis size, axial ratio, and position angle of the major axis, respectively; see Table 3). In Figure 5, we show the light curve of Sgr A${}^{*}$ at 43 GHz in 2019. The mean flux density is about 1.60 Jy, which is higher than the previous measurements with EAVN in April 2017 (∼1.36 ± 0.14 Jy; [38]) and with VERA in November 2004–April 2009 (0.9 ± 0.1 Jy; [41]) but slightly lower than the VLBA results in 2007 (1.79 ± 0.05 Jy; [39]). The flux density of Sgr A${}^{*}$ appear more pronounced in April and May, during a time that coincides with two detected NIR flares occurring on 20 April and 13 May 2019. The highest flux density detected in our observations is 2.04 ± 0.20 Jy on 11 May 2019.

The amount of variability has been estimated with the variability index, $m=\sigma$/<S>, where the $\sigma$ and <S> are the standard deviation and mean flux density, respectively. As a result, the m of Sgr A${}^{*}$ and NRAO 530 are obtained as 15.4 ± 3.1% and ∼2%, respectively. This clearly shows the source intrinsic flux variation of Sgr A${}^{*}$ , which is remarkably larger than the previous measurements, for instance in May 2007 ($m=9.3$%; [39]) and between 2004 and 2008 (∼11%; [41]). Note that the m of NRAO 530 has been estimated for the first half ($m=1.9\pm 0.5\%$) and second half ($m=2.1\pm 0.5\%$) of 2019 separately. This is because the light curve of NRAO 530 shows progressive decrease over the year, which is also shown from independent observations with the VLBA-BU-BLAZAR monitoring program [42,43] and the iMOGABA program with the KVN [44] (see Figure 5). Note that the VLBA-BU-BLAZAR data are only used after September 2019, due to pointing problems at mm wavelengths. 3

3.2. Intrinsic Structure and Its Correlation with the Flux Density

To obtain the intrinsic structure of Sgr A${}^{*}$ , the self-calibrated visibilities and closure amplitudes are deblurred by using the recent scattering kernel model (see Cho et al. [38] for more details). Then an elliptical Gaussian model with three free parameters (${\theta }_{\mathrm{maj}}^{\mathrm{int}}$, ${\mathrm{r}}^{\mathrm{int}}$, and ${\mathrm{PA}}^{\mathrm{int}}$) is fitted to the deblurred log closure amplitudes (CA) and visibility amplitudes (Gfit/Amp), using the Monte Carlo method (Table 3). As a result, the mean values of ${\theta }_{\mathrm{maj}}^{\mathrm{int}}$ and ${\theta }_{\min }^{\mathrm{int}}$ are found as ∼324 and 258 $\mathsf{\mu }$as, respectively, which are slightly larger than the previous study [38], with the mean position angle (PA) roughly consistent with the previous studies [38,45,46]. Note, however, that the intrinsic PA is less constrained, mainly because the intrinsic shape is close to circular, as shown in the large deviation of PA between two different methods (Gfit/Amp and CA) and across the observations. The uncertainties are estimated by the goodness-of-fit from the Monte Carlo method and the stochastic random phase screen within the error range of scattering parameters (see Cho et al. [38] for more details), so that the final uncertainties are the combination of them. For the latter one, the scattering screen provides the refractive noise and the error range of the size of scattering kernel. As for the refractive noise, it is used to flag the noise-dominated data based on the S/N (see Section 2.3), not directly added to the visibilities. The scattering kernel size is mostly determined by the power-law index of the phase structure function of the scattering screen, $\alpha$, and $r_{\mathrm{in}}$ (e.g., [40,47]). Since the intrinsic sizes are obtained from deblurred data (i.e., division by the scattering kernel in the visibility domain), the uncertainties of the kernel size which are introduced by the error range of $\alpha$ and $r_{\mathrm{in}}$ are used for the error of intrinsic sizes as a quadratic sum, together with the fitting error.

Similar to the flux variation, remarkably, the intrinsic sizes also show the variation across our observations. The variability index, m, is obtained as $6.8\pm 1.5\%$ and $10.3\pm 1.7\%$ for major and minor axis size, respectively. Note that the m of observed (i.e., scattered) sizes are $0.8\pm 0.1\%$ and $5.7\pm 0.9\%$ for each axis. These are consistent with the previous studies [39,41], indicating marginal size variation towards the minor axis. Note, however, that the observed structure is dominated by the scattering kernel with PA∼82${}^{\circ }$–86${}^{\circ }$ (e.g., [38]) so that it is relatively easier to detect the size variation towards minor axis (i.e., north-south direction) when the intrinsic size is varying. On the other hand, the m of the area of intrinsic structure (i.e., $\pi$ × ${\theta }_{\mathrm{maj}}^{\mathrm{int}}$ × ${\theta }_{\min }^{\mathrm{int}}$) is obtained as $13.3\pm 3.5\%$, which is comparable to the flux variability (∼15%). These results suggest that the total flux density variations might be associated with changes in size and/or area.

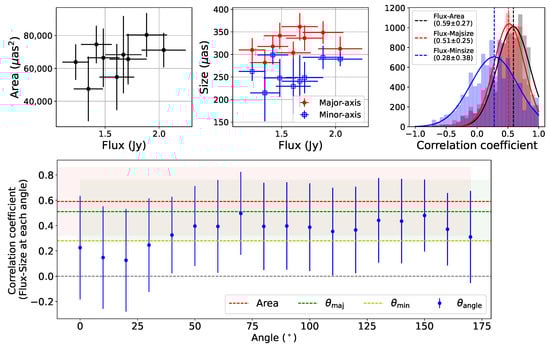

While the previous studies have found a strong correlation between flux density and intrinsic minor axis size at 22, 43, and 86 GHz, the correlation with intrinsic major axis size has only been shown at 86 GHz [39]. In order to further explore the possible association in our observations, we have estimated the Spearman rank correlation coefficient of the flux density versus area, major-axis, and minor-axis sizes. Since the number of data points is insufficient to get a reliable p-value, all data points are randomly resampled 10,000 times to obtain the reasonable uncertainty of correlation coefficient (resampling or bootstrapping method; e.g., [48]). This considers the error of sample distribution, compared to the complete population distribution. In Figure 6 (top), we show the correlation between flux and area (left), and size of both major and minor axis (middle). The distribution of the correlation coefficients from the resampling process is shown in the right panel. By this method, we have found the (marginal) correlation of flux density versus area and major-axis size with ≳$2\sigma$, while no clear correlation has been found with minor-axis size. This provides different results from Lu et al. [39]. Note, however, that the intrinsic structure of Sgr A${}^{*}$ is close to circular Gaussian (i.e., the axial ratio is close to unity) so that the PA is not well determined with large uncertainties (e.g., ∼60° to ∼150°), unlike the observed structure. In this regard, the variability of the size of each axis does not provide consistent directional information. To make it clearer, we have also estimated the correlation of the flux density with the size at different angles, but it is still difficult to find a preferred direction (Figure 6, bottom).

4. Discussion

In the previous section, we showed the correlation between the flux density and the emitting region area in 2019. While recent observations of the innermost part of Sgr A* suggest that it is in a magnetically arrested disk (MAD) state with a smaller viewing angle (EHT and Gravity collaboration), the cause of its variability is still a matter of debate. While rapid variability on a timescale of 10 min in Sgr A${}^{*}$ has been discussed and interpreted in the context of a transient feature (such as a hotspot) that appeared around the central black hole (e.g., Wielgus et al. [49] and references therein), the origin of flux variability on a monthly timescale is not yet well explored in Sgr A${}^{*}$ . Below, we discuss possible origins for the correlation seen in 2019.

The first possibility discussed here is the enhancement of the flux and emission area through (i) the emergence of a new outflow (jet), or (ii) an increase in the size of the optically-thick region of the accretion flow. It is well known that theoretical models of the dominating component of the radio emission in Sgr A${}^{*}$ generally fall into two broad classes. One is a weak and compact jet model, while the other is a radiatively inefficient accretion flow [10,11,50,51]. Regarding case (i), in spite of intensive VLBI observations (e.g., [14,45,52,53,54]), there is no clear evidence of a jet-like structure yet, although there are some indirect suggestions of the possible existence of a weak outflow/jet (e.g., [4,5,6,7,8,9]). When the weak jet was ejected in Sgr A${}^{*}$ , especially towards the line of sight, it naturally explains the correlation between the flux density and the emitting region area in 2019. In case (ii), a temporary increase in the mass accretion rate may result in the expansion of the optically-thick region of the accretion flow. An increase of the mass accretion rate can alter not only a change in the number density of the electrons in the accretion flow, but also the electron temperature and magnetic field in the accretion flow. Therefore, proper determination of the corresponding increase in the flux and the size of the emission region requires a dedicated study. Although it is beyond the scope of this paper. The need for such theoretical studies is expected to grow in the future.

The second possibility discussed here is the change of the accretion disk axis. Recent general relativistic magnetohydrodynamic (GRMHD) simulation of a wind-fed accretion model for Sgr A${}^{*}$ proposed by Ressler et al. [55] suggests that the accretion disk is tilted with the varying angle from ∼20–30${}^{\circ }$ to $0^{\circ }$, with respect to the initial angular momentum axis for the model of stellar-winds injection with lower plasma $\beta$. 4 The origin of the tilt can be explained by the change of the direction of the net magnetic flux conveyed onto the central black hole. The rotation axis of the accretion flow can change both due to the variation of the tilt angle itself and the subsequent precession of accretion flow induced by the tilt against the black-hole spin axis, i.e., the Lense-Thirring precession. 5 Observationally, EAVN at 22 and 43 GHz for Sgr A${}^{*}$ show that the axial ratio of the intrinsic major-axis size to the intrinsic minor-axis size is about $26/20=1.3$. The viewing angle of the accretion disk, defined as the angle between the rotation axis of accretion flow and the line of sight (see Figure 7), is consistent with ${\theta }_{\mathrm{view}}\sim$${30}^{\circ }$ [38]. Therefore, the wind-fed model and/or the precession model can realize the decrease of ${\theta }_{\mathrm{view}}$ that explains the correlation between the flux density and the emitting region area.

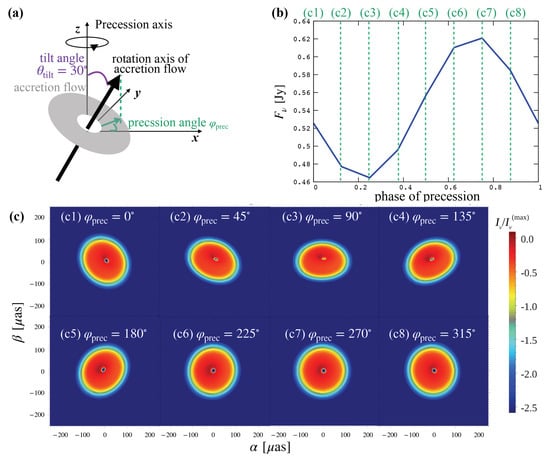

In Figure 7, we demonstrate an example of the precessing Kepleriian accretion flow model. For simplicity, only thermal electrons are considered in the accretion flow, and the fixed tilt angle of ${\theta }_{\mathrm{tilt}}={30}^{\circ }$ is assumed. We set the observation angle, which is the angle between the precession axis and the line of sight, to be ${\theta }_{\mathrm{ob}}={30}^{\circ }$. The viewing angle can change as a consequence of the precession. The images and the light curves at $\nu =43$ GHz are computed by solving general relativistic radiative transfer (GRRT) equations by using RAIKOU code [56,57]. The peak luminosity appears at ${\phi }_{\mathrm{prec}}={270}^{\circ }$, corresponding to the face-on view of the accretion flow. This is because the accretion flow is optically thick against the synchrotron-self-absorption at 43 GHz. The predicted light curve shows ∼ a 10% variability, which is slightly less remarkable than the EAVN observation data. An inclusion of nonthermal electrons would mitigate the discrepancy between the model and the observation. For instance, prominent eruptions of the plasma at the interface of the jet and the precessing accretion flow are indicated in GRMHD simulations that may induce the anisotropic injection of the nonthermal electrons. The study of more sophisticated models remains as future work.

5. Summary

In this study, we have found the temporal variability of flux density and intrinsic size of Sgr A${}^{*}$ at 43 GHz. The mean flux density is about 1.60 Jy, which is larger than previous measurements that can be related to the NIR flare in 13 May 2019. Note that the highest flux density reaches 2.04 ± 0.20 Jy on 11 May 2019, from our observations. Variability is quantified with the $m-$index, which is provided as 15.4% and 2.1% for Sgr A${}^{*}$ and NRAO 530, respectively, indicating the large source intrinsic variability of Sgr A${}^{*}$. In addition to the flux variation, we also investigate the variation of intrinsic size and their possible correlations. After the scattering mitigation, we have first derived the intrinsic structure of Sgr A${}^{*}$, which can be well described with a single elliptical Gaussian model. As a result, across 9 epochs of observations in 2019, we have found a large variability of intrinsic size (∼7% and ∼10% for major and minor axis size, respectively). With this, marginal (≳2 $\sigma$) correlations of flux density versus area and major axis size are also found.

Two possible scenarios have been considered to explain the variability and the correlation of flux density and intrinsic size. First, a weak jet towards the line of sight or the increased size of the optically-thick region of an accretion flow. Both can explain the observed variability and the correlation, especially if they are induced by the NIR flare. As for the jet scenario, for instance, Rauch et al. [58] have found a secondary VLBI component at 43 GHz, which may be triggered by the NIR flare, although the possibility of refractive sub-structure cannot be fully ruled out. This also indicates that the detectability of the possible episodic jet increases through the multi-wavelength (MWL) (quasi-)simultaneous observations, as well as the amount of the NIR activity, so that the MWL associated VLBI monitoring observations are of great importance for future detection. The next possible scenario is the tilted disk, based on a wind-fed accretion model, so that the rotation axis of the accretion disk shows precession. This results in the variability of both structure (i.e., area and size towards each axis) and flux density (e.g., projected area towards line of sight is changed), so the scenario also well explains our observations. With this, the NIR flare may be related to significant changes of tilt angle, but it needs further investigation. To prove the scenario, in addition, better constraints on the intrinsic PA through tighter scattering parameter constraints (G.-Y. Zhao et al. in prep.; Y. Kofuji et al. in prep.) will be crucial.
