# Optimal Combinations of Chemotherapy and Radiotherapy in Low-Grade Gliomas: A Mathematical Approach

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Patient Population

#### 2.2. Image Acquisition and Radiological Measurements of Tumor Size

#### 2.3. Mathematical Model

#### 2.4. Parameter Estimation

#### 2.4.1. TMZ Concentration in the Brain

#### 2.4.2. Parameter Fitting

#### 2.5. RT-Only Virtual Experiments

#### 2.6. In-Silico Patients

#### 2.7. In-Silico Trial Comparing Different Treatment Modalities/Schedules

- I.
- Control group without treatment;
- II.
- RT (1.8 Gy)+TMZ (concurrently 75 mg/m${}^{2}$/day and post-radiation 150–200 mg/m${}^{2}$/ day) according to RTOG 0424. For simplicity, we assumed a fixed-dose equal to 150 mg/m${}^{2}$/day in all TMZ cycles;
- III.
- RT+TMZ matching the doses of RT (1.8 Gy) to those of TMZ (150 mg/m${}^{2}$/day) in the first five days of each cycle (of length 28 days).

## 3. Results

#### 3.1. Validation of the Mathematical Model

#### 3.1.1. The Mathematical Model Given by Equation (1) Described the Tumor Longitudinal Dynamics in Patients

#### 3.1.2. Delaying Radiation Therapy Did Not Have an Effect on Overall Survival

#### 3.2. Protracted Radiotherapy Schemes Lead to Increased Tumor Growth

#### 3.3. Concurrent Cycles of RT and TMZ Produce the Longest-Lasting Therapeutic Effect

#### 3.4. In-Silico Simulation of Clinical Trials

## 4. Discussion and Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

LGG | Low-Grade Glioma |

O | Oligodendroglioma |

A | Astrocytoma |

OA | Oligoastrocytoma |

RT | Radiation Therapy |

TMZ | Temozolomide |

CS | Cycle Size |

PCV | Procarbazine, Lomustine and Vincristine |

MRI | Magnetic Resonance Imaging |

OSG | Overall Survival Gain |

NA | Not Available |

## References

- Lombardi, G.; Barresi, V.; Castellano, A.; Tabouret, E.; Pasqualetti, F.; Salvalaggio, A.; Cerretti, G.; Caccese, M.; Padovan, M.; Zagonel, V.; et al. Clinical management of diffuse low-grade gliomas. Cancers
**2020**, 12, 3008. [Google Scholar] [CrossRef] - Soffietti, R.; Baumert, B.; Bello, L.; Von Deimling, A.; Duffau, H.; Frénay, M.; Grisold, W.; Grant, R.; Graus, F.; Hoang-Xuan, K.; et al. Guidelines on management of low-grade gliomas: Report of an EFNS–EANO* Task Force. Eur. J. Neurol.
**2010**, 17, 1124–1133. [Google Scholar] [CrossRef] - Smits, A.; Jakola, A.S. Clinical presentation, natural history, and prognosis of diffuse low-grade gliomas. Neurosurg. Clin.
**2019**, 30, 35–42. [Google Scholar] [CrossRef] - Buckner, J.C.; Gesme, D., Jr.; O’Fallon, J.R.; Hammack, J.E.; Stafford, S.; Brown, P.D.; Hawkins, R.; Scheithauer, B.W.; Erickson, B.J.; Levitt, R.; et al. Phase II trial of procarbazine, lomustine, and vincristine as initial therapy for patients with low-grade oligodendroglioma or oligoastrocytoma: Efficacy and associations with chromosomal abnormalities. J. Clin. Oncol.
**2003**, 21, 251–255. [Google Scholar] [CrossRef] [PubMed] - Fisher, B.J.; Pugh, S.L.; Macdonald, D.R.; Chakravatri, A.; Lesser, G.J.; Fox, S.; Rogers, C.L.; Werner-Wasik, M.; Doyle, T.; Bahary, J.P.; et al. Phase 2 Study of a Temozolomide-Based Chemoradiation Therapy Regimen for High-Risk, Low-Grade Gliomas: Long-Term Results of Radiation Therapy Oncology Group 0424. Int. J. Radiat. Oncol. Biol. Phys.
**2020**, 107, 720–725. [Google Scholar] [CrossRef] [PubMed] - Baumert, B.G.; Hegi, M.E.; van den Bent, M.J.; von Deimling, A.; Gorlia, T.; Hoang-Xuan, K.; Brandes, A.A.; Kantor, G.; Taphoorn, M.J.; Hassel, M.B.; et al. Temozolomide chemotherapy versus radiotherapy in high-risk low-grade glioma (EORTC 22033-26033): A randomised, open-label, phase 3 intergroup study. Lancet Oncol.
**2016**, 17, 1521–1532. [Google Scholar] [CrossRef][Green Version] - Weller, M.; van den Bent, M.; Preusser, M.; Le Rhun, E.; Tonn, J.C.; Minniti, G.; Bendszus, M.; Balana, C.; Chinot, O.; Dirven, L.; et al. EANO guidelines on the diagnosis and treatment of diffuse gliomas of adulthood. Nat. Rev. Clin. Oncol.
**2021**, 18, 170–186. [Google Scholar] [CrossRef] [PubMed] - Jiang, T.; Nam, D.H.; Ram, Z.; Poon, W.S.; Wang, J.; Boldbaatar, D.; Mao, Y.; Ma, W.; Mao, Q.; You, Y.; et al. Clinical practice guidelines for the management of adult diffuse gliomas. Cancer Lett.
**2021**, 499, 60–72. [Google Scholar] [CrossRef] [PubMed] - Liu, R.; Solheim, K.; Polley, M.Y.; Lamborn, K.R.; Page, M.; Fedoroff, A.; Rabbitt, J.; Butowski, N.; Prados, M.; Chang, S.M. Quality of life in low-grade glioma patients receiving temozolomide. Neuro-Oncol.
**2009**, 11, 59–68. [Google Scholar] [CrossRef] - Buckner, J.C.; Shaw, E.G.; Pugh, S.L.; Chakravarti, A.; Gilbert, M.R.; Barger, G.R.; Coons, S.; Ricci, P.; Bullard, D.; Brown, P.D.; et al. Radiation plus procarbazine, CCNU, and vincristine in low-grade glioma. N. Engl. J. Med.
**2016**, 374, 1344–1355. [Google Scholar] [CrossRef] - Stupp, R.; Mason, W.P.; Van Den Bent, M.J.; Weller, M.; Fisher, B.; Taphoorn, M.J.; Belanger, K.; Brandes, A.A.; Marosi, C.; Bogdahn, U.; et al. Radiotherapy plus concomitant and adjuvant temozolomide for glioblastoma. N. Engl. J. Med.
**2005**, 352, 987–996. [Google Scholar] [CrossRef] [PubMed] - Fisher, B.J.; Hu, C.; Macdonald, D.R.; Lesser, G.J.; Coons, S.W.; Brachman, D.G.; Ryu, S.; Werner-Wasik, M.; Bahary, J.P.; Liu, J.; et al. Phase 2 study of temozolomide-based chemoradiation therapy for high-risk low-grade gliomas: Preliminary results of Radiation Therapy Oncology Group 0424. Int. J. Radiat. Oncol. Biol. Phys.
**2015**, 91, 497–504. [Google Scholar] [CrossRef][Green Version] - Wang, J.; Wang, Y.; He, Y.; Guan, H.; He, L.; Mu, X.; Peng, X. Radiotherapy versus radiotherapy combined with temozolomide in high-risk low-grade gliomas after surgery: Study protocol for a randomized controlled clinical trial. Trials
**2019**, 20, 1–7. [Google Scholar] [CrossRef][Green Version] - Barbolosi, D.; Ciccolini, J.; Lacarelle, B.; Barlési, F.; André, N. Computational oncology—Mathematical modelling of drug regimens for precision medicine. Nat. Rev. Clin. Oncol.
**2016**, 13, 242–254. [Google Scholar] [CrossRef] - Malinzi, J.; Basita, K.B.; Padidar, S.; Adeola, H.A. Prospect for application of mathematical models in combination cancer treatments. Inform. Med. Unlocked
**2021**, 23, 100534. [Google Scholar] [CrossRef] - Ribba, B.; Kaloshi, G.; Peyre, M.; Ricard, D.; Calvez, V.; Tod, M.; Čajavec-Bernard, B.; Idbaih, A.; Psimaras, D.; Dainese, L.; et al. A tumor growth inhibition model for low-grade glioma treated with chemotherapy or radiotherapy. Clin. Cancer Res.
**2012**, 18, 5071–5080. [Google Scholar] [CrossRef] [PubMed][Green Version] - Pérez-García, V.M.; Bogdanska, M.; Martínez-González, A.; Belmonte-Beitia, J.; Schucht, P.; Pérez-Romasanta, L.A. Delay effects in the response of low-grade gliomas to radiotherapy: A mathematical model and its therapeutical implications. Math. Med. Biol. J. IMA
**2015**, 32, 307–329. [Google Scholar] [CrossRef] [PubMed][Green Version] - Pérez-García, V.M.; Pérez-Romasanta, L.A. Extreme protraction for low-grade gliomas: Theoretical proof of concept of a novel therapeutical strategy. Math. Med. Biol. J. IMA
**2016**, 33, 253–271. [Google Scholar] [CrossRef][Green Version] - Henares-Molina, A.; Benzekry, S.; Lara, P.C.; García-Rojo, M.; Pérez-García, V.M.; Martínez-González, A. Non-standard radiotherapy fractionations delay the time to malignant transformation of low-grade gliomas. PLoS ONE
**2017**, 12, e0178552. [Google Scholar] [CrossRef] [PubMed][Green Version] - Rodríguez, C.R.; Calvo, G.F.; Ramis-Conde, I.; Belmonte-Beitia, J. Stochastic modelling of slow-progressing tumors: Analysis and applications to the cell interplay and control of low grade gliomas. Commun. Nonlinear Sci. Numer. Simul.
**2017**, 49, 63–80. [Google Scholar] [CrossRef] - Budia, I.; Alvarez-Arenas, A.; Woolley, T.; Calvo, G.; Belmonte-Beitia, J. Radiation protraction schedules for low-grade gliomas: A comparison between different mathematical models. J. R. Soc. Interface
**2019**, 16, 20190665. [Google Scholar] [CrossRef] [PubMed][Green Version] - Mazzocco, P.; Barthélémy, C.; Kaloshi, G.; Lavielle, M.; Ricard, D.; Idbaih, A.; Psimaras, D.; Renard, M.A.; Alentorn, A.; Honnorat, J.; et al. Prediction of response to temozolomide in low-grade glioma patients based on tumor size dynamics and genetic characteristics. CPT Pharmacomet. Syst. Pharmacol.
**2015**, 4, 728–737. [Google Scholar] [CrossRef] [PubMed] - Mazzocco, P.; Honnorat, J.; Ducray, F.; Ribba, B. Increasing the time interval between PCV chemotherapy cycles as a strategy to improve duration of response in low-grade gliomas: Results from a model-based clinical trial simulation. Comput. Math. Methods Med.
**2015**, 2015, 297903. [Google Scholar] [CrossRef] [PubMed][Green Version] - Rojas, C.; Belmonte-Beitia, J.; Pérez-García, V.M.; Maurer, H. Dynamics and optimal control of chemotherapy for low grade gliomas: Insights from a mathematical model. Discret. Contin. Dyn. Syst.-B
**2016**, 21, 1895–1915. [Google Scholar] [CrossRef] - Bogdańska, M.U.; Bodnar, M.; Belmonte-Beitia, J.; Murek, M.; Schucht, P.; Beck, J.; Pérez-García, V.M. A mathematical model of low grade gliomas treated with temozolomide and its therapeutical implications. Math. Biosci.
**2017**, 288, 1–13. [Google Scholar] [CrossRef][Green Version] - Pérez-García, V.M.; Ayala-Hernández, L.E.; Belmonte-Beitia, J.; Schucht, P.; Murek, M.; Raabe, A.; Sepúlveda, J. Computational design of improved standardized chemotherapy protocols for grade II oligodendrogliomas. PLoS Comput. Biol.
**2019**, 15, e1006778. [Google Scholar] [CrossRef] [PubMed][Green Version] - Bodnar, M.; Pérez, M.V. Mathematical and numerical analysis of low-grade gliomas model and the effects of chemotherapy. Commun. Nonlinear Sci. Numer. Simul.
**2019**, 72, 552–564. [Google Scholar] [CrossRef] - Bashkirtseva, I.; Ryashko, L.; López, Á.G.; Seoane, J.M.; Sanjuán, M.A. The effect of time ordering and concurrency in a mathematical model of chemoradiotherapy. Commun. Nonlinear Sci. Numer. Simul.
**2021**, 96, 105693. [Google Scholar] [CrossRef] - Pallud, J.; Mandonnet, E.; Duffau, H.; Kujas, M.; Guillevin, R.; Galanaud, D.; Taillandier, L.; Capelle, L. Prognostic value of initial magnetic resonance imaging growth rates for World Health Organization grade II gliomas. Ann. Neurol.
**2006**, 60, 380–383. [Google Scholar] [CrossRef] - Mandonnet, E.; Delattre, J.Y.; Tanguy, M.L.; Swanson, K.R.; Carpentier, A.F.; Duffau, H.; Cornu, P.; Van Effenterre, R.; Alvord, E.C., Jr.; Capelle, L. Continuous growth of mean tumor diameter in a subset of grade II gliomas. Ann. Neurol.
**2003**, 53, 524–528. [Google Scholar] [CrossRef] - Pérez-Beteta, J.; Molina-García, D.; Ortiz-Alhambra, J.A.; Fernández-Romero, A.; Luque, B.; Arregui, E.; Calvo, M.; Borrás, J.M.; Meléndez, B.; Rodríguez de Lope, Á.; et al. Tumor surface regularity at MR imaging predicts survival and response to surgery in patients with glioblastoma. Radiology
**2018**, 288, 218–225. [Google Scholar] [CrossRef] - Yeh, A.C.; Ramaswamy, S. Mechanisms of cancer cell dormancy—Another hallmark of cancer? Cancer Res.
**2015**, 75, 5014–5022. [Google Scholar] [CrossRef][Green Version] - Mills, C.C.; Kolb, E.; Sampson, V.B. Development of chemotherapy with cell-cycle inhibitors for adult and pediatric cancer therapy. Cancer Res.
**2018**, 78, 320–325. [Google Scholar] [CrossRef][Green Version] - Pawlik, T.M.; Keyomarsi, K. Role of cell cycle in mediating sensitivity to radiotherapy. Int. J. Radiat. Oncol. Biol. Phys.
**2004**, 59, 928–942. [Google Scholar] [CrossRef] - Adenis, L.; Plaszczynski, S.; Grammaticos, B.; Pallud, J.; Badoual, M. Radiotherapy Effects on Diffuse Low-Grade Gliomas: Confronting Theory With Clinical Data. arXiv
**2021**, arXiv:2107.02534. [Google Scholar] - Fogarty, C.E.; Bergmann, A. Killers creating new life: Caspases drive apoptosis-induced proliferation in tissue repair and disease. Cell Death Differ.
**2017**, 24, 1390–1400. [Google Scholar] [CrossRef] [PubMed][Green Version] - Zimmerman, M.A.; Huang, Q.; Li, F.; Liu, X.; Li, C.Y. Cell death–stimulated cell proliferation: A tissue regeneration mechanism usurped by tumors during radiotherapy. Semin. Radiat. Oncol.
**2013**, 23, 288–295. [Google Scholar] [CrossRef] [PubMed][Green Version] - He, S.; Cheng, J.; Sun, L.; Wang, Y.; Wang, C.; Liu, X.; Zhang, Z.; Zhao, M.; Luo, Y.; Tian, L.; et al. HMGB1 released by irradiated tumor cells promotes living tumor cell proliferation via paracrine effect. Cell Death Dis.
**2018**, 9, 648. [Google Scholar] [CrossRef] - Davis, A.J.; Tannock, I.F. Repopulation of tumour cells between cycles of chemotherapy: A neglected factor. Lancet Oncol.
**2000**, 1, 86–93. [Google Scholar] [CrossRef] - Marcu, L. Tumour repopulation and the role of abortive division in squamous cell carcinomas during chemotherapy. Cell Prolif.
**2014**, 47, 318–325. [Google Scholar] [CrossRef] [PubMed] - Mosteller, R. Simplified calculation of body-surface area. N. Engl. J. Med.
**1987**, 317, 1098. [Google Scholar] - Portnow, J.; Badie, B.; Chen, M.; Liu, A.; Blanchard, S.; Synold, T.W. The neuropharmacokinetics of temozolomide in patients with resectable brain tumors: Potential implications for the current approach to chemoradiation. Clin. Cancer Res.
**2009**, 15, 7092–7098. [Google Scholar] [CrossRef][Green Version] - Hammond, L.A.; Eckardt, J.R.; Baker, S.D.; Eckhardt, S.G.; Dugan, M.; Forral, K.; Reidenberg, P.; Statkevich, P.; Weiss, G.R.; Rinaldi, D.A.; et al. Phase I and pharmacokinetic study of temozolomide on a daily-for-5-days schedule in patients with advanced solid malignancies. J. Clin. Oncol.
**1999**, 17, 2604–2613. [Google Scholar] [CrossRef] - Van den Bent, M.; Afra, D.; De Witte, O.; Hassel, M.B.; Schraub, S.; Hoang-Xuan, K.; Malmström, P.; Collette, L.; Piérart, M.; Mirimanoff, R.; et al. Long-term efficacy of early versus delayed radiotherapy for low-grade astrocytoma and oligodendroglioma in adults: The EORTC 22845 randomised trial. Lancet
**2005**, 366, 985–990. [Google Scholar] [CrossRef] - Creed, J.H.; Gerke, T.A.; Berglund, A.E. MatSurv: Survival analysis and visualization in MATLAB. J. Open Source Softw.
**2020**, 5, 1830. [Google Scholar] [CrossRef] - Badoual, M.; Gerin, C.; Deroulers, C.; Grammaticos, B.; Llitjos, J.F.; Oppenheim, C.; Varlet, P.; Pallud, J. Oedema-based model for diffuse low-grade gliomas: Application to clinical cases under radiotherapy. Cell Prolif.
**2014**, 47, 369–380. [Google Scholar] [CrossRef] [PubMed] - Ricard, D.; Kaloshi, G.; Amiel-Benouaich, A.; Lejeune, J.; Marie, Y.; Mandonnet, E.; Kujas, M.; Mokhtari, K.; Taillibert, S.; Laigle-Donadey, F.; et al. Dynamic history of low-grade gliomas before and after temozolomide treatment. Ann. Neurol. Off. J. Am. Neurol. Assoc. Child Neurol. Soc.
**2007**, 61, 484–490. [Google Scholar] [CrossRef] [PubMed]

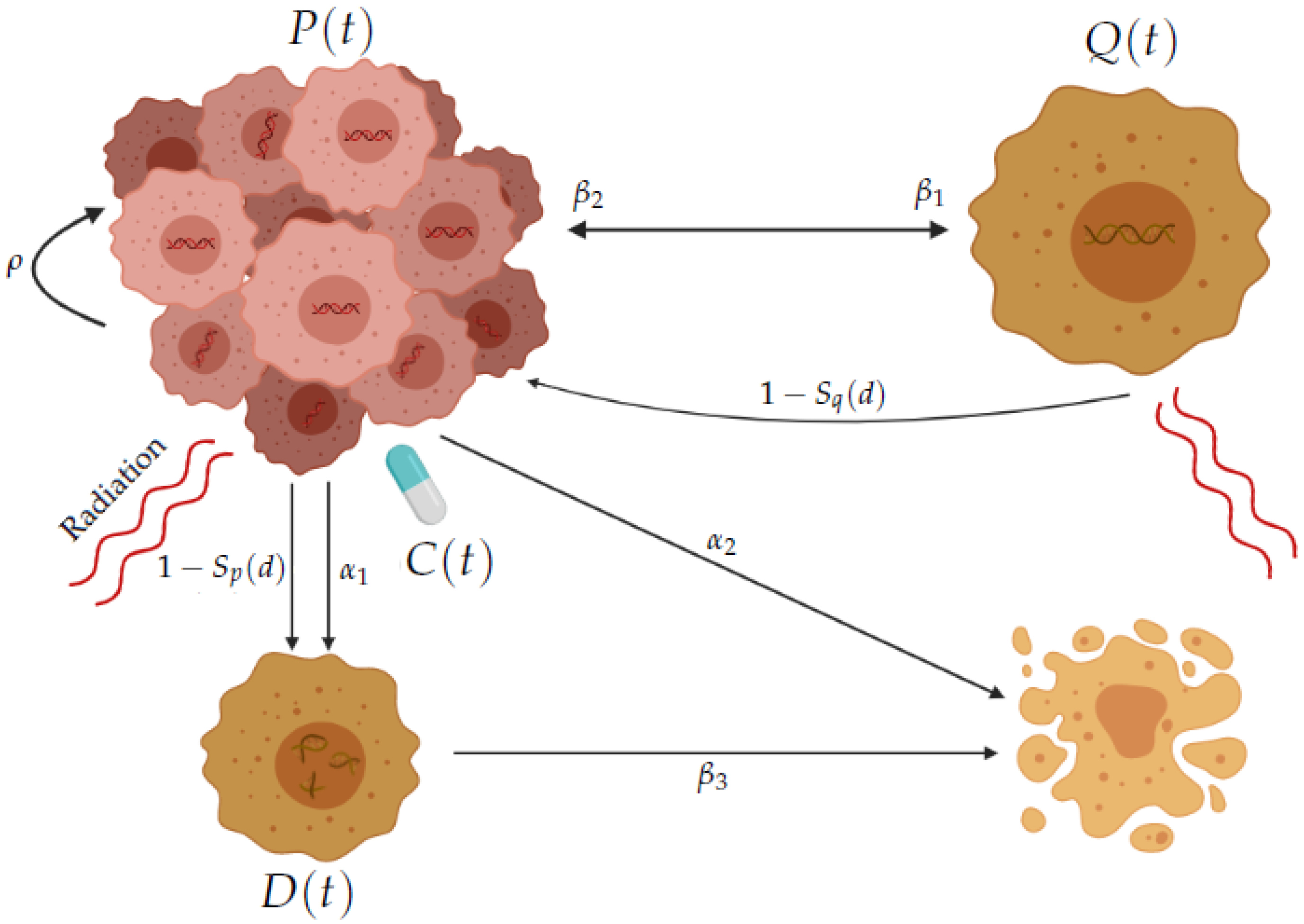

**Figure 1.**Diagram illustrating the model interactions. Proliferative cells $P\left(t\right)$ grow at rate $\rho $, some enter a quiescent state $Q\left(t\right)$ at rate ${\beta}_{1}$ and vice versa at rate ${\beta}_{2}$. Radiation damages a fraction $1-{S}_{p}\left(d\right)$ of $P\left(t\right)$ cells to produce a subpopulation of lethally damaged cells $D\left(t\right)$ that die at rate ${\beta}_{3}$, and also stimulates a fraction $1-{S}_{q}\left(d\right)$ of $Q\left(t\right)$ to proliferate. Chemotherapy $C\left(t\right)$ causes some $P\left(t\right)$ cells to undergo delayed death (as radiation does) at rate ${\alpha}_{1}$ and immediate death at rate ${\alpha}_{2}$.

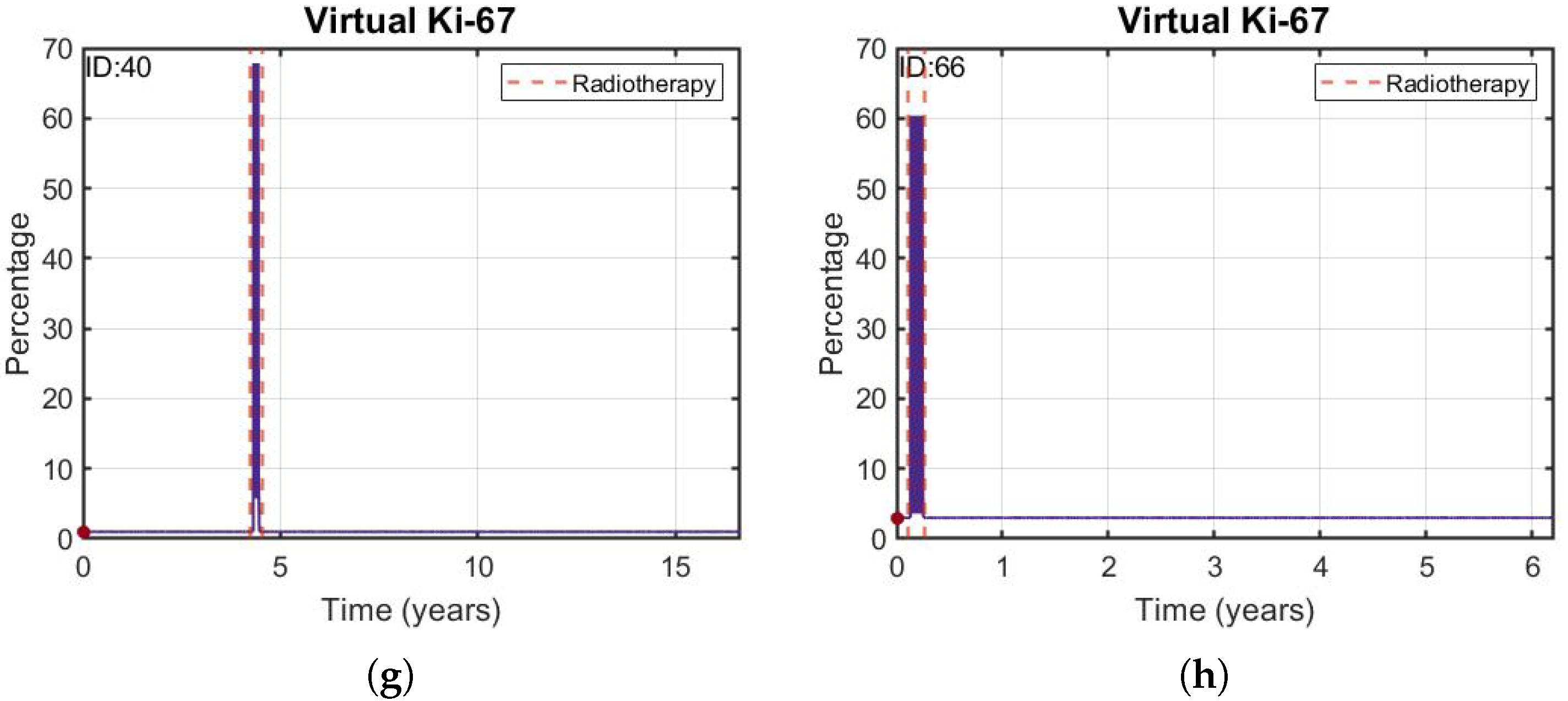

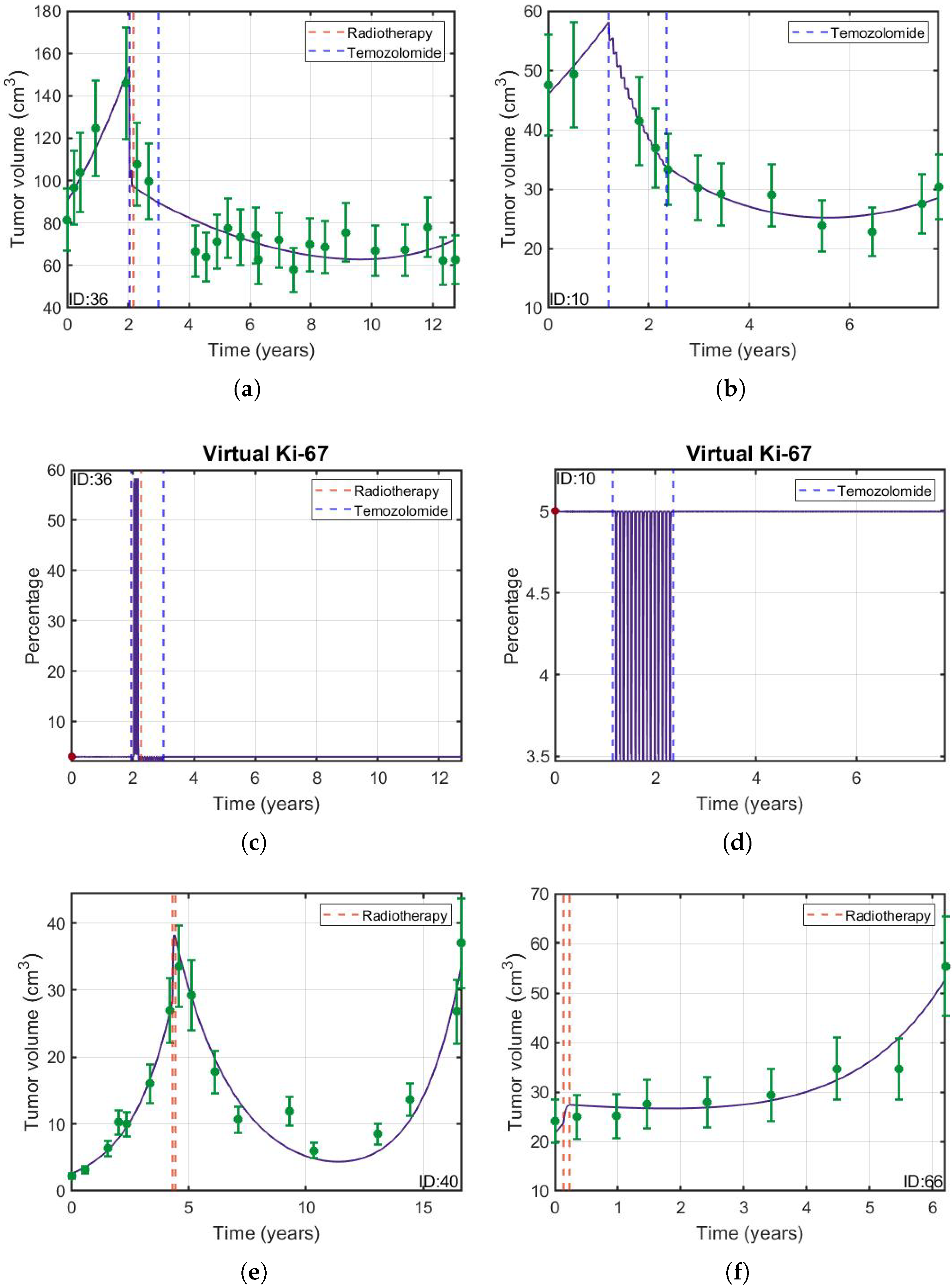

**Figure 2.**(

**a**,

**b**,

**e**,

**f**) Examples of longitudinal volumetric dynamics (green circles) with their respective 18 % error bars (green vertical lines) and best fits obtained using Equation (1) (solid purple line). Data shown correspond to patients $10,36,40$ and 66 (green circles). (

**c**,

**d**,

**g**,

**h**) Time evolution of $100P\left(t\right)/\left(P\right(t)+Q(t\left)\right)$ interpreted as virtual (solid purple line) and initial (red circle) Ki-67 labeling index. The vertical dashed lines indicate the onset and end times of the treatments received by each patient (either RT, QT or both).

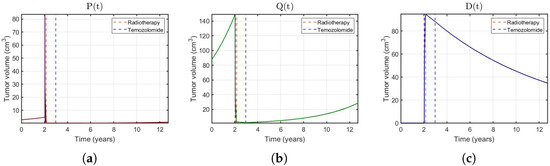

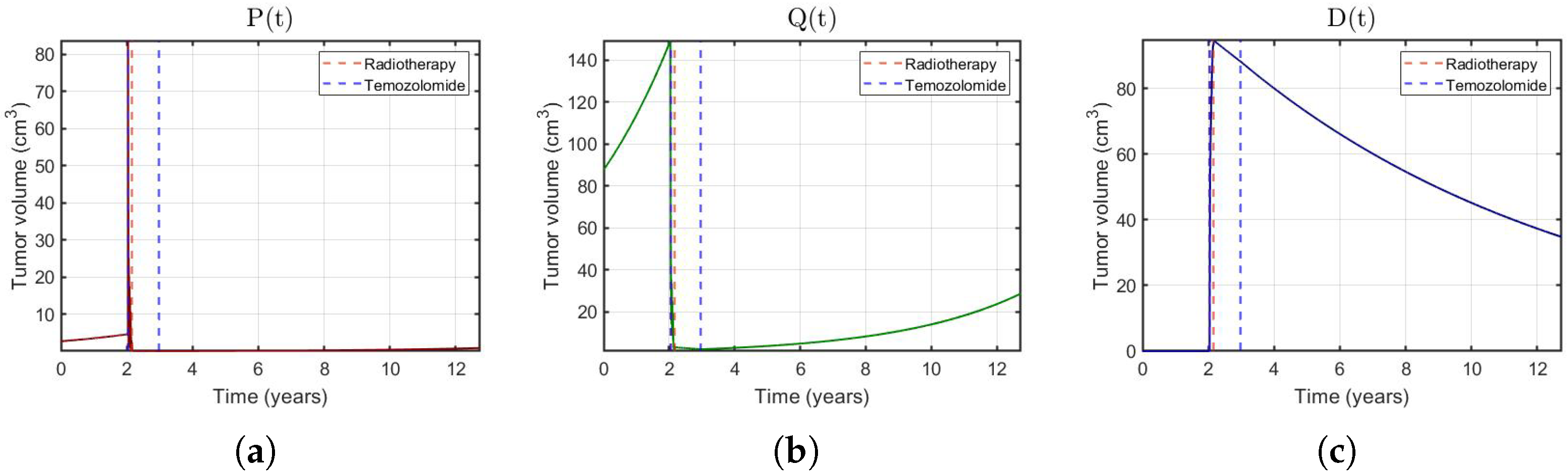

**Figure 3.**(

**a**–

**c**) Evolution of $P\left(t\right),Q\left(t\right)$ and $D\left(t\right)$ for patient 36. The sum of each of these cell populations corresponds to the total tumor volume.

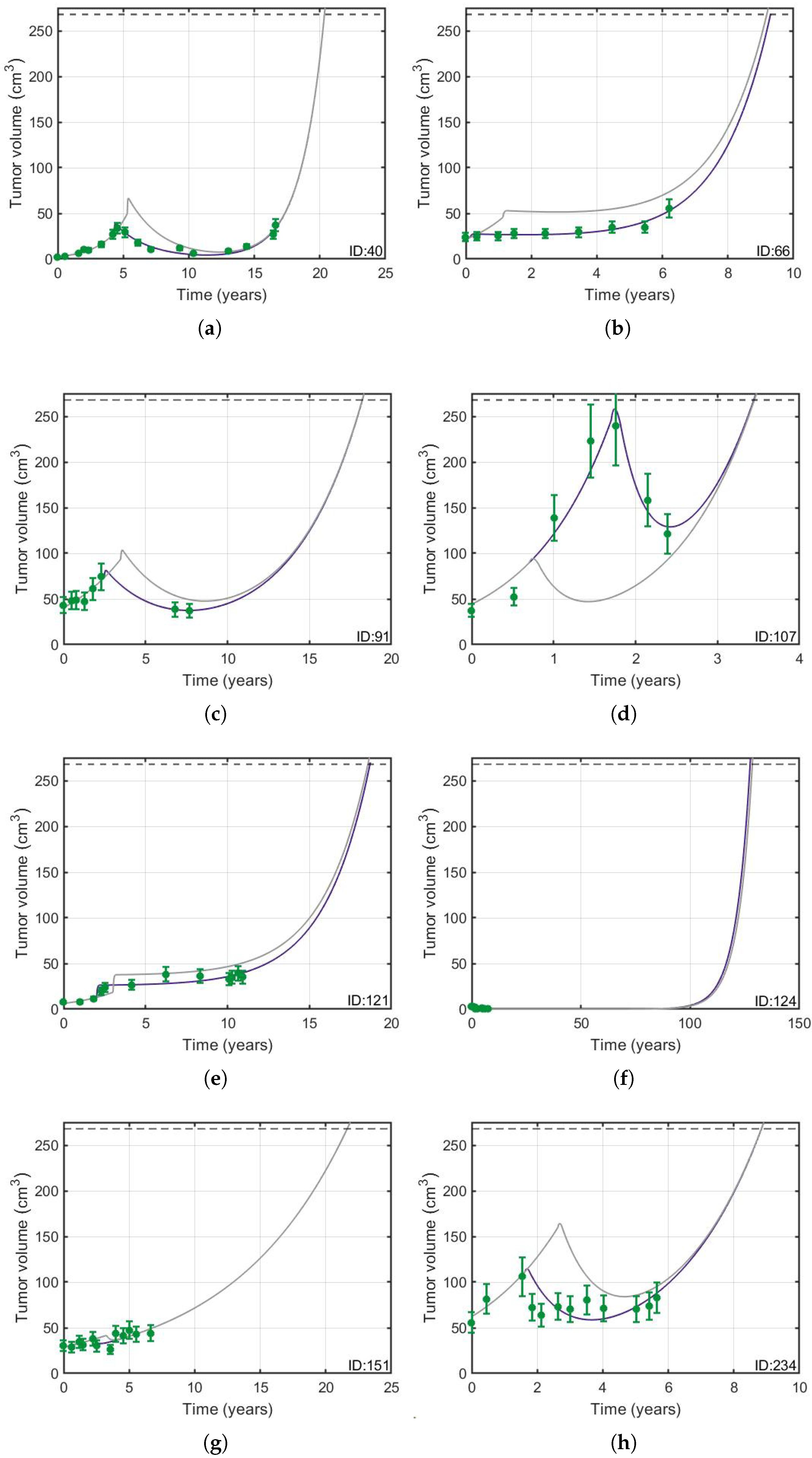

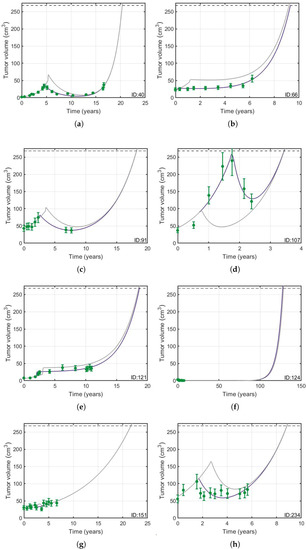

**Figure 4.**(

**a**–

**h**) Delaying radiotherapy does not have an effect on overall survival. RT was simulated to start one year later (gray solid line) than when actually received by the patient (solid purple line), except for patient 107, in whose case it was simulated to occur one year earlier. The horizontal black dashed line represents the fatal volume and the green circles, with their respective error bars, the longitudinal volumetric data.

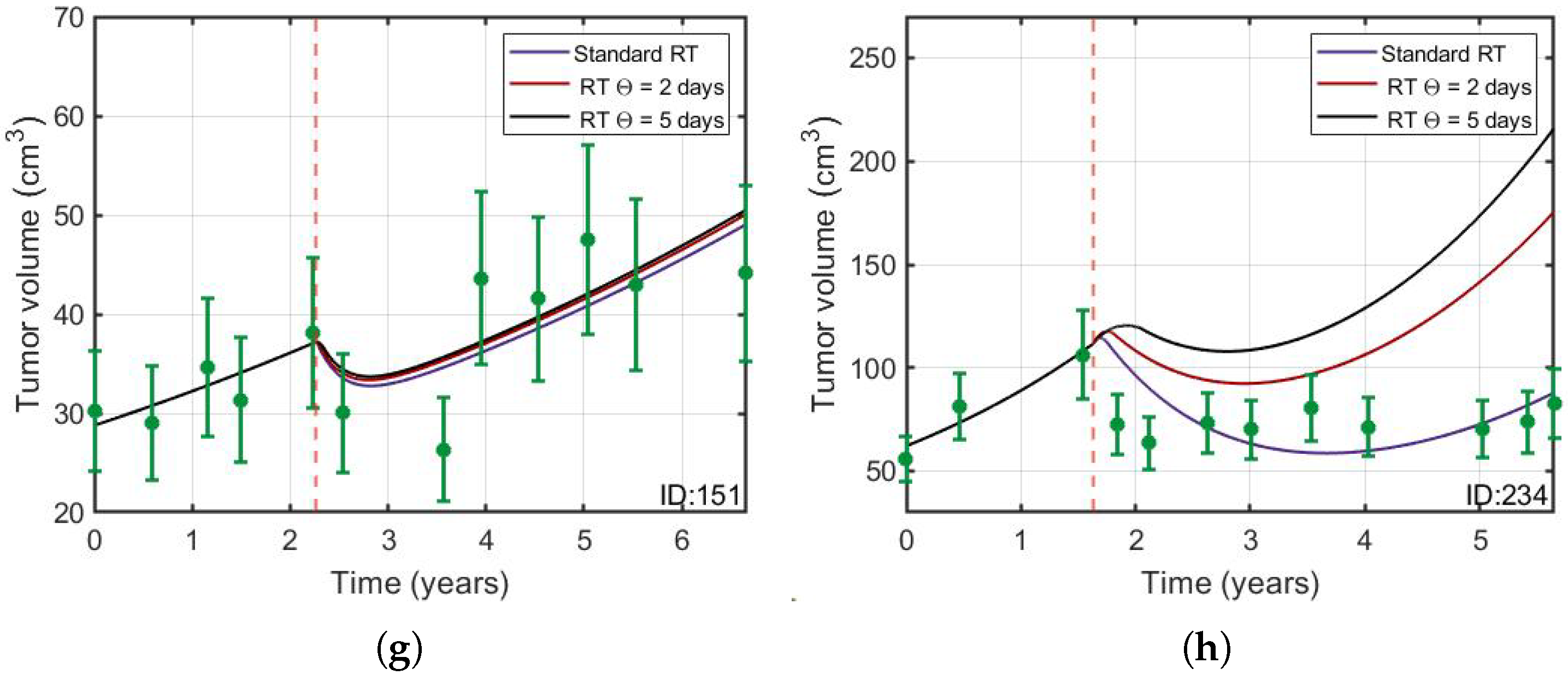

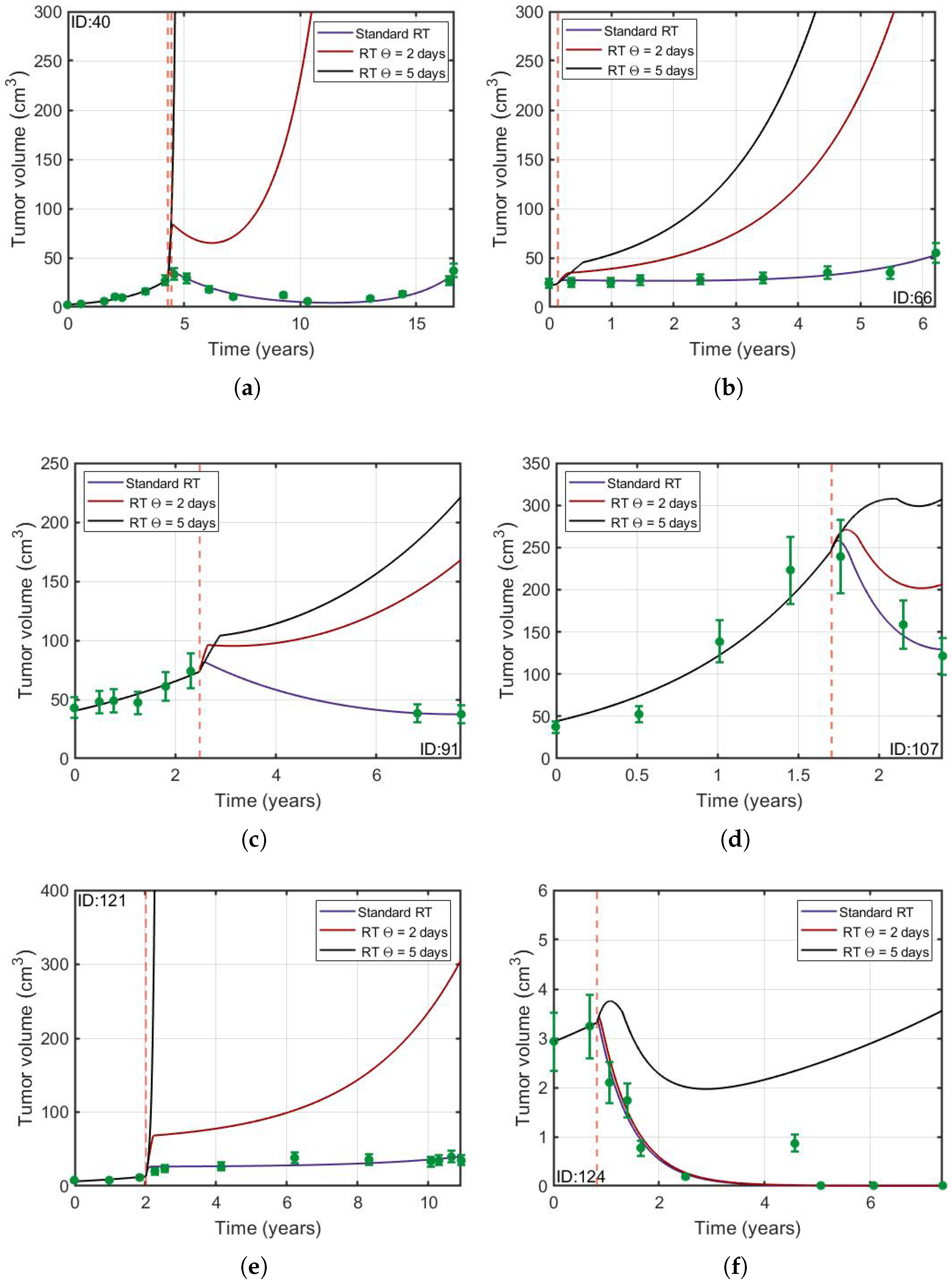

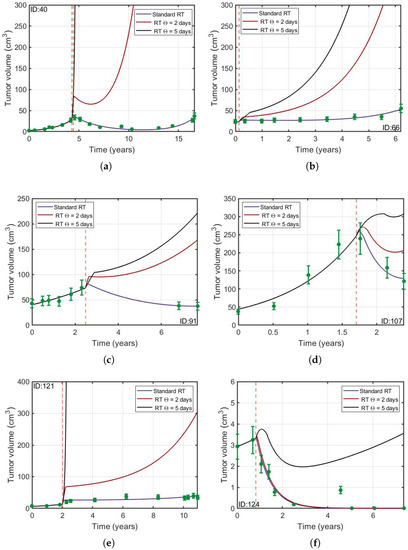

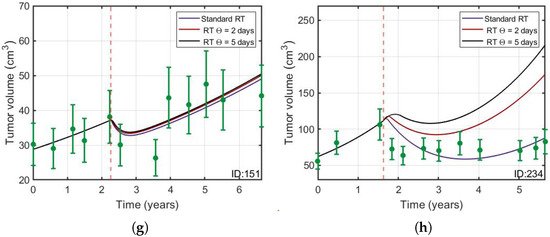

**Figure 5.**(

**a**–

**h**) Protracted radiotherapy schemes lead to increased tumor growth in silico. Simulations of longitudinal tumor growth dynamics of patients receiving radiation therapy fractionations spaced at 5 days (black solid line), 2 days (red solid line) and the conventional scheme (purple solid line). The vertical red dashed line shows the treatment start time and the green circles the longitudinal volumetric data.

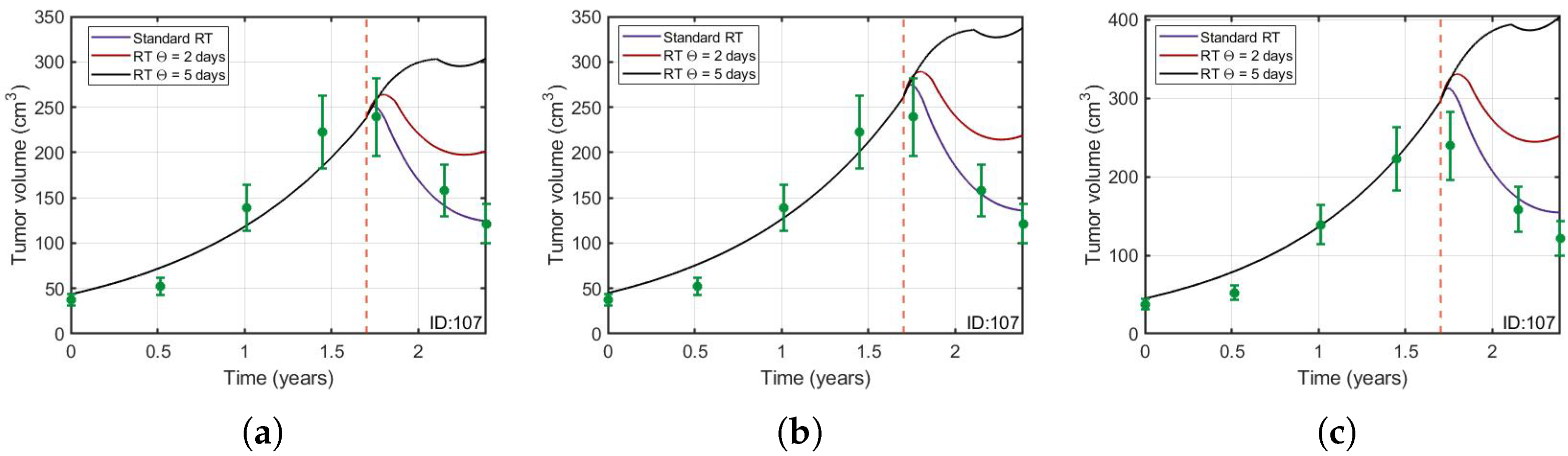

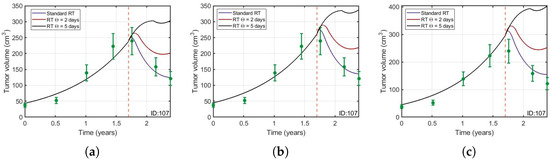

**Figure 6.**Same simulations as in Figure 5 for three different sets of parameters taking into account the 18% error in the real tumor volumes. (

**a**) ${V}_{0}=43.56,\phantom{\rule{4pt}{0ex}}\rho =0.091,\phantom{\rule{4pt}{0ex}}{\beta}_{1}=1.08,\phantom{\rule{4pt}{0ex}}{\beta}_{2}=0.03,\phantom{\rule{4pt}{0ex}}{\beta}_{3}=0.0076,\phantom{\rule{4pt}{0ex}}{S}_{q}=0.861$ and ${S}_{p}=0.019$. (

**b**) ${V}_{0}=44.86,\phantom{\rule{4pt}{0ex}}\rho =0.094,\phantom{\rule{4pt}{0ex}}{\beta}_{1}=1.04,\phantom{\rule{4pt}{0ex}}{\beta}_{2}=0.029,{\beta}_{3}=0.0077,\phantom{\rule{4pt}{0ex}}{S}_{q}=0.866$ and ${S}_{p}=0.003$ and (

**c**) ${V}_{0}=44.99,\phantom{\rule{4pt}{0ex}}\rho =0.101,\phantom{\rule{4pt}{0ex}}{\beta}_{1}=1,\phantom{\rule{4pt}{0ex}}{\beta}_{2}=0.027,\phantom{\rule{4pt}{0ex}}{\beta}_{3}=0.0081,\phantom{\rule{4pt}{0ex}}{S}_{q}=0.869$ and ${S}_{p}=0$.

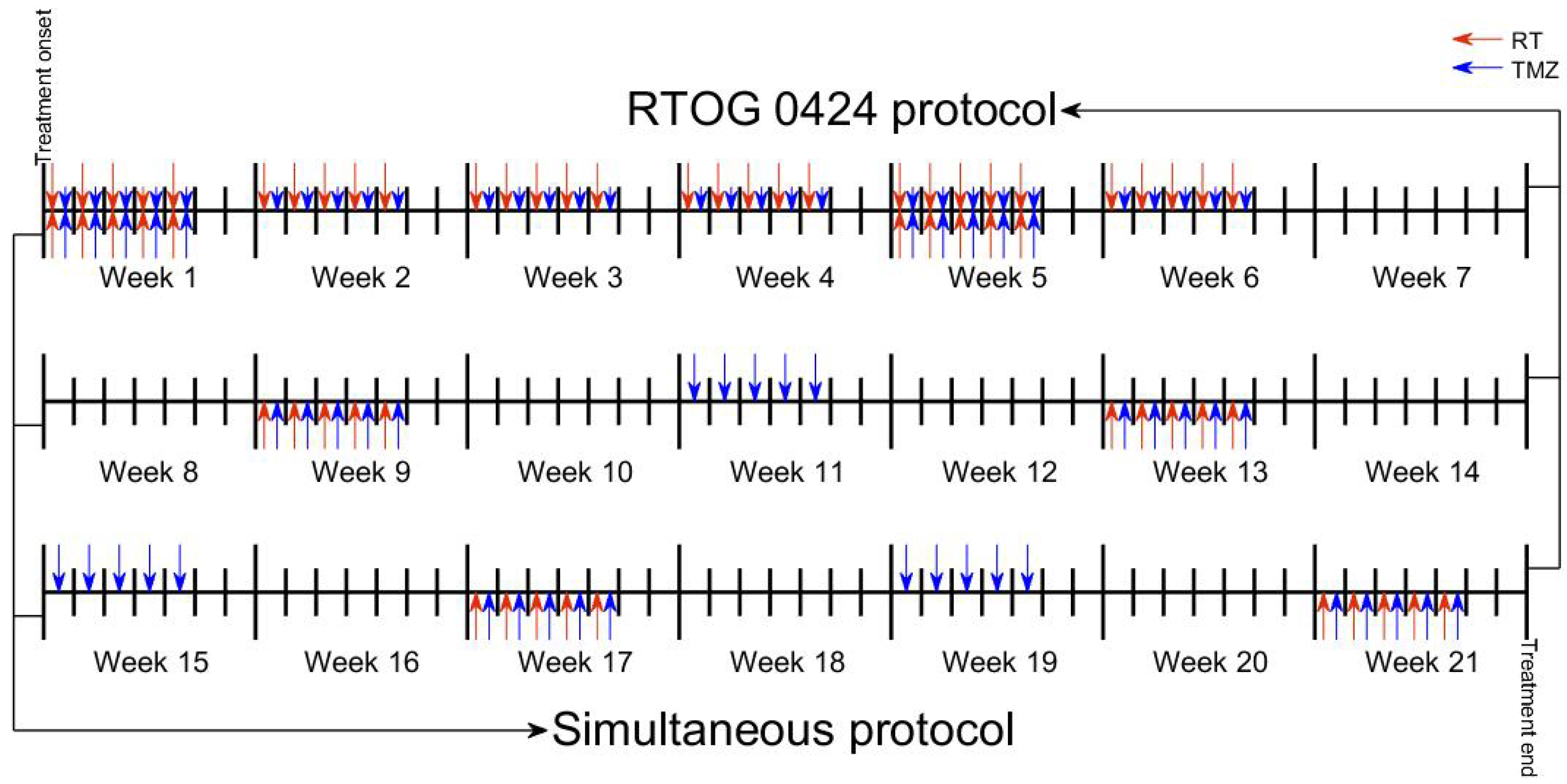

**Figure 7.**Schematic representation of the combined treatment protocols. In the RTOG 0424 protocol, RT was given concurrently with TMZ (75 mg/m${}^{2}$/day) in weeks 1–6 (top of treatment timeline) while in the simultaneous scheme, RT was only administered together with TMZ (150 mg/m${}^{2}$/day) (bottom of treatment timeline).

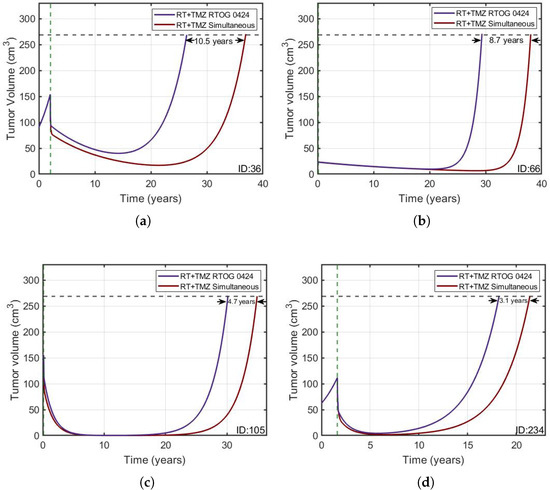

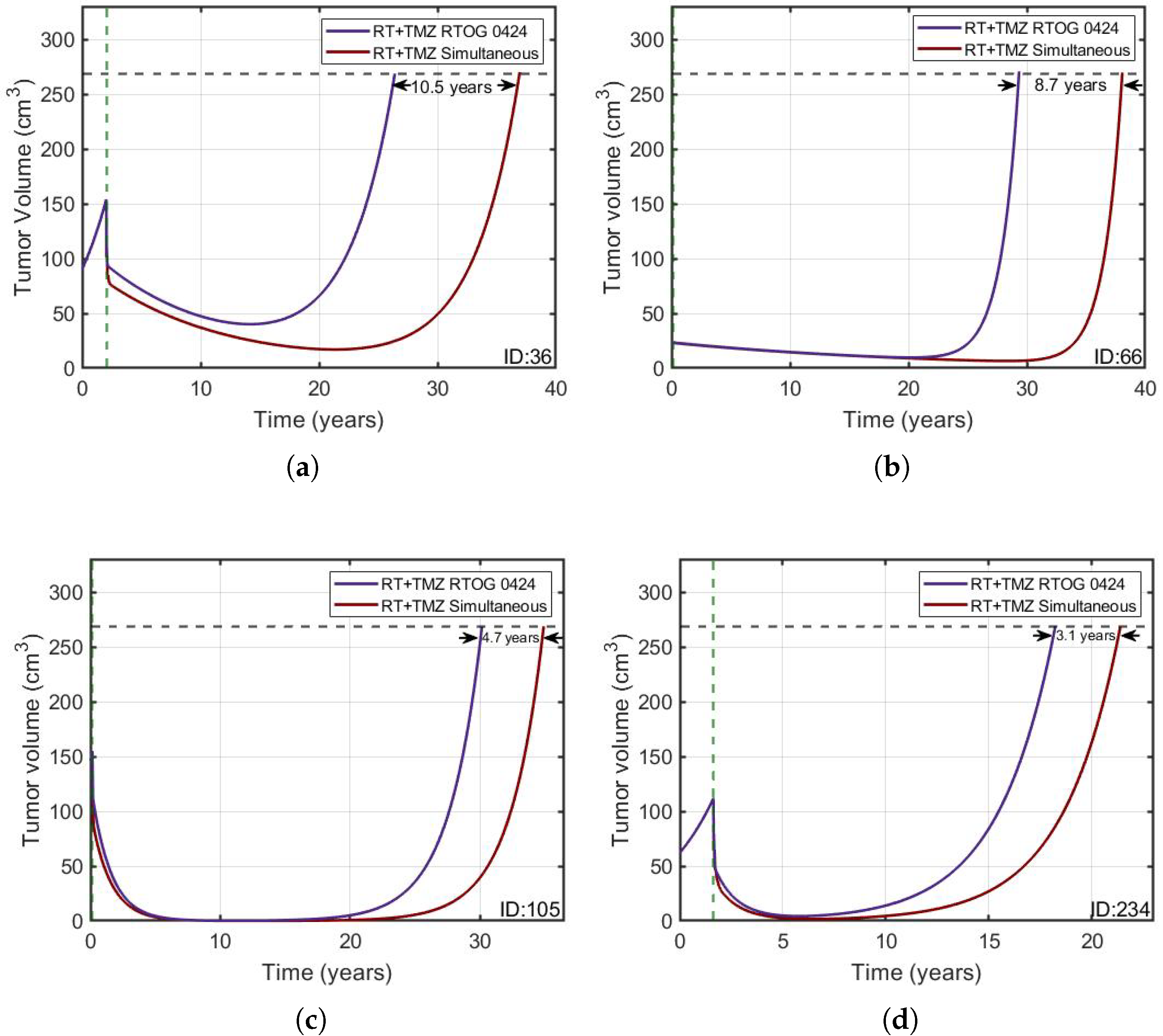

**Figure 8.**(

**a**–

**d**) Simulated tumor growth curves for patient 36 and for three in-silico patients treated according to RTOG 0424 (purple solid line) and the RT+TMZ simultaneous (red solid line) regimens. Treatment onset is denoted by a vertical green dashed line and the fatal tumor volume by a horizontal black dashed line.

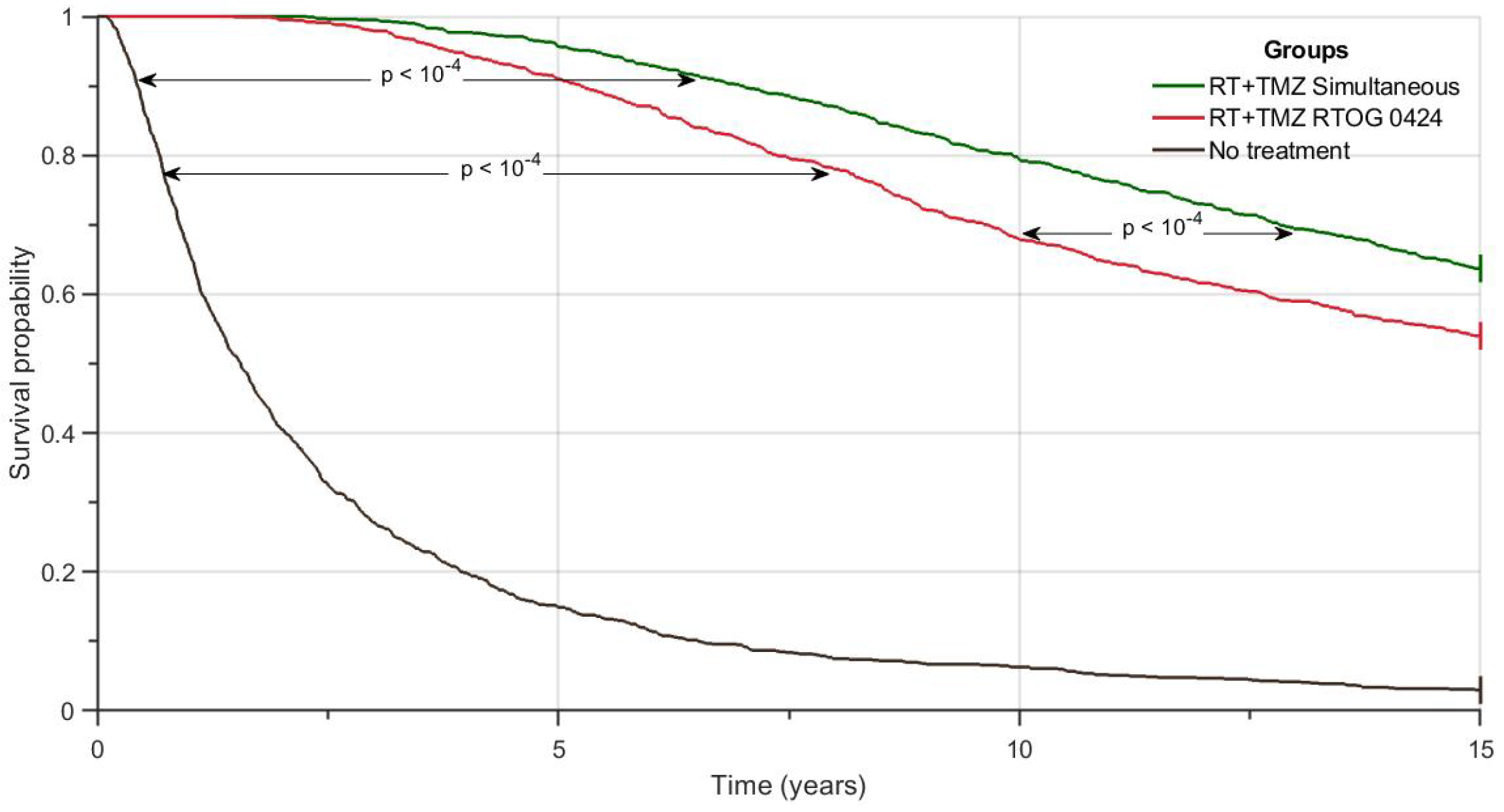

**Figure 9.**Kaplan -Meier survival curves for the control group (black line) and for the groups treated according to RTOG 0424 (red line) and the RT+TMZ simultaneous (green line) schedules. Differences between curves were statistically significant p-value (p) < 0.05.

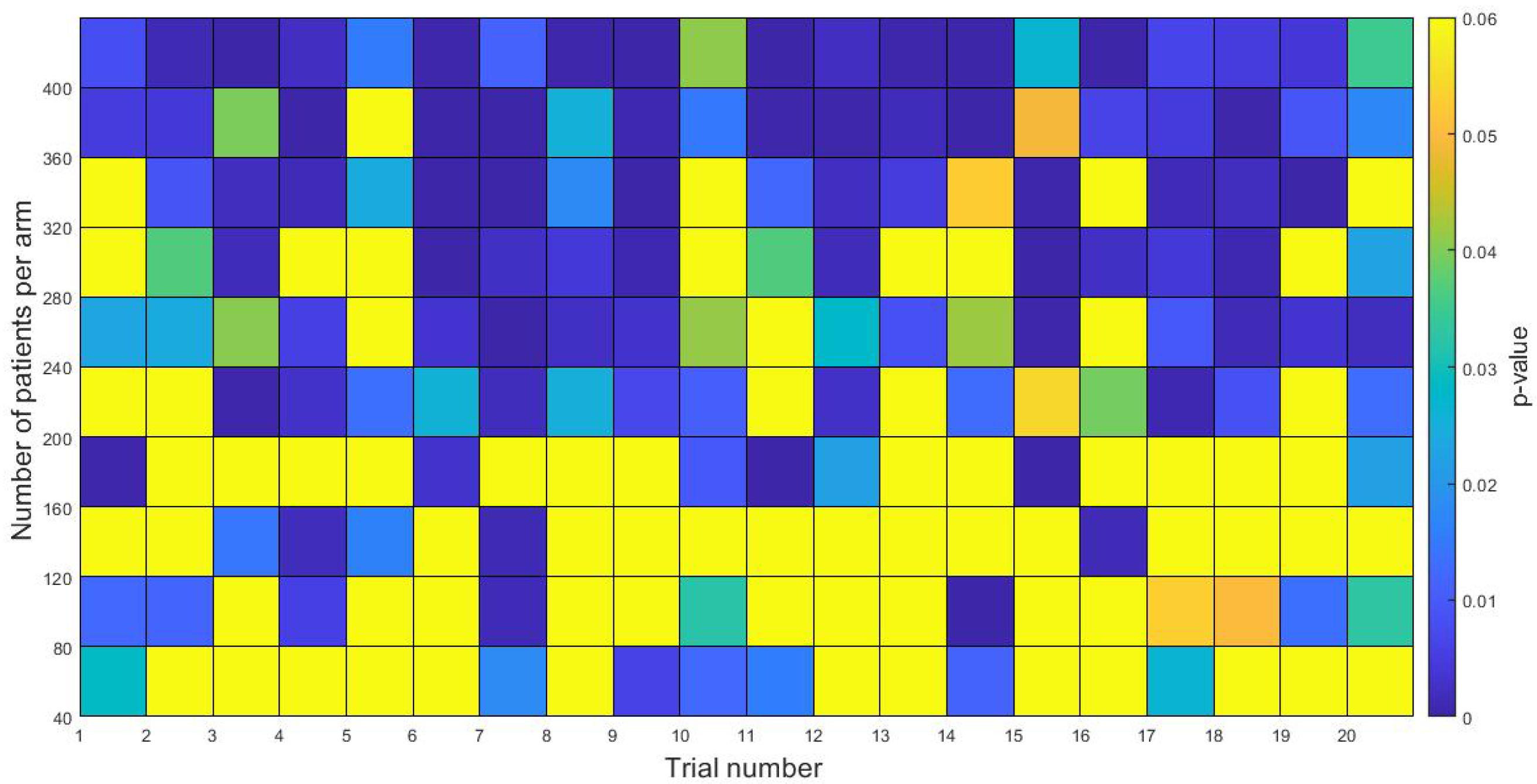

**Figure 10.**In-silico studies comparing the KM survival curves for virtual patients with a followup period of 15 years treated according to RTOG 0424 vs simultaneous RT+TMZ. The pseudocolor plot shows the p-values for each trial as the number of patients per arm is increased. For a patient population greater than 720 (360 per arm) the probability of finding statistically significant differences between curves is $\ge 95\%$.

**Table 1.**Patients included in the study. Patient 36 was the only one treated with concurrent RT and TMZ. Patient 151 received RT and 11 years later TMZ. The meaning of the abbreviations used in the table can be found at the end of this document.

ID | Age at Diagnosis | Sex | Histology | Treatment | Ki-67 Labeling Index (%) | ${\scriptstyle \#}$RT Sessions | ${\scriptstyle \#}$TMZ Cycles |
---|---|---|---|---|---|---|---|

10 | 48 | F | O | TMZ | 5 | - | 15 |

25 | 47 | M | O | TMZ | 5 | - | 4 |

36 | 40 | M | O | TMZ & RT | 3 | 35 | 13 |

40 | 30 | F | A | RT | 1 | 34 | - |

57 | 54 | M | O | TMZ | 4 | - | 10 |

66 | 28 | M | A | RT | NA | 30 | - |

91 | 34 | M | A | RT | NA | 30 | - |

105 | 33 | M | O | TMZ | 3 | - | 20 |

107 | 34 | M | A | RT | 3 | 30 | - |

108 | 46 | M | O | TMZ | 3 | - | 5 |

121 | 48 | M | A | RT | 3 | 35 | - |

124 | 27 | M | OA | RT | 3 | 35 | - |

151 | 58 | M | O | RT | 3 | 7 | - |

TMZ | 5 | - | 13 | ||||

159 | 46 | M | NA | TMZ | NA | - | 12 |

203 | 51 | M | O | TMZ | 6 | - | 10 |

213 | 58 | F | O | TMZ | 3 | - | 20 |

234 | 44 | M | A | RT | 2 | 30 | - |

Parameter | Description | Value | Sources |
---|---|---|---|

c | Standard dose per day | 150 mg/m${}^{2}$ | [26] |

b | Patient body surface | 1.9 m${}^{2}$ (men) | [41] |

1.6 m${}^{2}$ (women) | [41] | ||

$\gamma $ | Fraction of TMZ reaching | 2.1$\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}$${10}^{-6}/$mL (men) | [25] |

the brain interstitium | $2.5\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}{10}^{-6}/$mL (women) | [42] | |

${t}_{1/2}$ | TMZ half-life clearance time | ≃2 h | [43] |

$\lambda $ | Rate of TMZ decay | 0.3466/h | [25] |

**Table 3.**Parameter values obtained for the best fits of patients to Equation (1). Patient 151 was considered independently for each therapy. The units for the initial conditions and parameters are: for ${P}_{0}$ and ${Q}_{0}$, cm${}^{3}$; for Ki-67${}_{0}$$\to \%$; for $\rho $, ${\beta}_{1}$, ${\beta}_{2}$ and ${\beta}_{3}$, 1/day. Finally, ${\alpha}_{1}$ and ${\alpha}_{2}$ are measured in cm${}^{3}$/$(\mathsf{\mu}$g day). * Estimated values.

ID | #RT Sessions | #TMZ Cycles | ${\mathit{P}}_{0}$ | ${\mathit{Q}}_{0}$ | Ki-67${}_{0}$ | $\mathit{\rho}$ | ${\mathit{\beta}}_{1}$ | ${\mathit{\beta}}_{2}$ | ${\mathit{\beta}}_{3}$ | ${\mathit{S}}_{\mathit{q}}$ | ${\mathit{S}}_{\mathit{p}}$ | ${\mathit{\alpha}}_{1}$ | ${\mathit{\alpha}}_{2}$ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Radiotherapy + Temozolomide | |||||||||||||

36 | 35 | 13 | 2.7 | 87.6 | 3 | 0.023 | 1.5 | 0.046 | 0.0002 | 0.45 | 0.55 | 2.3 | 3.9 |

Radiotherapy | |||||||||||||

40 | 34 | - | 0.02 | 2.5 | 1 | 0.15 | 1 | 0.008 | 0.0011 | 0.32 | 0 | - | - |

66 | 30 | - | 0.64 | 20.9 | 3 * | 0.06 | 1.5 | 0.04 | 0.0001 | 0.39 | 0 | - | - |

91 | 30 | - | 0.8 | 39.5 | 2 * | 0.033 | 2.1 | 0.04 | 0.0008 | 0.16 | 0.04 | - | - |

107 | 30 | - | 1.3 | 42.8 | 3 | 0.092 | 1.08 | 0.03 | 0.0078 | 0.86 | 0 | - | - |

121 | 35 | - | 0.18 | 6 | 3 | 0.1 | 0.33 | 0.002 | ${\scriptstyle 1\times {10}^{-5}}$ | 0.1 | 0.7 | - | - |

124 | 35 | - | 0.08 | 2.8 | 3 | 0.013 | 0.87 | 0.02 | 0.004 | 0.01 | 0 | - | - |

151 | 7 | - | 0.86 | 27.9 | 3 | 0.01 | 1.3 | 0.04 | 0.01 | 0.94 | 0.09 | - | - |

234 | 30 | - | 1.2 | 6.9 | 2 | 0.032 | 1.6 | 0.04 | 0.0024 | 0.78 | 0 | - | - |

Temozolomide | |||||||||||||

10 | - | 15 | 2.2 | 43.6 | 5 | 0.01 | 3.5 | 0.184 | 0.0008 | - | - | 6.01 | 4.31 |

25 | - | 4 | 1.7 | 32.6 | 5 | 0.028 | 6.42 | 0.33 | 0.004 | - | - | 20 | 20 |

57 | - | 10 | 1.8 | 45.1 | 4 | 0.01 | 0.23 | 0.009 | 0.006 | - | - | 15 | 9.8 |

105 | - | 20 | 4.3 | 141.7 | 3 | 0.035 | 0.7 | 0.02 | 0.0018 | - | - | 2.8 | 6.5 |

108 | - | 5 | 0.4 | 15.2 | 3 | 0.04 | 10.6 | 0.32 | 0.003 | - | - | 45 | 3 |

151 | - | 13 | 1.7 | 33.5 | 5 | 0.012 | 0.53 | 0.02 | 0.0013 | - | - | 14.8 | 1 |

159 | - | 12 | 2 | 66.1 | 3 * | 0.012 | 3.5 | 0.1 | 0.004 | - | - | 11 | 6 |

203 | - | 10 | 1.7 | 27.2 | 6 | 0.059 | 1.6 | 0.098 | 0.021 | - | - | 8.2 | 0.37 |

213 | - | 20 | 0.7 | 23.1 | 3 | 0.011 | 4.7 | 0.14 | 0.0005 | - | - | 15.2 | 15.1 |

**Table 4.**Real (in black, see Table 3) and virtual (in blue) values of the parameters related to therapies and the numbers of TMZ cycles and RT sessions received for the patients included. ${\alpha}_{1}$ and ${\alpha}_{2}$ are measured in cm${}^{3}$/$(\mathsf{\mu}$g day). The final column corresponds to the overall survival gain (OSG) for each patient.

ID | #RT Sessions | #TMZ Cycles | ${\mathit{S}}_{\mathit{q}}$ | ${\mathit{S}}_{\mathit{p}}$ | ${\mathit{\alpha}}_{1}$ | ${\mathit{\alpha}}_{2}$ | OSG (Years) |
---|---|---|---|---|---|---|---|

10 | 30 | 15 | 0.28 | 0.47 | 6.01 | 4.31 | >10 |

25 | 30 | 4 | 0.1 | 0.65 | 20 | 20 | −1.2 |

36 | 35 | 13 | 0.45 | 0.55 | 2.3 | 3.9 | >10 |

40 | 34 | 12 | 0.32 | 0 | 34.6 | 14.9 | >10 |

57 | 30 | 10 | 0.68 | 0.69 | 15 | 9.8 | 8 |

66 | 30 | 12 | 0.39 | 0 | 30.3 | 1 | 8.7 |

91 | 30 | 12 | 0.16 | 0.04 | 7.7 | 18.3 | >10 |

105 | 30 | 20 | 0.51 | 0 | 2.8 | 6.5 | 4.7 |

107 | 30 | 12 | 0.86 | 0 | 30.3 | 3.7 | 0.4 |

108 | 30 | 5 | 0.2 | 0.48 | 45 | 3 | 2.9 |

121 | 35 | 12 | 0.1 | 0.7 | 10.3 | 10 | >10 |

124 | 35 | 12 | 0.01 | 0 | 14.1 | 13.7 | >10 |

151 | 7 | 12 | 0.94 | 0.09 | 5.5 | 1.4 | 0.26 |

151 | 30 | 13 | 0.83 | 0.24 | 14.8 | 1 | 1.9 |

159 | 30 | 12 | 0.18 | 0.17 | 11 | 6 | >10 |

203 | 30 | 10 | 0.6 | 0.27 | 8.2 | 0.37 | 1.4 |

213 | 30 | 20 | 0.36 | 0.41 | 15.2 | 15.1 | >10 |

234 | 30 | 12 | 0.78 | 0 | 2.5 | 15.6 | 3.1 |
